Will You Still Compile Me Tomorrow Will You Still Compile Me Tomorrow? ? Static Static Cross Cross- -Version Compiler Version Compiler Validation Validation Chris Hawblitzel, Shuvendu K. Lahiri (Microsoft Research) Kshama Pawar, Hammad Hashmi, Sedar Gokbulut, Lakshan Fernando, Dave Detlefs, Scott Wadsworth (Microsoft CLR Test Team)

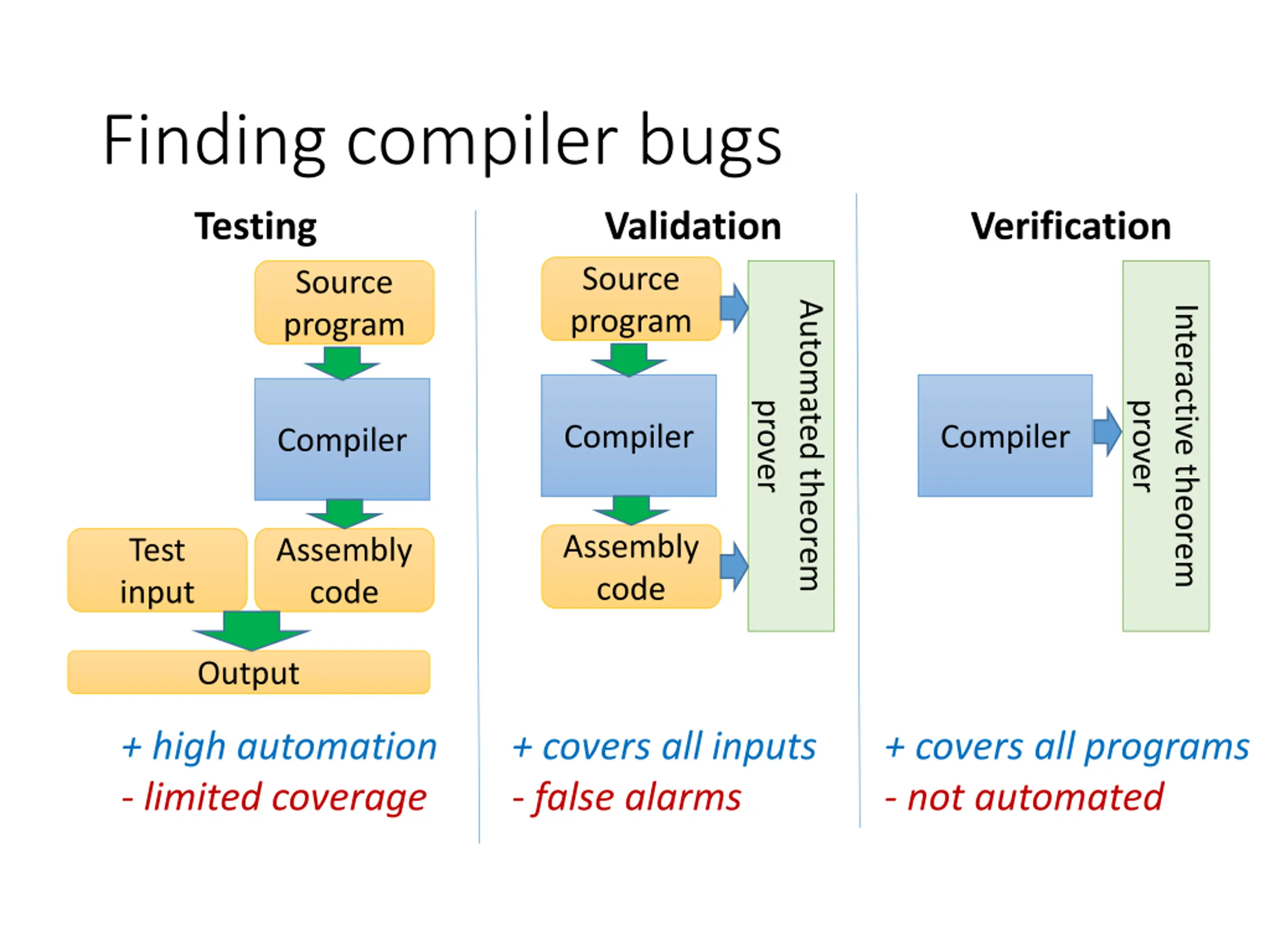

Finding compiler bugs Testing Validation Verification Source program Source program Automated theorem Interactive theorem prover prover Compiler Compiler Compiler Assembly code Test input Assembly code Output + covers all inputs - false alarms + covers all programs - not automated + high automation - limited coverage

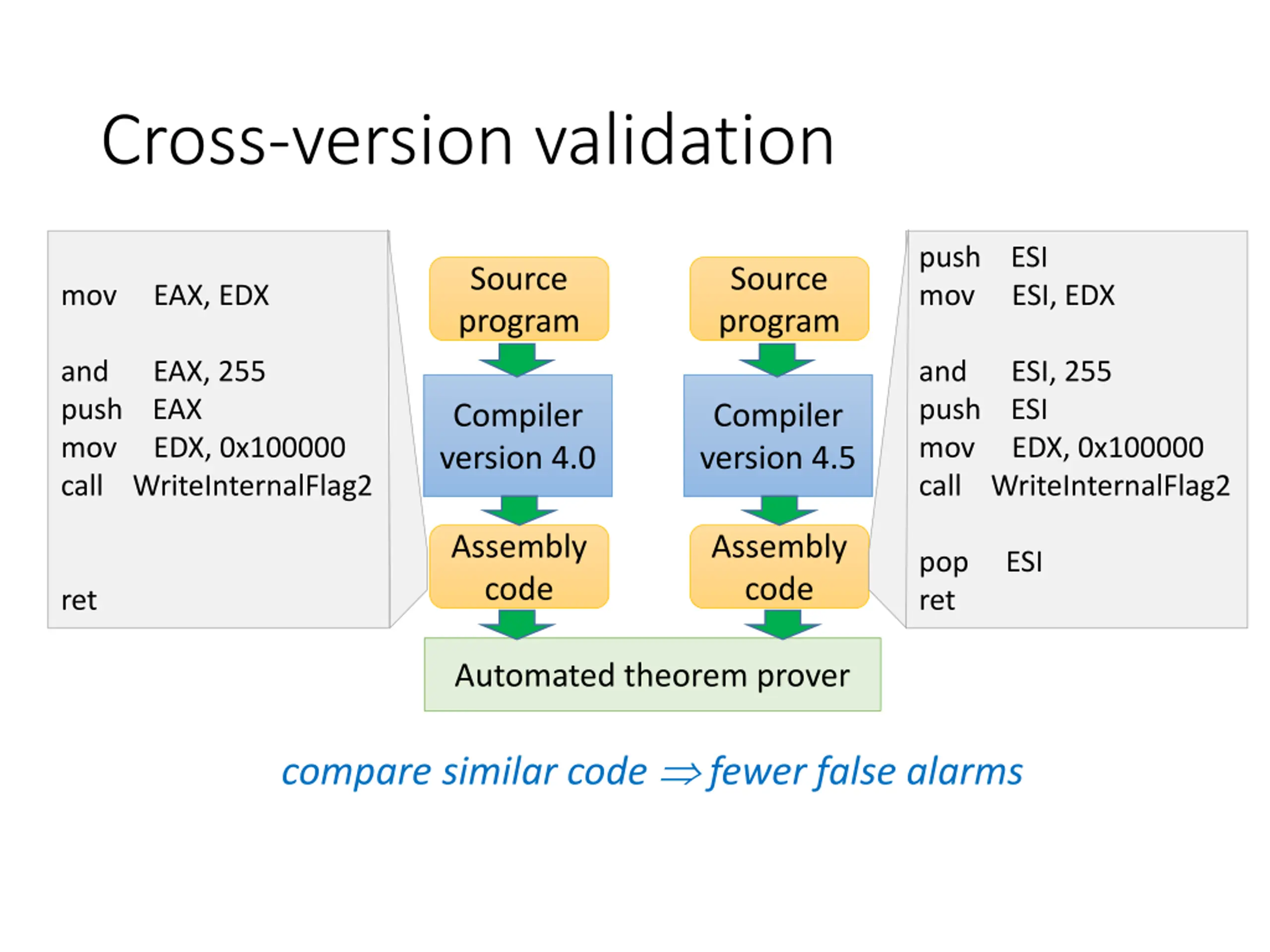

Cross-version validation push ESI mov ESI, EDX Source program Source program mov EAX, EDX and EAX, 255 push EAX mov EDX, 0x100000 call WriteInternalFlag2 and ESI, 255 push ESI mov EDX, 0x100000 call WriteInternalFlag2 Compiler version 4.0 Compiler version 4.5 Assembly code Assembly code pop ESI ret ret Automated theorem prover compare similar code fewer false alarms

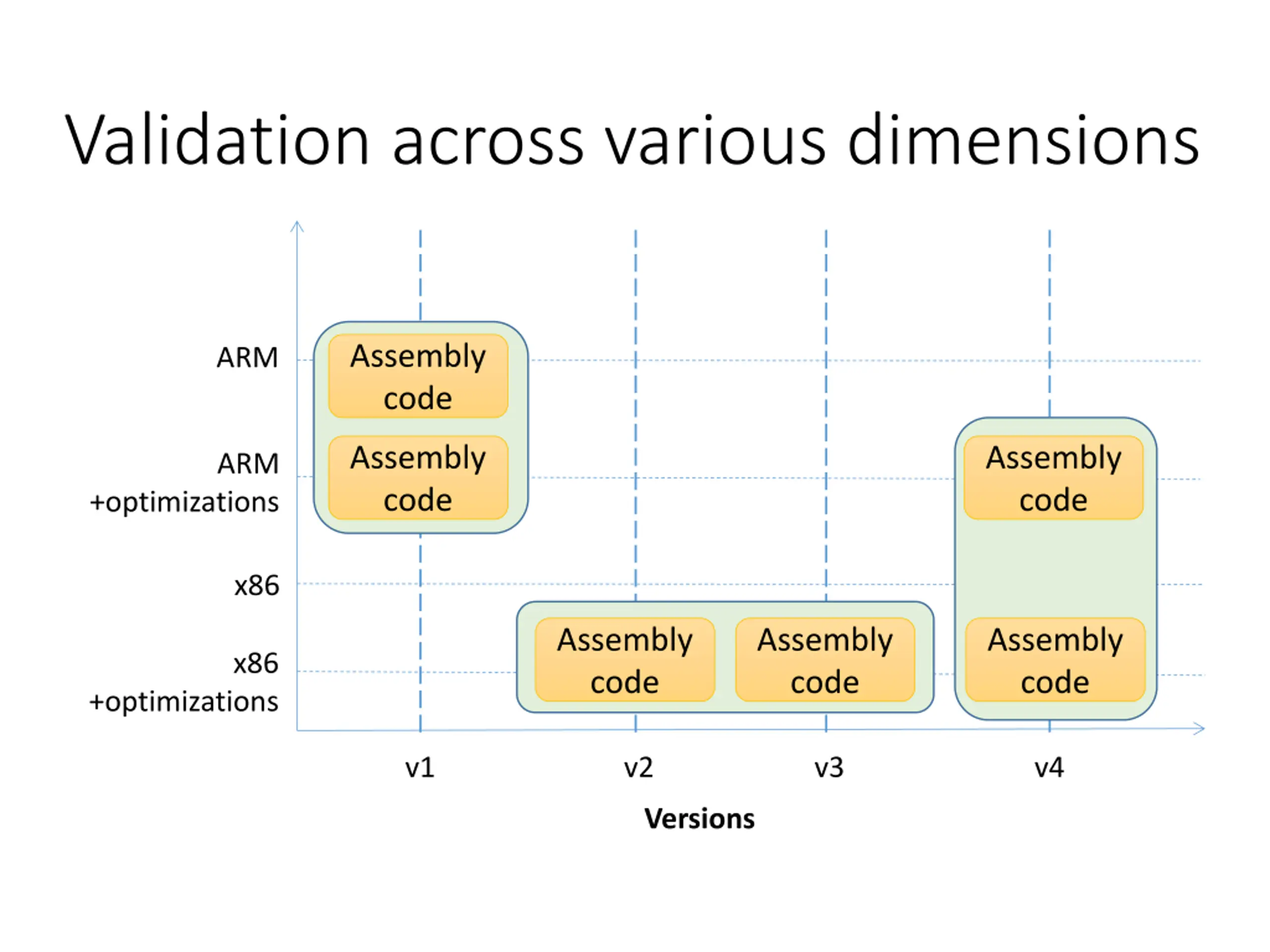

Validation across various dimensions Assembly code ARM Assembly code Assembly code ARM +optimizations x86 Assembly code Assembly code Assembly code x86 +optimizations v1 v2 v3 v4 Versions

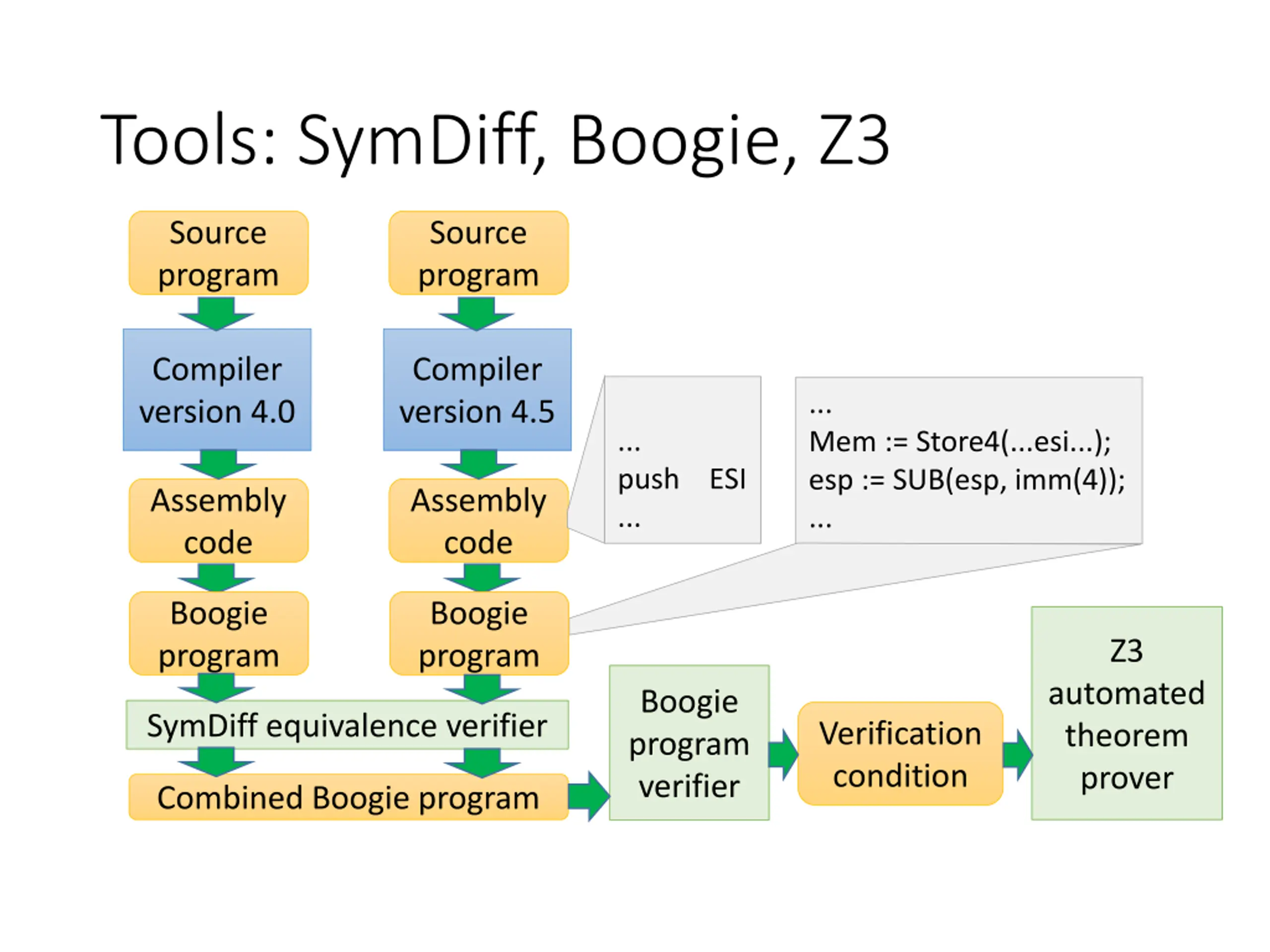

Tools: SymDiff, Boogie, Z3 Source program Source program Compiler version 4.0 Compiler version 4.5 ... Mem := Store4(...esi...); esp := SUB(esp, imm(4)); ... ... push ESI ... Assembly code Assembly code Boogie program Boogie program Z3 automated theorem prover Boogie program verifier SymDiff equivalence verifier Verification condition Combined Boogie program

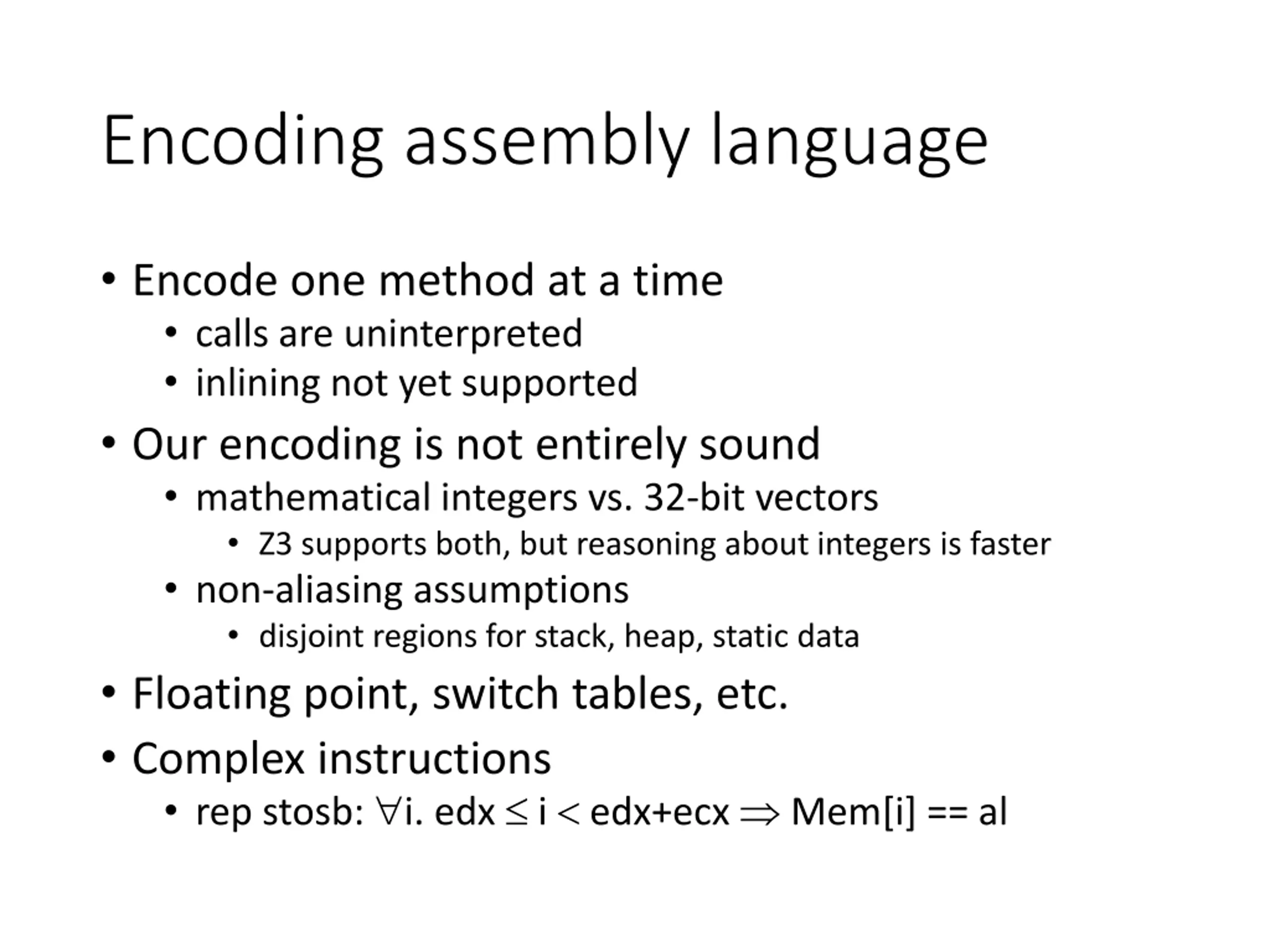

Encoding assembly language Encode one method at a time calls are uninterpreted inlining not yet supported Our encoding is not entirely sound mathematical integers vs. 32-bit vectors Z3 supports both, but reasoning about integers is faster non-aliasing assumptions disjoint regions for stack, heap, static data Floating point, switch tables, etc. Complex instructions rep stosb: i. edx i edx+ecx Mem[i] == al

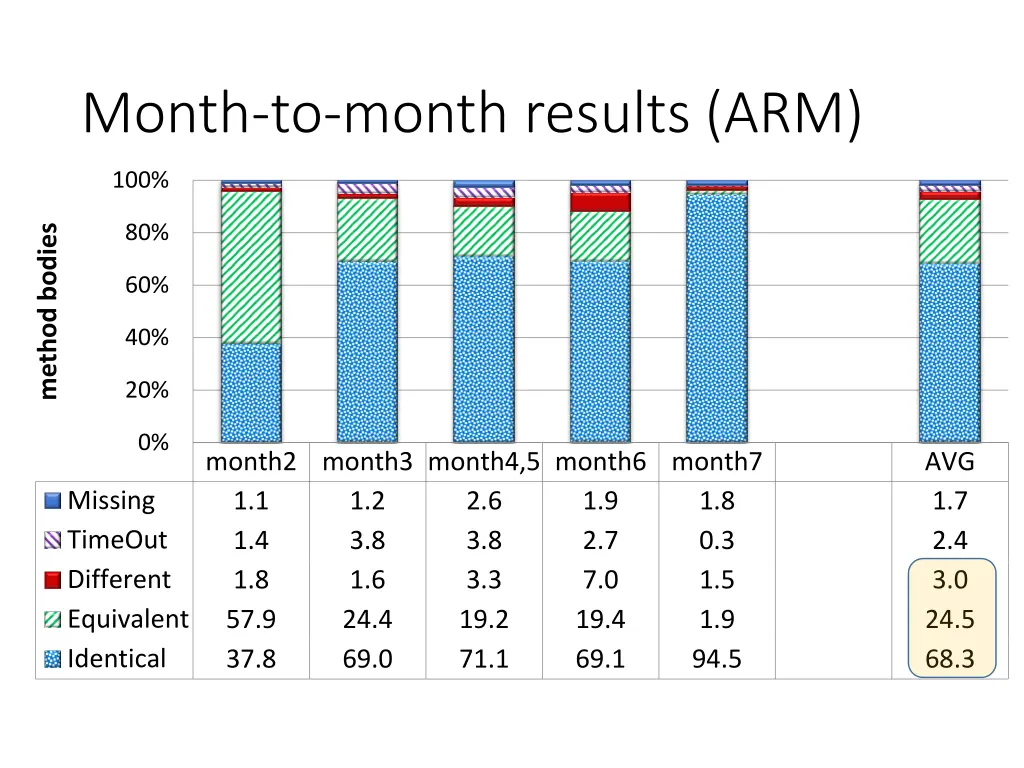

Month-to-month results (ARM) 100% 80% method bodies 60% 40% 20% 0% month2 month3 month4,5 month6 month7 1.1 1.2 2.6 1.4 3.8 3.8 1.8 1.6 3.3 57.9 24.4 19.2 37.8 69.0 71.1 AVG 1.7 2.4 3.0 24.5 68.3 Missing TimeOut Different Equivalent Identical 1.9 2.7 7.0 19.4 69.1 1.8 0.3 1.5 1.9 94.5

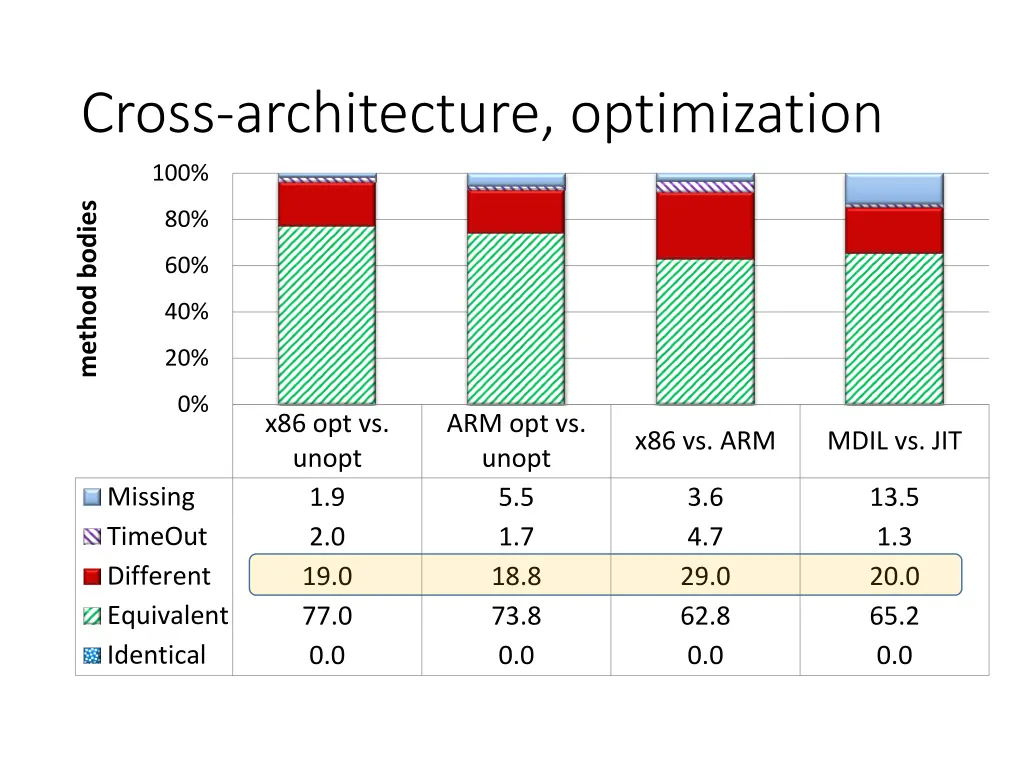

Cross-architecture, optimization 100% method bodies 80% 60% 40% 20% 0% x86 opt vs. unopt 1.9 2.0 19.0 77.0 0.0 ARM opt vs. unopt 5.5 1.7 18.8 73.8 0.0 x86 vs. ARM MDIL vs. JIT Missing TimeOut Different Equivalent Identical 3.6 4.7 29.0 62.8 0.0 13.5 1.3 20.0 65.2 0.0

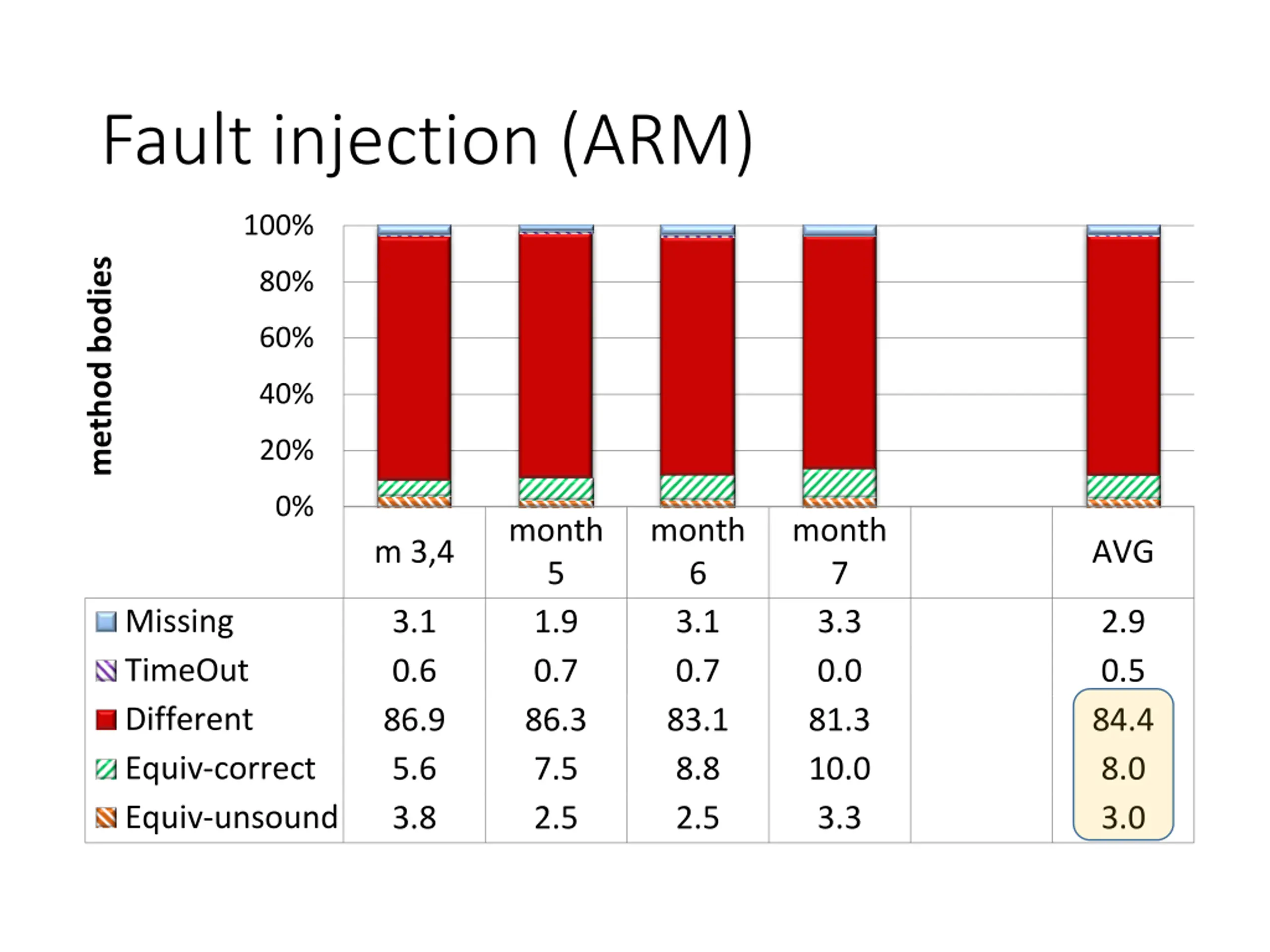

Fault injection (ARM) 100% method bodies 80% 60% 40% 20% 0% month 5 1.9 0.7 86.3 7.5 2.5 month 6 3.1 0.7 83.1 8.8 2.5 month 7 3.3 0.0 81.3 10.0 3.3 m 3,4 AVG Missing TimeOut Different Equiv-correct Equiv-unsound 3.1 0.6 86.9 5.6 3.8 2.9 0.5 84.4 8.0 3.0

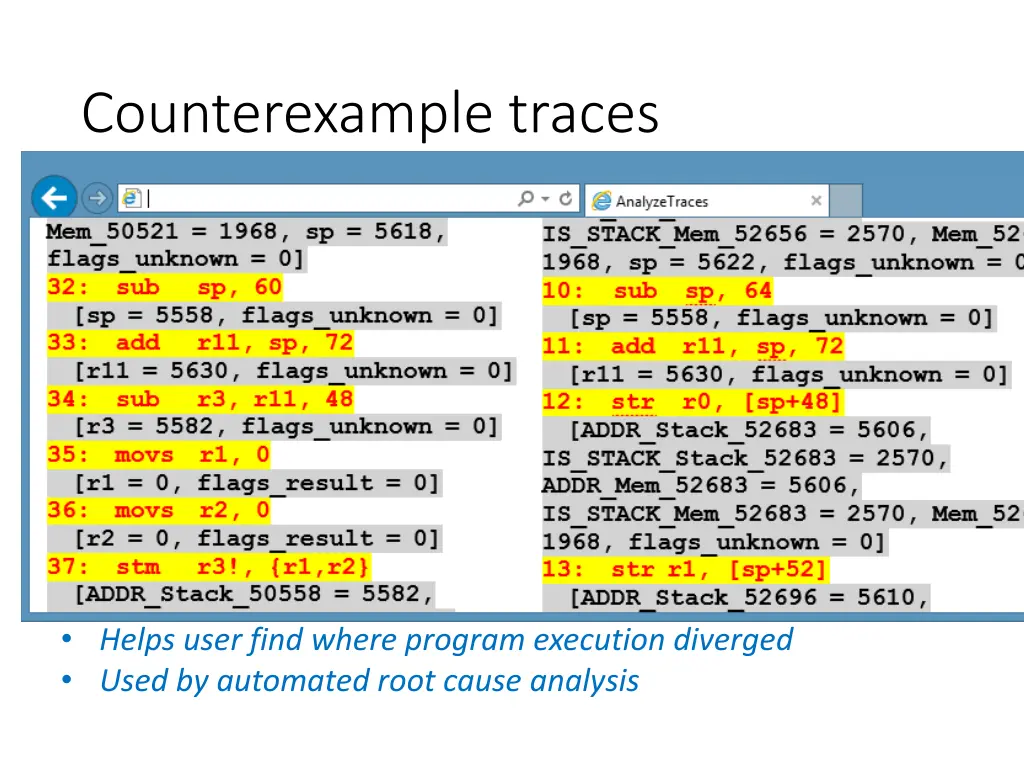

Counterexample traces Helps user find where program execution diverged Used by automated root cause analysis

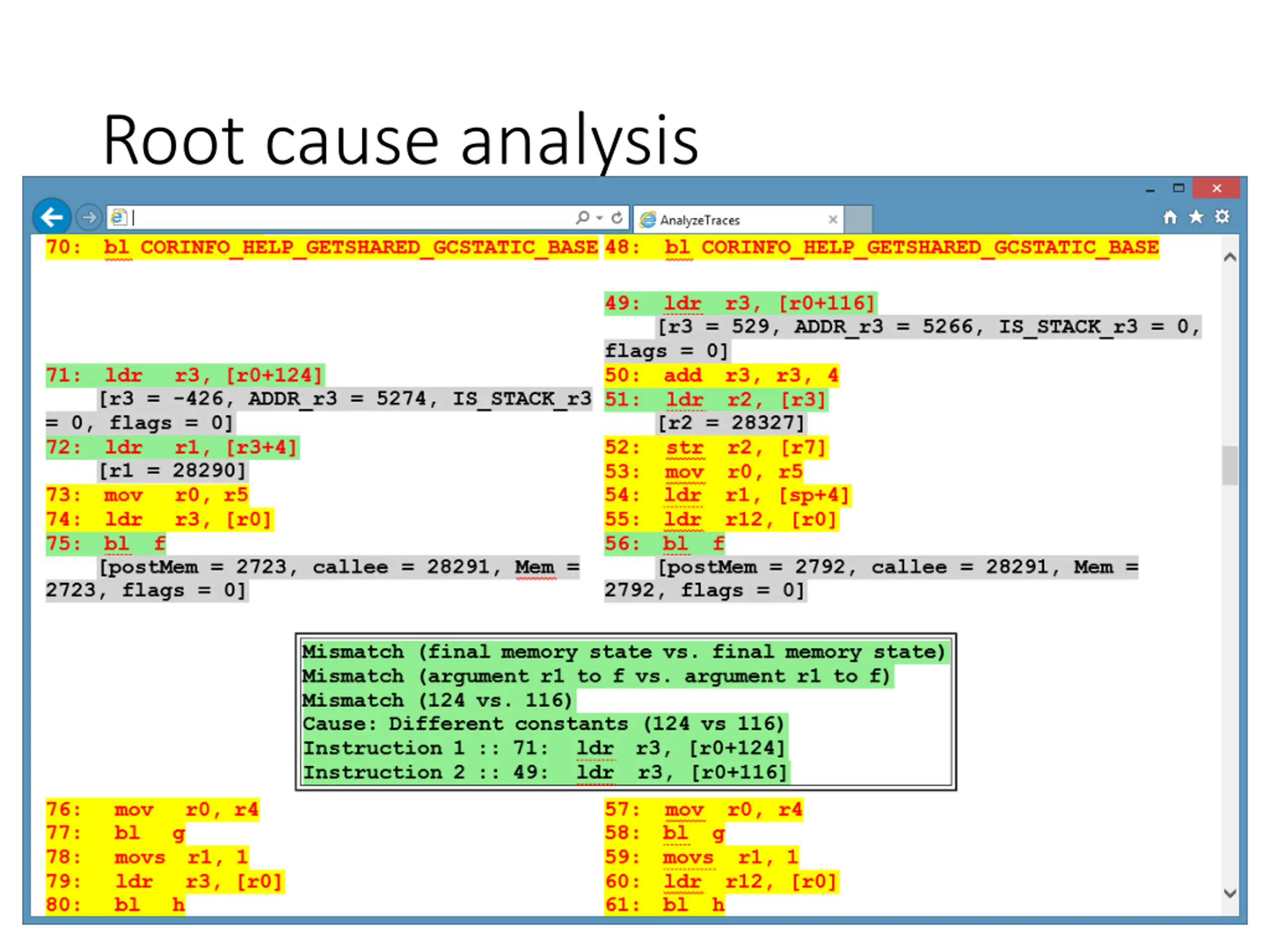

Bucketing Based on root cause analysis Users write bucket descriptions

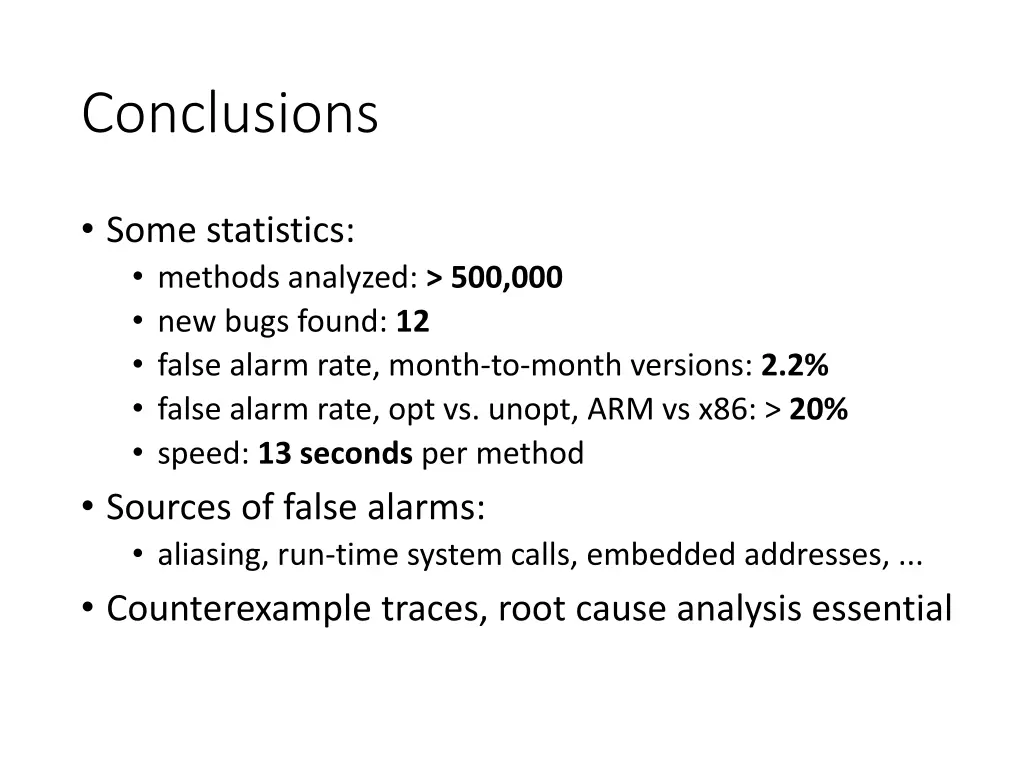

Conclusions Some statistics: methods analyzed: > 500,000 new bugs found: 12 false alarm rate, month-to-month versions: 2.2% false alarm rate, opt vs. unopt, ARM vs x86: > 20% speed: 13 seconds per method Sources of false alarms: aliasing, run-time system calls, embedded addresses, ... Counterexample traces, root cause analysis essential
