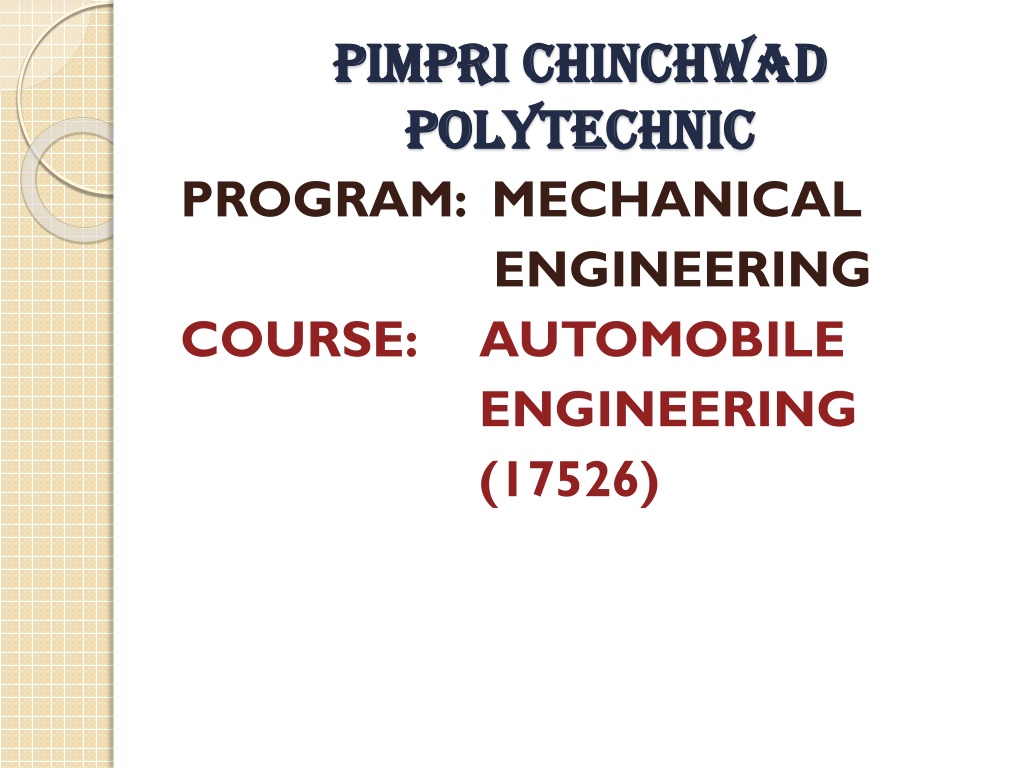

PIMPRI CHINCHWAD PIMPRI CHINCHWAD POLYTECHNIC POLYTECHNIC PROGRAM: MECHANICAL ENGINEERING COURSE: AUTOMOBILE ENGINEERING (17526)
5.Eletrical systems. CO501.1: Identify various components of Automobile. C501.4 : Describe battery constructional details, charging system, starting system, lighting system.
Function of battery: Battery supplies the current for cranking motor and ignition system when the engine is being cranked for starting. When the vehicle is stationary battery supplies electricity for operating the various electrical devices.

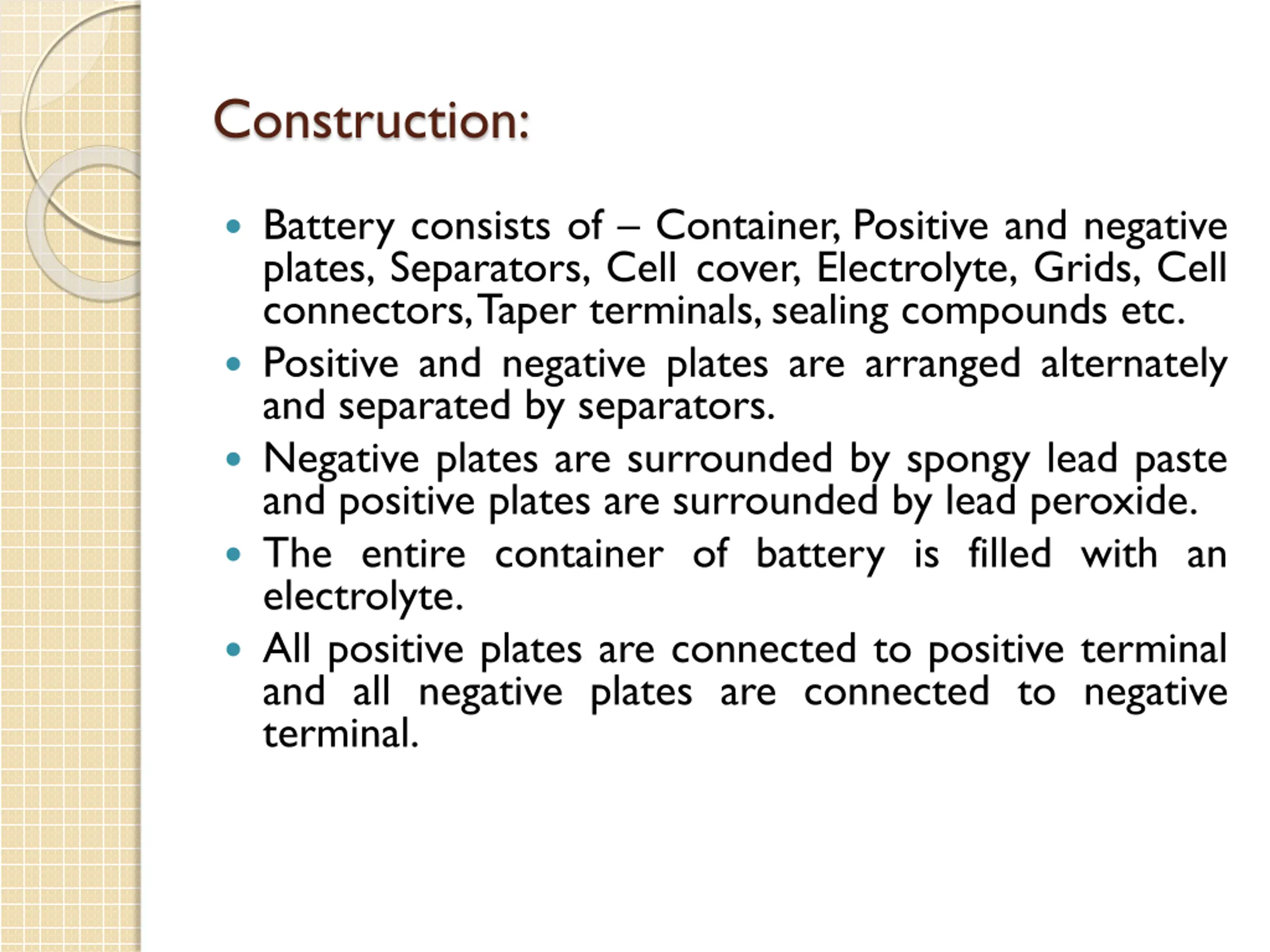

Construction: Battery consists of Container, Positive and negative plates, Separators, Cell cover, Electrolyte, Grids, Cell connectors,Taper terminals,sealing compounds etc. Positive and negative plates are arranged alternately and separated by separators. Negative plates are surrounded by spongy lead paste and positive plates are surrounded by lead peroxide. The entire container of battery is filled with an electrolyte. All positive plates are connected to positive terminal and all negative plates are connected to negative terminal.
Battery Testing Specific Gravity Test Open Volt Test High charge Test Cadmium test
Battery Rating Twenty Hour test Cold rating Twenty five ampere rate

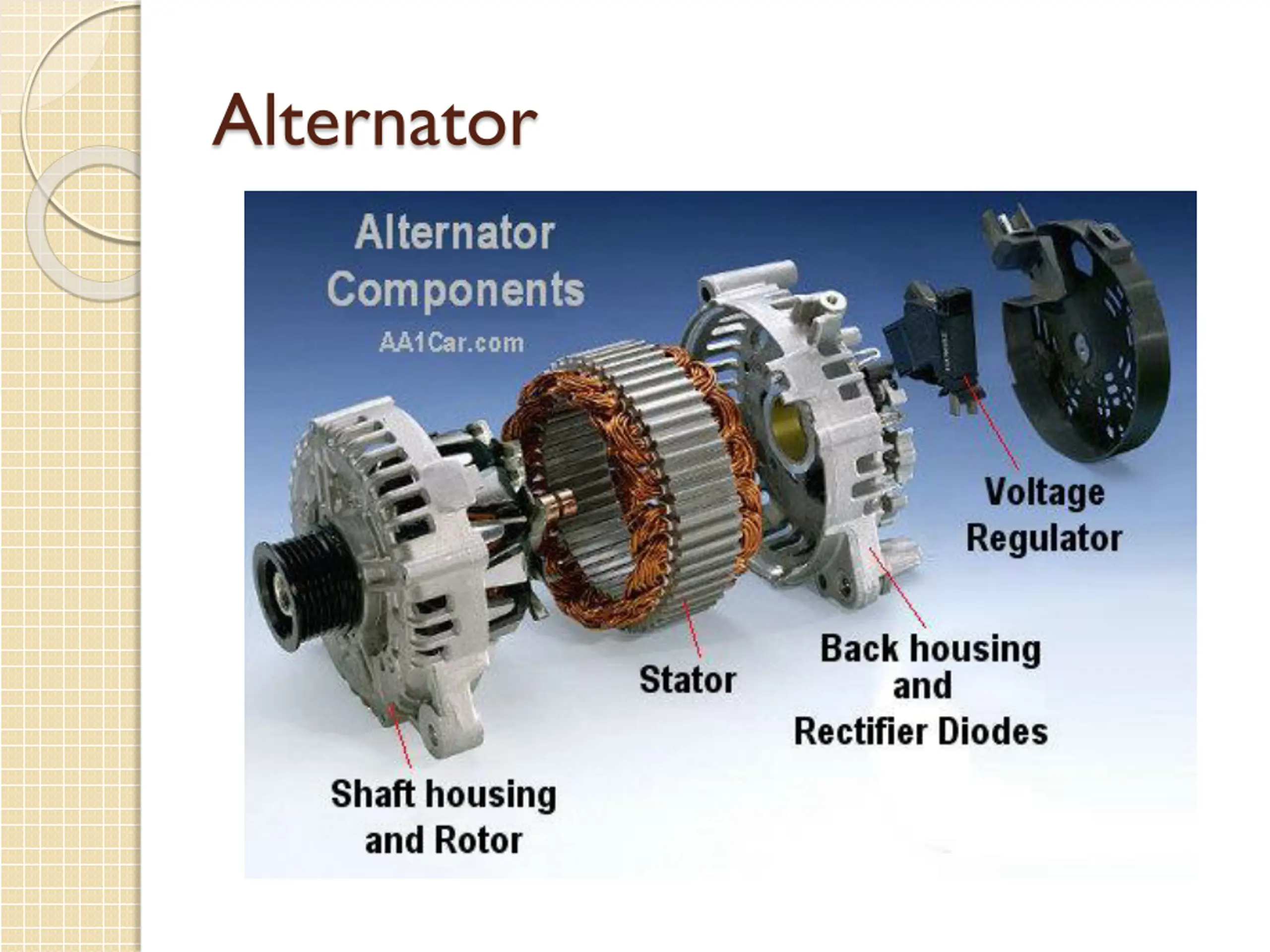

Electronic Ignition System Transistor Assisted contact system
Wiring System Colour codes used in wiring system: Brown: Battery & Generator circuit Yellow: Overdrive circuit White: Ignition circuit Green: Auxiliary circuit fed through ignition switch Blue: Head lamp circuit Red: Side and Tail lamp circuit Black: Earth circuits
