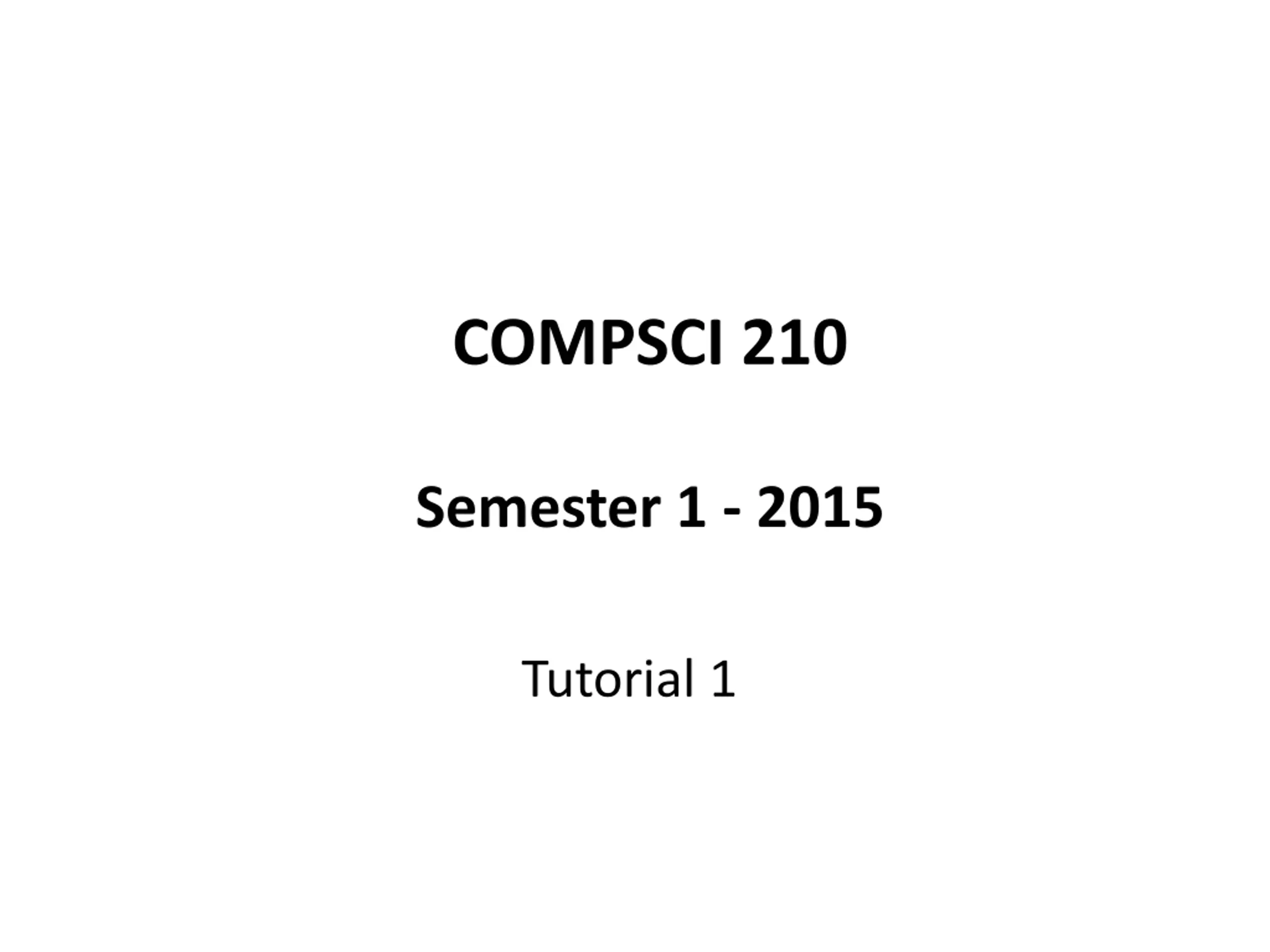

COMPSCI 210 Semester 1 - 2015 Tutorial 1

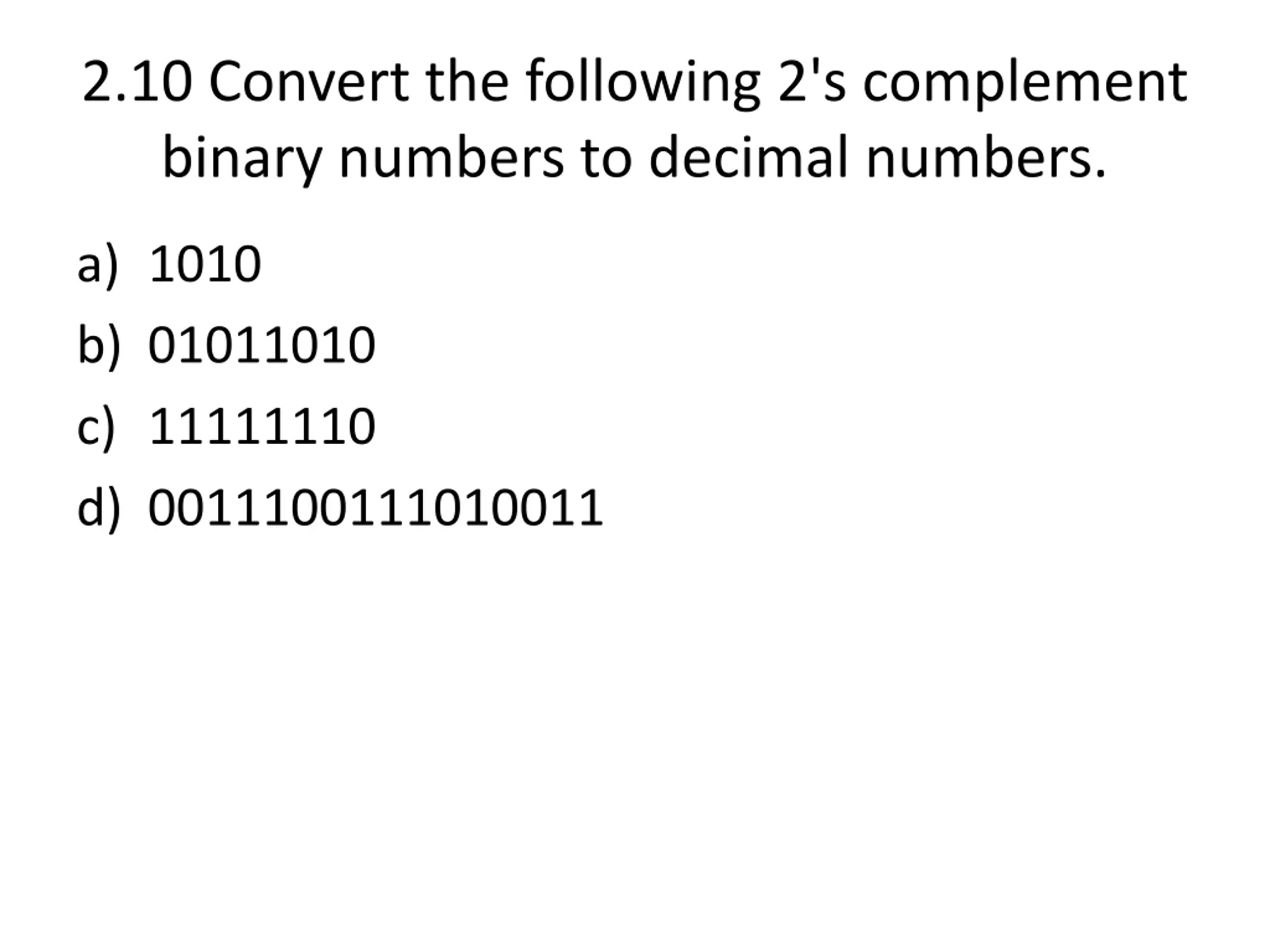

2.10 Convert the following 2's complement binary numbers to decimal numbers. a) 1010 b) 01011010 c) 11111110 d) 0011100111010011

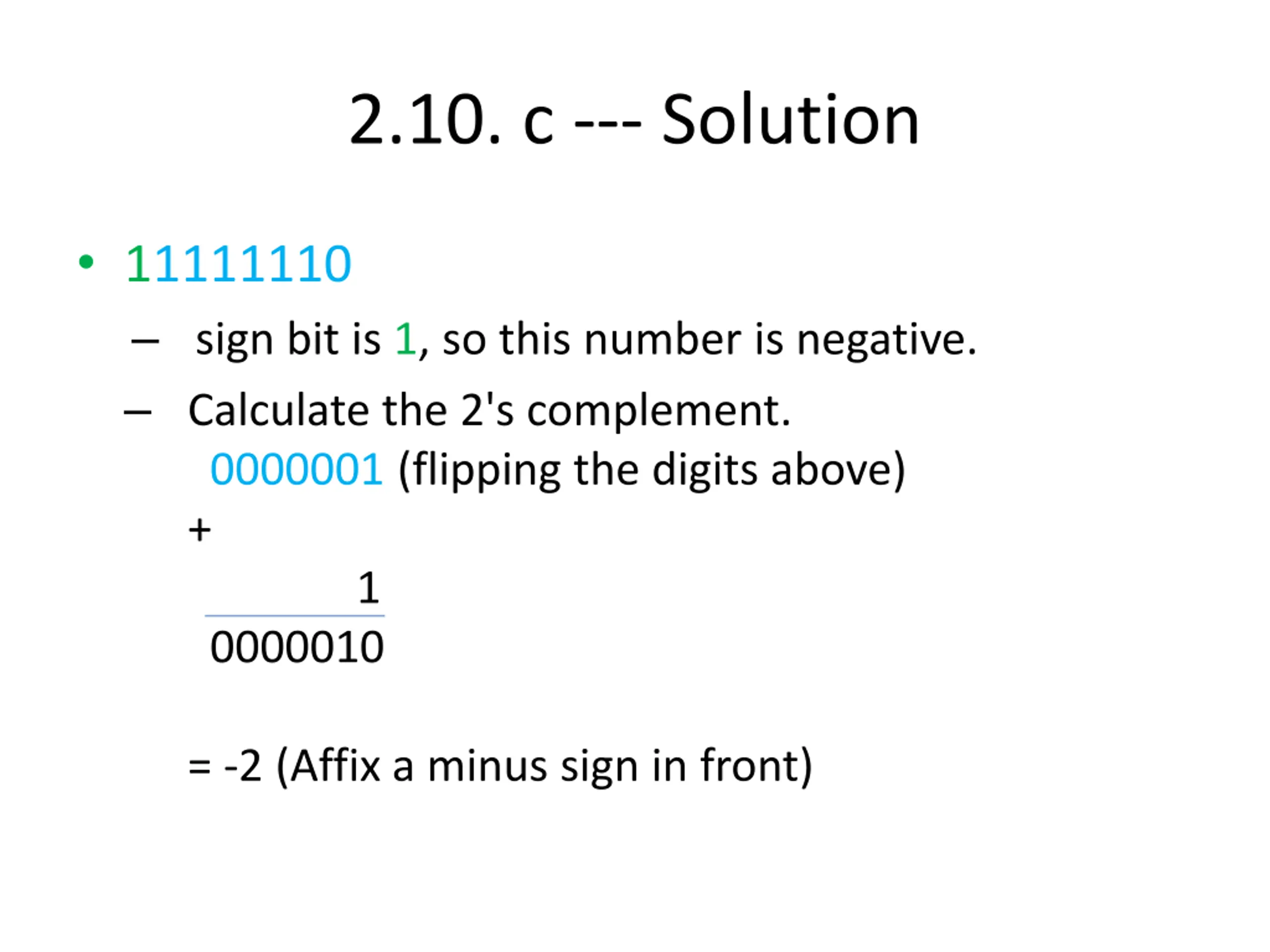

2.10. c --- Solution 11111110 sign bit is 1, so this number is negative. Calculate the 2's complement. 0000001 (flipping the digits above) + 1 0000010 = -2 (Affix a minus sign in front)

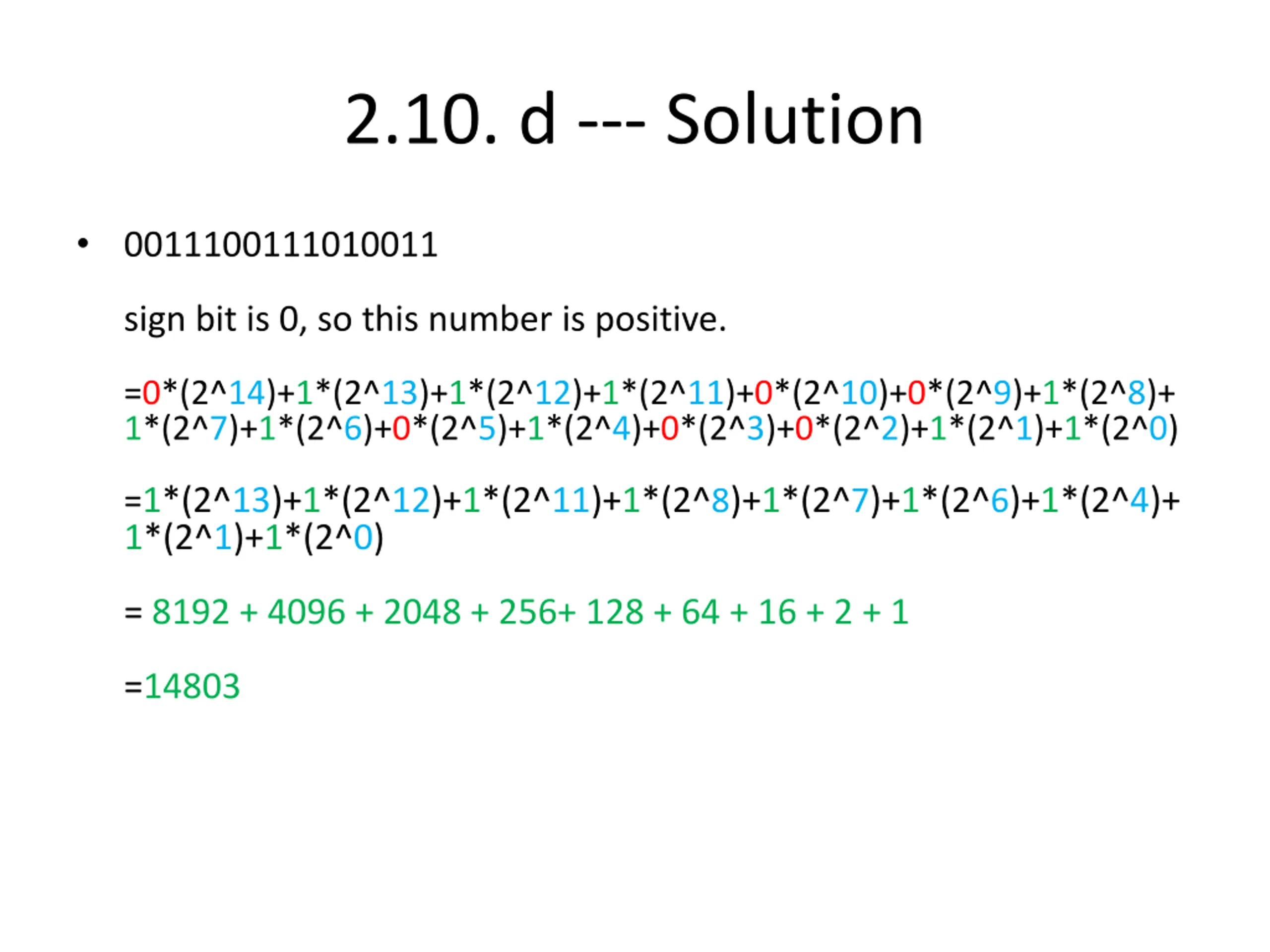

2.10. d --- Solution 0011100111010011 sign bit is 0, so this number is positive. =0*(2^14)+1*(2^13)+1*(2^12)+1*(2^11)+0*(2^10)+0*(2^9)+1*(2^8)+ 1*(2^7)+1*(2^6)+0*(2^5)+1*(2^4)+0*(2^3)+0*(2^2)+1*(2^1)+1*(2^0) =1*(2^13)+1*(2^12)+1*(2^11)+1*(2^8)+1*(2^7)+1*(2^6)+1*(2^4)+ 1*(2^1)+1*(2^0) = 8192 + 4096 + 2048 + 256+ 128 + 64 + 16 + 2 + 1 =14803

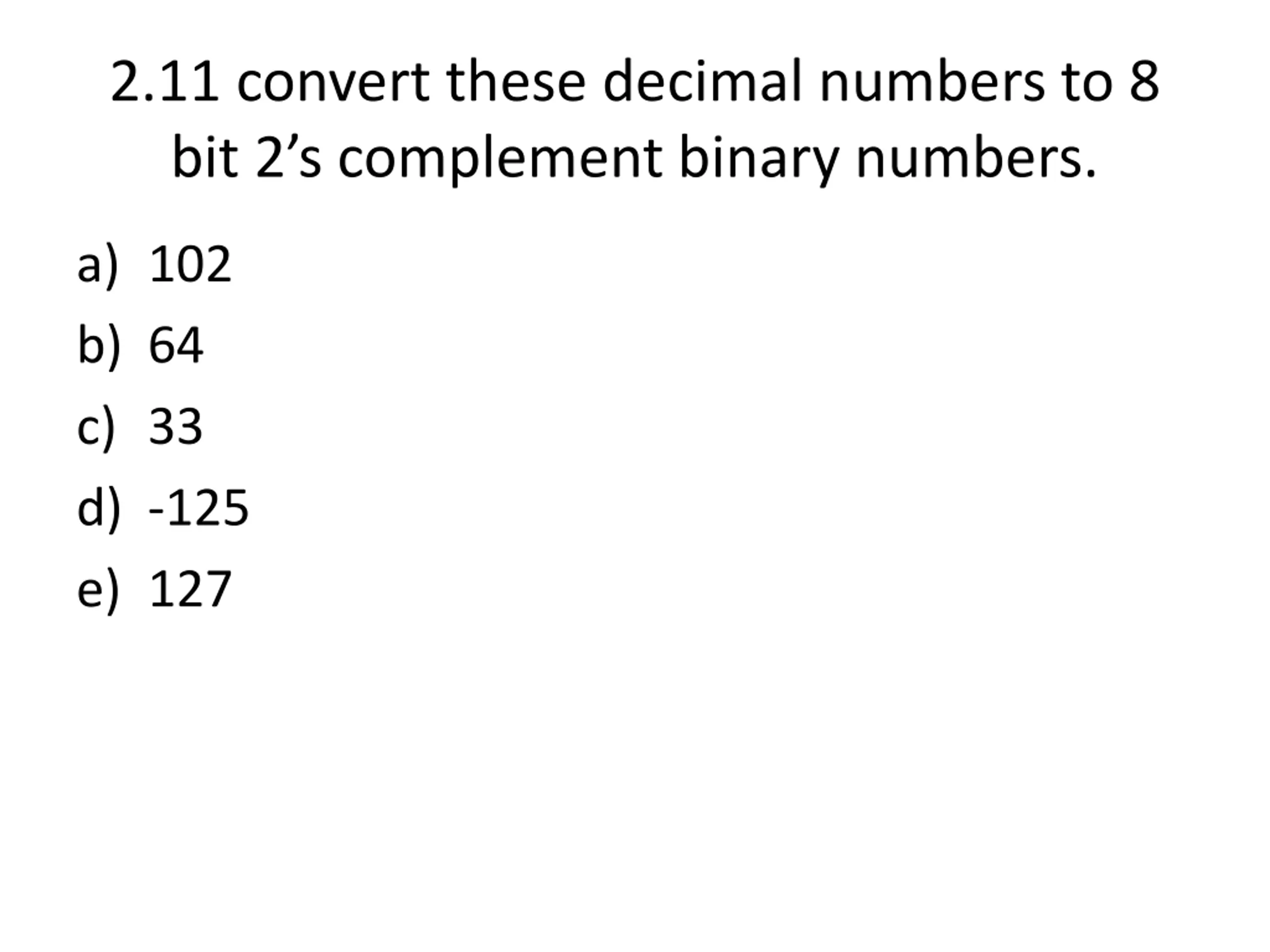

2.11 convert these decimal numbers to 8 bit 2 s complement binary numbers. a) 102 b) 64 c) 33 d) -125 e) 127

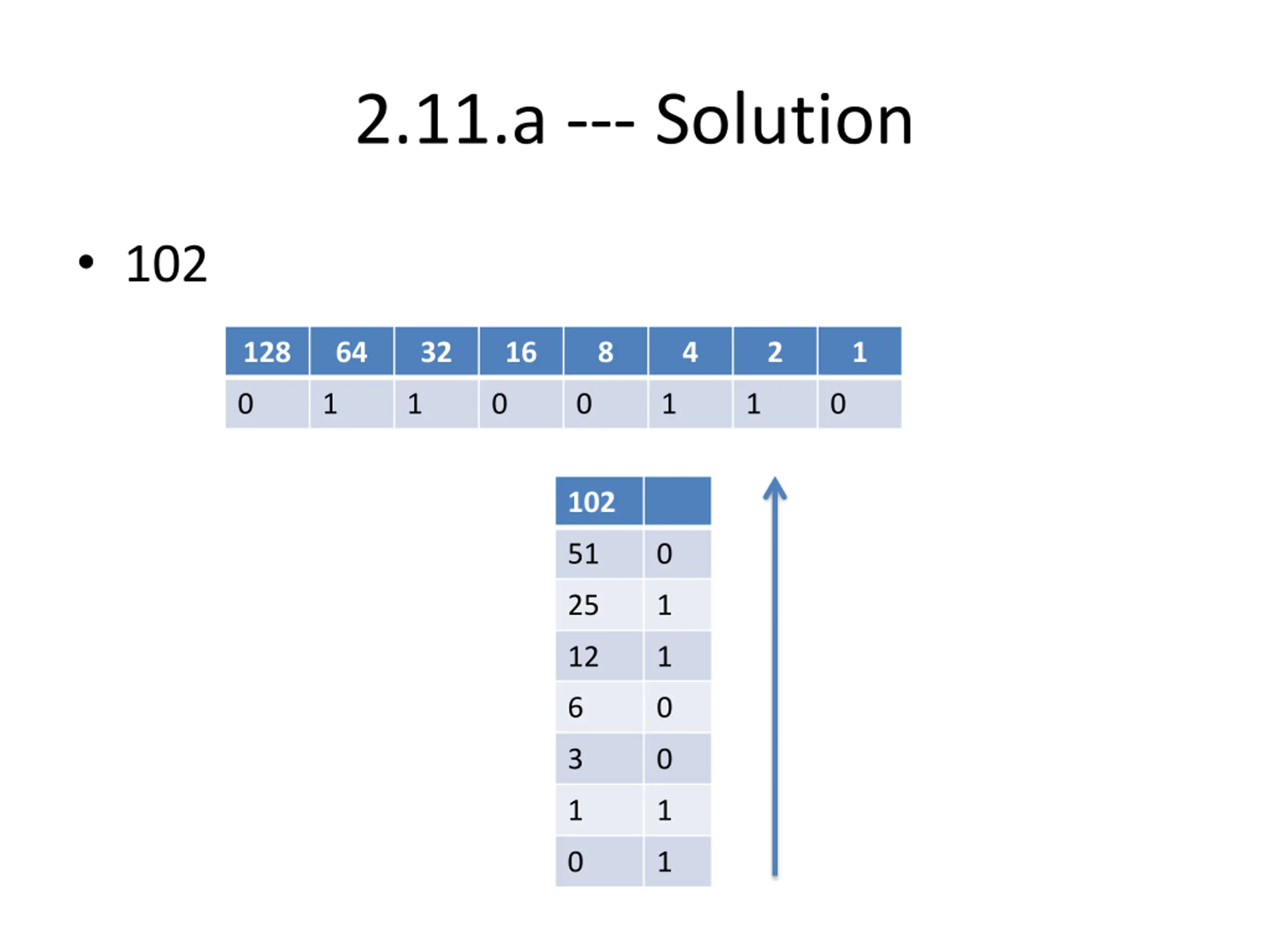

2.11.a --- Solution 102 128 64 32 16 8 4 2 1 0 1 1 0 0 1 1 0 102 51 0 25 1 12 1 6 0 3 0 1 1 0 1

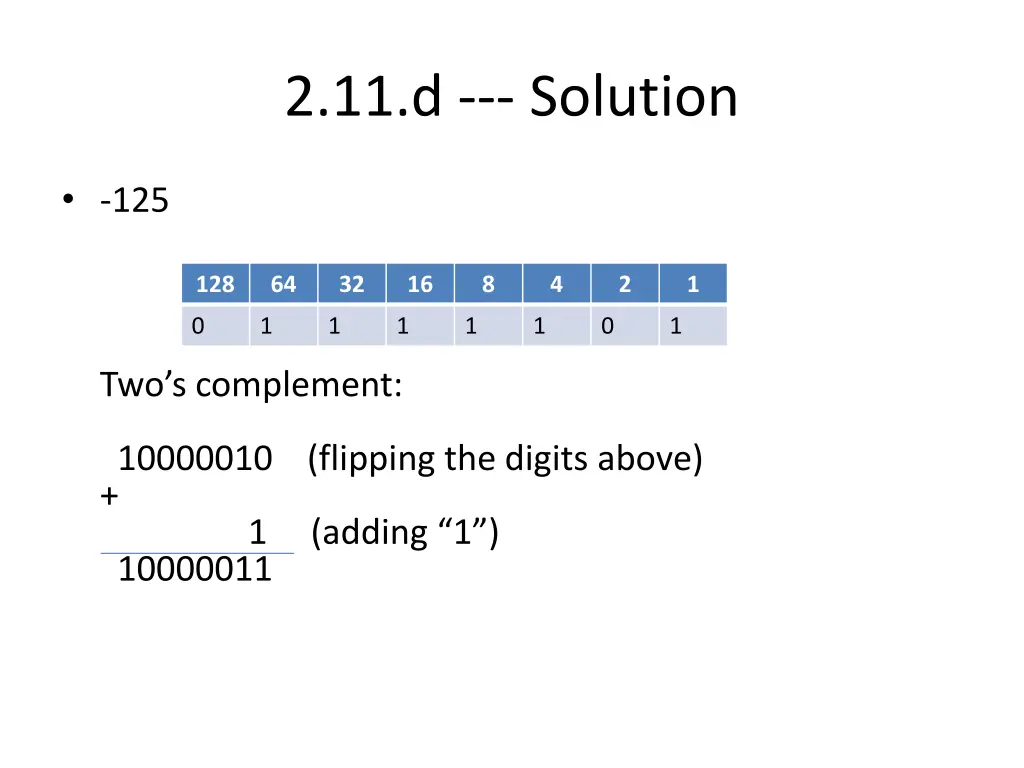

2.11.d --- Solution -125 128 64 32 16 8 4 2 1 0 1 1 1 1 1 0 1 Two s complement: 10000010 (flipping the digits above) + 1 (adding 1 ) 10000011

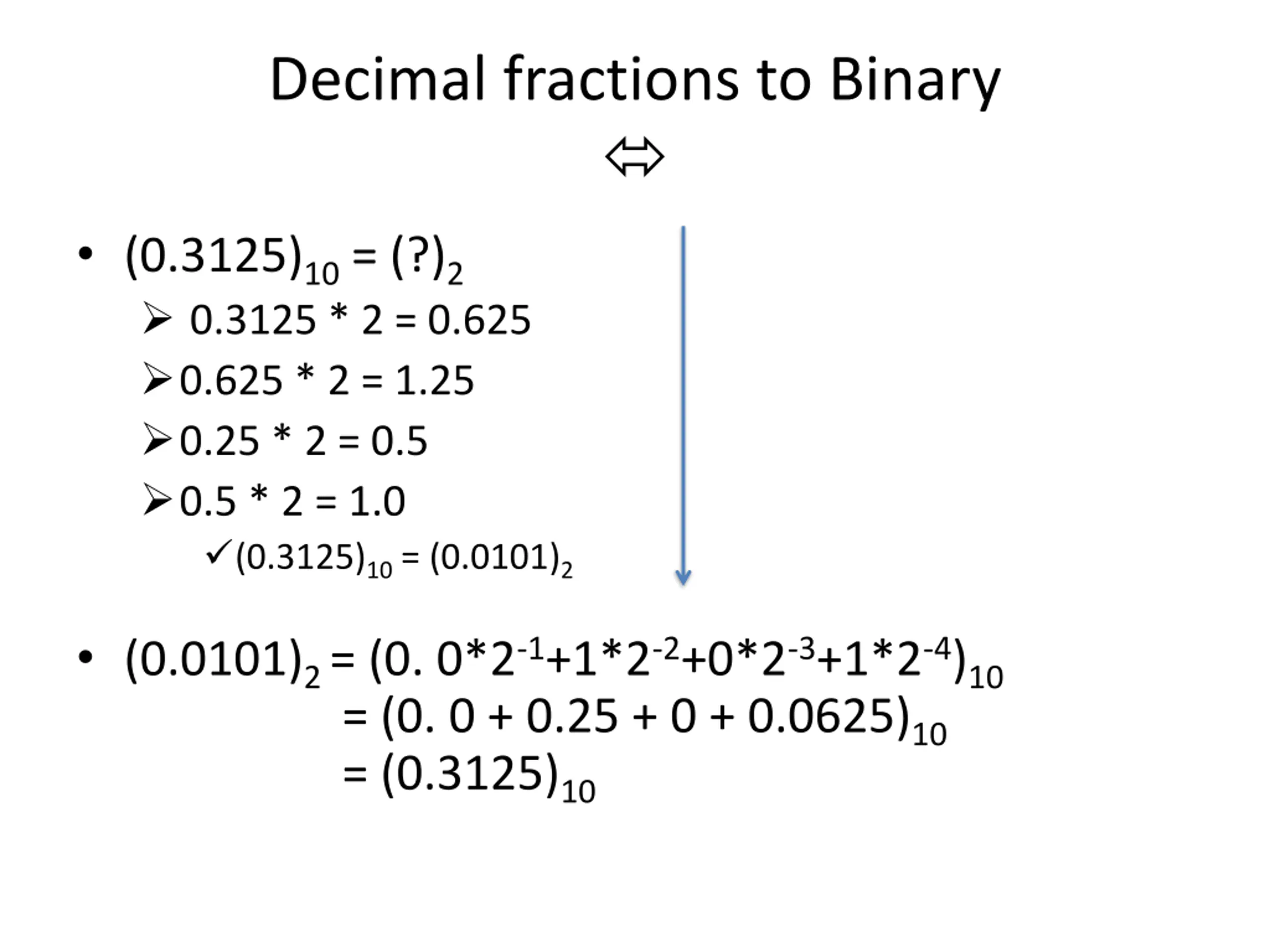

Decimal fractions to Binary (0.3125)10= (?)2 0.3125 * 2 = 0.625 0.625 * 2 = 1.25 0.25 * 2 = 0.5 0.5 * 2 = 1.0 (0.3125)10= (0.0101)2 (0.0101)2 = (0. 0*2-1+1*2-2+0*2-3+1*2-4)10 = (0. 0 + 0.25 + 0 + 0.0625)10 = (0.3125)10

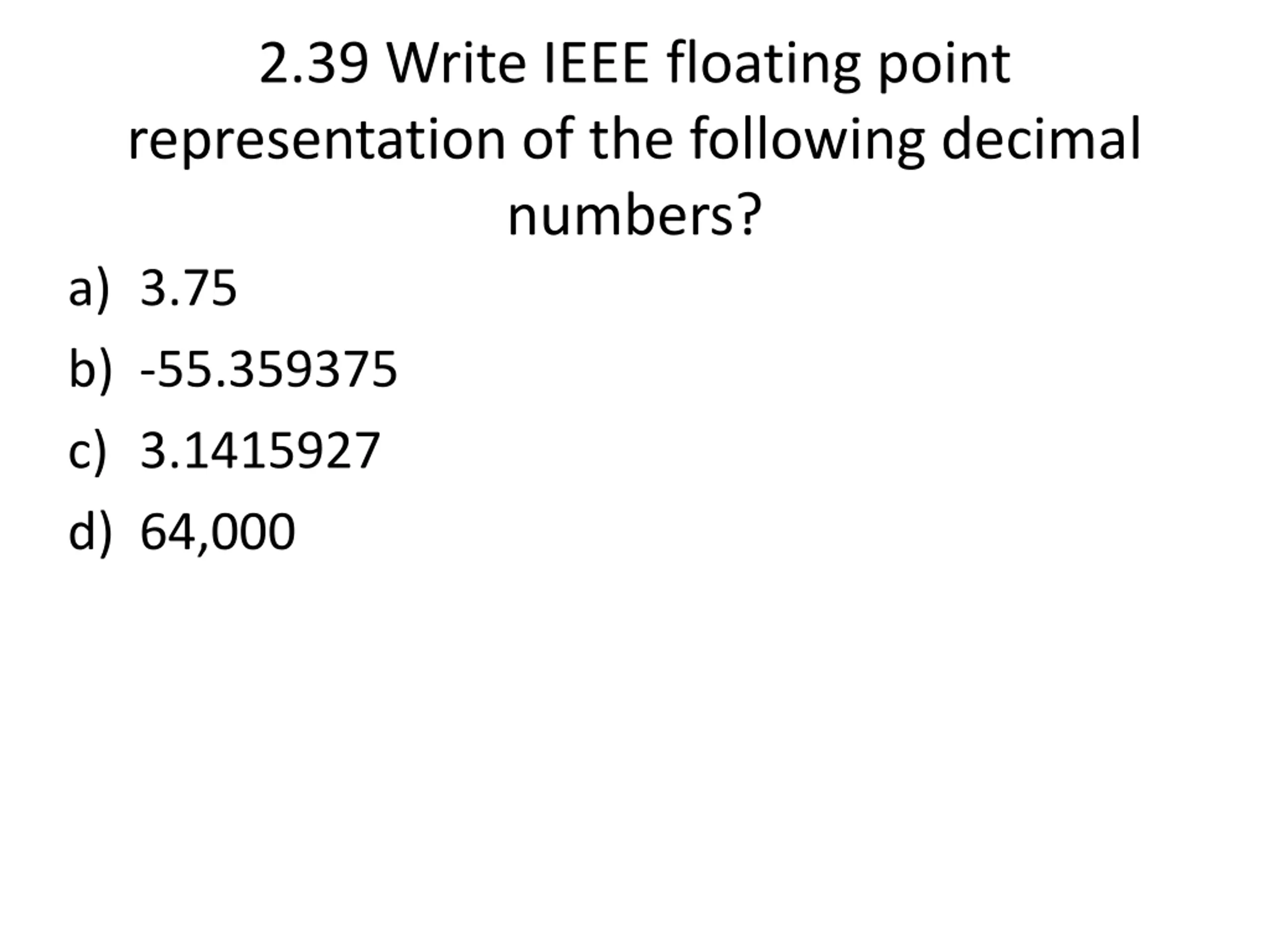

2.39 Write IEEE floating point representation of the following decimal numbers? a) 3.75 b) -55.359375 c) 3.1415927 d) 64,000

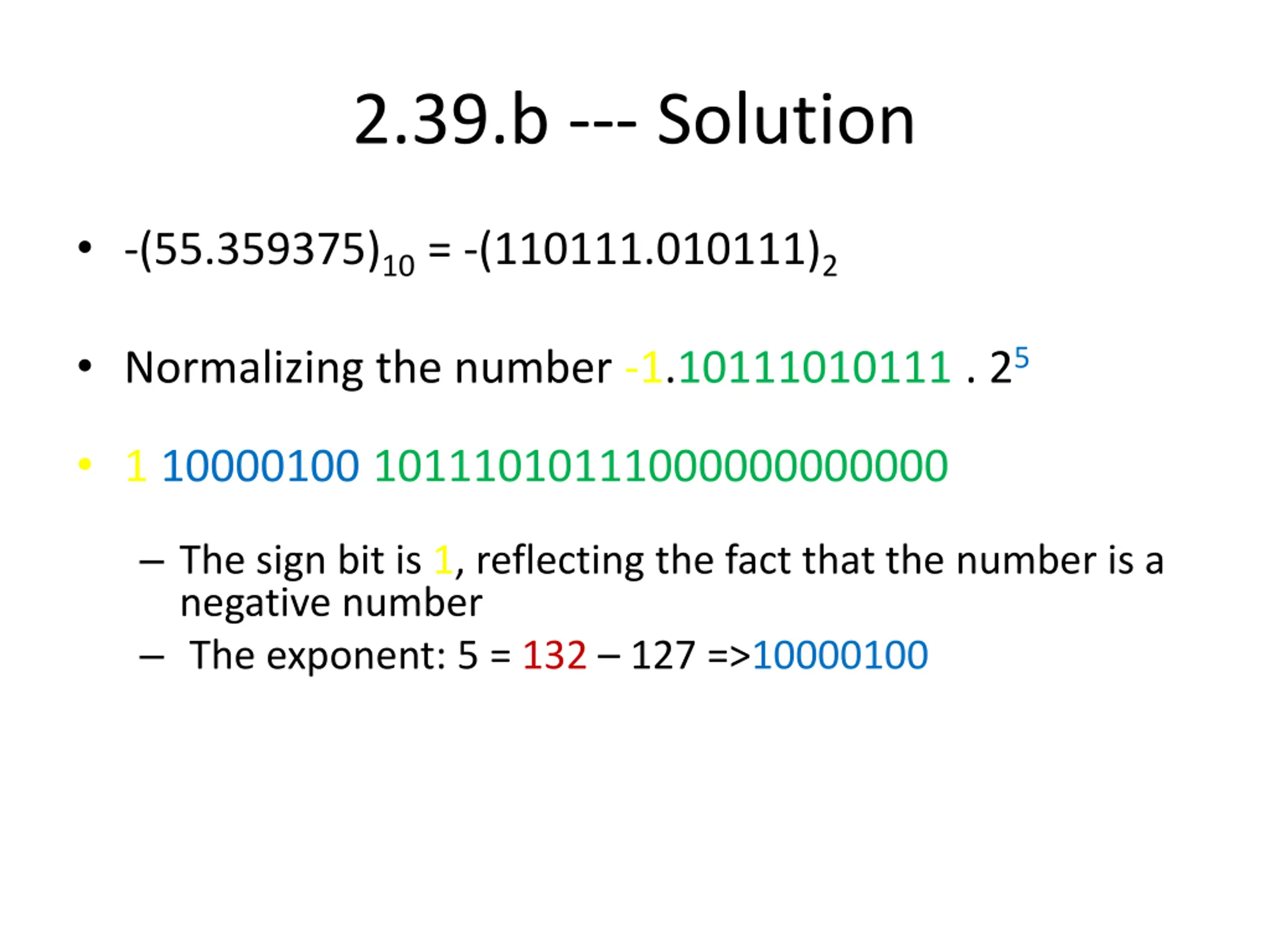

2.39.b --- Solution -(55.359375)10= -(110111.010111)2 Normalizing the number -1.10111010111 . 25 1 10000100 10111010111000000000000 The sign bit is 1, reflecting the fact that the number is a negative number The exponent: 5 = 132 127 =>10000100

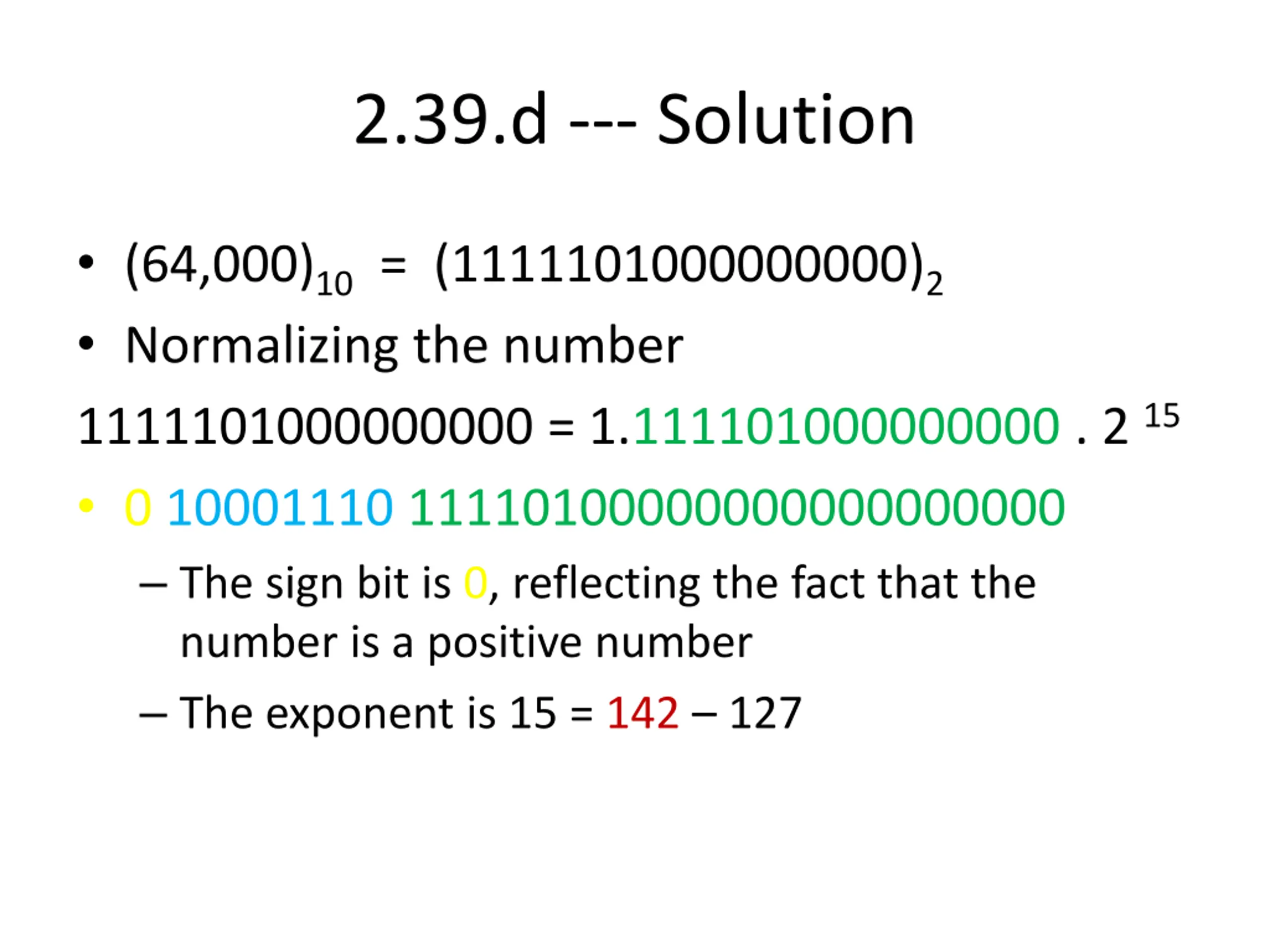

2.39.d --- Solution (64,000)10= (1111101000000000)2 Normalizing the number 1111101000000000 = 1.111101000000000 . 2 15 0 10001110 11110100000000000000000 The sign bit is 0, reflecting the fact that the number is a positive number The exponent is 15 = 142 127

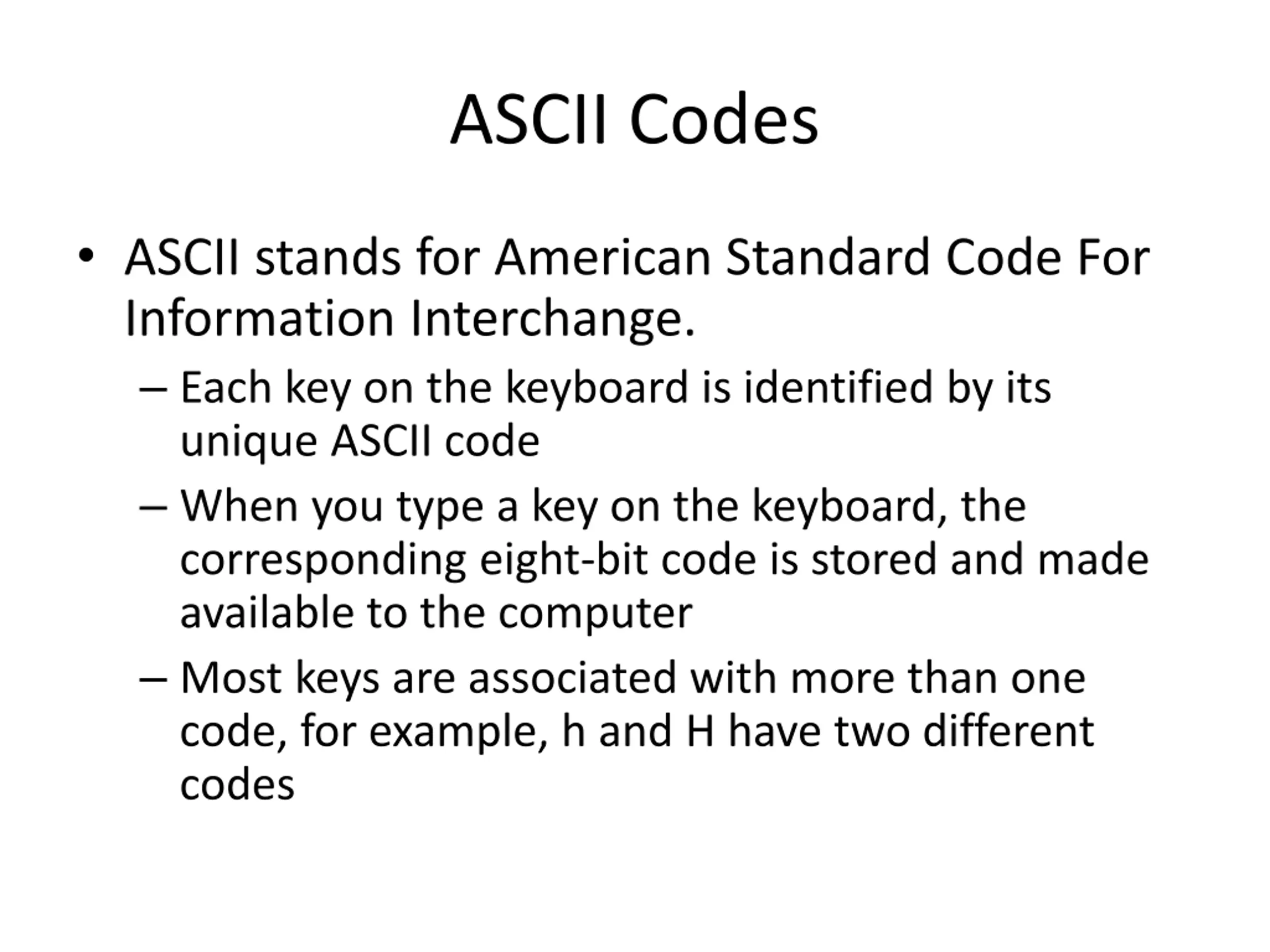

ASCII Codes ASCII stands for American Standard Code For Information Interchange. Each key on the keyboard is identified by its unique ASCII code When you type a key on the keyboard, the corresponding eight-bit code is stored and made available to the computer Most keys are associated with more than one code, for example, h and H have two different codes
