1 UNIVERSITY OF BASRAH / COLLEGE OF SCIENCE Bioinformatics 1 Types ofAlignment 2 Pairwise Sequence Alignment Prof.Dr. Saad S. Mahdi Al-Amara LECTURE PhD. 5

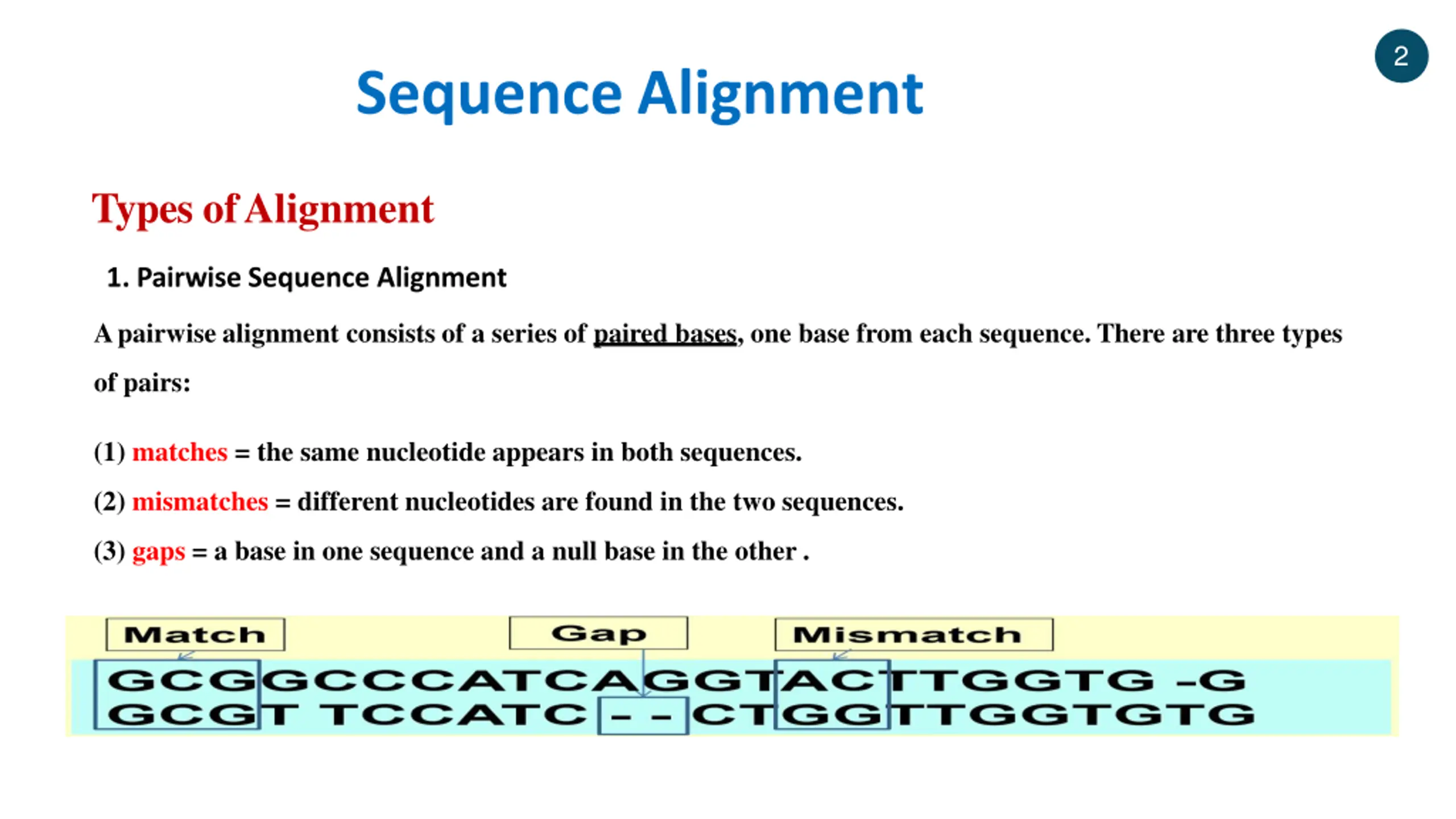

2 Sequence Alignment Types ofAlignment 1. Pairwise Sequence Alignment Apairwise alignment consists of a series of paired bases, one base from each sequence.There are three types of pairs: (1) matches = the same nucleotide appears in both sequences. (2) mismatches = different nucleotides are found in the two sequences. (3) gaps = a base in one sequence and a null base in the other .

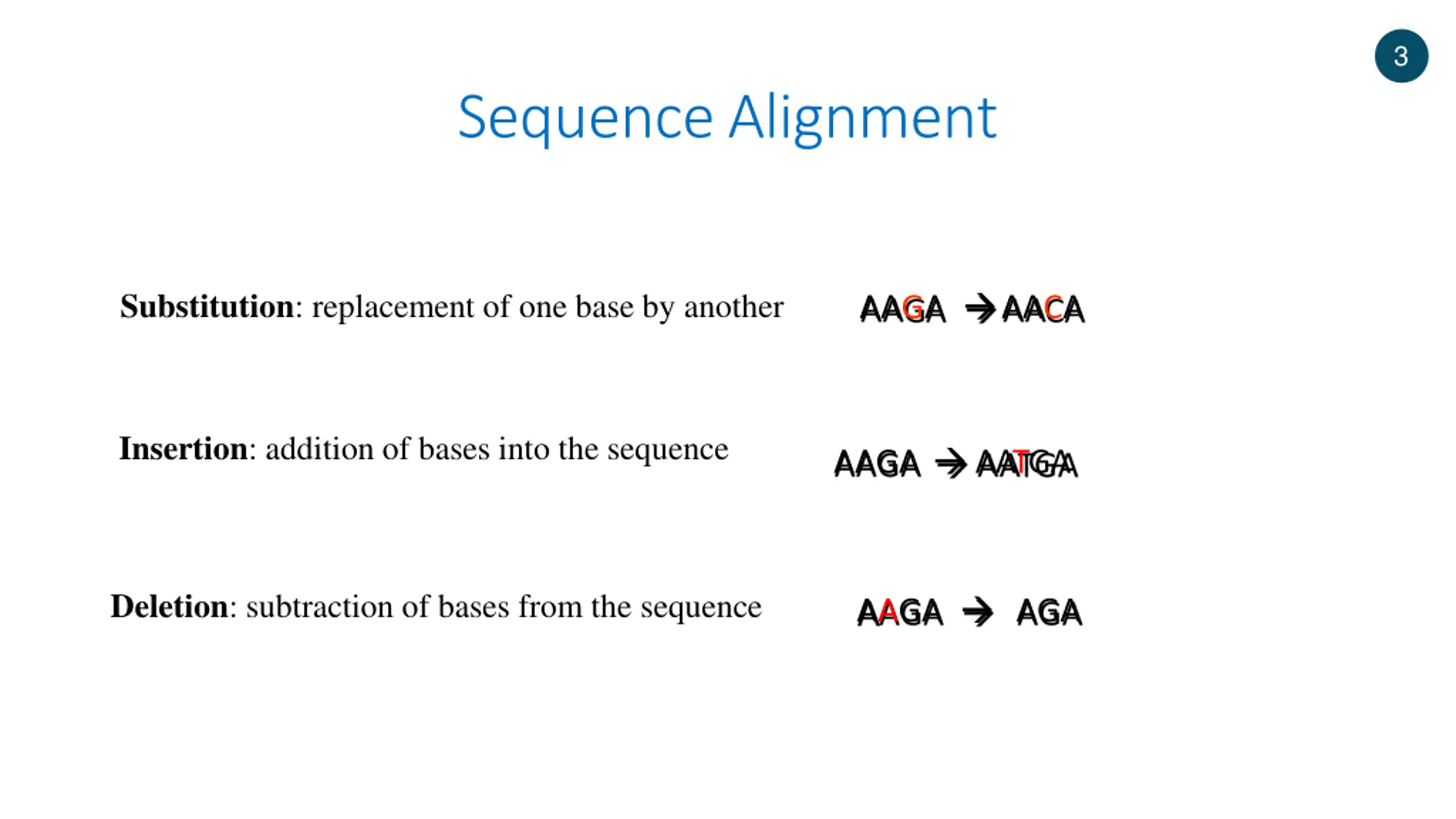

3 SequenceAlignment Substitution: replacement of one base by another AAGA AACA Insertion: addition of bases into the sequence AAGA AATGA Deletion: subtraction of bases from the sequence AAGA AGA

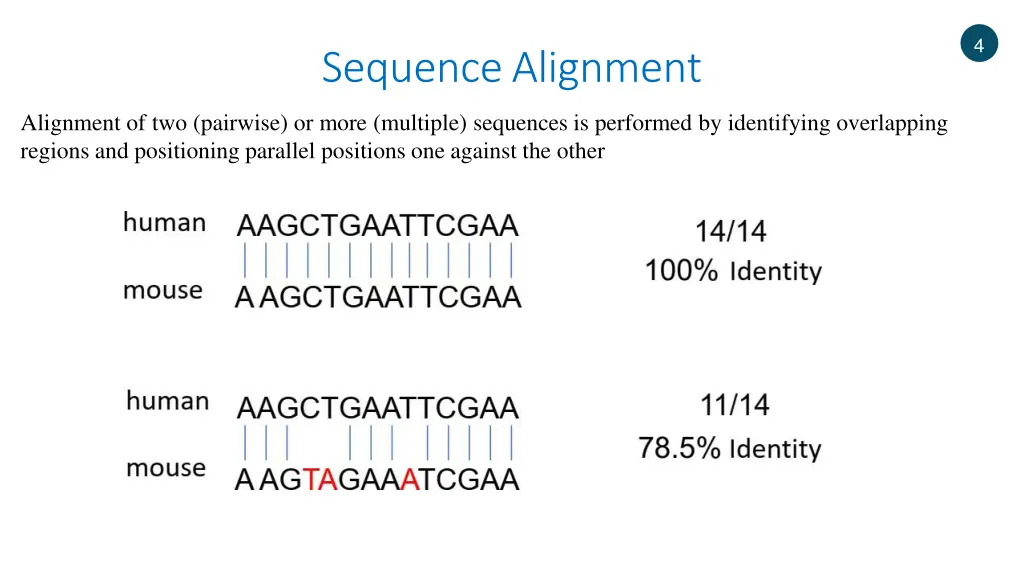

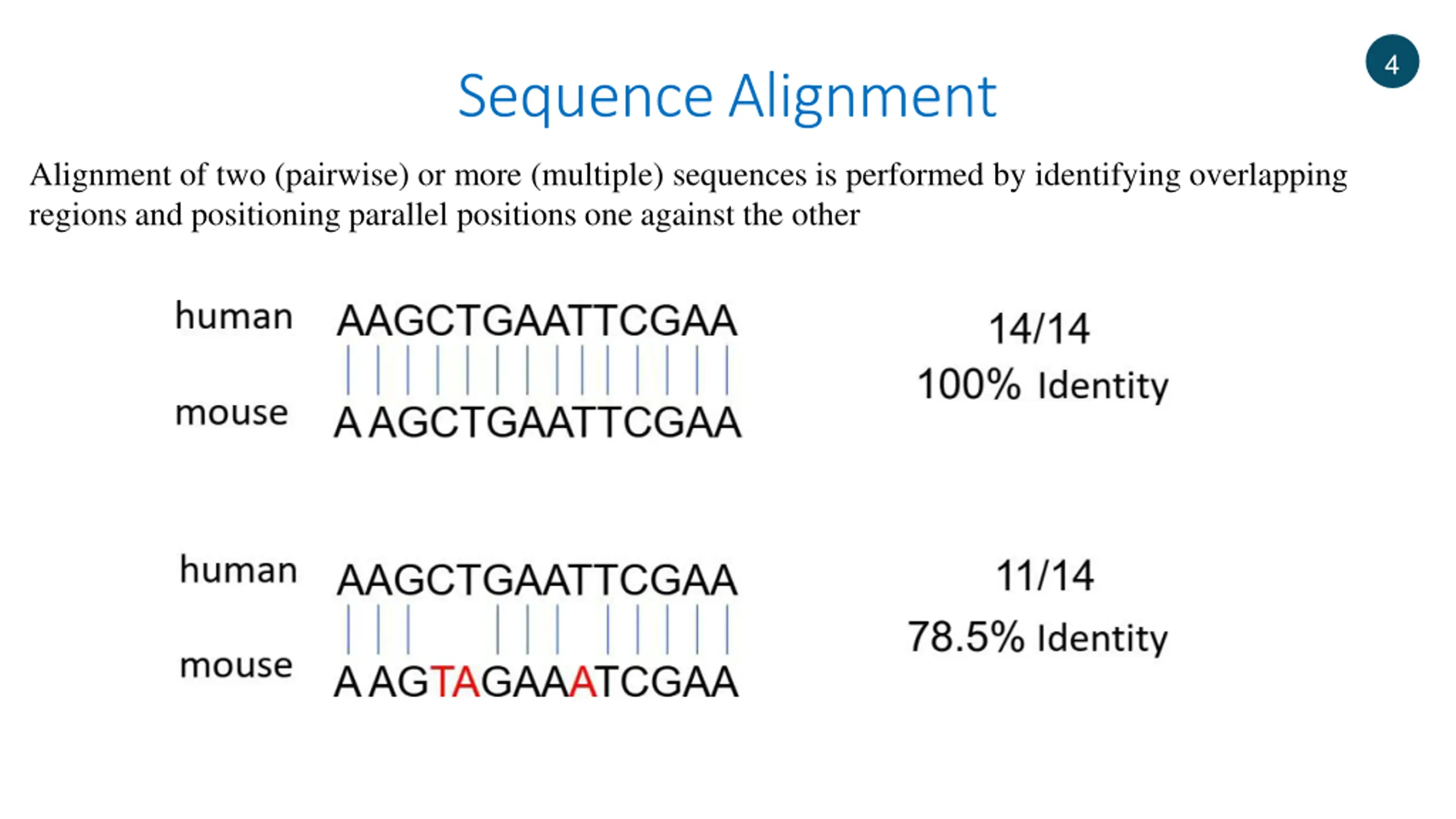

4 SequenceAlignment Alignment of two (pairwise) or more (multiple) sequences is performed by identifying overlapping regions and positioning parallel positions one against the other

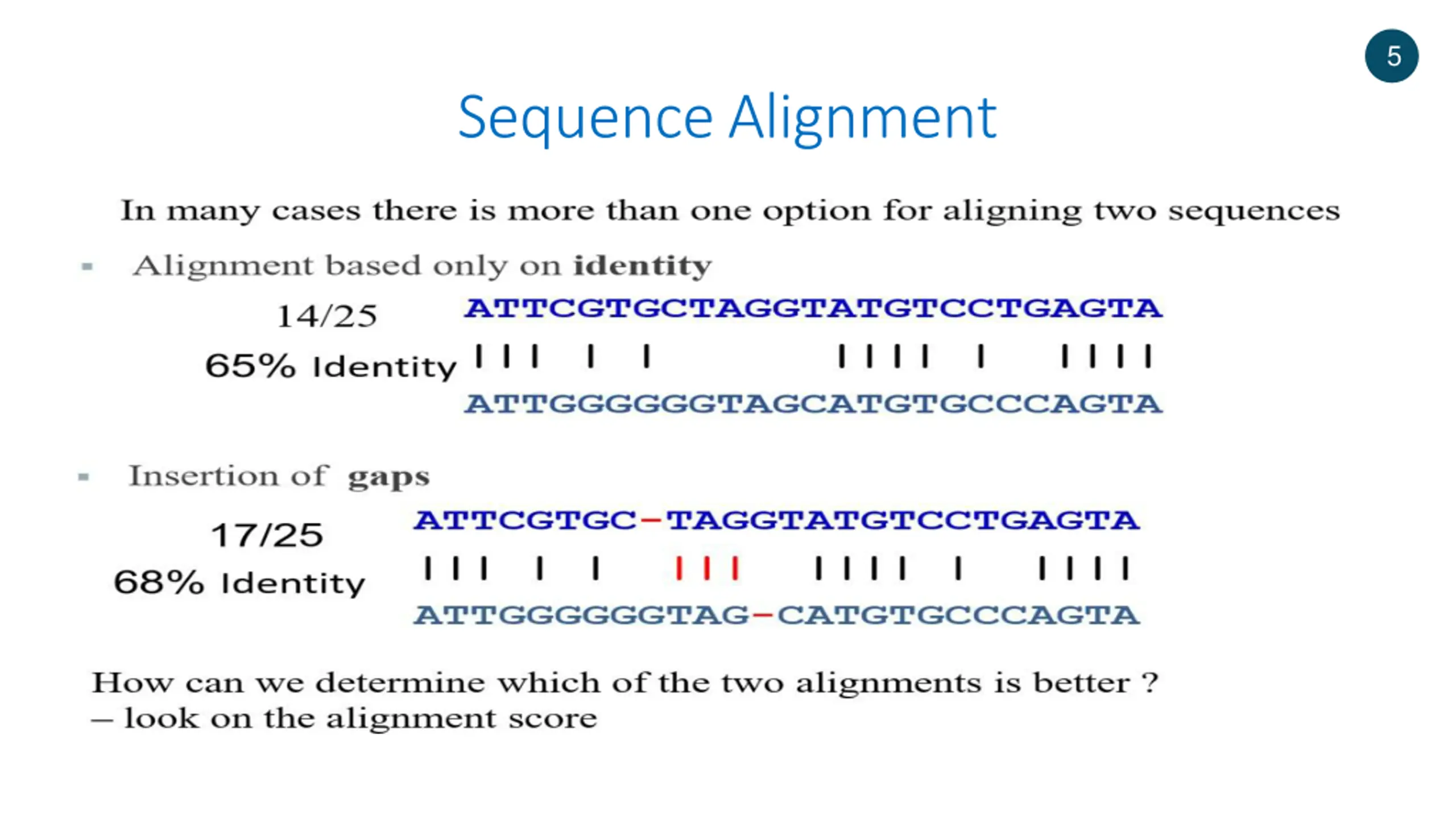

5 SequenceAlignment

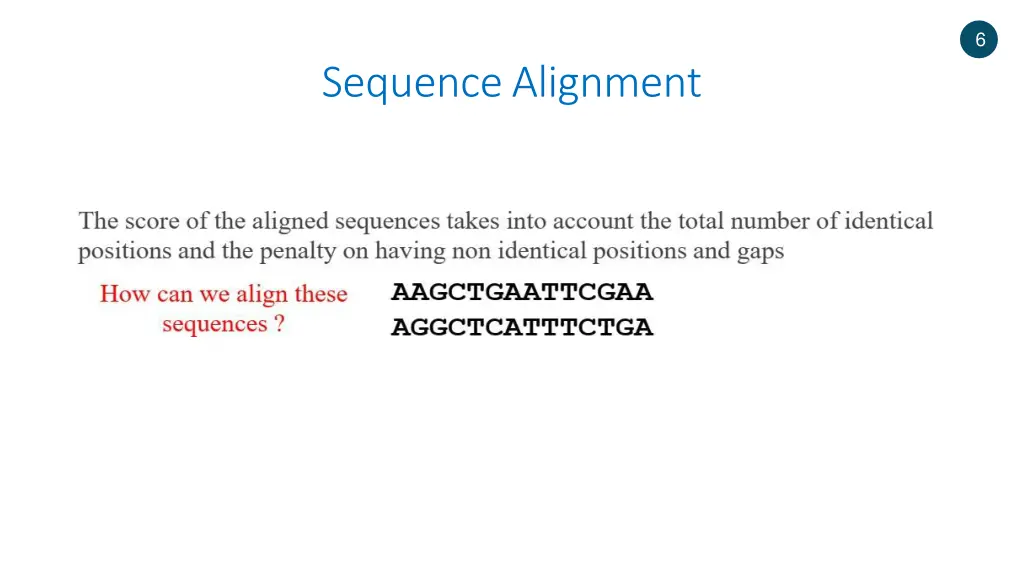

6 SequenceAlignment

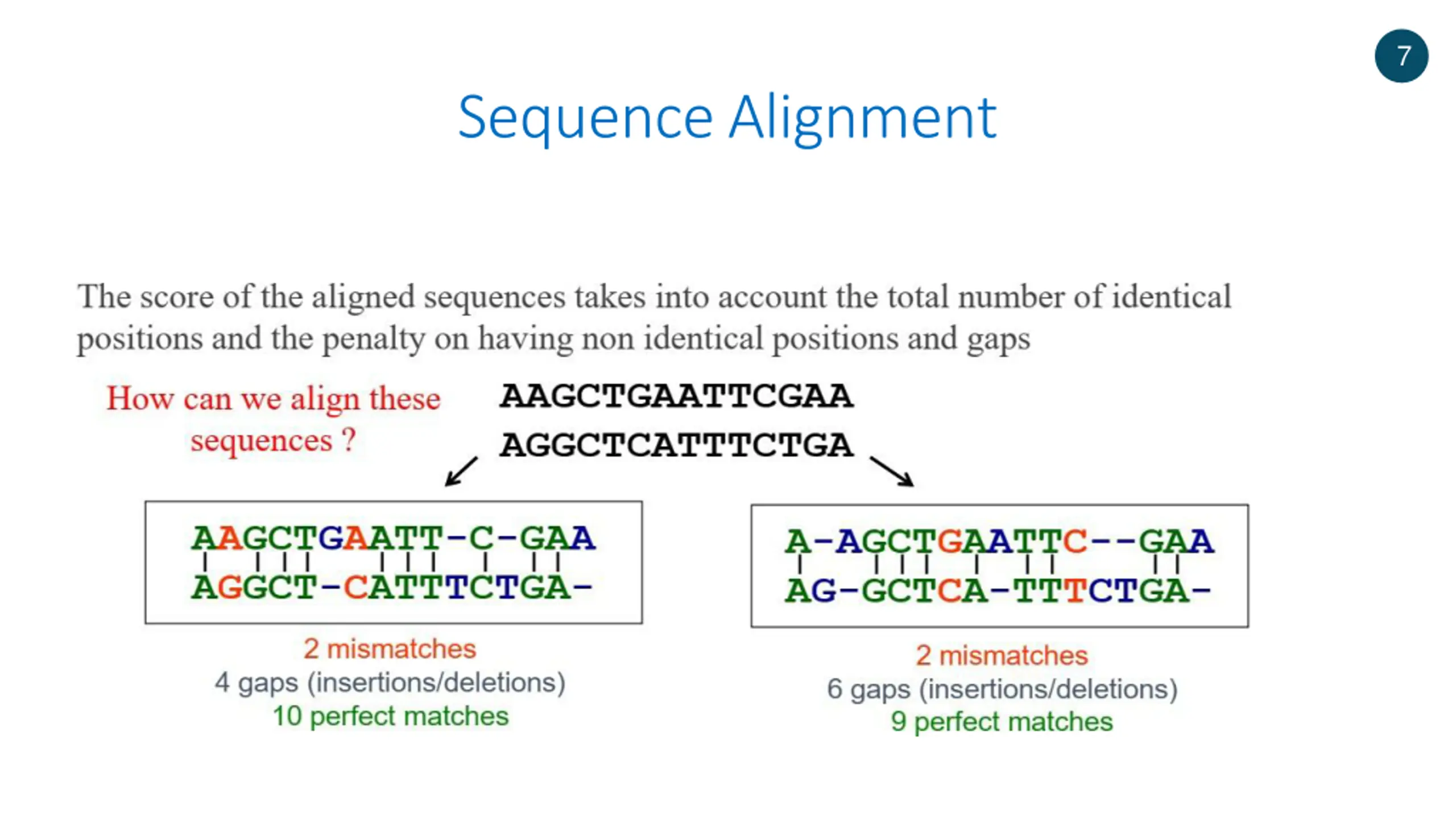

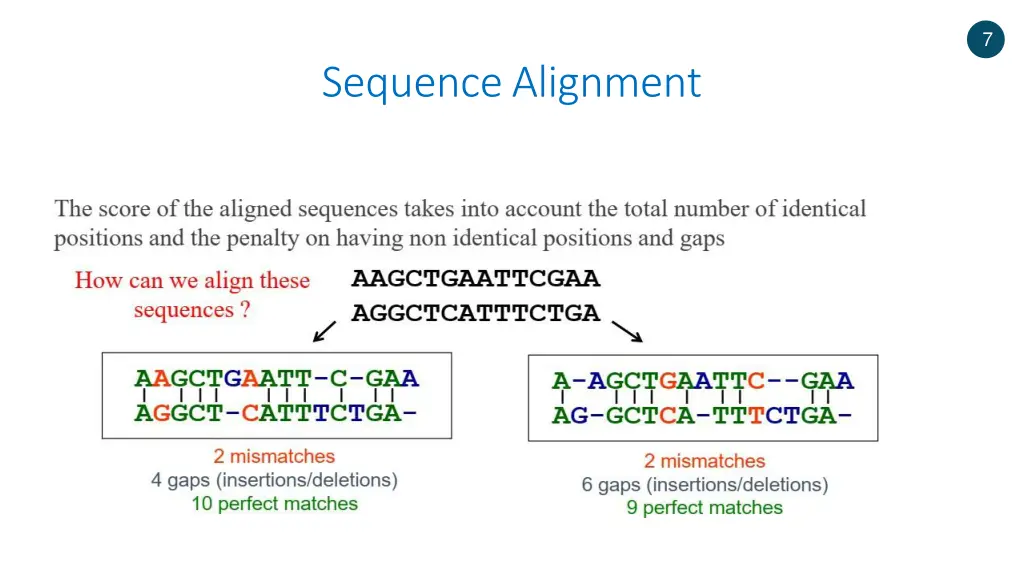

7 SequenceAlignment

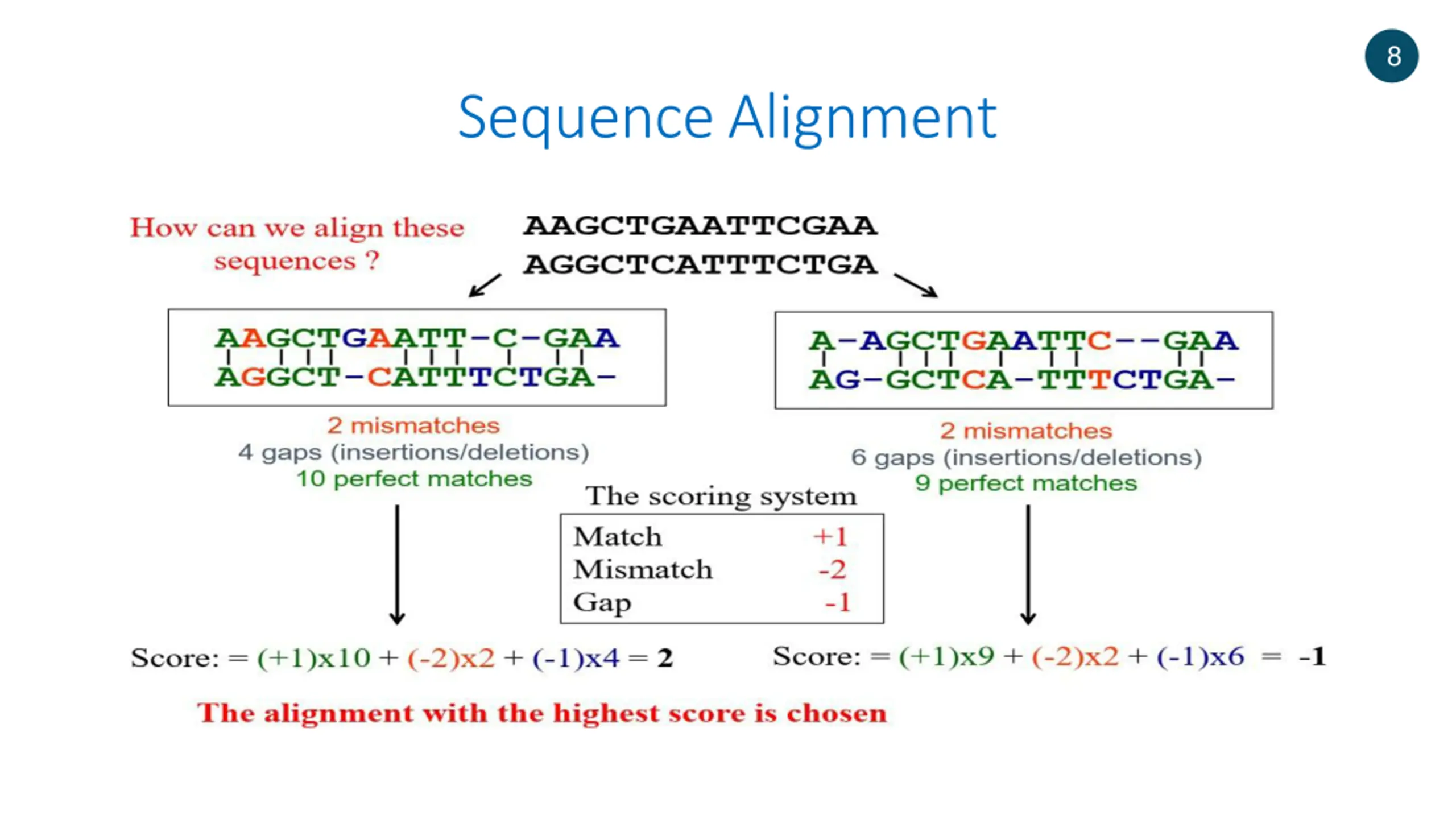

8 SequenceAlignment
