Chapter 4 Booting and Shutdown CSNB113 SYSTEM ADMINISTRATION College of Information Technology Universiti Tenaga Nasional (UNITEN) 1 SN 2017

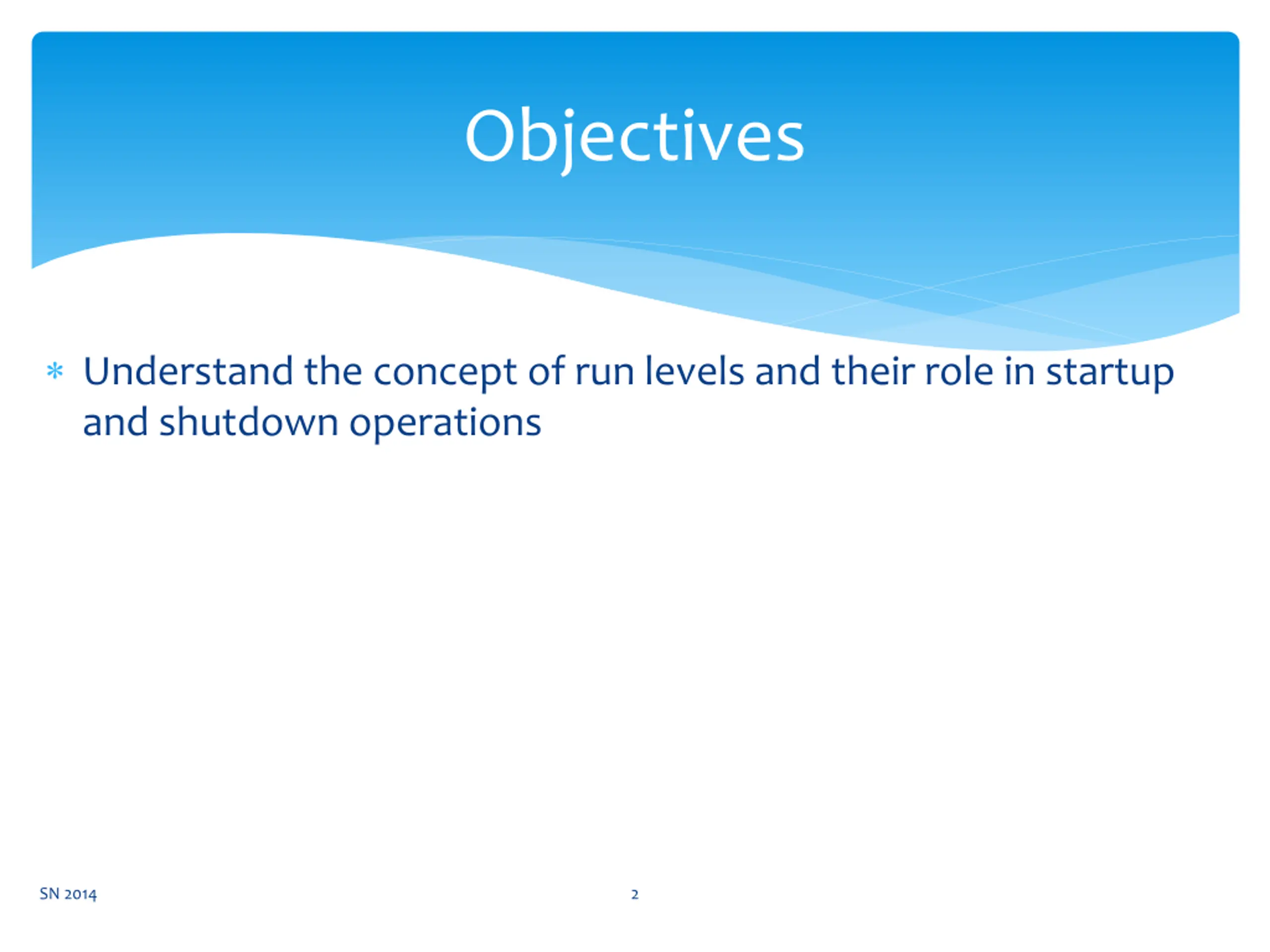

Objectives Understand the concept of run levels and their role in startup and shutdown operations SN 2014 2

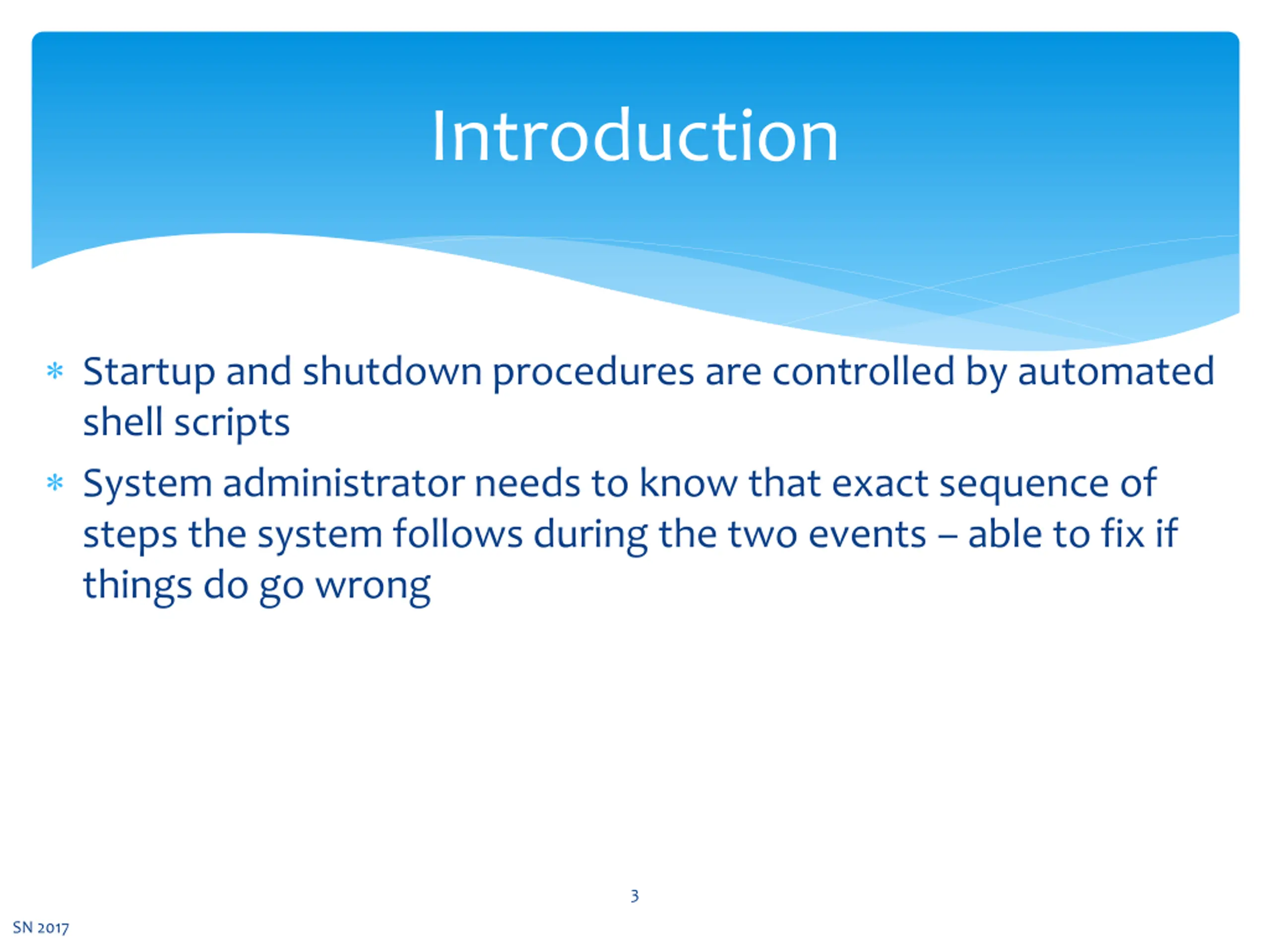

Introduction Startup and shutdown procedures are controlled by automated shell scripts System administrator needs to know that exact sequence of steps the system follows during the two events able to fix if things do go wrong 3 SN 2017

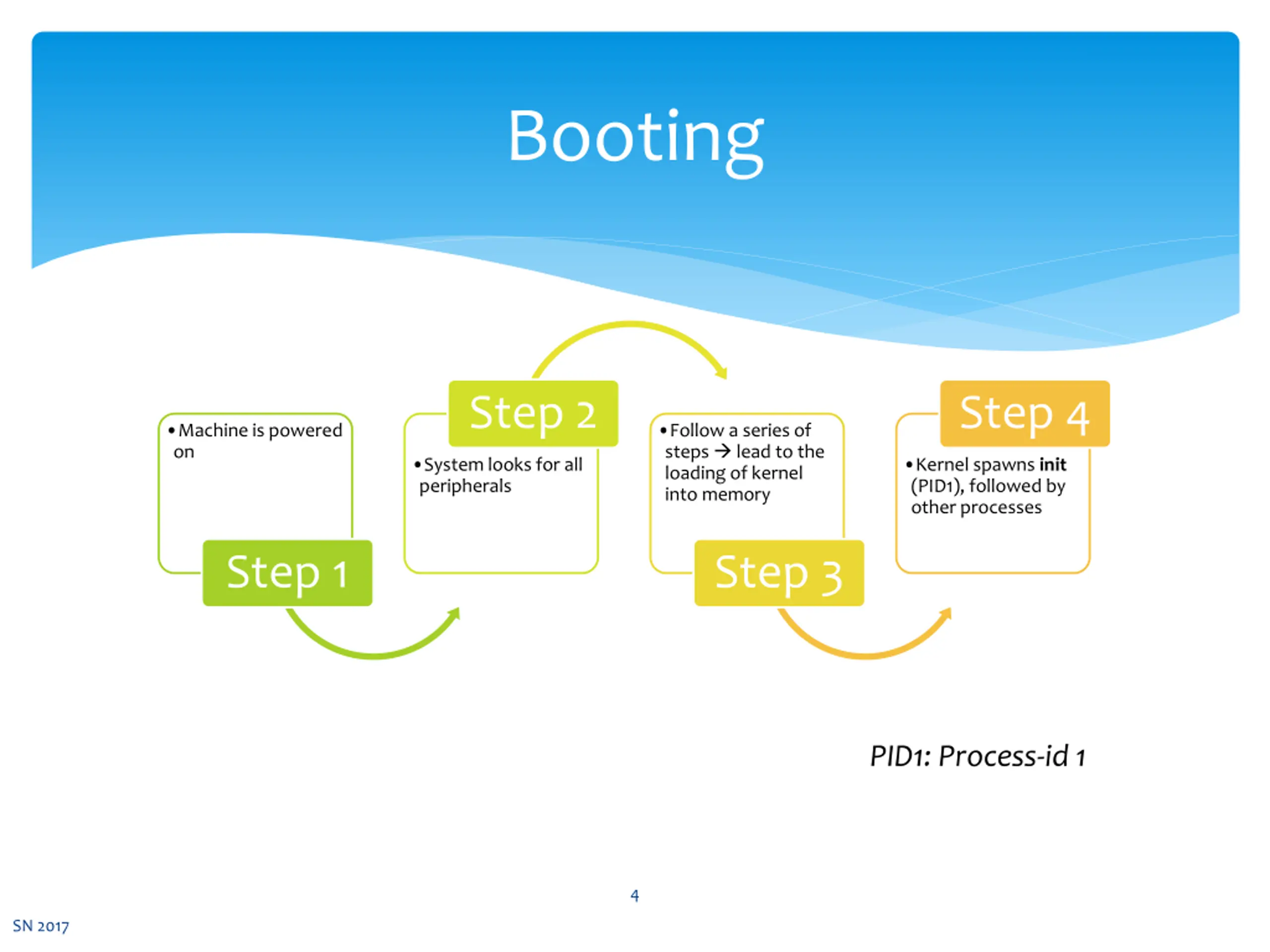

Booting Step 2 Step 4 Machine is powered on Follow a series of steps lead to the loading of kernel into memory System looks for all peripherals Kernel spawns init (PID1), followed by other processes Step 1 Step 3 PID1: Process-id 1 4 SN 2017

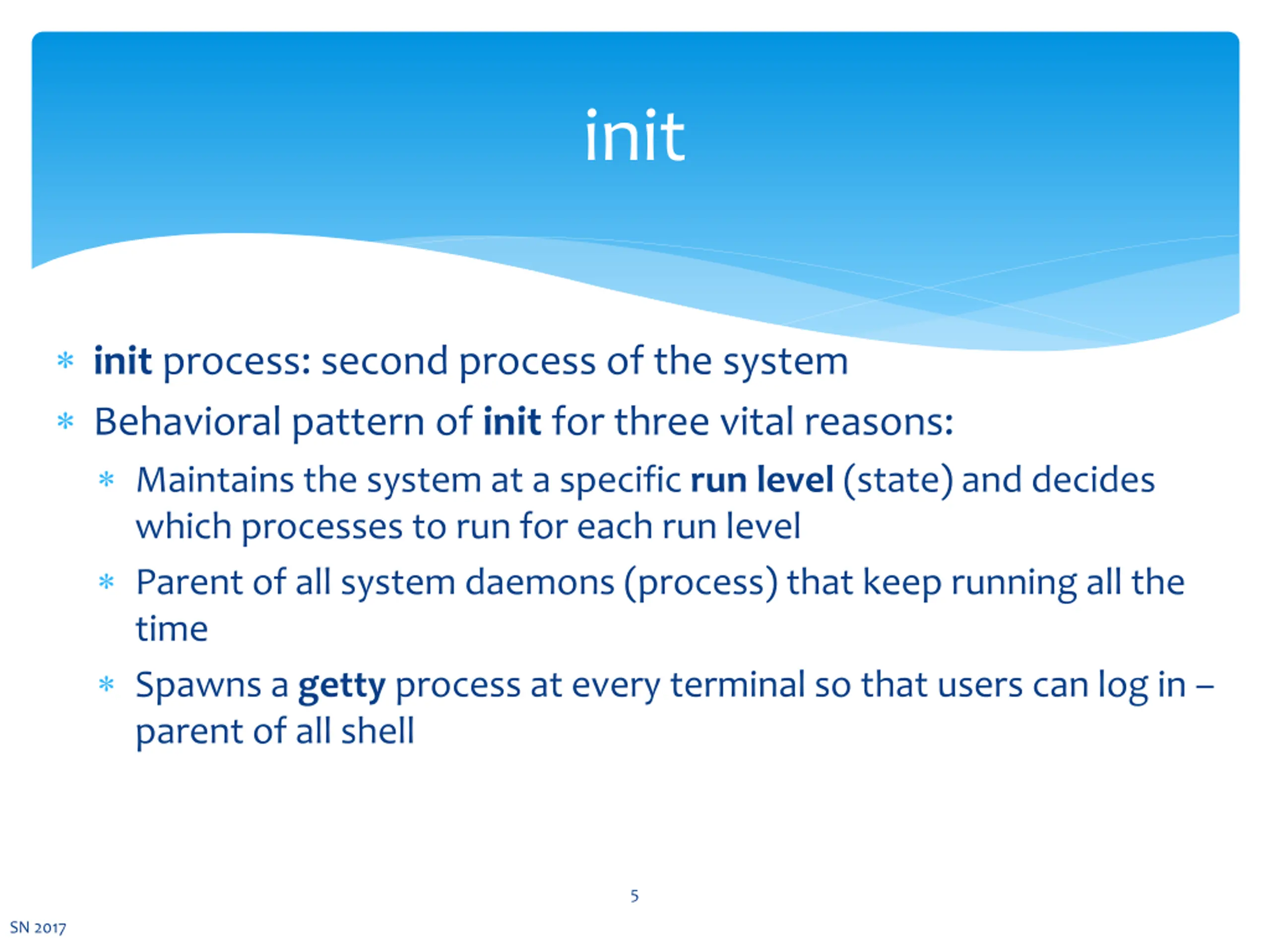

init init process: second process of the system Behavioral pattern of init for three vital reasons: Maintains the system at a specific run level (state) and decides which processes to run for each run level Parent of all system daemons (process) that keep running all the time Spawns a getty process at every terminal so that users can log in parent of all shell 5 SN 2017

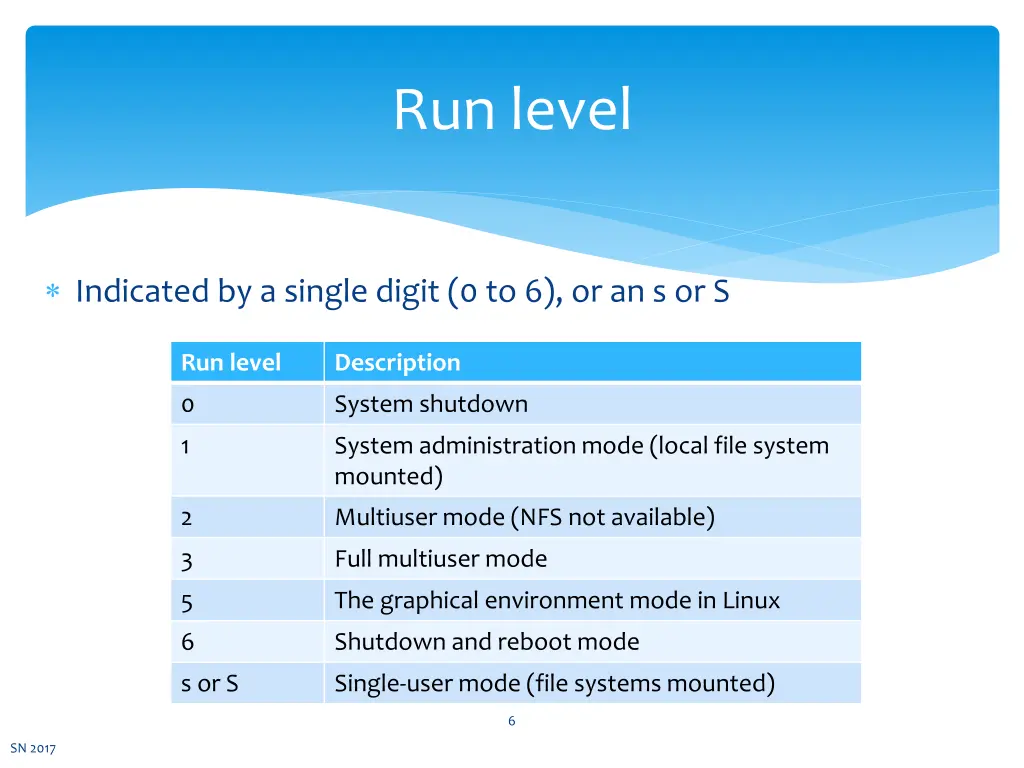

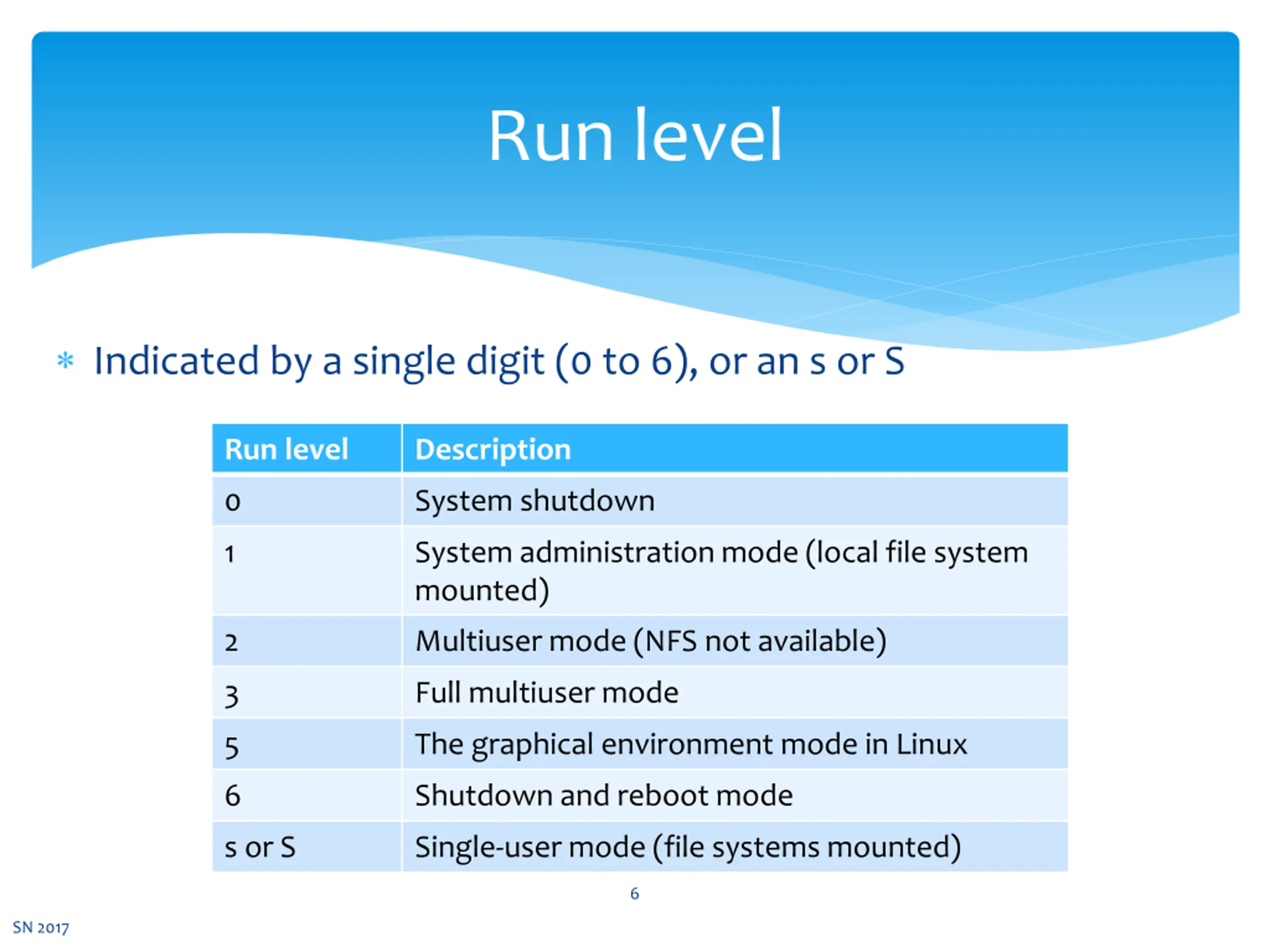

Run level Indicated by a single digit (0 to 6), or an s or S Run level Description 0 System shutdown 1 System administration mode (local file system mounted) 2 Multiuser mode (NFS not available) 3 Full multiuser mode 5 The graphical environment mode in Linux 6 Shutdown and reboot mode s or S Single-user mode (file systems mounted) 6 SN 2017

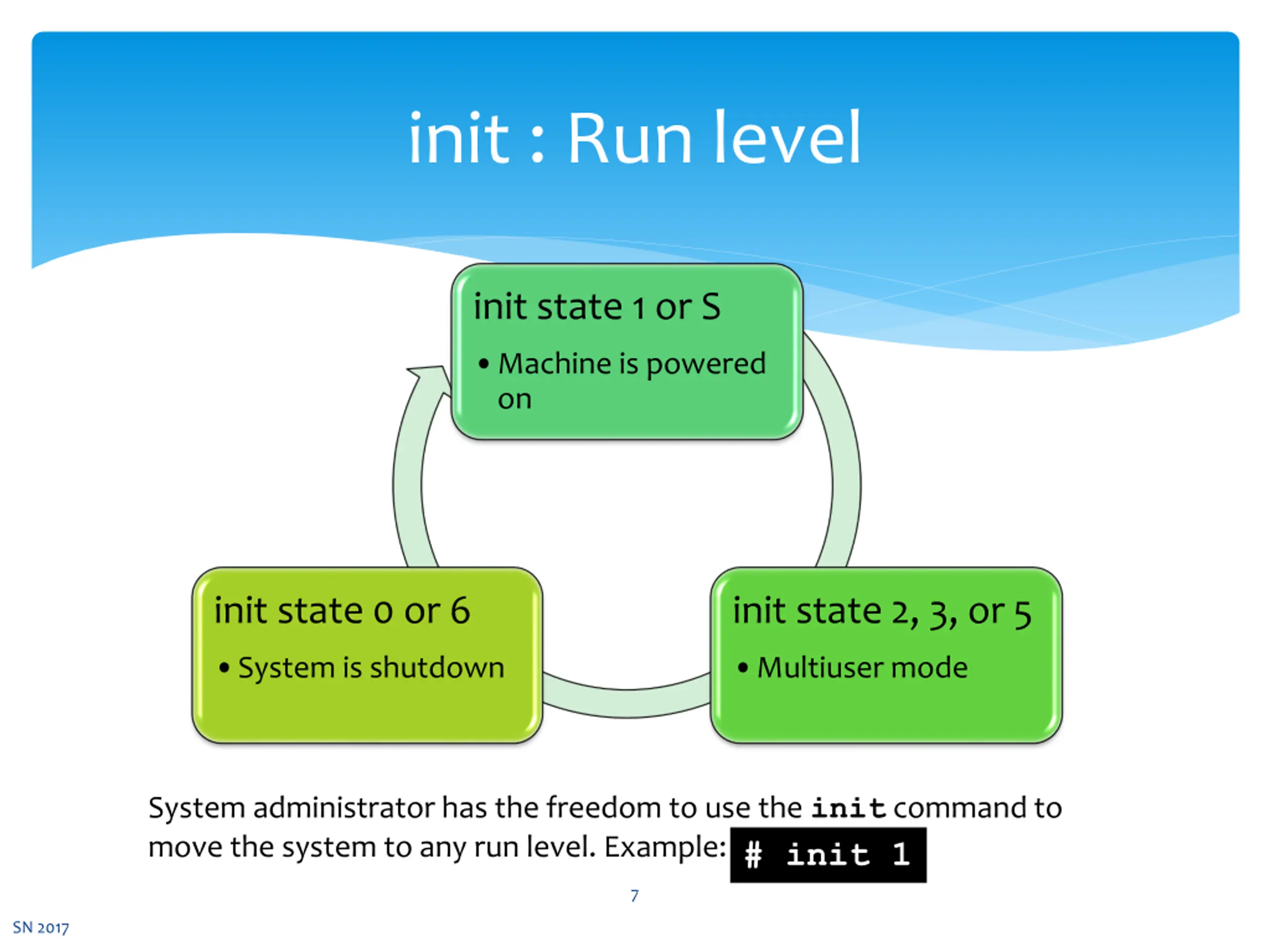

init : Run level init state 1 or S Machine is powered on init state 0 or 6 init state 2, 3, or 5 System is shutdown Multiuser mode System administrator has the freedom to use the init command to move the system to any run level. Example:# init 1 7 SN 2017

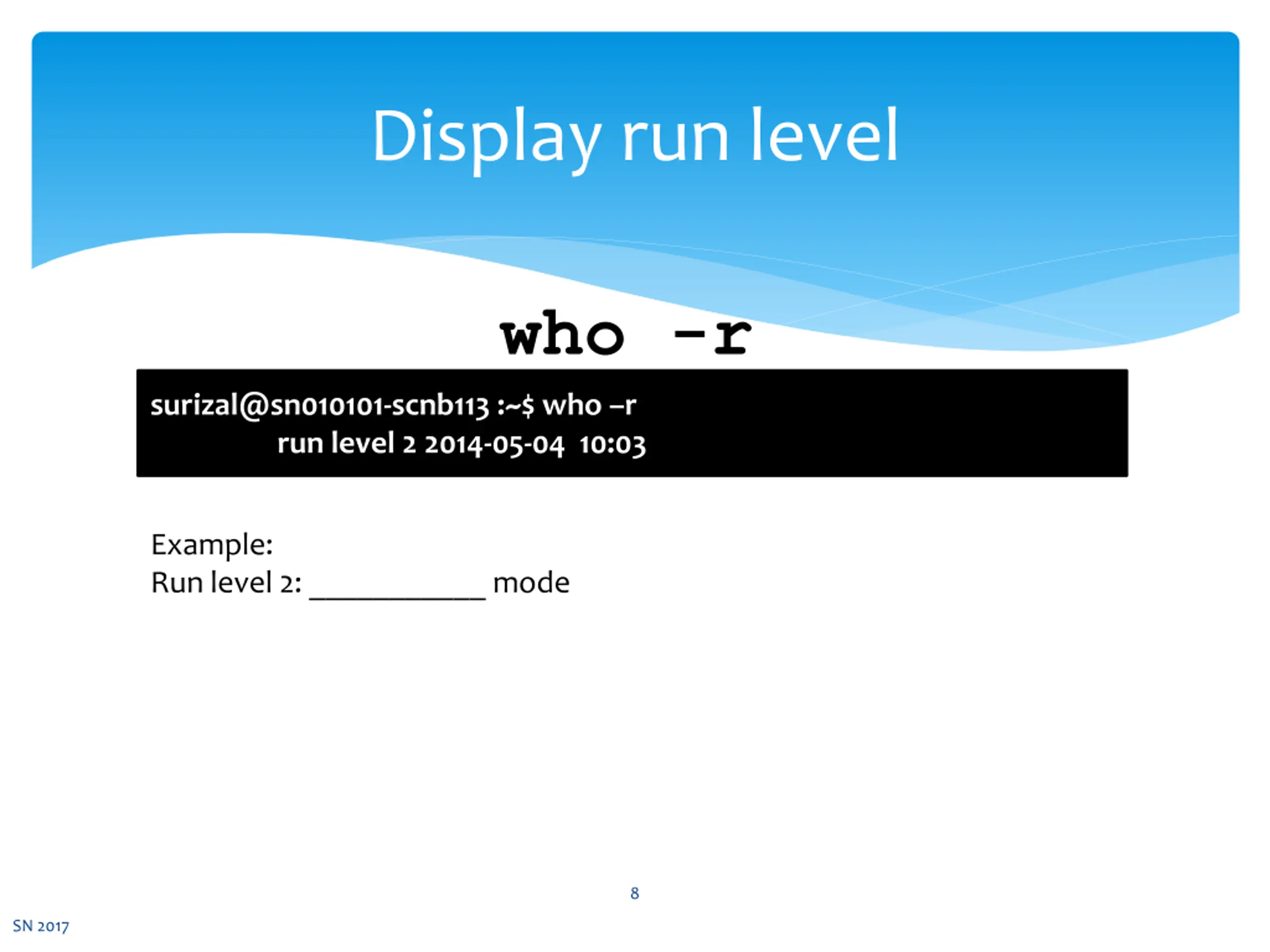

Display run level who -r surizal@sn010101-scnb113 :~$ who r run level 2 2014-05-04 10:03 Example: Run level 2: ___________ mode 8 SN 2017

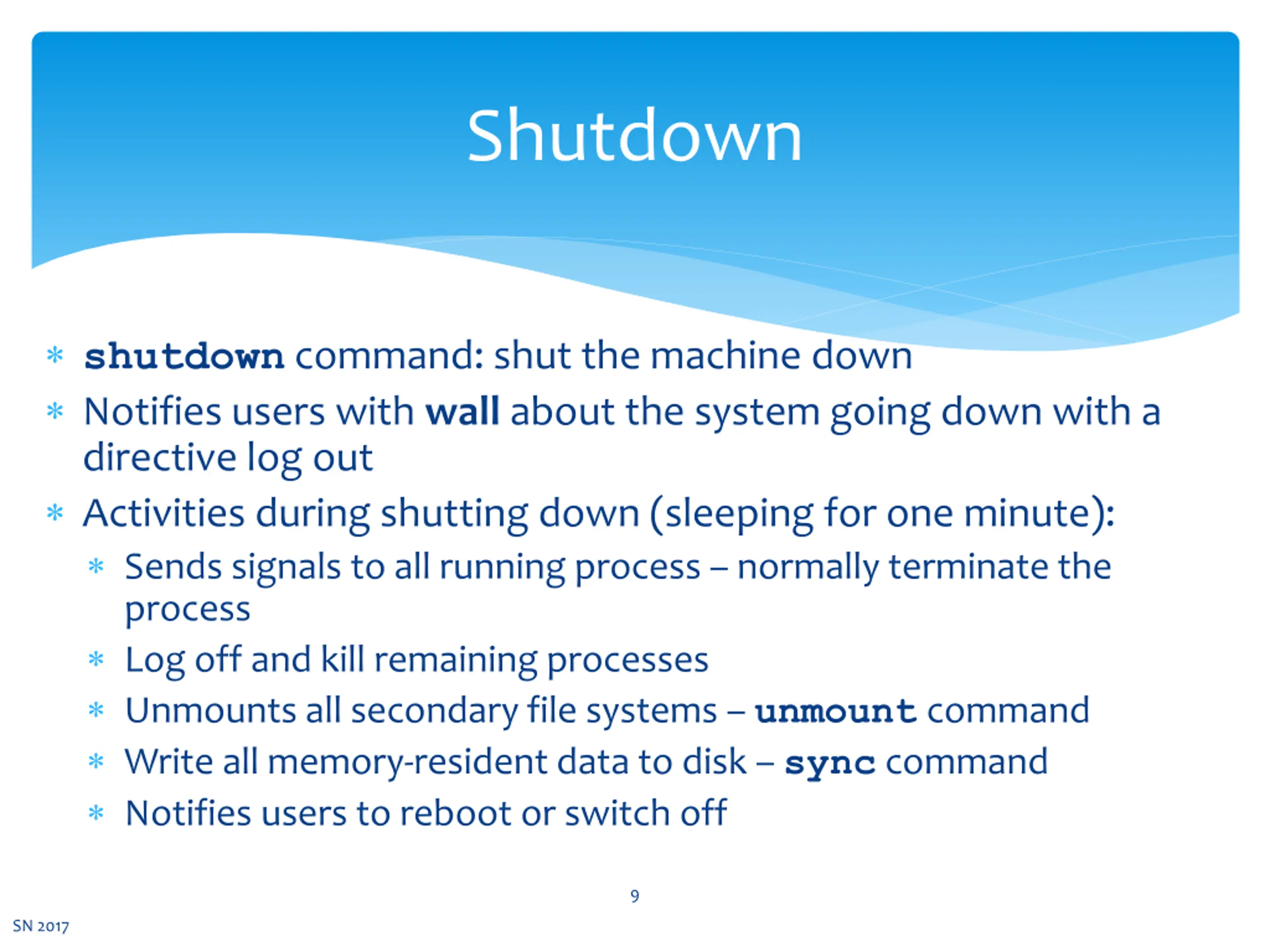

Shutdown shutdown command: shut the machine down Notifies users with wall about the system going down with a directive log out Activities during shutting down (sleeping for one minute): Sends signals to all running process normally terminate the process Log off and kill remaining processes Unmounts all secondary file systems unmount command Write all memory-resident data to disk sync command Notifies users to reboot or switch off 9 SN 2017

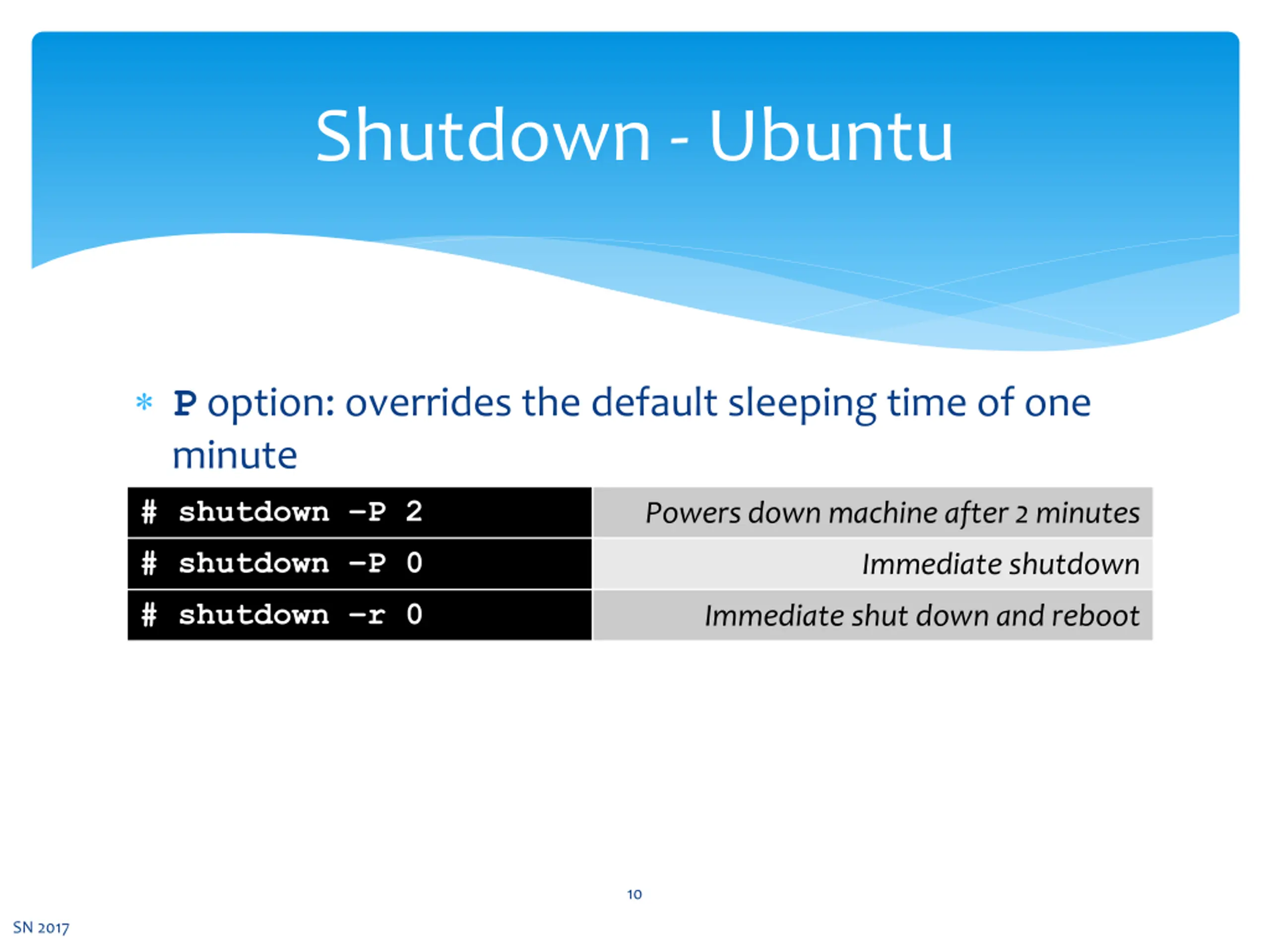

Shutdown - Ubuntu P option: overrides the default sleeping time of one minute r option: shutdown and restart/reboot # shutdown P 2 # shutdown P 0 # shutdown r 0 Powers down machine after 2 minutes Immediate shutdown Immediate shut down and reboot 10 SN 2017

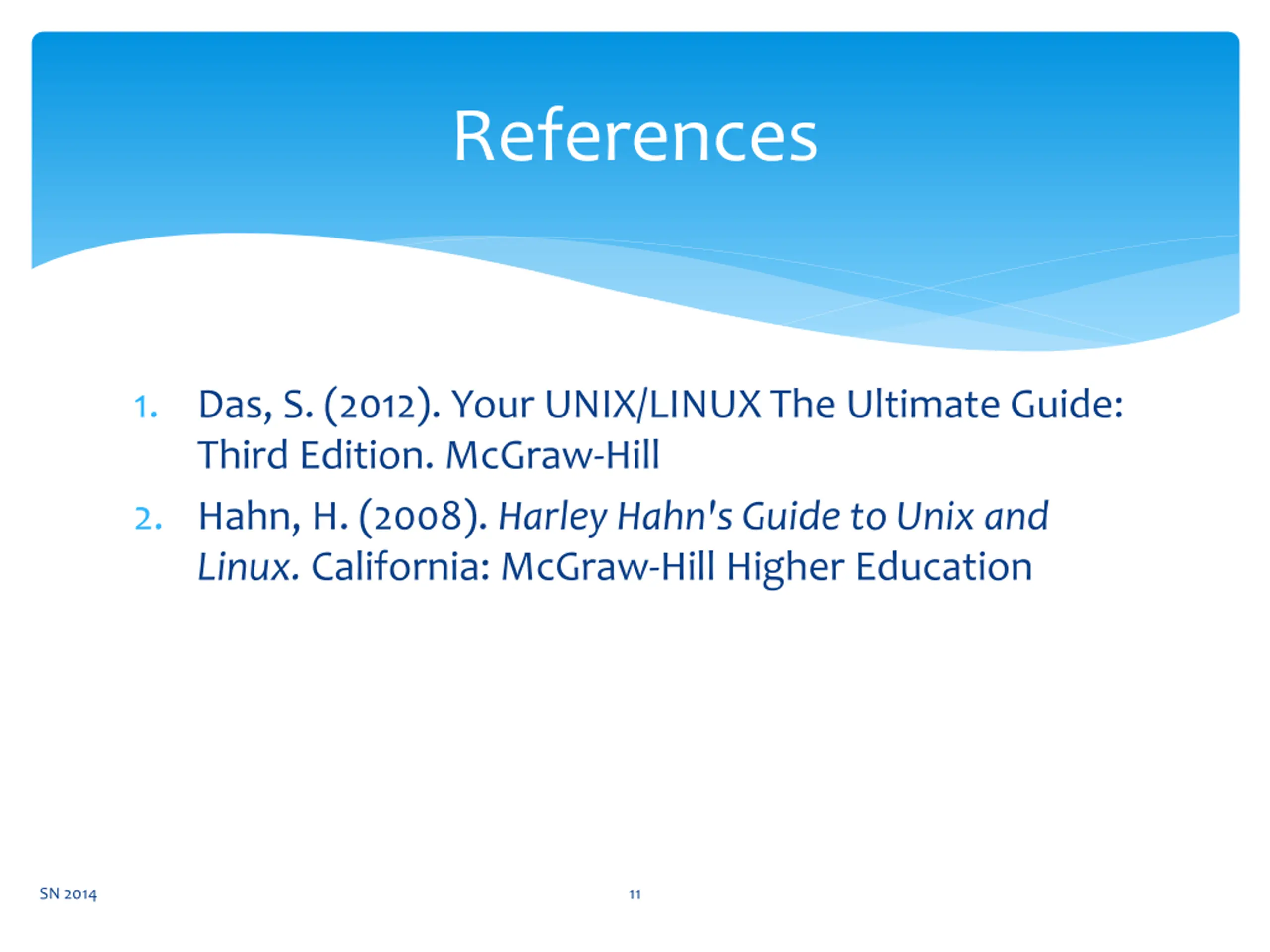

References 1. Das, S. (2012). Your UNIX/LINUX The Ultimate Guide: Third Edition. McGraw-Hill 2. Hahn, H. (2008). Harley Hahn's Guide to Unix and Linux. California: McGraw-Hill Higher Education SN 2014 11
