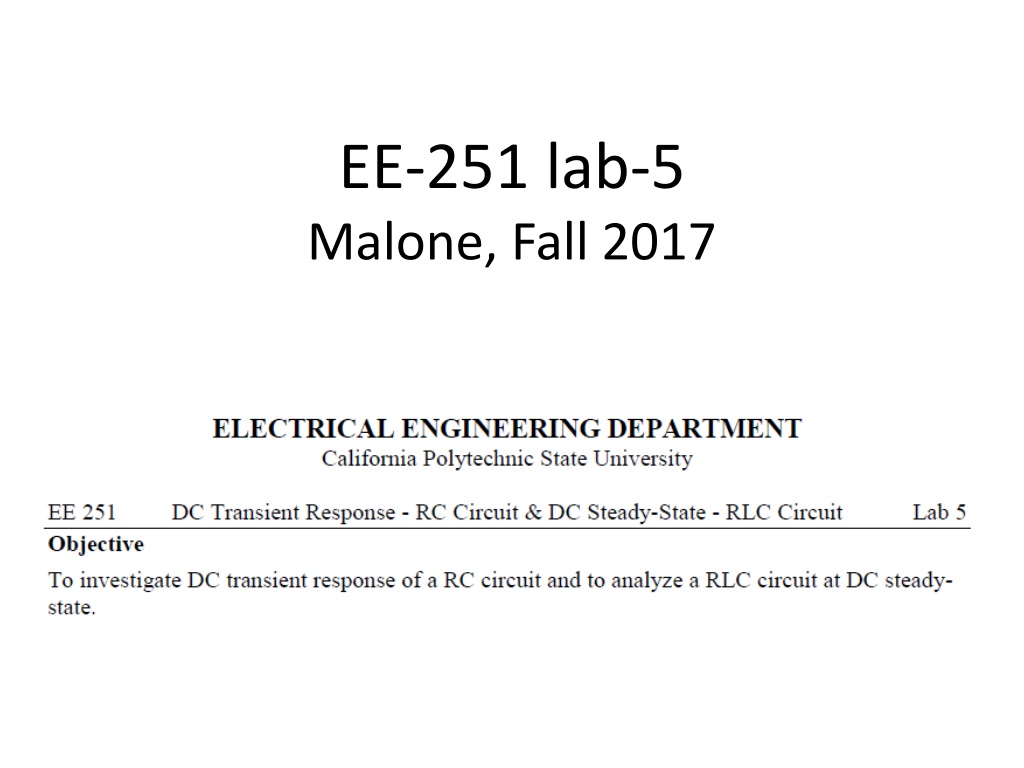

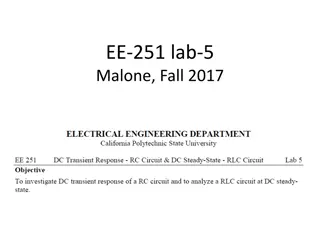

EE-251 lab-5 Malone, Fall 2017

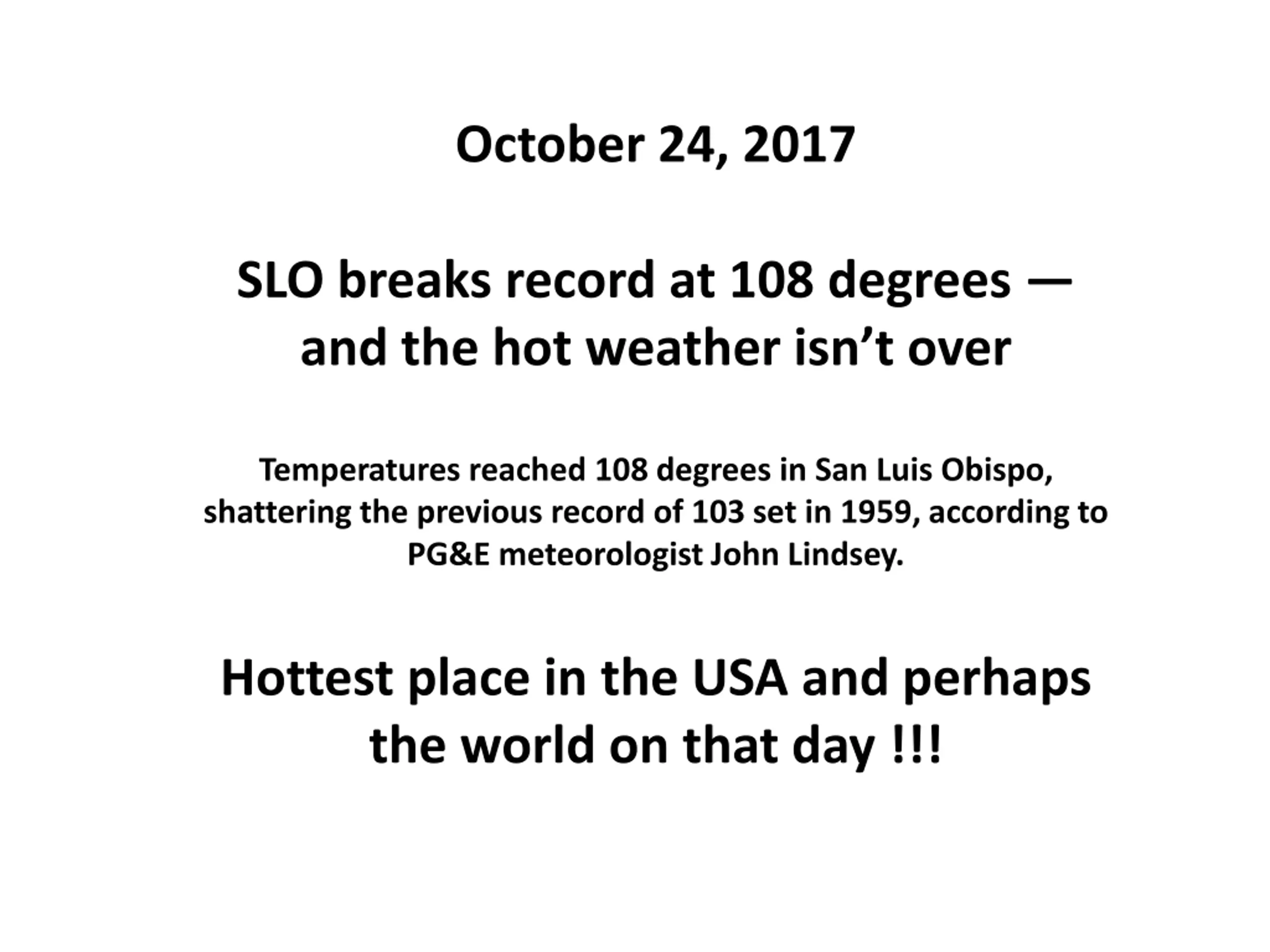

October 24, 2017 SLO breaks record at 108 degrees and the hot weather isn t over Temperatures reached 108 degrees in San Luis Obispo, shattering the previous record of 103 set in 1959, according to PG&E meteorologist John Lindsey. Hottest place in the USA and perhaps the world on that day !!!

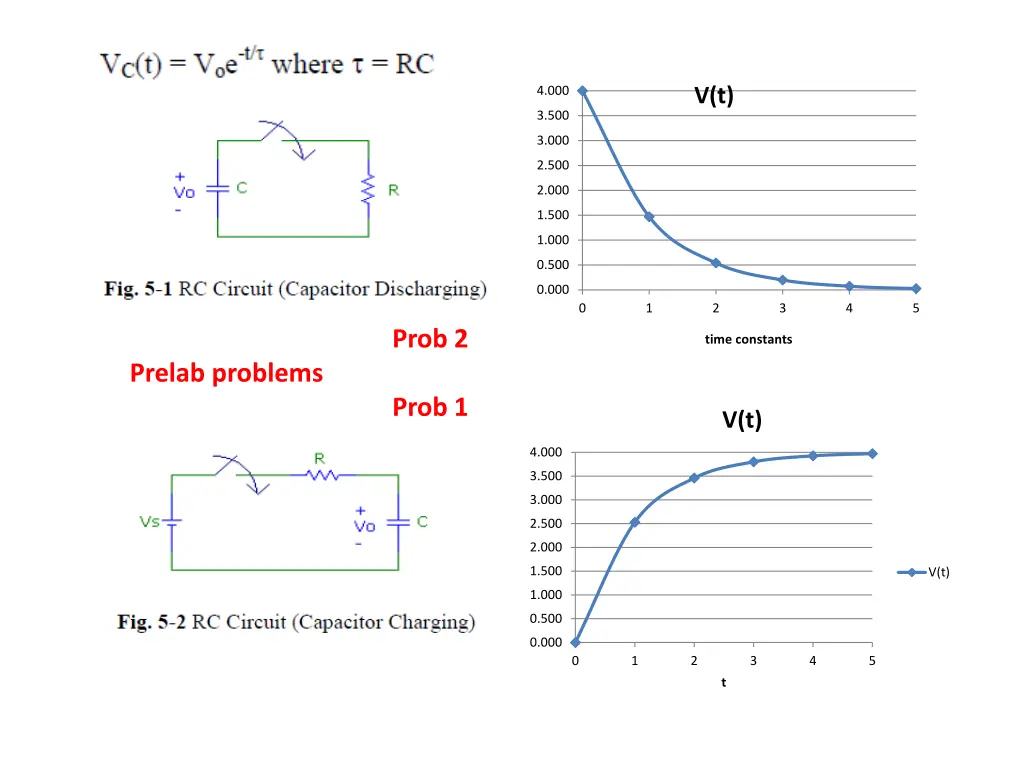

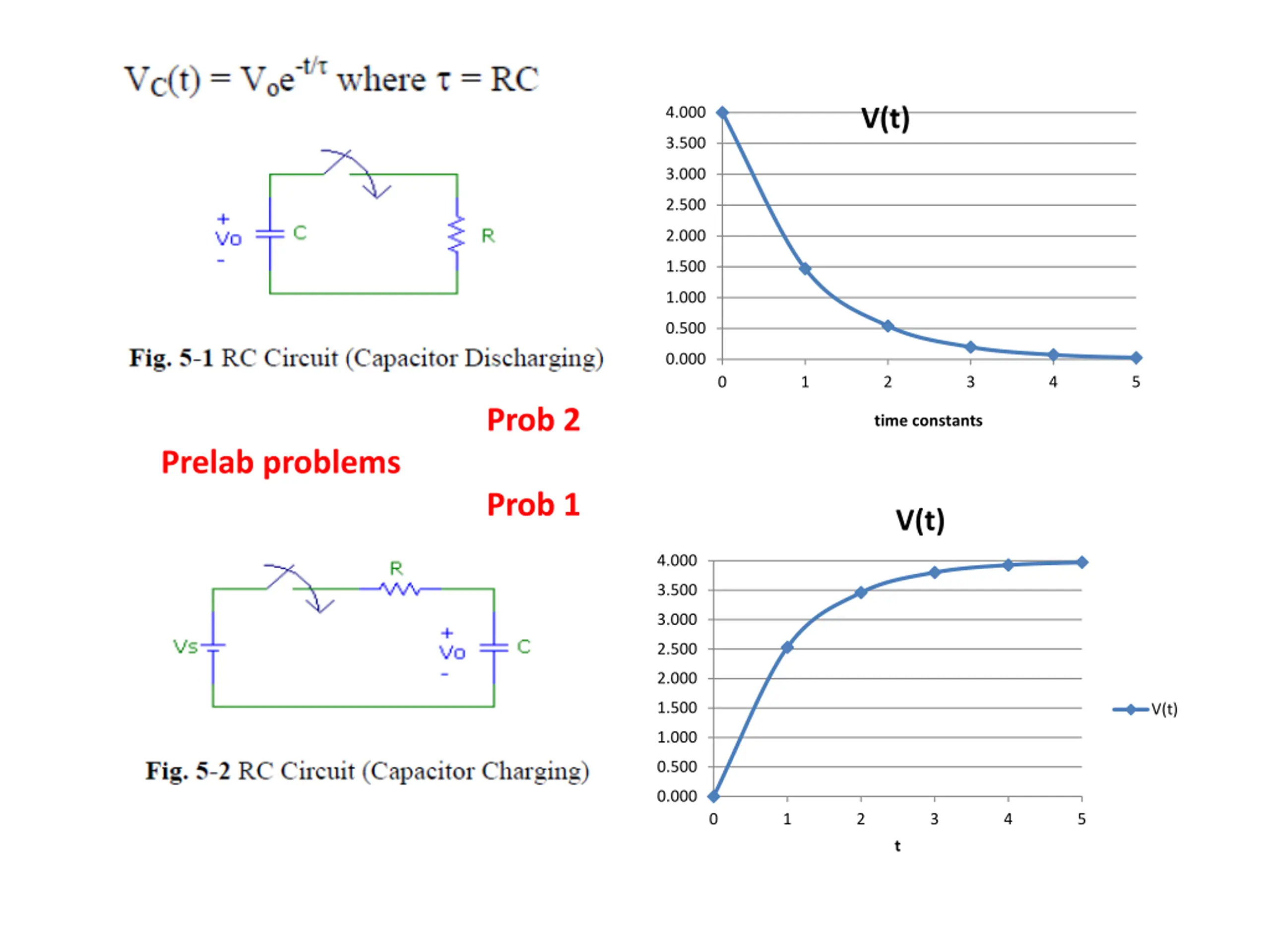

V(t) 4.000 3.500 3.000 2.500 2.000 1.500 1.000 0.500 0.000 0 1 2 3 4 5 Prob 2 time constants Prelab problems Prob 1 V(t) 4.000 3.500 3.000 2.500 2.000 1.500 V(t) 1.000 0.500 0.000 0 1 2 3 4 5 t

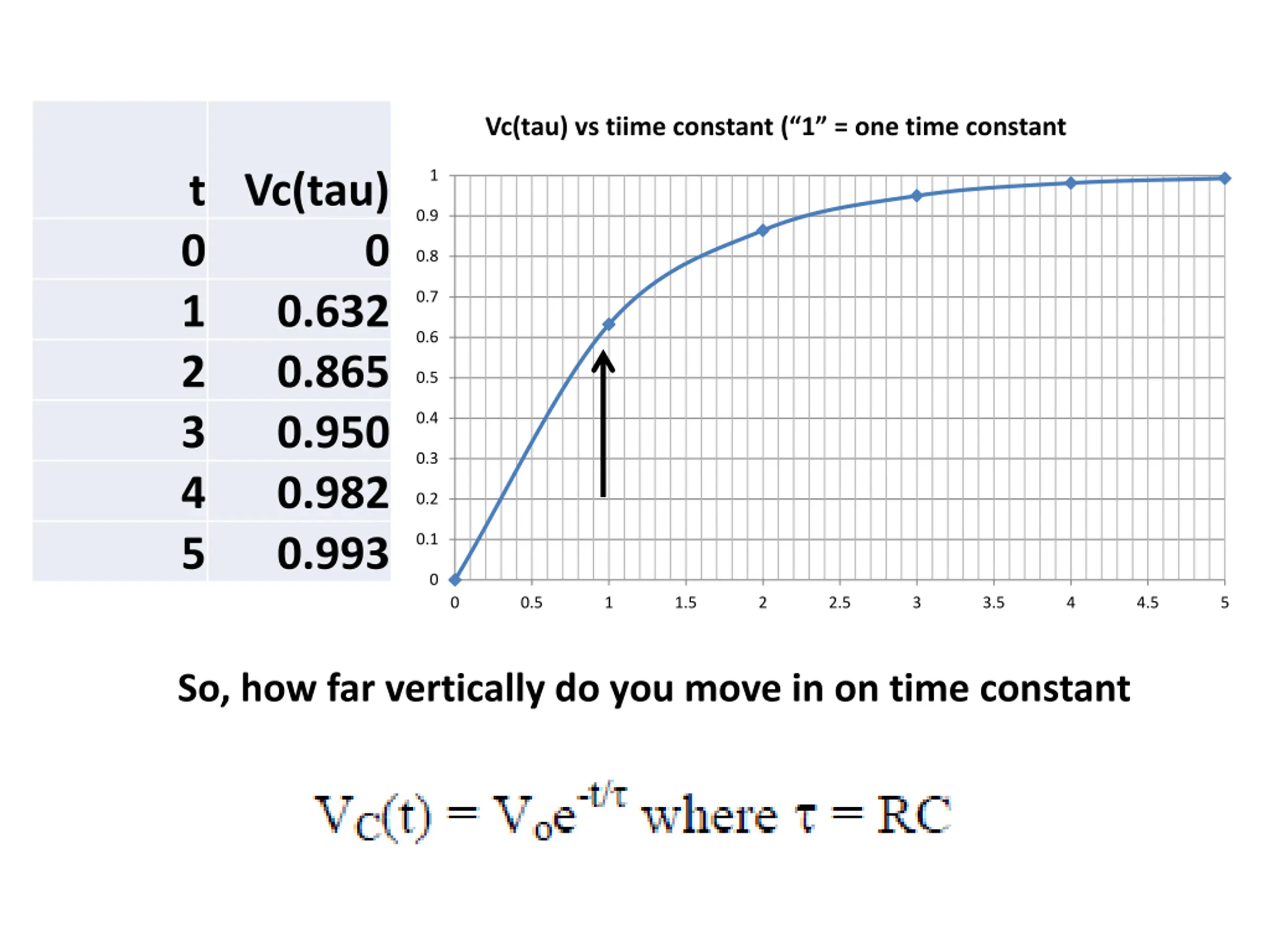

Vc(tau) vs tiime constant (1 = one time constant 1 t Vc(tau) 0 1 0.632 2 0.865 3 0.950 4 0.982 5 0.993 0.9 0 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 So, how far vertically do you move in on time constant

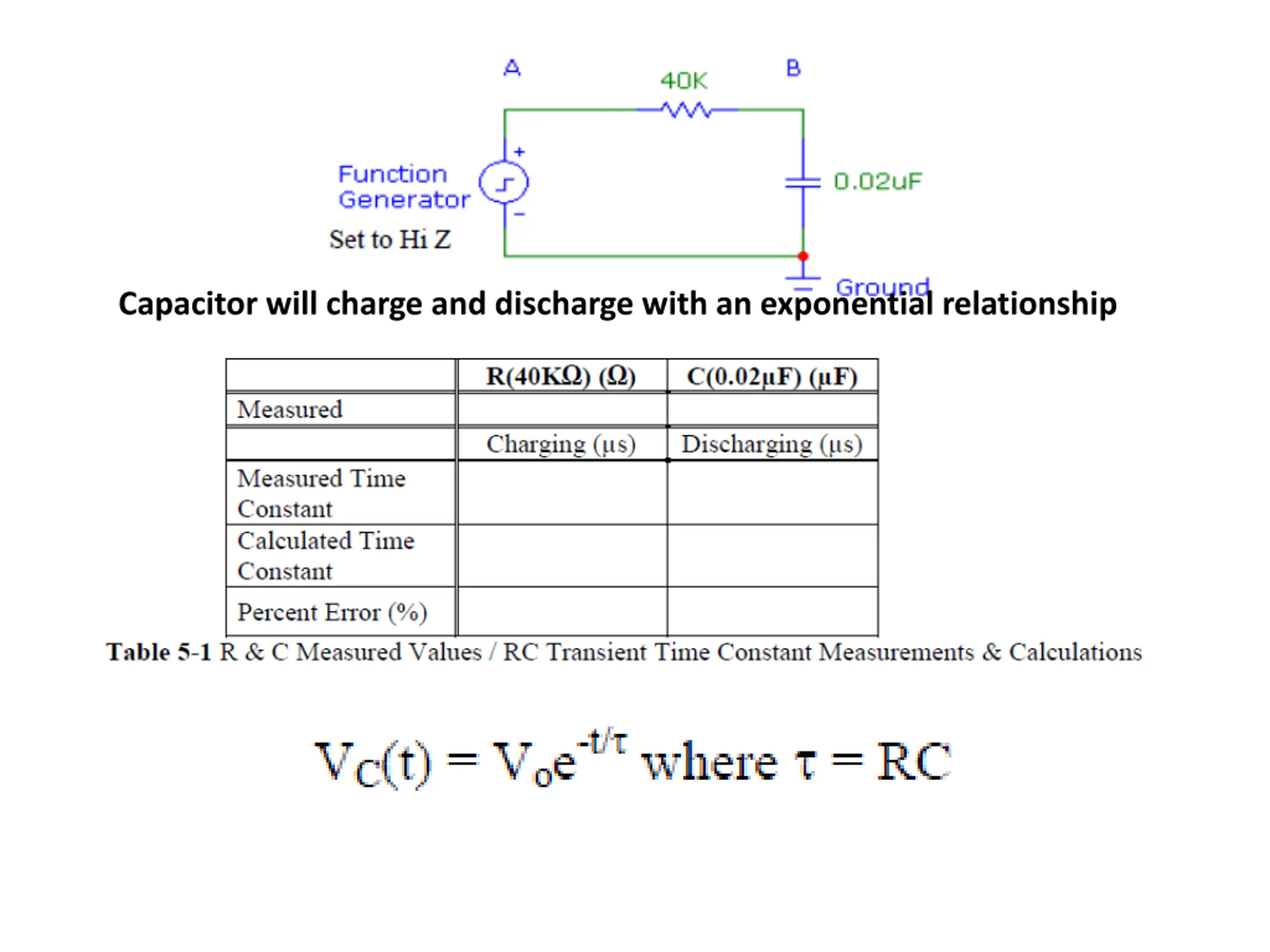

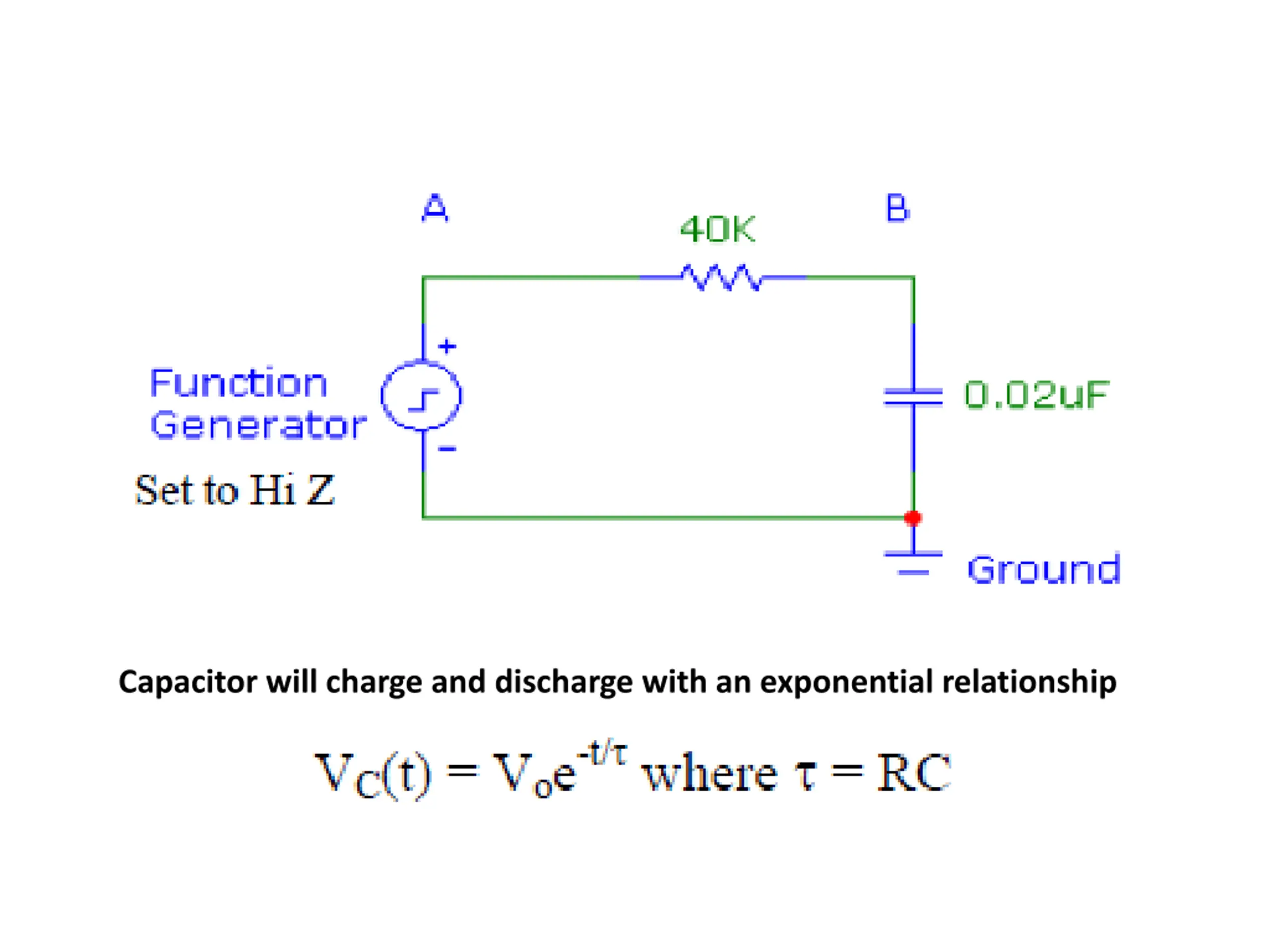

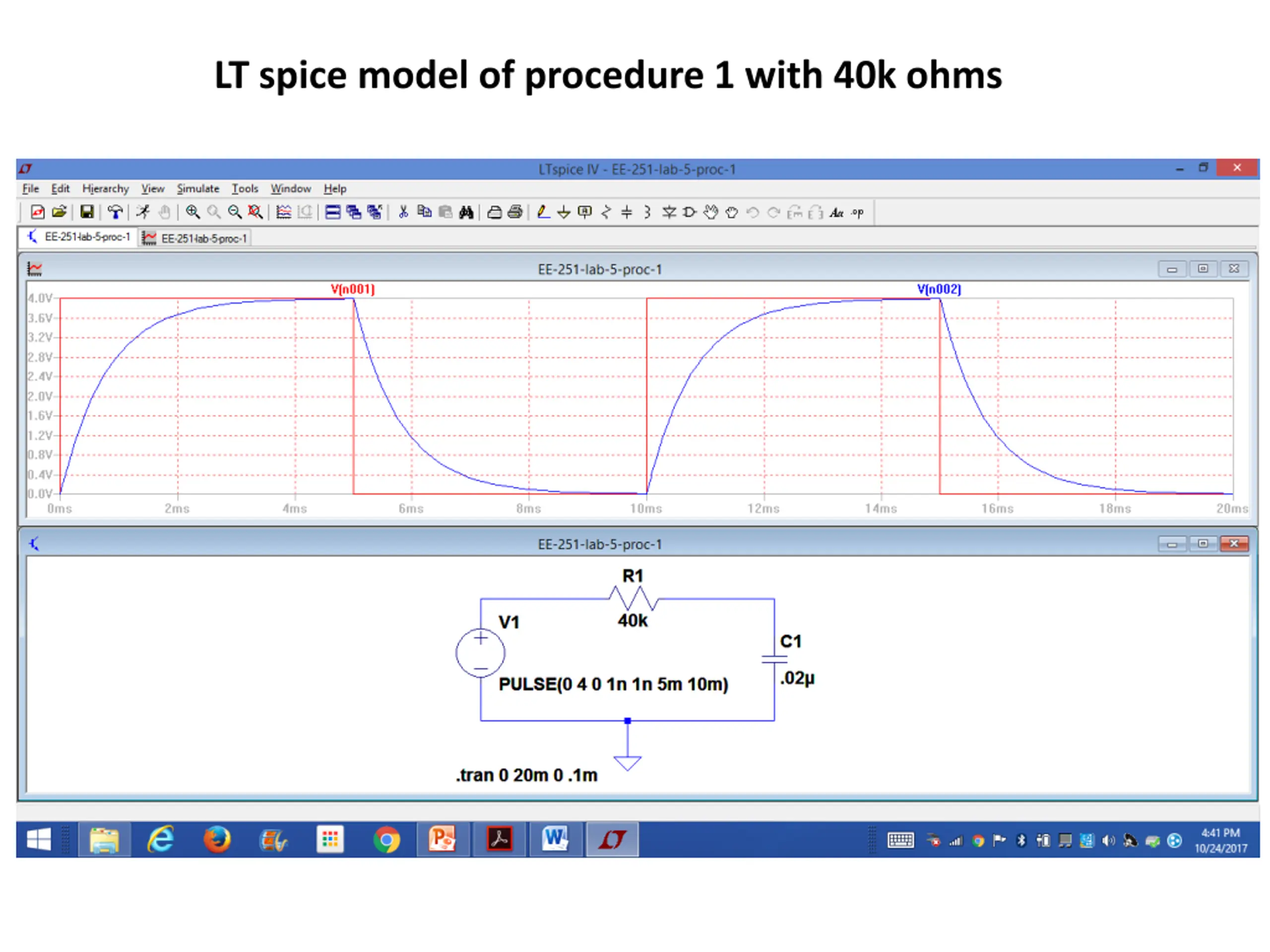

Capacitor will charge and discharge with an exponential relationship

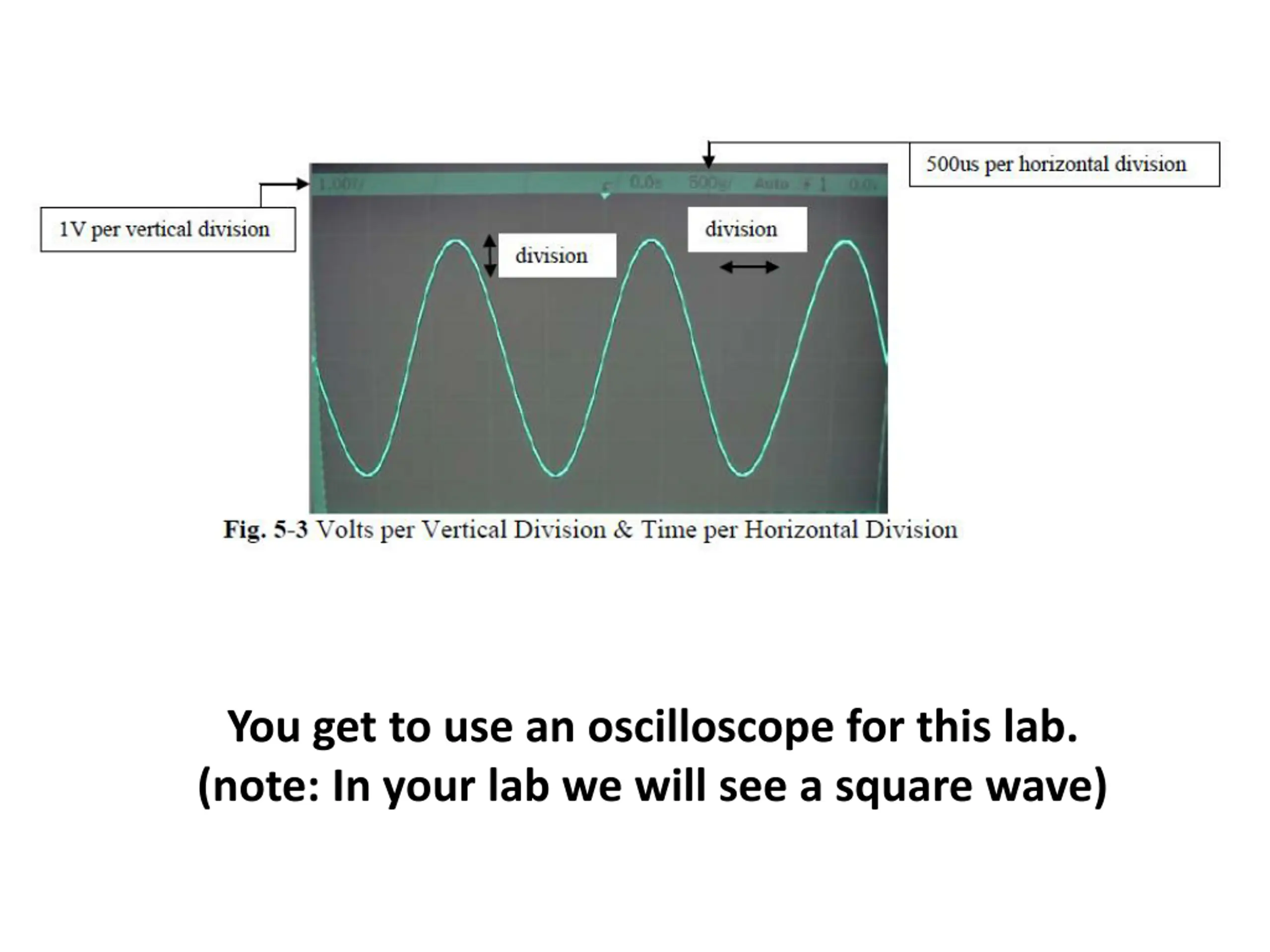

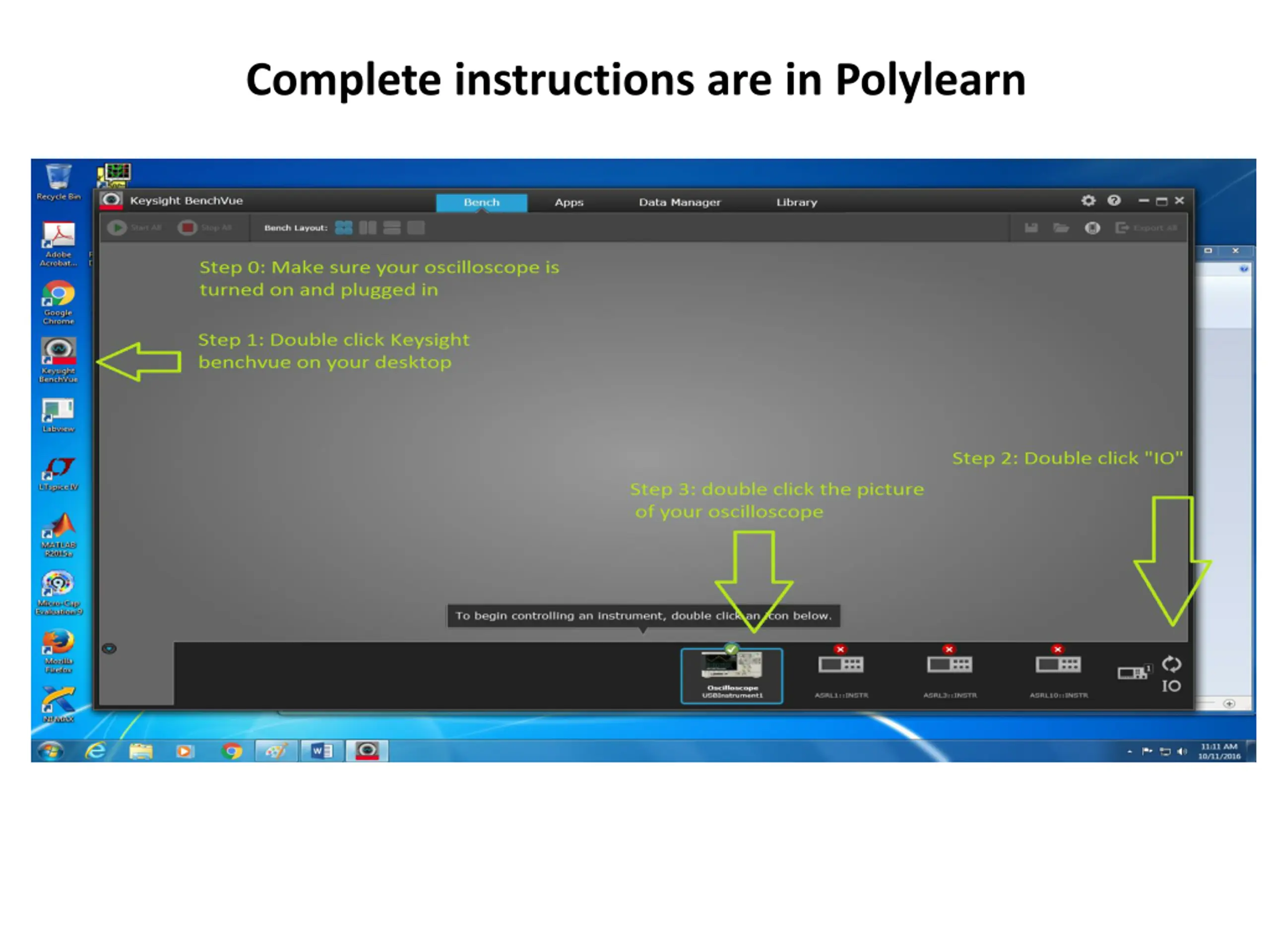

You get to use an oscilloscope for this lab. (note: In your lab we will see a square wave)

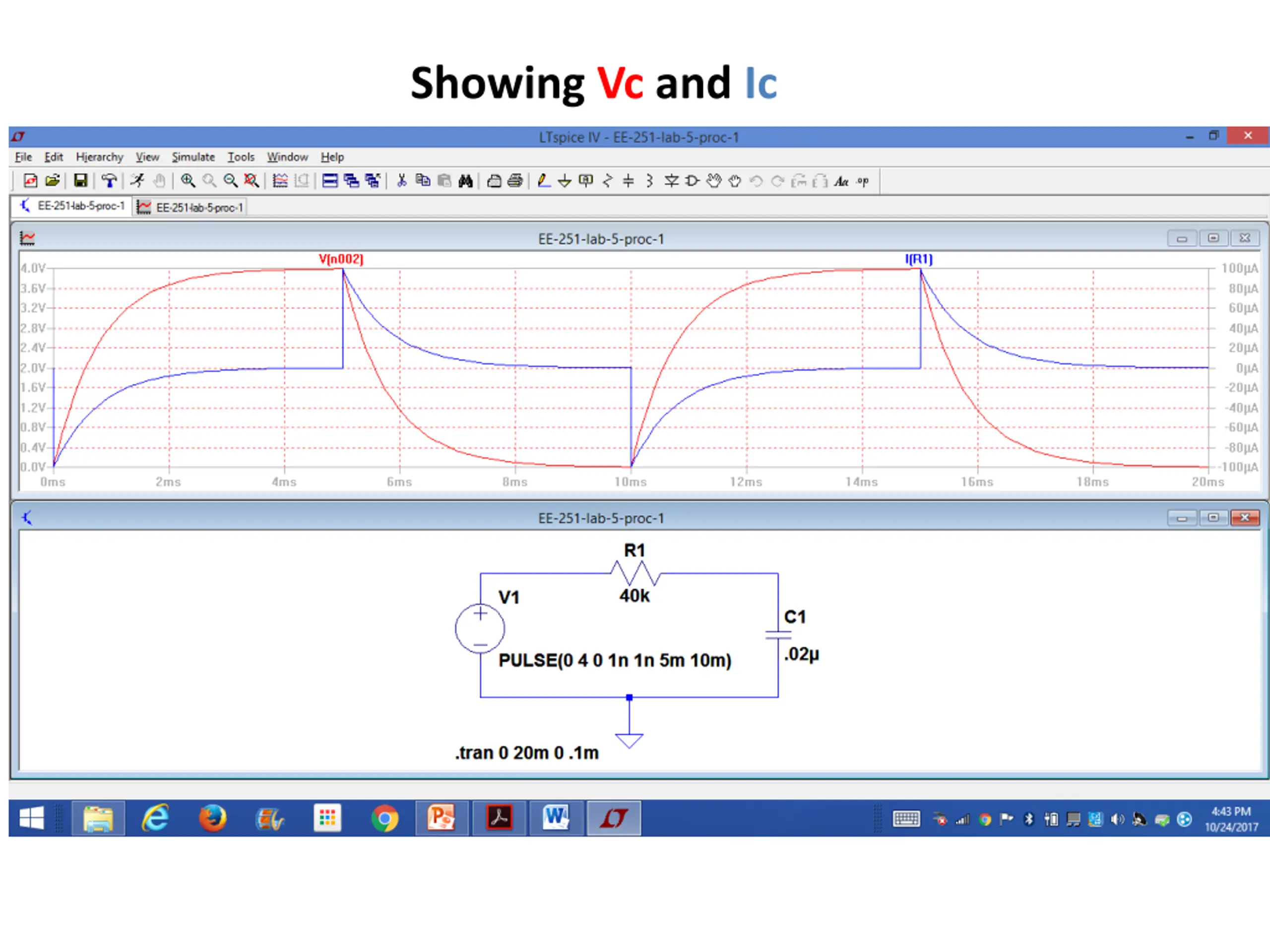

Capacitor will charge and discharge with an exponential relationship

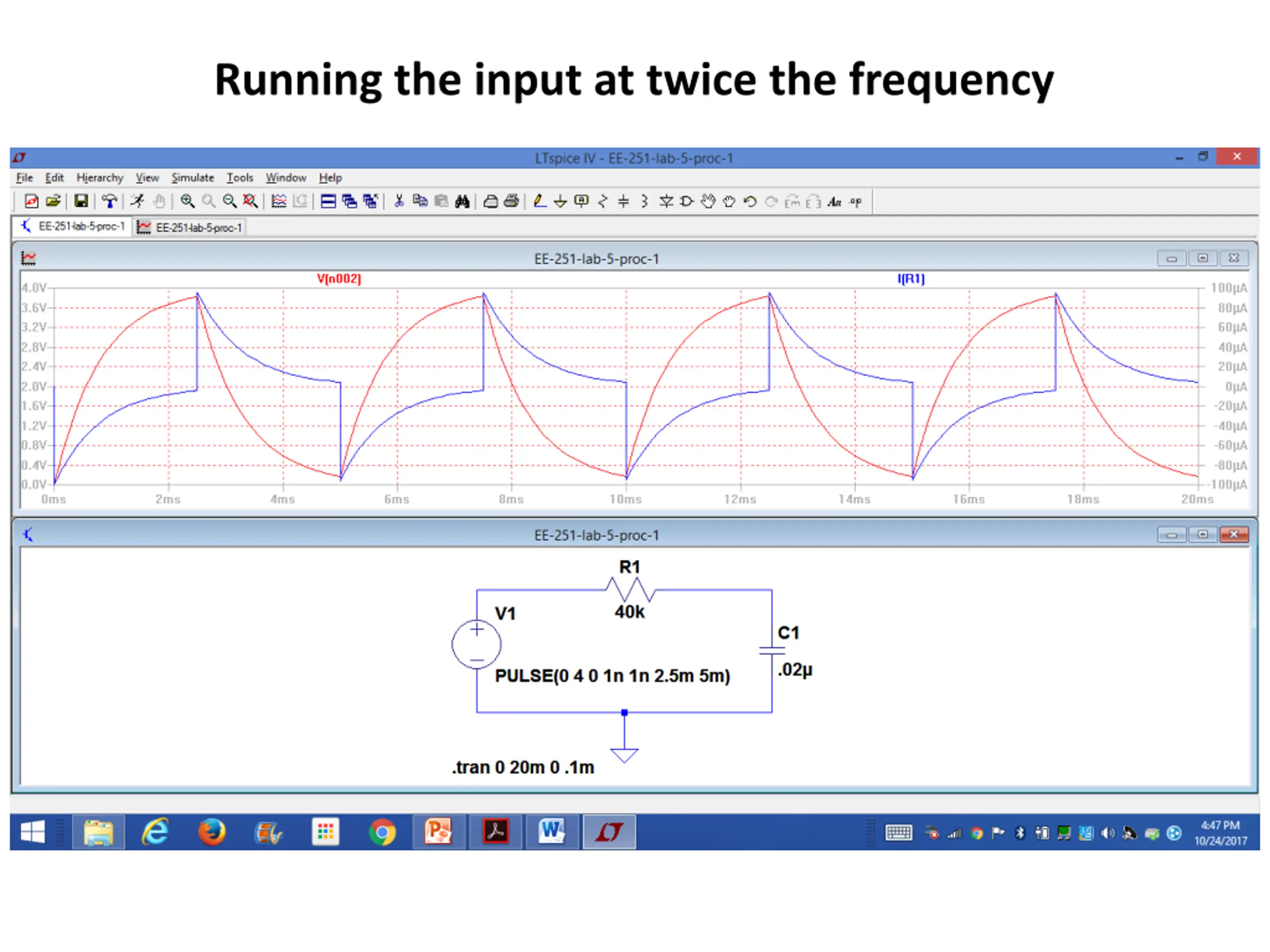

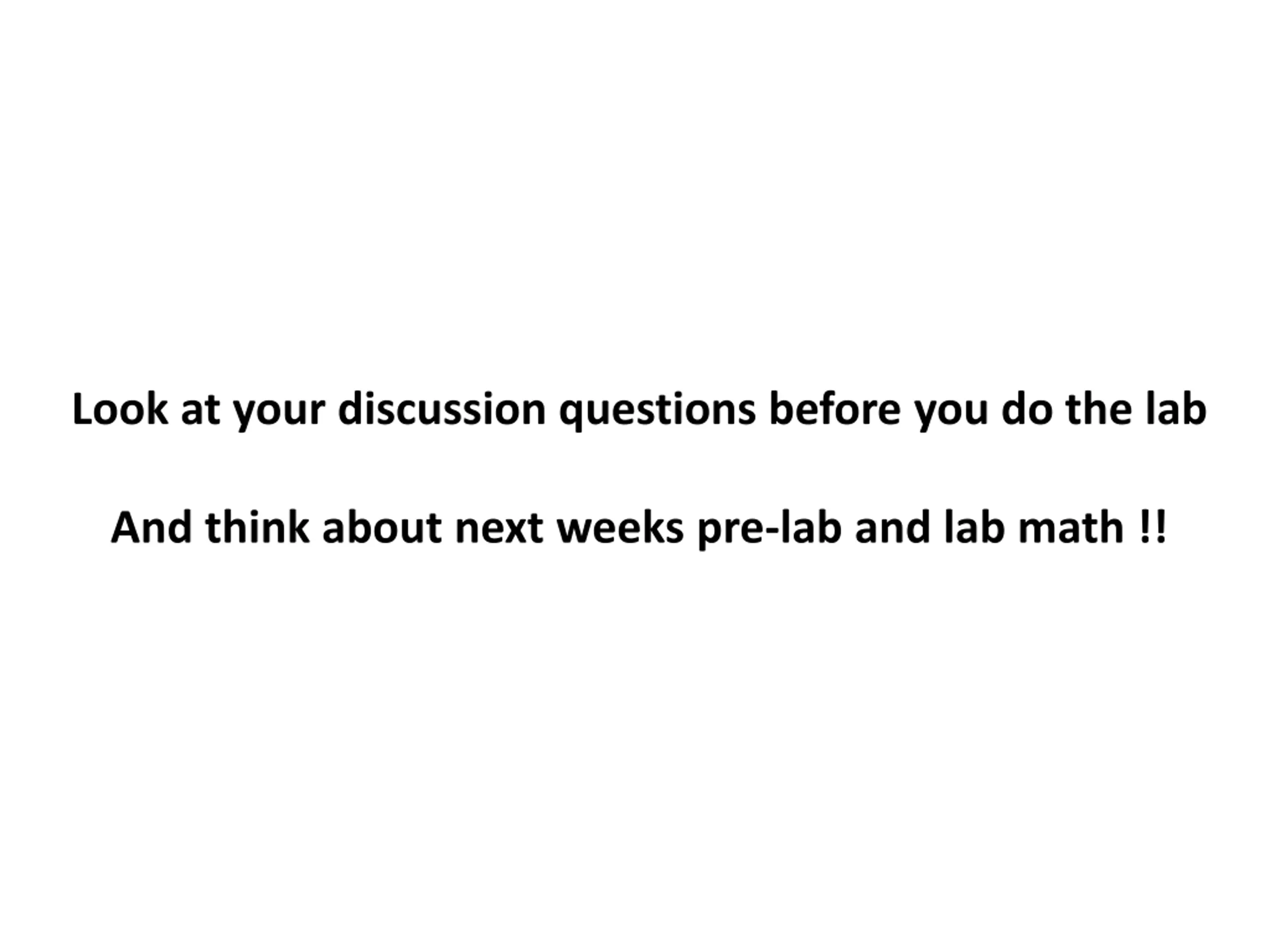

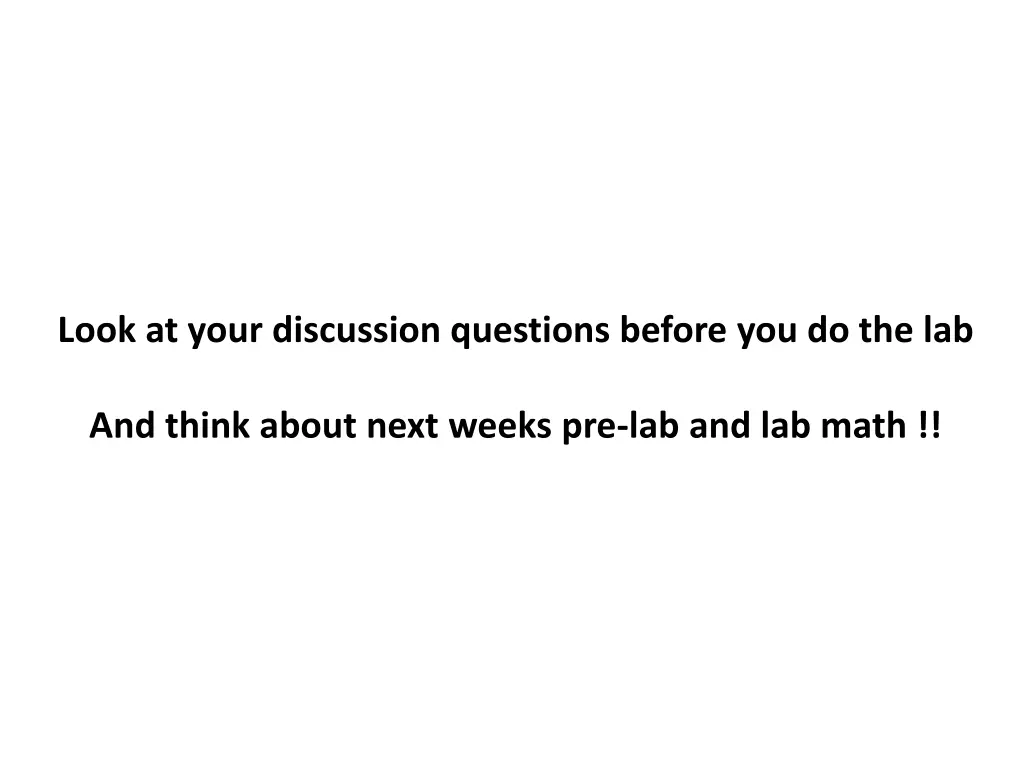

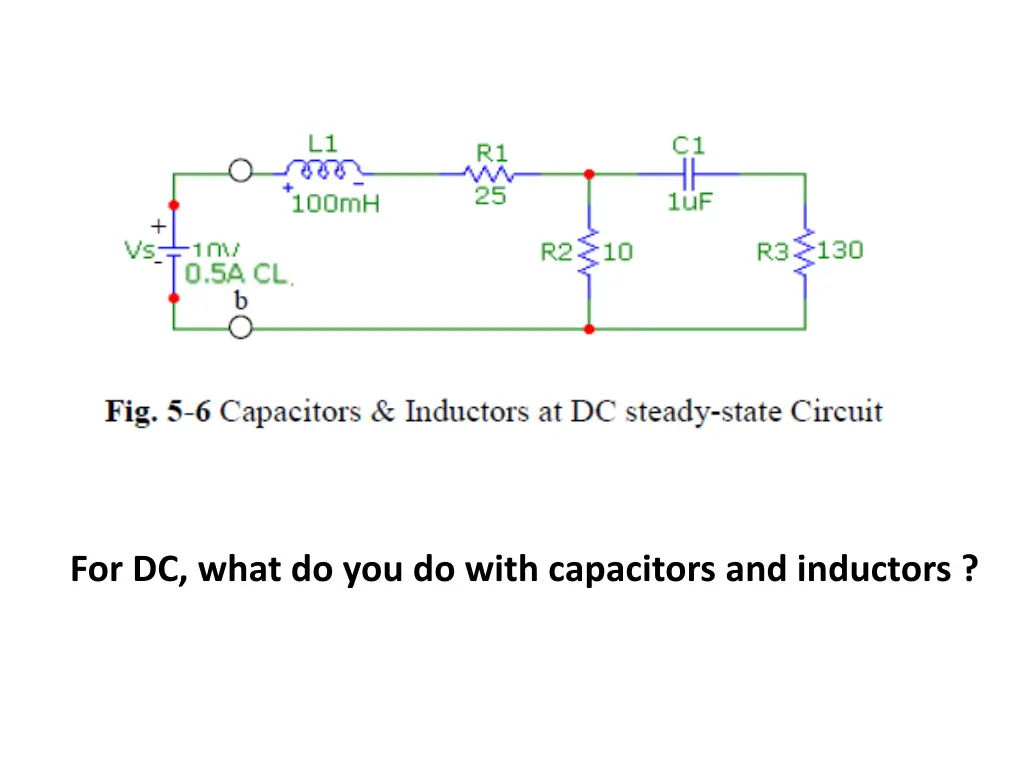

Look at your discussion questions before you do the lab And think about next weeks pre-lab and lab math !!

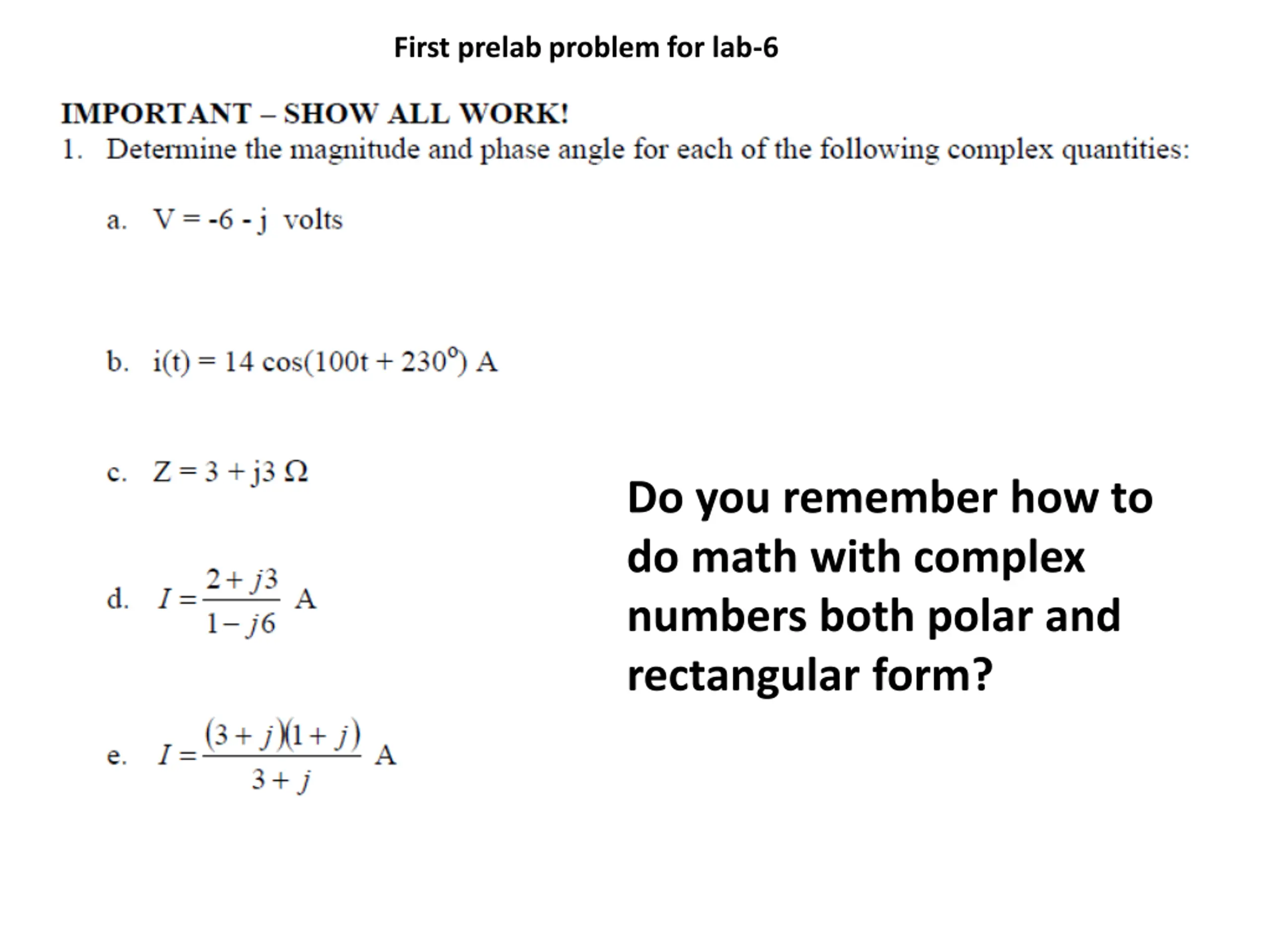

First prelab problem for lab-6 Do you remember how to do math with complex numbers both polar and rectangular form?
