Breakwater Structures in Kissamos, Crete and Klazomenae, Izmir: A Comparative Study
Investigate the submerged remains of breakwater structures in Kissamos, Crete and Klazomenae, Izmir through scale model tests and observations. Explore the still-existing breakwater in Kissamos, Crete from Google Earth imagery and delve into the findings from Sahoglu (2011) on Klazomenae. Compare the overtopped and submerged structures' responses to varying wave parameters like significant wave height (Hs) and peak wave period (Tp). Gain insights into the challenges and design considerations faced in coastal engineering projects related to breakwaters.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

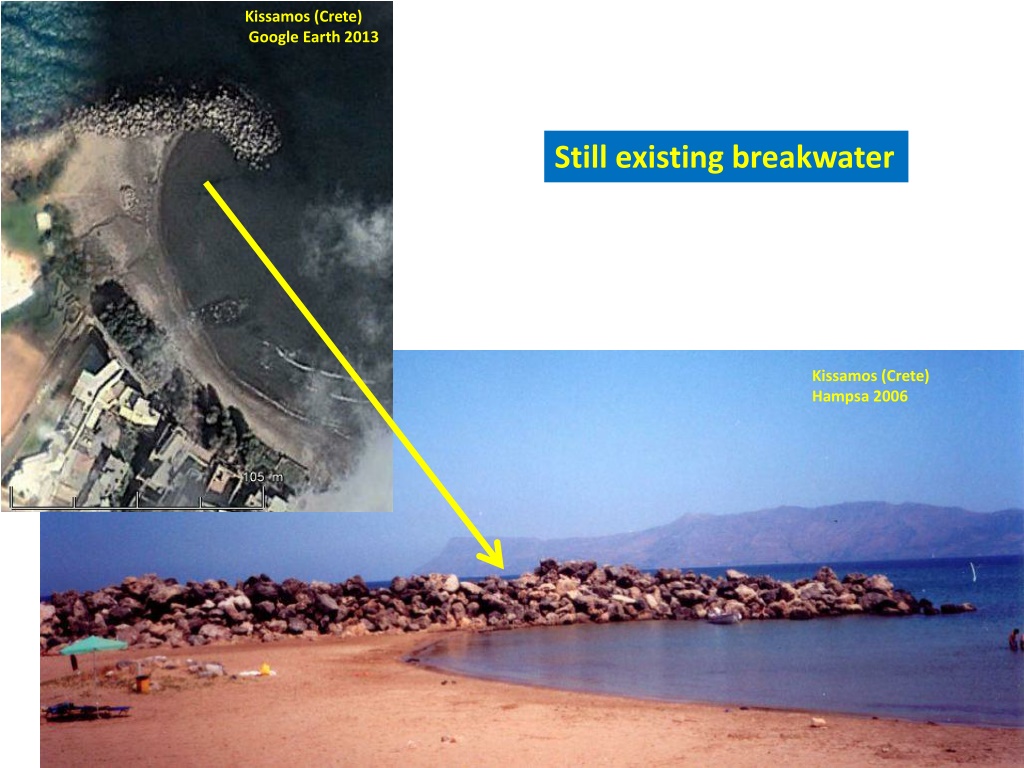

Kissamos (Crete) Google Earth 2013 Still existing breakwater Kissamos (Crete) Hampsa 2006

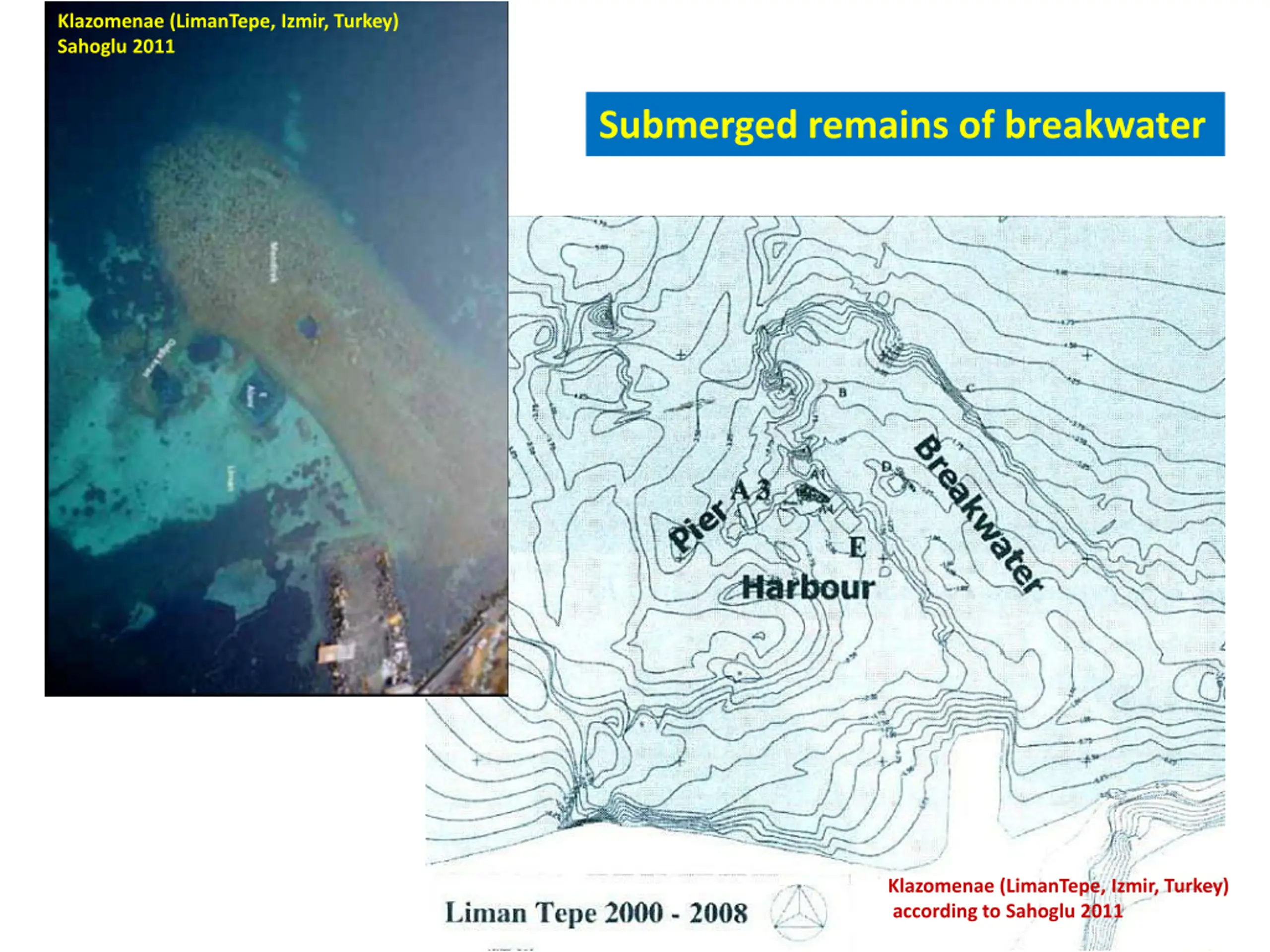

Klazomenae (LimanTepe, Izmir, Turkey) Sahoglu 2011 Submerged remains of breakwater Klazomenae (LimanTepe, Izmir, Turkey) according to Sahoglu 2011

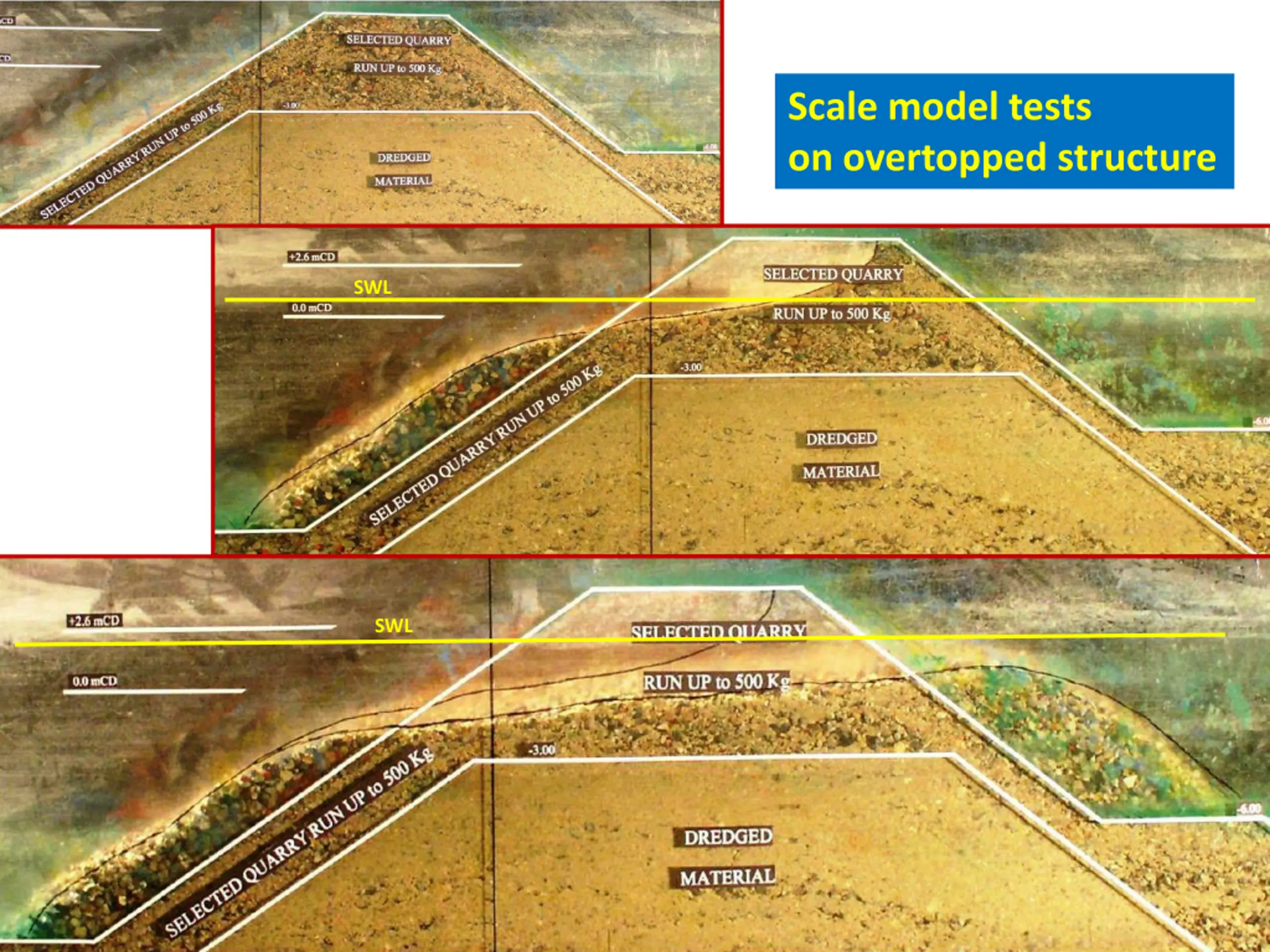

Scale model tests on overtopped structure SWL SWL

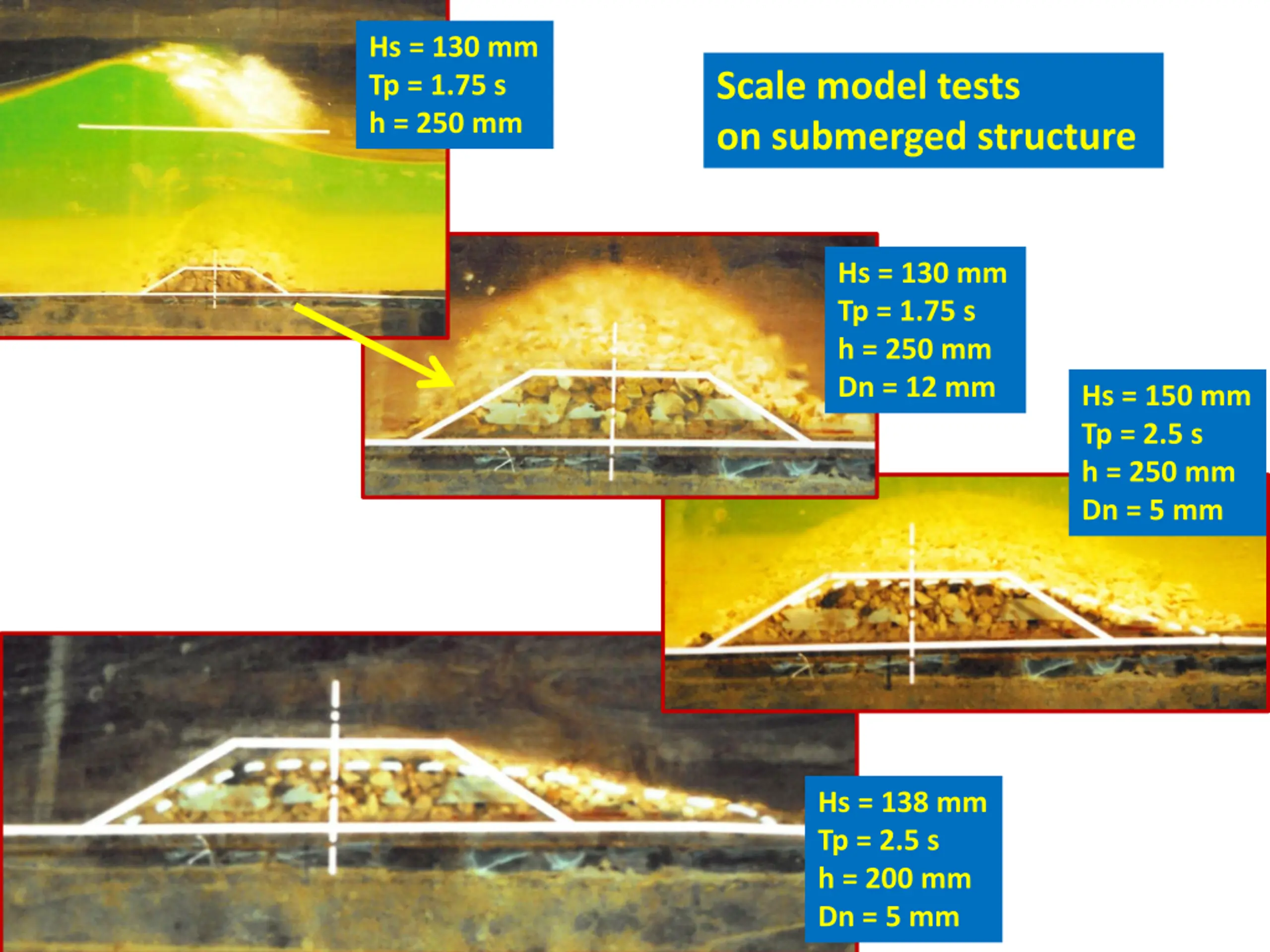

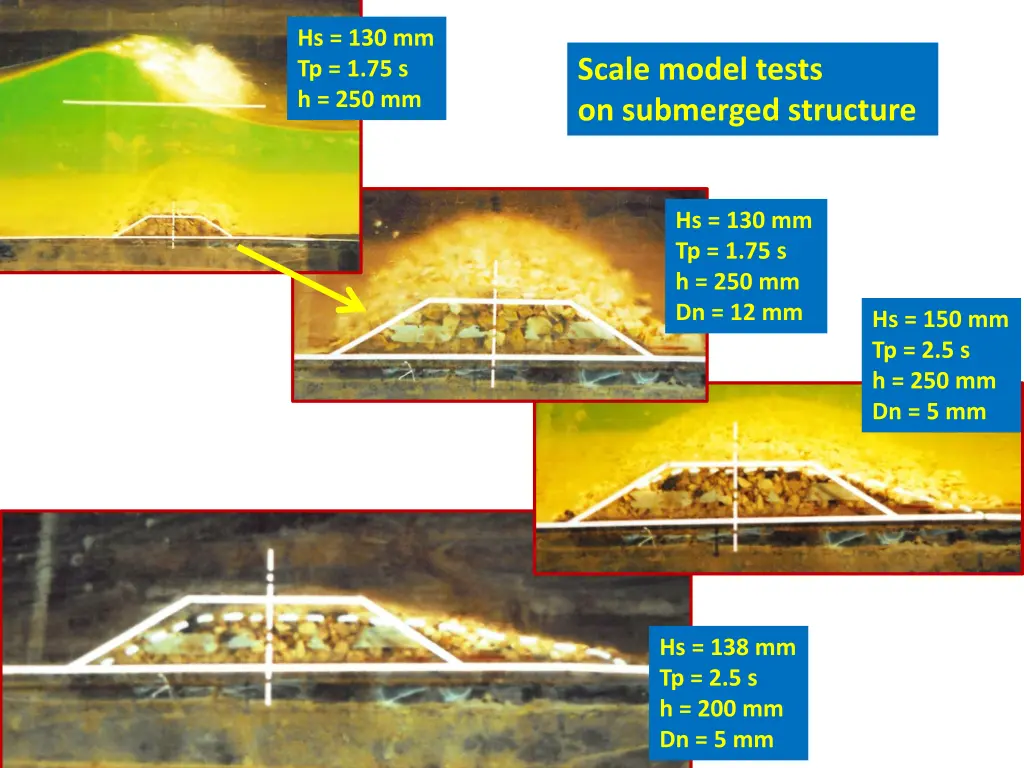

Hs = 130 mm Tp = 1.75 s h = 250 mm Scale model tests on submerged structure Hs = 130 mm Tp = 1.75 s h = 250 mm Dn = 12 mm Hs = 150 mm Tp = 2.5 s h = 250 mm Dn = 5 mm Hs = 138 mm Tp = 2.5 s h = 200 mm Dn = 5 mm
