  1. Linked Lists Introduction Building a Linked List Traversing a Linked List Deleting a Node Dr. Hyrum D. Carroll (with some material from Dale & Weems s Programming and Problem Solving with C++ slides)

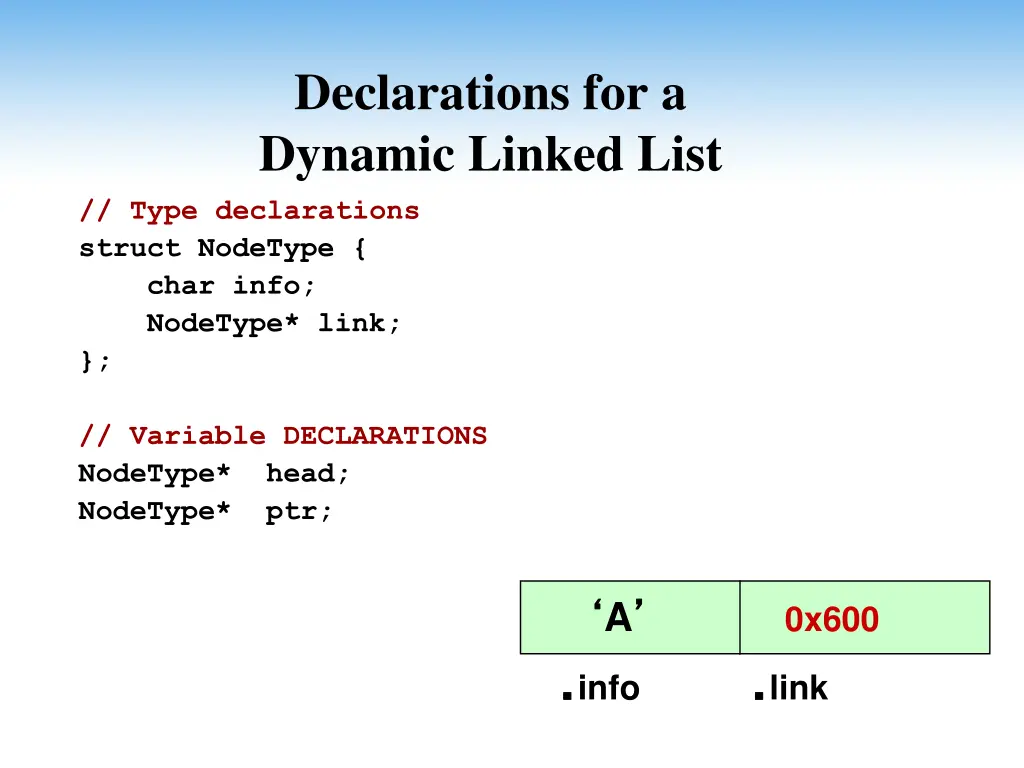

  2. Declarations for a Dynamic Linked List // Type declarations struct NodeType { char info; NodeType* link; }; // Variable DECLARATIONS NodeType* head; NodeType* ptr; A 0x600 . .info . .link

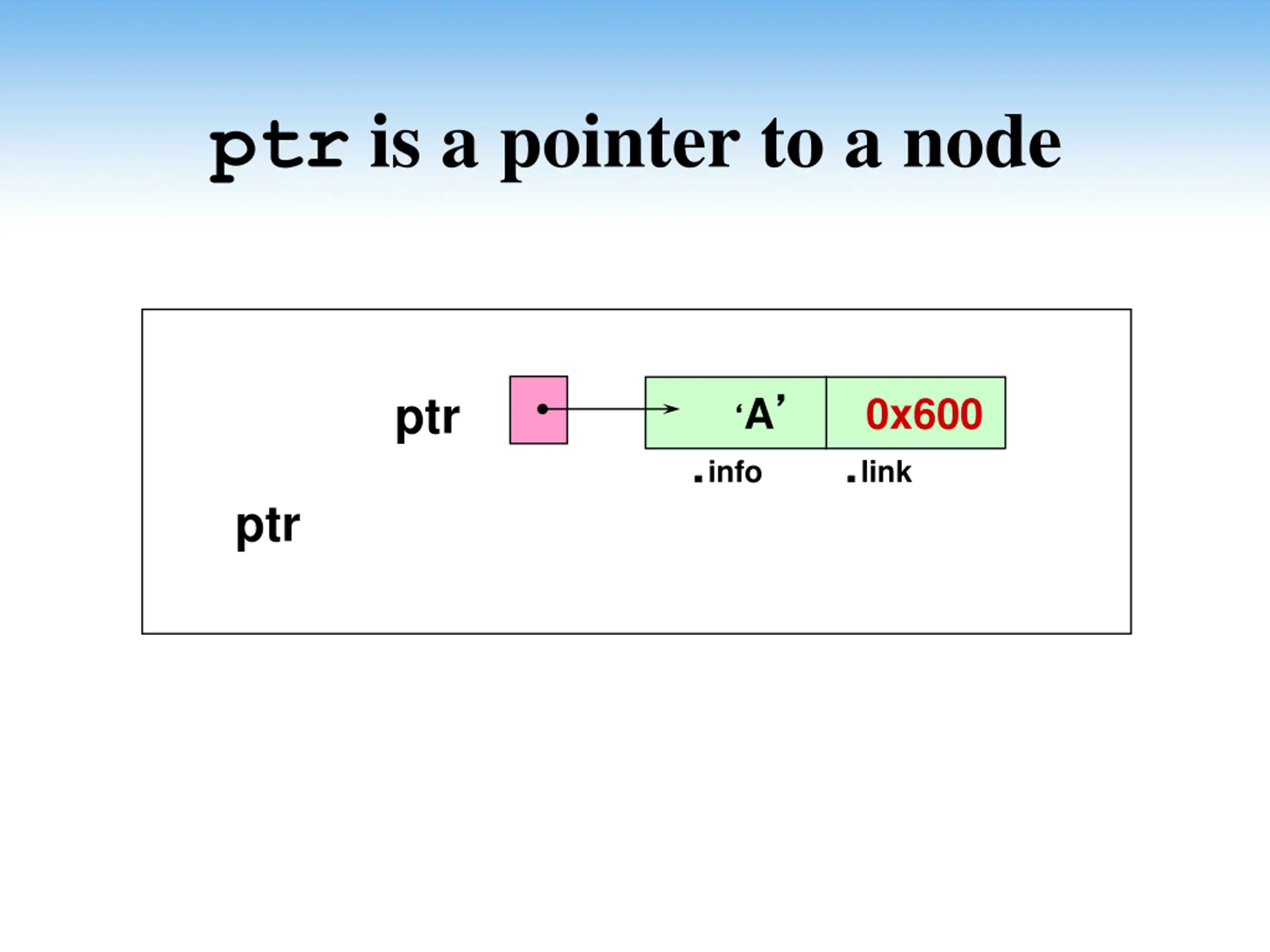

  3. ptr is a pointer to a node ptr A 0x600 . .info . .link ptr

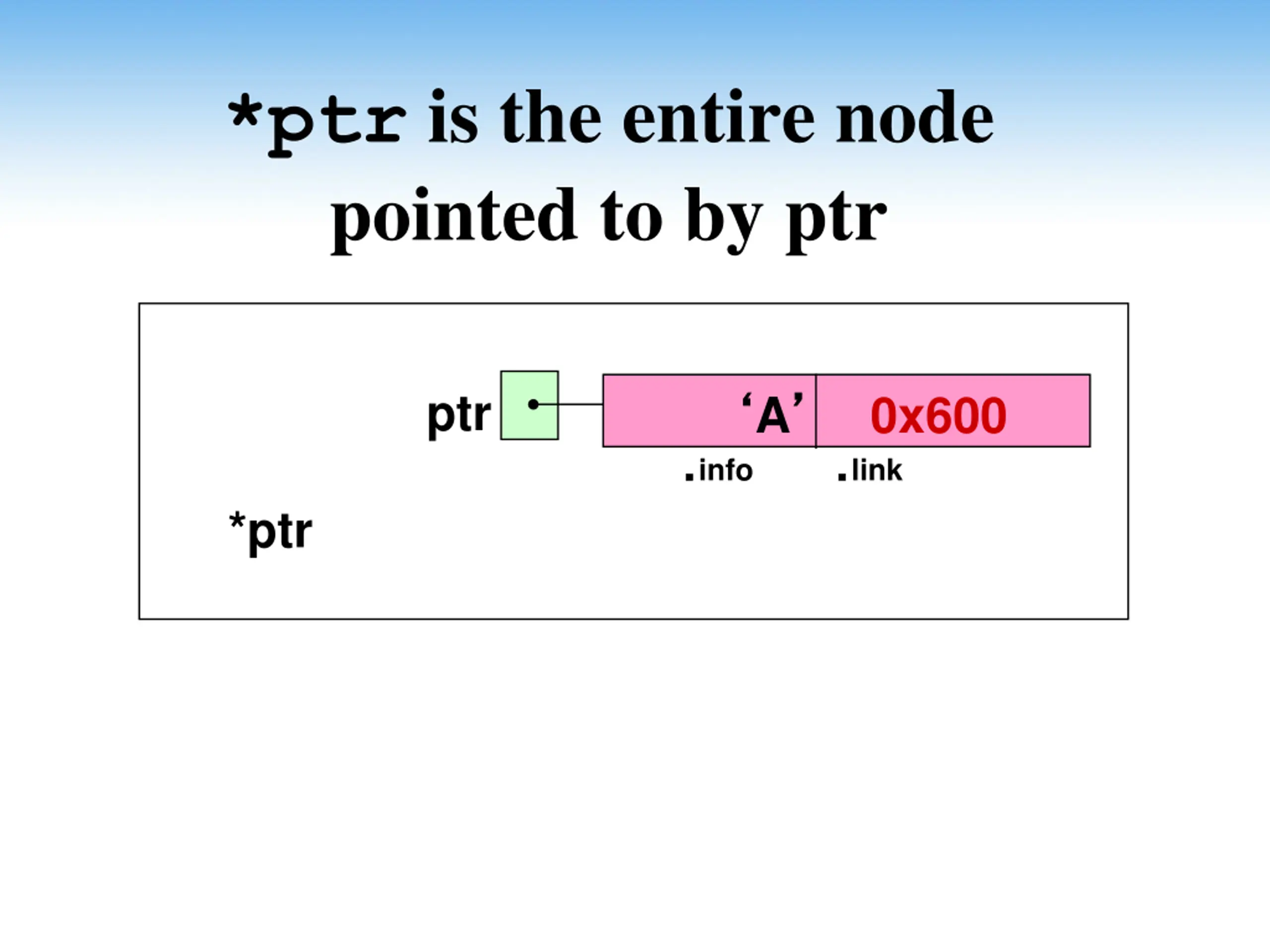

  4. *ptr is the entire node pointed to by ptr ptr A 0x600 . .info . .link *ptr

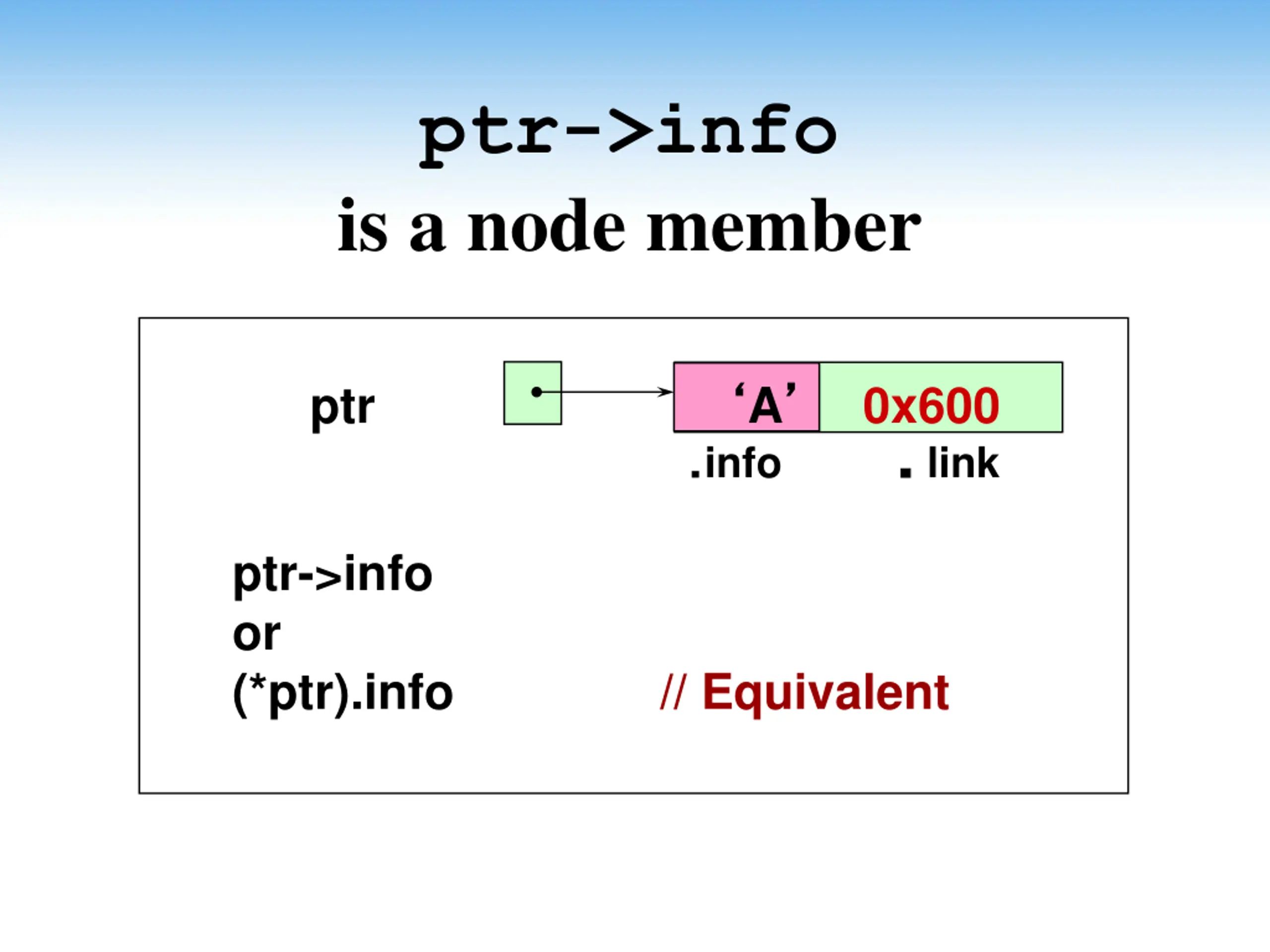

  5. ptr->info is a node member ptr A 0x600 . .info . . link ptr->info or (*ptr).info // Equivalent

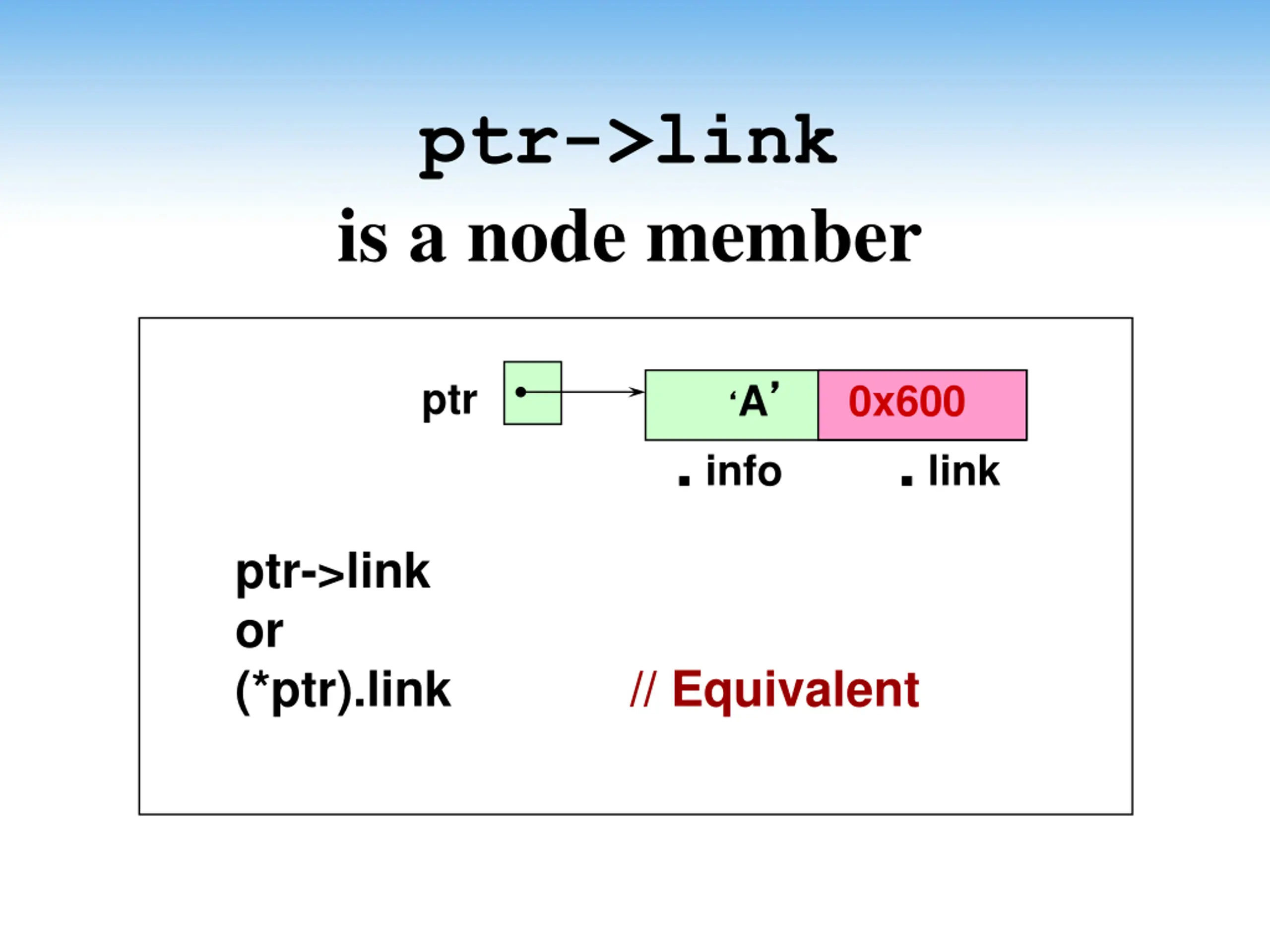

  6. ptr->link is a node member ptr A 0x600 . . info . . link ptr->link or (*ptr).link // Equivalent

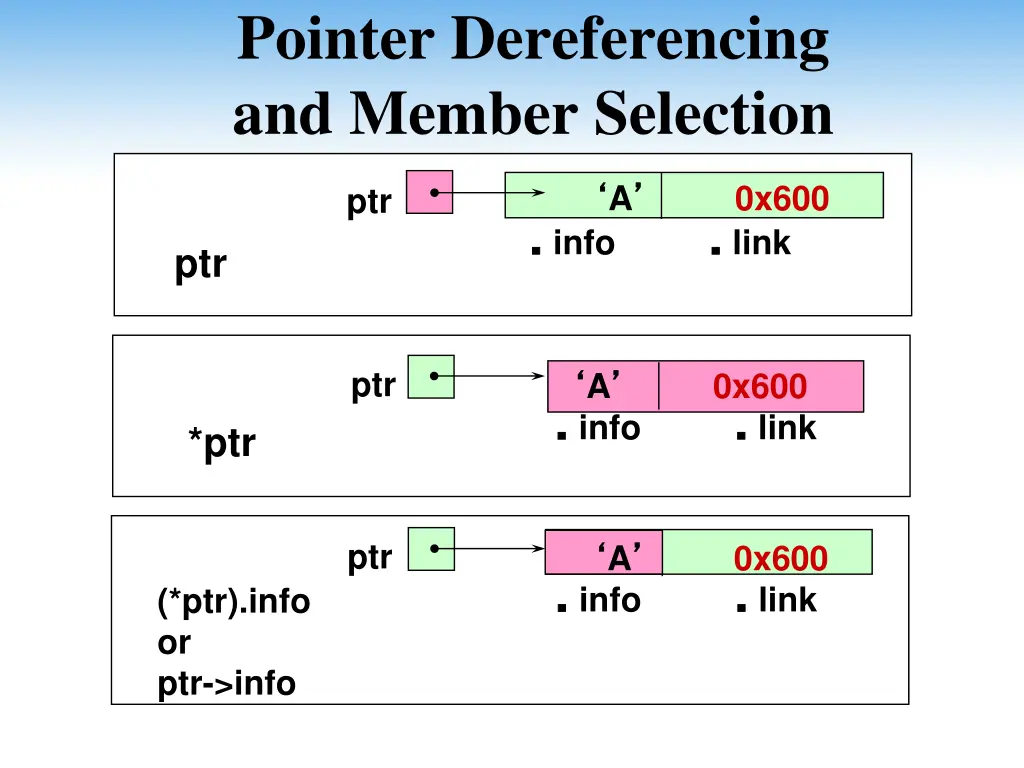

  7. Pointer Dereferencing and Member Selection A 0x600 ptr . . info . . link ptr ptr A 0x600 . . info . . link *ptr ptr A 0x600 . . info . . link (*ptr).info or ptr->info

  8. BUILDING A LINKED LIST

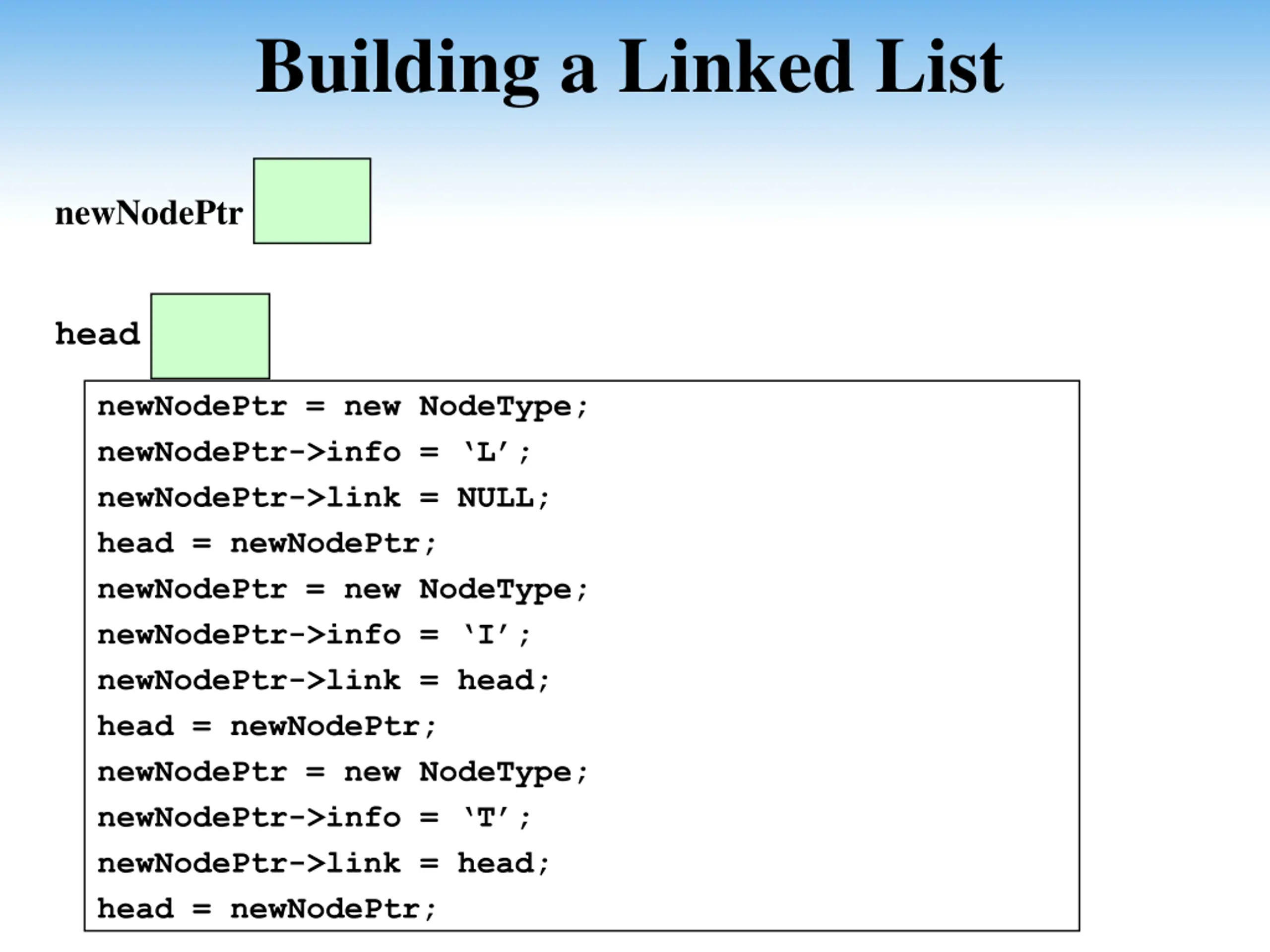

  9. Building a Linked List newNodePtr head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

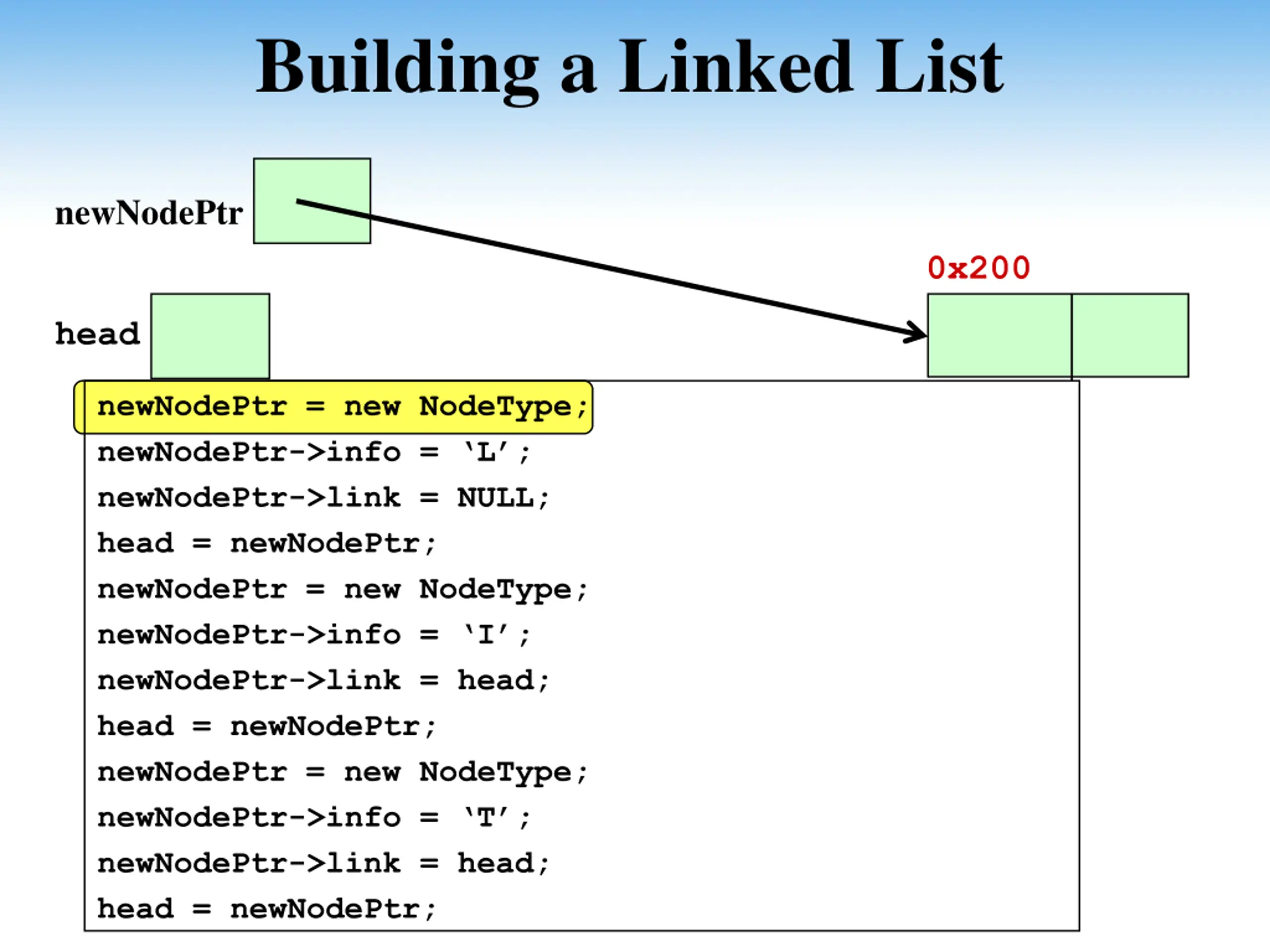

  10. Building a Linked List newNodePtr 0x200 head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

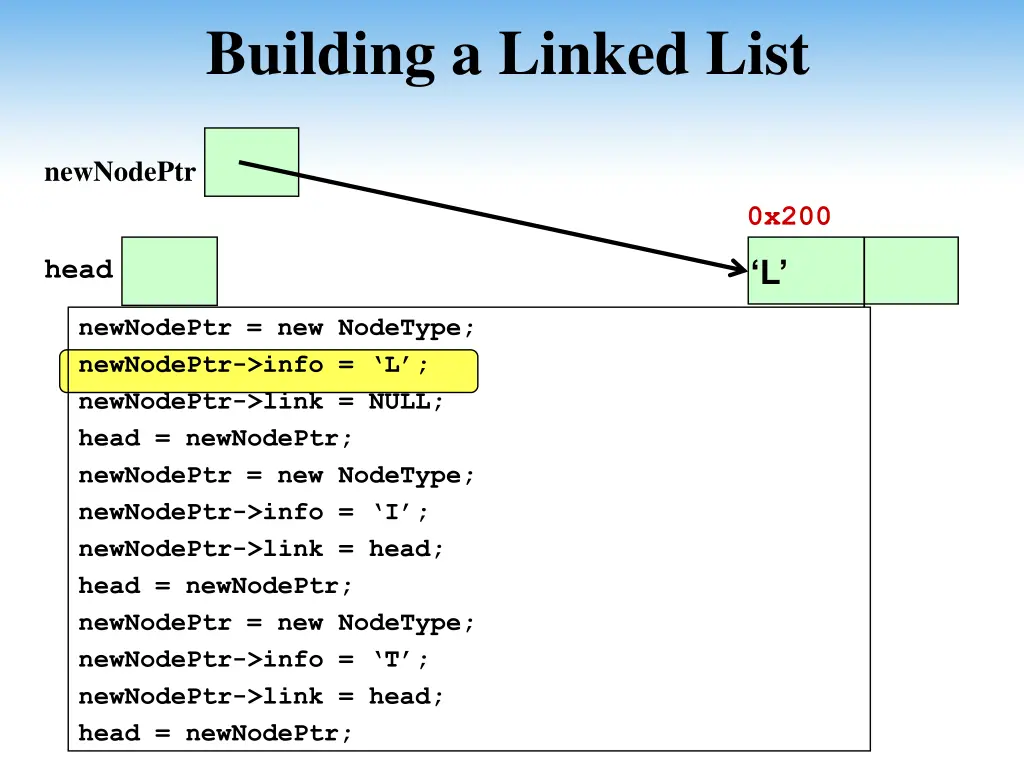

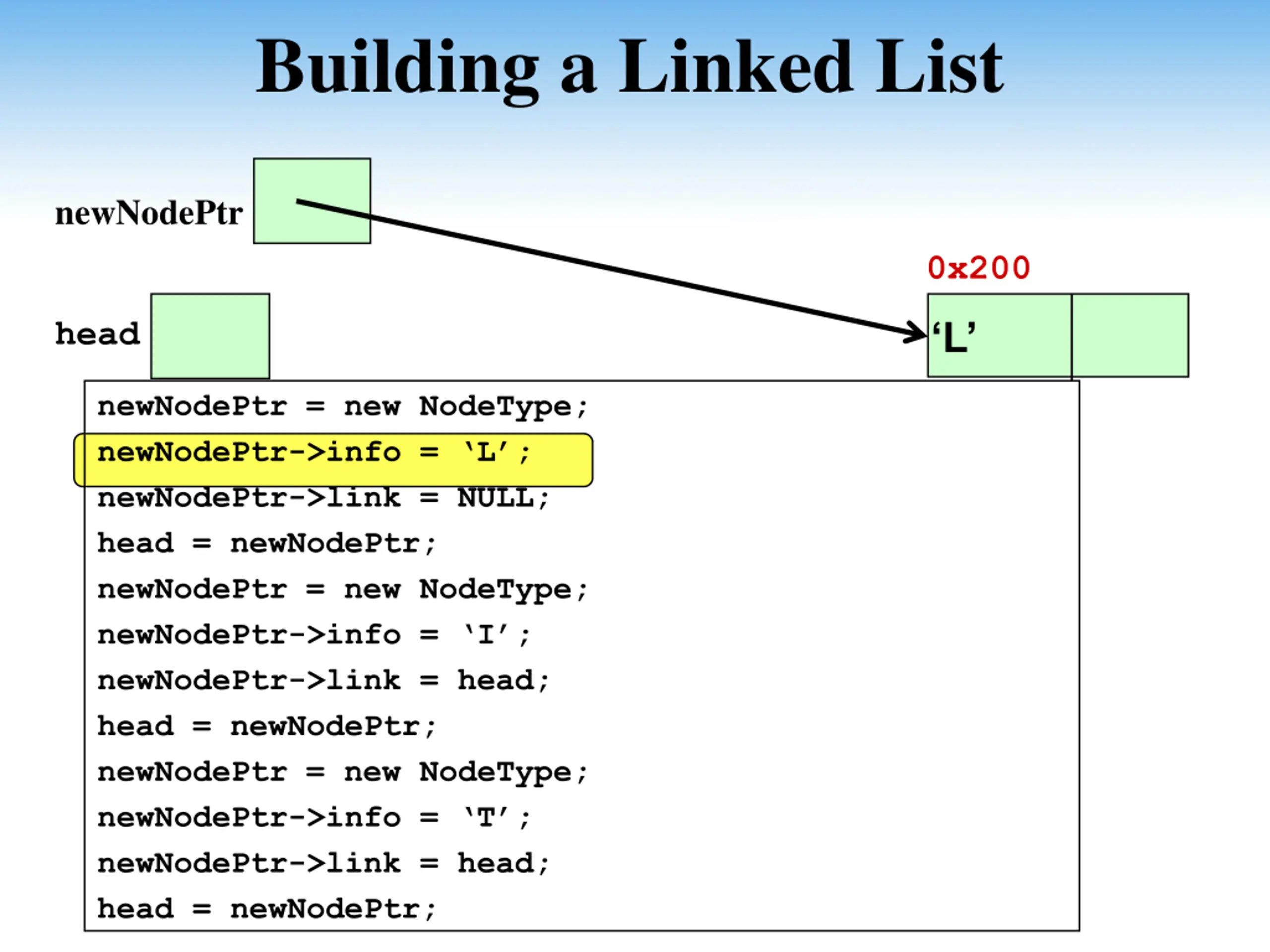

  11. Building a Linked List newNodePtr 0x200 L head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

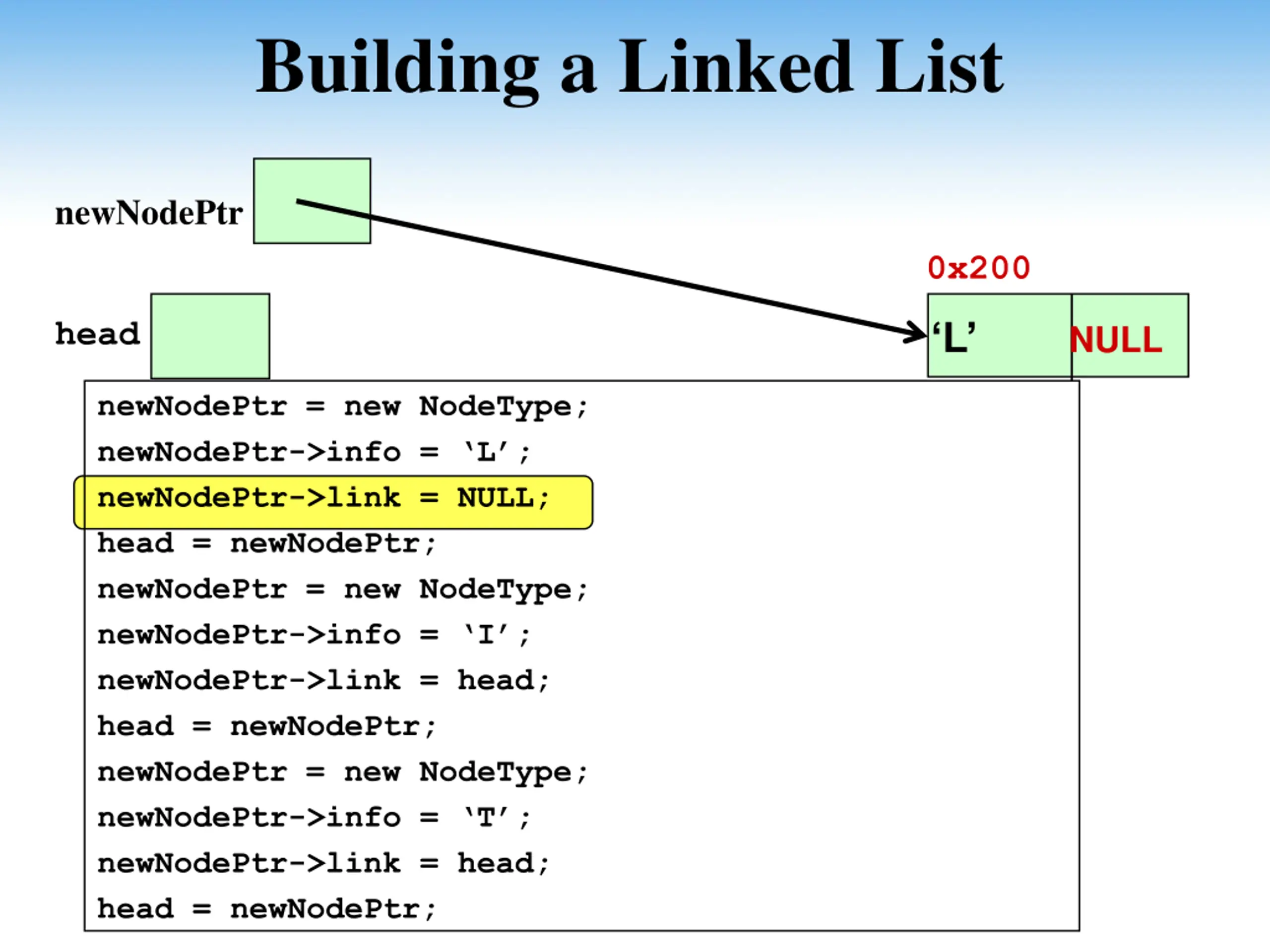

  12. Building a Linked List newNodePtr 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

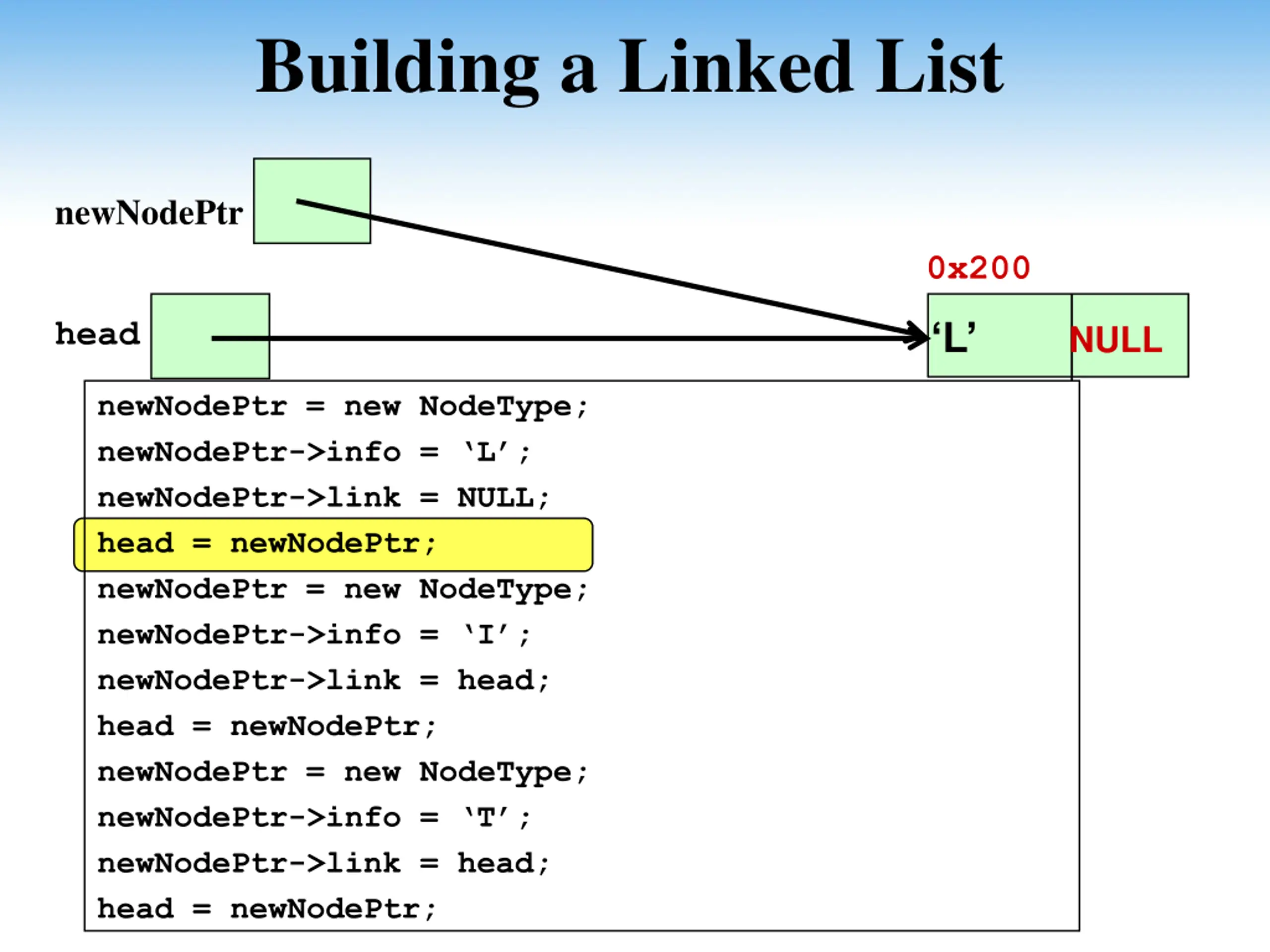

  13. Building a Linked List newNodePtr 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

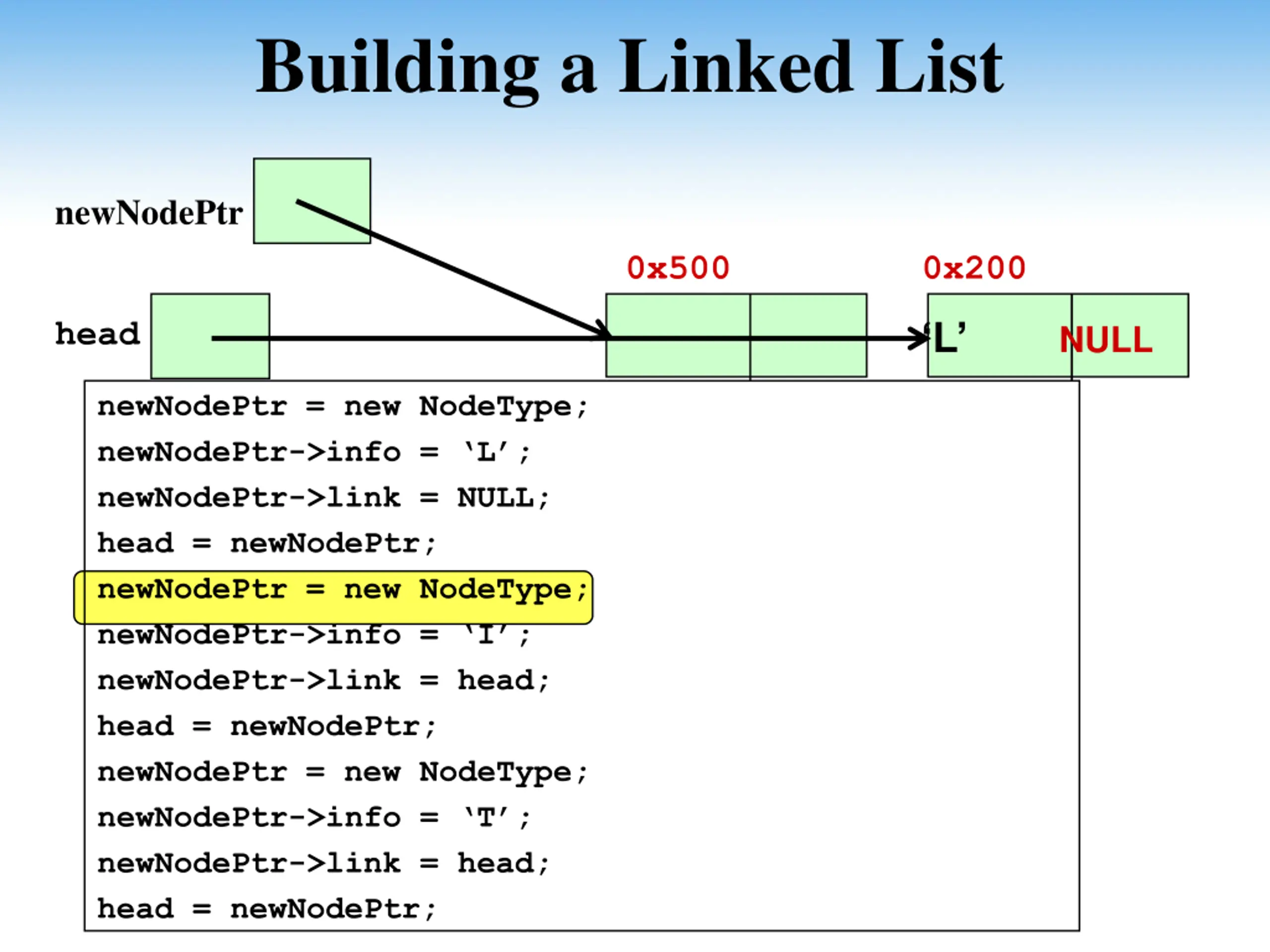

  14. Building a Linked List newNodePtr 0x500 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

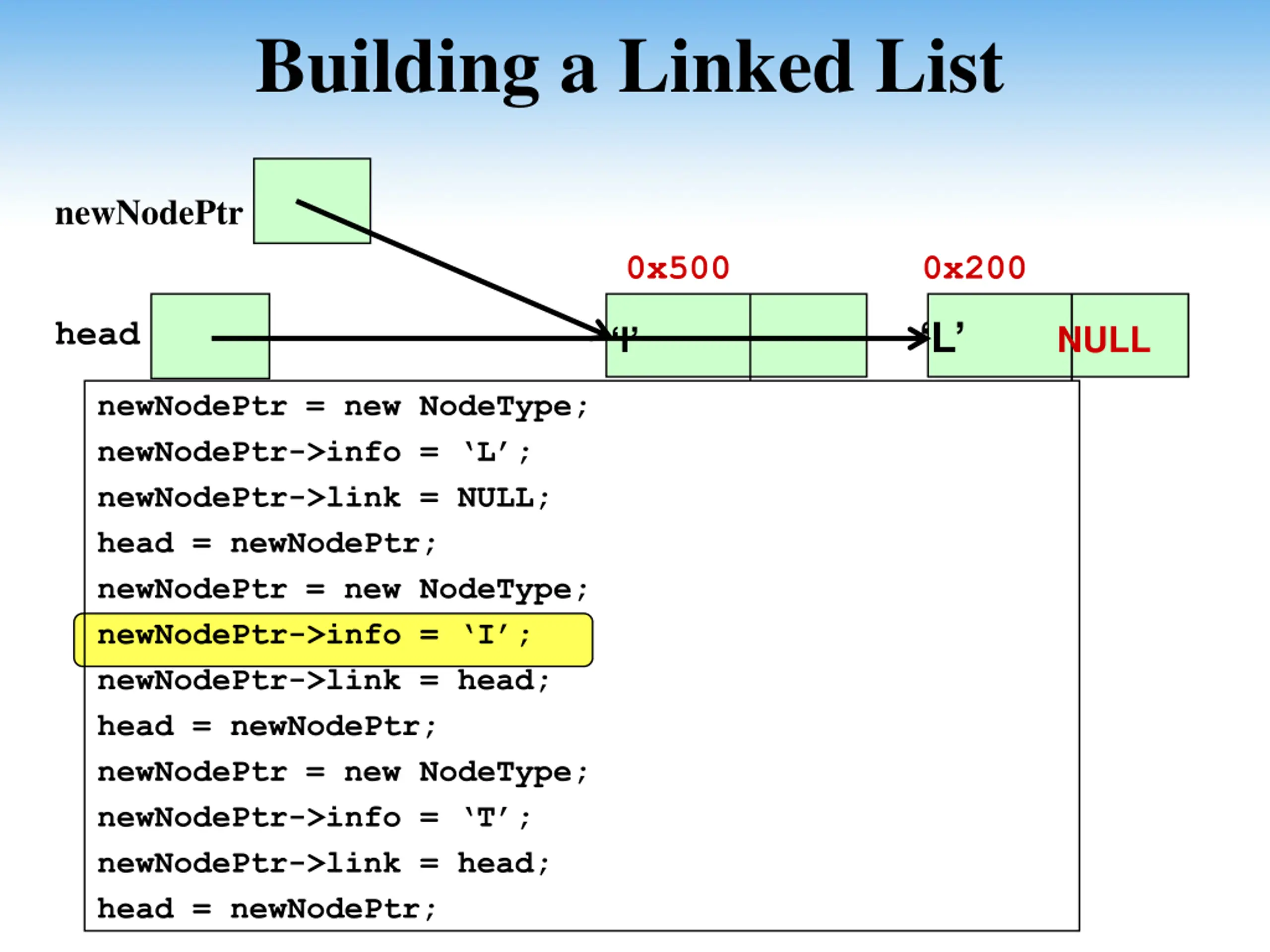

  15. Building a Linked List newNodePtr 0x500 0x200 I L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

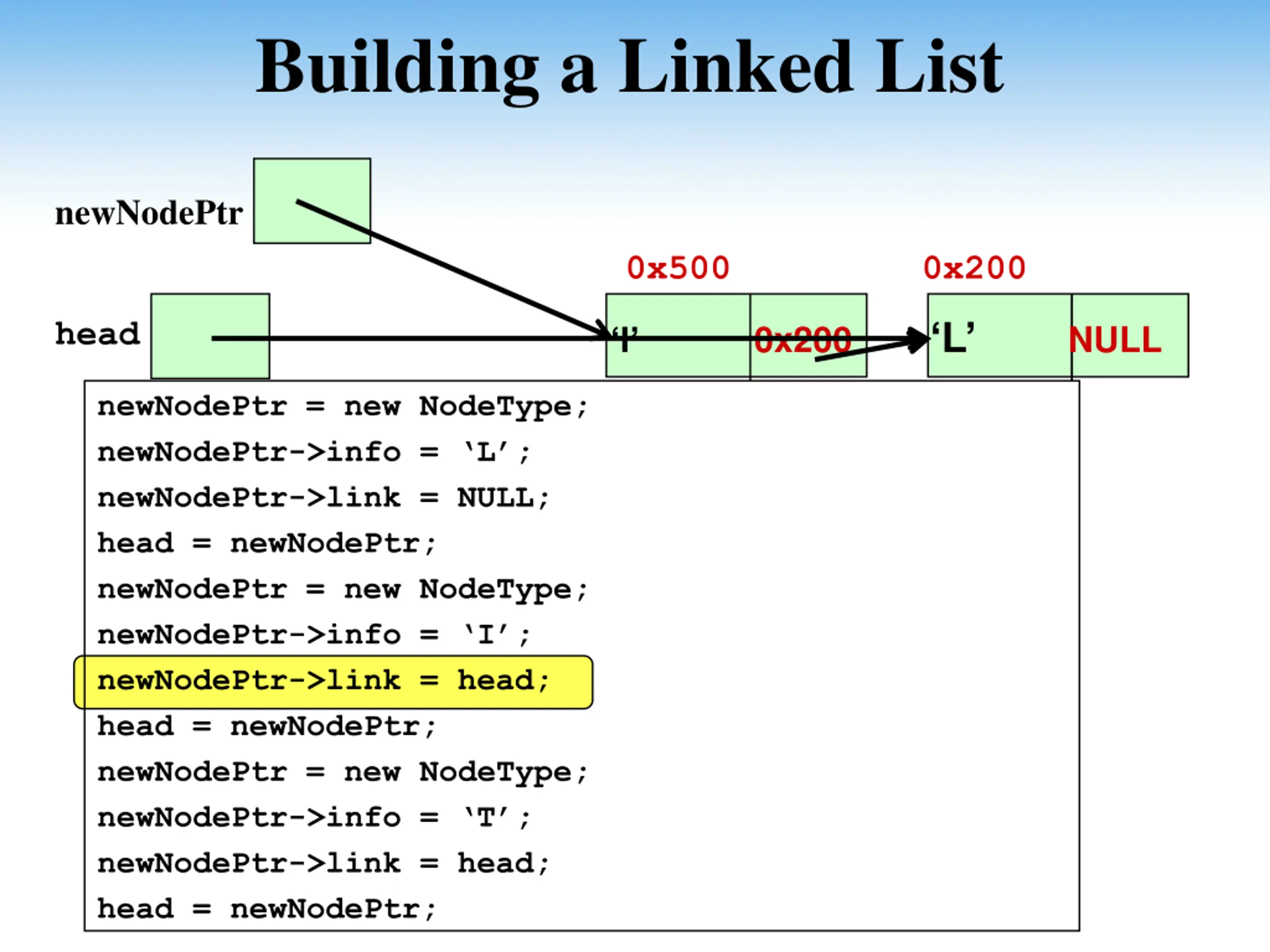

  16. Building a Linked List newNodePtr 0x500 0x200 I 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

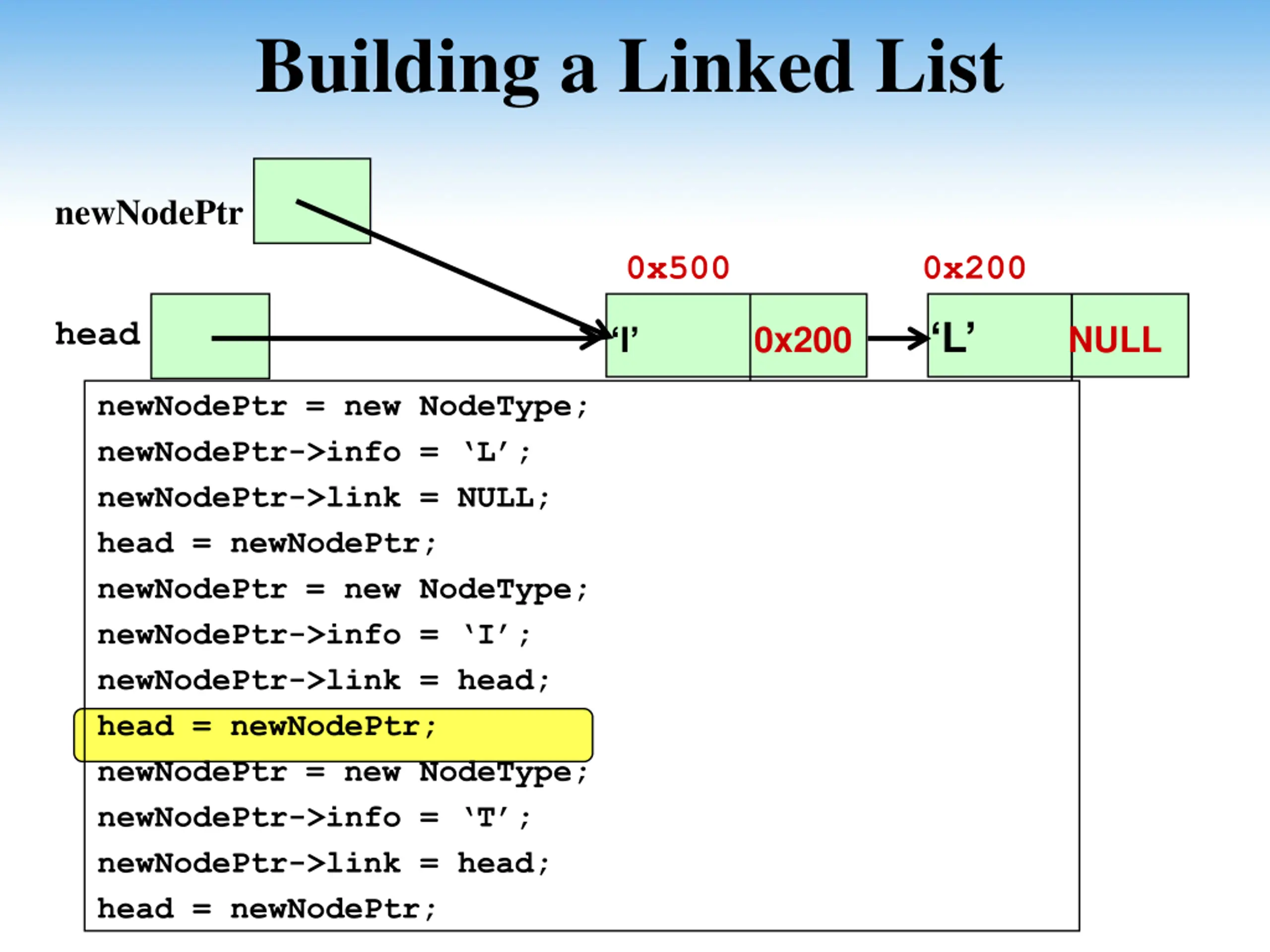

  17. Building a Linked List newNodePtr 0x500 0x200 0x200 L NULL head I newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

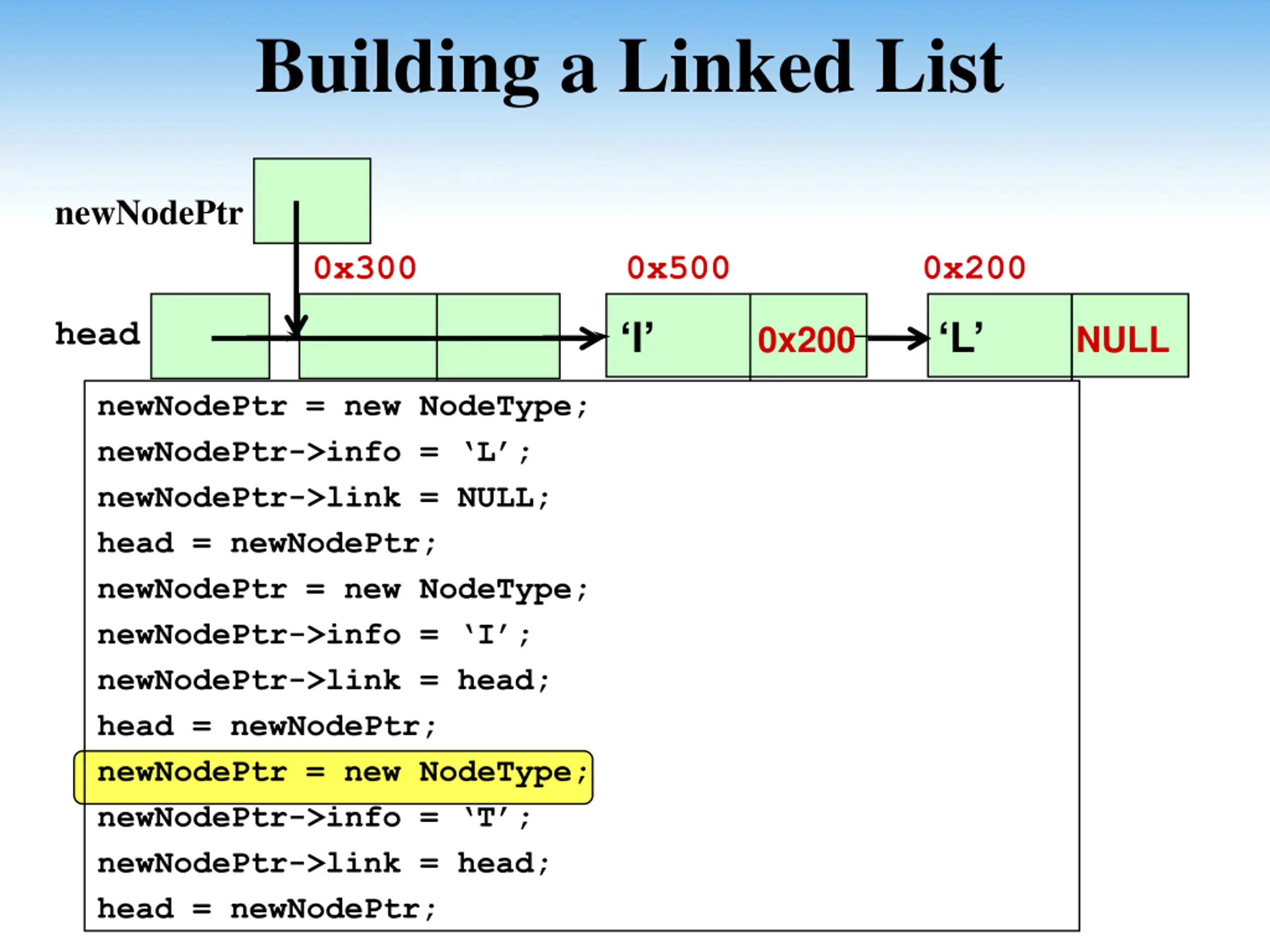

  18. Building a Linked List newNodePtr 0x300 0x500 0x200 I 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

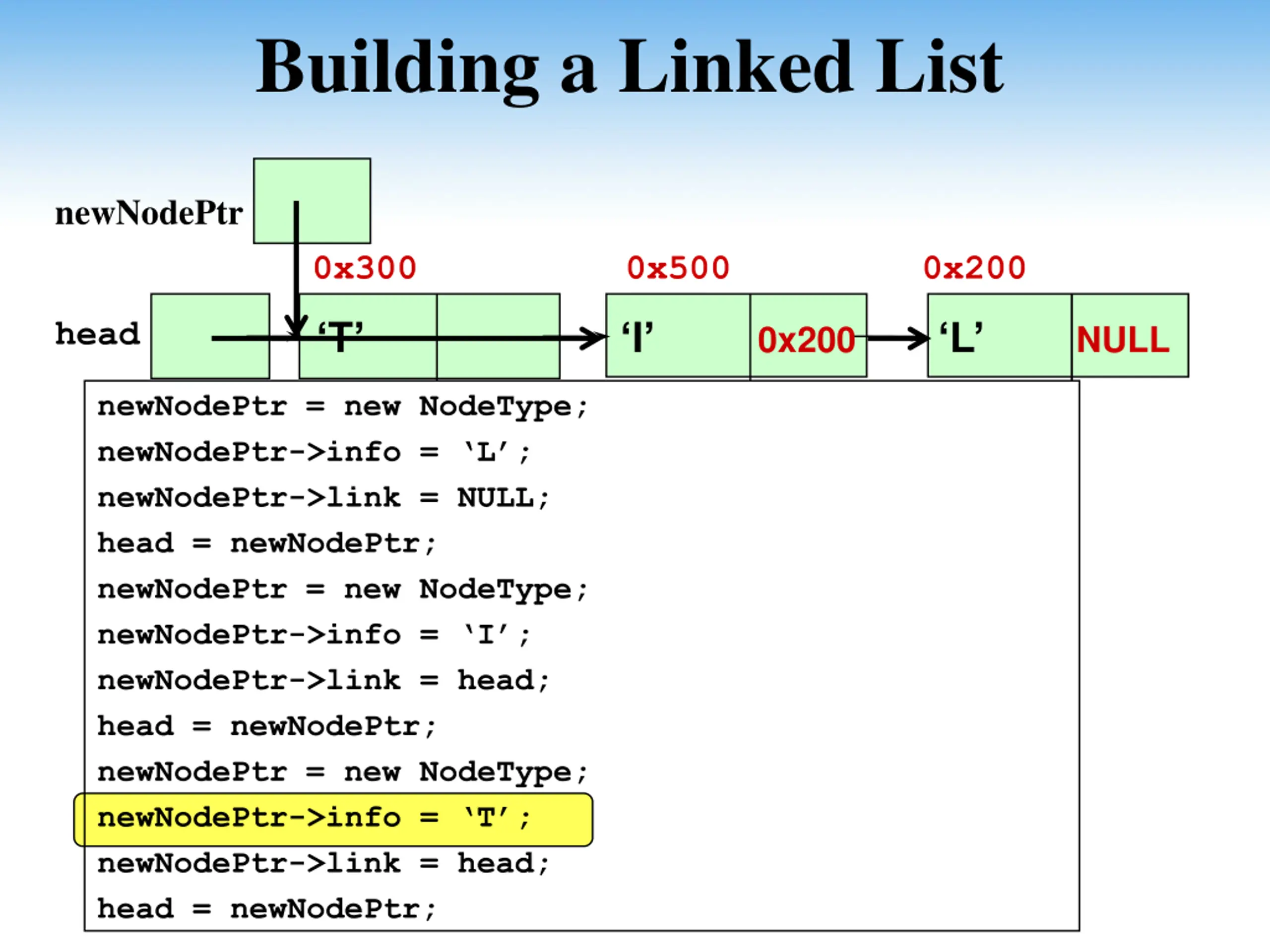

  19. Building a Linked List newNodePtr 0x300 0x500 0x200 T I 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

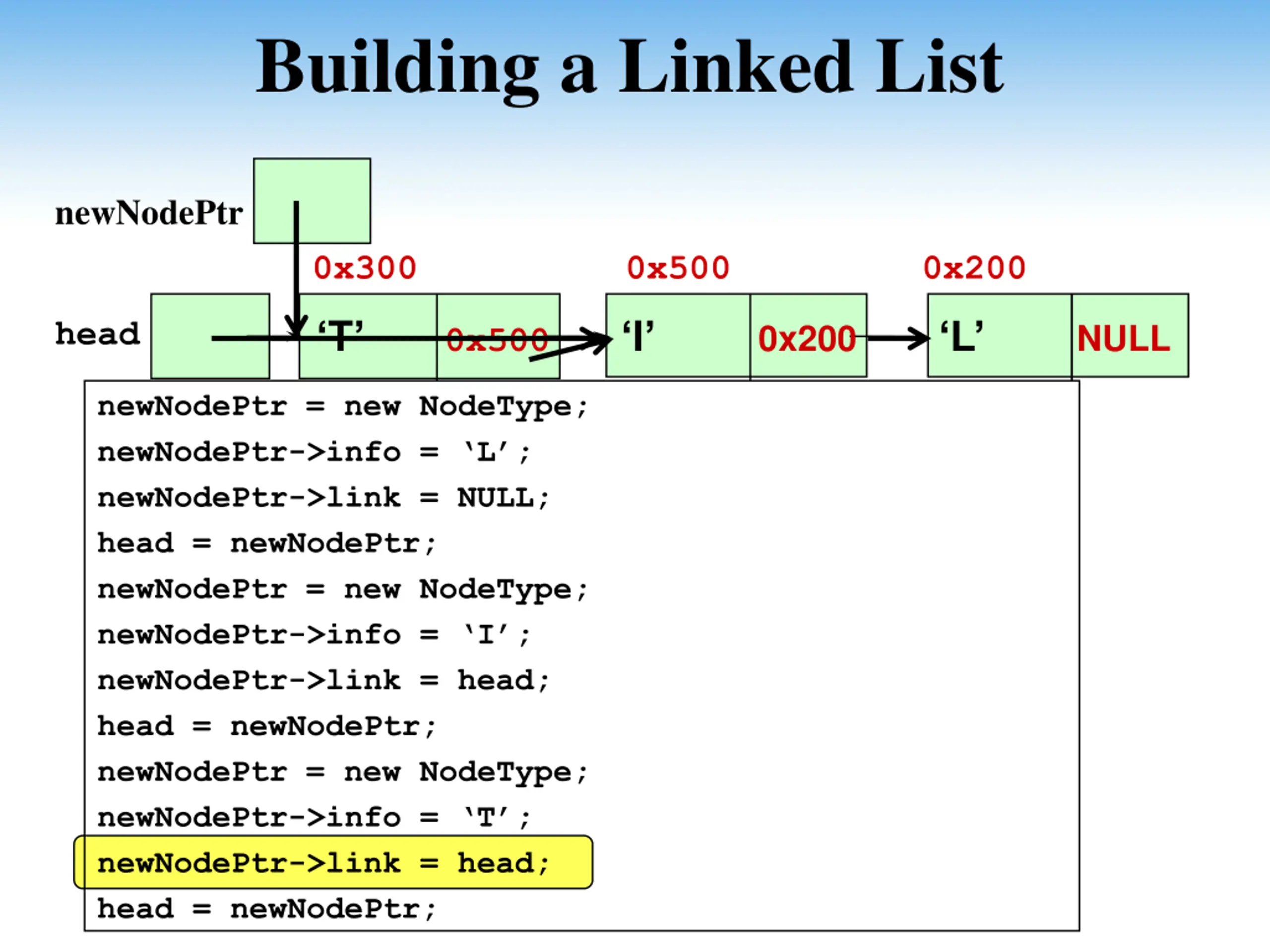

  20. Building a Linked List newNodePtr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

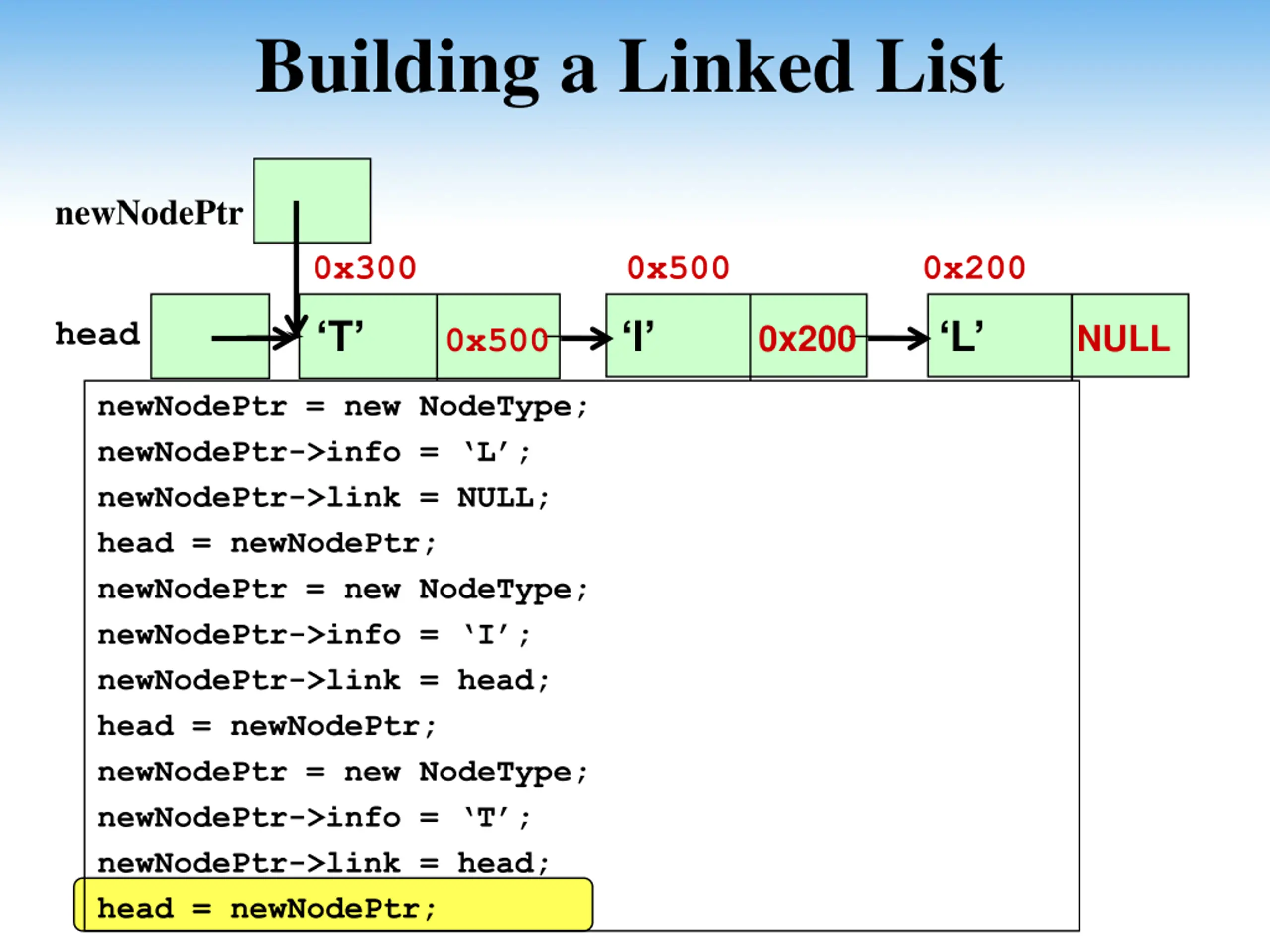

  21. Building a Linked List newNodePtr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head newNodePtr = new NodeType; newNodePtr->info = L ; newNodePtr->link = NULL; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = I ; newNodePtr->link = head; head = newNodePtr; newNodePtr = new NodeType; newNodePtr->info = T ; newNodePtr->link = head; head = newNodePtr;

  22. TRAVERSING A LINKED LIST

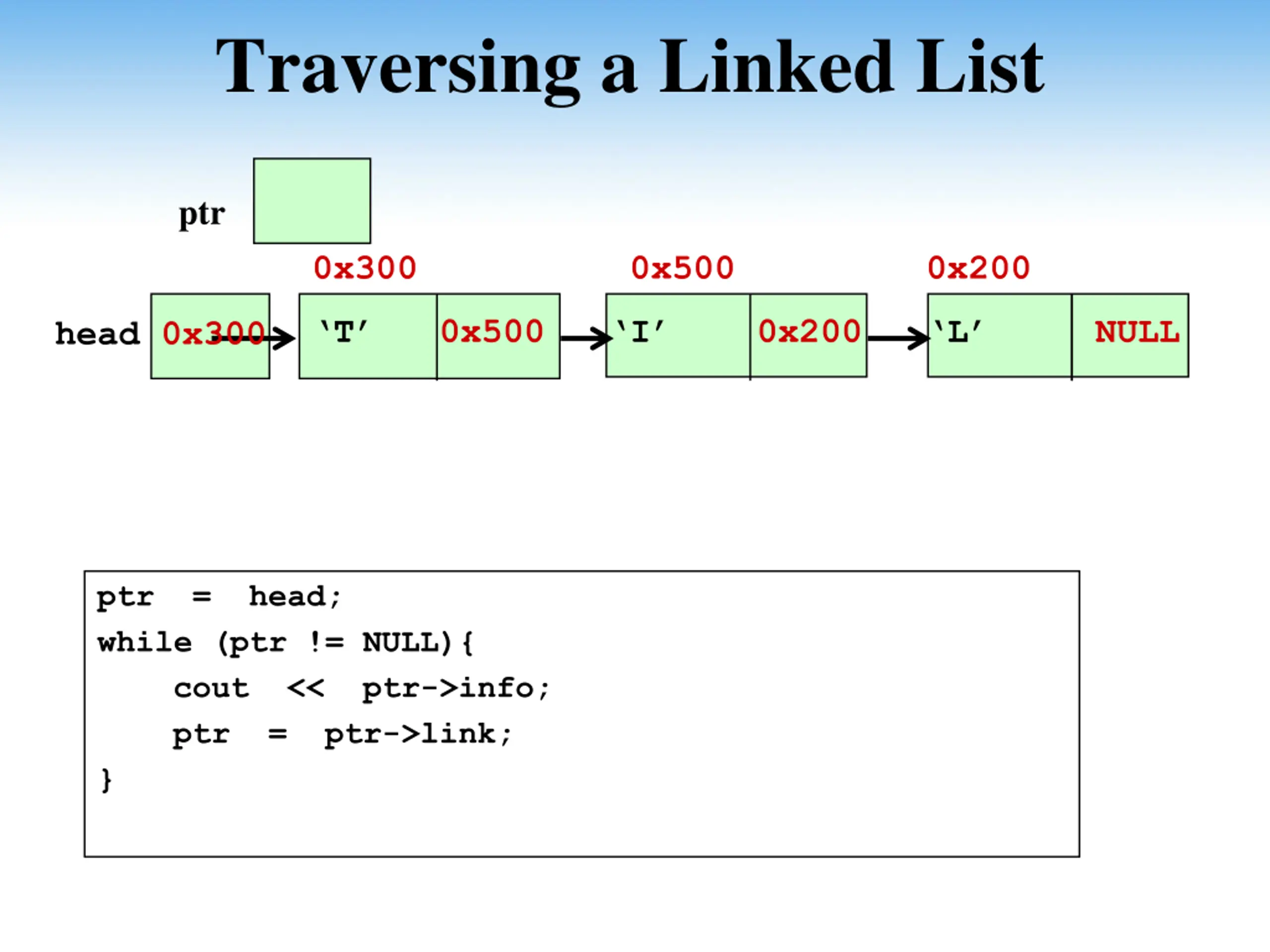

  23. Traversing a Linked List ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

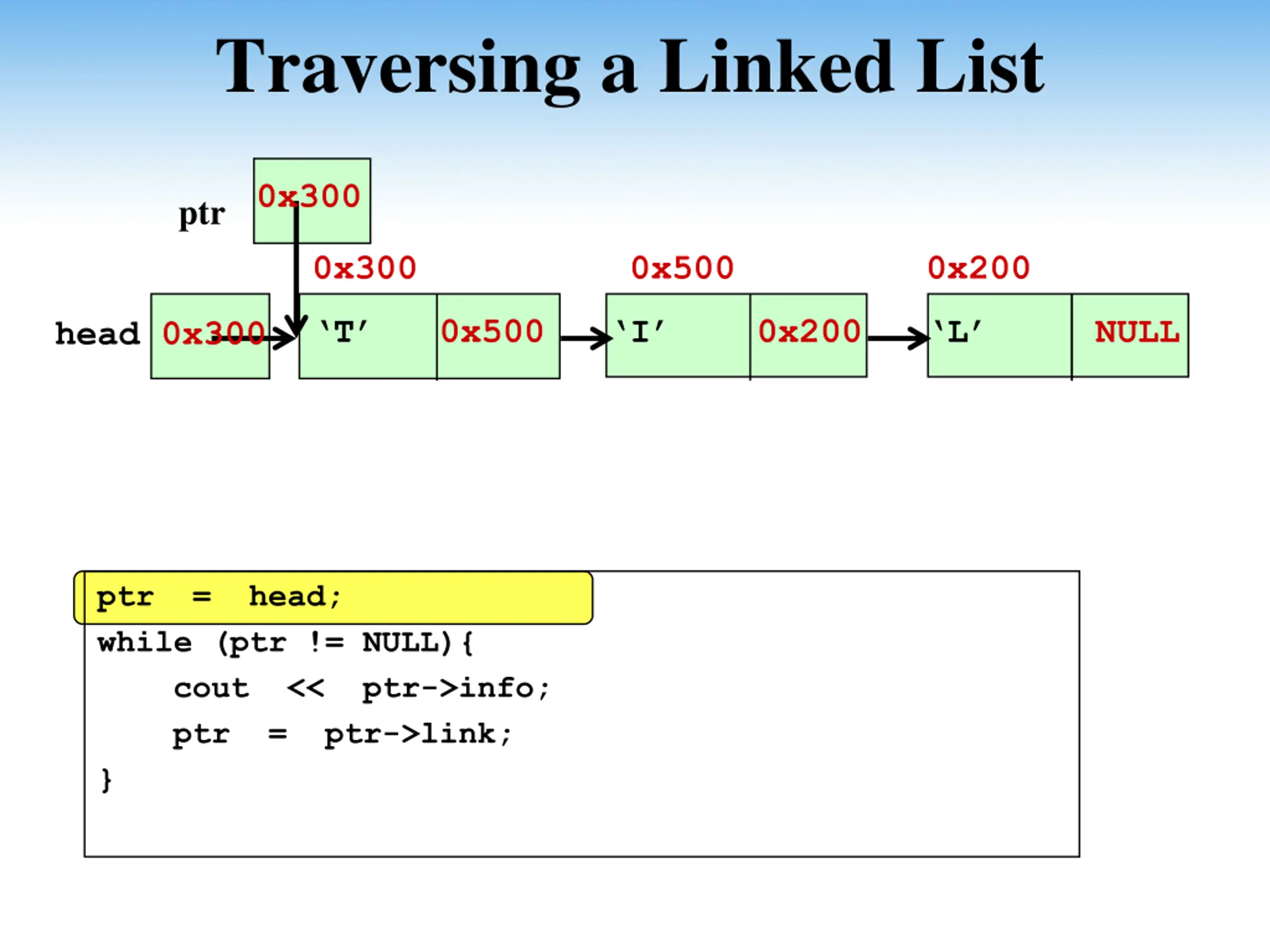

  24. Traversing a Linked List 0x300 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

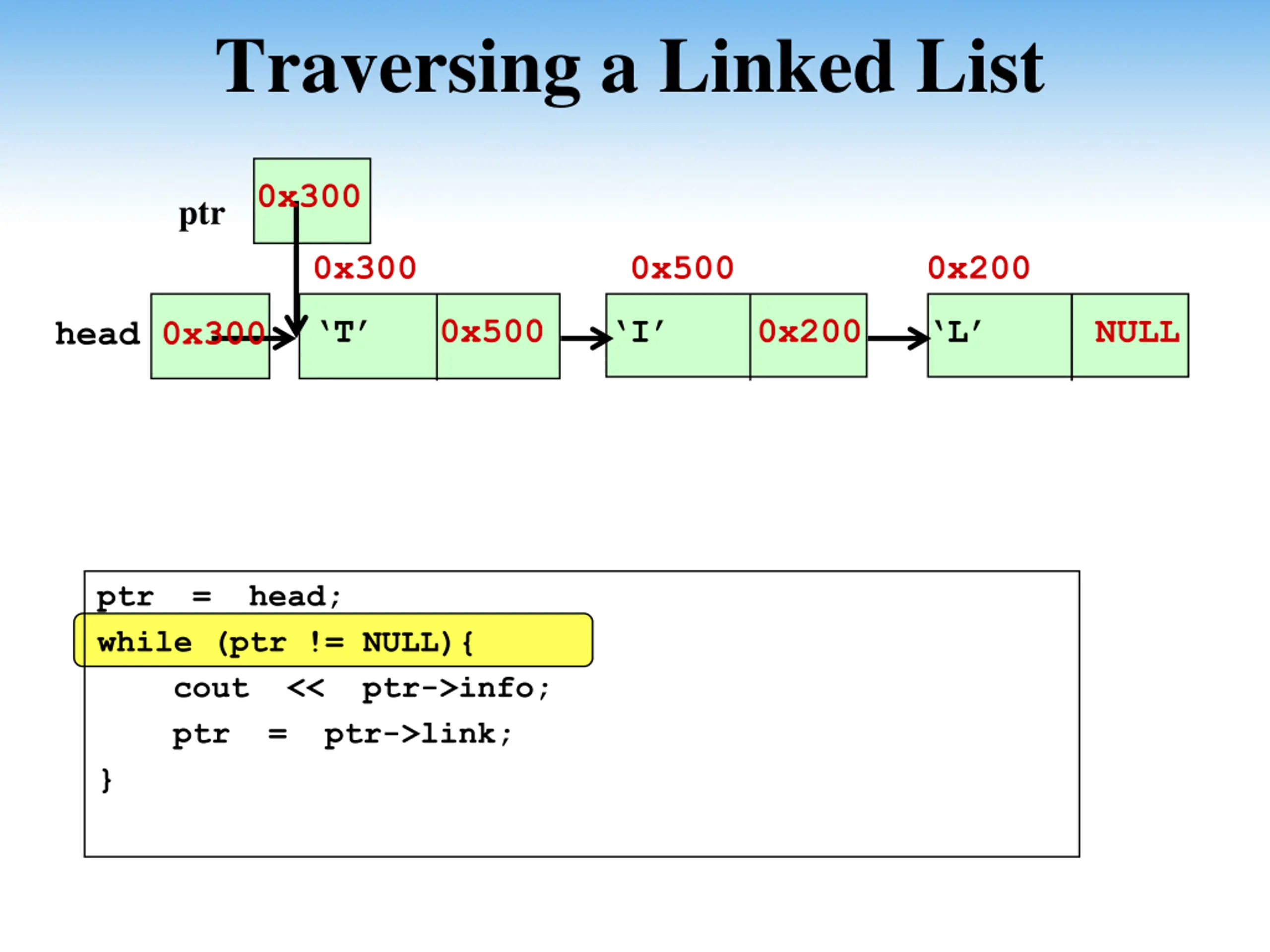

  25. Traversing a Linked List 0x300 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

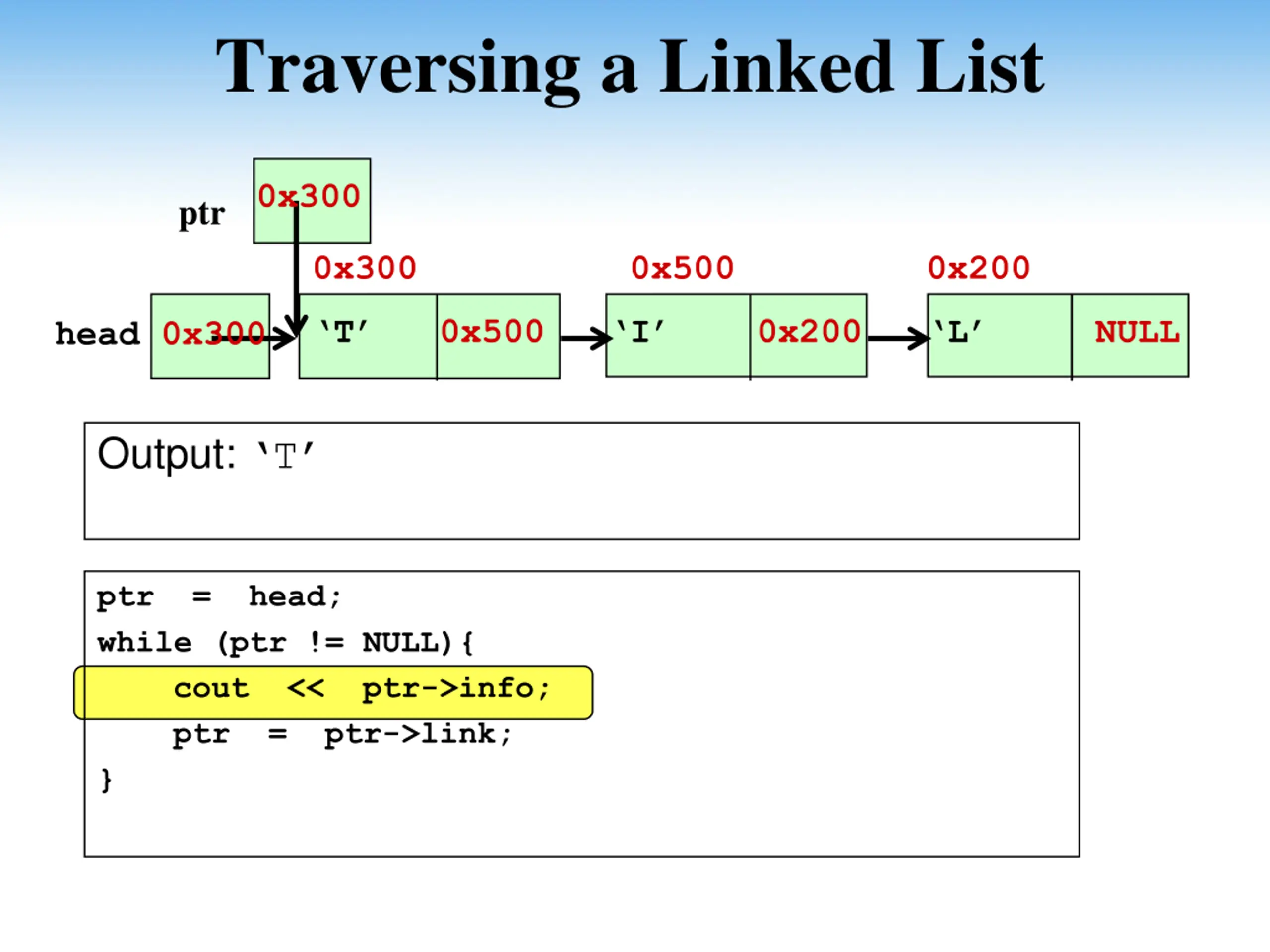

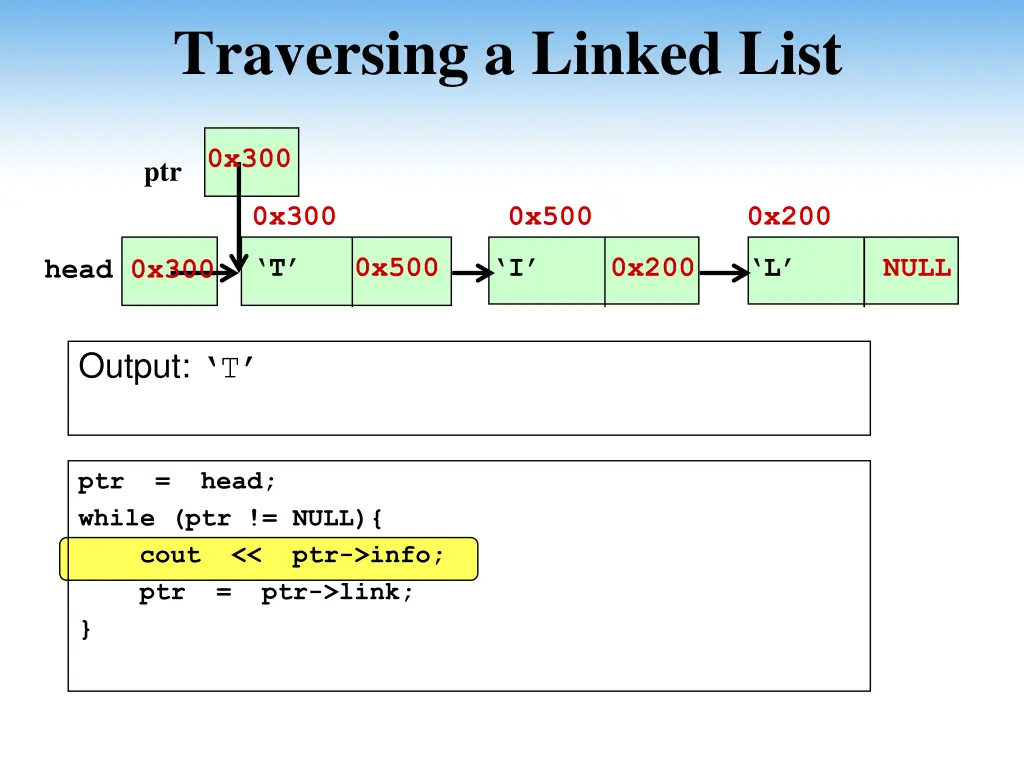

  26. Traversing a Linked List 0x300 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: T ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

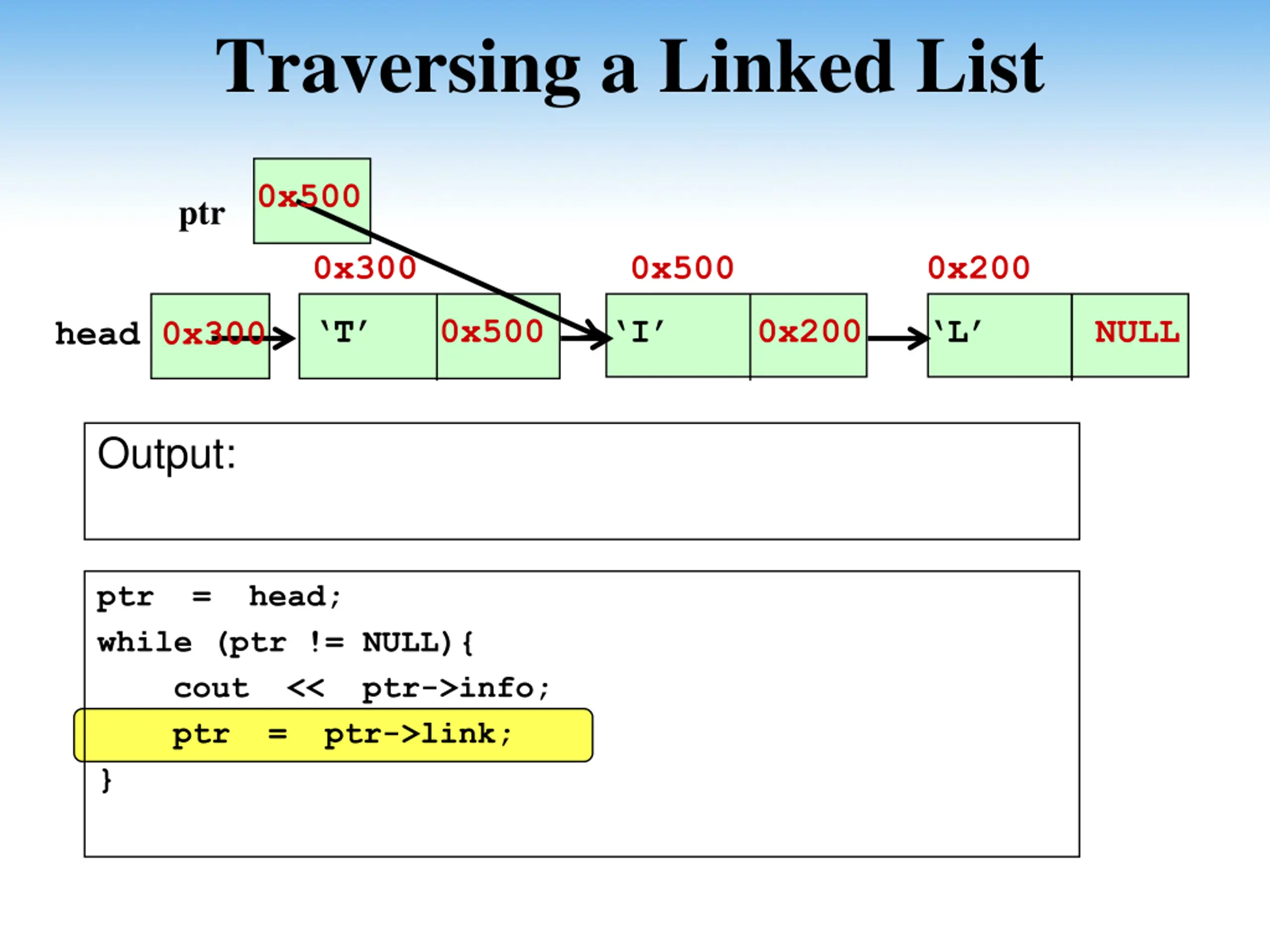

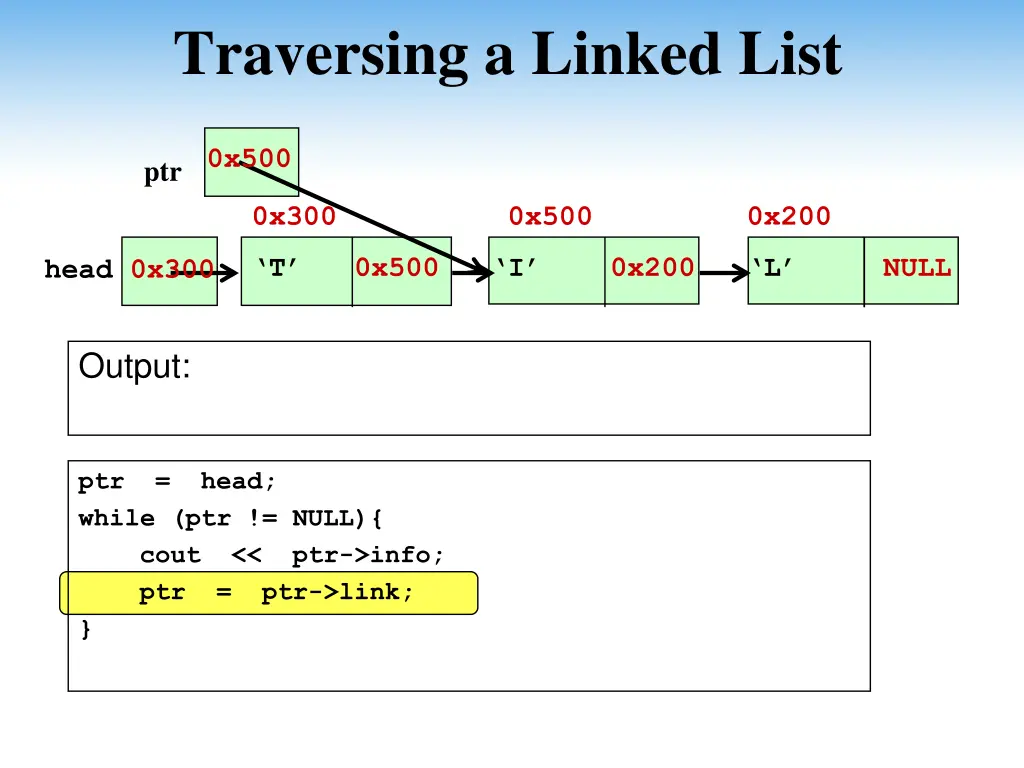

  27. Traversing a Linked List 0x500 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

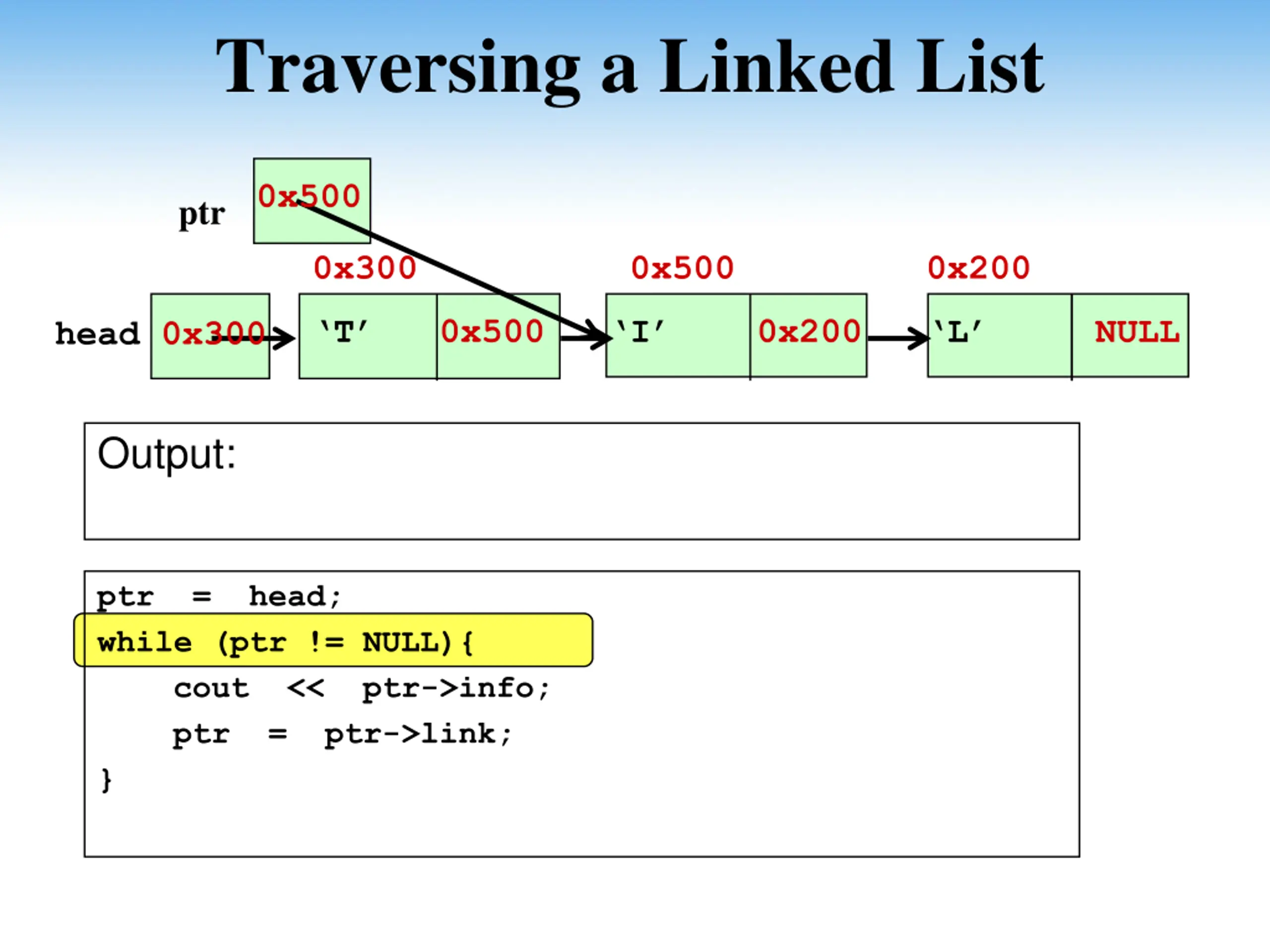

  28. Traversing a Linked List 0x500 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

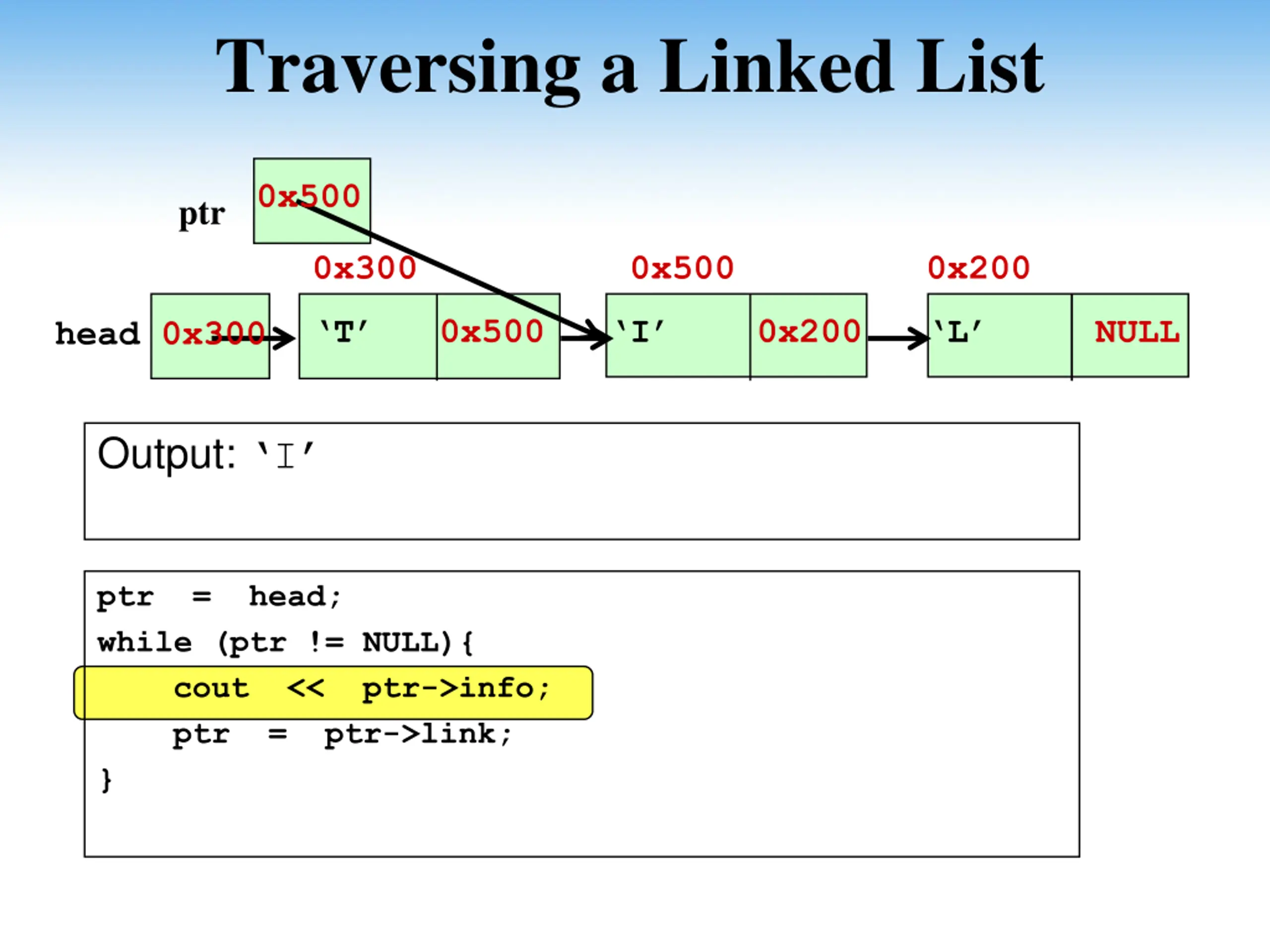

  29. Traversing a Linked List 0x500 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: I ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

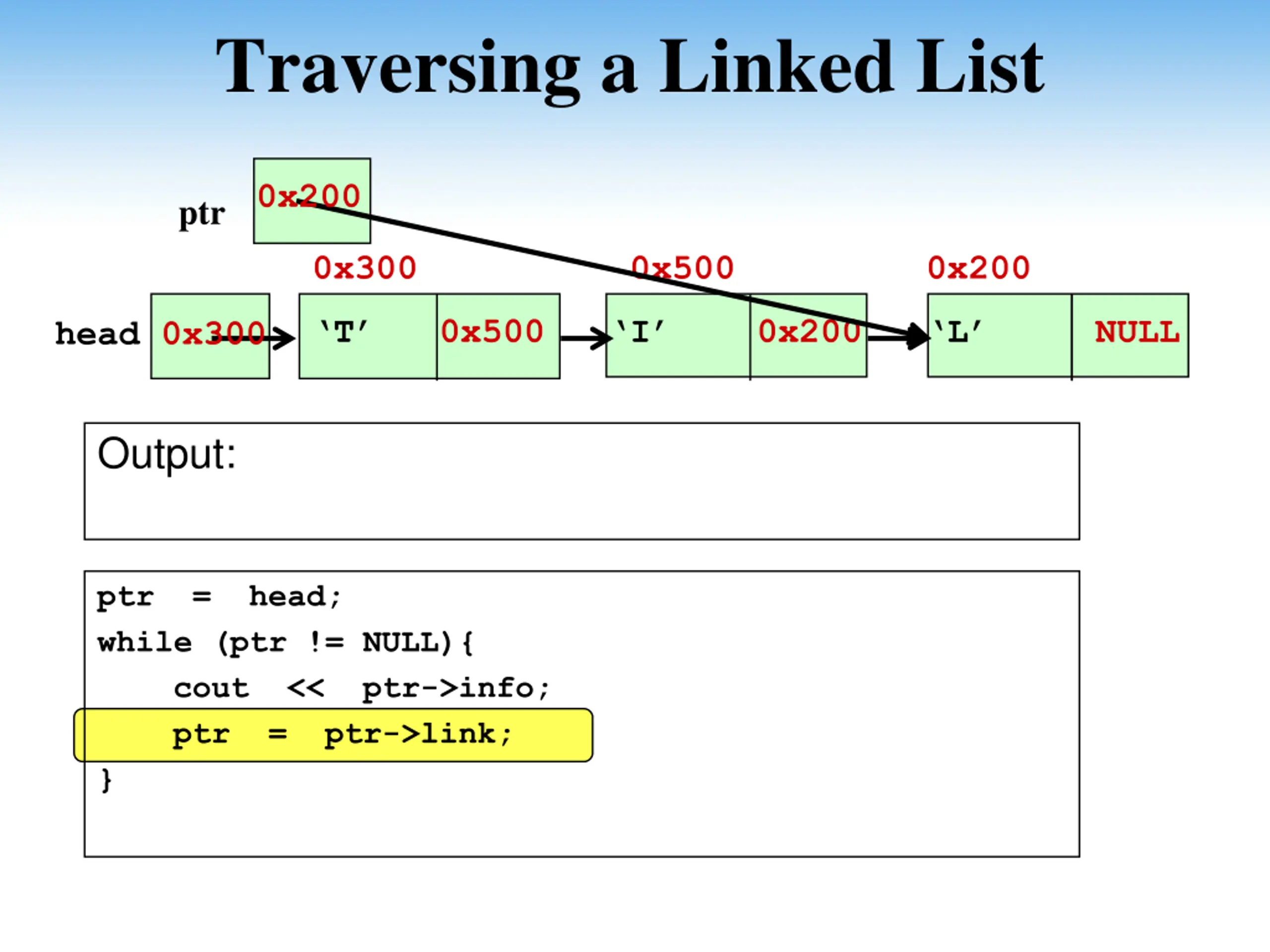

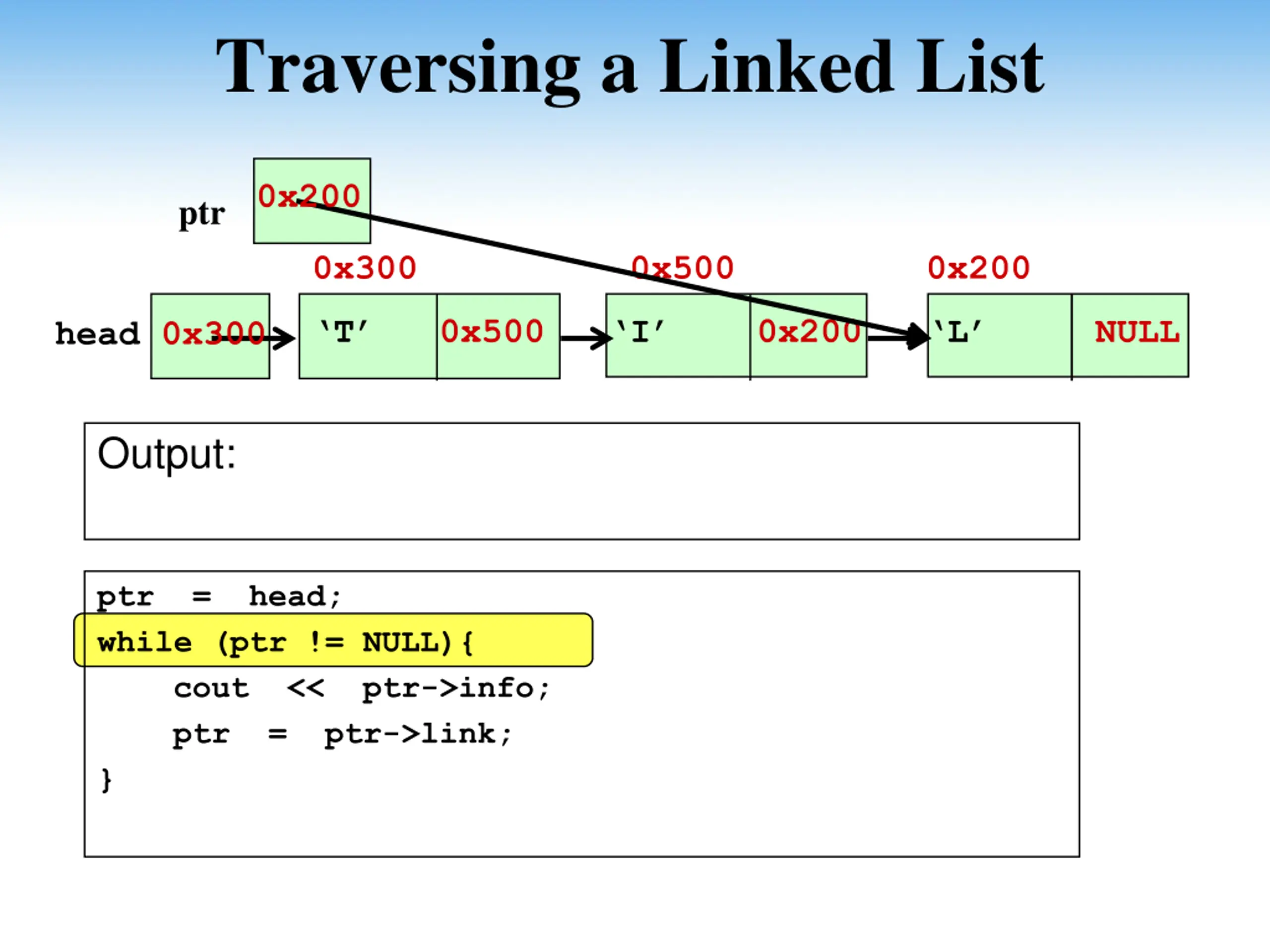

  30. Traversing a Linked List 0x200 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: I ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

  31. Traversing a Linked List 0x200 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: I ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

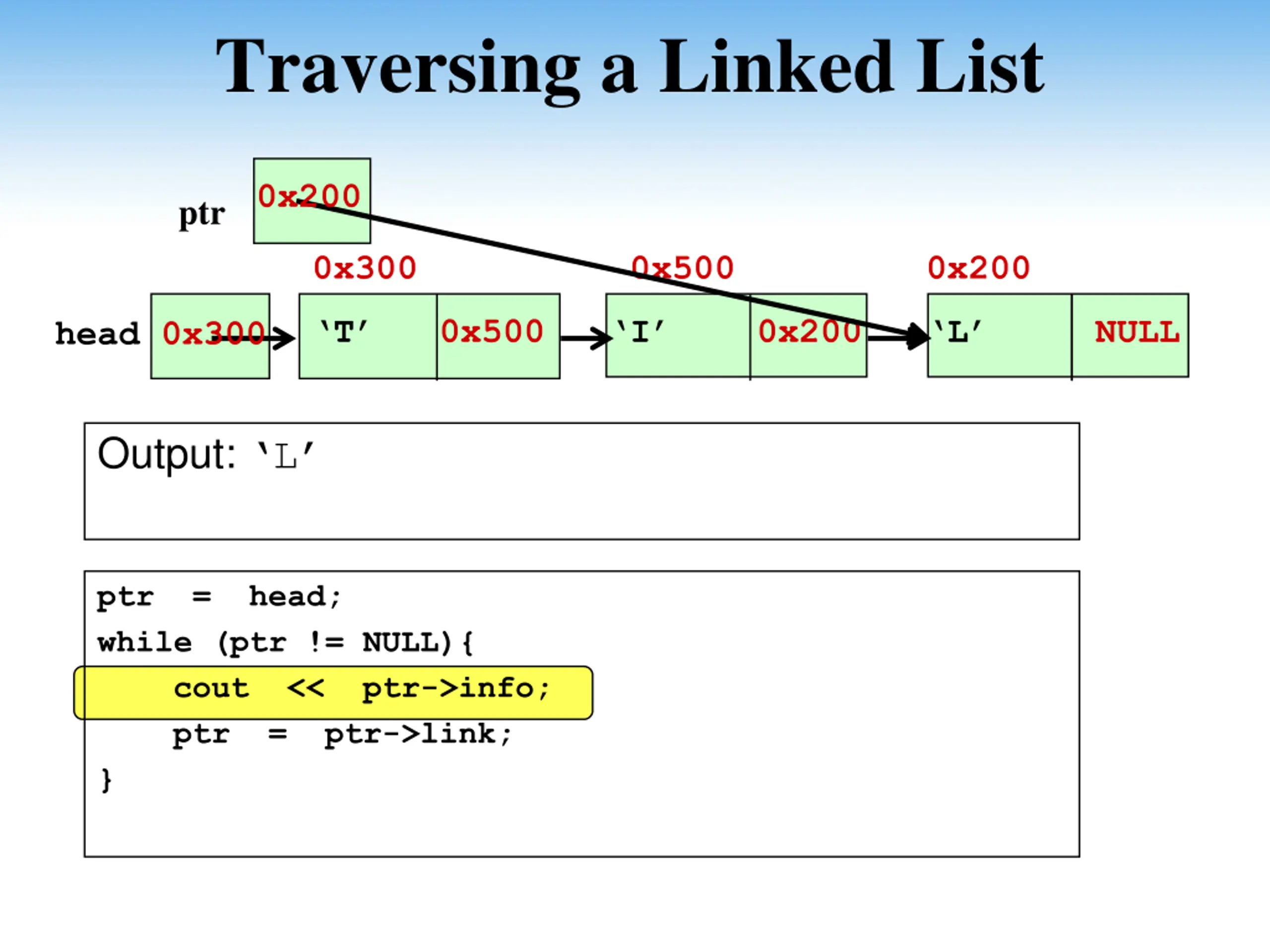

  32. Traversing a Linked List 0x200 ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: L ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

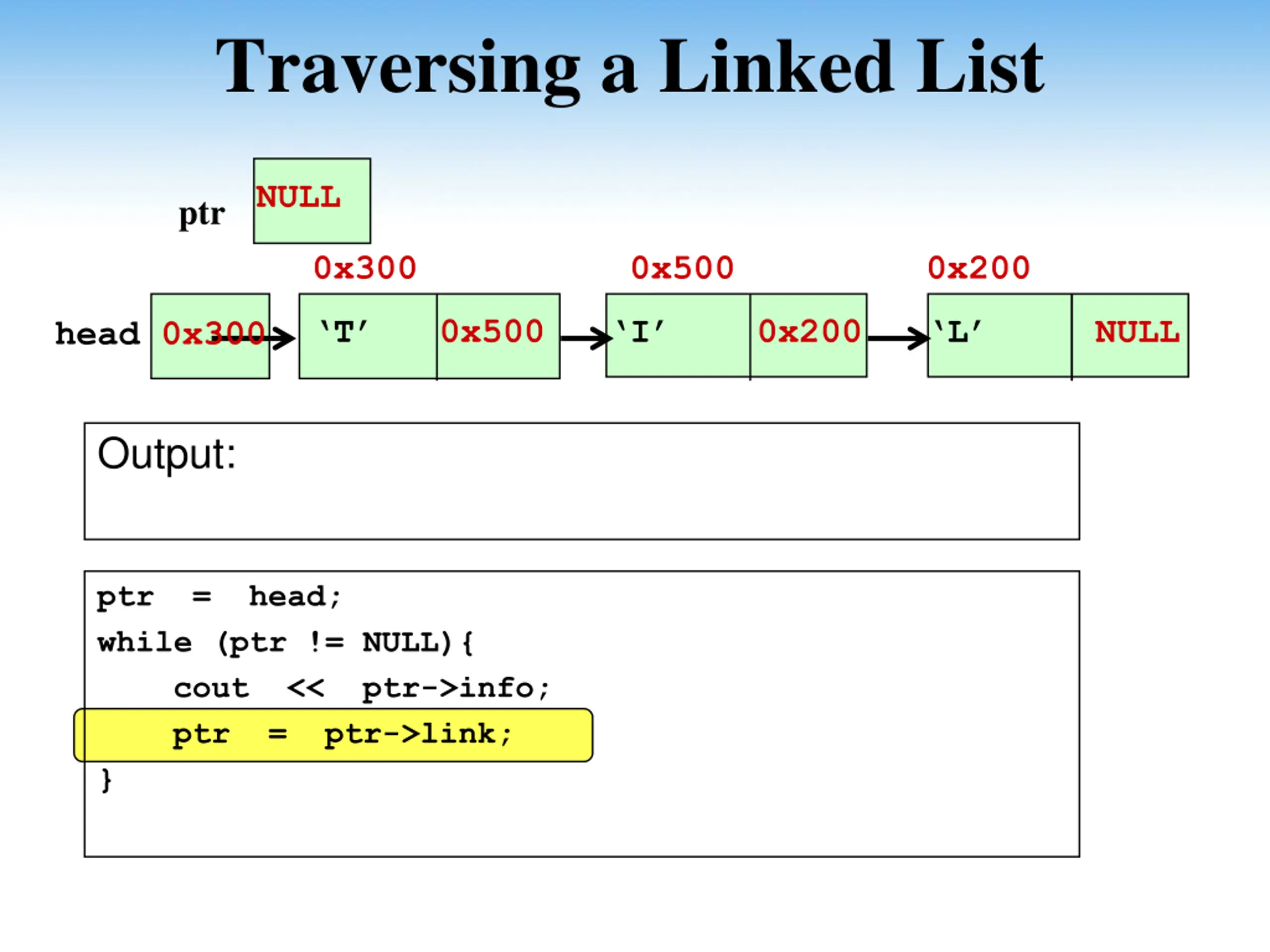

  33. Traversing a Linked List NULL ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: L ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

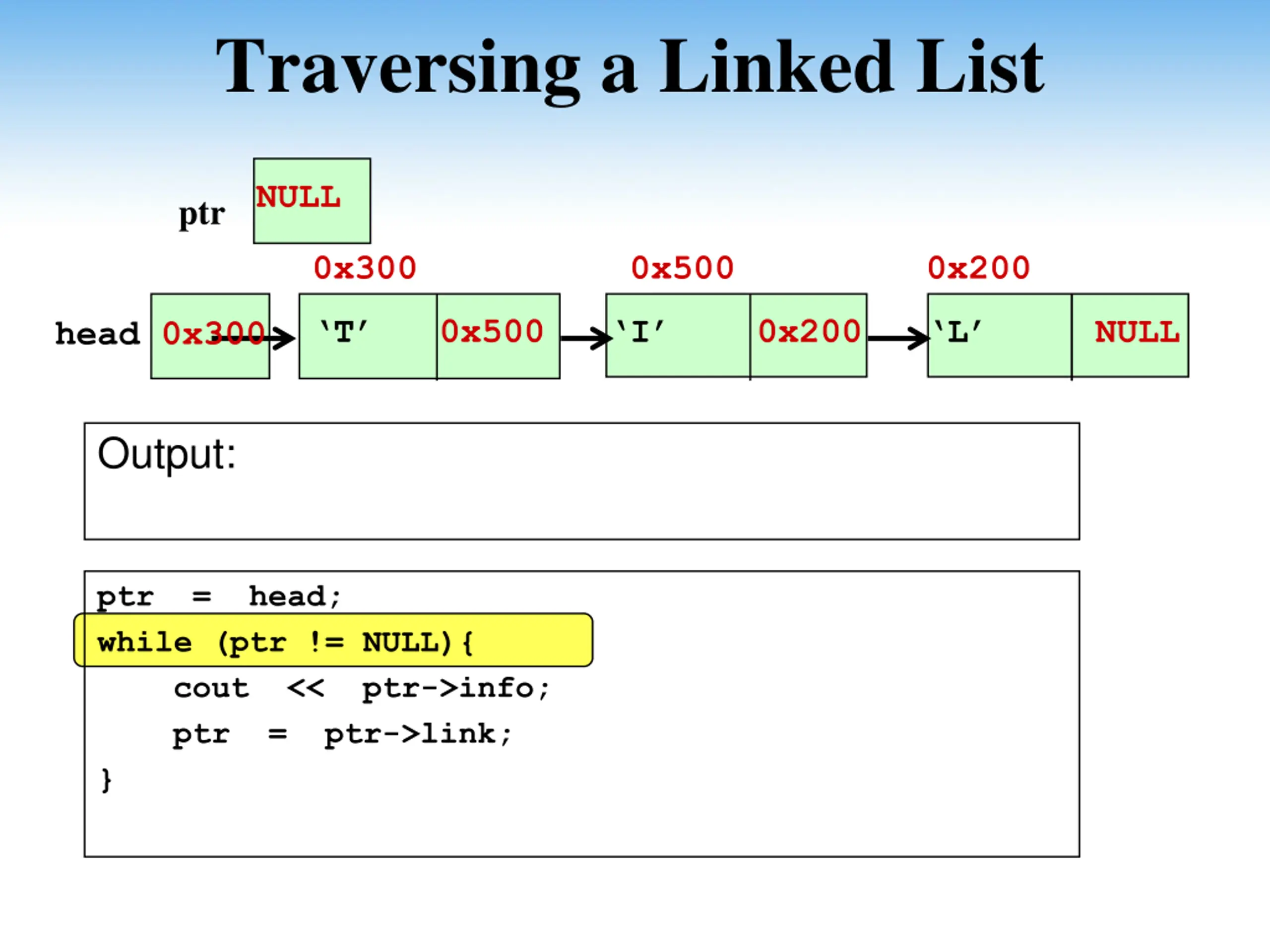

  34. Traversing a Linked List NULL ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: L ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

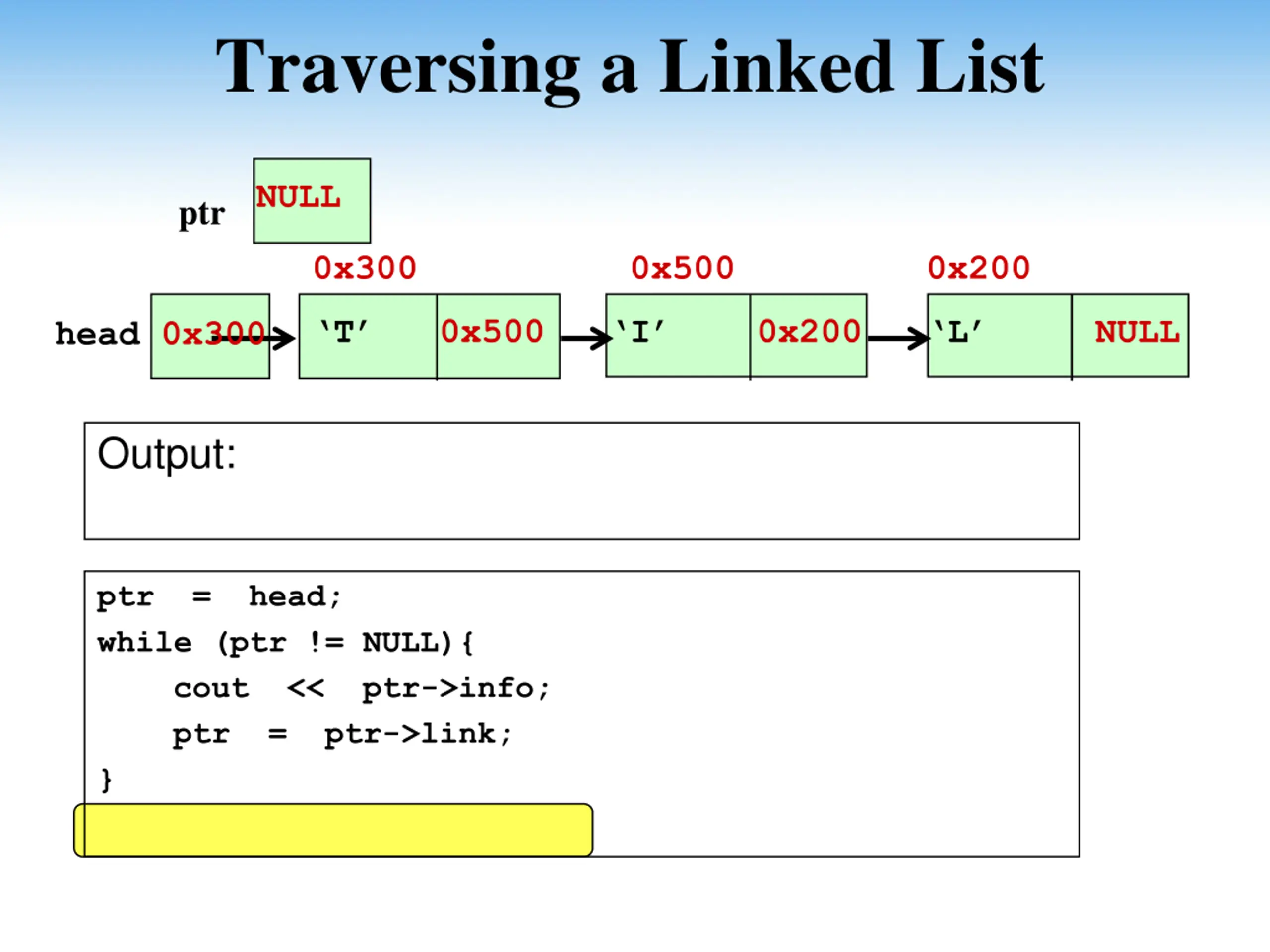

  35. Traversing a Linked List NULL ptr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 Output: L ptr = head; while (ptr != NULL){ cout << ptr->info; ptr = ptr->link; }

  36. DELETING A NODE

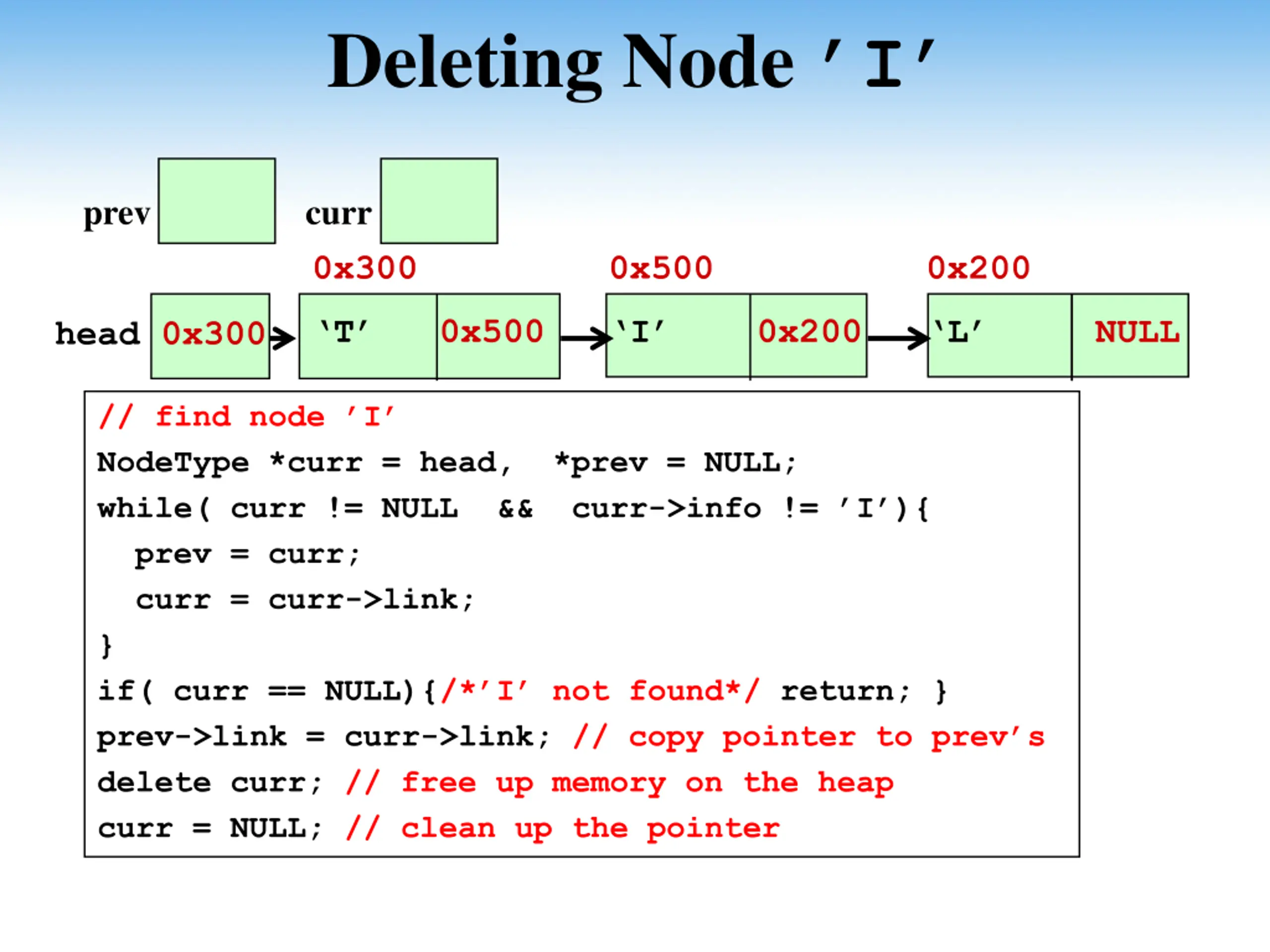

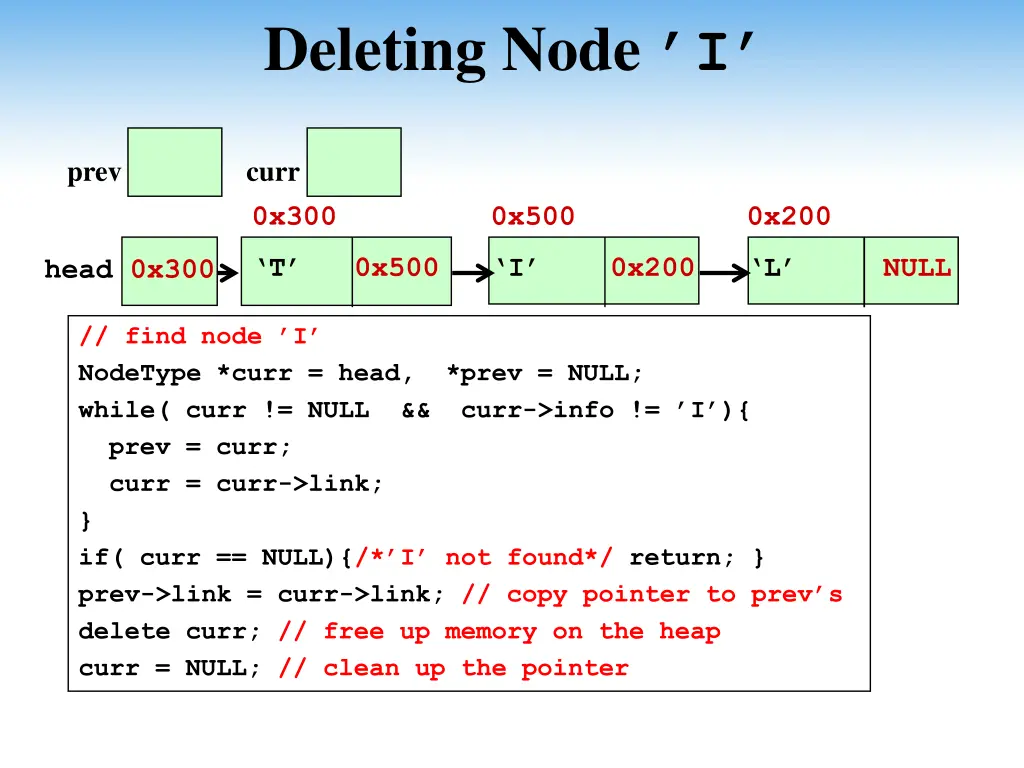

  37. Deleting Node I prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

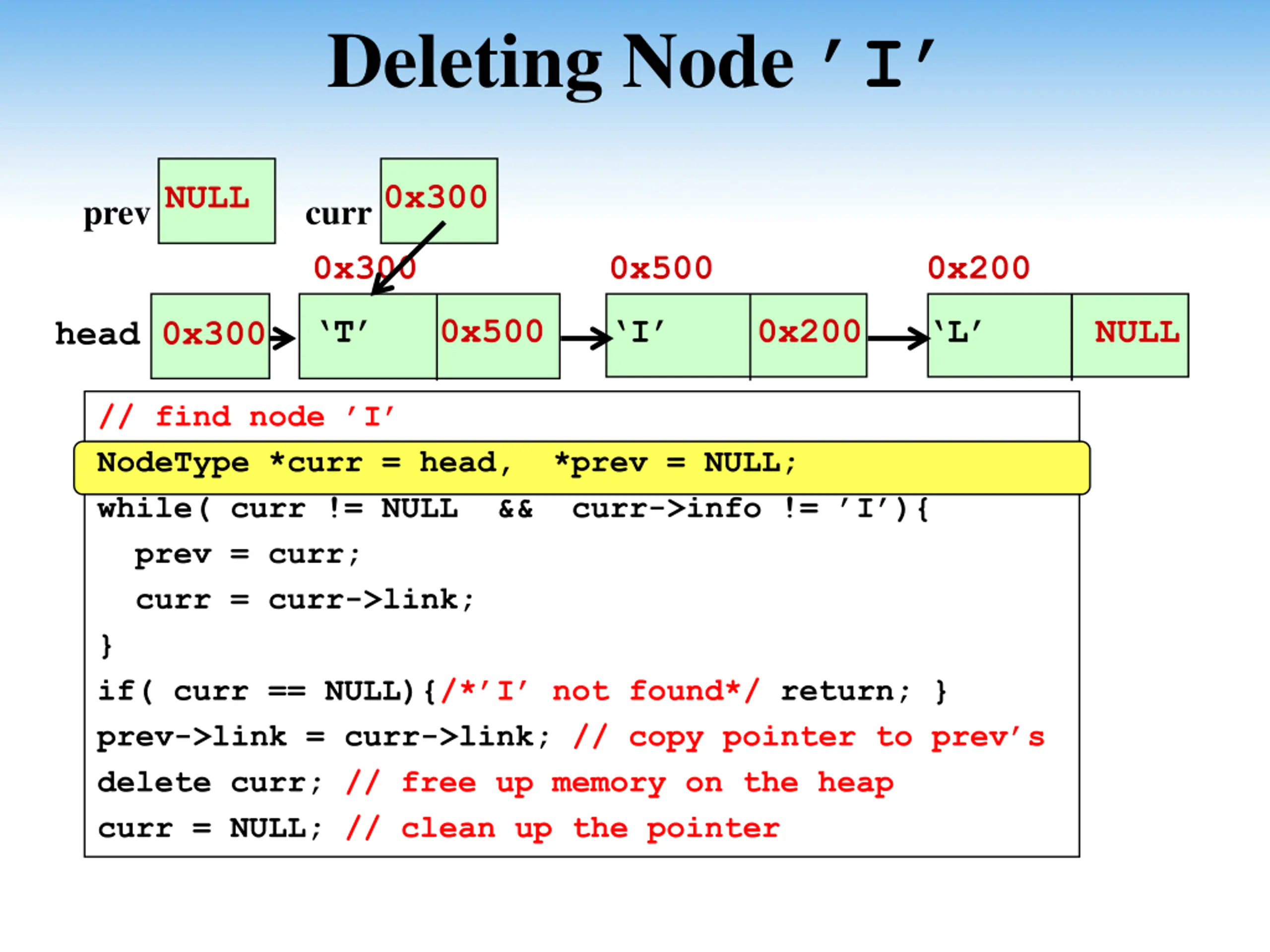

  38. Deleting Node I NULL 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

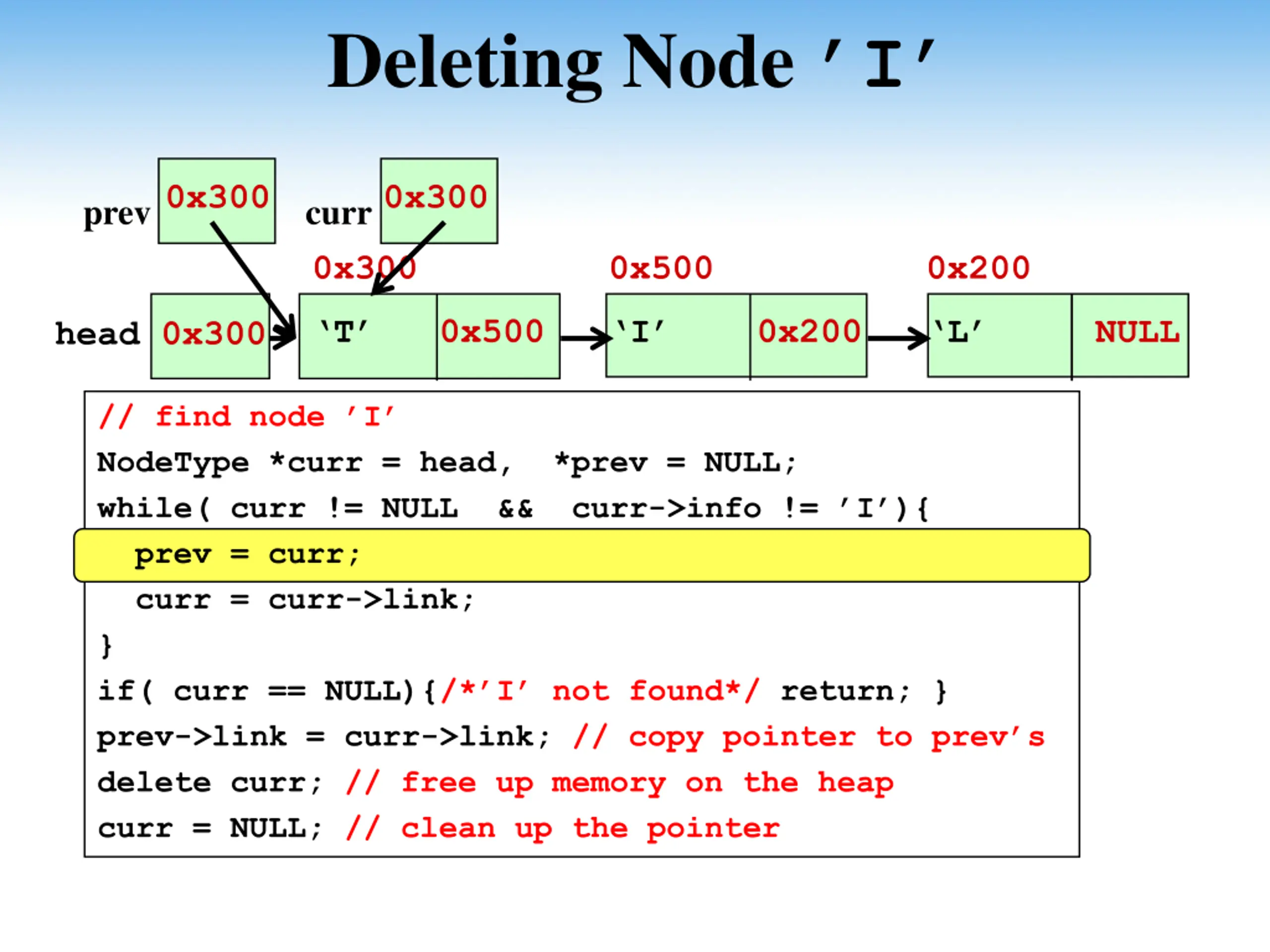

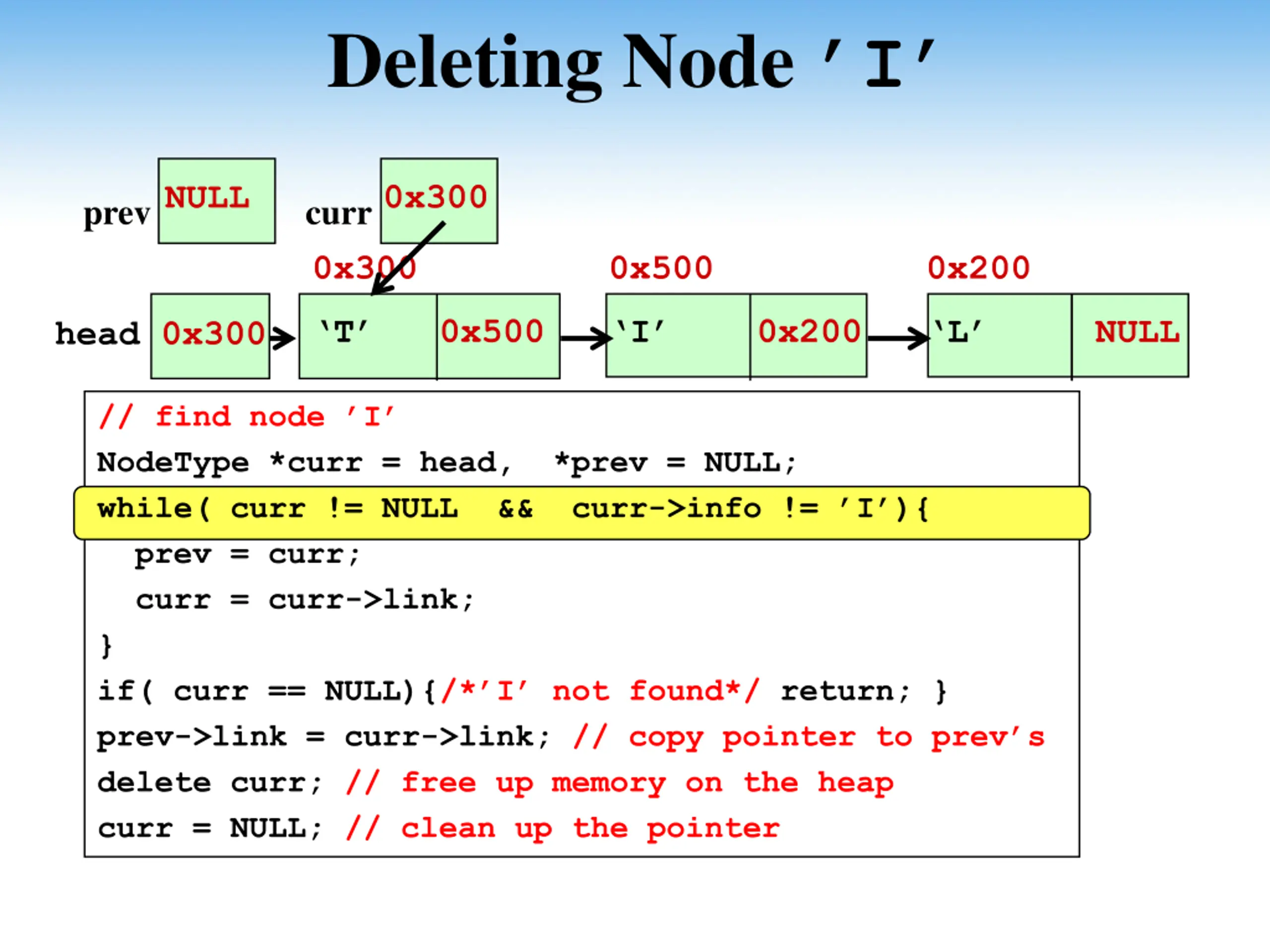

  39. Deleting Node I NULL 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

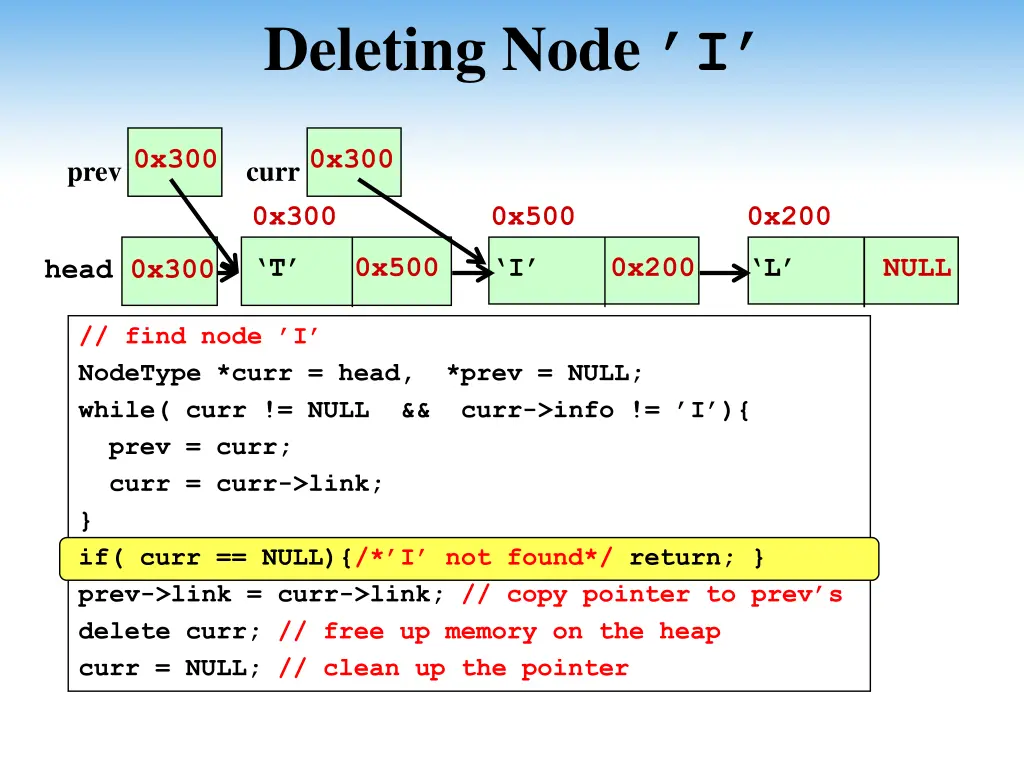

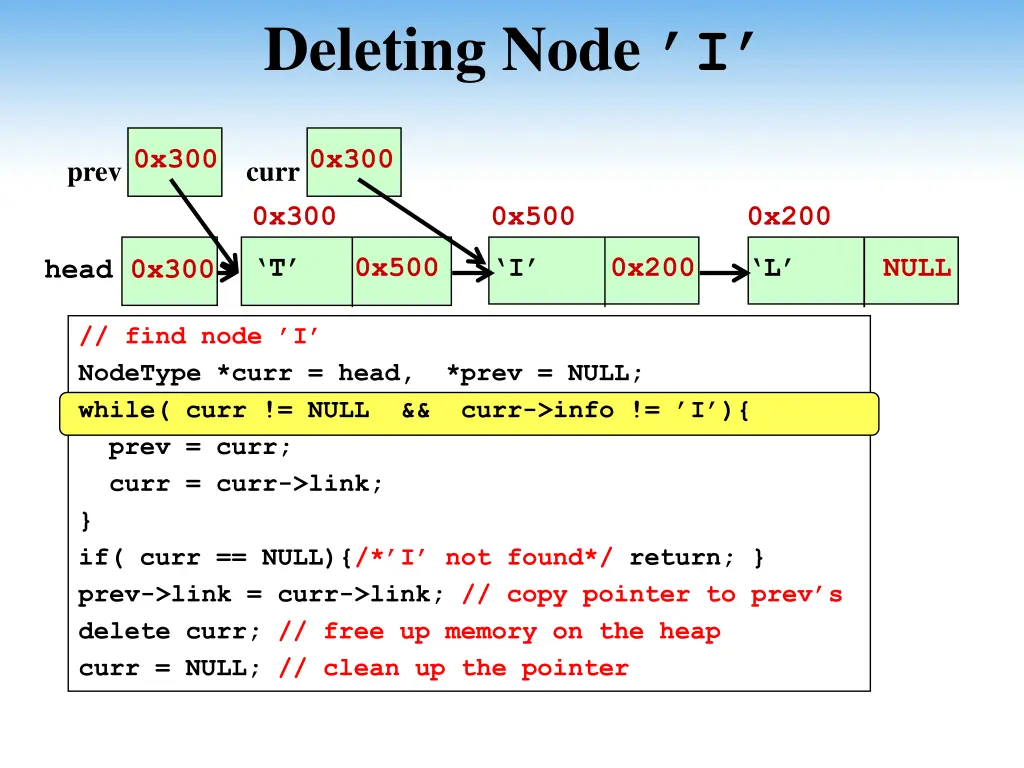

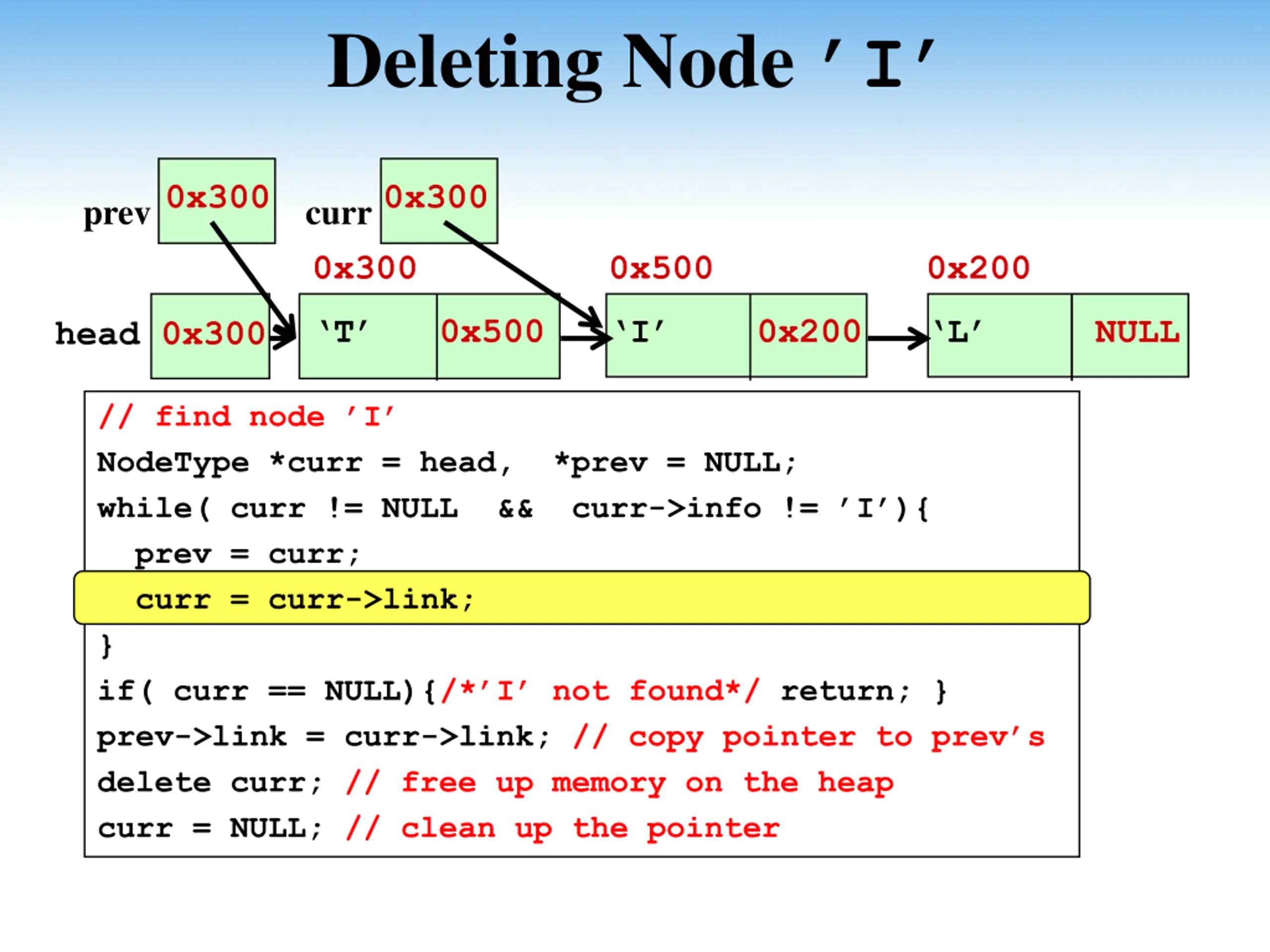

  40. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

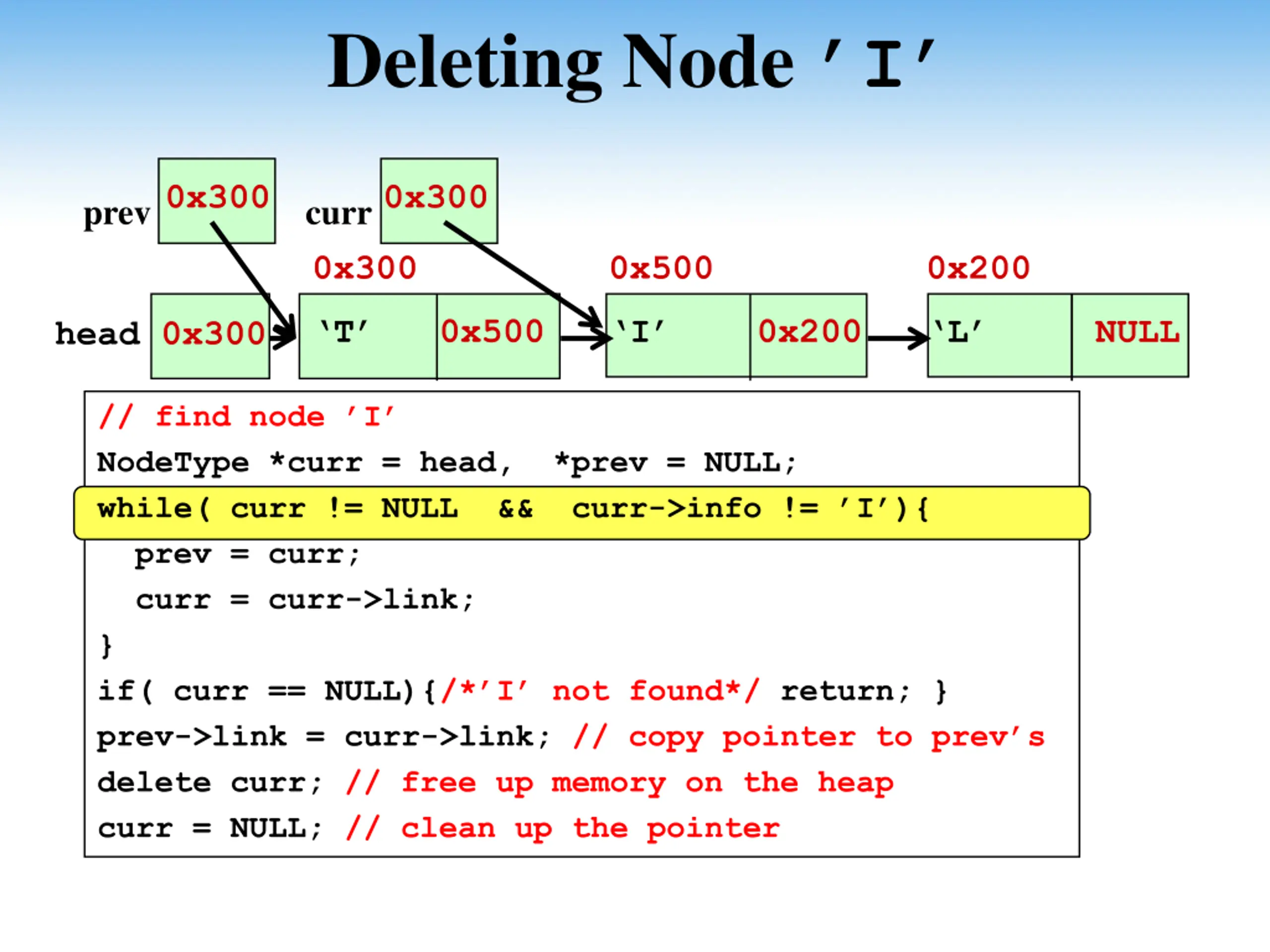

  41. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

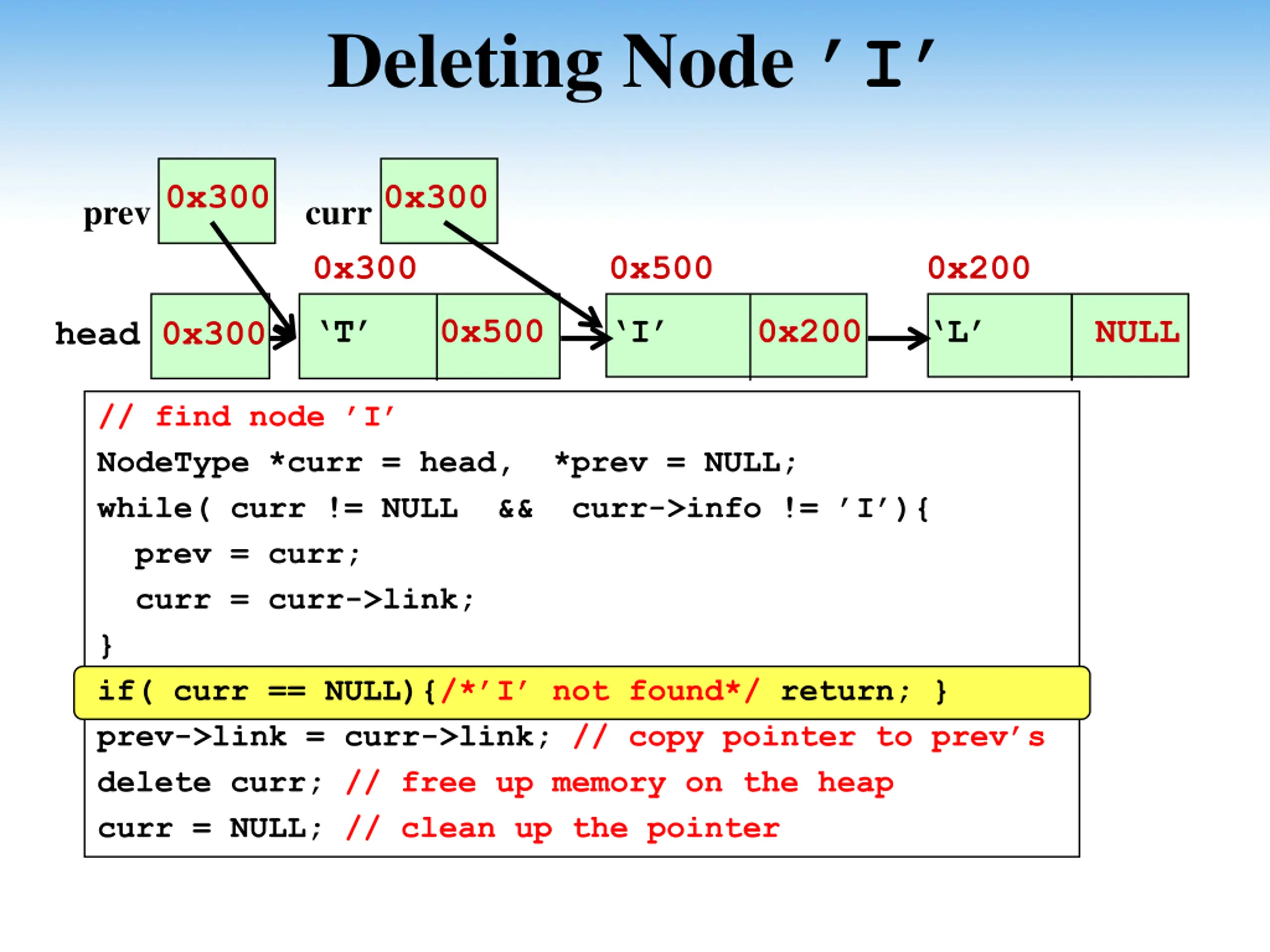

  42. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

  43. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x500 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

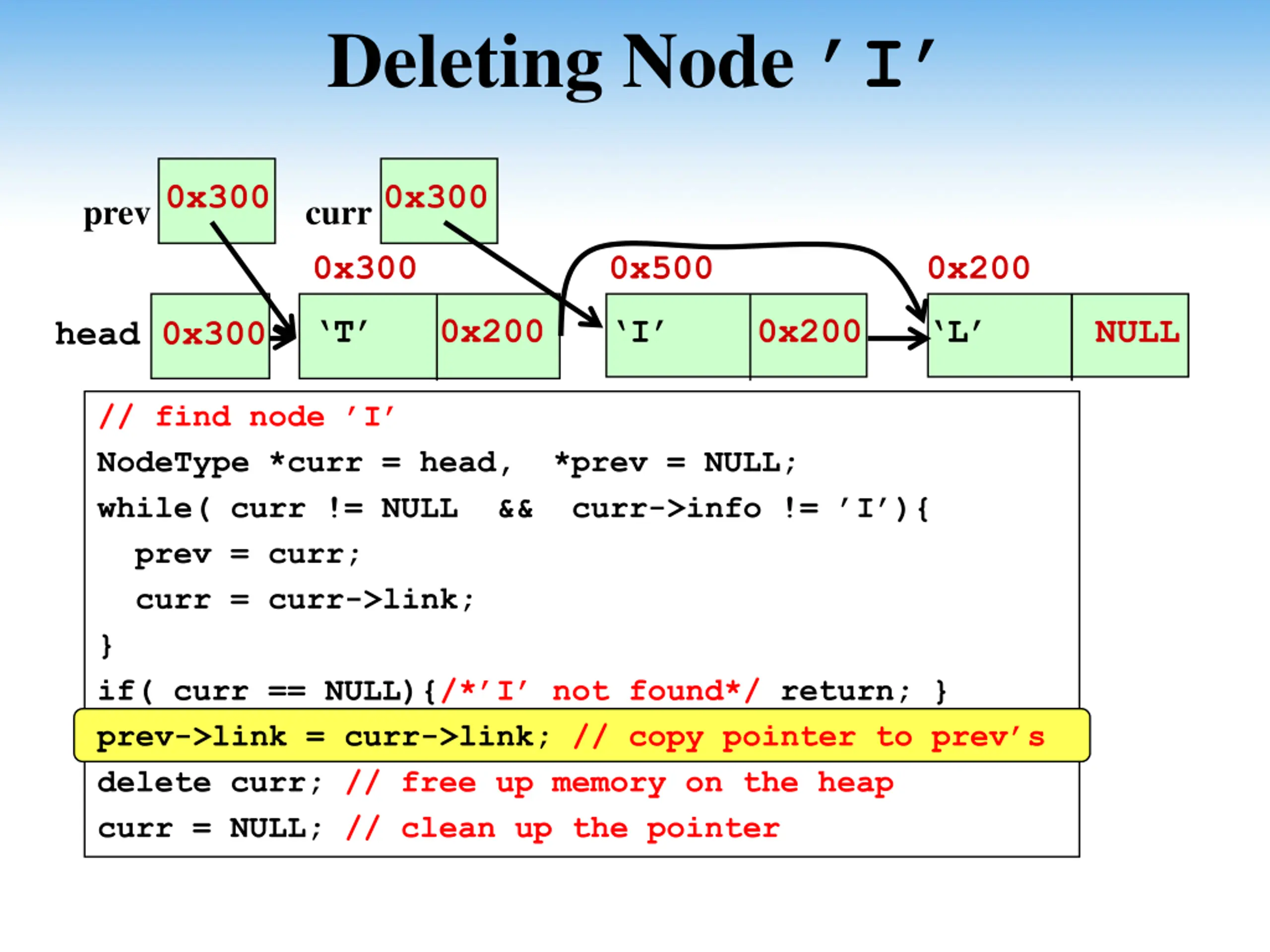

  44. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x200 I 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

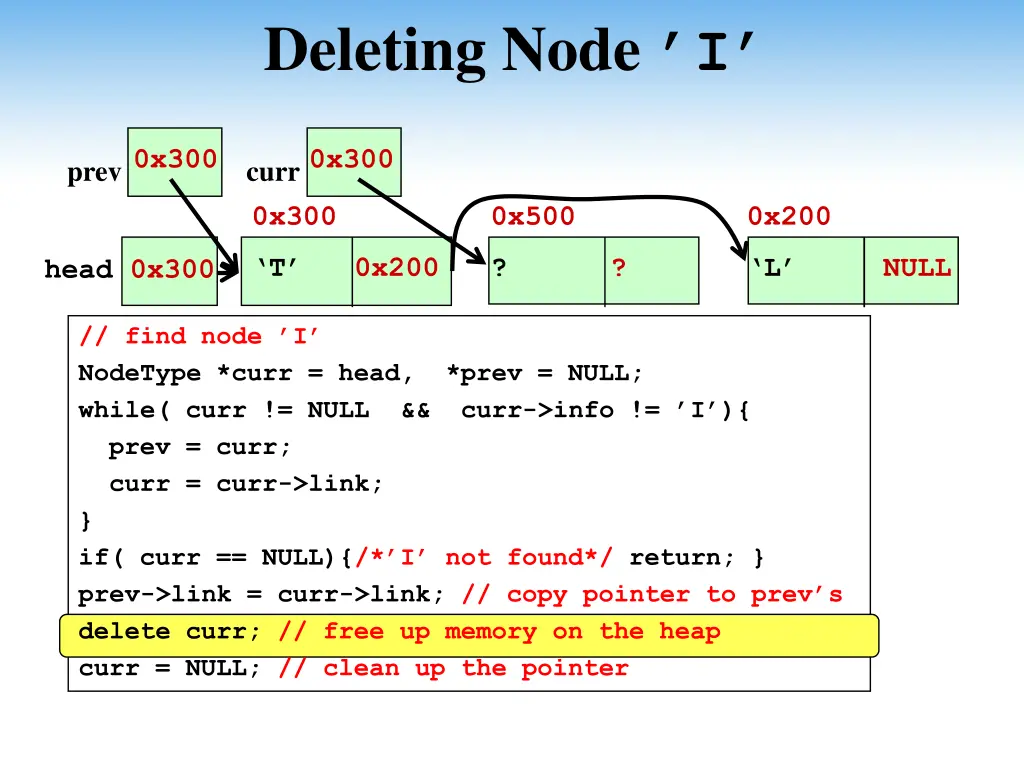

  45. Deleting Node I 0x300 0x300 prev curr 0x300 0x500 0x200 T 0x200 ? ? L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

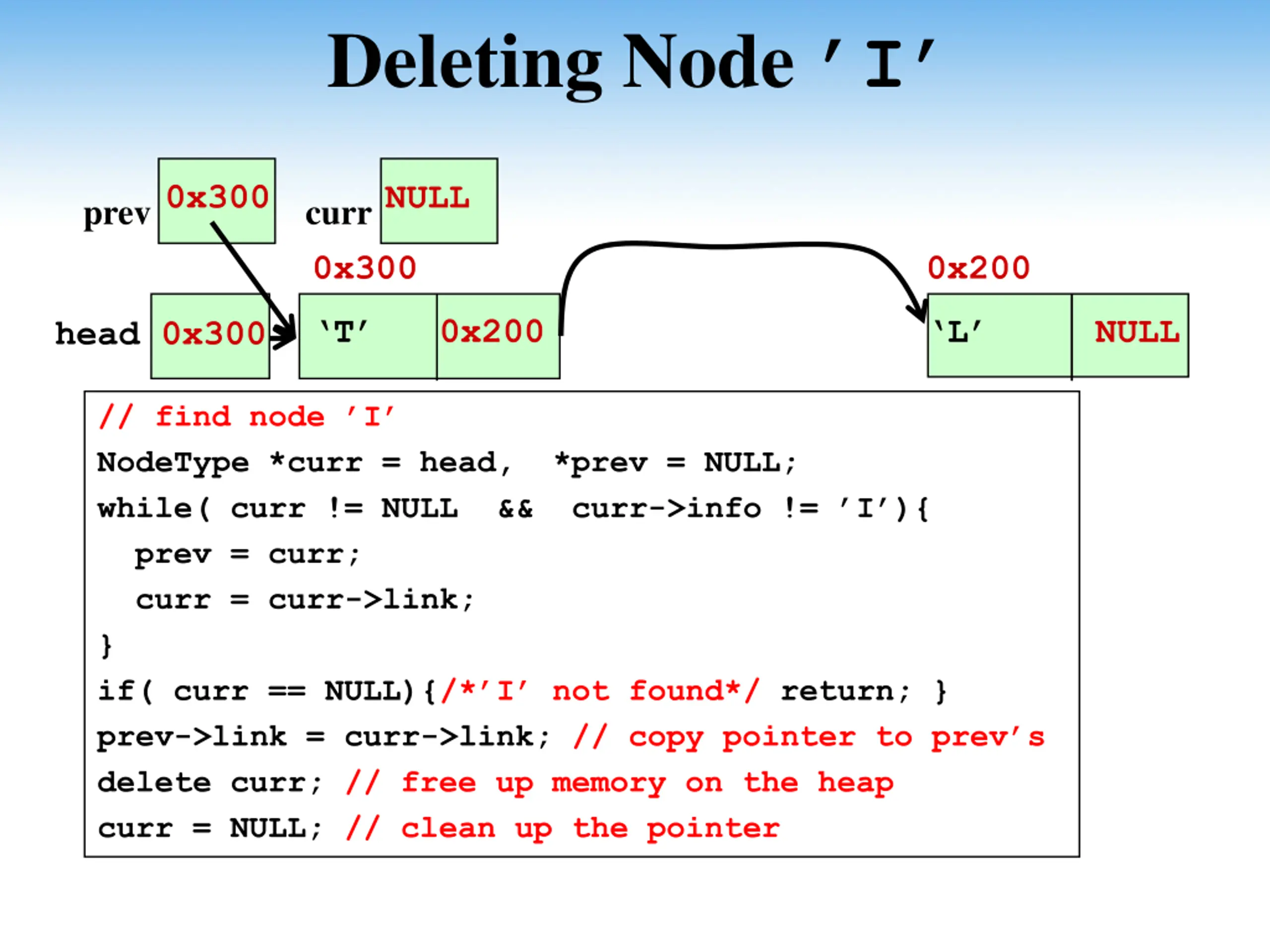

  46. Deleting Node I 0x300 NULL prev curr 0x300 0x200 T 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

  47. Deleting Node I 0x300 NULL prev curr 0x300 0x200 T 0x200 L NULL head 0x300 // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer

  48. Deleting Node I 0x300 NULL prev curr 0x300 0x200 T 0x200 0x300 0x200 L NULL L NULL head // find node I NodeType *curr = head, *prev = NULL; while( curr != NULL && curr->info != I ){ prev = curr; curr = curr->link; } if( curr == NULL){/* I not found*/ return; } prev->link = curr->link; // copy pointer to prev s delete curr; // free up memory on the heap curr = NULL; // clean up the pointer
