Valiant robots Week 5 exercises

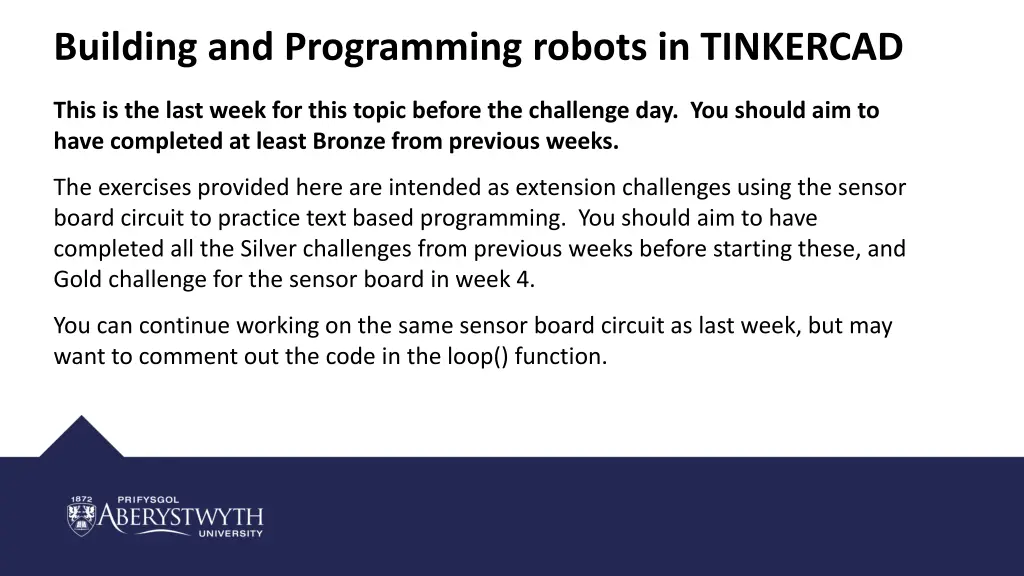

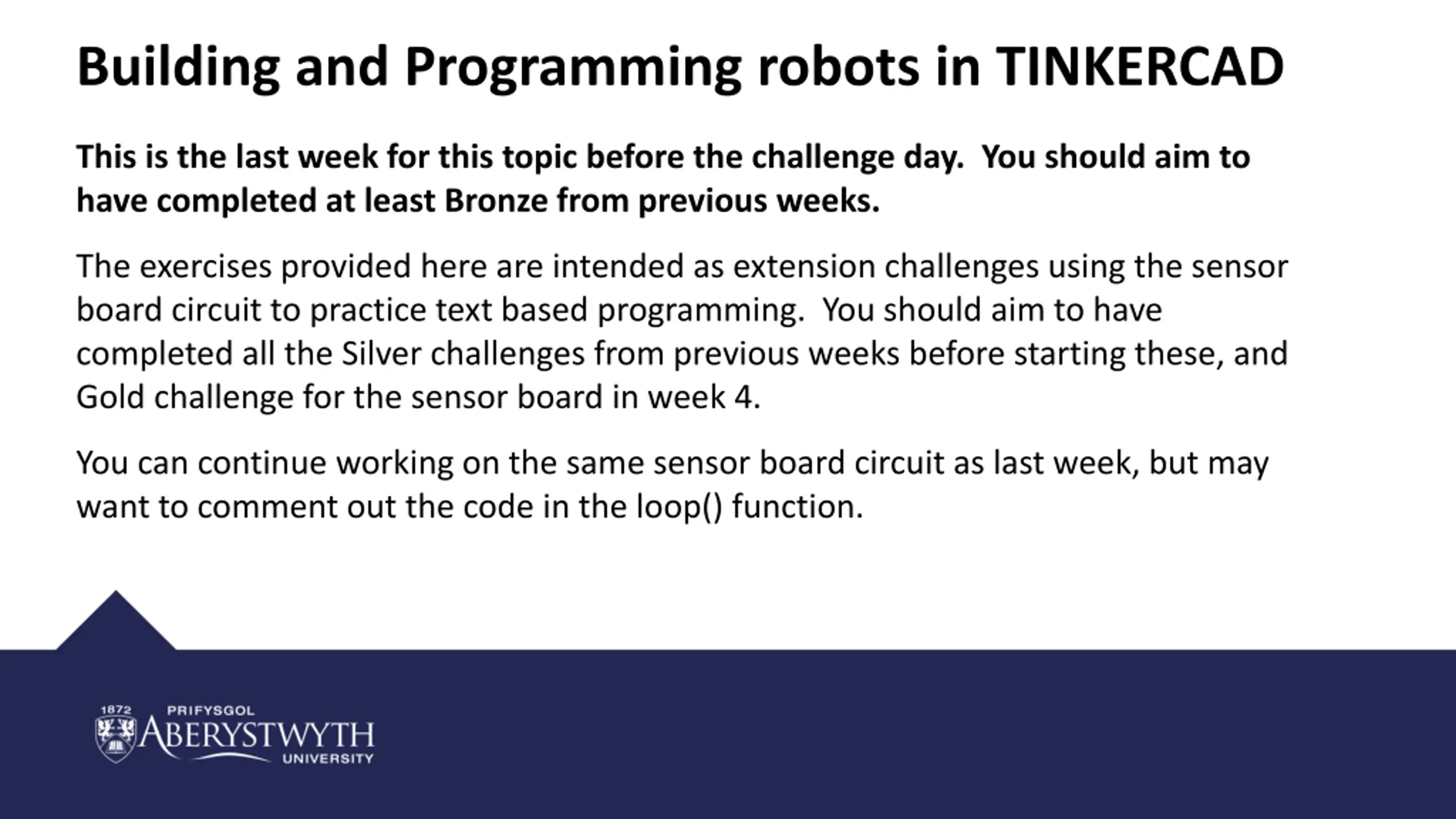

Building and Programming robots in TINKERCAD This is the last week for this topic before the challenge day. You should aim to have completed at least Bronze from previous weeks. The exercises provided here are intended as extension challenges using the sensor board circuit to practice text based programming. You should aim to have completed all the Silver challenges from previous weeks before starting these, and Gold challenge for the sensor board in week 4. You can continue working on the same sensor board circuit as last week, but may want to comment out the code in the loop() function.

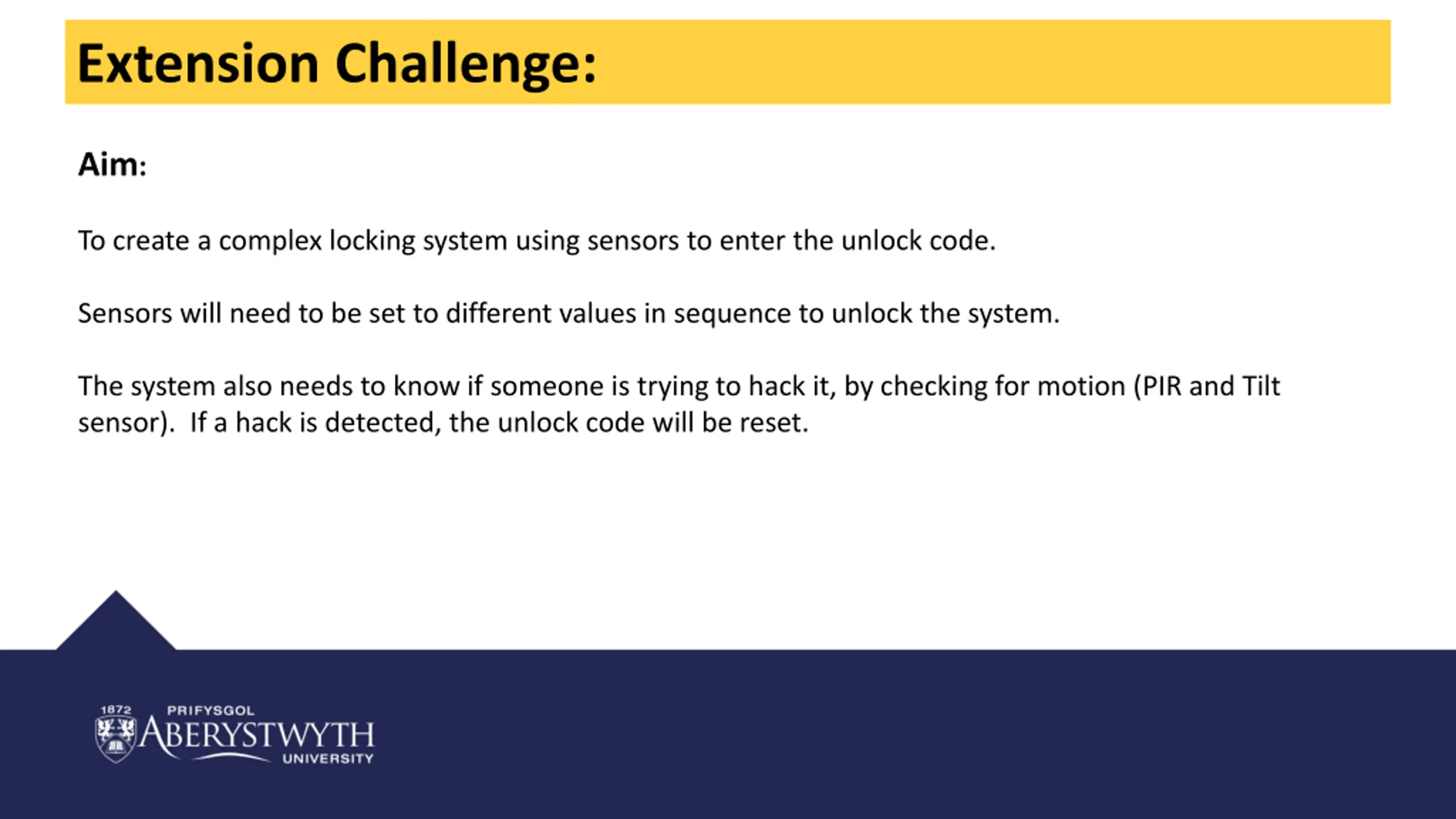

Extension Challenge: Aim: To create a complex locking system using sensors to enter the unlock code. Sensors will need to be set to different values in sequence to unlock the system. The system also needs to know if someone is trying to hack it, by checking for motion (PIR and Tilt sensor). If a hack is detected, the unlock code will be reset.

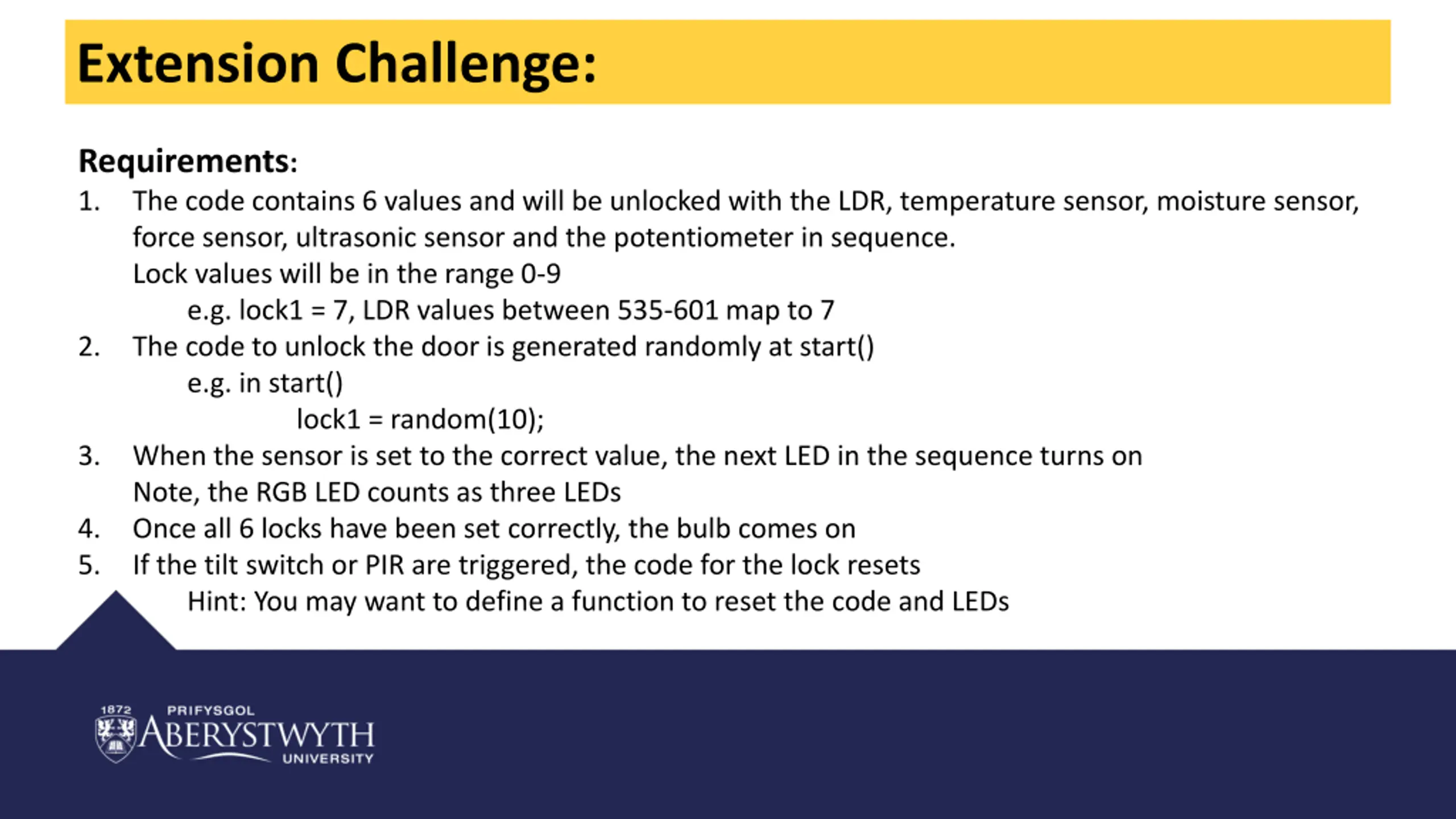

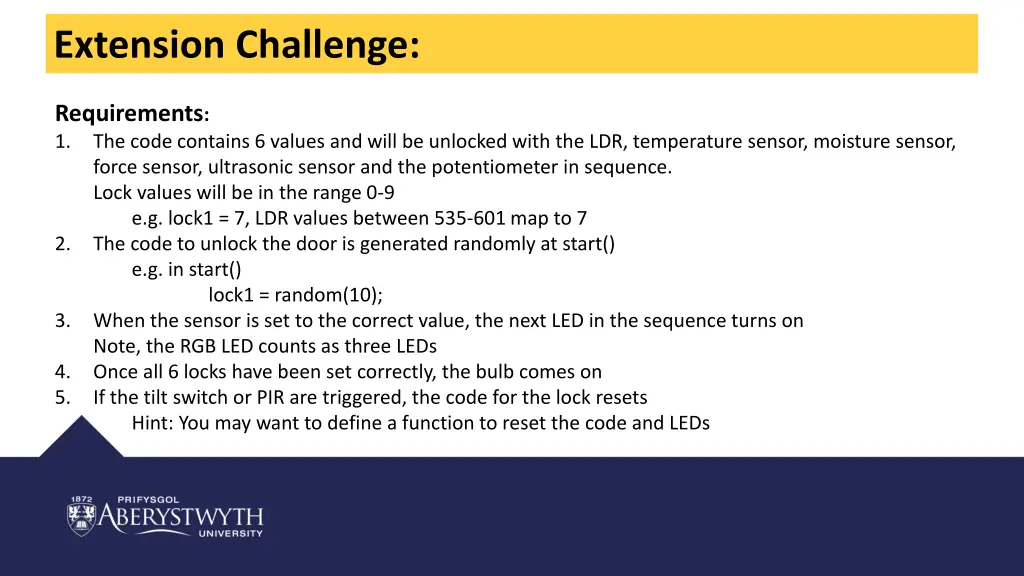

Extension Challenge: Requirements: 1. The code contains 6 values and will be unlocked with the LDR, temperature sensor, moisture sensor, force sensor, ultrasonic sensor and the potentiometer in sequence. Lock values will be in the range 0-9 e.g. lock1 = 7, LDR values between 535-601 map to 7 2. The code to unlock the door is generated randomly at start() e.g. in start() lock1 = random(10); 3. When the sensor is set to the correct value, the next LED in the sequence turns on Note, the RGB LED counts as three LEDs 4. Once all 6 locks have been set correctly, the bulb comes on 5. If the tilt switch or PIR are triggered, the code for the lock resets Hint: You may want to define a function to reset the code and LEDs

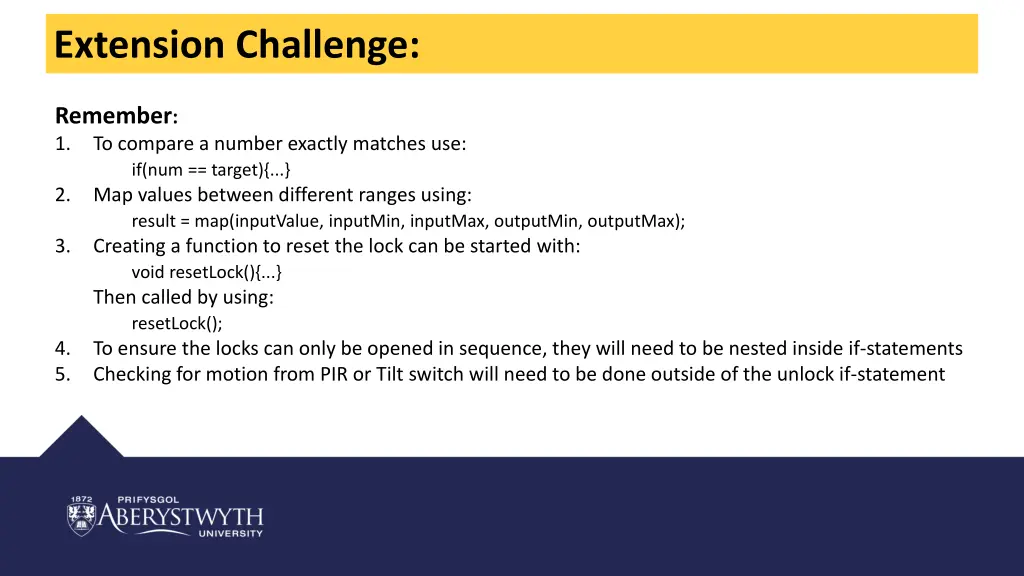

Extension Challenge: Remember: 1. To compare a number exactly matches use: if(num == target){...} 2. Map values between different ranges using: result = map(inputValue, inputMin, inputMax, outputMin, outputMax); 3. Creating a function to reset the lock can be started with: void resetLock(){...} Then called by using: resetLock(); 4. To ensure the locks can only be opened in sequence, they will need to be nested inside if-statements 5. Checking for motion from PIR or Tilt switch will need to be done outside of the unlock if-statement

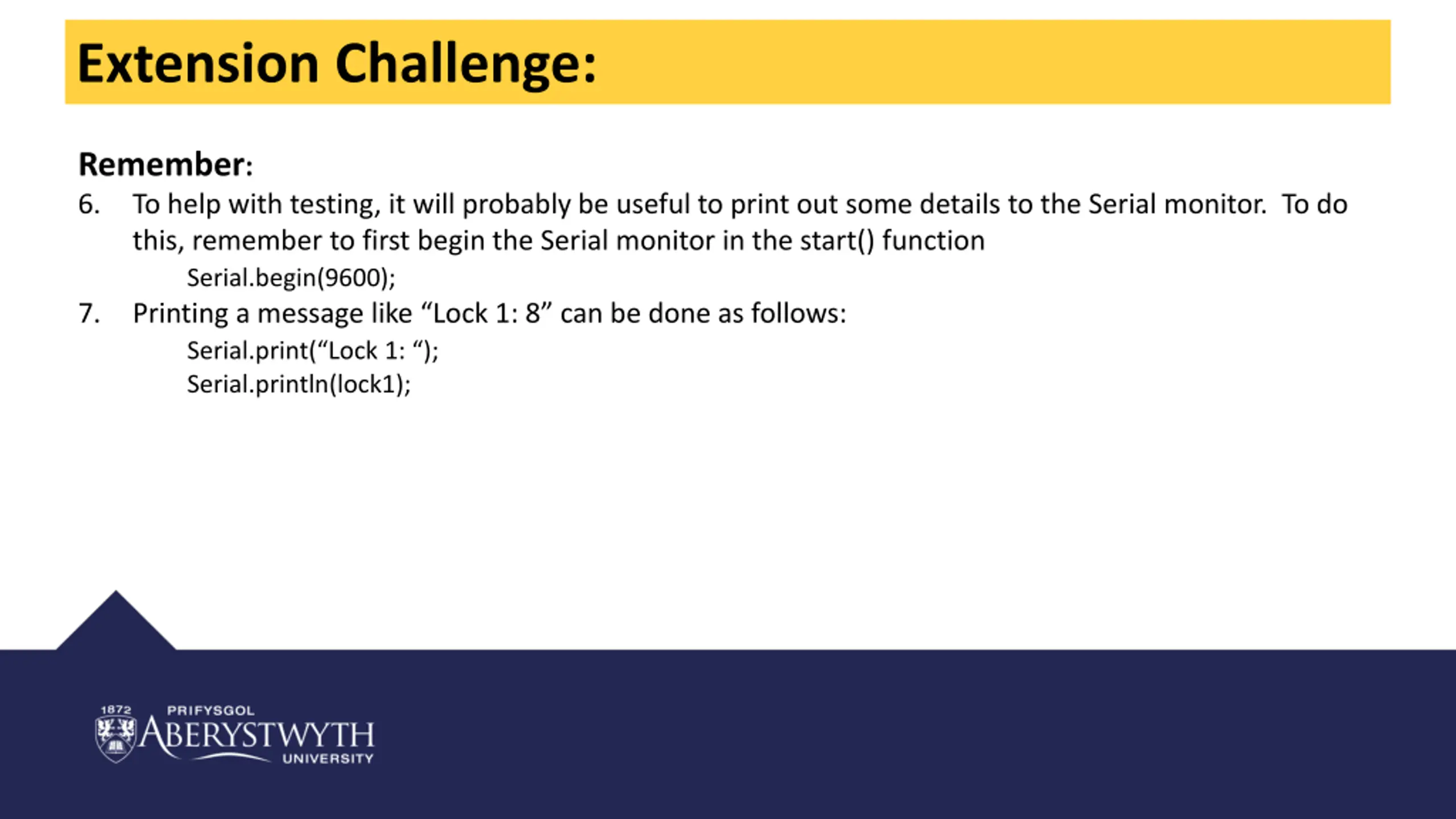

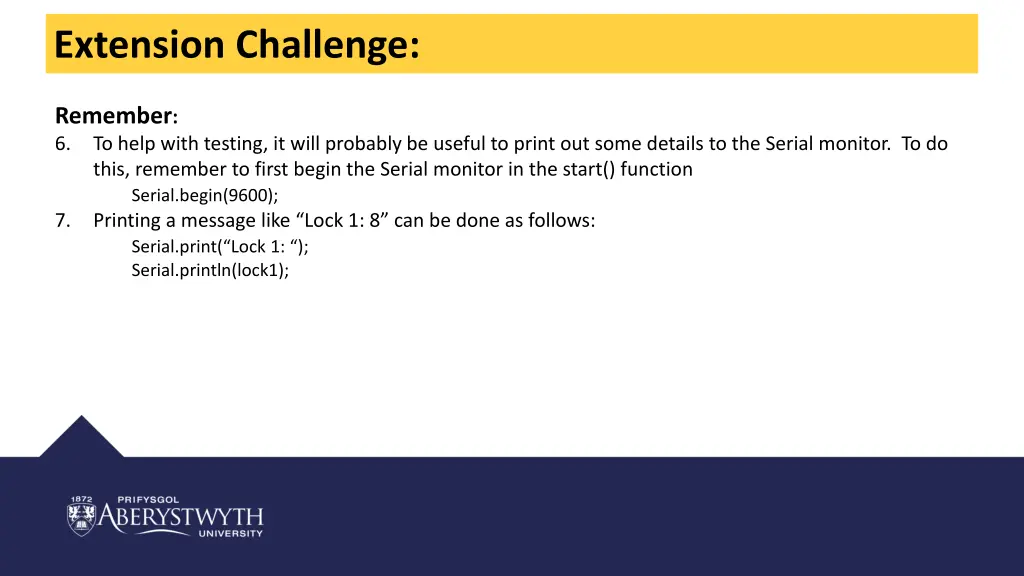

Extension Challenge: Remember: 6. To help with testing, it will probably be useful to print out some details to the Serial monitor. To do this, remember to first begin the Serial monitor in the start() function Serial.begin(9600); 7. Printing a message like Lock 1: 8 can be done as follows: Serial.print( Lock 1: ); Serial.println(lock1);
