ITEC 352 Lecture 31 Buses / Peripherals
Review Memory SD Memory chips Rambus memory Technology versus usage Buses and Peripherals
Objectives Look into the connections between components Buses and Peripherals

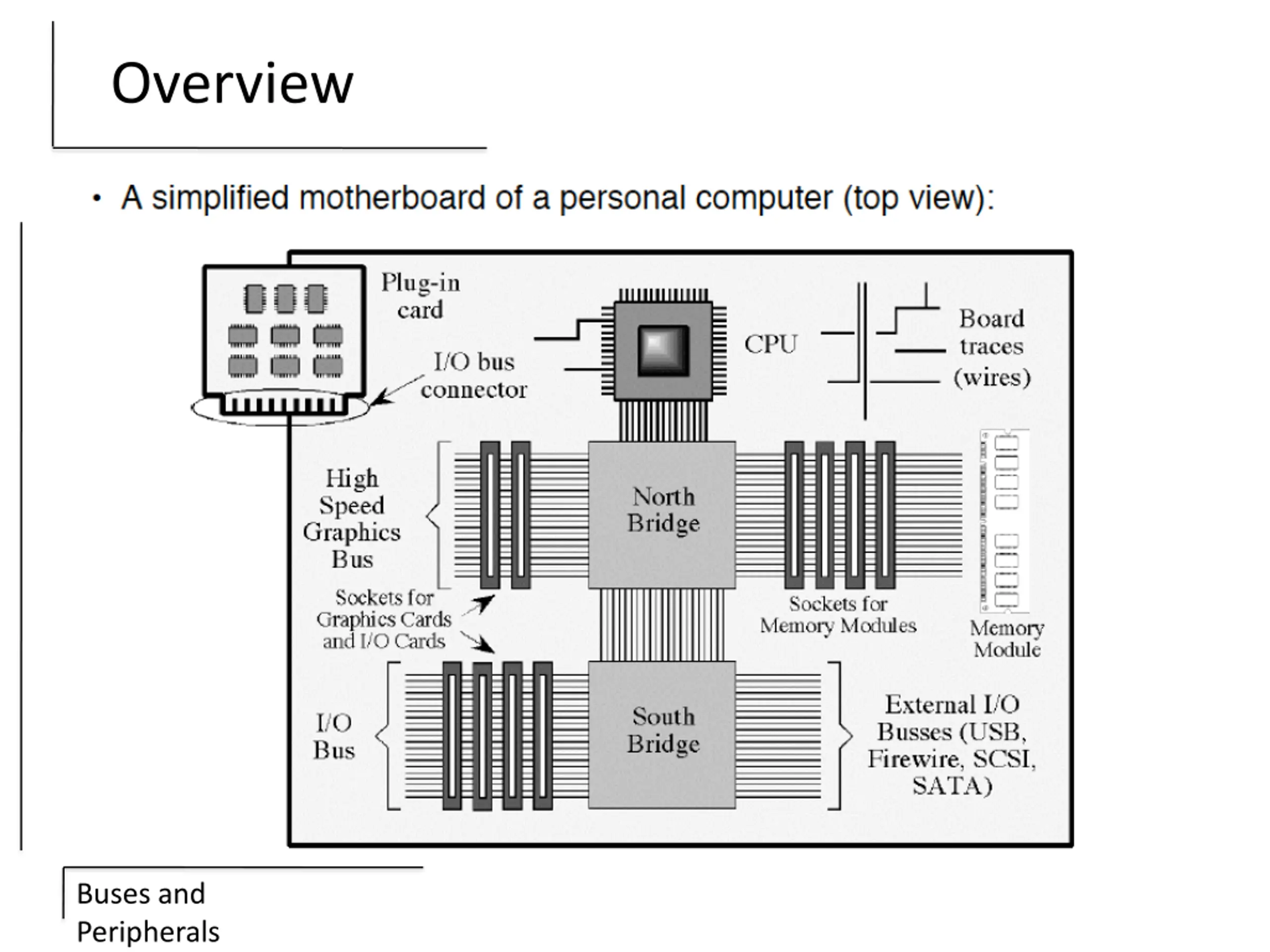

Overview Buses and Peripherals

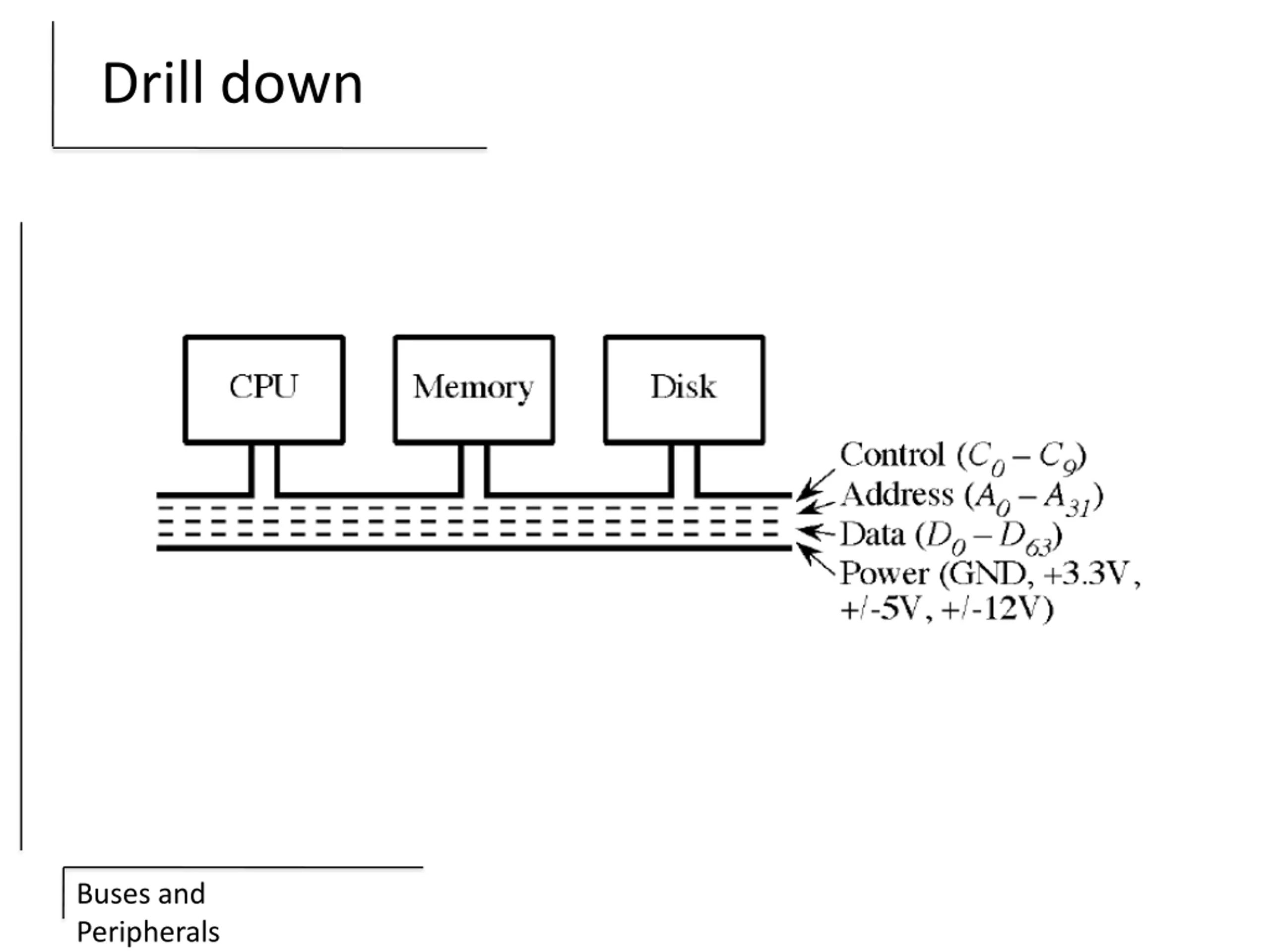

Drill down Buses and Peripherals

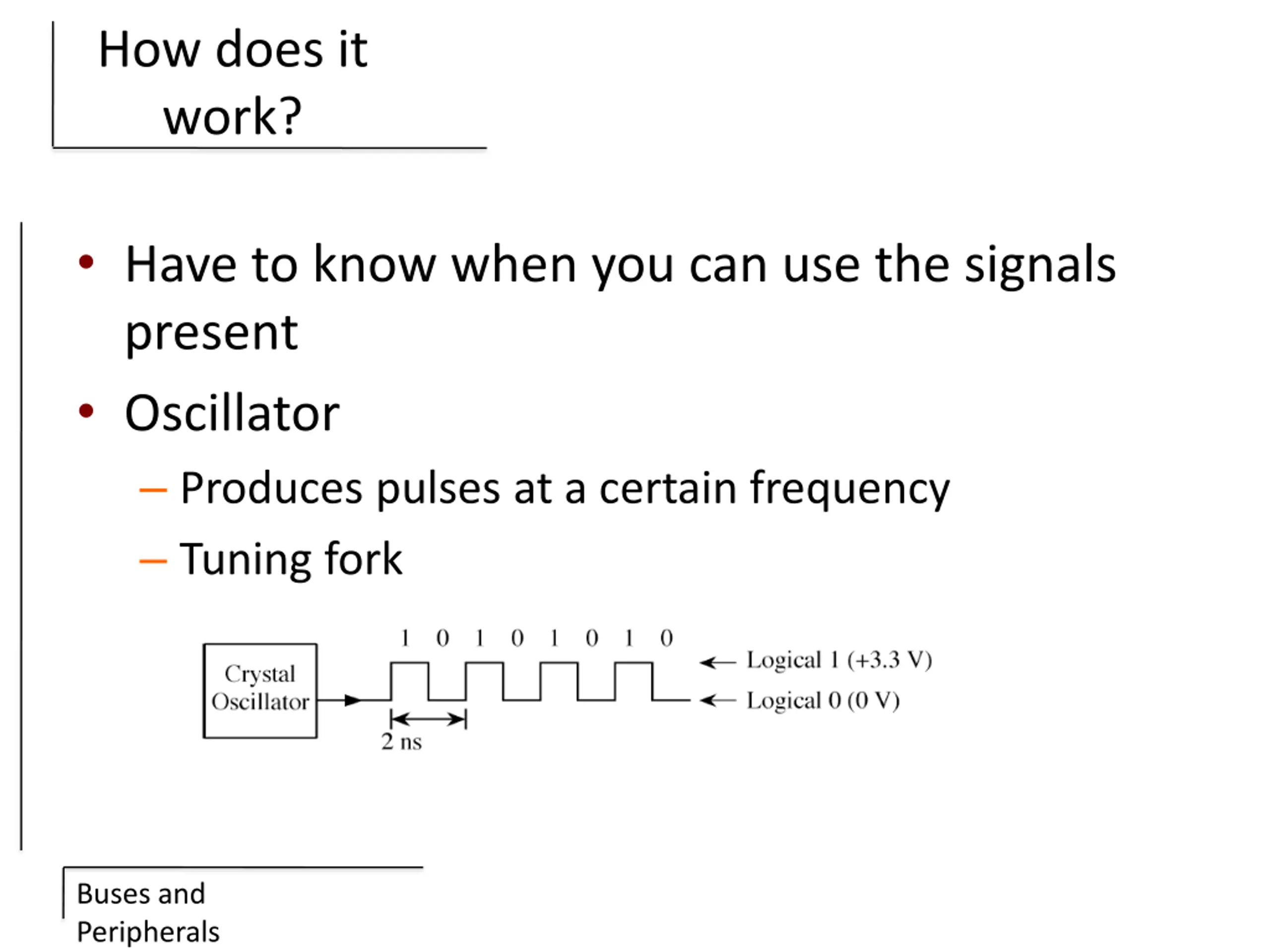

How does it work? Have to know when you can use the signals present Oscillator Produces pulses at a certain frequency Tuning fork Buses and Peripherals

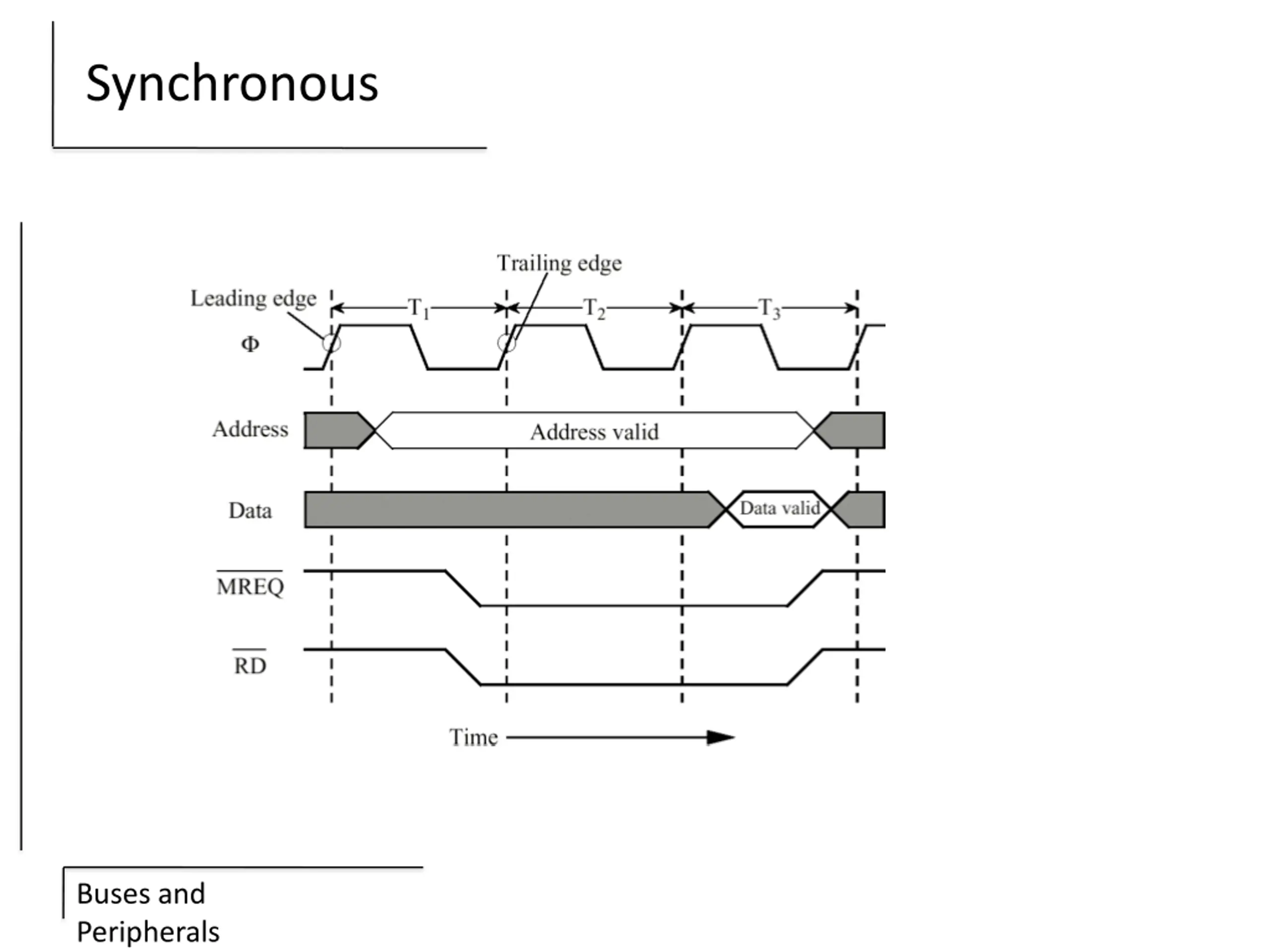

Synchronous Buses and Peripherals

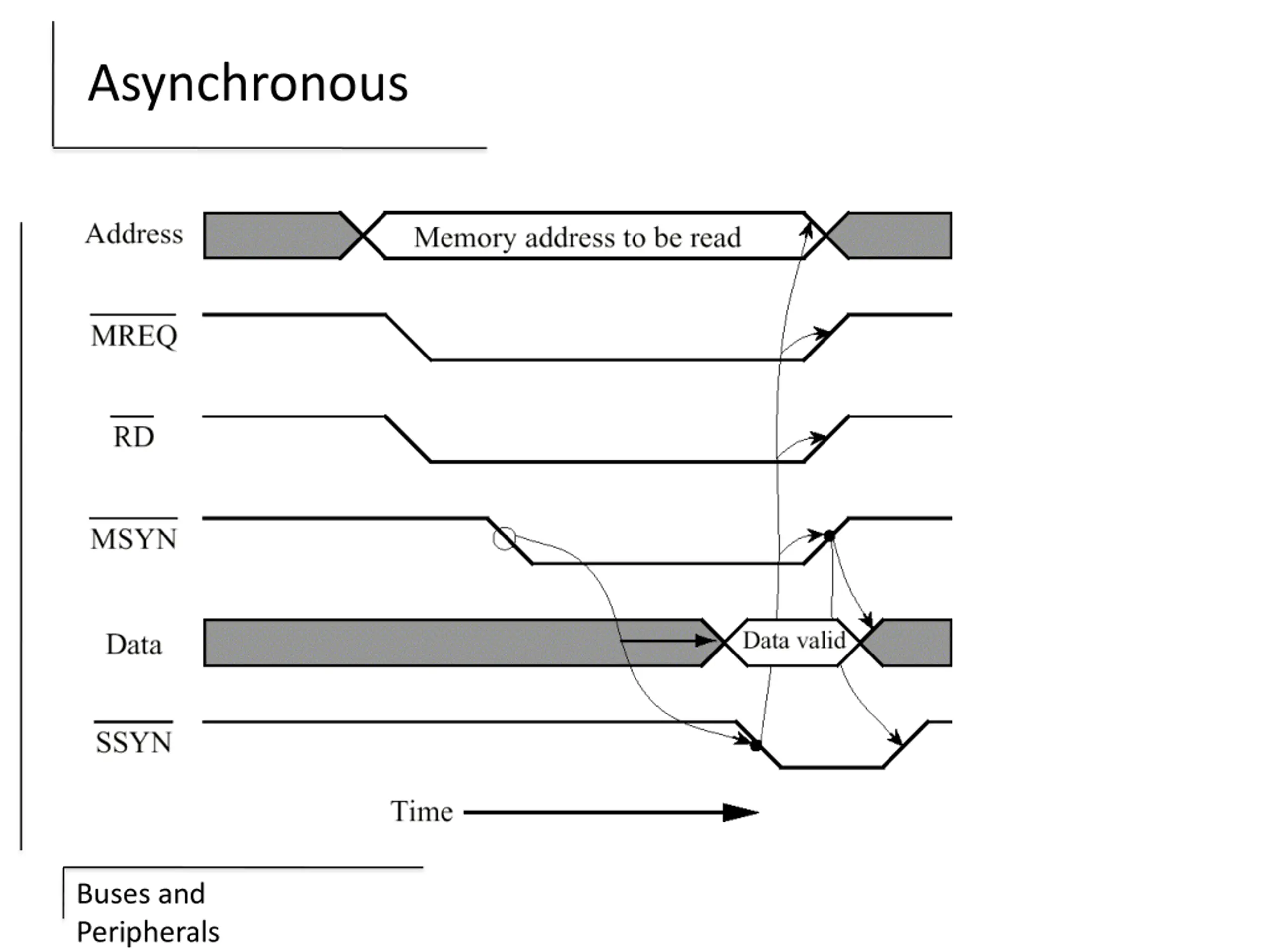

Asynchronous Buses and Peripherals

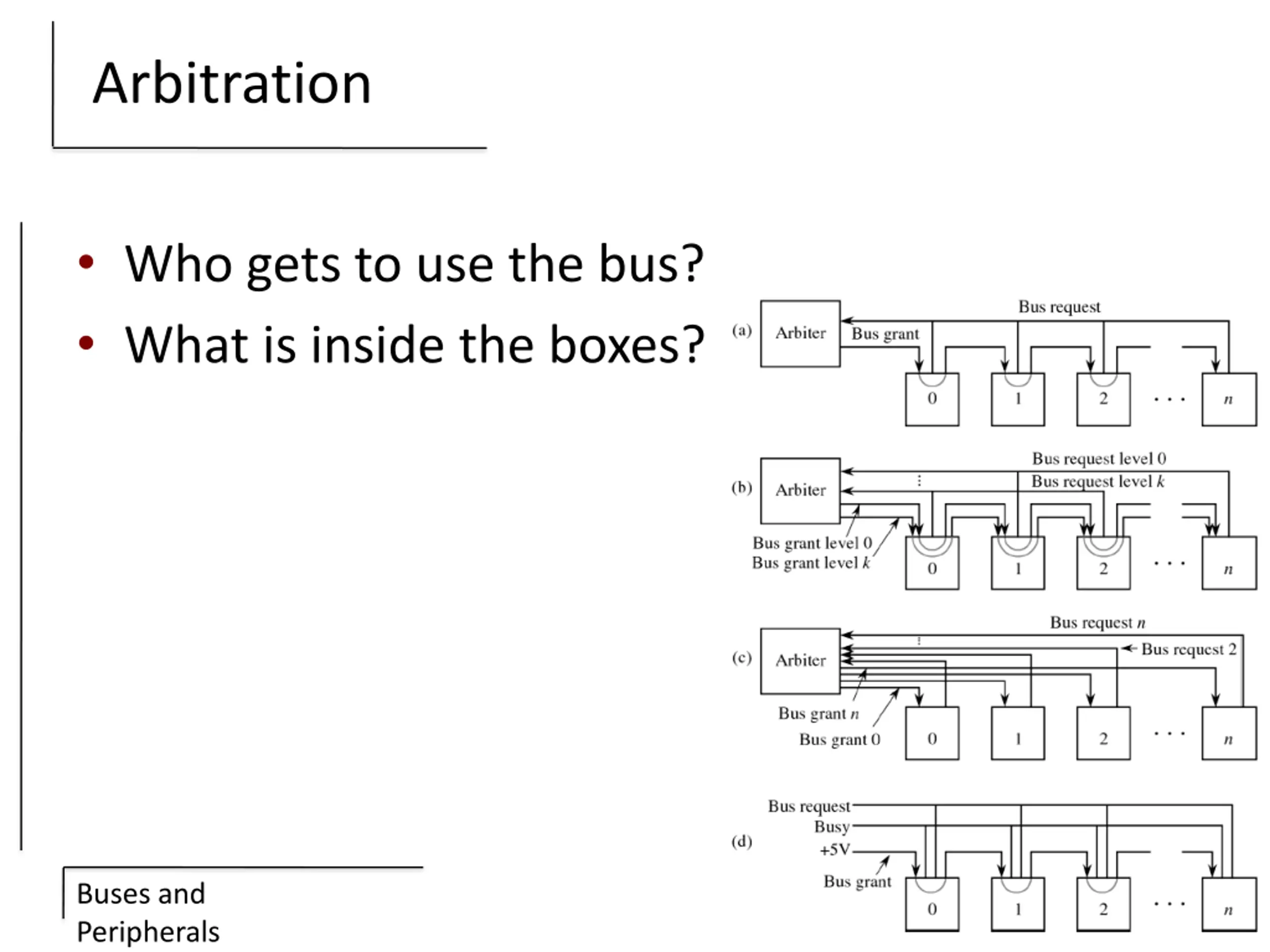

Arbitration Who gets to use the bus? What is inside the boxes? Buses and Peripherals

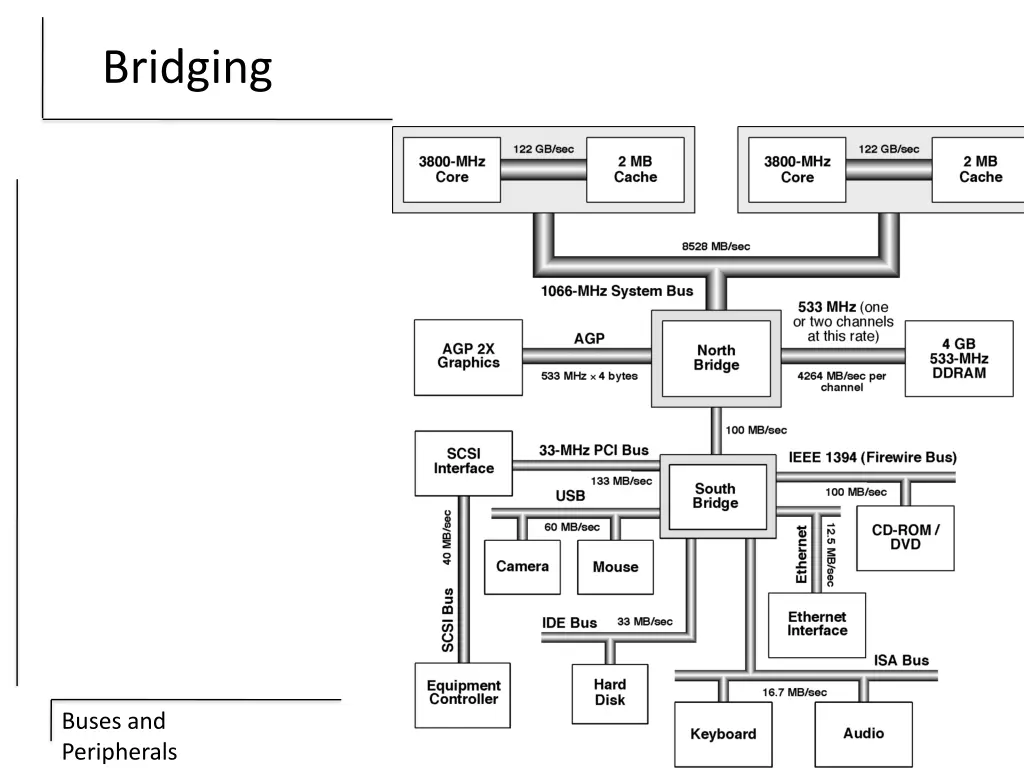

Bridging Buses and Peripherals

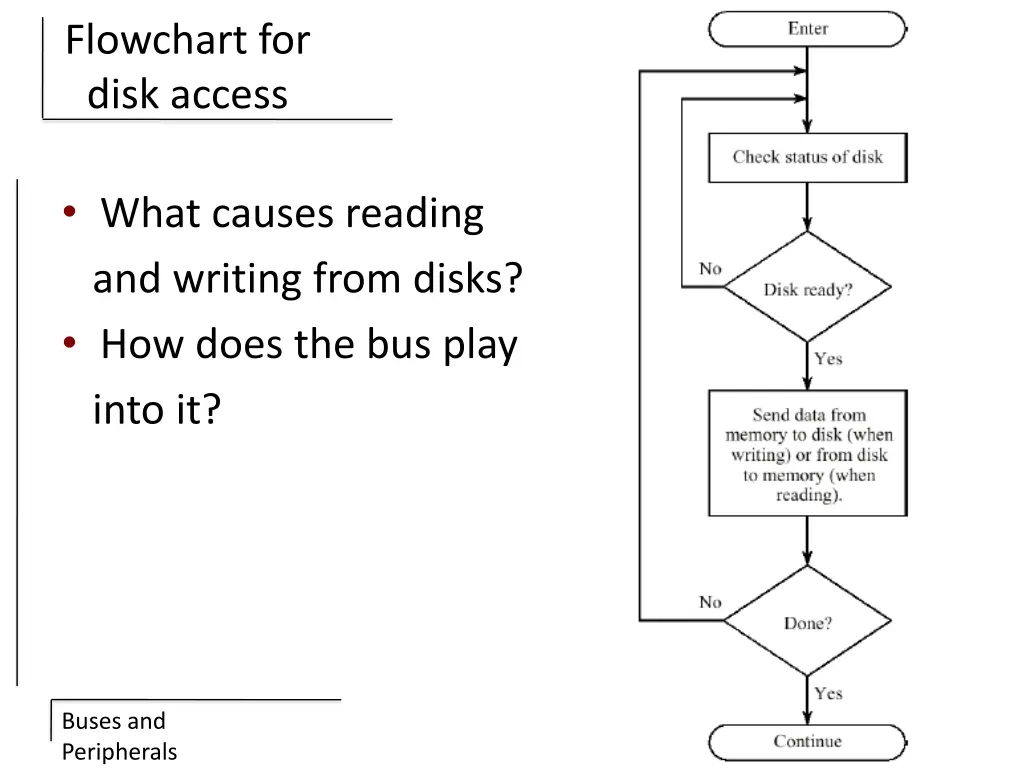

Flowchart for disk access What causes reading and writing from disks? How does the bus play into it? Buses and Peripherals
Interrupts What are they? Why are they used? How do they affect the bus? Buses and Peripherals

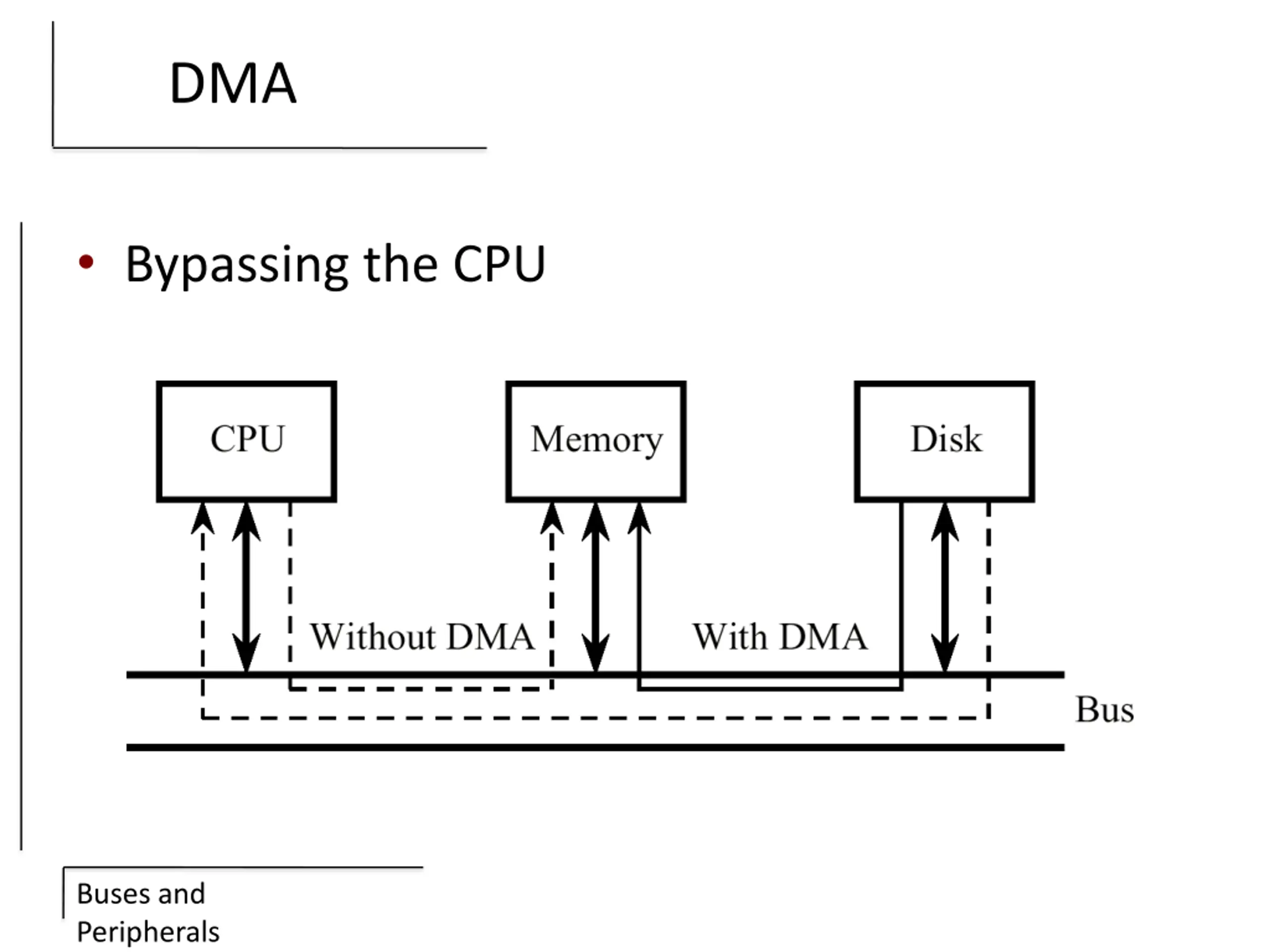

DMA Bypassing the CPU Buses and Peripherals

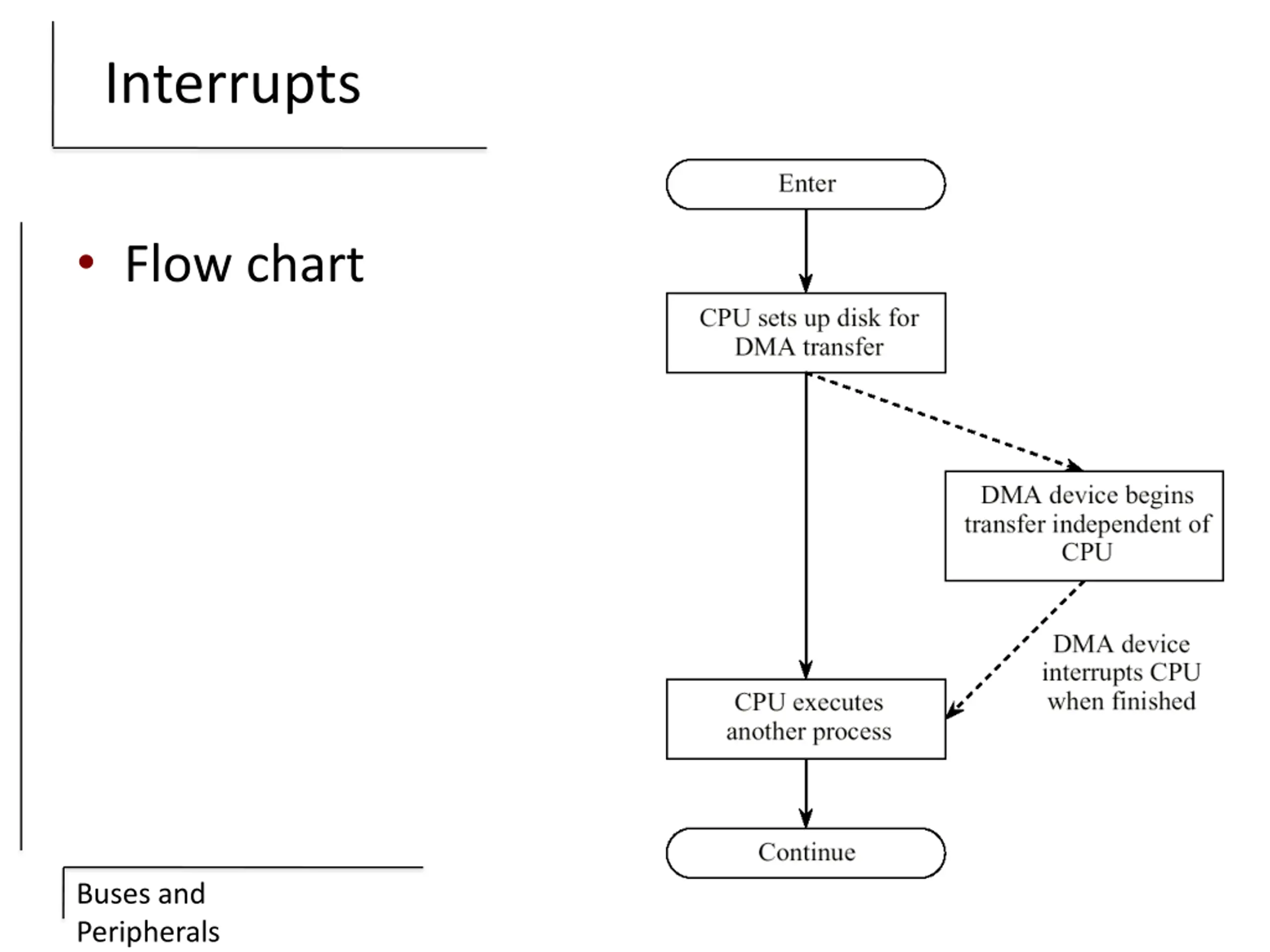

Interrupts Flow chart Buses and Peripherals

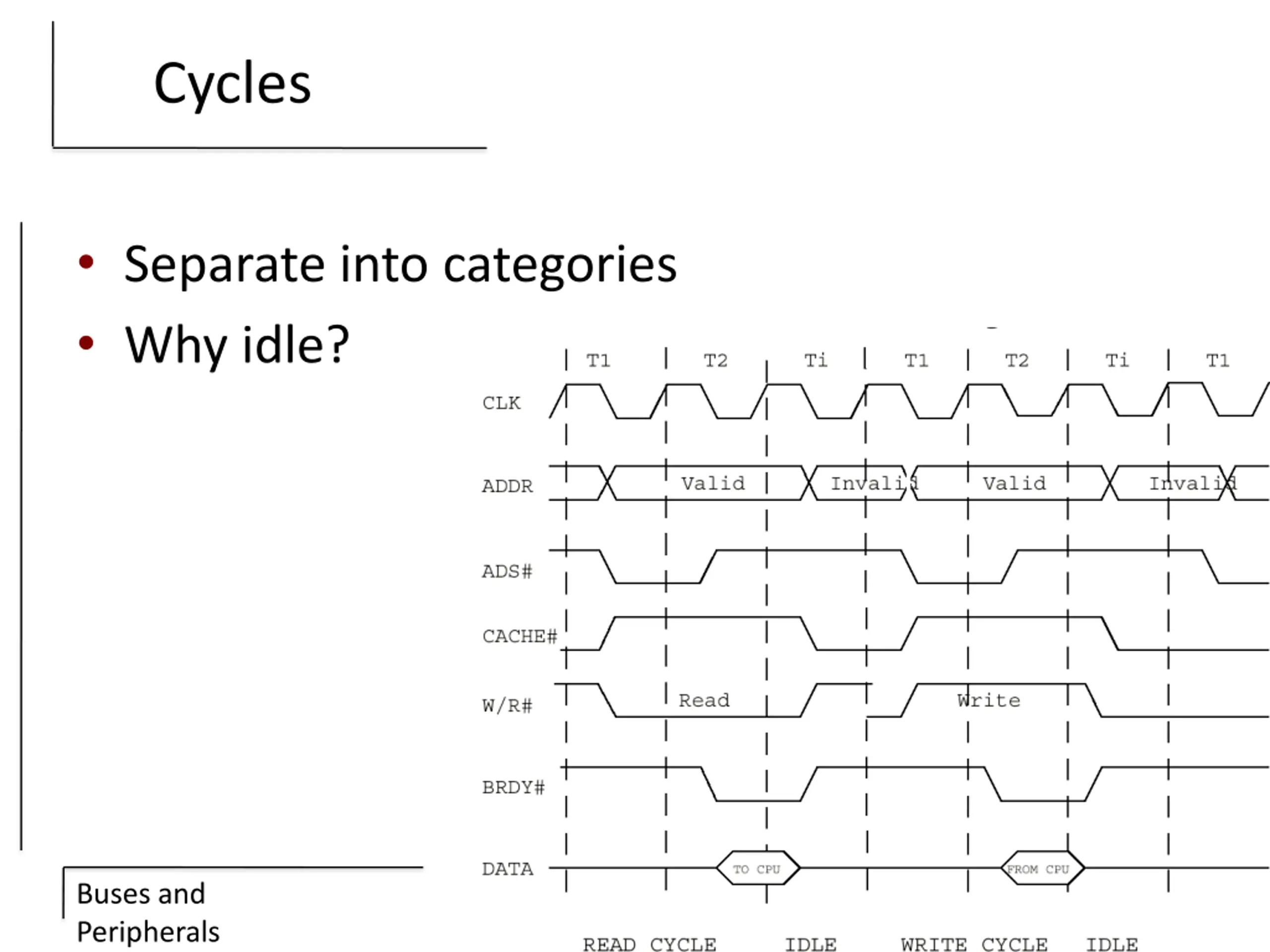

Cycles Separate into categories Why idle? Buses and Peripherals

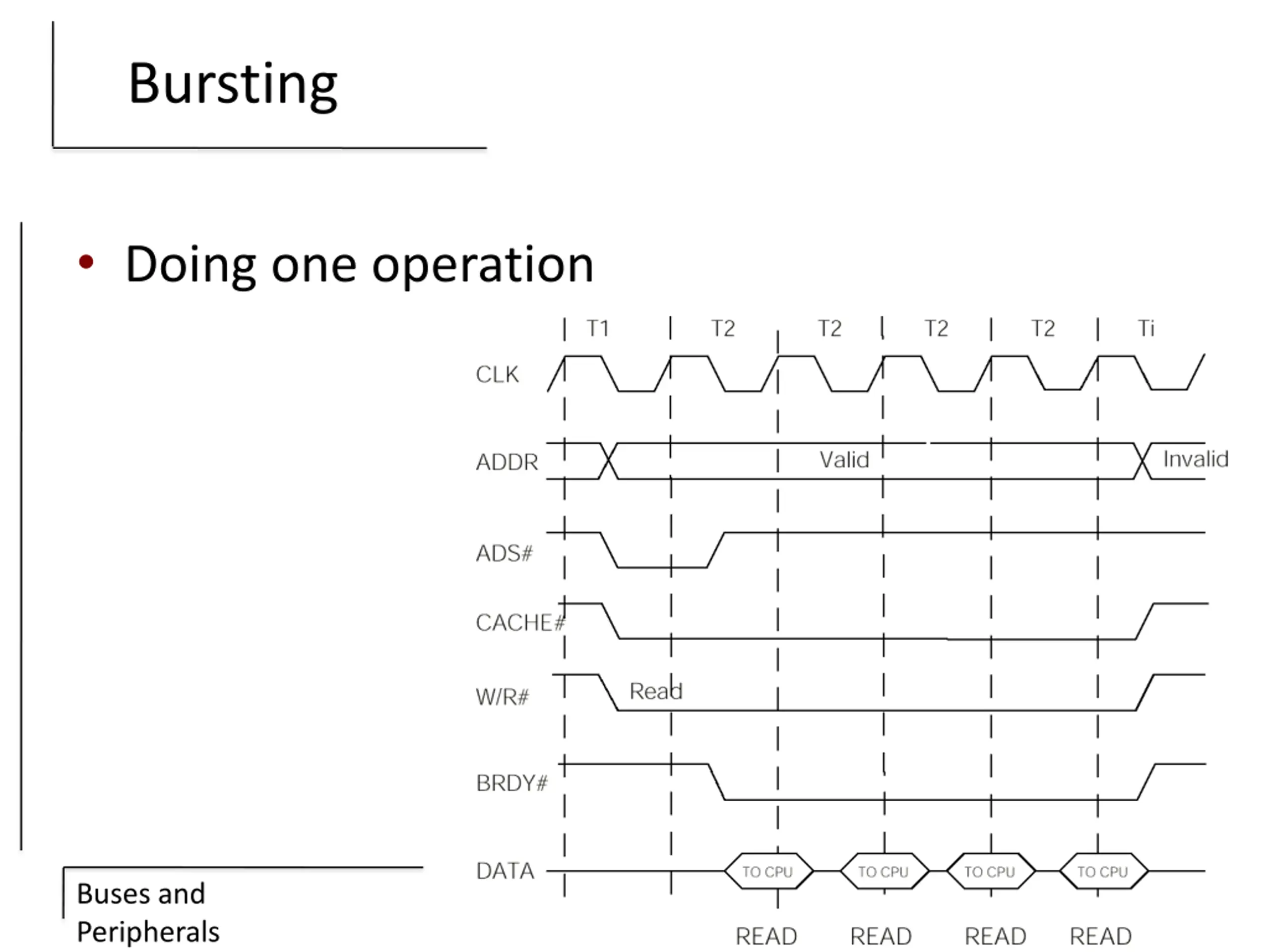

Bursting Doing one operation Buses and Peripherals
Summary Introduction to buses Next time Specific devices Buses and Peripherals
