BYD (Electric Vehicles) Patent Landscape Study

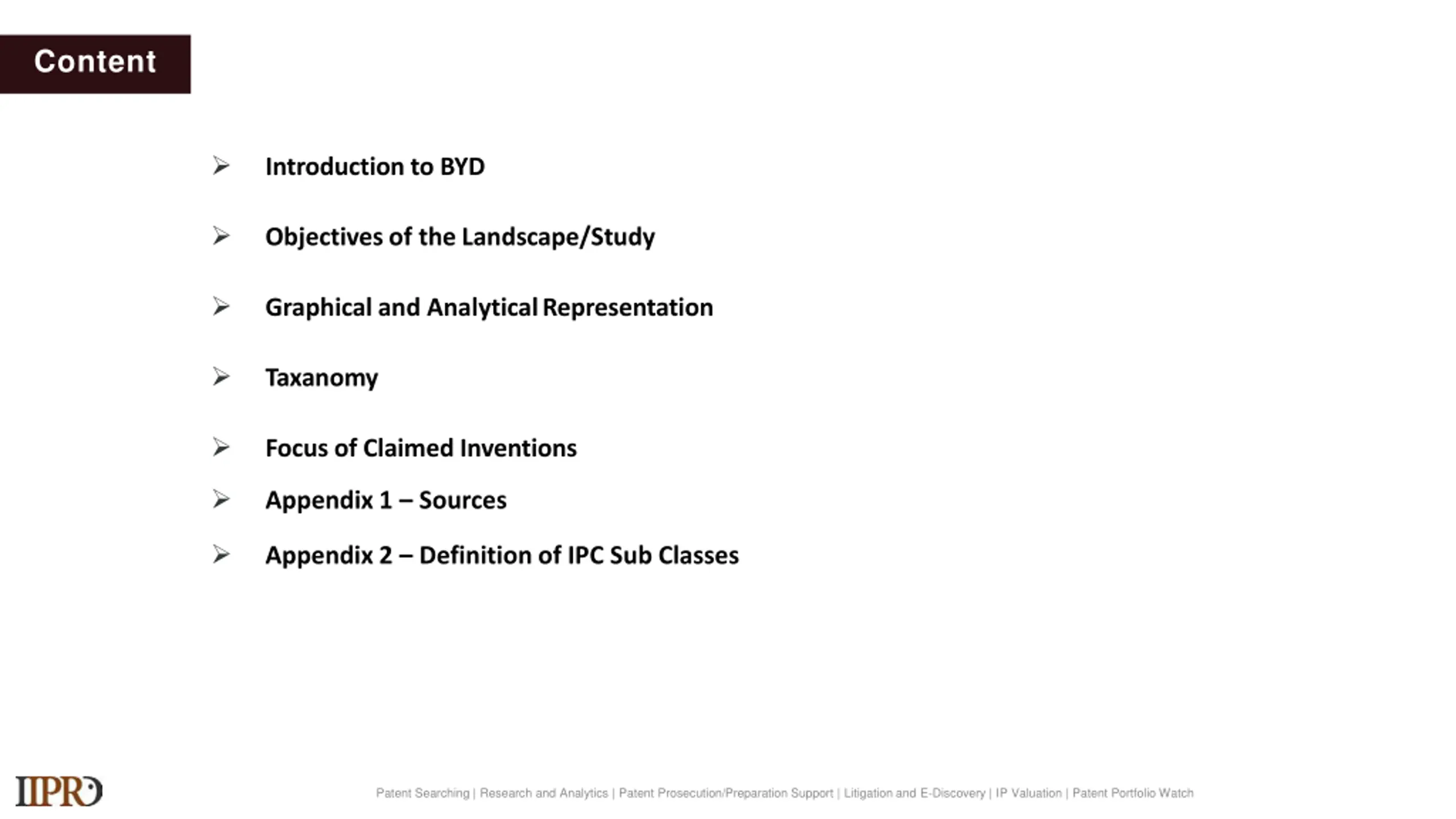

Content Introduction to BYD Objectivesof theLandscape/Study Graphical and AnalyticalRepresentation Taxanomy Focus of Claimed Inventions Appendix 1 Sources Appendix 2 Definition of IPC Sub Classes Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

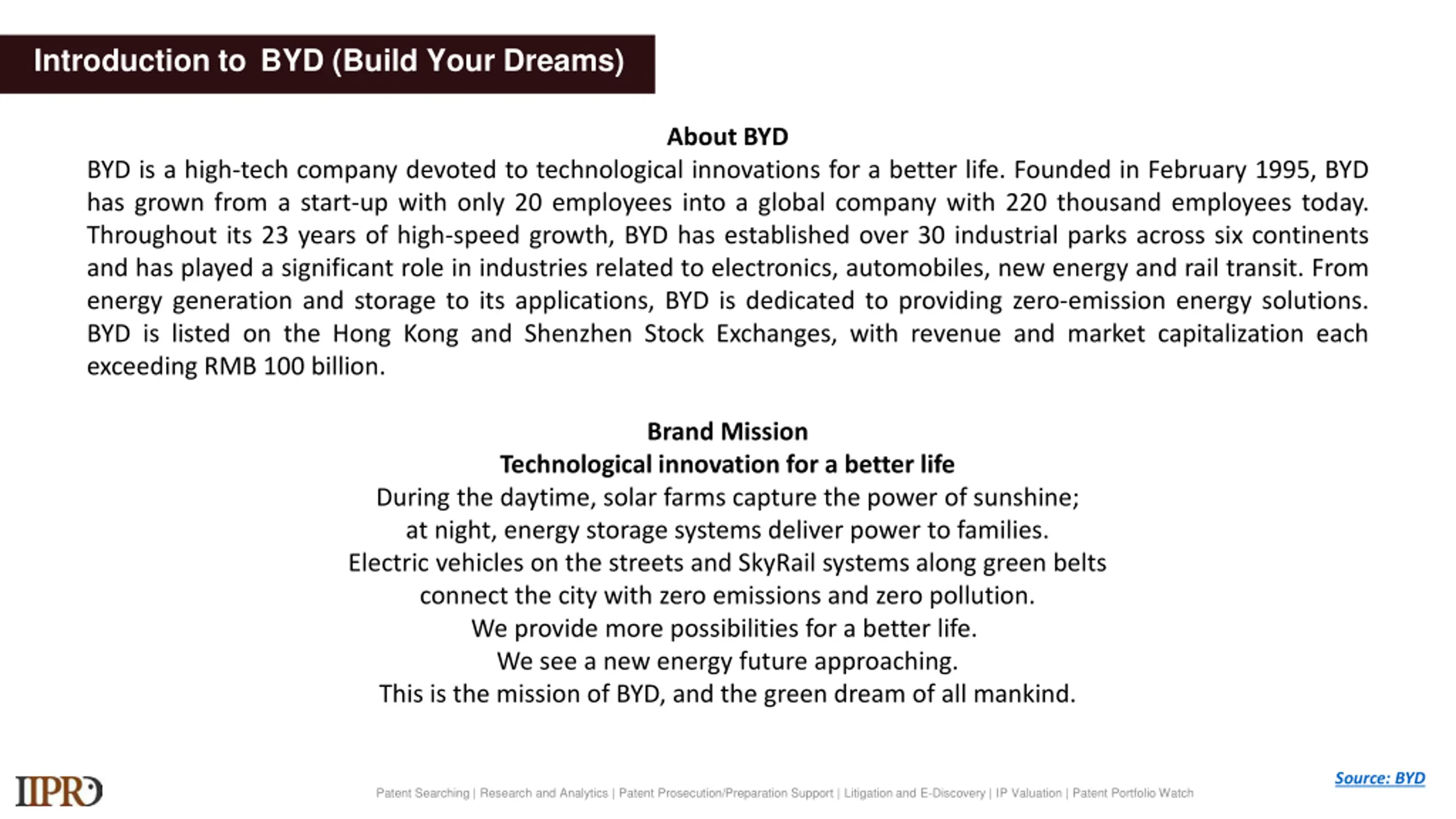

Introduction to BYD (Build Your Dreams) About BYD BYD is a high-tech company devoted to technological innovations for a better life. Founded in February 1995, BYD has grown from a start-up with only 20 employees into a global company with 220 thousand employees today. Throughout its 23 years of high-speed growth, BYD has established over 30 industrial parks across six continents and has played a significant role in industries related to electronics, automobiles, new energy and rail transit. From energy generation and storage to its applications, BYD is dedicated to providing zero-emission energy solutions. BYD is listed on the Hong Kong and Shenzhen Stock Exchanges, with revenue and market capitalization each exceeding RMB 100 billion. Brand Mission Technological innovation for a better life During the daytime, solar farms capture the power of sunshine; at night, energy storage systems deliver power to families. Electric vehicles on the streets and SkyRail systems along green belts connect the city with zero emissions and zero pollution. We provide more possibilities for a better life. We see a new energy future approaching. This is the mission of BYD, and the green dream of all mankind. Source: BYD Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

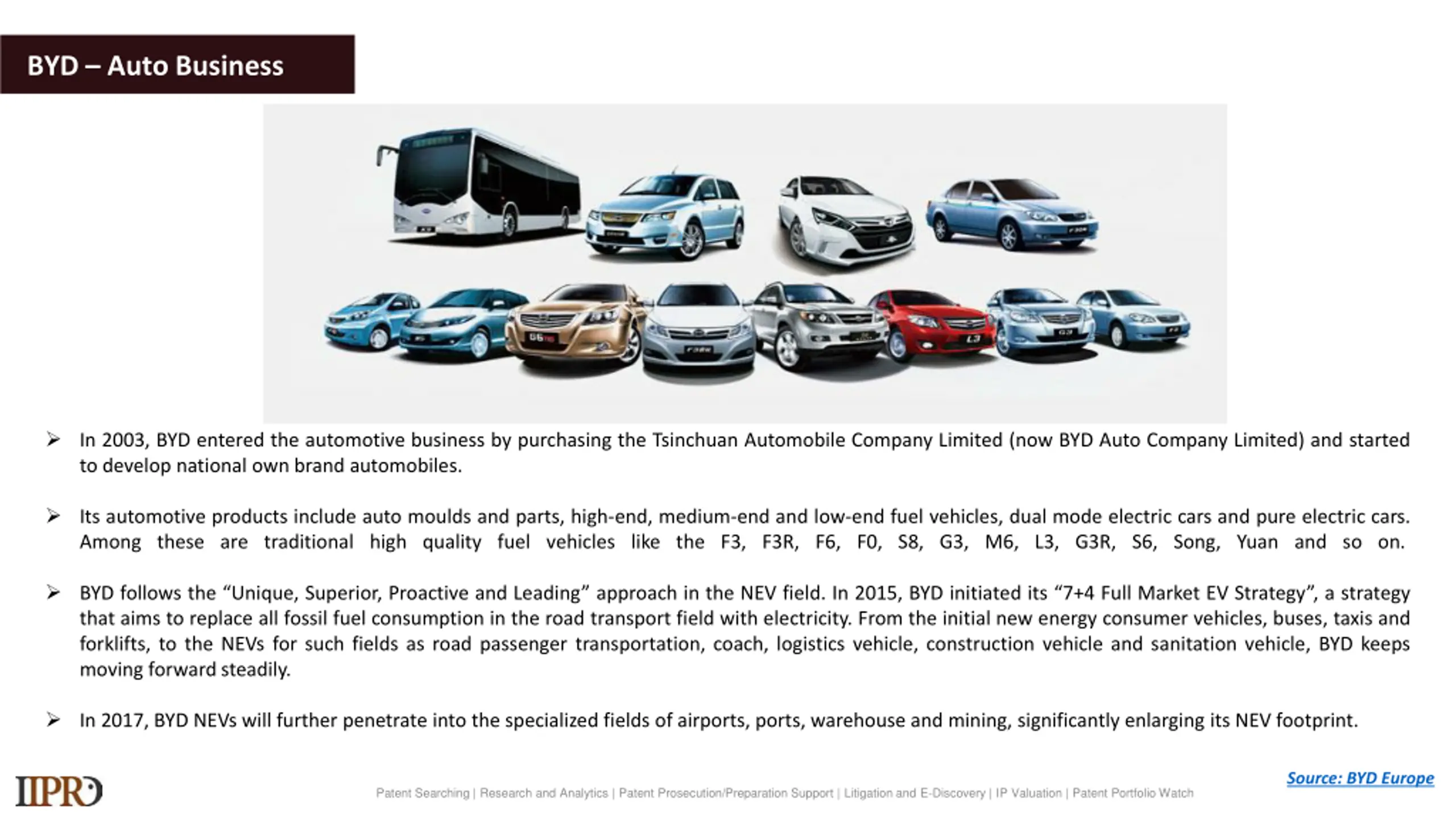

BYD Auto Business In 2003, BYD entered the automotive business by purchasing the Tsinchuan Automobile Company Limited (now BYD Auto Company Limited) and started to develop national own brand automobiles. Its automotive products include auto moulds and parts, high-end, medium-end and low-end fuel vehicles, dual mode electric cars and pure electric cars. Among these are traditional high quality fuel vehicles like the F3, F3R, F6, F0, S8, G3, M6, L3, G3R, S6, Song, Yuan and so on. BYD follows the Unique, Superior, Proactive and Leading approach in the NEV field. In 2015, BYD initiated its 7+4 Full Market EV Strategy , a strategy that aims to replace all fossil fuel consumption in the road transport field with electricity. From the initial new energy consumer vehicles, buses, taxis and forklifts, to the NEVs for such fields as road passenger transportation, coach, logistics vehicle, construction vehicle and sanitation vehicle, BYD keeps moving forward steadily. In 2017, BYD NEVs will further penetrate into the specialized fields of airports, ports, warehouse and mining, significantly enlarging its NEV footprint. Source: BYD Europe Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

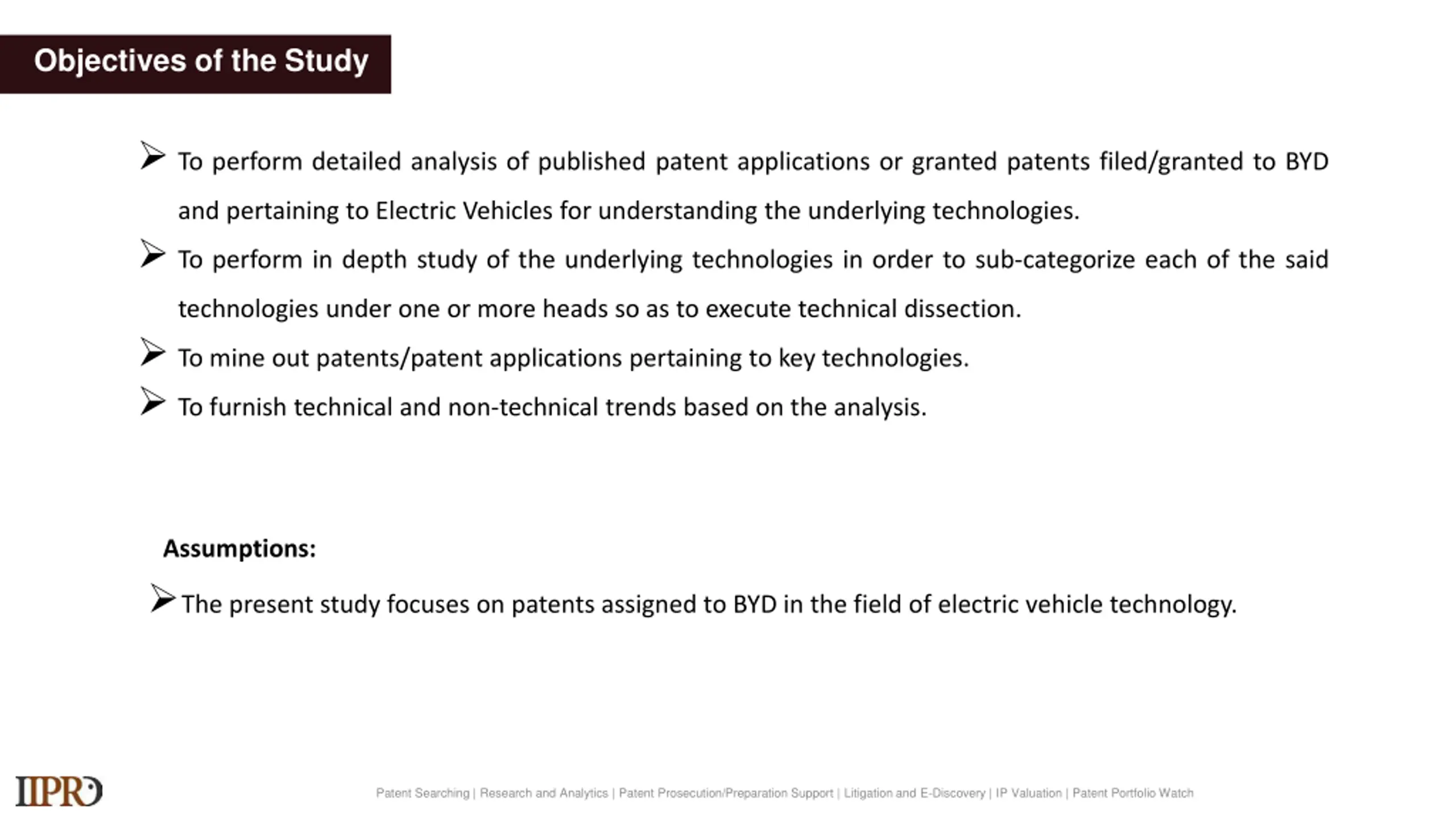

Objectives of the Study To perform detailed analysis of published patent applications or granted patents filed/granted to BYD and pertaining to Electric Vehicles for understanding the underlying technologies. To perform in depth study of the underlying technologies in order to sub-categorize each of the said technologies under one or more heads so as to execute technical dissection. To mine out patents/patent applications pertaining to key technologies. To furnish technical and non-technical trends based on the analysis. Assumptions: The present study focuses on patents assigned to BYD in the field of electric vehicle technology. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

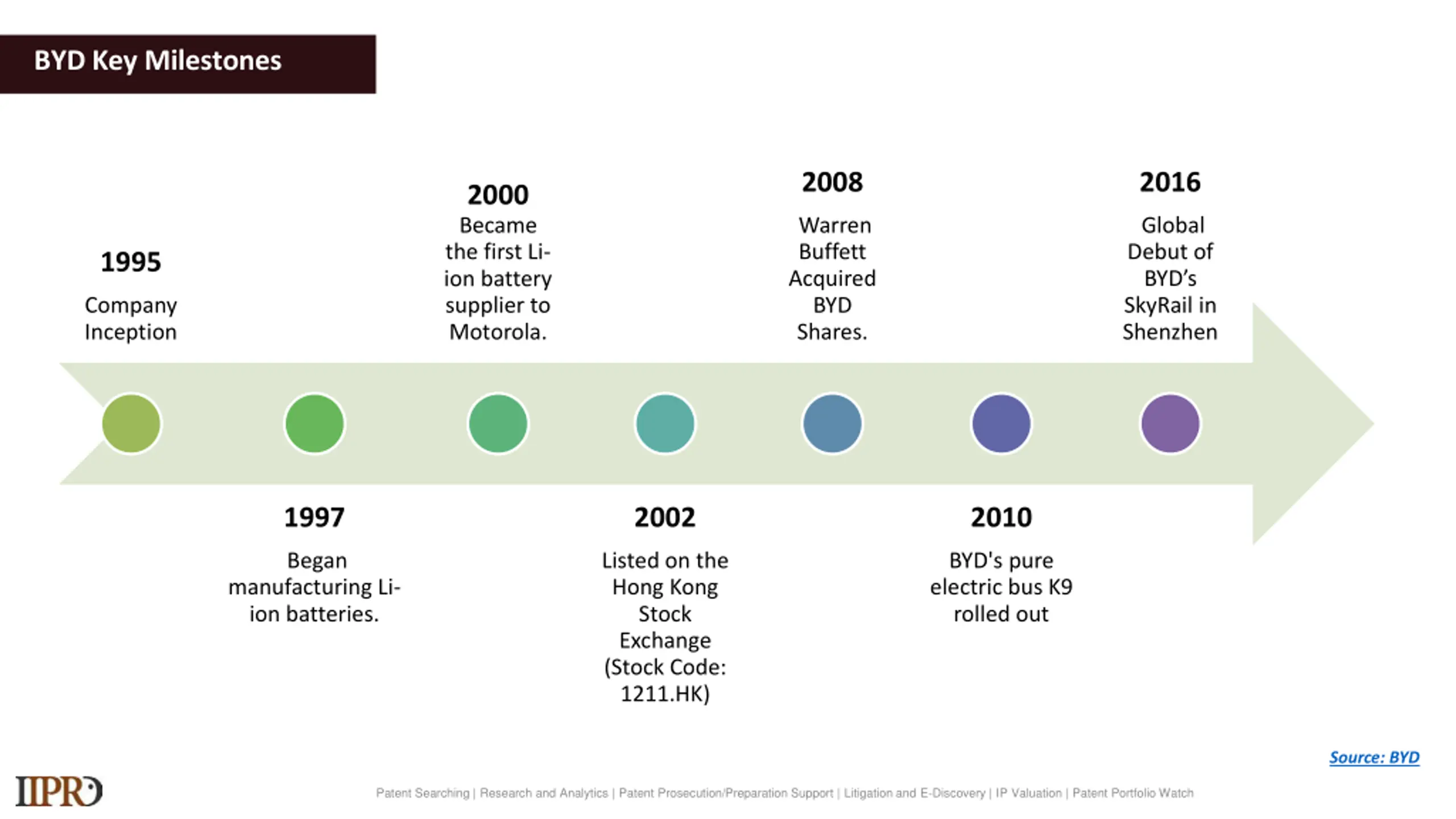

BYD Key Milestones 2008 2016 2000 Became the first Li- ion battery supplier to Motorola. Warren Buffett Acquired BYD Shares. Global Debut of BYD s SkyRail in Shenzhen 1995 Company Inception 1997 2002 2010 Began Listed on the Hong Kong Stock Exchange (Stock Code: 1211.HK) BYD's pure electric bus K9 rolled out manufacturing Li- ion batteries. Source: BYD Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

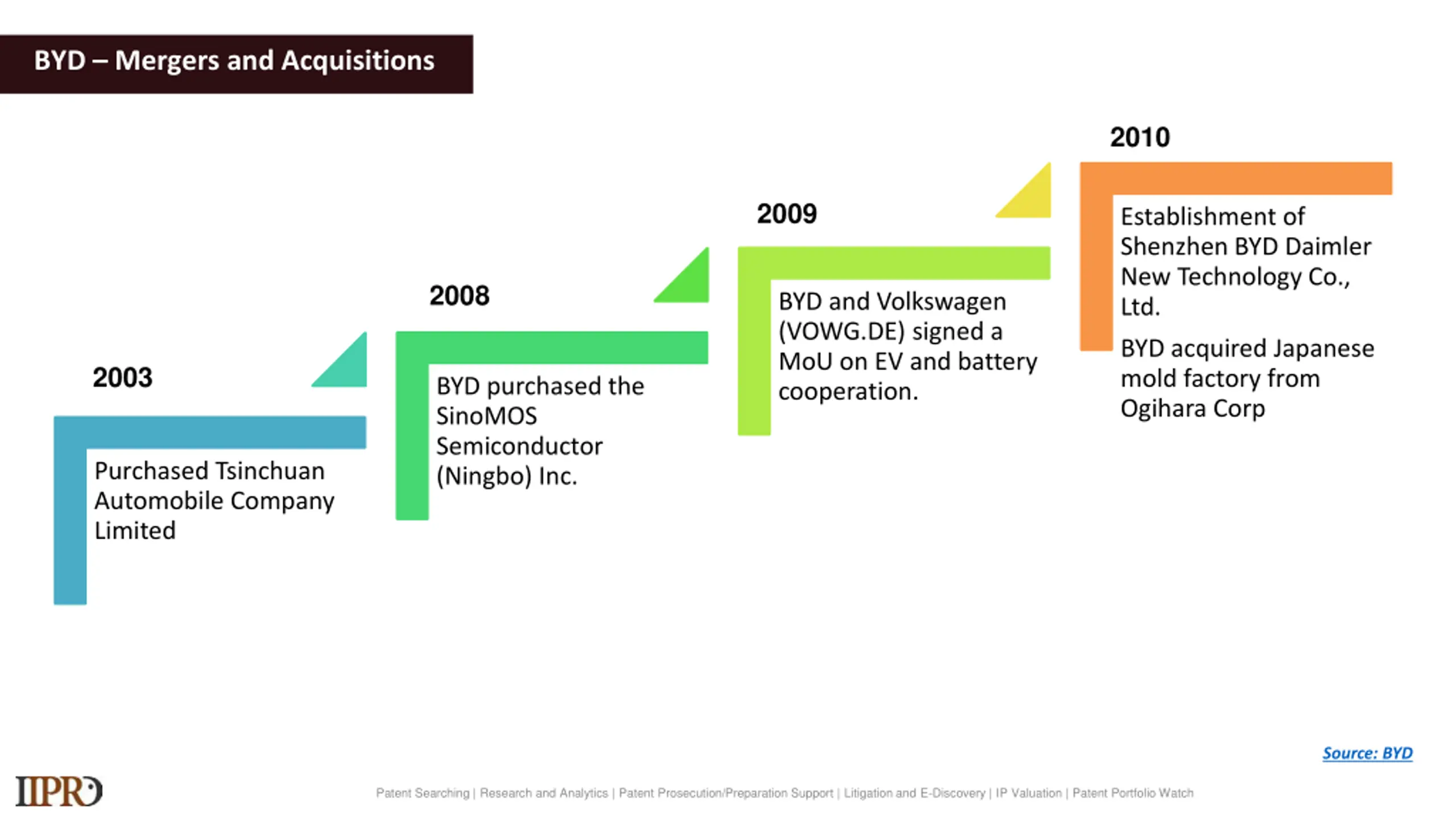

BYD Mergers and Acquisitions 2010 2009 Establishment of Shenzhen BYD Daimler New Technology Co., Ltd. 2008 BYD and Volkswagen (VOWG.DE) signed a MoU on EV and battery cooperation. BYD acquired Japanese mold factory from Ogihara Corp 2003 BYD purchased the SinoMOS Semiconductor (Ningbo) Inc. Purchased Tsinchuan Automobile Company Limited Source: BYD Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

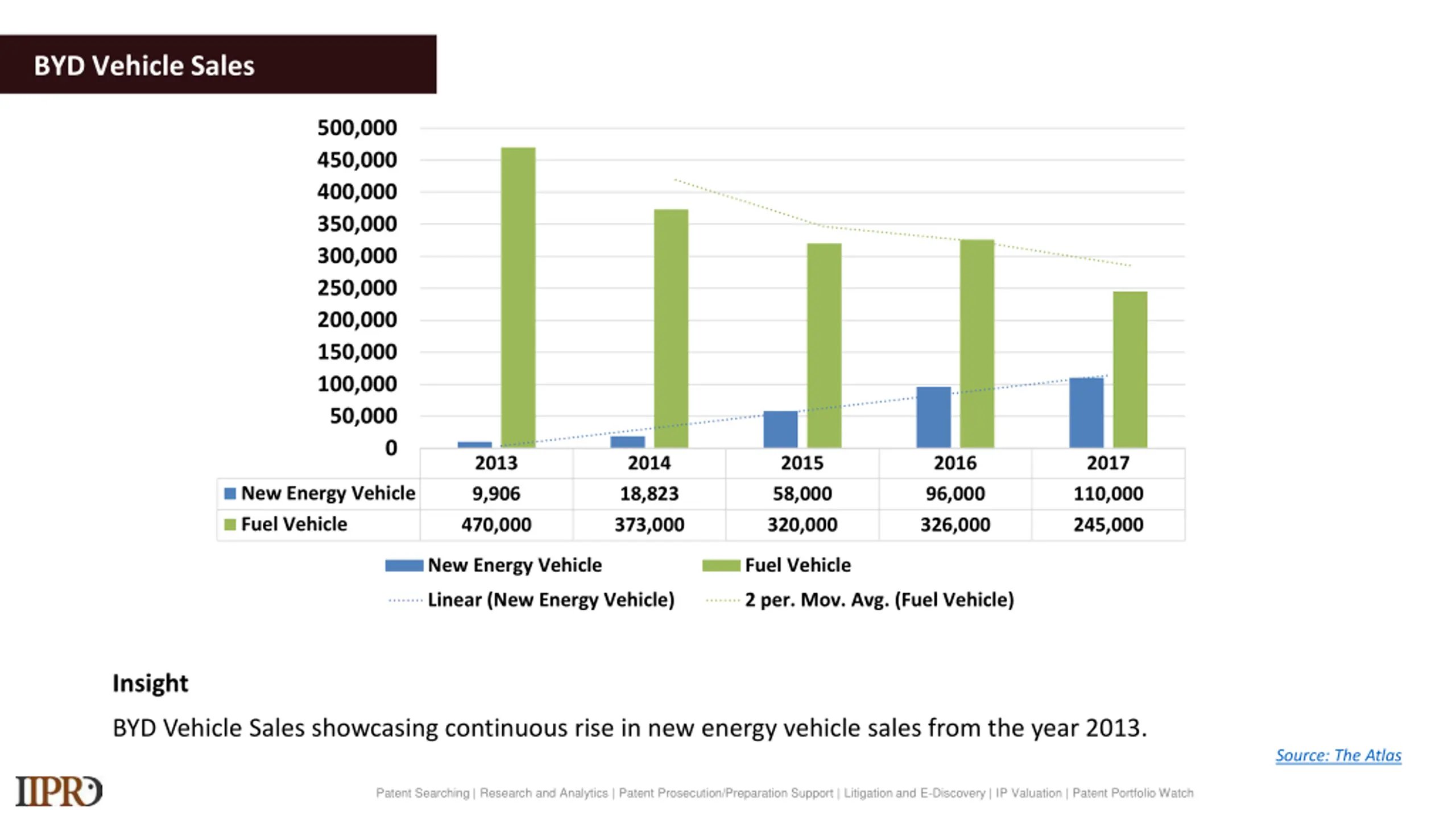

BYD Vehicle Sales 500,000 450,000 400,000 350,000 300,000 250,000 200,000 150,000 100,000 50,000 0 2013 9,906 470,000 2014 18,823 373,000 2015 58,000 320,000 2016 96,000 326,000 2017 110,000 245,000 New Energy Vehicle Fuel Vehicle New Energy Vehicle Fuel Vehicle Linear (New Energy Vehicle) 2 per. Mov. Avg. (Fuel Vehicle) Insight BYD Vehicle Sales showcasing continuous rise in new energy vehicle sales from the year 2013. Source: The Atlas Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

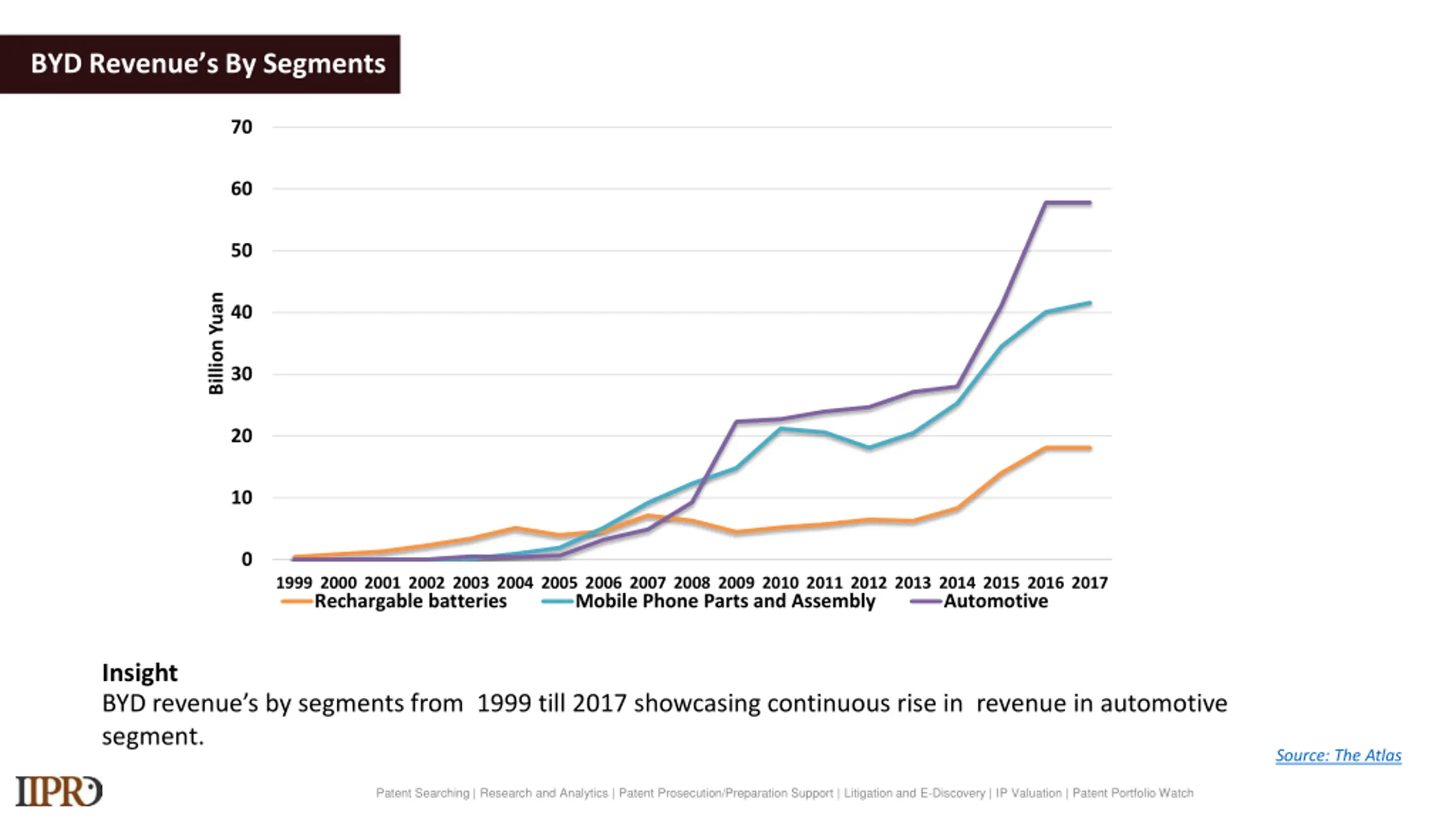

BYD Revenues By Segments 70 60 50 Billion Yuan 40 30 20 10 0 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 Rechargable batteries Mobile Phone Parts and Assembly Automotive Insight BYD revenue s by segments from 1999 till 2017 showcasing continuous rise in revenue in automotive segment. Source: The Atlas Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

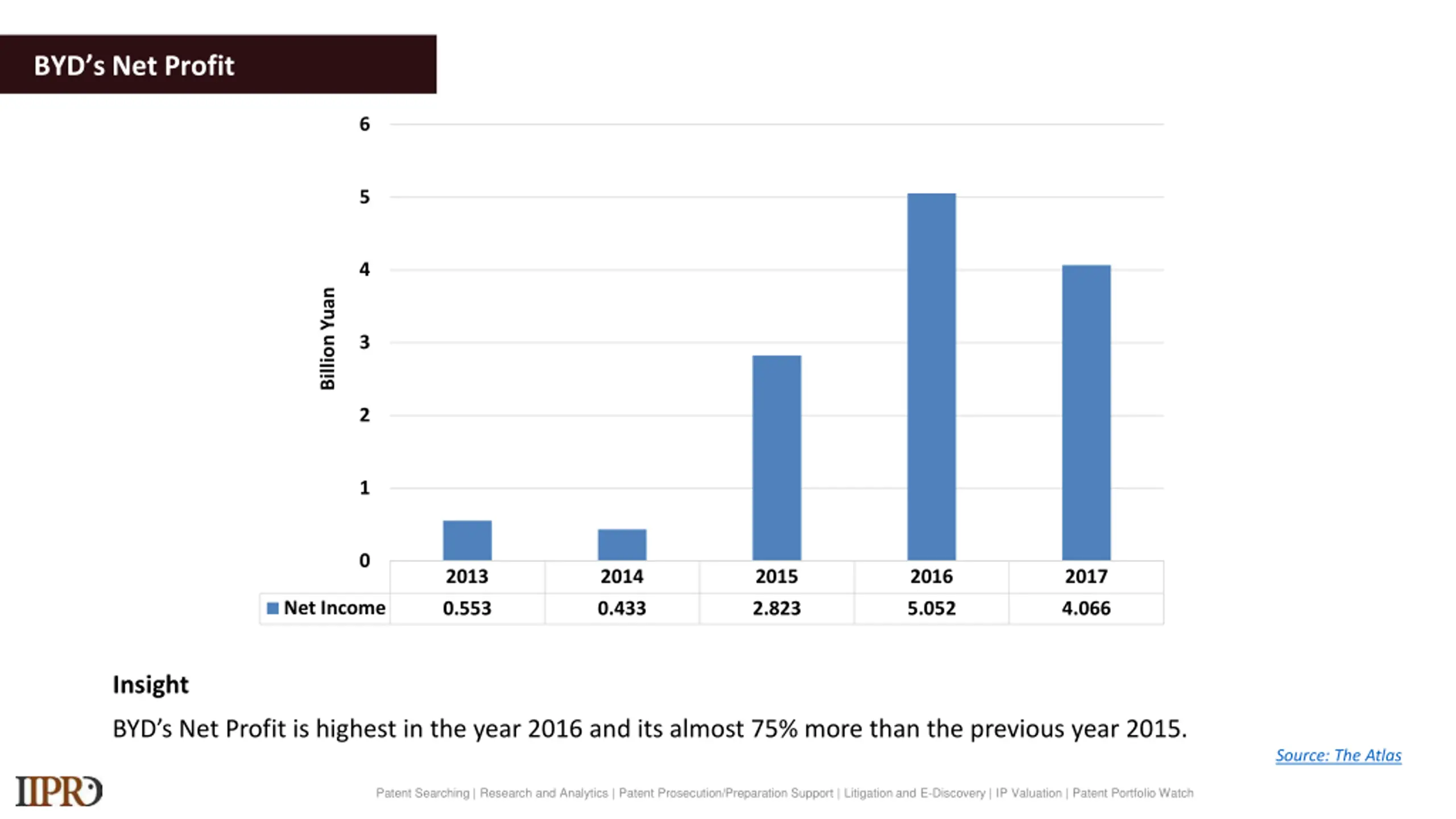

BYDs Net Profit 6 5 4 Billion Yuan 3 2 1 0 2013 0.553 2014 0.433 2015 2.823 2016 5.052 2017 4.066 Net Income Insight BYD s Net Profit is highest in the year 2016 and its almost 75% more than the previous year 2015. Source: The Atlas Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

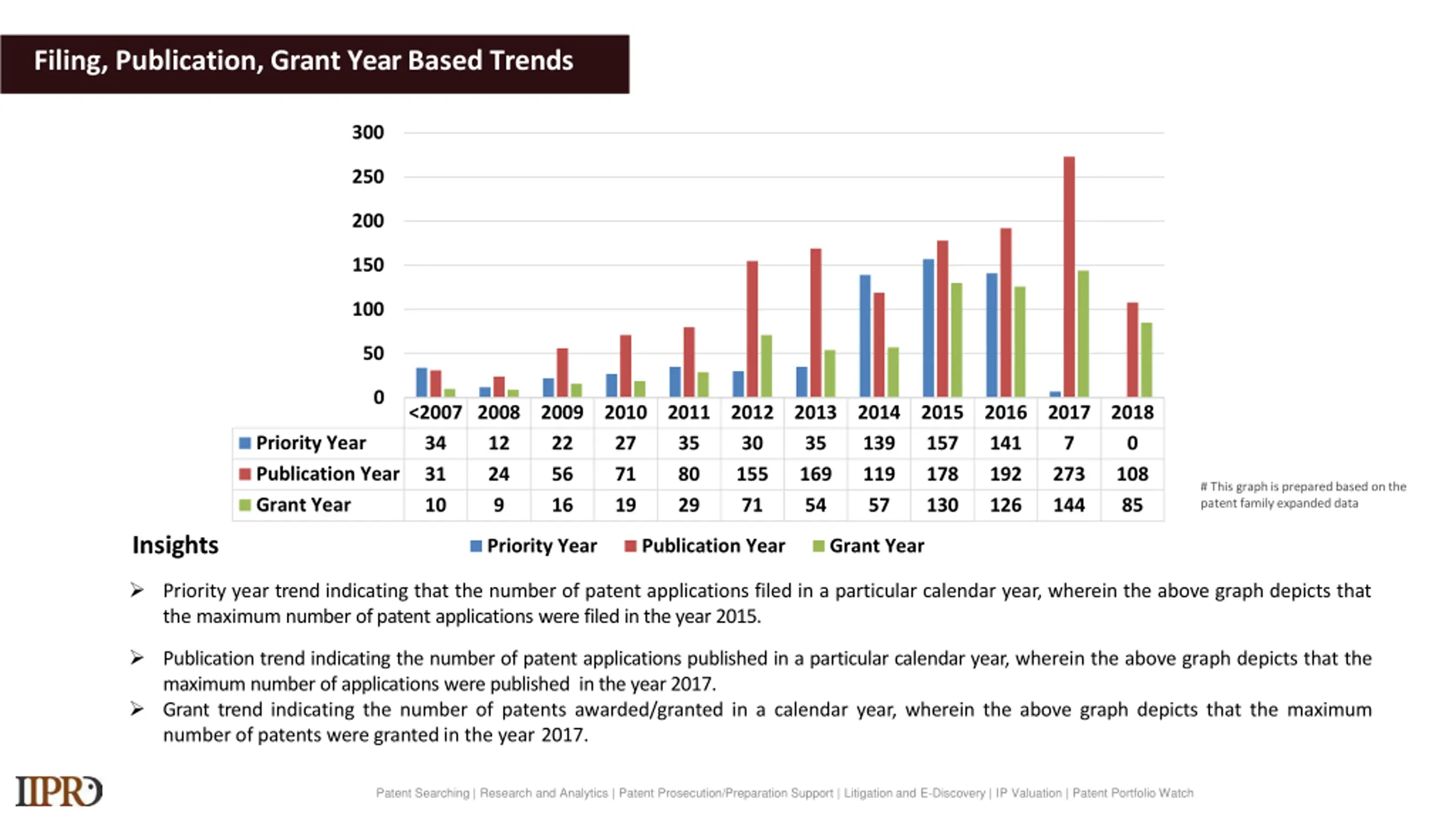

Filing, Publication, Grant Year Based Trends 300 250 200 150 100 50 0 <2007 2008 34 31 10 2009 22 56 16 2010 27 71 19 2011 35 80 29 2012 30 155 71 2013 35 169 54 2014 139 119 57 2015 157 178 130 2016 141 192 126 2017 7 273 144 2018 0 108 85 Priority Year Publication Year Grant Year 12 24 9 # This graph is prepared based on the patent family expanded data Insights Priority Year Publication Year Grant Year Priority year trend indicating that the number of patent applications filed in a particular calendar year, wherein the above graph depicts that the maximum number of patent applications were filed in the year 2015. Publication trend indicating the number of patent applications published in a particular calendar year, wherein the above graph depicts that the maximum number of applications were published in the year 2017. Grant trend indicating the number of patents awarded/granted in a calendar year, wherein the above graph depicts that the maximum number of patents weregrantedin the year 2017. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

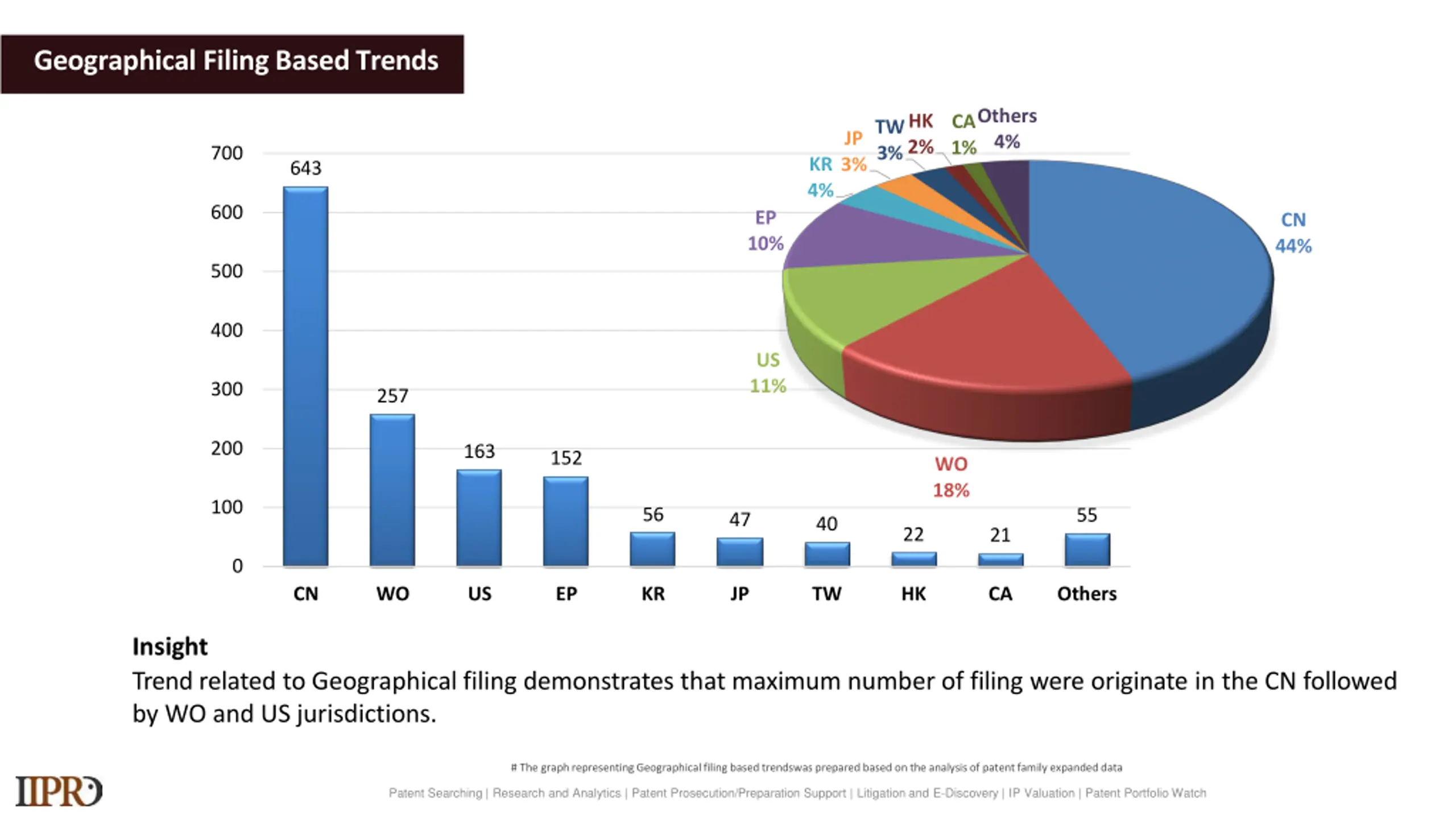

Geographical Filing BasedTrends Others 4% HK 2% CA 1% TW 3% JP 3% 700 KR 4% 643 600 EP 10% CN 44% 500 400 US 11% 300 257 200 163 152 WO 18% 100 56 55 47 40 22 21 0 CN WO US EP KR JP TW HK CA Others Insight Trend related to Geographical filing demonstrates that maximum number of filing were originate in the CN followed by WO and US jurisdictions. # The graph representing Geographical filing based trendswas prepared based on the analysis of patent family expanded data Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

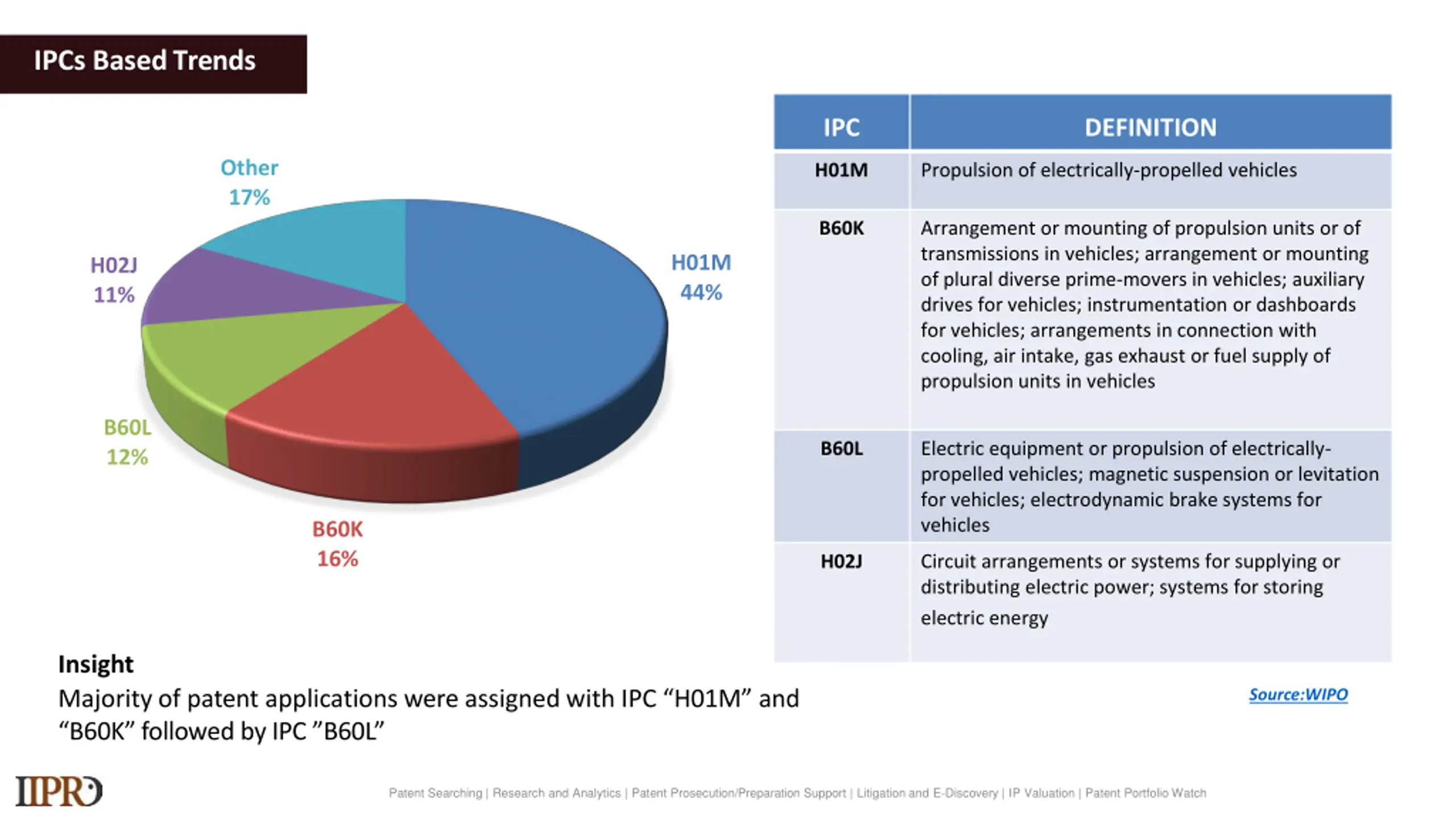

IPCs BasedTrends IPC DEFINITION Other 17% H01M Propulsion of electrically-propelled vehicles B60K Arrangement or mounting of propulsion units or of transmissions in vehicles; arrangement or mounting of plural diverse prime-movers in vehicles; auxiliary drives for vehicles; instrumentation or dashboards for vehicles; arrangements in connection with cooling, air intake, gas exhaust or fuel supply of propulsion units in vehicles H01M 44% H02J 11% B60L 12% B60L Electric equipment or propulsion of electrically- propelled vehicles; magnetic suspension or levitation for vehicles; electrodynamic brake systems for vehicles B60K 16% H02J Circuit arrangements or systems for supplying or distributing electric power; systems for storing electric energy Insight Majority of patent applications were assigned with IPC H01M and B60K followed by IPC B60L Source:WIPO Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

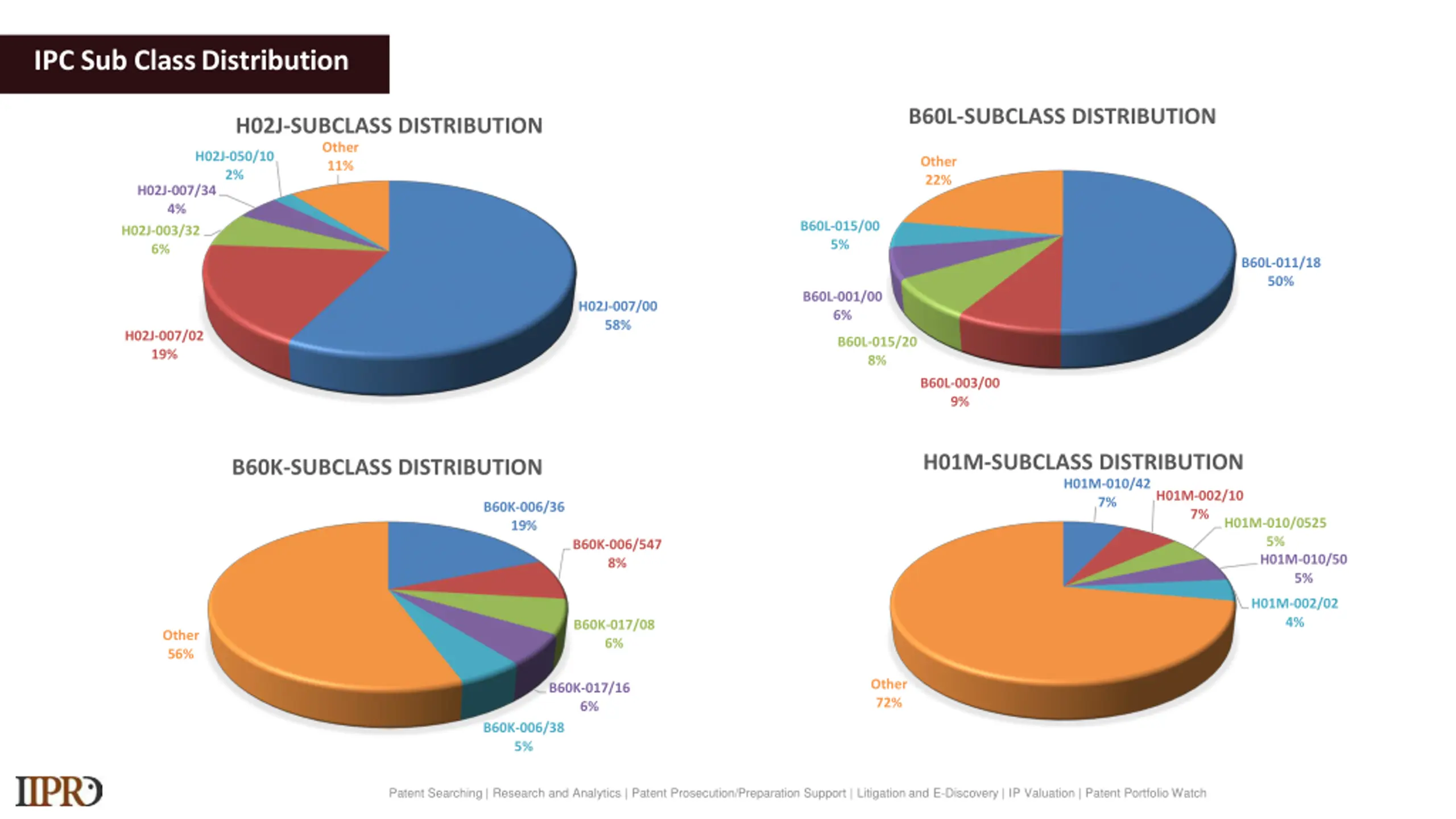

IPC Sub ClassDistribution B60L-SUBCLASS DISTRIBUTION H02J-SUBCLASS DISTRIBUTION Other 11% H02J-050/10 2% Other 22% H02J-007/34 4% B60L-015/00 5% H02J-003/32 6% B60L-011/18 50% B60L-001/00 6% H02J-007/00 58% H02J-007/02 19% B60L-015/20 8% B60L-003/00 9% H01M-SUBCLASS DISTRIBUTION B60K-SUBCLASS DISTRIBUTION H01M-010/42 7% H01M-002/10 7% B60K-006/36 19% H01M-010/0525 5% H01M-010/50 B60K-006/547 8% 5% H01M-002/02 4% B60K-017/08 6% Other 56% Other 72% B60K-017/16 6% B60K-006/38 5% Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

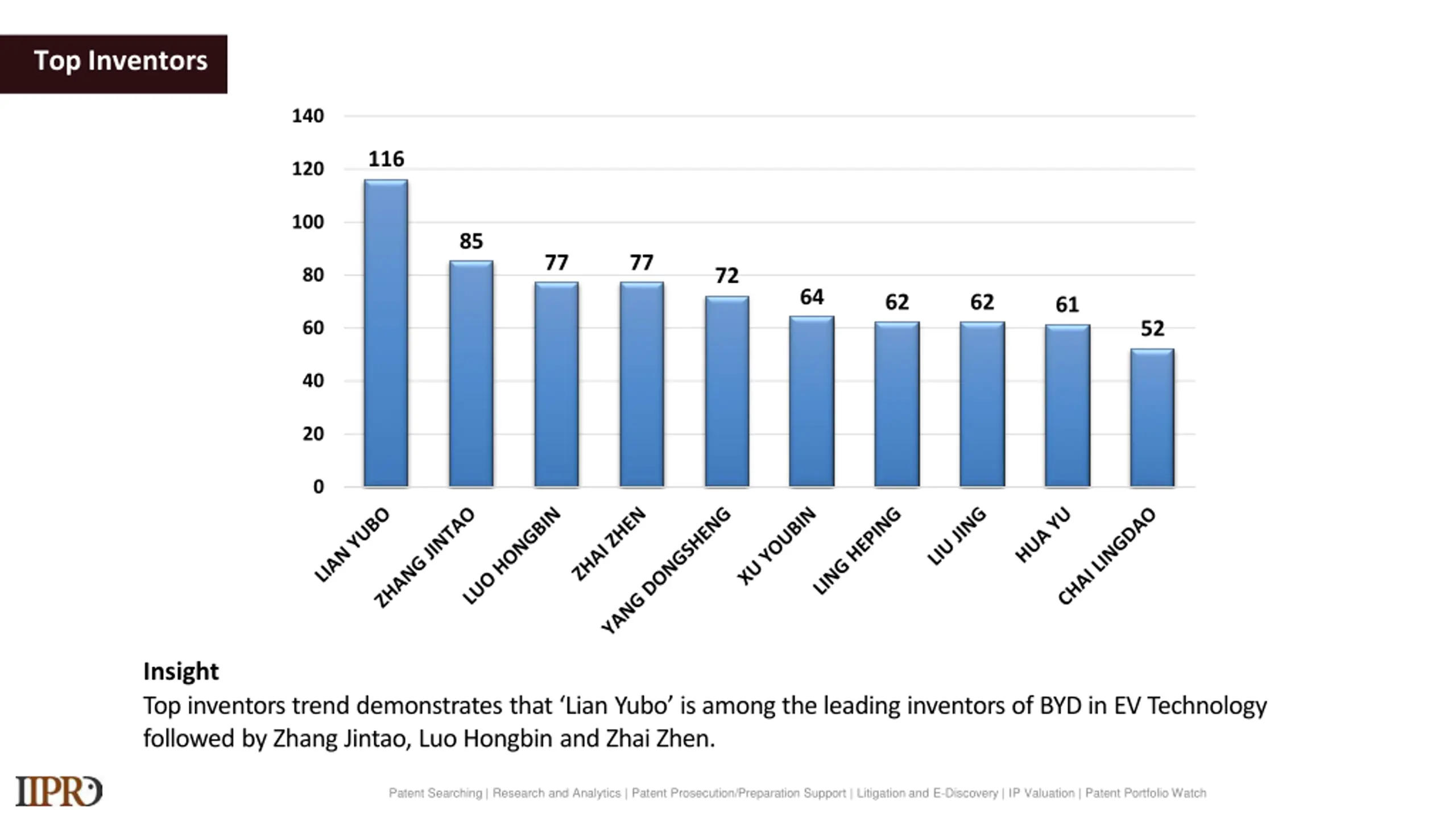

Top Inventors 140 116 120 100 85 77 77 72 80 64 62 62 61 52 60 40 20 0 Insight Top inventors trend demonstrates that Lian Yubo is among the leading inventors of BYD in EV Technology followed by Zhang Jintao, Luo Hongbin and Zhai Zhen. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

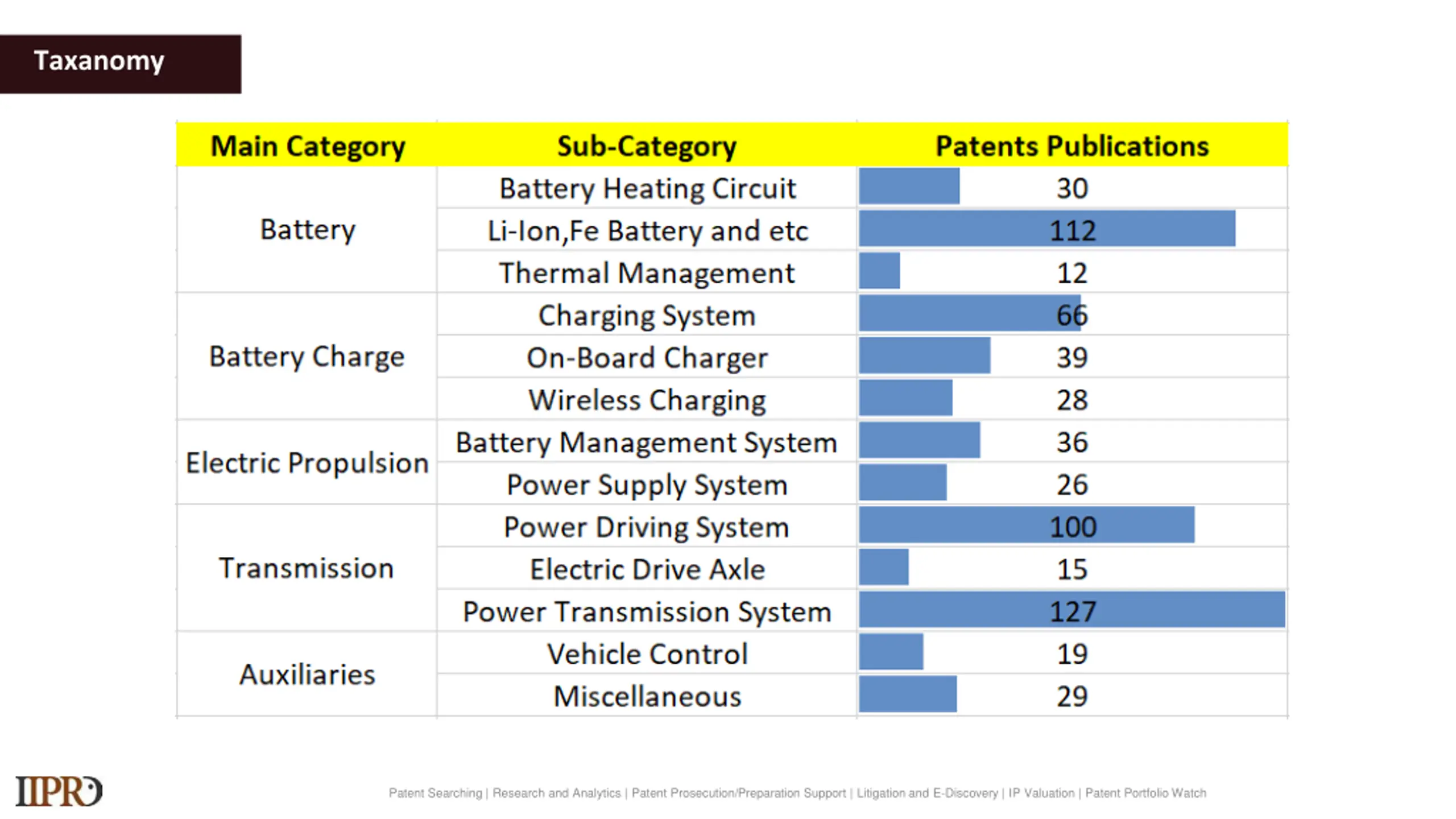

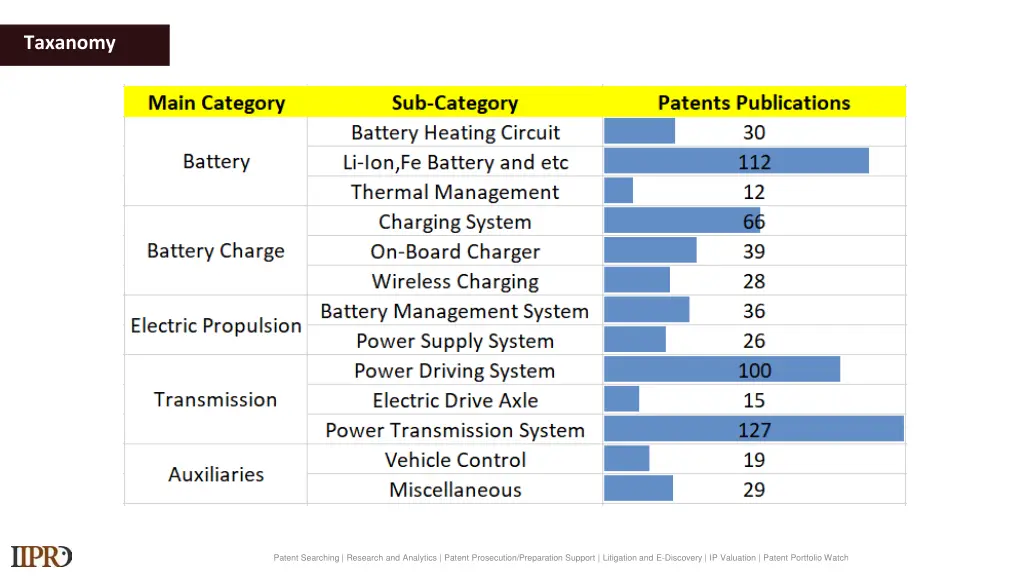

Taxanomy Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

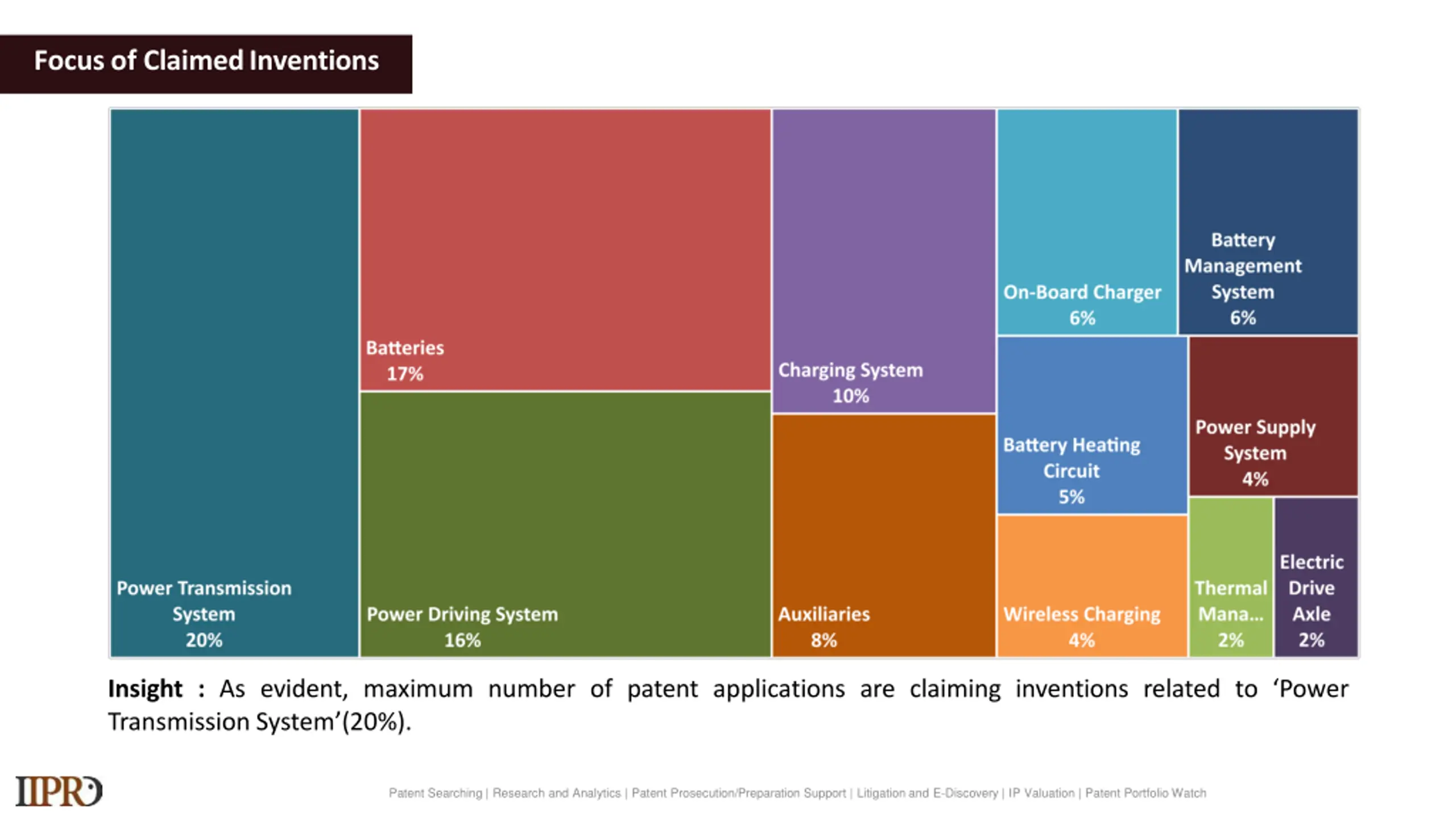

Focus of ClaimedInventions Insight : As evident, maximum number of patent applications are claiming inventions related to Power Transmission System (20%). Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

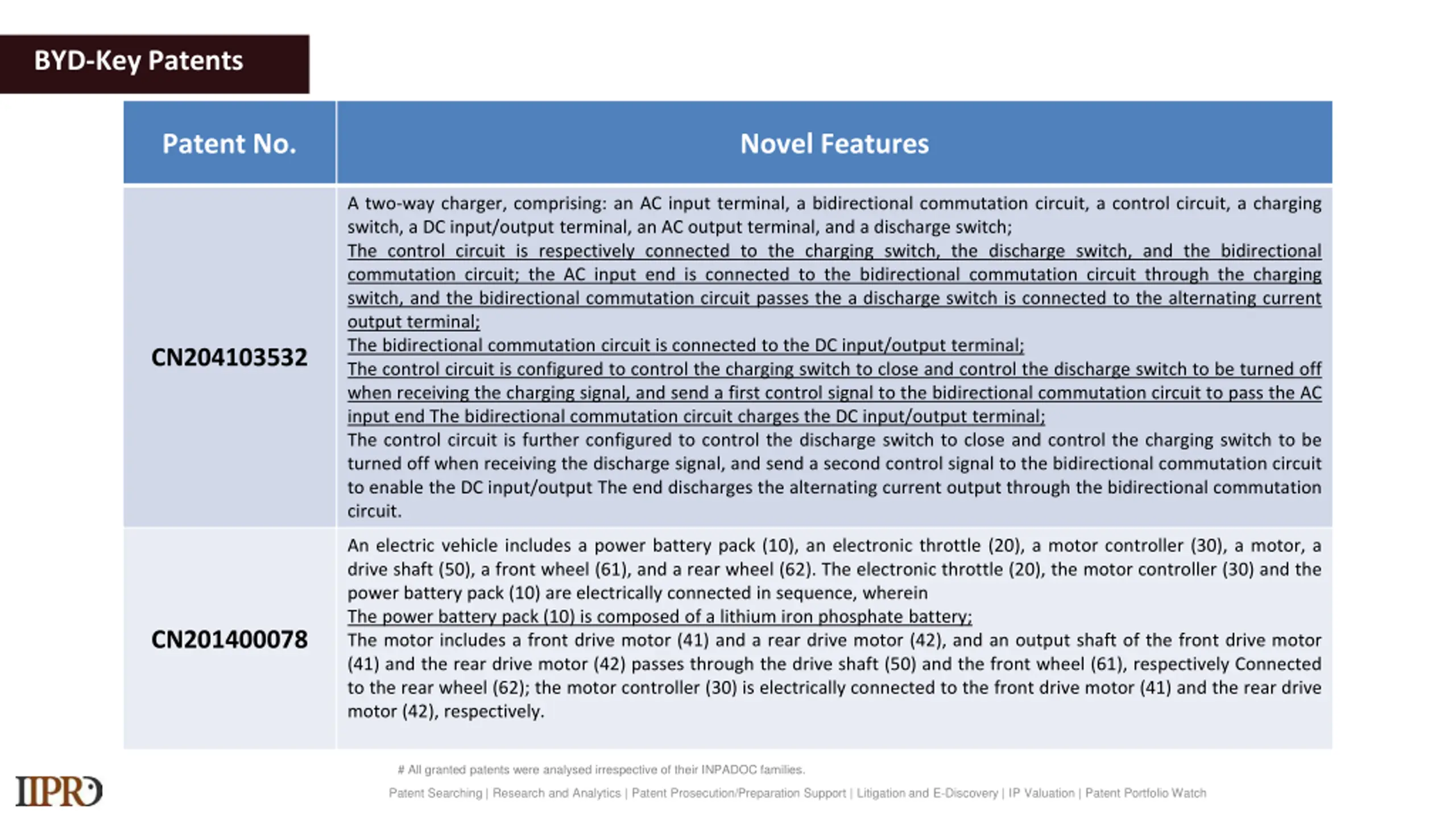

BYD-Key Patents Patent No. Novel Features A two-way charger, comprising: an AC input terminal, a bidirectional commutation circuit, a control circuit, a charging switch, a DC input/output terminal, an AC output terminal, and a discharge switch; The control circuit is respectively connected to the charging switch, the discharge switch, and the bidirectional commutation circuit; the AC input end is connected to the bidirectional commutation circuit through the charging switch, and the bidirectional commutation circuit passes the a discharge switch is connected to the alternating current output terminal; The bidirectional commutation circuit is connected to the DC input/output terminal; The control circuit is configured to control the charging switch to close and control the discharge switch to be turned off when receiving the charging signal, and send a first control signal to the bidirectional commutation circuit to pass the AC input end The bidirectional commutation circuit charges the DC input/output terminal; The control circuit is further configured to control the discharge switch to close and control the charging switch to be turned off when receiving the discharge signal, and send a second control signal to the bidirectional commutation circuit to enable the DC input/output The end discharges the alternating current output through the bidirectional commutation circuit. CN204103532 An electric vehicle includes a power battery pack (10), an electronic throttle (20), a motor controller (30), a motor, a drive shaft (50), a front wheel (61), and a rear wheel (62). The electronic throttle (20), the motor controller (30) and the power battery pack (10) are electrically connected in sequence, wherein The power battery pack (10) is composed of a lithium iron phosphate battery; The motor includes a front drive motor (41) and a rear drive motor (42), and an output shaft of the front drive motor (41) and the rear drive motor (42) passes through the drive shaft (50) and the front wheel (61), respectively Connected to the rear wheel (62); the motor controller (30) is electrically connected to the front drive motor (41) and the rear drive motor (42), respectively. CN201400078 # All granted patents were analysed irrespective of their INPADOC families. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

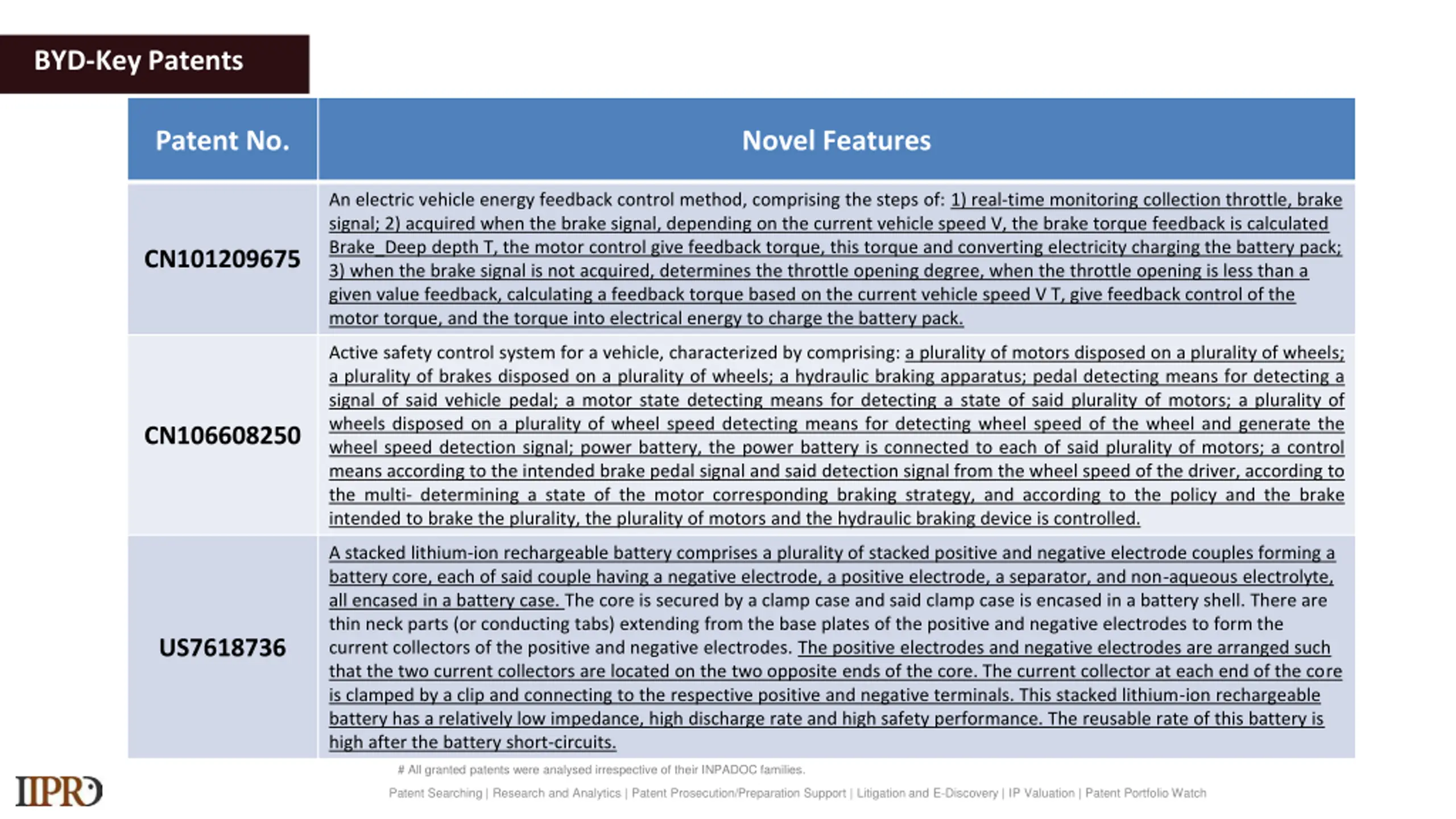

BYD-Key Patents Patent No. Novel Features An electric vehicle energy feedback control method, comprising the steps of: 1) real-time monitoring collection throttle, brake signal; 2) acquired when the brake signal, depending on the current vehicle speed V, the brake torque feedback is calculated Brake_Deep depth T, the motor control give feedback torque, this torque and converting electricity charging the battery pack; 3) when the brake signal is not acquired, determines the throttle opening degree, when the throttle opening is less than a given value feedback, calculating a feedback torque based on the current vehicle speed V T, give feedback control of the motor torque, and the torque into electrical energy to charge the battery pack. CN101209675 Active safety control system for a vehicle, characterized by comprising: a plurality of motors disposed on a plurality of wheels; a plurality of brakes disposed on a plurality of wheels; a hydraulic braking apparatus; pedal detecting means for detecting a signal of said vehicle pedal; a motor state detecting means for detecting a state of said plurality of motors; a plurality of wheels disposed on a plurality of wheel speed detecting means for detecting wheel speed of the wheel and generate the wheel speed detection signal; power battery, the power battery is connected to each of said plurality of motors; a control means according to the intended brake pedal signal and said detection signal from the wheel speed of the driver, according to the multi- determining a state of the motor corresponding braking strategy, and according to the policy and the brake intended to brake the plurality, the plurality of motors and the hydraulic braking device is controlled. CN106608250 A stacked lithium-ion rechargeable battery comprises a plurality of stacked positive and negative electrode couples forming a battery core, each of said couple having a negative electrode, a positive electrode, a separator, and non-aqueous electrolyte, all encased in a battery case. The core is secured by a clamp case and said clamp case is encased in a battery shell. There are thin neck parts (or conducting tabs) extending from the base plates of the positive and negative electrodes to form the current collectors of the positive and negative electrodes. The positive electrodes and negative electrodes are arranged such that the two current collectors are located on the two opposite ends of the core. The current collector at each end of the core is clamped by a clip and connecting to the respective positive and negative terminals. This stacked lithium-ion rechargeable battery has a relatively low impedance, high discharge rate and high safety performance. The reusable rate of this battery is high after the battery short-circuits. US7618736 # All granted patents were analysed irrespective of their INPADOC families. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

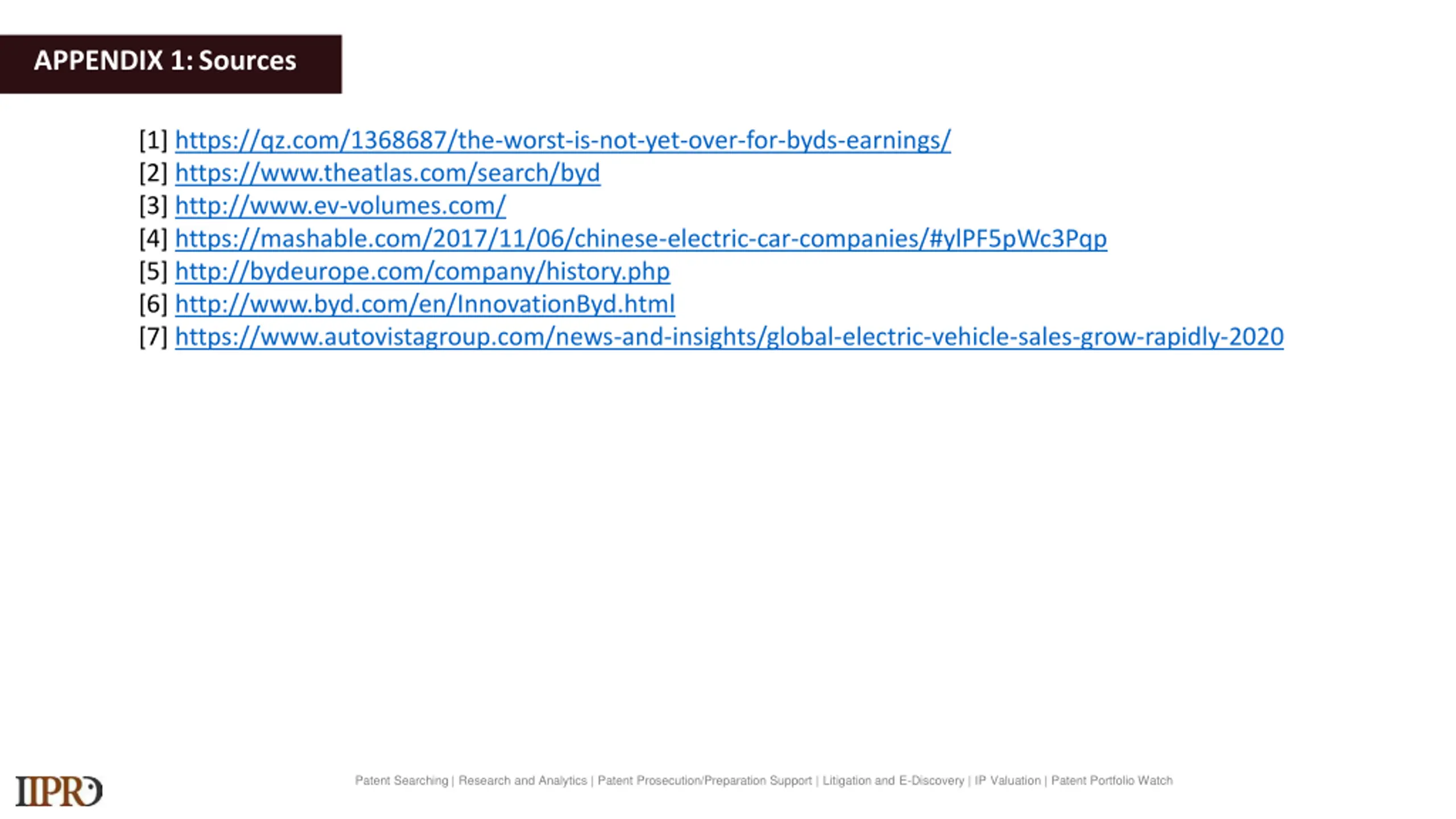

APPENDIX 1:Sources [1] https://qz.com/1368687/the-worst-is-not-yet-over-for-byds-earnings/ [2] https://www.theatlas.com/search/byd [3] http://www.ev-volumes.com/ [4] https://mashable.com/2017/11/06/chinese-electric-car-companies/#ylPF5pWc3Pqp [5] http://bydeurope.com/company/history.php [6] http://www.byd.com/en/InnovationByd.html [7] https://www.autovistagroup.com/news-and-insights/global-electric-vehicle-sales-grow-rapidly-2020 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

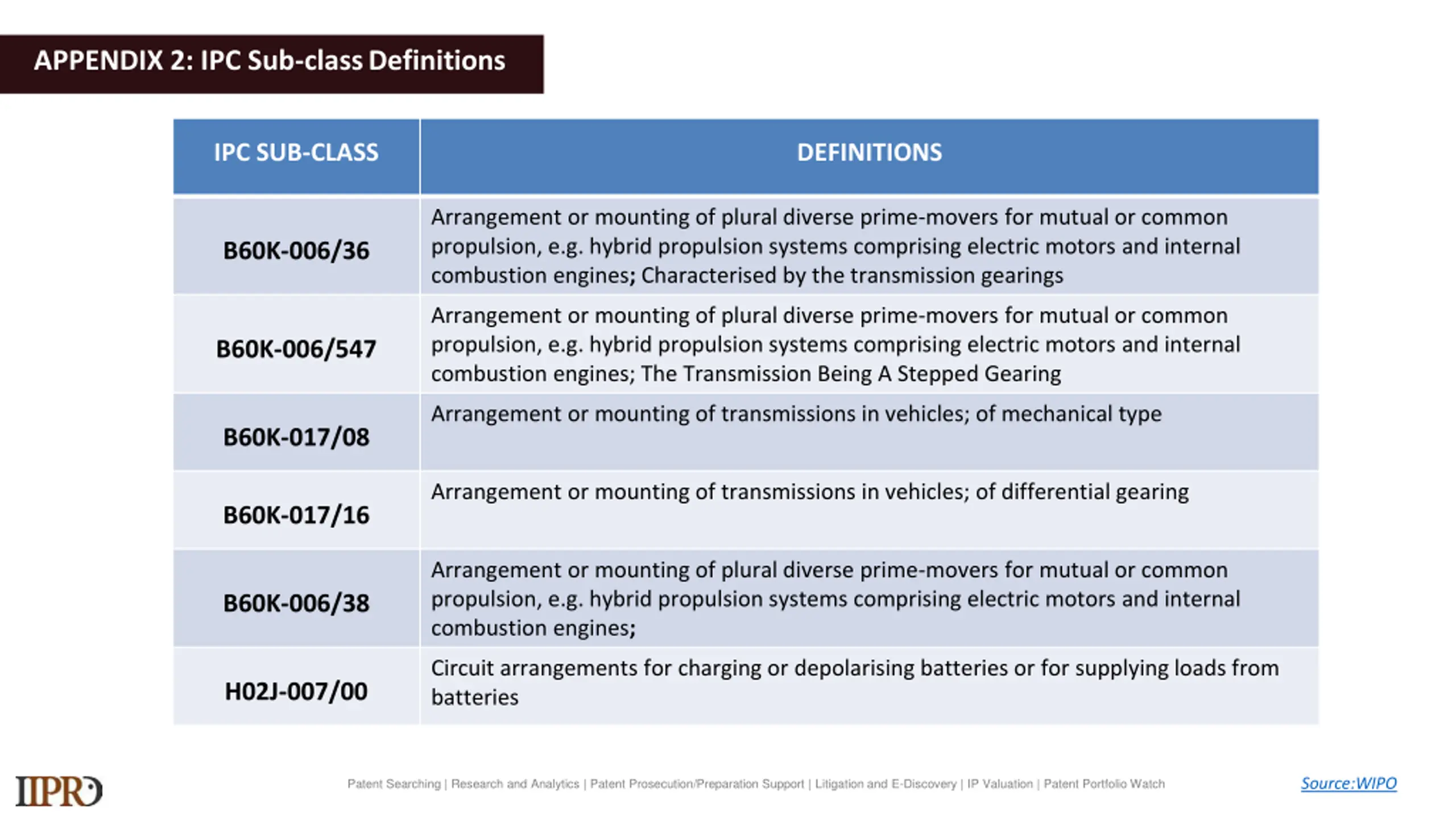

APPENDIX 2: IPC Sub-classDefinitions IPC SUB-CLASS DEFINITIONS Arrangement or mounting of plural diverse prime-movers for mutual or common propulsion, e.g. hybrid propulsion systems comprising electric motors and internal combustion engines; Characterised by the transmission gearings B60K-006/36 Arrangement or mounting of plural diverse prime-movers for mutual or common propulsion, e.g. hybrid propulsion systems comprising electric motors and internal combustion engines; The Transmission Being A Stepped Gearing B60K-006/547 Arrangement or mounting of transmissions in vehicles; of mechanical type B60K-017/08 Arrangement or mounting of transmissions in vehicles; of differential gearing B60K-017/16 Arrangement or mounting of plural diverse prime-movers for mutual or common propulsion, e.g. hybrid propulsion systems comprising electric motors and internal combustion engines; B60K-006/38 Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries H02J-007/00 Source:WIPO Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

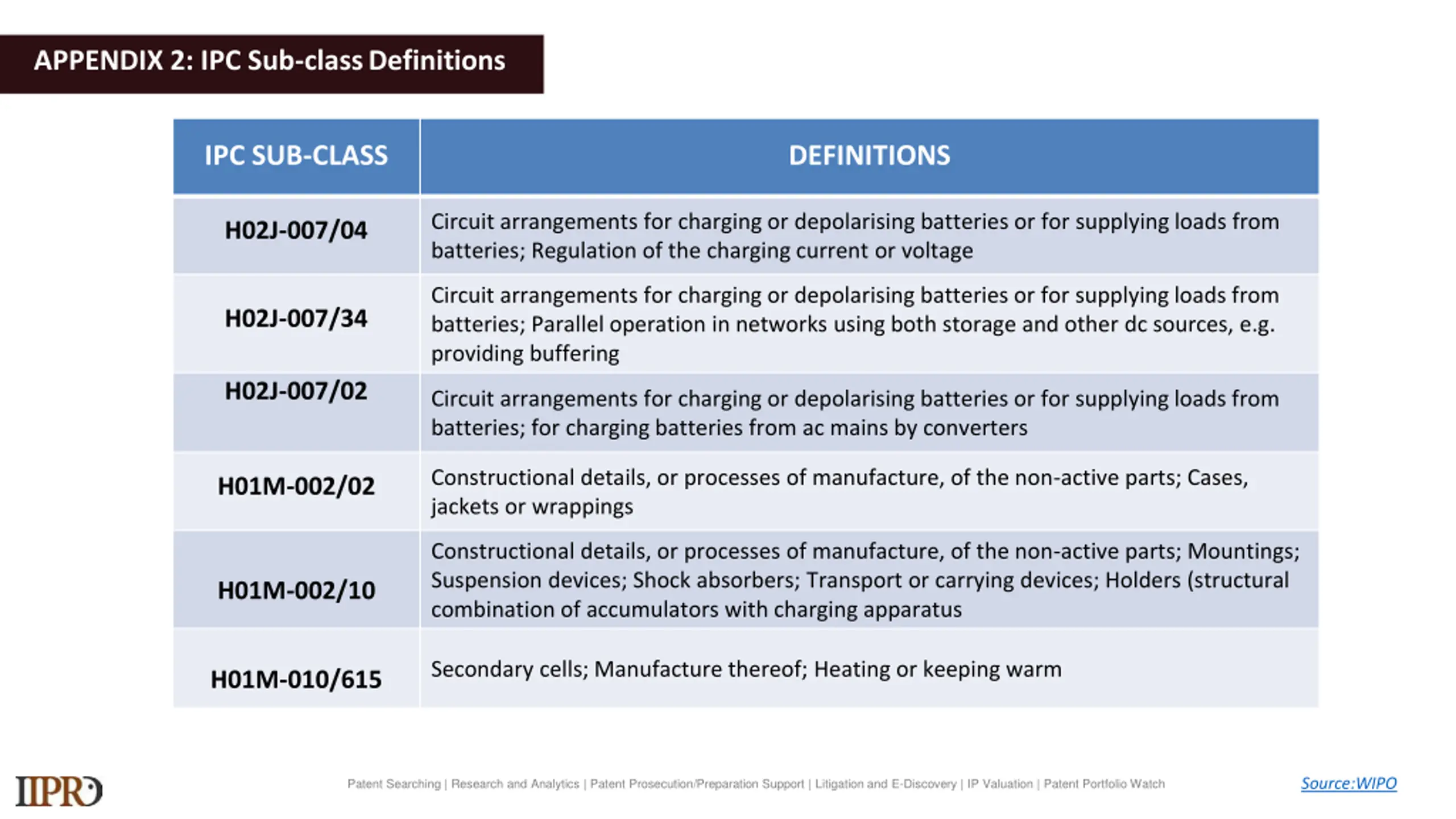

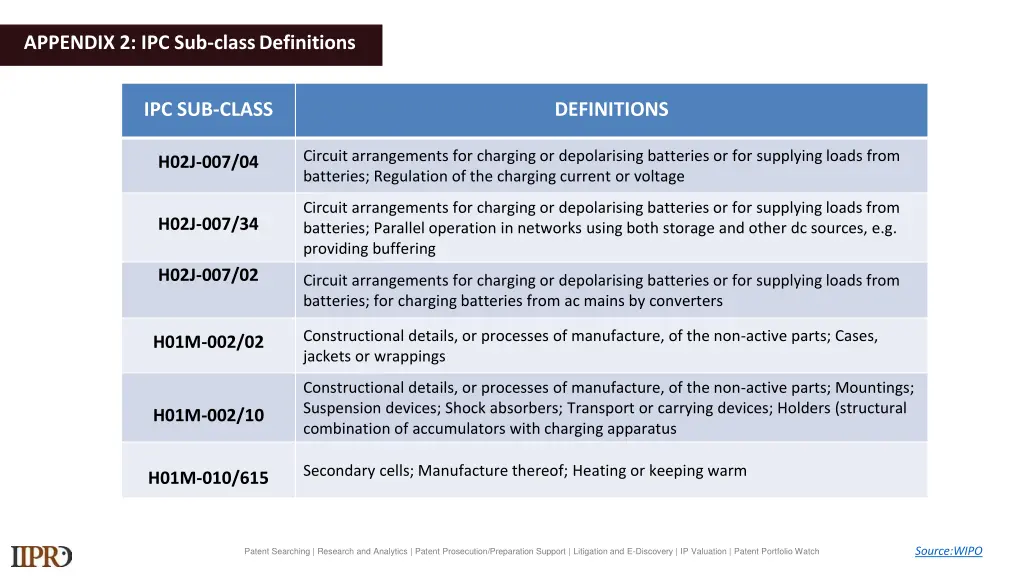

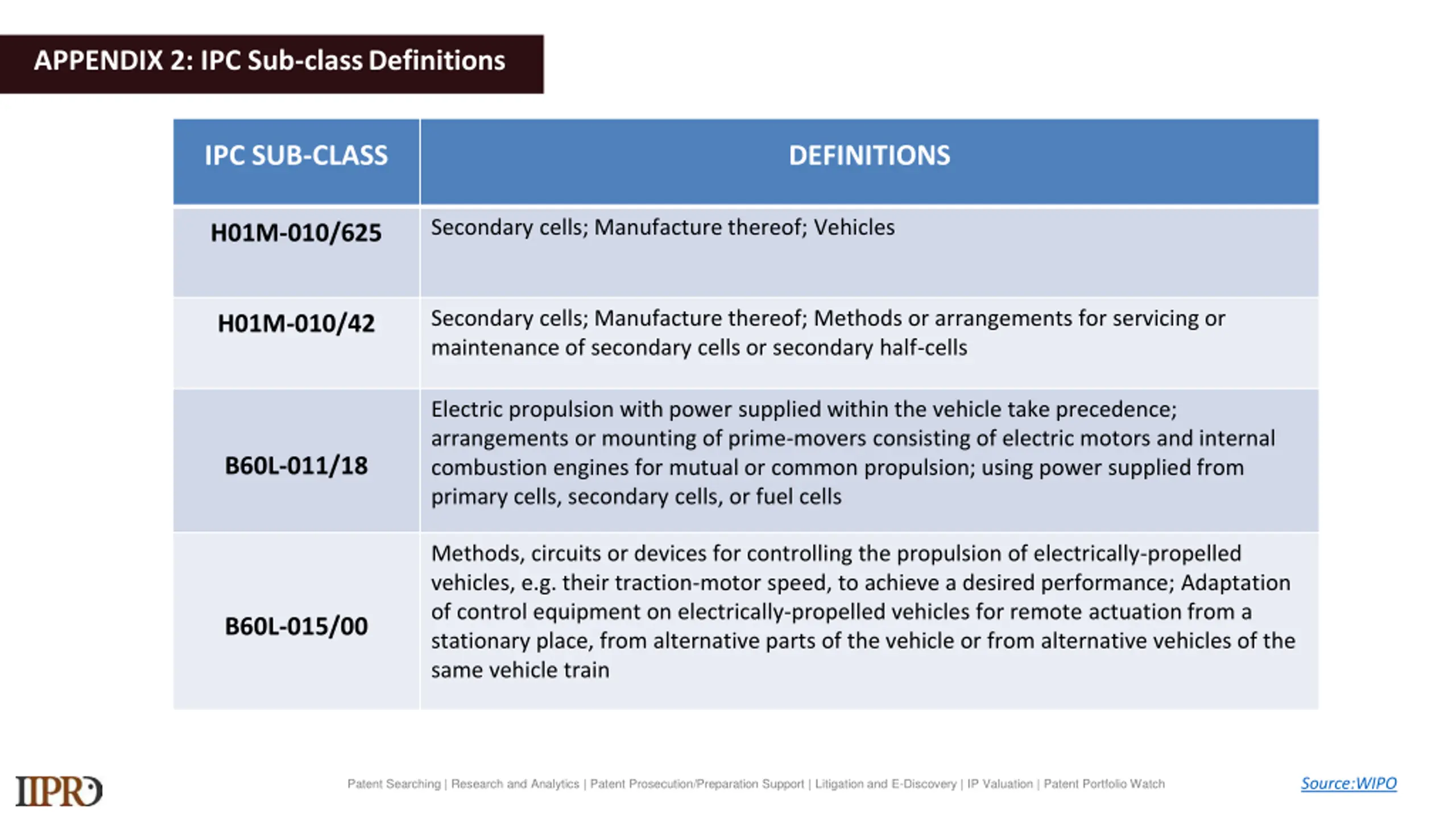

APPENDIX 2: IPC Sub-classDefinitions IPC SUB-CLASS DEFINITIONS Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries; Regulation of the charging current or voltage H02J-007/04 Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries; Parallel operation in networks using both storage and other dc sources, e.g. providing buffering H02J-007/34 H02J-007/02 Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries; for charging batteries from ac mains by converters Constructional details, or processes of manufacture, of the non-active parts; Cases, jackets or wrappings H01M-002/02 Constructional details, or processes of manufacture, of the non-active parts; Mountings; Suspension devices; Shock absorbers; Transport or carrying devices; Holders (structural combination of accumulators with charging apparatus H01M-002/10 Secondary cells; Manufacture thereof; Heating or keeping warm H01M-010/615 Source:WIPO Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch
APPENDIX 2: IPC Sub-classDefinitions IPC SUB-CLASS DEFINITIONS Secondary cells; Manufacture thereof; Vehicles H01M-010/625 Secondary cells; Manufacture thereof; Methods or arrangements for servicing or maintenance of secondary cells or secondary half-cells H01M-010/42 Electric propulsion with power supplied within the vehicle take precedence; arrangements or mounting of prime-movers consisting of electric motors and internal combustion engines for mutual or common propulsion; using power supplied from primary cells, secondary cells, or fuel cells B60L-011/18 Methods, circuits or devices for controlling the propulsion of electrically-propelled vehicles, e.g. their traction-motor speed, to achieve a desired performance; Adaptation of control equipment on electrically-propelled vehicles for remote actuation from a stationary place, from alternative parts of the vehicle or from alternative vehicles of the same vehicle train B60L-015/00 Source:WIPO Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

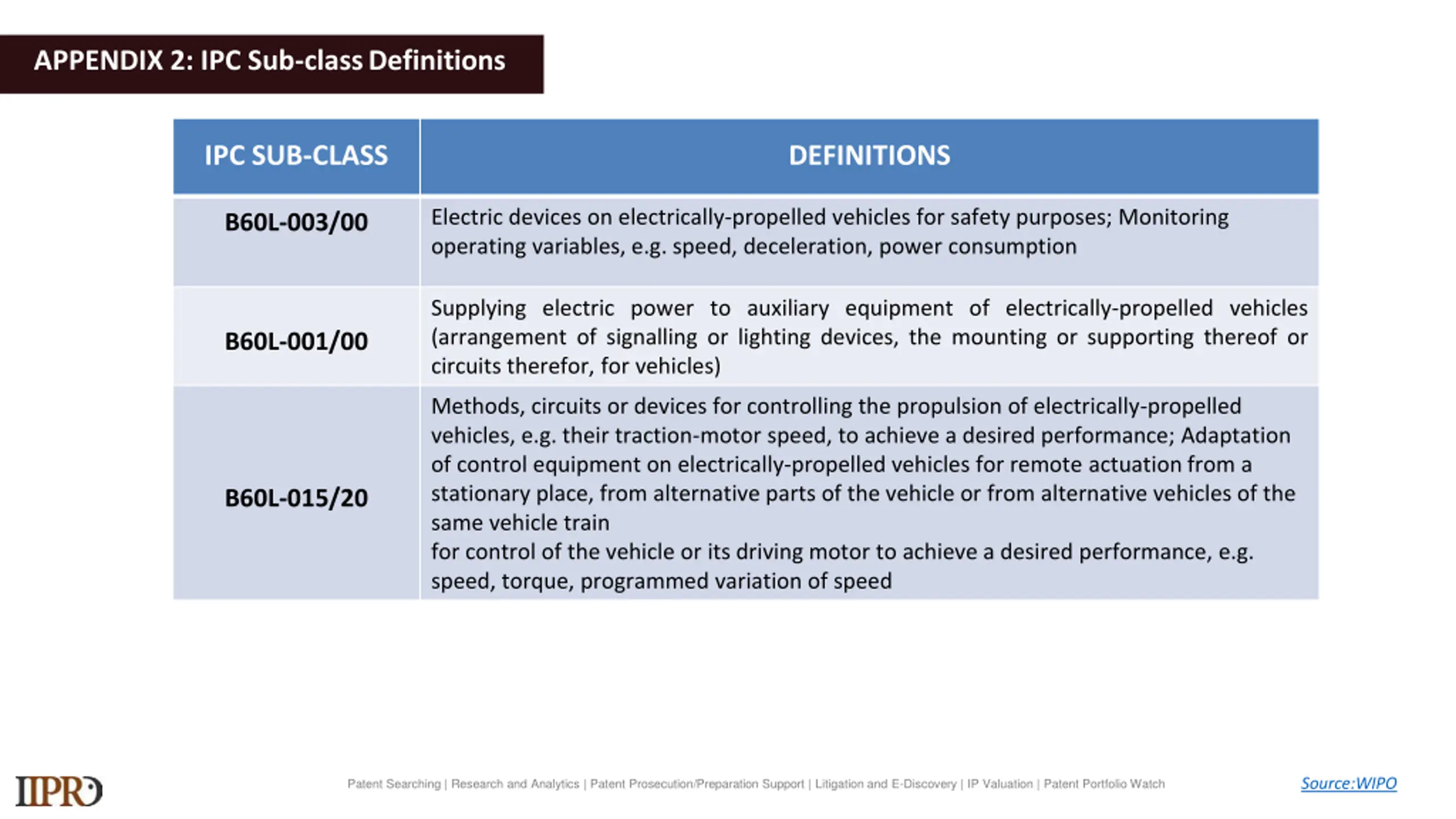

APPENDIX 2: IPC Sub-classDefinitions IPC SUB-CLASS DEFINITIONS Electric devices on electrically-propelled vehicles for safety purposes; Monitoring operating variables, e.g. speed, deceleration, power consumption B60L-003/00 Supplying electric power to auxiliary equipment of electrically-propelled vehicles (arrangement of signalling or lighting devices, the mounting or supporting thereof or circuits therefor, for vehicles) B60L-001/00 Methods, circuits or devices for controlling the propulsion of electrically-propelled vehicles, e.g. their traction-motor speed, to achieve a desired performance; Adaptation of control equipment on electrically-propelled vehicles for remote actuation from a stationary place, from alternative parts of the vehicle or from alternative vehicles of the same vehicle train for control of the vehicle or its driving motor to achieve a desired performance, e.g. speed, torque, programmed variation of speed B60L-015/20 Source:WIPO Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch
Disclaimer IIPRD has prepared this sample report as an exemplary report, wherein the content of the report is based on internal evaluation of Patents and Non-Patent Literature that is conducted based on Databases and Information sources that are believed to be reliable by IIPRD. A complete list of patent documents retrieved is not disclosed herein as the report is exemplary but can be shared if desired based on terms and conditions of IIPRD. IIPRD disclaims all warranties as to the accuracy, completeness or adequacy of such information. The above sample report is prepared based on the search conducted on the keywords and other information extracted from the understanding of the Patent Analysts of IIPRD, and subjectivity of the researcher and analyst. Neither IIPRD nor its affiliates nor any of its proprietors, employees (together, "personnel") are intending to provide legal advice in this matter. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch
