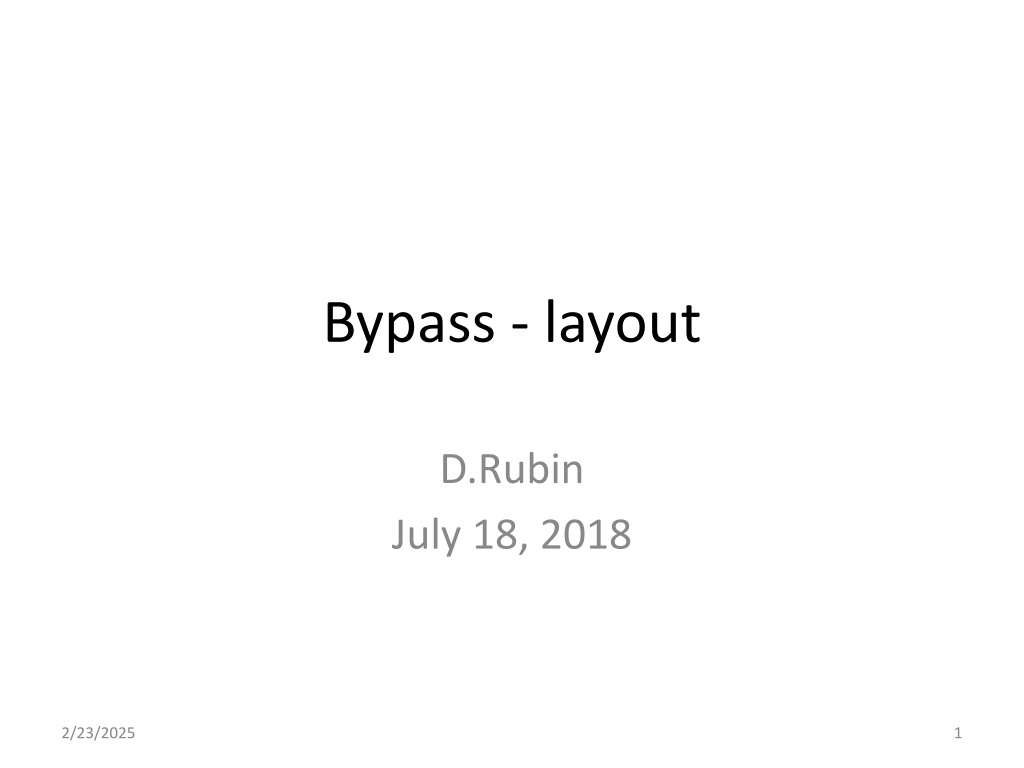

  1. Bypass - layout D.Rubin July 18, 2018 2/23/2025 1

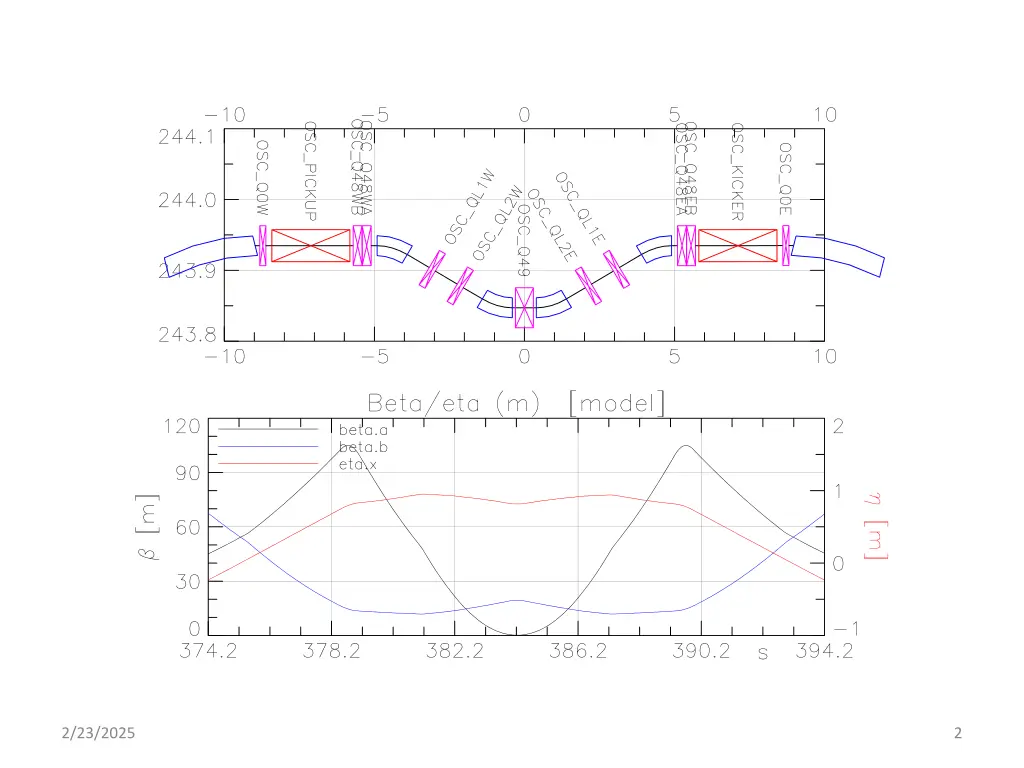

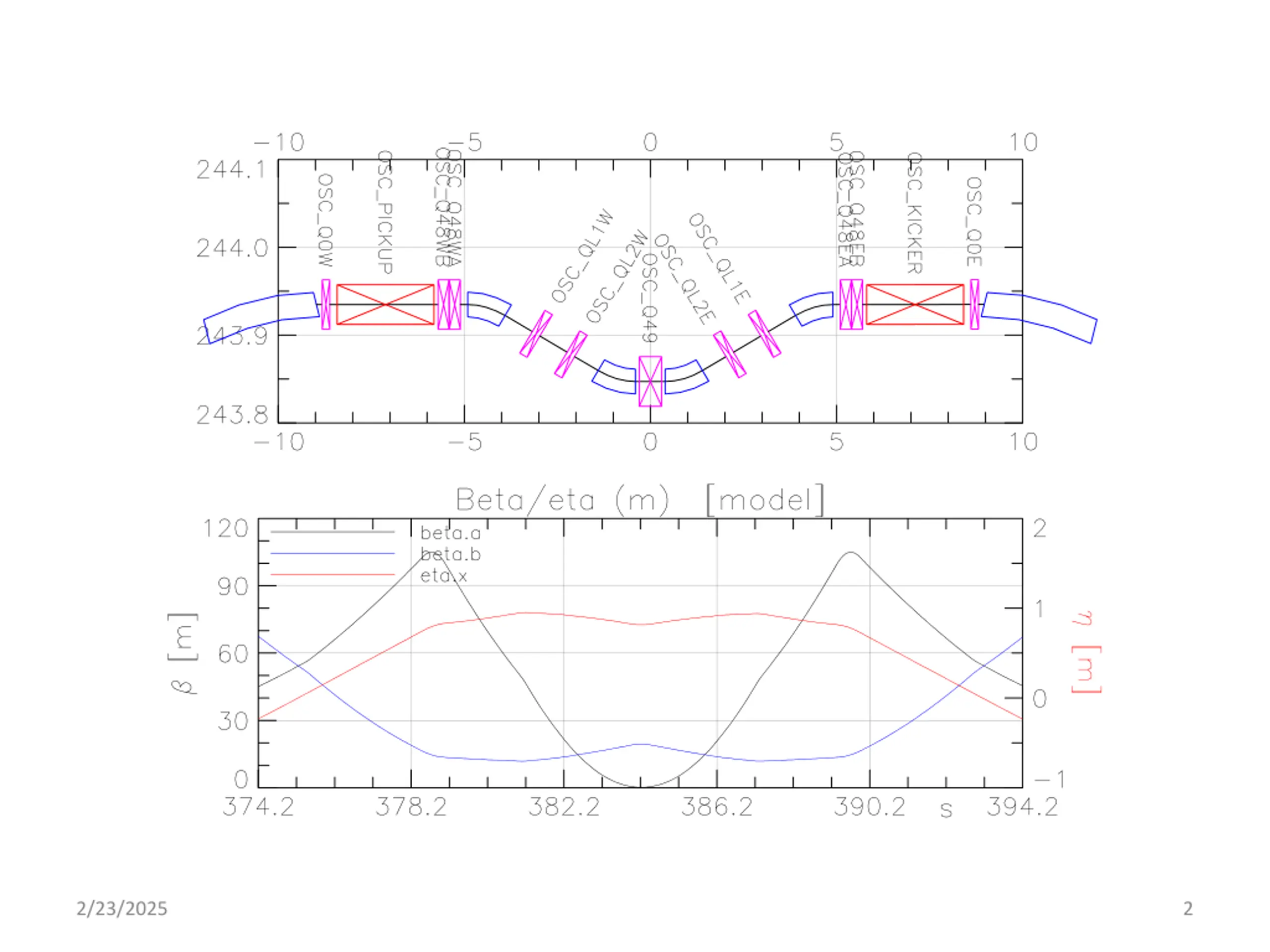

  2. 2/23/2025 2

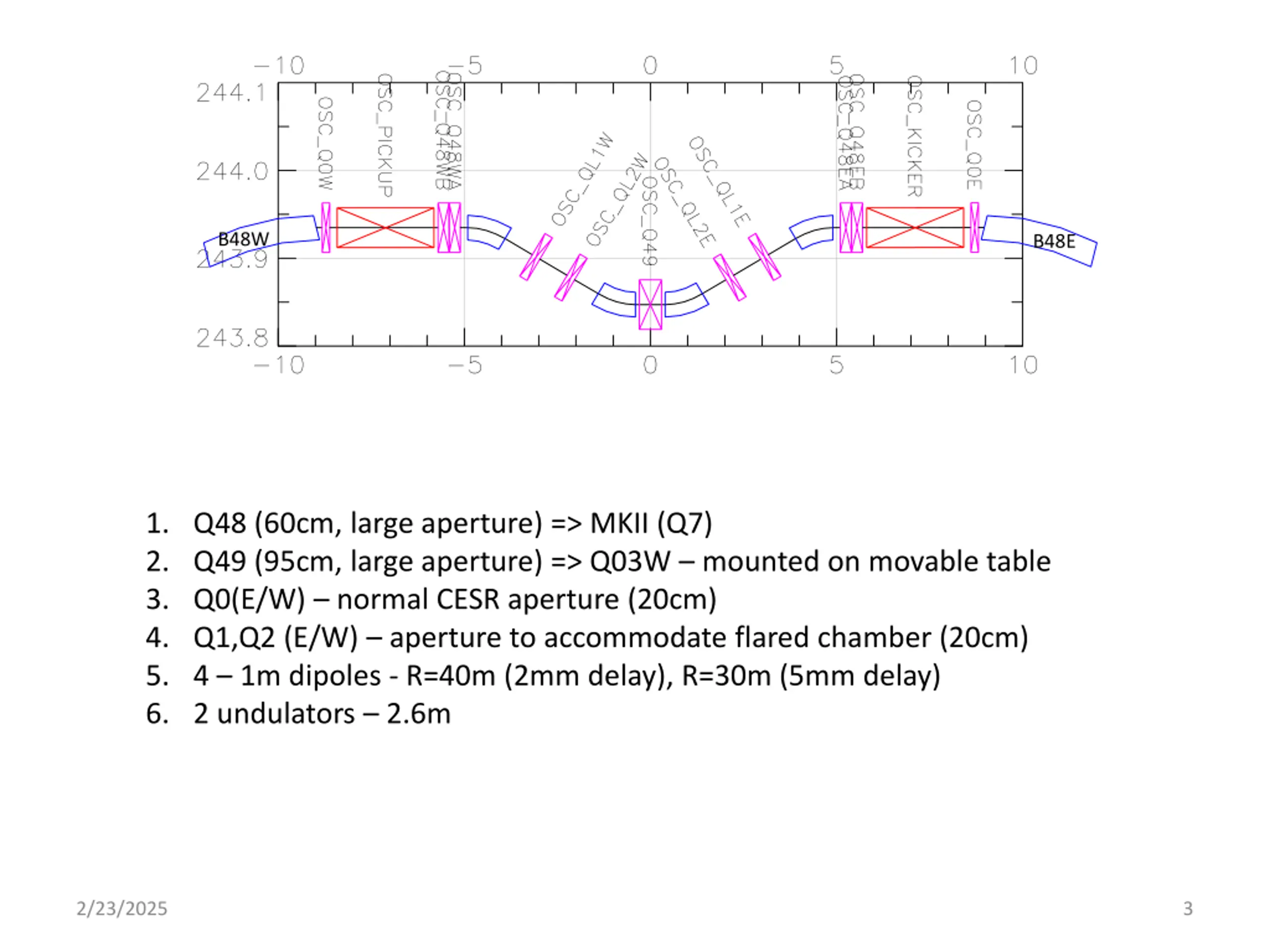

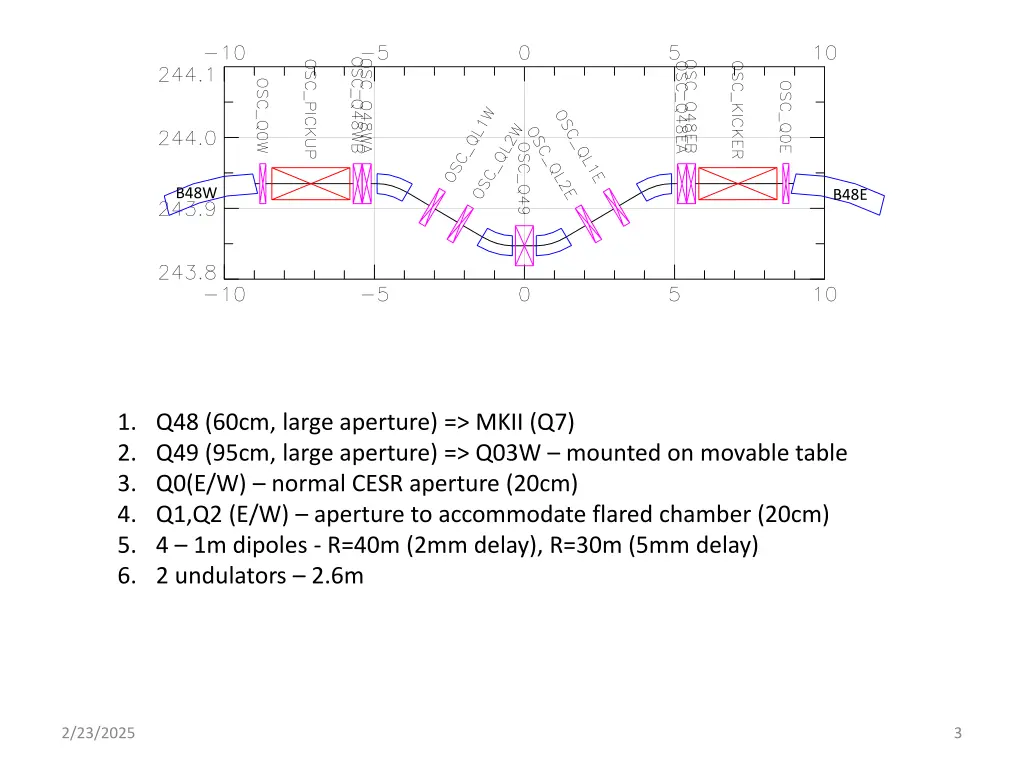

  3. B48W B48E 1. Q48 (60cm, large aperture) => MKII (Q7) 2. Q49 (95cm, large aperture) => Q03W mounted on movable table 3. Q0(E/W) normal CESR aperture (20cm) 4. Q1,Q2 (E/W) aperture to accommodate flared chamber (20cm) 5. 4 1m dipoles - R=40m (2mm delay), R=30m (5mm delay) 6. 2 undulators 2.6m 2/23/2025 3

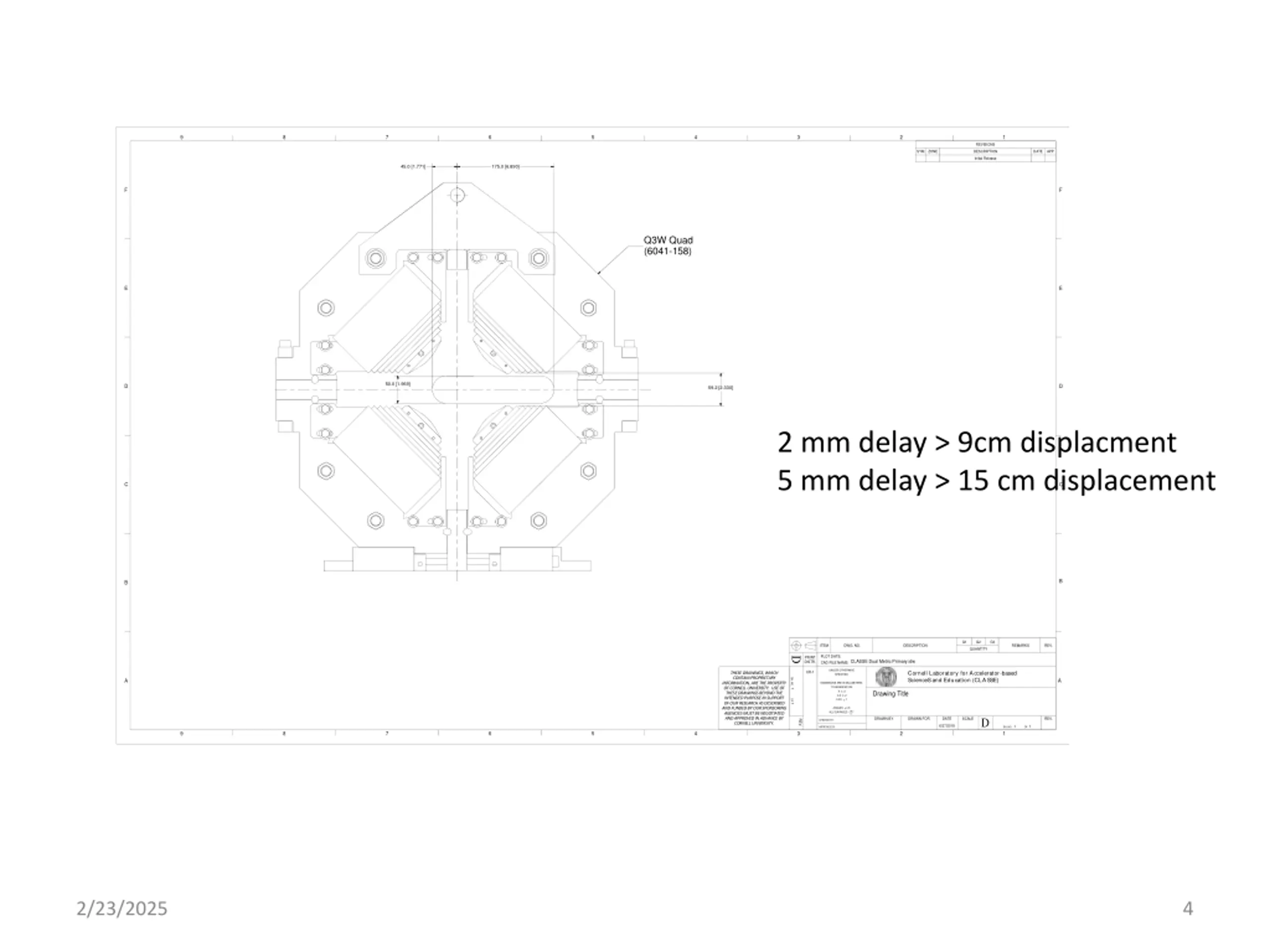

  4. 9 8 7 6 5 4 3 2 1 REVISIONS SYM ZONE DESCRIPTION DATE APP Initial Release 45.0 [1.771] 175.0 [6.890] F F Q3W Quad (6041-158) E E 50.0 [1.969] D D 59.2 [2.330] 2 mm delay > 9cm displacment 5 mm delay > 15 cm displacement C C B B G1 G2 G3 ITEM DWG. NO. DESCRIPTION REMARKS REV. QUANTITY PLOT DATE: PRINT DISTR. D CLASSE Dual Metric Primary.idw CAD FILE NAME: UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS; TOLERANCES ON: X .5 X.X .2 X.XX .1 ANGLES 0.5 ALL SURFACES CR-1 Cornell Laboratory for Accelerator-based ScienceS and Education (CLASSE) THESE DRAWINGS, WHICH CONTAIN PROPRIETARY INFORMATION, ARE THE PROPERTY OF CORNELL UNIVERSITY. USE OF THESE DRAWINGS BEYOND THE INTENDED PURPOSE IN SUPPORT OF OUR RESEARCH AS DESCRIBED AND FUNDED BY OUR SPONSORING AGENCIES MUST BE NEGOTIATED AND APPROVED IN ADVANCE BY CORNELL UNIVERSITY. SH. NO. 1 A A Drawing Title OF 1 1.6 D DRAWN BY DRAWN FOR DATE SCALE REV. 1 CHECKED BY: REV. 6/27/2018 1 APPROVED BY: SH. NO. OF 9 8 7 6 5 4 3 2 1 2/23/2025 4

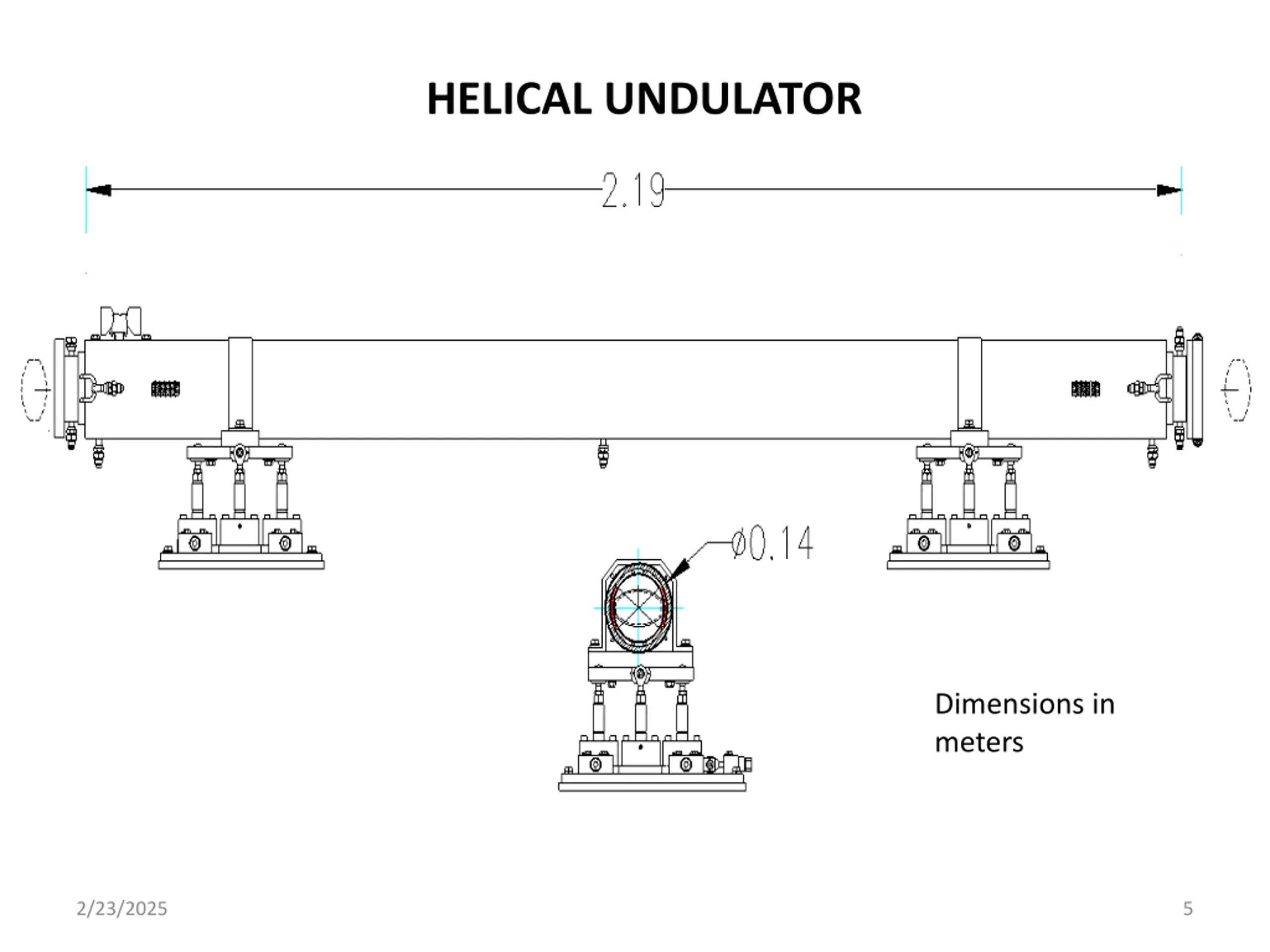

  5. HELICAL UNDULATOR Dimensions in meters 2/23/2025 5

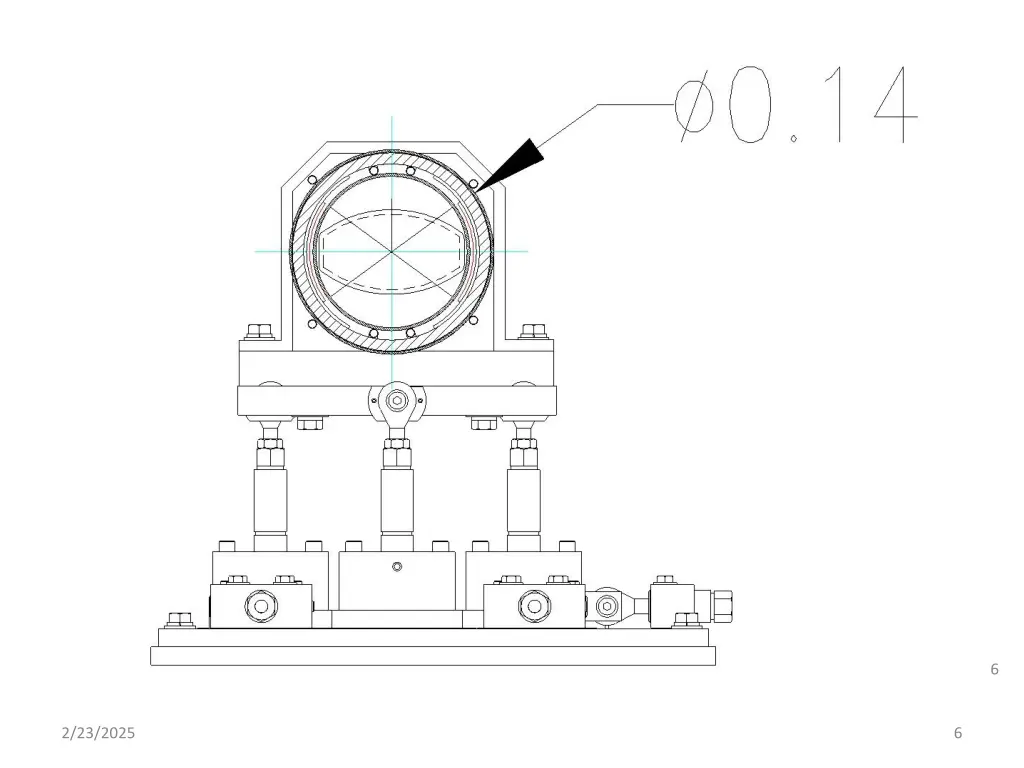

  6. 6 2/23/2025 6

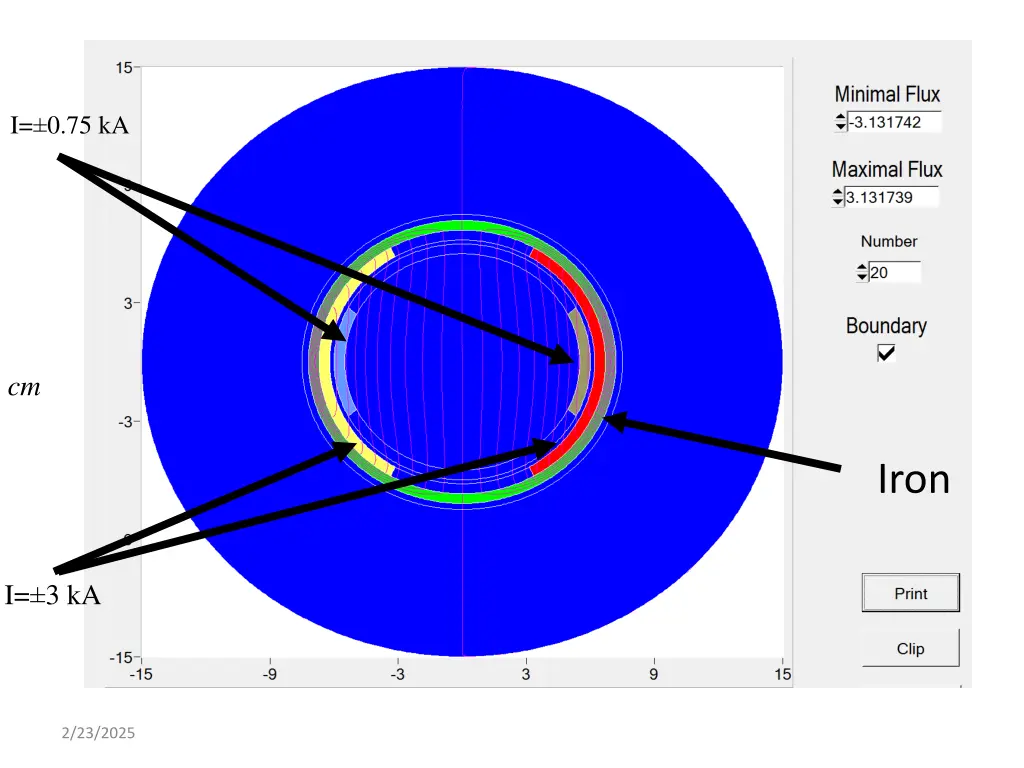

  7. I=0.75 kA =35 cm Iron I= 3 kA 2/23/2025
