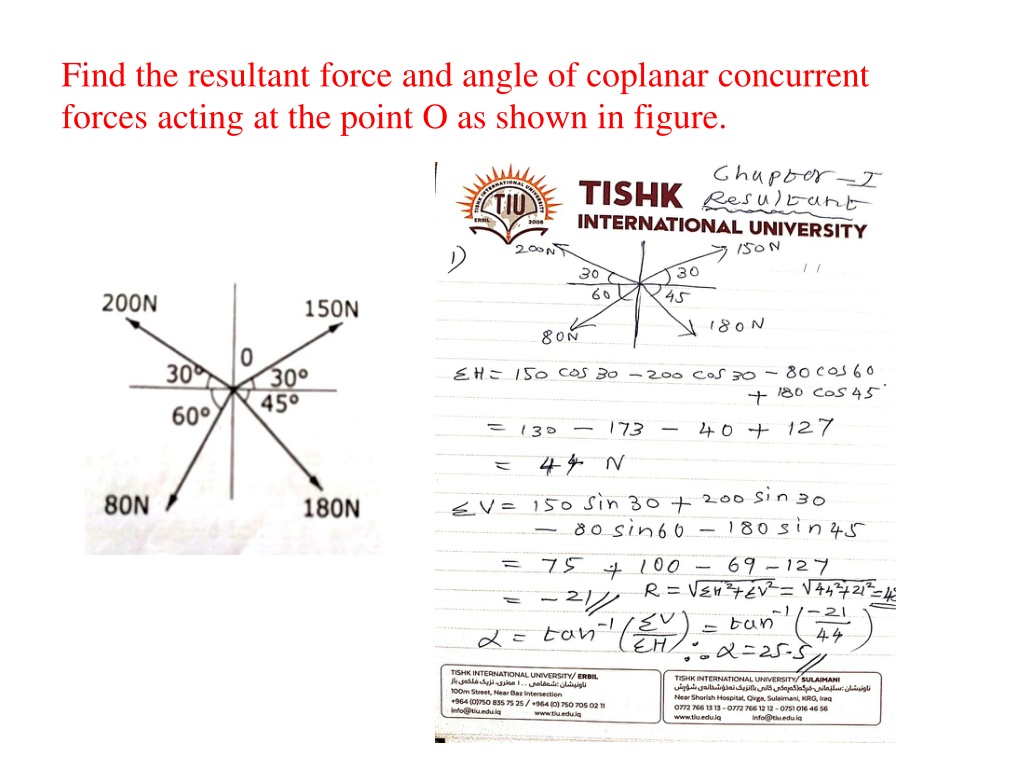

Find the resultant force and angle of coplanar concurrent forces acting at the point O as shown in figure.

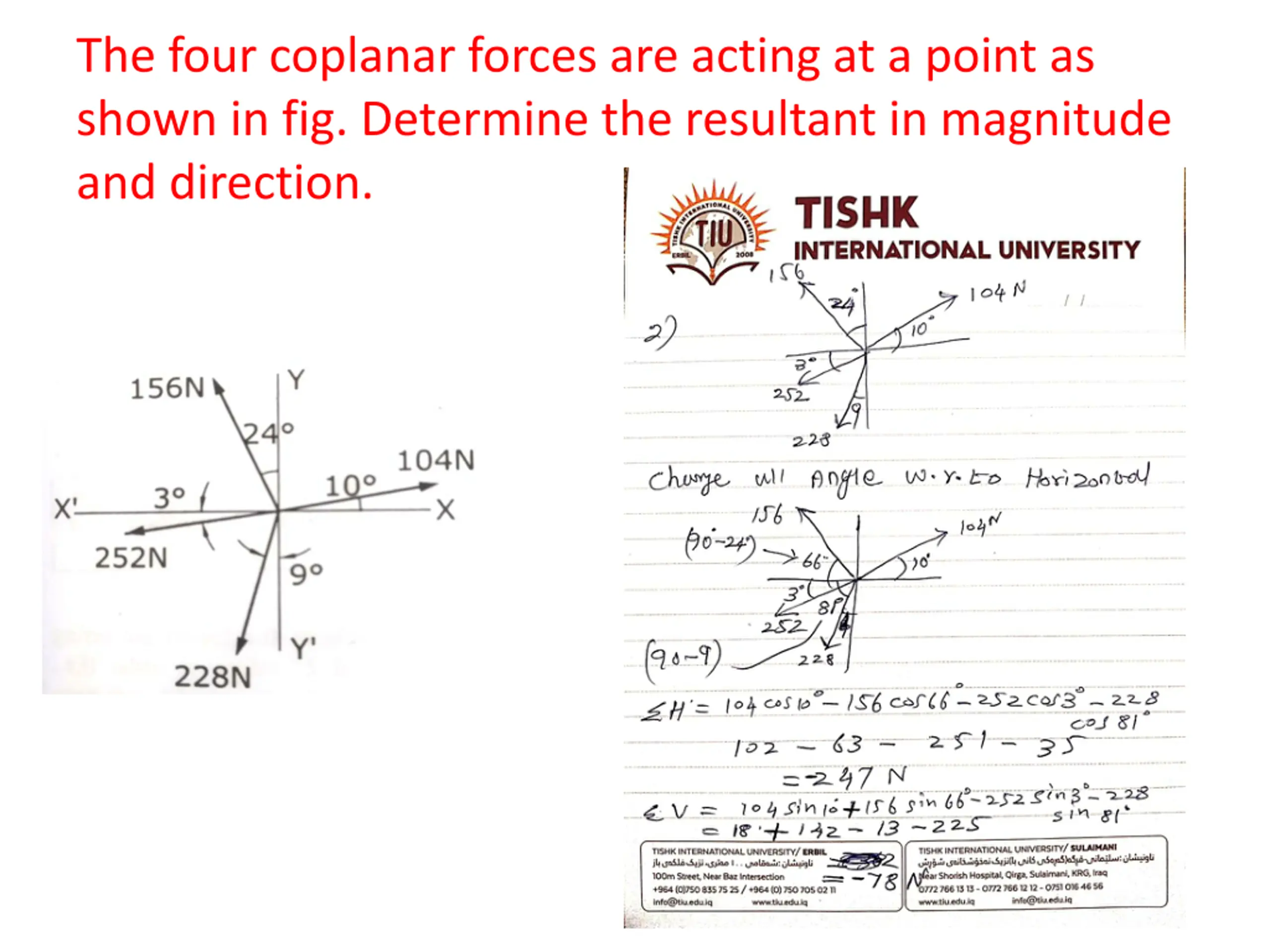

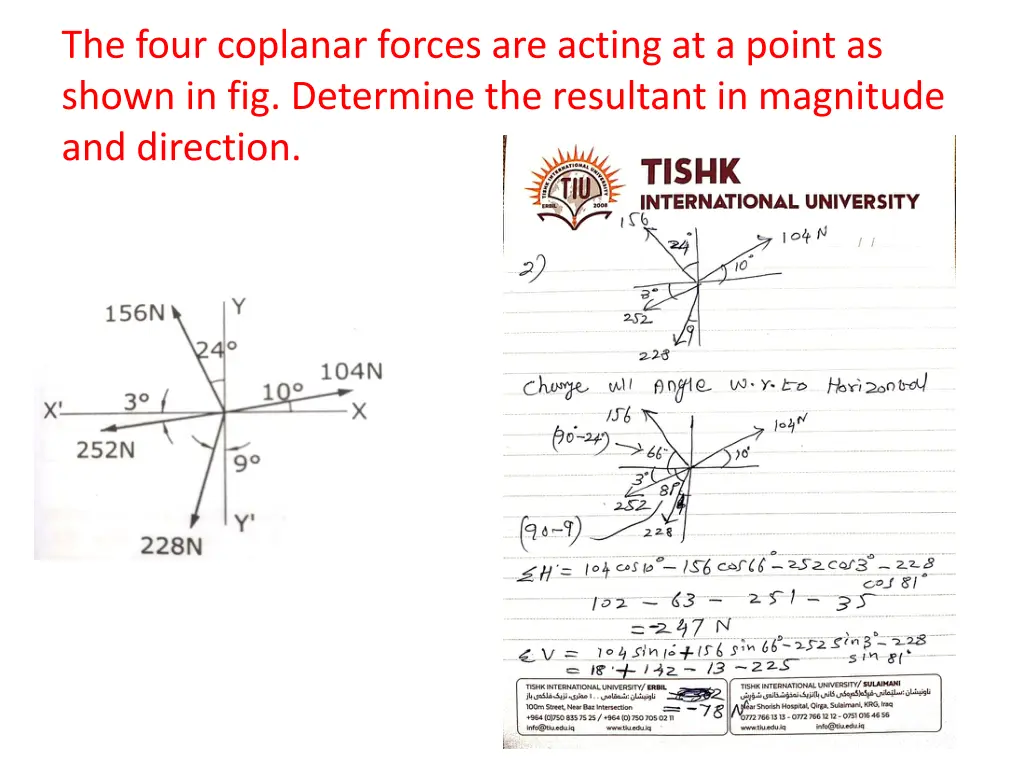

The four coplanar forces are acting at a point as shown in fig. Determine the resultant in magnitude and direction.

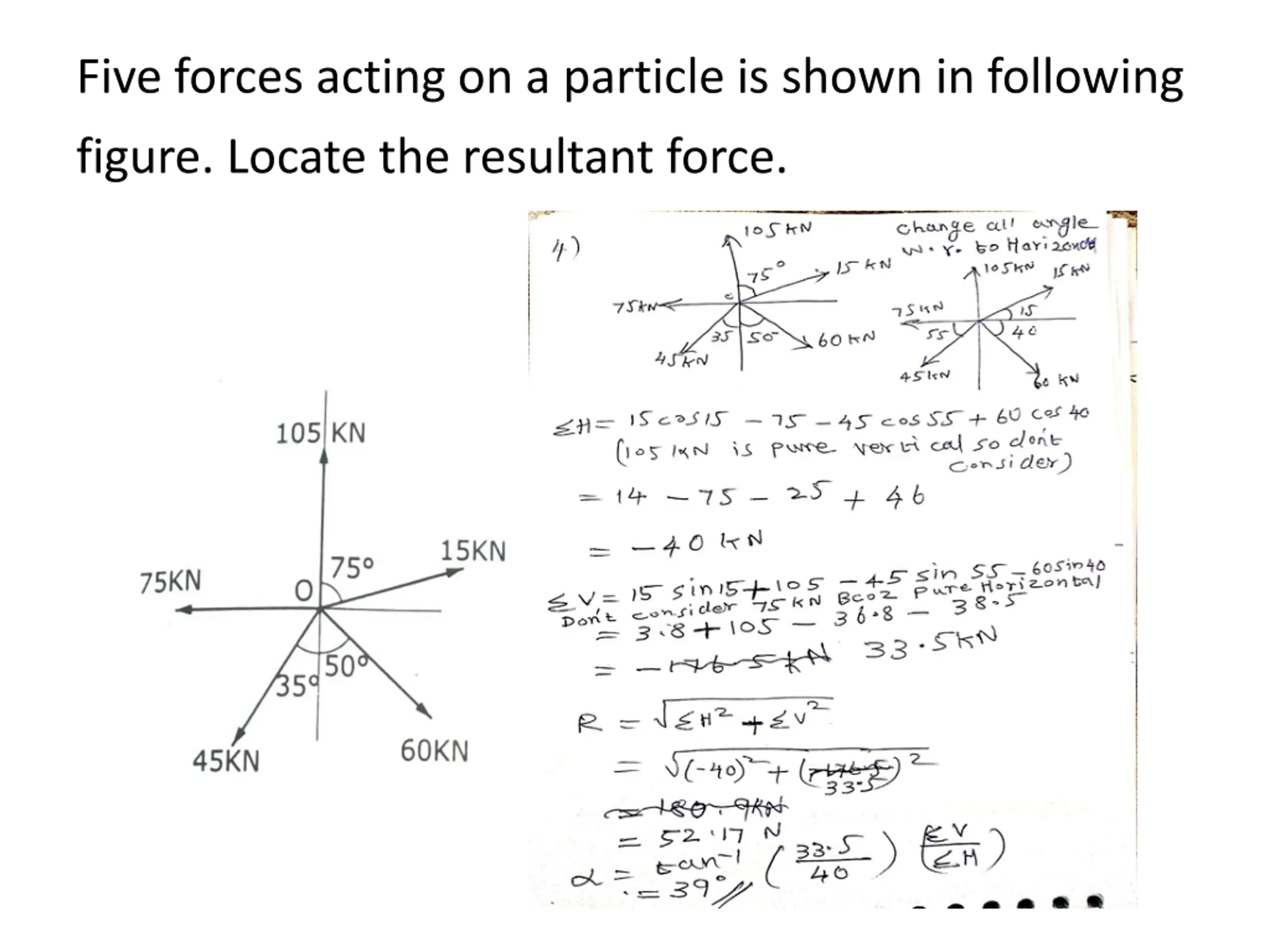

Five forces acting on a particle is shown in following figure. Locate the resultant force.
