Calculation of Electric Field with Various Charge Distributions
Calculation of electric field for different charge distributions, including a long insulating rod with varying charge densities surrounded by conducting cylinders. Understand how the electric field magnitude varies based on the setup and charge distribution parameters.
Uploaded on Feb 22, 2025 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

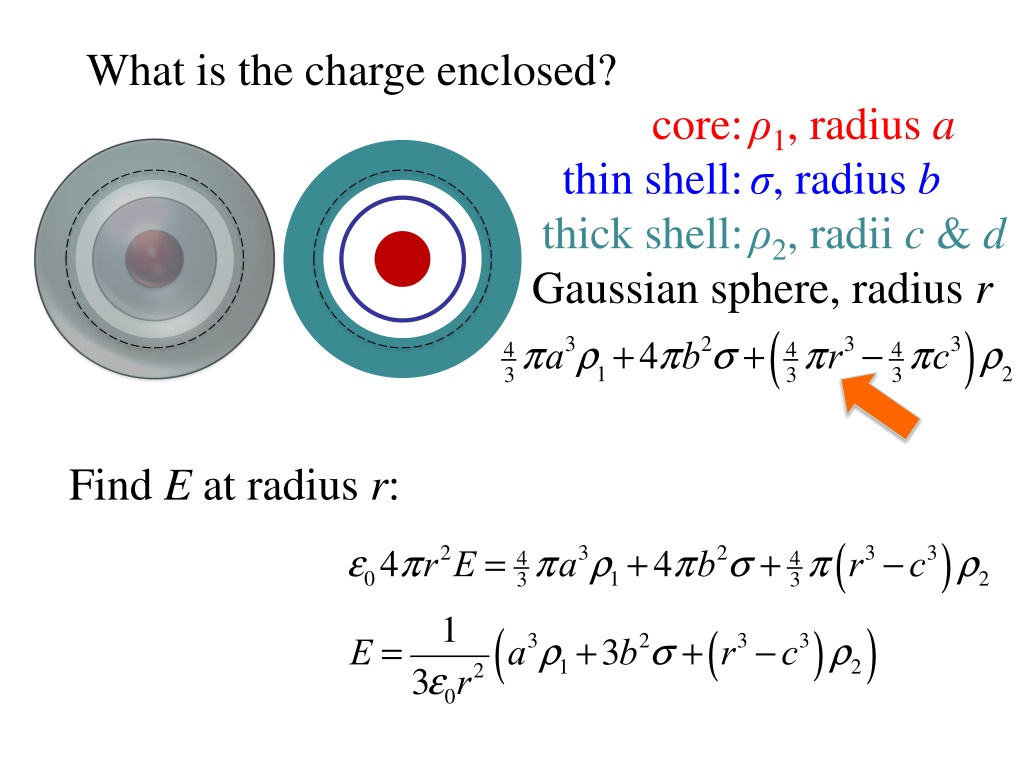

What is the charge enclosed? core: 1, radius a thin shell: , radius b thick shell: 2, radii c & d Gaussian sphere, radius r ( )r2 4 3pa3r1+4pb2s + 4 3pr3-4 3pc3 Find E at radius r: 3p r3-c3 ( )r2 )r2 e04pr2E =4 3pa3r1+4pb2s +4 ( ) 1 ( E = 3e0r2a3r1+3b2s + r3-c3

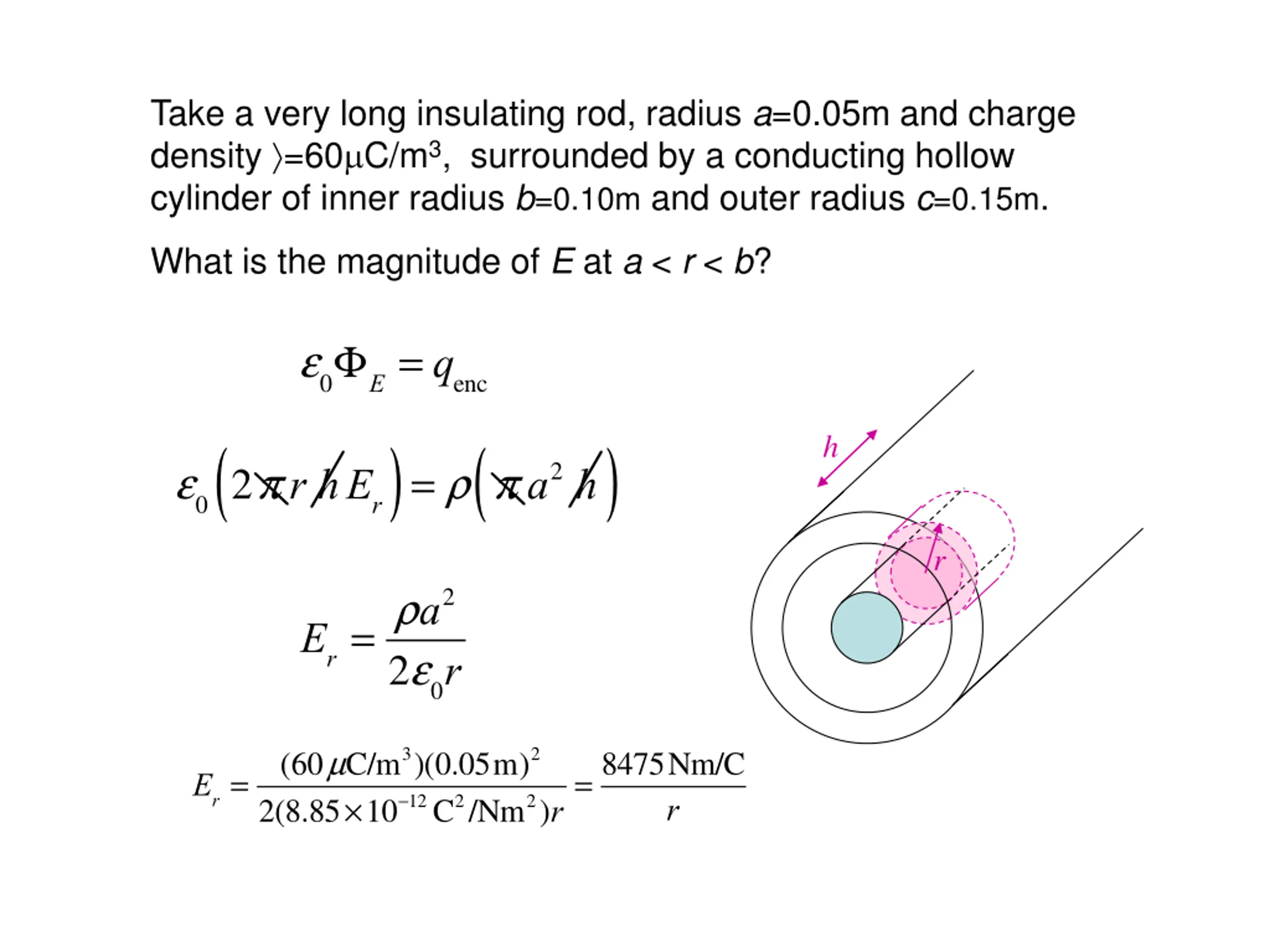

Take a very long insulating rod, radius a=0.05m and charge density =60 C/m3, surrounded by a conducting hollow cylinder of inner radius b=0.10m and outer radius c=0.15m. What is the magnitude of E at a < r < b? e0FE= qenc )= r p a2h ( ( ) h e02p r hEr r Er=ra2 2e0r (60mC/m3)(0.05m)2 2(8.85 10-12C2/Nm2)r=8475Nm/C Er= r

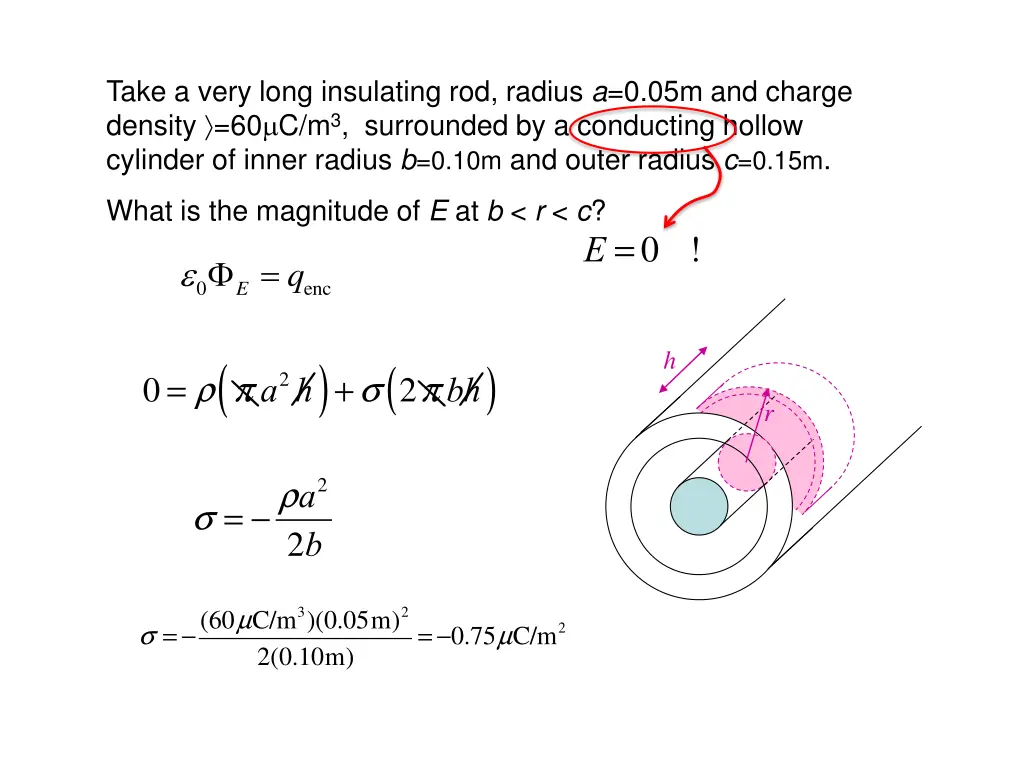

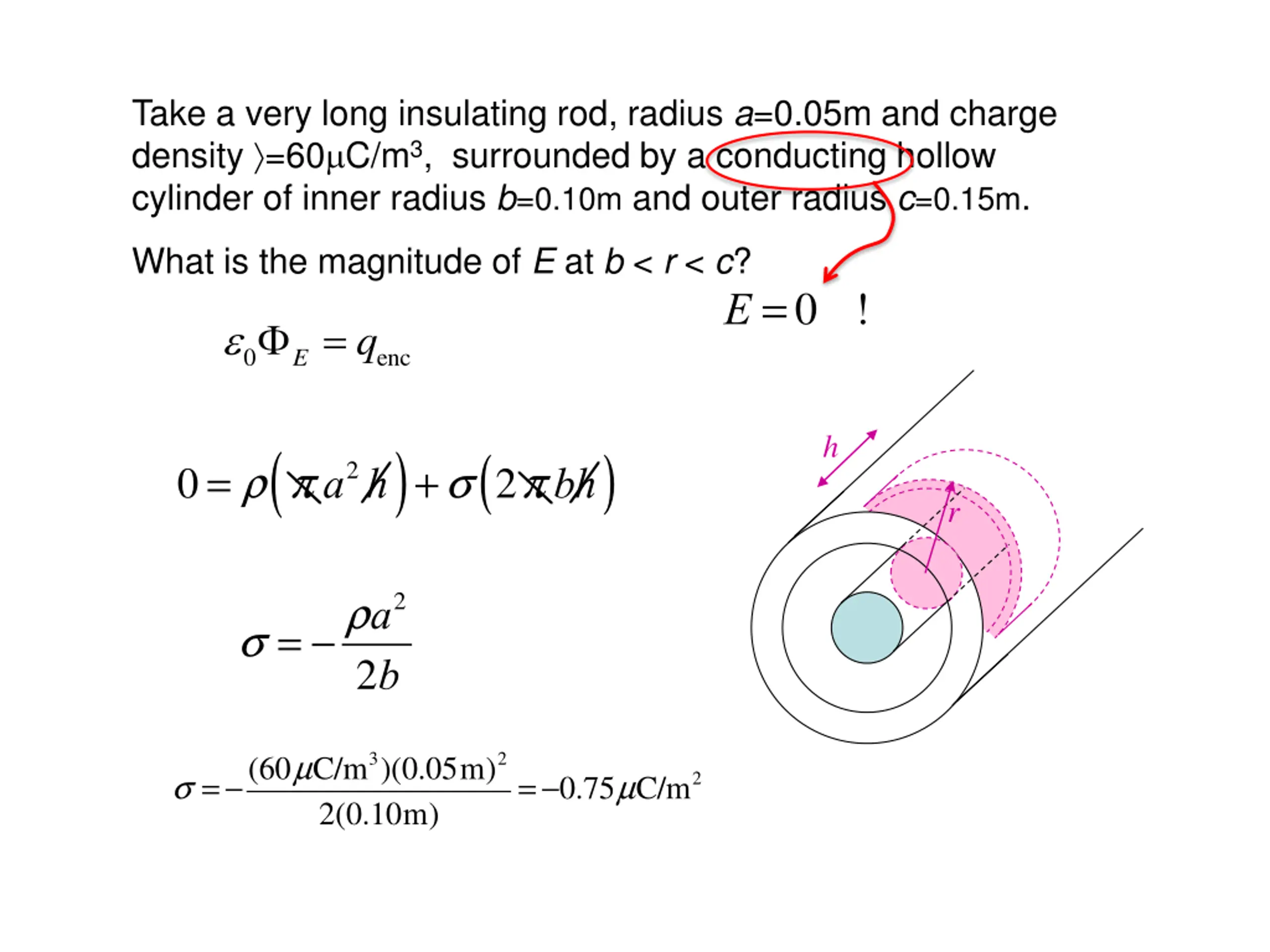

Take a very long insulating rod, radius a=0.05m and charge density =60 C/m3, surrounded by a conducting hollow cylinder of inner radius b=0.10m and outer radius c=0.15m. What is the magnitude of E at b < r < c? E =0 ! = q 0 enc E ( )+s 2p bh h ( ) 0= r p a2h r s = -ra2 2b s =-(60mC/m3)(0.05m)2 2(0.10m) =-0.75mC/m2

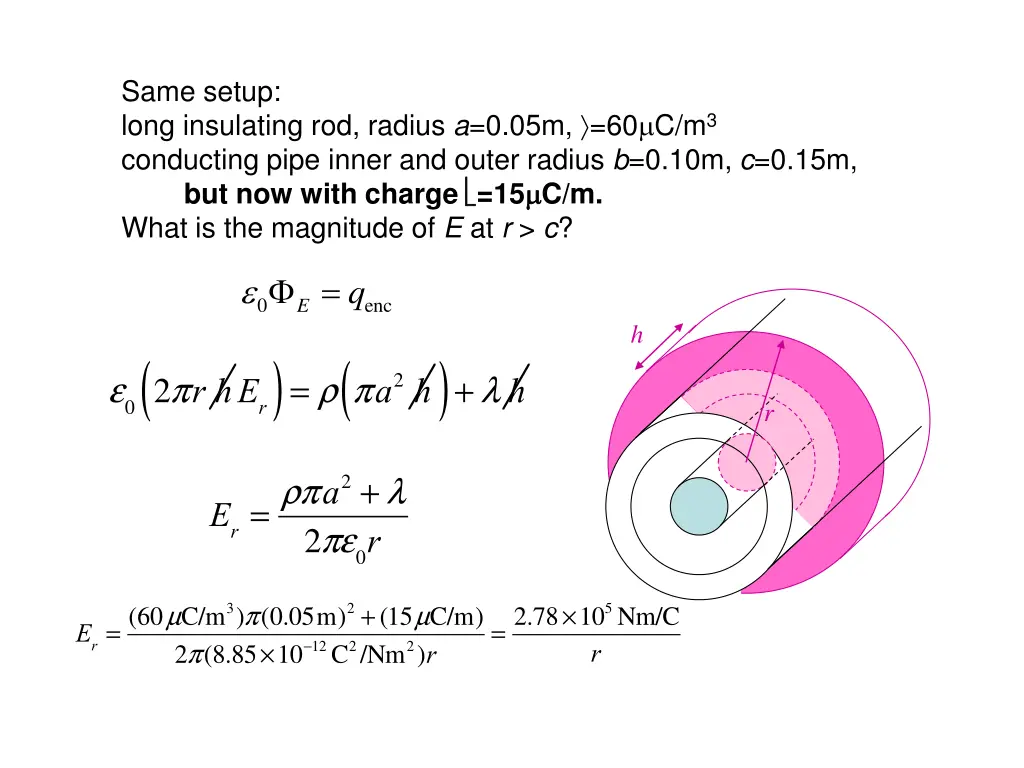

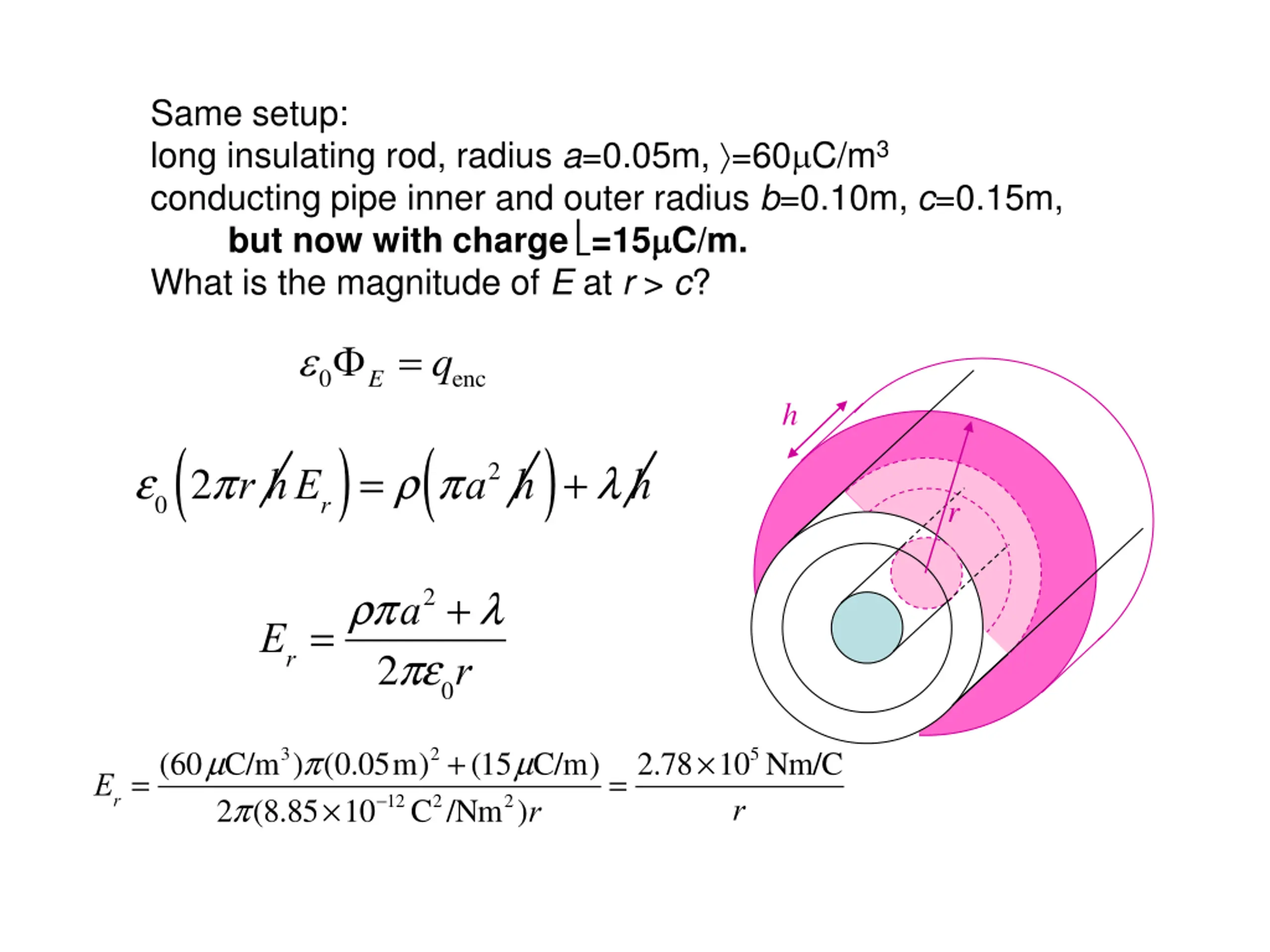

Same setup: long insulating rod, radius a=0.05m, =60 C/m3 conducting pipe inner and outer radius b=0.10m, c=0.15m, but now with charge =15 C/m. What is the magnitude of E at r > c? = q 0 enc E h ( )= r pa2h ( )+l h e02pr hEr r Er=rpa2+l 2pe0r Er=(60mC/m3)p(0.05m)2+(15mC/m) 2p(8.85 10-12C2/Nm2)r =2.78 105Nm/C r
