Presentation Transcript

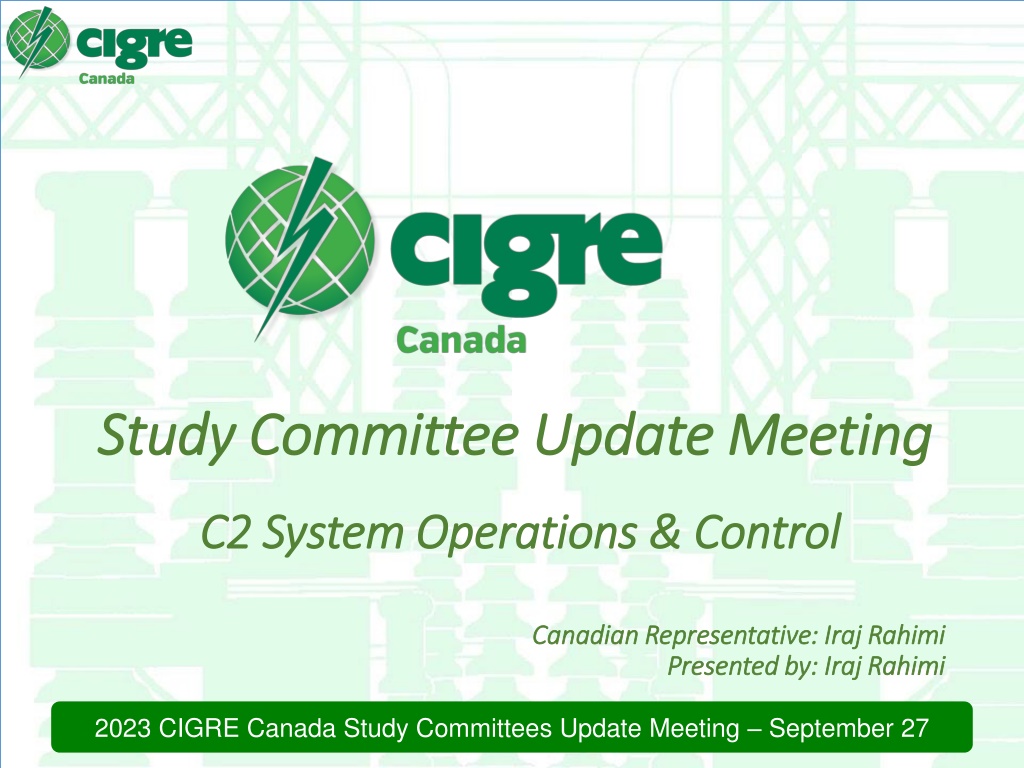

Study Study Committee Committee Update Meeting Update Meeting C2 System Operations & Control C2 System Operations & Control Canadian Representative: Iraj Rahimi Canadian Representative: Iraj Rahimi Presented Presented by: by: Iraj Rahimi Iraj Rahimi 2023 CIGRE Canada Study Committees Update Meeting September 27

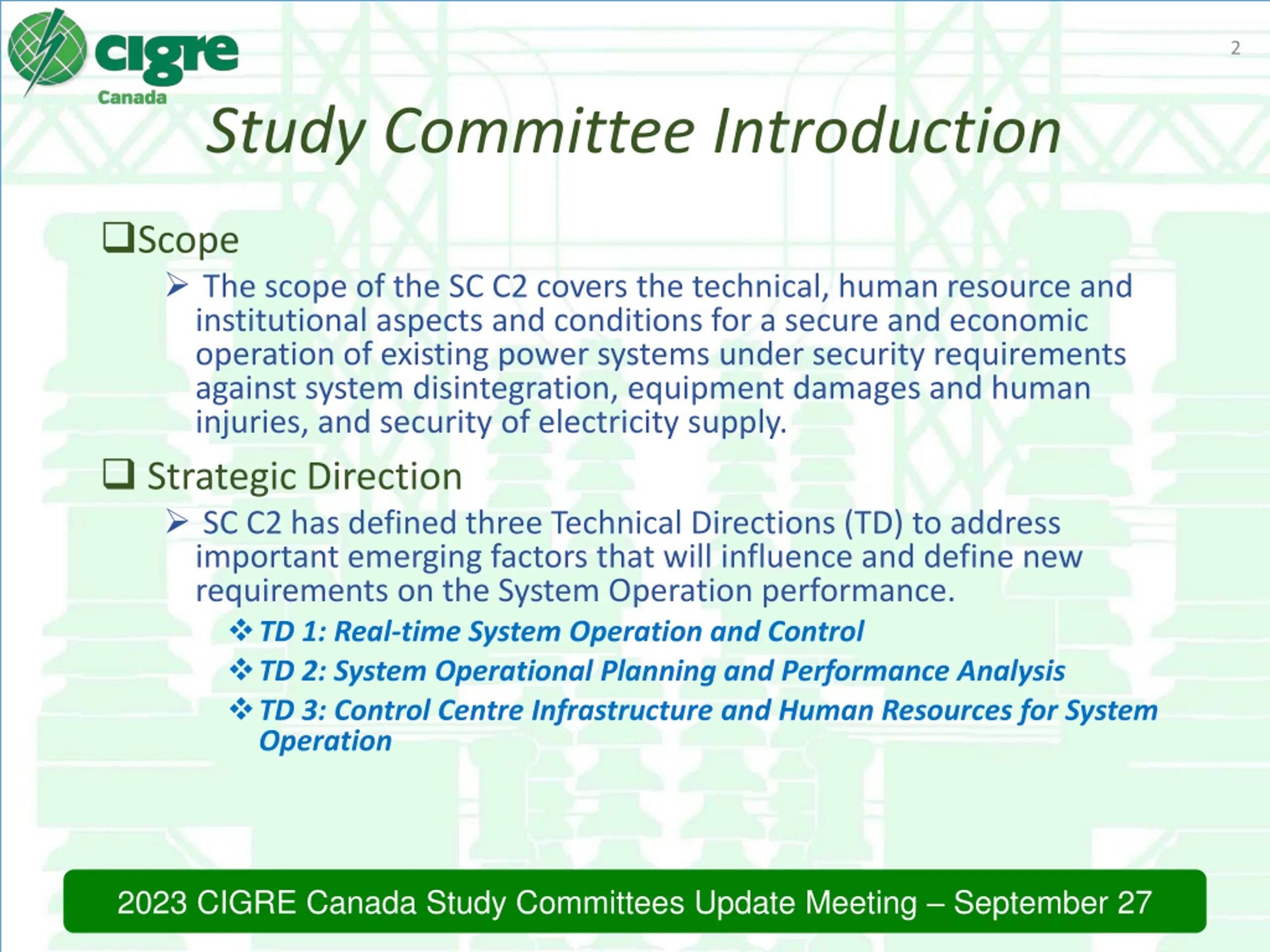

2 Study Committee Introduction Scope The scope of the SC C2 covers the technical, human resource and institutional aspects and conditions for a secure and economic operation of existing power systems under security requirements against system disintegration, equipment damages and human injuries, and security of electricity supply. Strategic Direction SC C2 has defined three Technical Directions (TD) to address important emerging factors that will influence and define new requirements on the System Operation performance. TD 1: Real-time System Operation and Control TD 2: System Operational Planning and Performance Analysis TD 3: Control Centre Infrastructure and Human Resources for System Operation 2023 CIGRE Canada Study Committees Update Meeting September 27

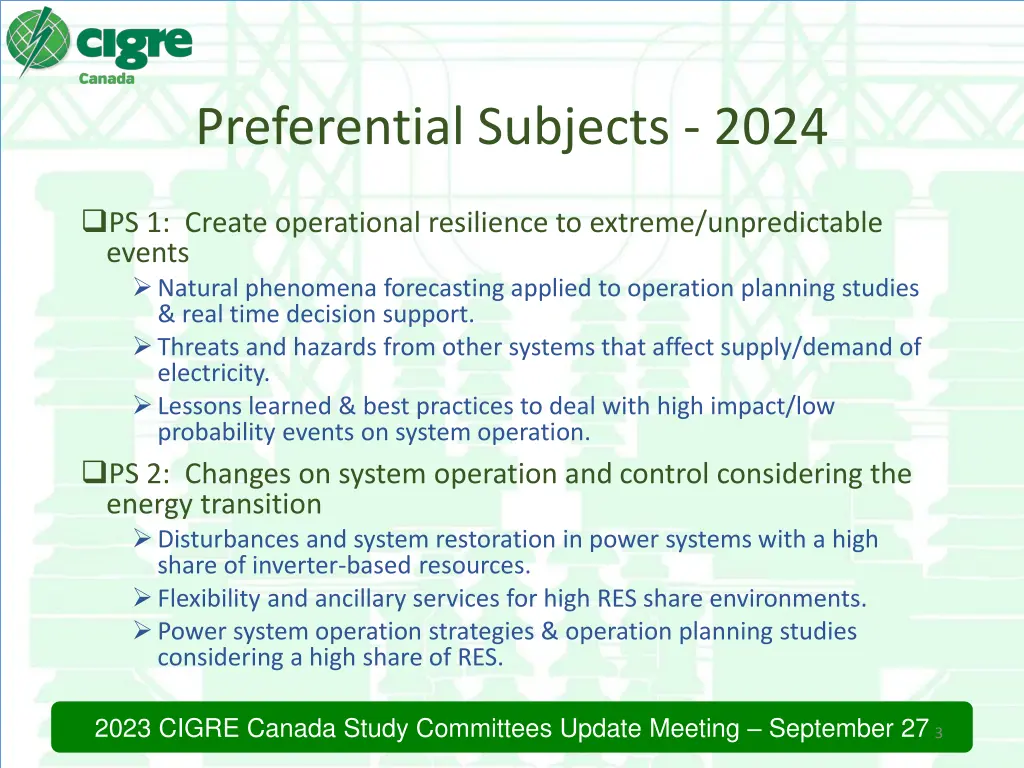

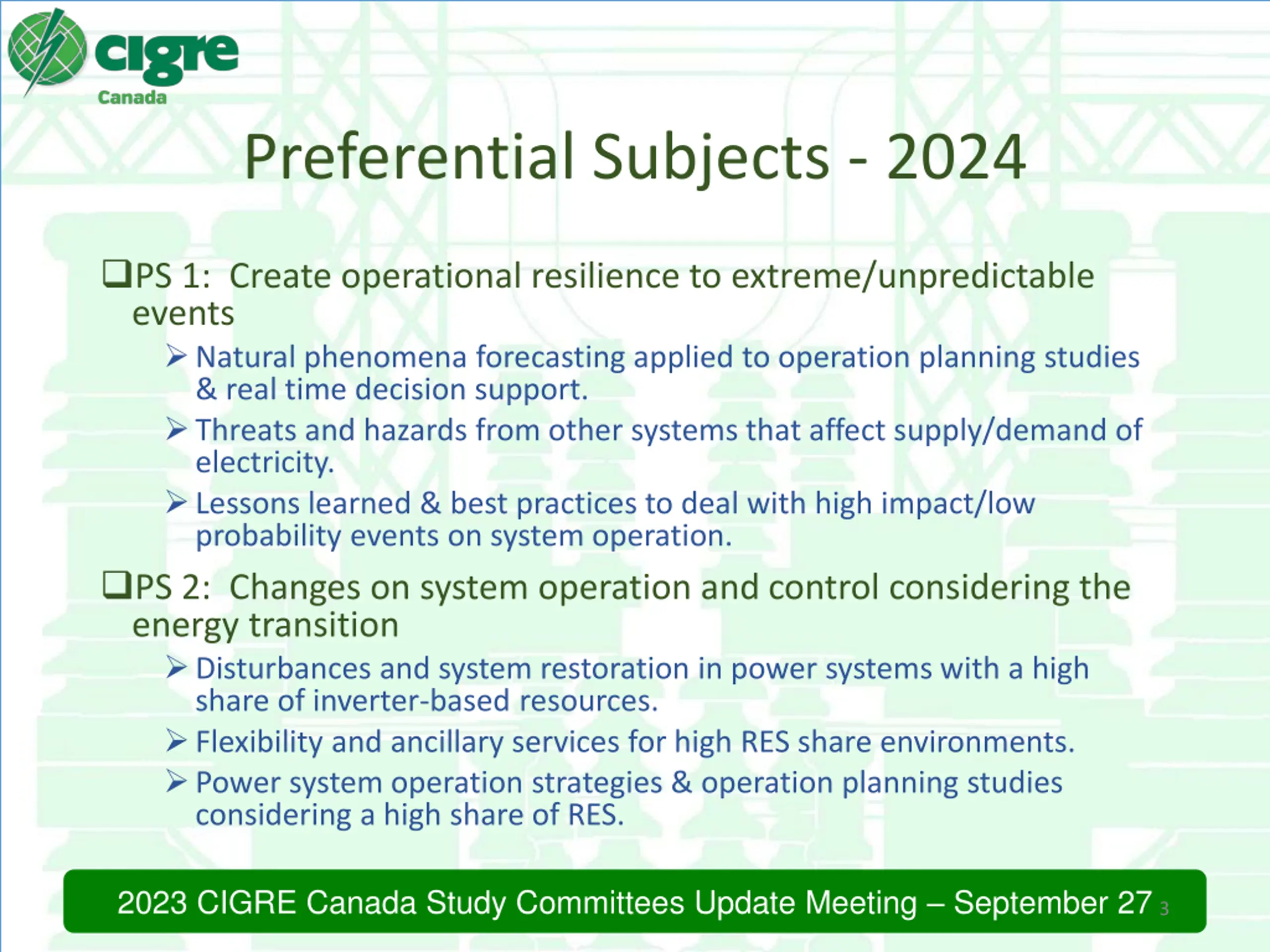

Preferential Subjects - 2024 PS 1: Create operational resilience to extreme/unpredictable events Natural phenomena forecasting applied to operation planning studies & real time decision support. Threats and hazards from other systems that affect supply/demand of electricity. Lessons learned & best practices to deal with high impact/low probability events on system operation. PS 2: Changes on system operation and control considering the energy transition Disturbances and system restoration in power systems with a high share of inverter-based resources. Flexibility and ancillary services for high RES share environments. Power system operation strategies & operation planning studies considering a high share of RES. 2023 CIGRE Canada Study Committees Update Meeting September 27 3

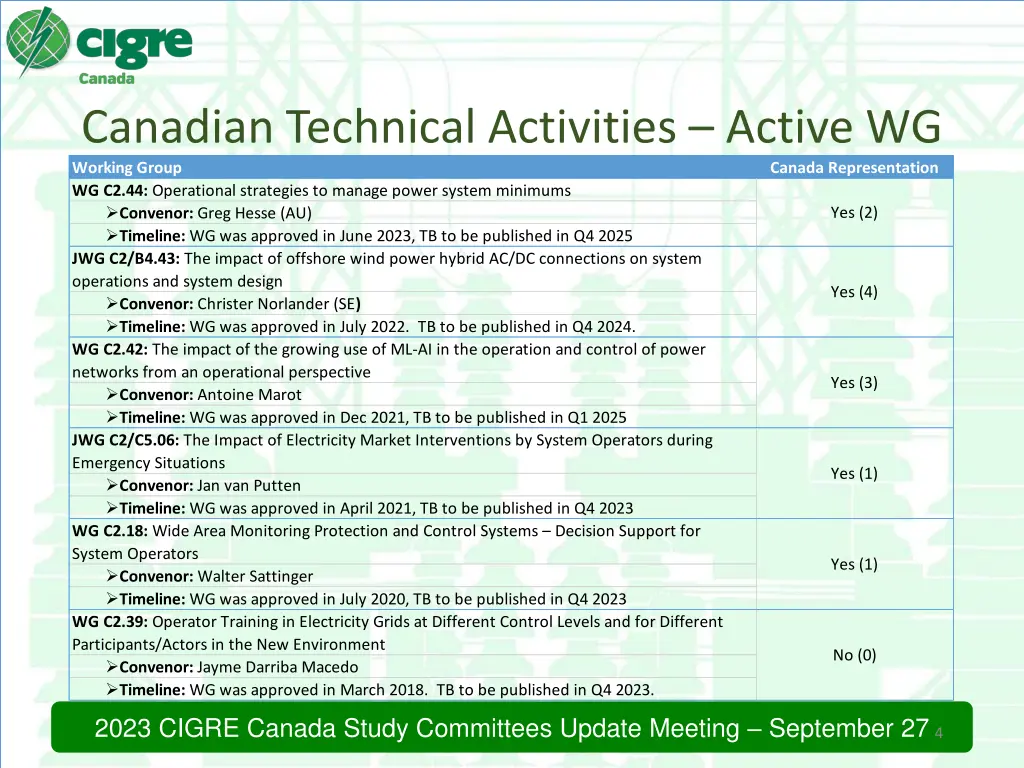

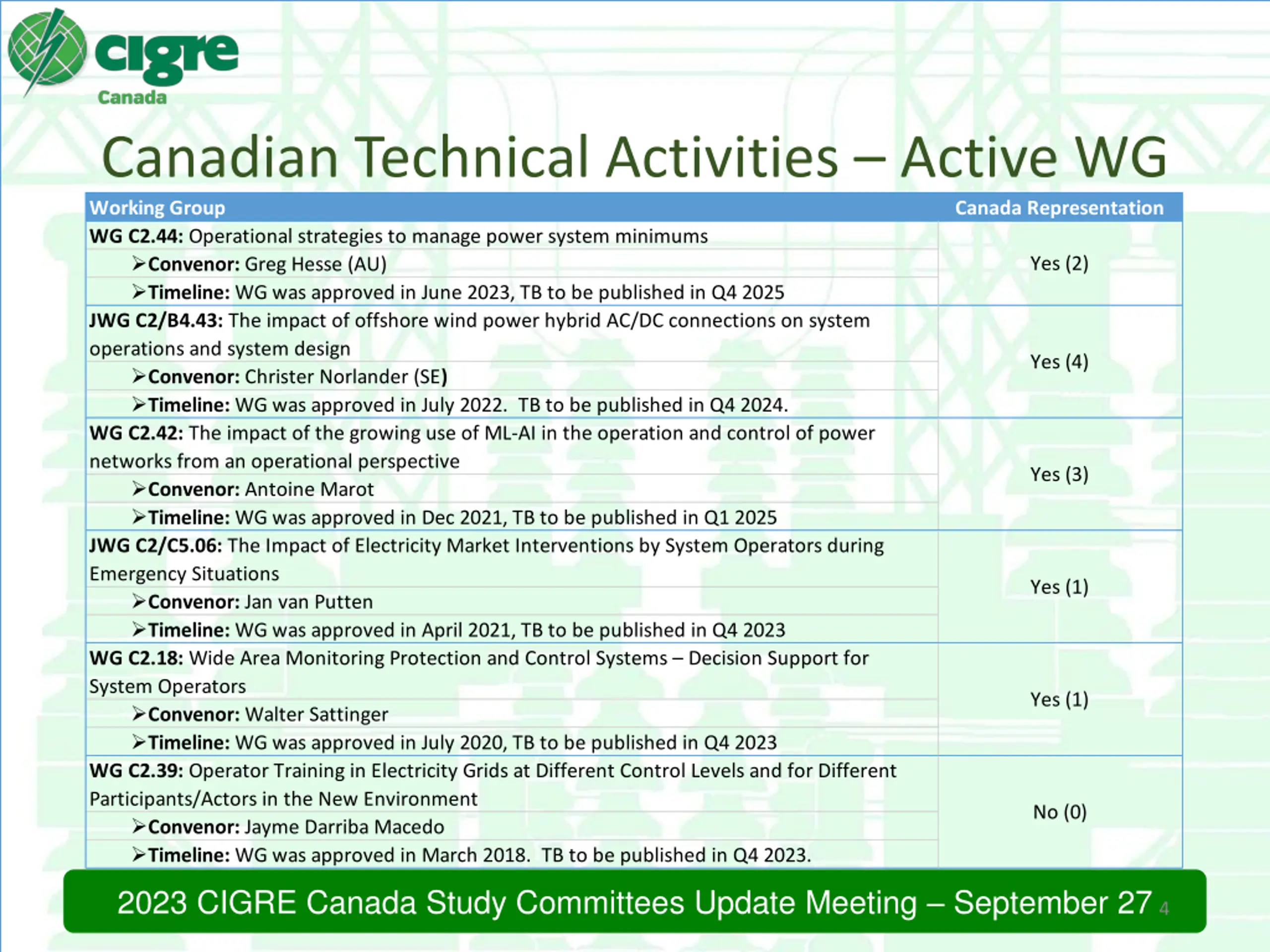

Canadian Technical Activities Active WG Working Group WG C2.44: Operational strategies to manage power system minimums Convenor: Greg Hesse (AU) Timeline: WG was approved in June 2023, TB to be published in Q4 2025 JWG C2/B4.43: The impact of offshore wind power hybrid AC/DC connections on system operations and system design Convenor: Christer Norlander (SE) Timeline: WG was approved in July 2022. TB to be published in Q4 2024. WG C2.42: The impact of the growing use of ML-AI in the operation and control of power networks from an operational perspective Convenor: Antoine Marot Timeline: WG was approved in Dec 2021, TB to be published in Q1 2025 JWG C2/C5.06: The Impact of Electricity Market Interventions by System Operators during Emergency Situations Convenor: Jan van Putten Timeline: WG was approved in April 2021, TB to be published in Q4 2023 WG C2.18: Wide Area Monitoring Protection and Control Systems Decision Support for System Operators Convenor: Walter Sattinger Timeline: WG was approved in July 2020, TB to be published in Q4 2023 WG C2.39: Operator Training in Electricity Grids at Different Control Levels and for Different Participants/Actors in the New Environment Convenor: Jayme Darriba Macedo Timeline: WG was approved in March 2018. TB to be published in Q4 2023. Canada Representation Yes (2) Yes (4) Yes (3) Yes (1) Yes (1) No (0) 2023 CIGRE Canada Study Committees Update Meeting September 27 4

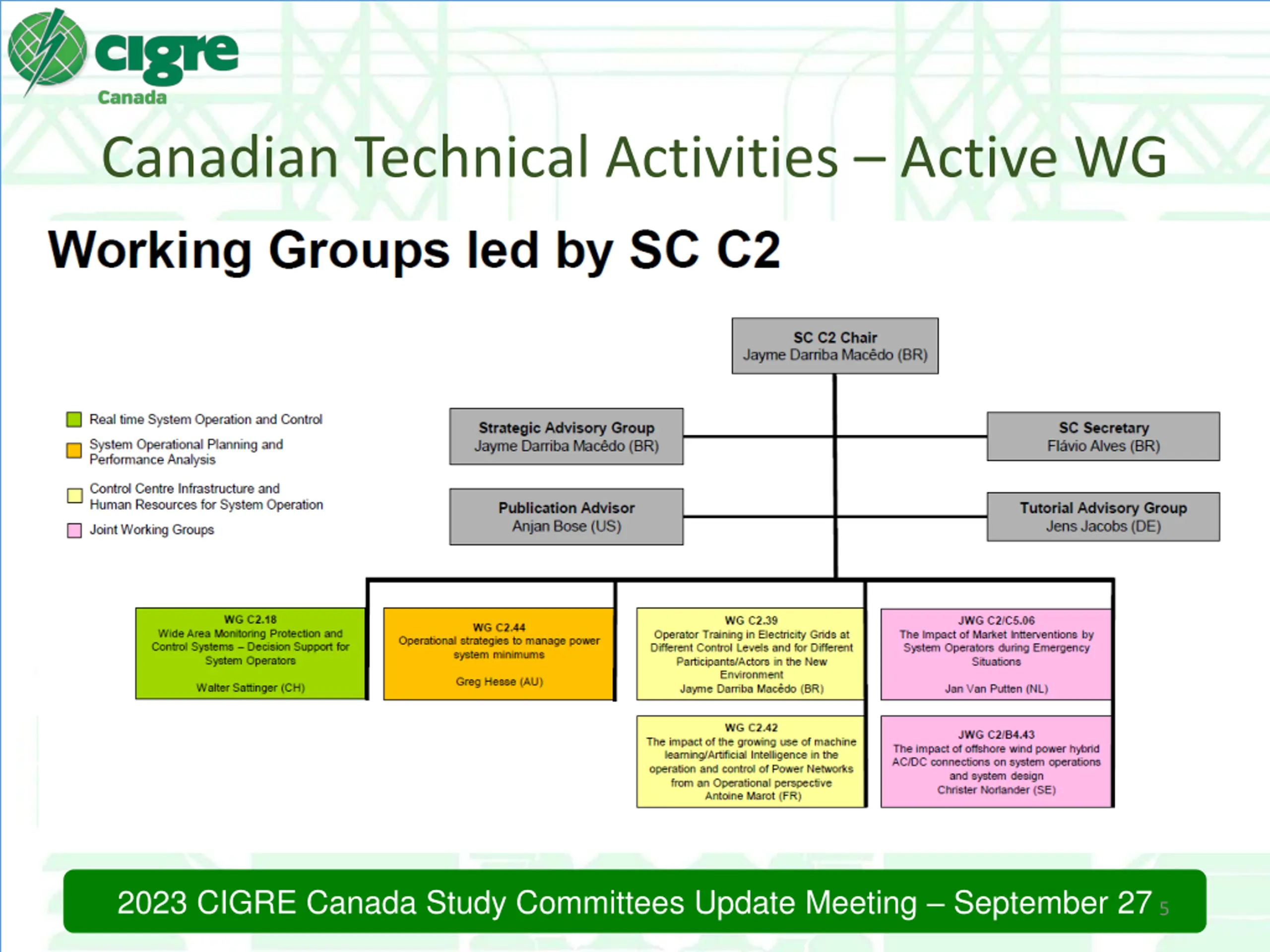

Canadian Technical Activities Active WG 2023 CIGRE Canada Study Committees Update Meeting September 27 5

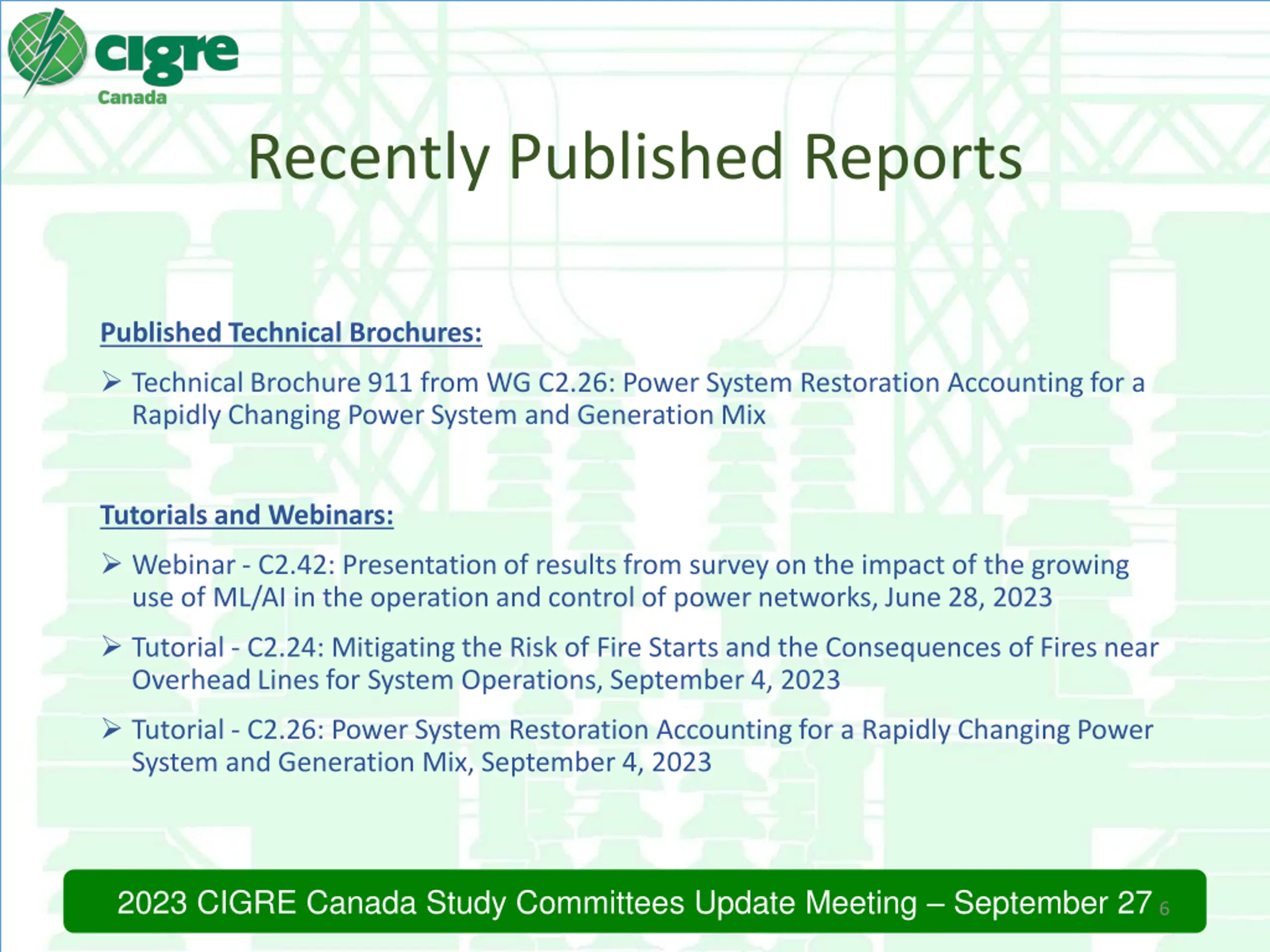

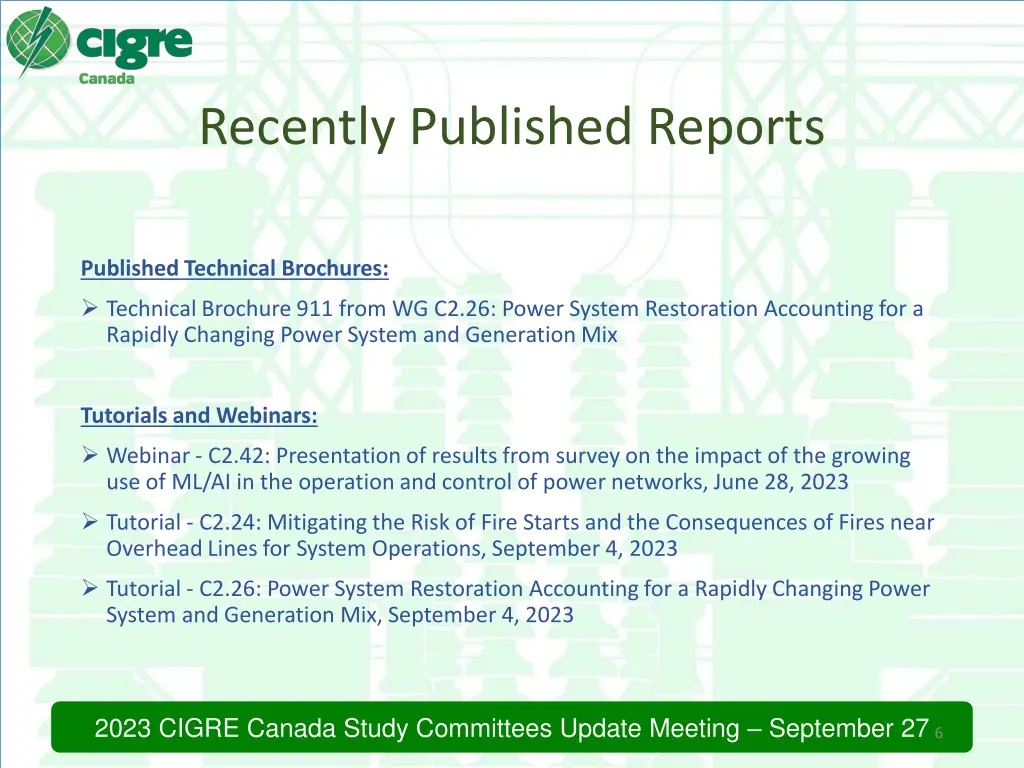

Recently Published Reports Published Technical Brochures: Technical Brochure 911 from WG C2.26: Power System Restoration Accounting for a Rapidly Changing Power System and Generation Mix Tutorials and Webinars: Webinar - C2.42: Presentation of results from survey on the impact of the growing use of ML/AI in the operation and control of power networks, June 28, 2023 Tutorial - C2.24: Mitigating the Risk of Fire Starts and the Consequences of Fires near Overhead Lines for System Operations, September 4, 2023 Tutorial - C2.26: Power System Restoration Accounting for a Rapidly Changing Power System and Generation Mix, September 4, 2023 2023 CIGRE Canada Study Committees Update Meeting September 27 6

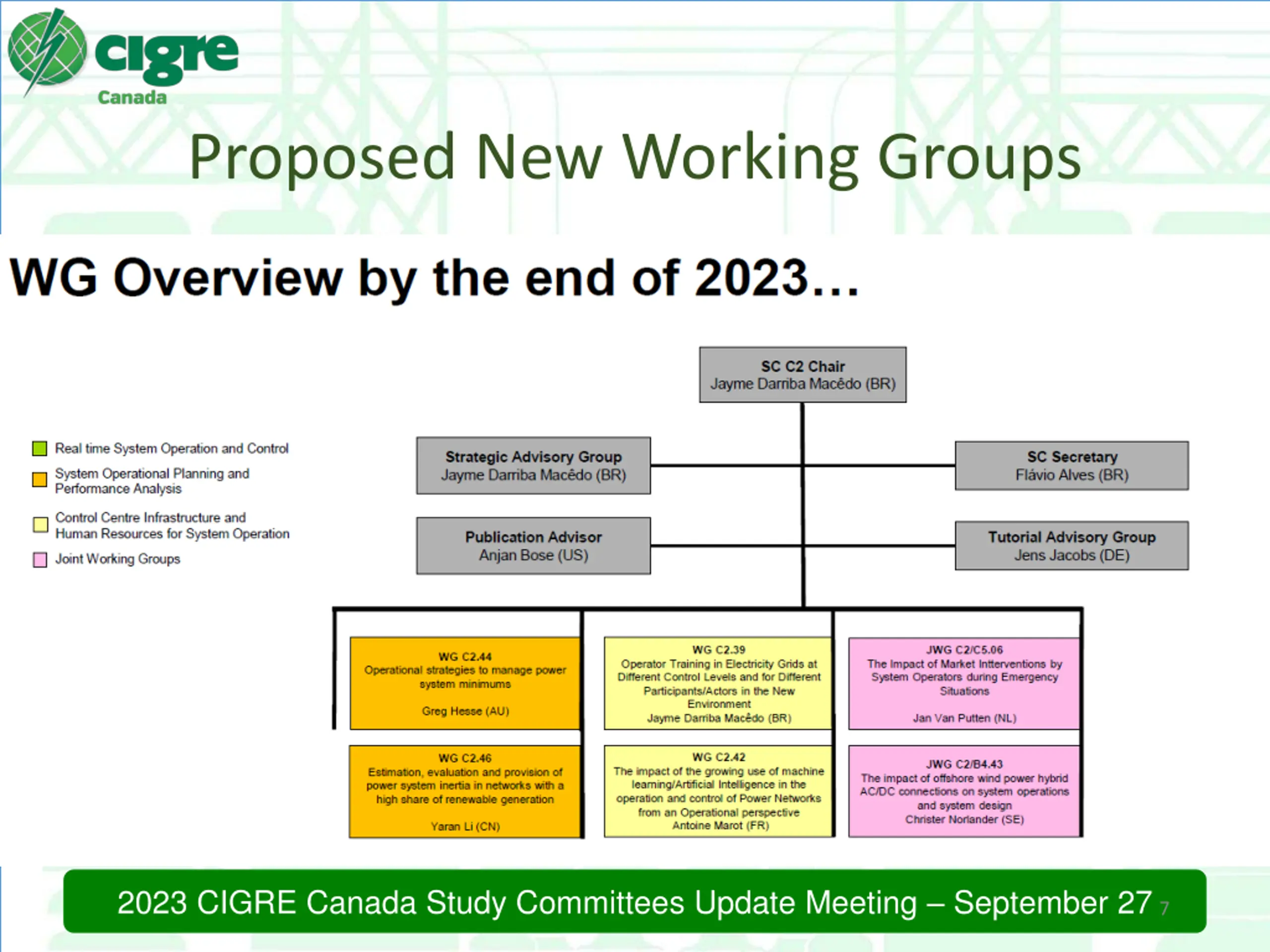

Proposed New Working Groups 2023 CIGRE Canada Study Committees Update Meeting September 27 7

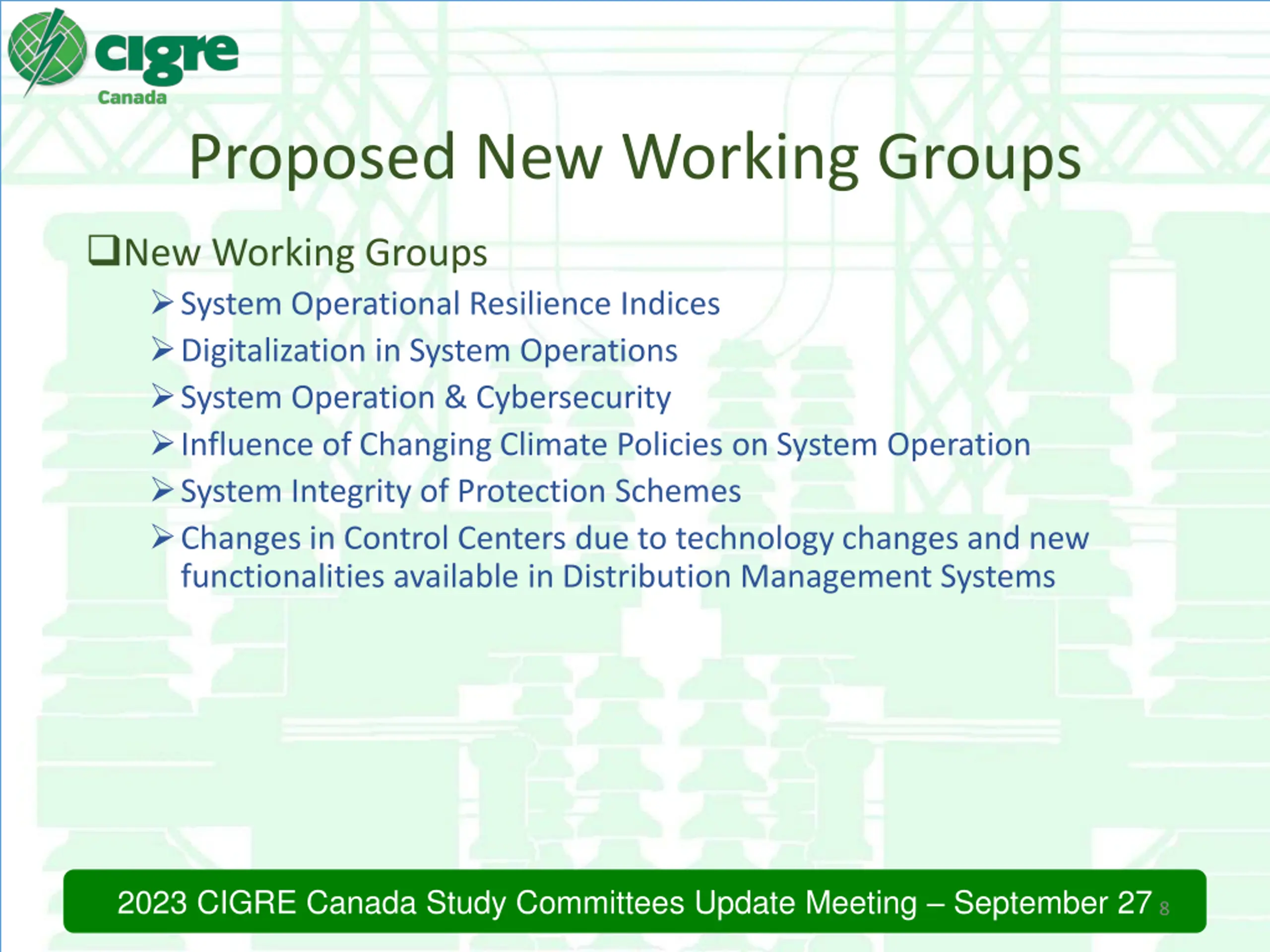

Proposed New Working Groups New Working Groups System Operational Resilience Indices Digitalization in System Operations System Operation & Cybersecurity Influence of Changing Climate Policies on System Operation System Integrity of Protection Schemes Changes in Control Centers due to technology changes and new functionalities available in Distribution Management Systems 2023 CIGRE Canada Study Committees Update Meeting September 27 8

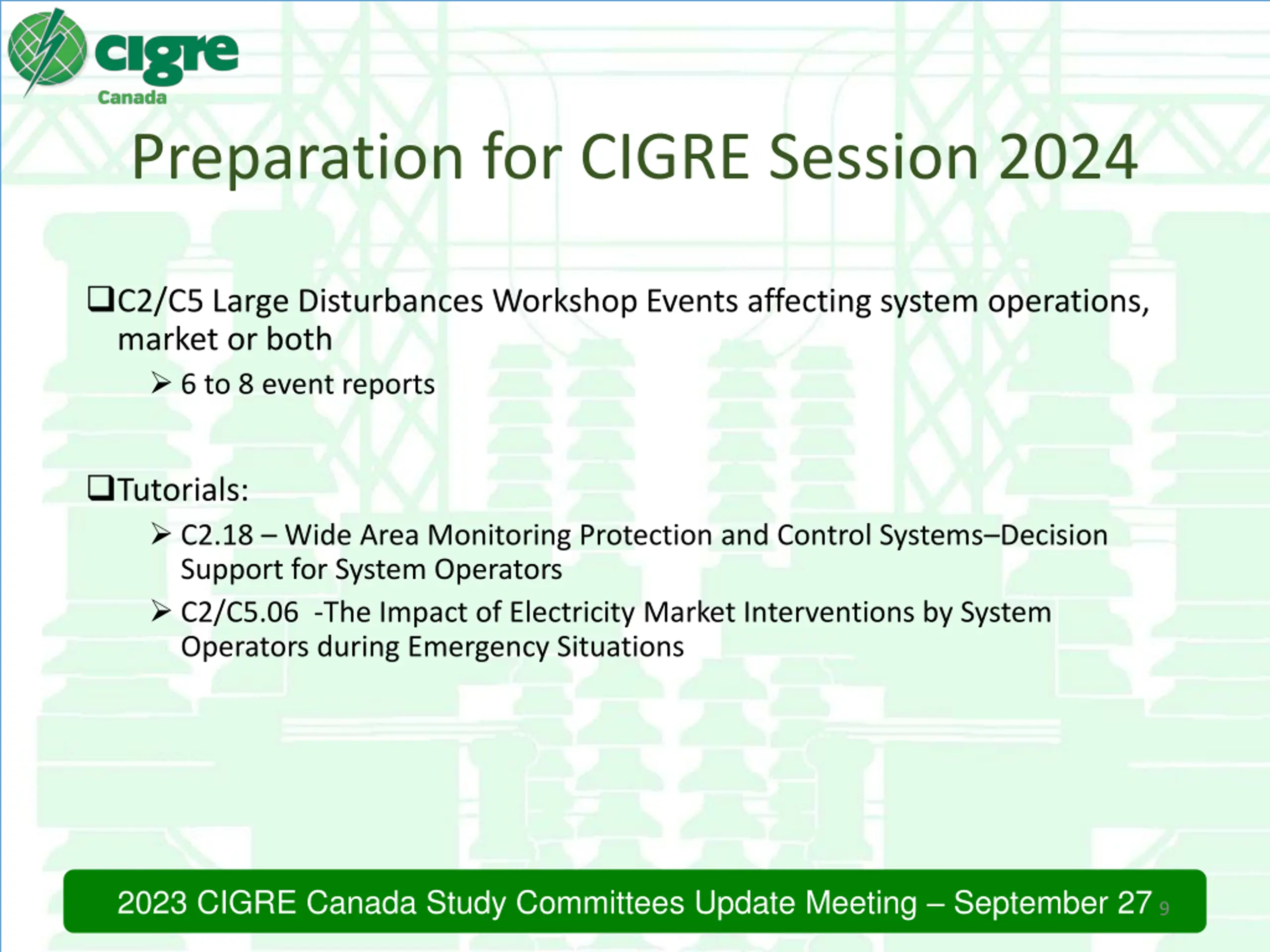

Preparation for CIGRE Session 2024 C2/C5 Large Disturbances Workshop Events affecting system operations, market or both 6 to 8 event reports Tutorials: C2.18 Wide Area Monitoring Protection and Control Systems Decision Support for System Operators C2/C5.06 -The Impact of Electricity Market Interventions by System Operators during Emergency Situations 2023 CIGRE Canada Study Committees Update Meeting September 27 9

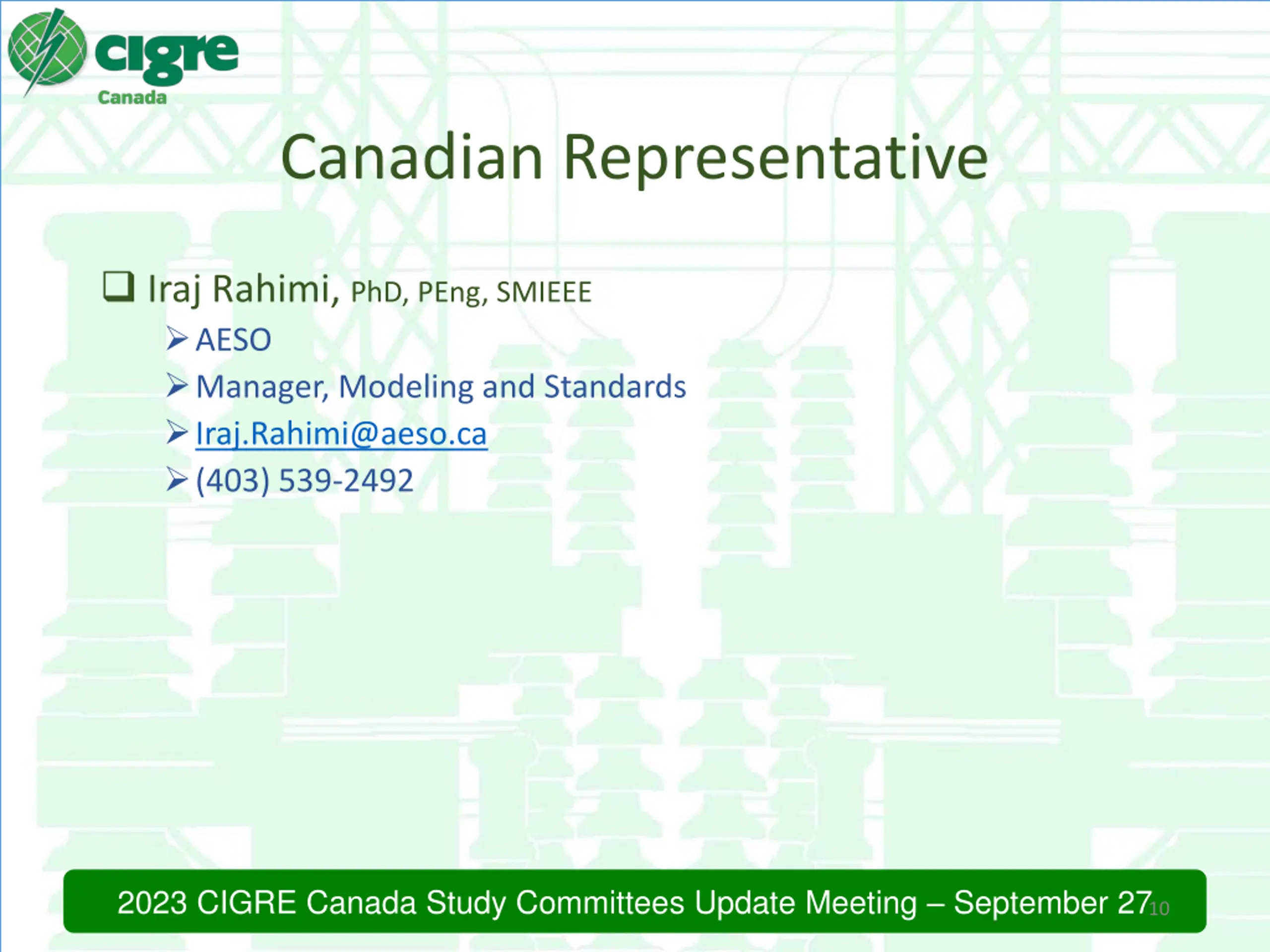

Canadian Representative Iraj Rahimi, PhD, PEng, SMIEEE AESO Manager, Modeling and Standards Iraj.Rahimi@aeso.ca (403) 539-2492 2023 CIGRE Canada Study Committees Update Meeting September 27 10
