Presentation Transcript
Cardiac Cycle PROF H S Rai Rhilkhand Ayuvedic medical college Bareilly

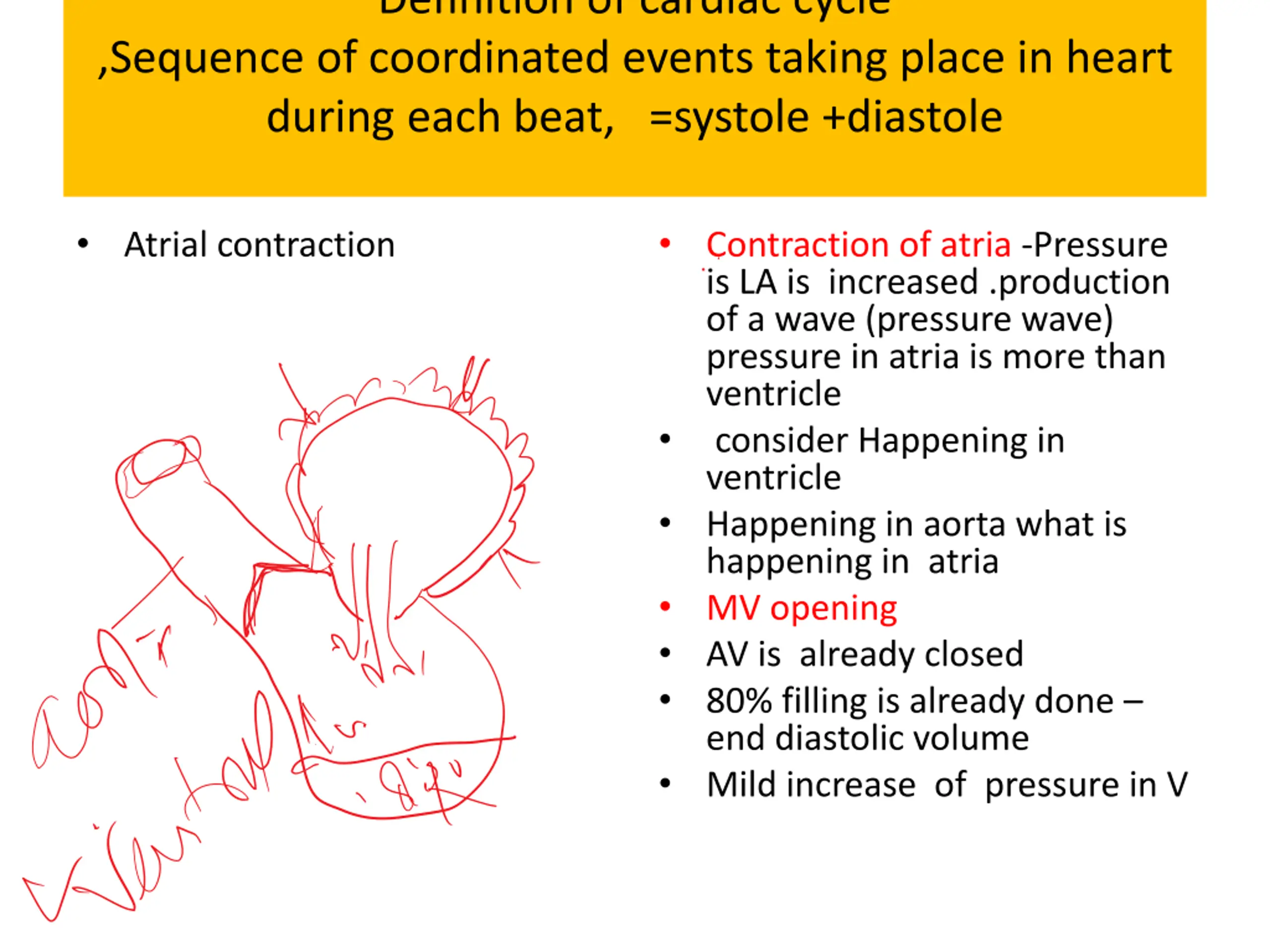

Definition of cardiac cycle ,Sequence of coordinated events taking place in heart during each beat, =systole +diastole Atrial contraction Contraction of atria -Pressure is LA is increased .production of a wave (pressure wave) pressure in atria is more than ventricle consider Happening in ventricle Happening in aorta what is happening in atria MV opening AV is already closed 80% filling is already done end diastolic volume Mild increase of pressure in V

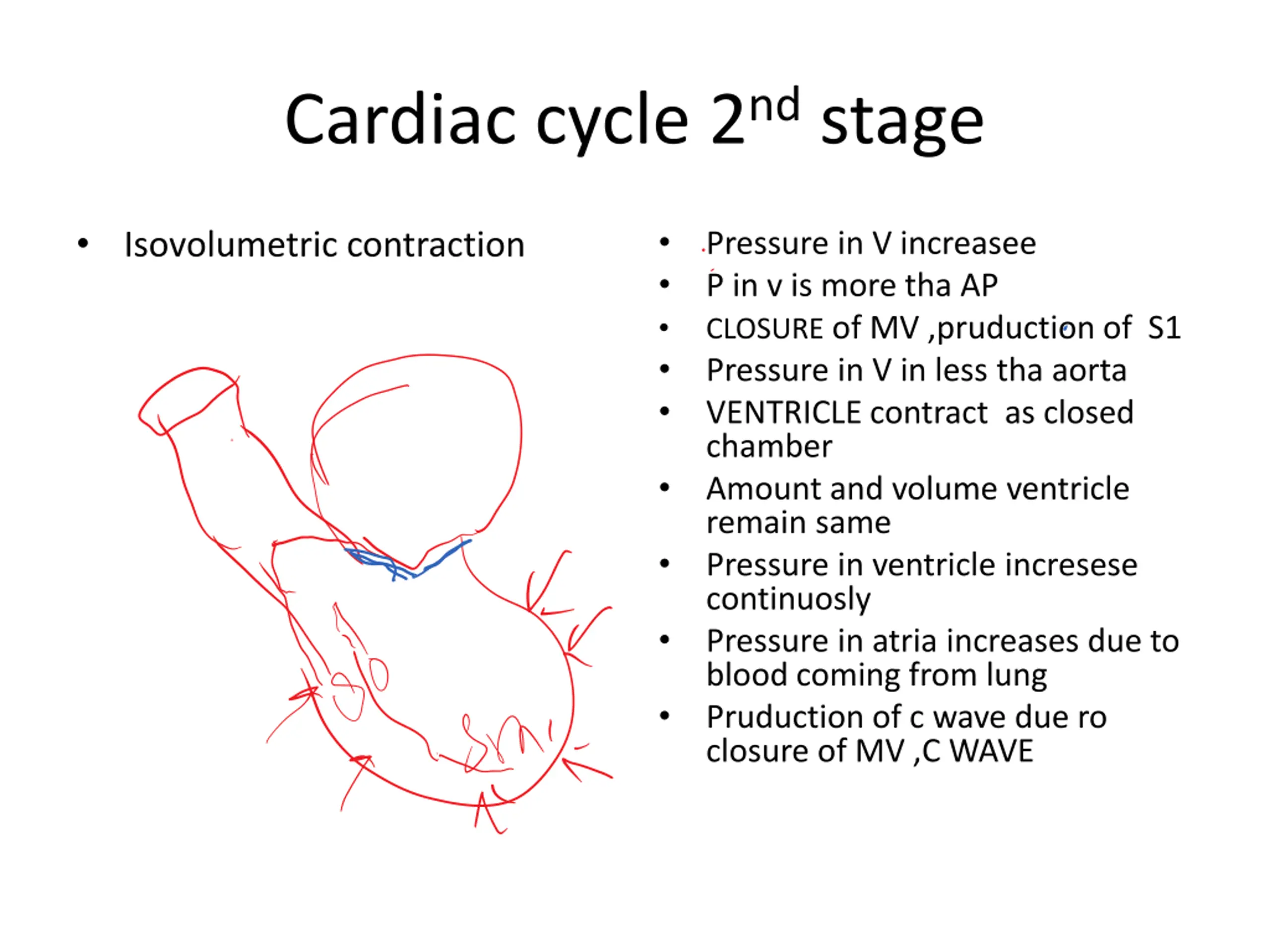

Cardiac cycle 2ndstage Isovolumetric contraction Pressure in V increasee P in v is more tha AP CLOSURE of MV ,pruduction of S1 Pressure in V in less tha aorta VENTRICLE contract as closed chamber Amount and volume ventricle remain same Pressure in ventricle incresese continuosly Pressure in atria increases due to blood coming from lung Pruduction of c wave due ro closure of MV ,C WAVE

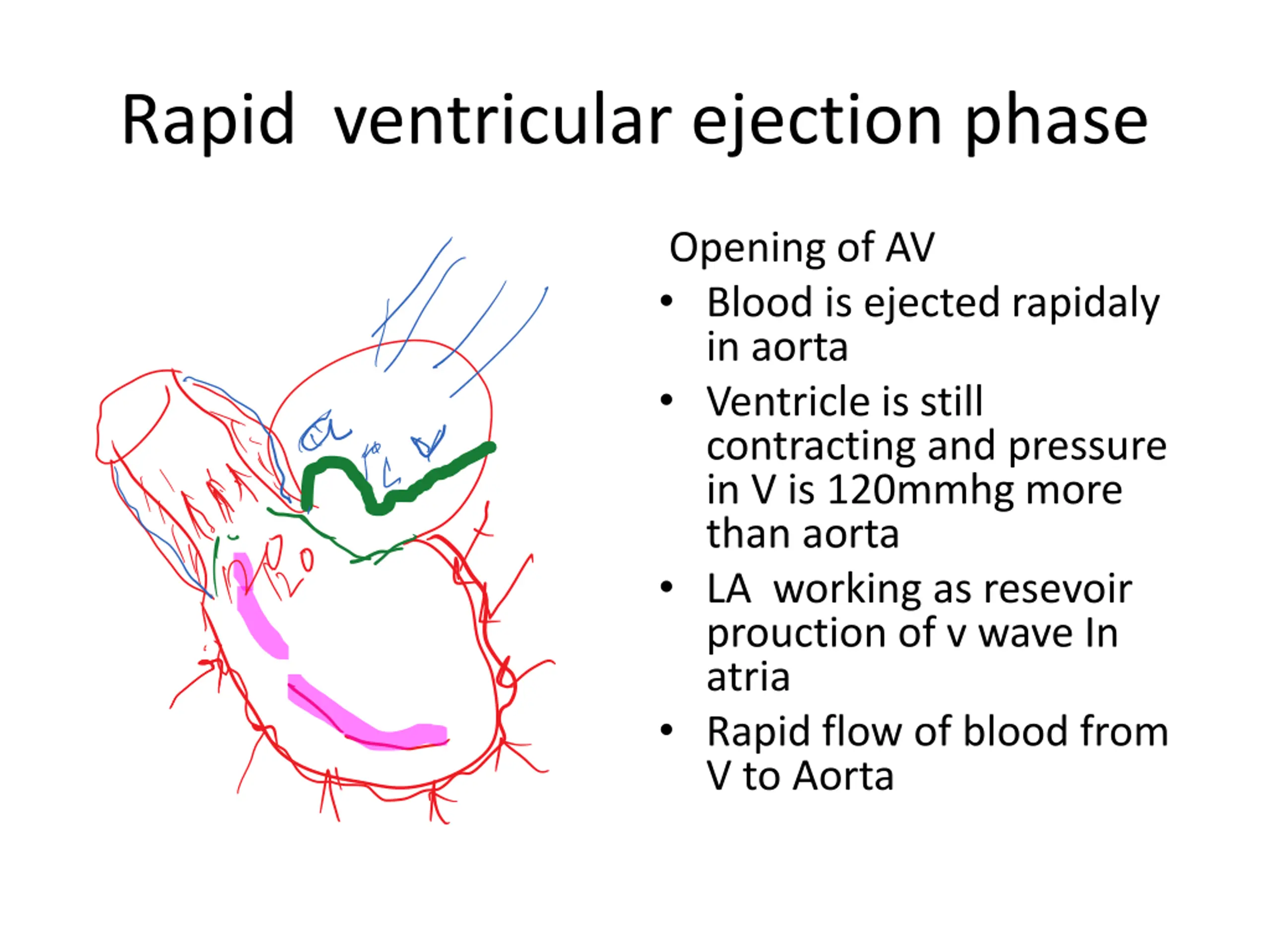

Rapid ventricular ejection phase Opening of AV Blood is ejected rapidaly in aorta Ventricle is still contracting and pressure in V is 120mmhg more than aorta LA working as resevoir prouction of v wave In atria Rapid flow of blood from V to Aorta

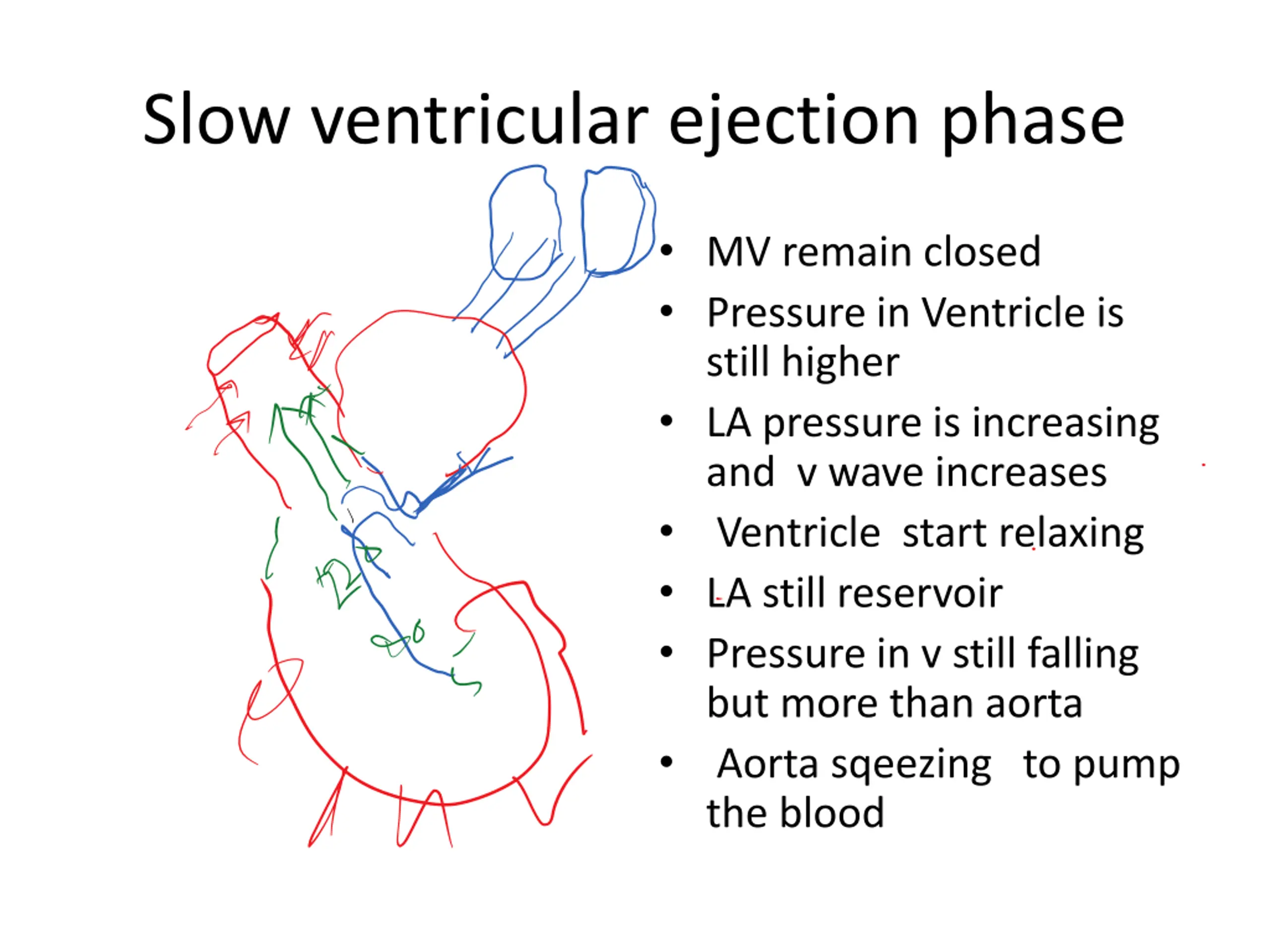

Slow ventricular ejection phase MV remain closed Pressure in Ventricle is still higher LA pressure is increasing and v wave increases Ventricle start relaxing LA still reservoir Pressure in v still falling but more than aorta Aorta sqeezing to pump the blood

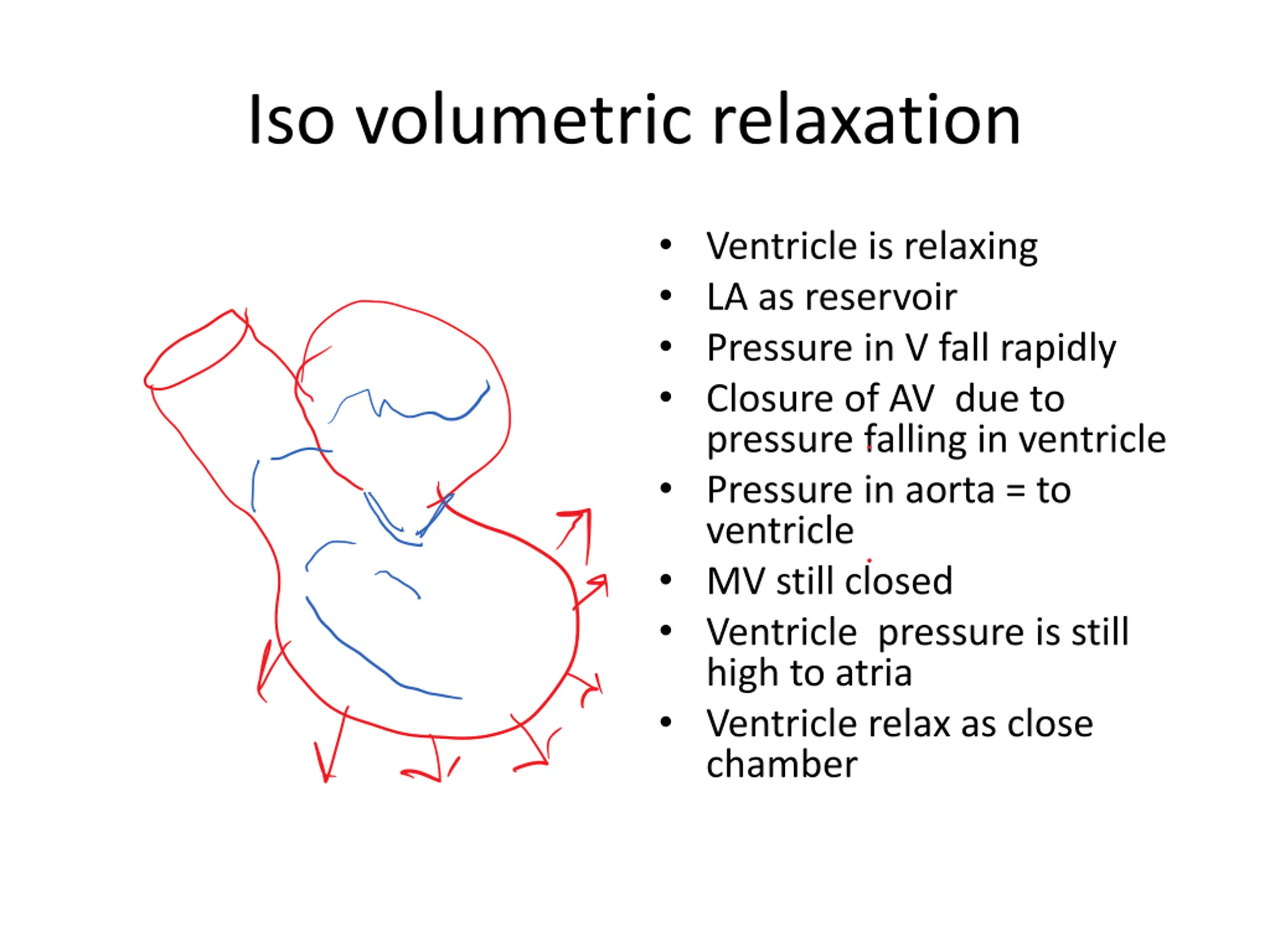

Iso volumetric relaxation Ventricle is relaxing LA as reservoir Pressure in V fall rapidly Closure of AV due to pressure falling in ventricle Pressure in aorta = to ventricle MV still closed Ventricle pressure is still high to atria Ventricle relax as close chamber

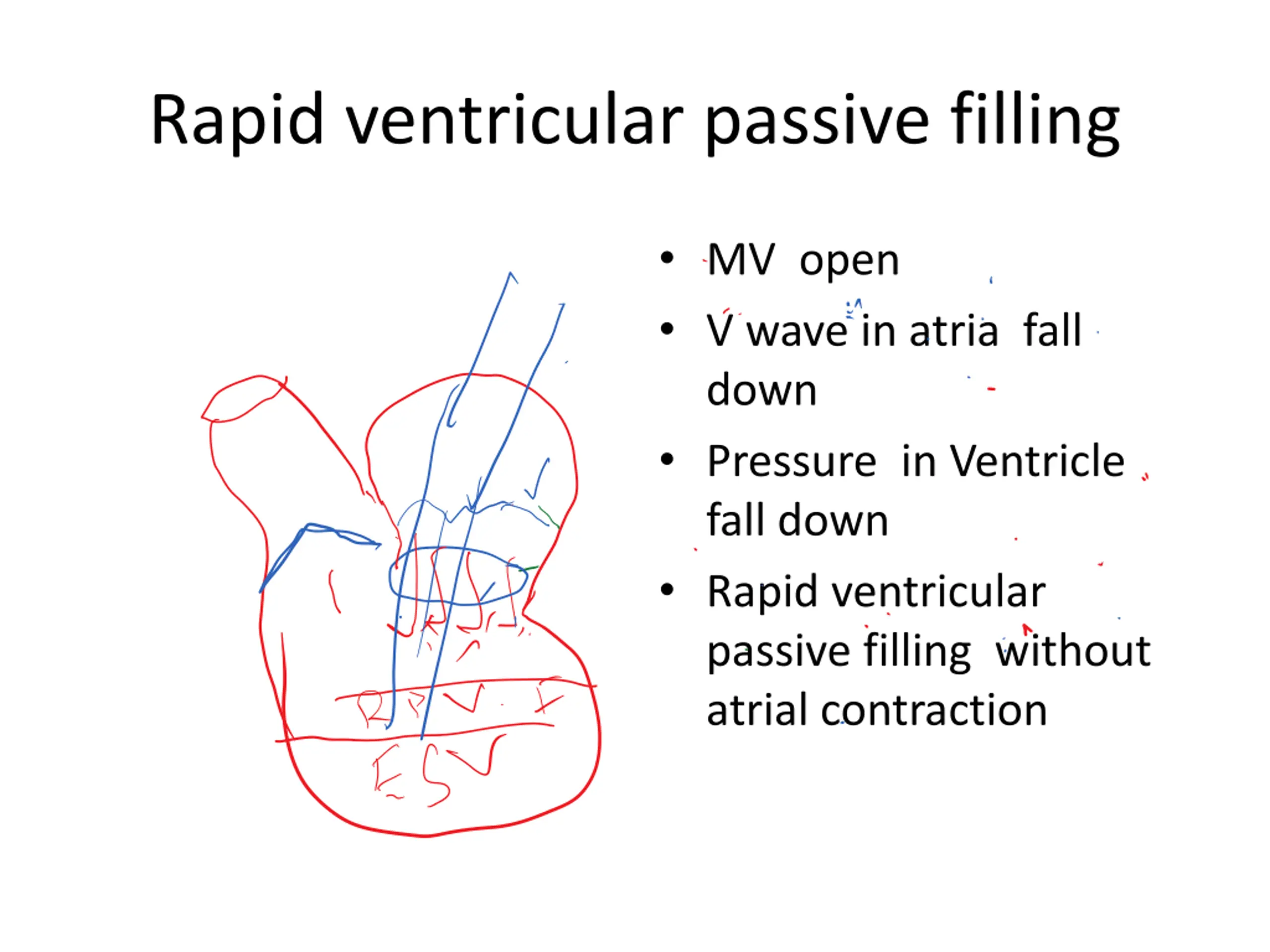

Rapid ventricular passive filling MV open V wave in atria fall down Pressure in Ventricle fall down Rapid ventricular passive filling without atrial contraction

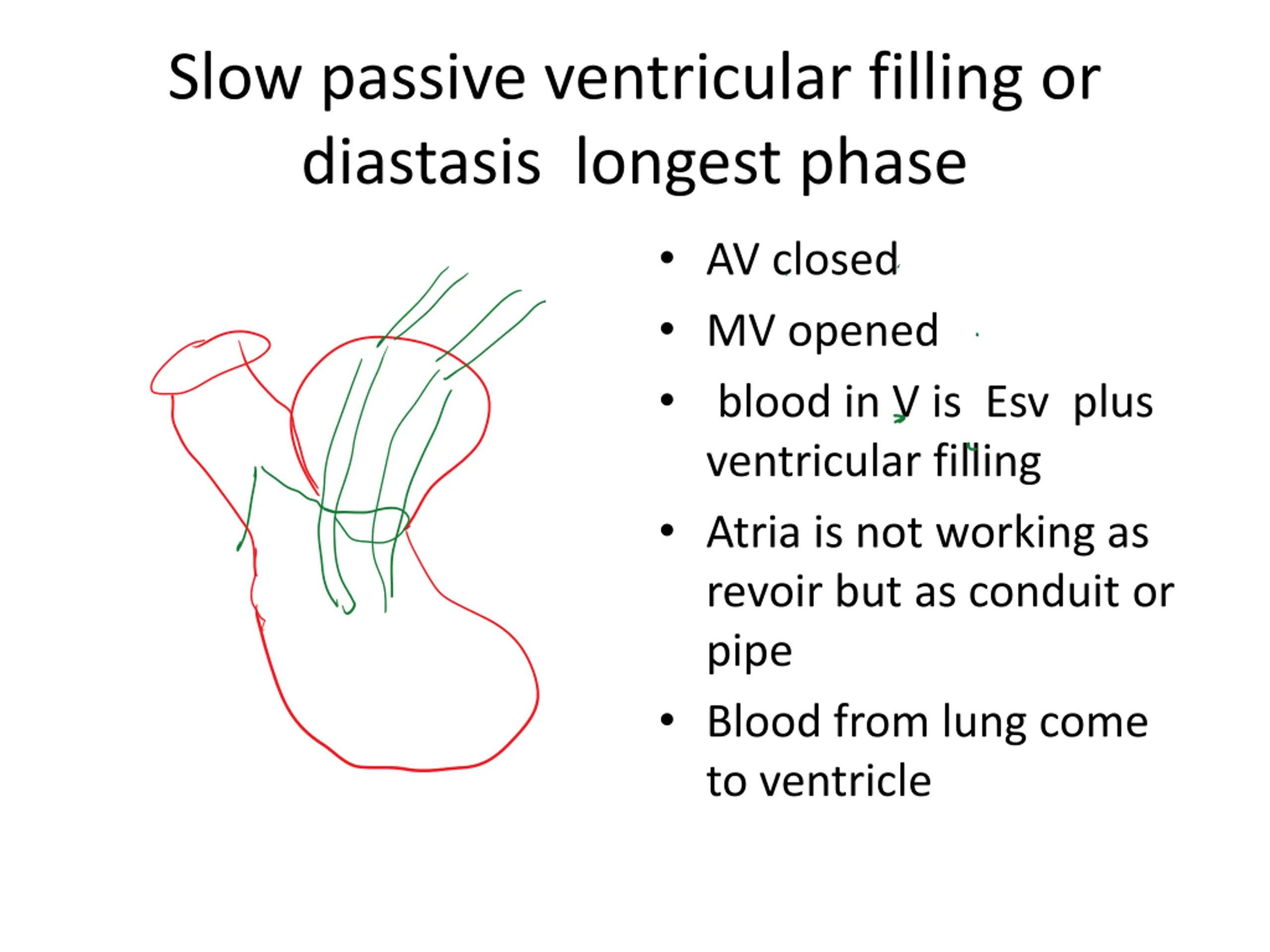

Slow passive ventricular filling or diastasis longest phase AV closed MV opened blood in V is Esv plus ventricular filling Atria is not working as revoir but as conduit or pipe Blood from lung come to ventricle

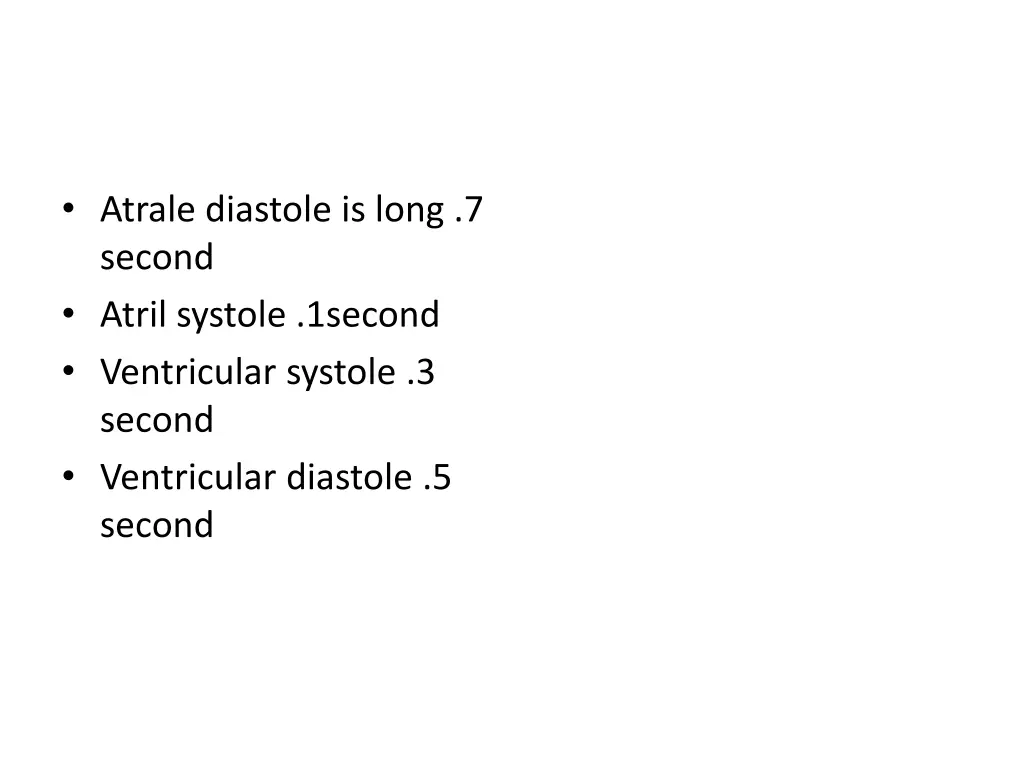

Atrale diastole is long .7 second Atril systole .1second Ventricular systole .3 second Ventricular diastole .5 second
