CBM-MUCH Readout ASIC: Prototype Chamber Development and Testing Update
Explore the latest advancements in the development and testing of the CBM-MUCH prototype chamber at SPS-CERN, focusing on the GEM stations, readout ASIC, and future station considerations. Learn about the history and status of the 3rd and 4th stations, including challenges, options for readout electronics, and the Indian experience in RPC building. Follow the proposed timeline for RPC investigations and potential production/procurement plans. Stay informed about the cutting-edge developments in this field.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

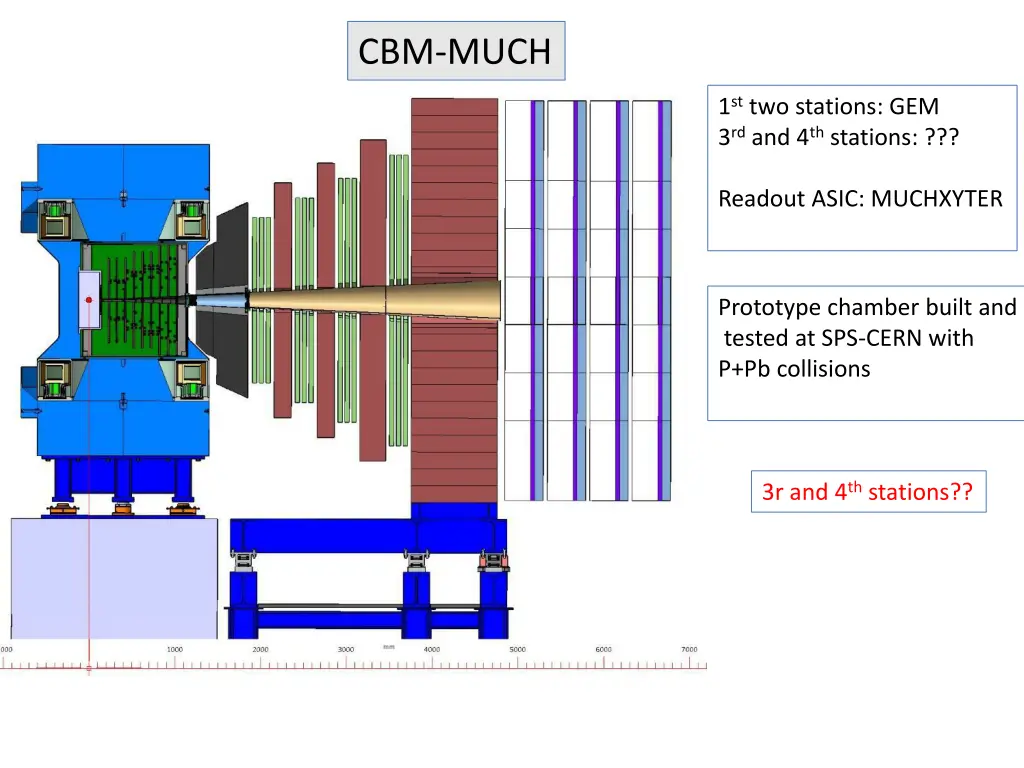

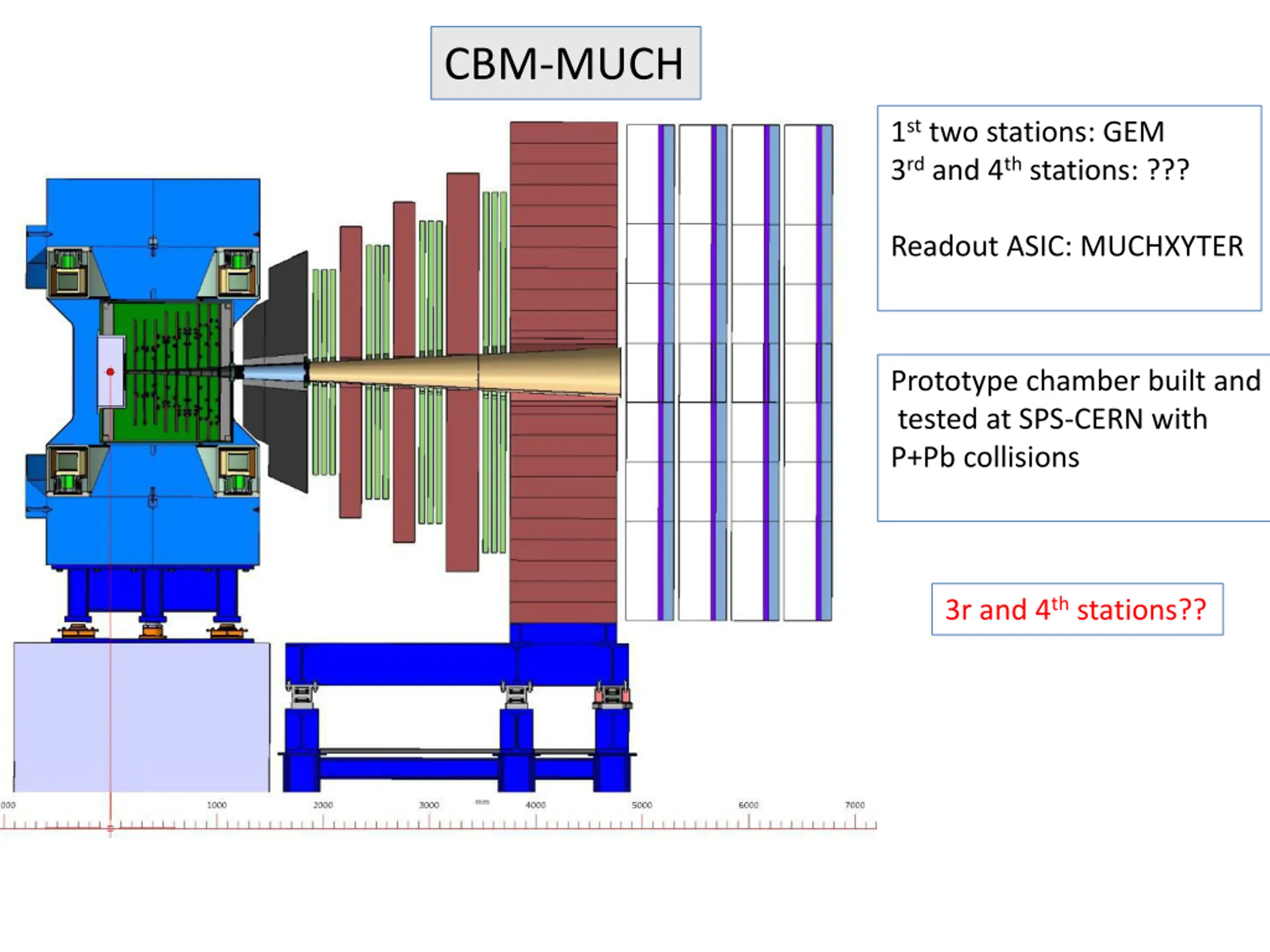

CBM-MUCH 1st two stations: GEM 3rd and 4th stations: ??? Readout ASIC: MUCHXYTER Prototype chamber built and tested at SPS-CERN with P+Pb collisions 3r and 4th stations??

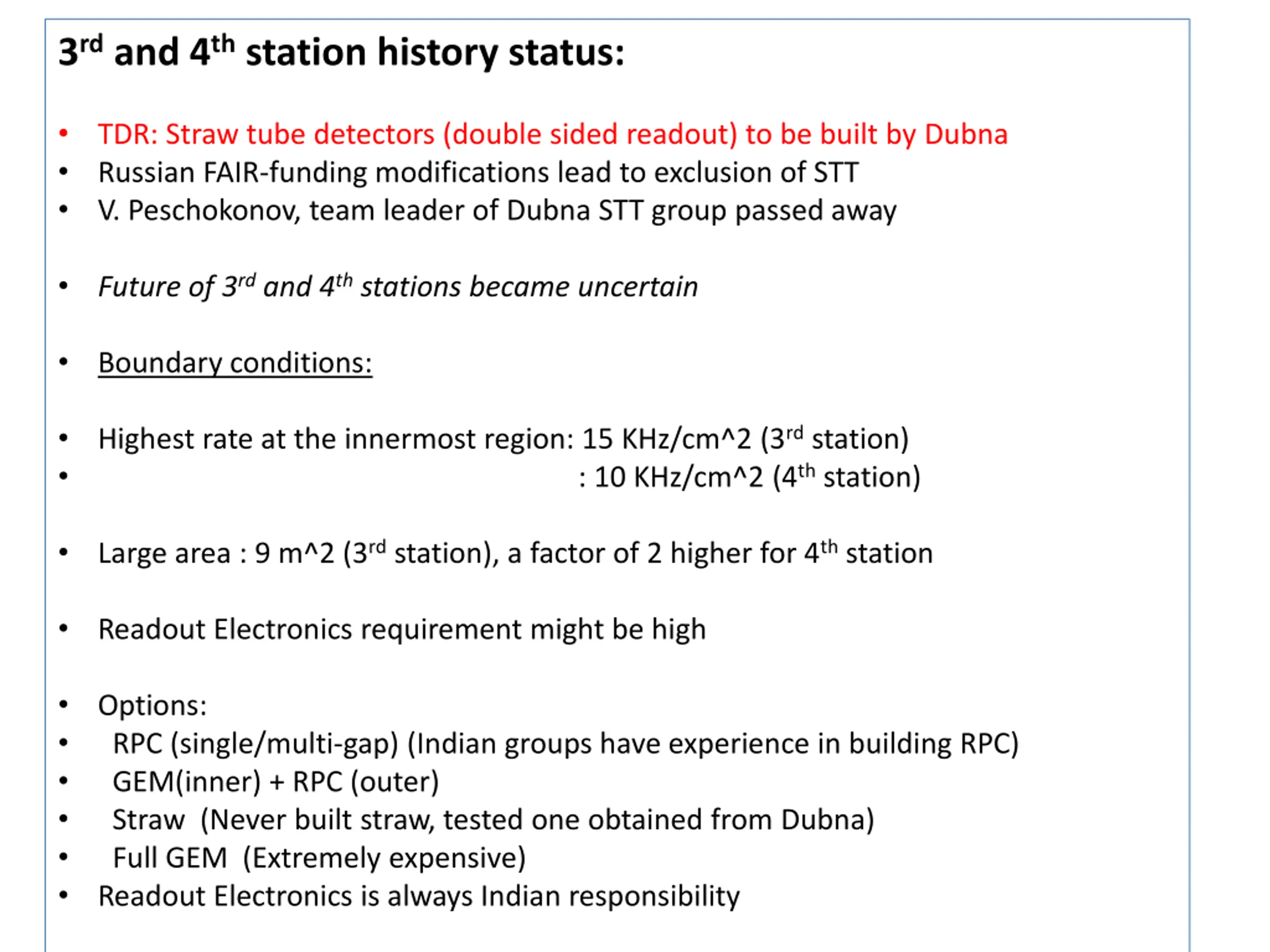

3rd and 4th station history status: TDR: Straw tube detectors (double sided readout) to be built by Dubna Russian FAIR-funding modifications lead to exclusion of STT V. Peschokonov, team leader of Dubna STT group passed away Future of 3rd and 4th stations became uncertain Boundary conditions: Highest rate at the innermost region: 15 KHz/cm^2 (3rd station) : 10 KHz/cm^2 (4th station) Large area : 9 m^2 (3rd station), a factor of 2 higher for 4th station Readout Electronics requirement might be high Options: RPC (single/multi-gap) (Indian groups have experience in building RPC) GEM(inner) + RPC (outer) Straw (Never built straw, tested one obtained from Dubna) Full GEM (Extremely expensive) Readout Electronics is always Indian responsibility

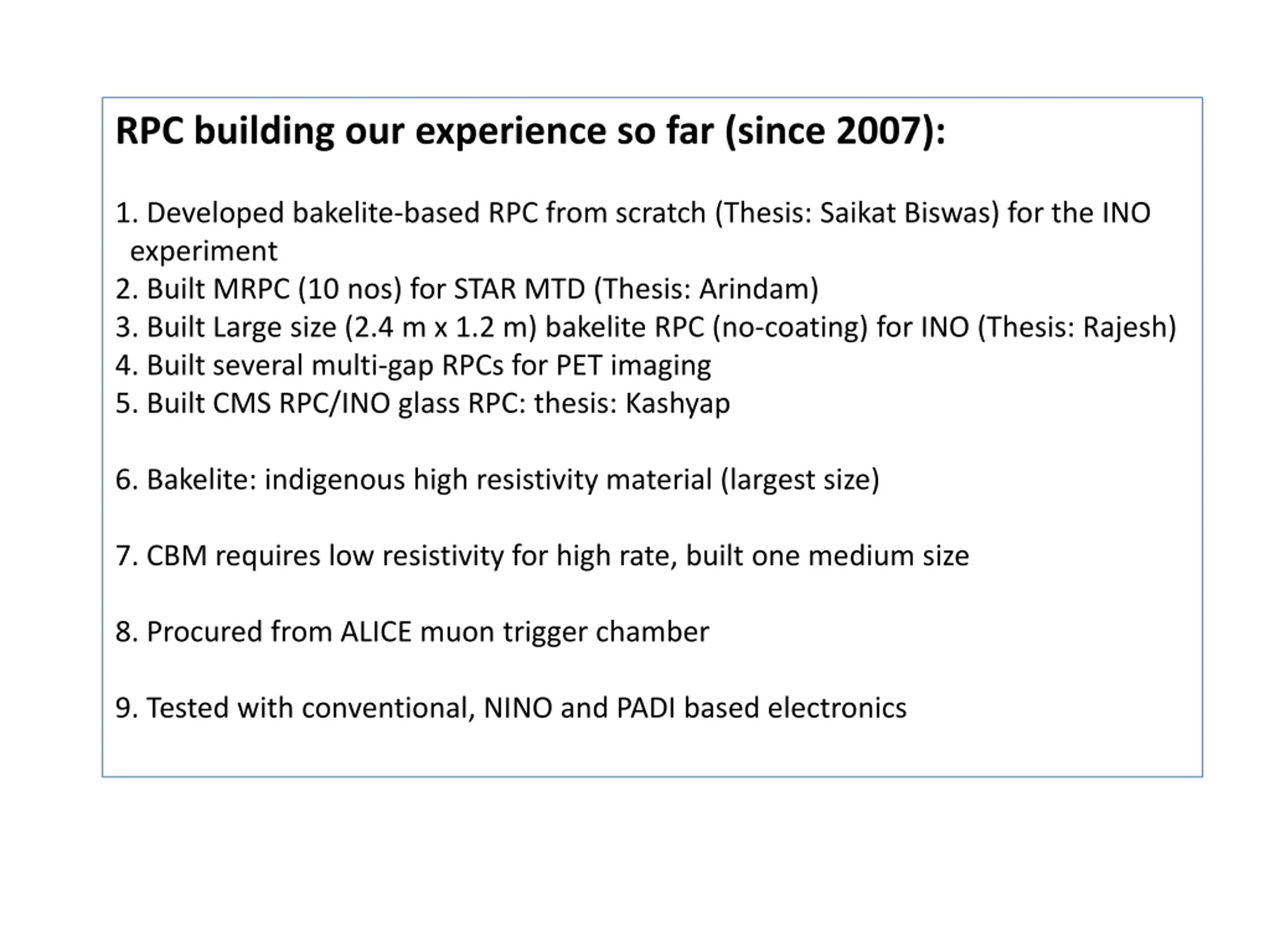

RPC building our experience so far (since 2007): 1. Developed bakelite-based RPC from scratch (Thesis: Saikat Biswas) for the INO experiment 2. Built MRPC (10 nos) for STAR MTD (Thesis: Arindam) 3. Built Large size (2.4 m x 1.2 m) bakelite RPC (no-coating) for INO (Thesis: Rajesh) 4. Built several multi-gap RPCs for PET imaging 5. Built CMS RPC/INO glass RPC: thesis: Kashyap 6. Bakelite: indigenous high resistivity material (largest size) 7. CBM requires low resistivity for high rate, built one medium size 8. Procured from ALICE muon trigger chamber 9. Tested with conventional, NINO and PADI based electronics

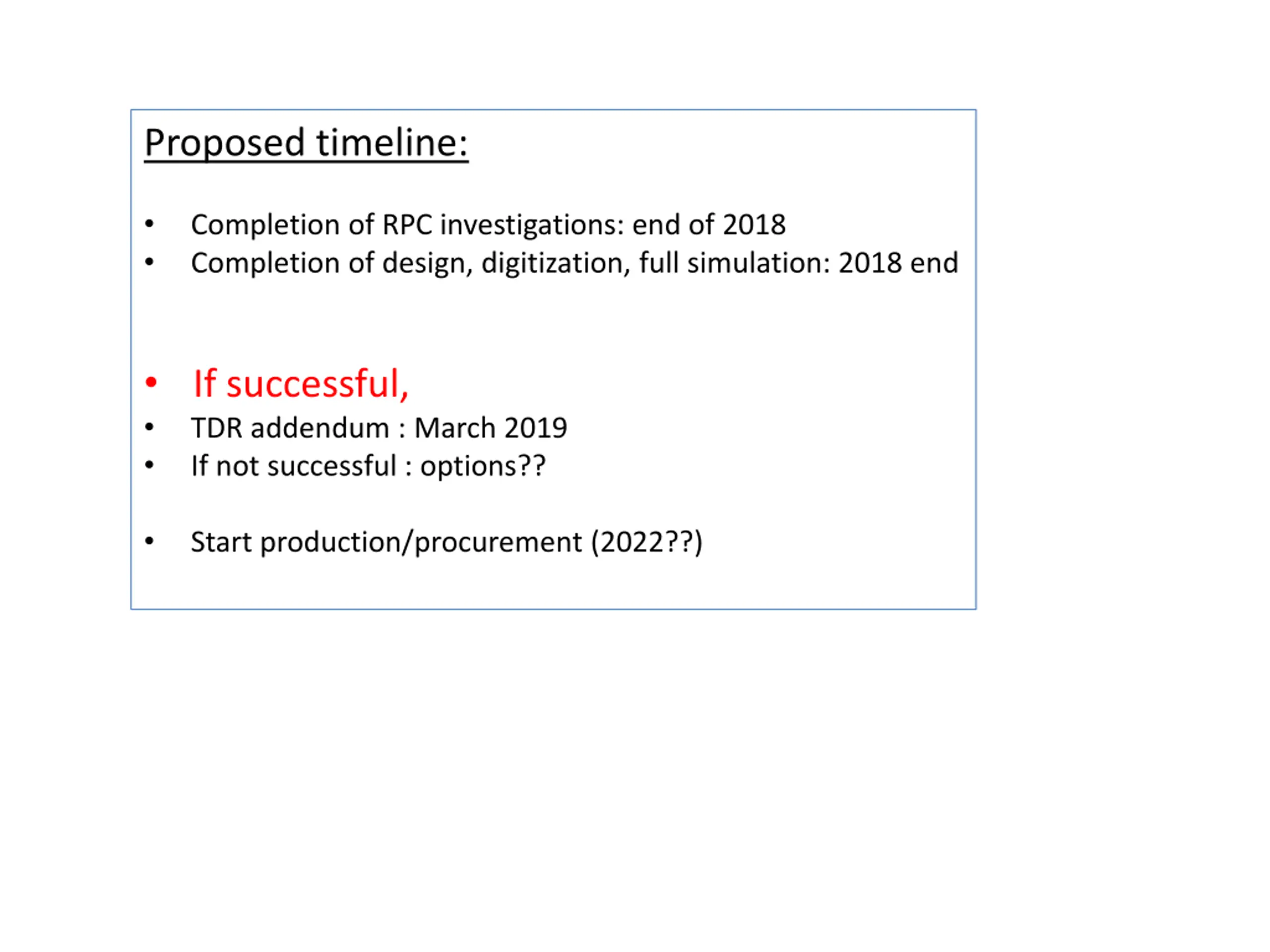

Proposed timeline: Completion of RPC investigations: end of 2018 Completion of design, digitization, full simulation: 2018 end If successful, TDR addendum : March 2019 If not successful : options?? Start production/procurement (2022??)
