Charge Reconstruction and Resolution Analysis
Explore the charge reconstruction process and resolution analysis in different sections of an experimental setup, comparing methods for improved accuracy. Discover how the new method offers superior charge resolution over existing techniques.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

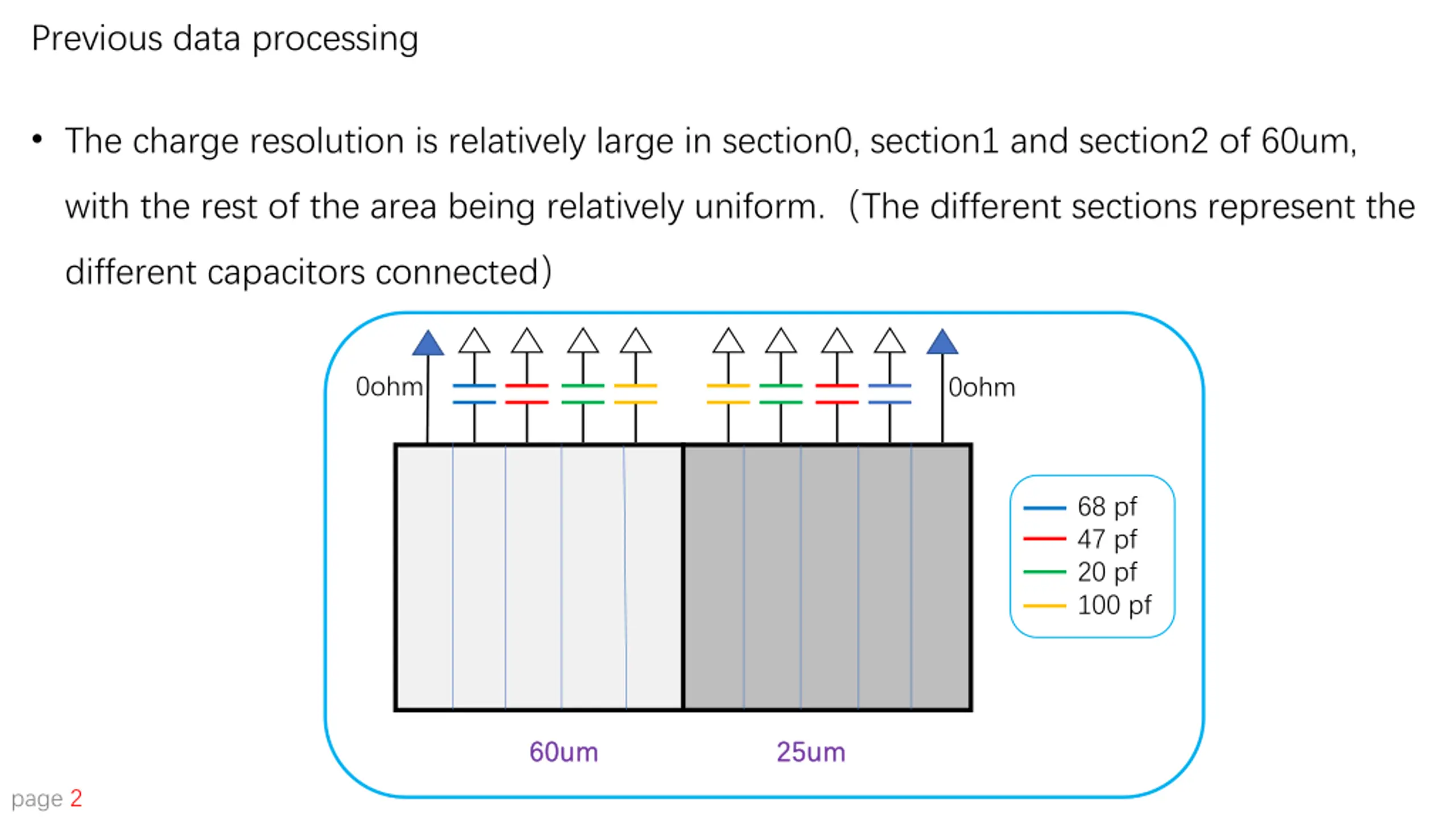

Previous data processing The charge resolution is relatively large in section0, section1 and section2 of 60um, with the rest of the area being relatively uniform. The different sections represent the different capacitors connected 0ohm 0ohm 68 pf 47 pf 20 pf 100 pf 60um 60um 25um 25um page 2

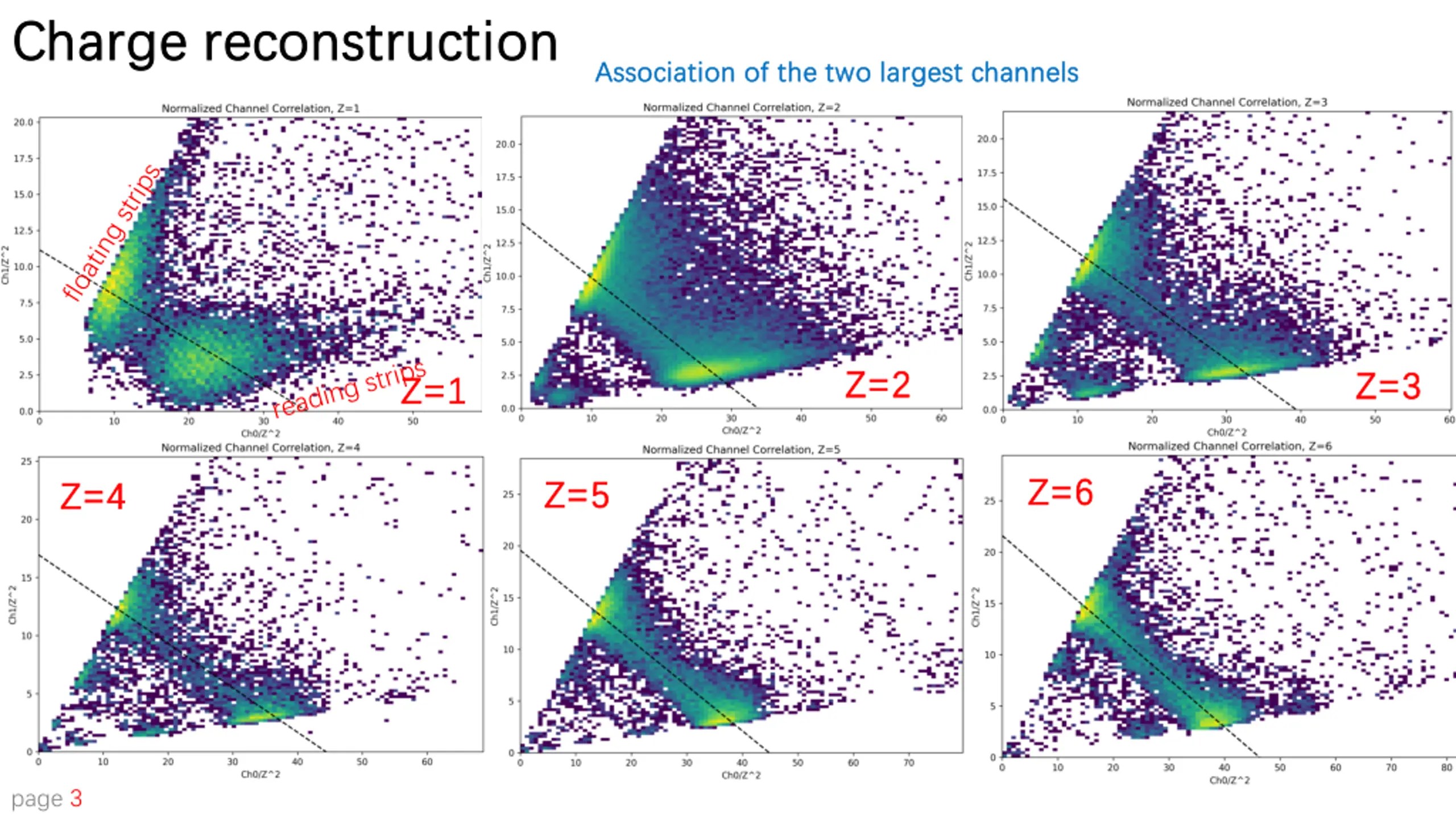

Charge reconstruction Charge reconstruction Association of the two largest channels Association of the two largest channels Z=2 Z=2 Z=3 Z=3 Z=1 Z=1 Z=6 Z=6 Z=5 Z=5 Z=4 Z=4 page 3

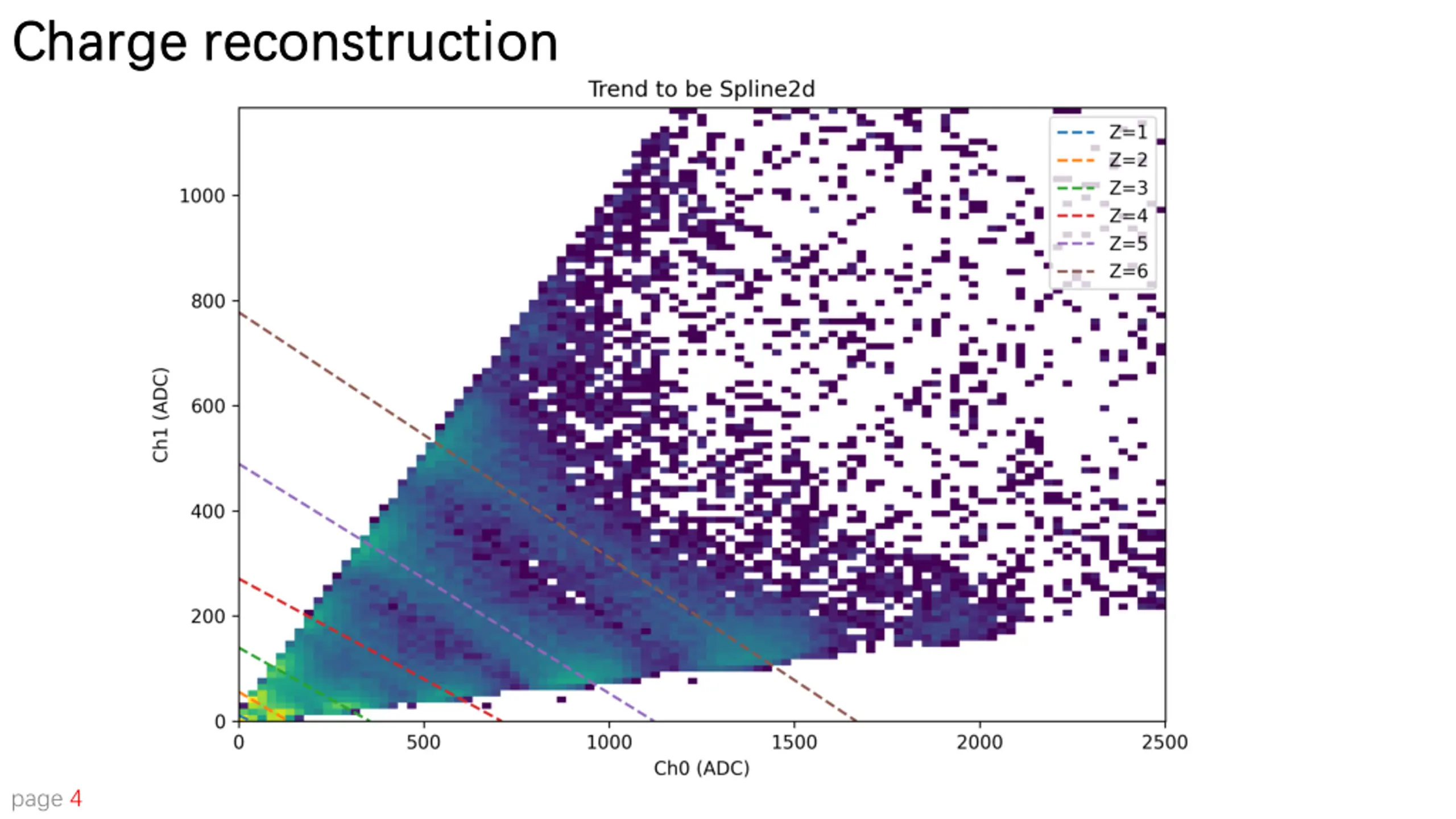

Charge reconstruction Charge reconstruction page 4

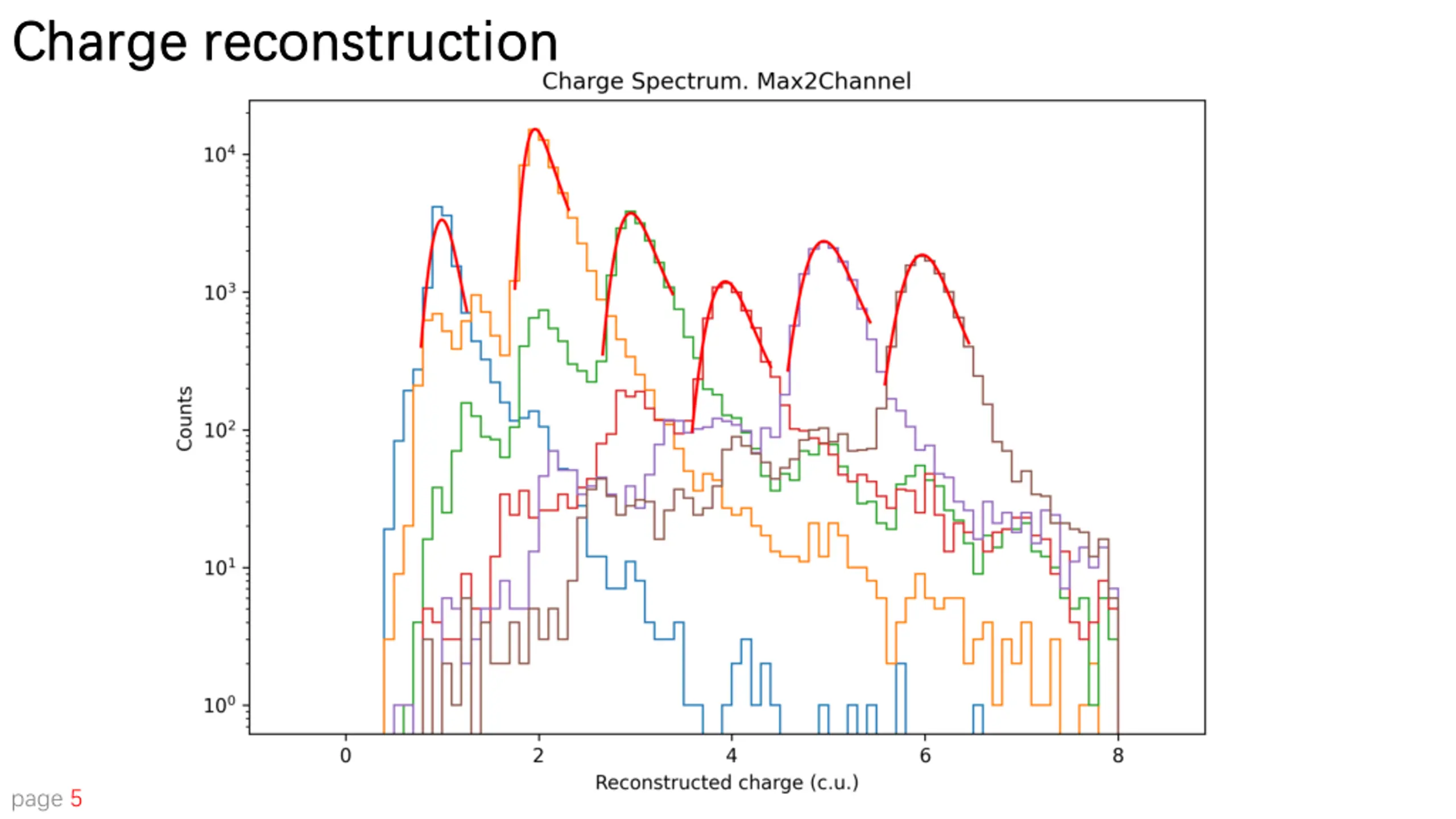

Charge reconstruction Charge reconstruction page 5

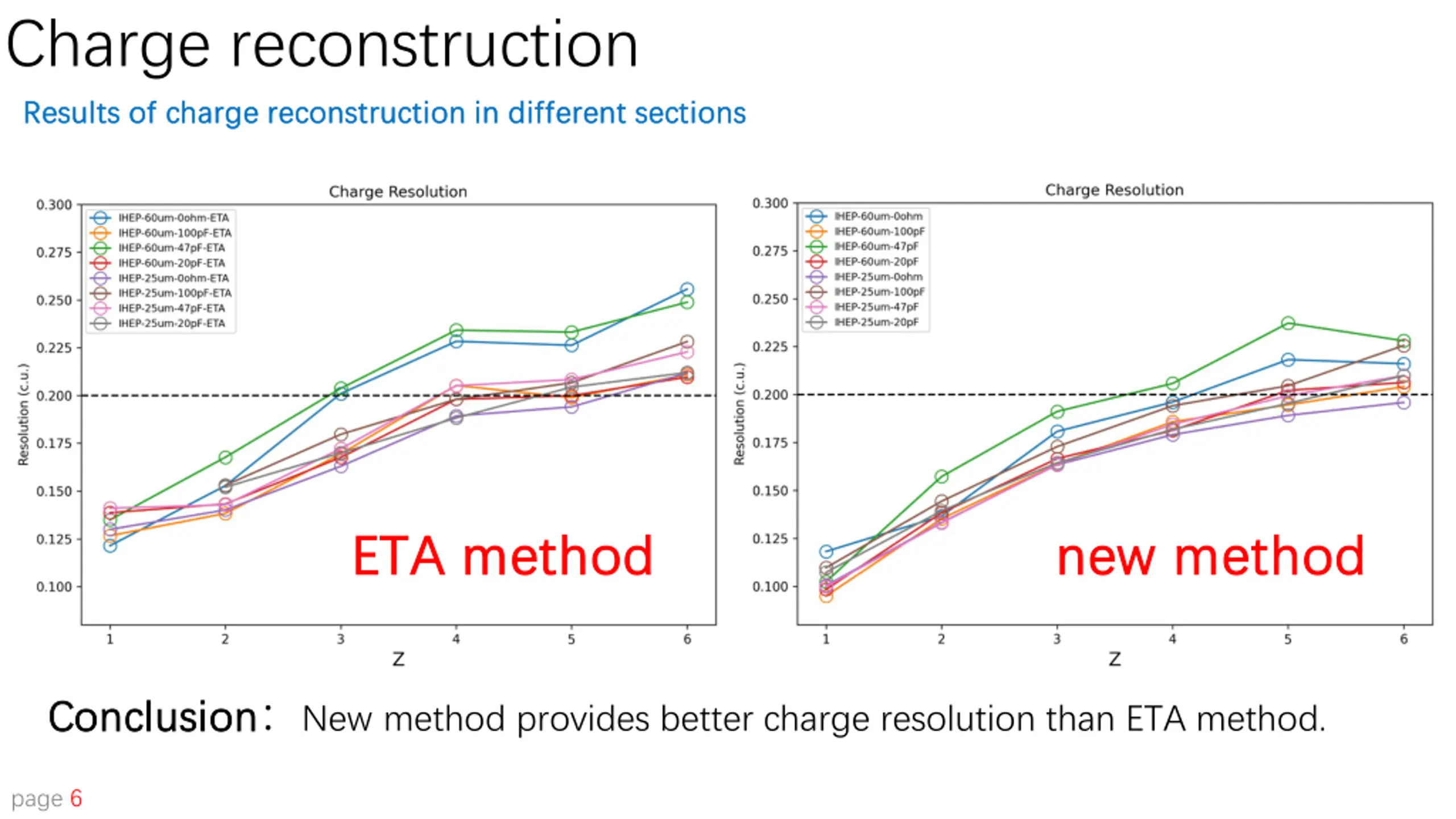

Charge reconstruction Results of charge reconstruction in different sections Results of charge reconstruction in different sections ETA method ETA method new method new method Conclusion Conclusion New method provides better charge resolution than ETA method. page 6
