1. 6-1, 6-2 Classifying Quads, Properties of parallelograms

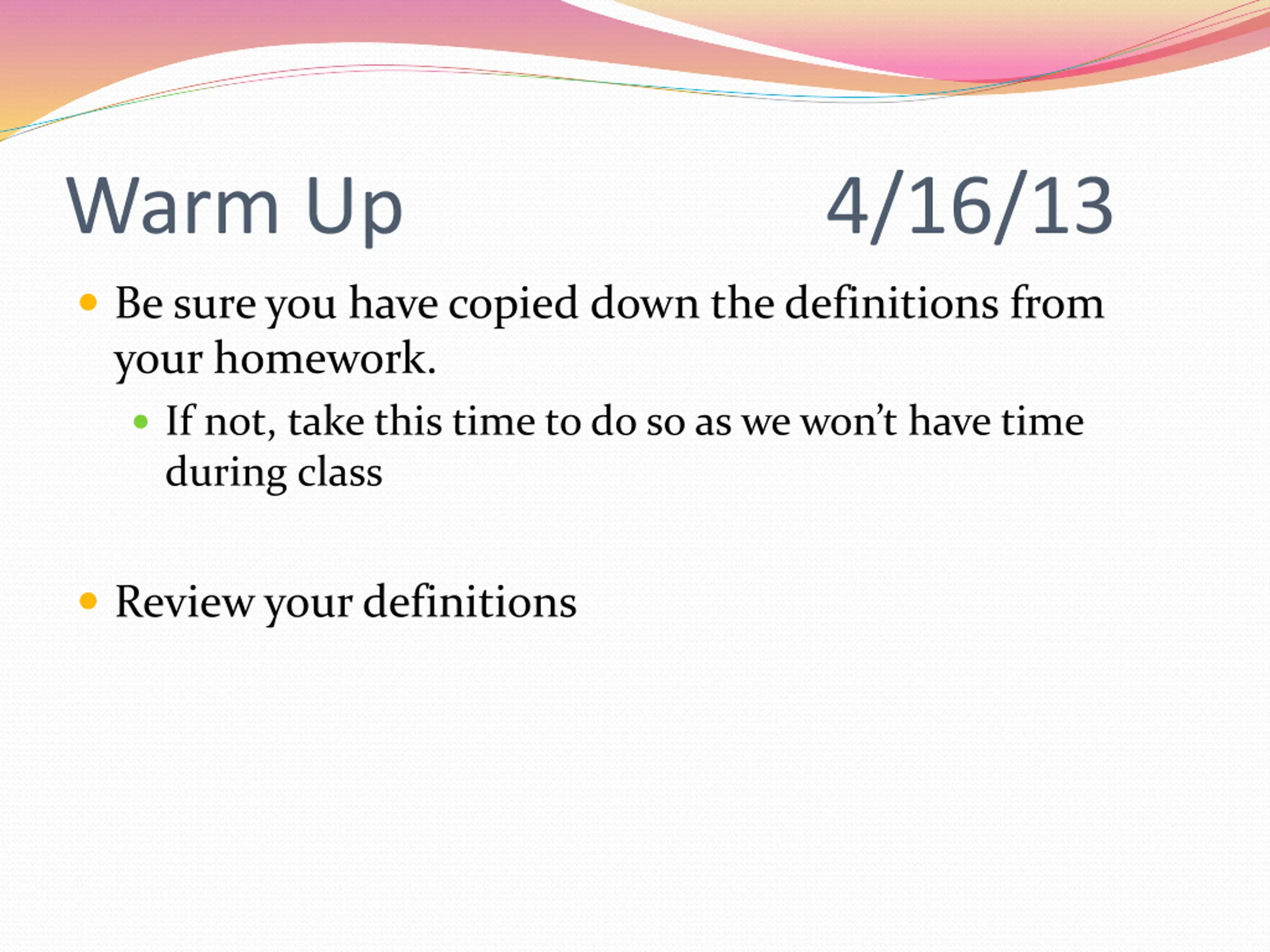

2. Warm Up 4/16/13 Be sure you have copied down the definitions from your homework. If not, take this time to do so as we won t have time during class Review your definitions

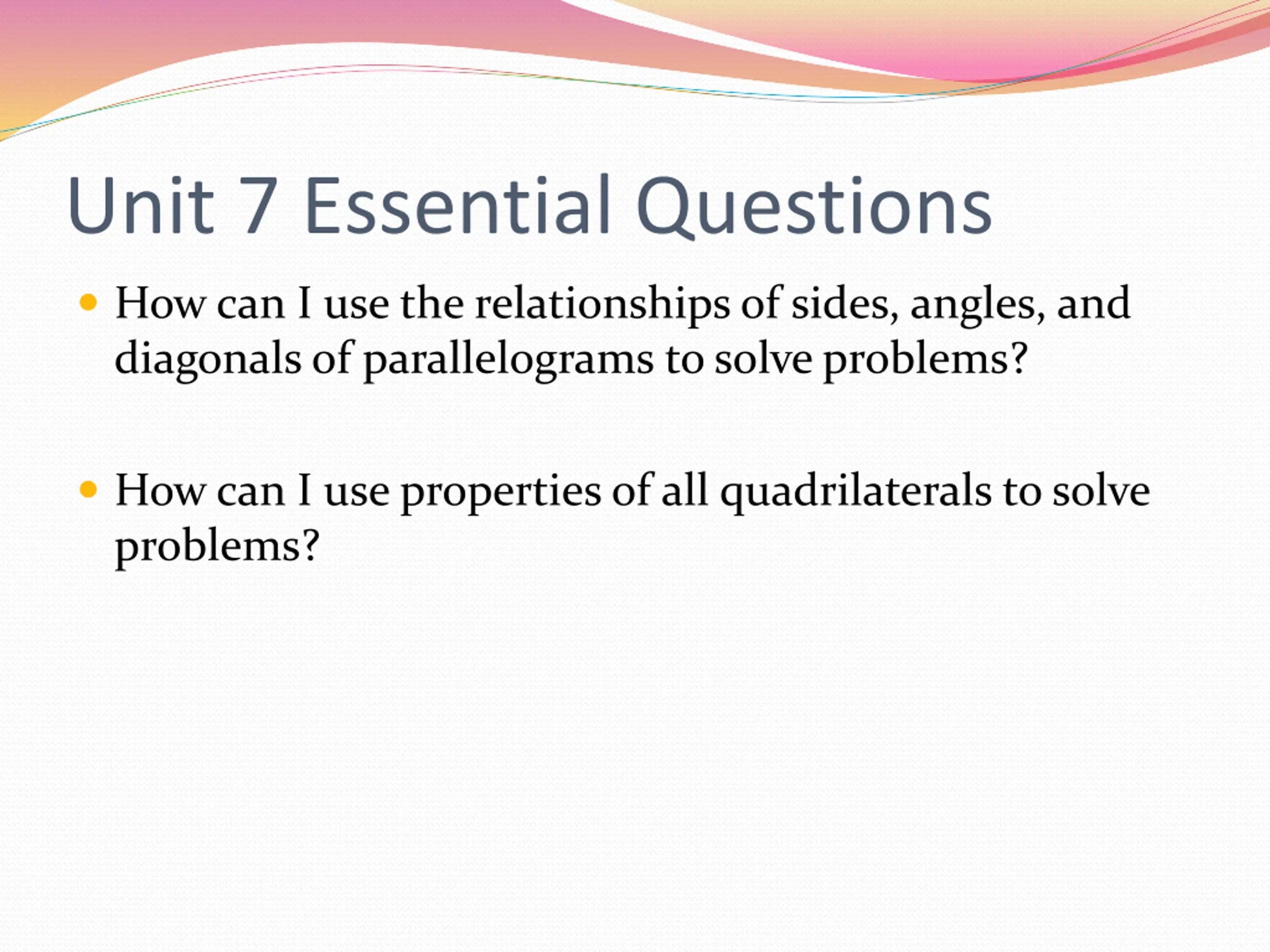

3. Unit 7 Essential Questions How can I use the relationships of sides, angles, and diagonals of parallelograms to solve problems? How can I use properties of all quadrilaterals to solve problems?

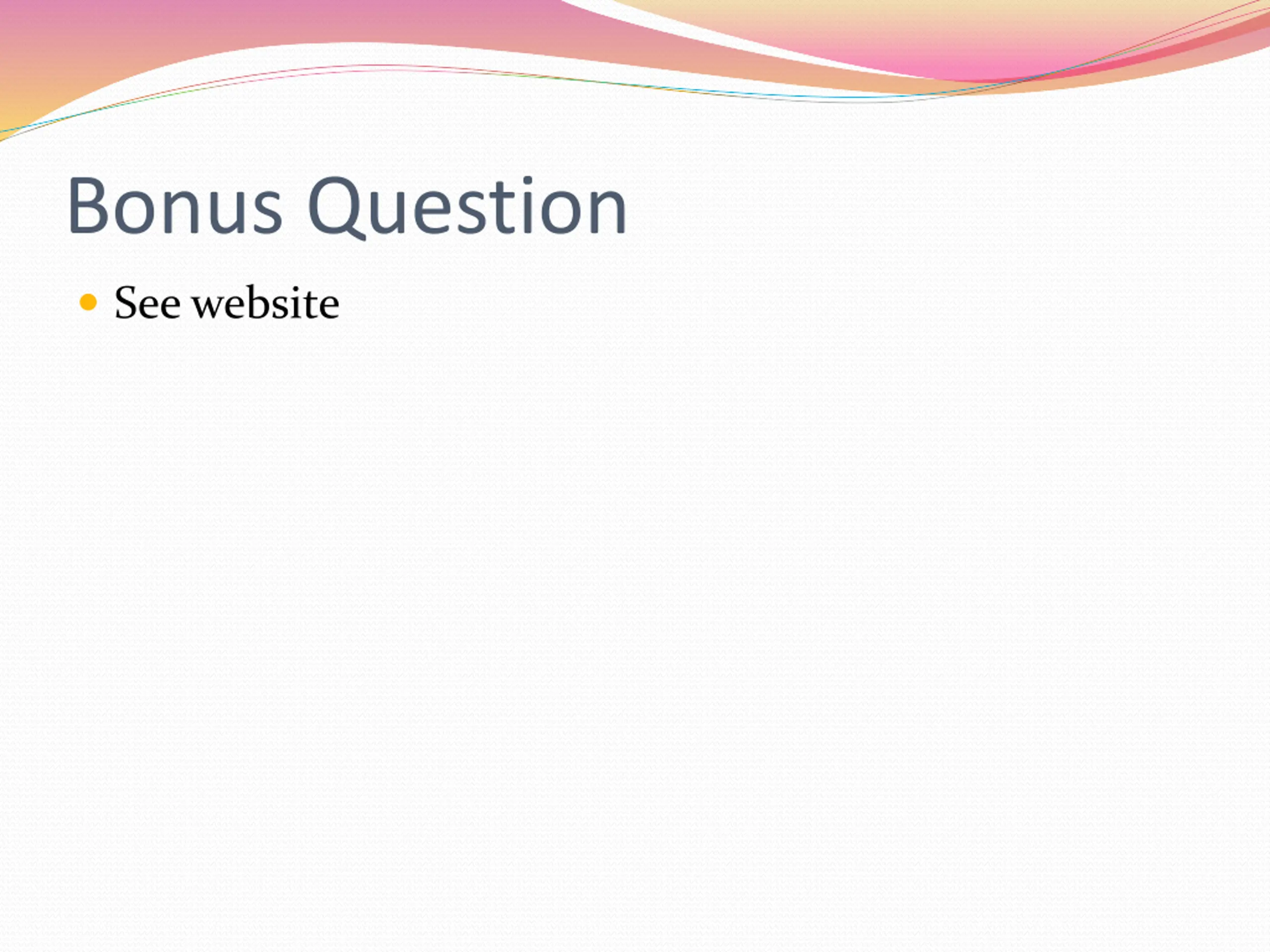

4. Bonus Question See website

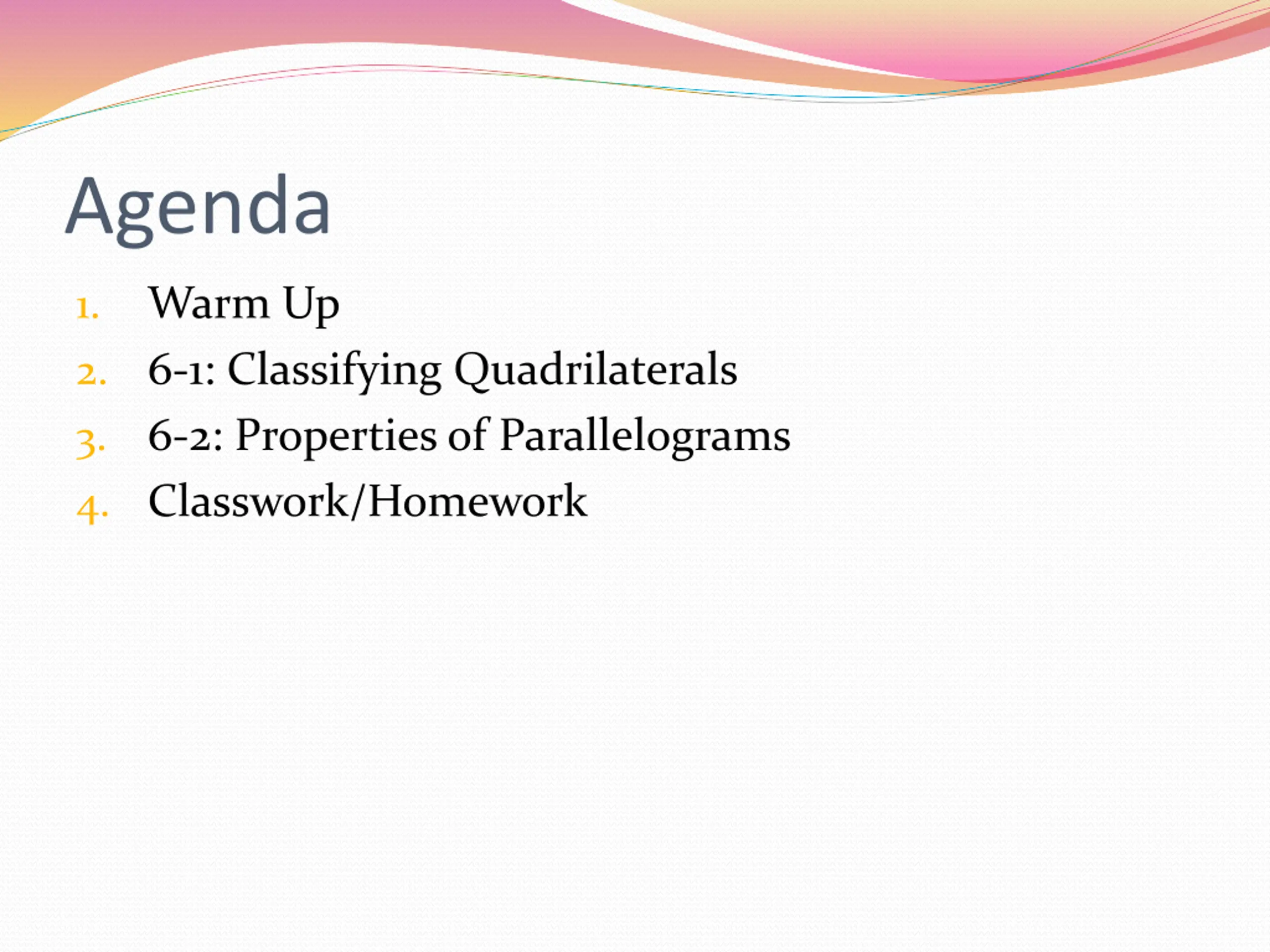

5. Agenda Warm Up 1. 2. 6-1: Classifying Quadrilaterals 3. 6-2: Properties of Parallelograms 4. Classwork/Homework

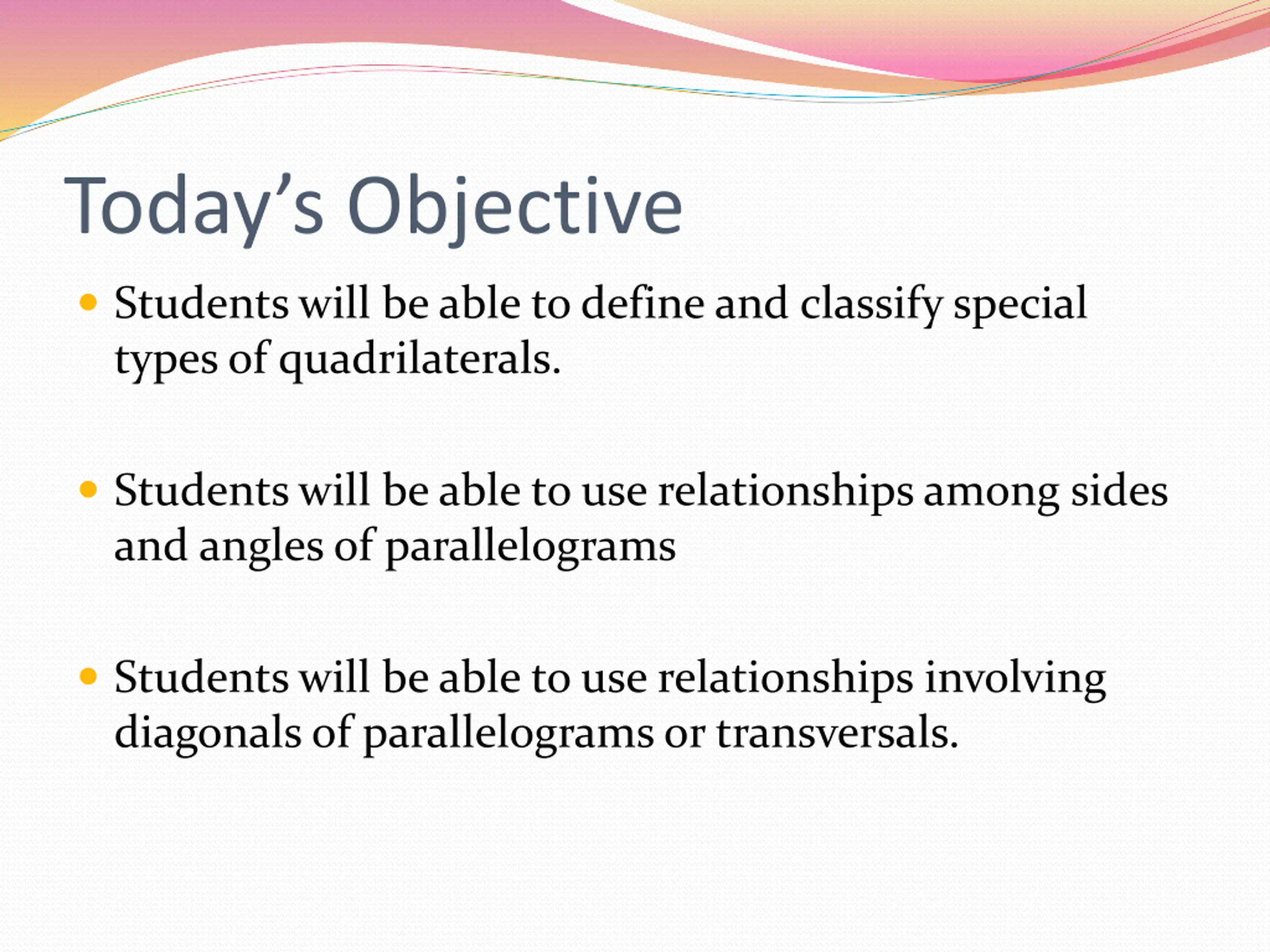

6. Todays Objective Students will be able to define and classify special types of quadrilaterals. Students will be able to use relationships among sides and angles of parallelograms Students will be able to use relationships involving diagonals of parallelograms or transversals.

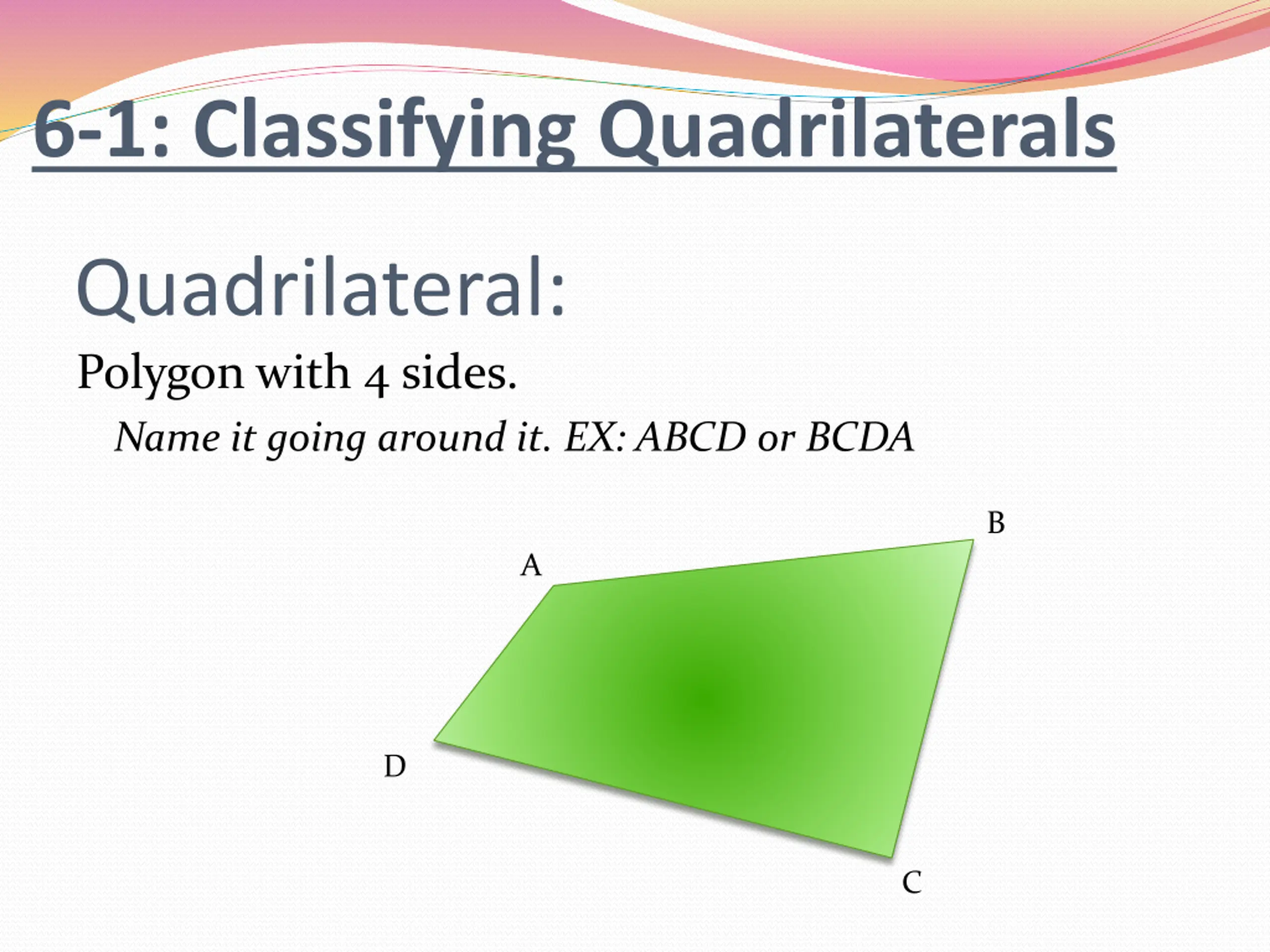

7. 6-1: Classifying Quadrilaterals Quadrilateral: Polygon with 4 sides. Name it going around it. EX: ABCD or BCDA B A D C

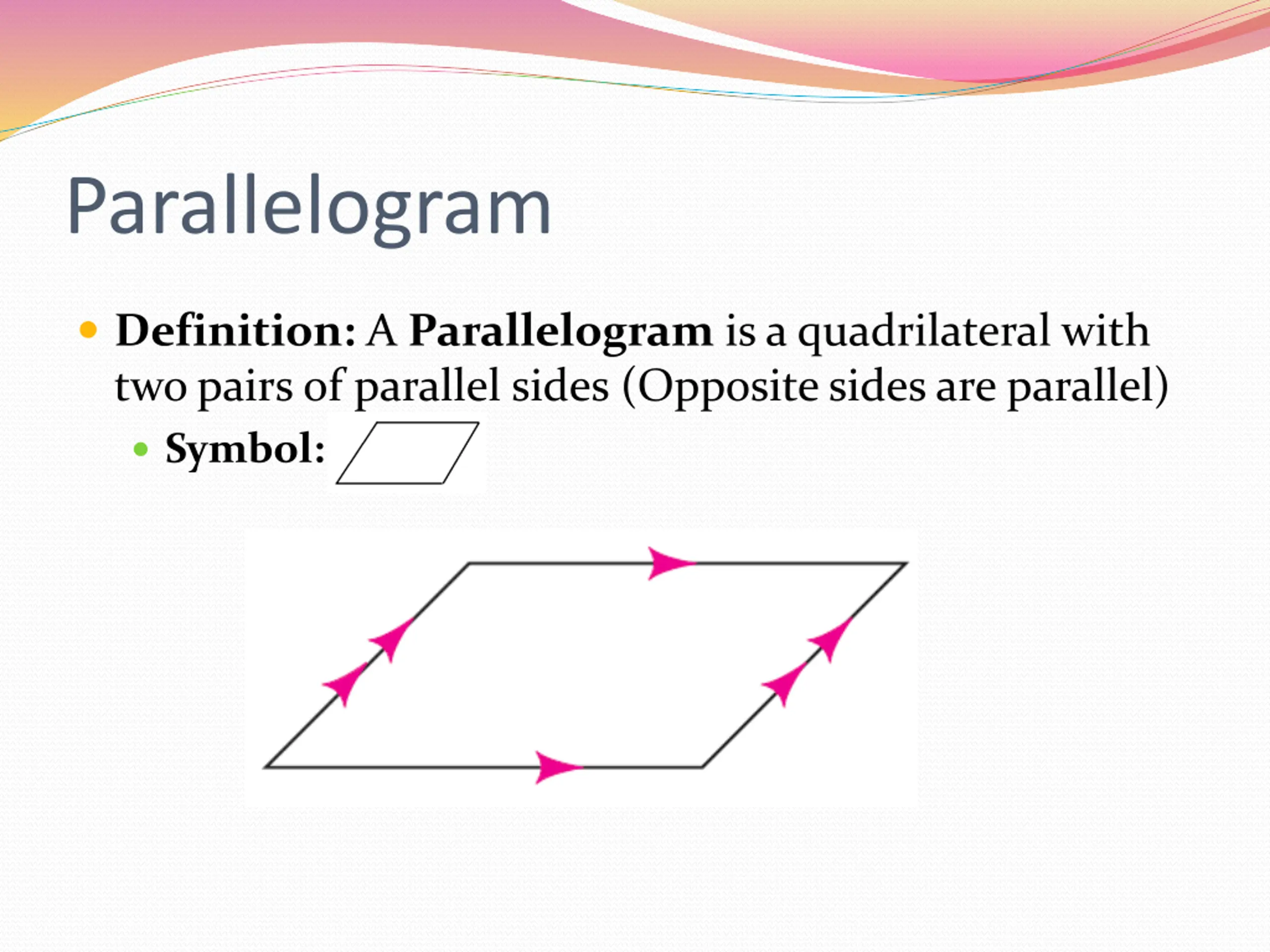

8. Parallelogram Definition: A Parallelogram is a quadrilateral with two pairs of parallel sides (Opposite sides are parallel) Symbol:

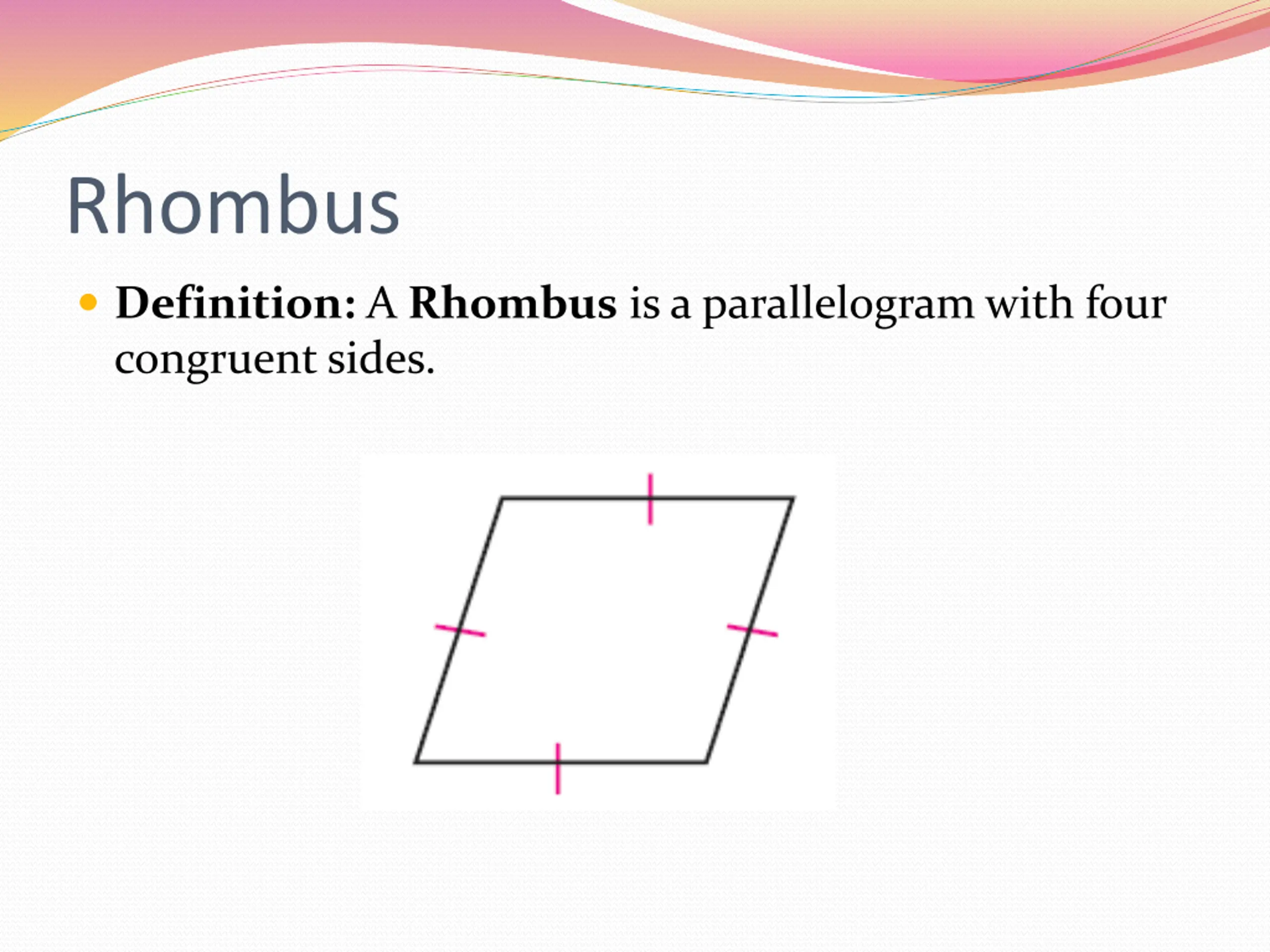

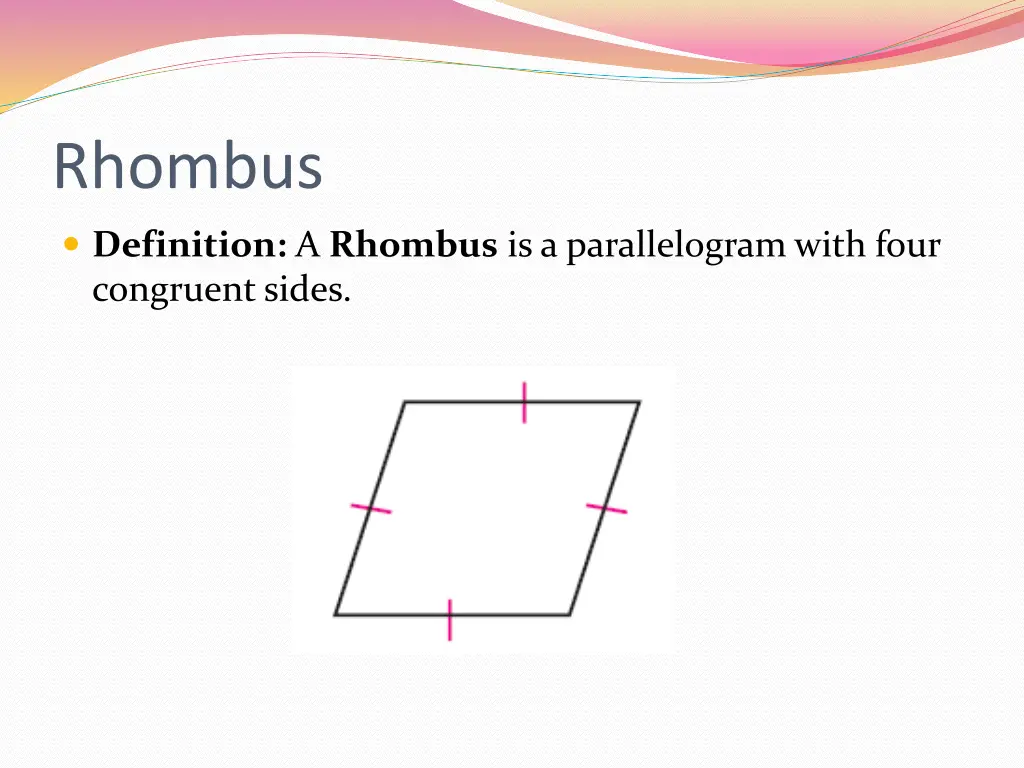

9. Rhombus Definition: A Rhombus is a parallelogram with four congruent sides.

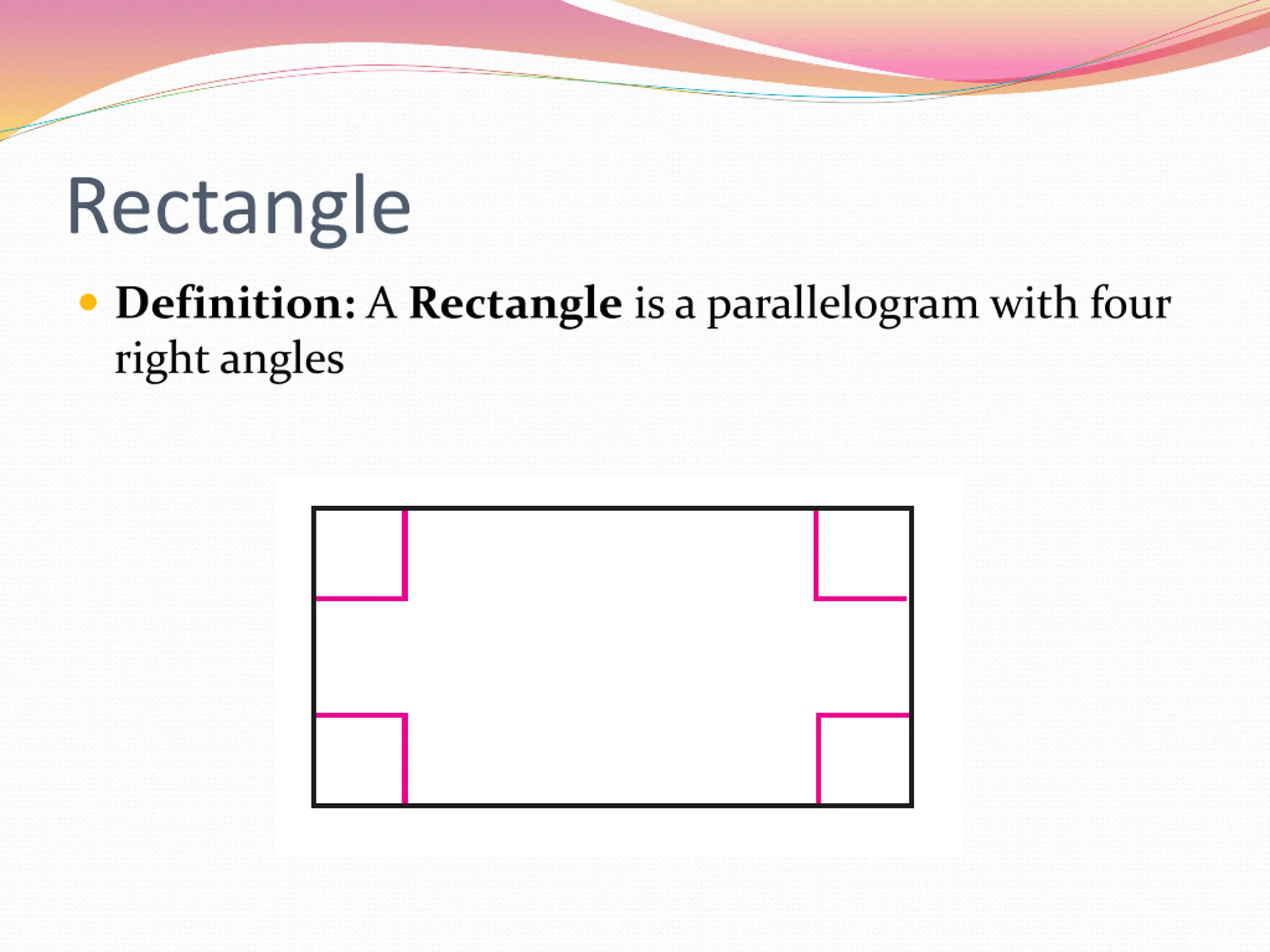

10. Rectangle Definition: A Rectangle is a parallelogram with four right angles

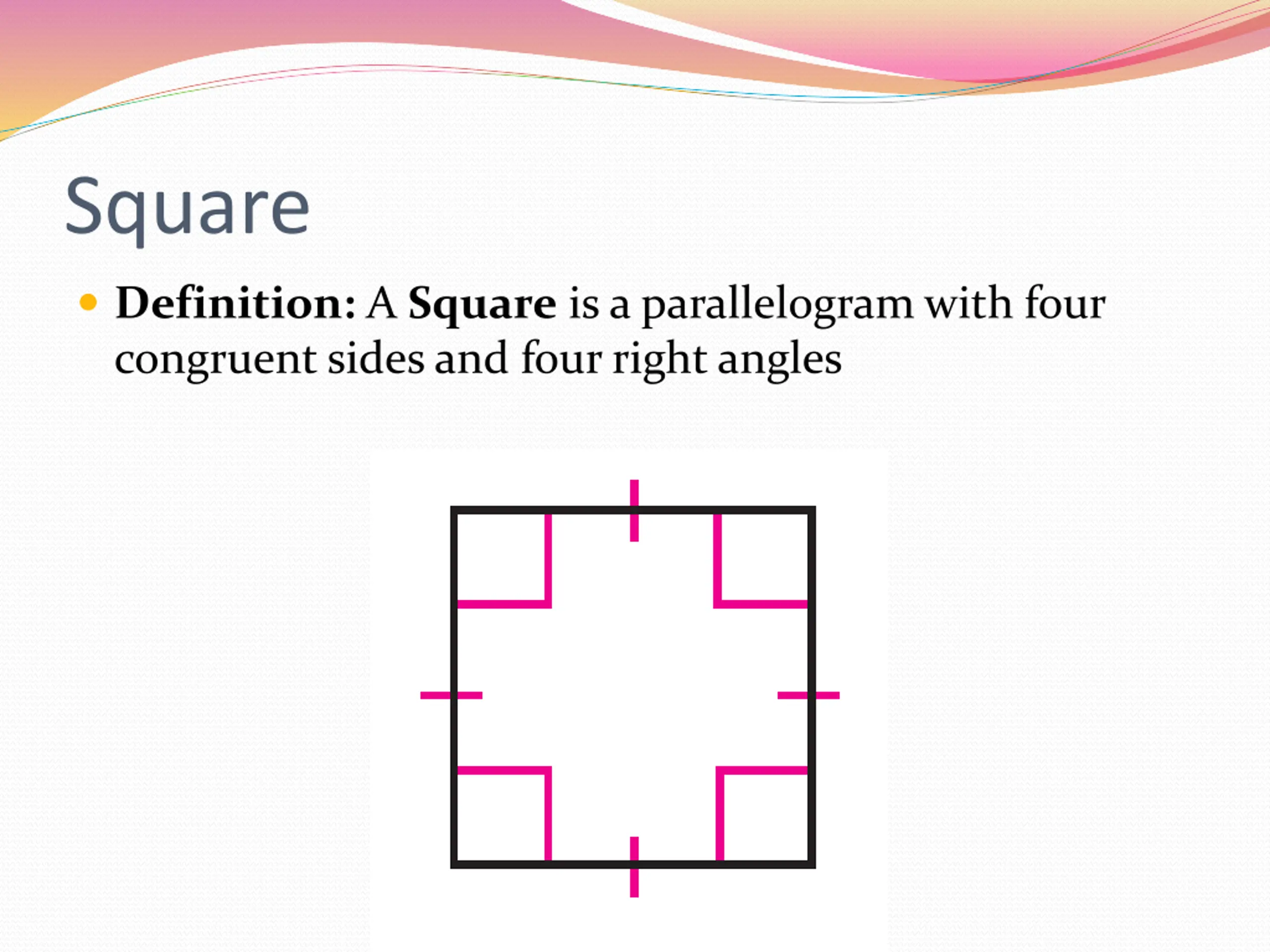

11. Square Definition: A Square is a parallelogram with four congruent sides and four right angles

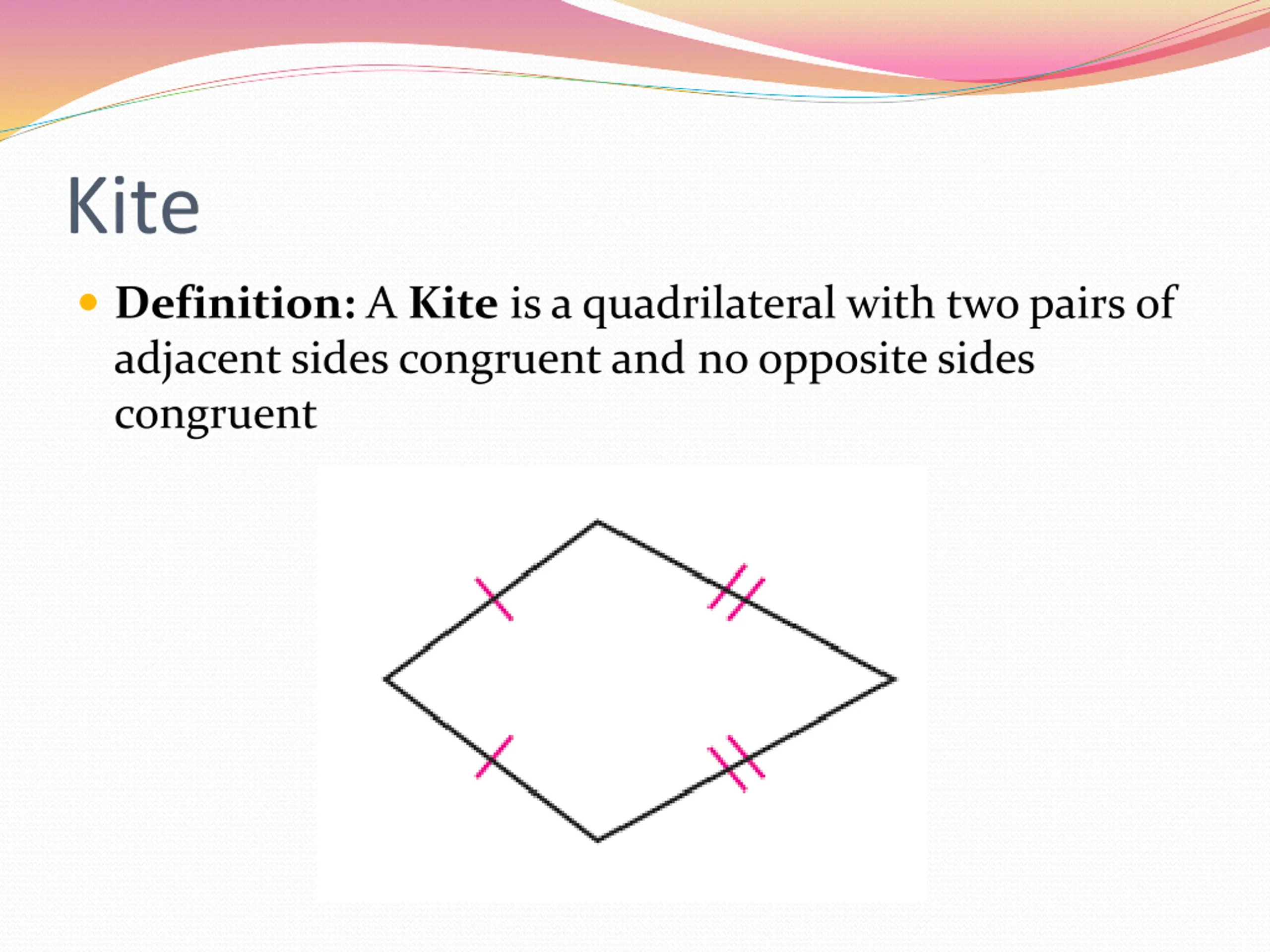

12. Kite Definition: A Kite is a quadrilateral with two pairs of adjacent sides congruent and no opposite sides congruent

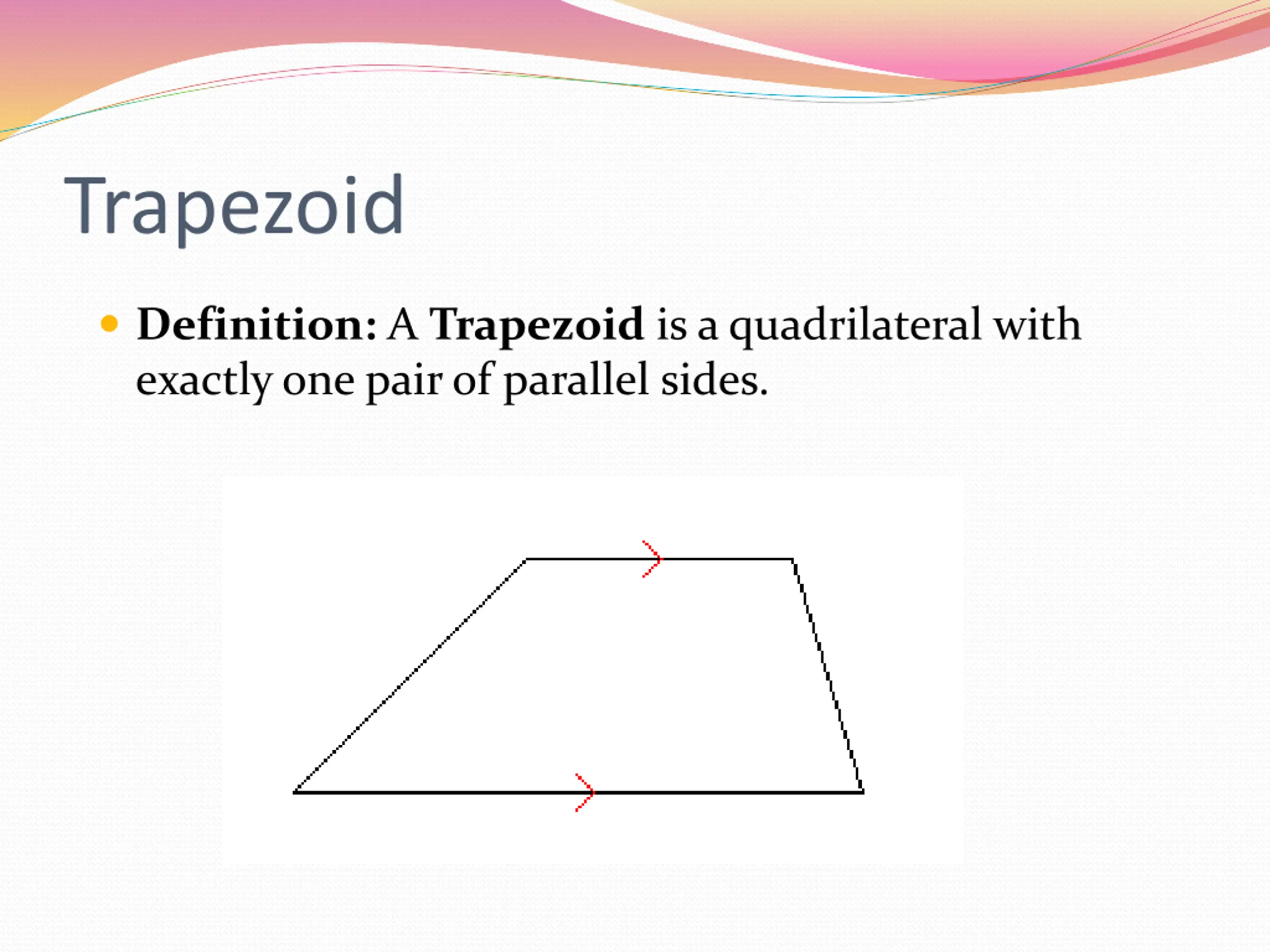

13. Trapezoid Definition: A Trapezoid is a quadrilateral with exactly one pair of parallel sides.

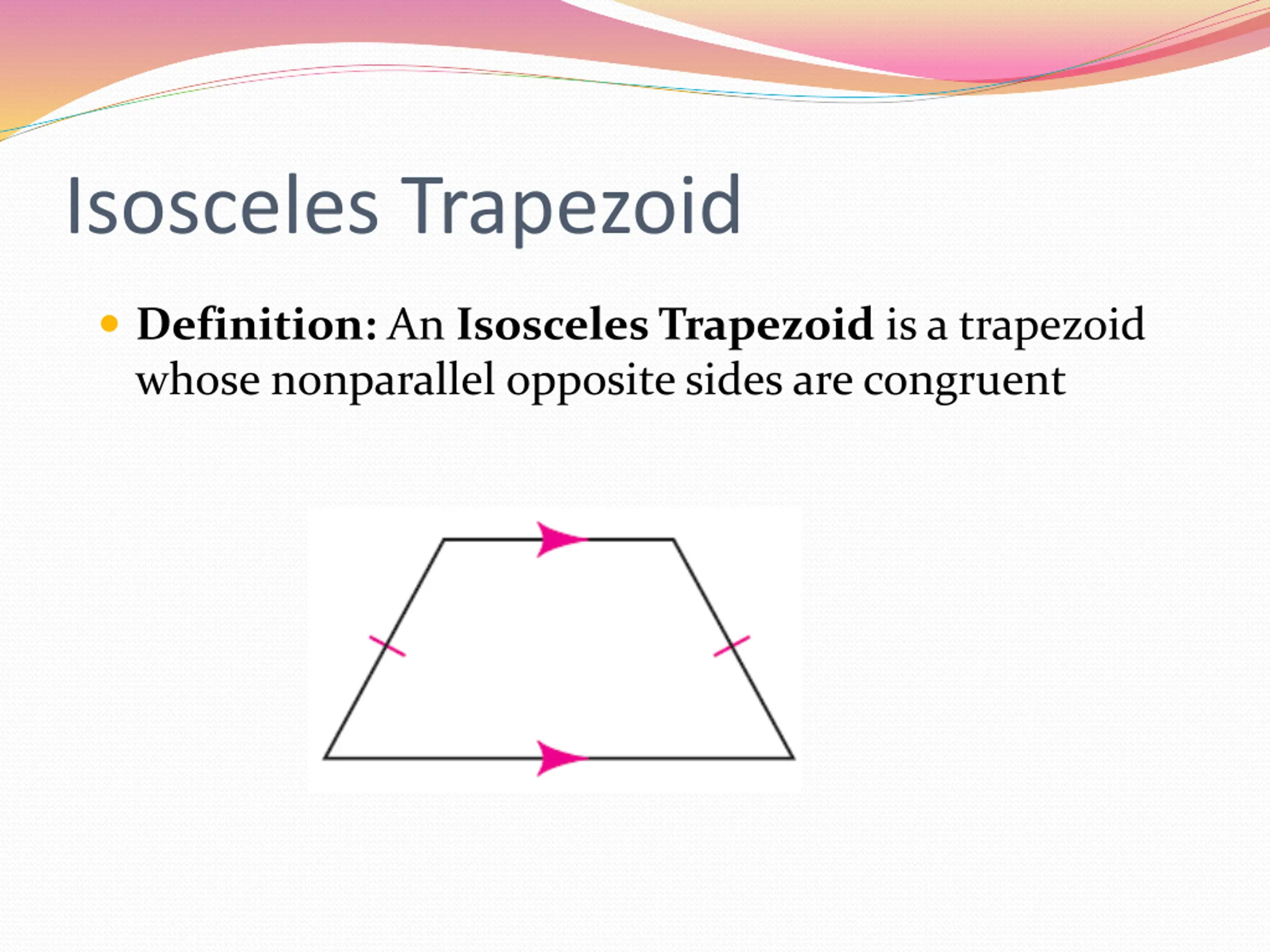

14. Isosceles Trapezoid Definition: An Isosceles Trapezoid is a trapezoid whose nonparallel opposite sides are congruent

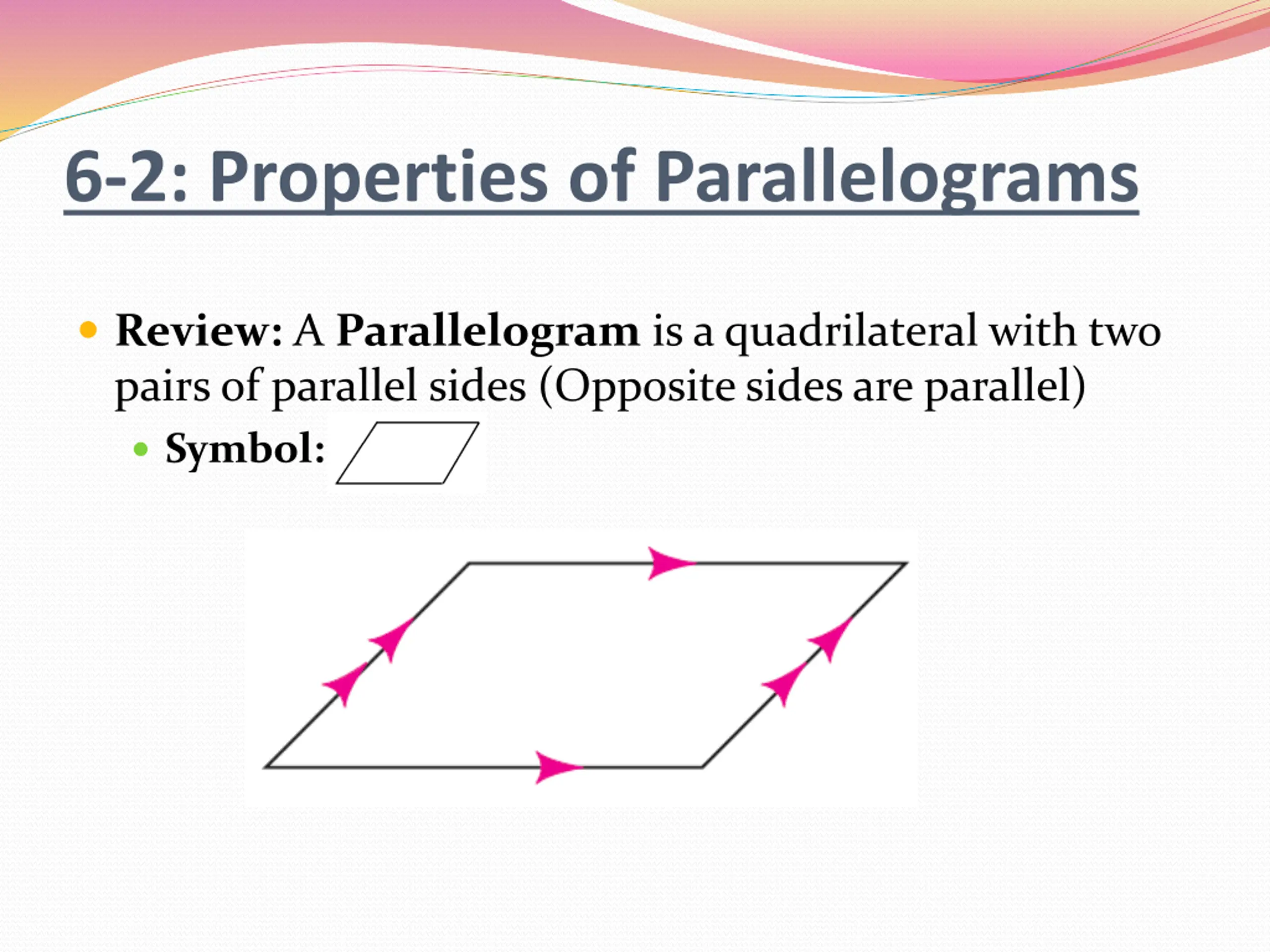

15. 6-2: Properties of Parallelograms Review: A Parallelogram is a quadrilateral with two pairs of parallel sides (Opposite sides are parallel) Symbol:

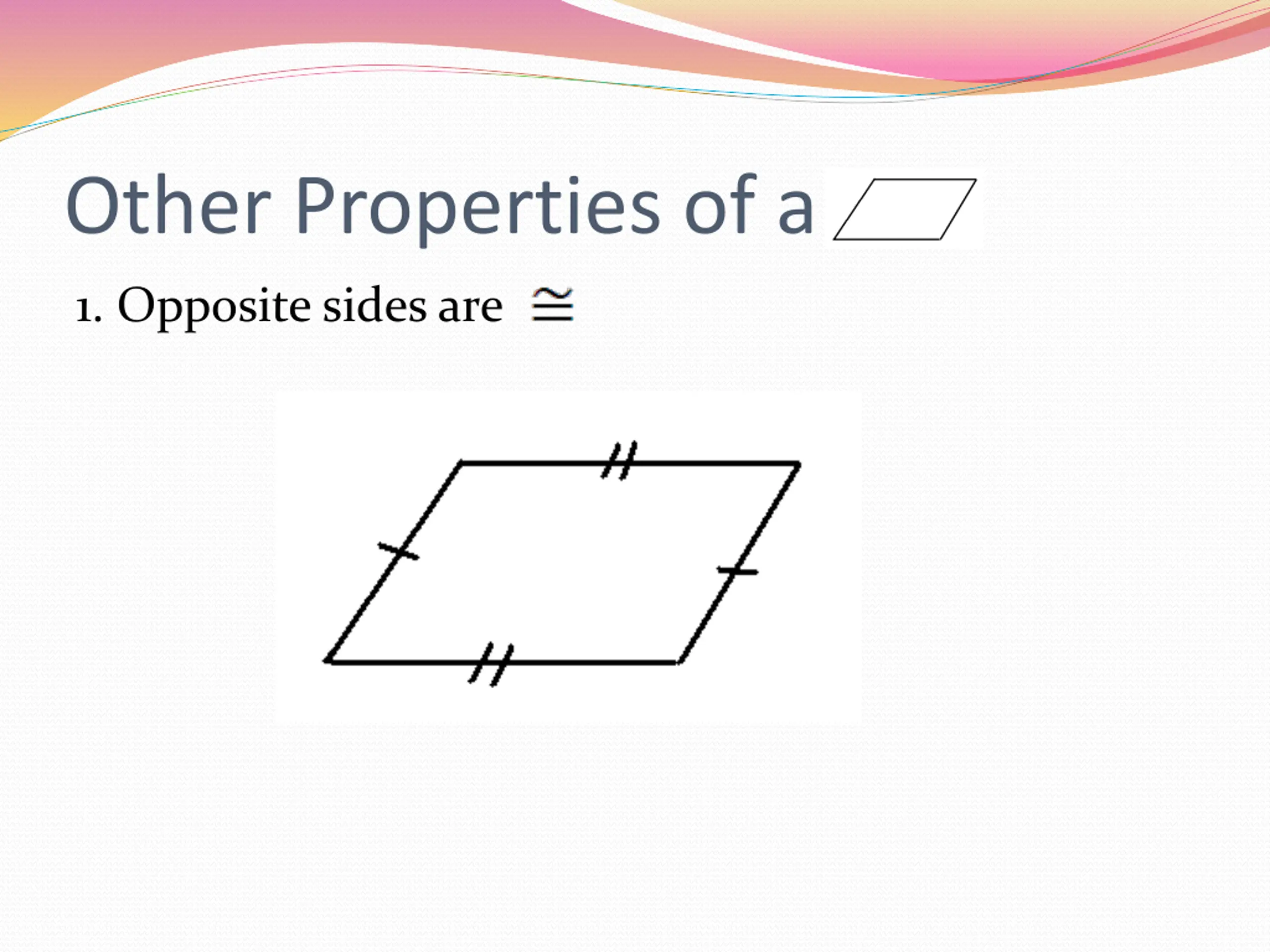

16. Other Properties of a 1. Opposite sides are

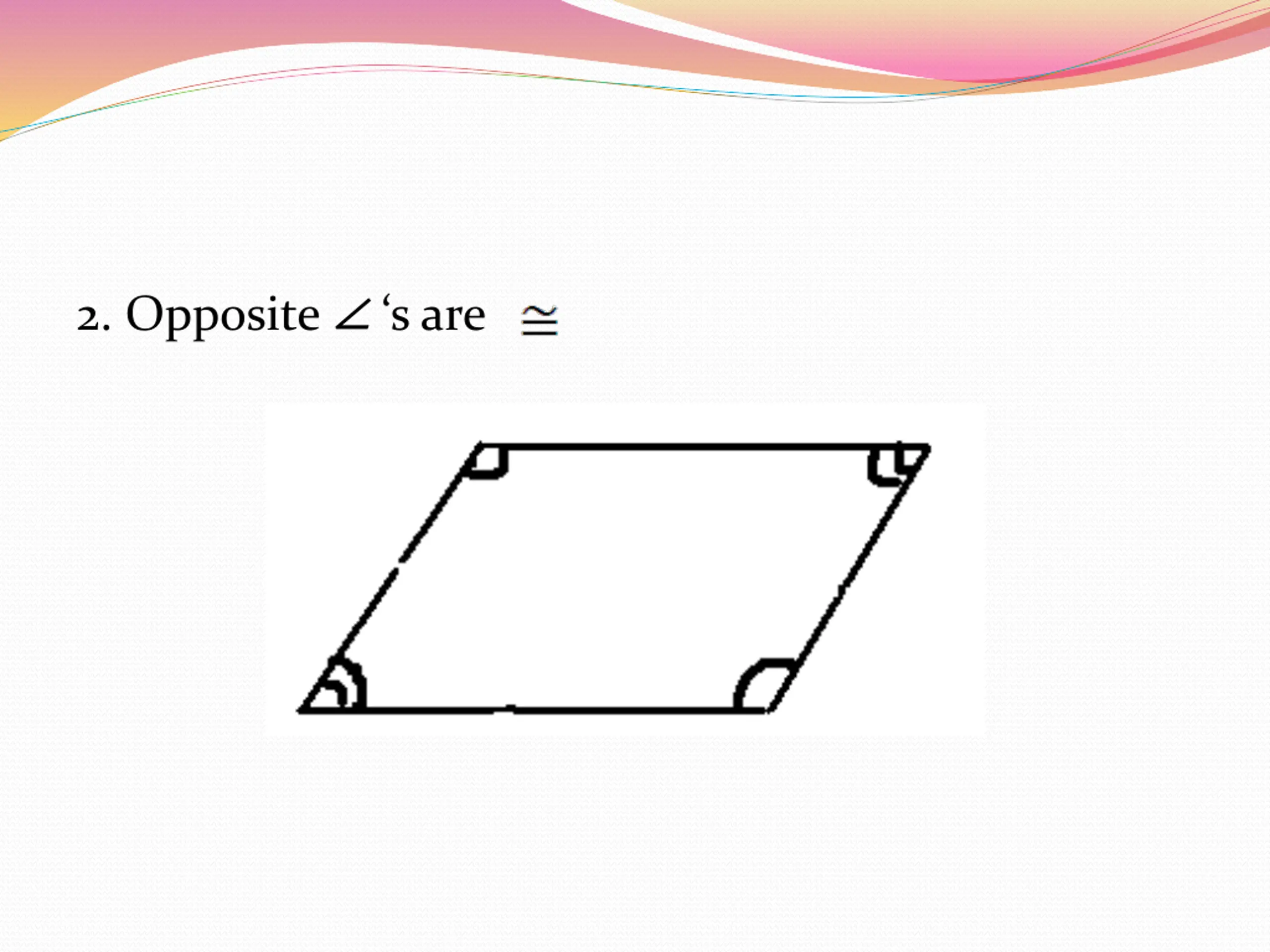

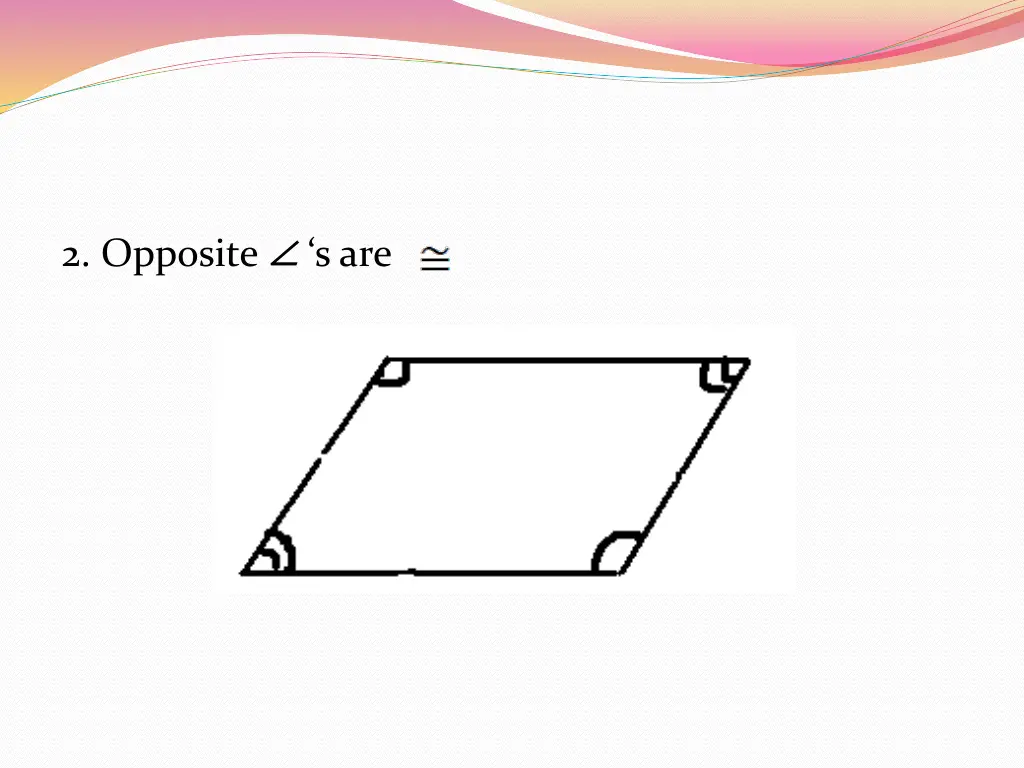

17. 2. Opposite s are

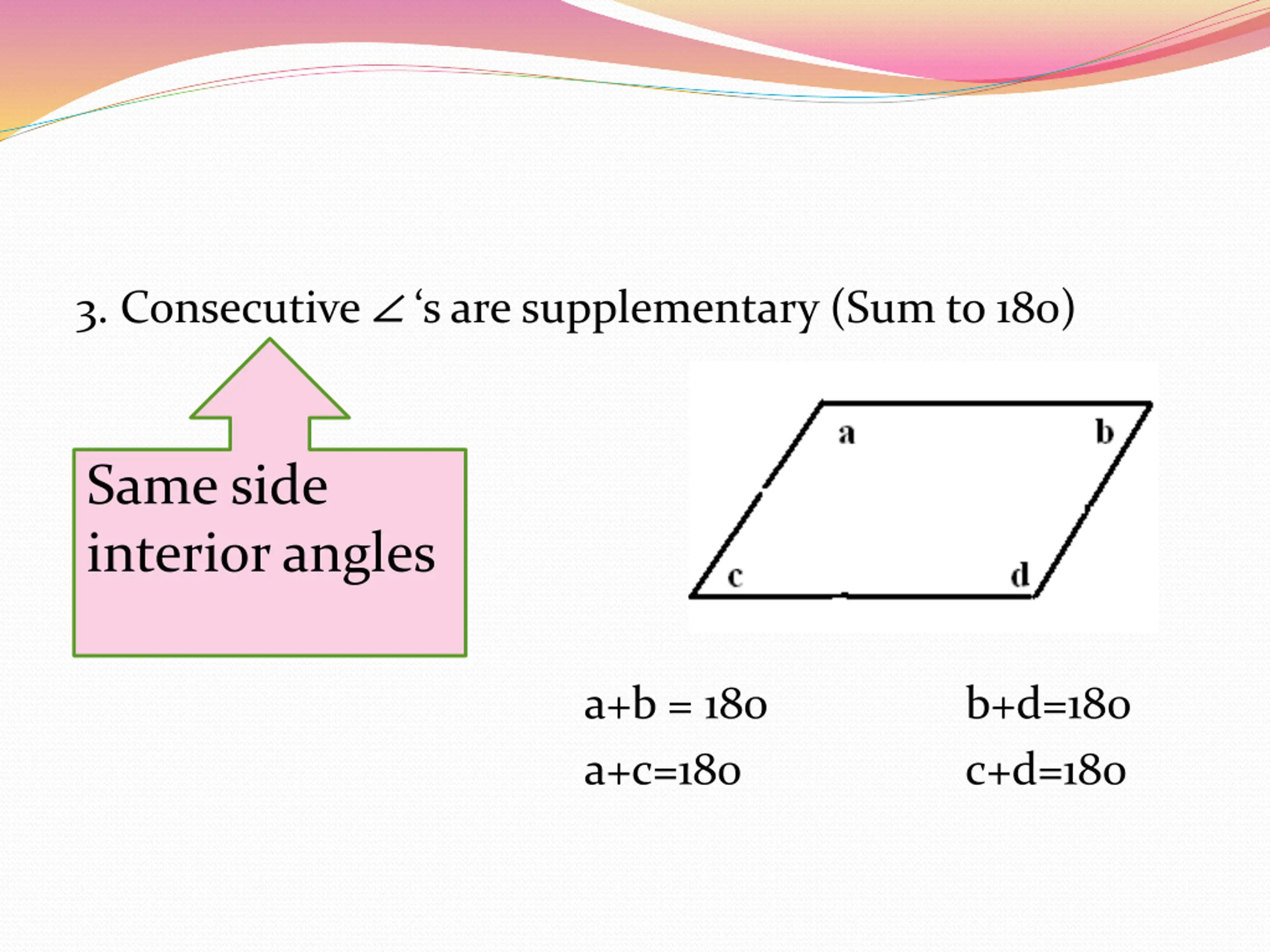

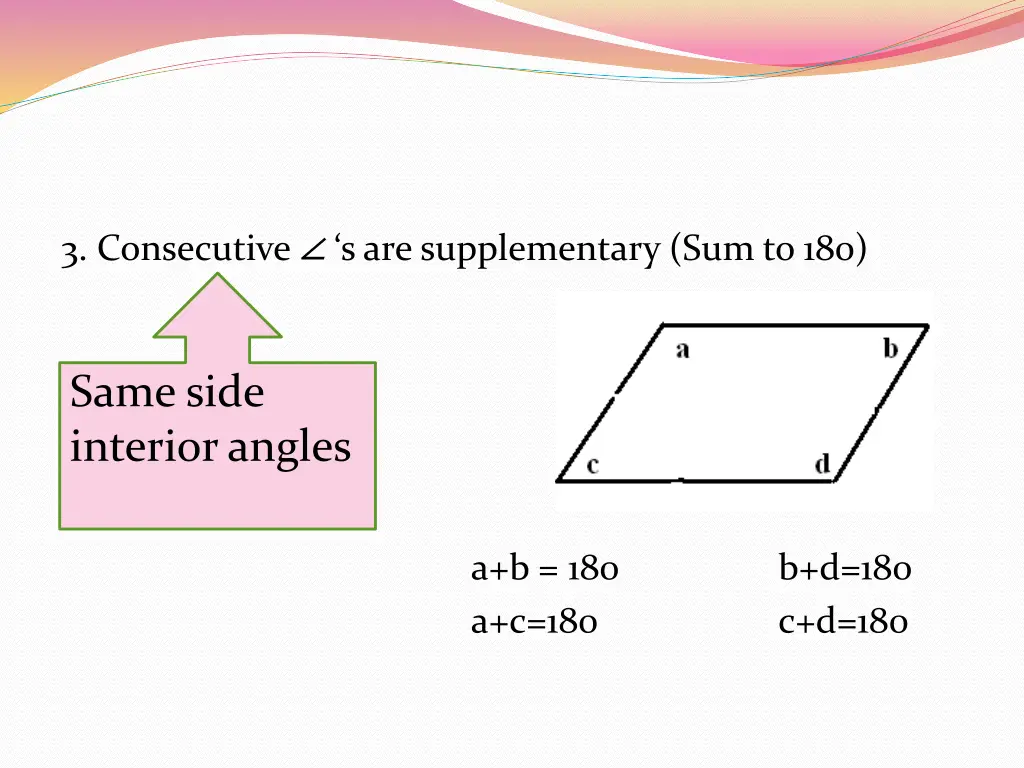

18. 3. Consecutive s are supplementary (Sum to 180) Same side interior angles a+b = 180 a+c=180 b+d=180 c+d=180

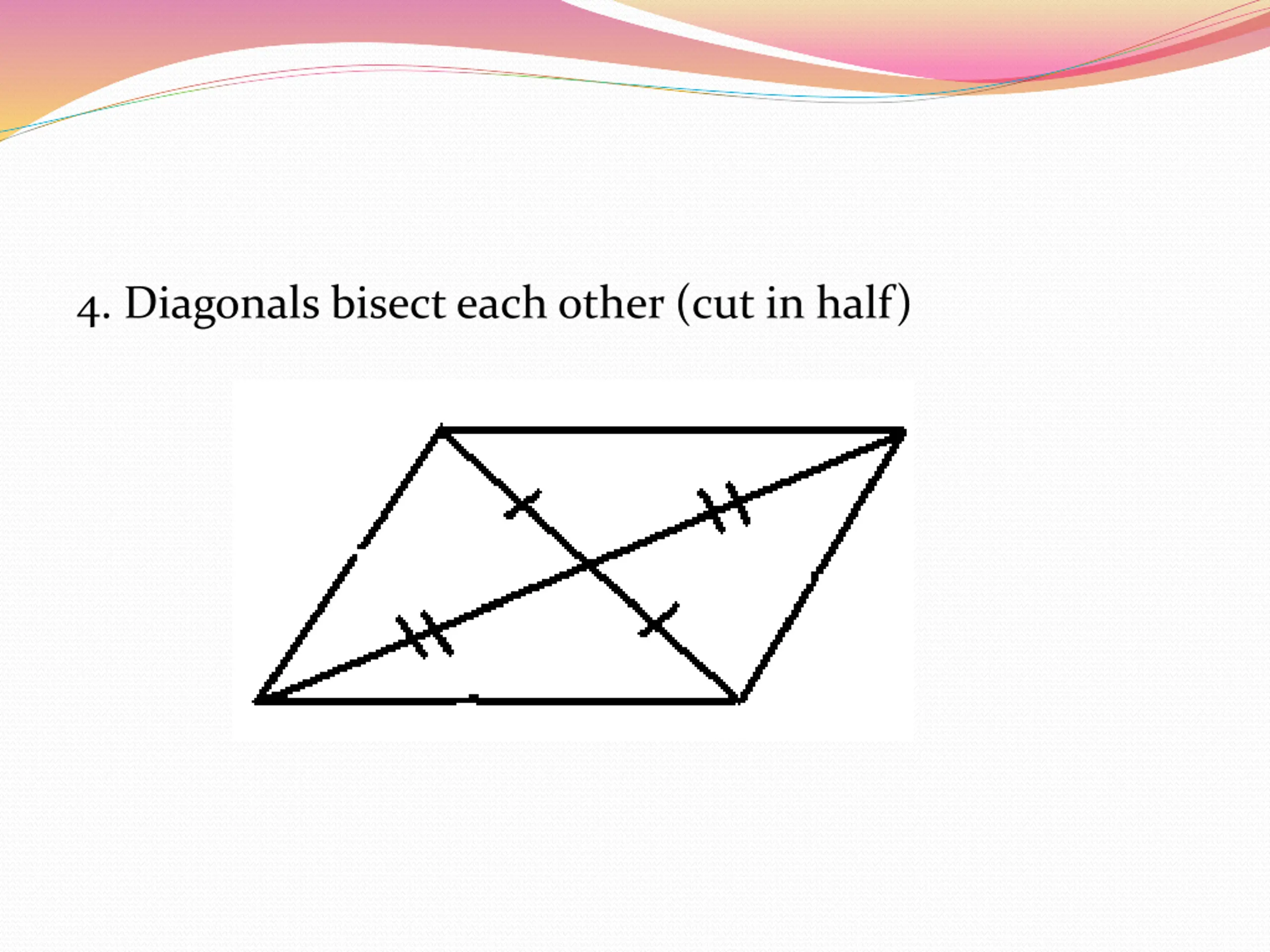

19. 4. Diagonals bisect each other (cut in half)

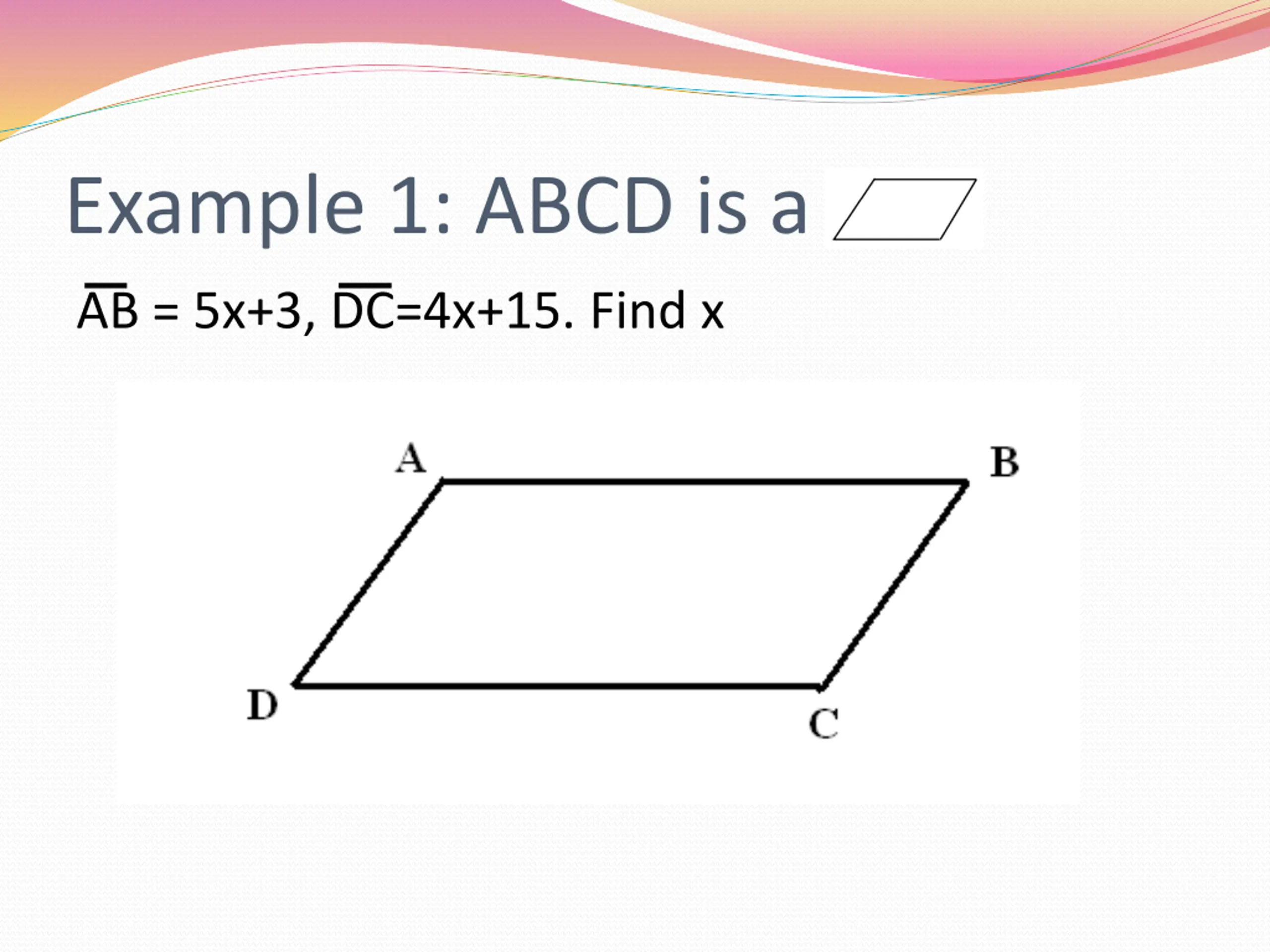

20. Example 1: ABCD is a AB = 5x+3, DC=4x+15. Find x

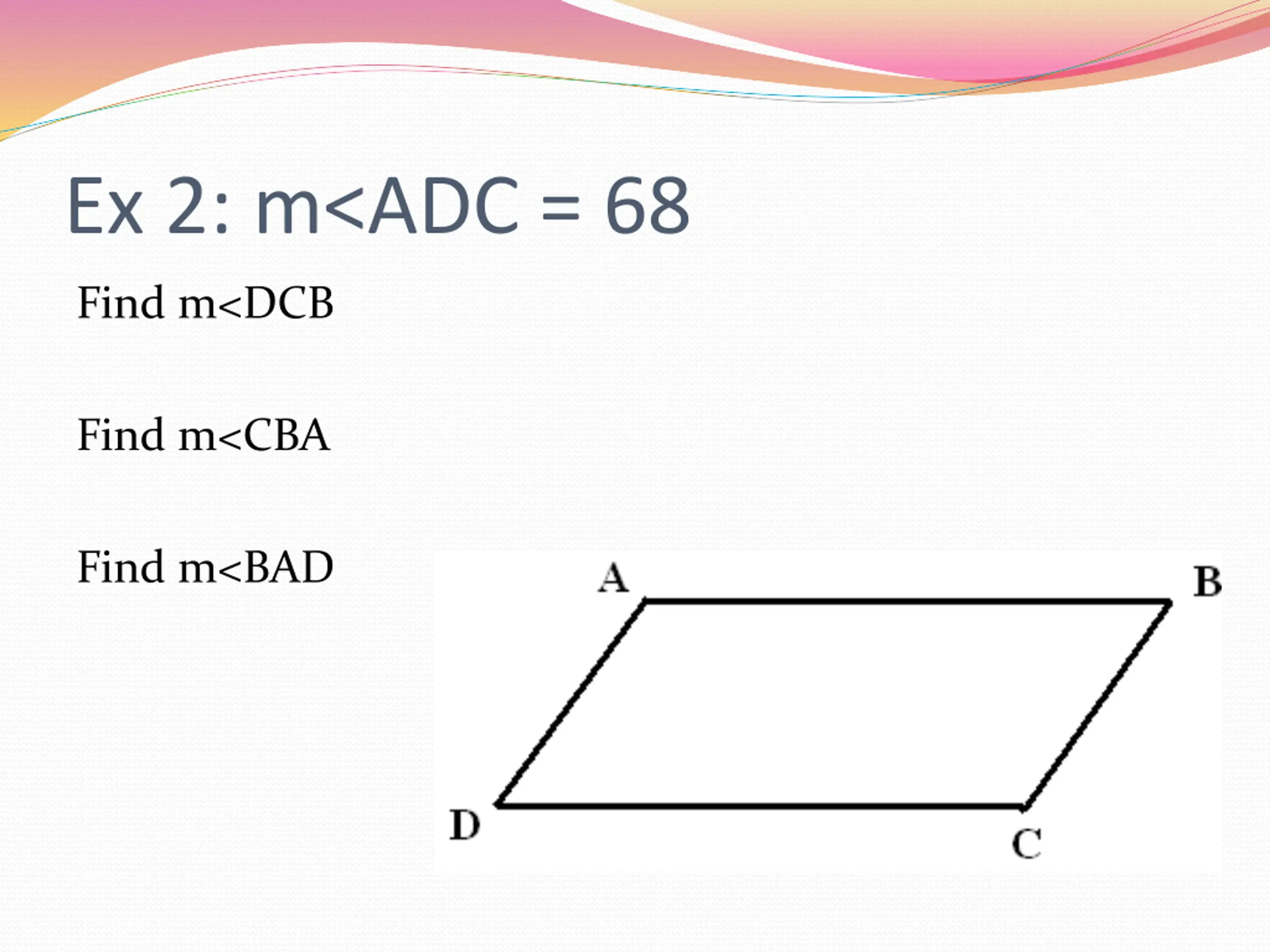

21. Ex 2: m<ADC = 68 Find m<DCB Find m<CBA Find m<BAD

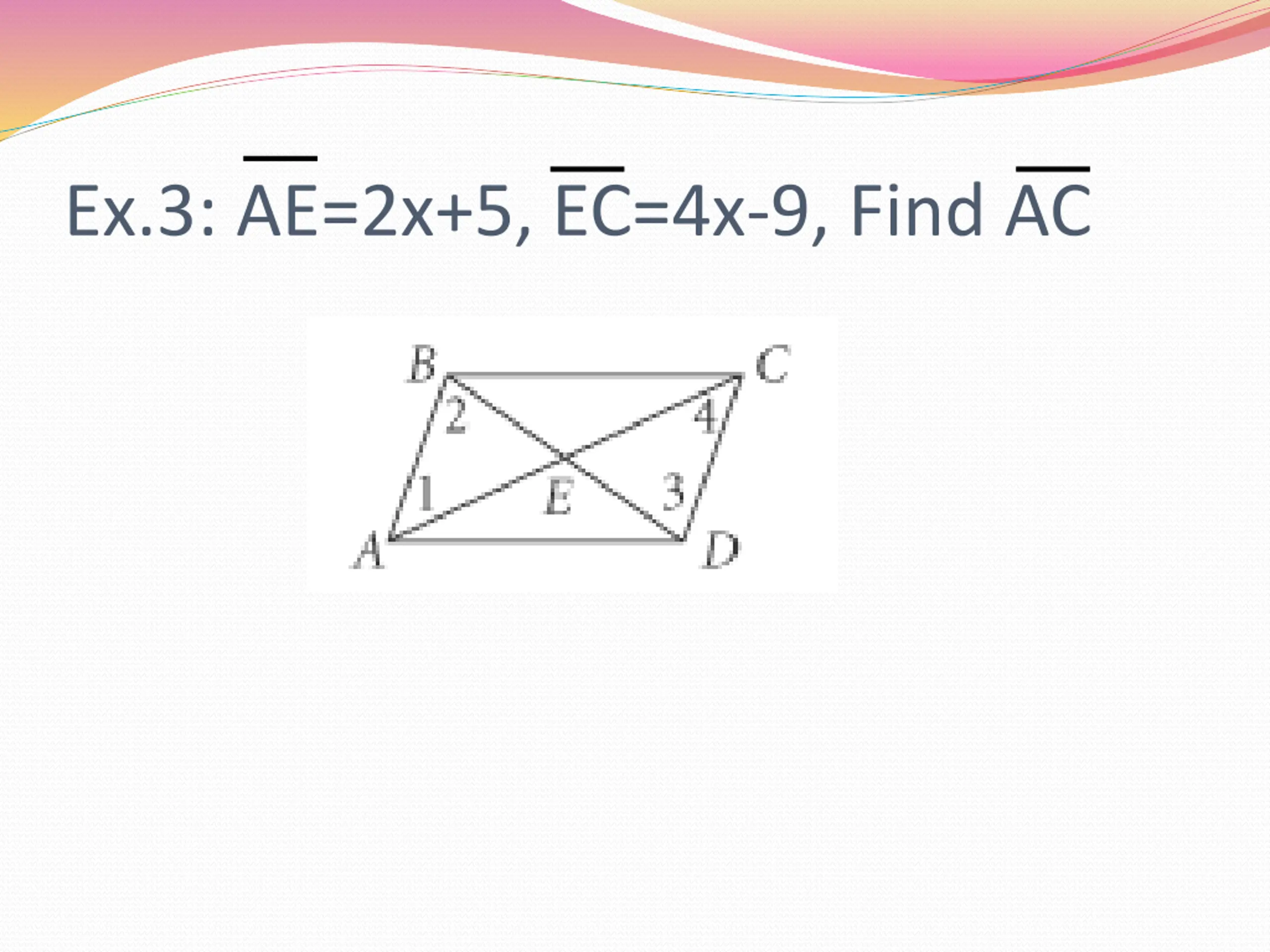

22. Ex.3: AE=2x+5, EC=4x-9, Find AC

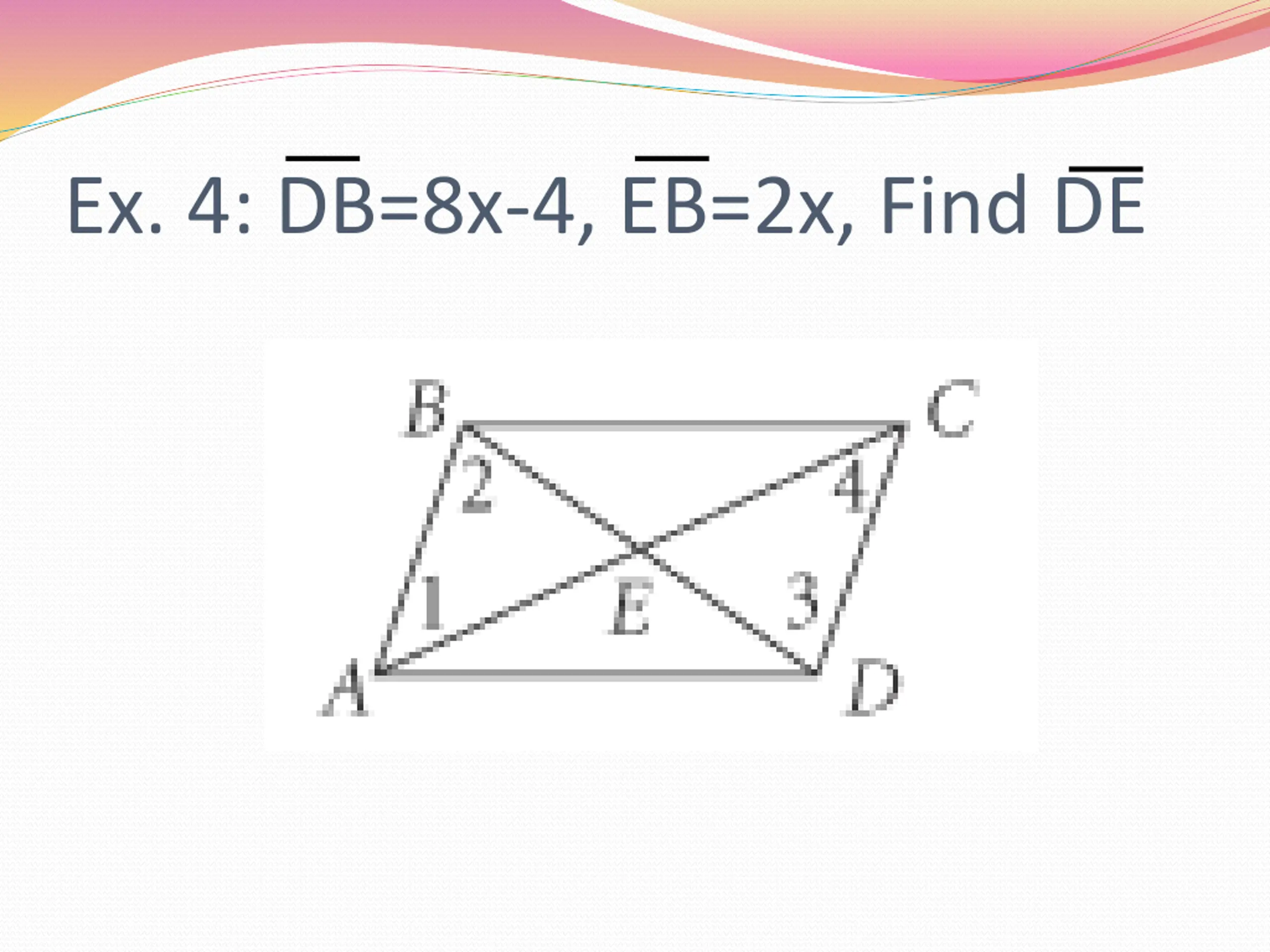

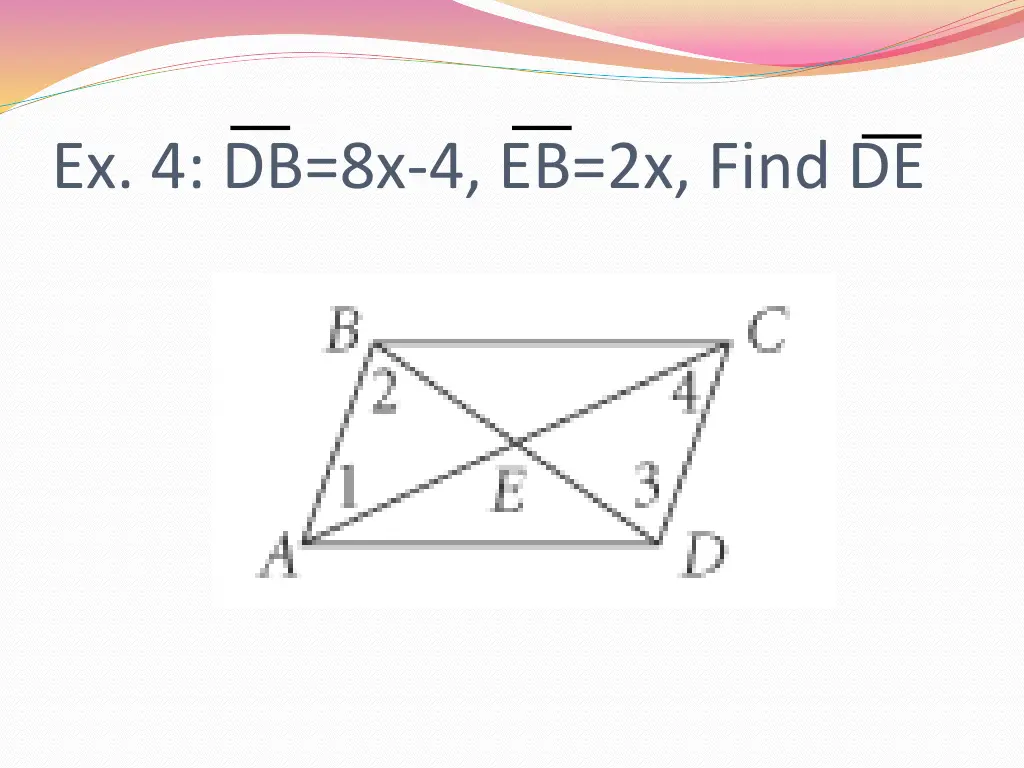

23. Ex. 4: DB=8x-4, EB=2x, Find DE

24. Homework Left side of page 2 of packet For extra practice, attempt proofs on right side
