Clock Signal Distribution and Optimization in Digital Systems
Explore the complexities of clock signal distribution in digital systems, addressing challenges like propagation delay, clock skew, and crosstalk. Learn about techniques and circuits used to enhance clock signal routing efficiency and improve system performance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
1 11. Clock distribution
2 Properties of clock signals Clock signals toggle faster than any other signals in a digital system. Clock signal lines are heavily loaded. Clocks connect to every flip-flop in a system, while individual data wires fan out to only a few devices each. This chapter will cover clock drivers special clock routing rules peculiar circuits used to improve the distribution of clock signals.
3 11.1 Timing margin Propagation delay As we raise the clock frequency, the circuit emits the same output pattern until at some high frequency the circuit fails. The failure is due to a lack of setup time for flip-flop 2.
5 11.2 Clock skew Clock skew
6 11.3 Using low impedance driver

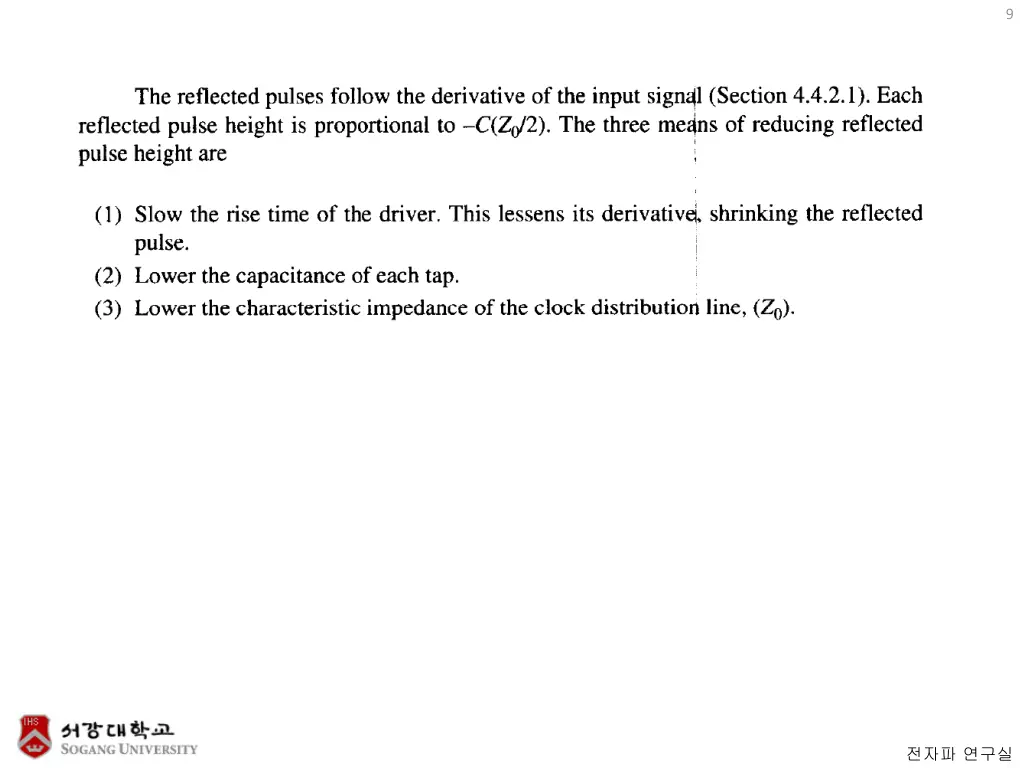

8 11.4 Using low impedance clock distribution lines
10 11.5 Source termination of multiple clock lines

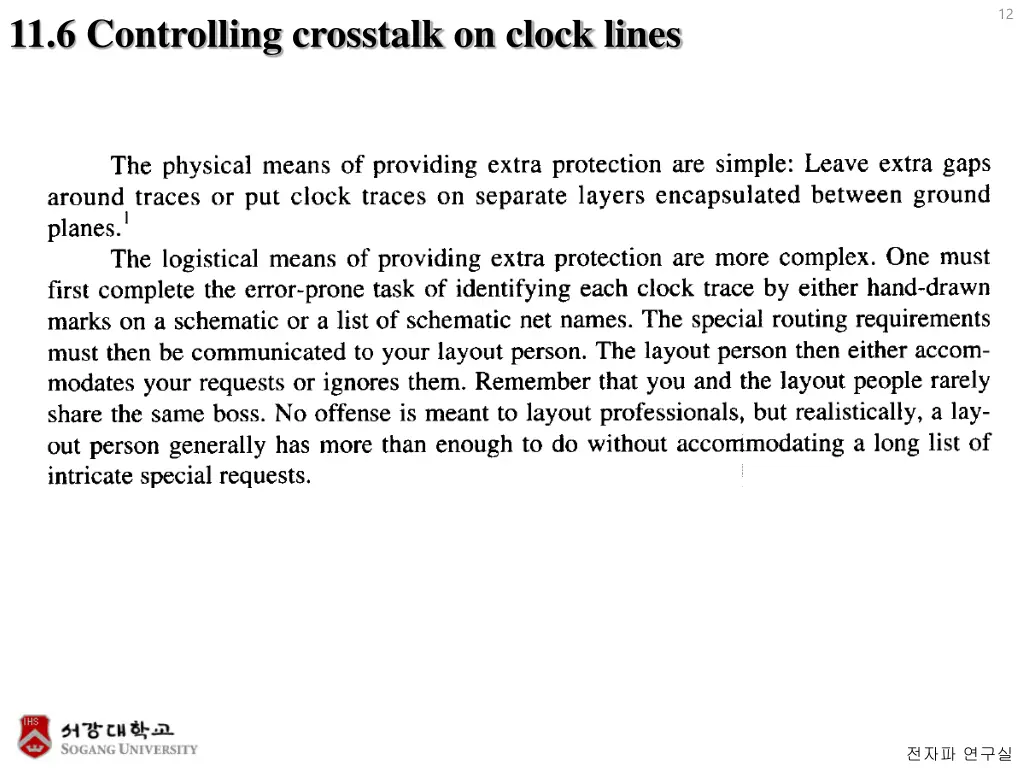

12 11.6 Controlling crosstalk on clock lines

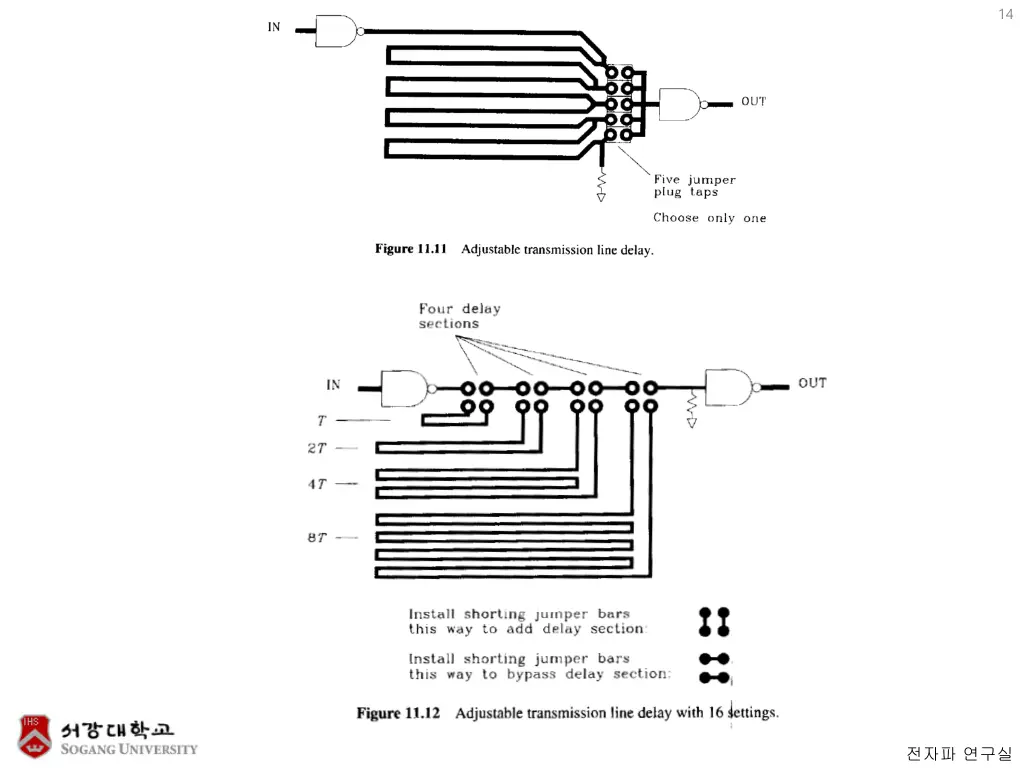

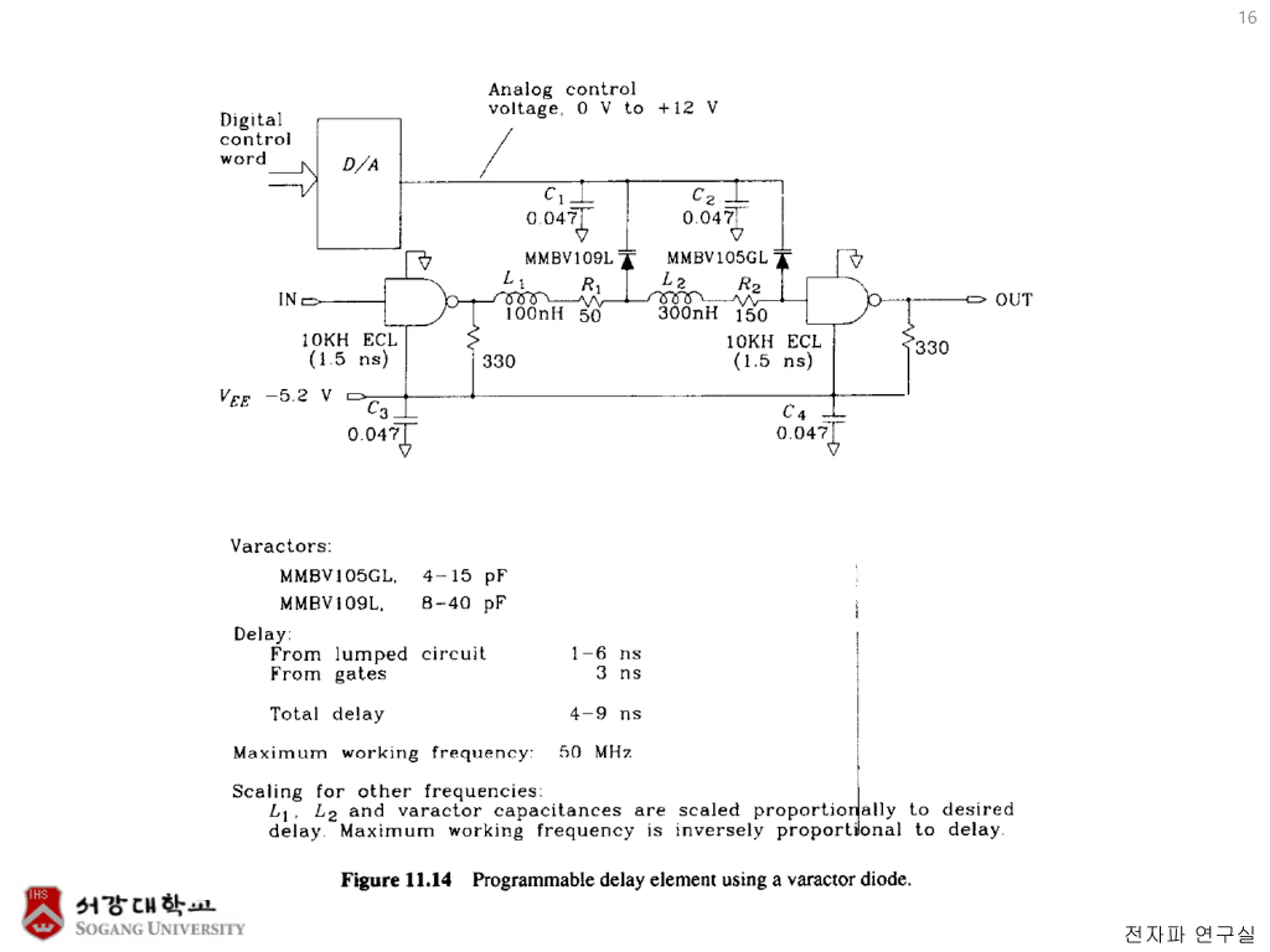

13 11.7 Delay adjustments

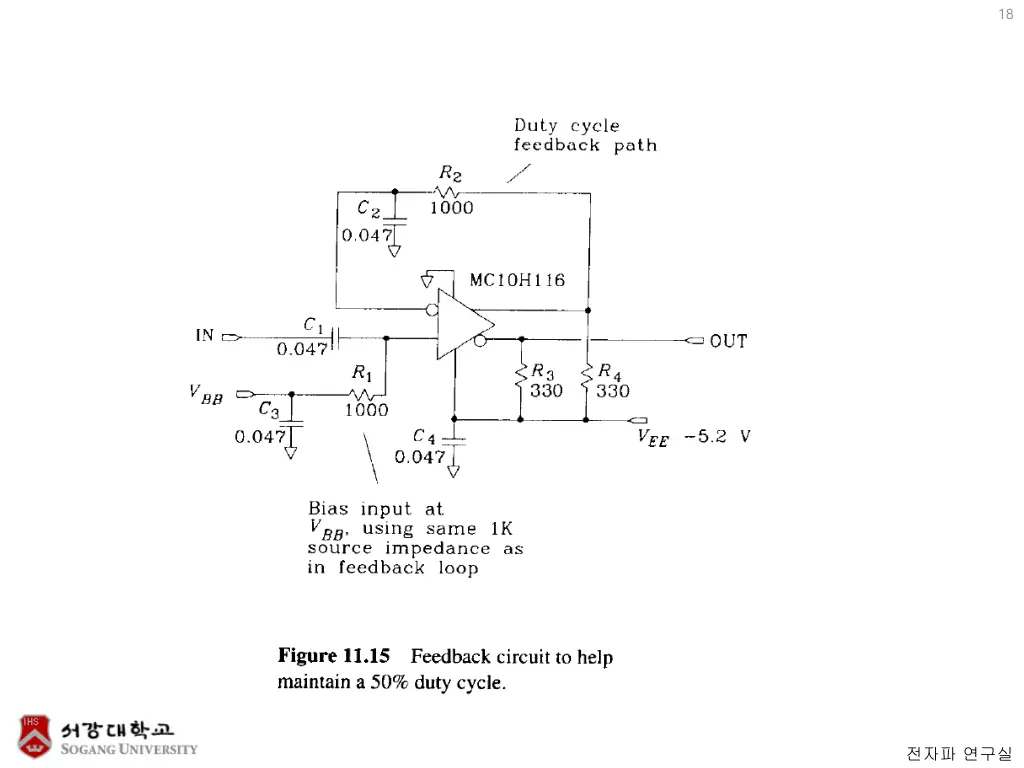

17 11.9 Clock signal duty cycle Clock recovery scheme (1) Inverts clock signal at every stage. (2) Duty ratio adjustment circuit

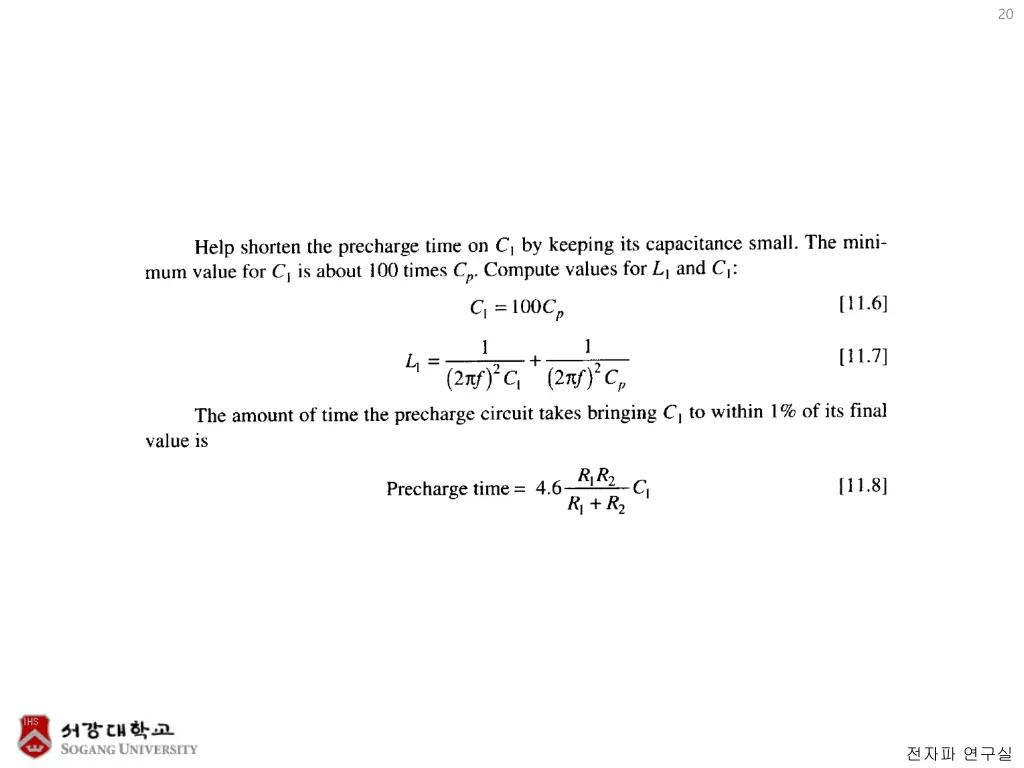

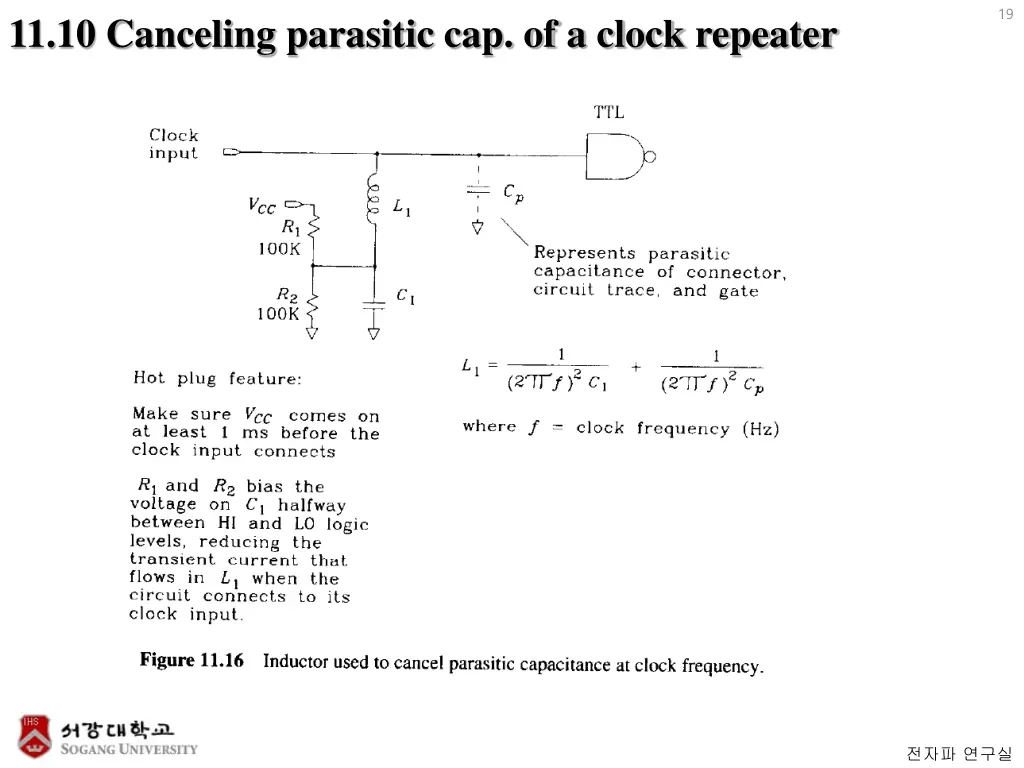

19 11.10 Canceling parasitic cap. of a clock repeater

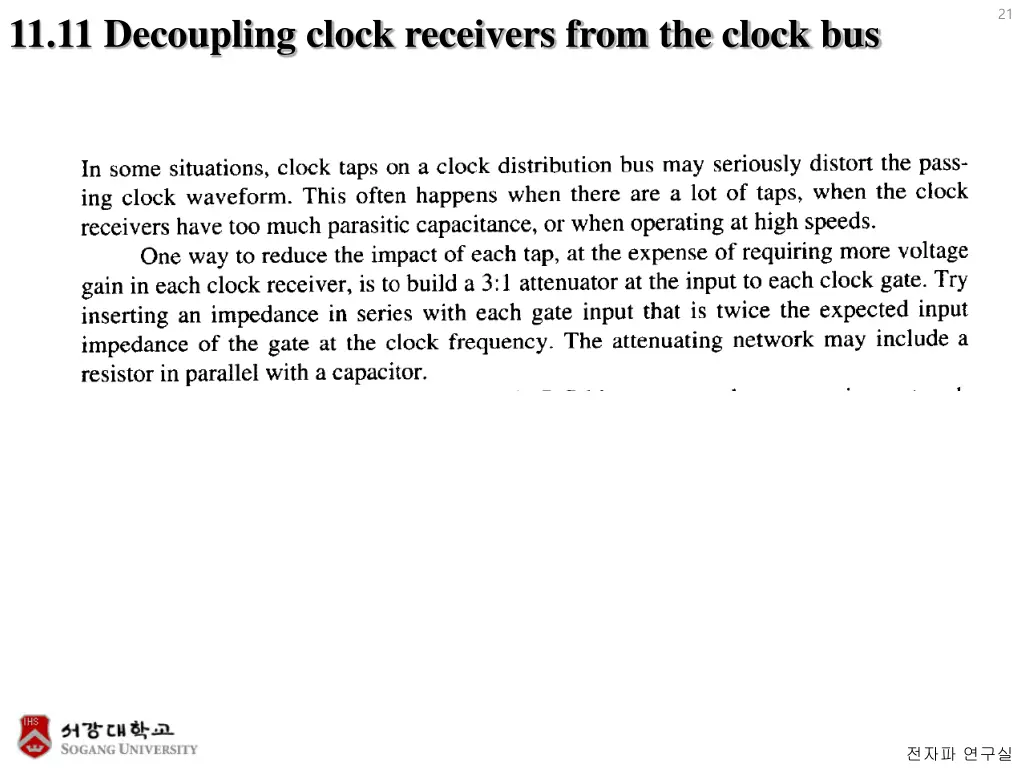

21 11.11 Decoupling clock receivers from the clock bus

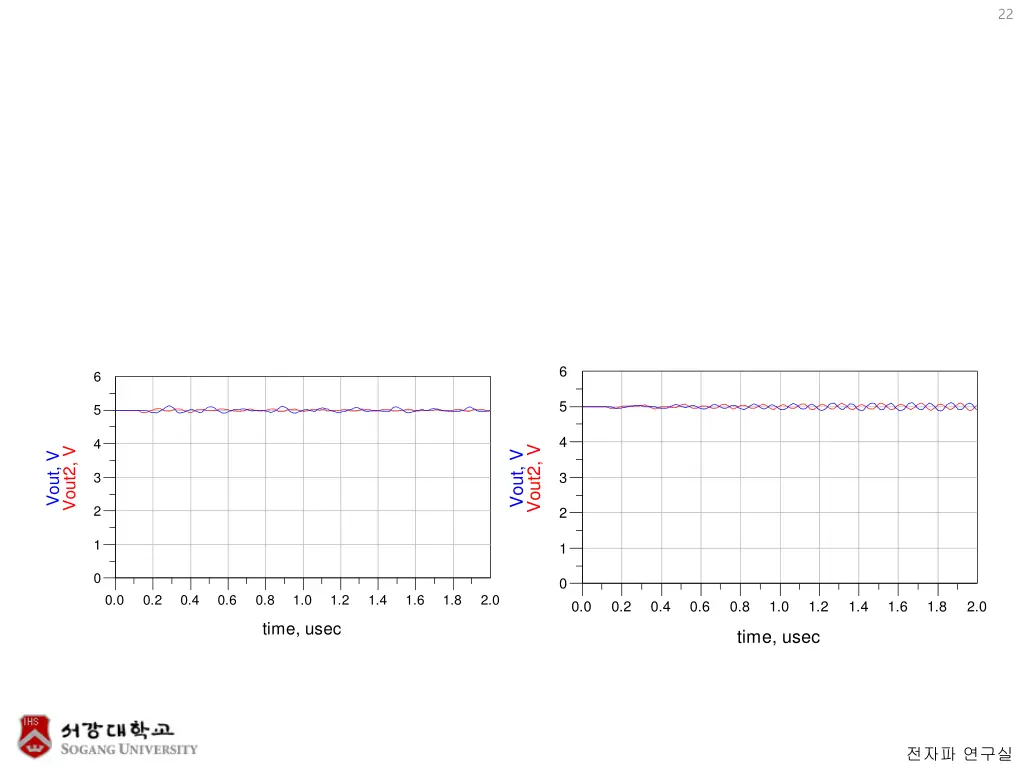

22 6 6 5 5 4 4 Vout2, V Vout2, V Vout, V Vout, V 3 3 2 2 1 1 0 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 time, usec time, usec
