Collaborative TB/HIV activities 2012 Tables, Graphs & Maps Source: Global Tuberculosis Control Report 2013 http://www.who.int/tb/publications/global_report/en/ Collaborative TB/HIV activities, 2012 1|

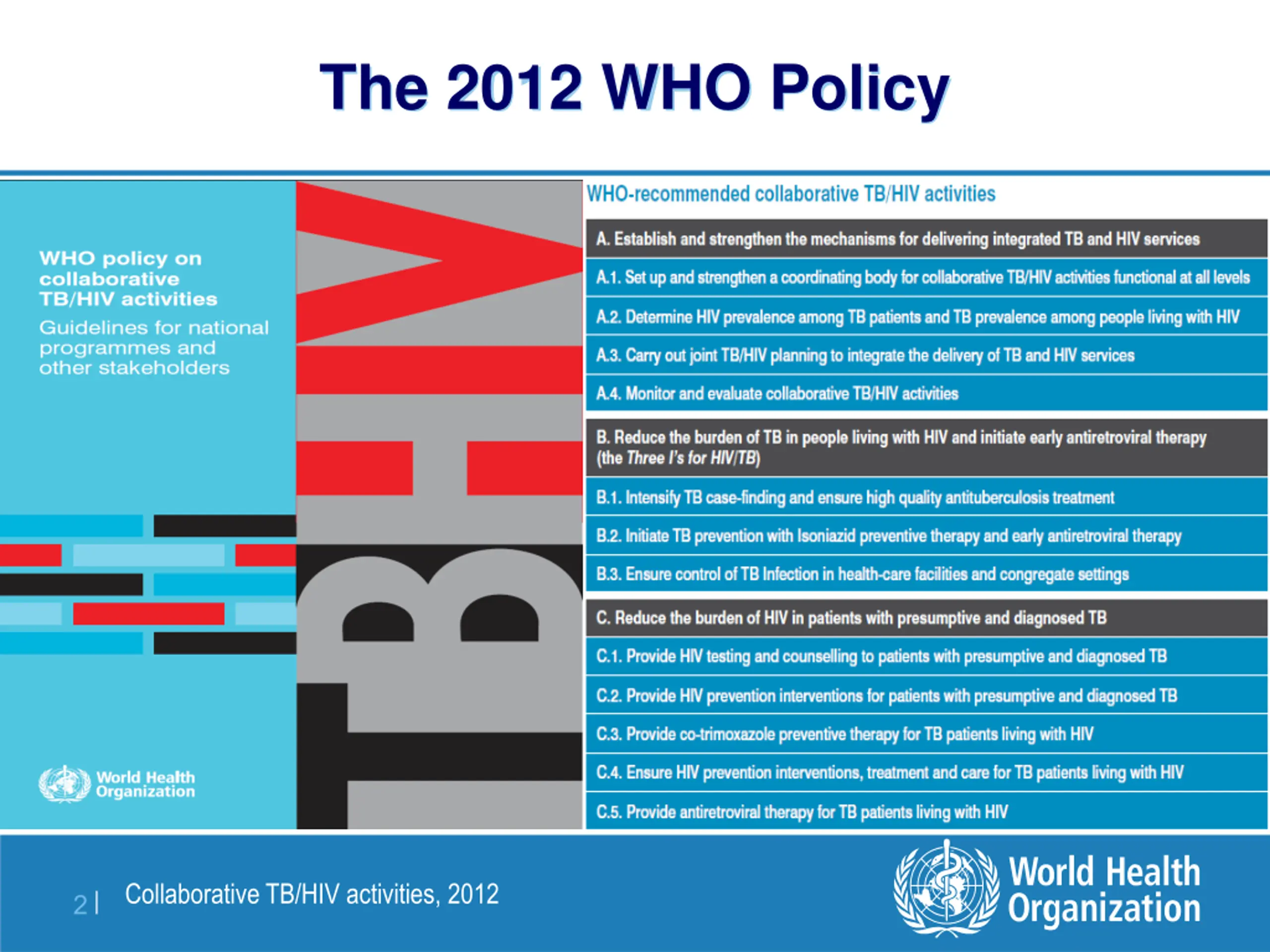

The 2012 WHO Policy Collaborative TB/HIV activities, 2012 2|

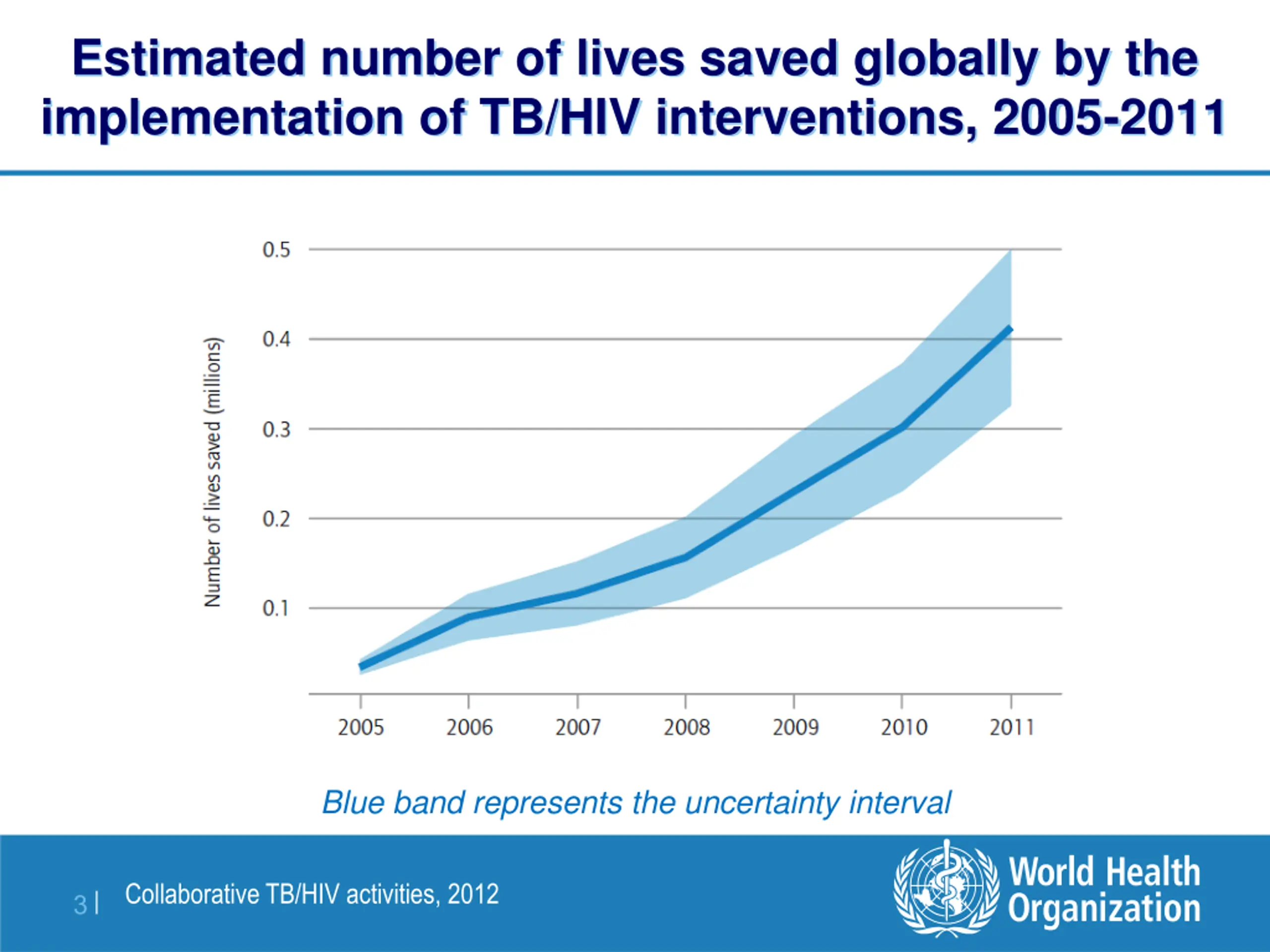

Estimated number of lives saved globally by the implementation of TB/HIV interventions, 2005-2011 Blue band represents the uncertainty interval Collaborative TB/HIV activities, 2012 3|

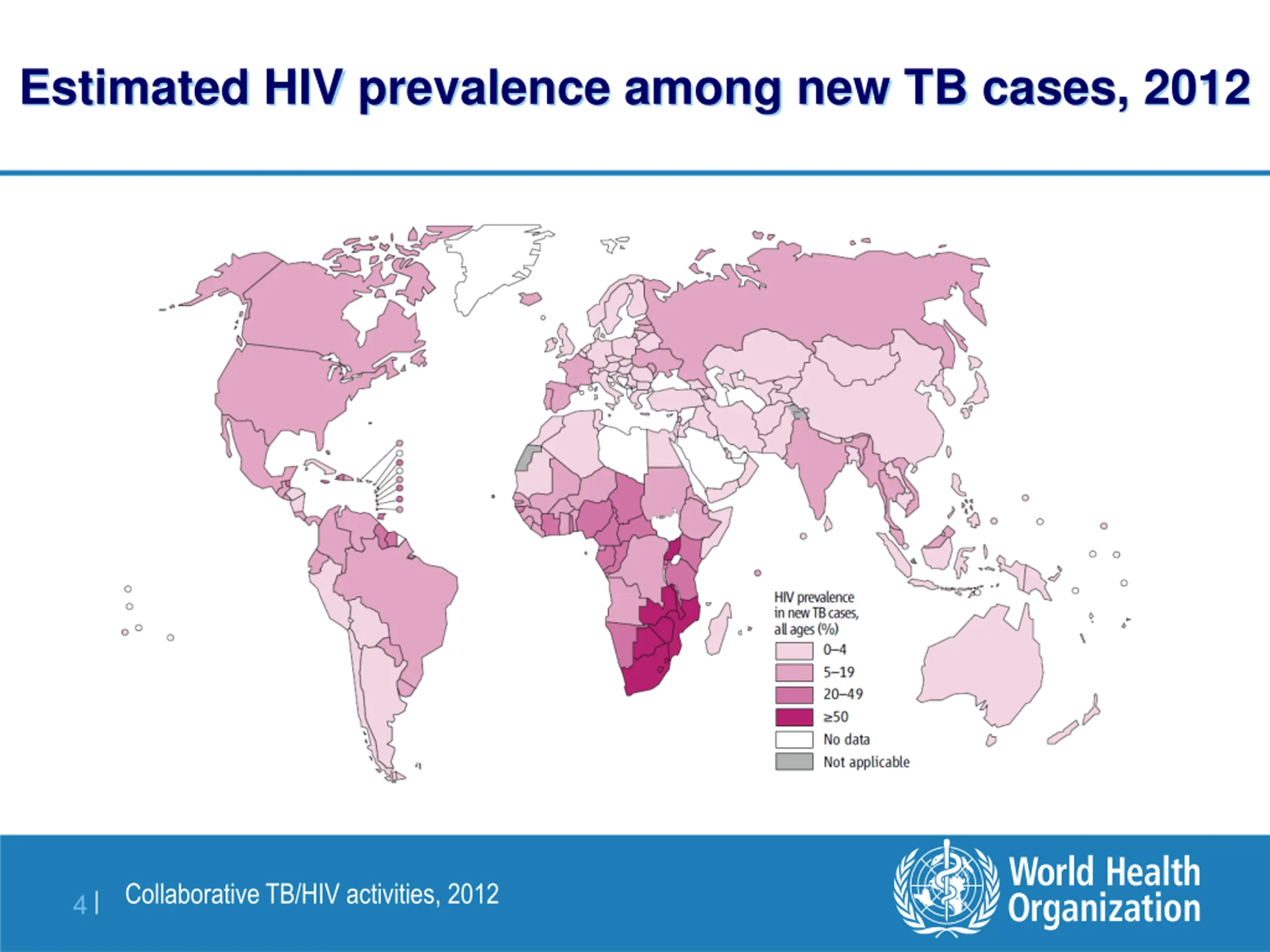

Estimated HIV prevalence among new TB cases, 2012 Collaborative TB/HIV activities, 2012 4|

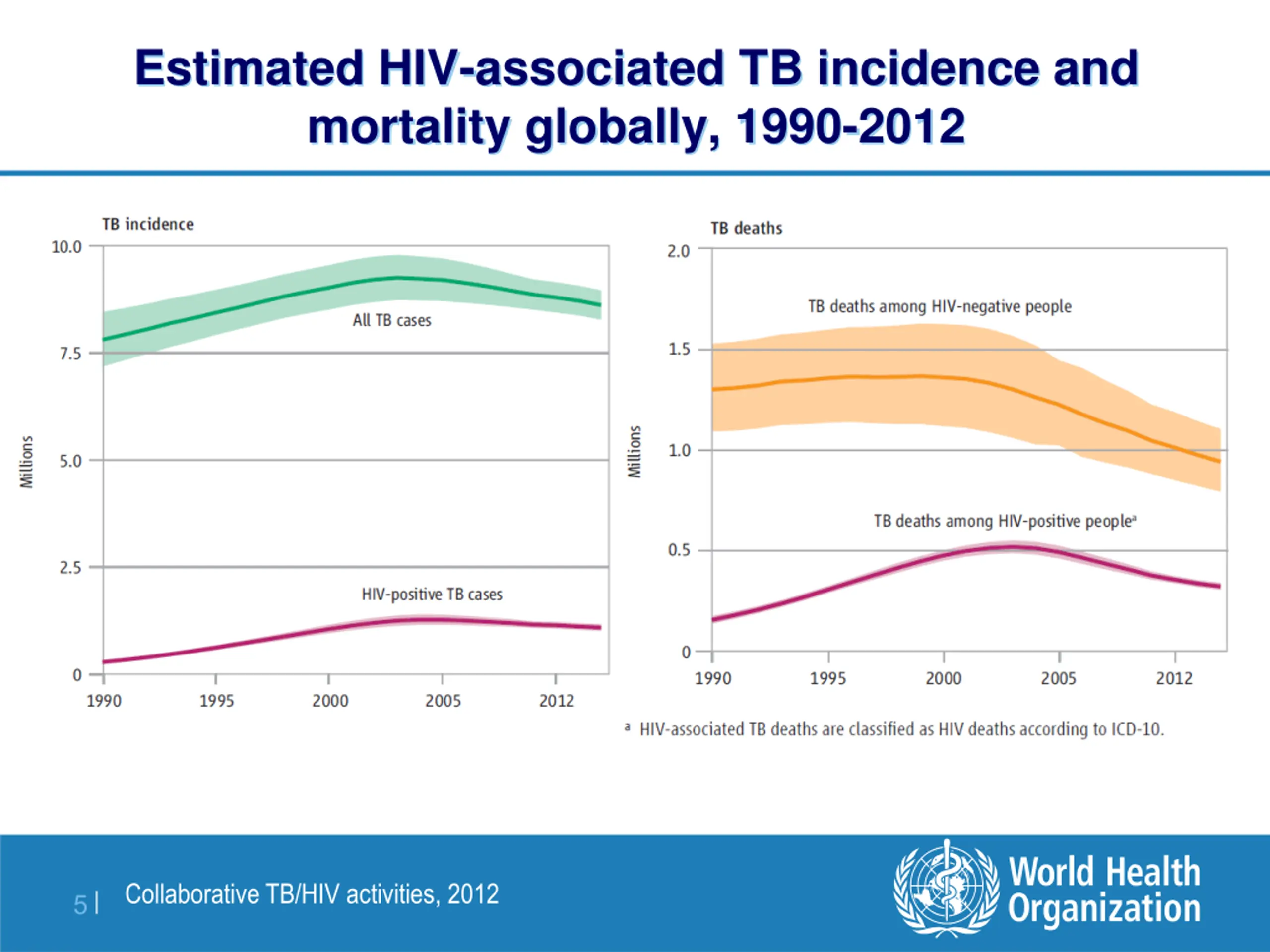

Estimated HIV-associated TB incidence and mortality globally, 1990-2012 Collaborative TB/HIV activities, 2012 5|

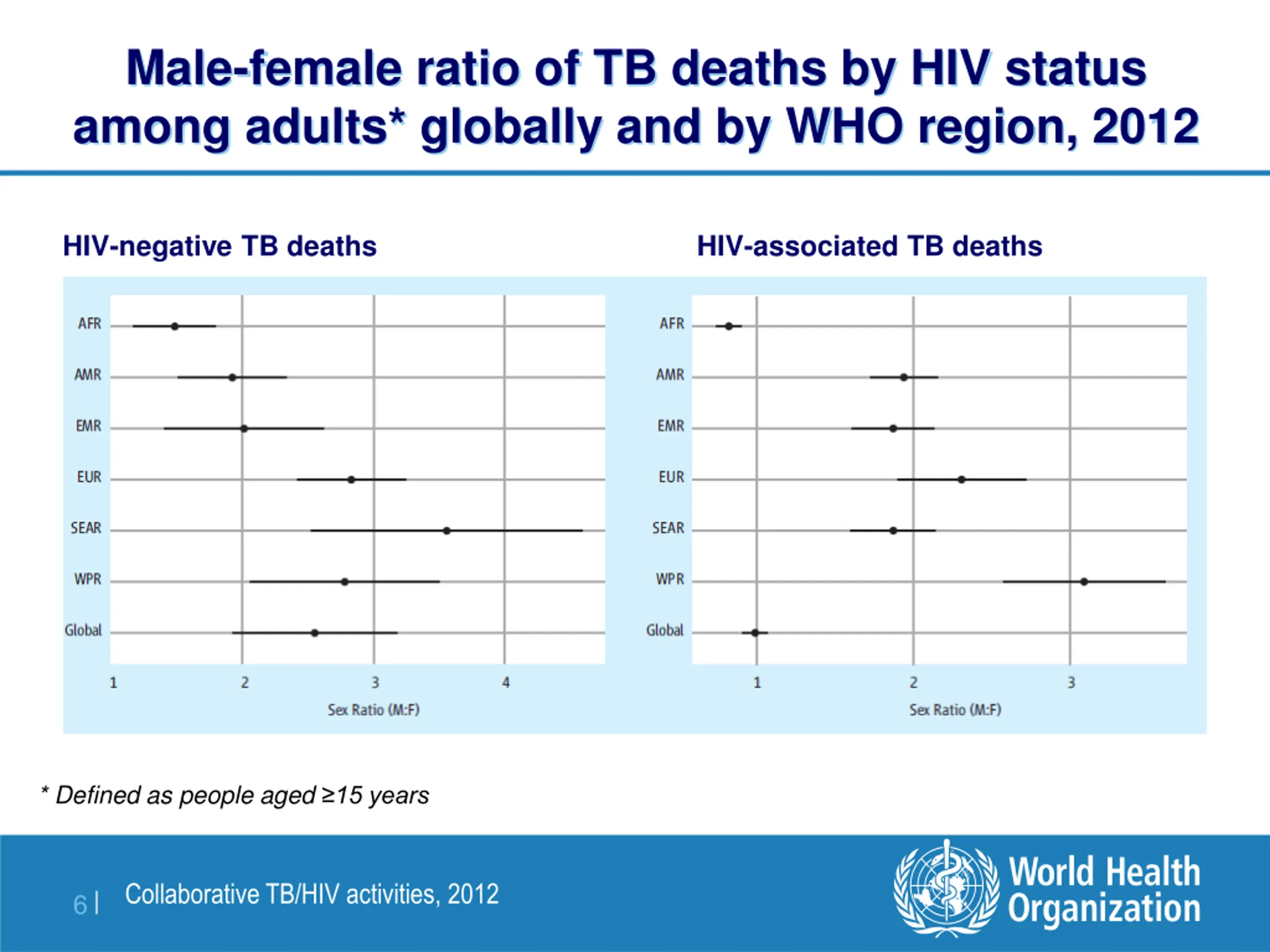

Male-female ratio of TB deaths by HIV status among adults* globally and by WHO region, 2012 HIV-negative TB deaths HIV-associated TB deaths * Defined as people aged 15 years Collaborative TB/HIV activities, 2012 6|

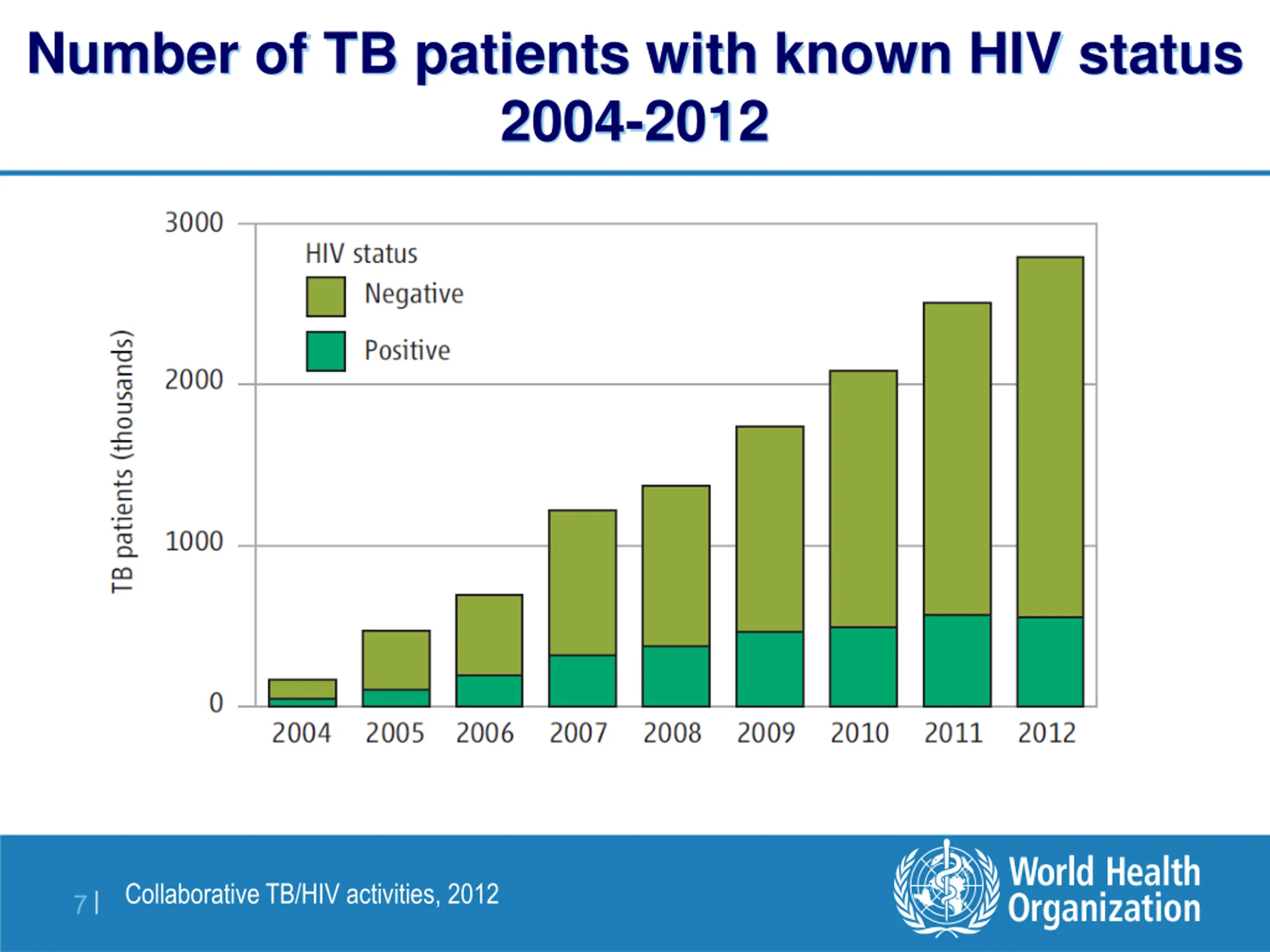

Number of TB patients with known HIV status 2004-2012 Collaborative TB/HIV activities, 2012 7|

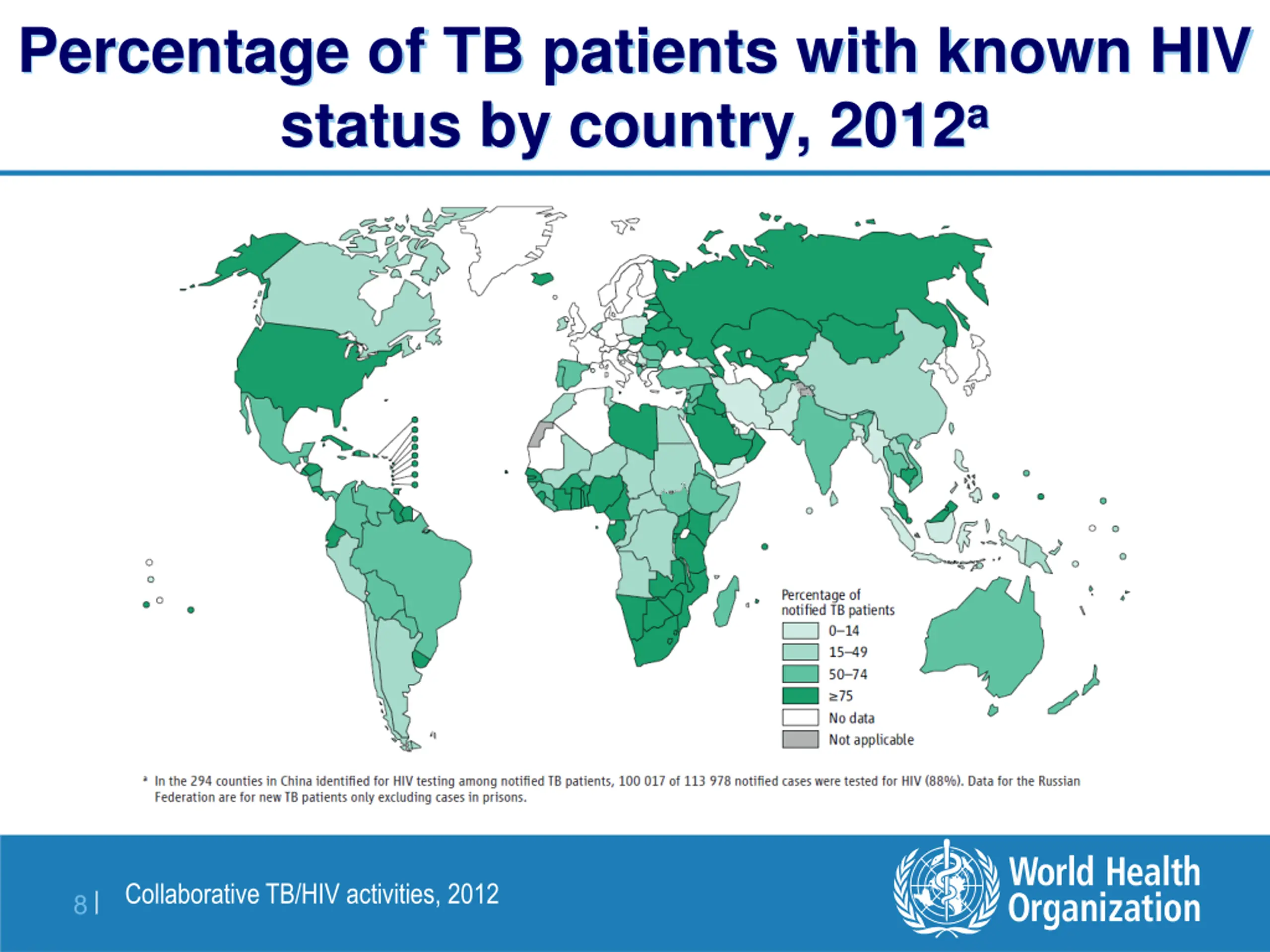

Percentage of TB patients with known HIV status by country, 2012a Collaborative TB/HIV activities, 2012 8|

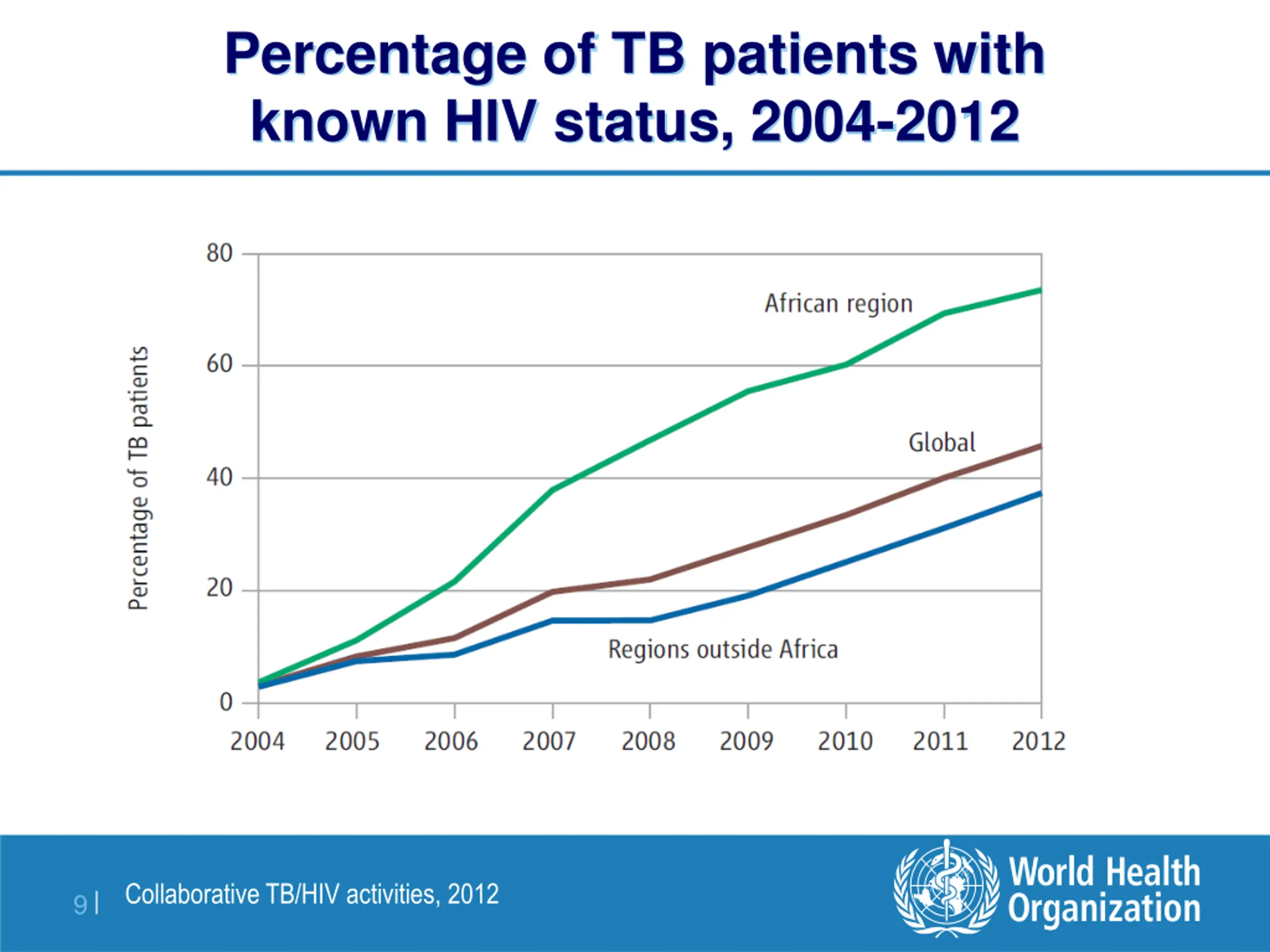

Percentage of TB patients with known HIV status, 2004-2012 Collaborative TB/HIV activities, 2012 9|

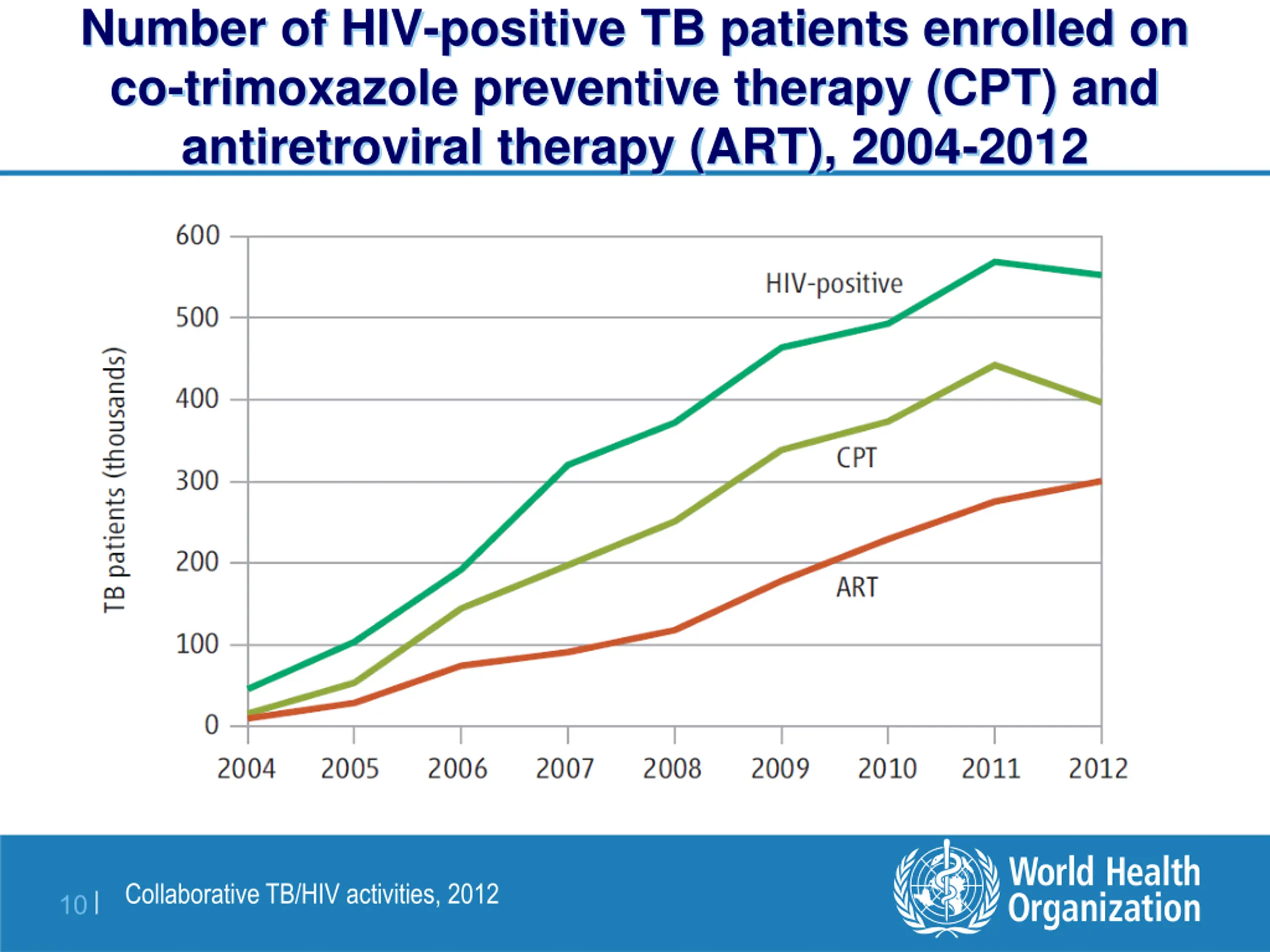

Number of HIV-positive TB patients enrolled on co-trimoxazole preventive therapy (CPT) and antiretroviral therapy (ART), 2004-2012 Collaborative TB/HIV activities, 2012 10|

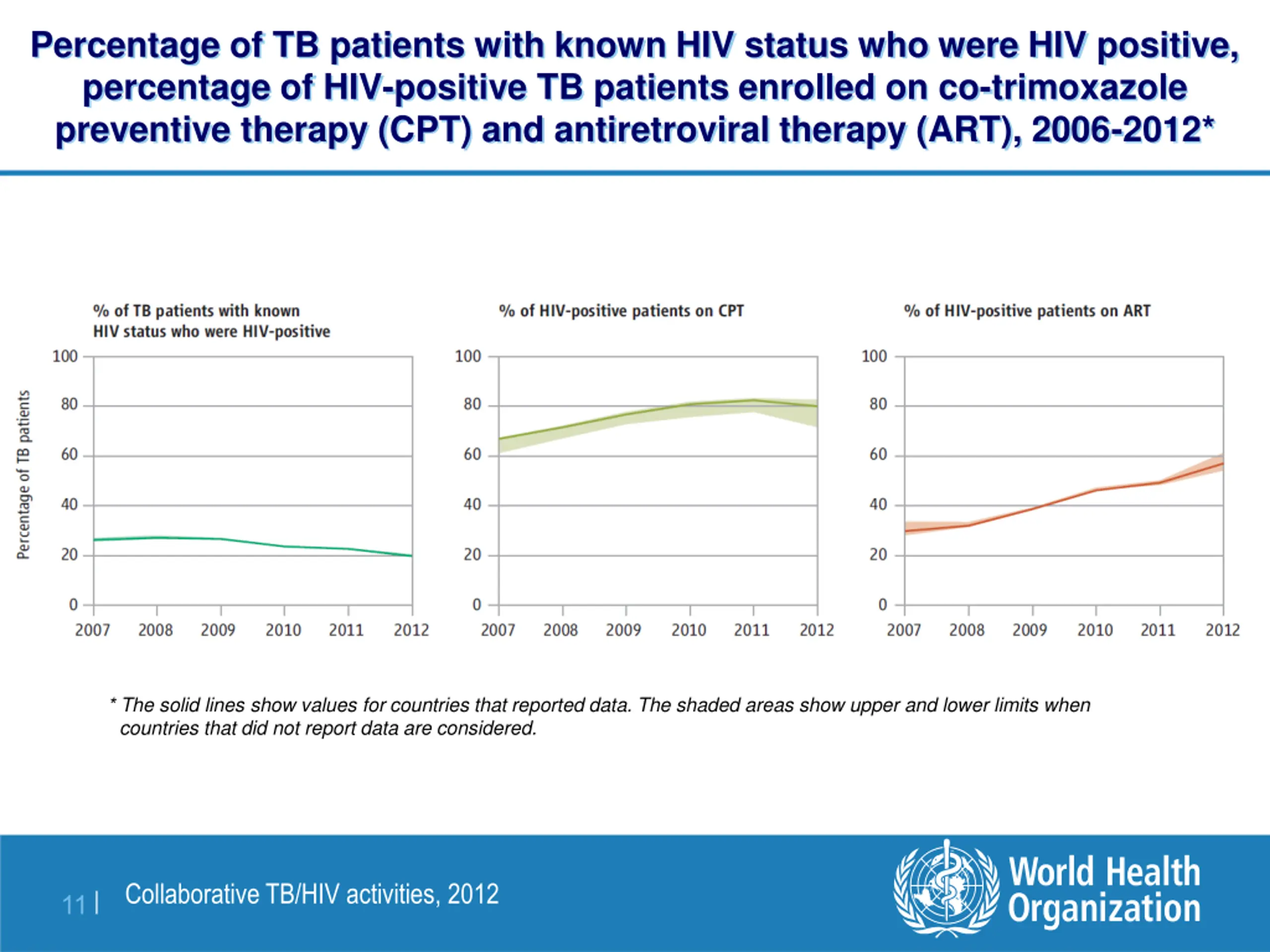

Percentage of TB patients with known HIV status who were HIV positive, percentage of HIV-positive TB patients enrolled on co-trimoxazole preventive therapy (CPT) and antiretroviral therapy (ART), 2006-2012* * The solid lines show values for countries that reported data. The shaded areas show upper and lower limits when countries that did not report data are considered. Collaborative TB/HIV activities, 2012 11|

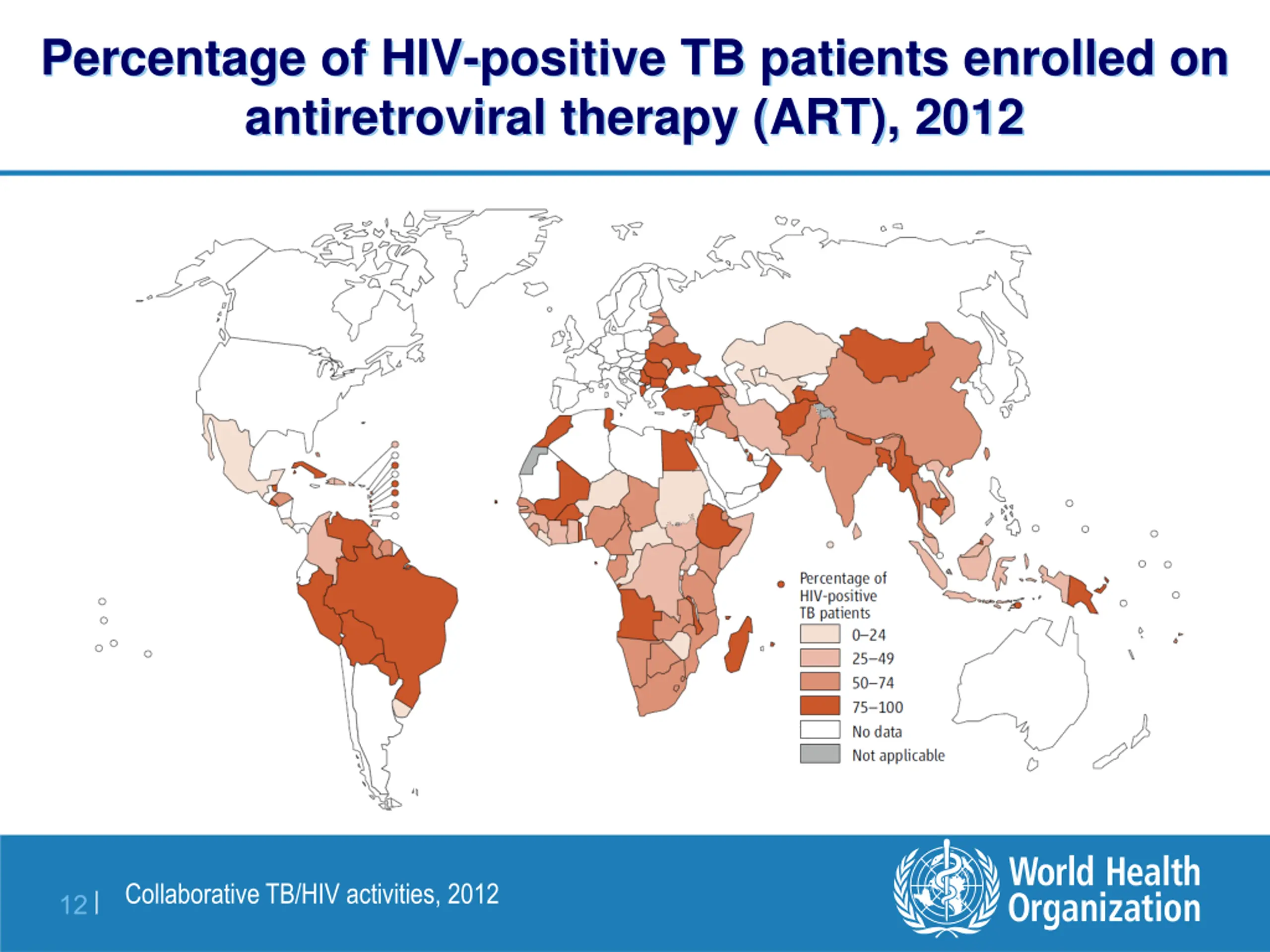

Percentage of HIV-positive TB patients enrolled on antiretroviral therapy (ART), 2012 Collaborative TB/HIV activities, 2012 12|

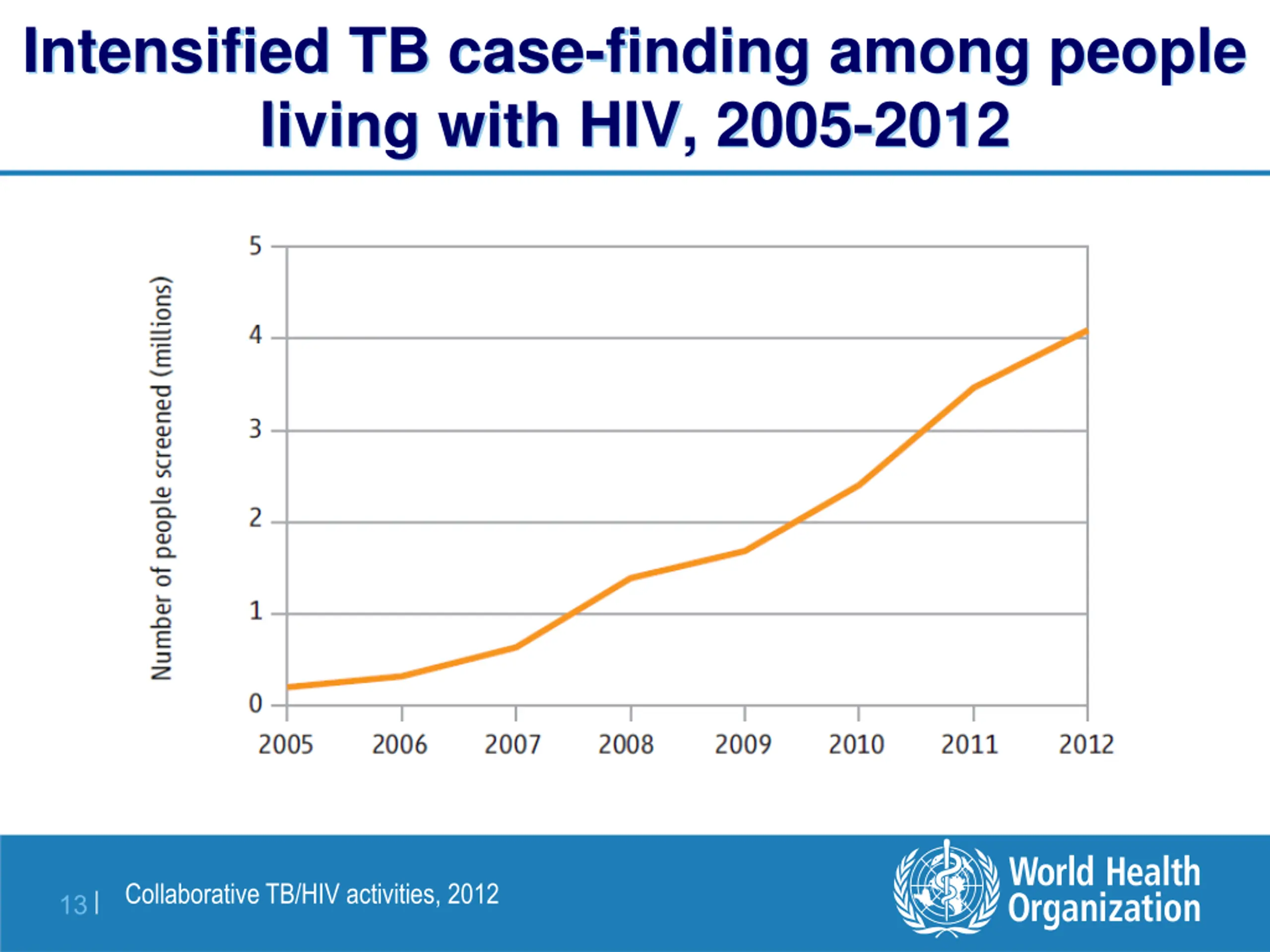

Intensified TB case-finding among people living with HIV, 2005-2012 Collaborative TB/HIV activities, 2012 13|

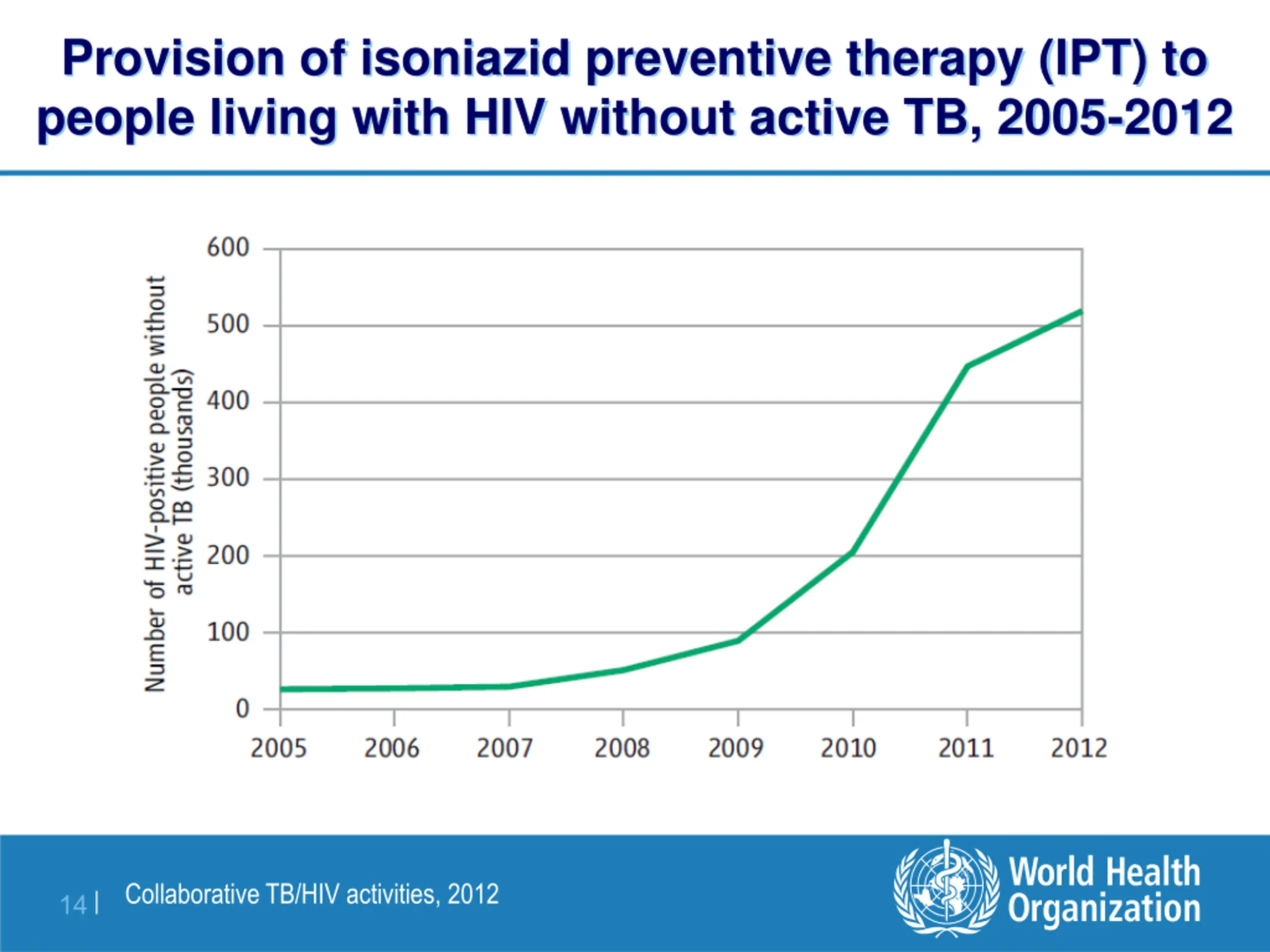

Provision of isoniazid preventive therapy (IPT) to people living with HIV without active TB, 2005-2012 Collaborative TB/HIV activities, 2012 14|

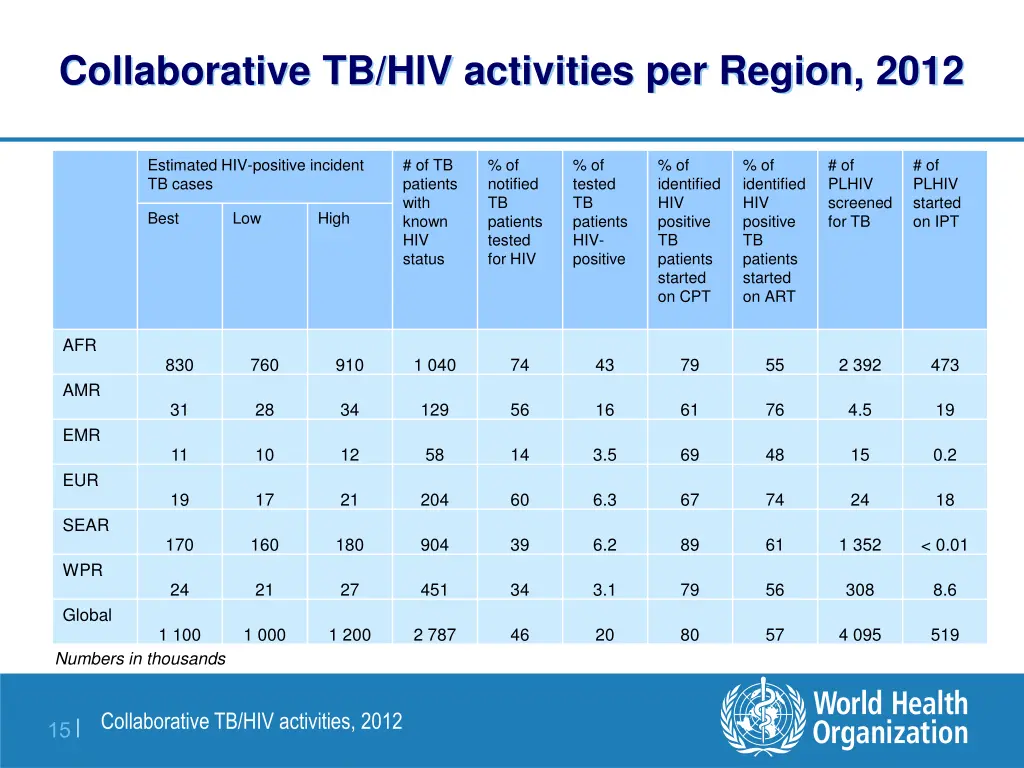

Collaborative TB/HIV activities per Region, 2012 Estimated HIV-positive incident TB cases # of TB patients with known HIV status % of notified TB patients tested for HIV % of tested TB patients HIV- positive % of identified HIV positive TB patients started on CPT % of identified HIV positive TB patients started on ART # of PLHIV screened for TB # of PLHIV started on IPT Best Low High AFR 830 760 910 1 040 74 43 79 55 2 392 473 AMR 31 28 34 129 56 16 61 76 4.5 19 EMR 11 10 12 58 14 3.5 69 48 15 0.2 EUR 19 17 21 204 60 6.3 67 74 24 18 SEAR 170 160 180 904 39 6.2 89 61 1 352 < 0.01 WPR 24 21 27 451 34 3.1 79 56 308 8.6 Global 1 100 1 000 1 200 2 787 46 20 80 57 4 095 519 Numbers in thousands Collaborative TB/HIV activities, 2012 15|

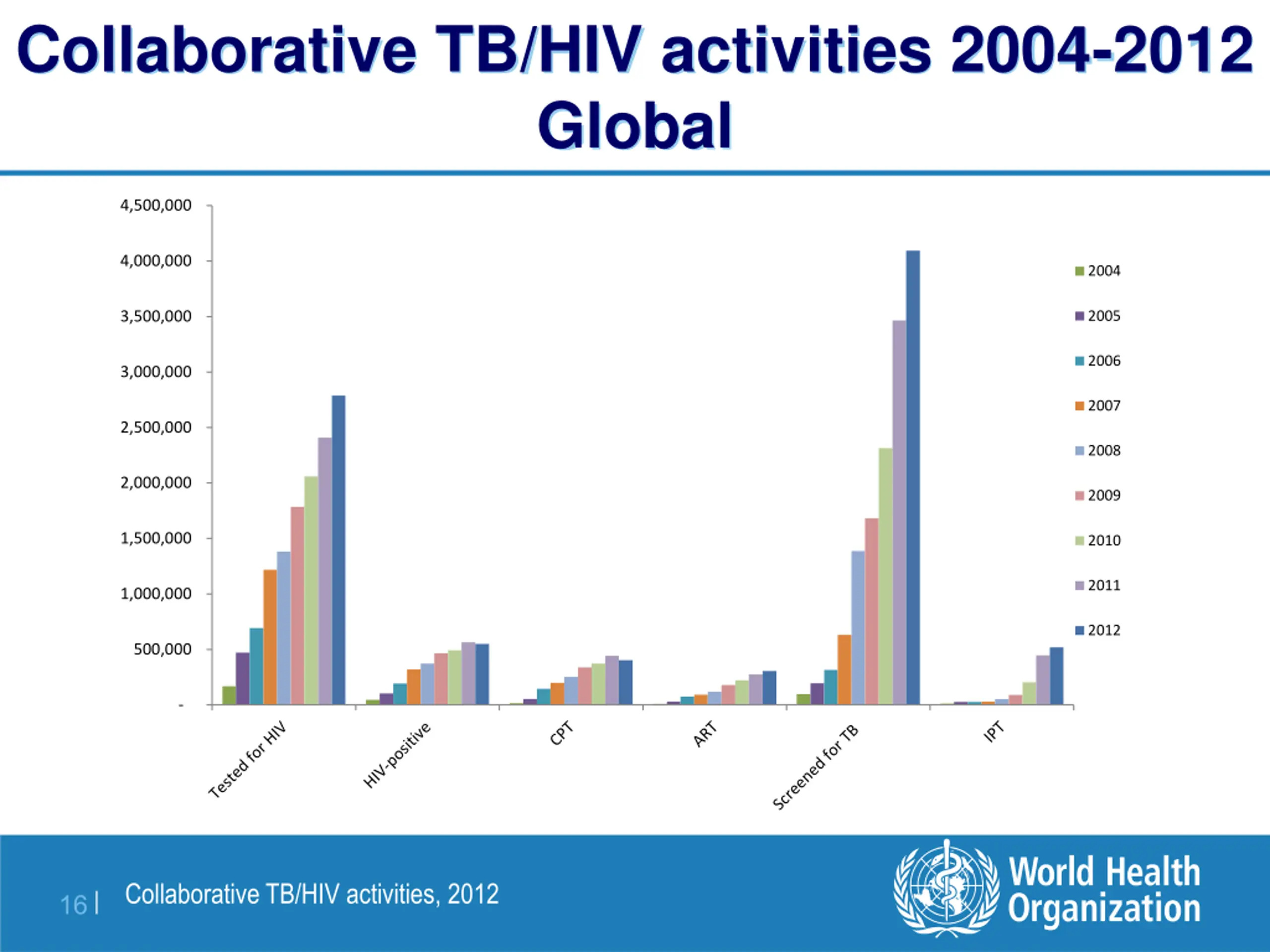

Collaborative TB/HIV activities 2004-2012 Global 4,500,000 4,000,000 2004 3,500,000 2005 2006 3,000,000 2007 2,500,000 2008 2,000,000 2009 1,500,000 2010 2011 1,000,000 2012 500,000 - Collaborative TB/HIV activities, 2012 16|

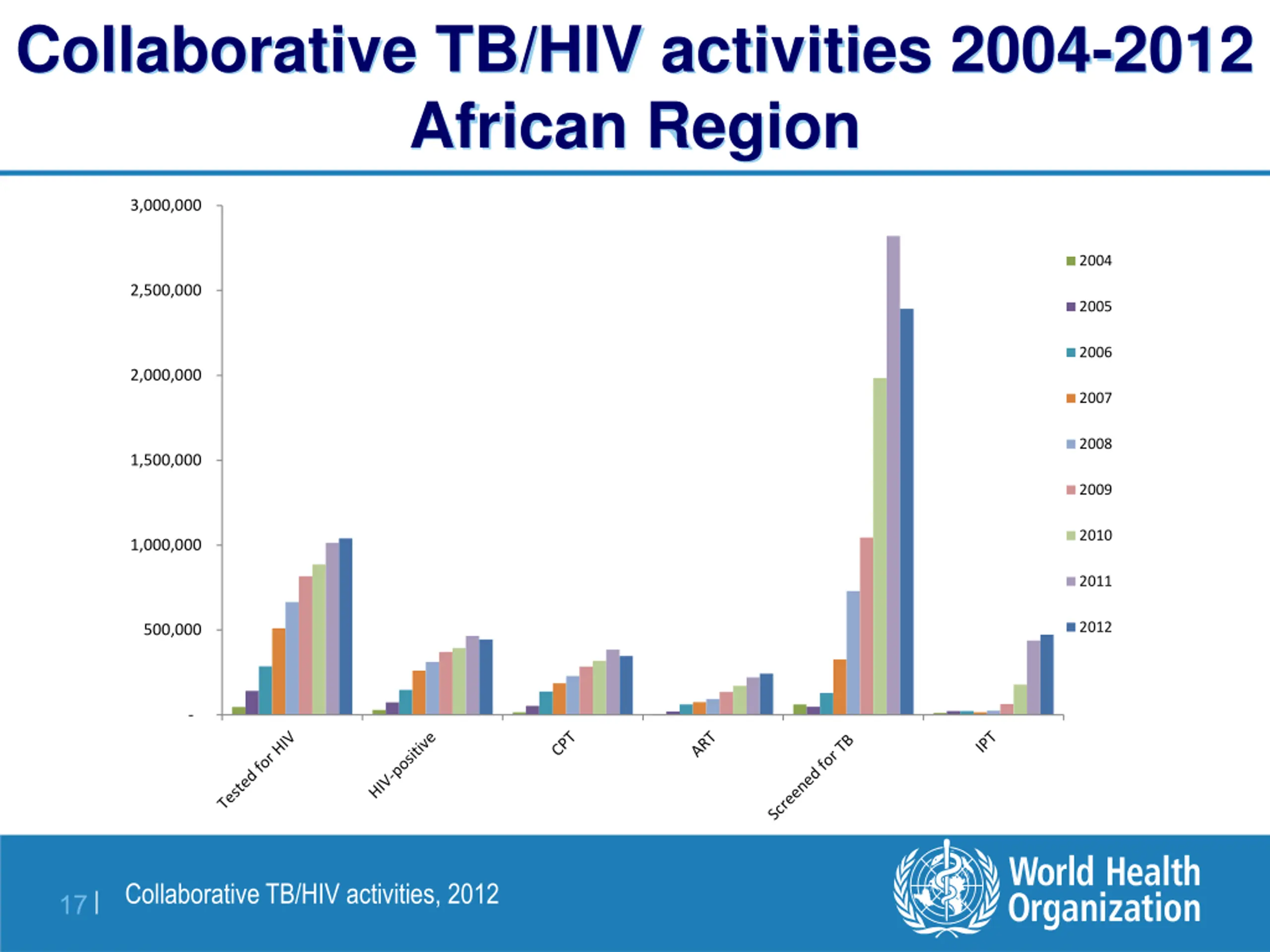

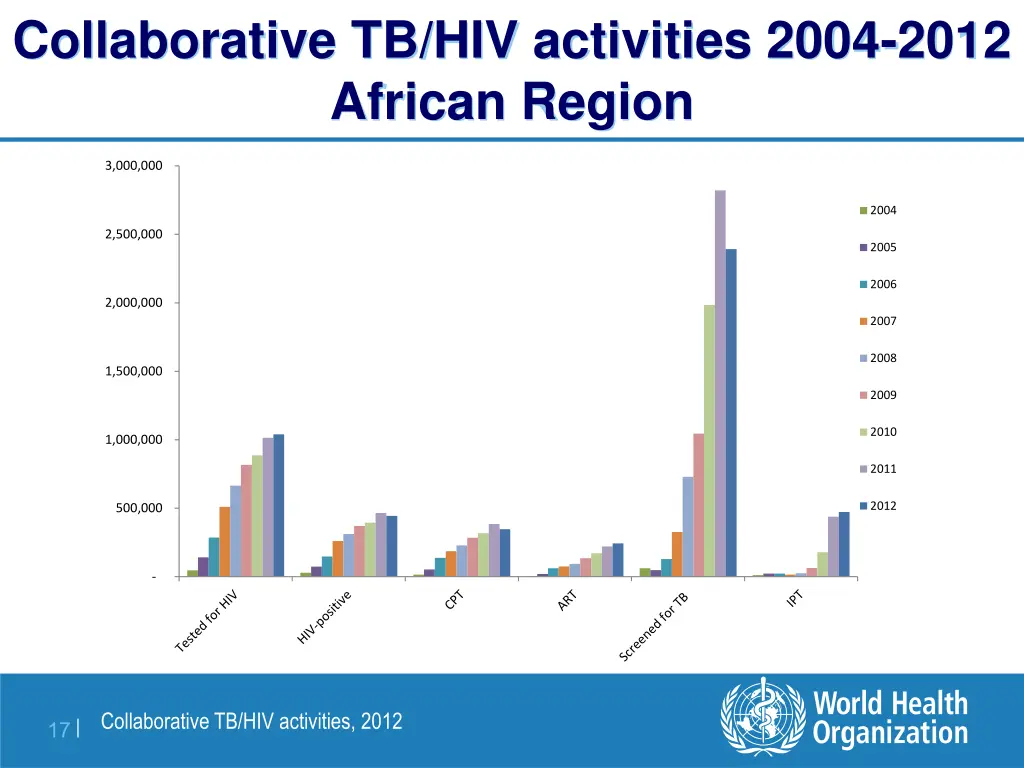

Collaborative TB/HIV activities 2004-2012 African Region 3,000,000 2004 2,500,000 2005 2006 2,000,000 2007 2008 1,500,000 2009 2010 1,000,000 2011 2012 500,000 - Collaborative TB/HIV activities, 2012 17|

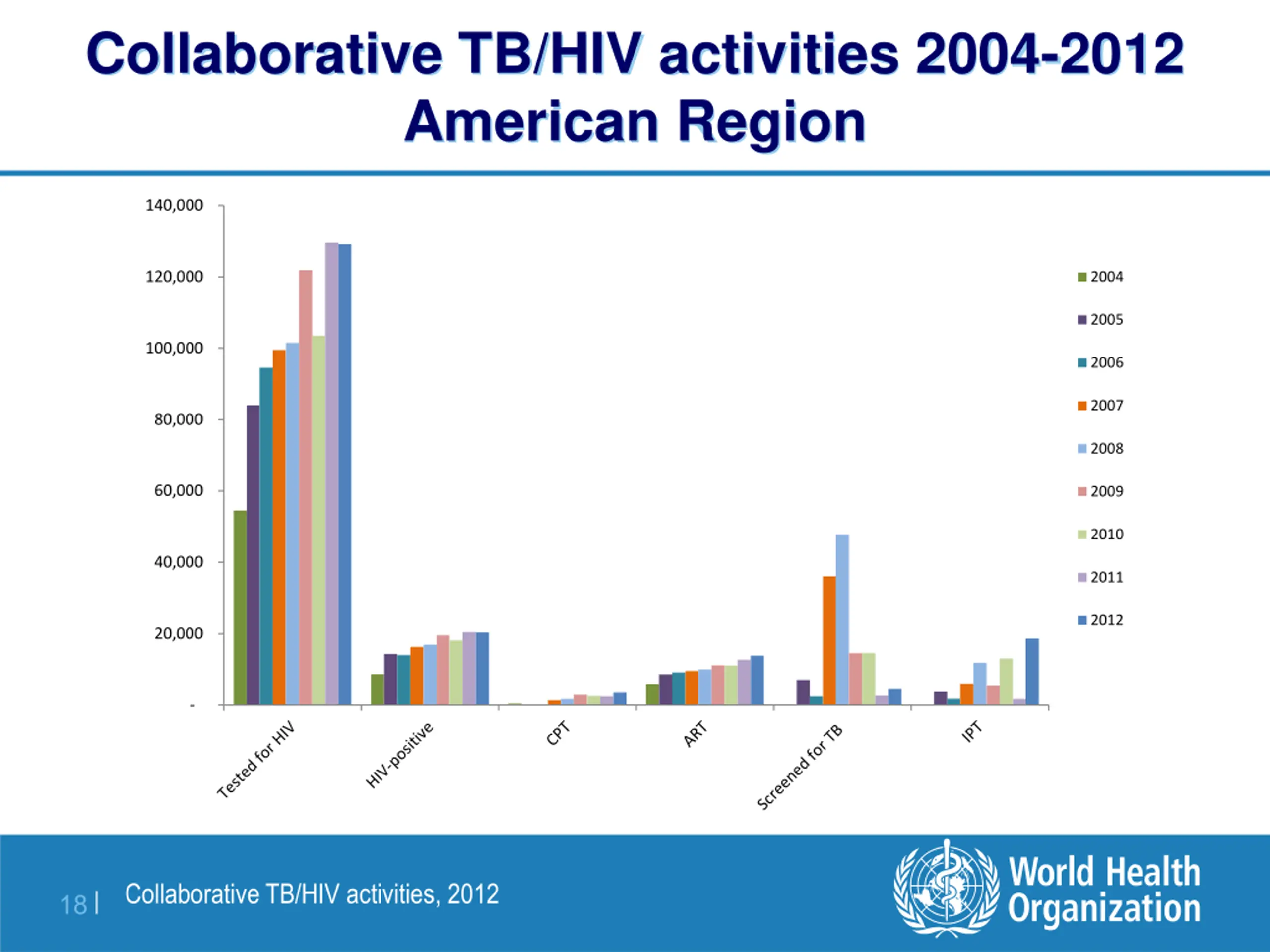

Collaborative TB/HIV activities 2004-2012 American Region 140,000 120,000 2004 2005 100,000 2006 2007 80,000 2008 60,000 2009 2010 40,000 2011 2012 20,000 - Collaborative TB/HIV activities, 2012 18|

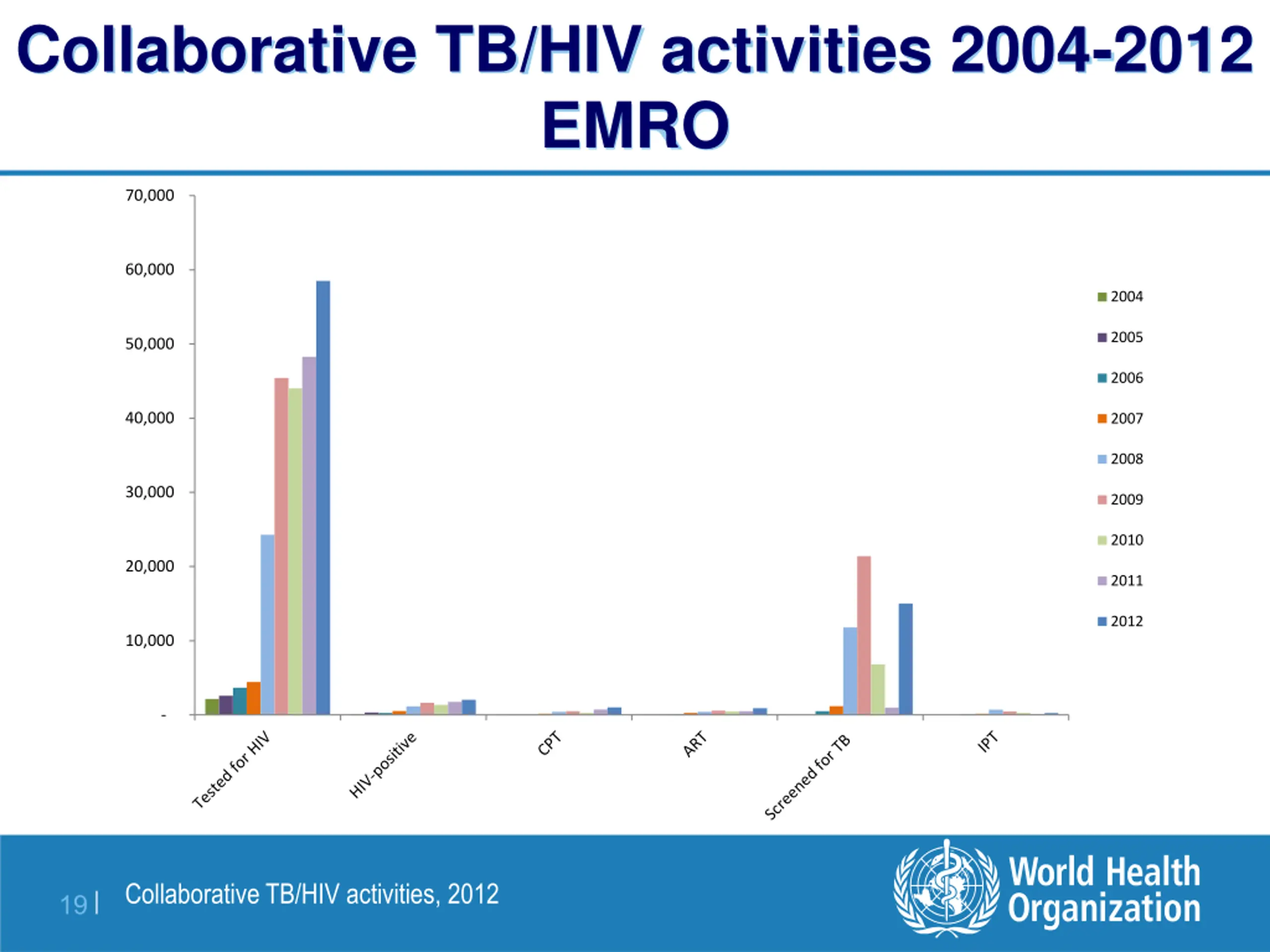

Collaborative TB/HIV activities 2004-2012 EMRO 70,000 60,000 2004 2005 50,000 2006 40,000 2007 2008 30,000 2009 2010 20,000 2011 2012 10,000 - Collaborative TB/HIV activities, 2012 19|

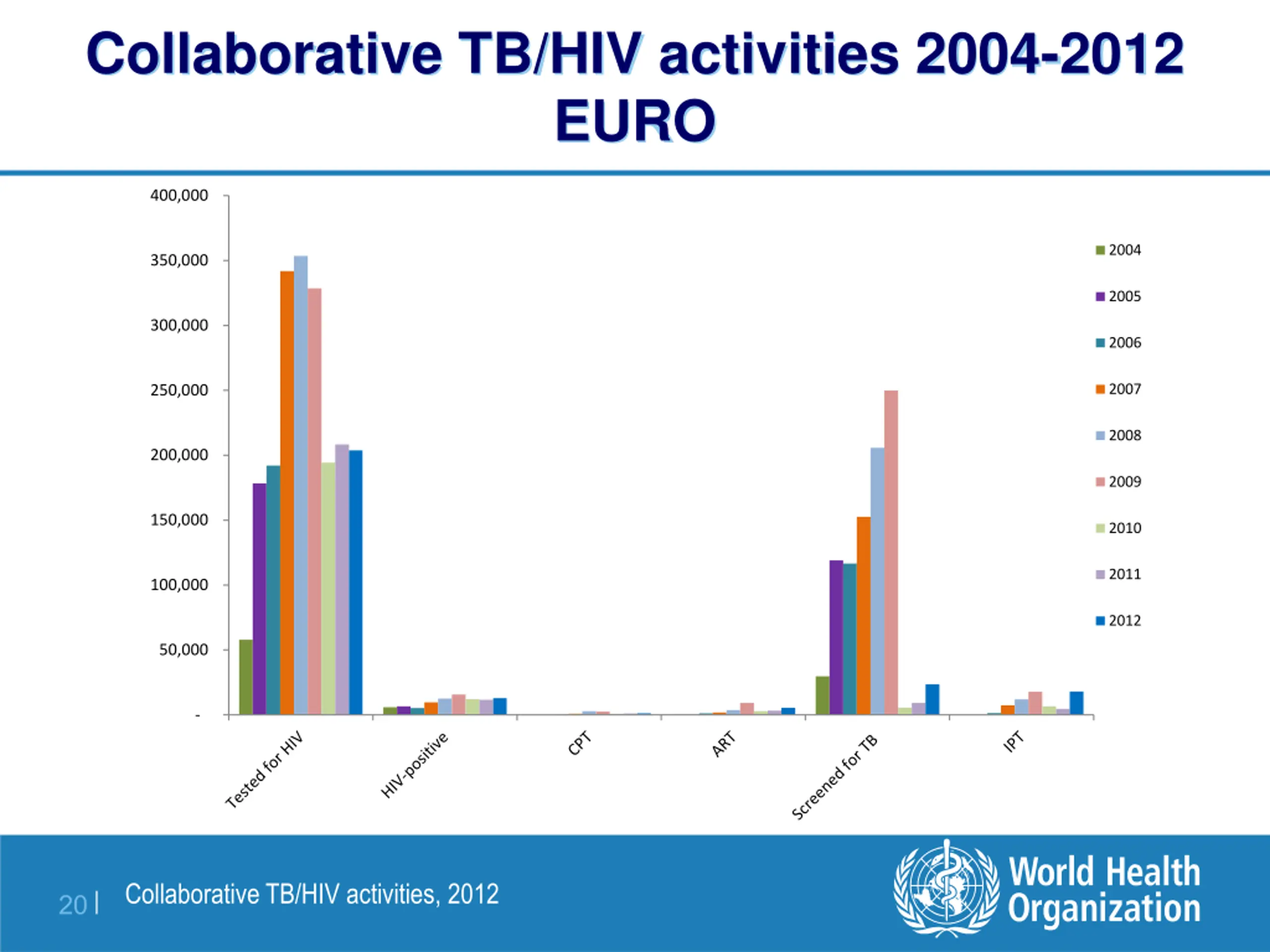

Collaborative TB/HIV activities 2004-2012 EURO 400,000 2004 350,000 2005 300,000 2006 2007 250,000 2008 200,000 2009 150,000 2010 2011 100,000 2012 50,000 - Collaborative TB/HIV activities, 2012 20|

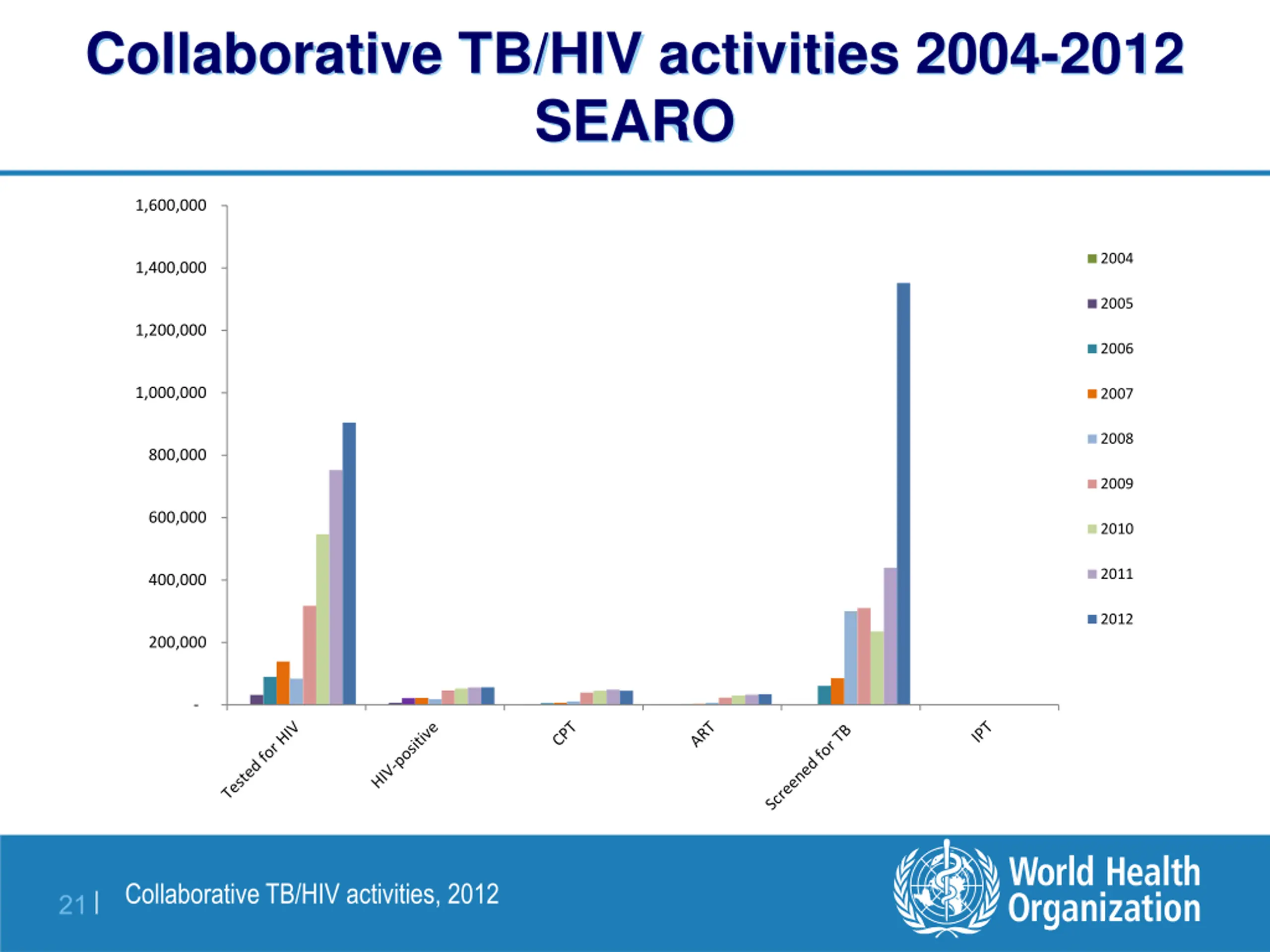

Collaborative TB/HIV activities 2004-2012 SEARO 1,600,000 2004 1,400,000 2005 1,200,000 2006 1,000,000 2007 2008 800,000 2009 600,000 2010 2011 400,000 2012 200,000 - Collaborative TB/HIV activities, 2012 21|

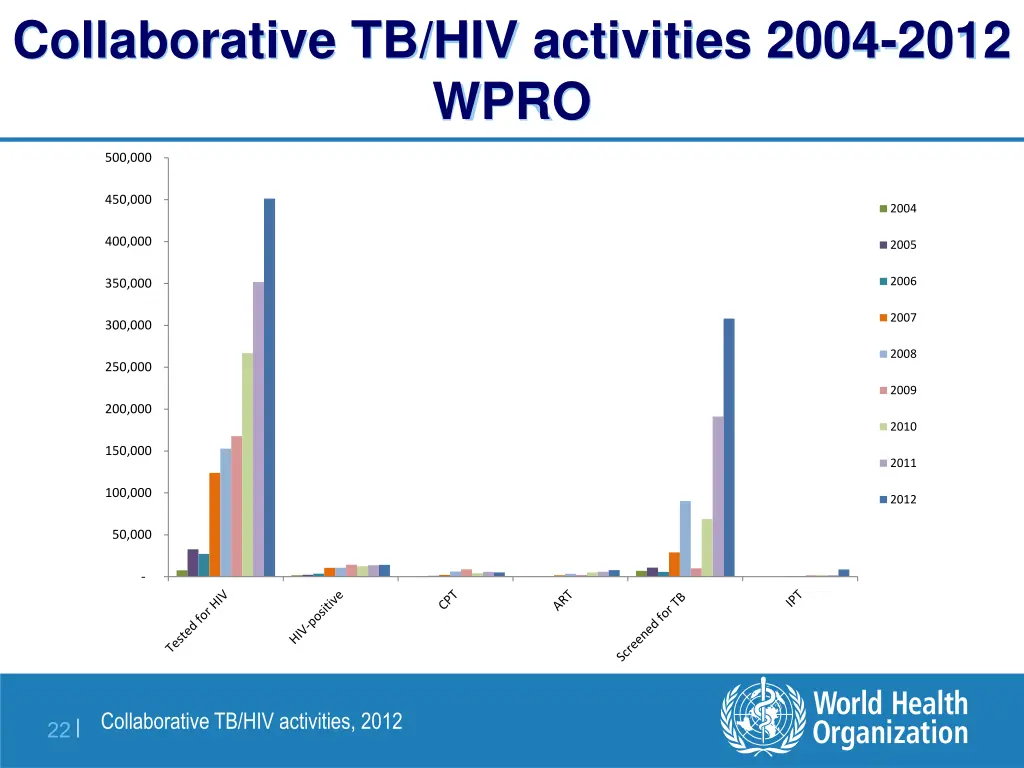

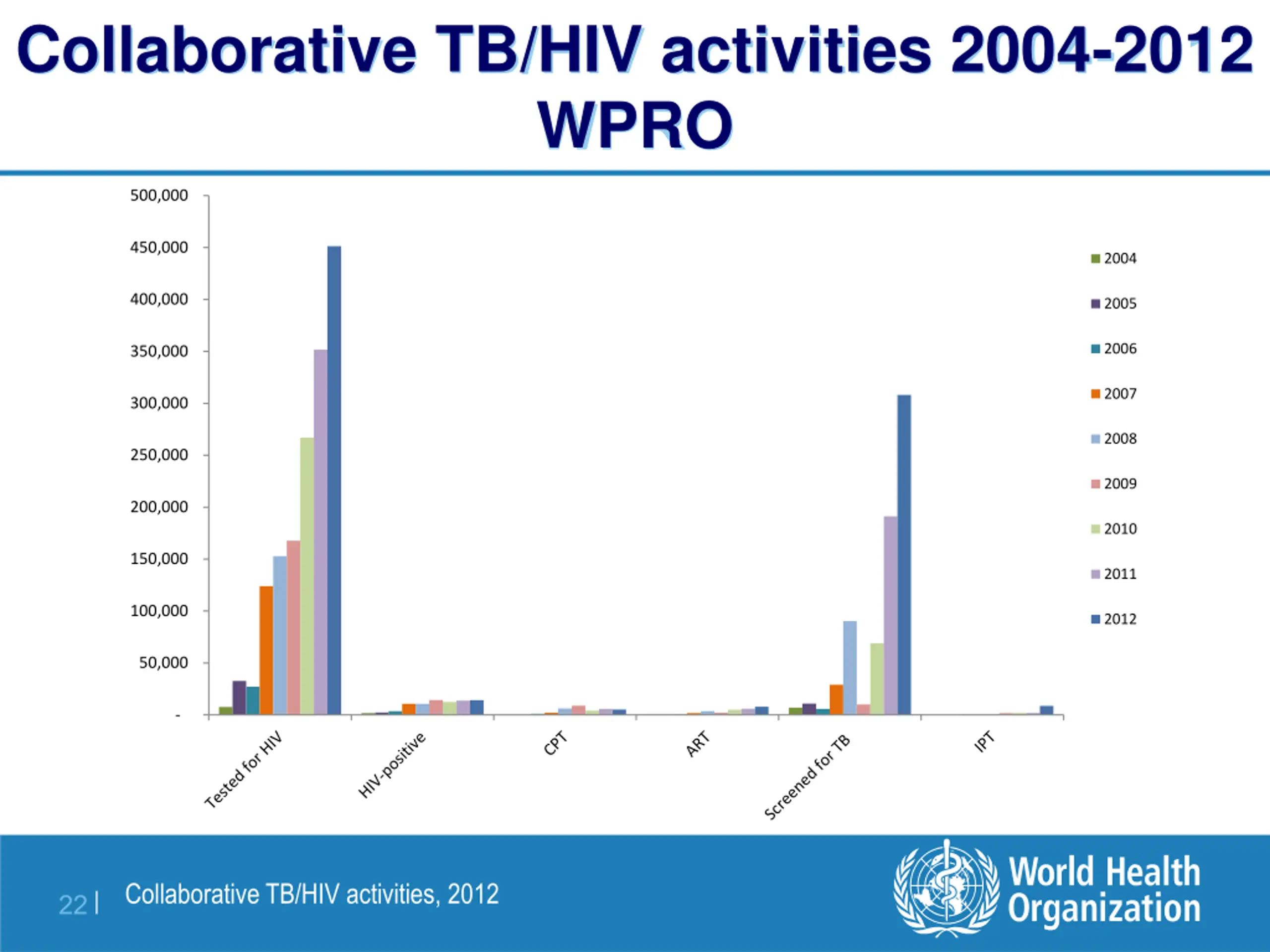

Collaborative TB/HIV activities 2004-2012 WPRO 500,000 450,000 2004 400,000 2005 2006 350,000 2007 300,000 2008 250,000 2009 200,000 2010 150,000 2011 100,000 2012 50,000 - Collaborative TB/HIV activities, 2012 22|
