COMP541 Combinational Logic - 3 Montek Singh Jan 31, 2018 1

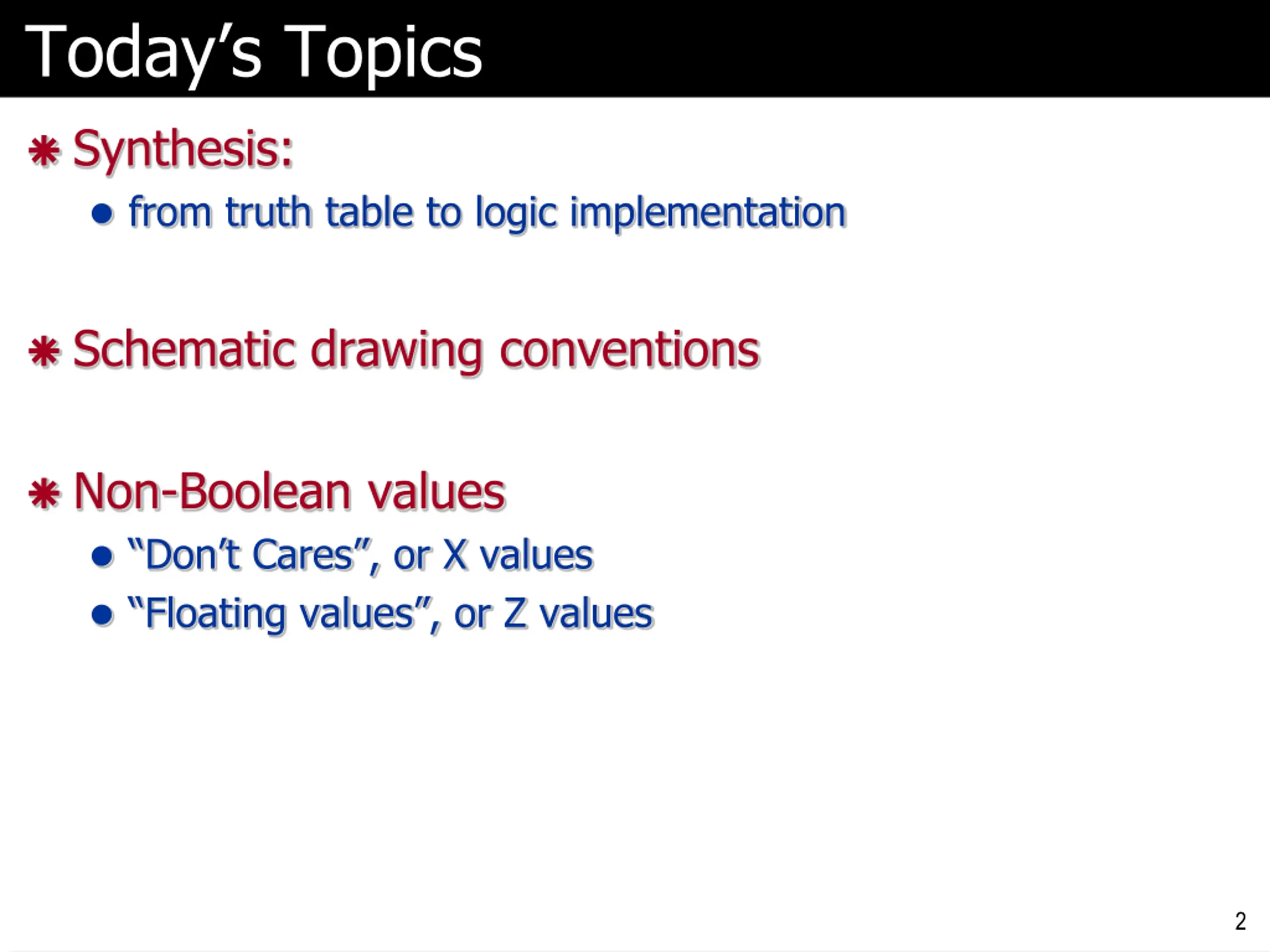

Todays Topics Synthesis: from truth table to logic implementation Schematic drawing conventions Non-Boolean values Don t Cares , or X values Floating values , or Z values 2

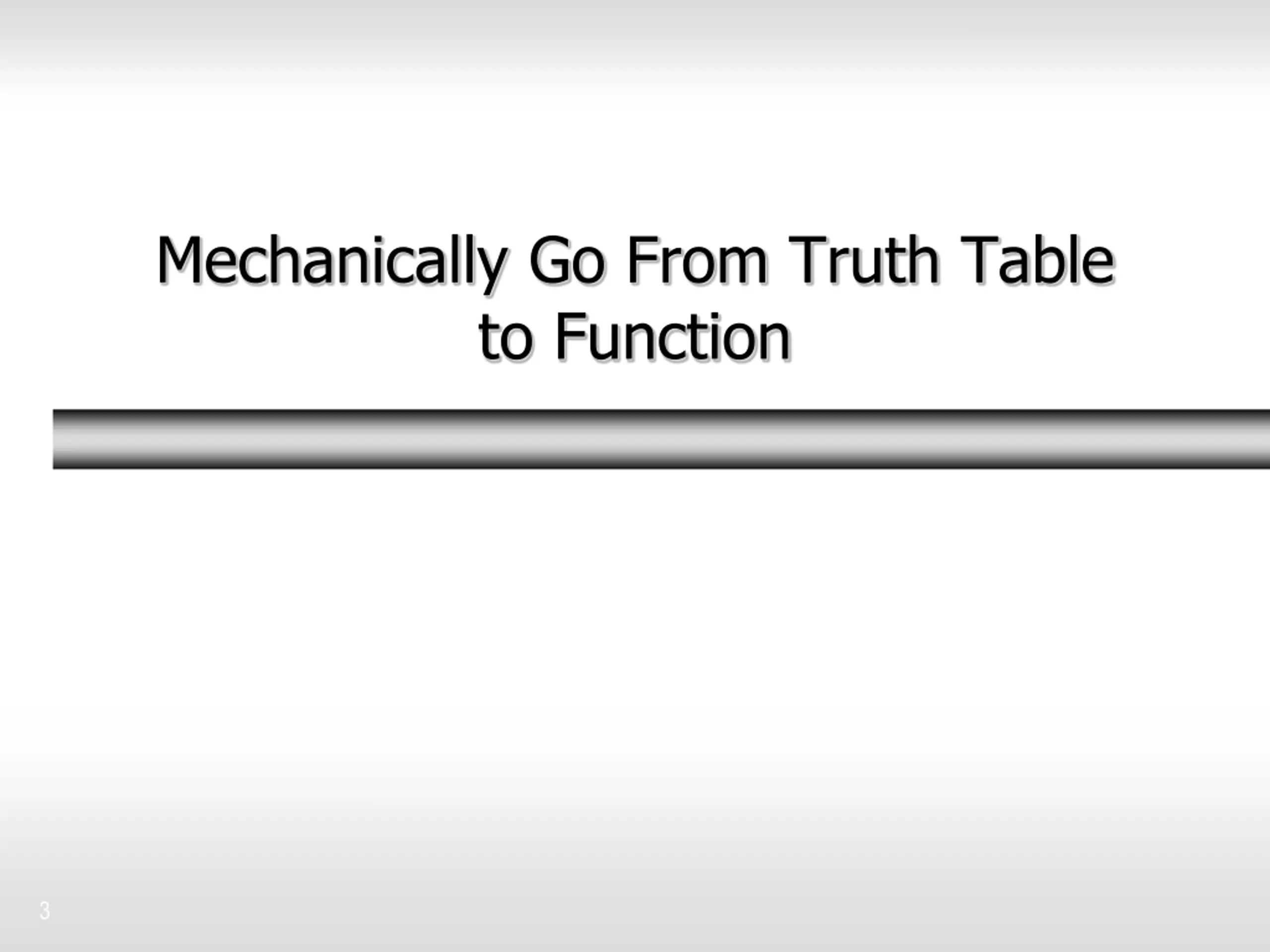

Mechanically Go From Truth Table to Function 3

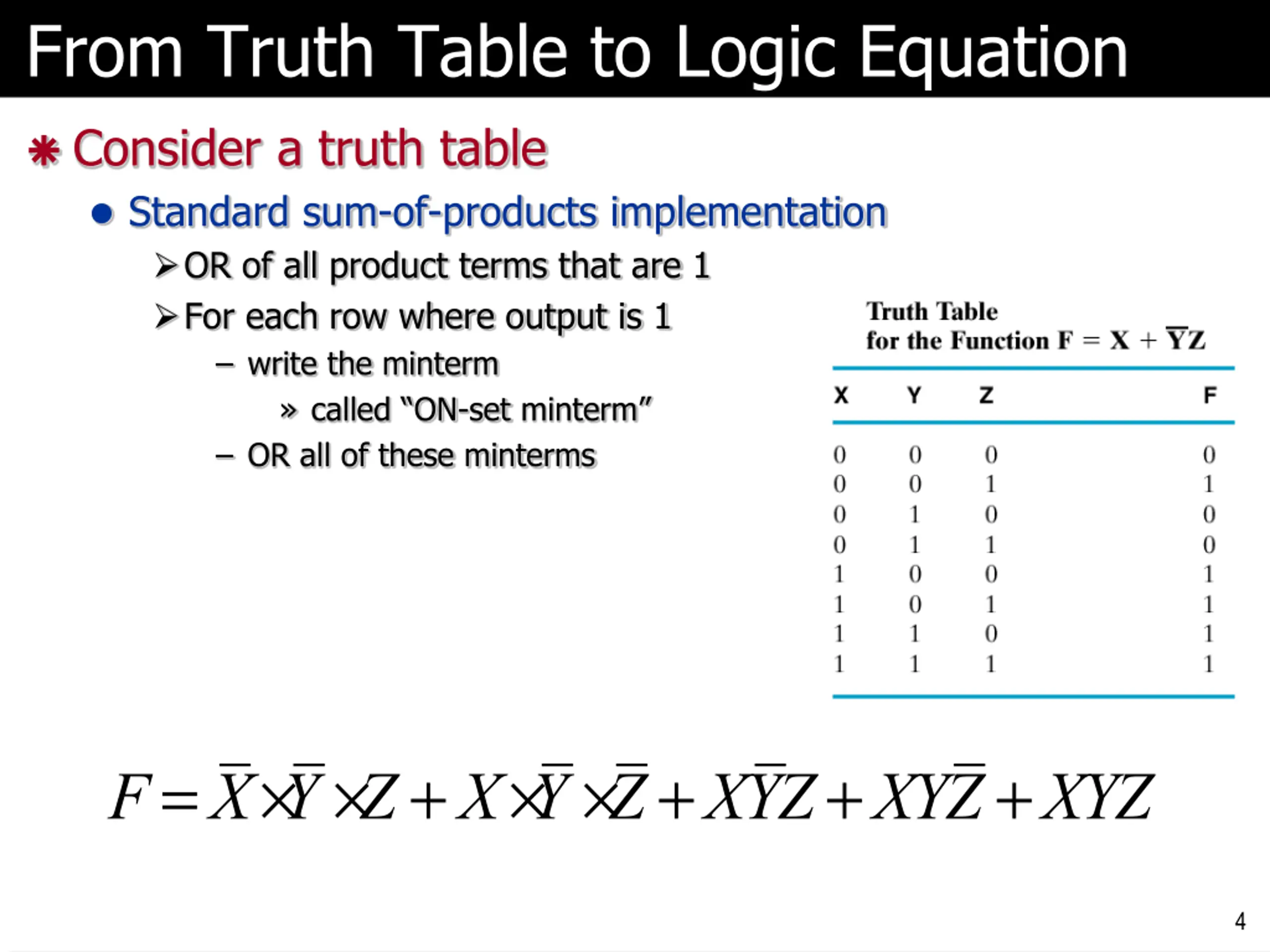

From Truth Table to Logic Equation Consider a truth table Standard sum-of-products implementation OR of all product terms that are 1 For each row where output is 1 write the minterm called ON-set minterm OR all of these minterms F = X Y Z + X Y Z+XYZ+XYZ +XYZ 4

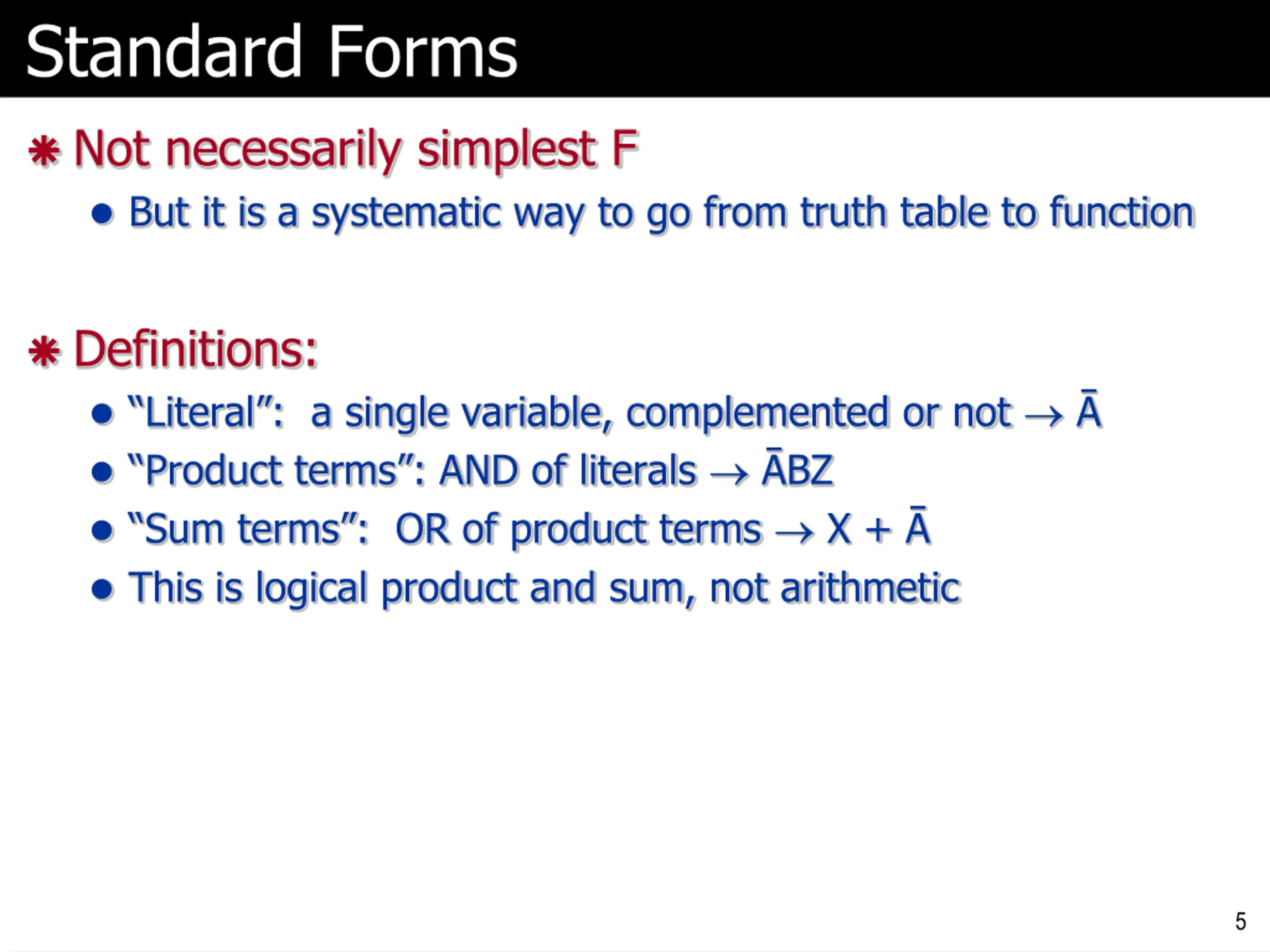

Standard Forms Not necessarily simplest F But it is a systematic way to go from truth table to function Definitions: Literal : a single variable, complemented or not Product terms : AND of literals BZ Sum terms : OR of product terms X + This is logical product and sum, not arithmetic 5

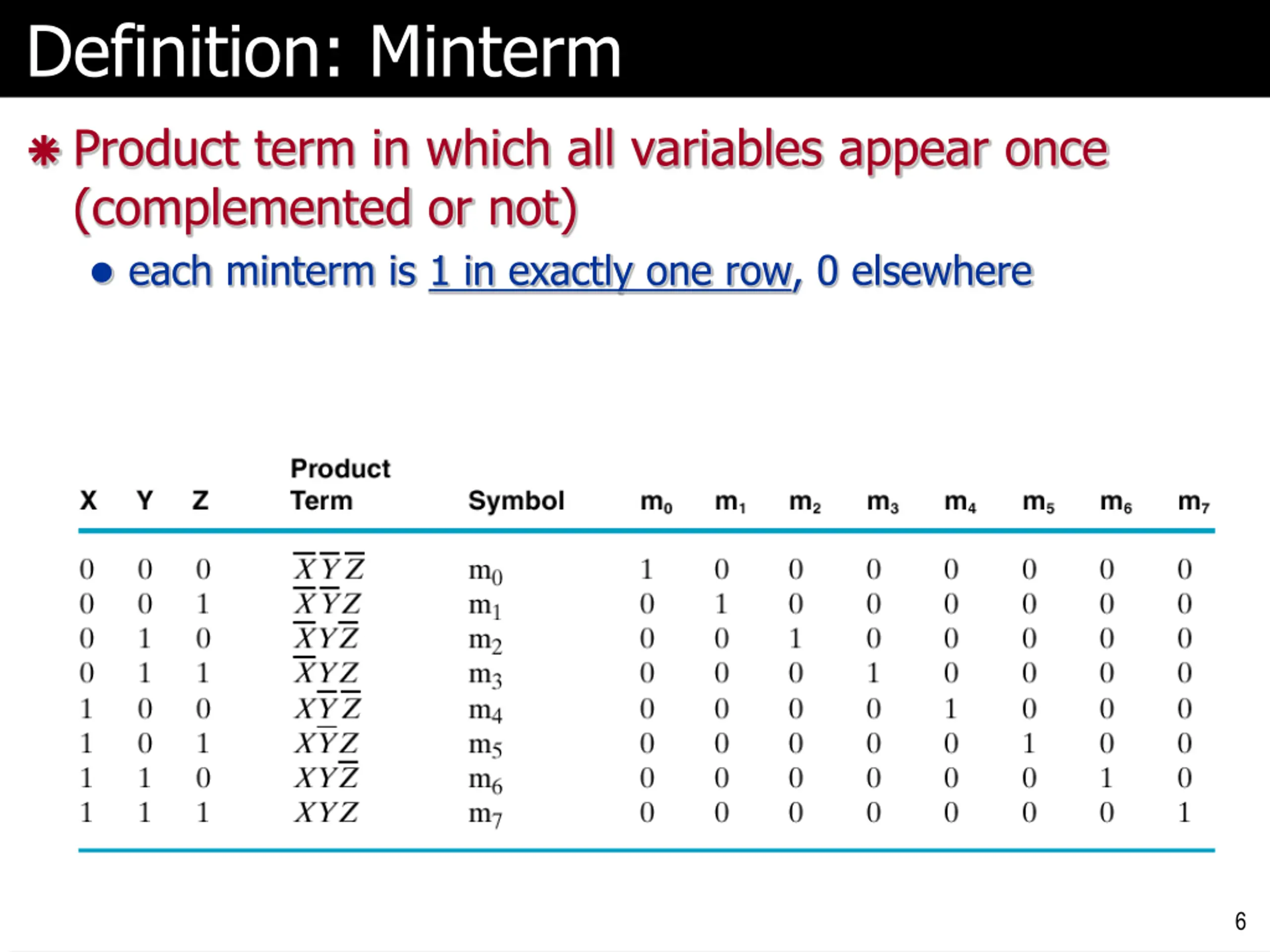

Definition: Minterm Product term in which all variables appear once (complemented or not) each minterm is 1 in exactly one row, 0 elsewhere 6

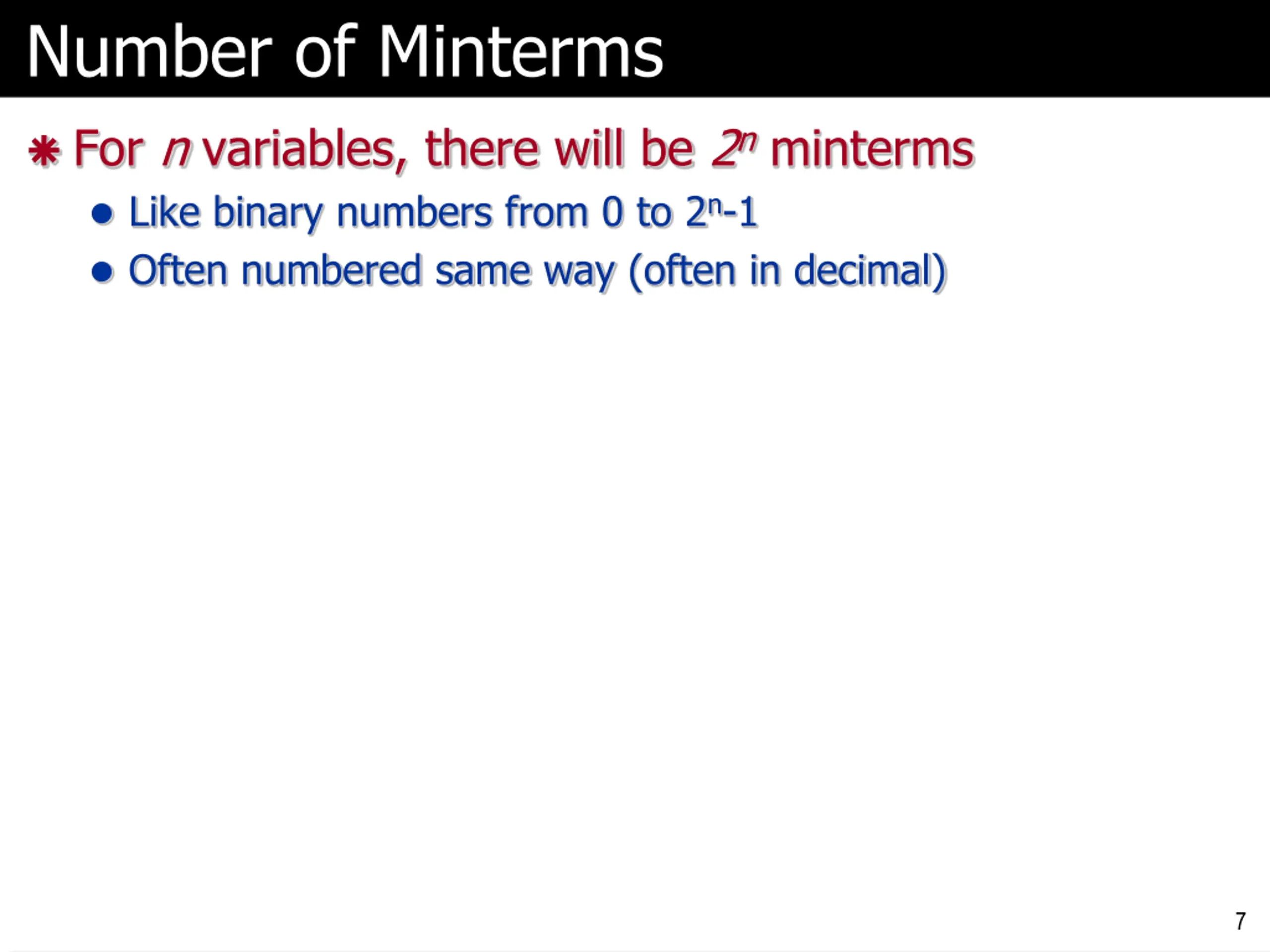

Number of Minterms For n variables, there will be 2n minterms Like binary numbers from 0 to 2n-1 Often numbered same way (often in decimal) 7

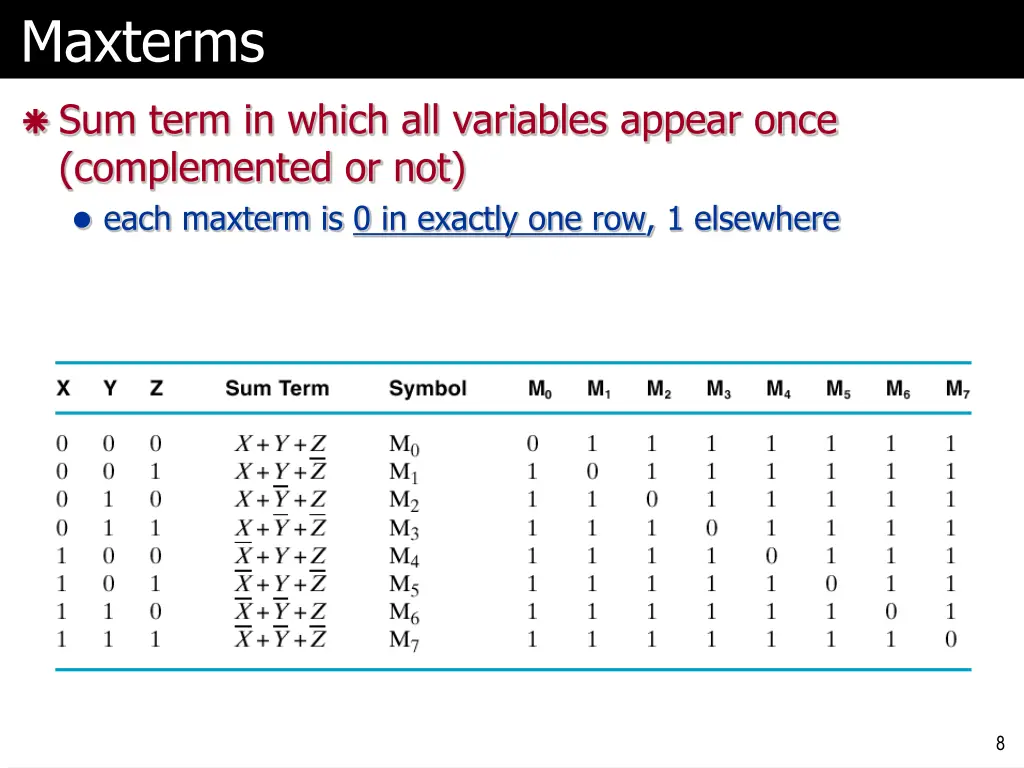

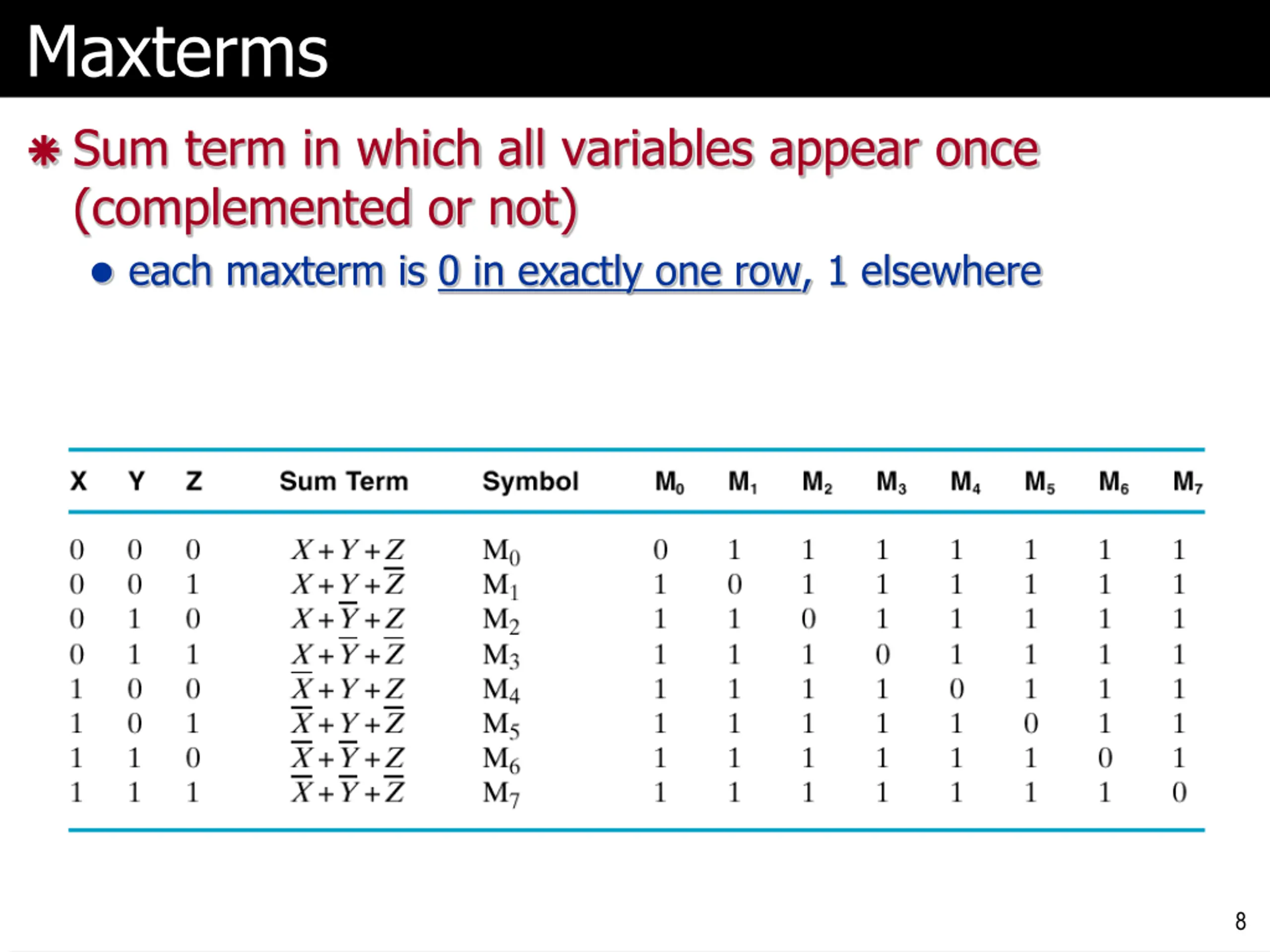

Maxterms Sum term in which all variables appear once (complemented or not) each maxterm is 0 in exactly one row, 1 elsewhere 8

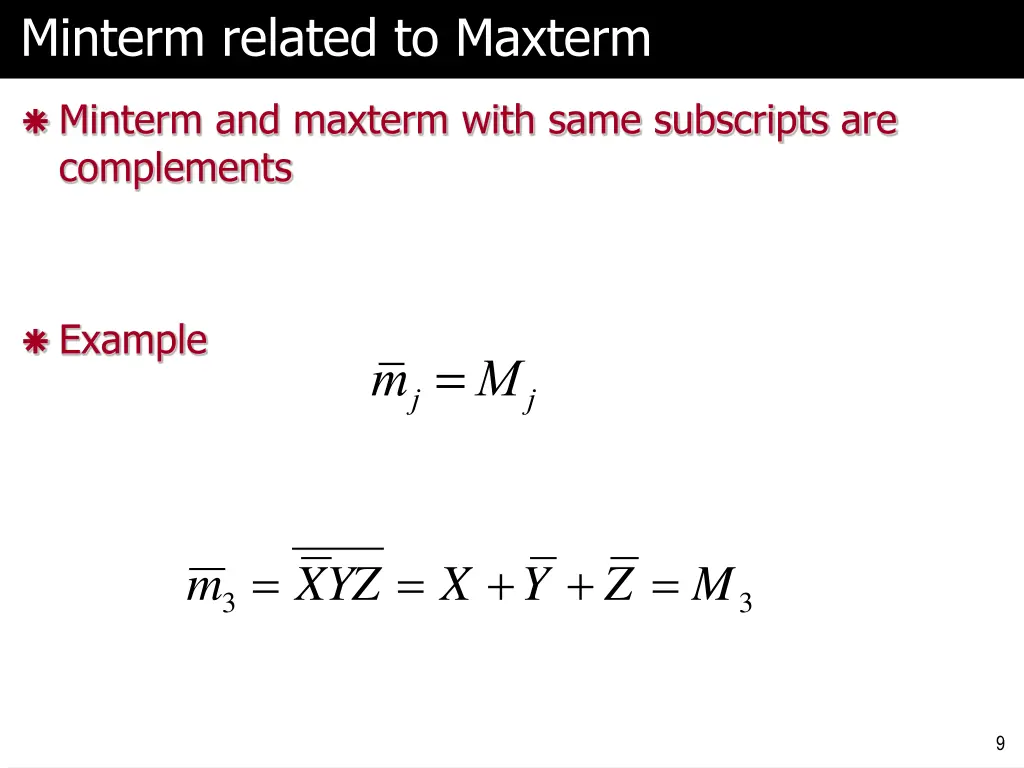

Minterm related to Maxterm Minterm and maxterm with same subscripts are complements Example mj= Mj = = + + = m X YZ X Y Z M 3 3 9

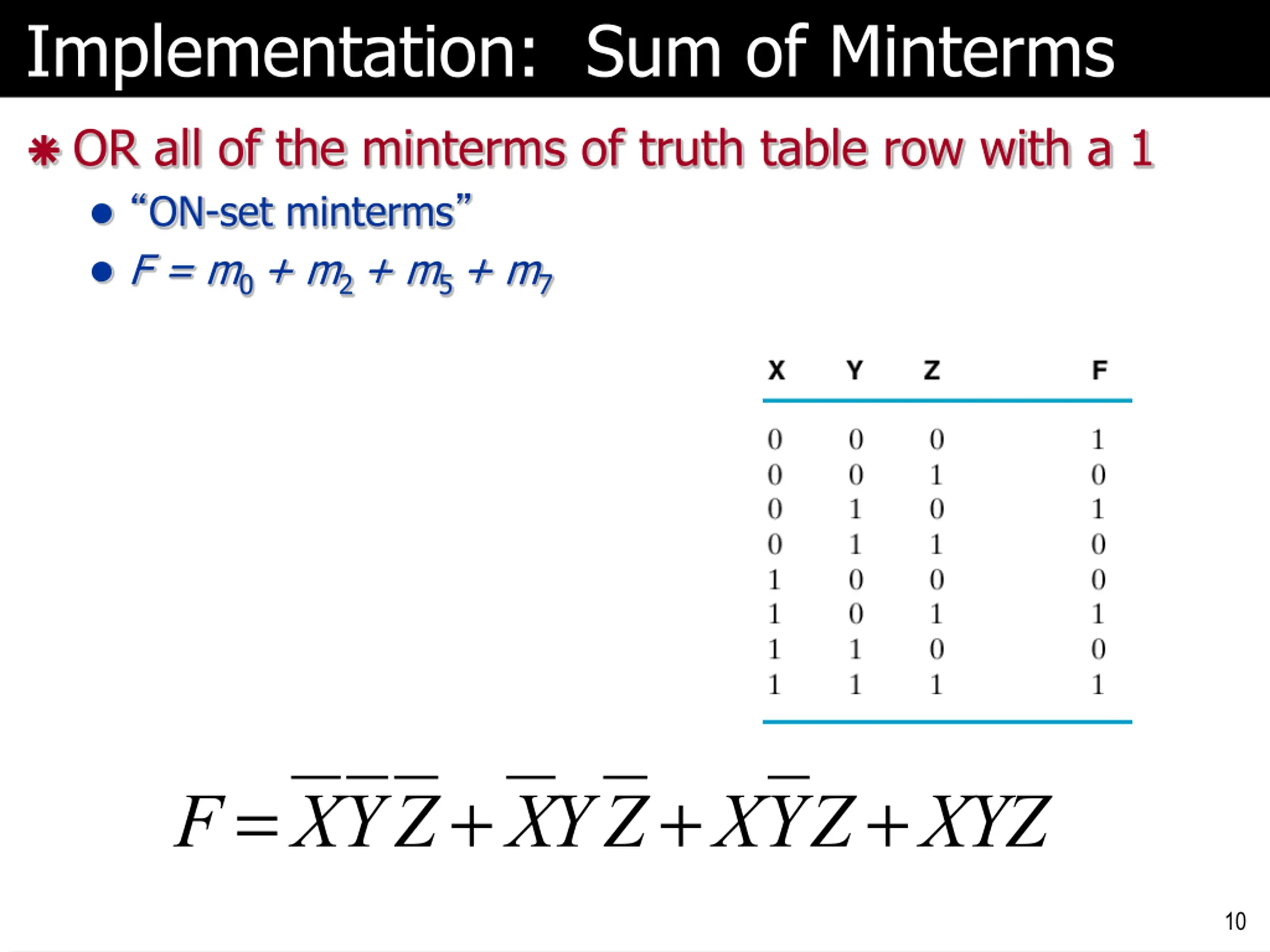

Implementation: Sum of Minterms OR all of the minterms of truth table row with a 1 ON-set minterms F = m0 + m2 + m5 + m7 F = XYZ+ XYZ+XYZ+XYZ 10

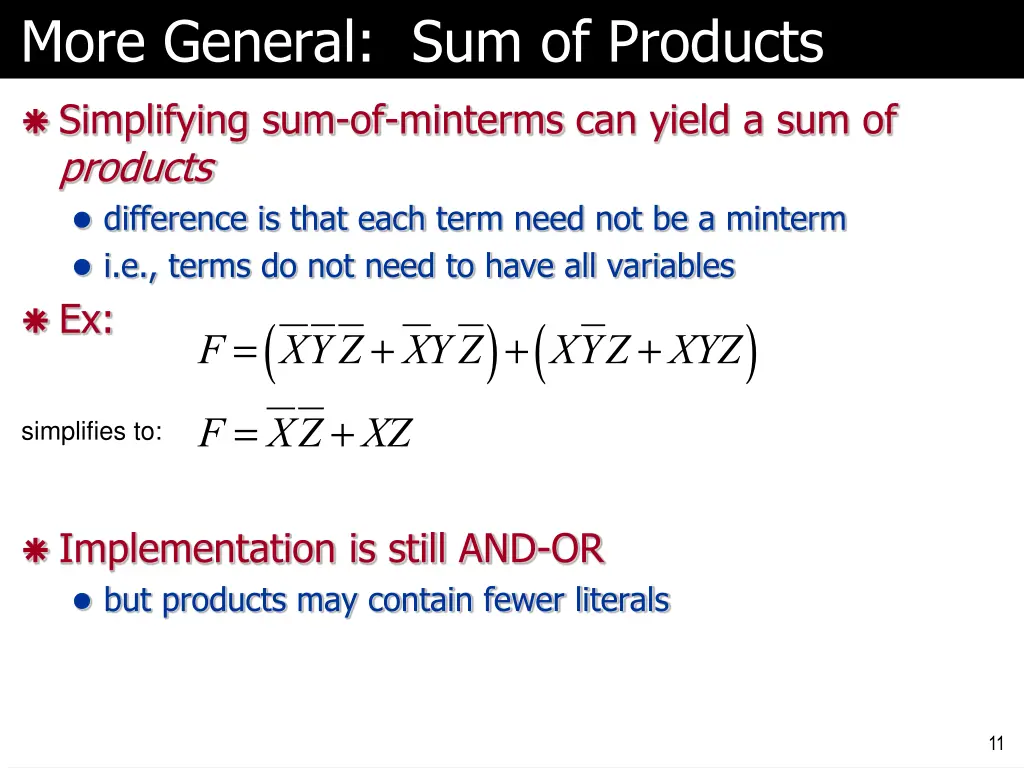

More General: Sum of Products Simplifying sum-of-minterms can yield a sum of products difference is that each term need not be a minterm i.e., terms do not need to have all variables Ex: F = XYZ + XYZ ( F = XZ +XZ )+ XYZ +XYZ ( ) simplifies to: Implementation is still AND-OR but products may contain fewer literals 11

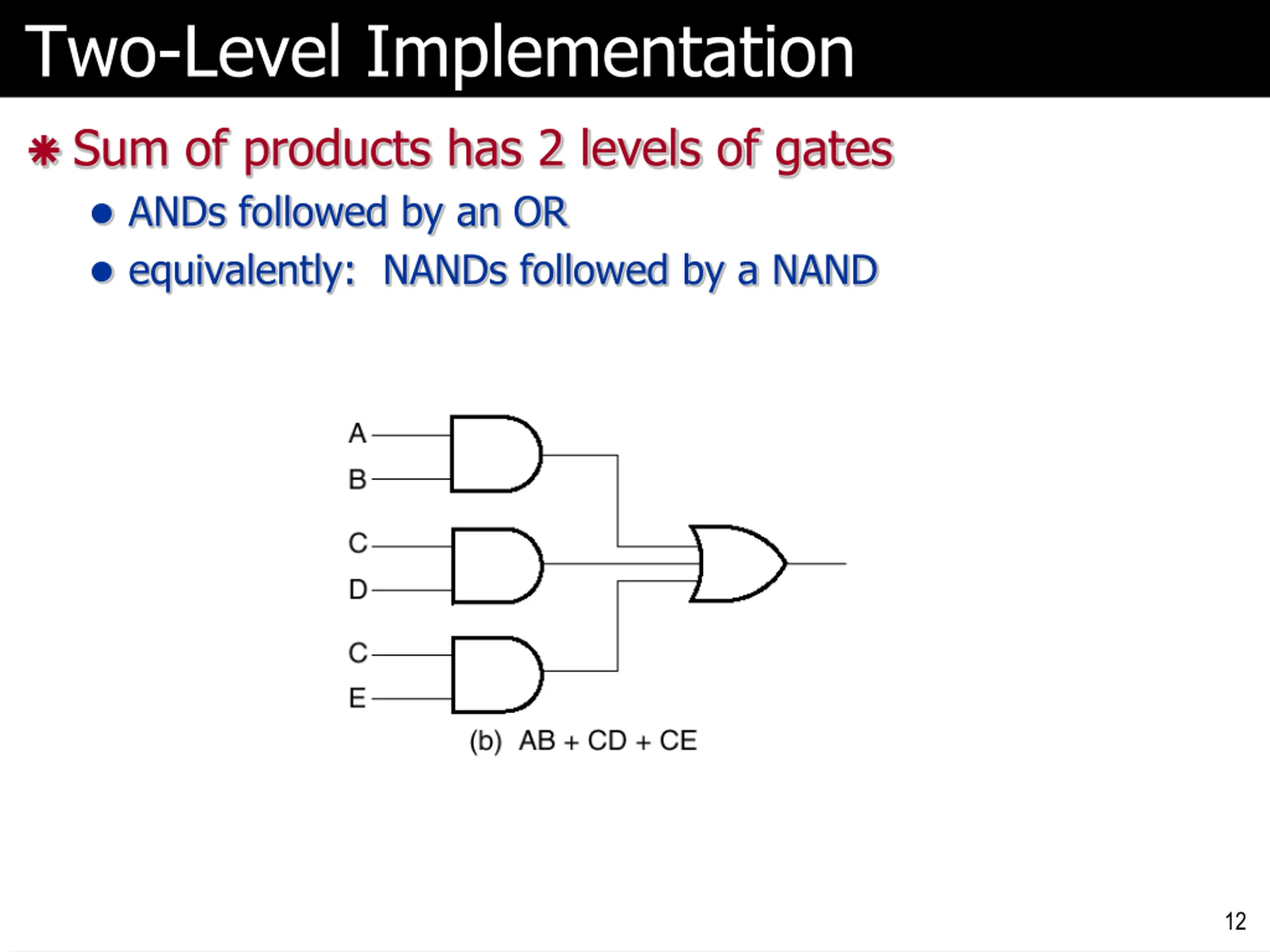

Two-Level Implementation Sum of products has 2 levels of gates ANDs followed by an OR equivalently: NANDs followed by a NAND 12

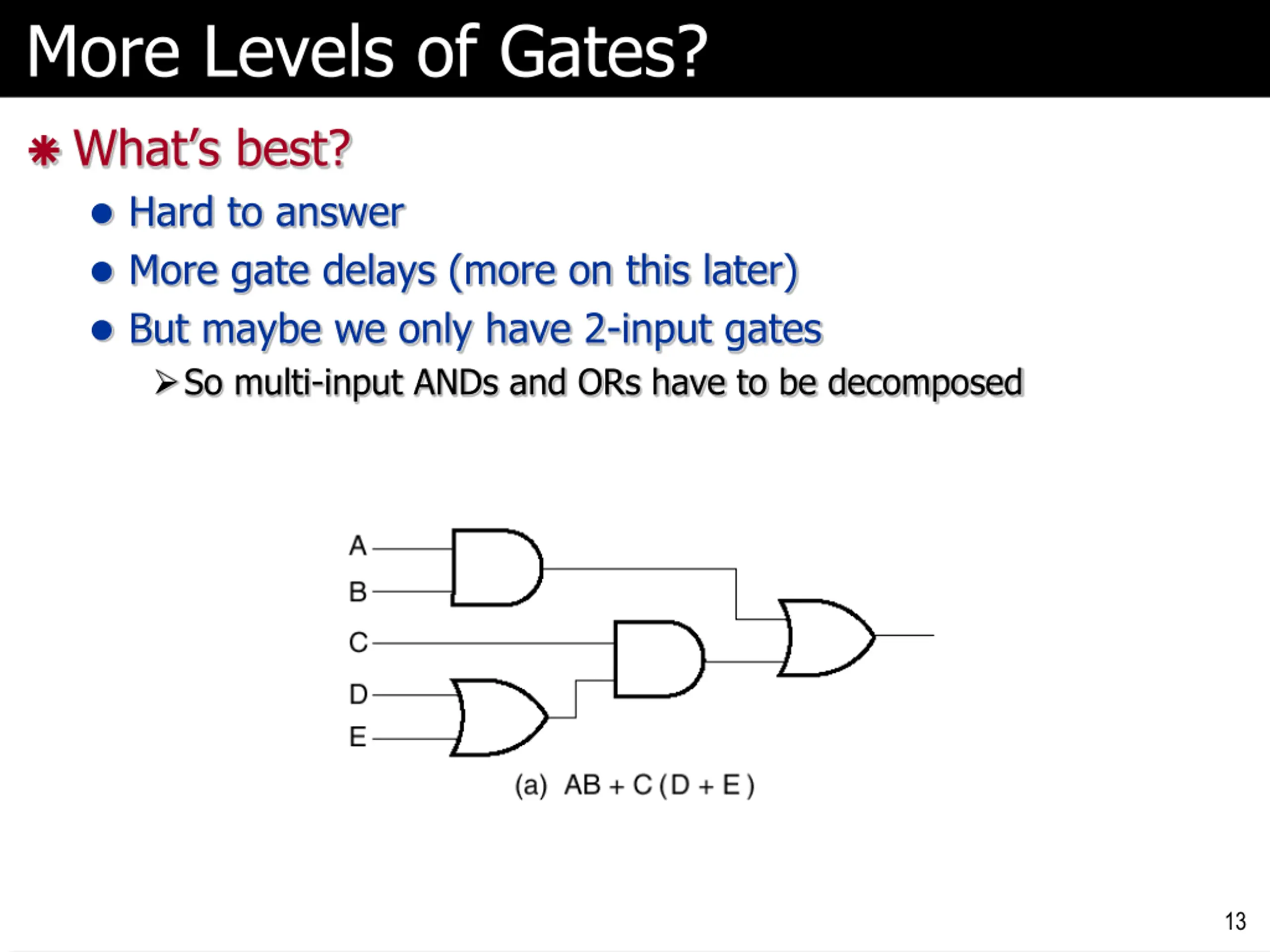

More Levels of Gates? What s best? Hard to answer More gate delays (more on this later) But maybe we only have 2-input gates So multi-input ANDs and ORs have to be decomposed 13

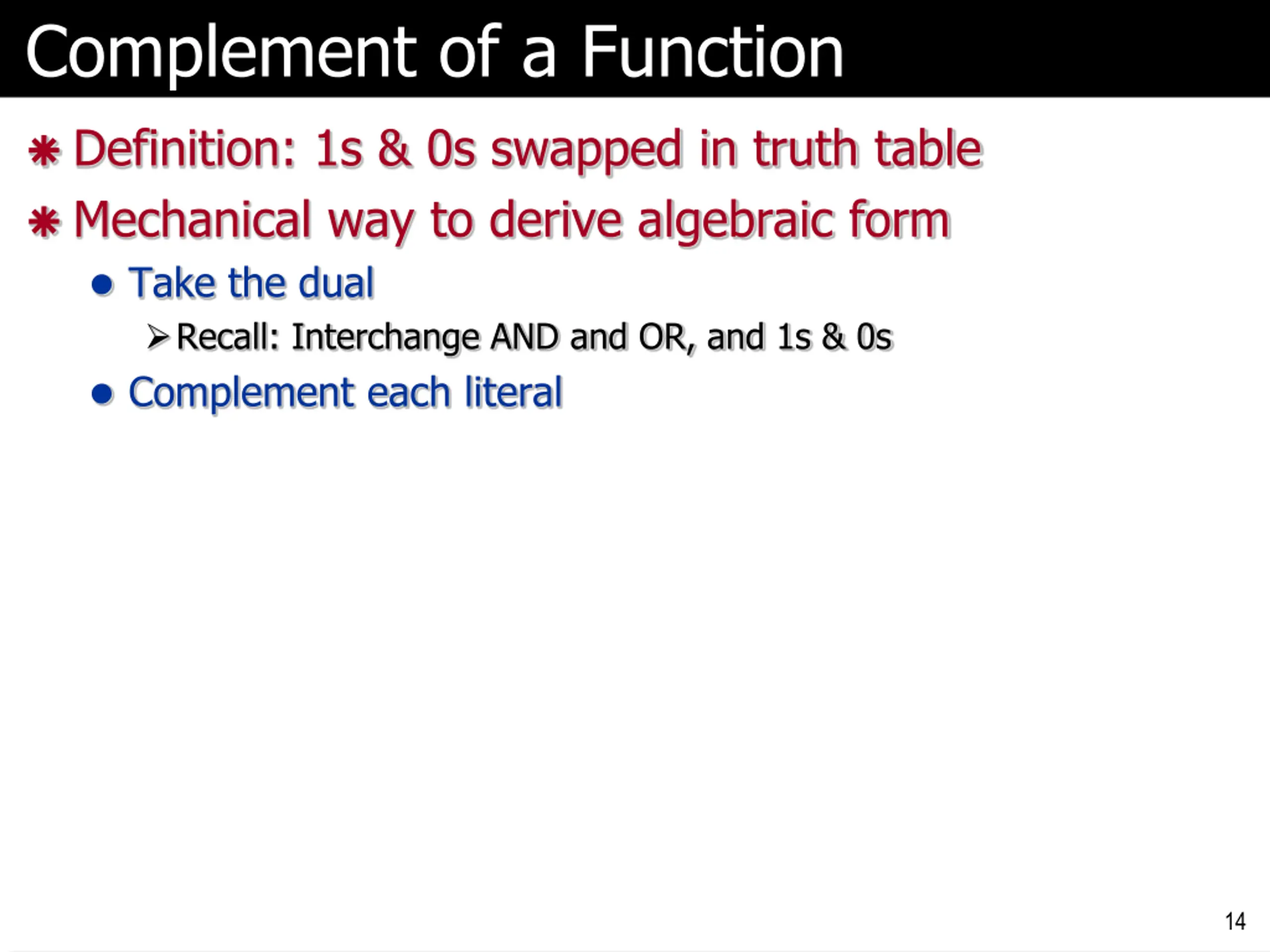

Complement of a Function Definition: 1s & 0s swapped in truth table Mechanical way to derive algebraic form Take the dual Recall: Interchange AND and OR, and 1s & 0s Complement each literal 14

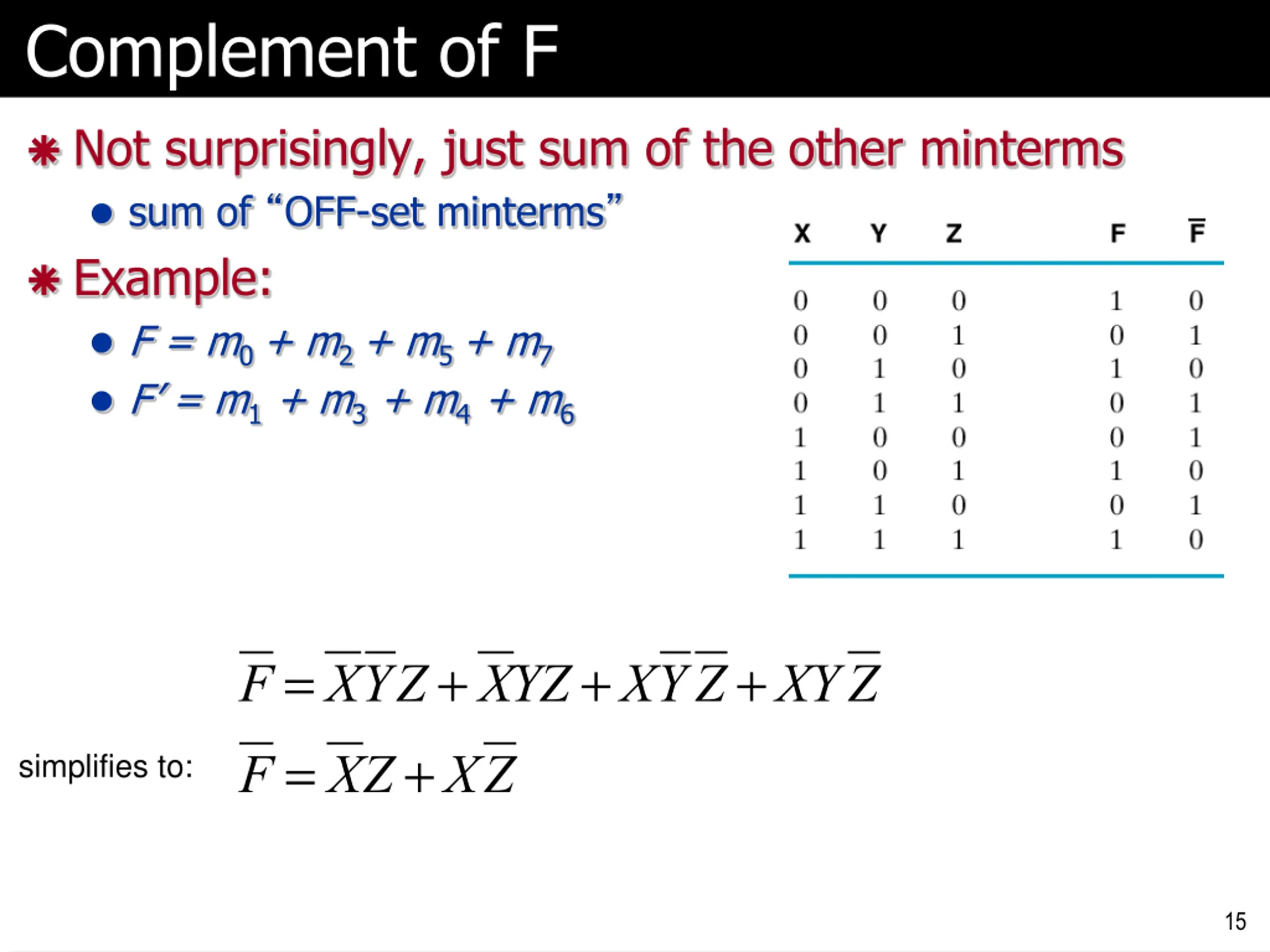

Complement of F Not surprisingly, just sum of the other minterms sum of OFF-set minterms Example: F = m0 + m2 + m5 + m7 F = m1 + m3 + m4 + m6 F = XYZ + XYZ +XYZ +XYZ F = XZ +XZ simplifies to: 15

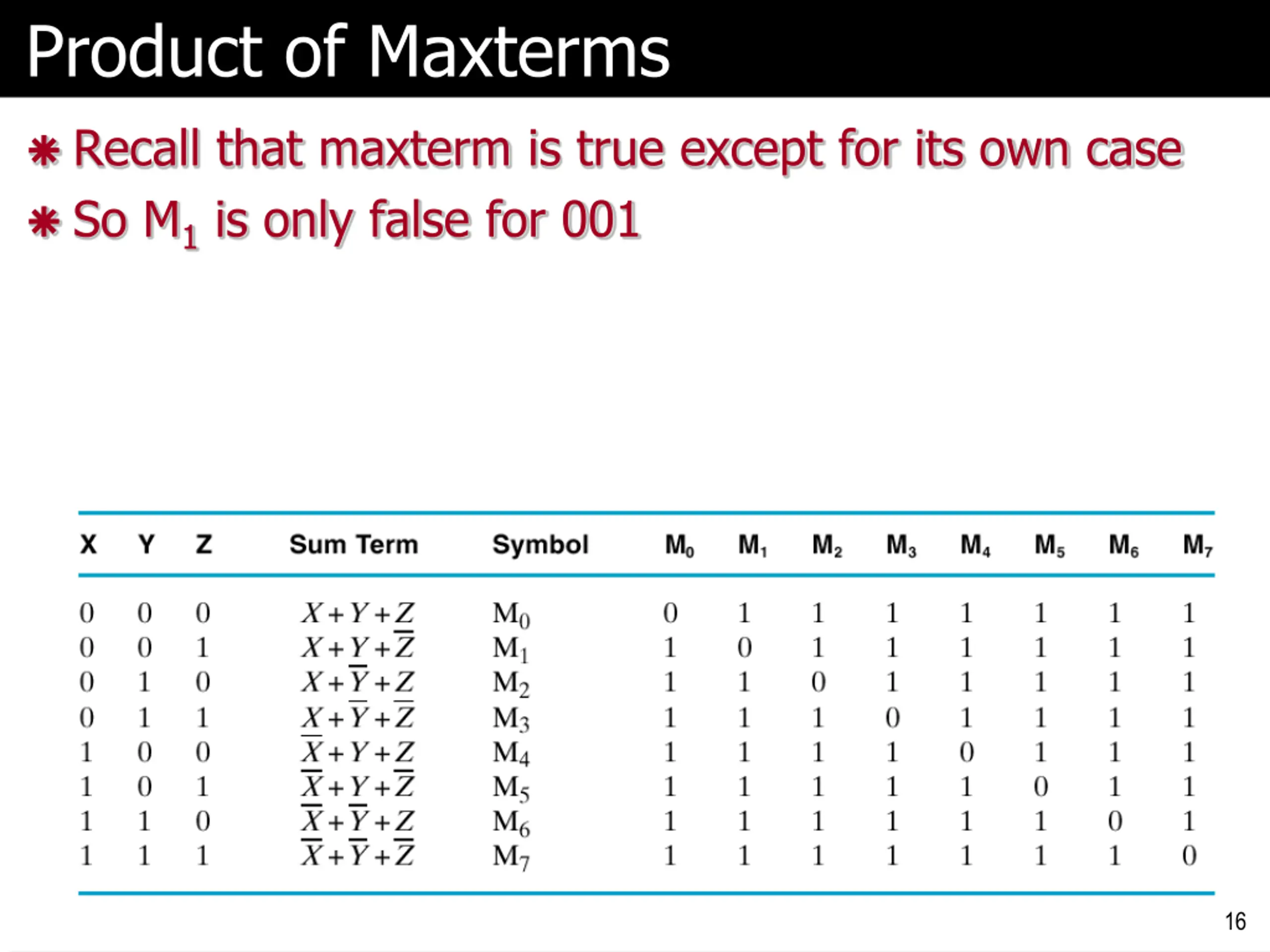

Product of Maxterms Recall that maxterm is true except for its own case So M1 is only false for 001 16

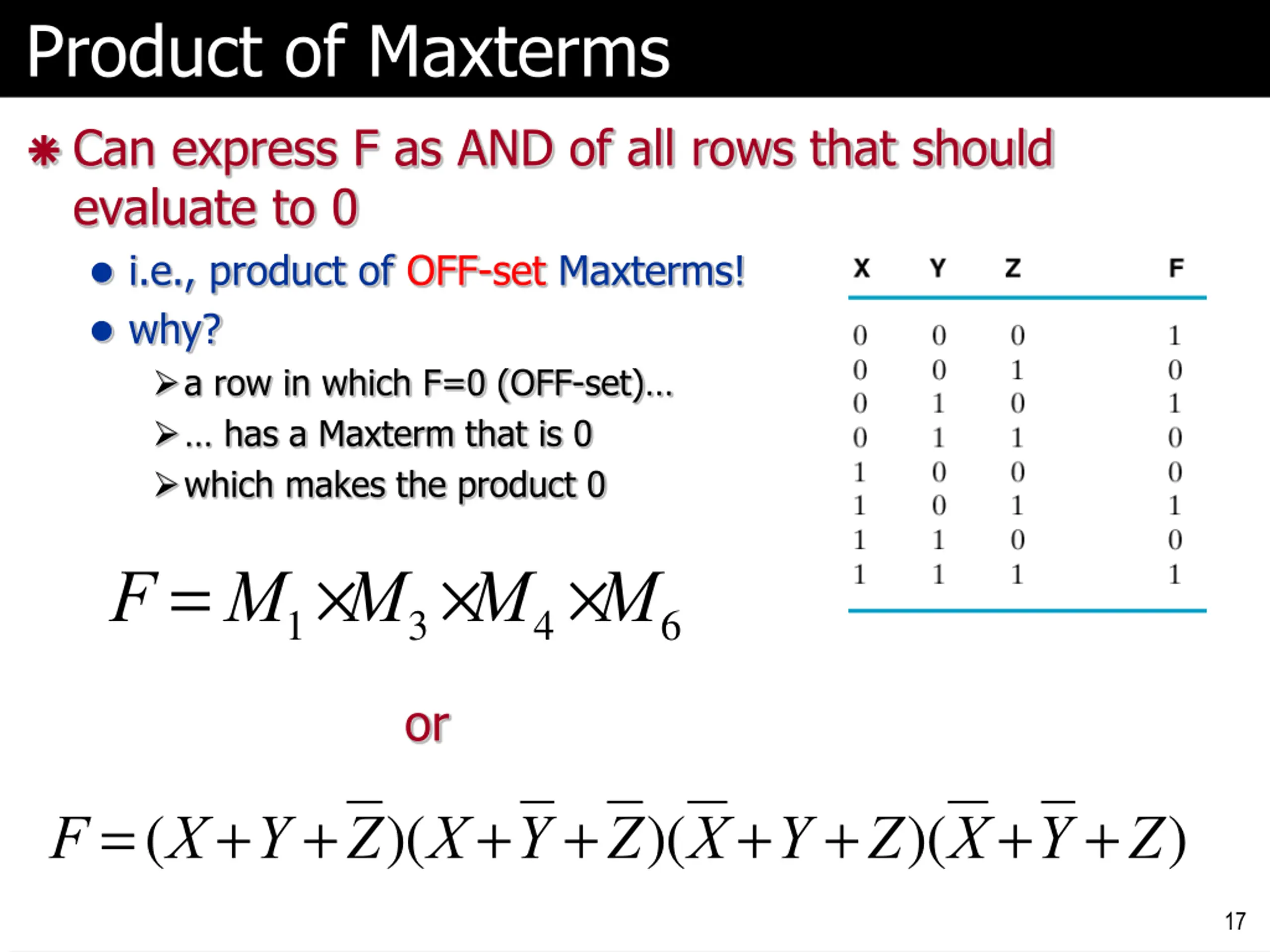

Product of Maxterms Can express F as AND of all rows that should evaluate to 0 i.e., product of OFF-set Maxterms! why? a row in which F=0 (OFF-set) has a Maxterm that is 0 which makes the product 0 F =M1 M3 M4 M6 or F =(X+Y +Z)(X+Y +Z)(X+Y +Z)(X+Y +Z) 17

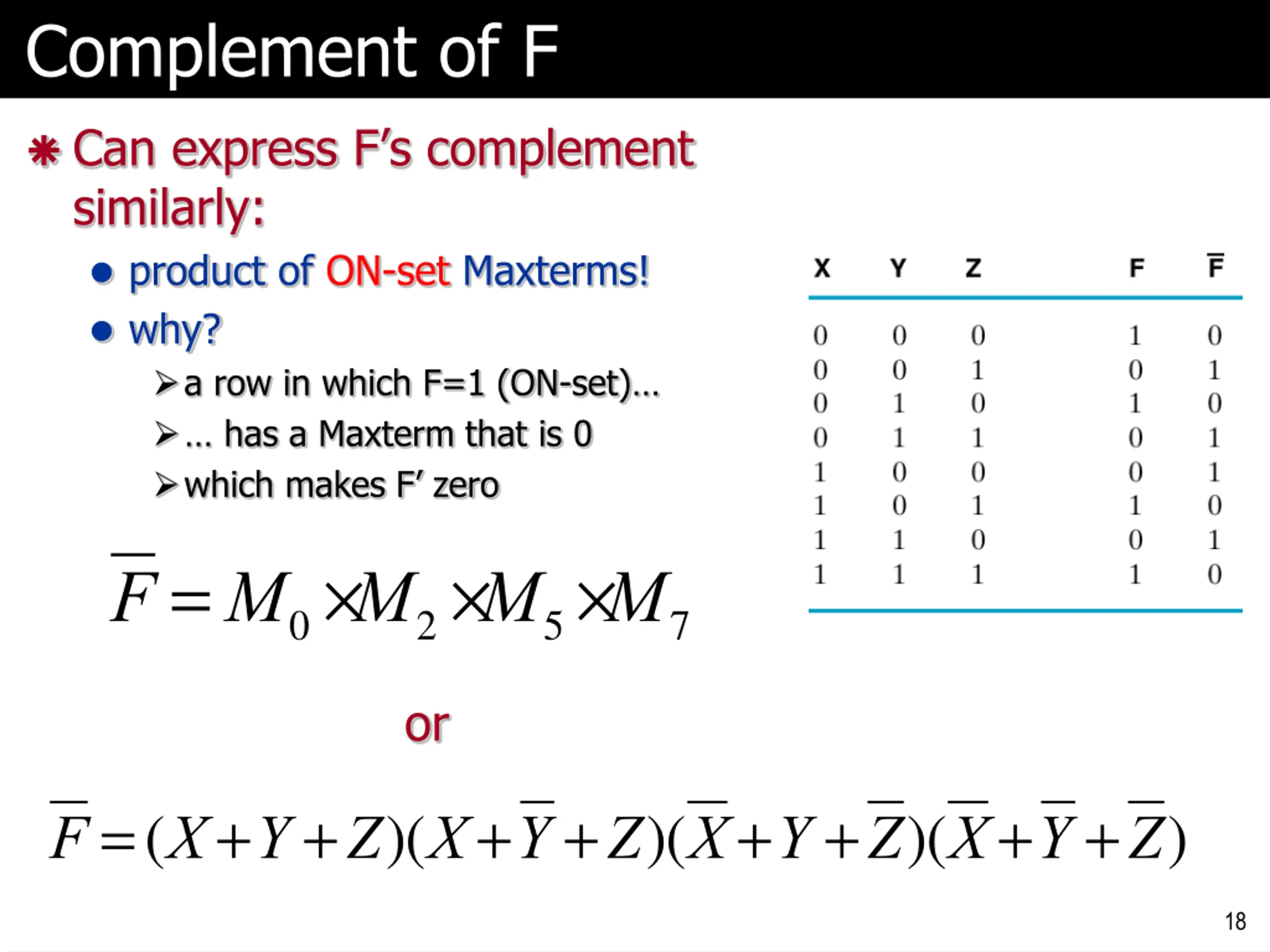

Complement of F Can express F s complement similarly: product of ON-set Maxterms! why? a row in which F=1 (ON-set) has a Maxterm that is 0 which makes F zero F = M0 M2 M5 M7 or F =(X+Y +Z)(X+Y +Z)(X+Y +Z)(X+Y +Z) 18

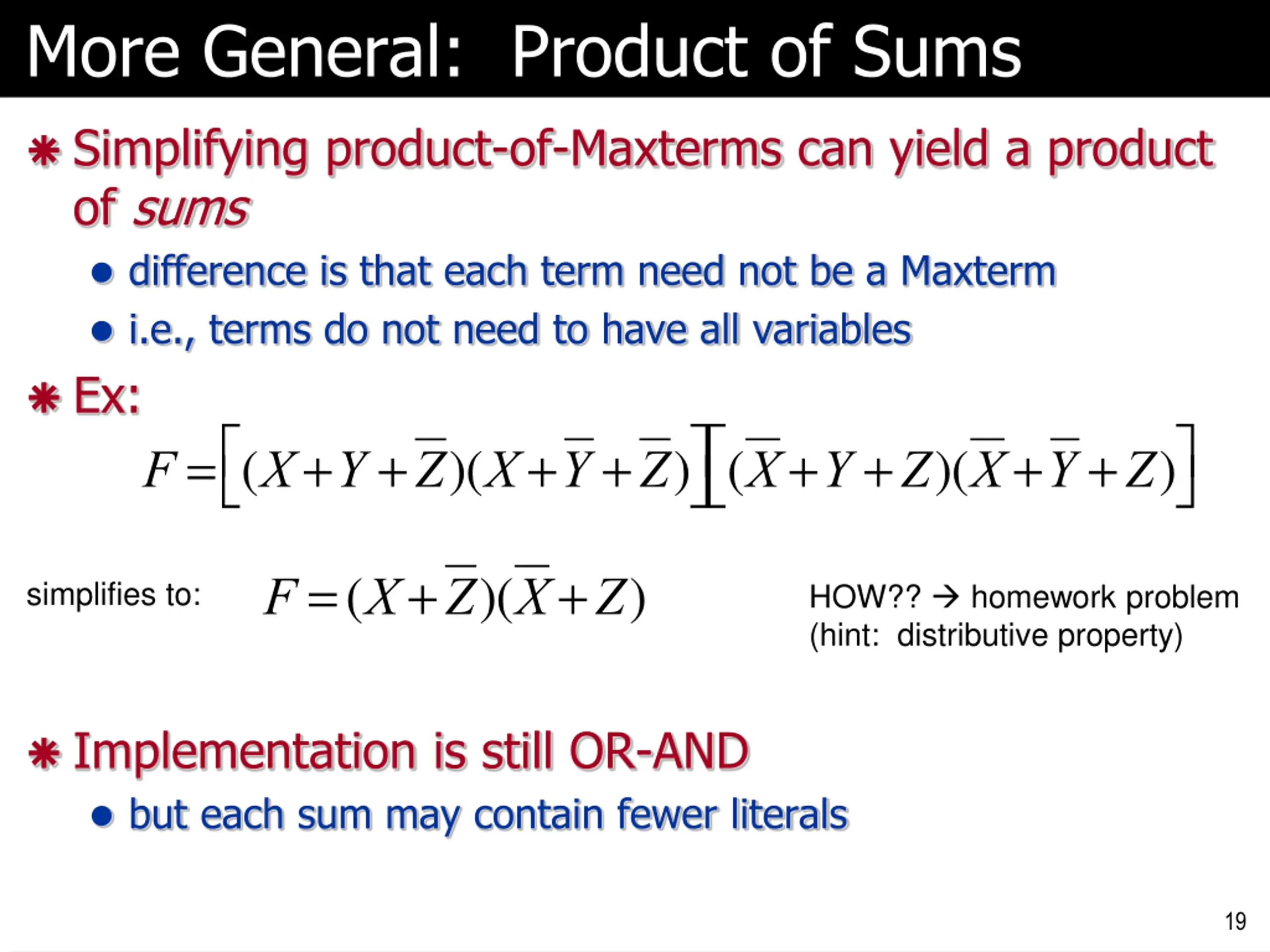

More General: Product of Sums Simplifying product-of-Maxterms can yield a product of sums difference is that each term need not be a Maxterm i.e., terms do not need to have all variables Ex: F = (X+Y +Z)(X+Y +Z) (X+Y +Z)(X+Y +Z) F =(X+Z)(X+Z) simplifies to: HOW?? homework problem (hint: distributive property) Implementation is still OR-AND but each sum may contain fewer literals 19

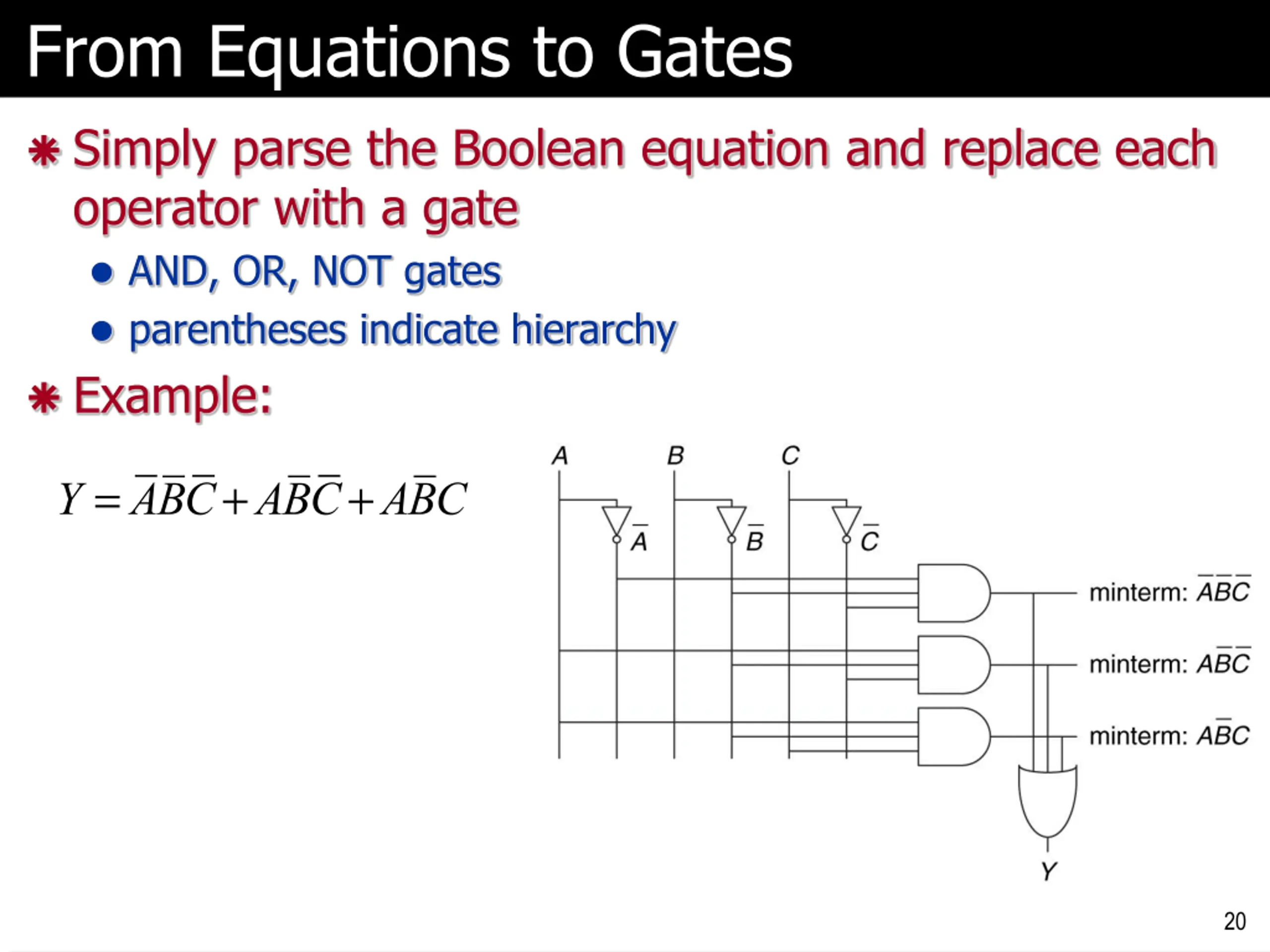

From Equations to Gates Simply parse the Boolean equation and replace each operator with a gate AND, OR, NOT gates parentheses indicate hierarchy Example: Y = ABC+ABC+ABC 20

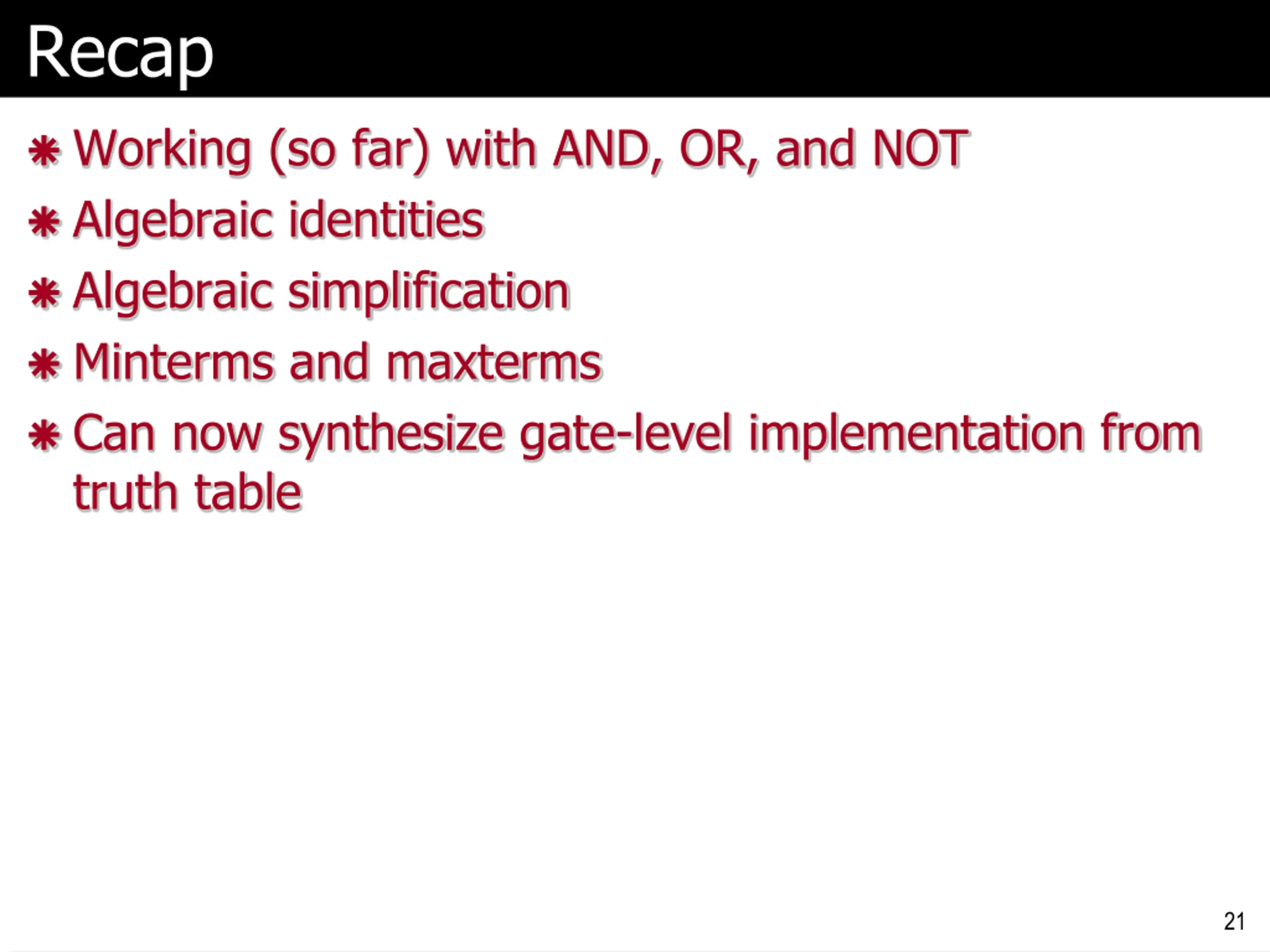

Recap Working (so far) with AND, OR, and NOT Algebraic identities Algebraic simplification Minterms and maxterms Can now synthesize gate-level implementation from truth table 21

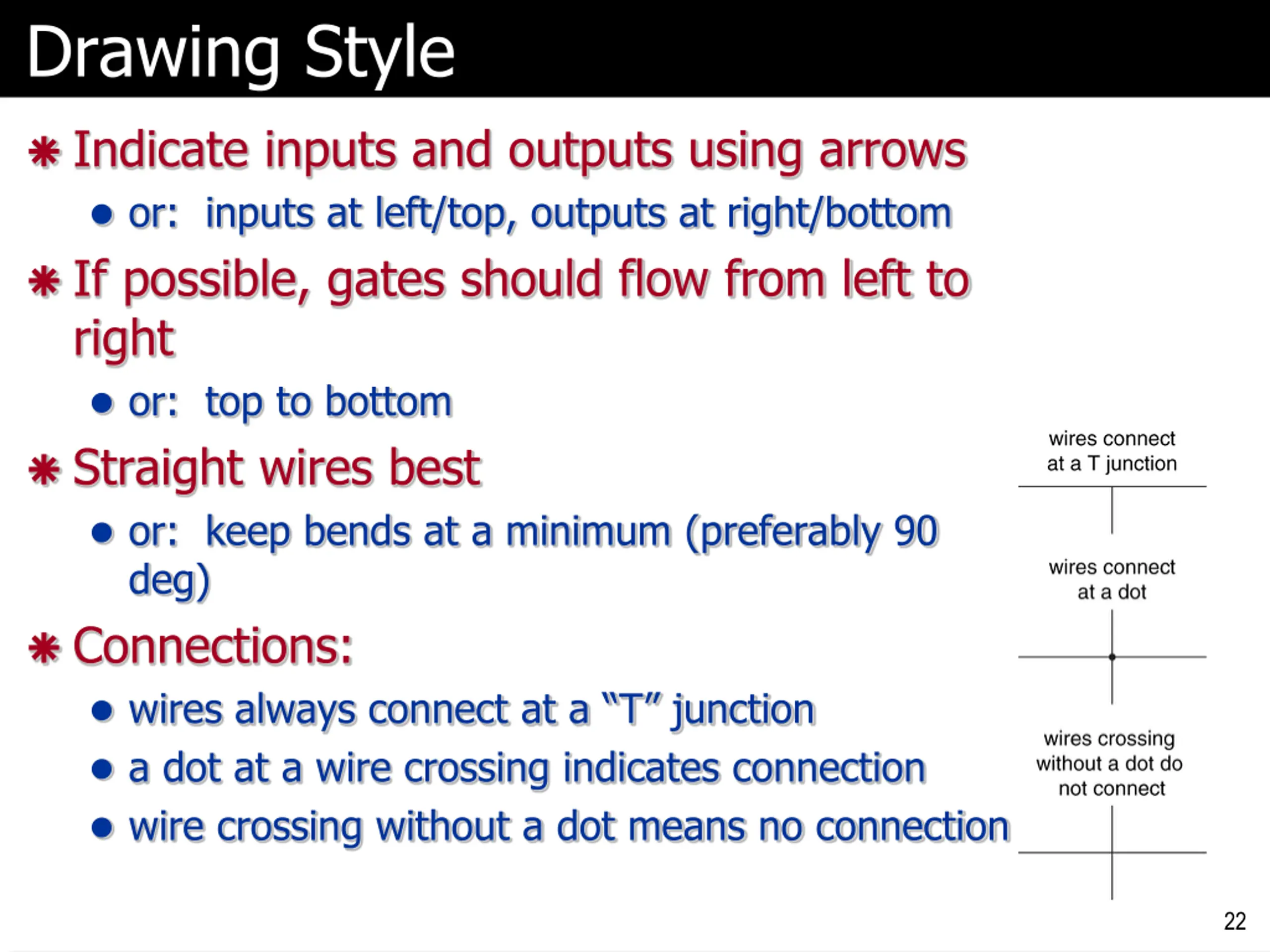

Drawing Style Indicate inputs and outputs using arrows or: inputs at left/top, outputs at right/bottom If possible, gates should flow from left to right or: top to bottom Straight wires best or: keep bends at a minimum (preferably 90 deg) Connections: wires always connect at a T junction a dot at a wire crossing indicates connection wire crossing without a dot means no connection 22

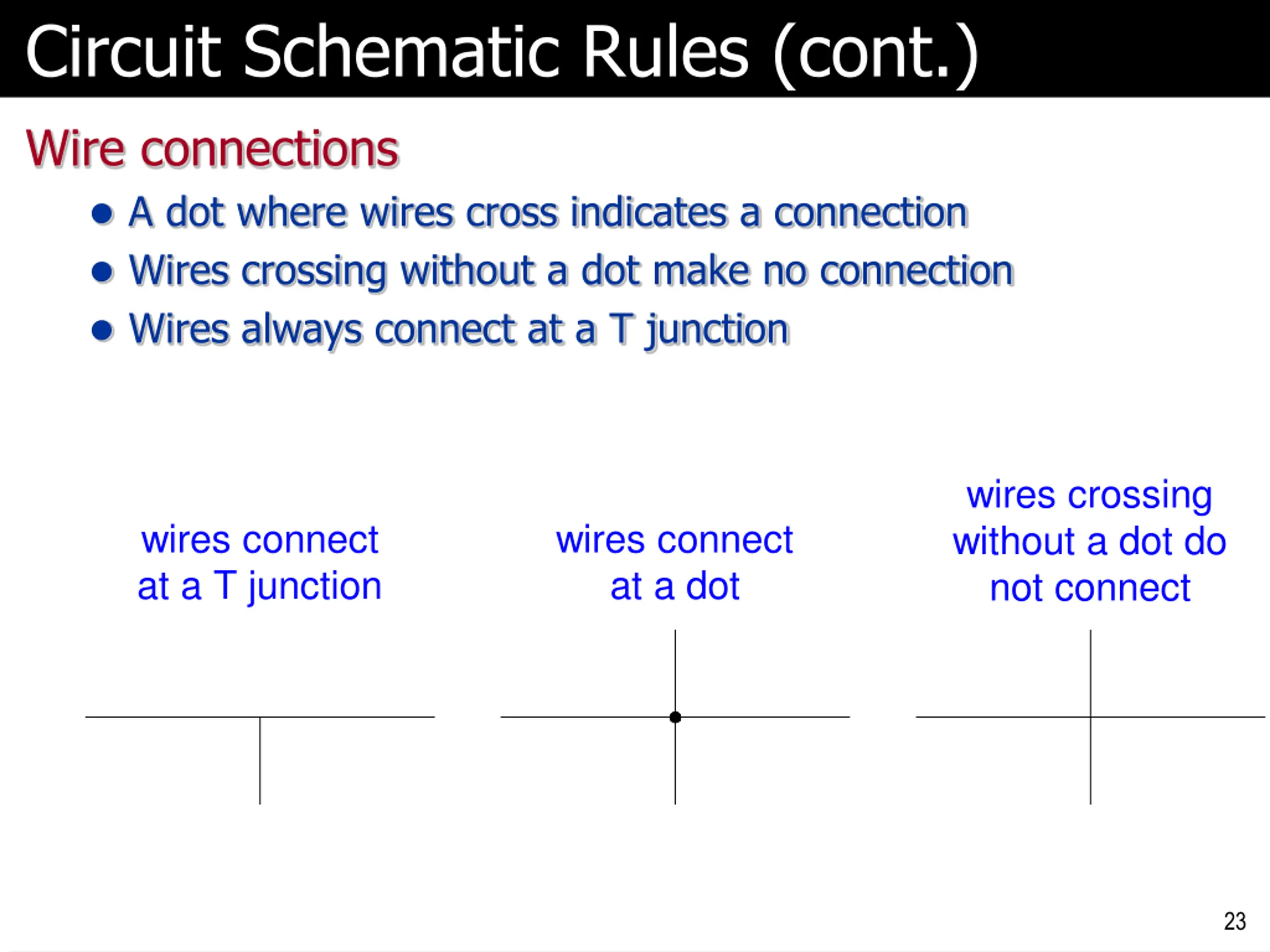

Circuit Schematic Rules (cont.) Wire connections A dot where wires cross indicates a connection Wires crossing without a dot make no connection Wires always connect at a T junction wires crossing without a dot do not connect wires connect at a T junction wires connect at a dot 23

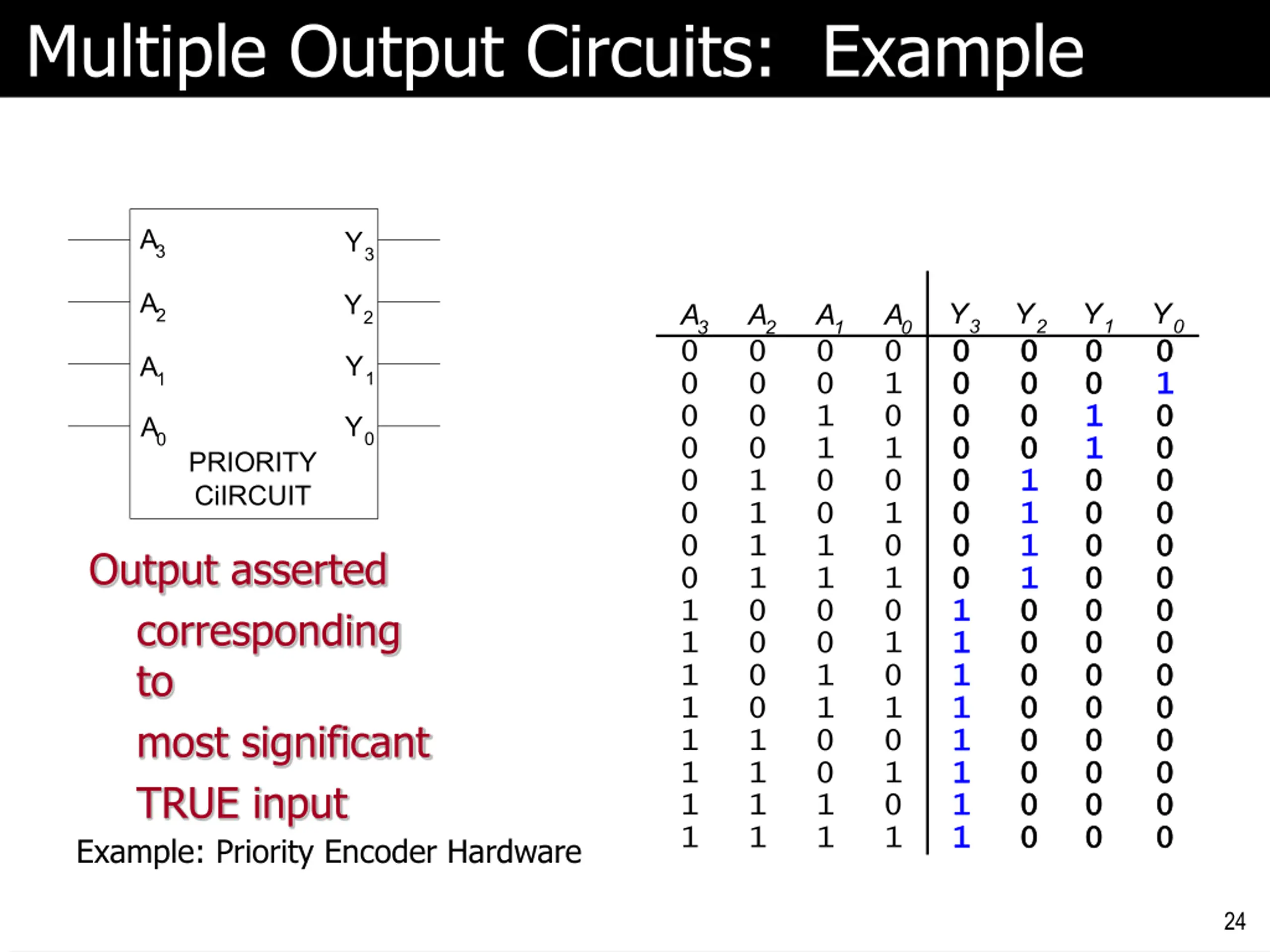

Multiple Output Circuits: Example A3 Y3 A2 Y2 Y3 Y2 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y1 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 A3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 A2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 A1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 A0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 0 Y1 A1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Y0 A0 PRIORITY CiIRCUIT Output asserted corresponding to most significant TRUE input Example: Priority Encoder Hardware 24

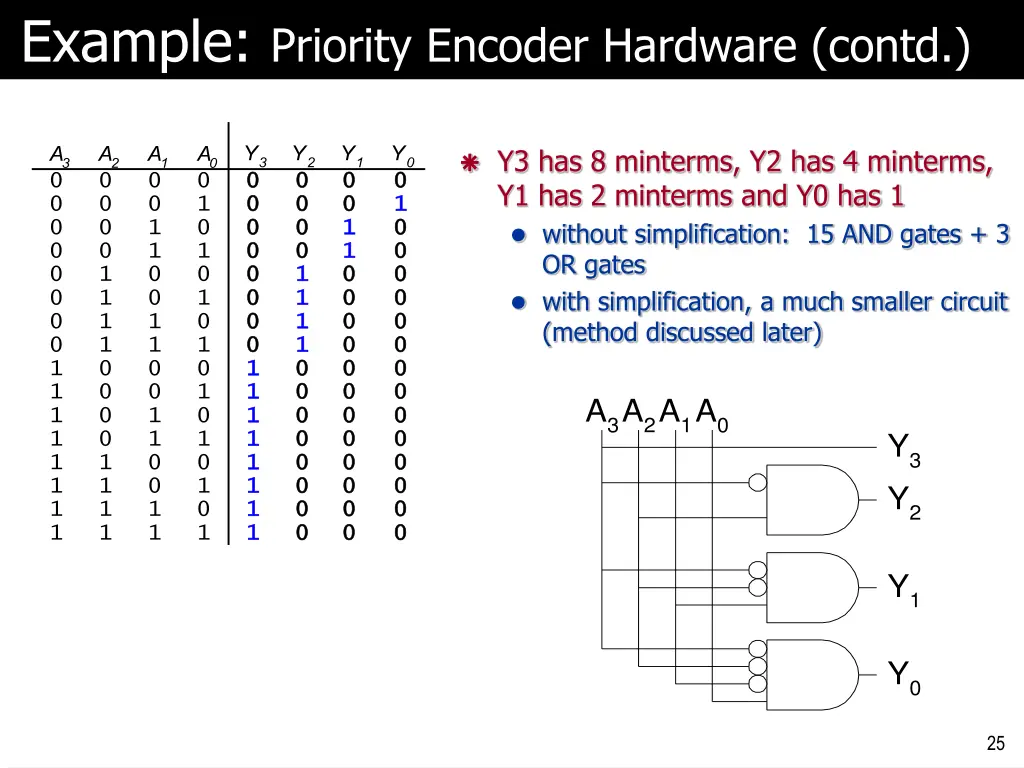

Example: Priority Encoder Hardware (contd.) Y3 Y2 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y1 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 A3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 A2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 A1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 A0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Y3 has 8 minterms, Y2 has 4 minterms, Y1 has 2 minterms and Y0 has 1 without simplification: 15 AND gates + 3 OR gates with simplification, a much smaller circuit (method discussed later) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 A3A2A1A0 Y3 Y2 Y1 Y0 25

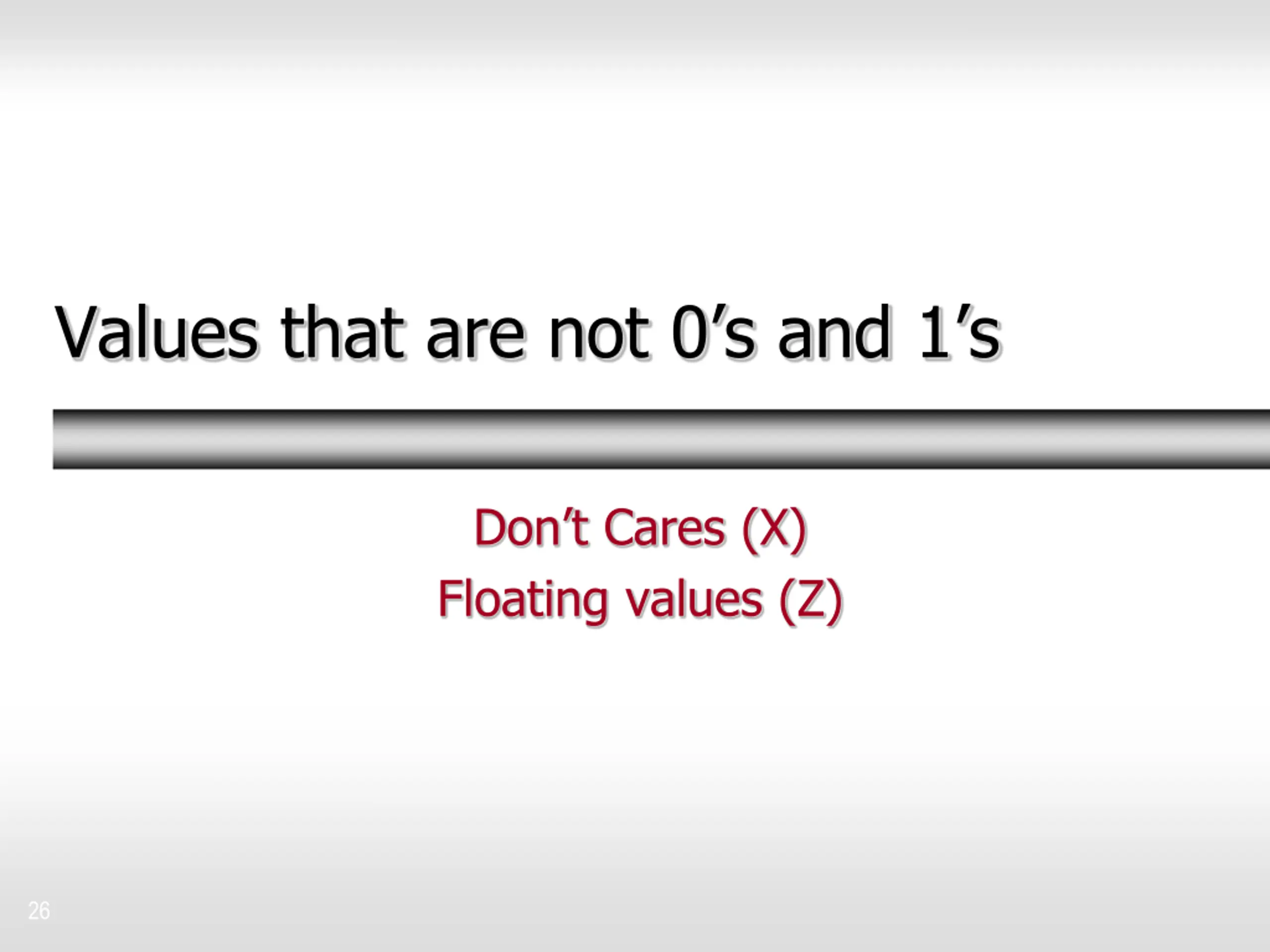

Values that are not 0s and 1s Don t Cares (X) Floating values (Z) 26

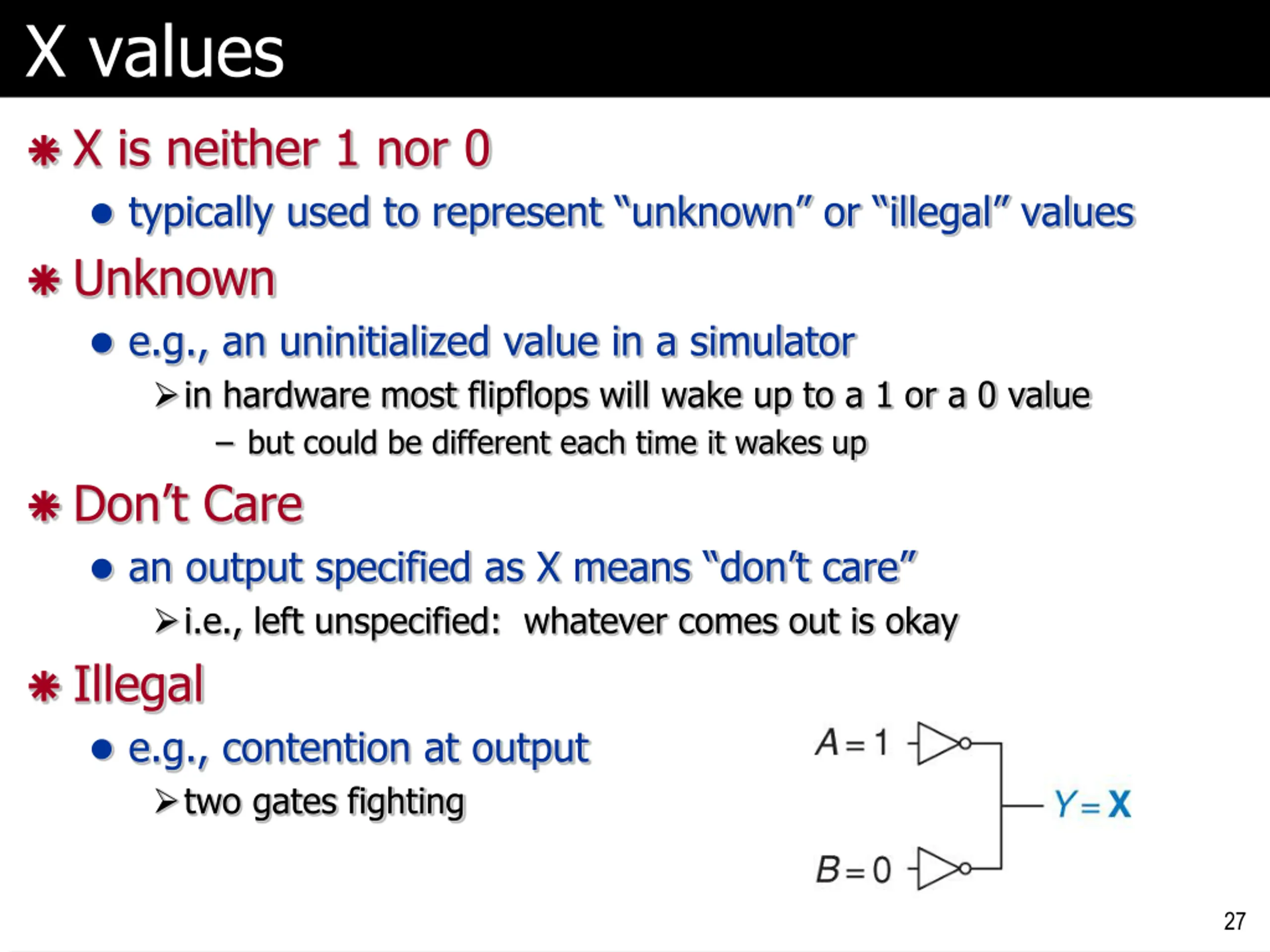

X values X is neither 1 nor 0 typically used to represent unknown or illegal values Unknown e.g., an uninitialized value in a simulator in hardware most flipflops will wake up to a 1 or a 0 value but could be different each time it wakes up Don t Care an output specified as X means don t care i.e., left unspecified: whatever comes out is okay Illegal e.g., contention at output two gates fighting 27

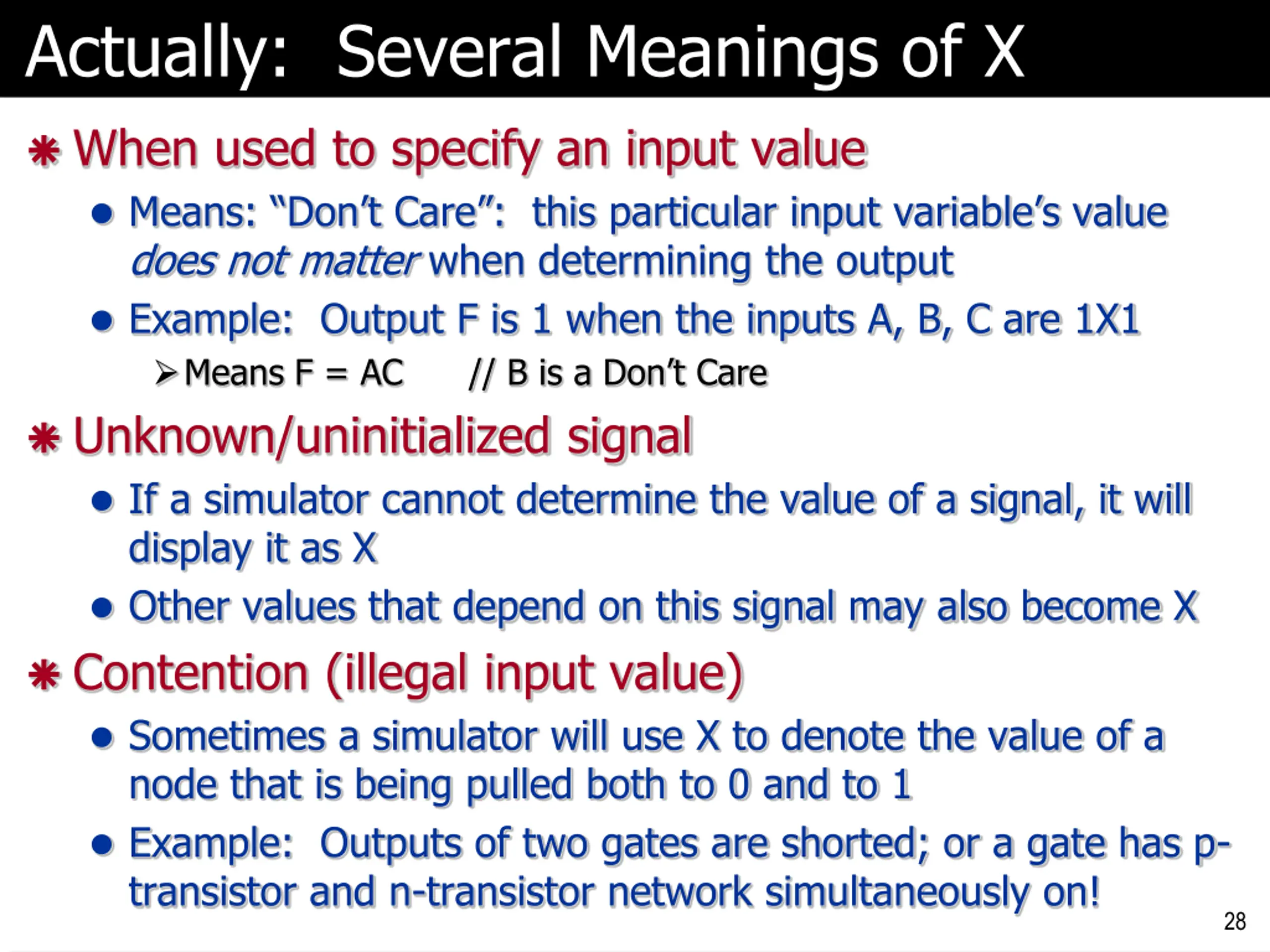

Actually: Several Meanings of X When used to specify an input value Means: Don t Care : this particular input variable s value does not matter when determining the output Example: Output F is 1 when the inputs A, B, C are 1X1 Means F = AC // B is a Don t Care Unknown/uninitialized signal If a simulator cannot determine the value of a signal, it will display it as X Other values that depend on this signal may also become X Contention (illegal input value) Sometimes a simulator will use X to denote the value of a node that is being pulled both to 0 and to 1 Example: Outputs of two gates are shorted; or a gate has p- transistor and n-transistor network simultaneously on! 28

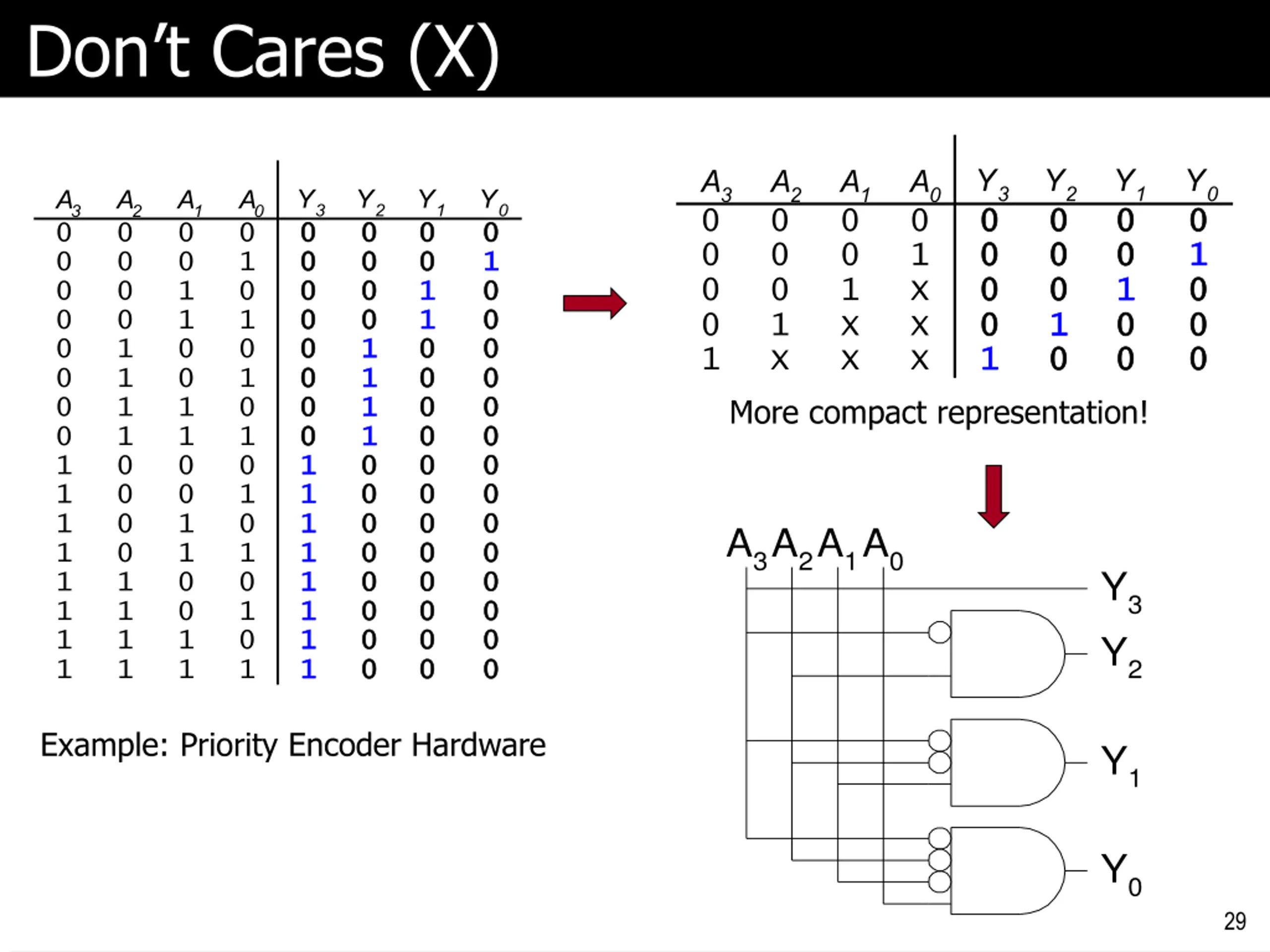

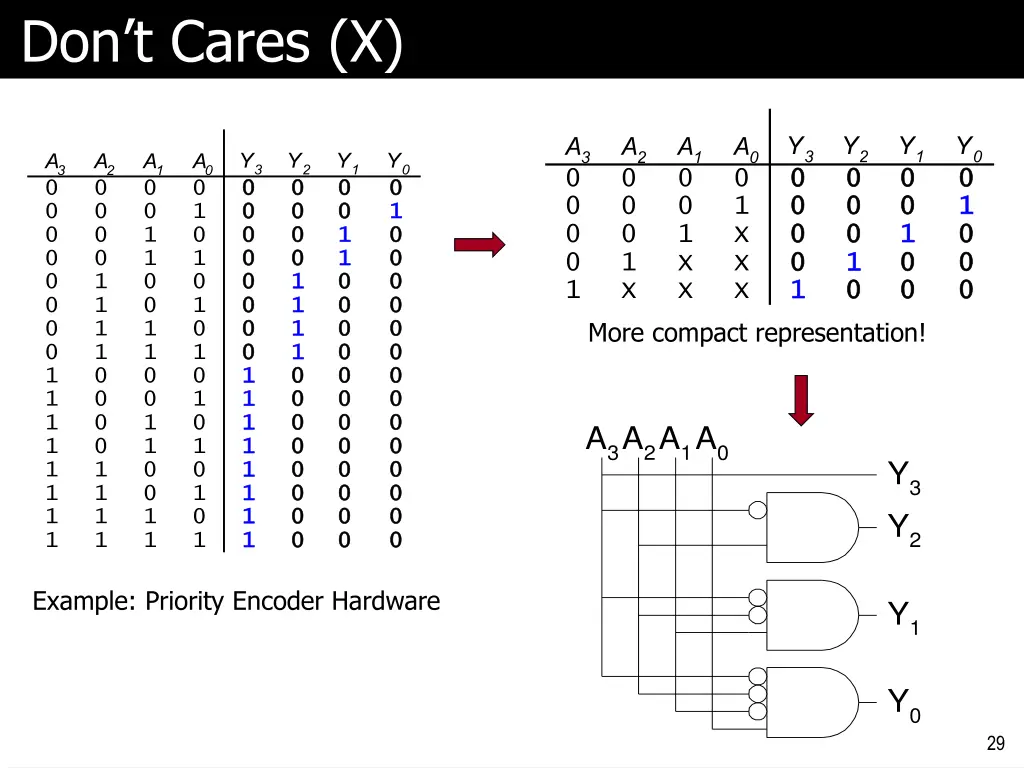

Dont Cares (X) Y3 Y2 0 0 0 0 0 0 1 1 0 0 Y1 0 0 0 0 1 1 0 0 0 0 Y0 0 0 1 1 0 0 0 0 0 0 A3 0 0 0 0 1 A2 0 0 0 1 X A1 0 0 1 X X A0 0 1 X X X Y3 Y2 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y1 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Y0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 A3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 A2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 A1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 A0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 More compact representation! A3A2A1A0 Y3 Y2 Example: Priority Encoder Hardware Y1 Y0 29

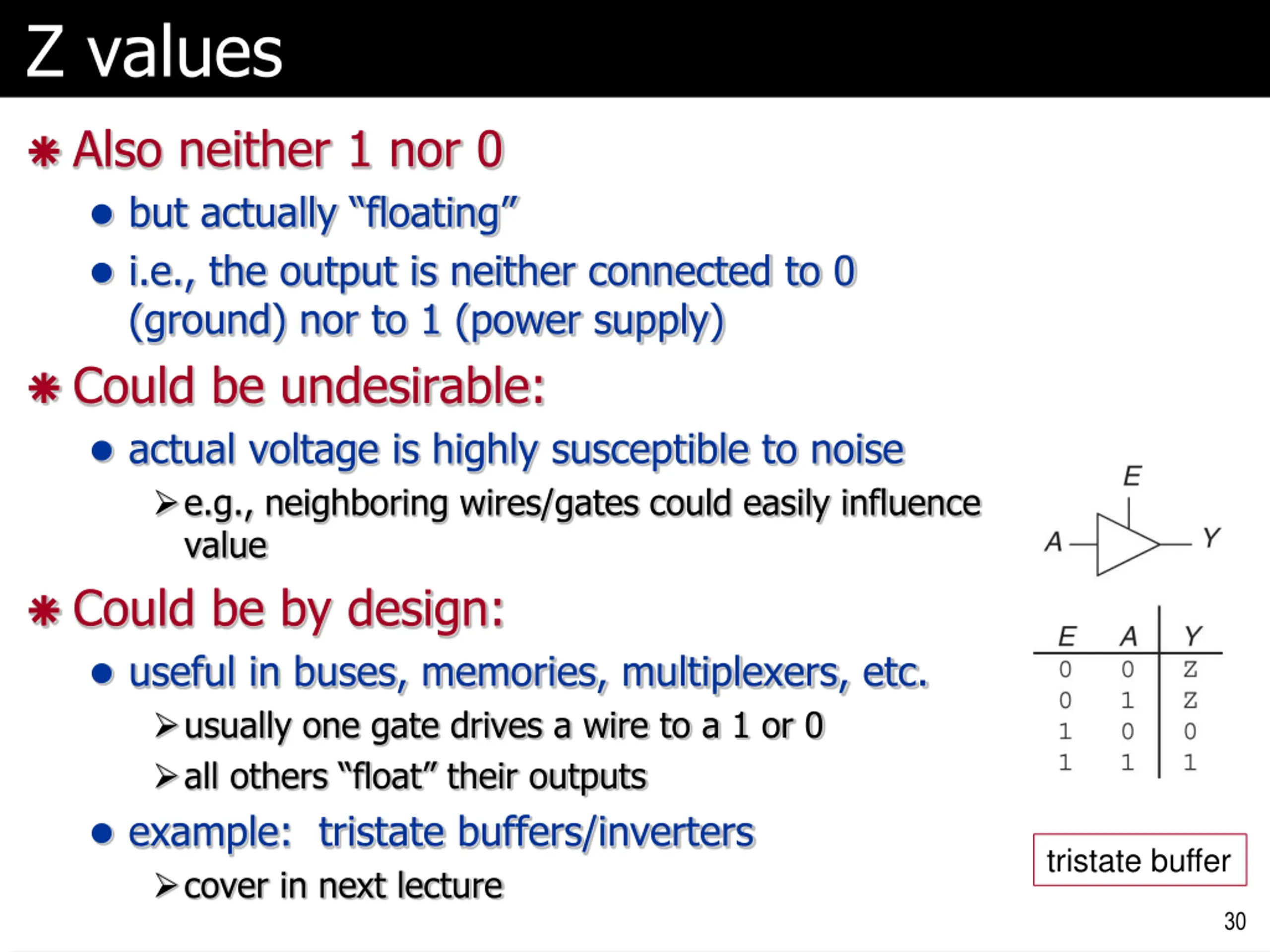

Z values Also neither 1 nor 0 but actually floating i.e., the output is neither connected to 0 (ground) nor to 1 (power supply) Could be undesirable: actual voltage is highly susceptible to noise e.g., neighboring wires/gates could easily influence value Could be by design: useful in buses, memories, multiplexers, etc. usually one gate drives a wire to a 1 or 0 all others float their outputs example: tristate buffers/inverters cover in next lecture tristate buffer 30

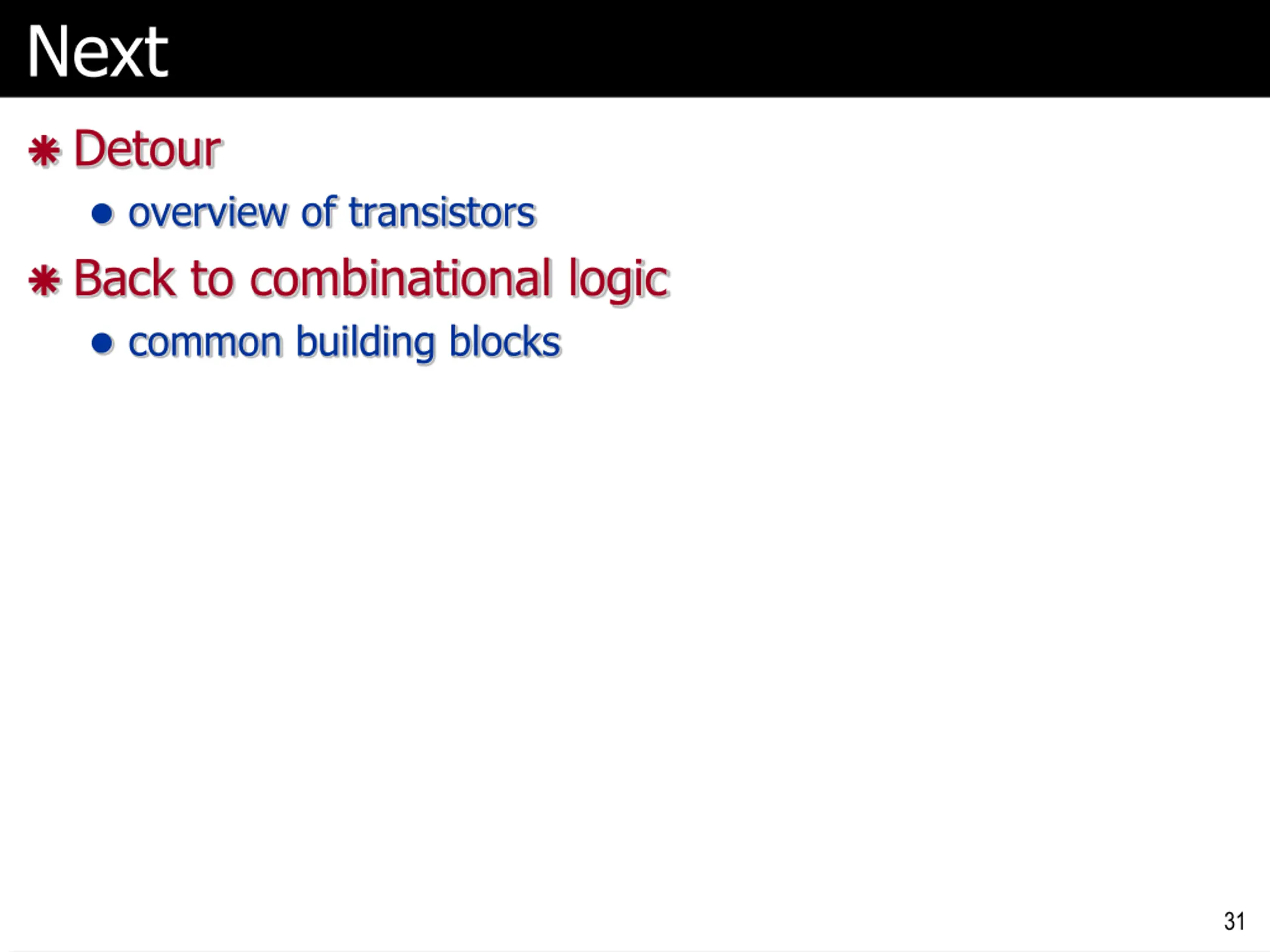

Next Detour overview of transistors Back to combinational logic common building blocks 31
