  1. ANSWERING CONJUNCTIVE QUERIES WITH INEQUALITIES Paris Koutris1 Tova Milo2 Sudeepa Roy1 Dan Suciu1 1 University of Washington 2 Tel Aviv University ICDT 2015

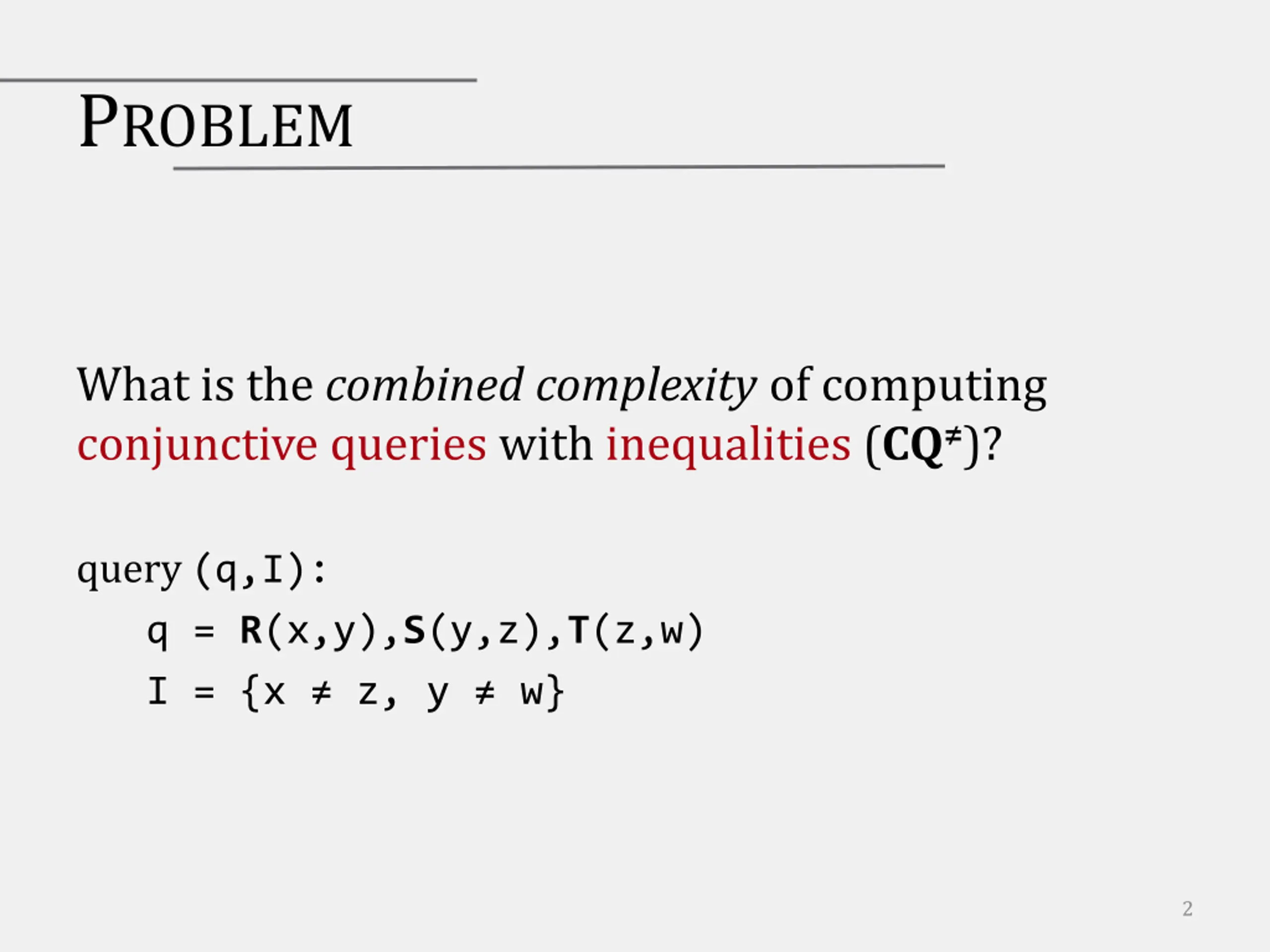

  2. PROBLEM What is the combined complexity of computing conjunctive queries with inequalities (CQ )? query (q,I): q = R(x,y),S(y,z),T(z,w) I = {x z, y w} 2

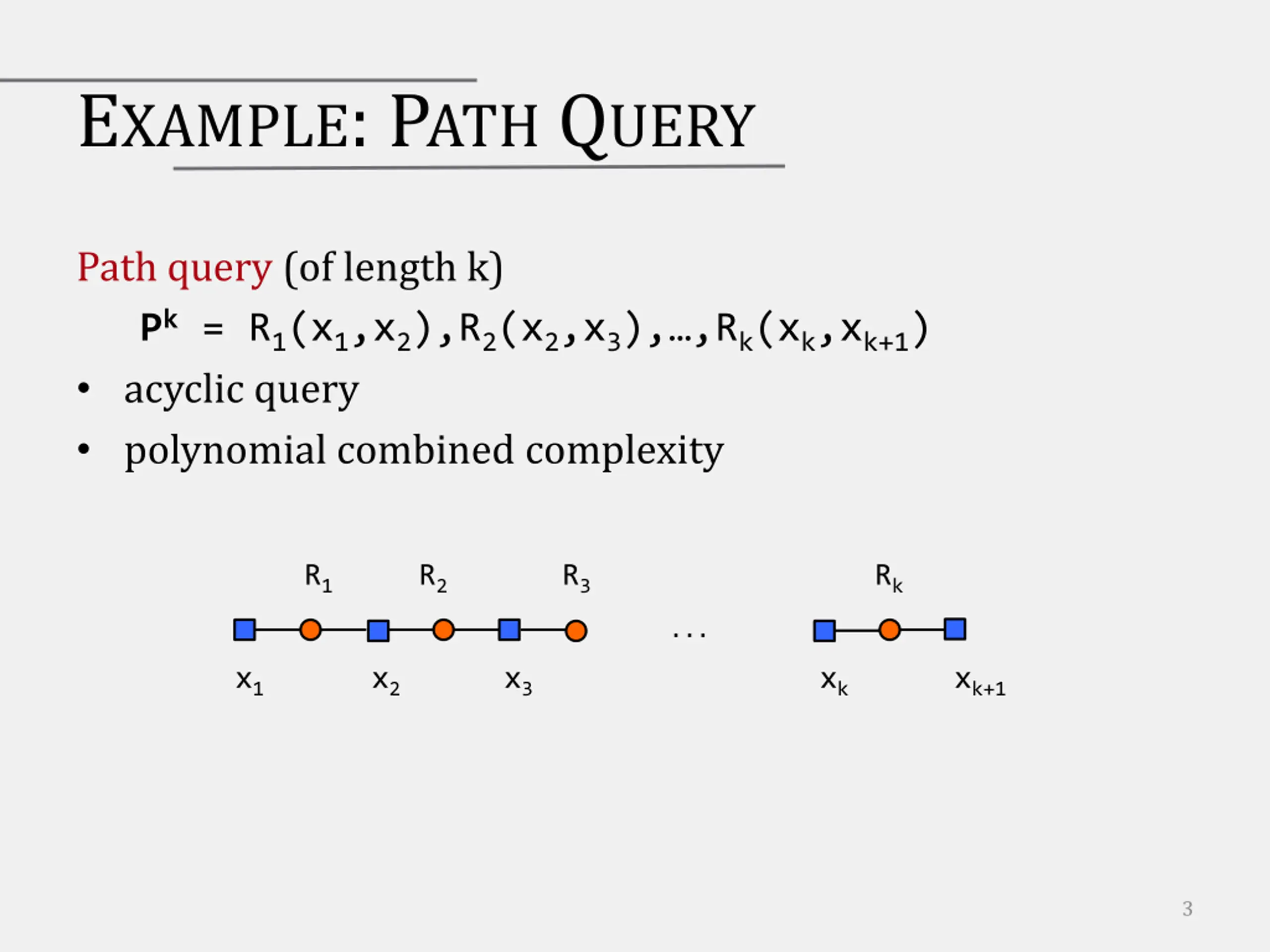

  3. EXAMPLE: PATH QUERY Path query (of length k) Pk = R1(x1,x2),R2(x2,x3), ,Rk(xk,xk+1) acyclic query polynomial combined complexity R1 R2 R3 Rk . . . x1 x2 x3 xk xk+1 3

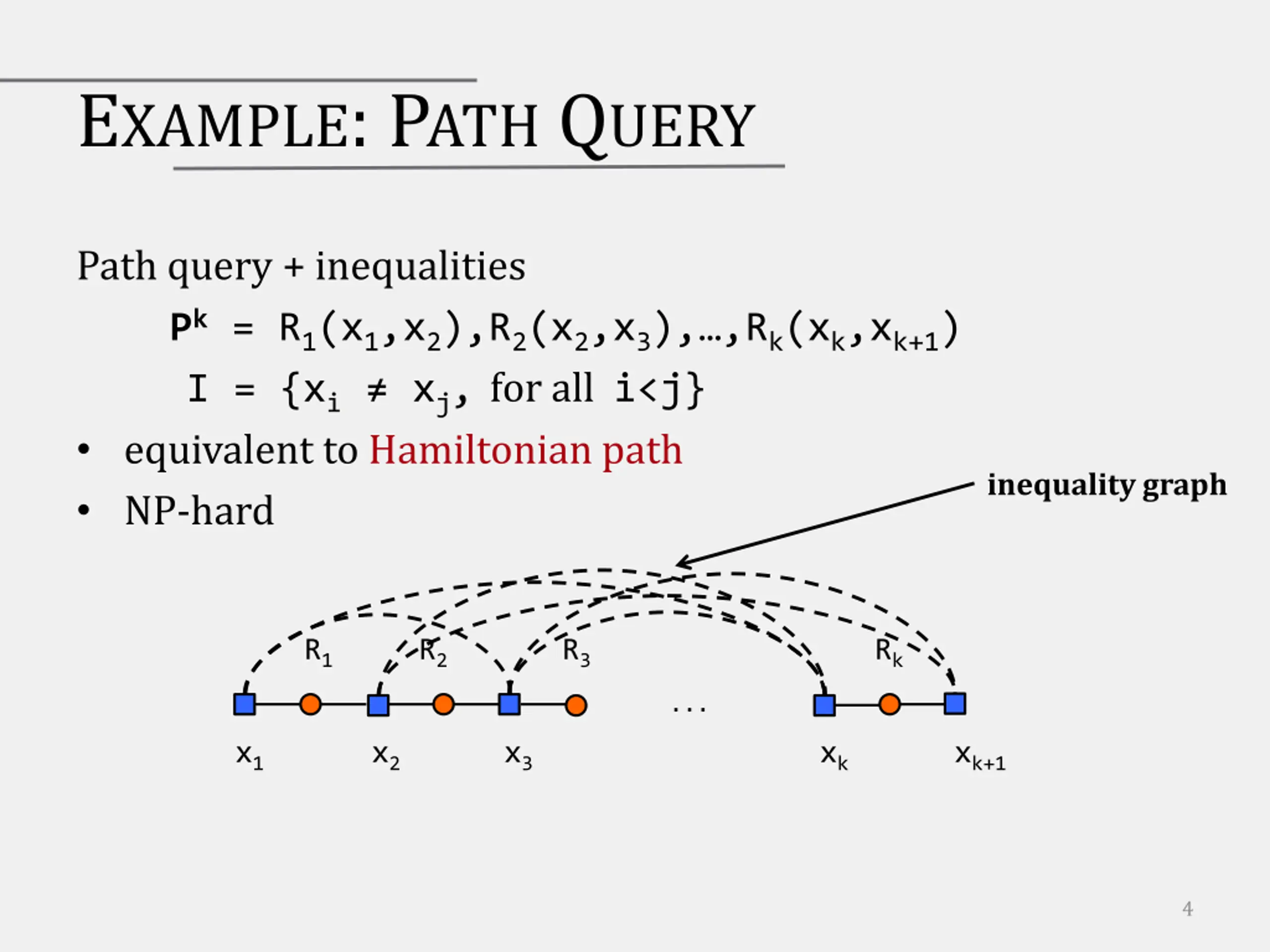

  4. EXAMPLE: PATH QUERY Path query + inequalities Pk = R1(x1,x2),R2(x2,x3), ,Rk(xk,xk+1) I = {xi xj,for all i<j} equivalent to Hamiltonian path NP-hard inequality graph R1 R2 R3 Rk . . . x1 x2 x3 xk xk+1 4

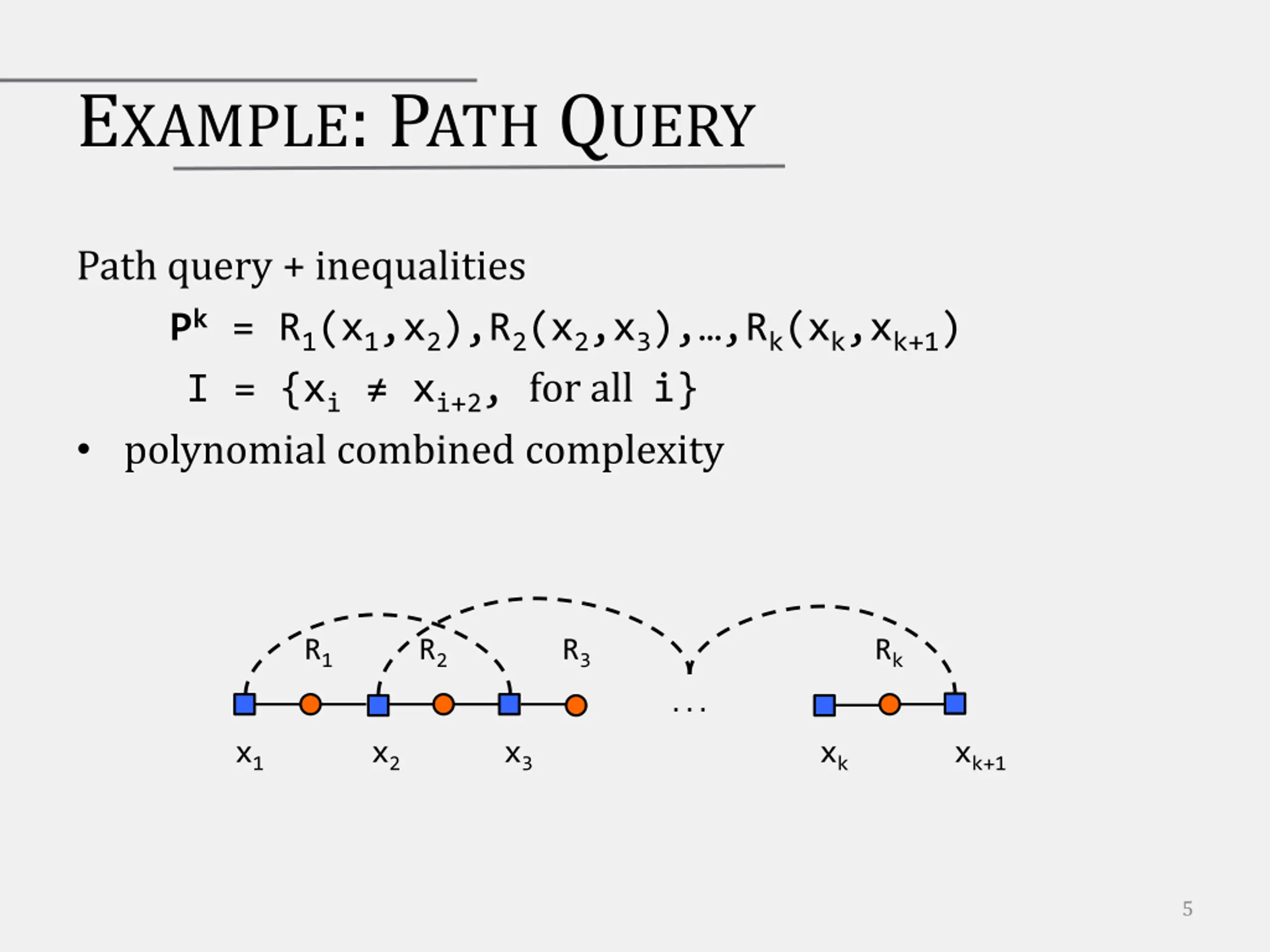

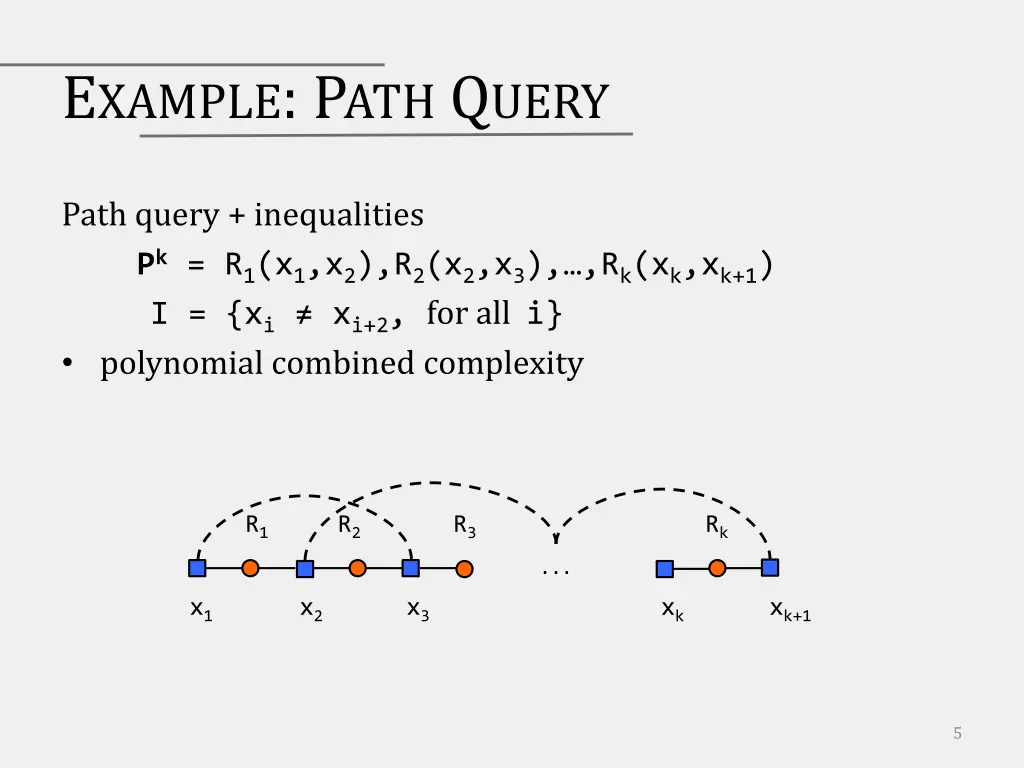

  5. EXAMPLE: PATH QUERY Path query + inequalities Pk = R1(x1,x2),R2(x2,x3), ,Rk(xk,xk+1) I = {xi xi+2, for all i} polynomial combined complexity R1 R2 R3 Rk . . . x1 x2 x3 xk xk+1 5

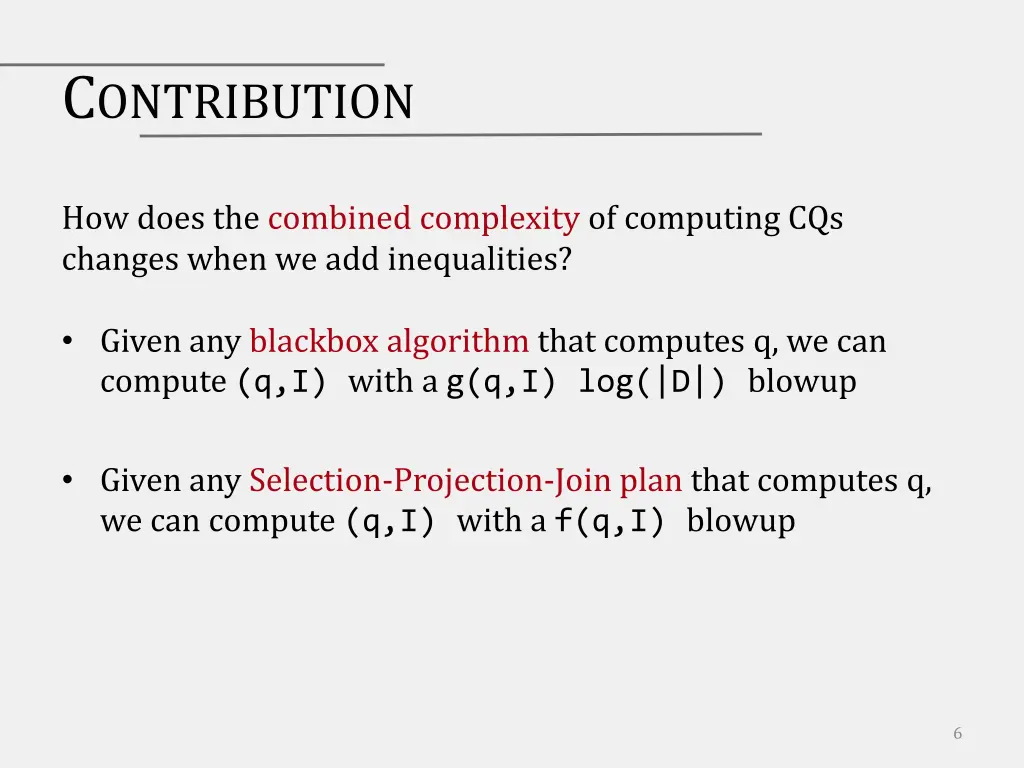

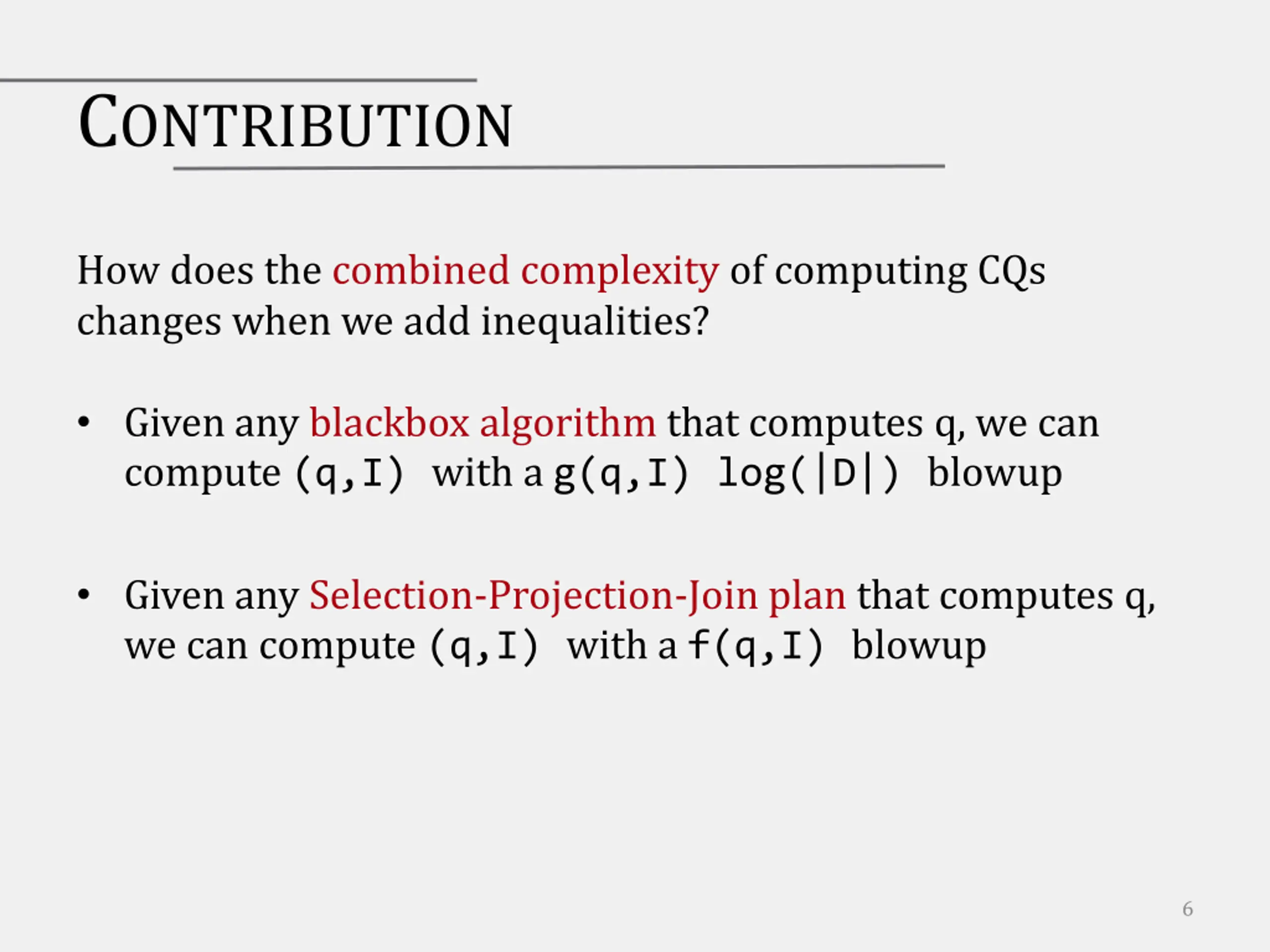

  6. CONTRIBUTION How does the combined complexity of computing CQs changes when we add inequalities? Given any blackbox algorithm that computes q, we can compute (q,I) with a g(q,I) log(|D|) blowup Given any Selection-Projection-Join plan that computes q, we can compute (q,I) with a f(q,I) blowup 6

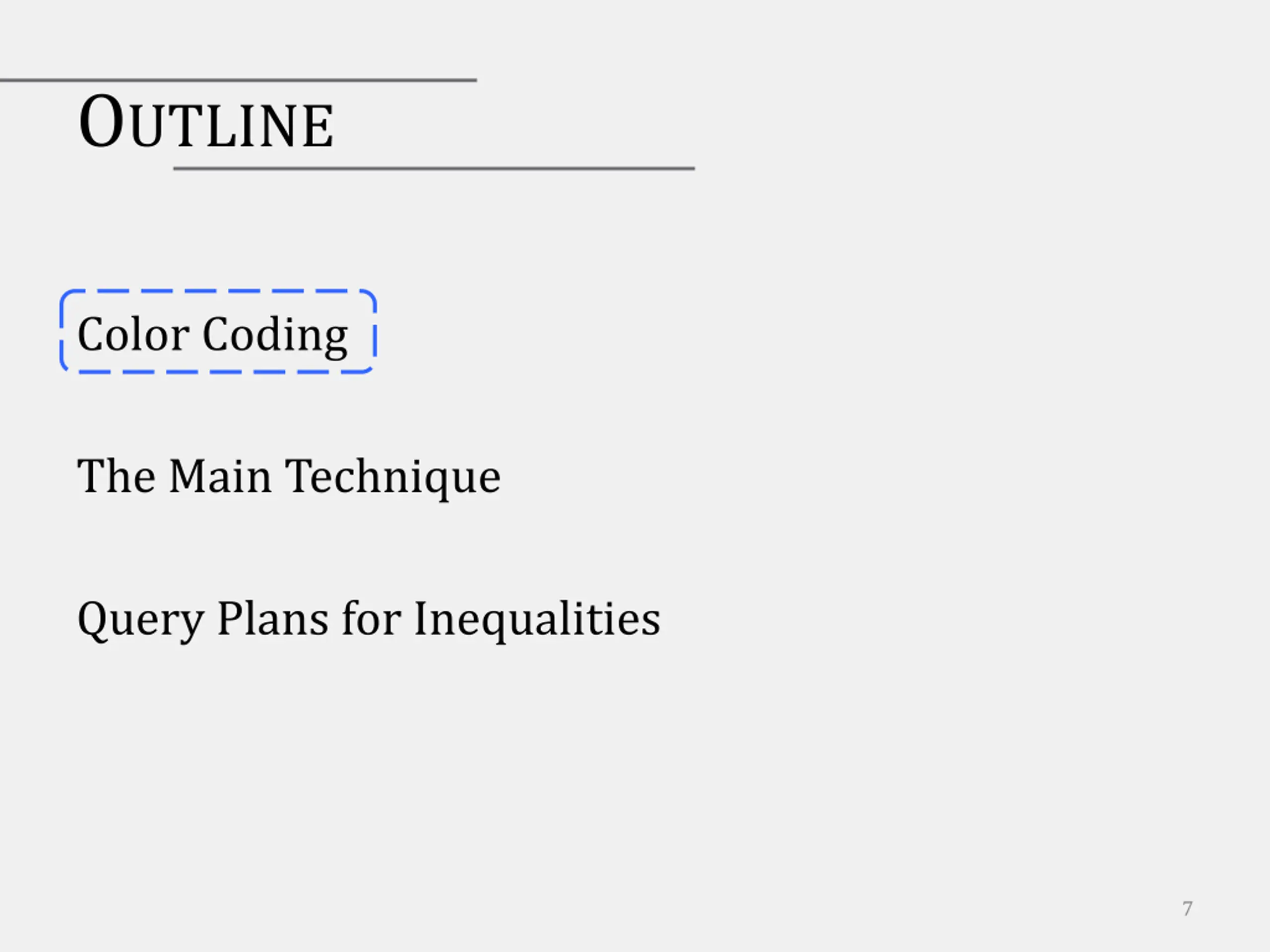

  7. OUTLINE Color Coding The Main Technique Query Plans for Inequalities 7

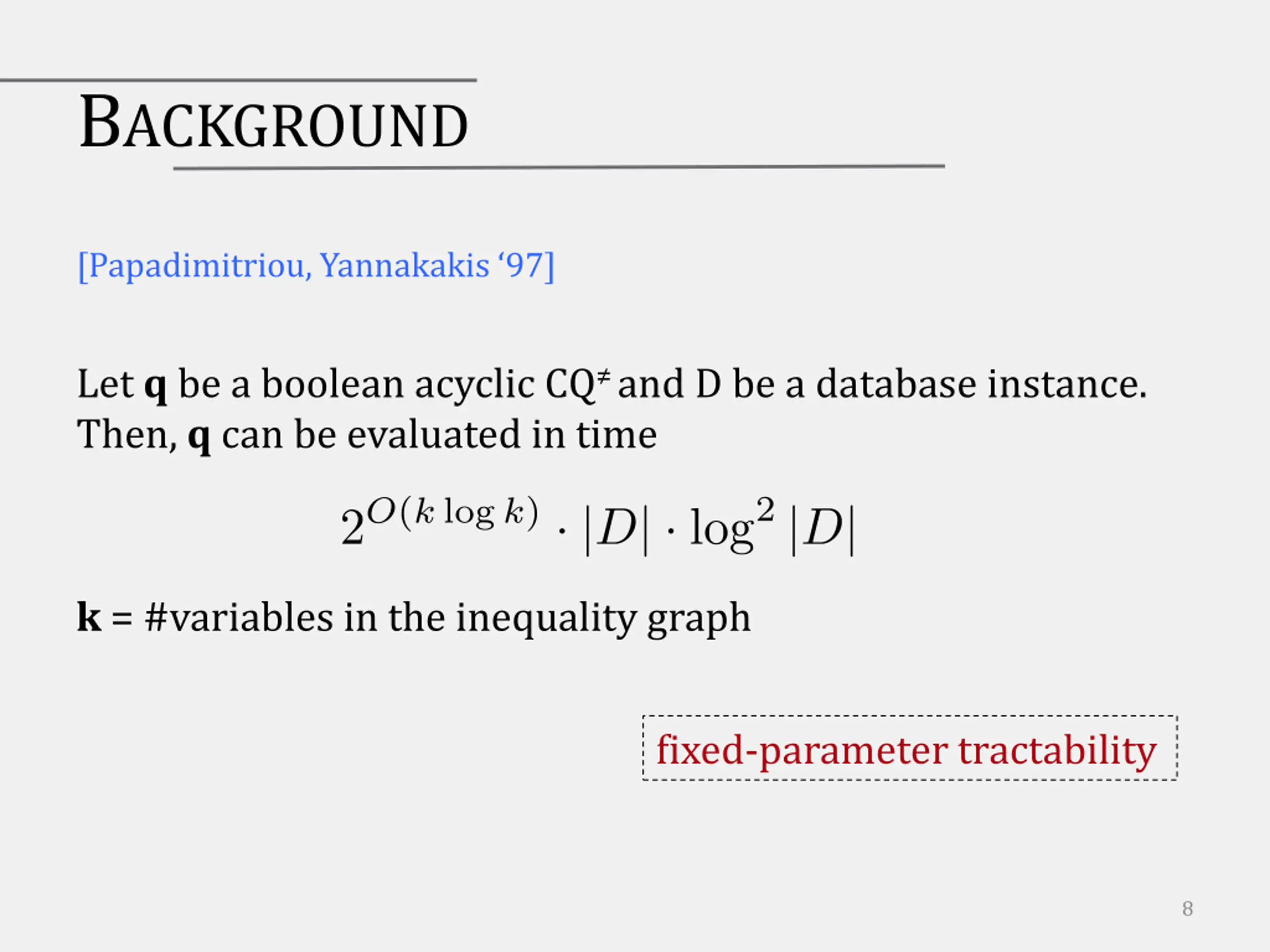

  8. BACKGROUND [Papadimitriou, Yannakakis 97] Let q be a boolean acyclic CQ and D be a database instance. Then, q can be evaluated in time k = #variables in the inequality graph fixed-parameter tractability 8

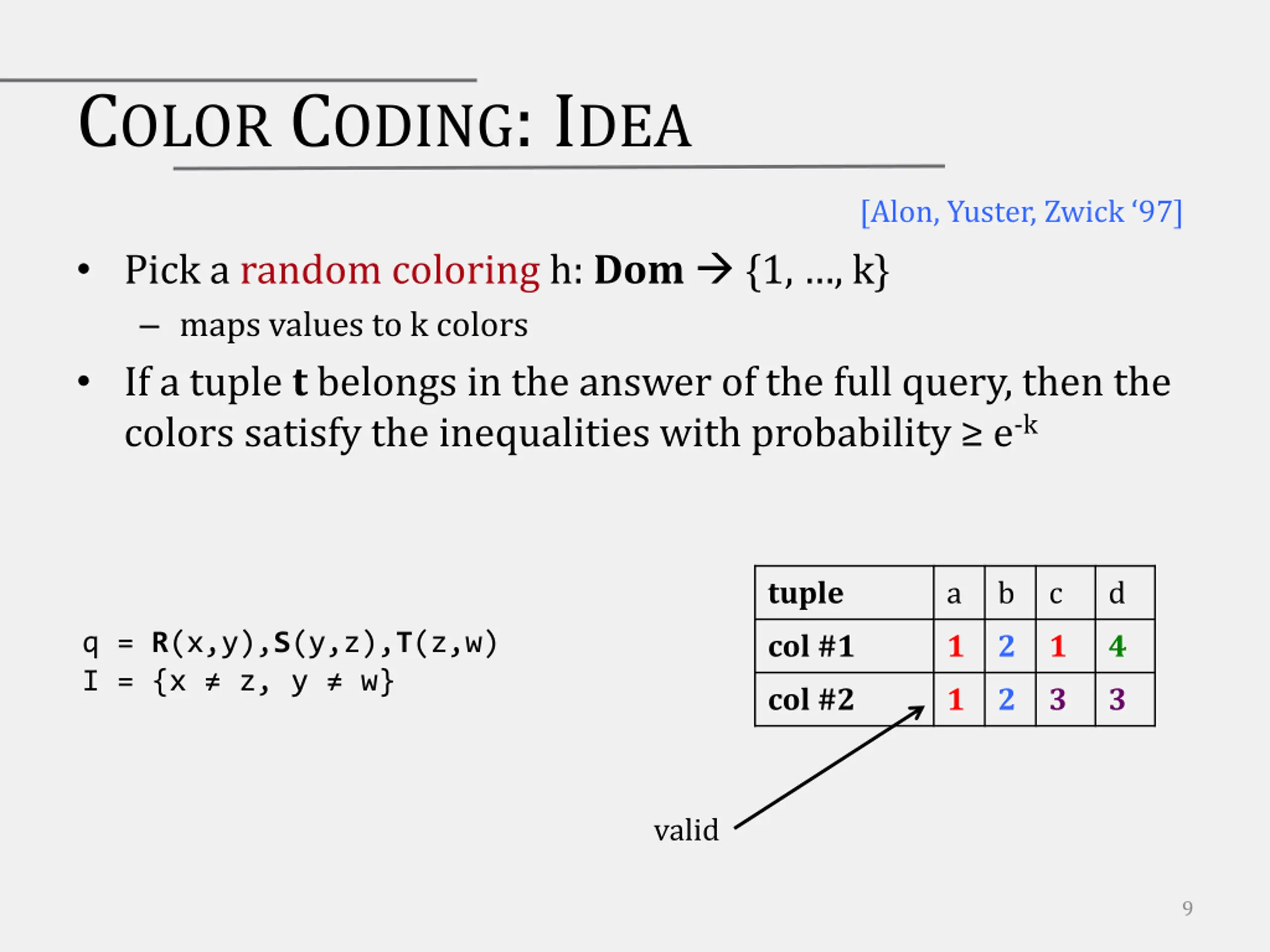

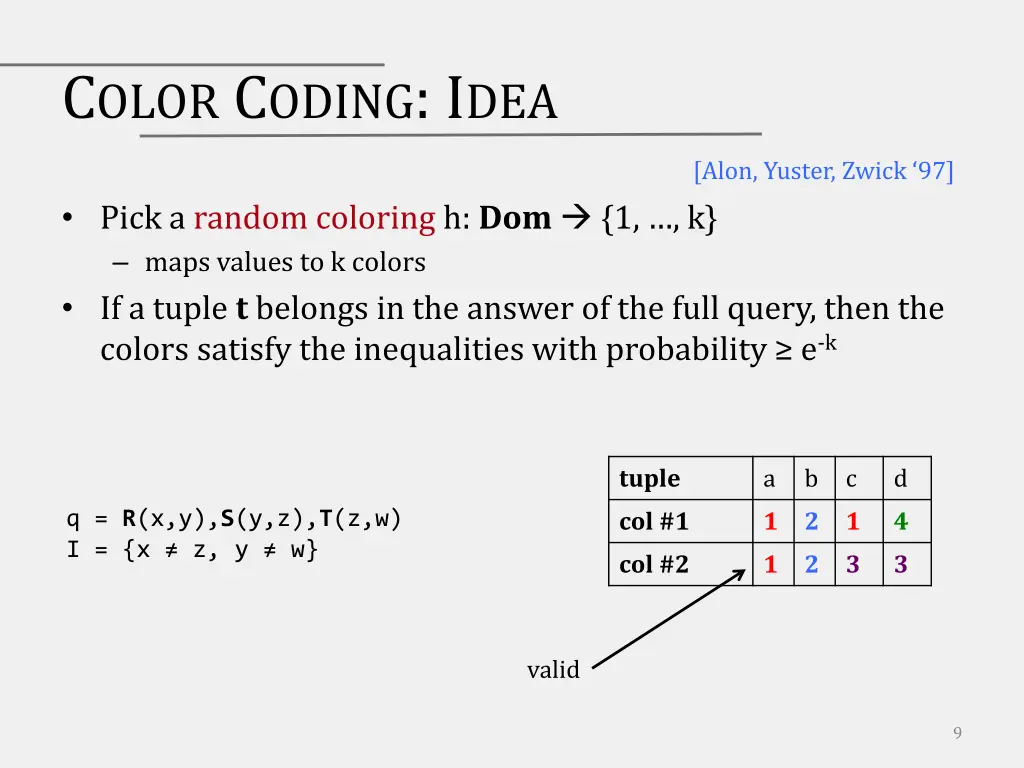

  9. COLOR CODING: IDEA [Alon, Yuster, Zwick 97] Pick a random coloring h: Dom {1, , k} maps values to k colors If a tuple t belongs in the answer of the full query, then the colors satisfy the inequalities with probability e-k tuple a b c d col #1 1 2 1 4 q = R(x,y),S(y,z),T(z,w) I = {x z, y w} col #2 1 2 3 3 valid 9

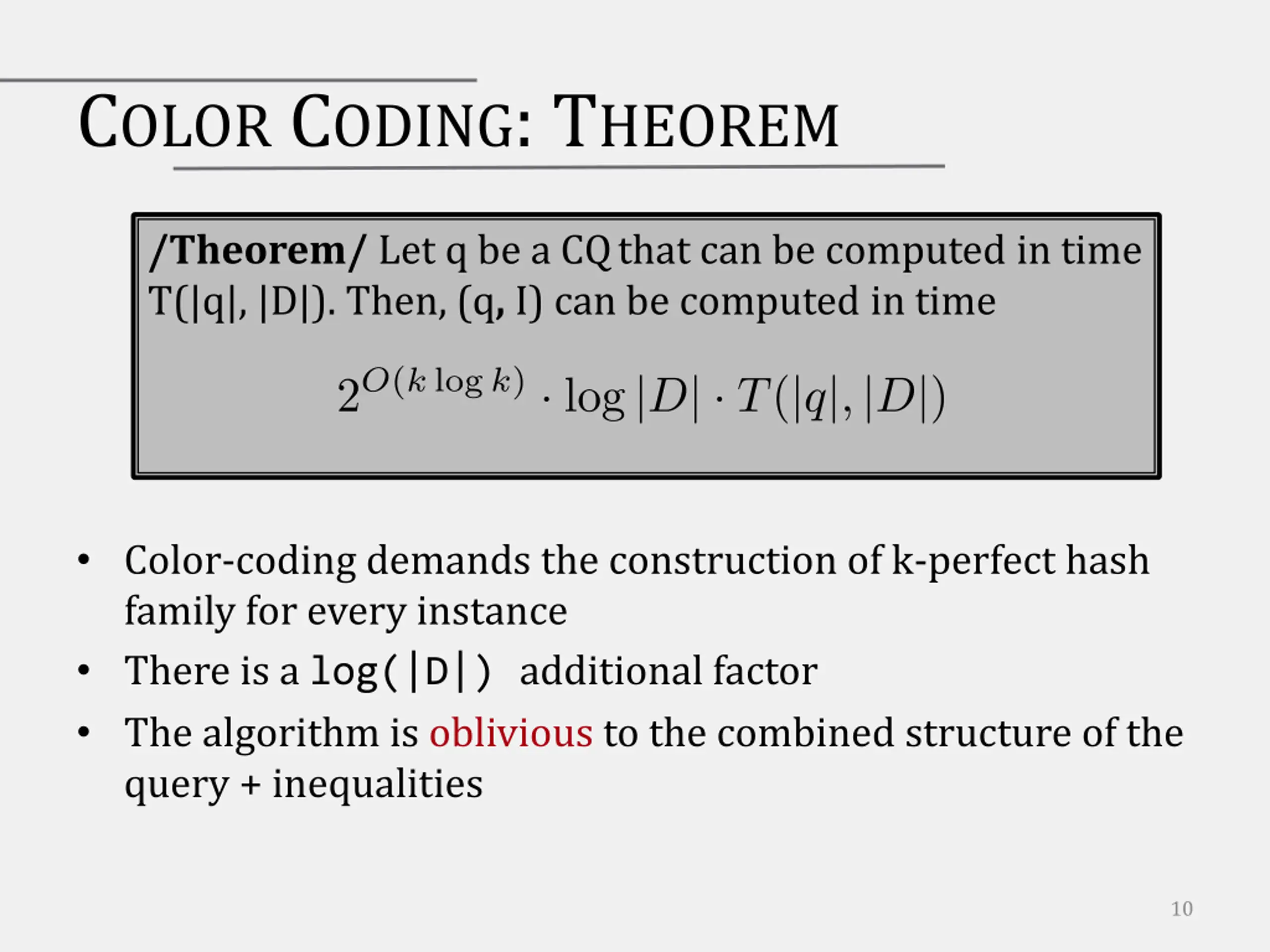

  10. COLOR CODING: THEOREM /Theorem/ Let q be a CQthat can be computed in time T(|q|, |D|). Then, (q, I) can be computed in time Color-coding demands the construction of k-perfect hash family for every instance There is a log(|D|) additional factor The algorithm is oblivious to the combined structure of the query + inequalities 10

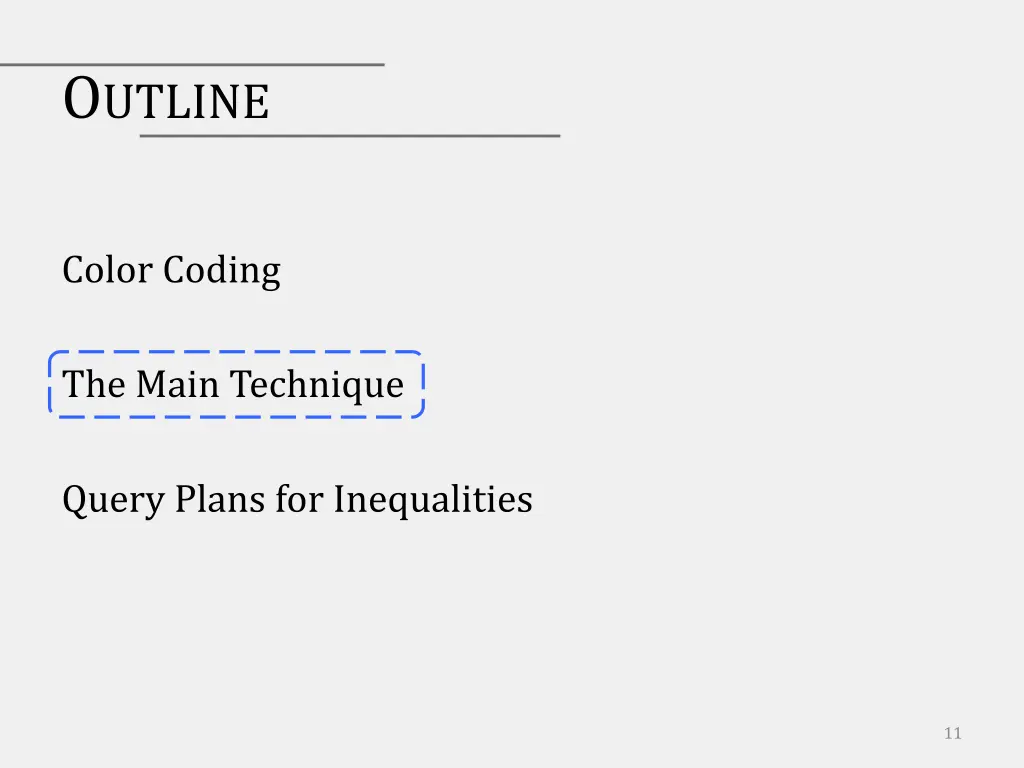

  11. OUTLINE Color Coding The Main Technique Query Plans for Inequalities 11

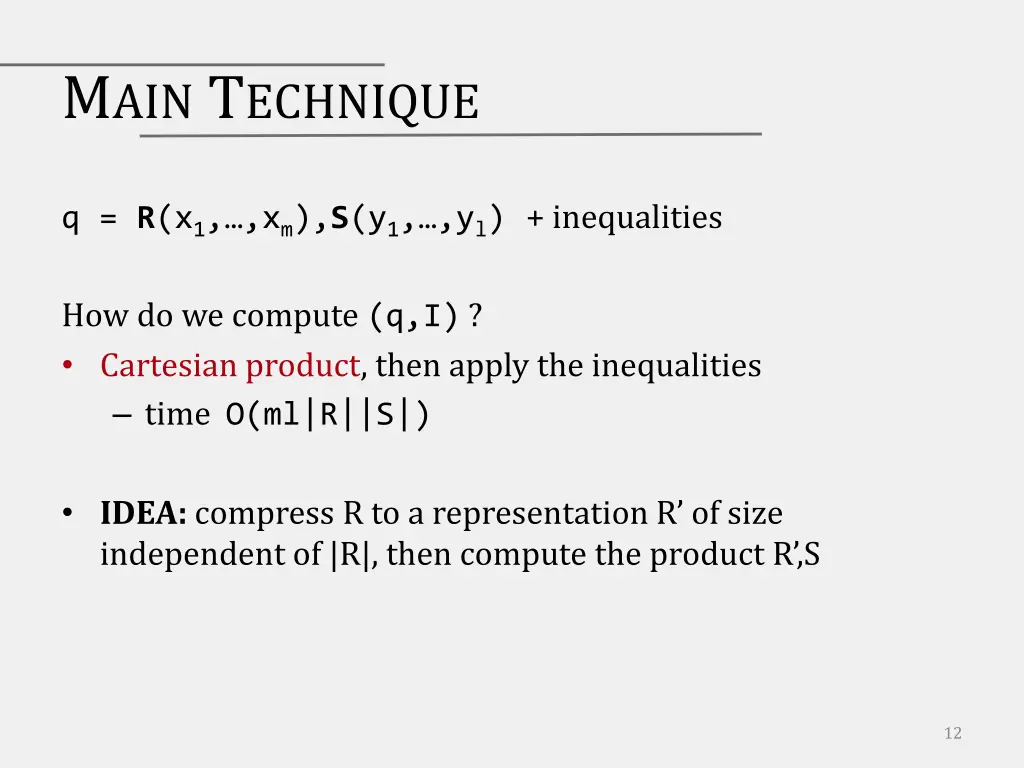

  12. MAIN TECHNIQUE q = R(x1, ,xm),S(y1, ,yl) + inequalities How do we compute (q,I) ? Cartesian product, then apply the inequalities time O(ml|R||S|) IDEA: compress R to a representation R of size independent of |R|, then compute the product R ,S 12

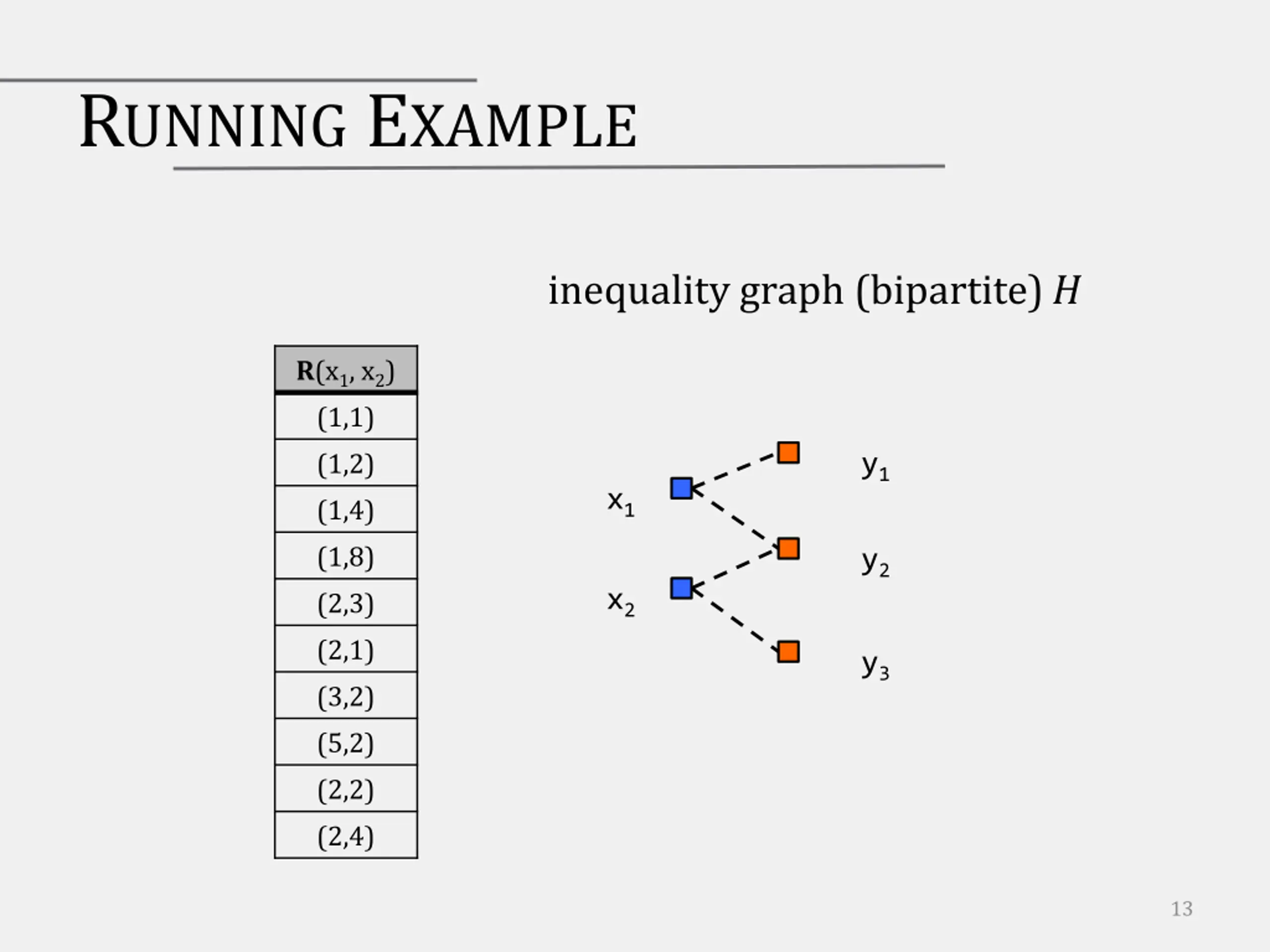

  13. RUNNING EXAMPLE inequality graph (bipartite) H R(x1, x2) (1,1) (1,2) (1,4) (1,8) (2,3) (2,1) (3,2) (5,2) (2,2) (2,4) y1 x1 y2 x2 y3 13

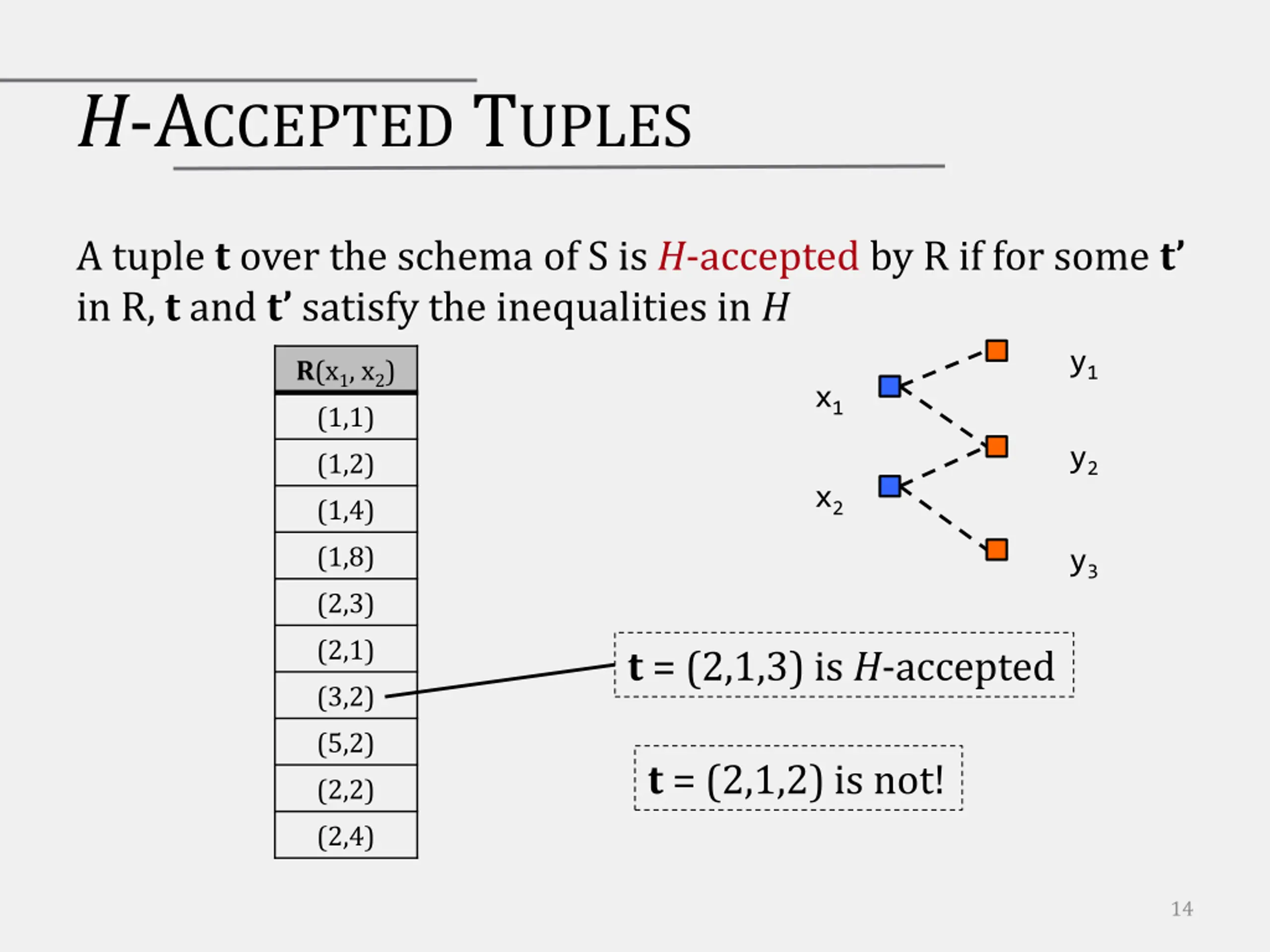

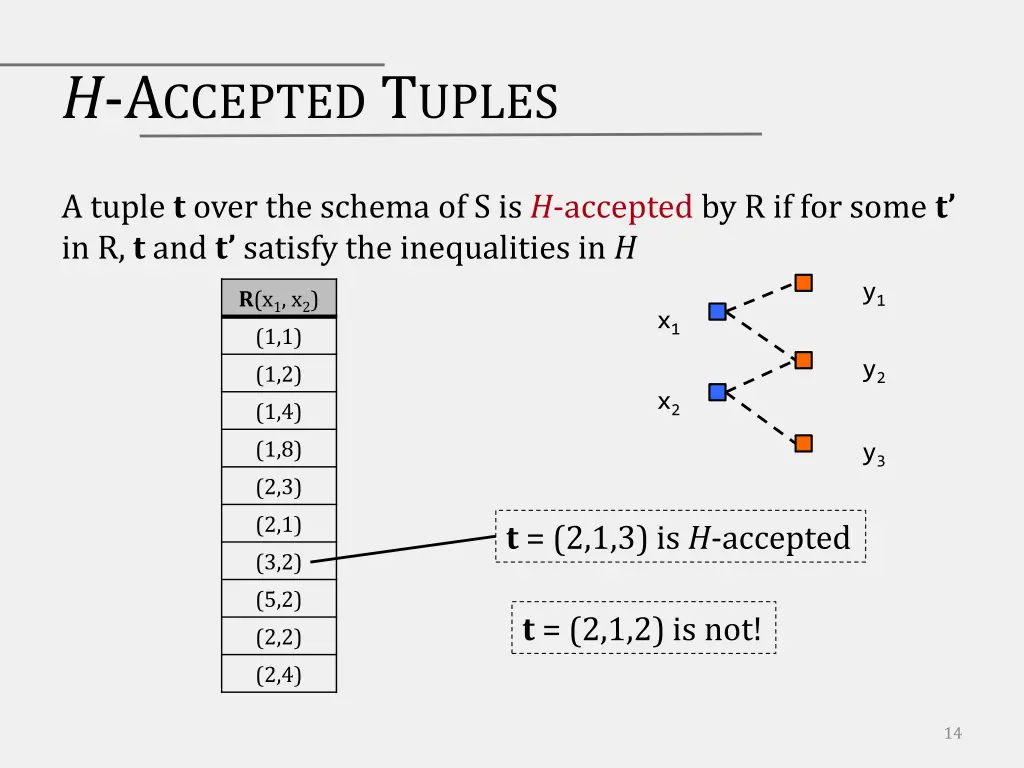

  14. H-ACCEPTED TUPLES A tuple t over the schema of S is H-accepted by R if for some t in R, t and t satisfy the inequalities in H y1 R(x1, x2) (1,1) (1,2) (1,4) (1,8) (2,3) (2,1) (3,2) (5,2) (2,2) (2,4) x1 y2 x2 y3 t = (2,1,3) is H-accepted t = (2,1,2) is not! 14

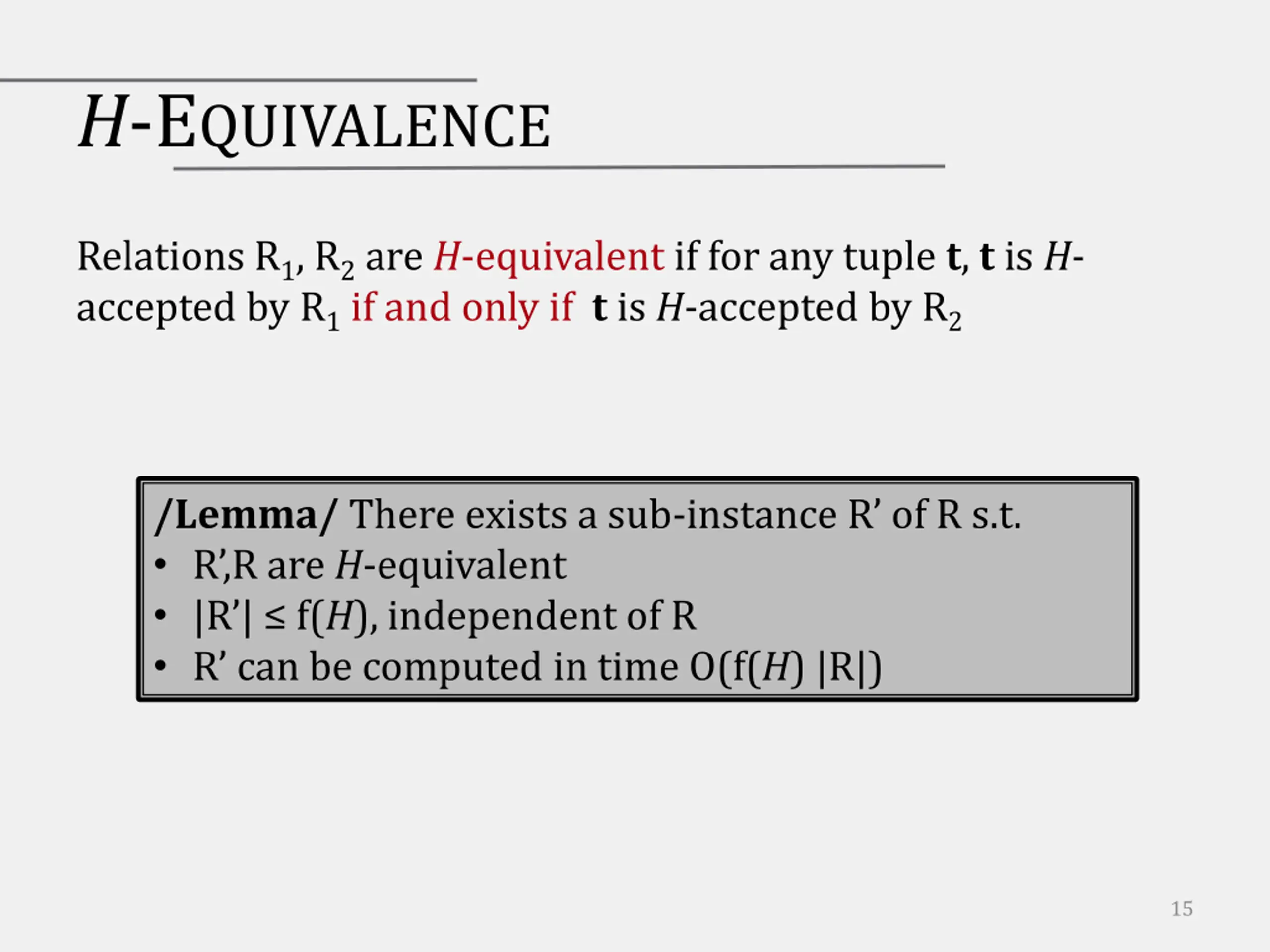

  15. H-EQUIVALENCE Relations R1, R2 are H-equivalent if for any tuple t, t is H- accepted by R1 if and only if t is H-accepted by R2 /Lemma/ There exists a sub-instance R of R s.t. R ,R are H-equivalent |R | f(H), independent of R R can be computed in time O(f(H) |R|) 15

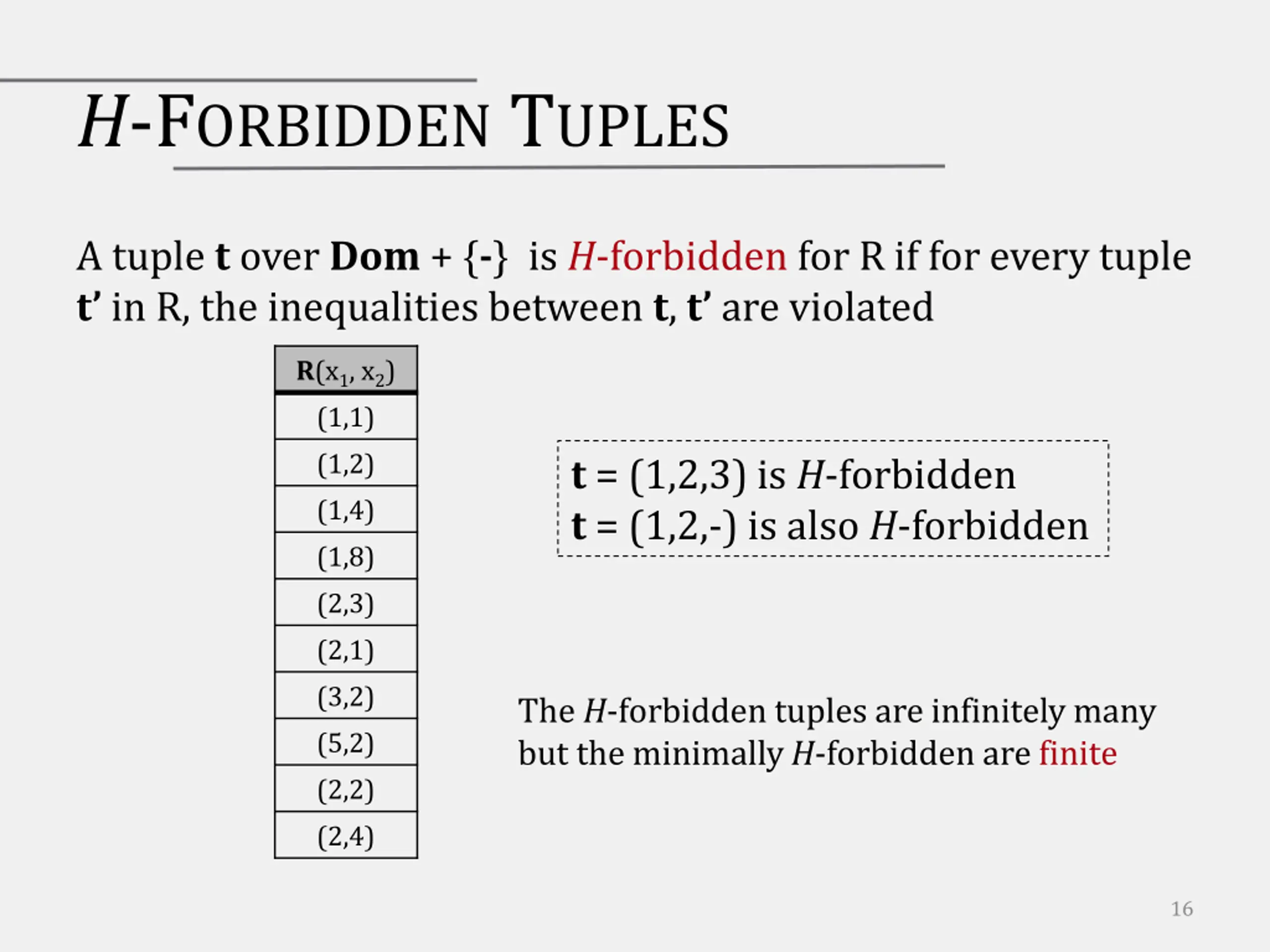

  16. H-FORBIDDEN TUPLES A tuple t over Dom + {-} is H-forbidden for R if for every tuple t in R, the inequalities between t, t are violated R(x1, x2) (1,1) (1,2) (1,4) (1,8) (2,3) (2,1) (3,2) (5,2) (2,2) (2,4) t = (1,2,3) is H-forbidden t = (1,2,-) is also H-forbidden The H-forbidden tuples are infinitely many but the minimally H-forbidden are finite 16

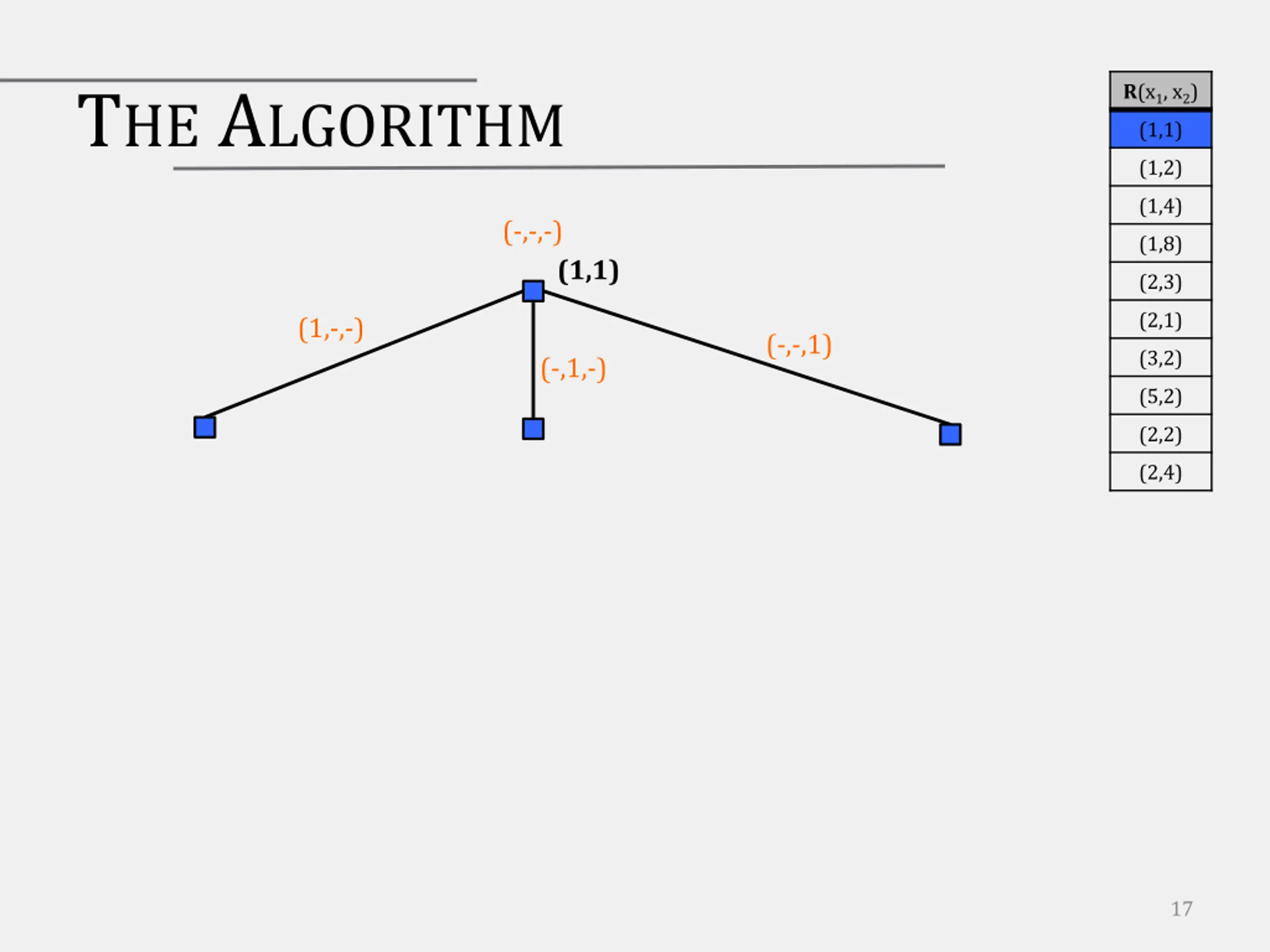

  17. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (5,2) (2,2) (2,4) 17

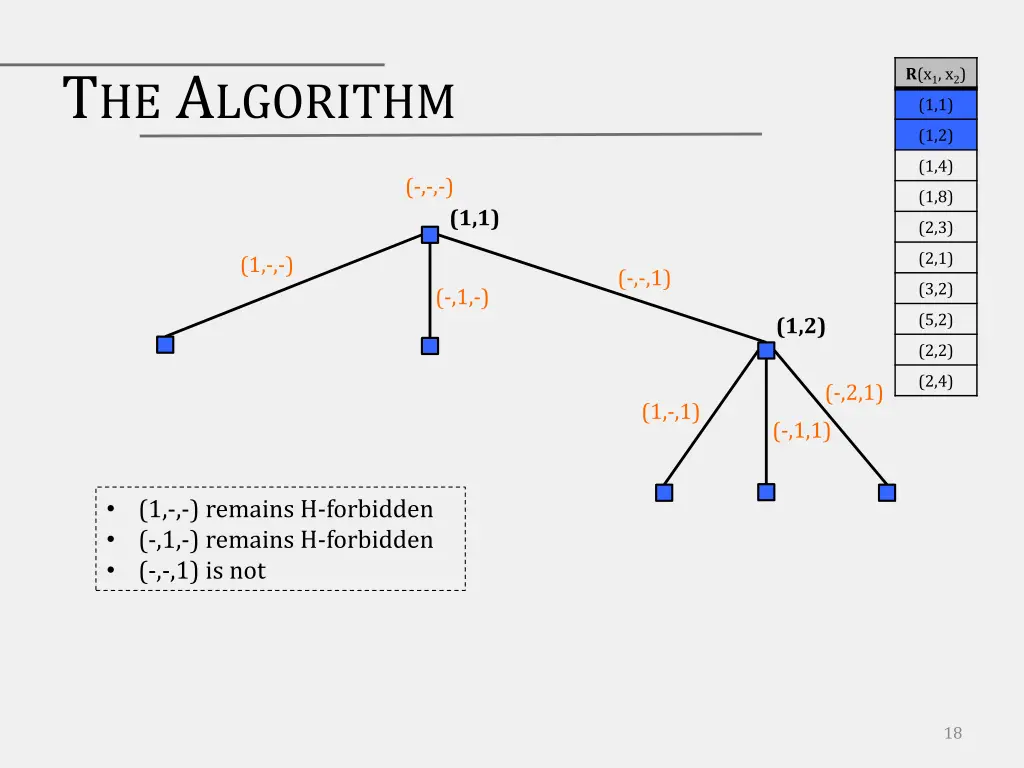

  18. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (5,2) (1,2) (2,2) (2,4) (-,2,1) (1,-,1) (-,1,1) (1,-,-) remains H-forbidden (-,1,-) remains H-forbidden (-,-,1) is not 18

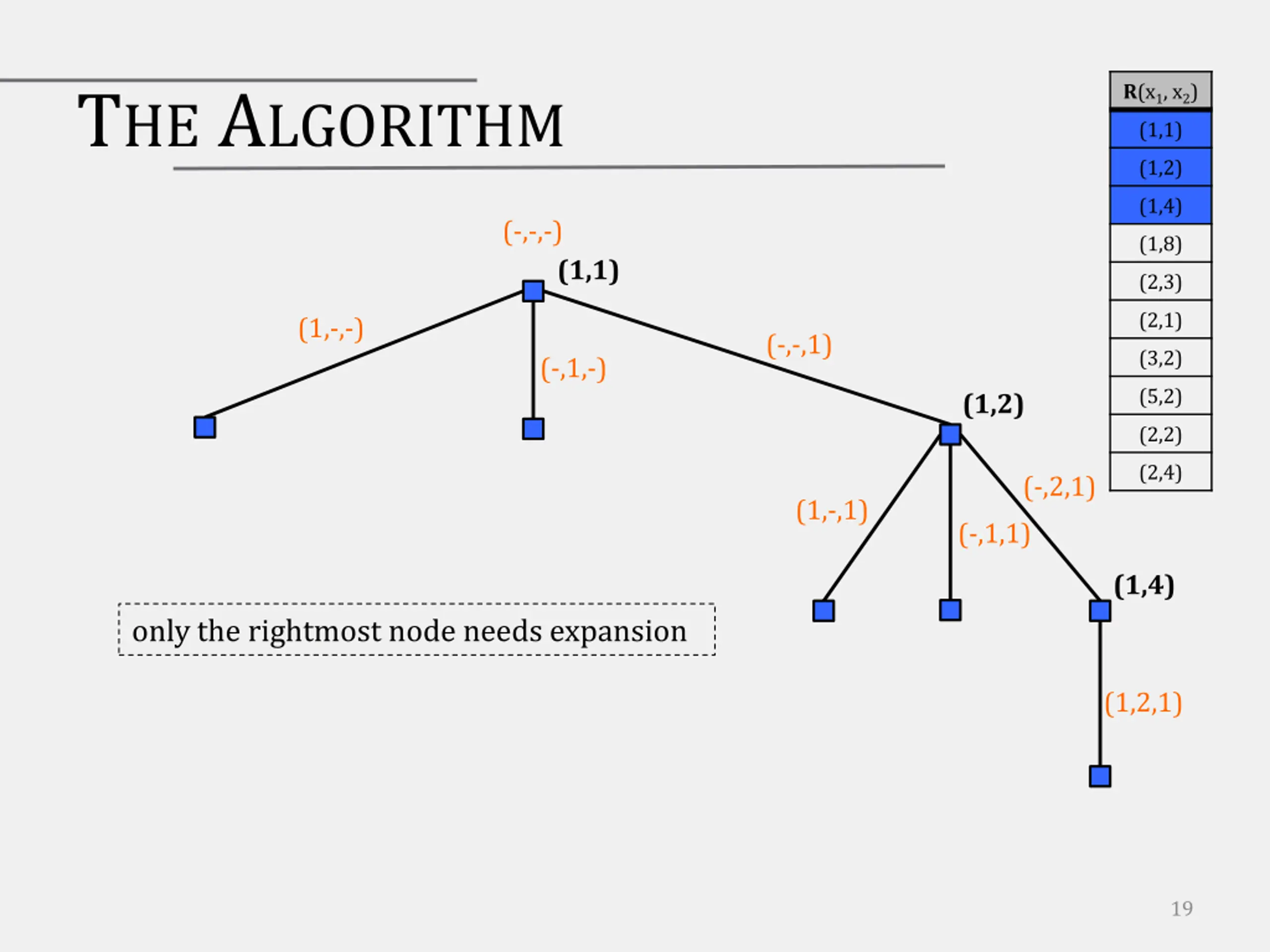

  19. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (5,2) (1,2) (2,2) (2,4) (-,2,1) (1,-,1) (-,1,1) (1,4) only the rightmost node needs expansion (1,2,1) 19

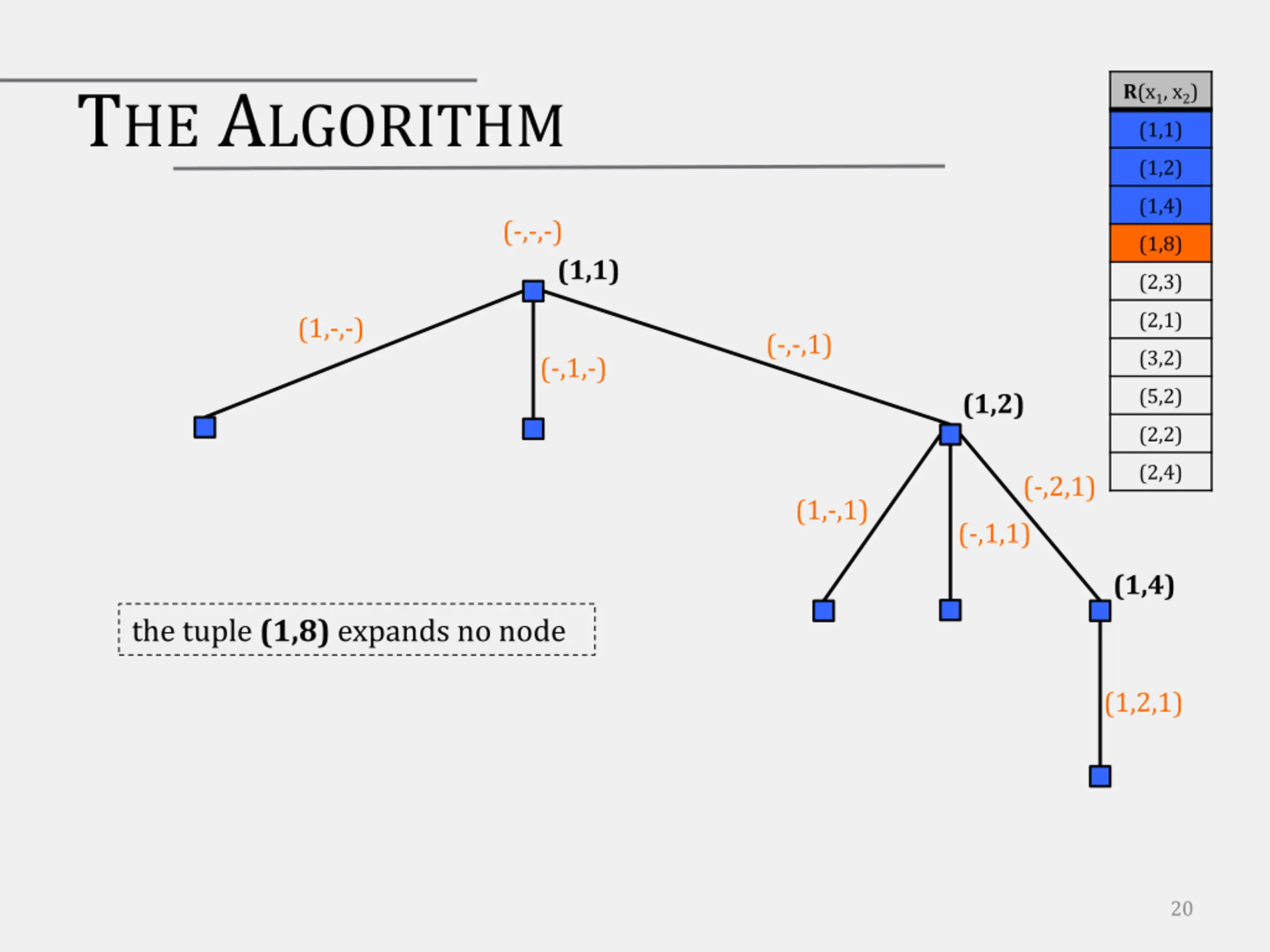

  20. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (5,2) (1,2) (2,2) (2,4) (-,2,1) (1,-,1) (-,1,1) (1,4) the tuple (1,8) expands no node (1,2,1) 20

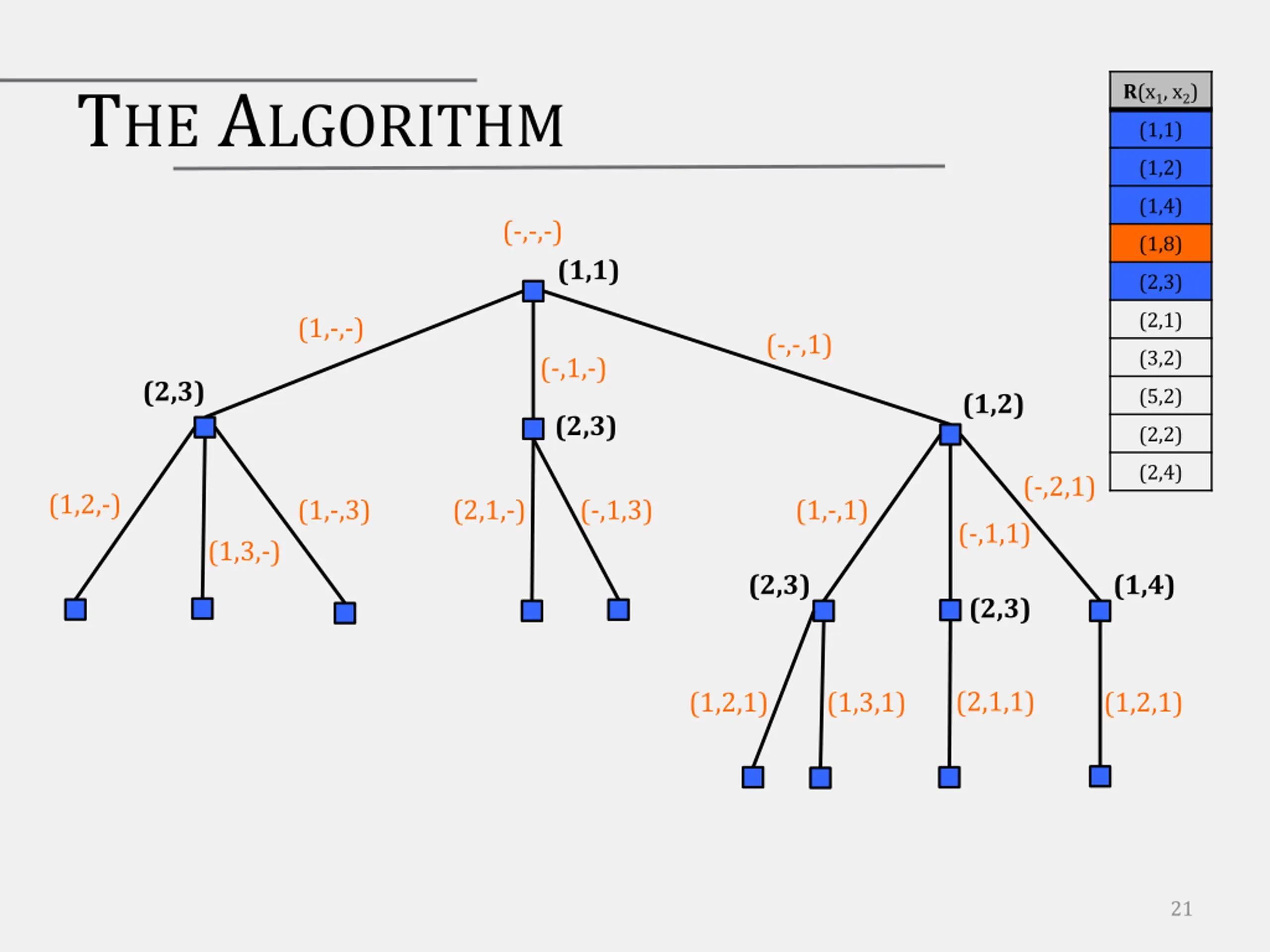

  21. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (2,3) (1,4) (2,3) (2,1,1) (1,3,1) (1,2,1) (1,2,1) 21

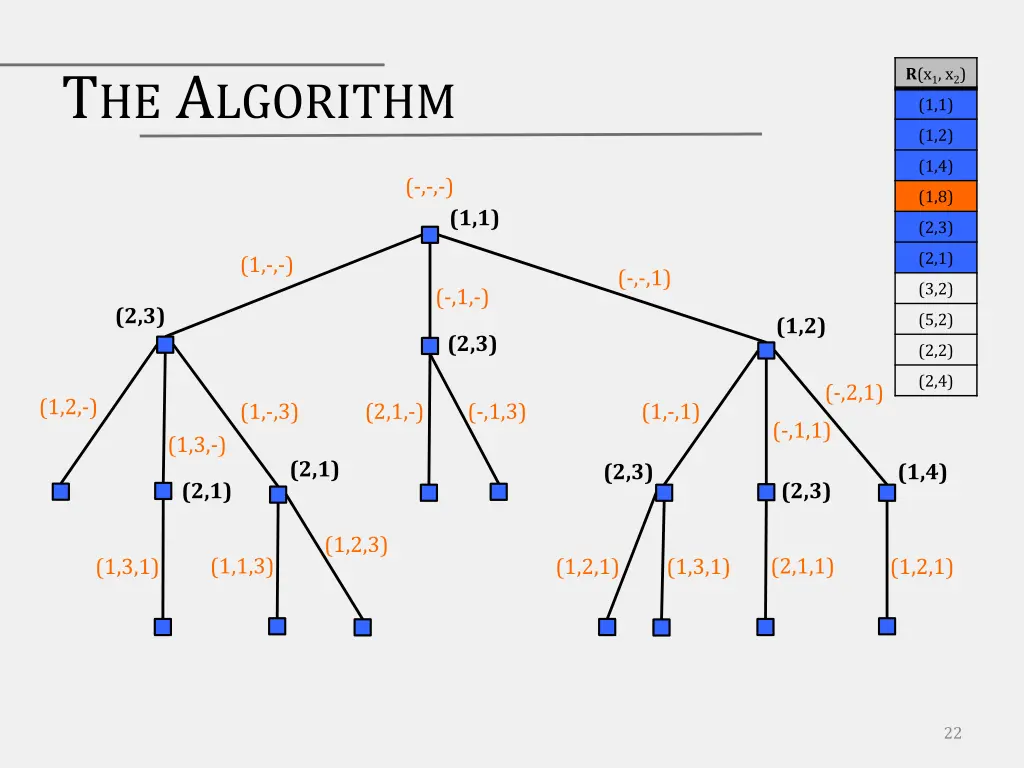

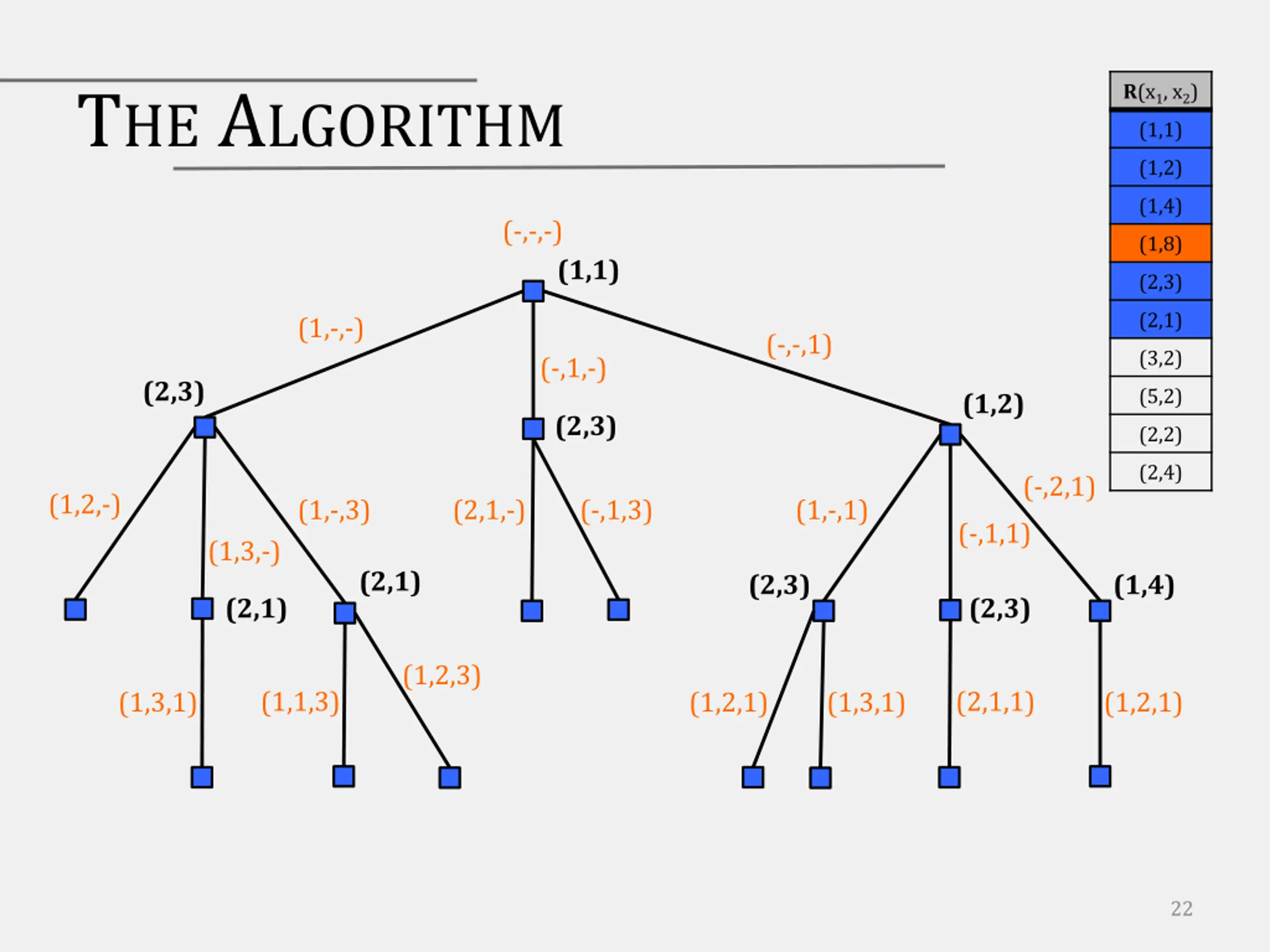

  22. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (2,1) (2,3) (1,4) (2,1) (2,3) (1,2,3) (1,1,3) (2,1,1) (1,3,1) (1,3,1) (1,2,1) (1,2,1) 22

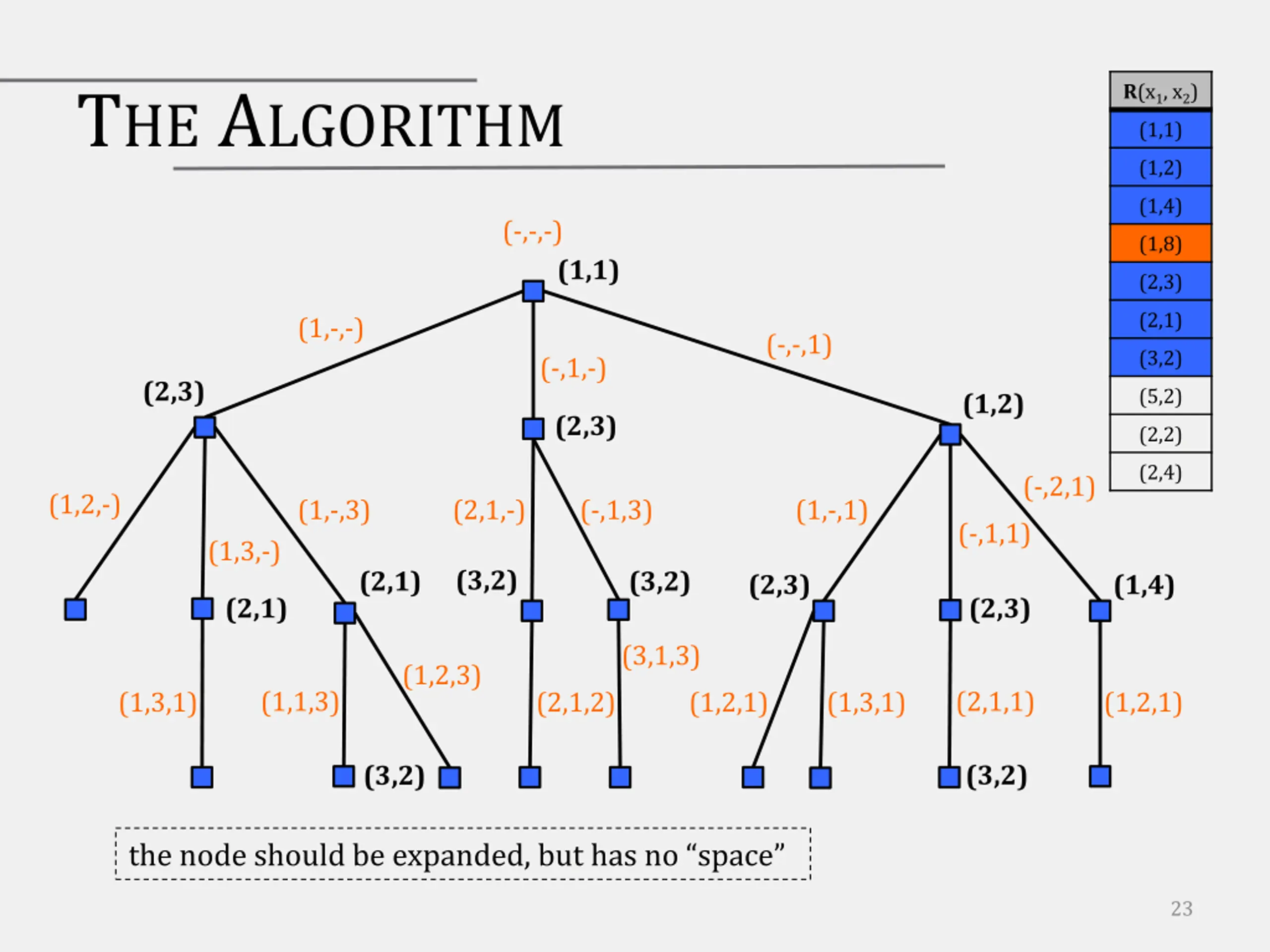

  23. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (3,2) (2,1) (3,2) (2,3) (1,4) (2,1) (2,3) (3,1,3) (1,2,3) (1,1,3) (2,1,1) (1,3,1) (1,3,1) (2,1,2) (1,2,1) (1,2,1) (3,2) (3,2) the node should be expanded, but has no space 23

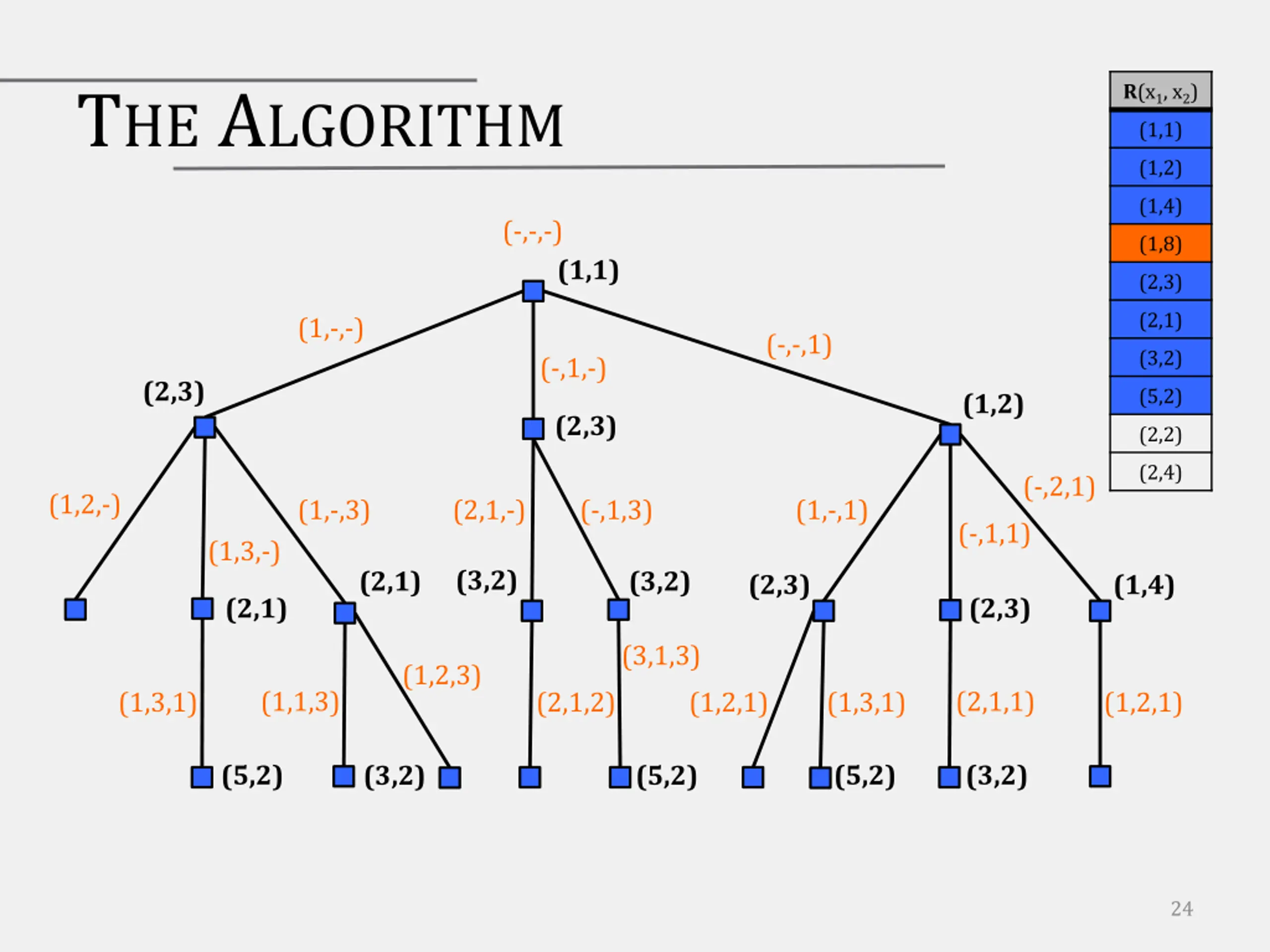

  24. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (3,2) (2,1) (3,2) (2,3) (1,4) (2,1) (2,3) (3,1,3) (1,2,3) (1,1,3) (2,1,1) (1,3,1) (1,3,1) (2,1,2) (1,2,1) (1,2,1) (5,2) (5,2) (3,2) (3,2) (5,2) 24

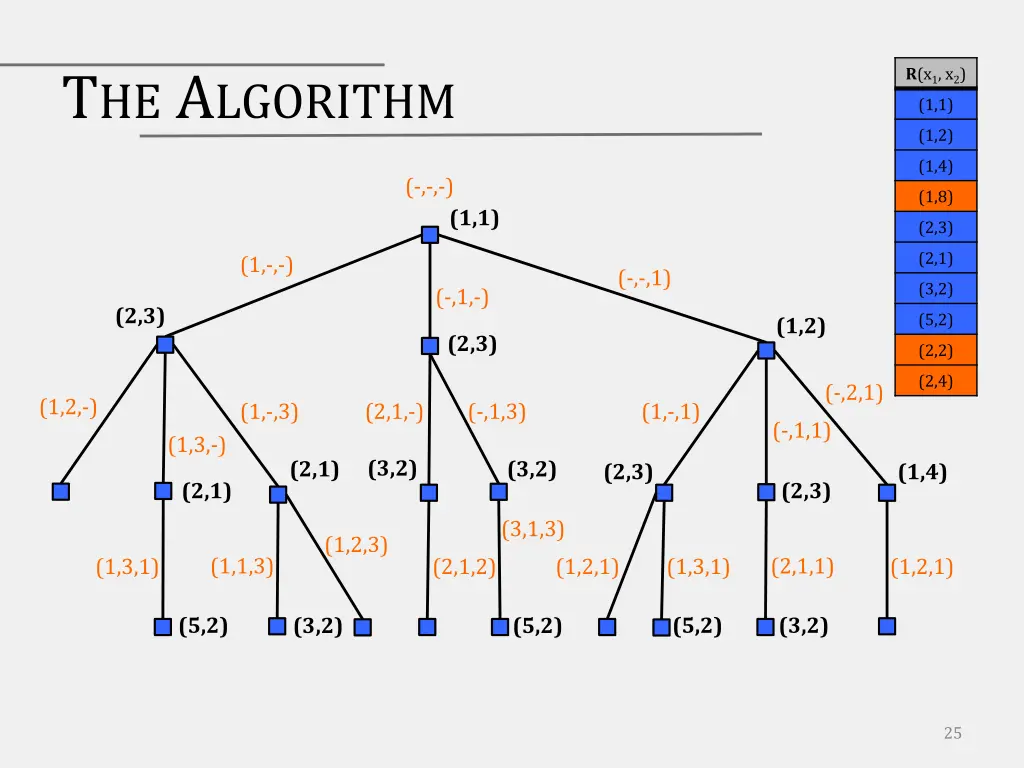

  25. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (3,2) (2,1) (3,2) (2,3) (1,4) (2,1) (2,3) (3,1,3) (1,2,3) (1,1,3) (2,1,1) (1,3,1) (1,3,1) (2,1,2) (1,2,1) (1,2,1) (5,2) (5,2) (3,2) (3,2) (5,2) 25

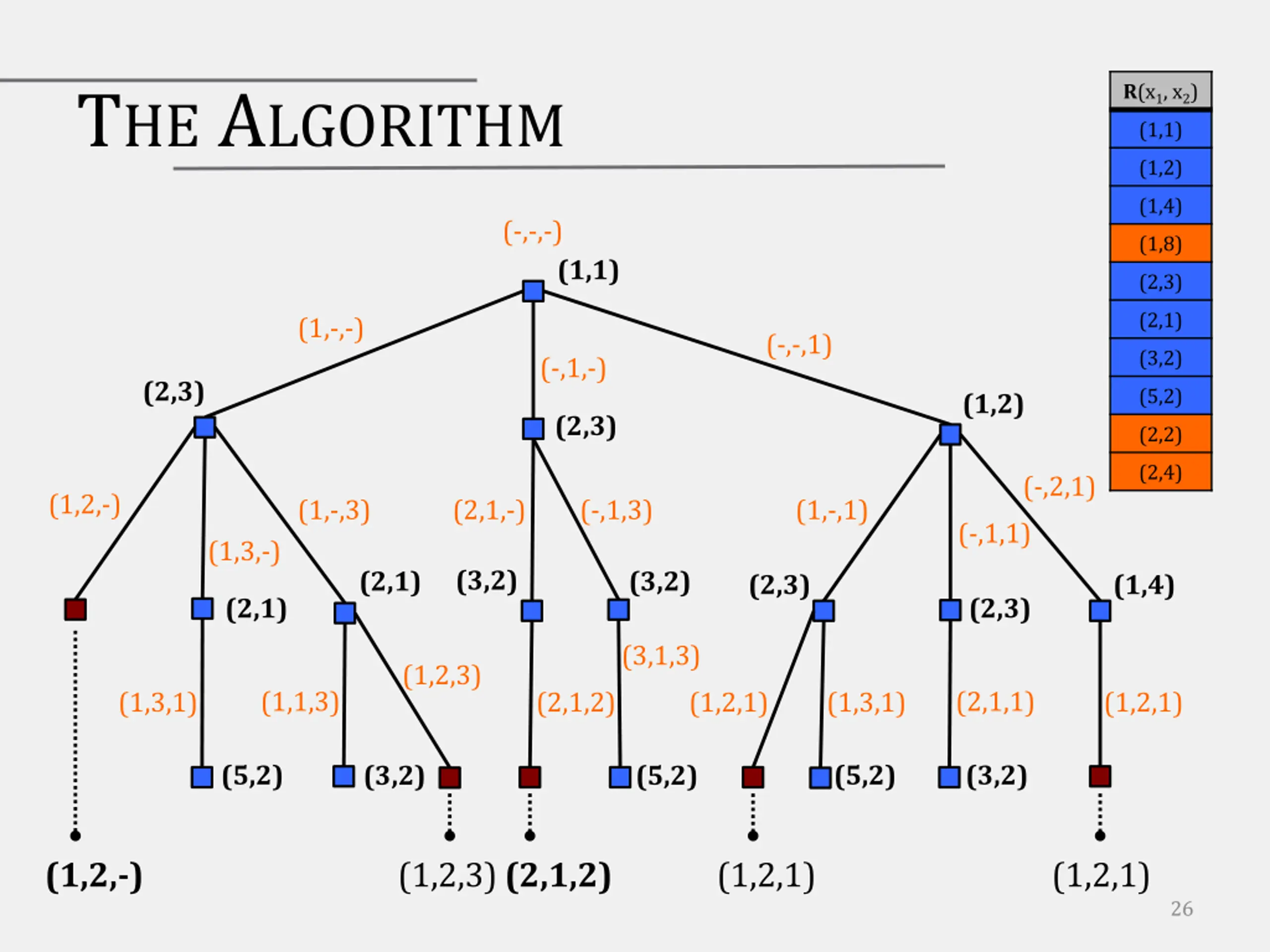

  26. THE ALGORITHM R(x1, x2) (1,1) (1,2) (1,4) (-,-,-) (1,8) (1,1) (2,3) (2,1) (1,-,-) (-,-,1) (3,2) (-,1,-) (2,3) (5,2) (1,2) (2,3) (2,2) (2,4) (-,2,1) (1,2,-) (1,-,3) (2,1,-) (-,1,3) (1,-,1) (-,1,1) (1,3,-) (3,2) (2,1) (3,2) (2,3) (1,4) (2,1) (2,3) (3,1,3) (1,2,3) (1,1,3) (2,1,1) (1,3,1) (1,3,1) (2,1,2) (1,2,1) (1,2,1) (5,2) (5,2) (3,2) (3,2) (5,2) (1,2,-) (1,2,3)(2,1,2) (1,2,1) (1,2,1) 26

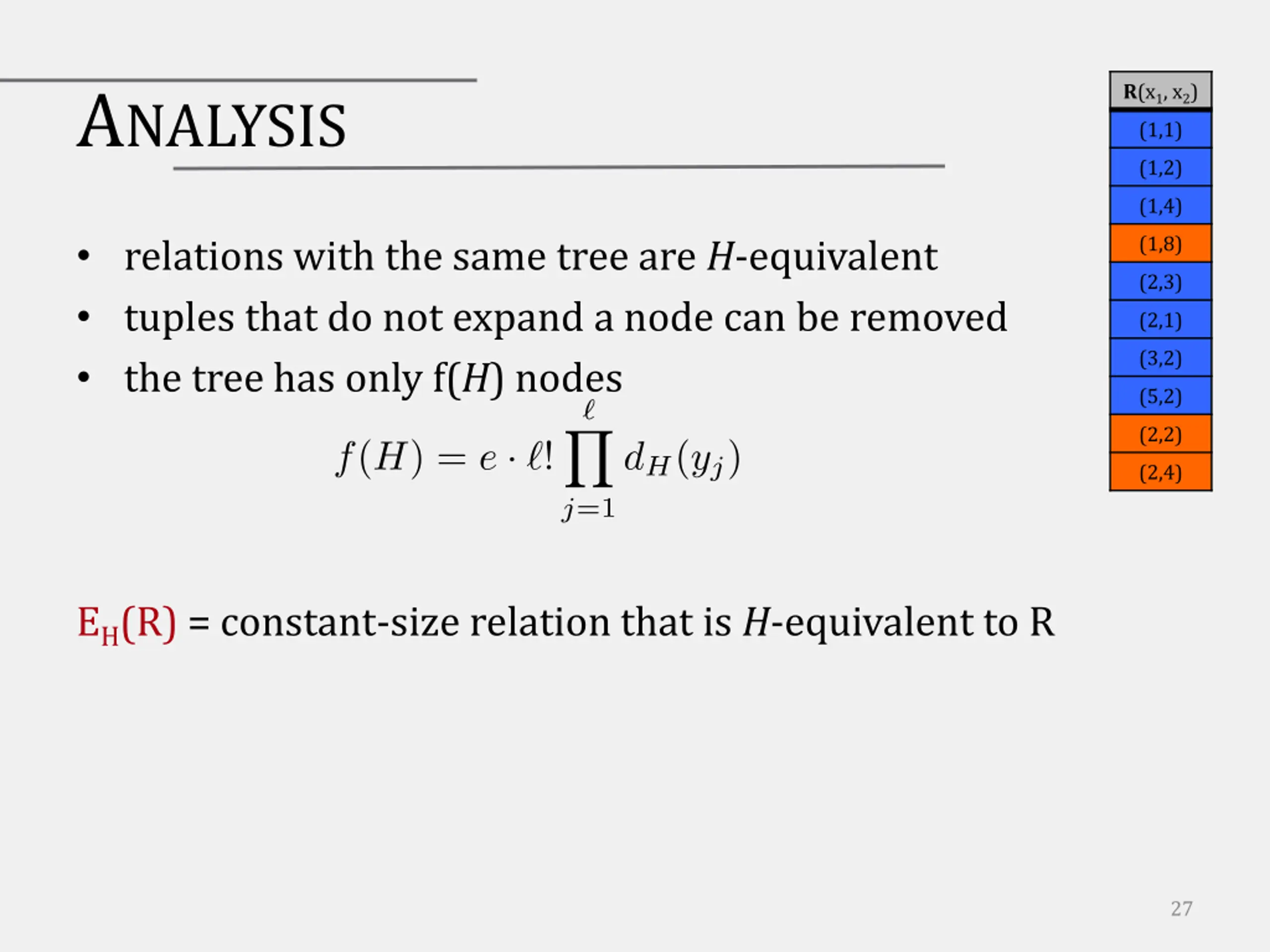

  27. ANALYSIS R(x1, x2) (1,1) (1,2) (1,4) relations with the same tree are H-equivalent tuples that do not expand a node can be removed the tree has only f(H) nodes (1,8) (2,3) (2,1) (3,2) (5,2) (2,2) (2,4) EH(R) = constant-size relation that is H-equivalent to R 27

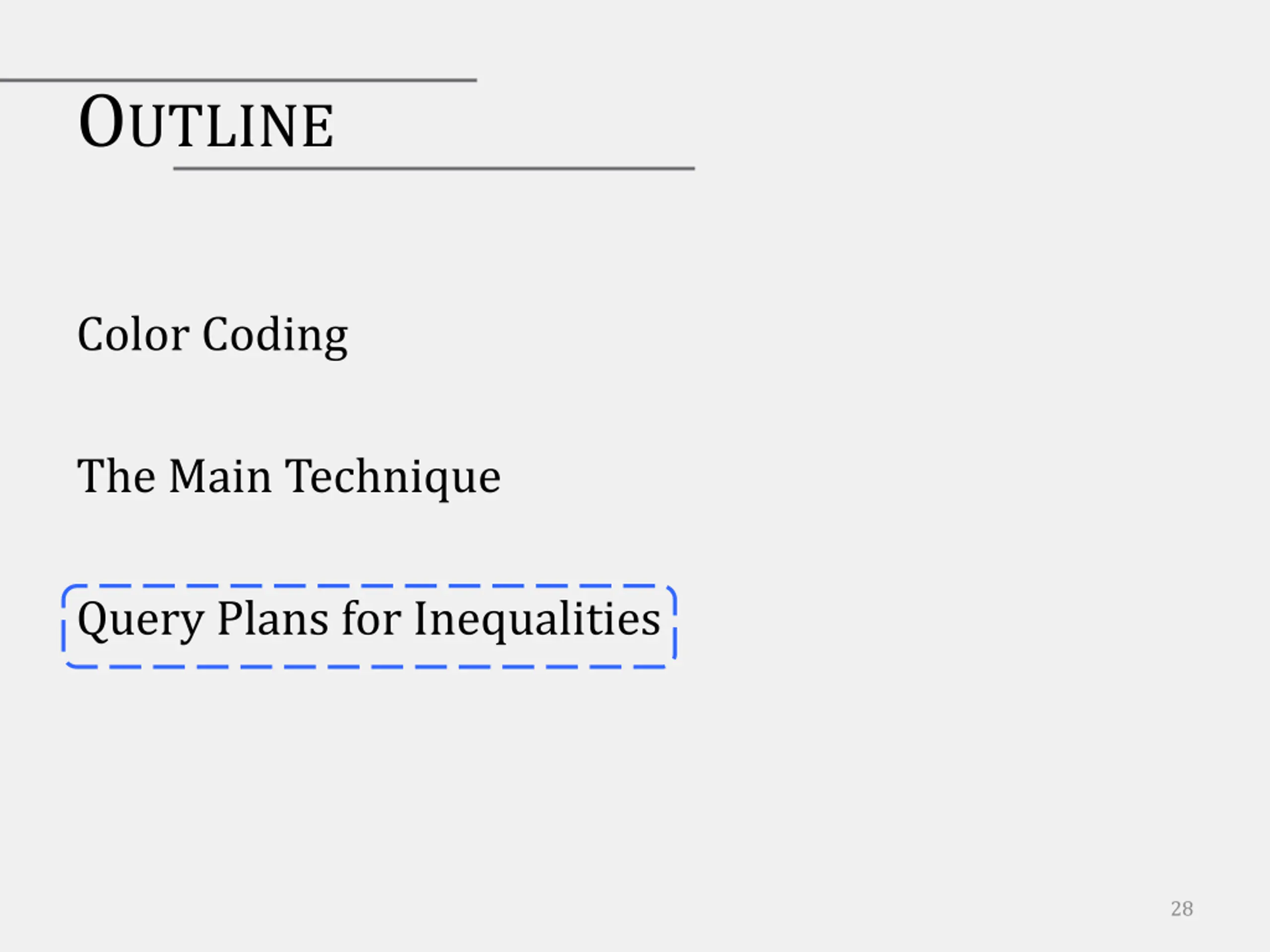

  28. OUTLINE Color Coding The Main Technique Query Plans for Inequalities 28

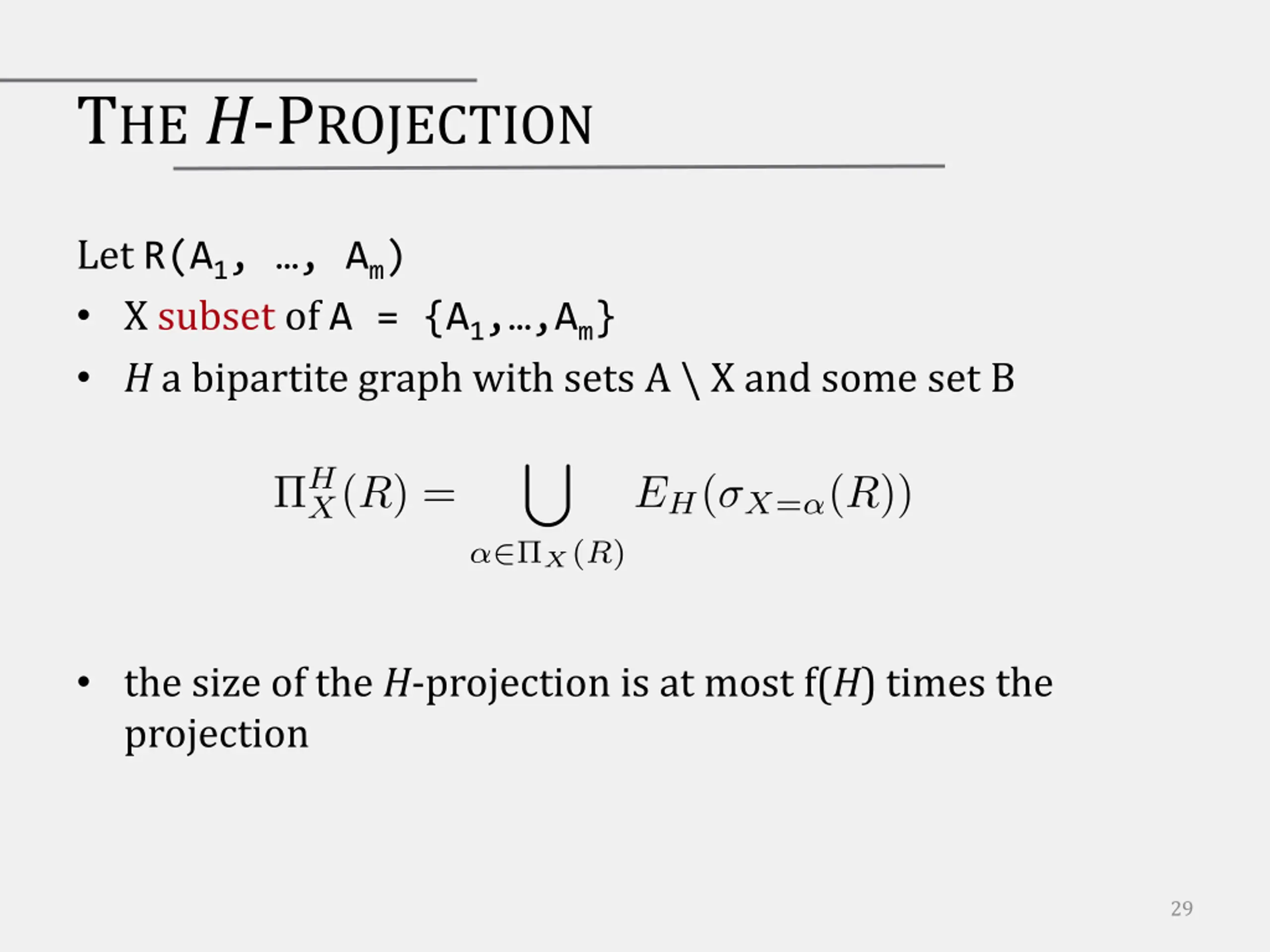

  29. THEH-PROJECTION Let R(A1, , Am) X subset of A = {A1, ,Am} H a bipartite graph with sets A \ X and some set B the size of the H-projection is at most f(H) times the projection 29

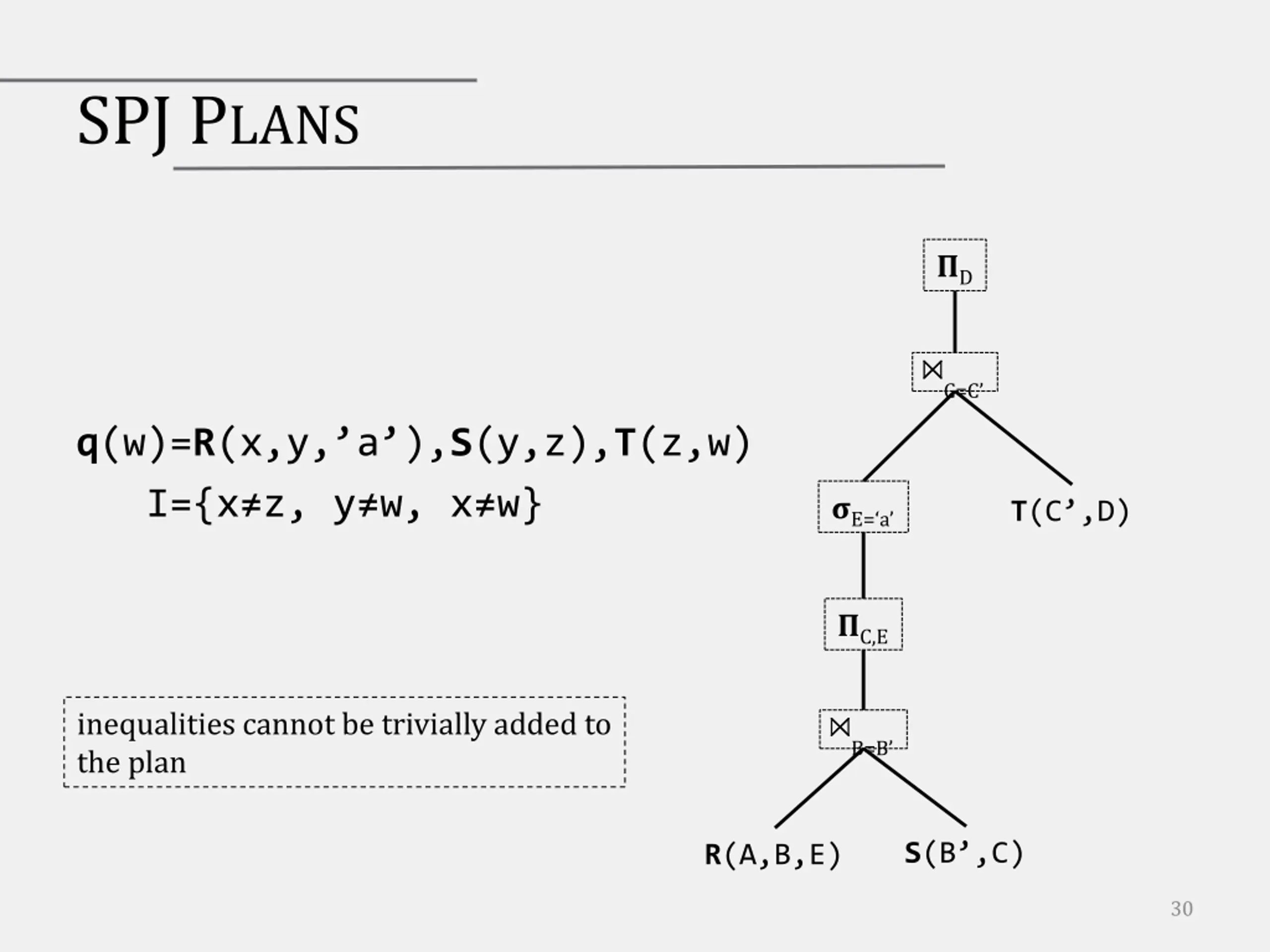

  30. SPJ PLANS D C=C q(w)=R(x,y, a ),S(y,z),T(z,w) I={x z, y w, x w} E= a T(C ,D) C,E inequalities cannot be trivially added to the plan B=B S(B ,C) R(A,B,E) 30

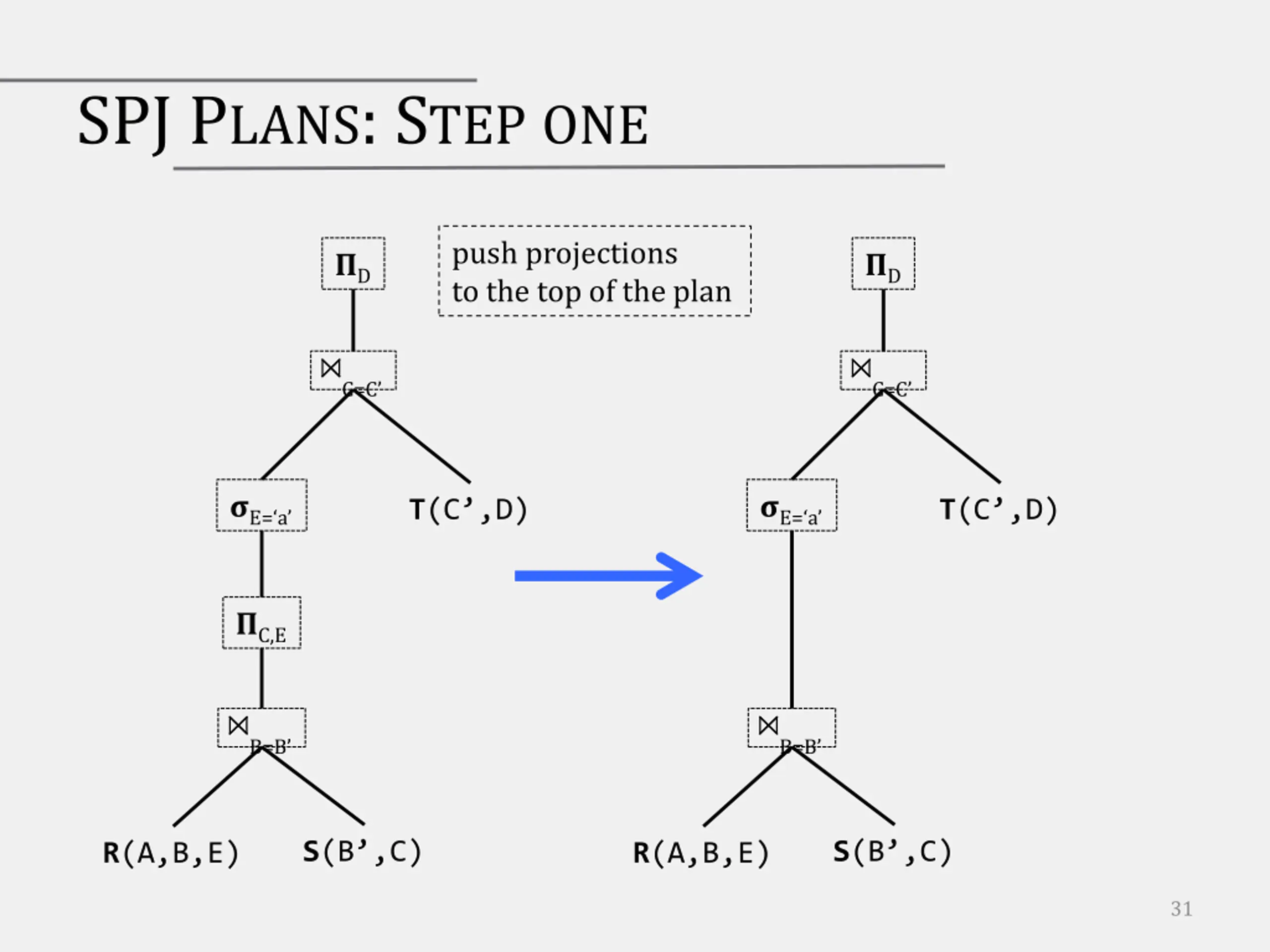

  31. SPJ PLANS: STEPONE push projections to the top of the plan D D C=C C=C E= a E= a T(C ,D) T(C ,D) C,E B=B B=B S(B ,C) S(B ,C) R(A,B,E) R(A,B,E) 31

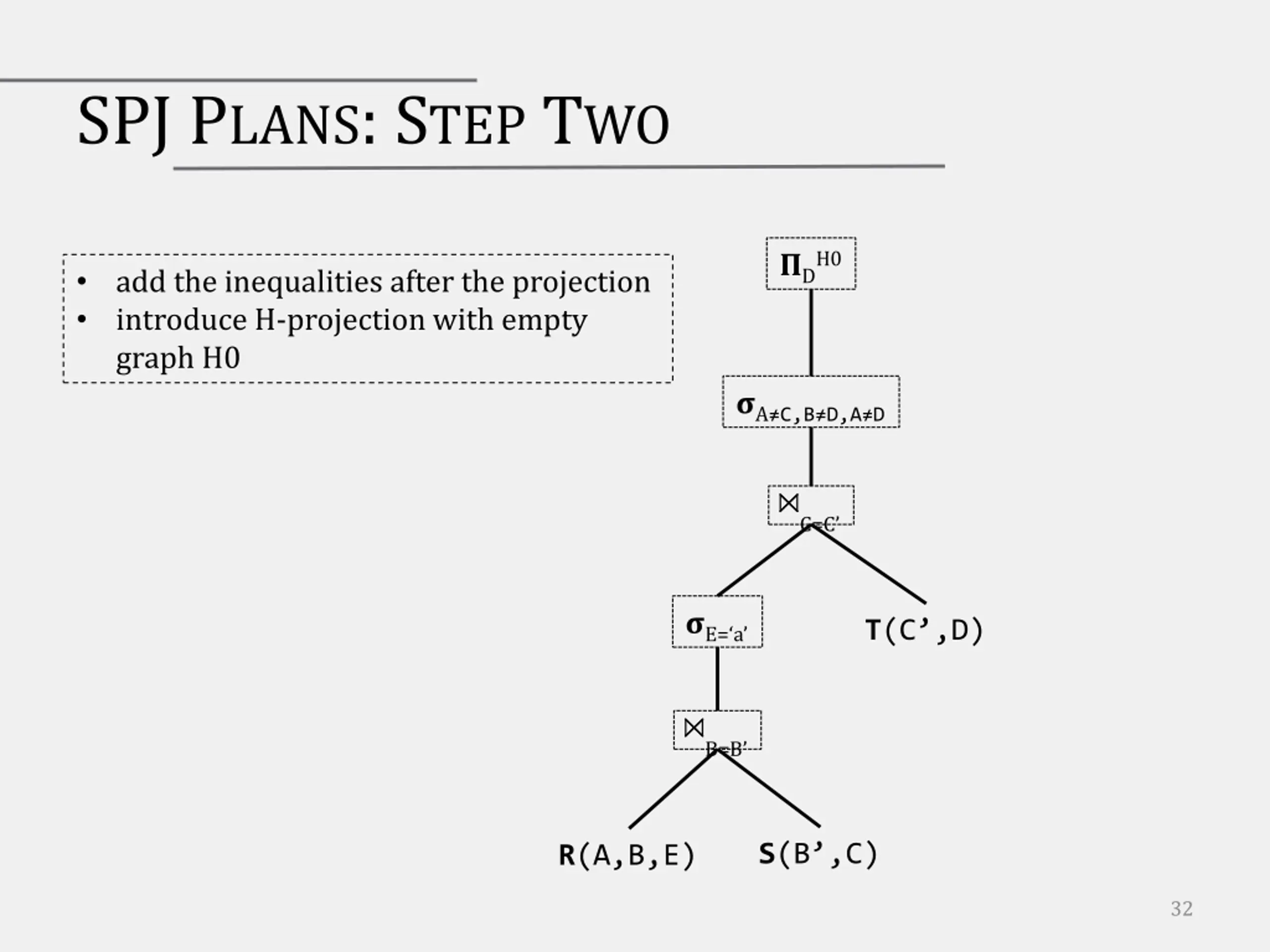

  32. SPJ PLANS: STEP TWO DH0 add the inequalities after the projection introduce H-projection with empty graph H0 A C,B D,A D C=C E= a T(C ,D) B=B S(B ,C) R(A,B,E) 32

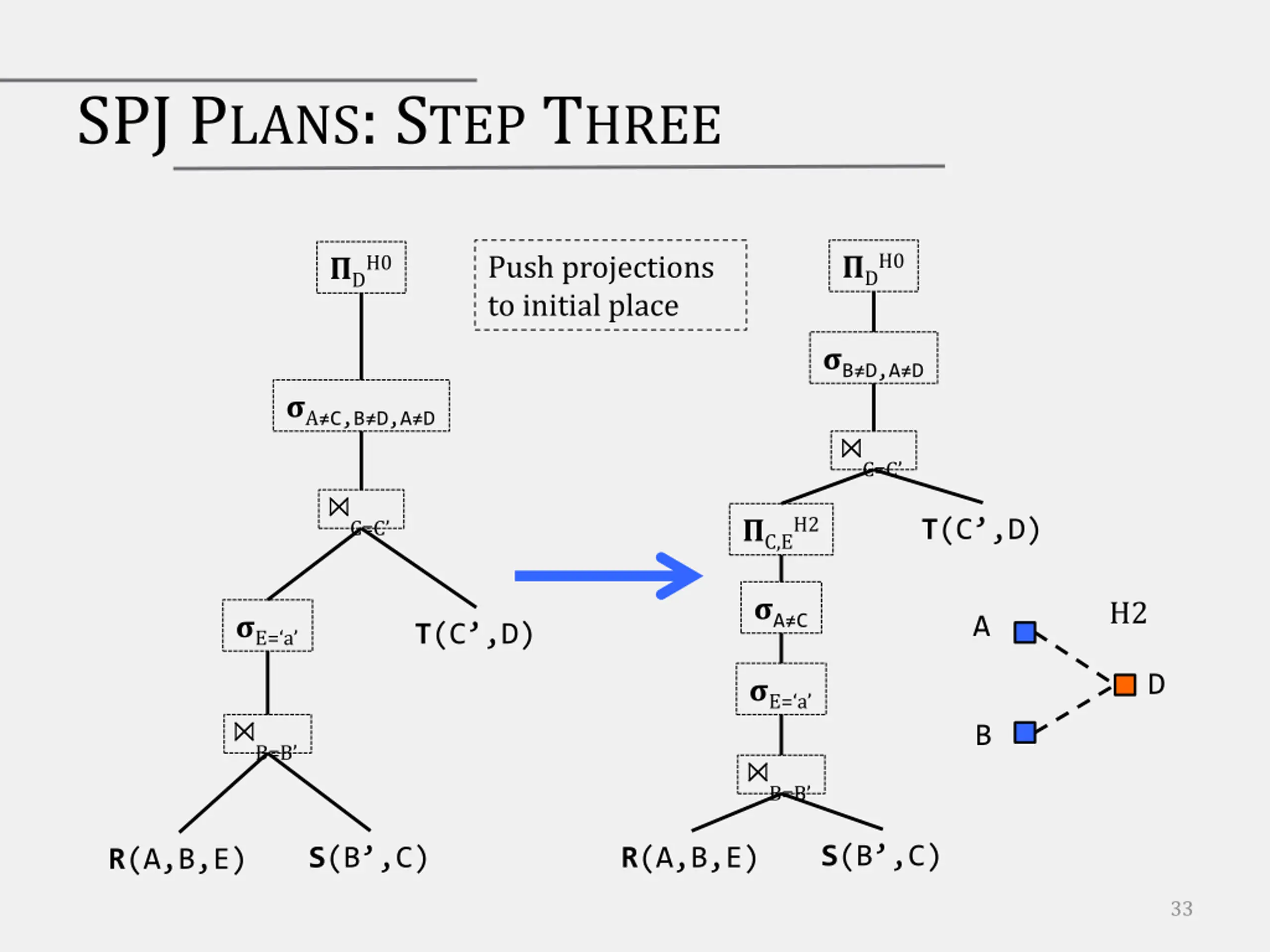

  33. SPJ PLANS: STEP THREE Push projections to initial place DH0 DH0 B D,A D A C,B D,A D C=C C,EH2 C=C T(C ,D) A C H2 E= a A T(C ,D) D E= a B B=B B=B S(B ,C) S(B ,C) R(A,B,E) R(A,B,E) 33

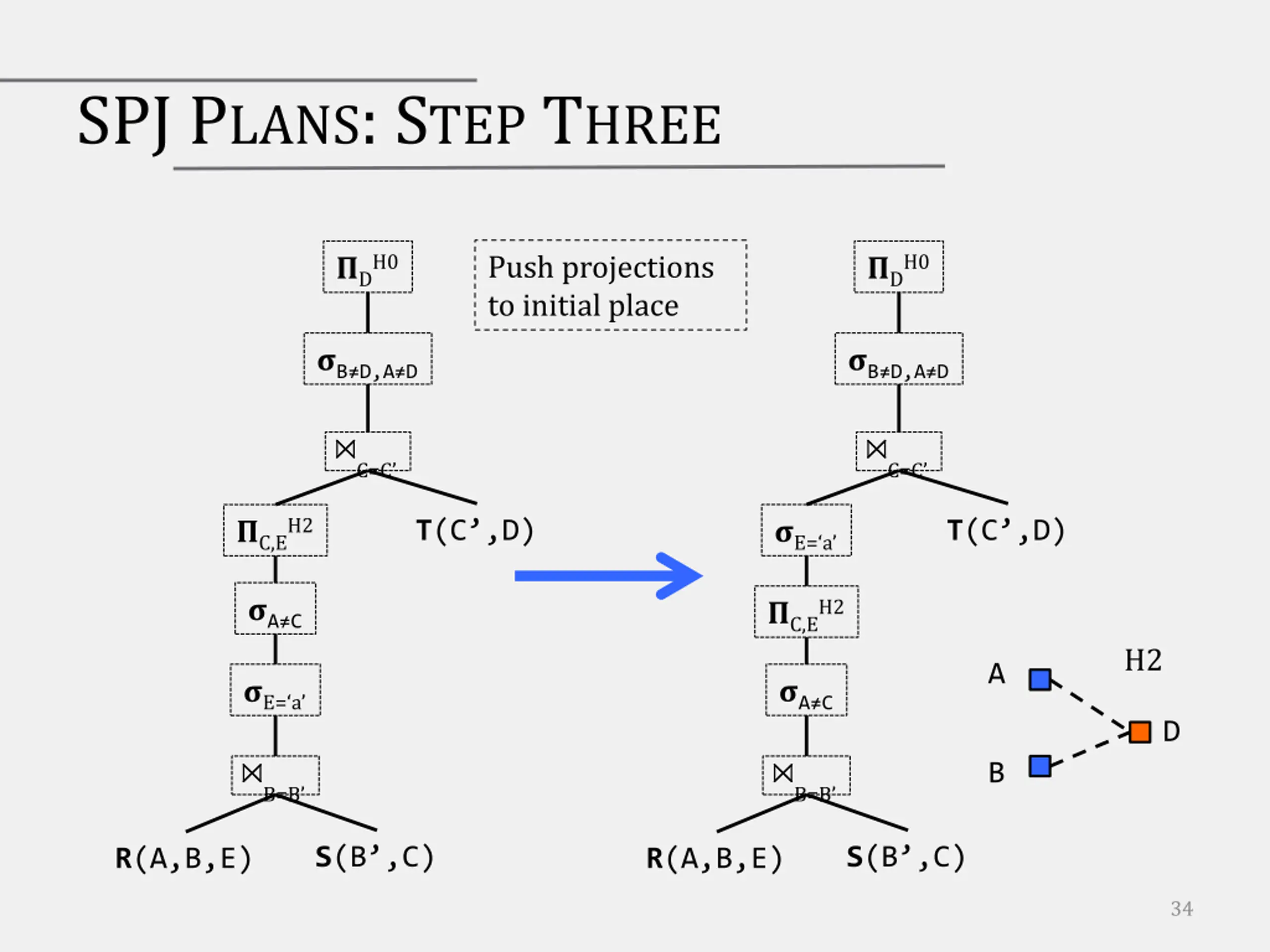

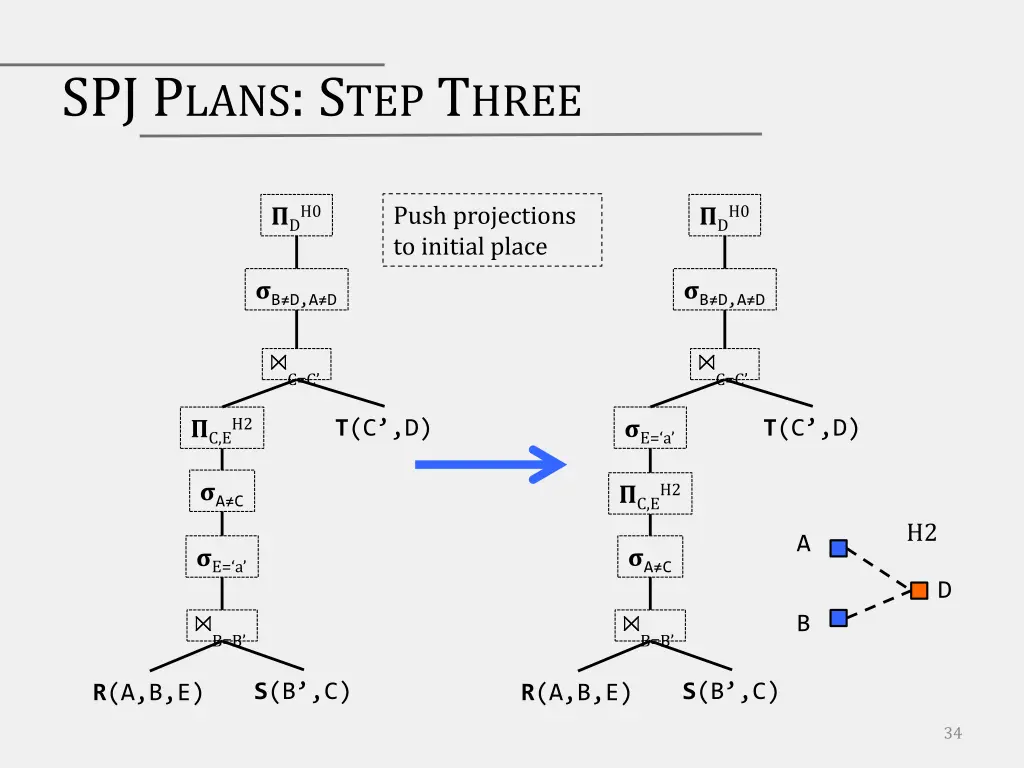

  34. SPJ PLANS: STEP THREE Push projections to initial place DH0 DH0 B D,A D B D,A D C=C C=C E= a C,EH2 T(C ,D) T(C ,D) A C C,EH2 H2 A A C E= a D B B=B B=B S(B ,C) S(B ,C) R(A,B,E) R(A,B,E) 34

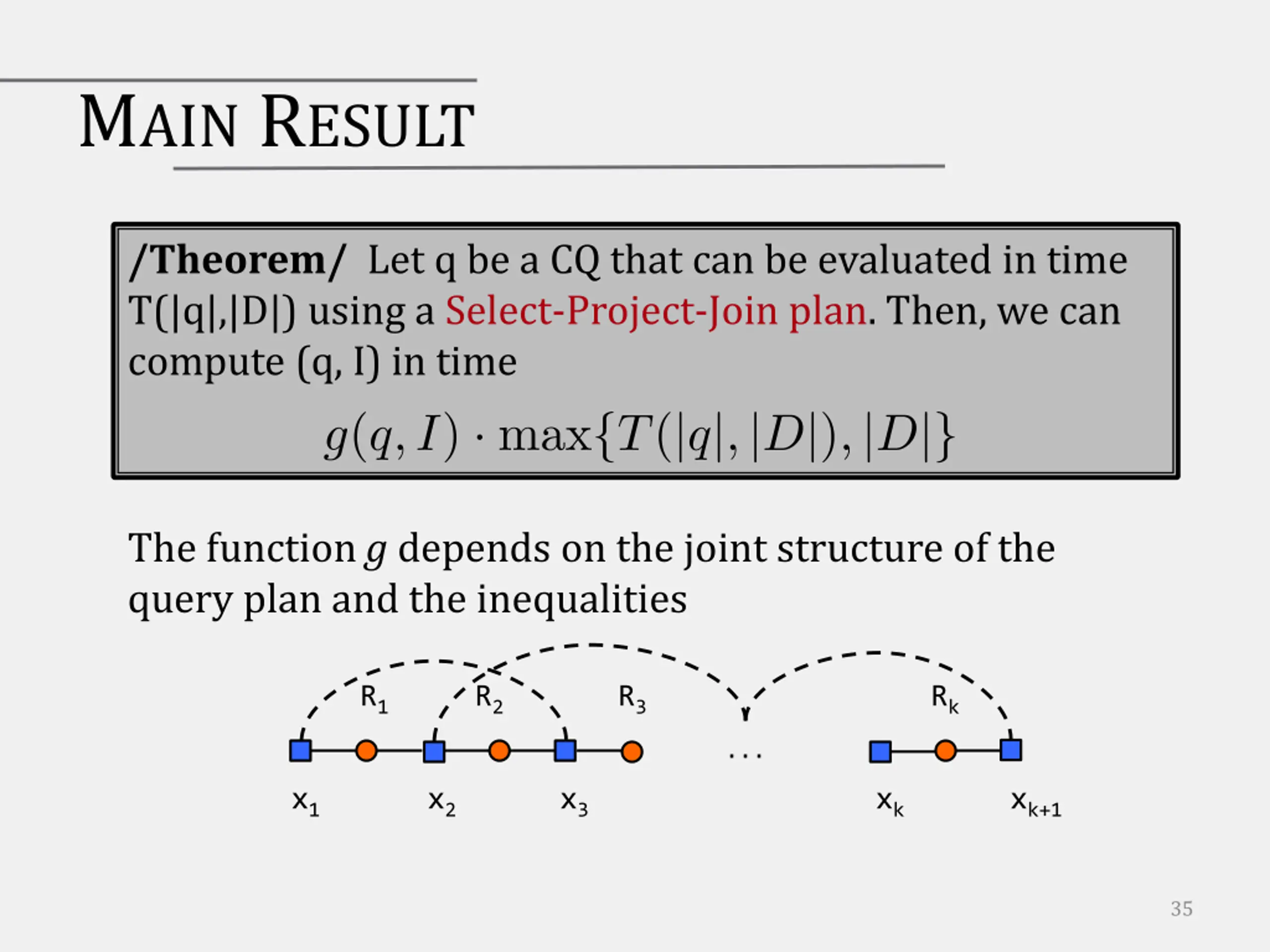

  35. MAIN RESULT /Theorem/ Let q be a CQ that can be evaluated in time T(|q|,|D|) using a Select-Project-Join plan. Then, we can compute (q, I) in time The function g depends on the joint structure of the query plan and the inequalities R1 R2 R3 Rk . . . x1 x2 x3 xk xk+1 35

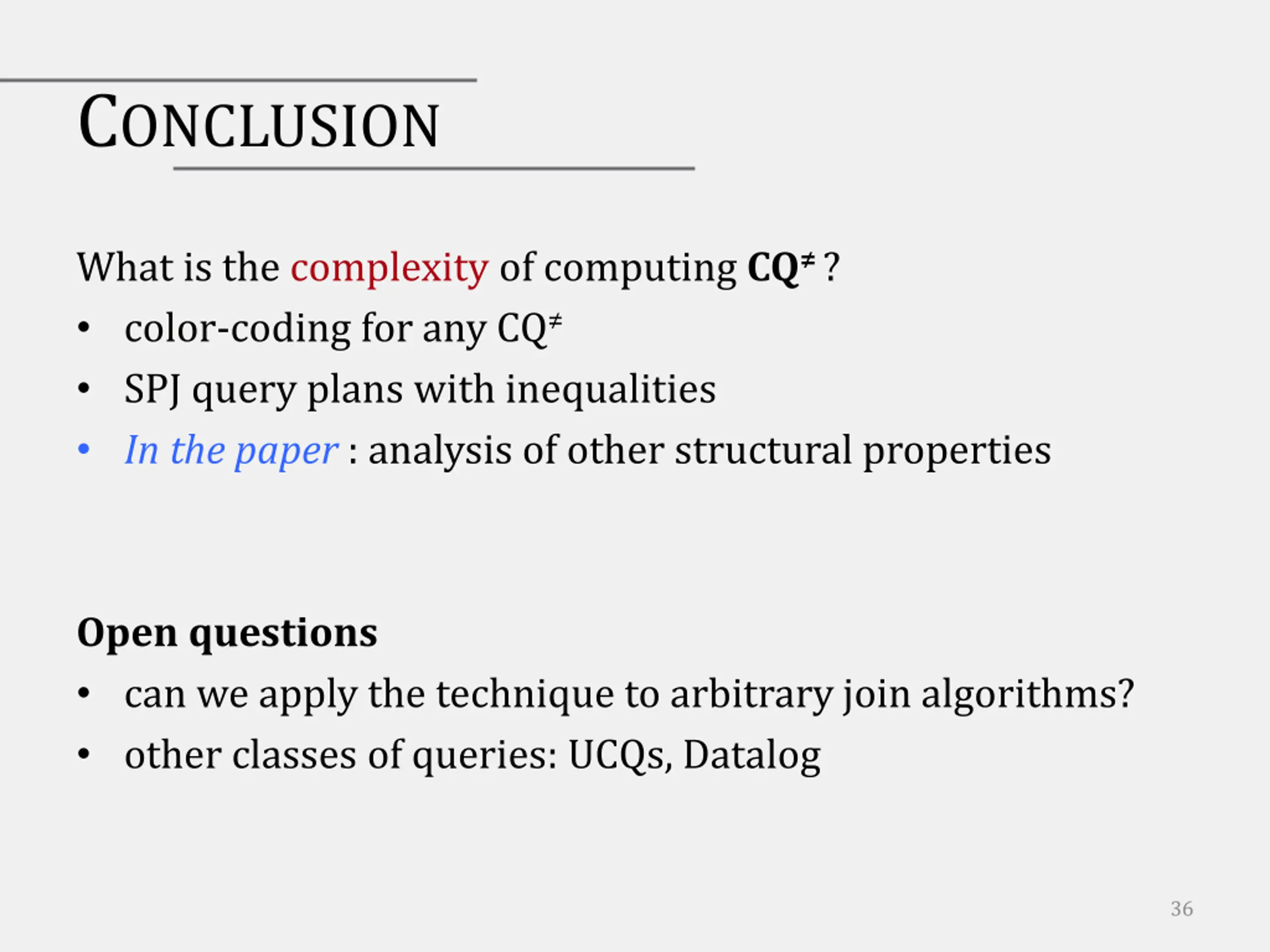

  36. CONCLUSION What is the complexity of computing CQ ? color-coding for any CQ SPJ query plans with inequalities In the paper : analysis of other structural properties Open questions can we apply the technique to arbitrary join algorithms? other classes of queries: UCQs, Datalog 36

  37. Thank you! 37

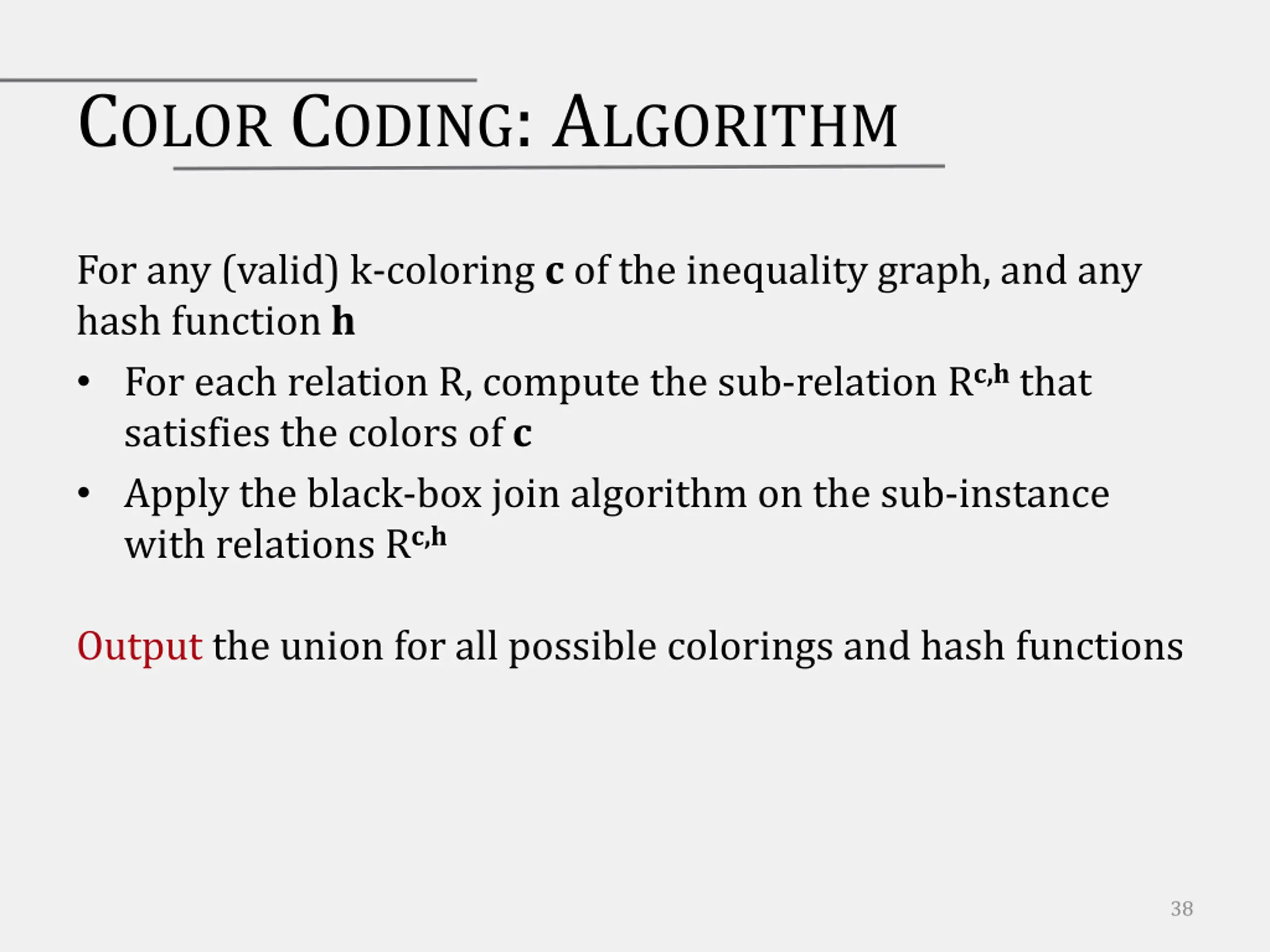

  38. COLOR CODING: ALGORITHM For any (valid) k-coloring c of the inequality graph, and any hash function h For each relation R, compute the sub-relation Rc,h that satisfies the colors of c Apply the black-box join algorithm on the sub-instance with relations Rc,h Output the union for all possible colorings and hash functions 38
