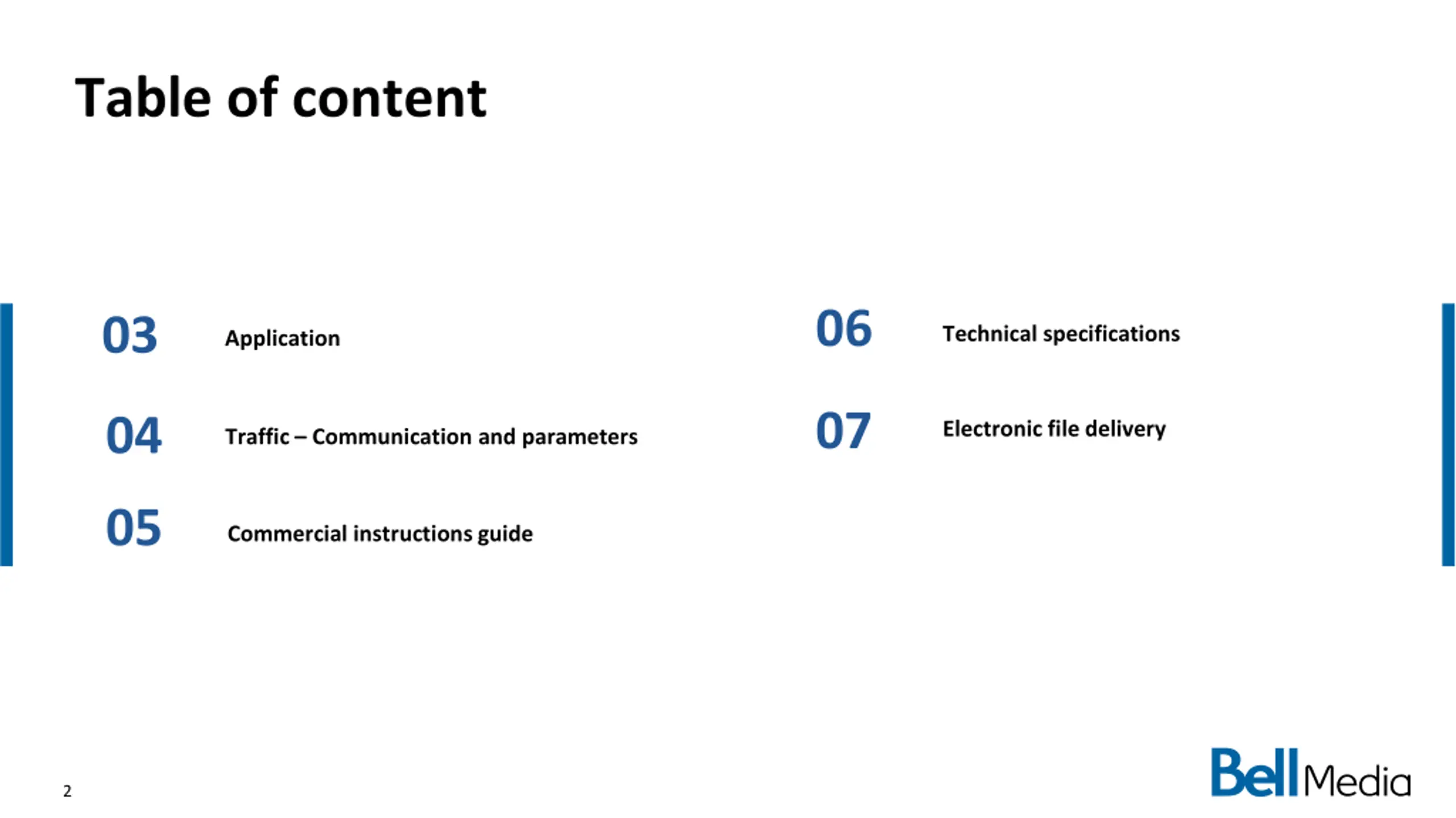

Table of content 06 03 Technical specifications Application 07 04 Electronic file delivery Traffic Communication and parameters 05 Commercial instructions guide 2

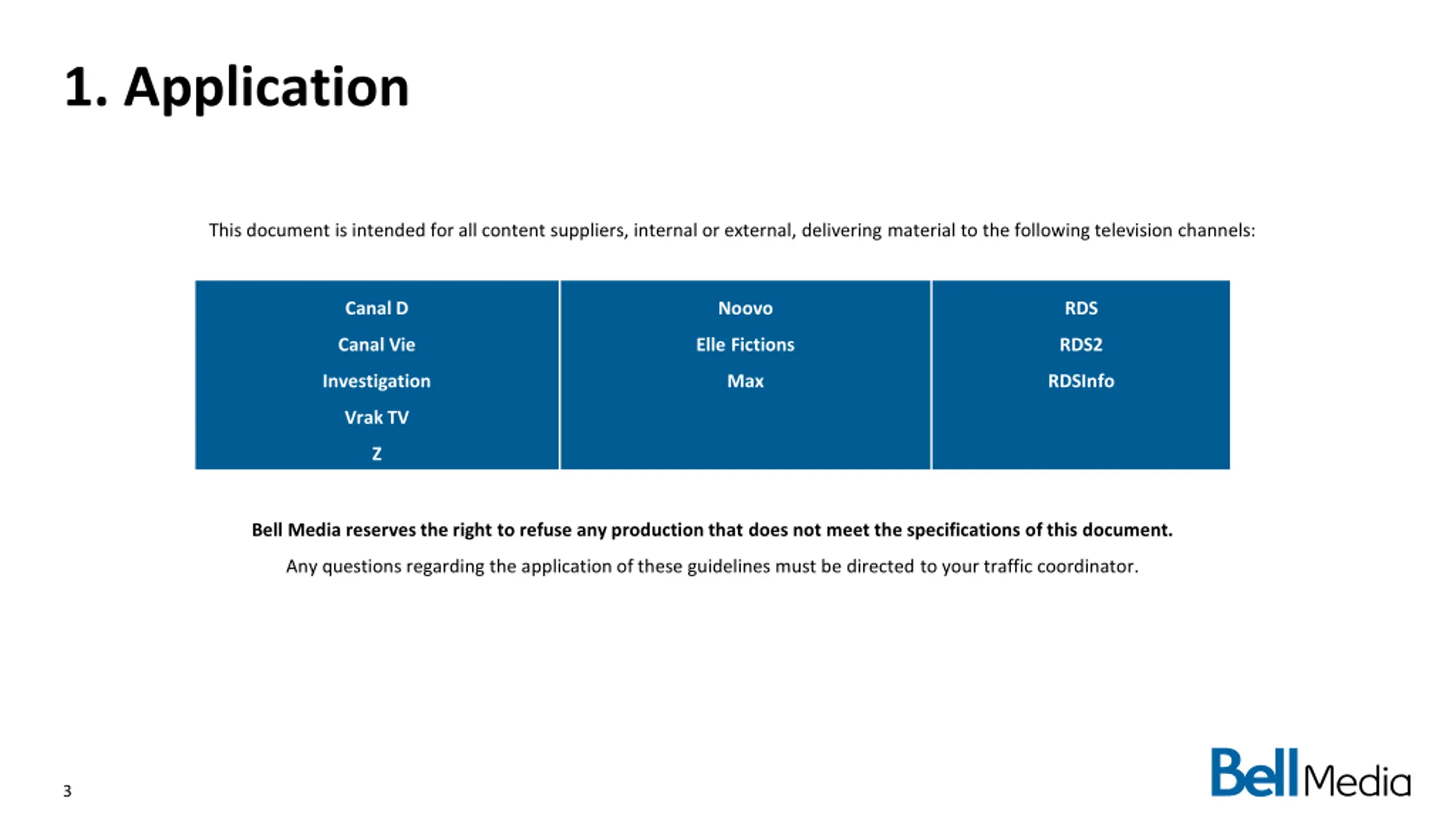

1. Application This document is intended for all content suppliers, internal or external, delivering material to the following television channels: Canal D Noovo RDS Canal Vie Elle Fictions RDS2 Investigation Max RDSInfo Vrak TV Z Bell Media reserves the right to refuse any production that does not meet the specifications of this document. Any questions regarding the application of these guidelines must be directed to your traffic coordinator. 3

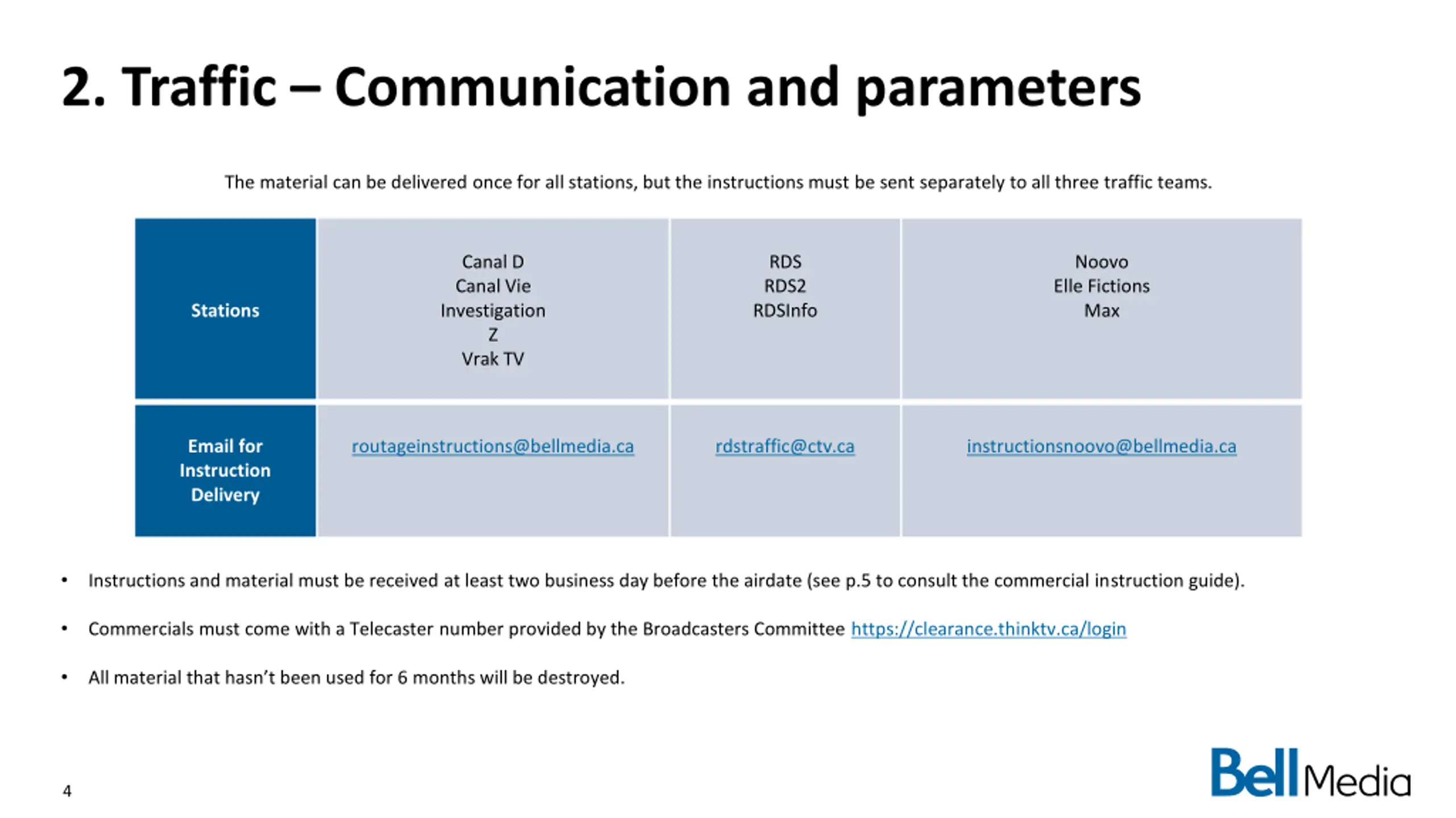

2. Traffic Communication and parameters The material can be delivered once for all stations, but the instructions must be sent separately to all three traffic teams. Canal D Canal Vie Investigation Z Vrak TV RDS RDS2 RDSInfo Noovo Elle Fictions Max Stations Email for Instruction Delivery routageinstructions@bellmedia.ca rdstraffic@ctv.ca instructionsnoovo@bellmedia.ca Instructions and material must be received at least two business day before the airdate (see p.5 to consult the commercial instruction guide). Commercials must come with a Telecaster number provided by the Broadcasters Committee https://clearance.thinktv.ca/login All material that hasn t been used for 6 months will be destroyed. 4

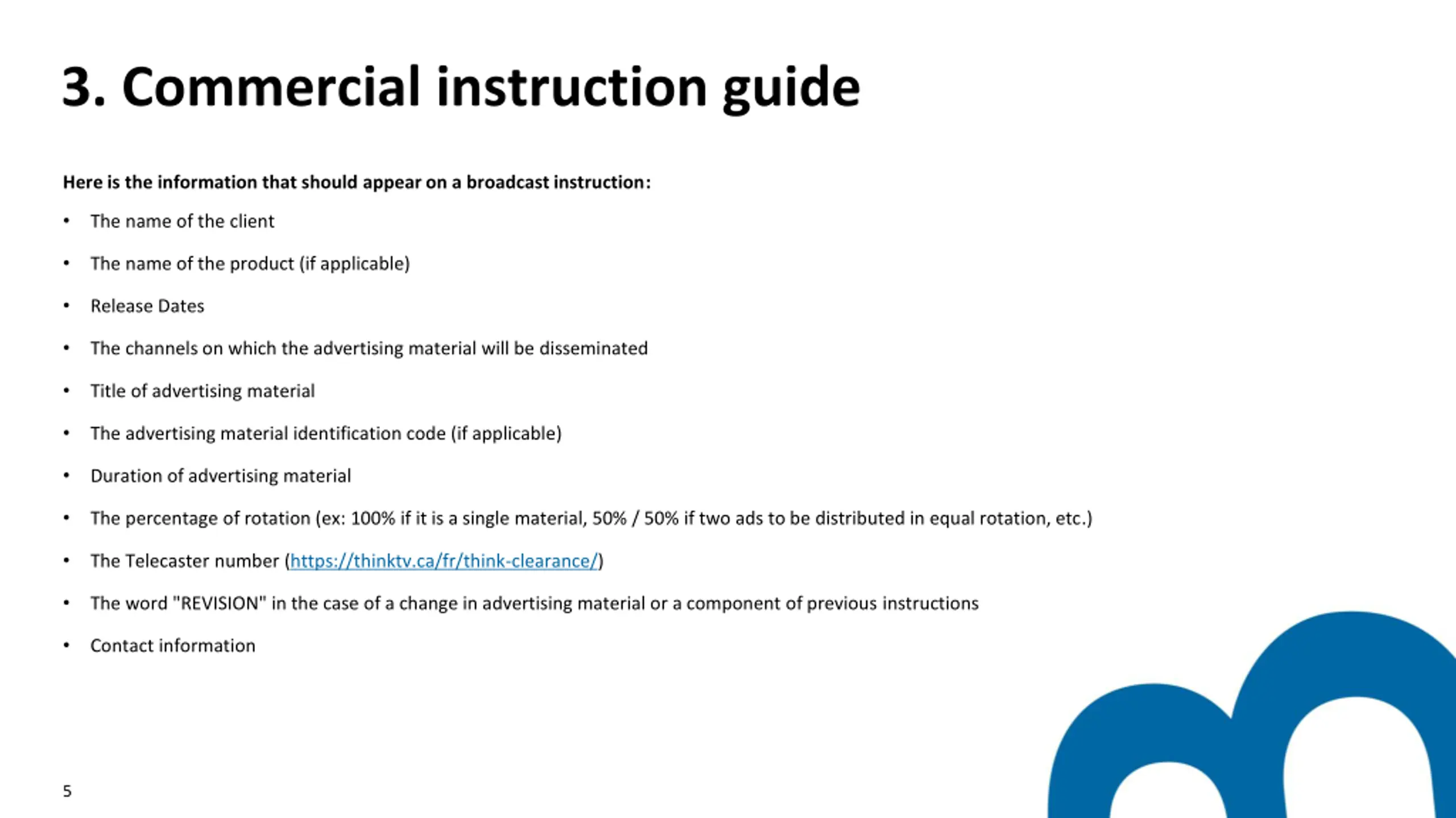

3. Commercial instruction guide Here is the information that should appear on a broadcast instruction: The name of the client The name of the product (if applicable) Release Dates The channels on which the advertising material will be disseminated Title of advertising material The advertising material identification code (if applicable) Duration of advertising material The percentage of rotation (ex: 100% if it is a single material, 50% / 50% if two ads to be distributed in equal rotation, etc.) The Telecaster number (https://thinktv.ca/fr/think-clearance/) The word "REVISION" in the case of a change in advertising material or a component of previous instructions Contact information 5

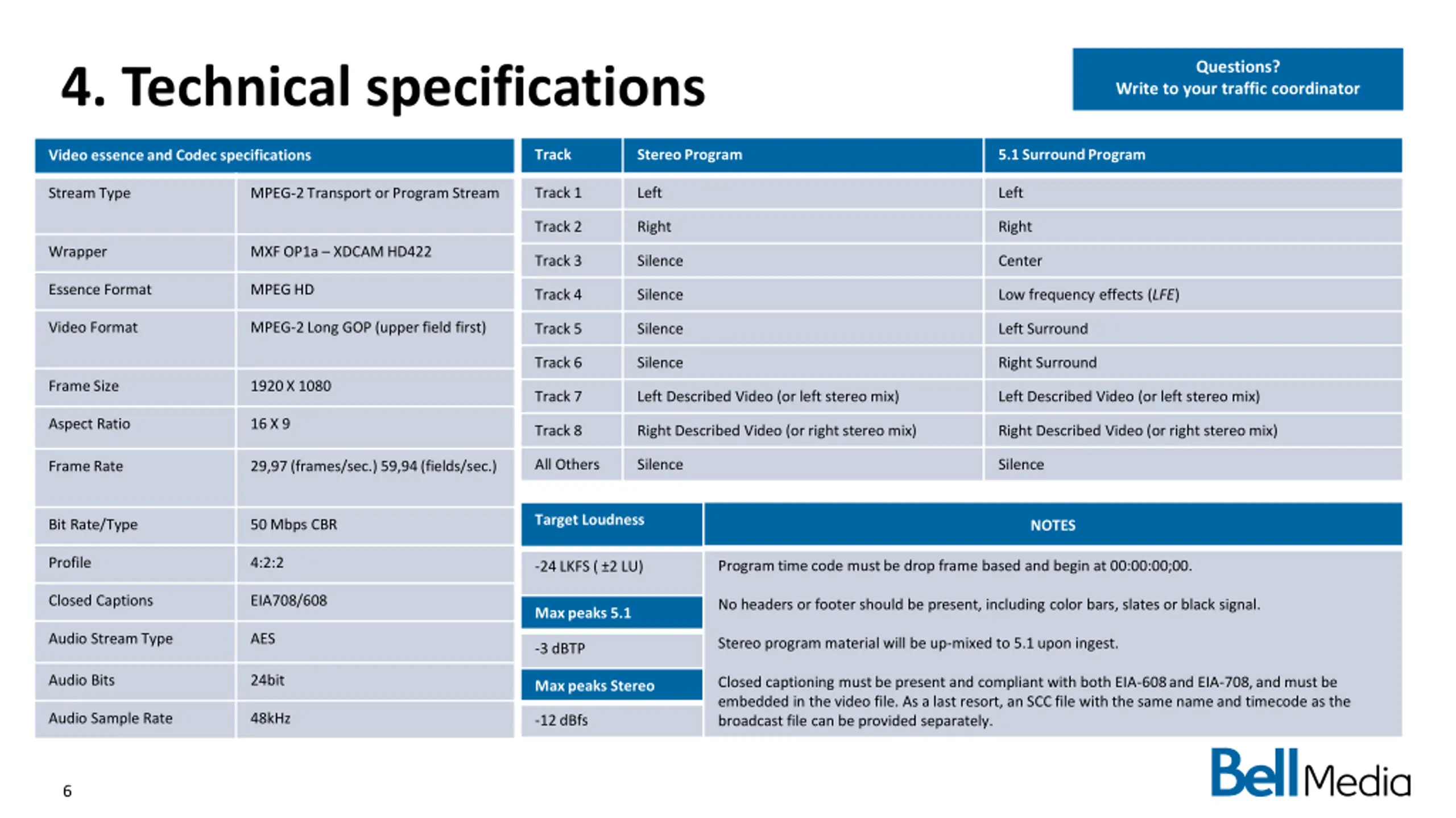

Questions? 4. Technical specifications Write to your traffic coordinator Track Stereo Program 5.1 Surround Program Video essence and Codec specifications Track 1 Left Left Stream Type MPEG-2 Transport or Program Stream Track 2 Right Right Wrapper MXF OP1a XDCAM HD422 Track 3 Silence Center Essence Format MPEG HD Track 4 Silence Low frequency effects (LFE) Video Format MPEG-2 Long GOP (upper field first) Track 5 Silence Left Surround Track 6 Silence Right Surround Frame Size 1920 X 1080 Track 7 Left Described Video (or left stereo mix) Left Described Video (or left stereo mix) Aspect Ratio 16 X 9 Track 8 Right Described Video (or right stereo mix) Right Described Video (or right stereo mix) All Others Silence Silence Frame Rate 29,97 (frames/sec.) 59,94 (fields/sec.) Target Loudness Bit Rate/Type 50 Mbps CBR NOTES Profile 4:2:2 Program time code must be drop frame based and begin at 00:00:00;00. -24 LKFS( 2 LU) Closed Captions EIA708/608 No headers or footer should be present, including color bars, slates or black signal. Max peaks 5.1 Audio Stream Type AES Stereo program material will be up-mixed to 5.1 upon ingest. -3 dBTP Audio Bits 24bit Closed captioning must be present and compliant with both EIA-608 and EIA-708, and must be embedded in the video file. As a last resort, an SCC file with the same name and timecode as the broadcast file can be provided separately. Max peaks Stereo Audio Sample Rate 48kHz -12 dBfs 6

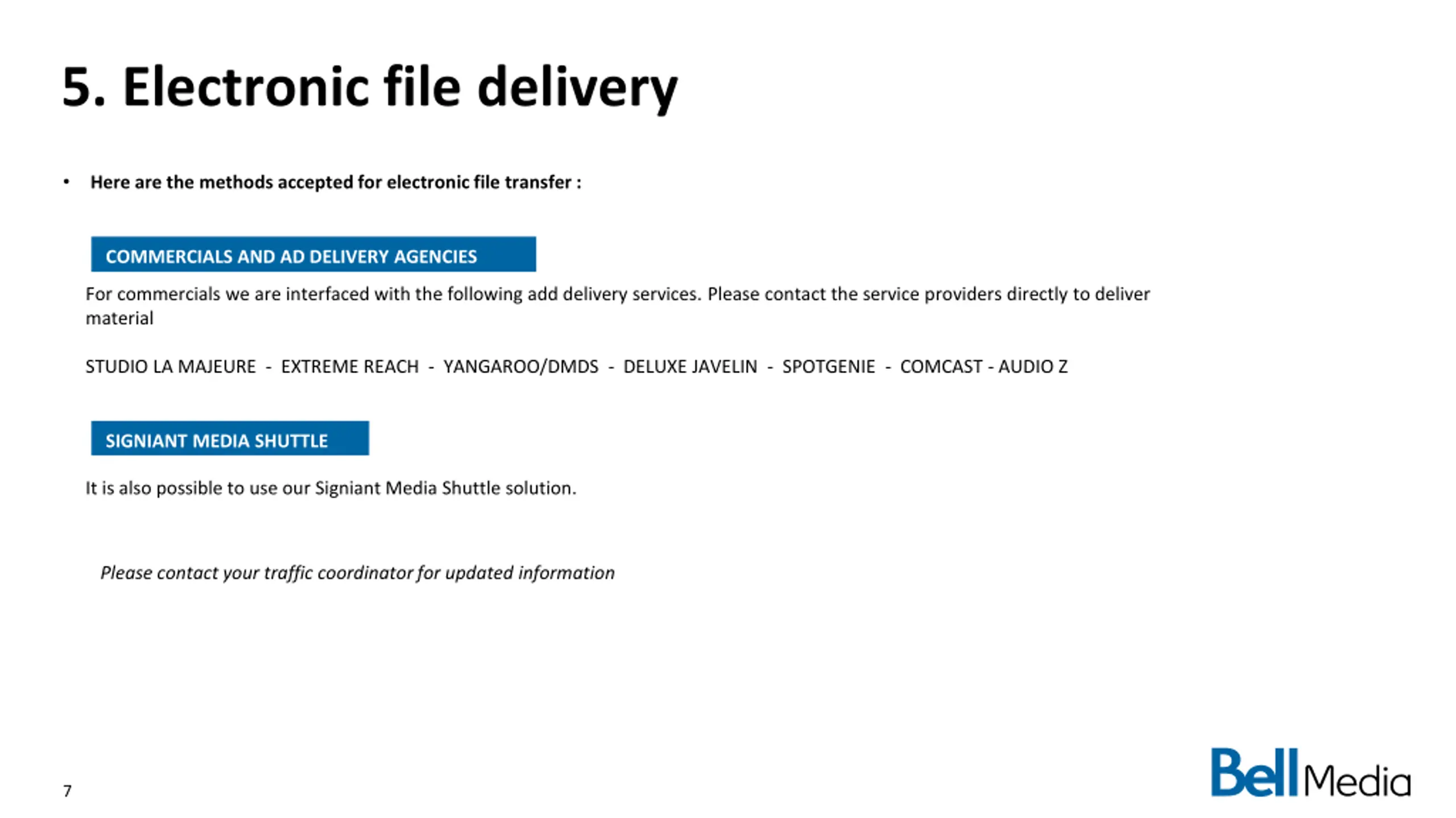

5. Electronic file delivery Here are the methods accepted for electronic file transfer : COMMERCIALS AND AD DELIVERY AGENCIES For commercials we are interfaced with the following add delivery services. Please contact the service providers directly to deliver material STUDIO LA MAJEURE - EXTREME REACH - YANGAROO/DMDS - DELUXE JAVELIN - SPOTGENIE - COMCAST - AUDIO Z SIGNIANT MEDIA SHUTTLE It is also possible to use our Signiant Media Shuttle solution. Please contact your traffic coordinator for updated information 7
