Composable, Sound Transformations of Nested Recursion and Loops Kirshanthan Sundararajah and Milind Kulkarni School of Electrical and Computer Engineering 1

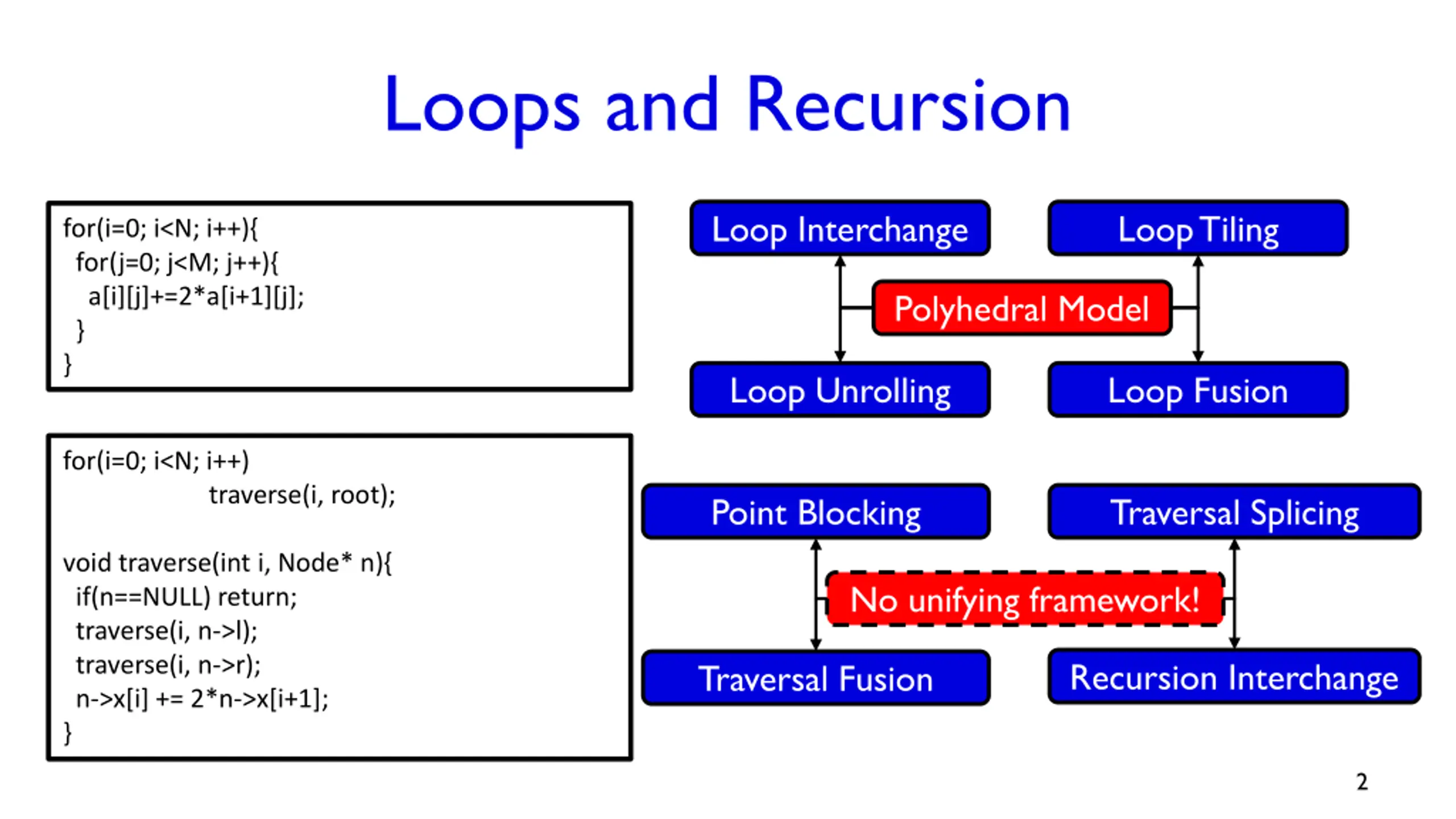

Loops and Recursion Loop Interchange Loop Tiling for(i=0; i<N; i++){ for(j=0; j<M; j++){ a[i][j]+=2*a[i+1][j]; } } Polyhedral Model Loop Unrolling Loop Fusion for(i=0; i<N; i++) traverse(i, root); Point Blocking Traversal Splicing void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); n->x[i] += 2*n->x[i+1]; } No unifying framework! Recursion Interchange Traversal Fusion 2

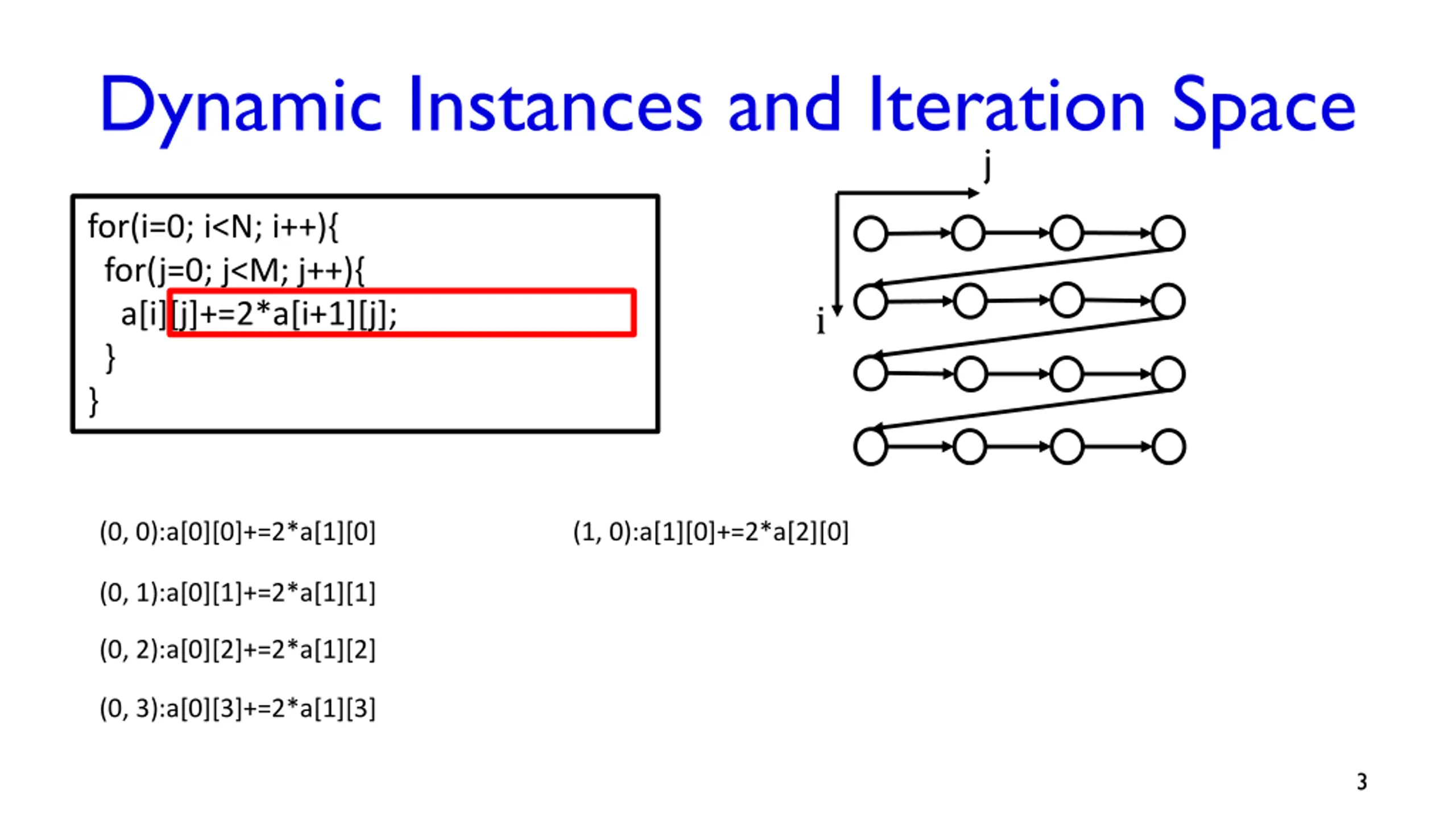

Dynamic Instances and Iteration Space j for(i=0; i<N; i++){ for(j=0; j<M; j++){ a[i][j]+=2*a[i+1][j]; } } i (0, 0):a[0][0]+=2*a[1][0] (1, 0):a[1][0]+=2*a[2][0] (0, 1):a[0][1]+=2*a[1][1] (0, 2):a[0][2]+=2*a[1][2] (0, 3):a[0][3]+=2*a[1][3] 3

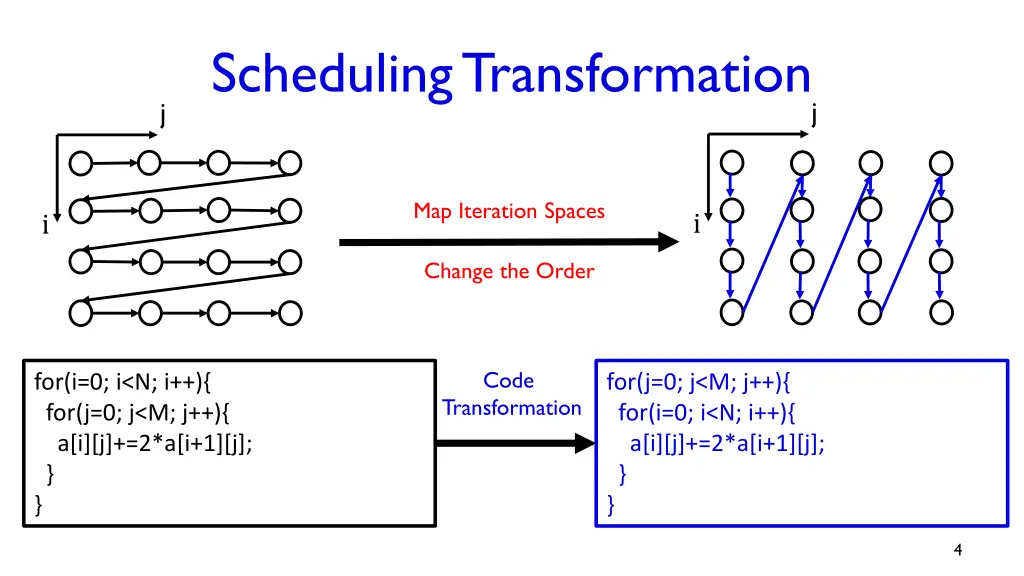

Scheduling Transformation j j Map Iteration Spaces i i Change the Order Code for(i=0; i<N; i++){ for(j=0; j<M; j++){ a[i][j]+=2*a[i+1][j]; } } for(j=0; j<M; j++){ for(i=0; i<N; i++){ a[i][j]+=2*a[i+1][j]; } } Transformation 4

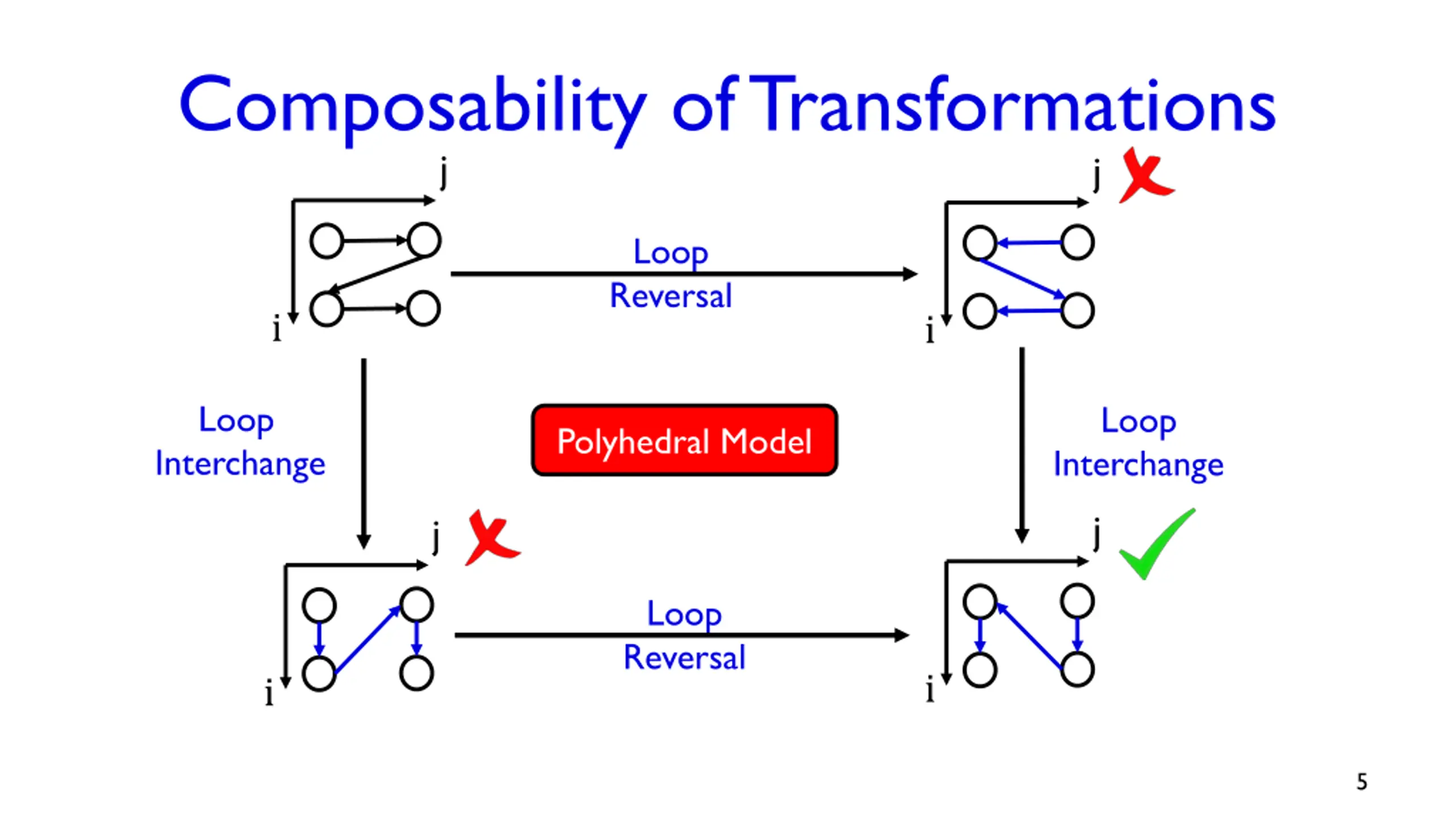

Composability of Transformations j j Loop Reversal i i Loop Loop Polyhedral Model Interchange Interchange j j Loop Reversal i i 5

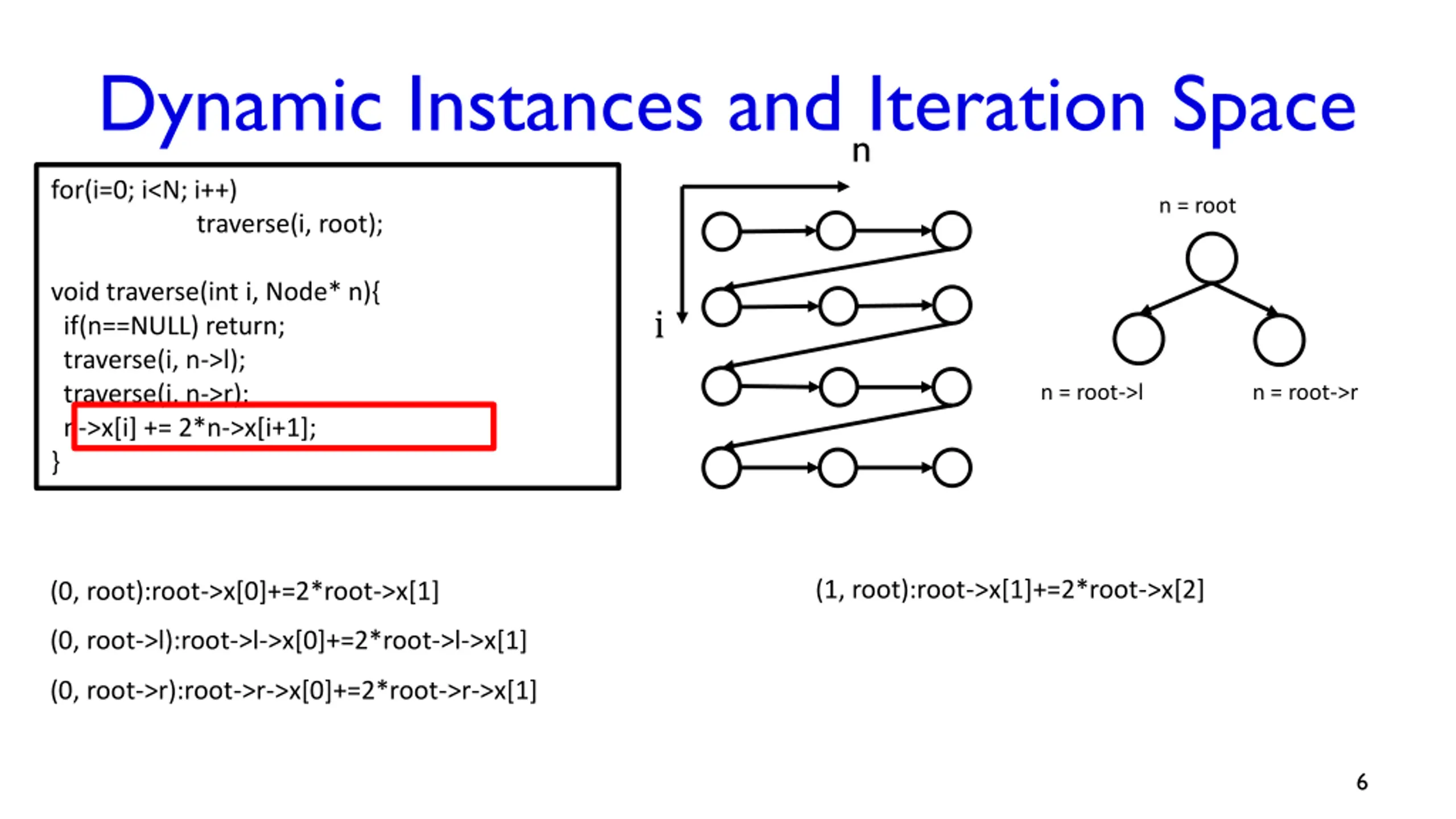

Dynamic Instances and Iteration Space n for(i=0; i<N; i++) n = root traverse(i, root); void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); n->x[i] += 2*n->x[i+1]; } i n = root->l n = root->r (1, root):root->x[1]+=2*root->x[2] (0, root):root->x[0]+=2*root->x[1] (0, root->l):root->l->x[0]+=2*root->l->x[1] (0, root->r):root->r->x[0]+=2*root->r->x[1] 6

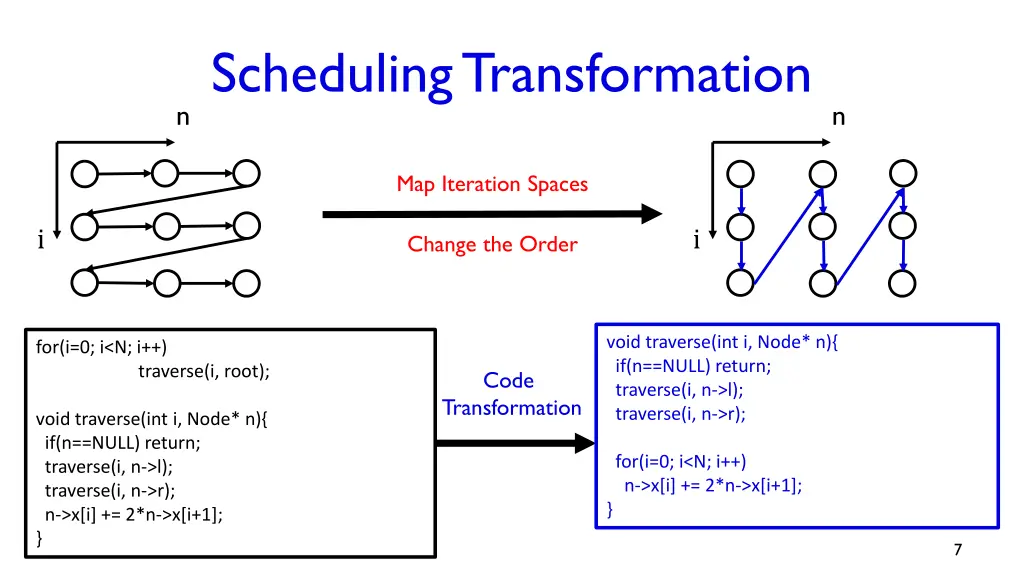

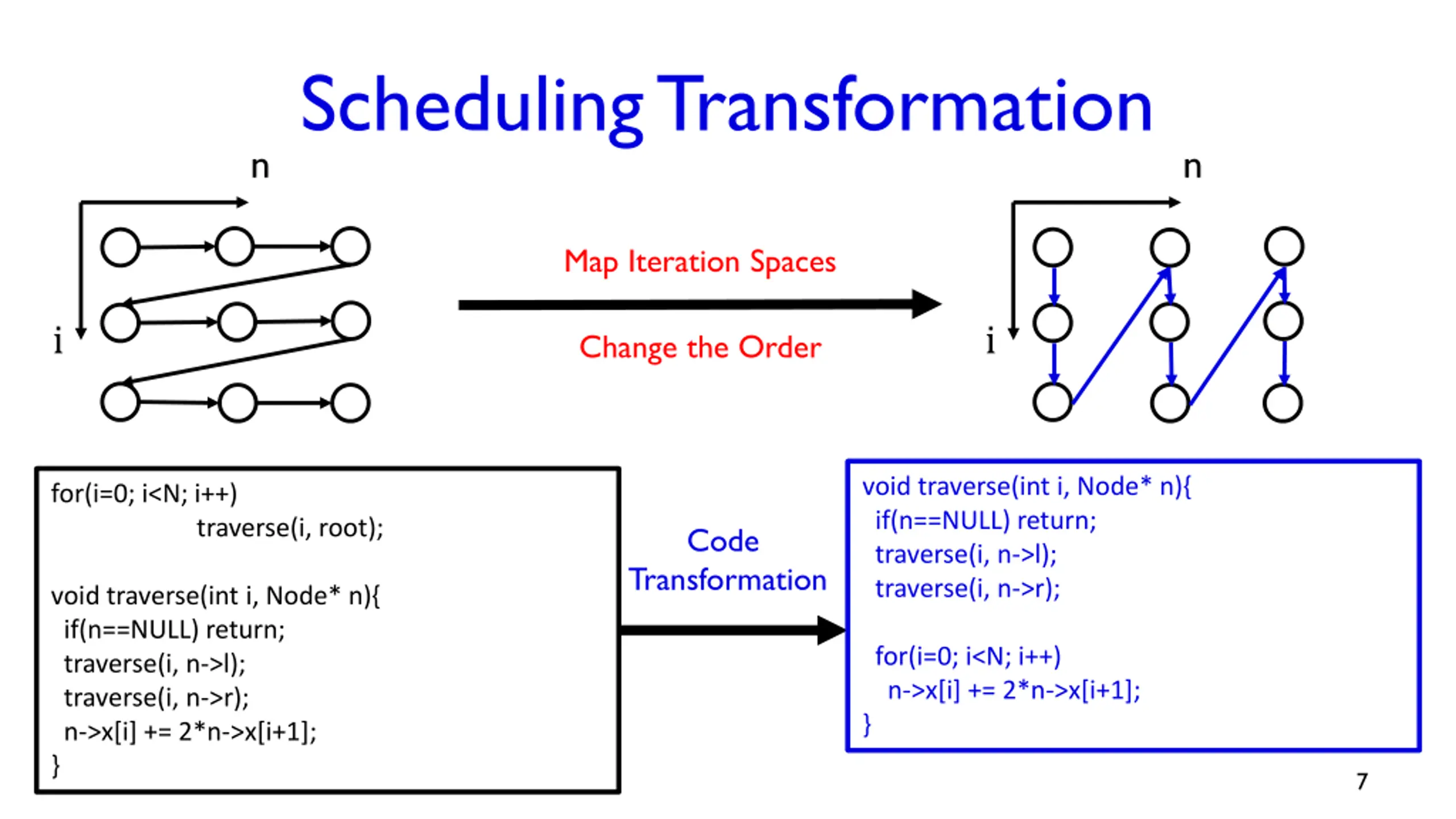

Scheduling Transformation n n Map Iteration Spaces i i Change the Order void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); for(i=0; i<N; i++) traverse(i, root); Code Transformation void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); n->x[i] += 2*n->x[i+1]; } for(i=0; i<N; i++) n->x[i] += 2*n->x[i+1]; } 7

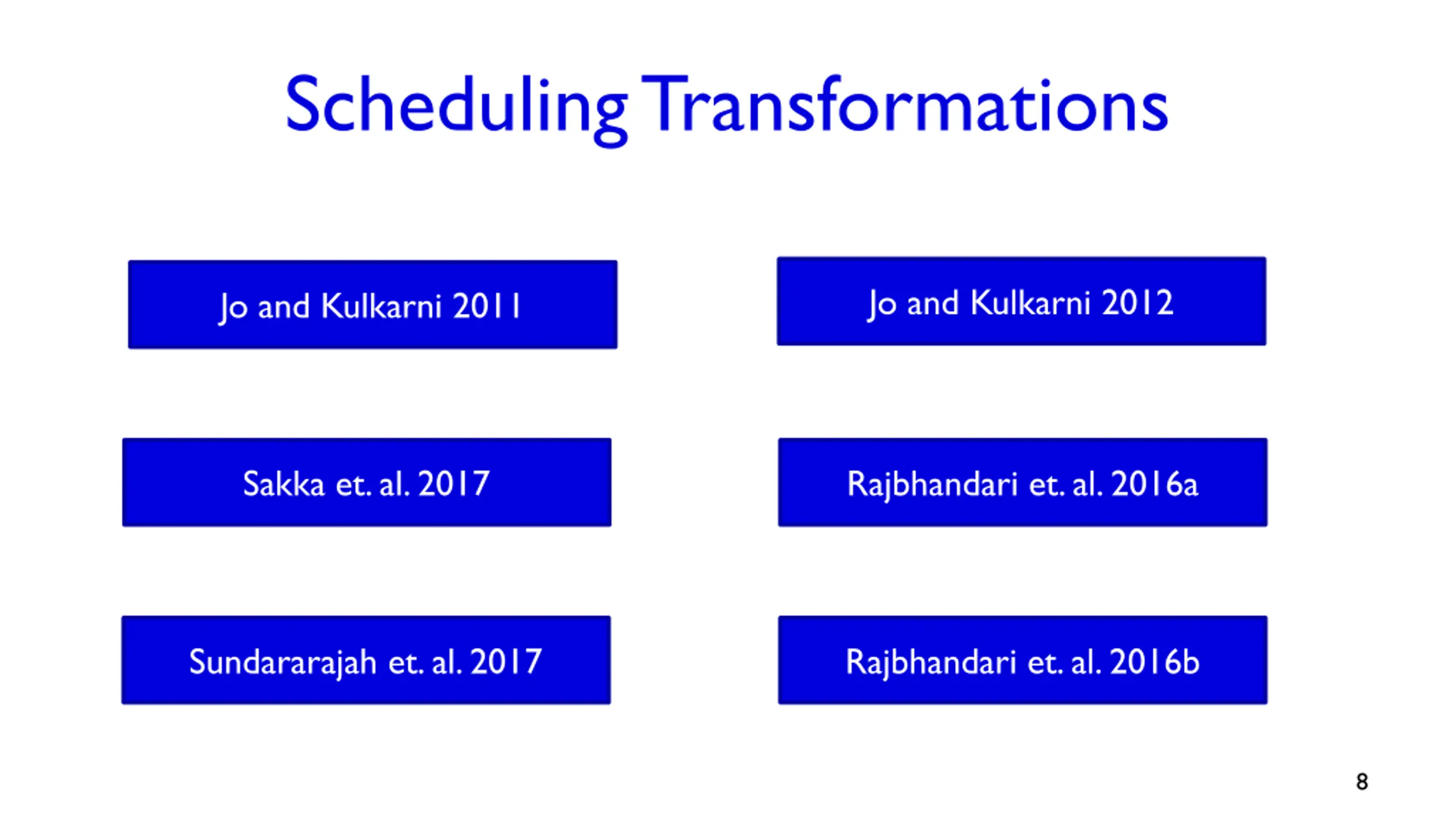

Scheduling Transformations Jo and Kulkarni 2012 Jo and Kulkarni 2011 Sakka et. al. 2017 Rajbhandari et. al. 2016a Sundararajah et. al. 2017 Rajbhandari et. al. 2016b 8

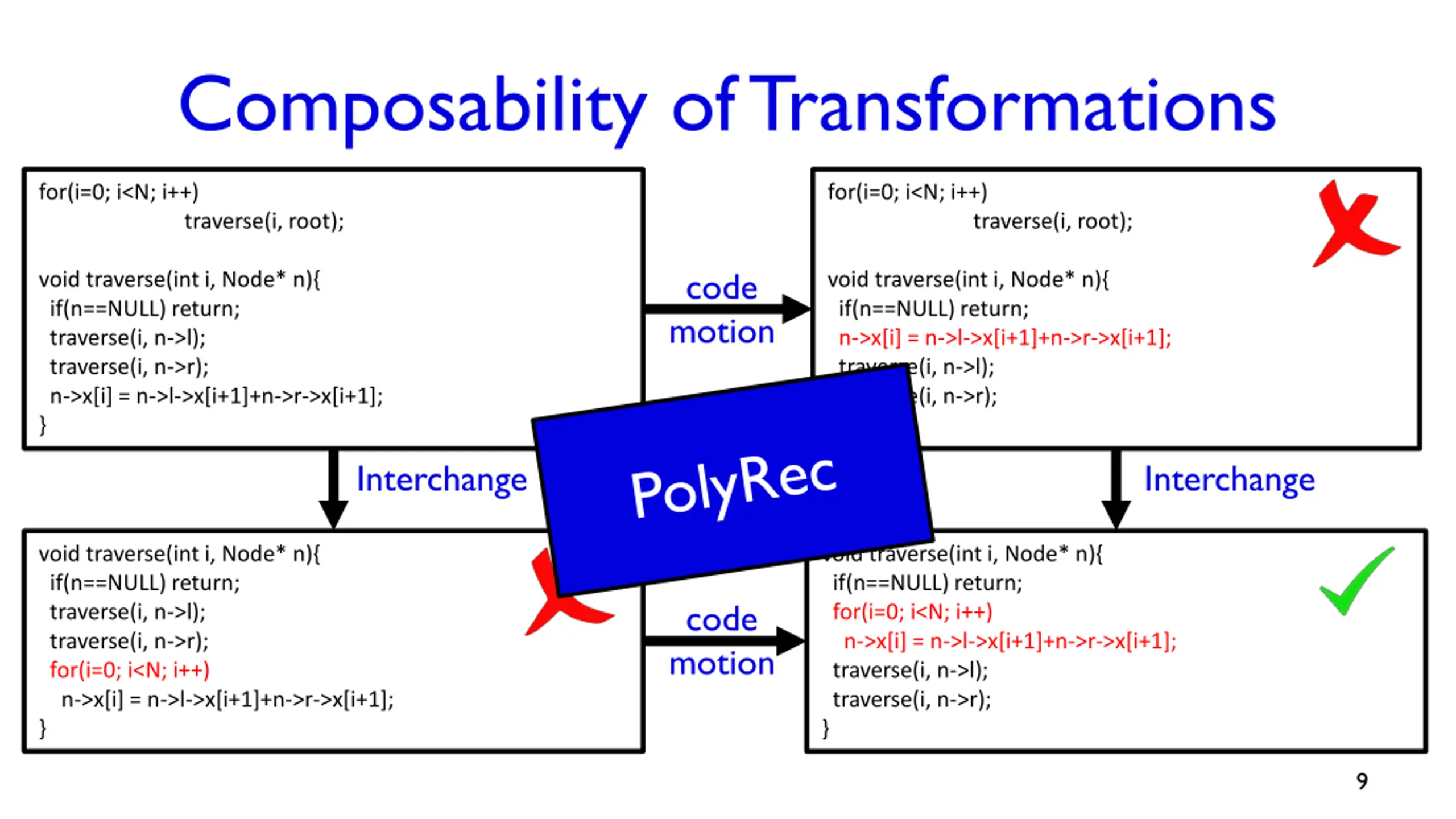

Composability of Transformations for(i=0; i<N; i++) for(i=0; i<N; i++) traverse(i, root); traverse(i, root); code motion void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); n->x[i] = n->l->x[i+1]+n->r->x[i+1]; } void traverse(int i, Node* n){ if(n==NULL) return; n->x[i] = n->l->x[i+1]+n->r->x[i+1]; traverse(i, n->l); traverse(i, n->r); } Interchange Interchange void traverse(int i, Node* n){ if(n==NULL) return; traverse(i, n->l); traverse(i, n->r); for(i=0; i<N; i++) n->x[i] = n->l->x[i+1]+n->r->x[i+1]; } void traverse(int i, Node* n){ if(n==NULL) return; for(i=0; i<N; i++) n->x[i] = n->l->x[i+1]+n->r->x[i+1]; traverse(i, n->l); traverse(i, n->r); } code motion 9

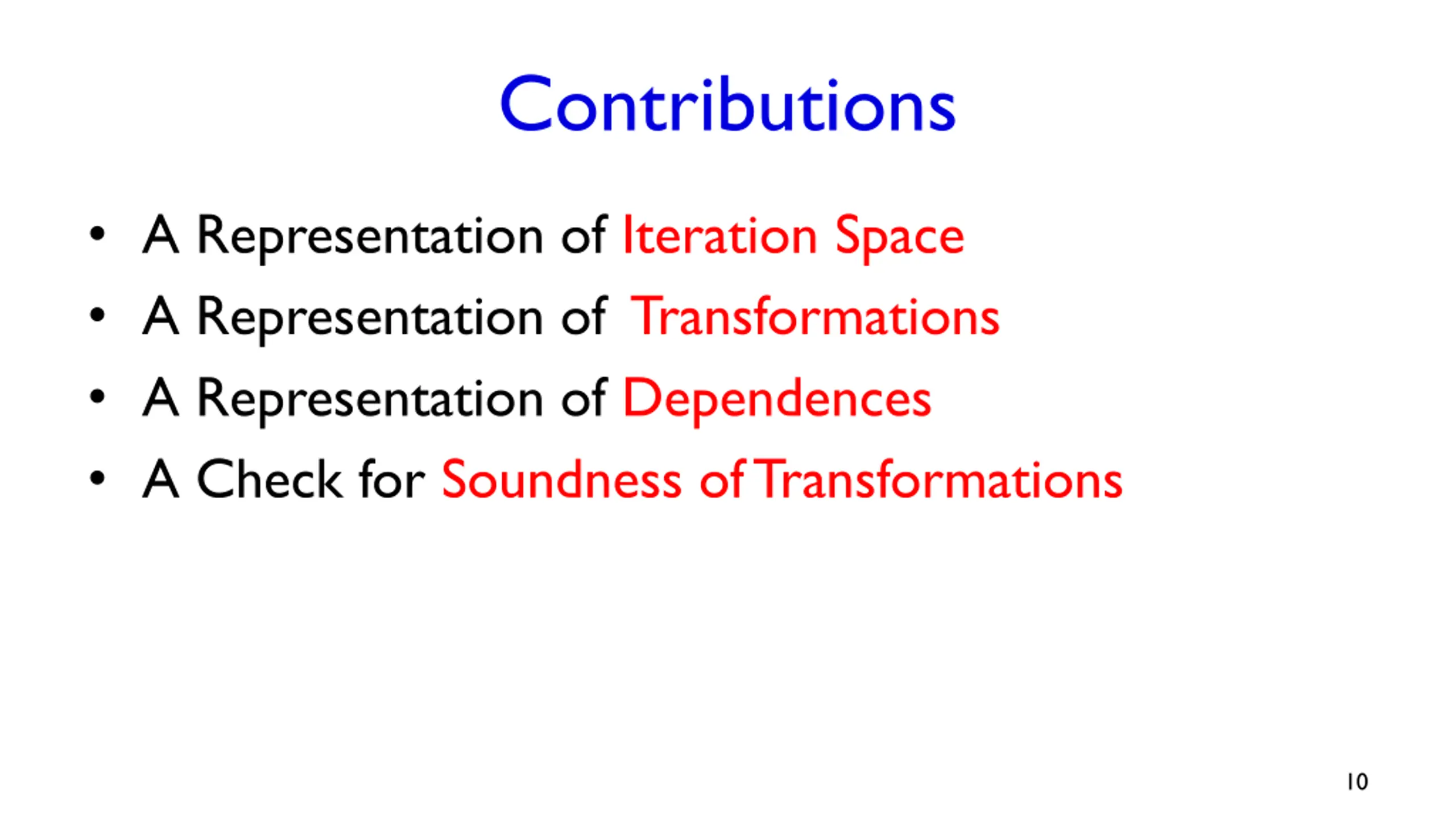

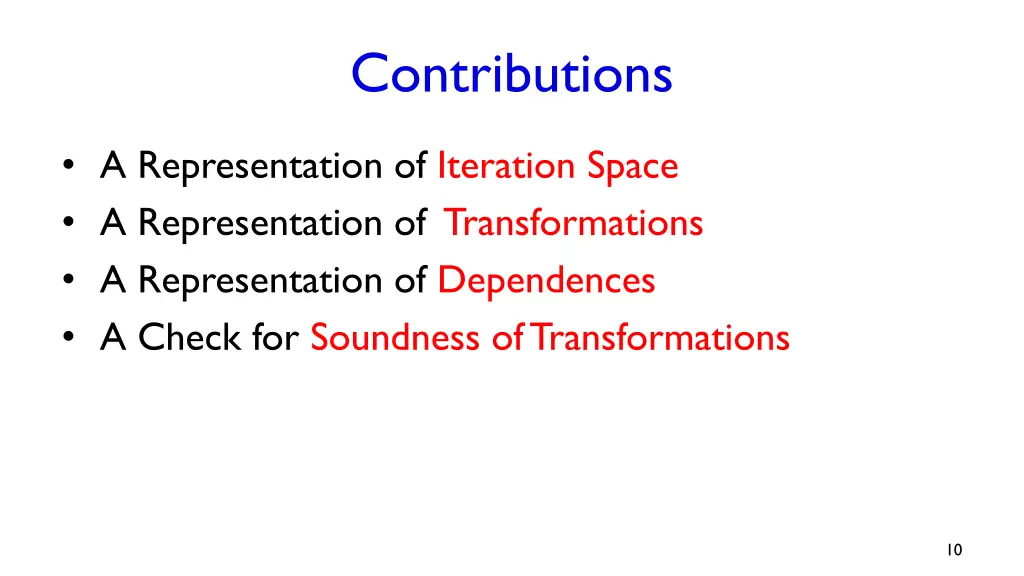

Contributions A Representation of Iteration Space A Representation of Transformations A Representation of Dependences A Check for Soundness of Transformations 10

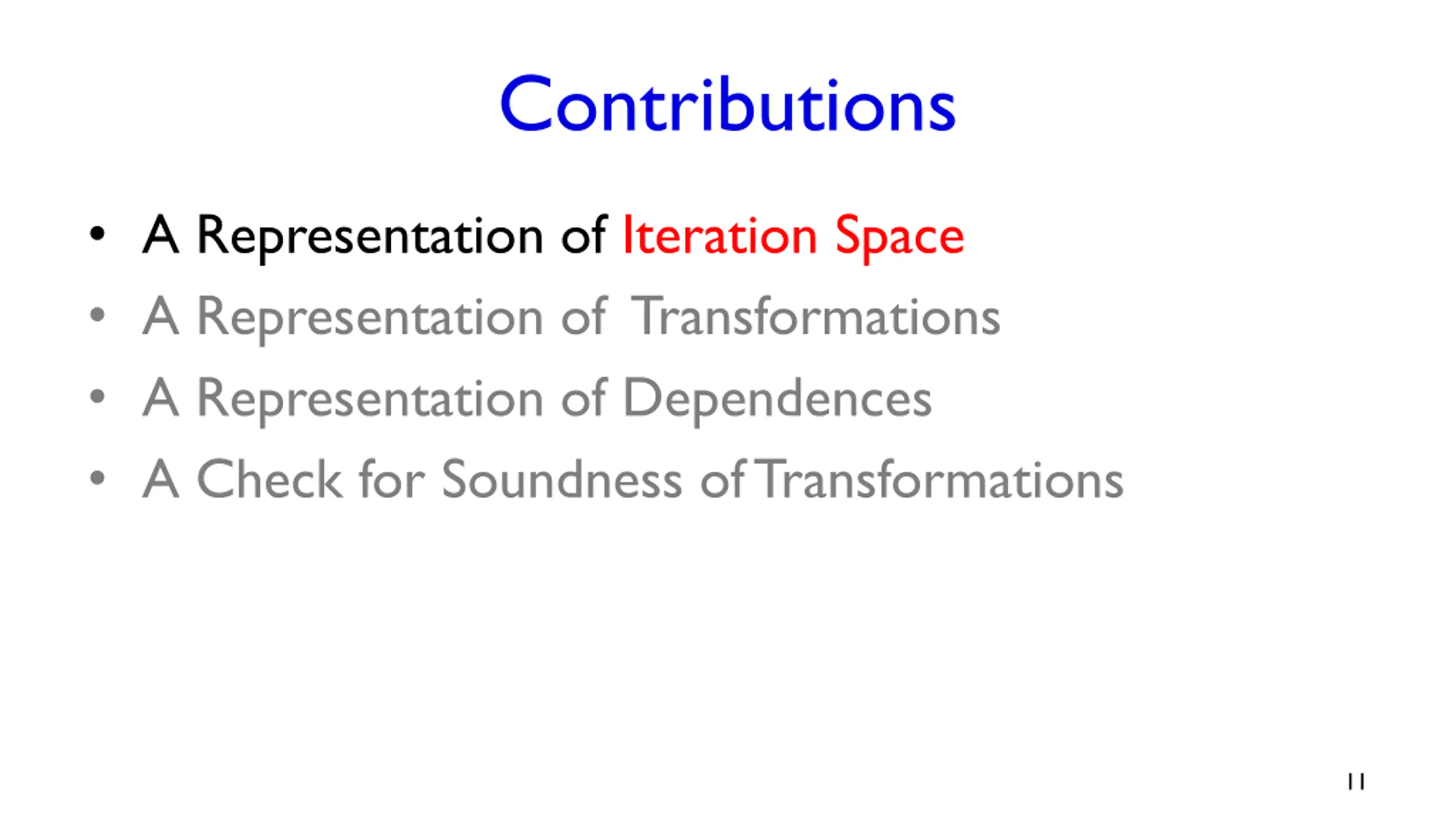

Contributions A Representation of Iteration Space A Representation of Transformations A Representation of Dependences A Check for Soundness of Transformations 11

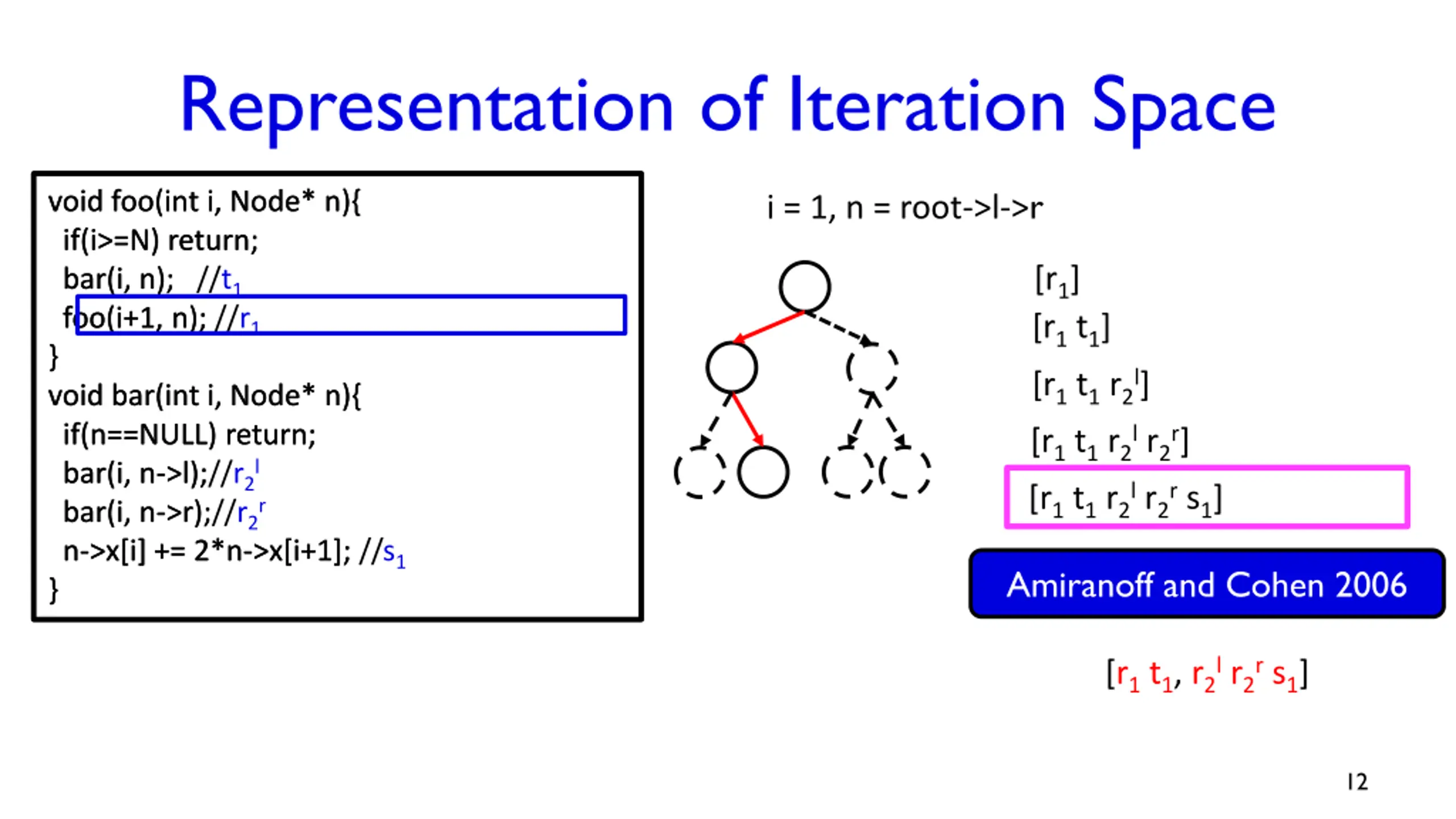

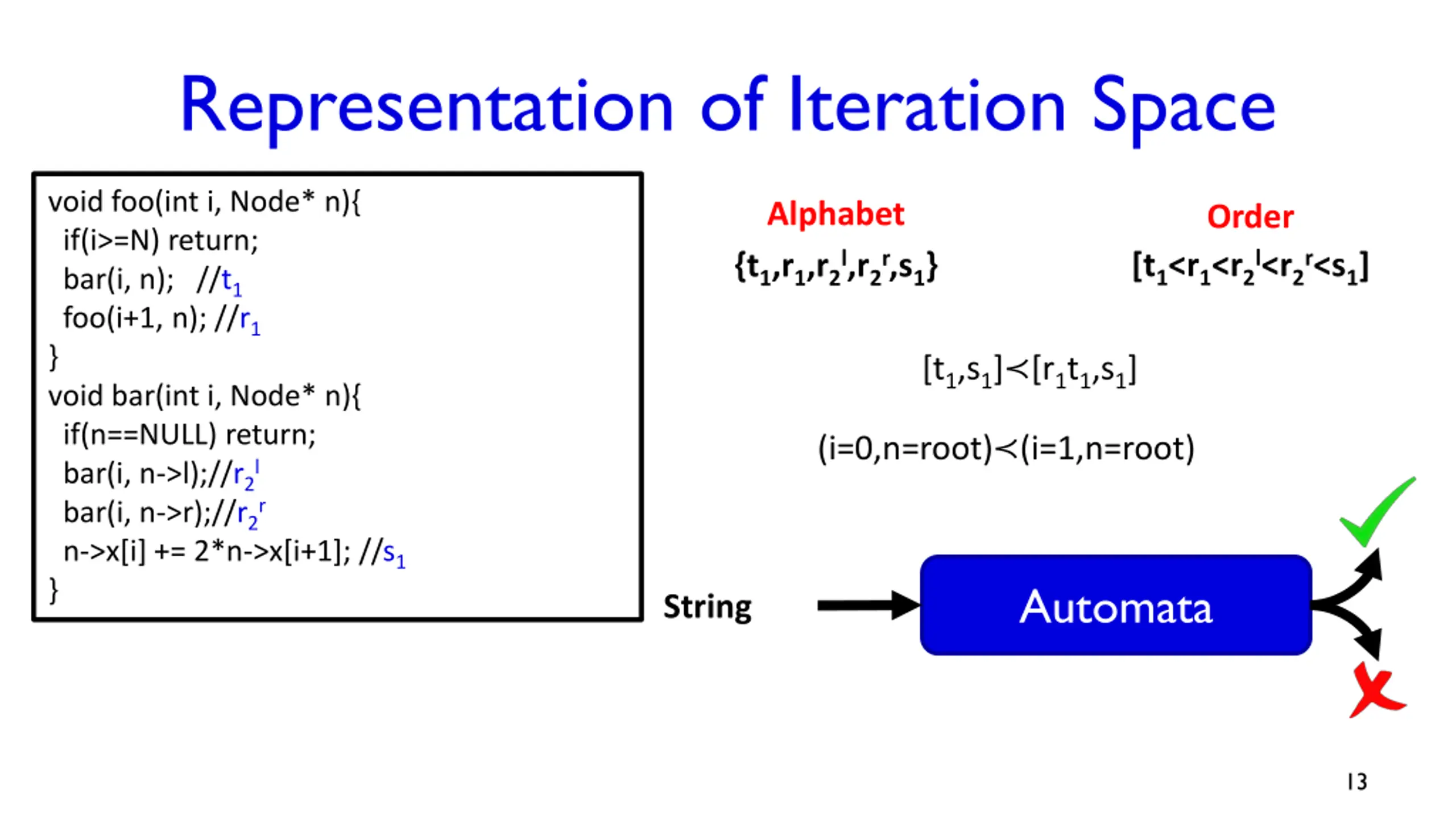

Representation of Iteration Space i = 1, n = root->l->r void foo(int i, Node* n){ if(i>=N) return; bar(i, n); foo(i+1, n); } void bar(int i, Node* n){ if(n==NULL) return; bar(i, n->l); bar(i, n->r); n->x[i] += 2*n->x[i+1]; } } void foo(int i, Node* n){ if(i>=N) return; bar(i, n); //t1 foo(i+1, n); //r1 } void bar(int i, Node* n){ if(n==NULL) return; bar(i, n->l);//r2l bar(i, n->r);//r2r n->x[i] += 2*n->x[i+1]; //s1 [r1] [r1 t1] [r1 t1 r2l] [r1 t1 r2l r2r] [r1 t1 r2l r2r s1] Amiranoff and Cohen 2006 [r1 t1, r2l r2r s1] 12
Representation of Iteration Space void foo(int i, Node* n){ if(i>=N) return; bar(i, n); //t1 foo(i+1, n); //r1 } void bar(int i, Node* n){ if(n==NULL) return; bar(i, n->l);//r2l bar(i, n->r);//r2r n->x[i] += 2*n->x[i+1]; //s1 } Alphabet Order [t1<r1<r2l<r2r<s1] {t1,r1,r2l,r2r,s1} [t1,s1] [r1t1,s1] (i=0,n=root) (i=1,n=root) Automata String 13

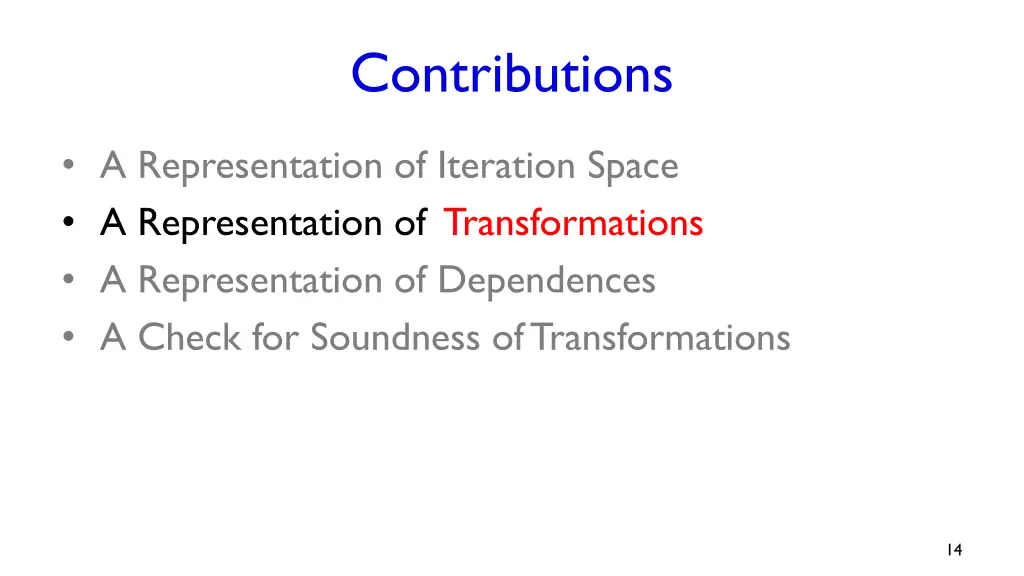

Contributions A Representation of Iteration Space A Representation of Transformations A Representation of Dependences A Check for Soundness of Transformations 14

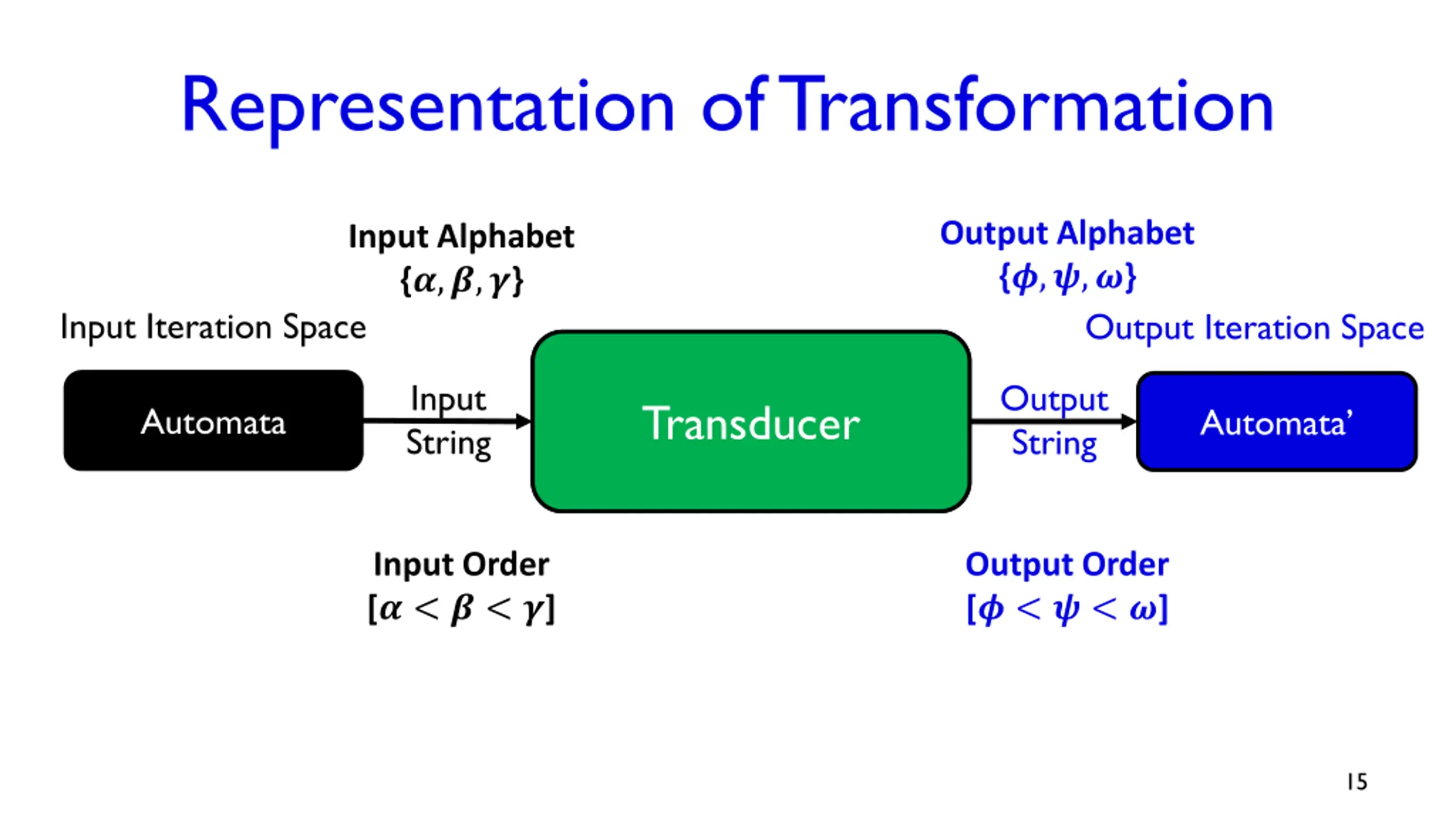

Representation of Transformation Output Alphabet {?,?,?} Input Alphabet {?,?,?} Input Iteration Space Output Iteration Space Input String Output String ?,?,? Transducer Automata Automata ?: ?,?,? Input Order [? < ? < ?] Output Order [? < ? < ?] 15

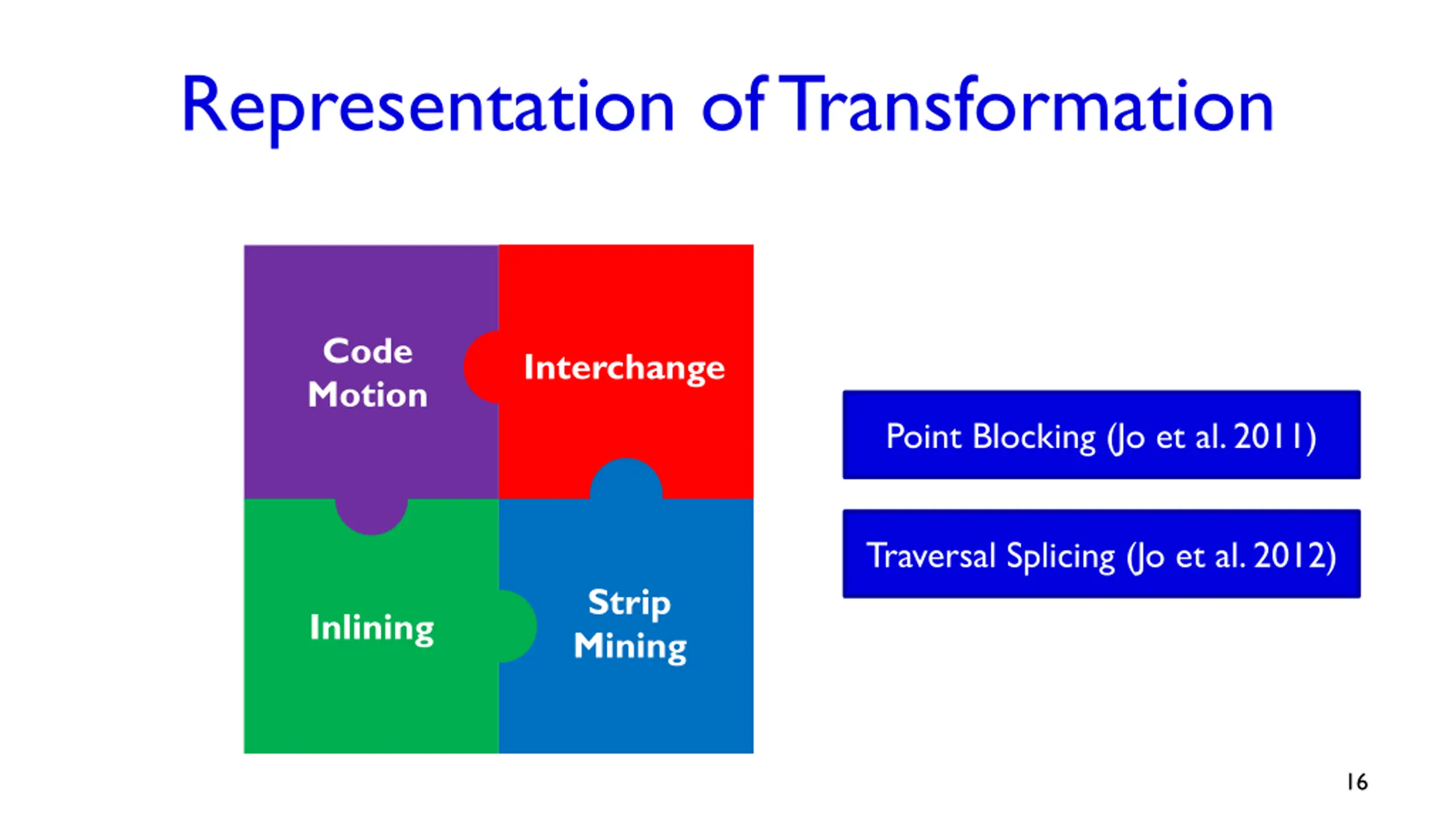

Representation of Transformation Code Motion Interchange Point Blocking (Jo et al. 2011) Traversal Splicing (Jo et al. 2012) Strip Mining Inlining 16

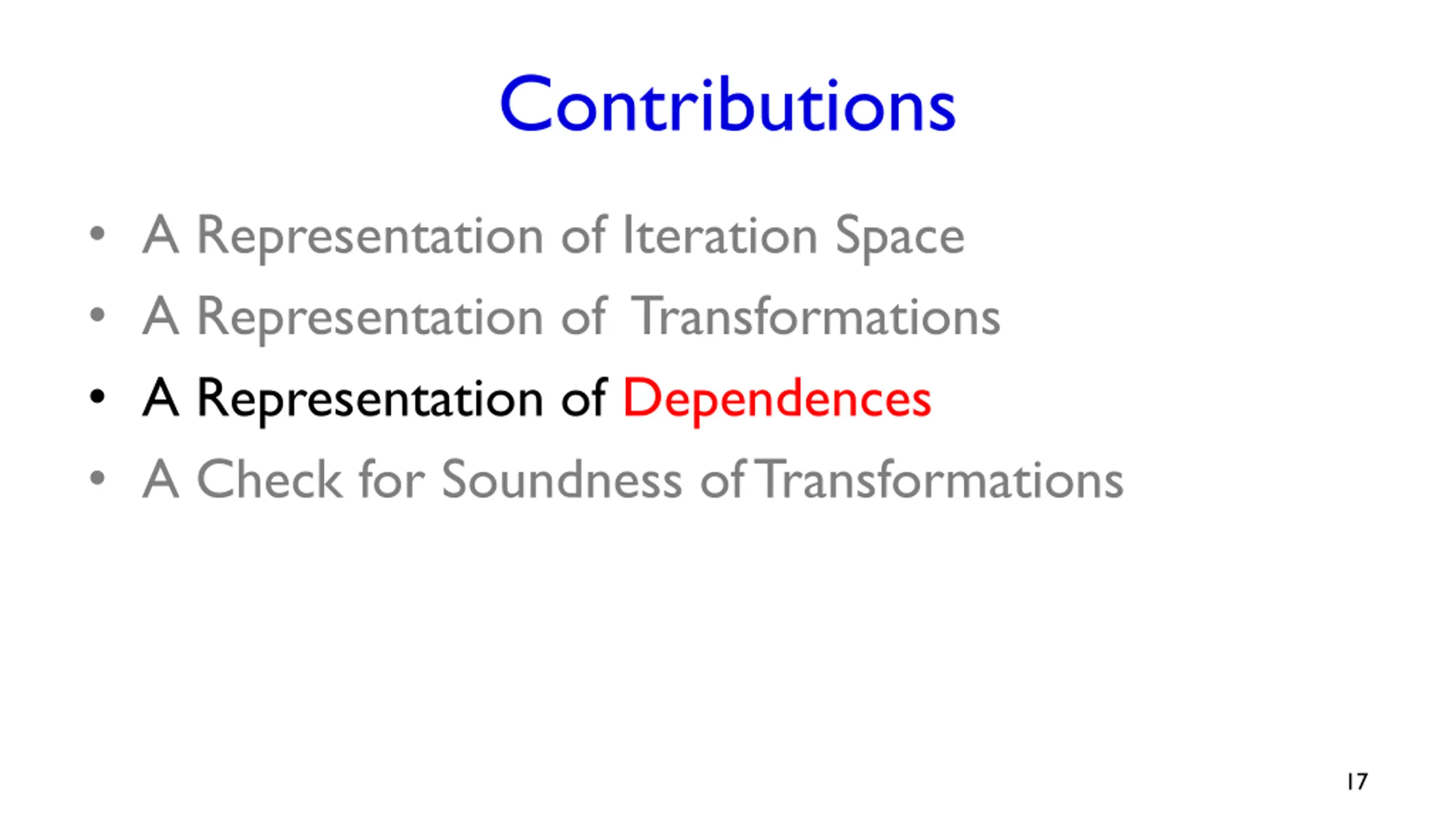

Contributions A Representation of Iteration Space A Representation of Transformations A Representation of Dependences A Check for Soundness of Transformations 17

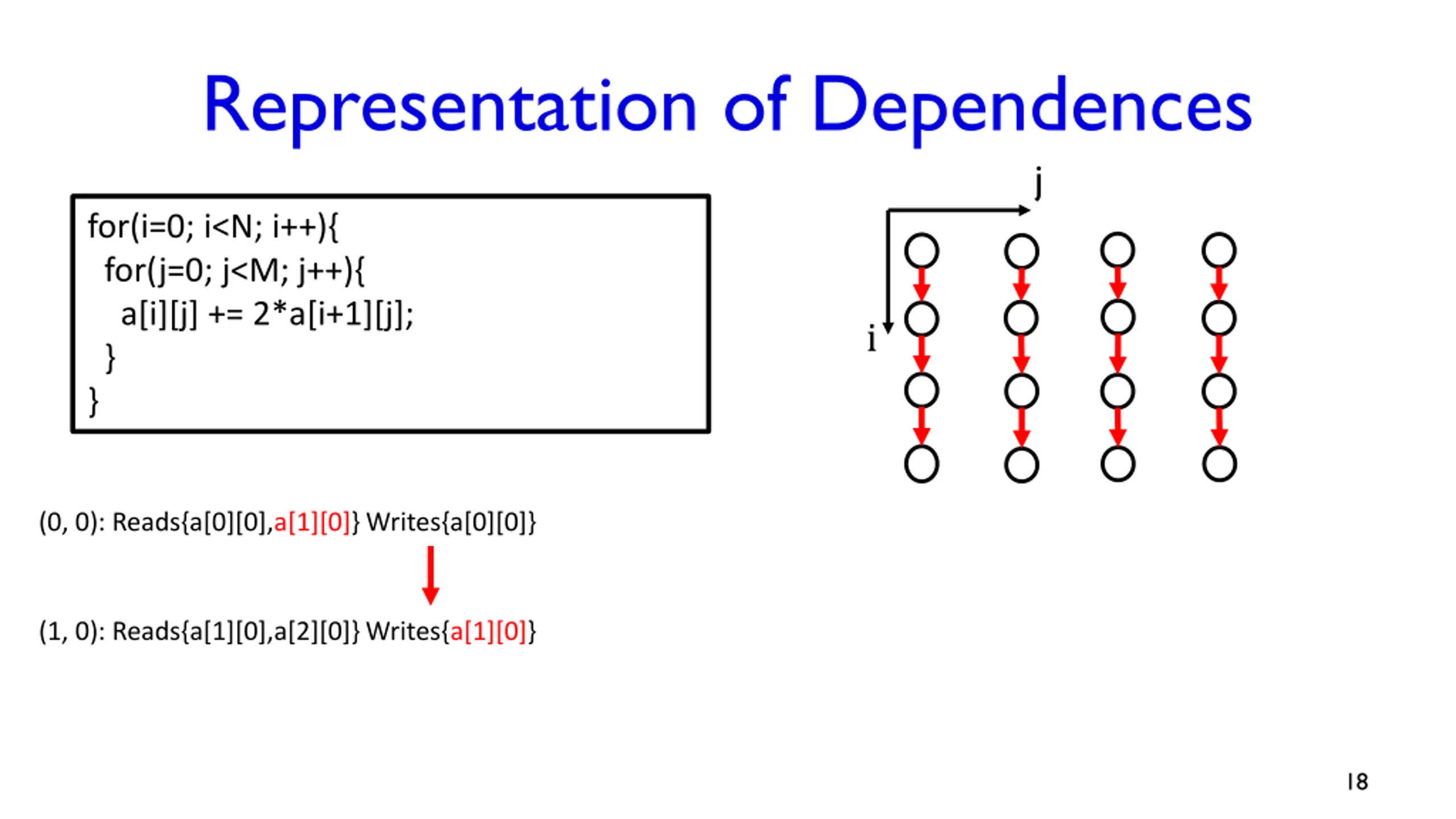

Representation of Dependences j for(i=0; i<N; i++){ for(j=0; j<M; j++){ a[i][j] += 2*a[i+1][j]; } } i (0, 0): Reads{a[0][0],a[1][0]} Writes{a[0][0]} (1, 0): Reads{a[1][0],a[2][0]} Writes{a[1][0]} 18

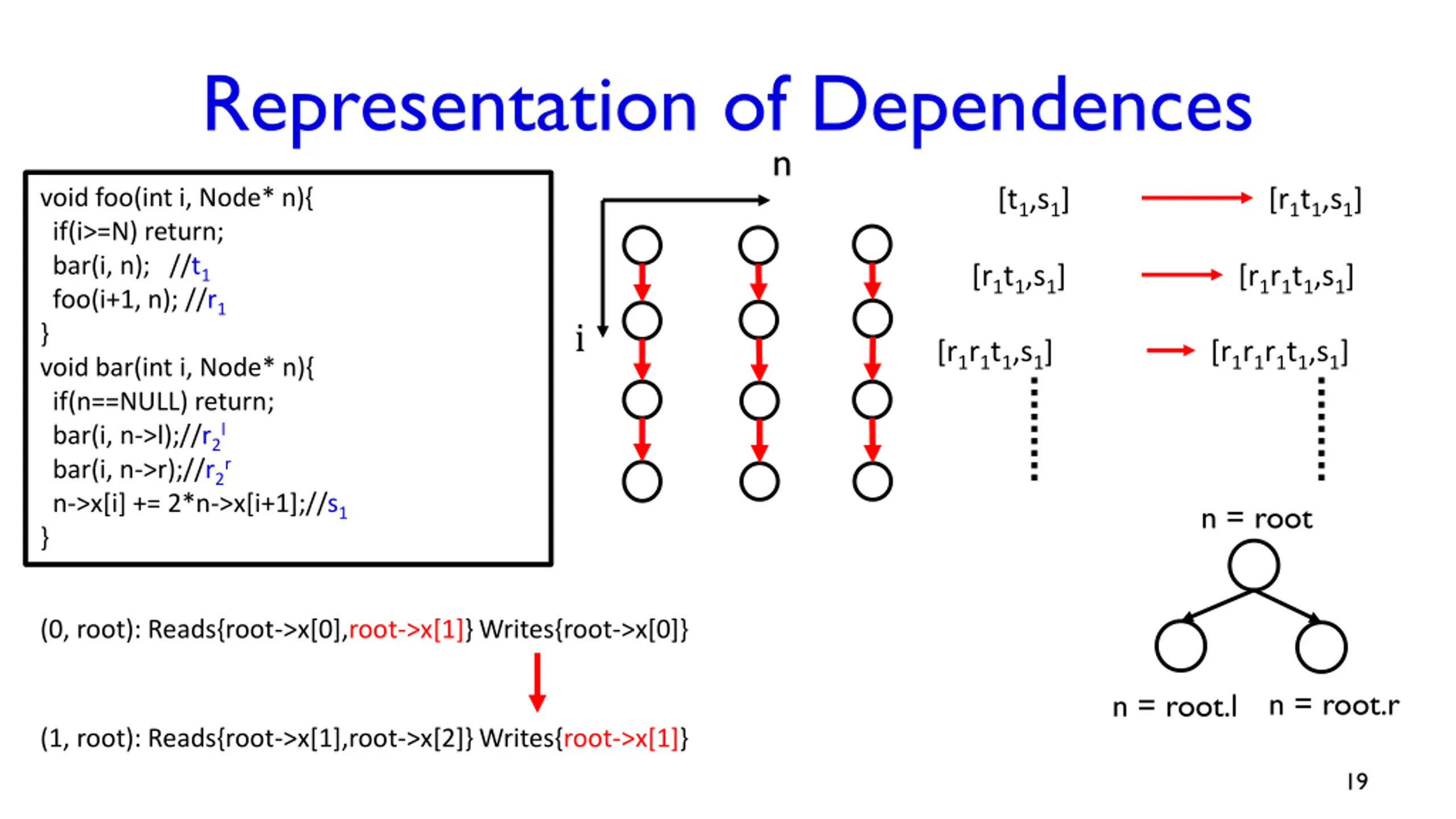

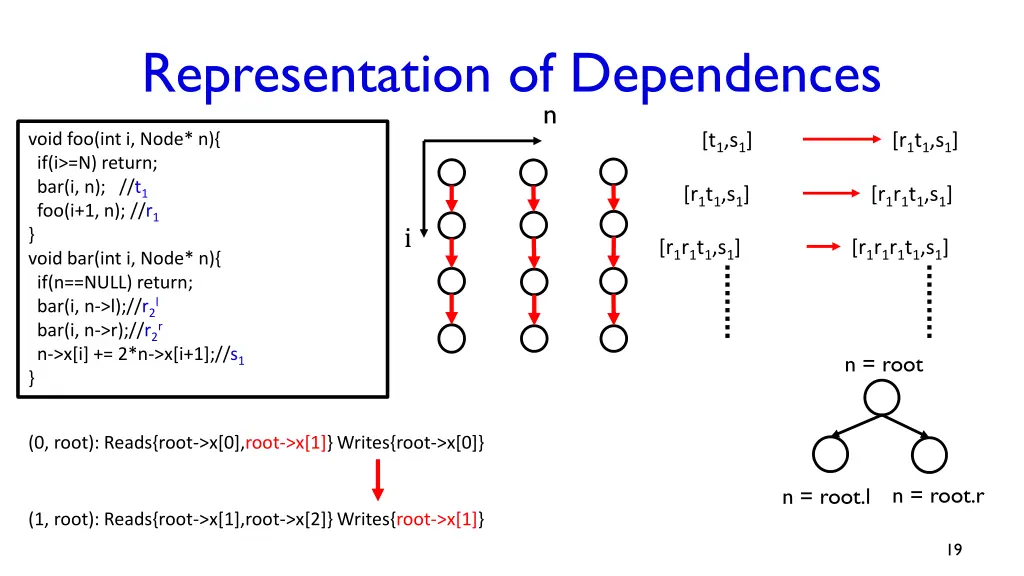

Representation of Dependences n [t1,s1] [r1t1,s1] void foo(int i, Node* n){ if(i>=N) return; bar(i, n); //t1 foo(i+1, n); //r1 } void bar(int i, Node* n){ if(n==NULL) return; bar(i, n->l);//r2l bar(i, n->r);//r2r n->x[i] += 2*n->x[i+1];//s1 } [r1t1,s1] [r1r1t1,s1] i [r1r1t1,s1] [r1r1r1t1,s1] n = root (0, root): Reads{root->x[0],root->x[1]} Writes{root->x[0]} n = root.r n = root.l (1, root): Reads{root->x[1],root->x[2]} Writes{root->x[1]} 19

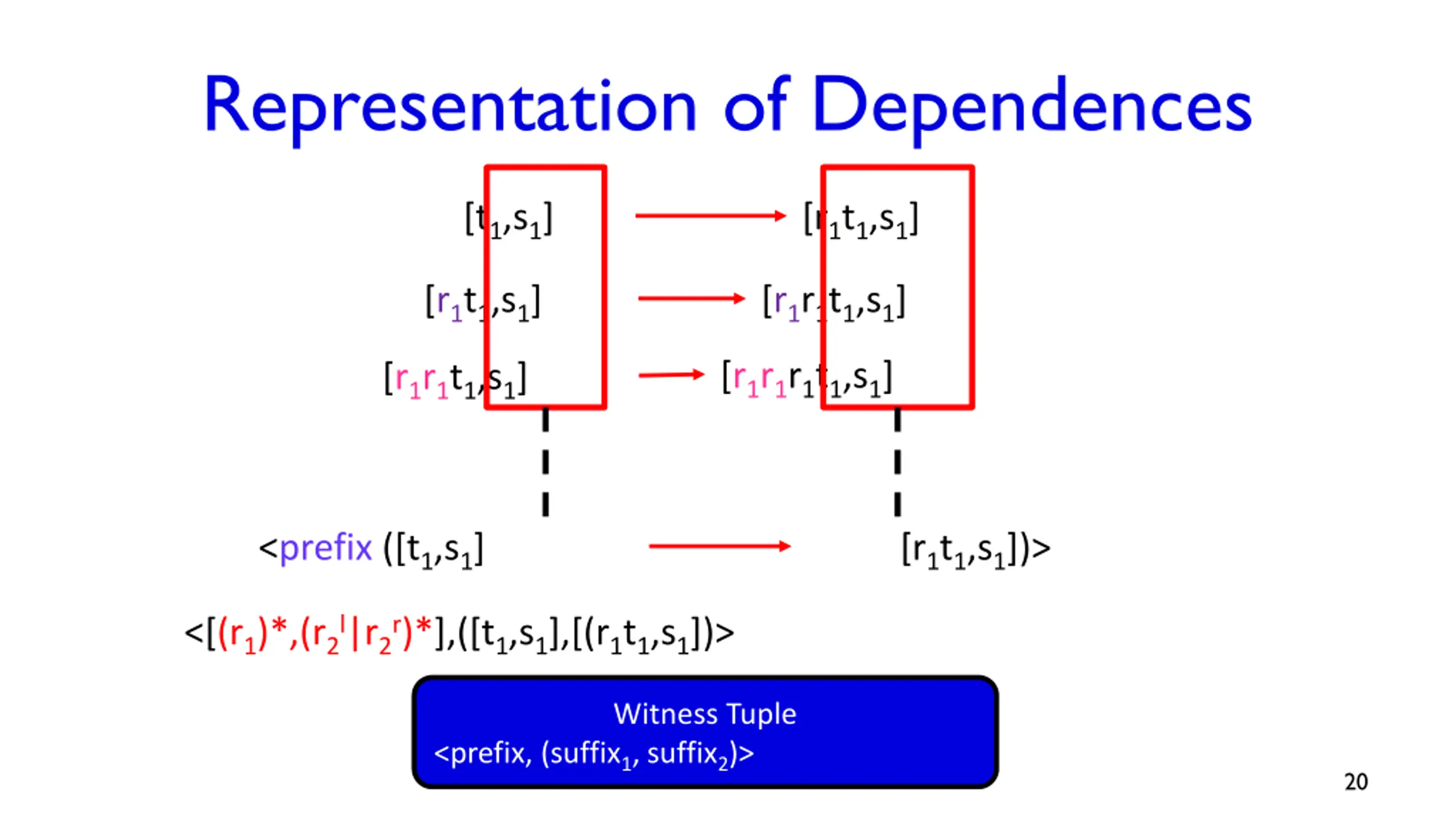

Representation of Dependences [t1,s1] [r1t1,s1] [r1t1,s1] [r1r1t1,s1] [r1r1r1t1,s1] [r1r1t1,s1] <prefix ([t1,s1] [r1t1,s1])> <[(r1)*,(r2l|r2r)*],([t1,s1],[(r1t1,s1])> Witness Tuple <prefix, (suffix1, suffix2)> 20

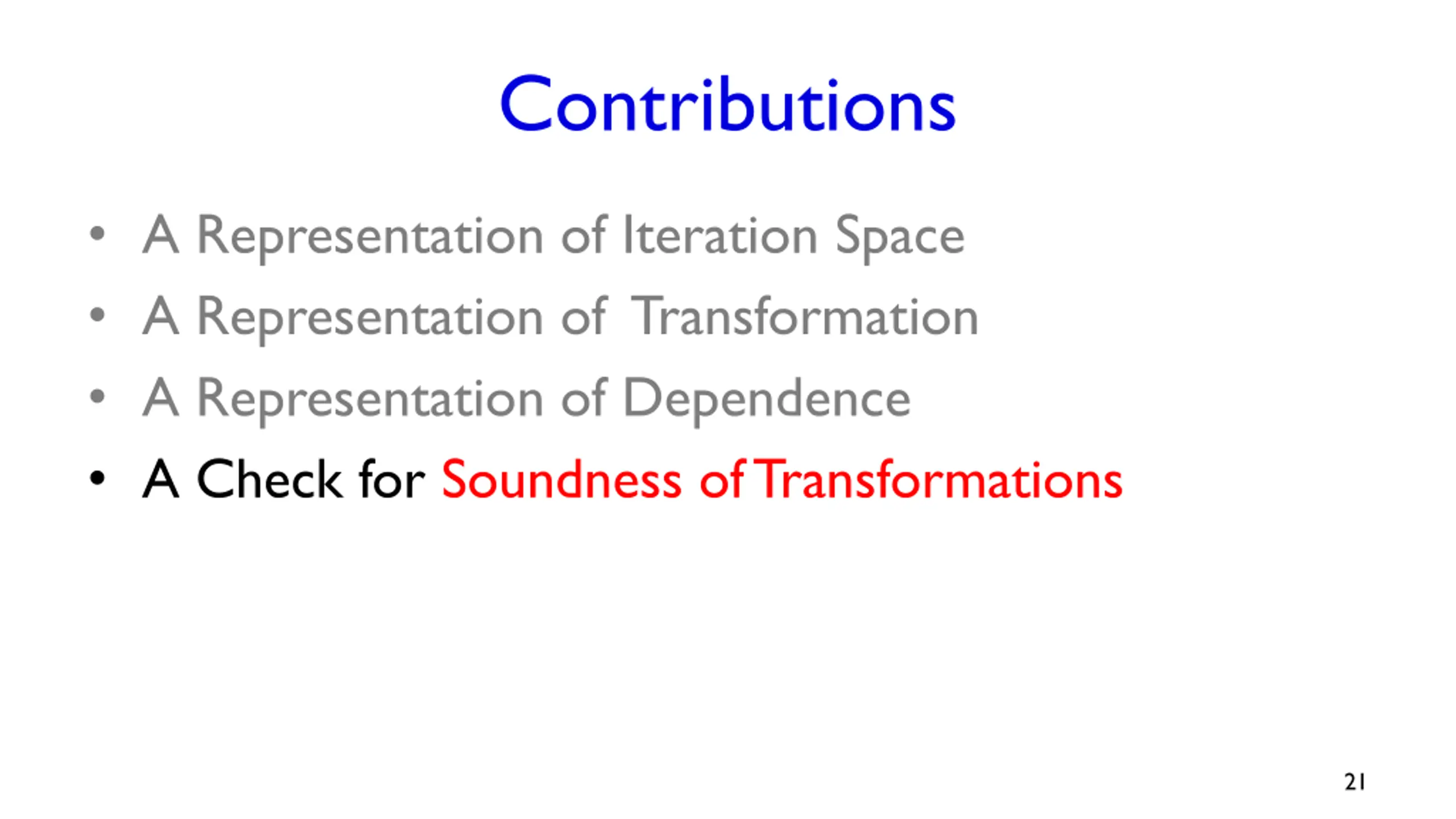

Contributions A Representation of Iteration Space A Representation of Transformation A Representation of Dependence A Check for Soundness of Transformations 21

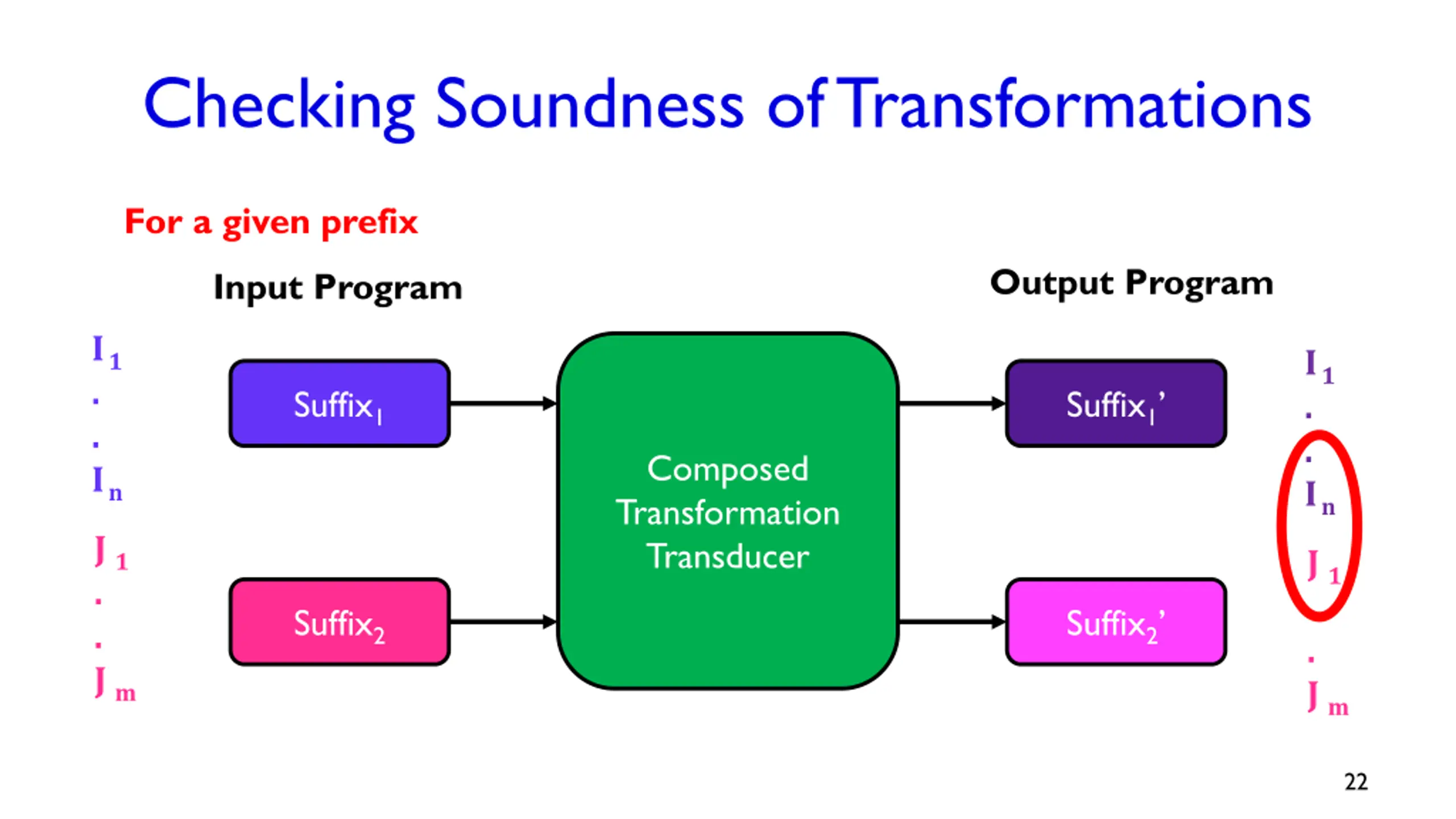

Checking Soundness of Transformations For a given prefix Output Program Input Program I1 . . In I1 . . In Suffix1 Suffix1 Composed Transformation Transducer J1 . . Jm J1 . . Jm Suffix2 Suffix2 22

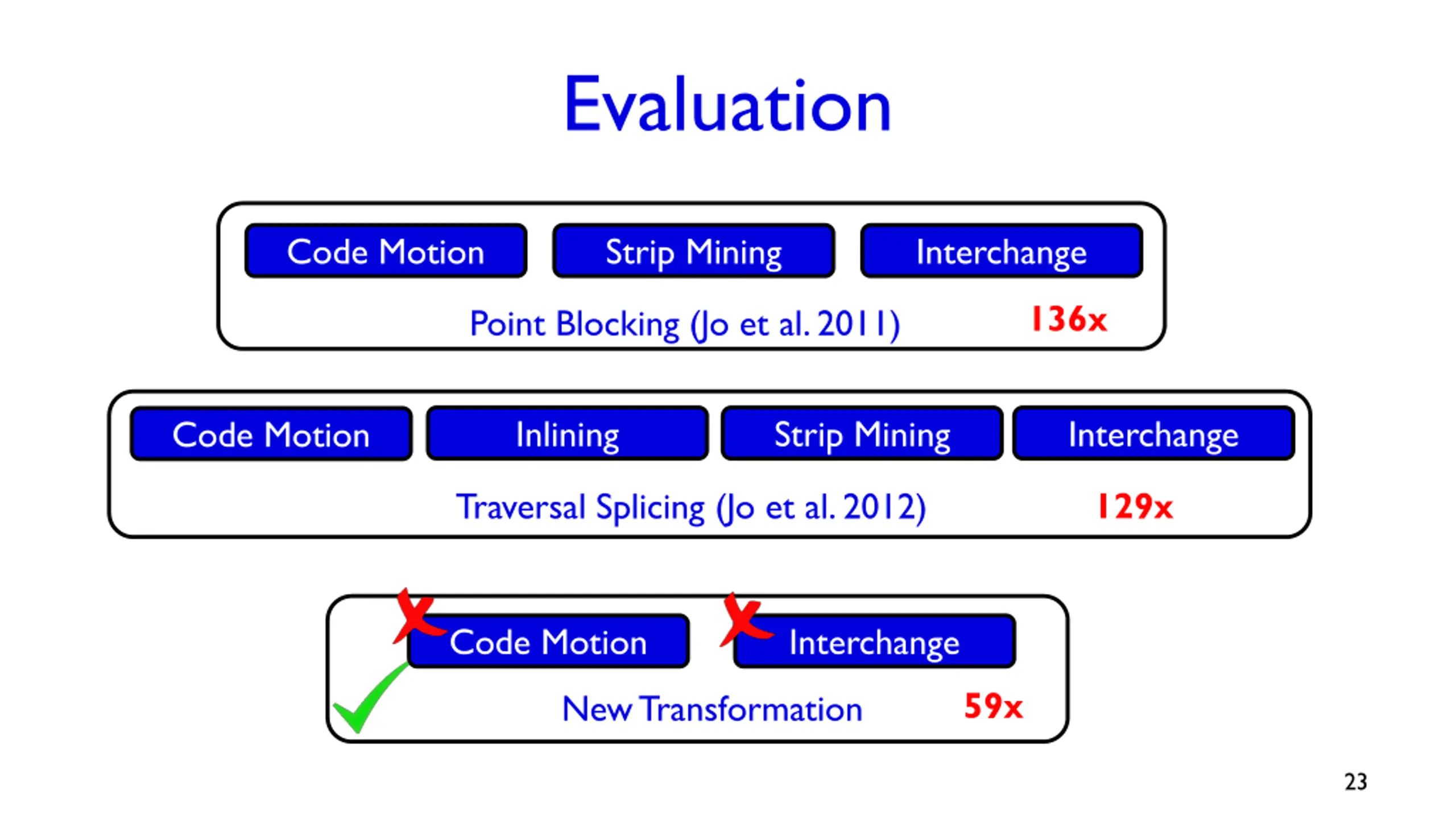

Evaluation Code Motion Strip Mining Interchange 136x Point Blocking (Jo et al. 2011) Inlining Strip Mining Interchange Code Motion 129x Traversal Splicing (Jo et al. 2012) Code Motion Interchange 59x New Transformation 23

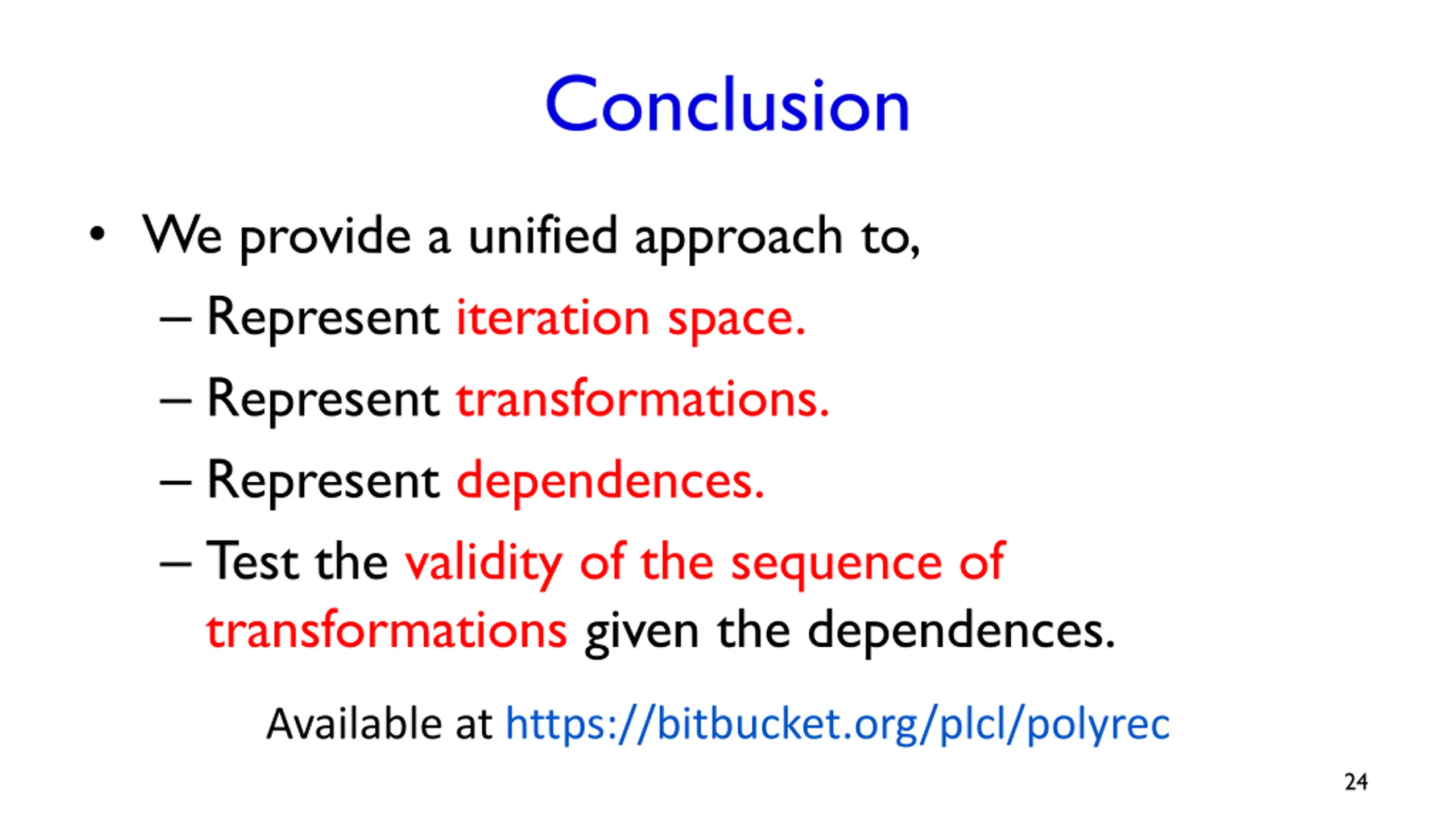

Conclusion We provide a unified approach to, Represent iteration space. Represent transformations. Represent dependences. Test the validity of the sequence of transformations given the dependences. Available at https://bitbucket.org/plcl/polyrec 24

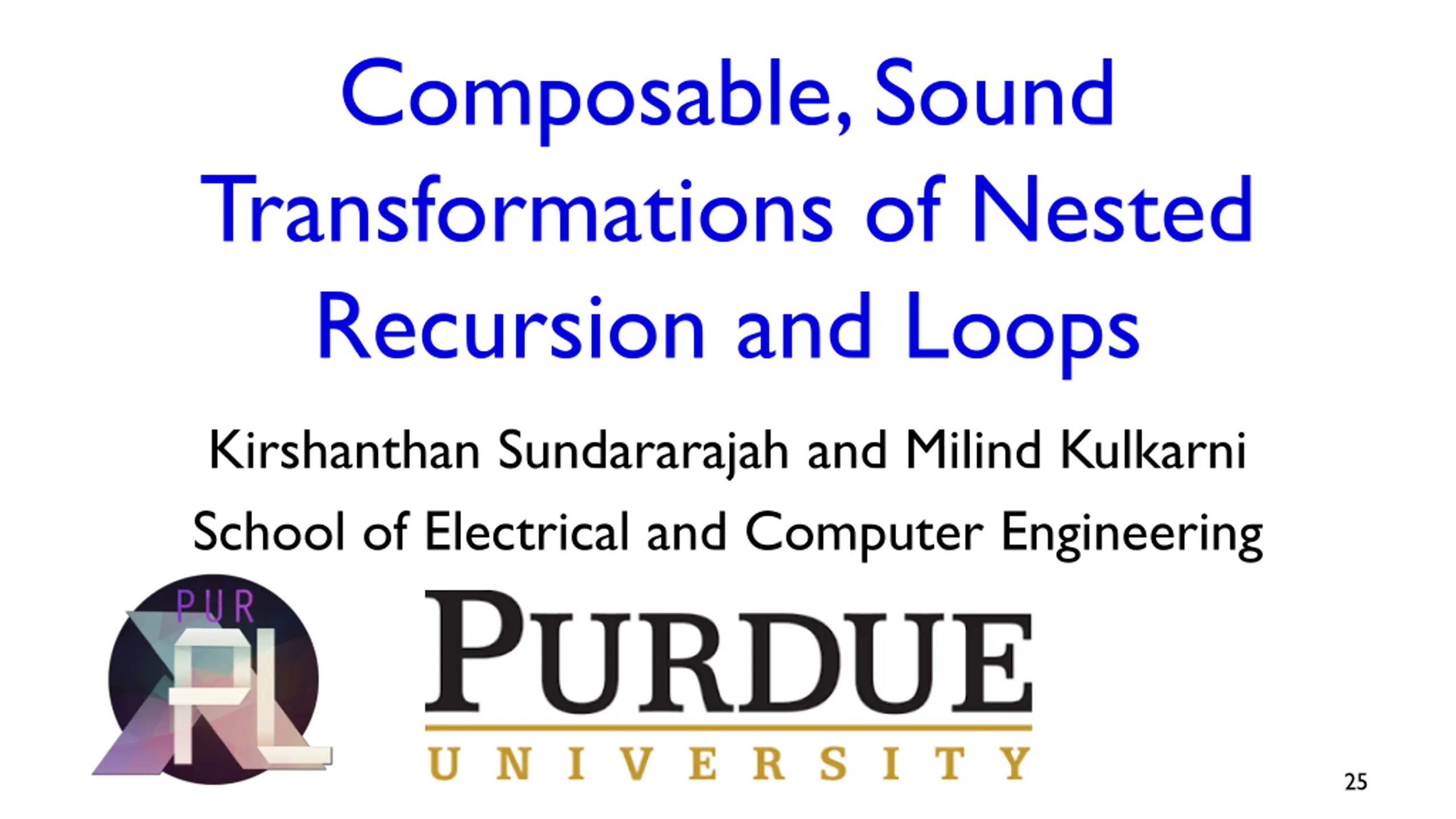

Composable, Sound Transformations of Nested Recursion and Loops Kirshanthan Sundararajah and Milind Kulkarni School of Electrical and Computer Engineering 25
