Confidential Tips on LTC6957 and Modem CLK Integration
Gain insights into the integration of LTC6957 and Modem CLK in a confidential setting, including considerations on level matching, AC coupling, pull-up resistors, and more. Explore the provided images for a deeper understanding of the technical aspects involved.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

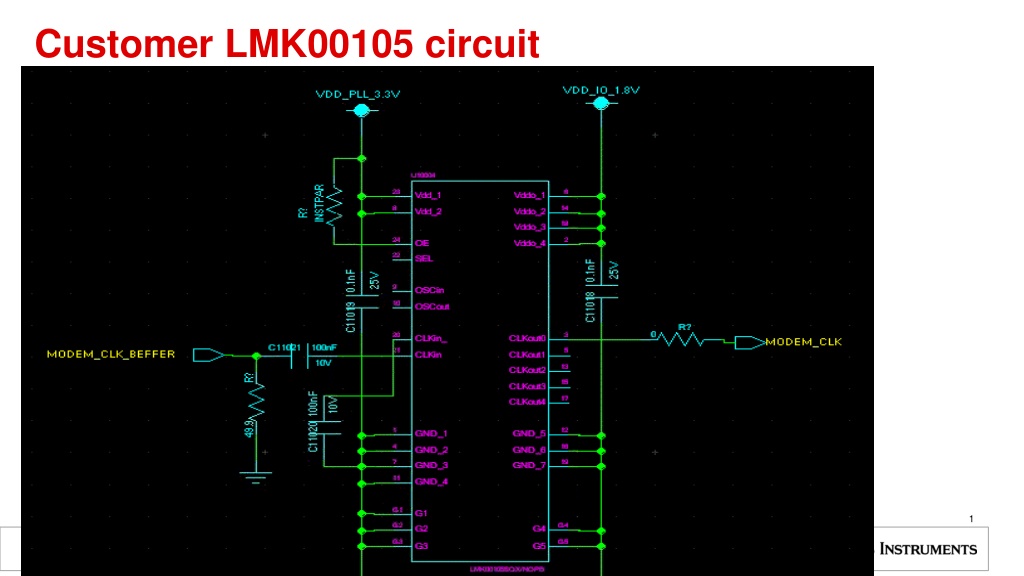

Customer LMK00105 circuit 1 TI Confidential Selective Disclosure

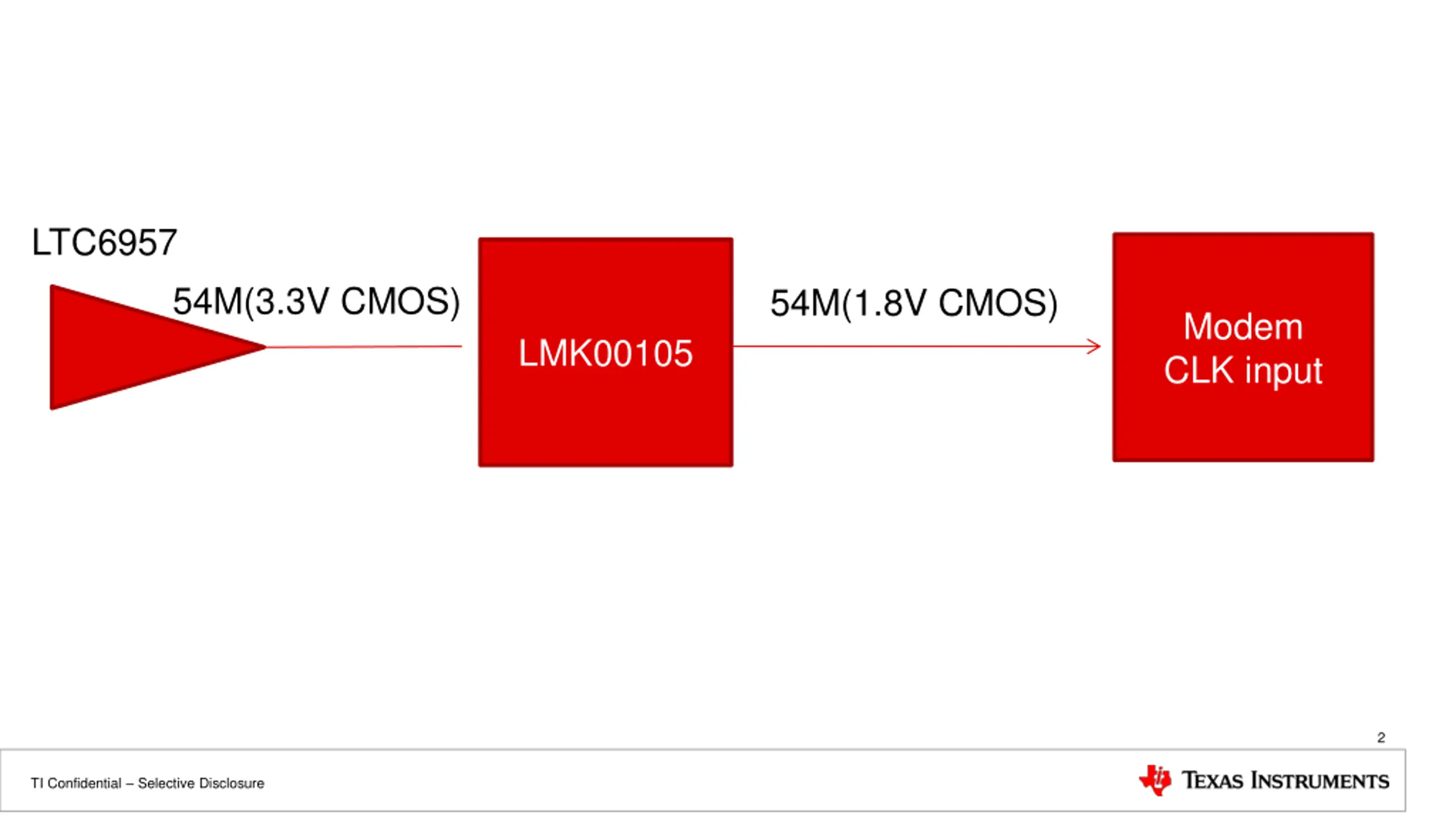

LTC6957 54M(3.3V CMOS) 54M(1.8V CMOS) Modem CLK input LMK00105 2 TI Confidential Selective Disclosure

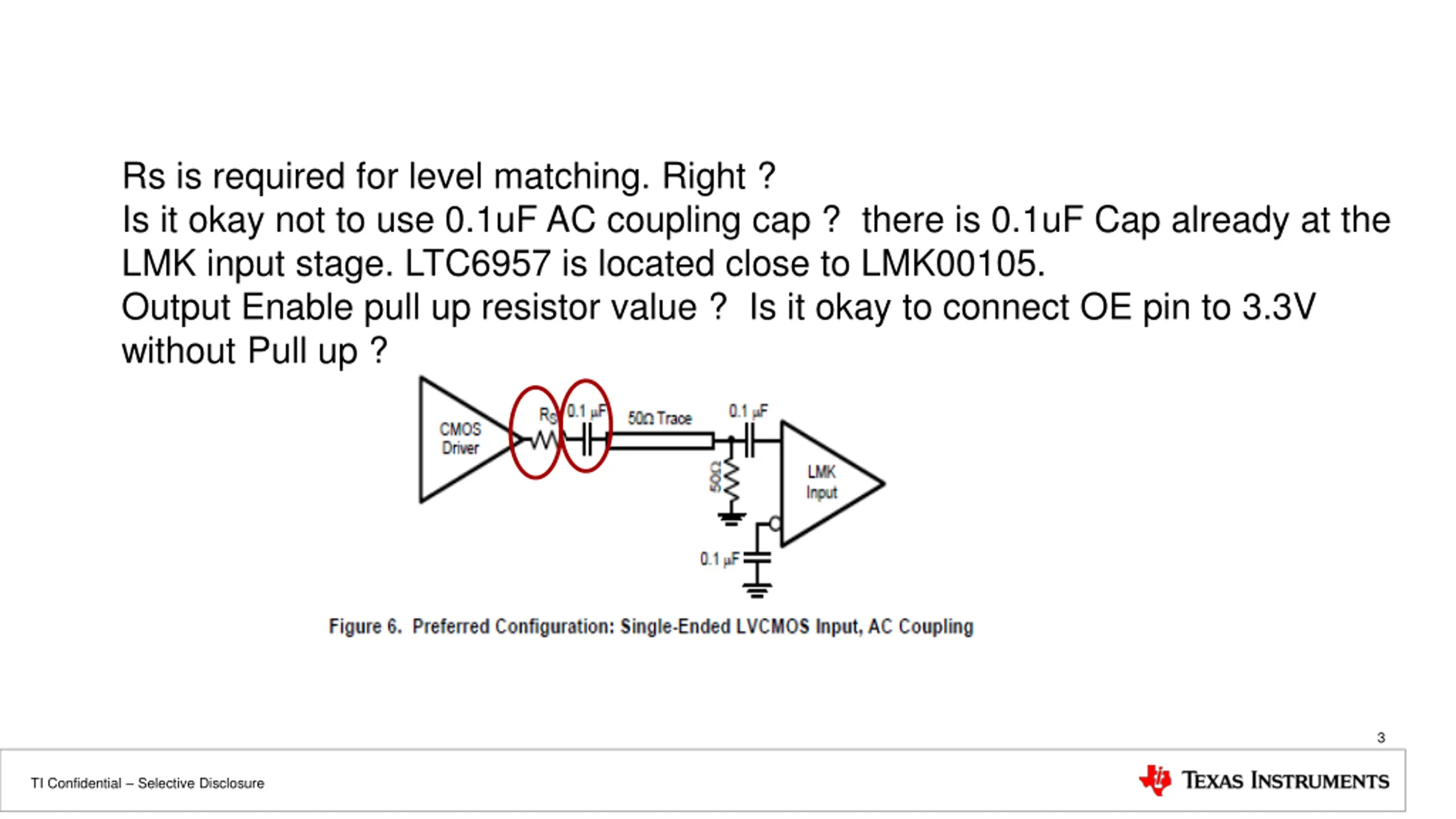

Rs is required for level matching. Right ? Is it okay not to use 0.1uF AC coupling cap ? there is 0.1uF Cap already at the LMK input stage. LTC6957 is located close to LMK00105. Output Enable pull up resistor value ? Is it okay to connect OE pin to 3.3V without Pull up ? 3 TI Confidential Selective Disclosure

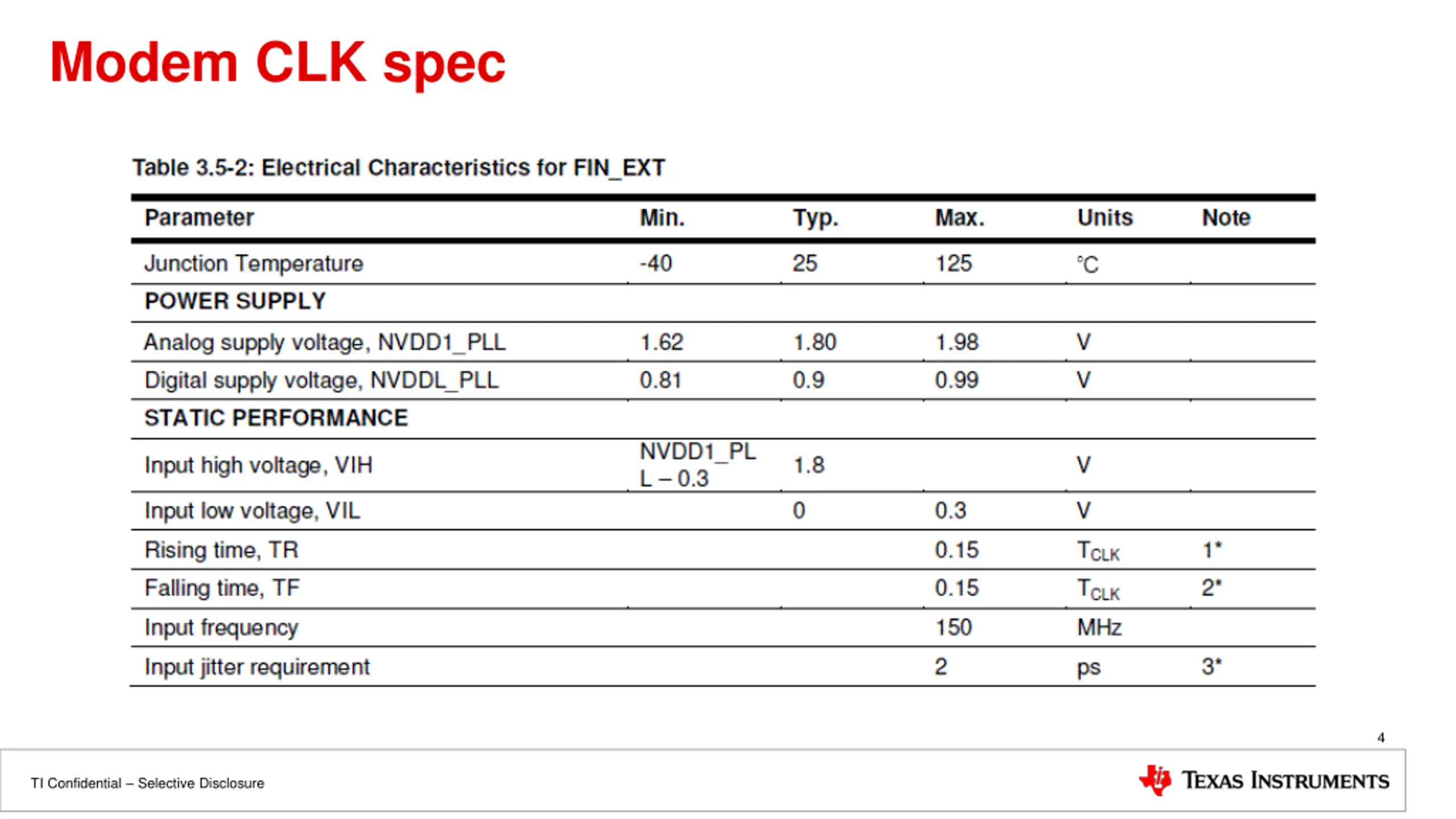

Modem CLK spec 4 TI Confidential Selective Disclosure
