Configuring Multiple SSID with Multiple VLANs on Cisco Aironet APs
Learn how to configure multiple SSIDs with multiple VLANs on Cisco Aironet Access Points. Follow a step-by-step guide by Surendra B.G., a Cisco TAC Engineer, to set up different VLANs for different SSIDs, assign encryption methods, and configure switchport settings for seamless wireless network setup.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

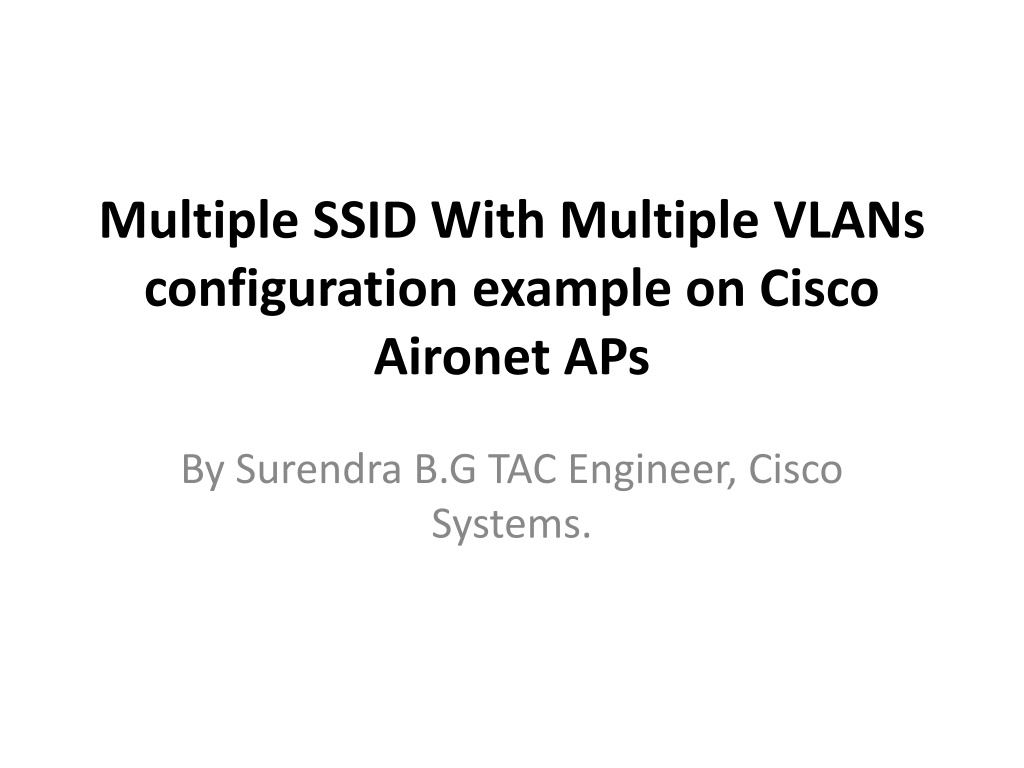

Multiple SSID With Multiple VLANs configuration example on Cisco Aironet APs By Surendra B.G TAC Engineer, Cisco Systems.

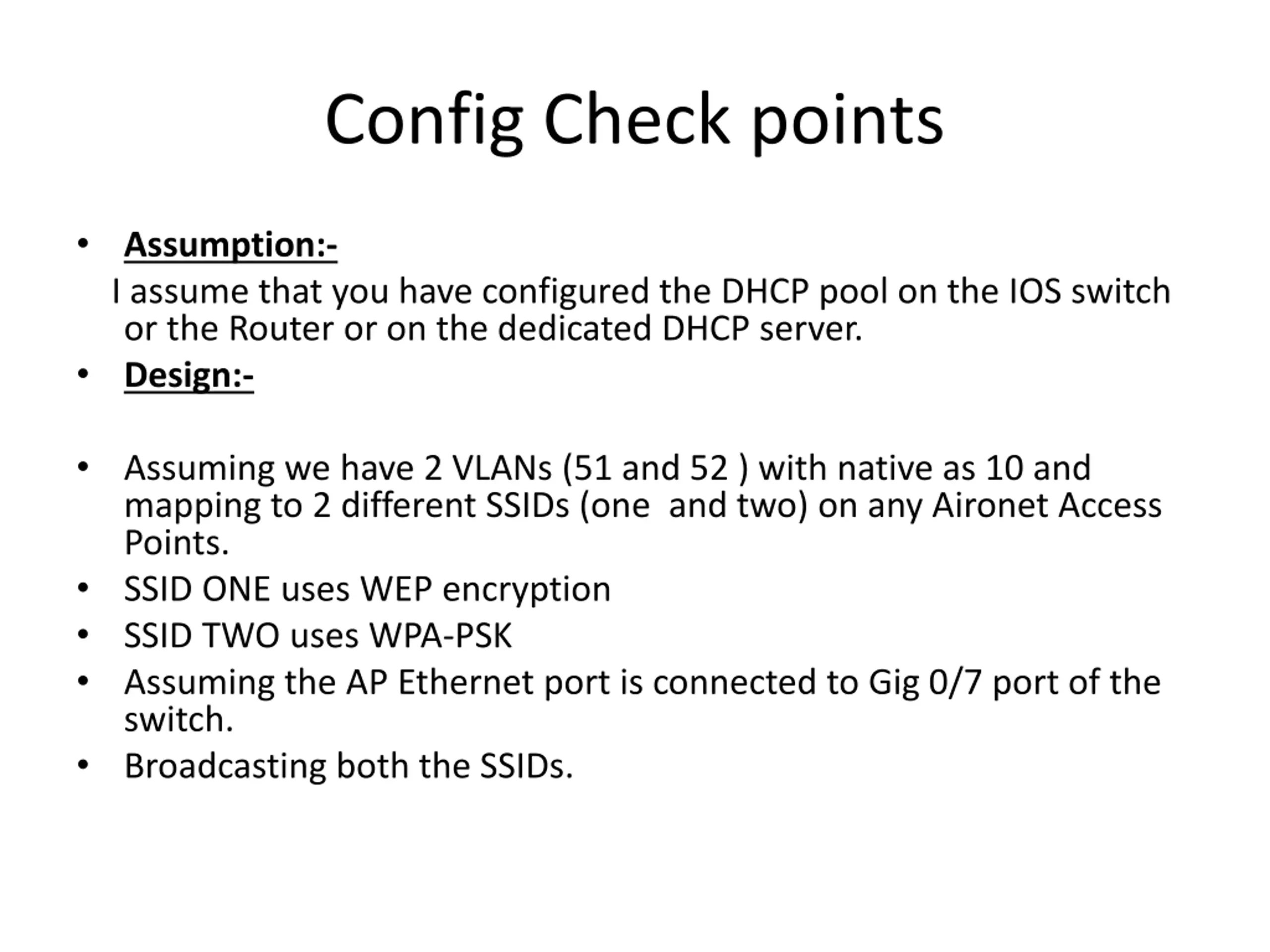

Config Check points Assumption:- I assume that you have configured the DHCP pool on the IOS switch or the Router or on the dedicated DHCP server. Design:- Assuming we have 2 VLANs (51 and 52 ) with native as 10 and mapping to 2 different SSIDs (one and two) on any Aironet Access Points. SSID ONE uses WEP encryption SSID TWO uses WPA-PSK Assuming the AP Ethernet port is connected to Gig 0/7 port of the switch. Broadcasting both the SSIDs.

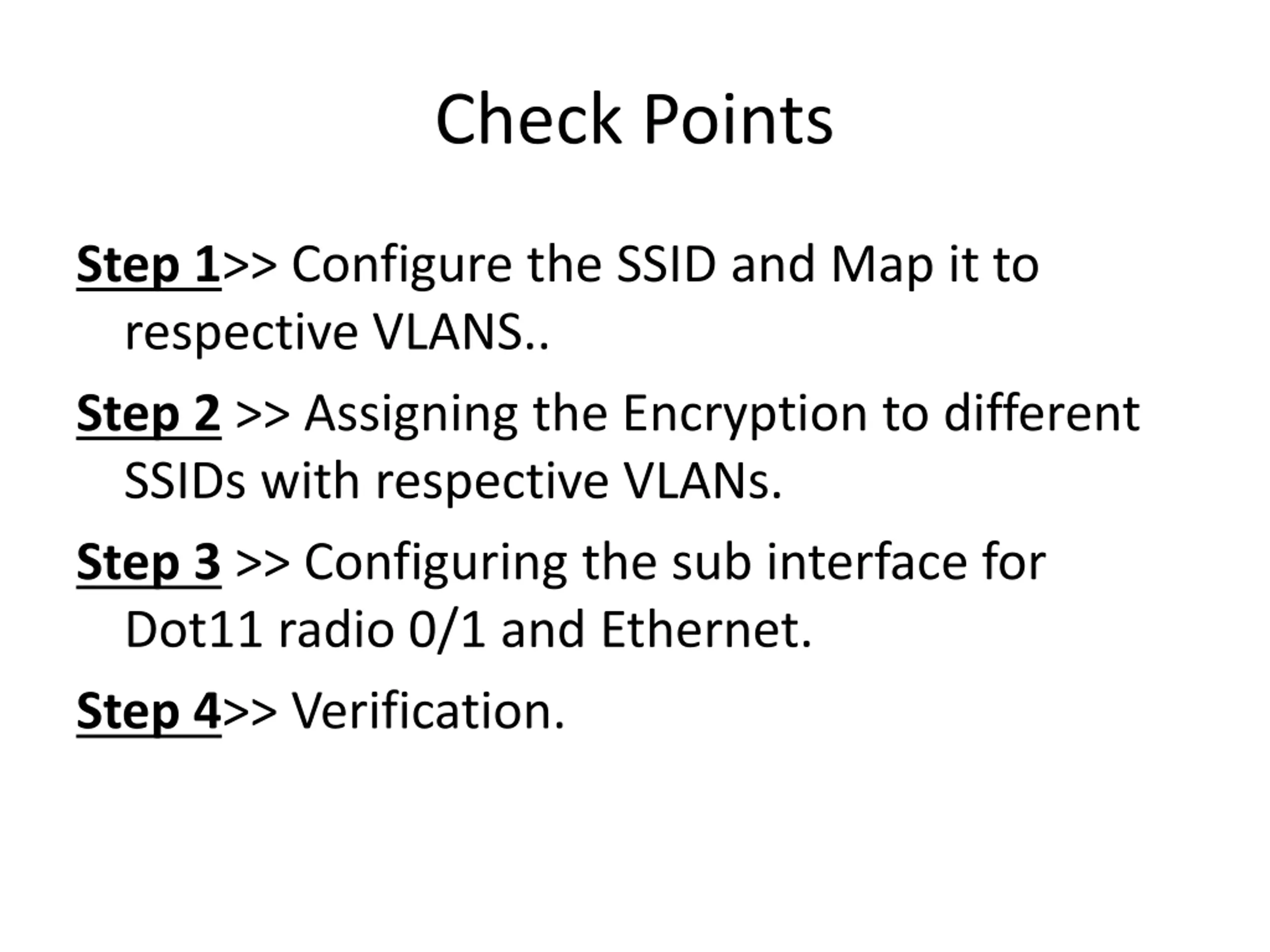

Check Points Step 1>> Configure the SSID and Map it to respective VLANS.. Step 2 >> Assigning the Encryption to different SSIDs with respective VLANs. Step 3 >> Configuring the sub interface for Dot11 radio 0/1 and Ethernet. Step 4>> Verification.

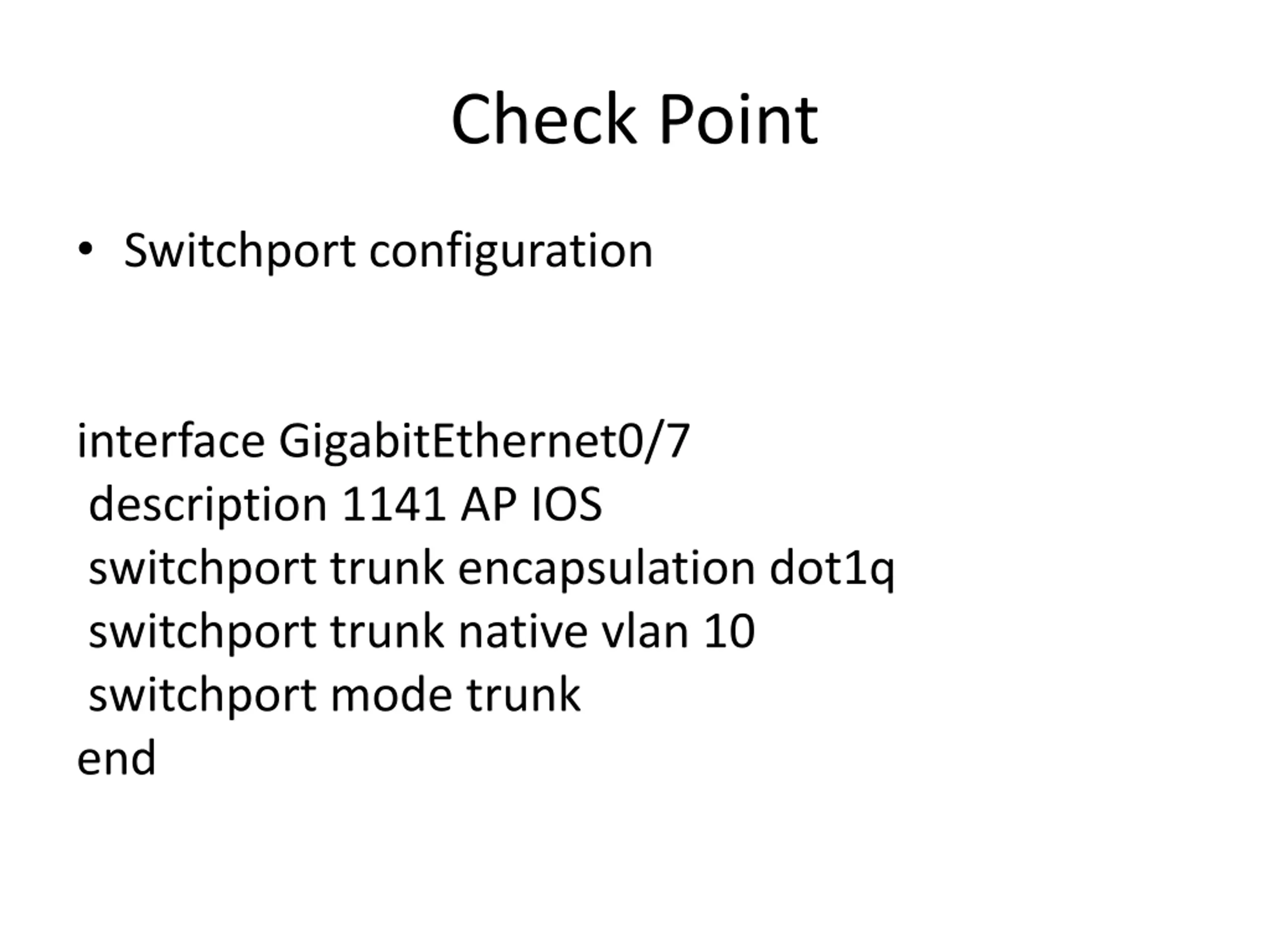

Check Point Switchport configuration interface GigabitEthernet0/7 description 1141 AP IOS switchport trunk encapsulation dot1q switchport trunk native vlan 10 switchport mode trunk end

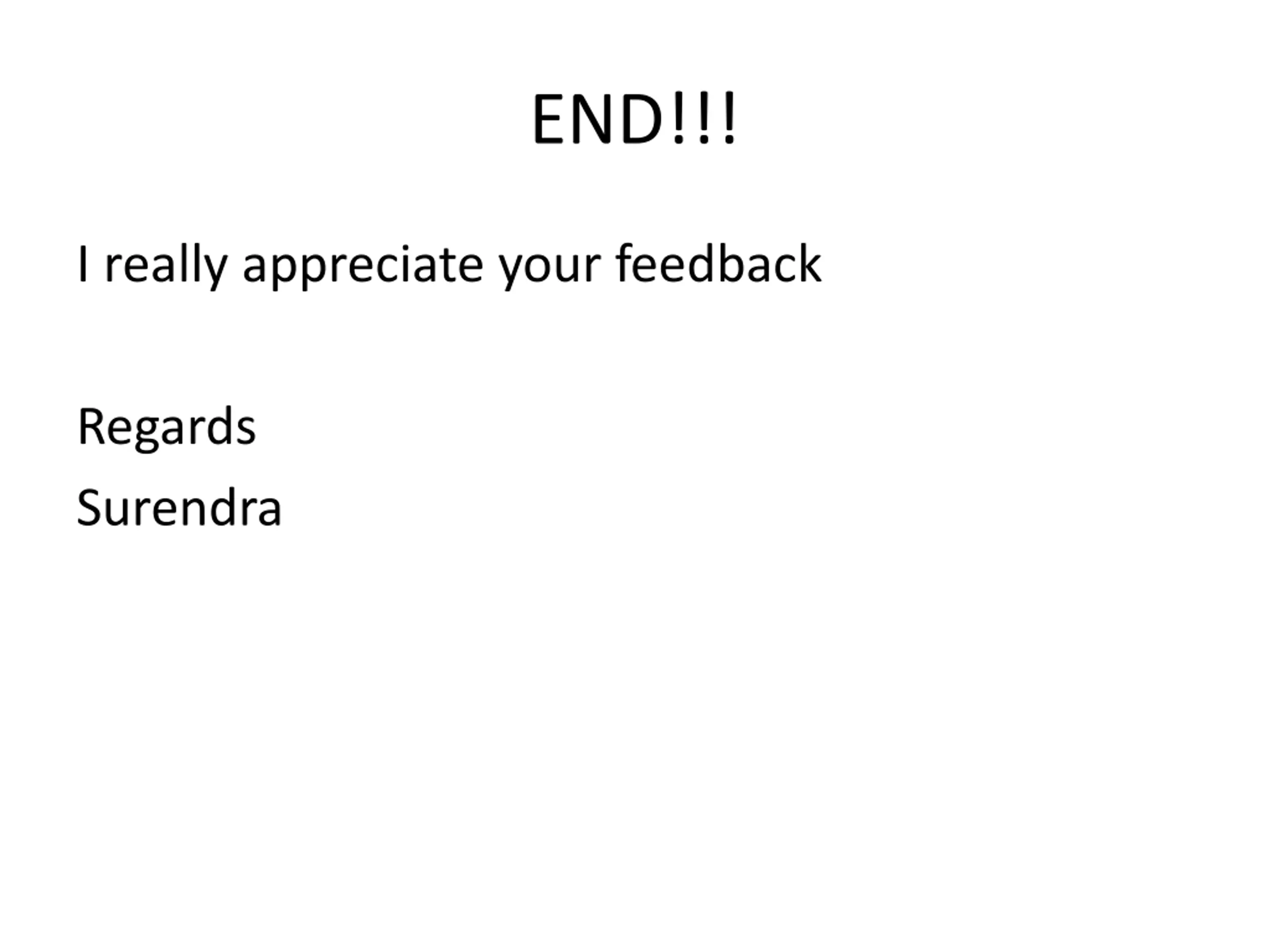

END!!! I really appreciate your feedback Regards Surendra
