Paul Larsen/Steve Melan Principal Program Manager, Microsoft / Integration MVP Connecting enterprise applications to IBM mainframe systems

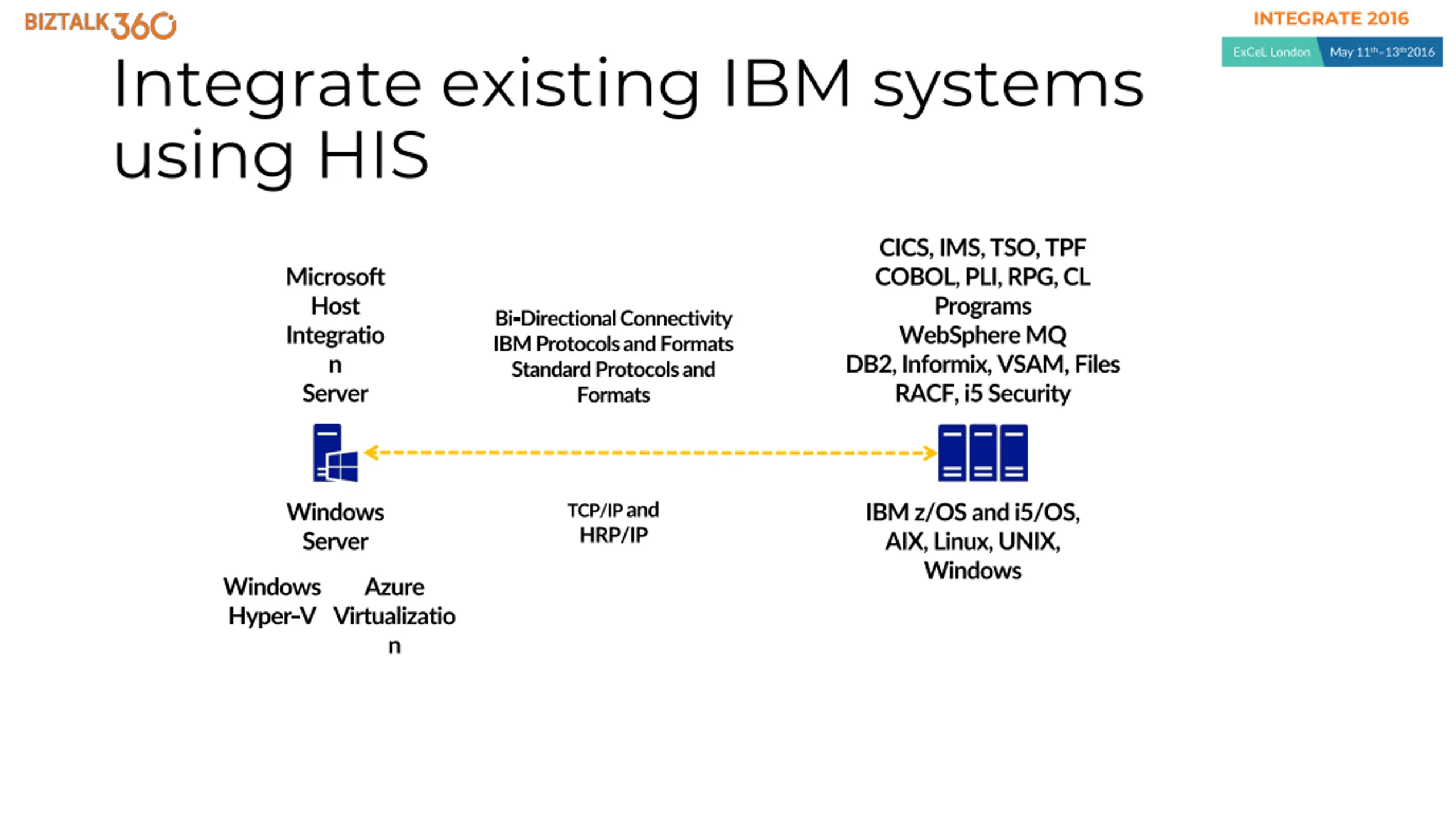

INTEGRATE 2016 Integrate existing IBM systems using HIS ExCeL London May 11th 13th2016 CICS, IMS, TSO, TPF COBOL, PLI, RPG, CL Programs WebSphere MQ DB2, Informix, VSAM, Files RACF, i5 Security Microsoft Host Integratio n Server Bi-Directional Connectivity IBM Protocols and Formats Standard Protocols and Formats TCP/IPand HRP/IP Windows Server IBM z/OS and i5/OS, AIX, Linux, UNIX, Windows Windows Hyper-V Azure Virtualizatio n

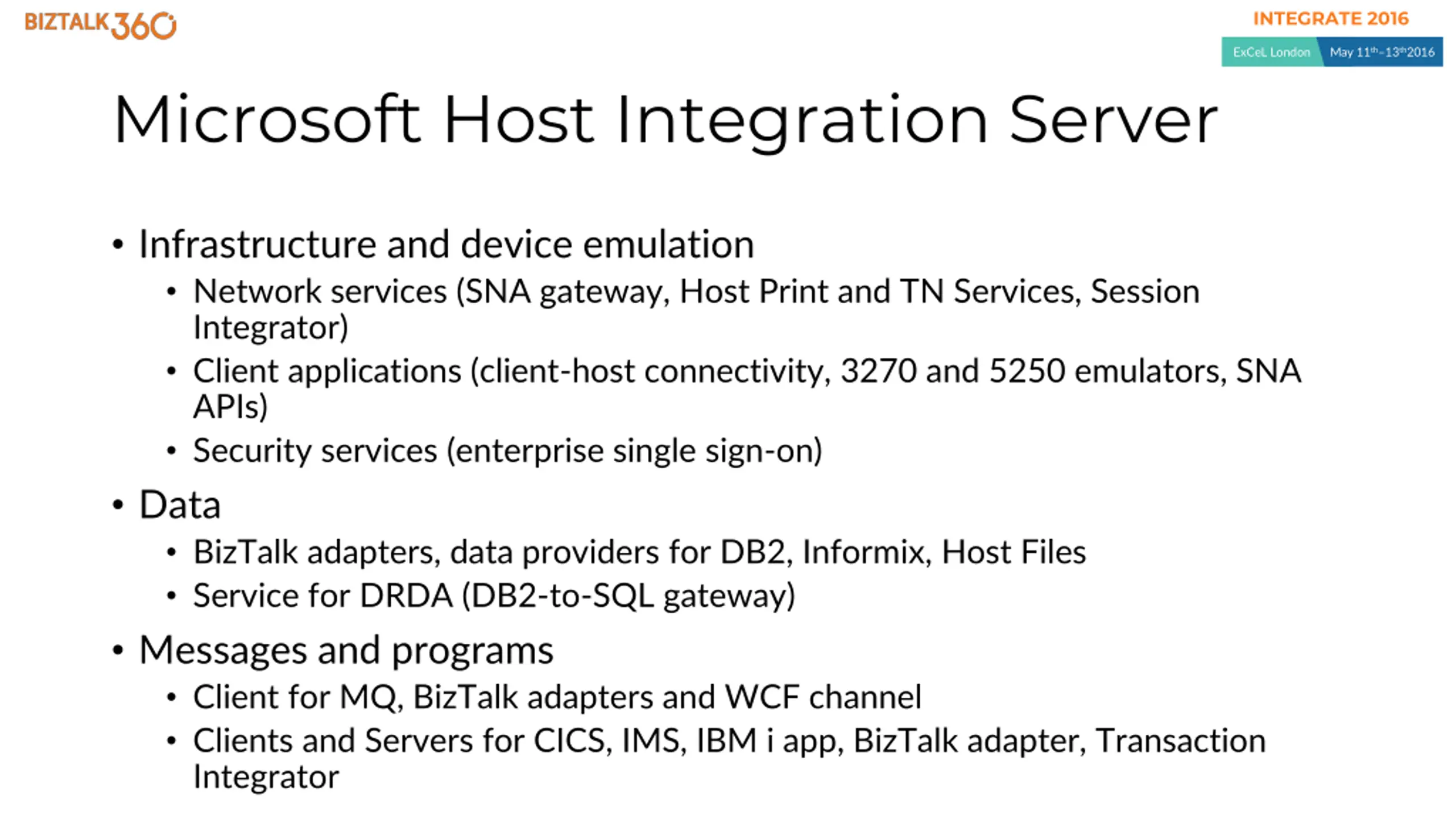

INTEGRATE 2016 ExCeL London May 11th 13th2016 Microsoft Host Integration Server Infrastructure and device emulation Network services (SNA gateway, Host Print and TN Services, Session Integrator) Client applications (client-host connectivity, 3270 and 5250 emulators, SNA APIs) Security services (enterprise single sign-on) Data BizTalk adapters, data providers for DB2, Informix, Host Files Service for DRDA (DB2-to-SQL gateway) Messages and programs Client for MQ, BizTalk adapters and WCF channel Clients and Servers for CICS, IMS, IBM i app, BizTalk adapter, Transaction Integrator

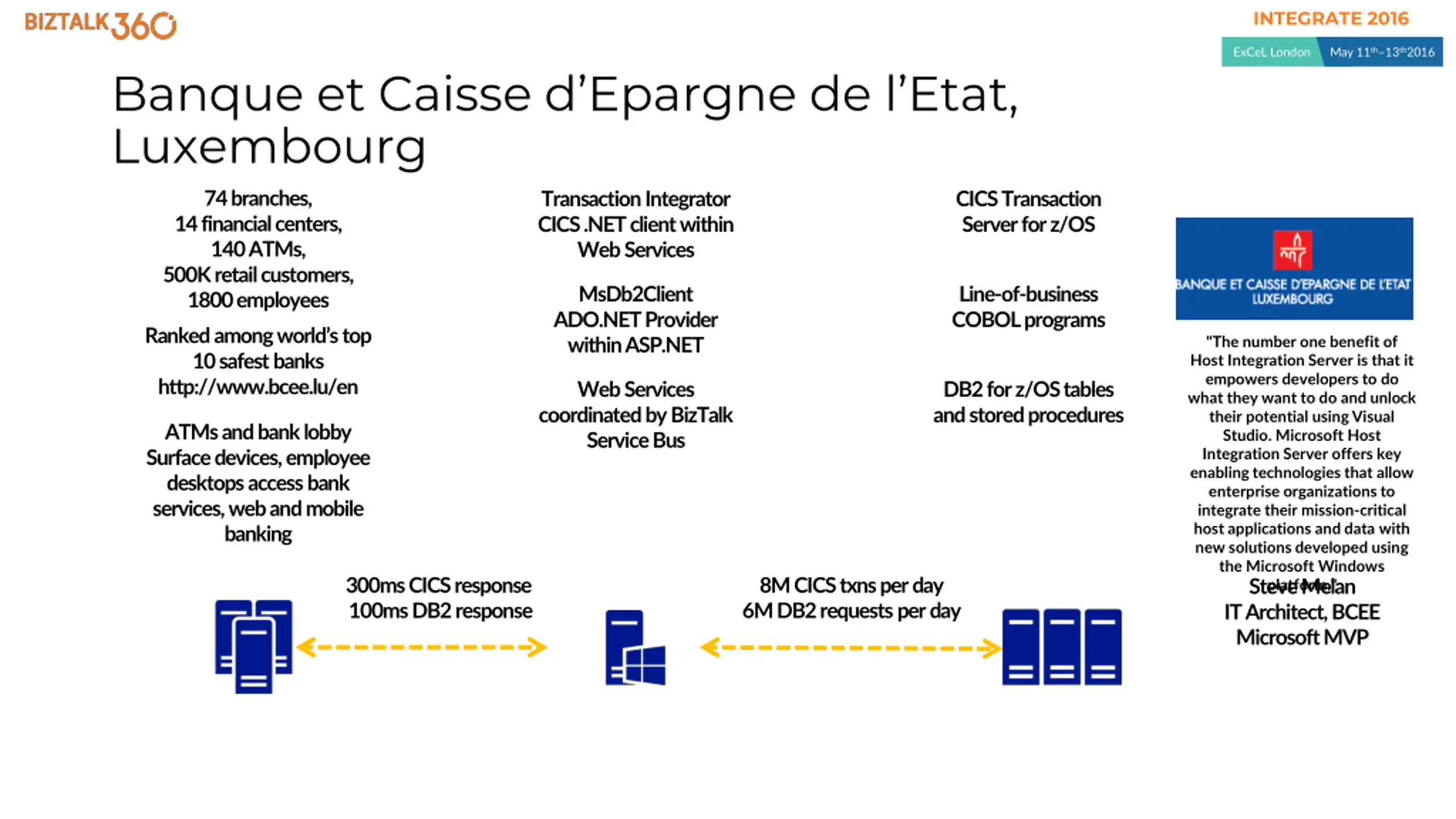

INTEGRATE 2016 ExCeL London May 11th 13th2016 Banque et Caisse d Epargne de l Etat, Luxembourg Transaction Integrator CICS .NET client within 14 financial centers, 140 ATMs, 500K retail customers, 1800 employees Ranked among world s top 10 safest banks http://www.bcee.lu/en 74 branches, CICS Transaction Server for z/OS Web Services MsDb2Client ADO.NET Provider within ASP.NET Line-of-business COBOL programs "The number one benefit of Host Integration Server is that it empowers developers to do what they want to do and unlock their potential using Visual Studio. Microsoft Host Integration Server offers key enabling technologies that allow enterprise organizations to integrate their mission-critical host applications and data with new solutions developed using the Microsoft Windows platform." Steve Melan IT Architect, BCEE Microsoft MVP Web Services coordinated by BizTalk Service Bus DB2 for z/OS tables and stored procedures ATMs and bank lobby Surface devices, employee desktops access bank services, web and mobile banking 300ms CICS response 100ms DB2 response 8M CICS txns per day 6M DB2 requests per day

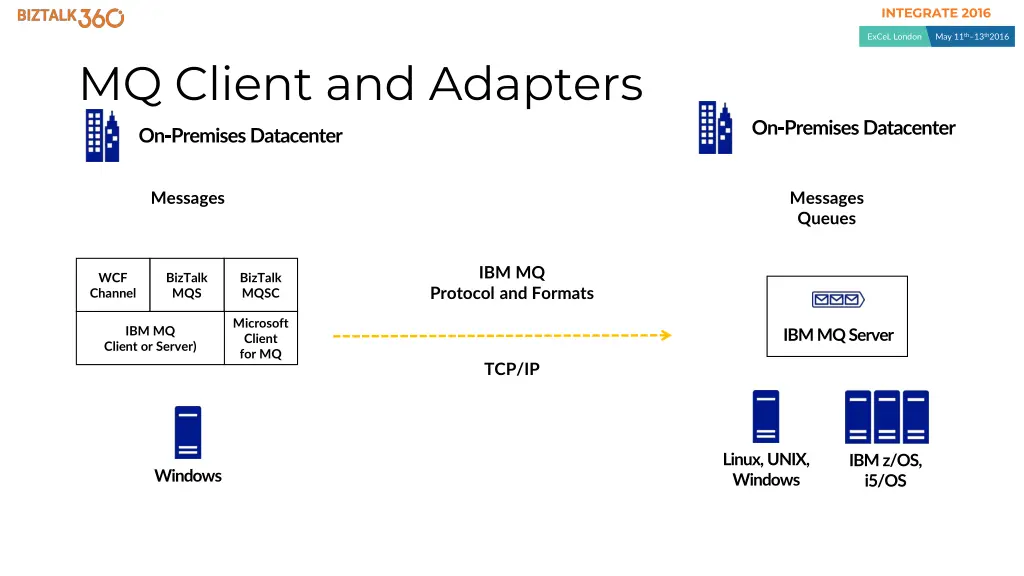

INTEGRATE 2016 ExCeL London May 11th 13th2016 MQ Client and Adapters On-Premises Datacenter On-Premises Datacenter Messages Messages Queues IBM MQ WCF Channel BizTalk MQS BizTalk MQSC Protocol and Formats Microsoft Client for MQ IBM MQ Client or Server) IBM MQ Server TCP/IP Linux, UNIX, Windows IBM z/OS, i5/OS Windows

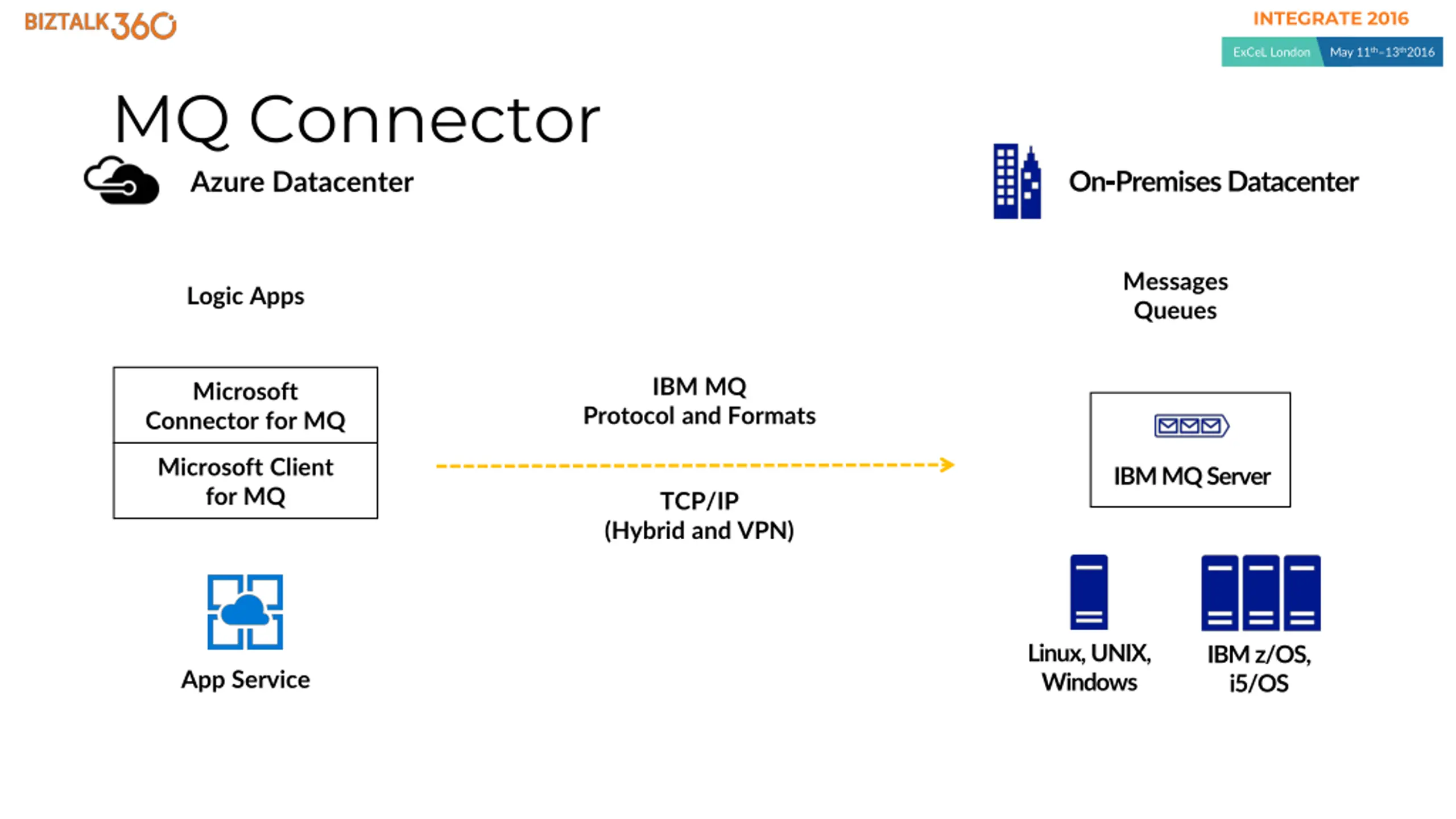

INTEGRATE 2016 ExCeL London May 11th 13th2016 MQ Connector Azure Datacenter On-Premises Datacenter Messages Queues Logic Apps IBM MQ Microsoft Connector for MQ Protocol and Formats Microsoft Client for MQ IBM MQ Server TCP/IP (Hybrid and VPN) Linux, UNIX, Windows IBM z/OS, i5/OS App Service

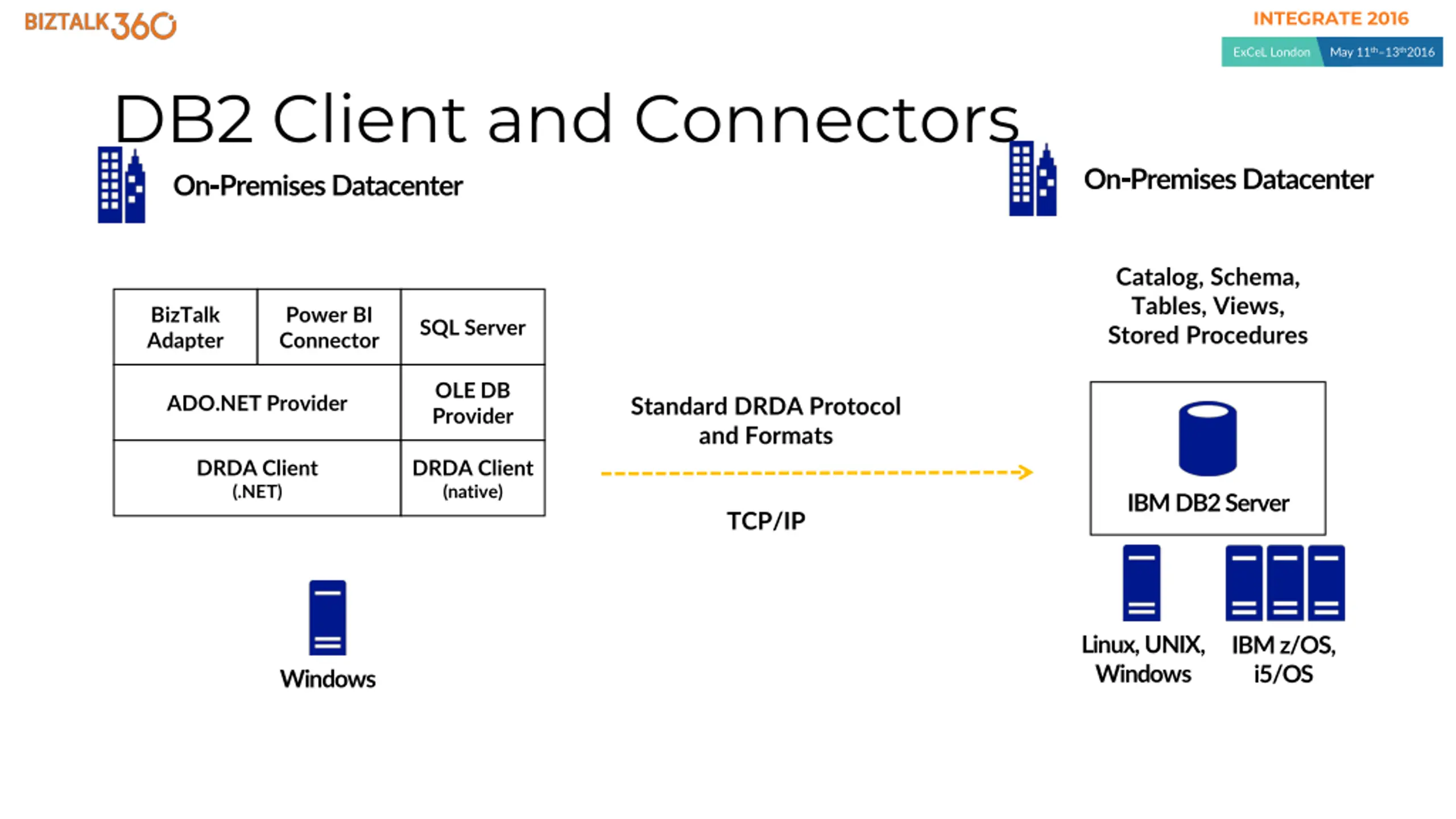

INTEGRATE 2016 ExCeL London May 11th 13th2016 DB2 Client and Connectors On-Premises Datacenter On-Premises Datacenter Catalog, Schema, Tables, Views, Stored Procedures BizTalk Adapter Power BI Connector SQL Server OLE DB Provider ADO.NET Provider Standard DRDA Protocol and Formats DRDA Client (.NET) DRDA Client (native) IBM DB2 Server TCP/IP Linux, UNIX, Windows IBM z/OS, i5/OS Windows

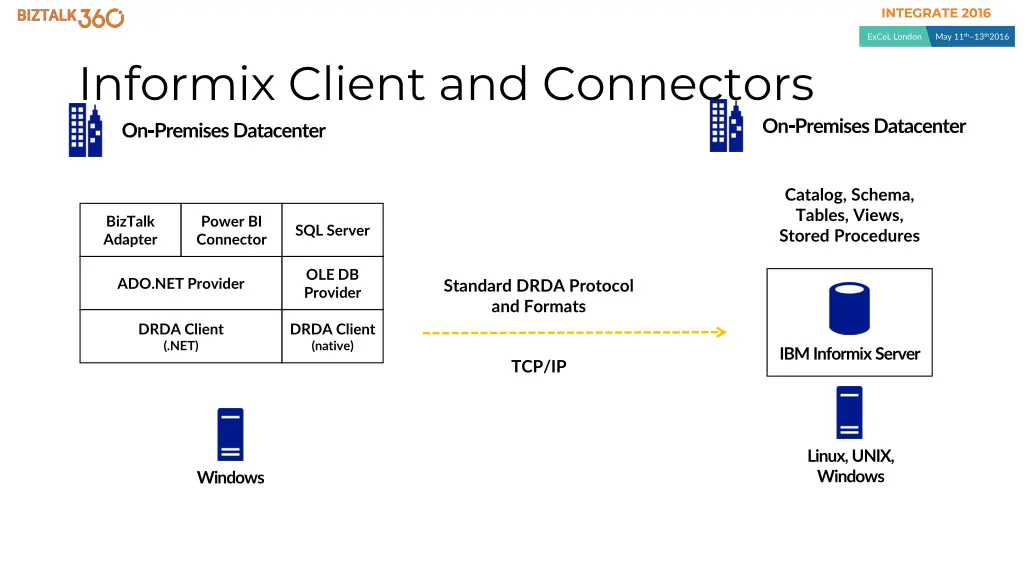

INTEGRATE 2016 ExCeL London May 11th 13th2016 Informix Client and Connectors On-Premises Datacenter On-Premises Datacenter Catalog, Schema, Tables, Views, Stored Procedures BizTalk Adapter Power BI Connector SQL Server OLE DB Provider ADO.NET Provider Standard DRDA Protocol and Formats DRDA Client (.NET) DRDA Client (native) IBM Informix Server TCP/IP Linux, UNIX, Windows Windows

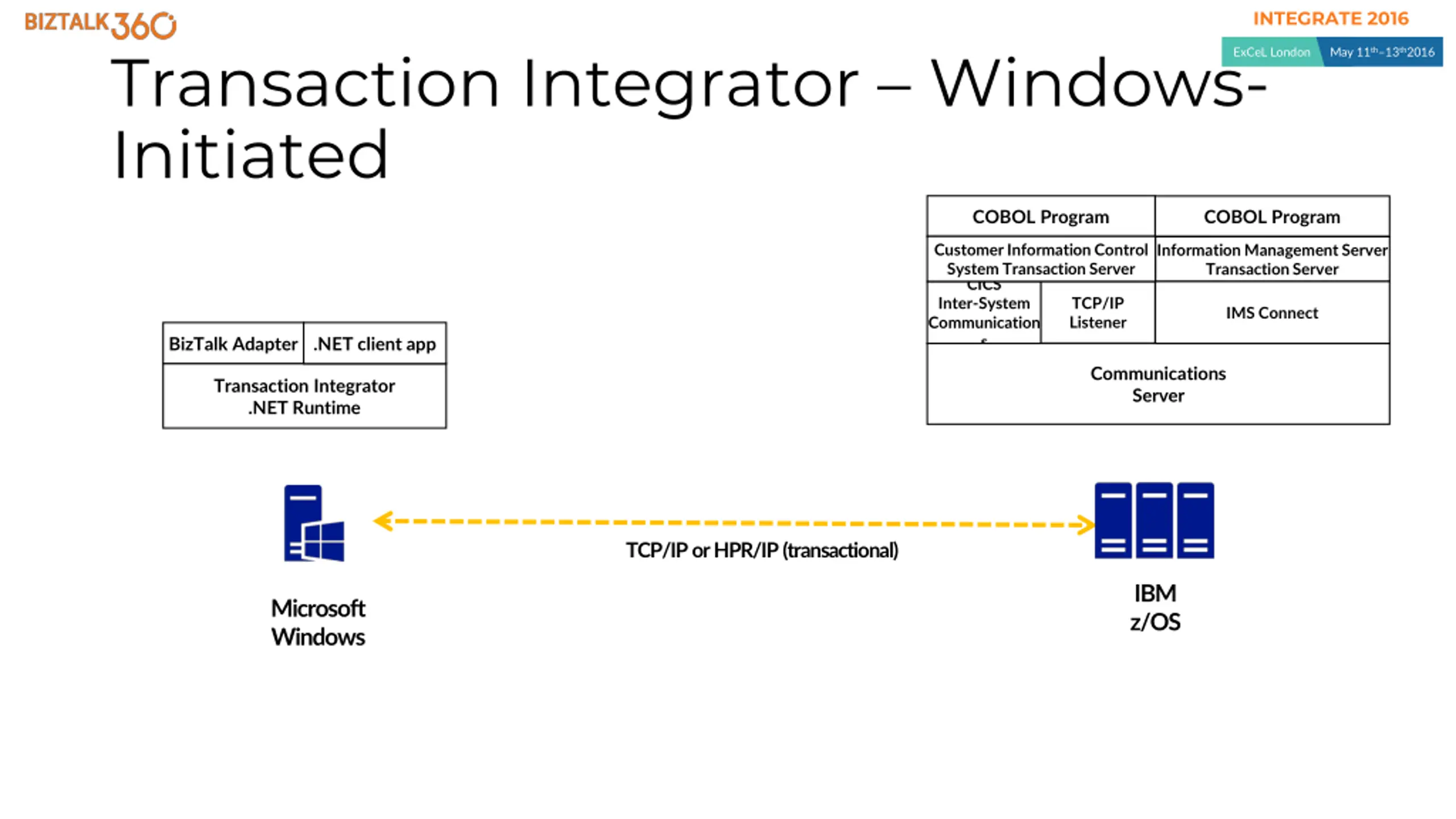

INTEGRATE 2016 Transaction Integrator Windows- Initiated ExCeL London May 11th 13th2016 COBOL Program COBOL Program Customer Information Control System Transaction Server Information Management Server Transaction Server CICS TCP/IP Listener Inter-System Communication s IMS Connect BizTalk Adapter .NET client app Communications Server Transaction Integrator .NET Runtime TCP/IP or HPR/IP (transactional) IBM z/OS Microsoft Windows

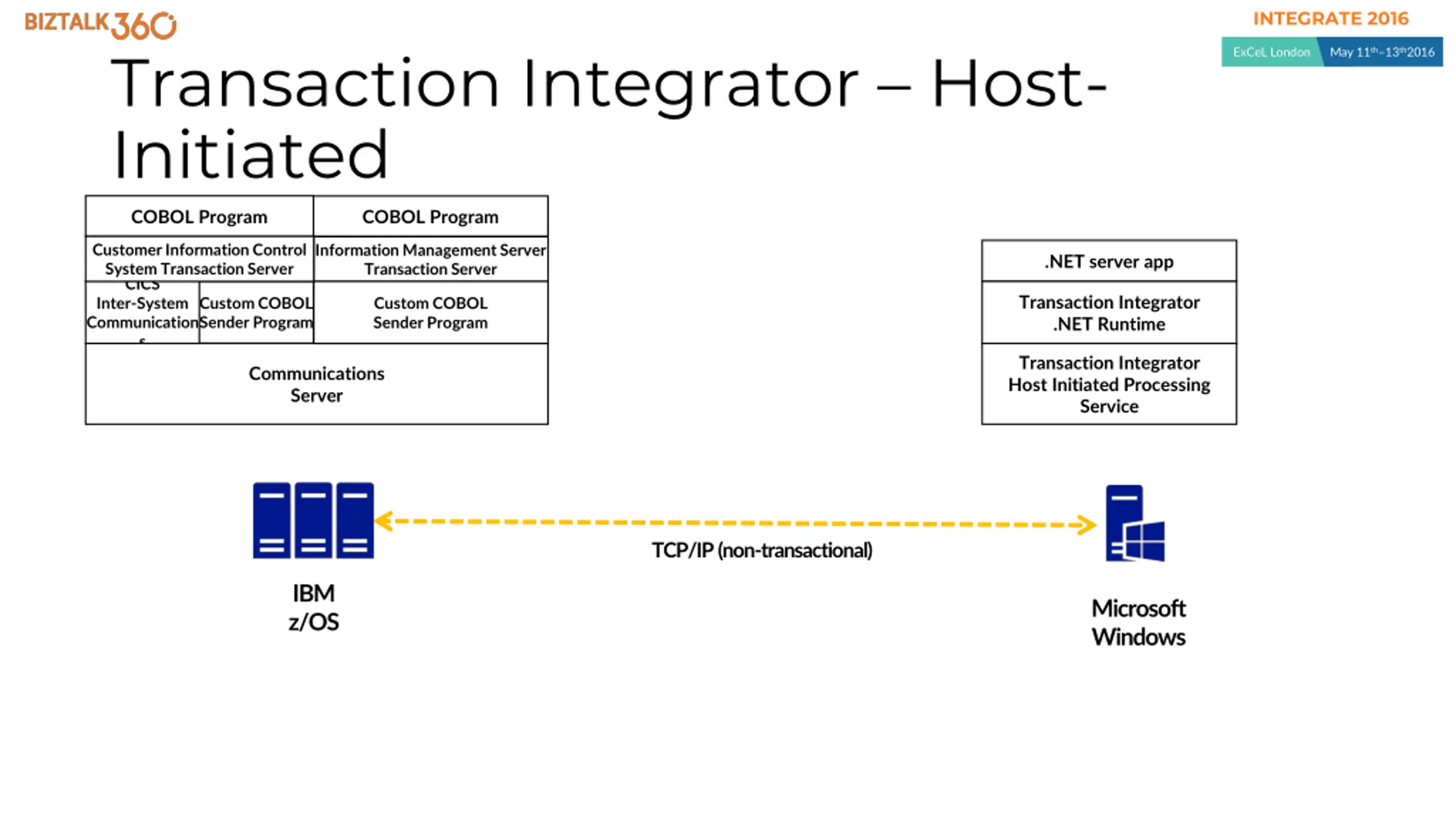

INTEGRATE 2016 Transaction Integrator Host- Initiated ExCeL London May 11th 13th2016 COBOL Program COBOL Program Customer Information Control System Transaction Server Information Management Server Transaction Server .NET server app CICS Transaction Integrator .NET Runtime Inter-System Communication s Custom COBOL Sender Program Custom COBOL Sender Program Transaction Integrator Host Initiated Processing Service Communications Server TCP/IP (non-transactional) IBM z/OS Microsoft Windows

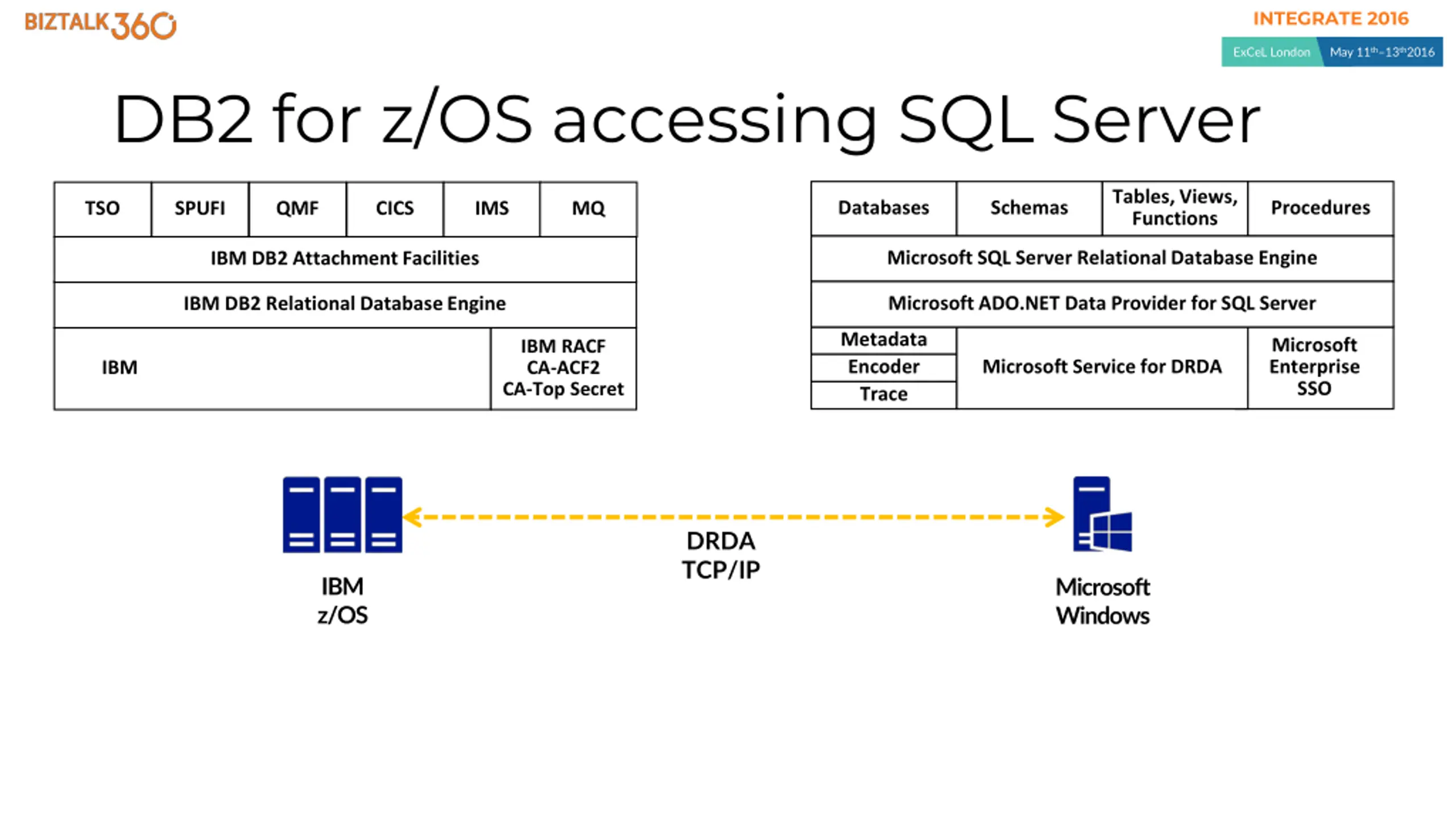

INTEGRATE 2016 ExCeL London May 11th 13th2016 DB2 for z/OS accessing SQL Server Tables, Views, Functions Databases Schemas Procedures TSO SPUFI QMF CICS IMS MQ Microsoft SQL Server Relational Database Engine IBM DB2 Attachment Facilities Microsoft ADO.NET Data Provider for SQL Server IBM DB2 Relational Database Engine Metadata Encoder Trace Microsoft Enterprise SSO IBM RACF CA-ACF2 CA-Top Secret Microsoft Service for DRDA IBM Distributed Data Facility for DRDA DRDA TCP/IP IBM z/OS Microsoft Windows

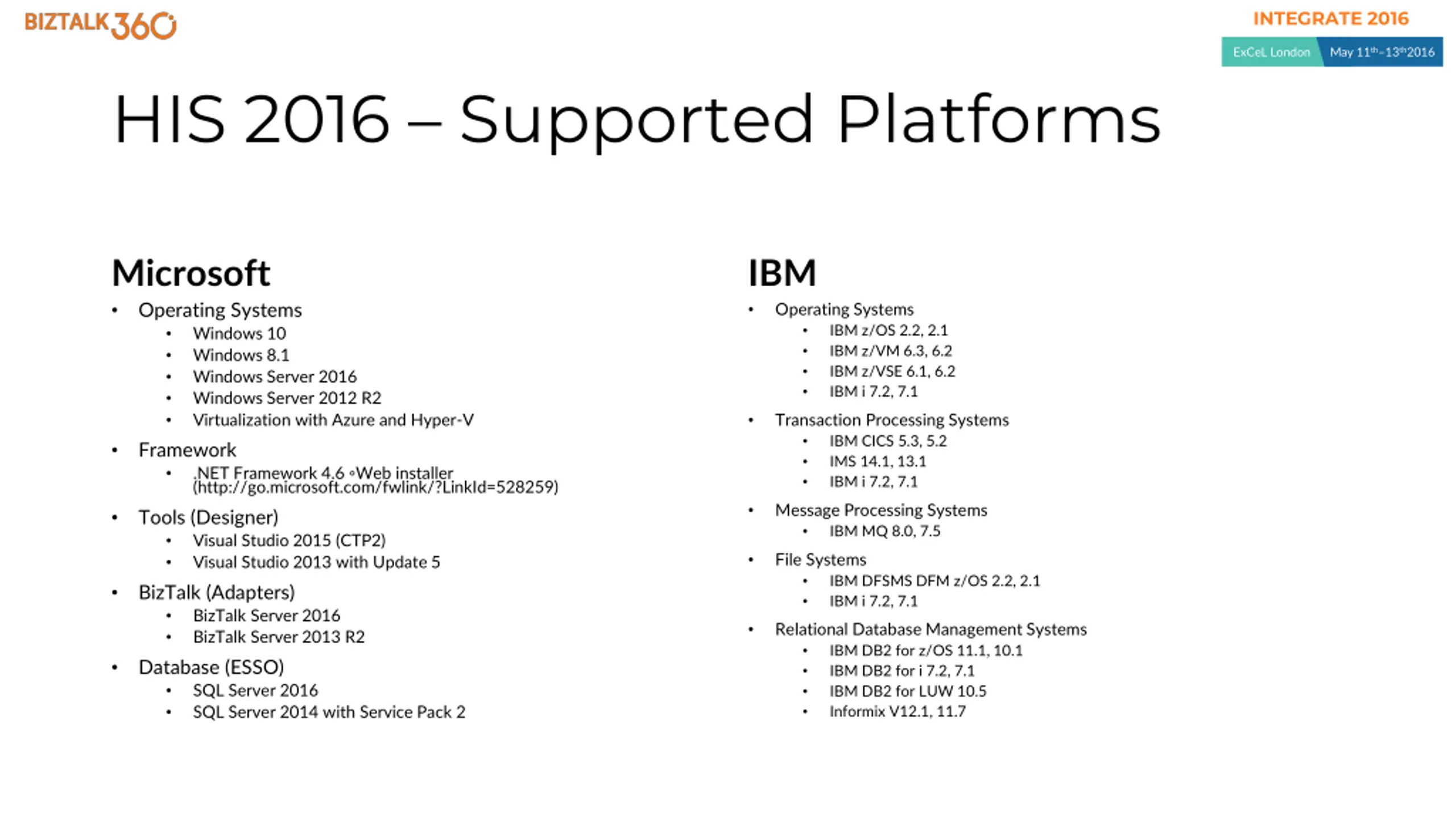

INTEGRATE 2016 ExCeL London May 11th 13th2016 HIS 2016 Supported Platforms Microsoft Operating Systems Windows 10 Windows 8.1 Windows Server 2016 Windows Server 2012 R2 Virtualization with Azure and Hyper-V Framework .NET Framework 4.6 Web installer (http://go.microsoft.com/fwlink/?LinkId=528259) Tools (Designer) Visual Studio 2015 (CTP2) Visual Studio 2013 with Update 5 BizTalk (Adapters) BizTalk Server 2016 BizTalk Server 2013 R2 Database (ESSO) SQL Server 2016 SQL Server 2014 with Service Pack 2 IBM Operating Systems IBM z/OS 2.2, 2.1 IBM z/VM 6.3, 6.2 IBM z/VSE 6.1, 6.2 IBM i 7.2, 7.1 Transaction Processing Systems IBM CICS 5.3, 5.2 IMS 14.1, 13.1 IBM i 7.2, 7.1 Message Processing Systems IBM MQ 8.0, 7.5 File Systems IBM DFSMS DFM z/OS 2.2, 2.1 IBM i 7.2, 7.1 Relational Database Management Systems IBM DB2 for z/OS 11.1, 10.1 IBM DB2 for i 7.2, 7.1 IBM DB2 for LUW 10.5 Informix V12.1, 11.7

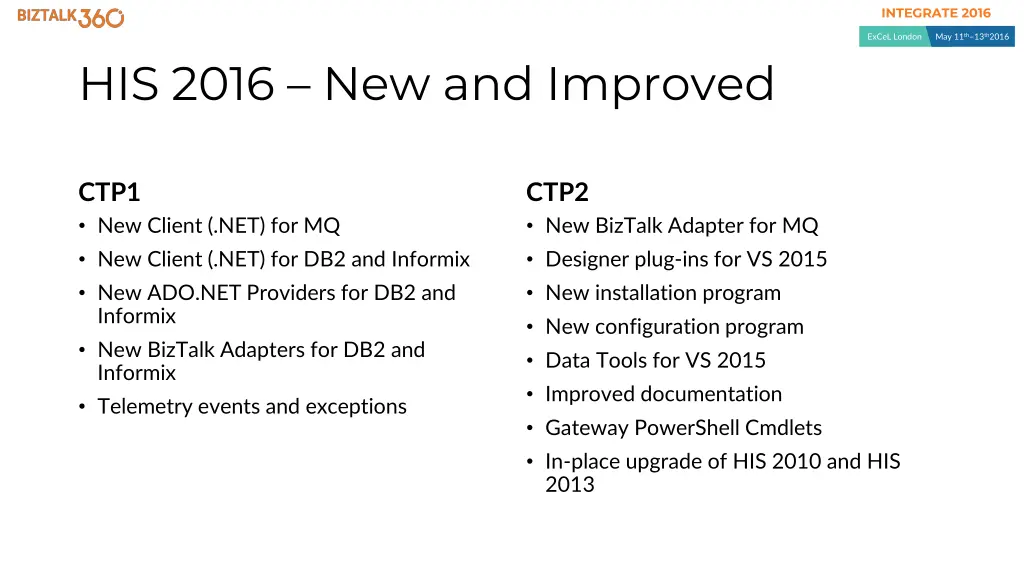

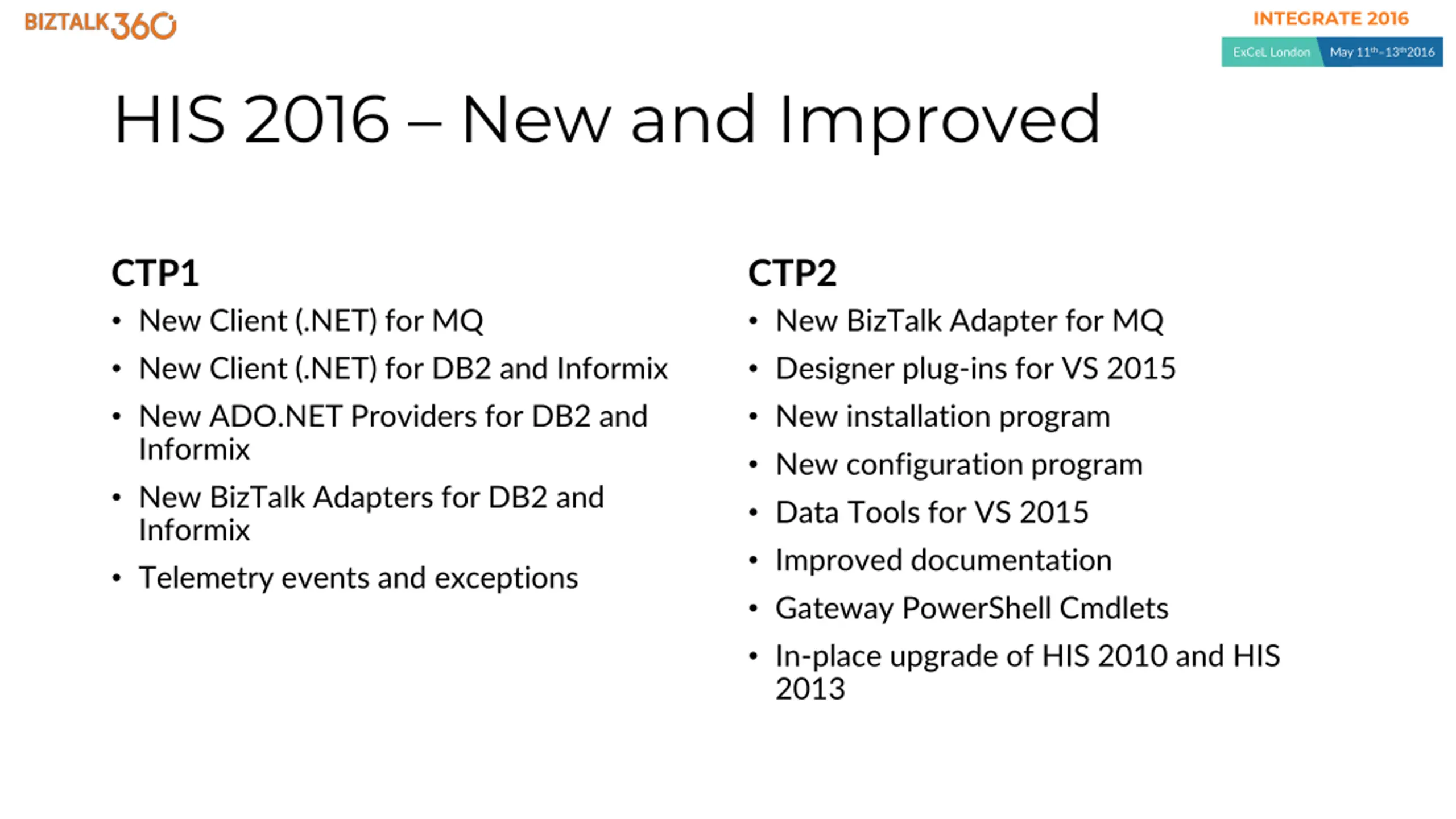

INTEGRATE 2016 ExCeL London May 11th 13th2016 HIS 2016 New and Improved CTP1 New Client (.NET) for MQ New Client (.NET) for DB2 and Informix New ADO.NET Providers for DB2 and Informix New BizTalk Adapters for DB2 and Informix Telemetry events and exceptions CTP2 New BizTalk Adapter for MQ Designer plug-ins for VS 2015 New installation program New configuration program Data Tools for VS 2015 Improved documentation Gateway PowerShell Cmdlets In-place upgrade of HIS 2010 and HIS 2013
INTEGRATE 2016 ExCeL London May 11th 13th2016 Roadmap Power BI Connectors DB2 Informix SQL Server 2016 OLE DB Provider for DB2 SSMA for DB2 Azure Connectors DB2 MQ Informix Host Integration Server 2016 Community Technology Preview Rapid Deployment Technology Adoption Program

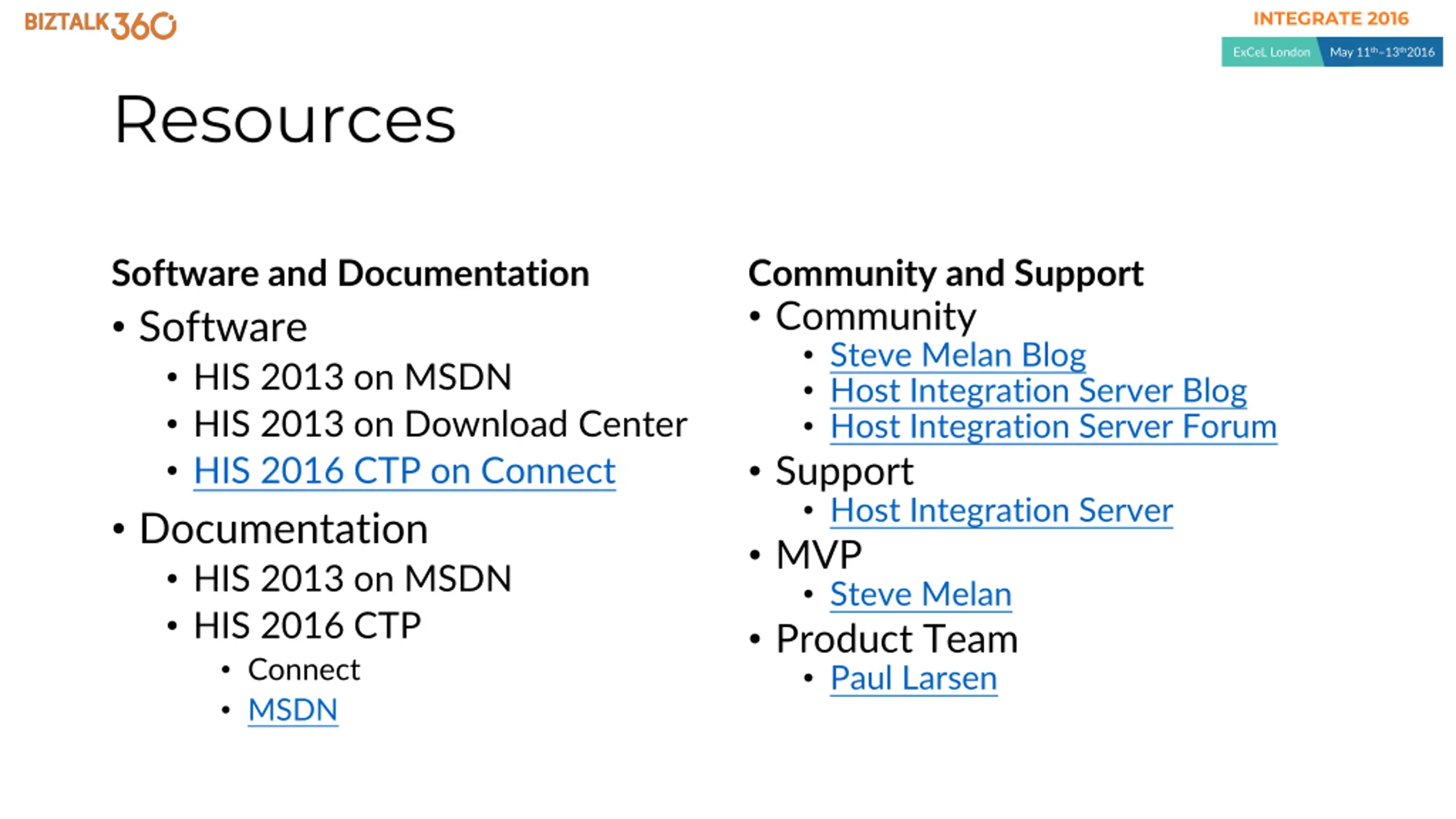

INTEGRATE 2016 ExCeL London May 11th 13th2016 Resources Software and Documentation Software HIS 2013 on MSDN HIS 2013 on Download Center HIS 2016 CTP on Connect Documentation HIS 2013 on MSDN HIS 2016 CTP Connect MSDN Community and Support Community Steve Melan Blog Host Integration Server Blog Host Integration Server Forum Support Host Integration Server MVP Steve Melan Product Team Paul Larsen
