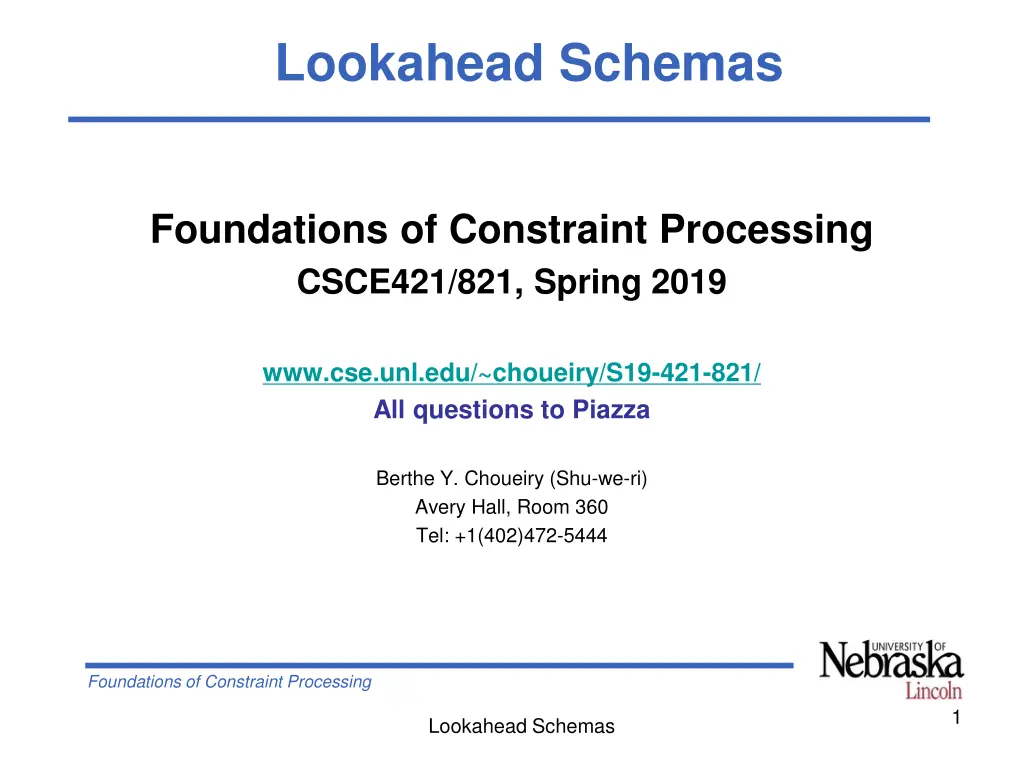

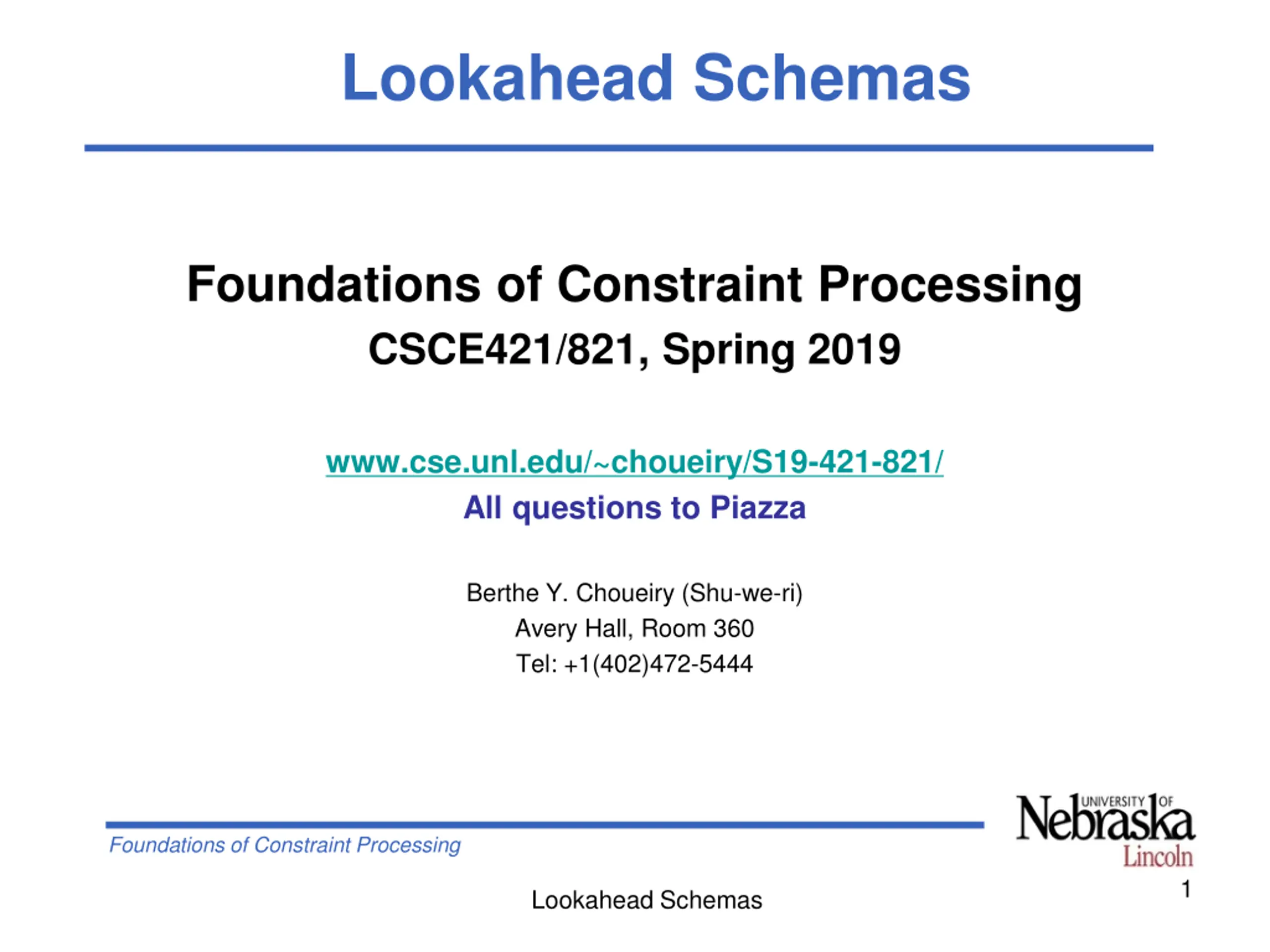

Lookahead Schemas Foundations of Constraint Processing CSCE421/821, Spring 2019 www.cse.unl.edu/~choueiry/S19-421-821/ All questions to Piazza Berthe Y. Choueiry (Shu-we-ri) Avery Hall, Room 360 Tel: +1(402)472-5444 Foundations of Constraint Processing 1 Lookahead Schemas

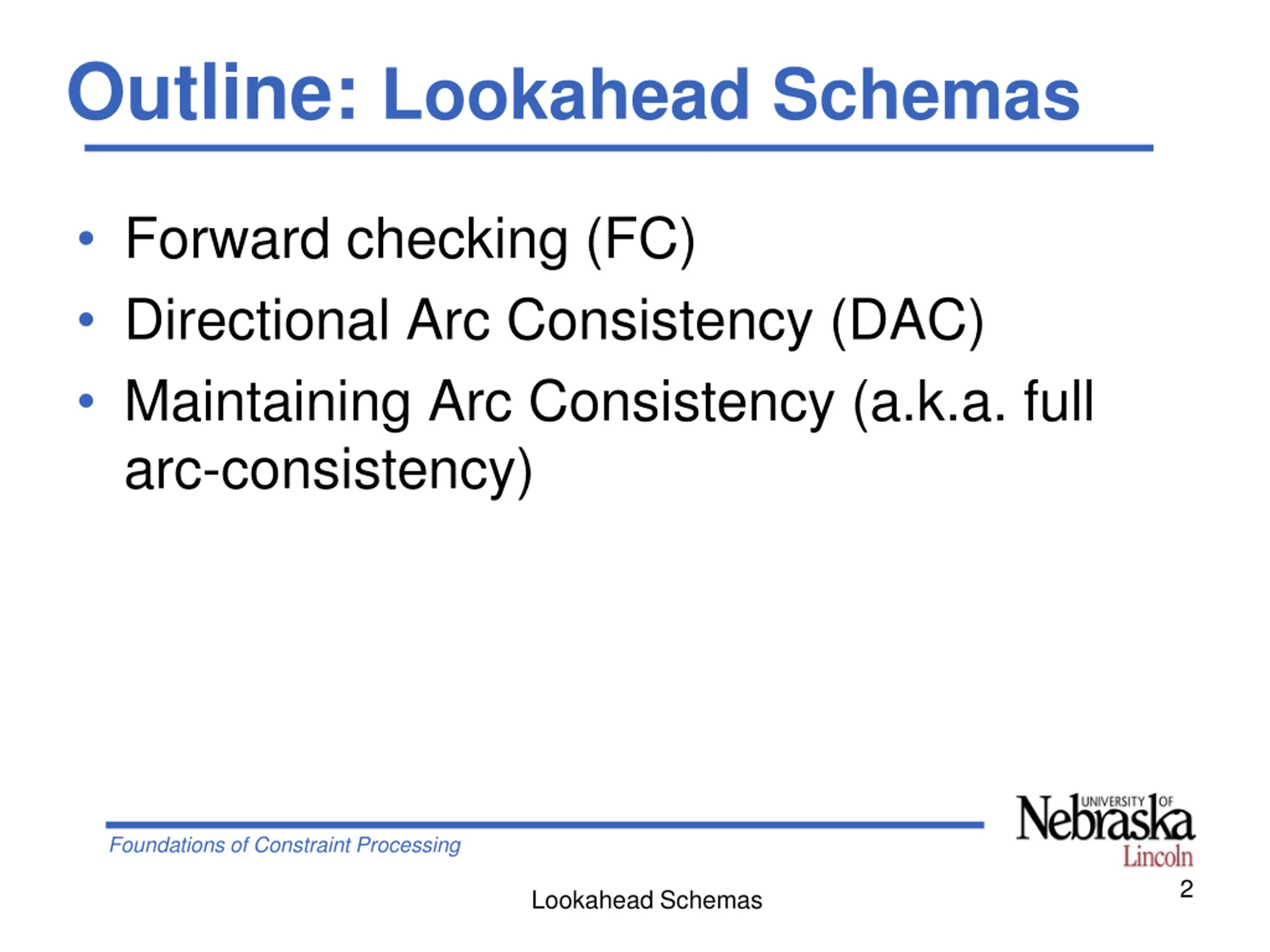

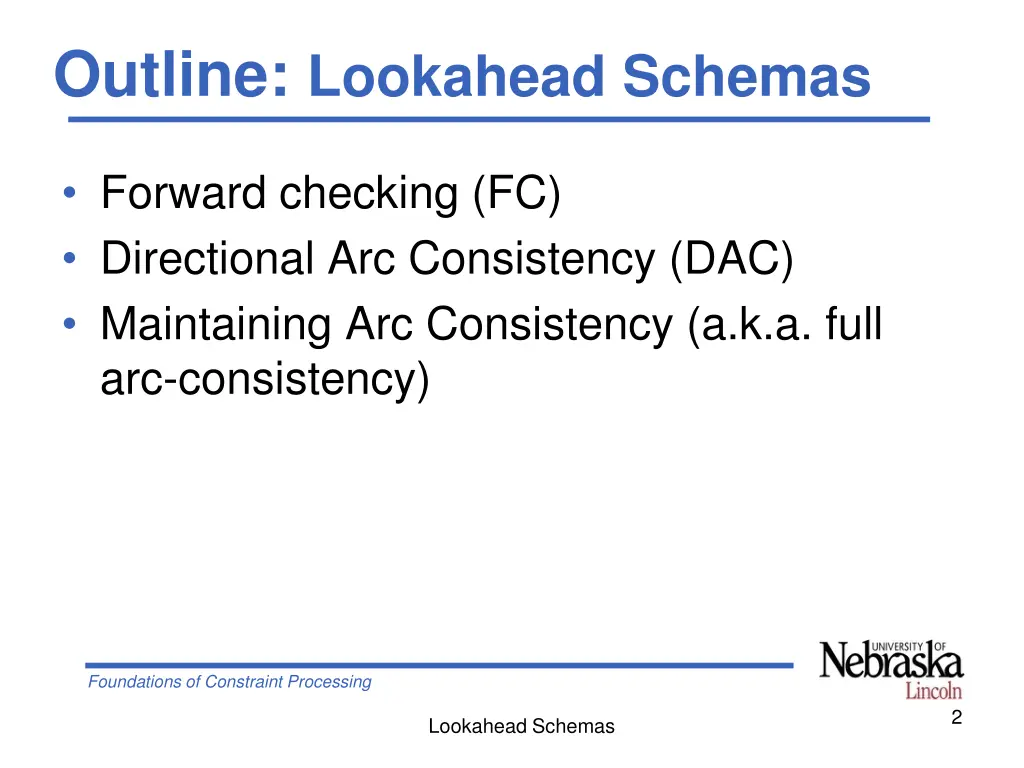

Outline: Lookahead Schemas Forward checking (FC) Directional Arc Consistency (DAC) Maintaining Arc Consistency (a.k.a. full arc-consistency) Foundations of Constraint Processing 2 Lookahead Schemas

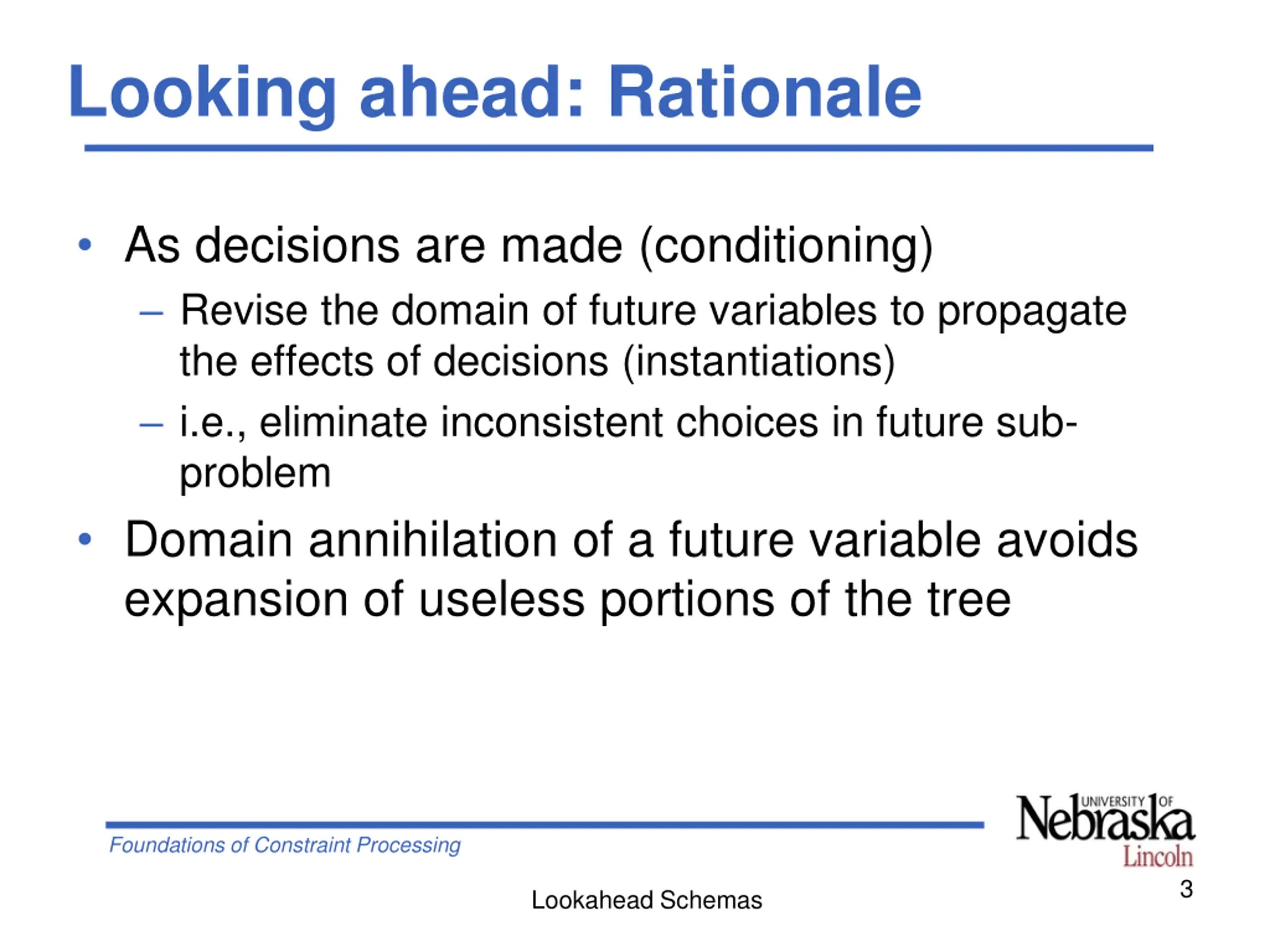

Looking ahead: Rationale As decisions are made (conditioning) Revise the domain of future variables to propagate the effects of decisions (instantiations) i.e., eliminate inconsistent choices in future sub- problem Domain annihilation of a future variable avoids expansion of useless portions of the tree Foundations of Constraint Processing 3 Lookahead Schemas

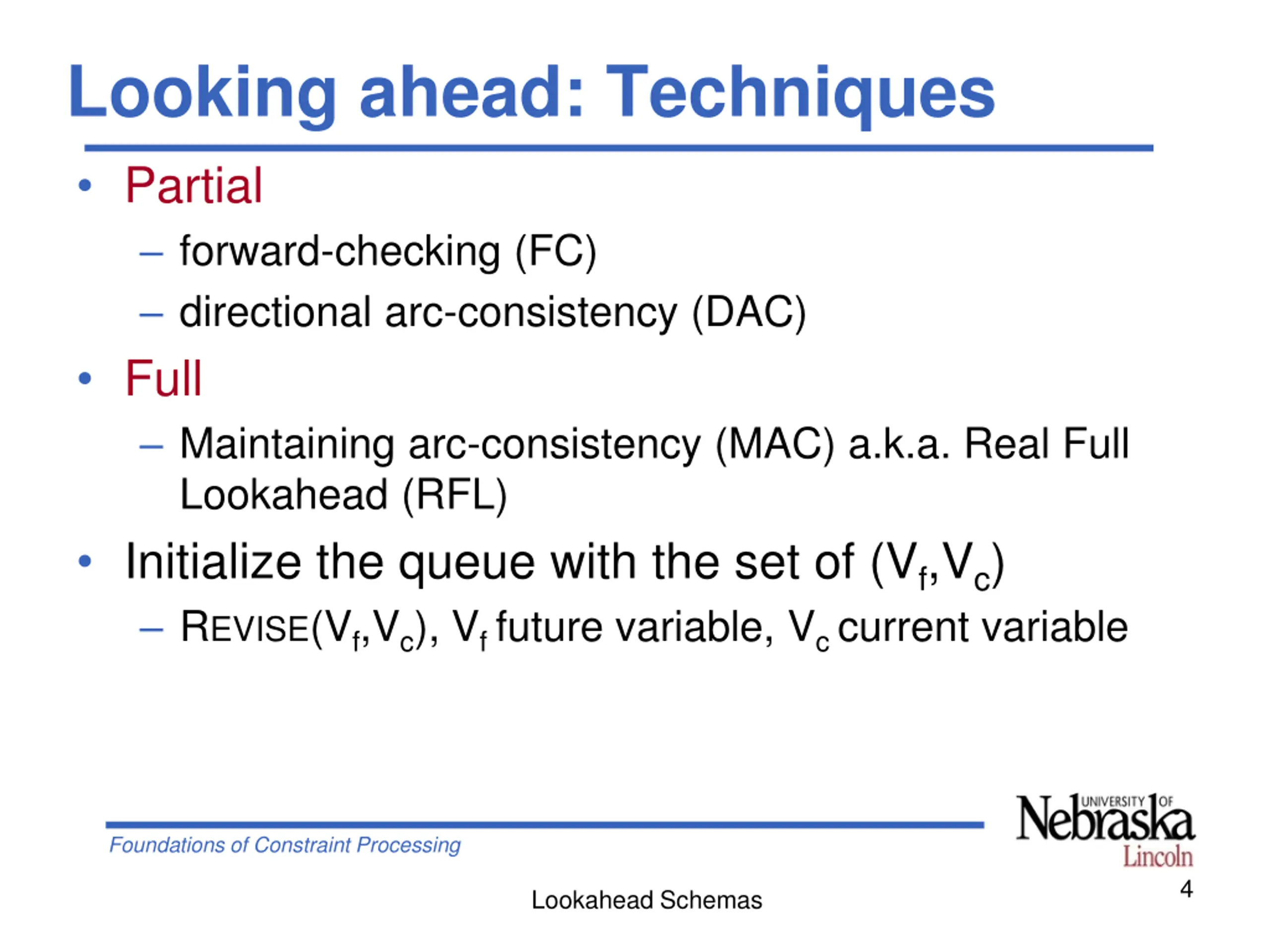

Looking ahead: Techniques Partial forward-checking (FC) directional arc-consistency (DAC) Full Maintaining arc-consistency (MAC) a.k.a. Real Full Lookahead (RFL) Initialize the queue with the set of (Vf,Vc) REVISE(Vf,Vc), Vffuture variable, Vccurrent variable Foundations of Constraint Processing 4 Lookahead Schemas

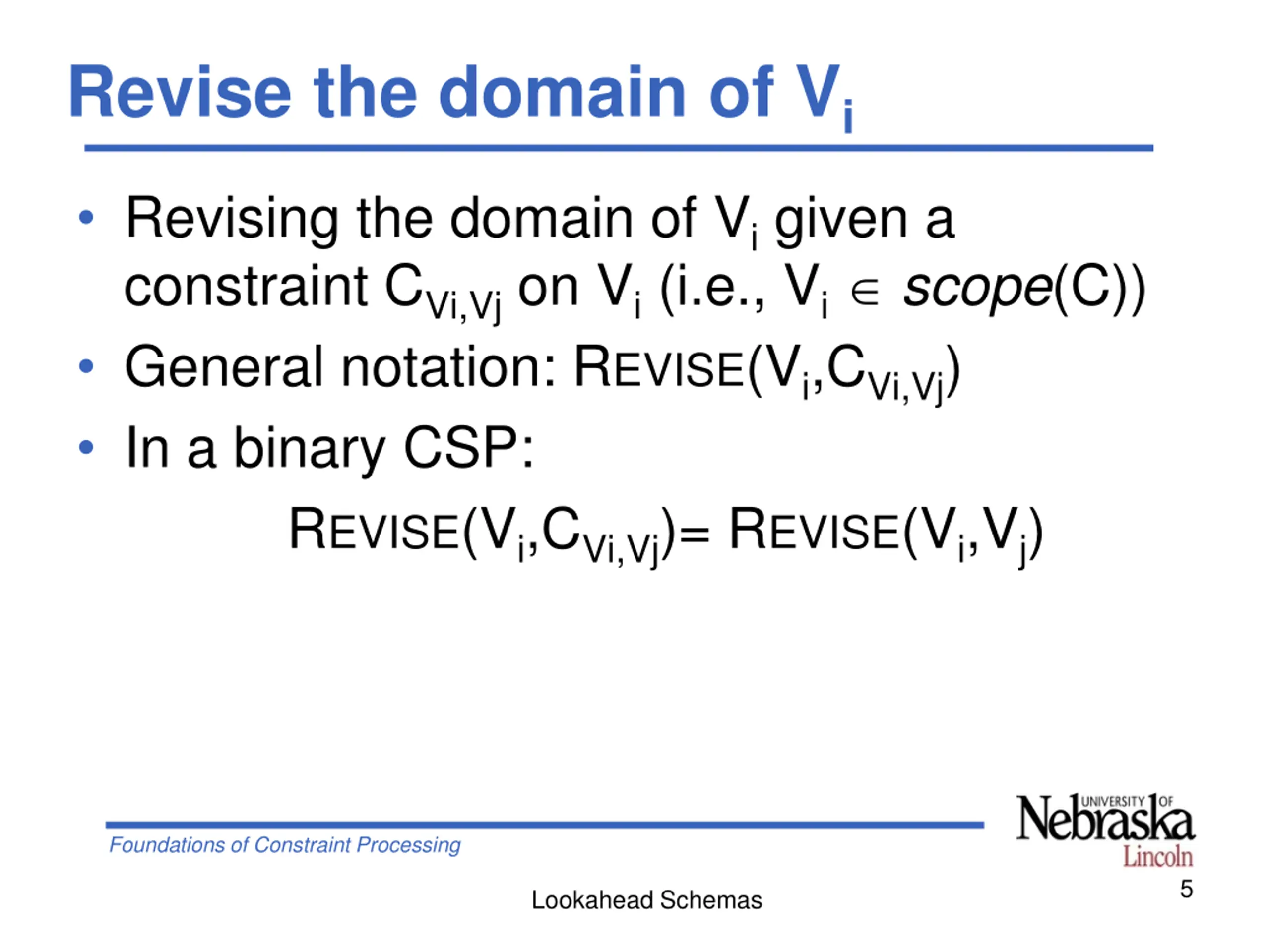

Revise the domain of Vi Revising the domain of Vigiven a constraint CVi,Vjon Vi(i.e., Vi scope(C)) General notation: REVISE(Vi,CVi,Vj) In a binary CSP: REVISE(Vi,CVi,Vj)= REVISE(Vi,Vj) Foundations of Constraint Processing 5 Lookahead Schemas

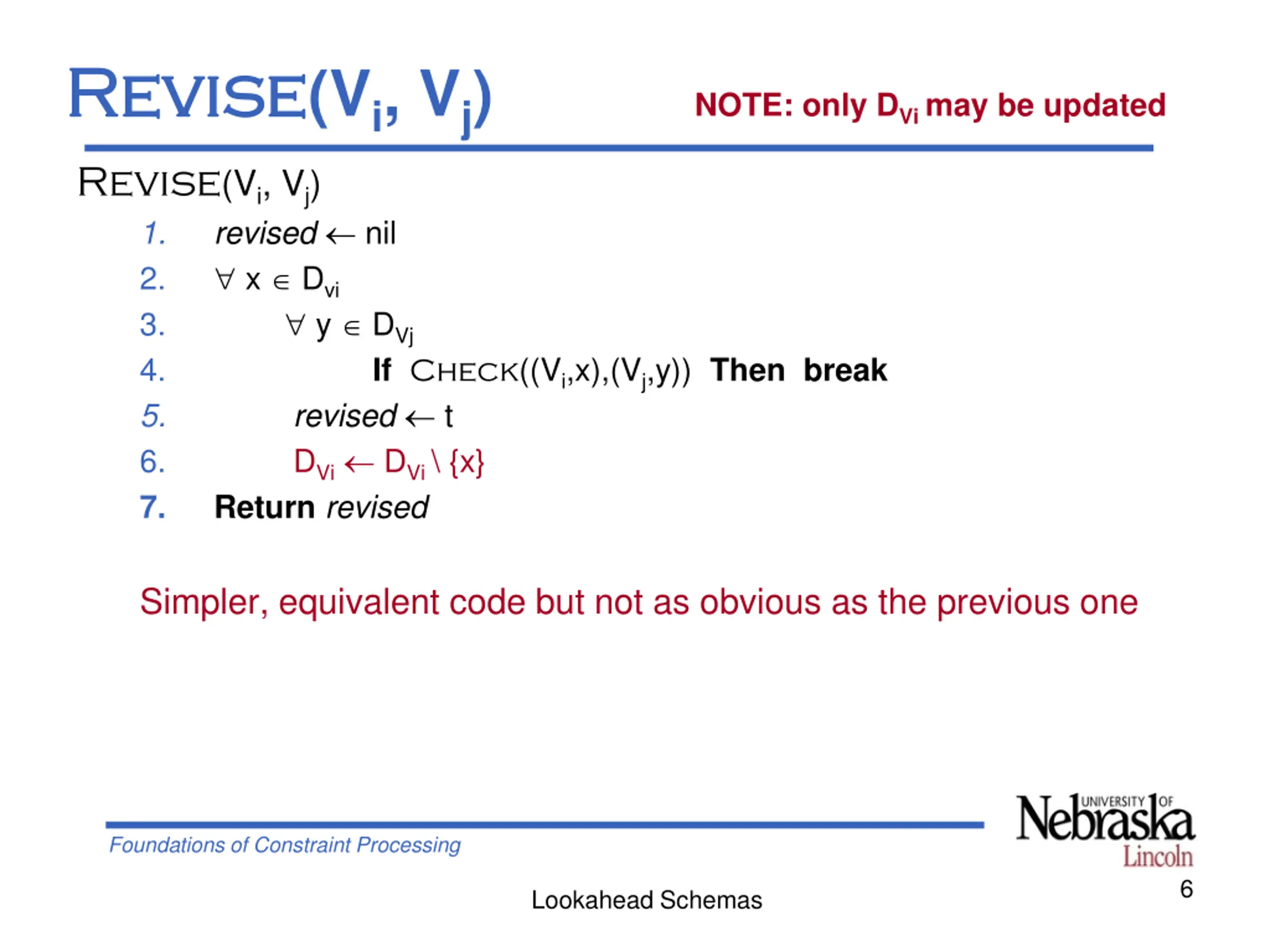

Revise Revise(Vi, Vj) Revise(Vi, Vj) 1. revised nil 2. x Dvi 3. 4. 5. 6. 7. Return revised NOTE: only DVi may be updated y DVj If Check((Vi,x),(Vj,y)) Then break revised t DVi DVi \ {x} Simpler, equivalent code but not as obvious as the previous one Foundations of Constraint Processing 6 Lookahead Schemas

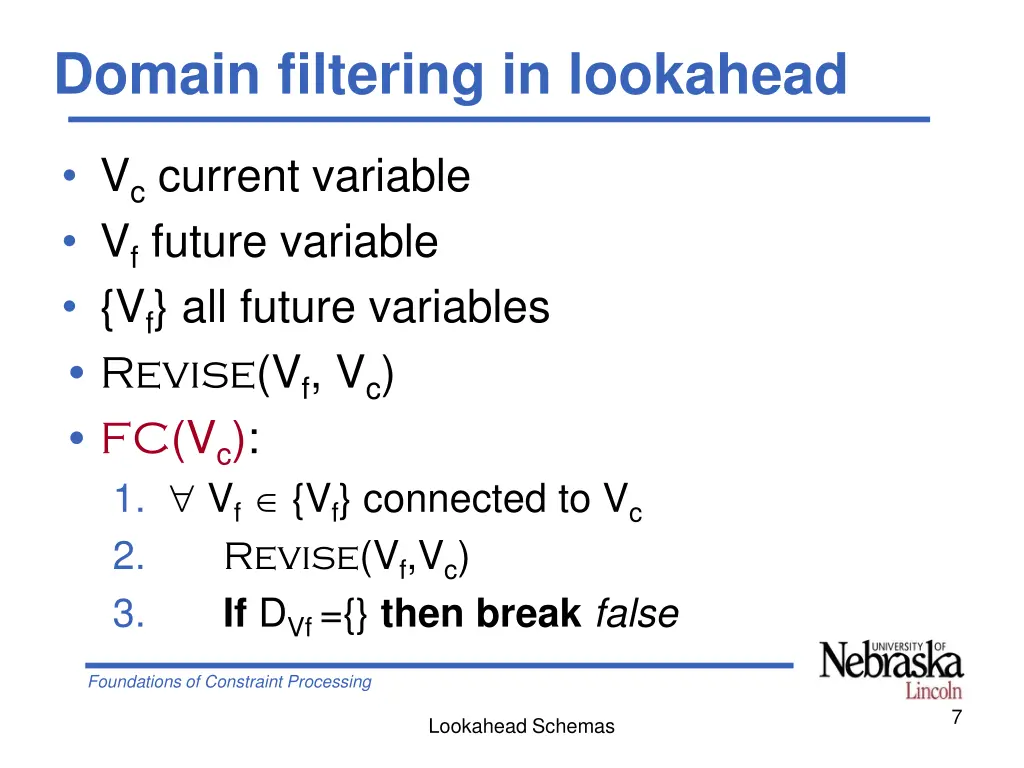

Domain filtering in lookahead Vccurrent variable Vffuture variable {Vf} all future variables Revise(Vf, Vc) FC(Vc): 1. Vf {Vf} connected to Vc 2. Revise(Vf,Vc) 3. If DVf ={} then break false Foundations of Constraint Processing 7 Lookahead Schemas

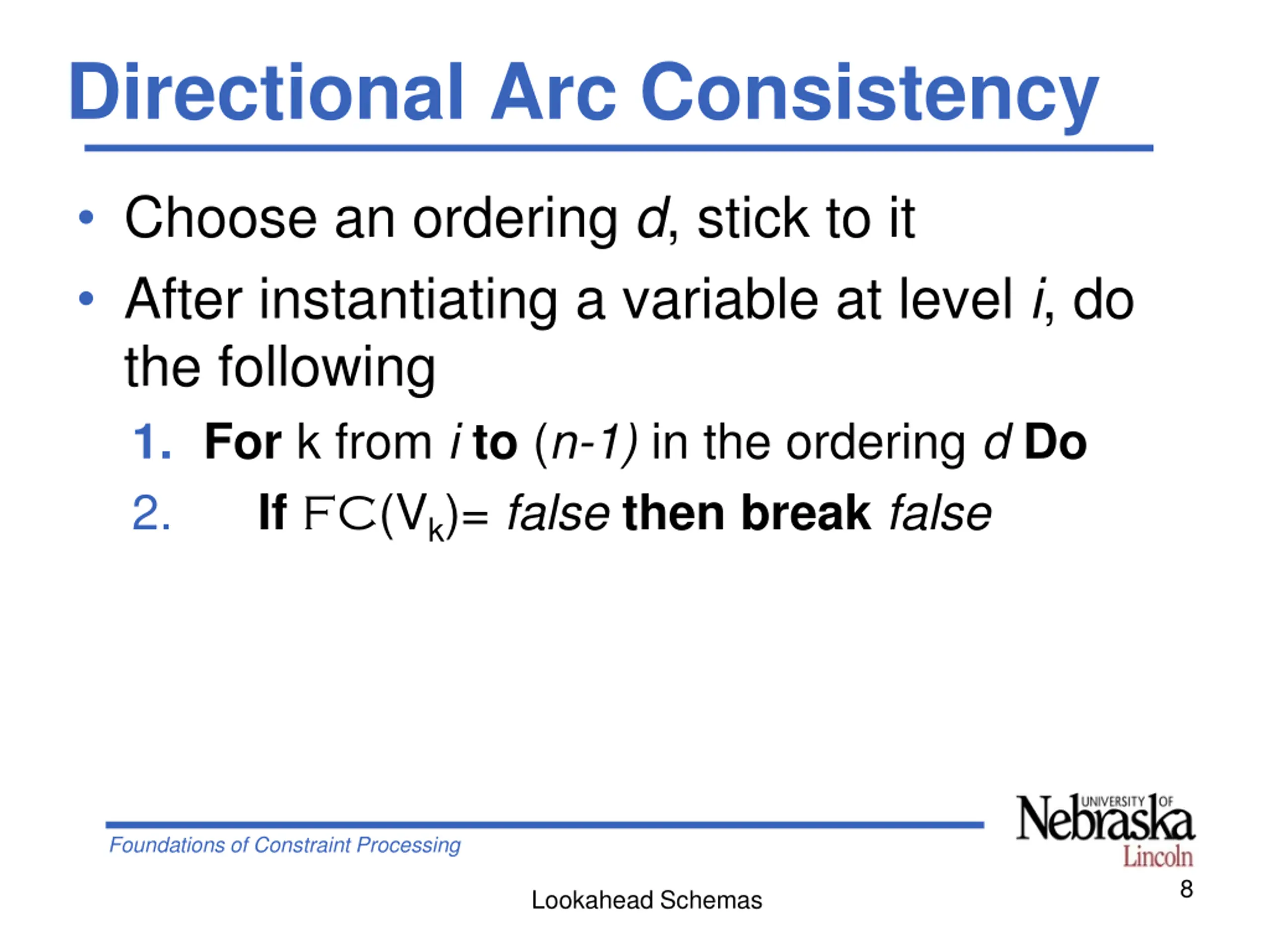

Directional Arc Consistency Choose an ordering d, stick to it After instantiating a variable at level i, do the following 1. For k from i to (n-1) in the ordering d Do 2. If FC(Vk)= false then break false Foundations of Constraint Processing 8 Lookahead Schemas

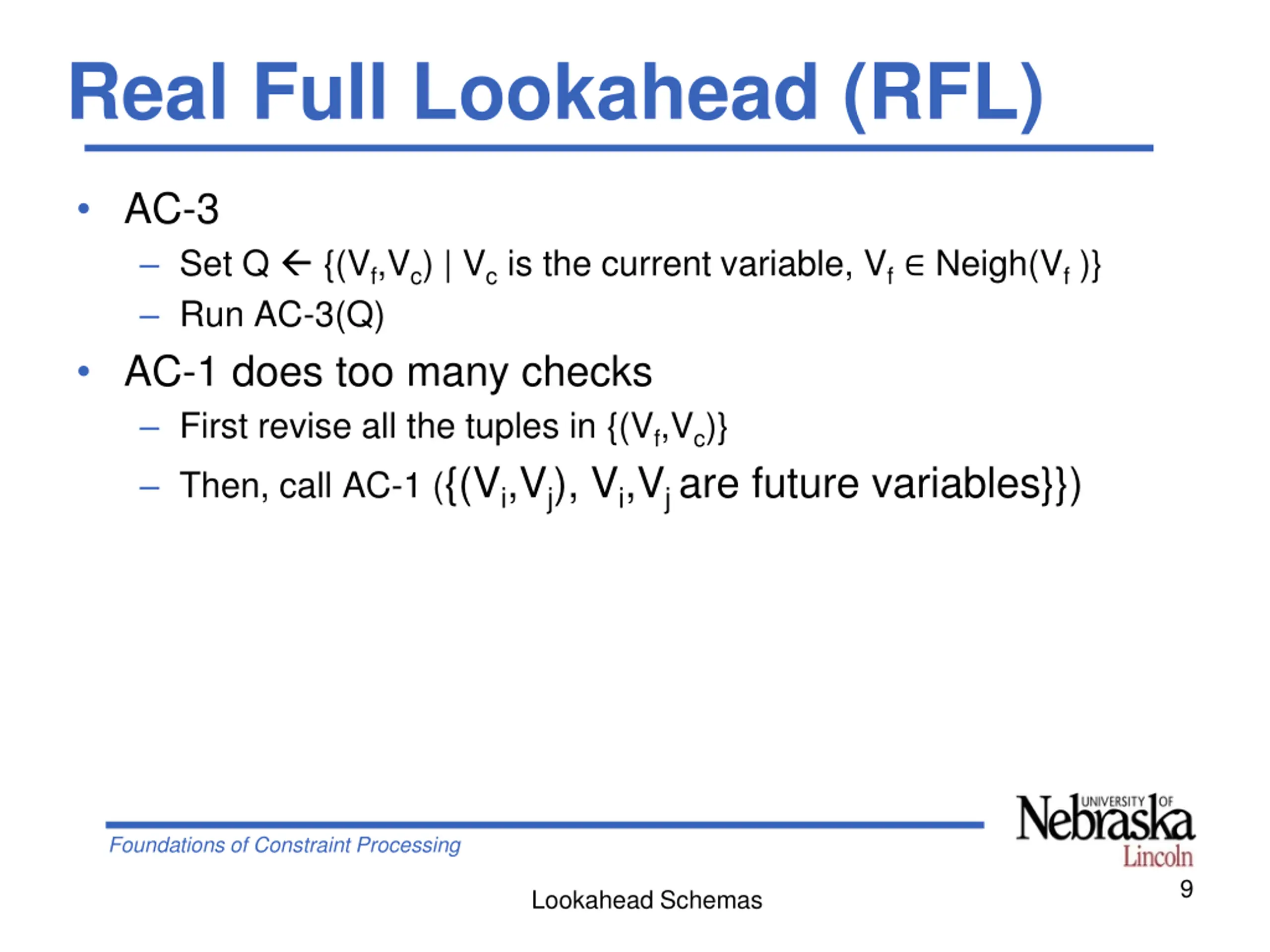

Real Full Lookahead (RFL) AC-3 Set Q {(Vf,Vc) | Vcis the current variable, Vf Neigh(Vf)} Run AC-3(Q) AC-1 does too many checks First revise all the tuples in {(Vf,Vc)} Then, call AC-1 ({(Vi,Vj), Vi,Vj are future variables}}) Foundations of Constraint Processing 9 Lookahead Schemas

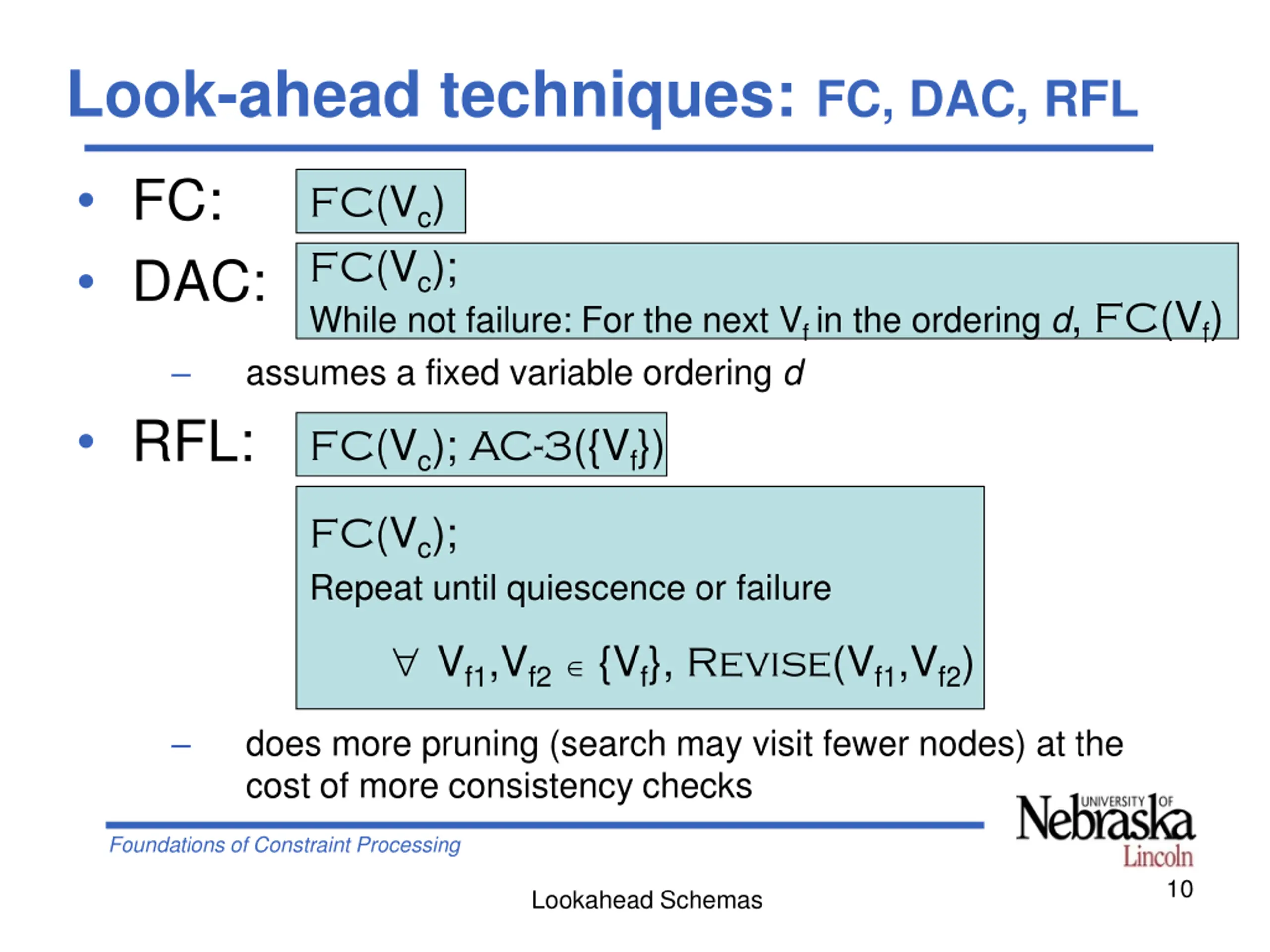

Look-ahead techniques: FC, DAC, RFL FC: DAC: FC(Vc) FC(Vc); While not failure: For the next Vf in the ordering d, FC(Vf) assumes a fixed variable ordering d RFL: FC(Vc); AC-3({Vf}) FC(Vc); Repeat until quiescence or failure Vf1,Vf2 {Vf}, Revise(Vf1,Vf2) does more pruning (search may visit fewer nodes) at the cost of more consistency checks Foundations of Constraint Processing 10 Lookahead Schemas

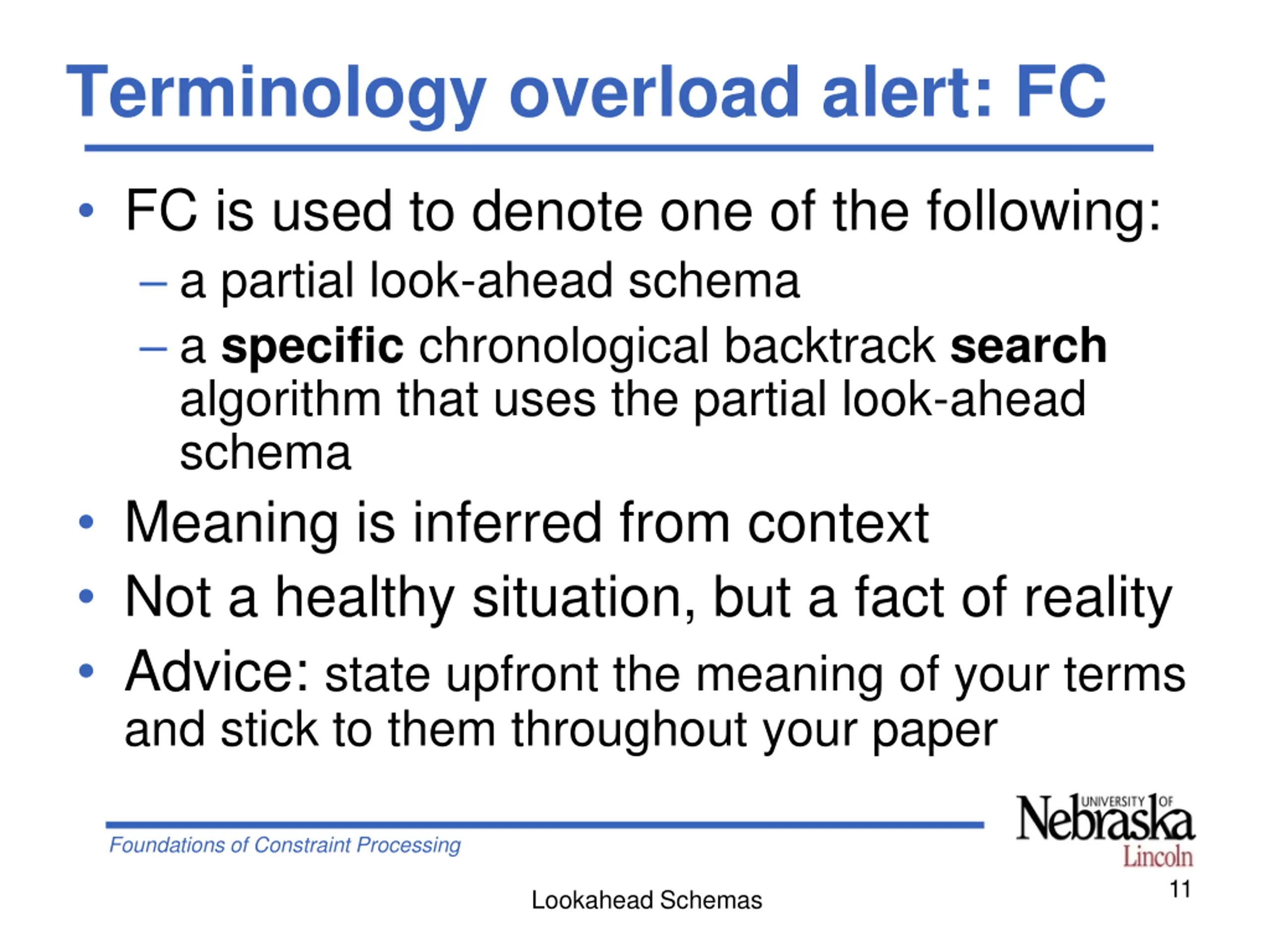

Terminology overload alert: FC FC is used to denote one of the following: a partial look-ahead schema a specific chronological backtrack search algorithm that uses the partial look-ahead schema Meaning is inferred from context Not a healthy situation, but a fact of reality Advice: state upfront the meaning of your terms and stick to them throughout your paper Foundations of Constraint Processing 11 Lookahead Schemas

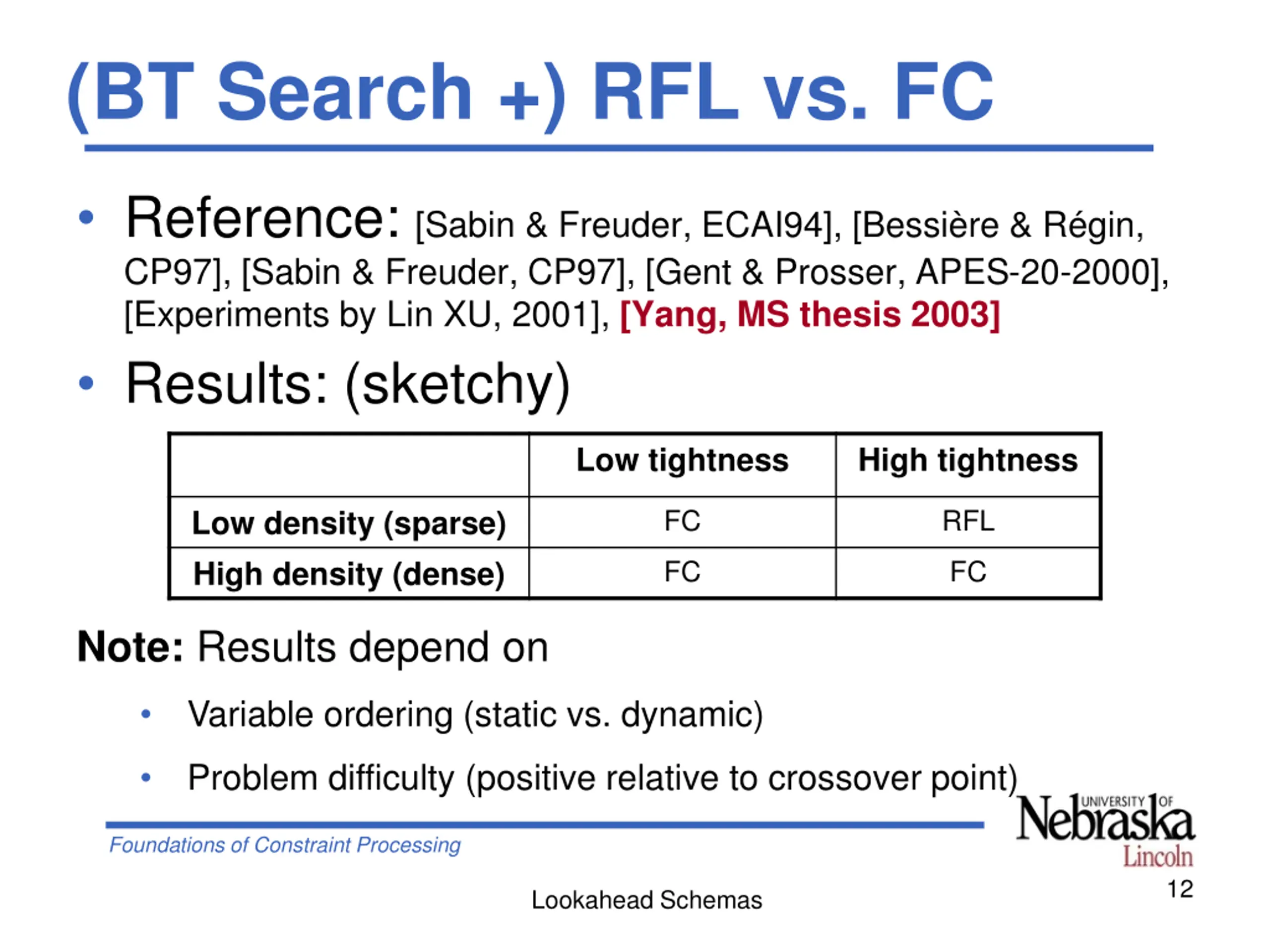

(BT Search +) RFL vs. FC Reference: [Sabin & Freuder, ECAI94], [Bessi re & R gin, CP97], [Sabin & Freuder, CP97], [Gent & Prosser, APES-20-2000], [Experiments by Lin XU, 2001], [Yang, MS thesis 2003] Results: (sketchy) Low tightness High tightness FC RFL Low density (sparse) High density (dense) FC FC Note: Results depend on Variable ordering (static vs. dynamic) Problem difficulty (positive relative to crossover point) Foundations of Constraint Processing 12 Lookahead Schemas

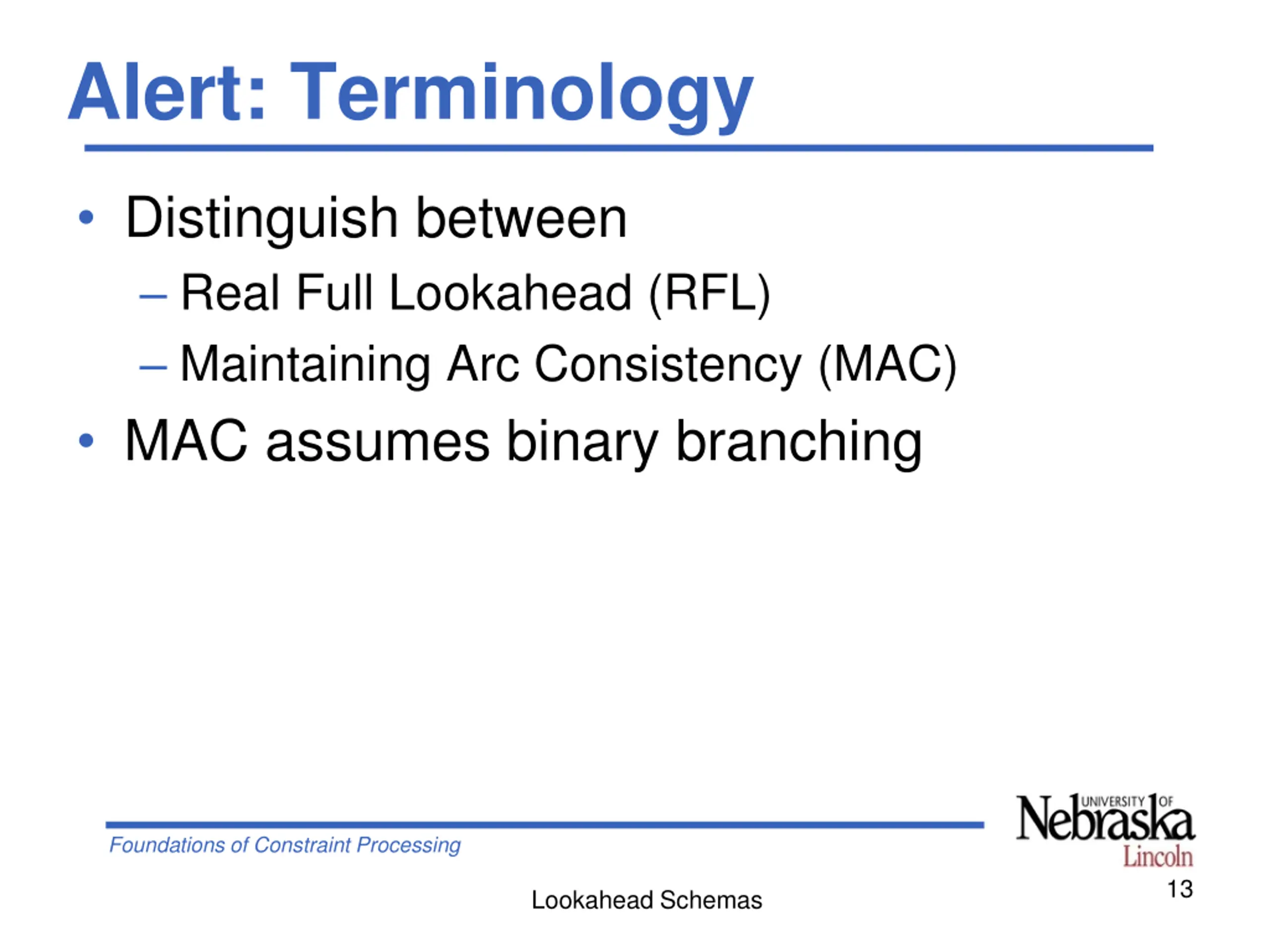

Alert: Terminology Distinguish between Real Full Lookahead (RFL) Maintaining Arc Consistency (MAC) MAC assumes binary branching Foundations of Constraint Processing 13 Lookahead Schemas
