Grounding Language with Points and Paths in Continuous Spaces Berkeley Berkeley N L P N L P Jacob Andreas and Dan Klein UC Berkeley

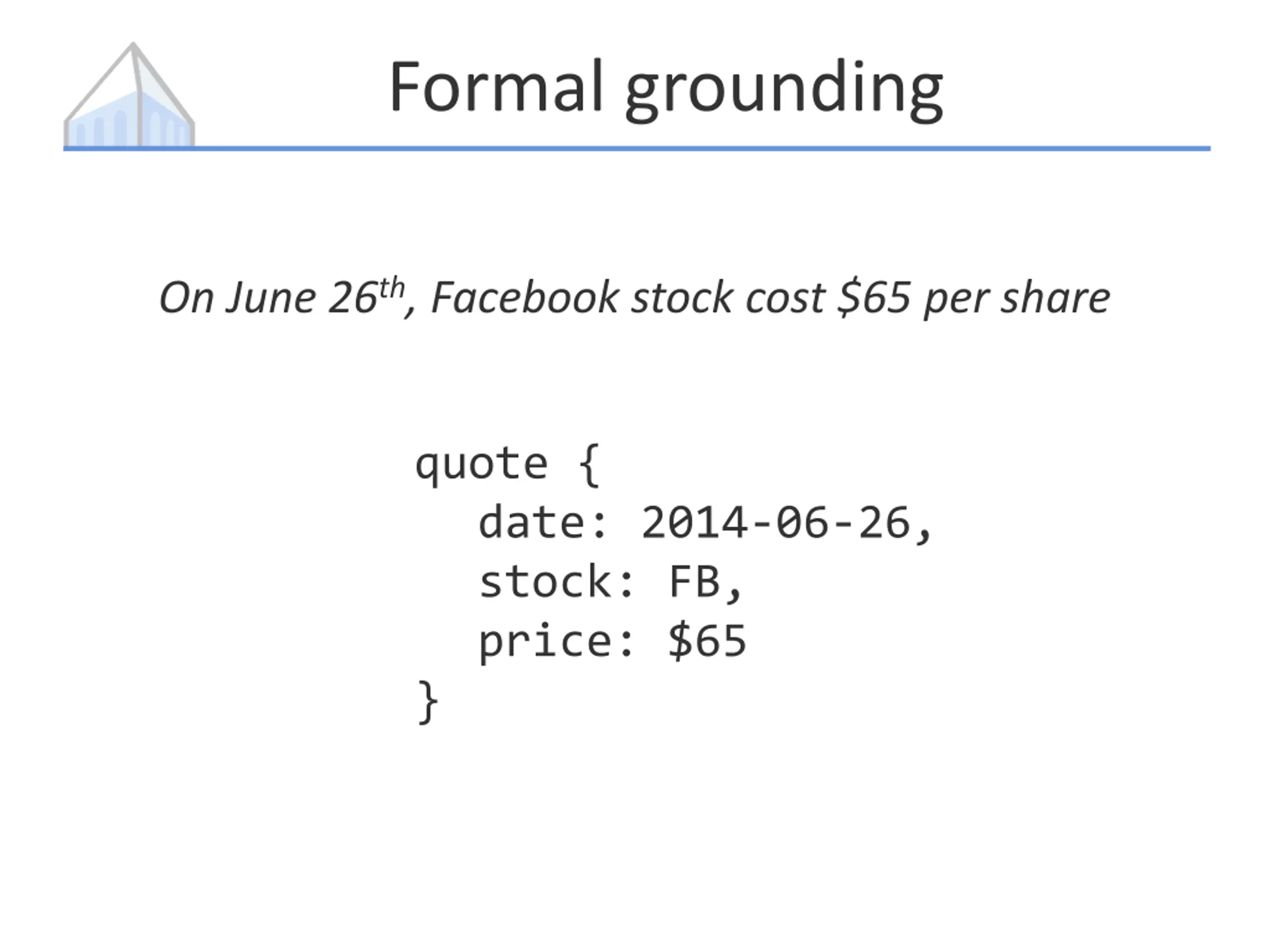

Formal grounding On June 26th, Facebook stock cost $65 per share quote { date: 2014-06-26, stock: FB, price: $65 }

Perceptual grounding On June 26th, Facebook stock rebounded after a bruising swoon ?

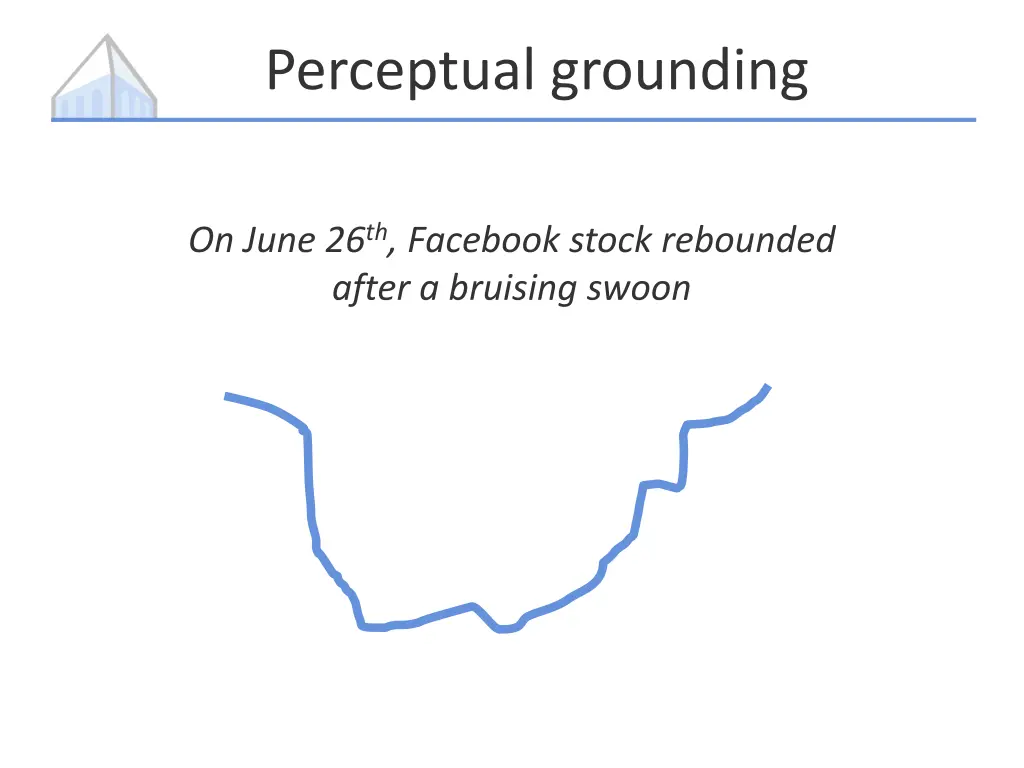

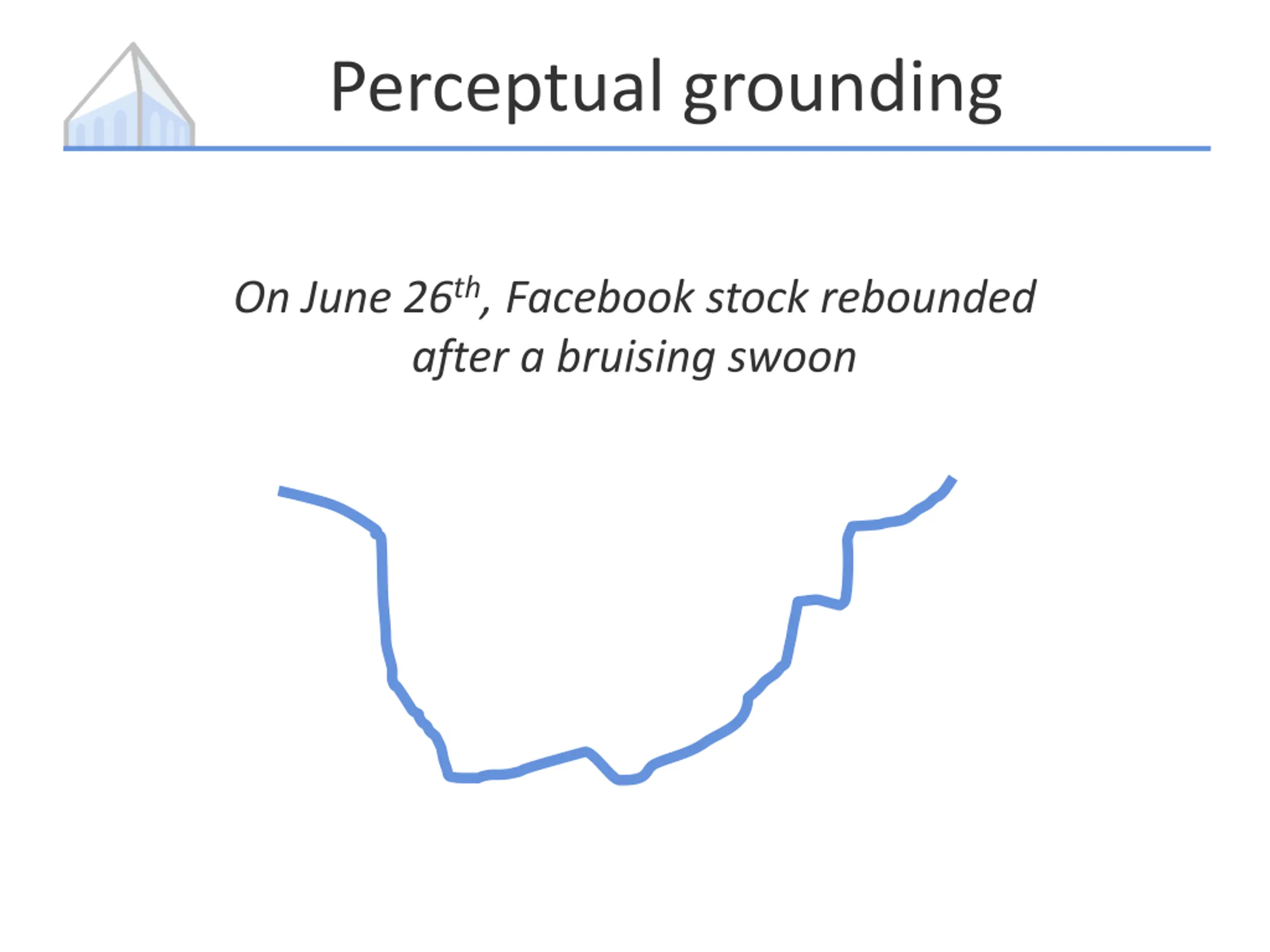

Perceptual grounding On June 26th, Facebook stock rebounded after a bruising swoon

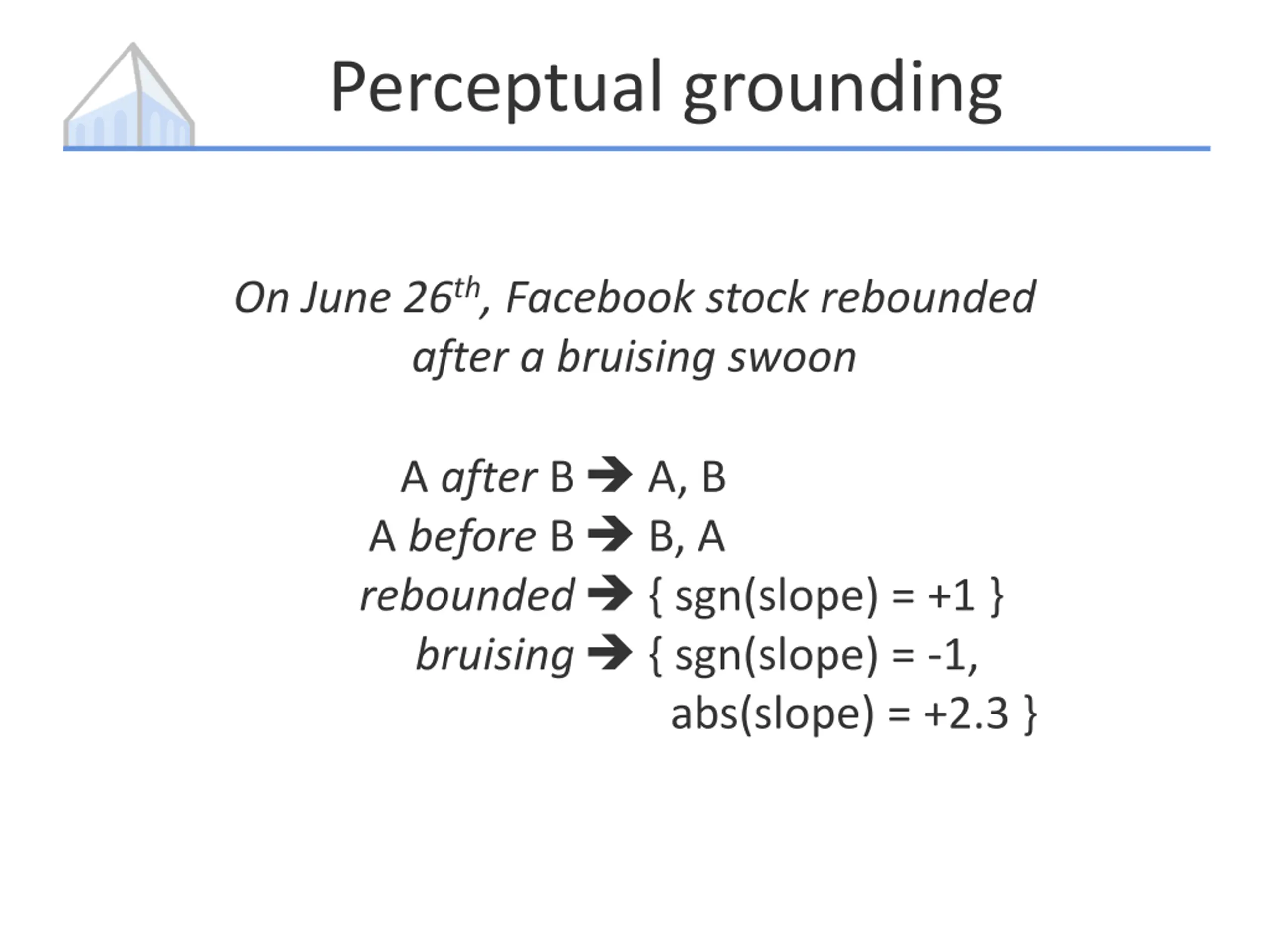

Perceptual grounding On June 26th, Facebook stock rebounded after a bruising swoon A after B A, B A before B B, A rebounded { sgn(slope) = +1 } bruising { sgn(slope) = -1, abs(slope) = +2.3 }

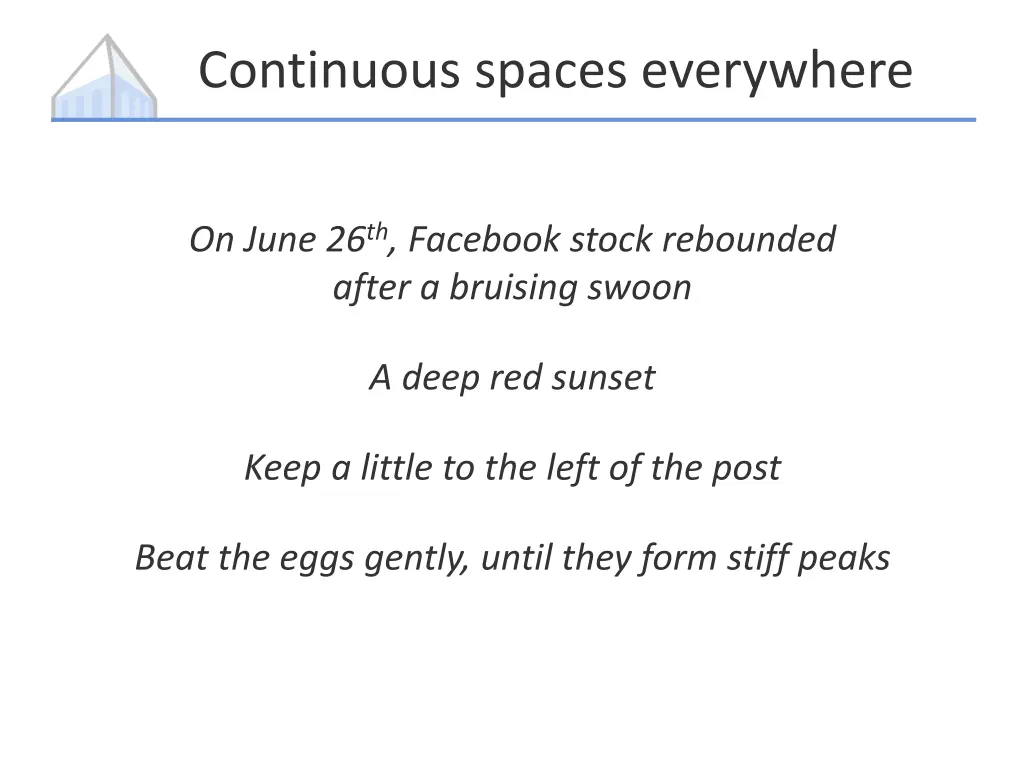

Continuous spaces everywhere On June 26th, Facebook stock rebounded after a bruising swoon A deep red sunset Keep a little to the left of the post Beat the eggs gently, until they form stiff peaks

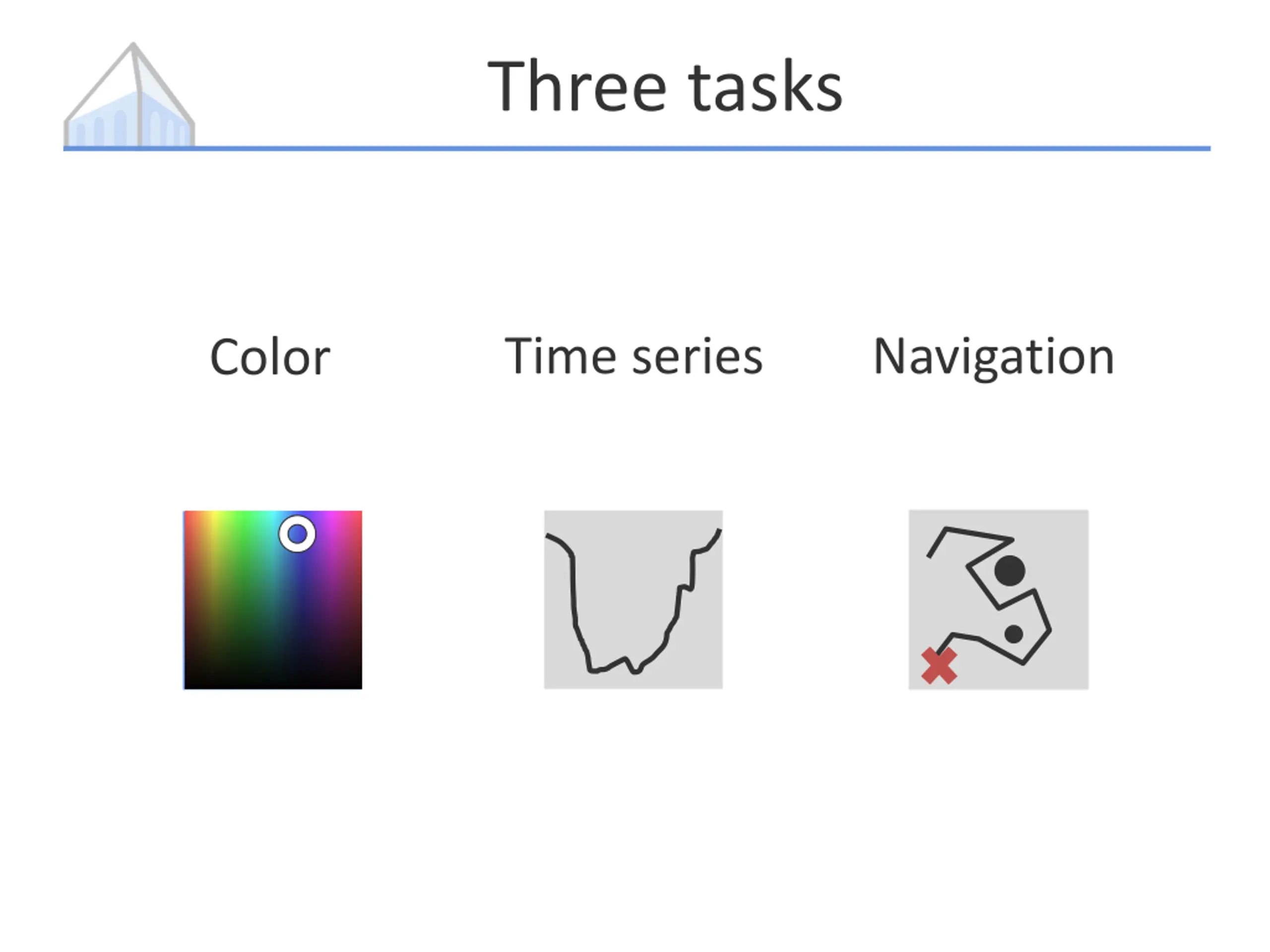

Three tasks Time series Navigation Color

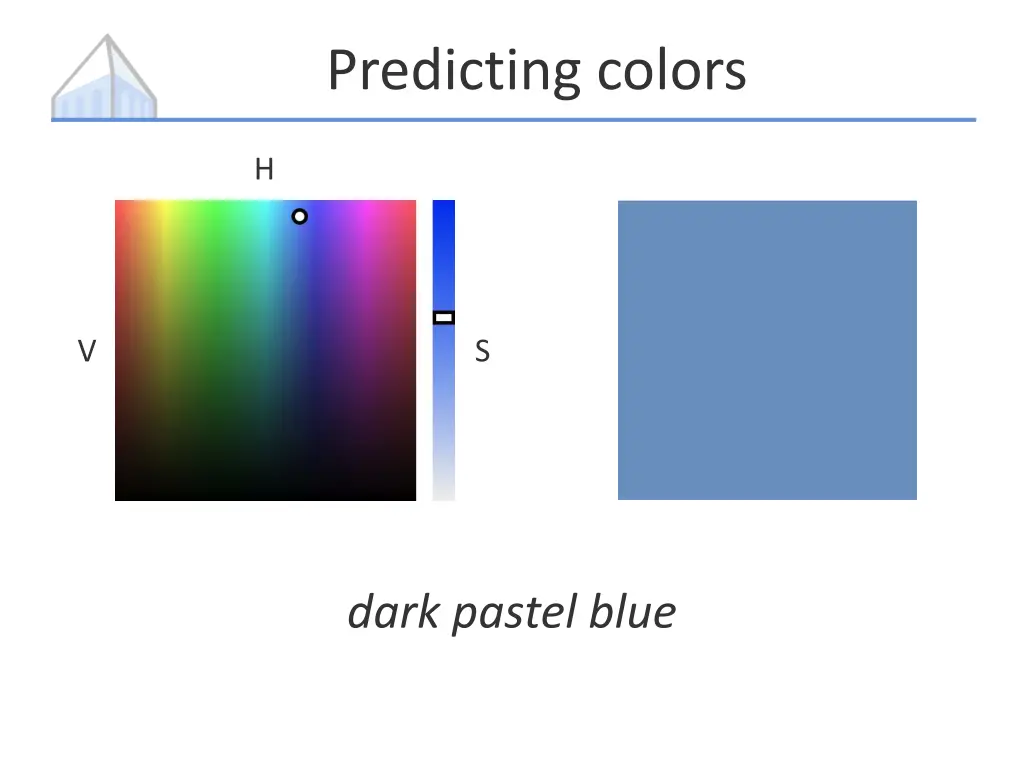

Predicting colors H V S pastel blue dark pastel blue blue

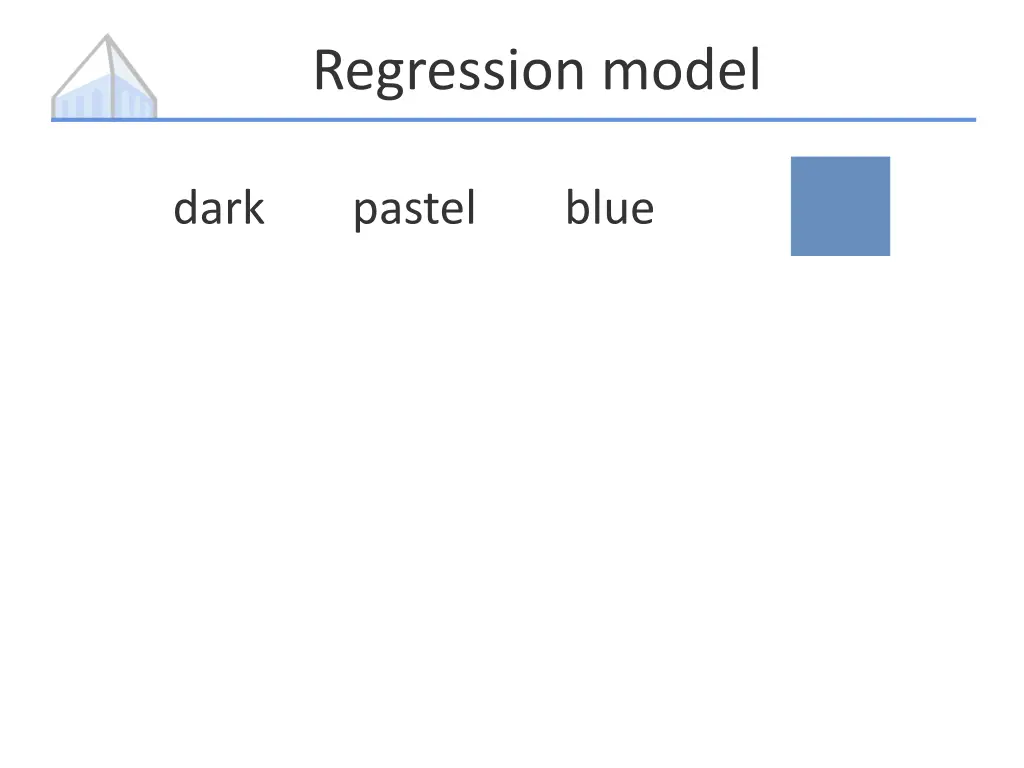

Regression model H V S pastel blue dark pastel blue blue

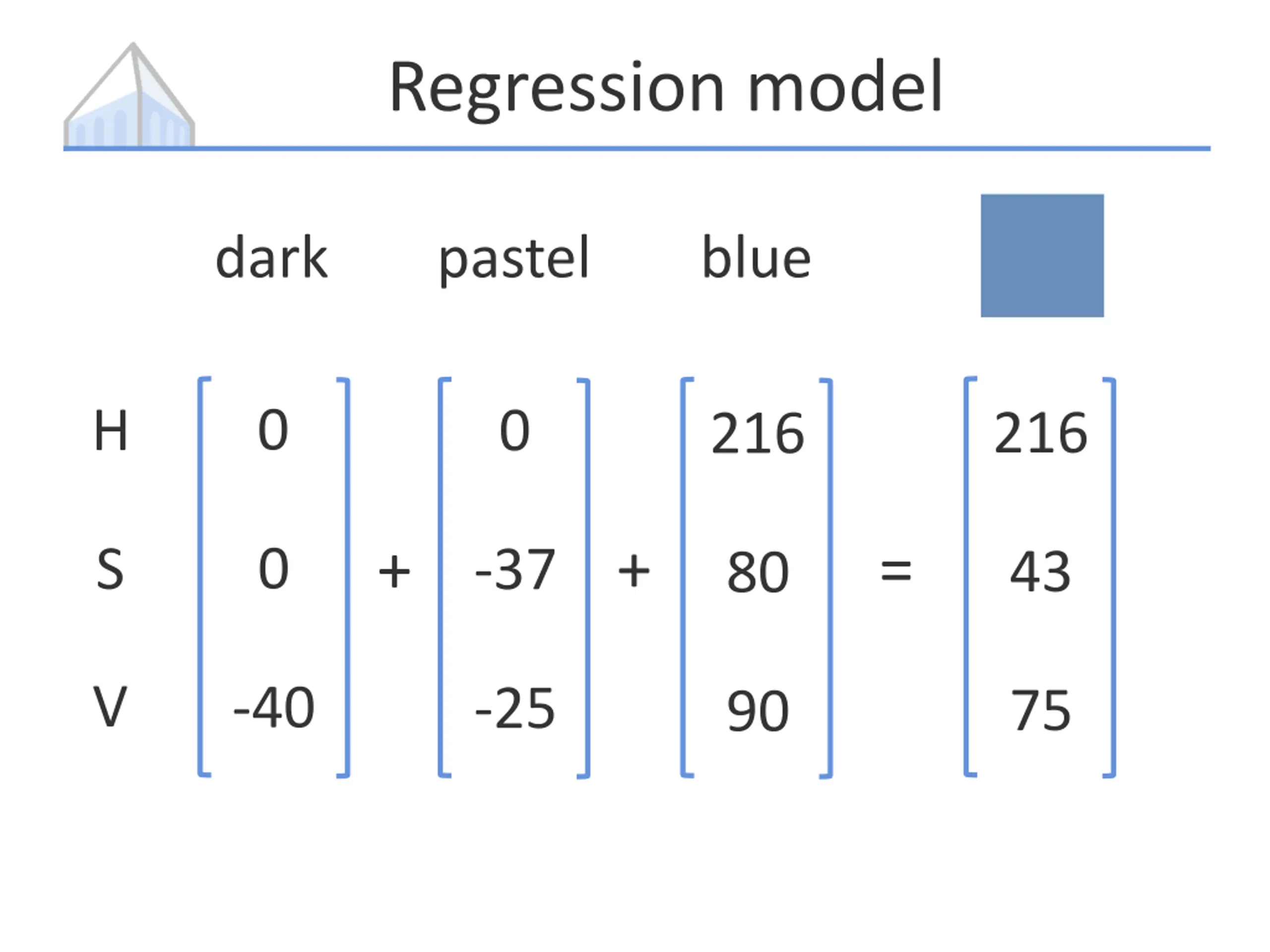

Regression model dark pastel blue 0 H 0 216 216 + = + 0 S -37 43 80 V -40 -25 75 90

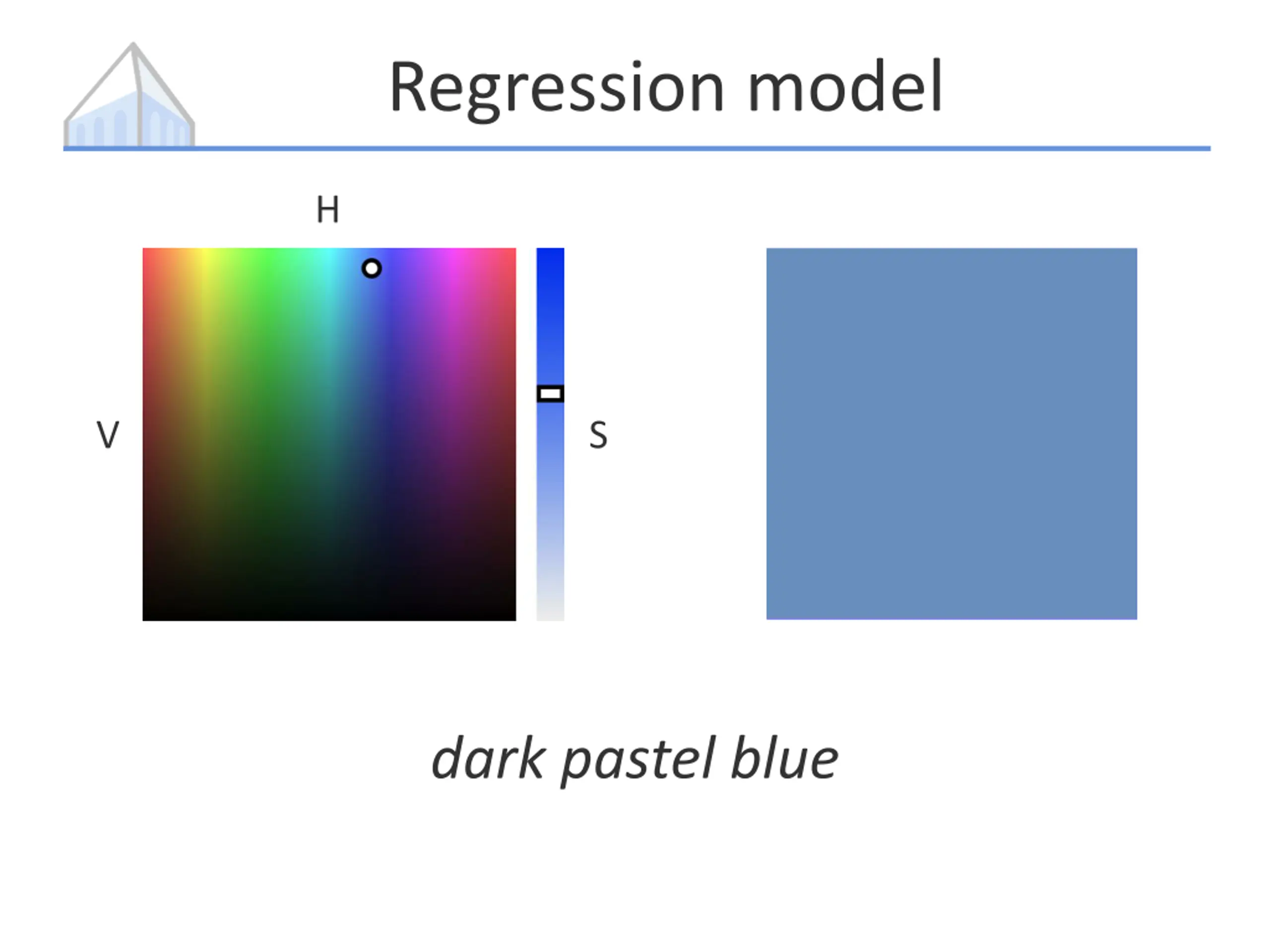

Regression model dark pastel blue

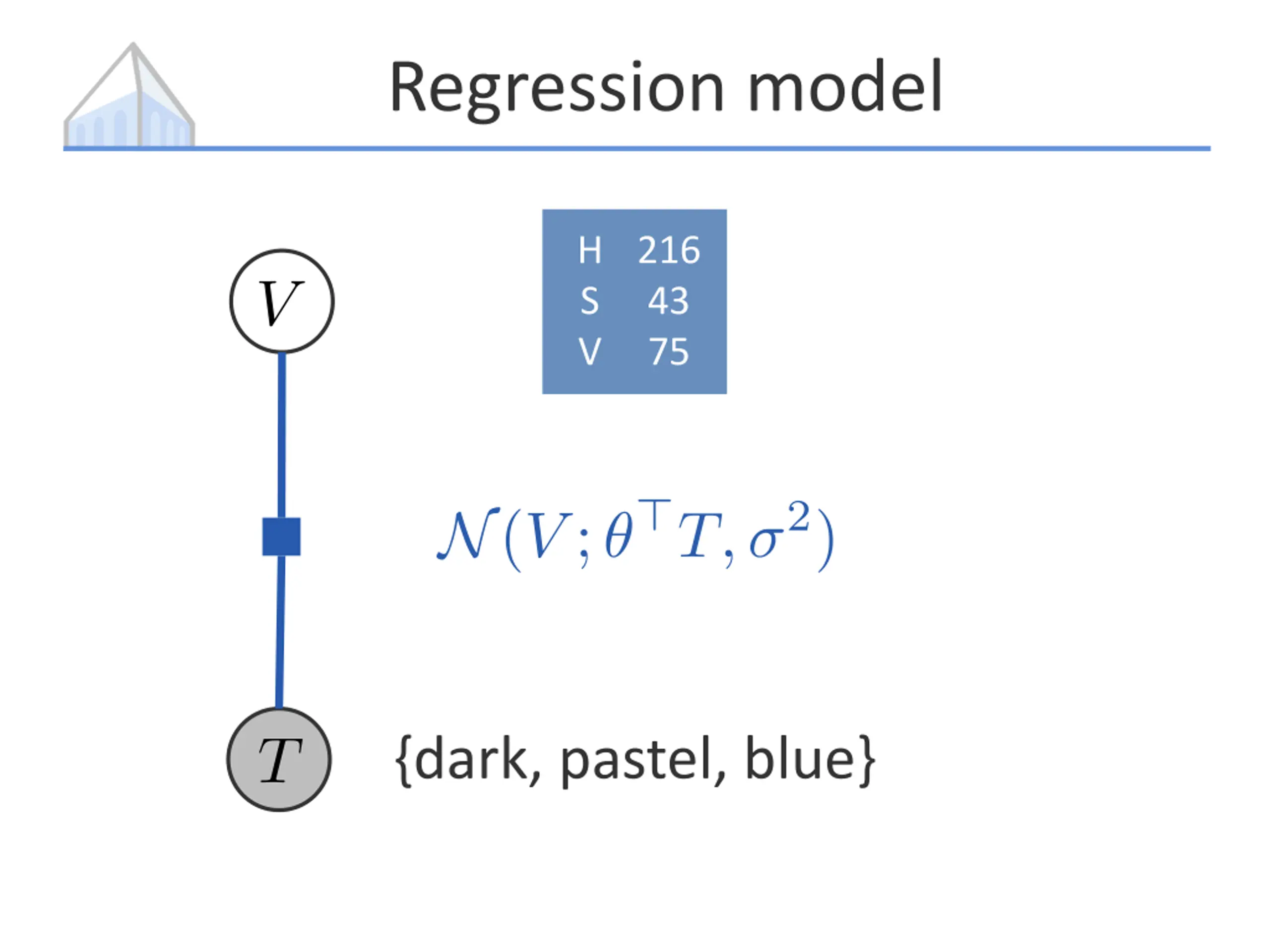

Regression model H 216 S V 75 43 dark pastel blue {dark, pastel, blue}

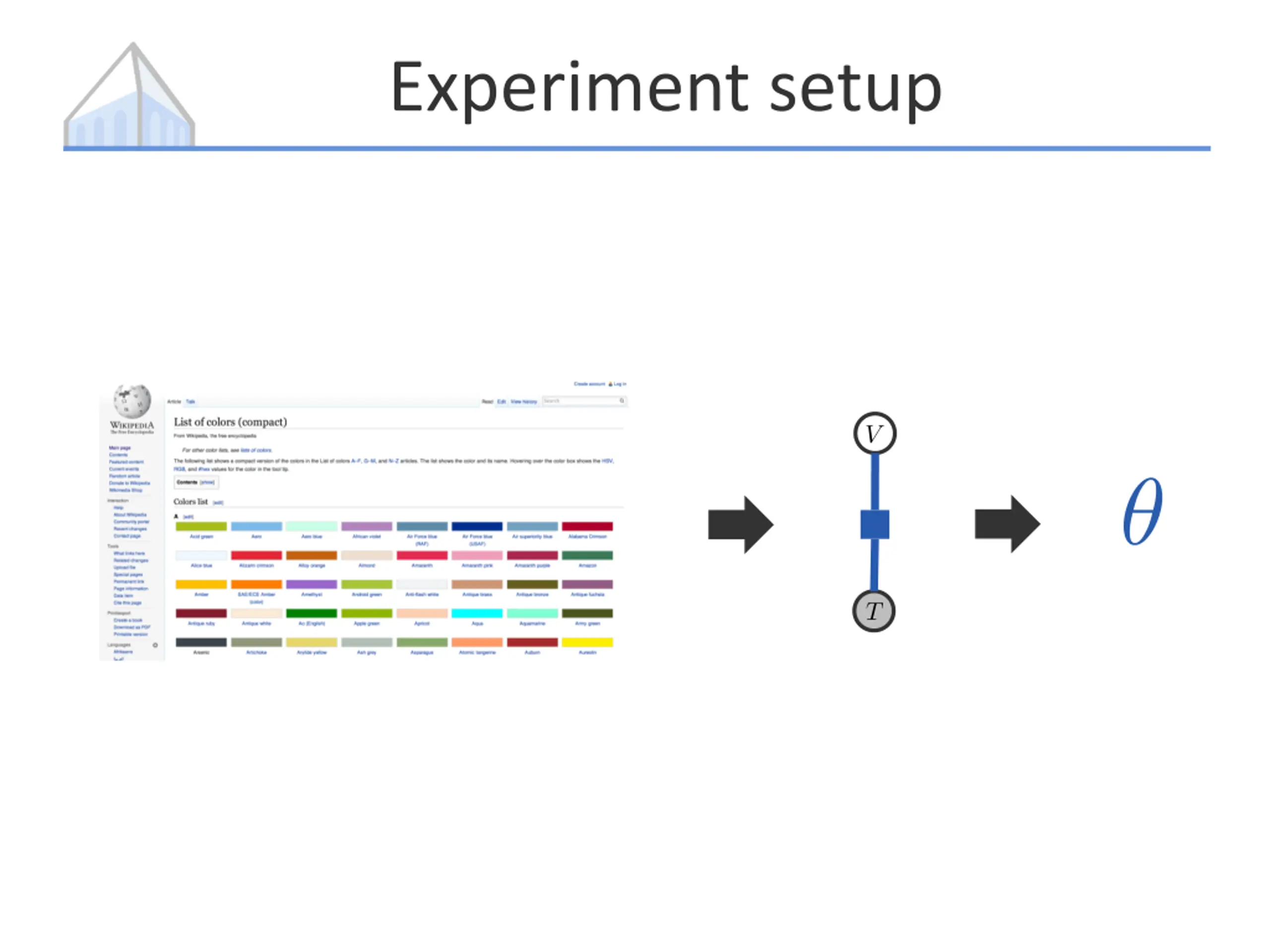

Experiment setup

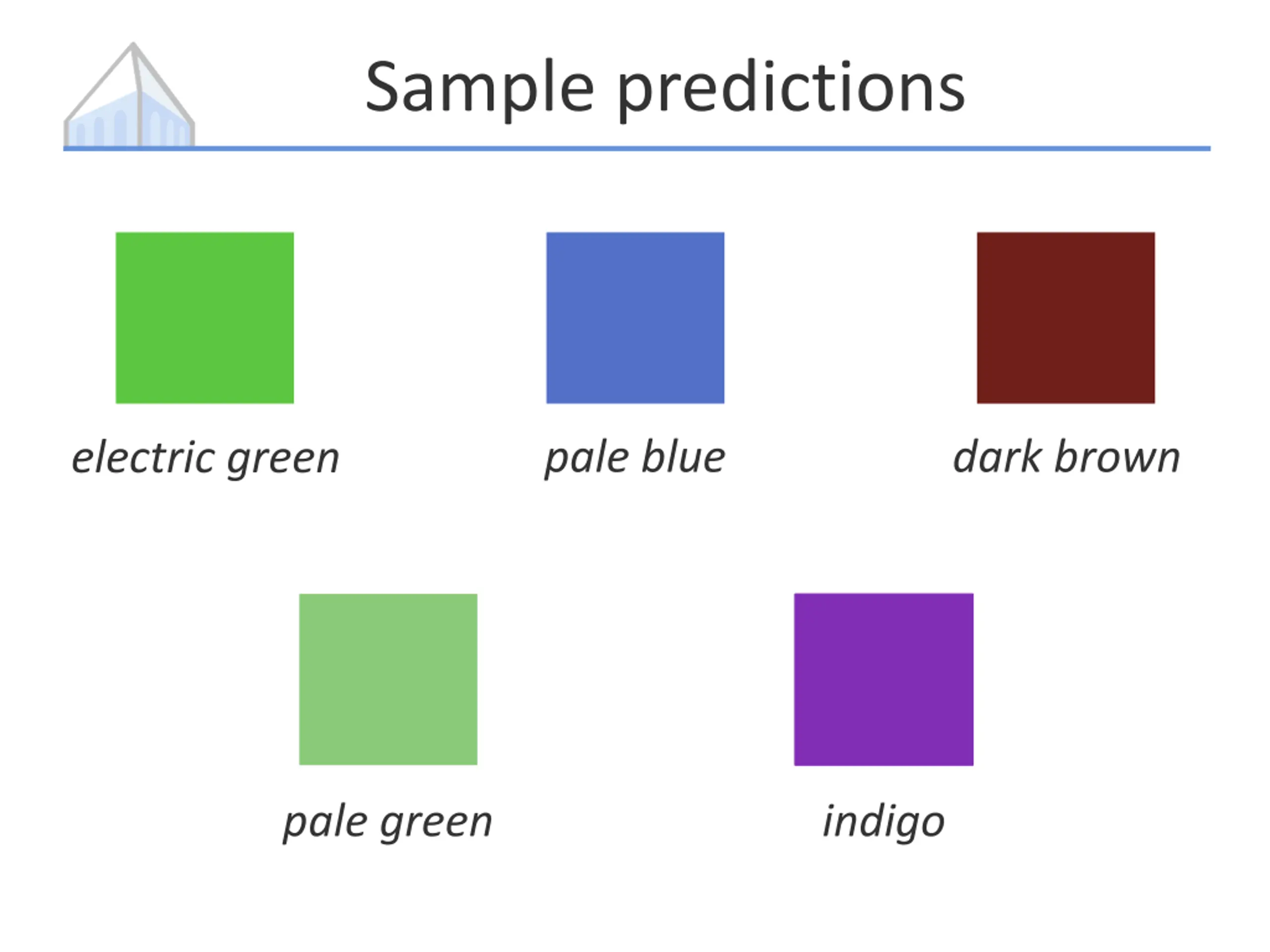

Sample predictions pale blue dark brown electric green pale green indigo

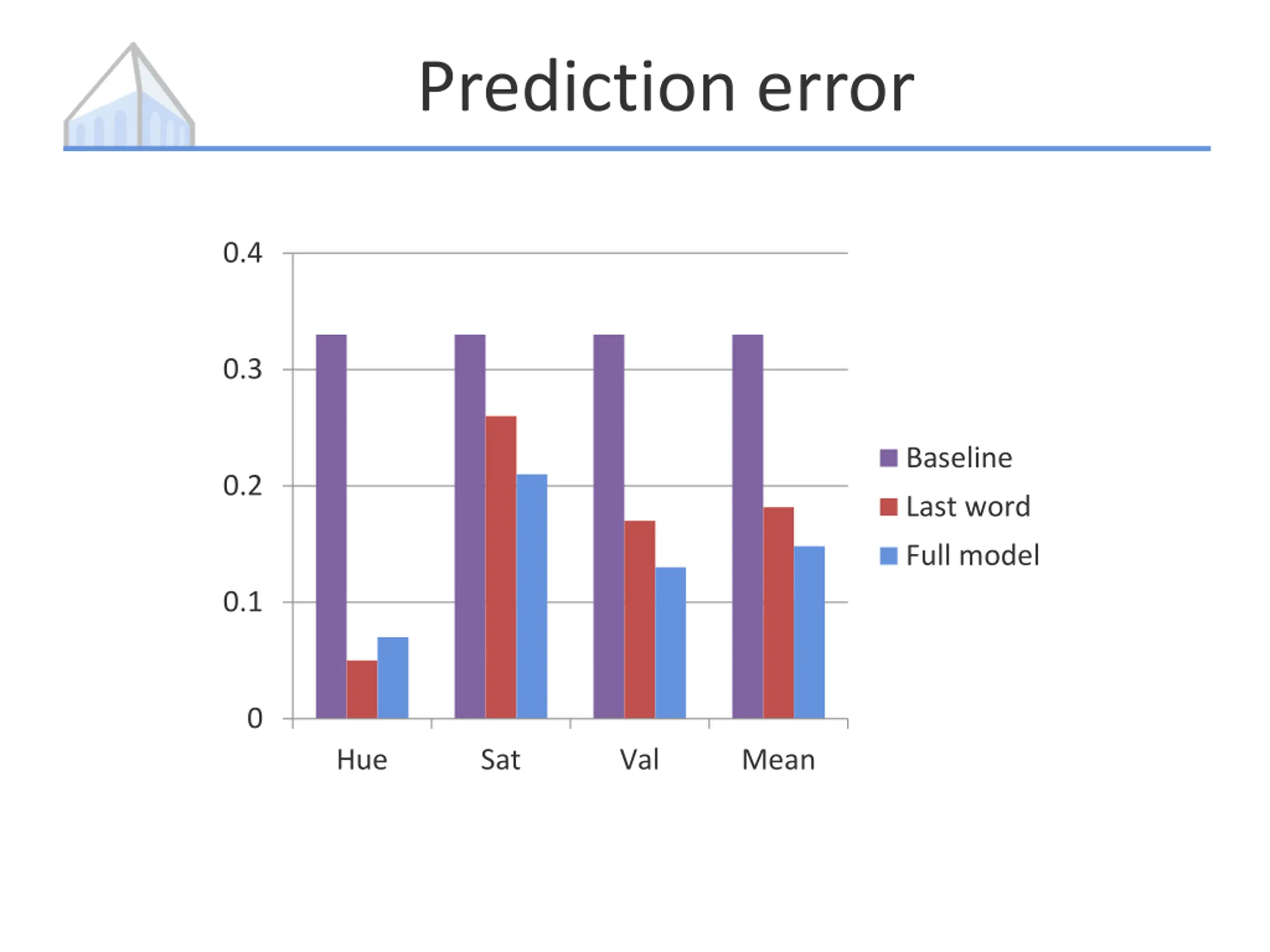

Prediction error 0.4 0.3 Baseline 0.2 Last word Full model 0.1 0 Hue Sat Val Mean

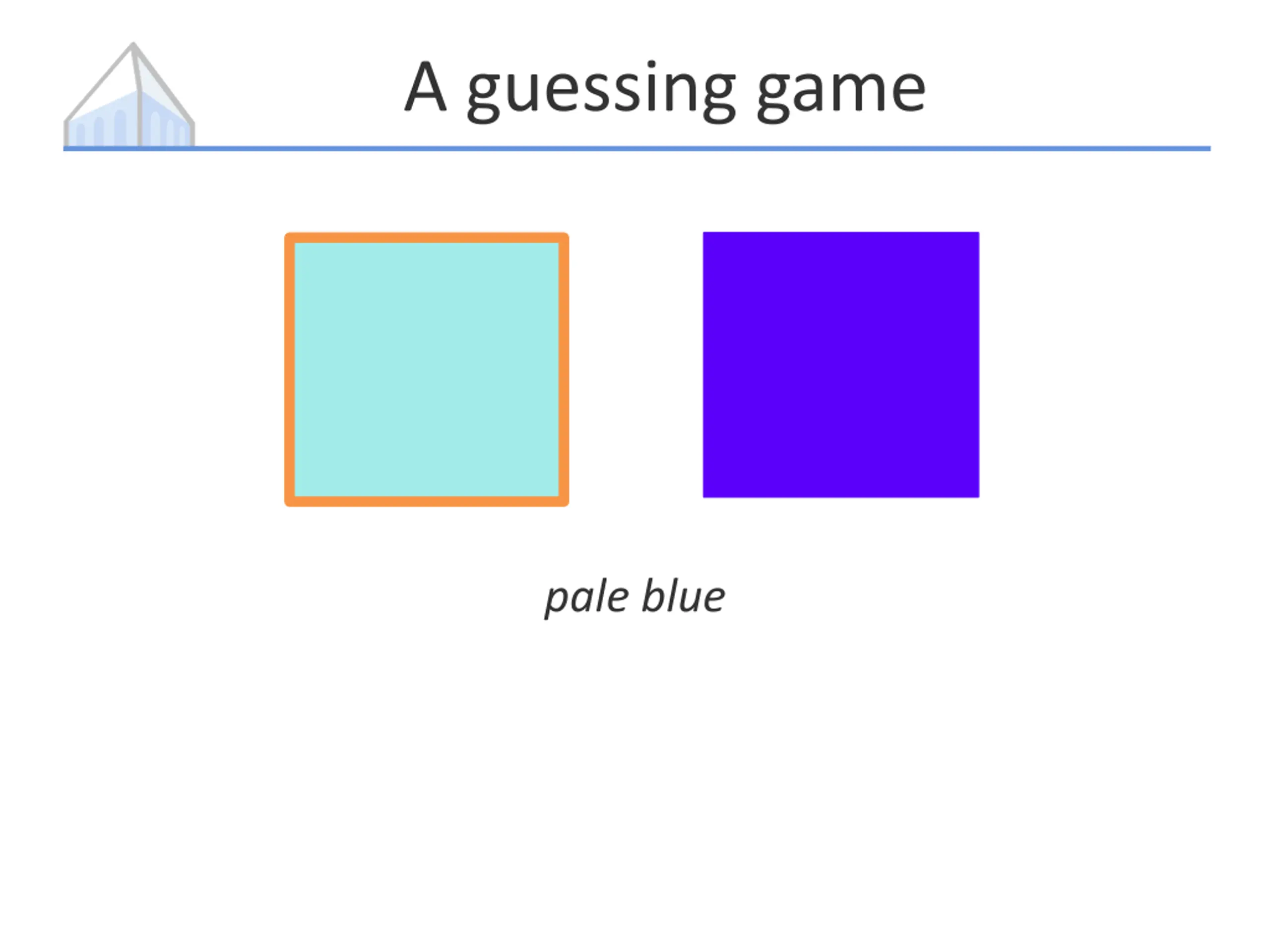

A guessing game pale blue

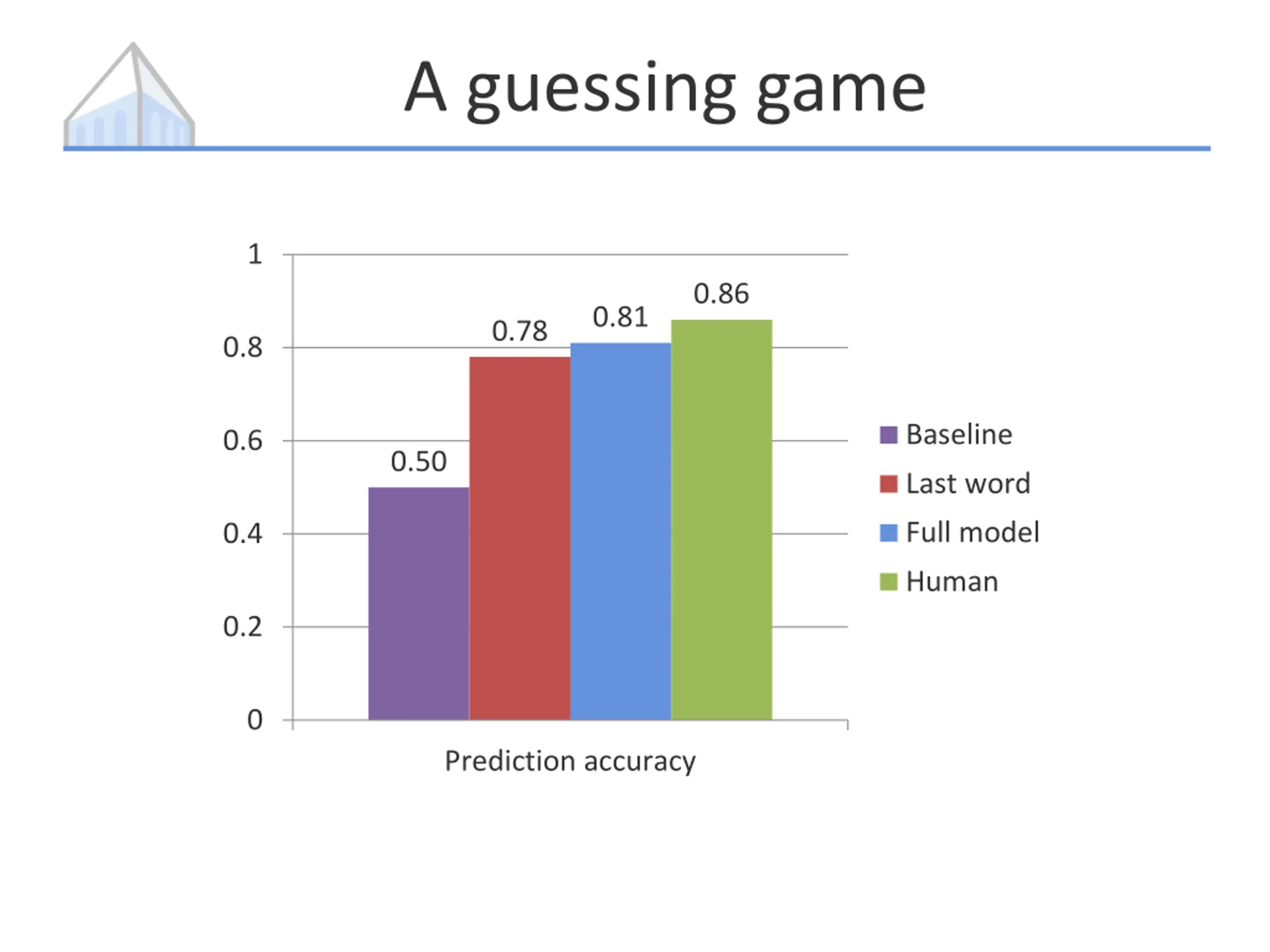

A guessing game 1 0.86 0.81 0.78 0.8 Baseline 0.6 0.50 Last word Full model 0.4 Human 0.2 0 Prediction accuracy

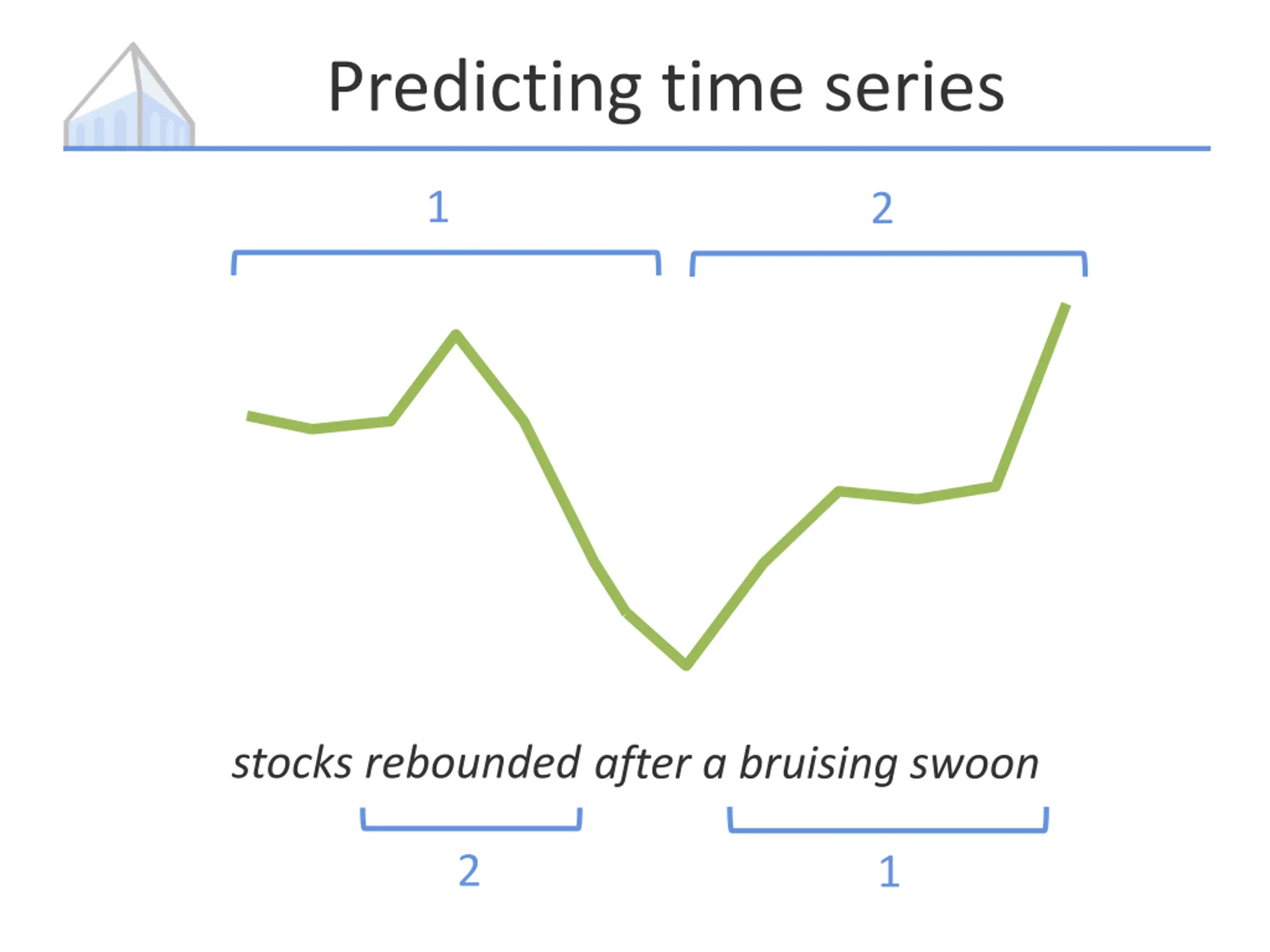

Predicting time series 1 2 stocks rebounded after a bruising swoon 2 1

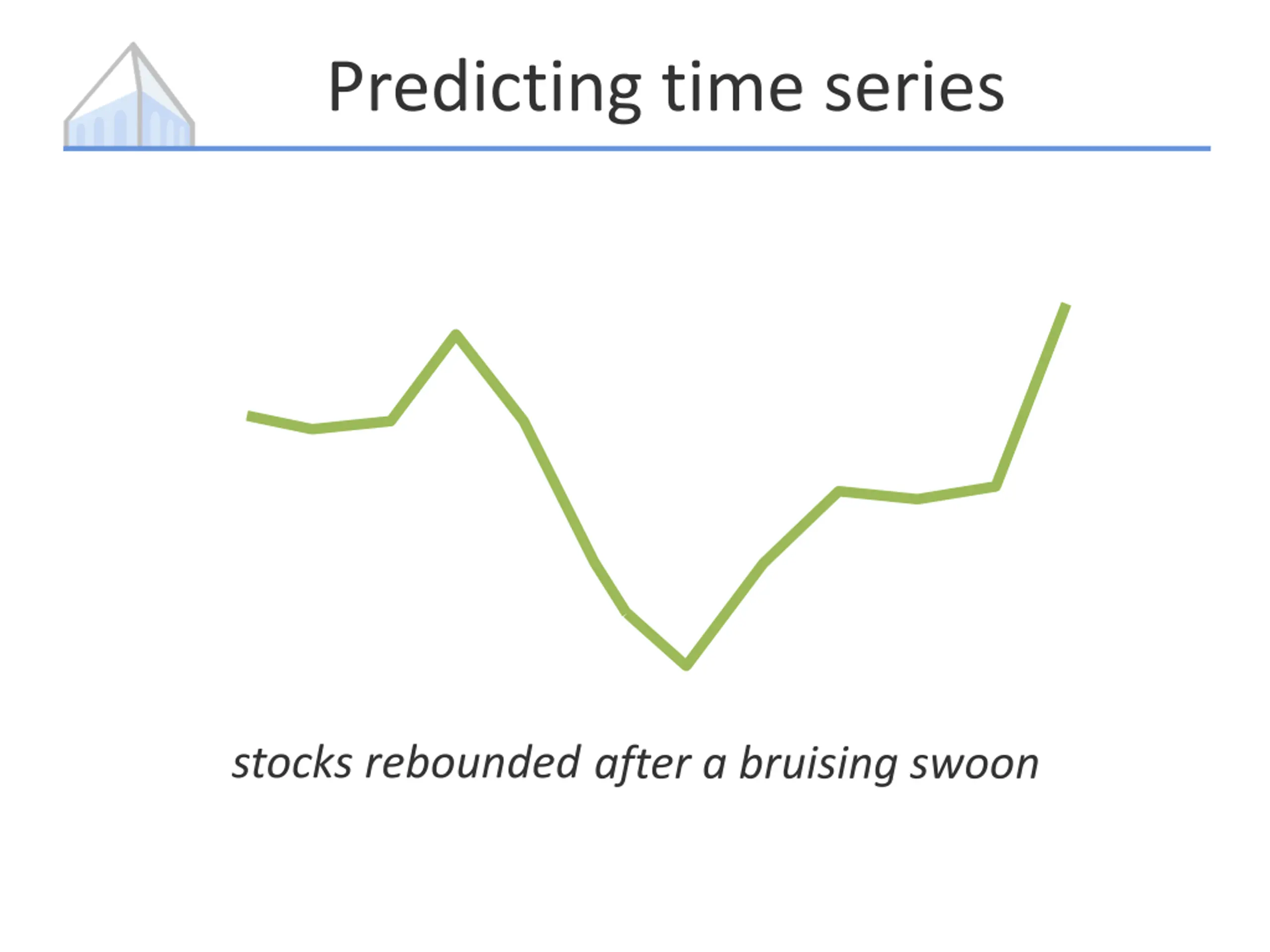

Predicting time series stocks rebounded after a bruising swoon

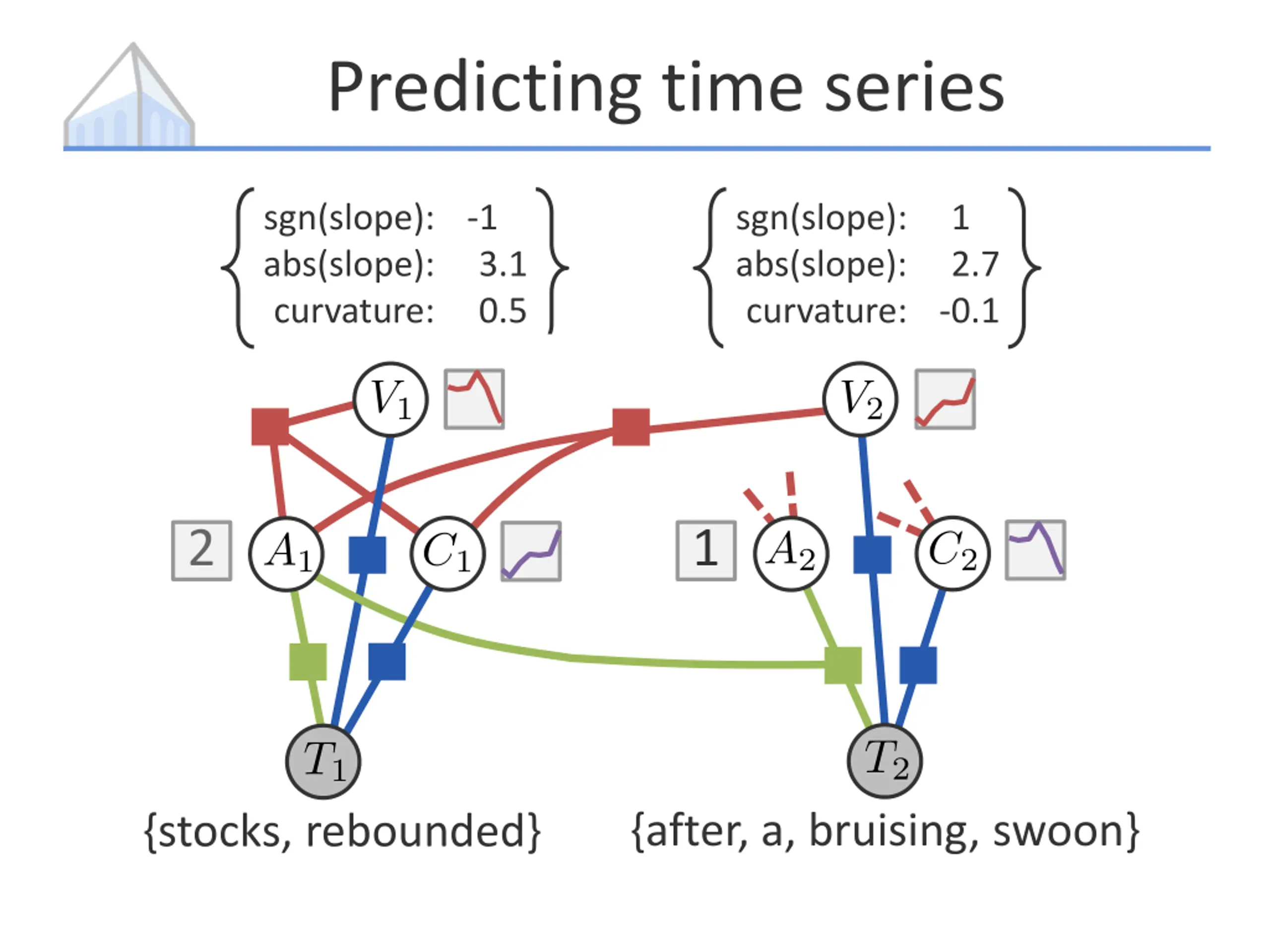

Predicting time series sgn(slope): -1 abs(slope): 3.1 curvature: 0.5 sgn(slope): 1 abs(slope): 2.7 curvature: -0.1 2 1 after a bruising swoon {after, a, bruising, swoon} stocks rebounded {stocks, rebounded}

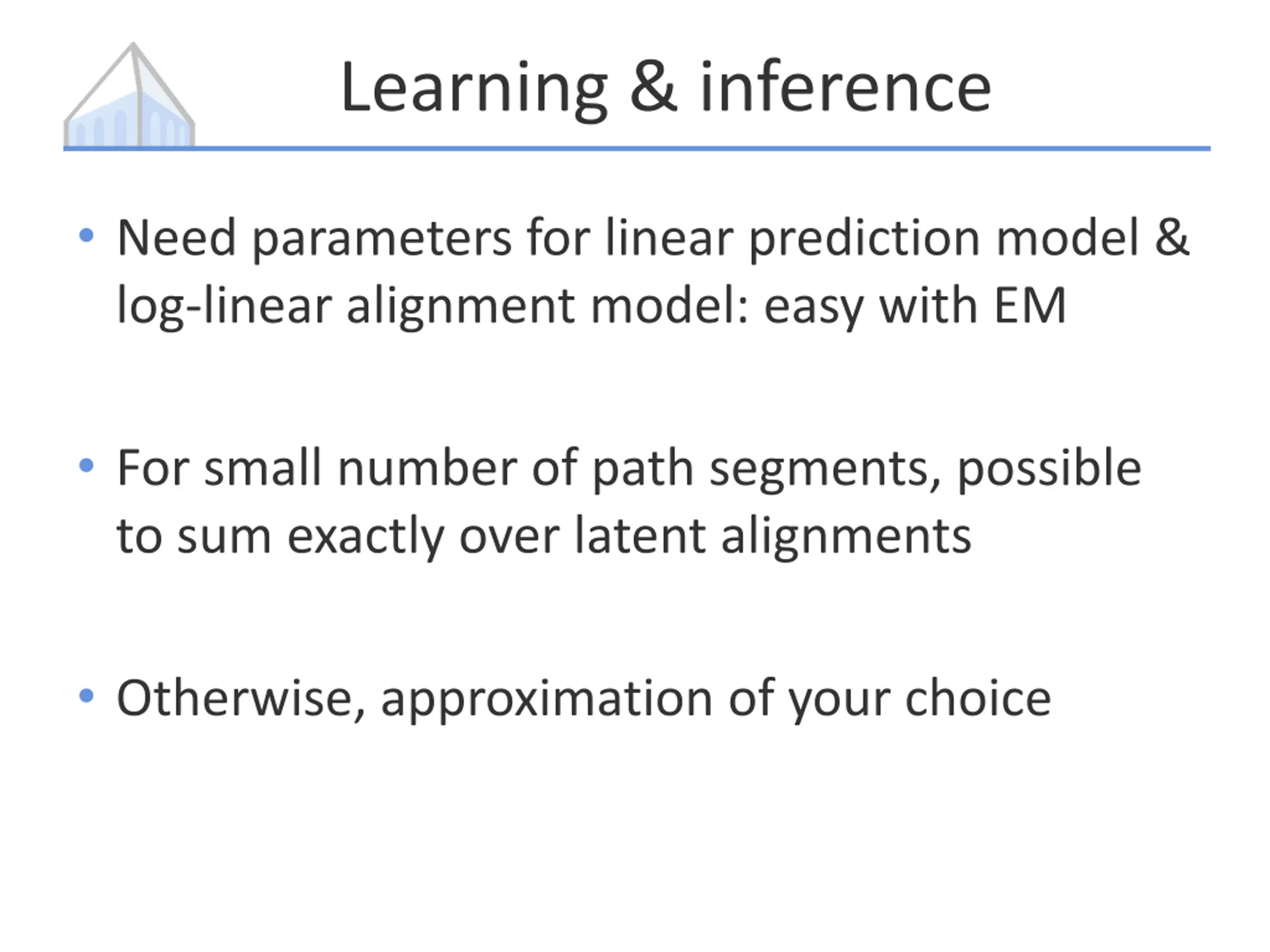

Learning & inference Need parameters for linear prediction model & log-linear alignment model: easy with EM For small number of path segments, possible to sum exactly over latent alignments Otherwise, approximation of your choice

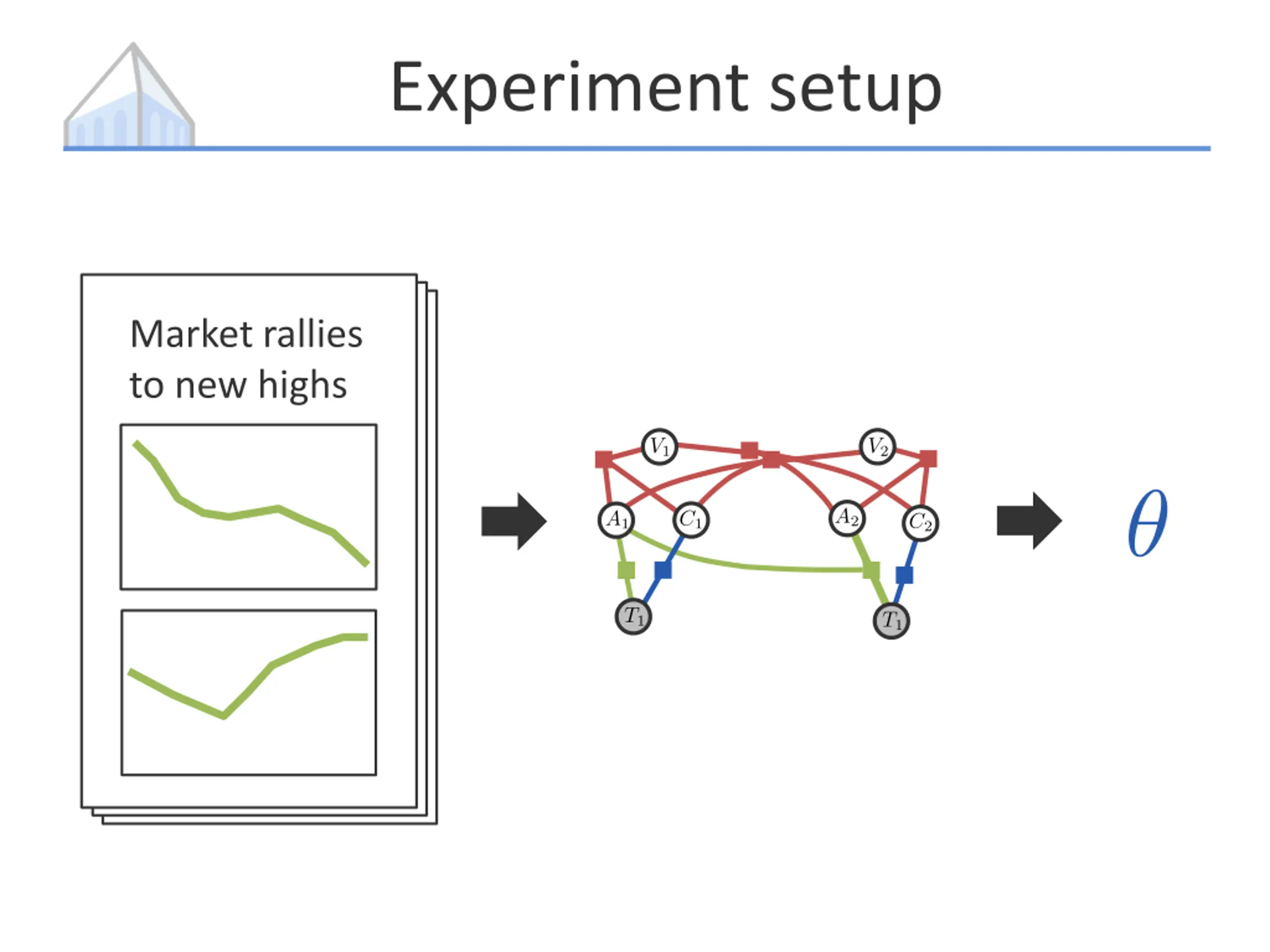

Experiment setup Market rallies to new highs

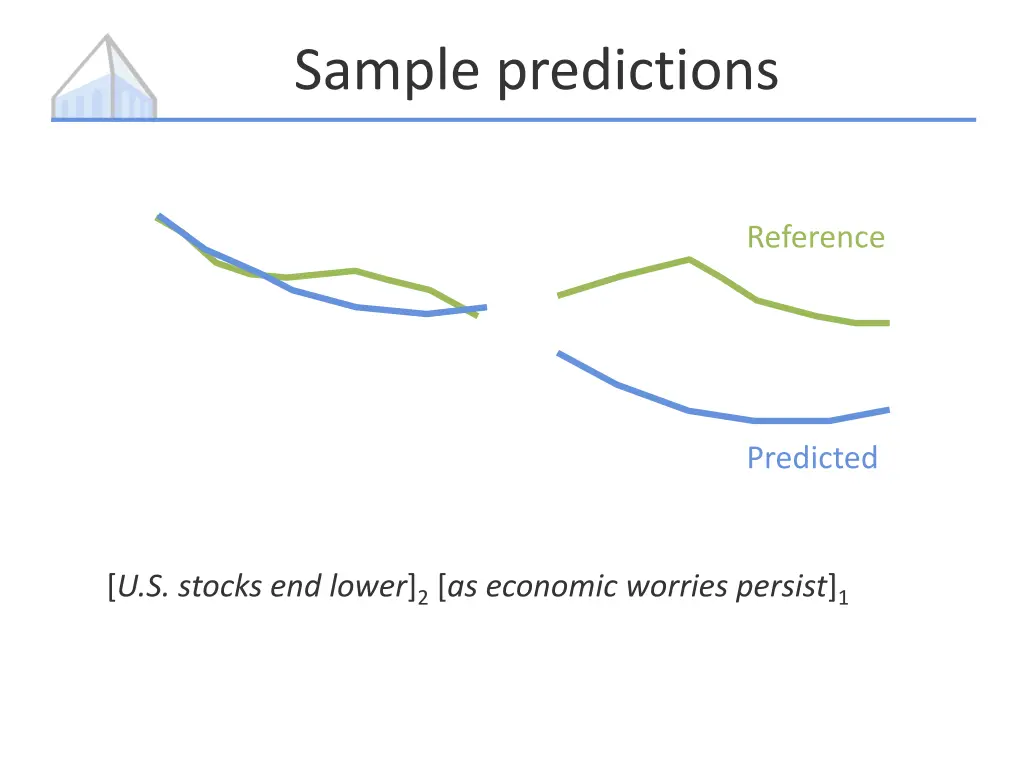

Sample predictions Reference Predicted U.S. stocks end loweras economic worries persist [U.S. stocks end lower]2 [as economic worries persist]1

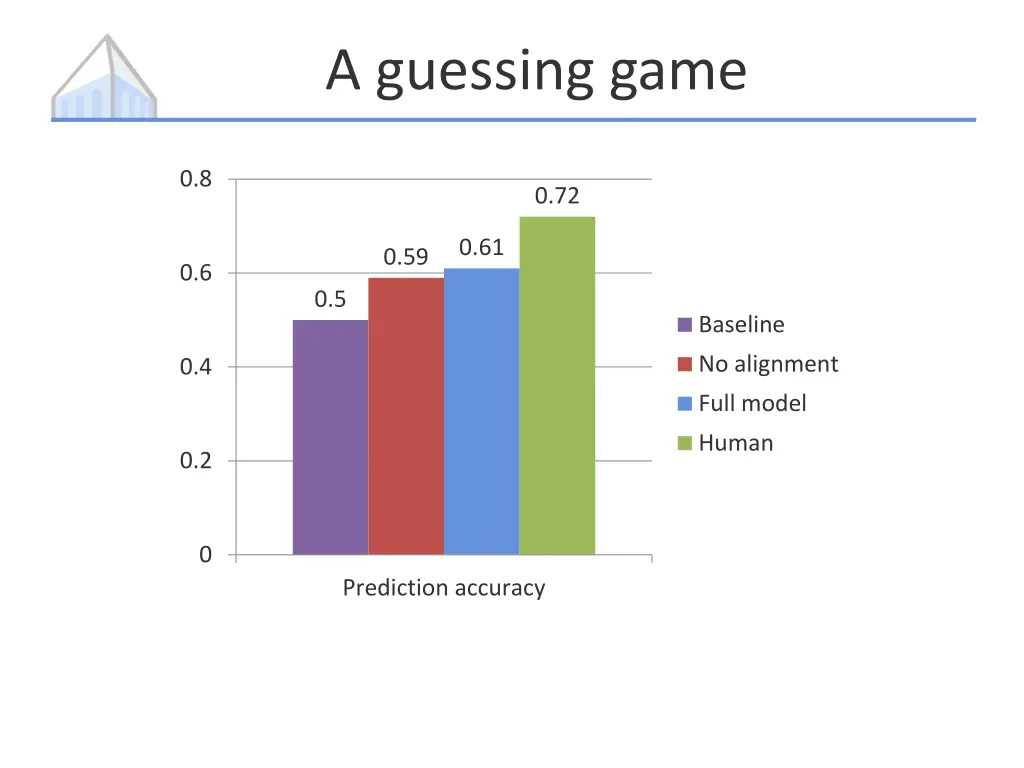

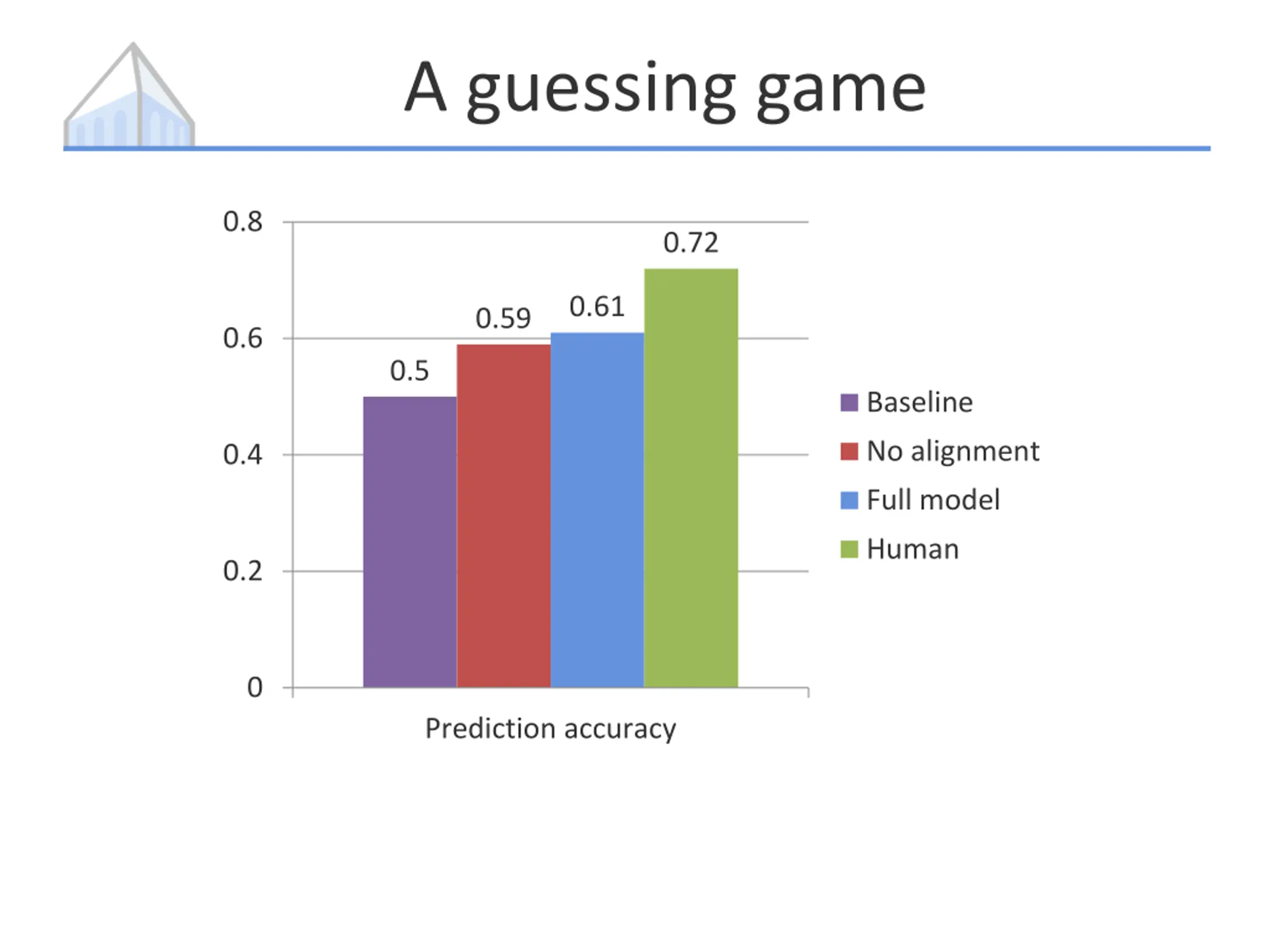

A guessing game 0.8 0.72 0.61 0.59 0.6 0.5 Baseline No alignment 0.4 Full model Human 0.2 0 Prediction accuracy

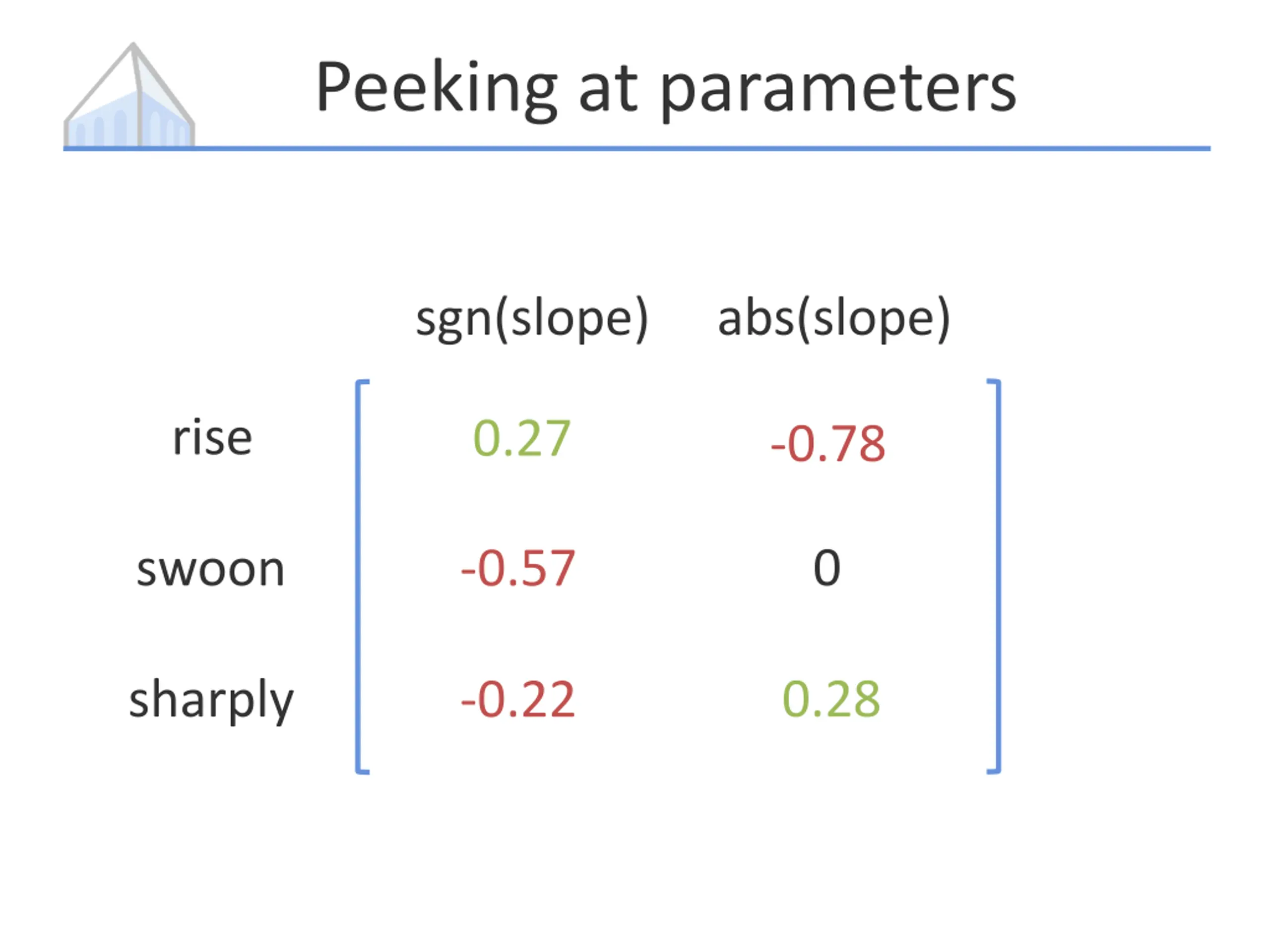

Peeking at parameters sgn(slope) abs(slope) rise 0.27 -0.78 0 swoon -0.57 0.28 sharply -0.22

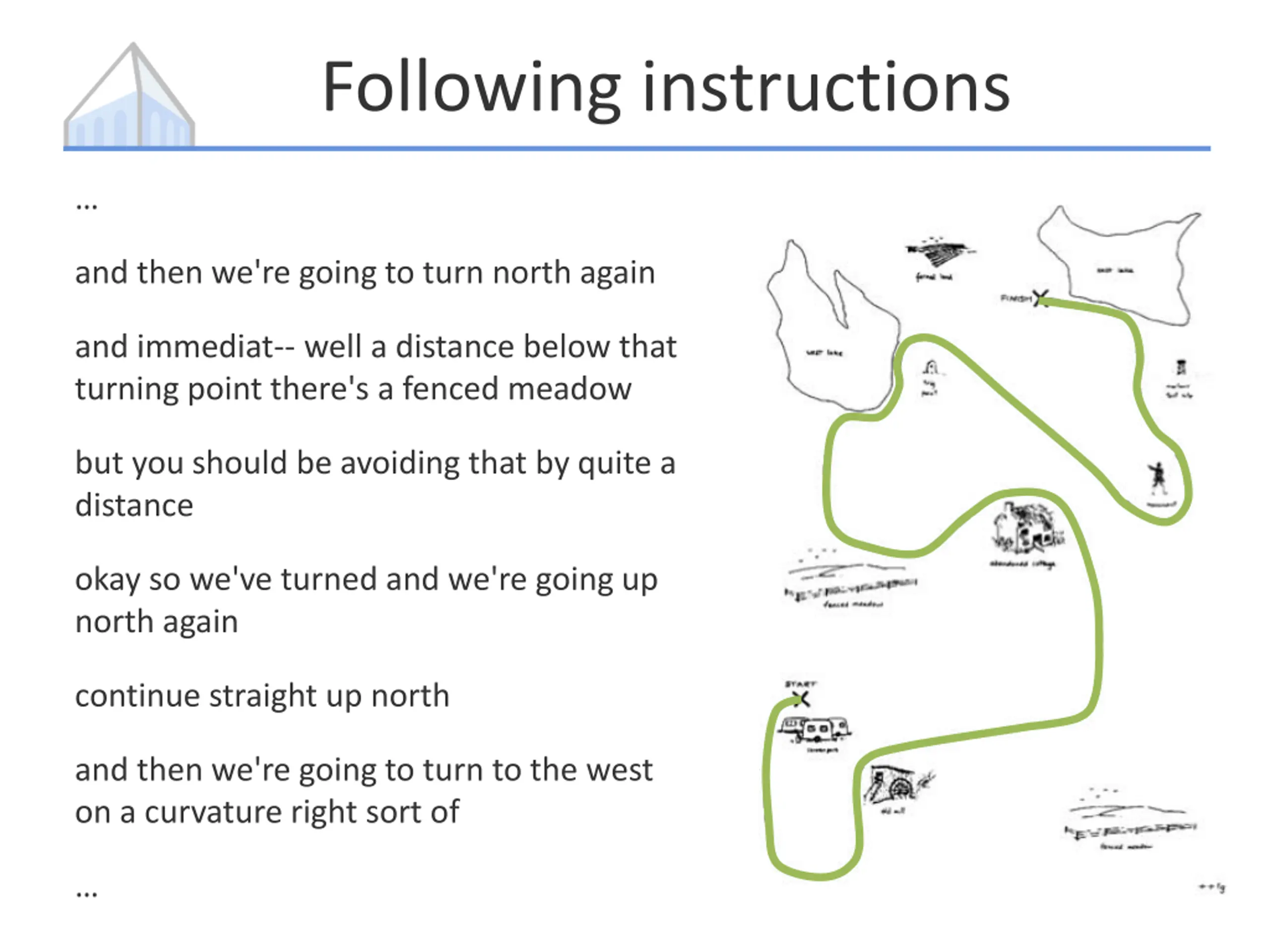

Following instructions and then we're going to turn north again and immediat-- well a distance below that turning point there's a fenced meadow but you should be avoiding that by quite a distance okay so we've turned and we're going up north again continue straight up north and then we're going to turn to the west on a curvature right sort of

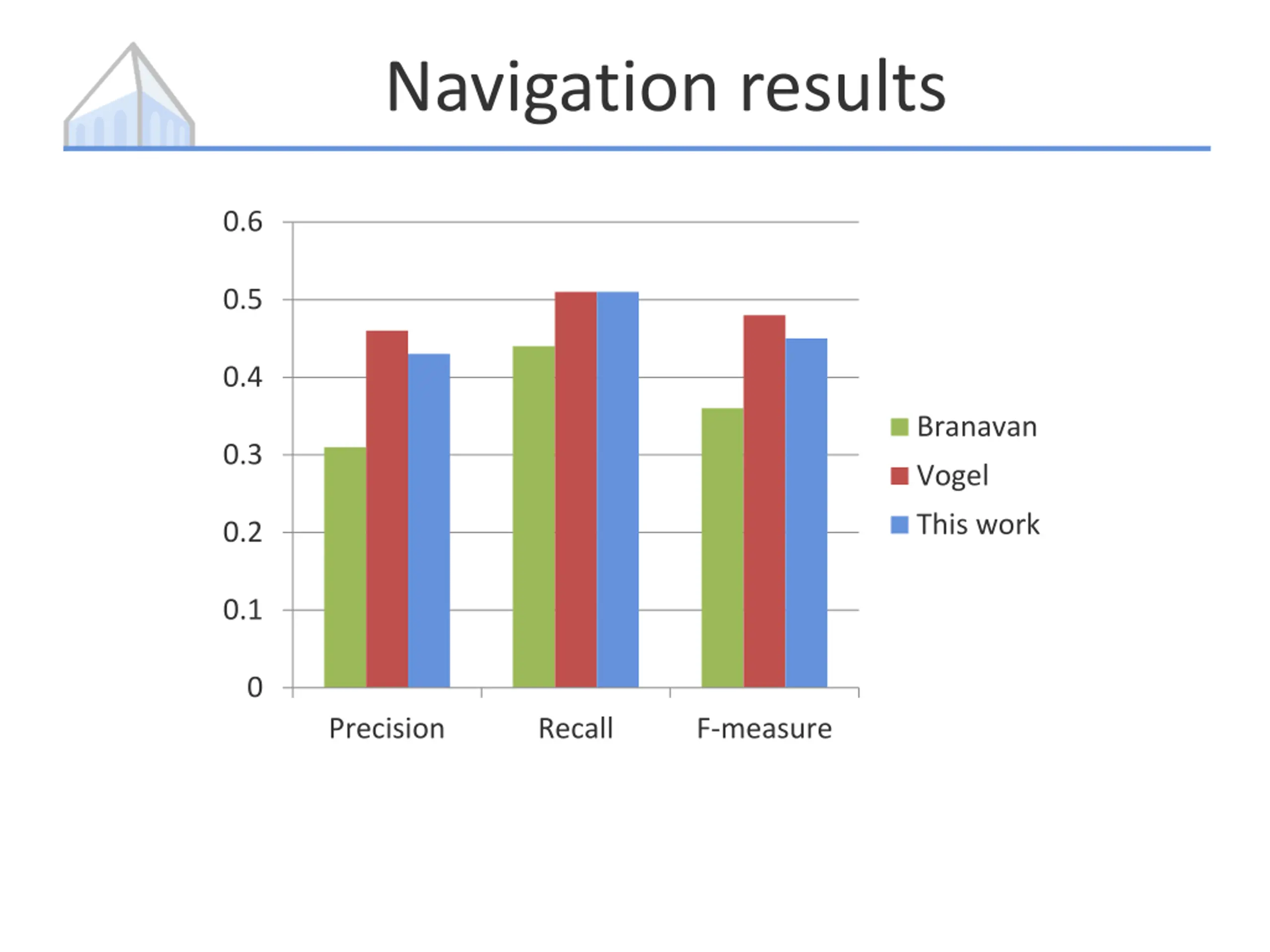

Navigation results 0.6 0.5 0.4 Branavan 0.3 Vogel This work 0.2 0.1 0 Precision Recall F-measure

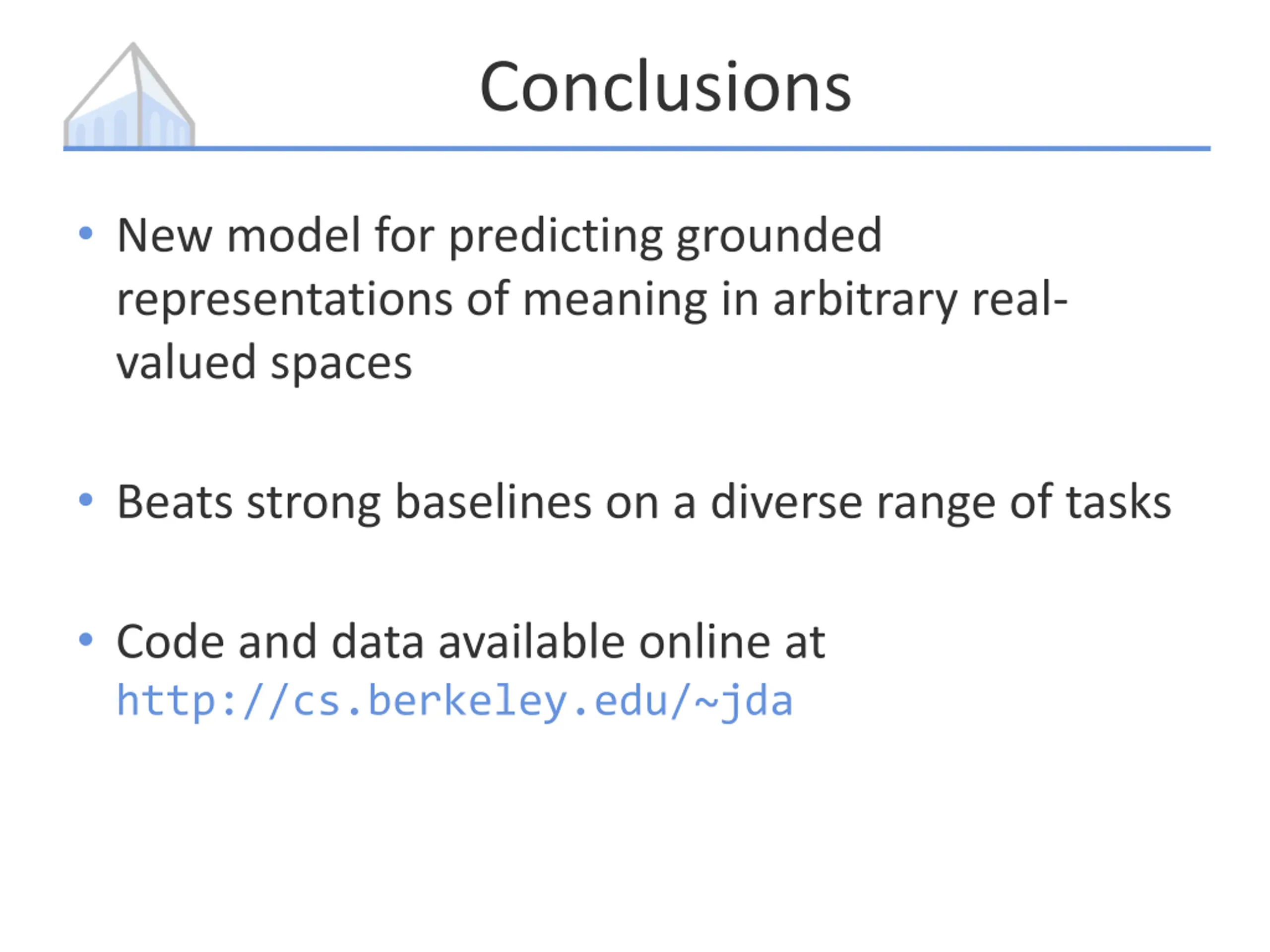

Conclusions New model for predicting grounded representations of meaning in arbitrary real- valued spaces Beats strong baselines on a diverse range of tasks Code and data available online at http://cs.berkeley.edu/~jda
