1. Datex II in the cooperative ITS Corridor DATEX II User Forum, Dublin, 14 September 2016 Dipl.-Math. Werner Scholtes Werner Scholtes IT-Beratung DATEX II User Forum Dublin 13&14 September 2016

2. DATEX II User Forum Dublin 13&14 September 2016

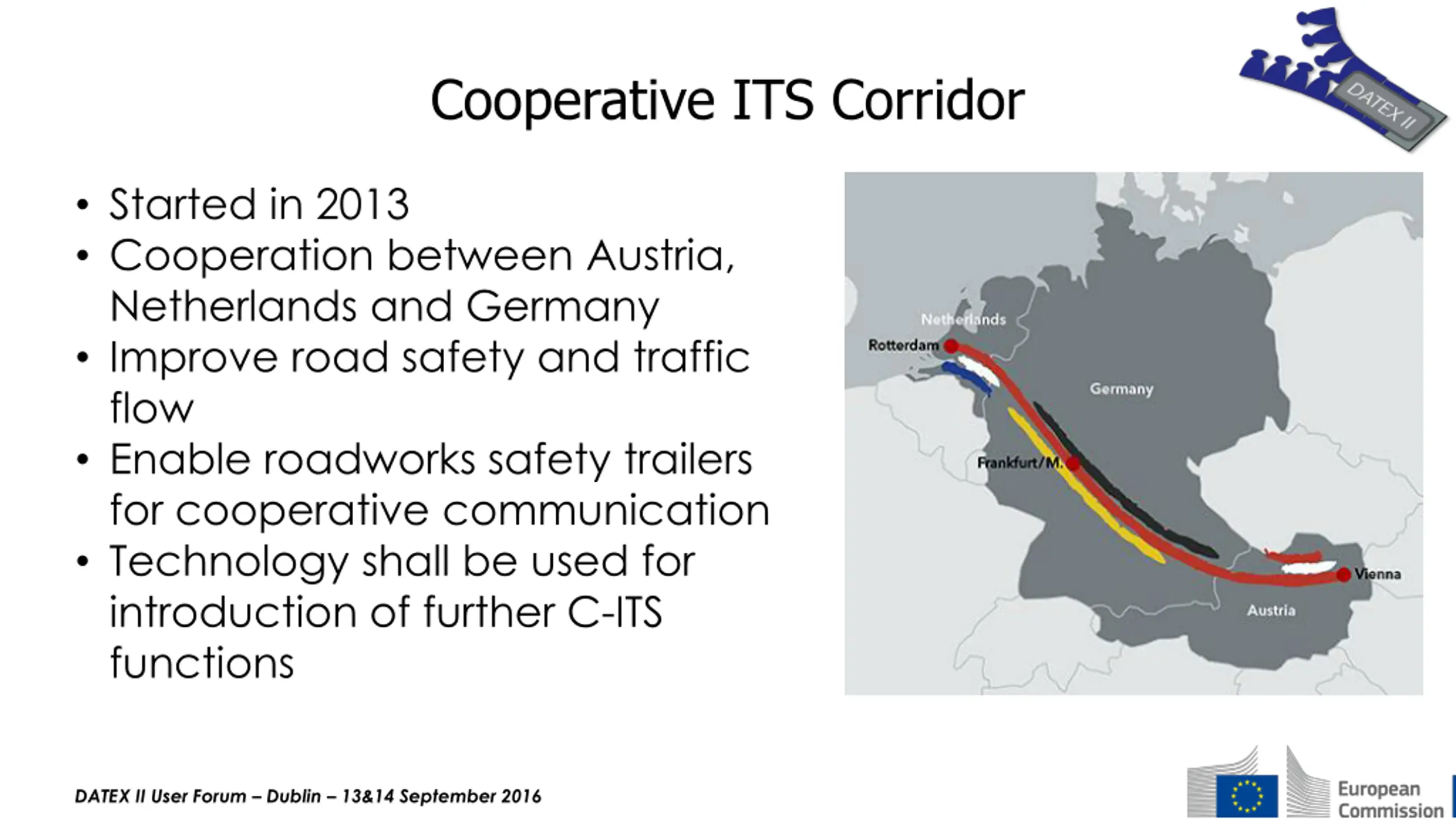

3. Cooperative ITS Corridor Started in 2013 Cooperation between Austria, Netherlands and Germany Improve road safety and traffic flow Enable roadworks safety trailers for cooperative communication Technology shall be used for introduction of further C-ITS functions DATEX II User Forum Dublin 13&14 September 2016

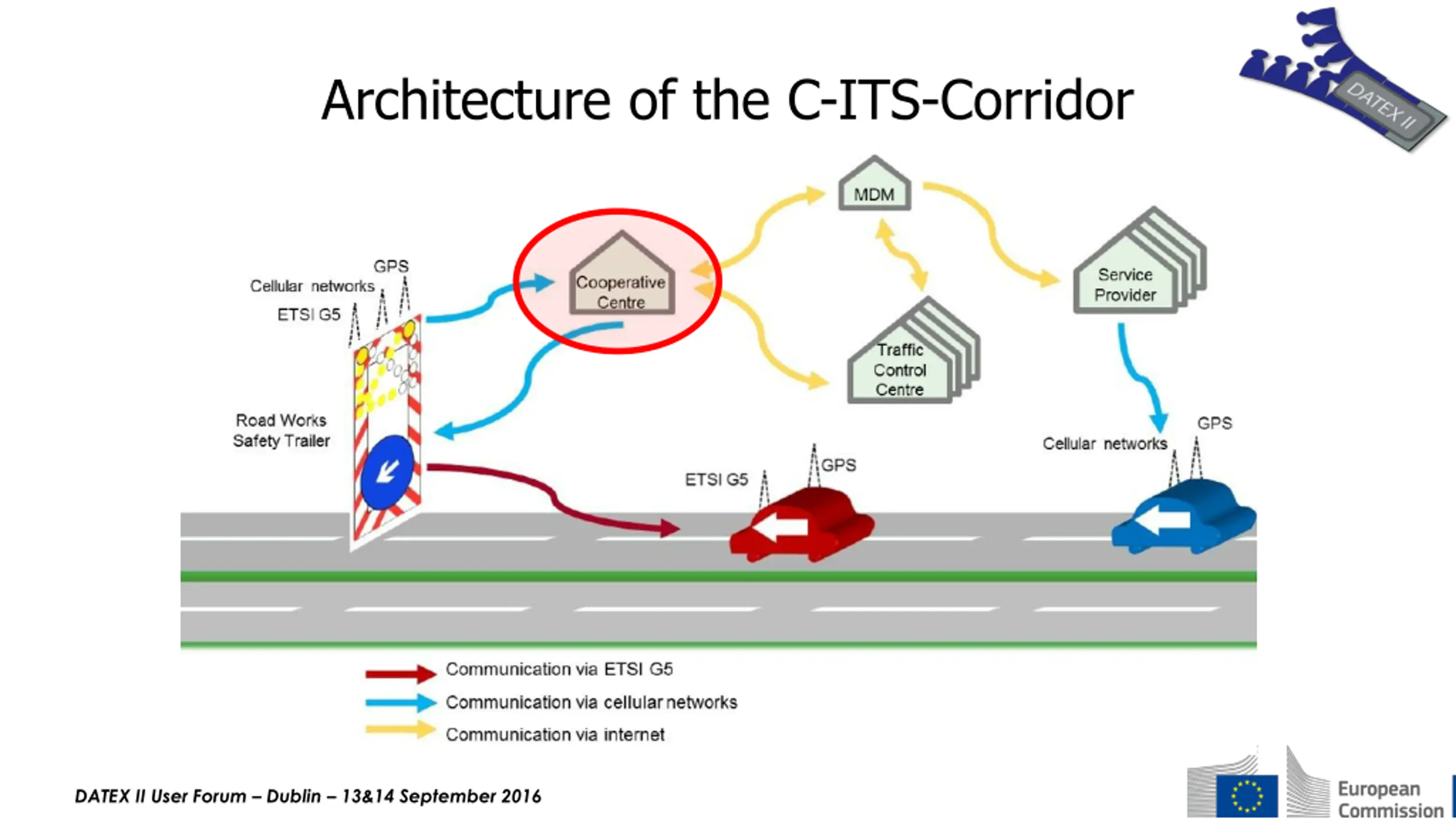

4. Architecture of the C-ITS-Corridor DATEX II User Forum Dublin 13&14 September 2016

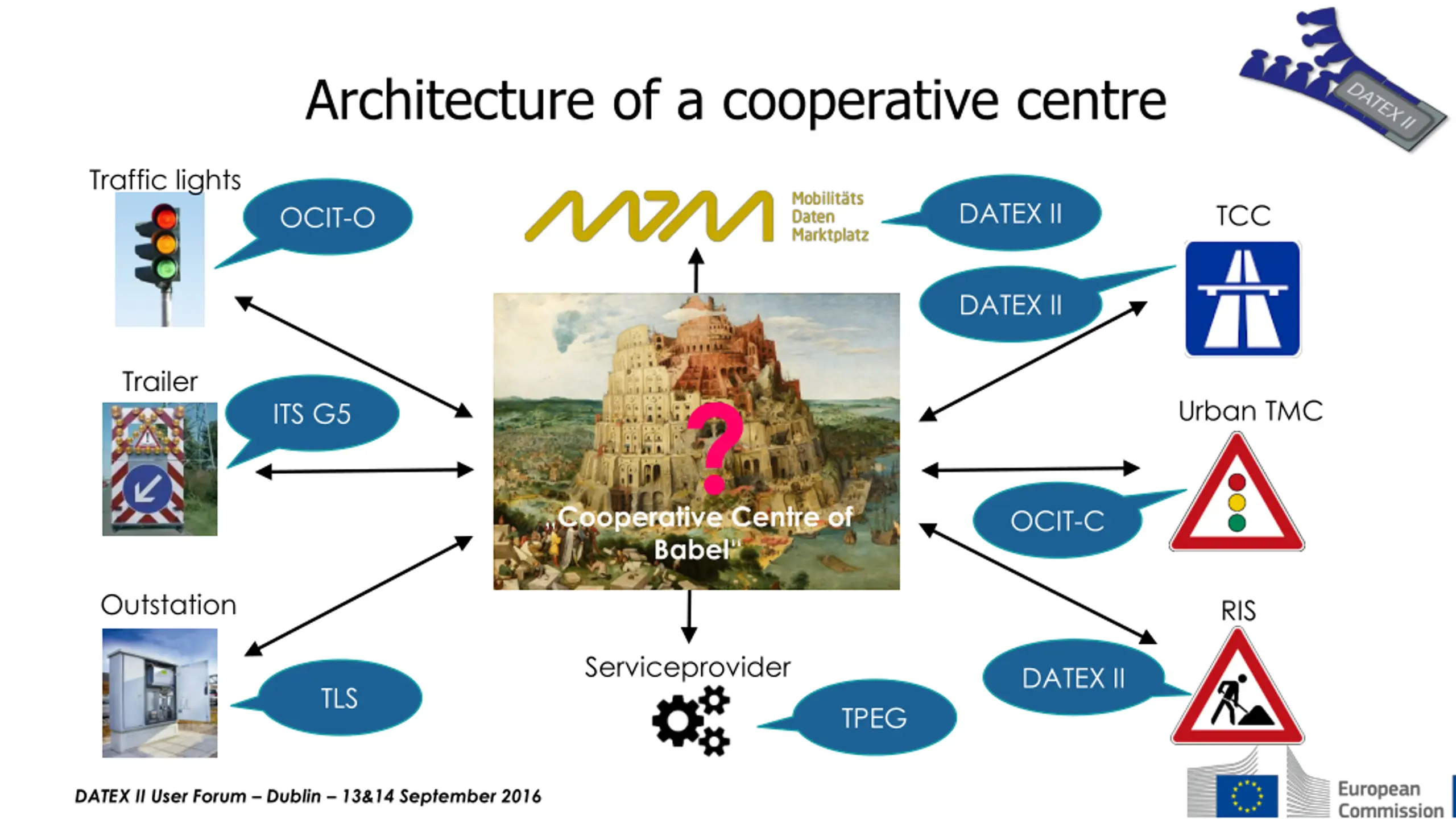

5. Architecture of a cooperative centre Traffic lights DATEX II TCC OCIT-O DATEX II Trailer Cooperative Centre ? Cooperative Centre of Babel Urban TMC ITS G5 OCIT-C Outstation RIS Serviceprovider DATEX II TLS TPEG DATEX II User Forum Dublin 13&14 September 2016

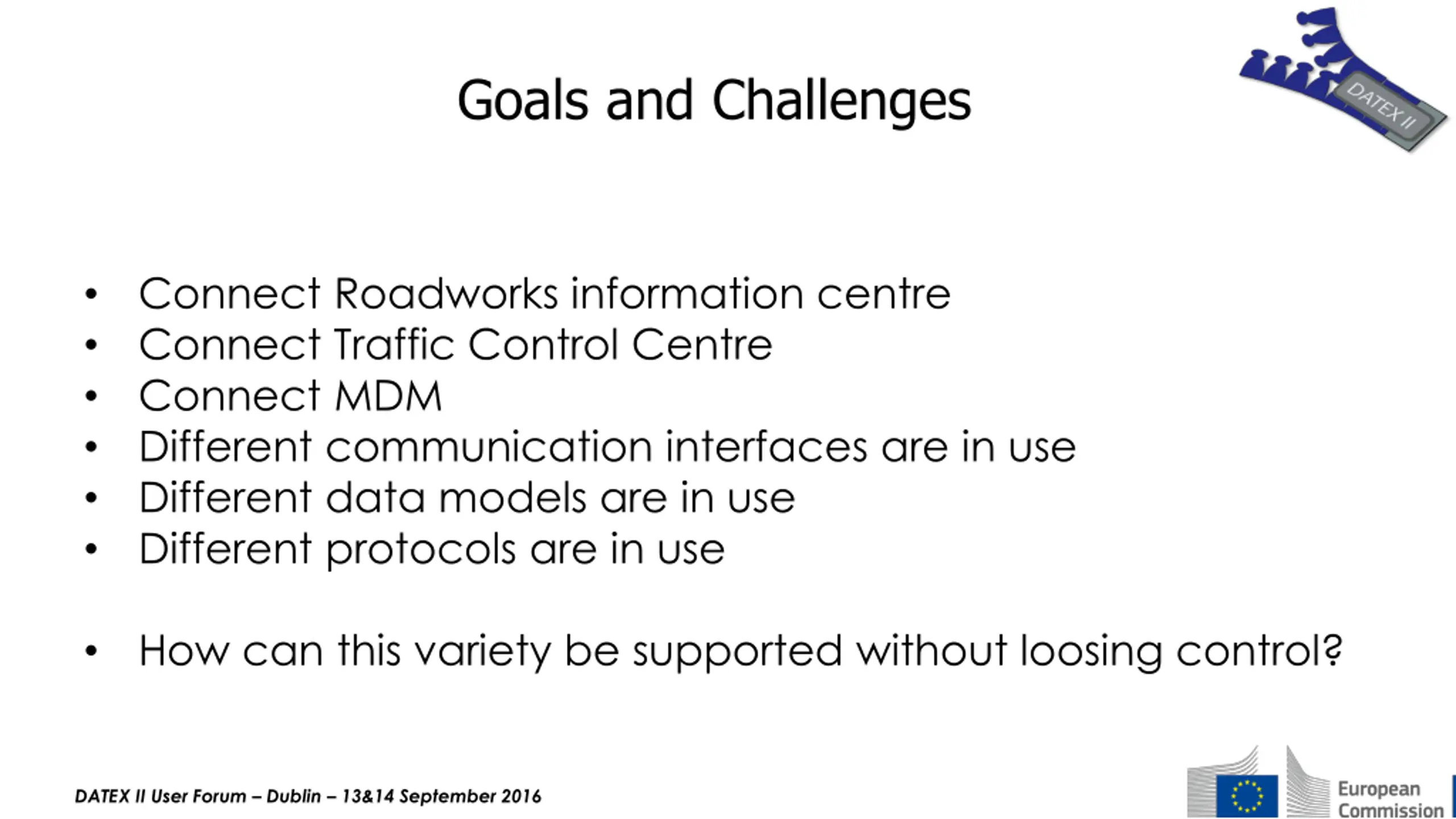

6. Goals and Challenges Connect Trailers Connect Roadworks information centre Connect Traffic Control Centre Connect MDM Different communication interfaces are in use Different data models are in use Different protocols are in use How can this variety be supported without loosing control? DATEX II User Forum Dublin 13&14 September 2016

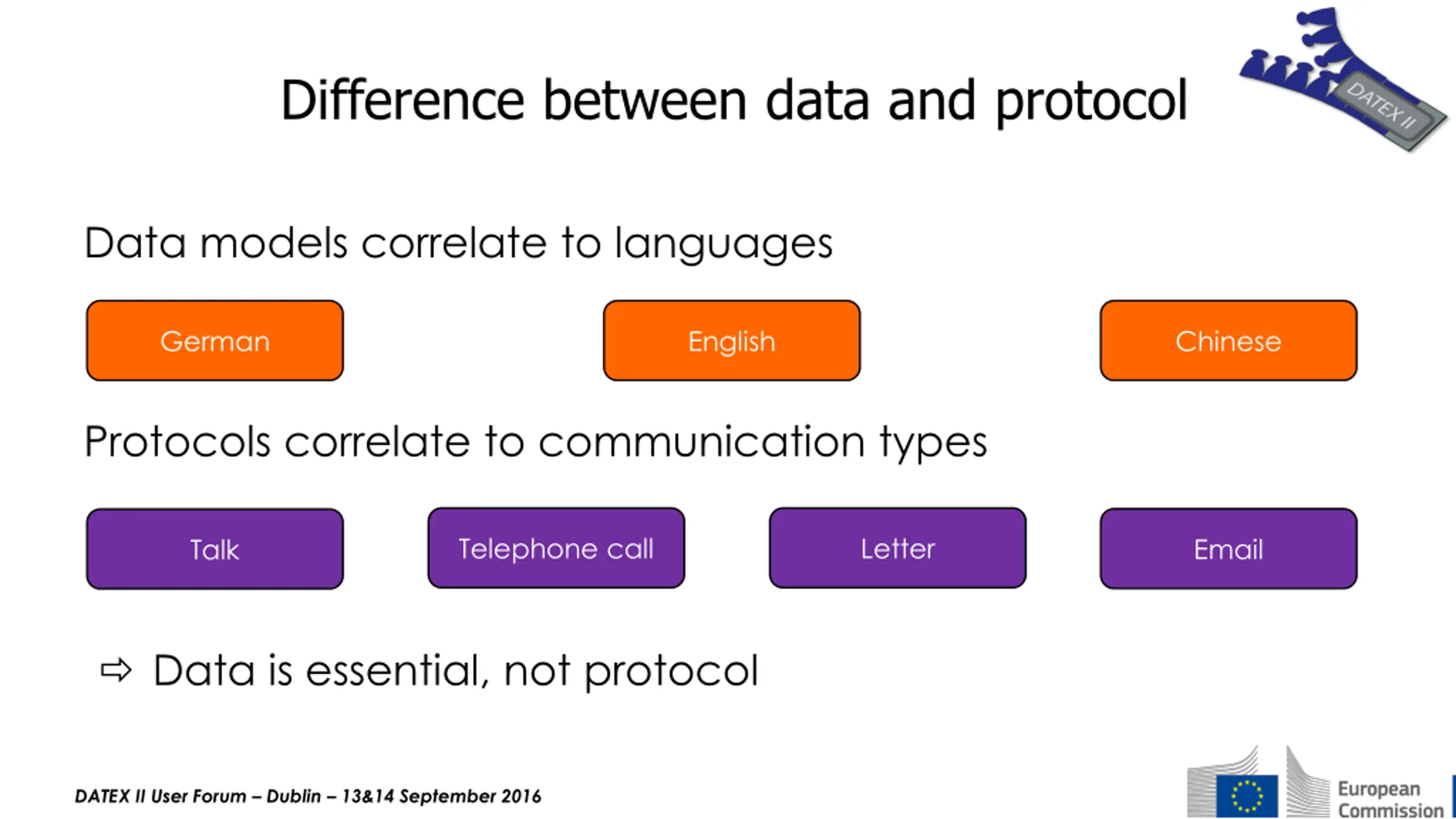

7. Difference between data and protocol Data models correlate to languages German English Chinese Protocols correlate to communication types Telephone call Letter Email Talk Data is essential, not protocol DATEX II User Forum Dublin 13&14 September 2016

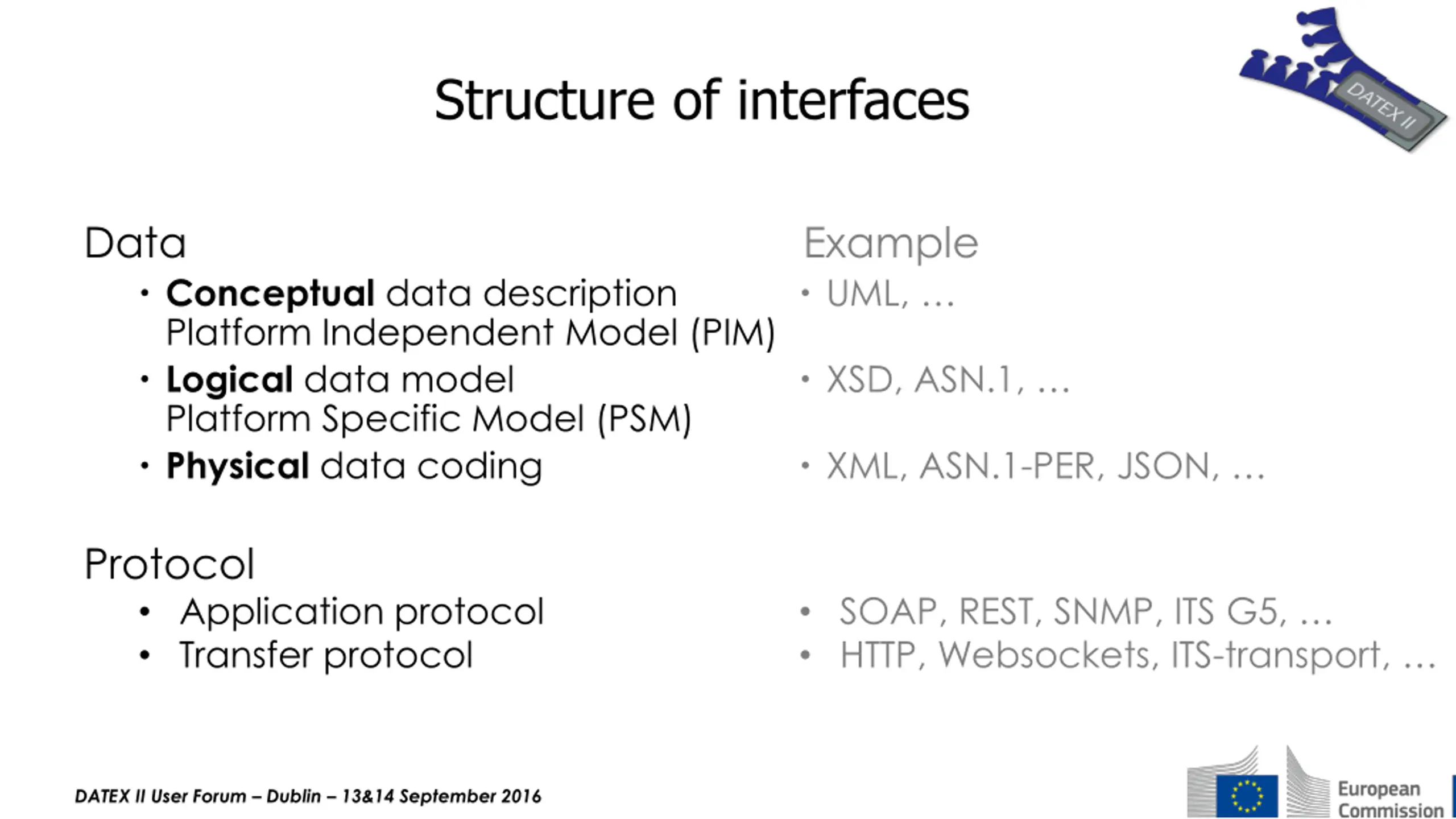

8. Structure of interfaces Data Example UML, Conceptual data description Platform Independent Model (PIM) Logical data model Platform Specific Model (PSM) Physical data coding XSD, ASN.1, XML, ASN.1-PER, JSON, Protocol Application protocol Transfer protocol SOAP, REST, SNMP, ITS G5, HTTP, Websockets, ITS-transport, DATEX II User Forum Dublin 13&14 September 2016

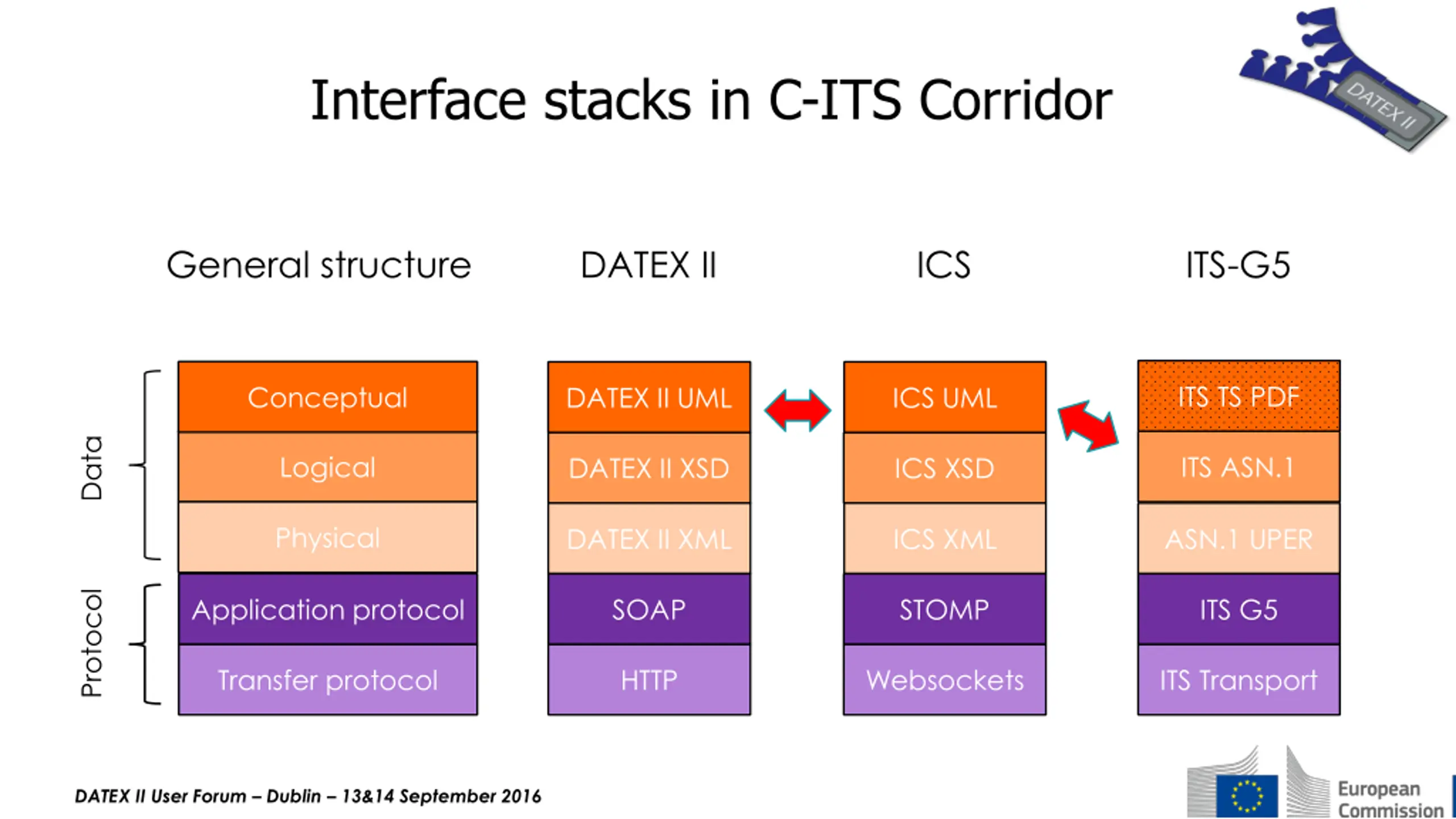

9. Interface stacks in C-ITS Corridor General structure DATEX II ICS ITS-G5 ? ITS TS PDF Conceptual DATEX II UML ICS UML Data Logical ITS ASN.1 DATEX II XSD ICS XSD Physical DATEX II XML ICS XML ASN.1 UPER Protocol Application protocol SOAP STOMP ITS G5 Transfer protocol HTTP Websockets ITS Transport DATEX II User Forum Dublin 13&14 September 2016

10. What happens? Roadworks trailer Code with failure Chinese whispers! DATEX II User Forum Dublin 13&14 September 2016

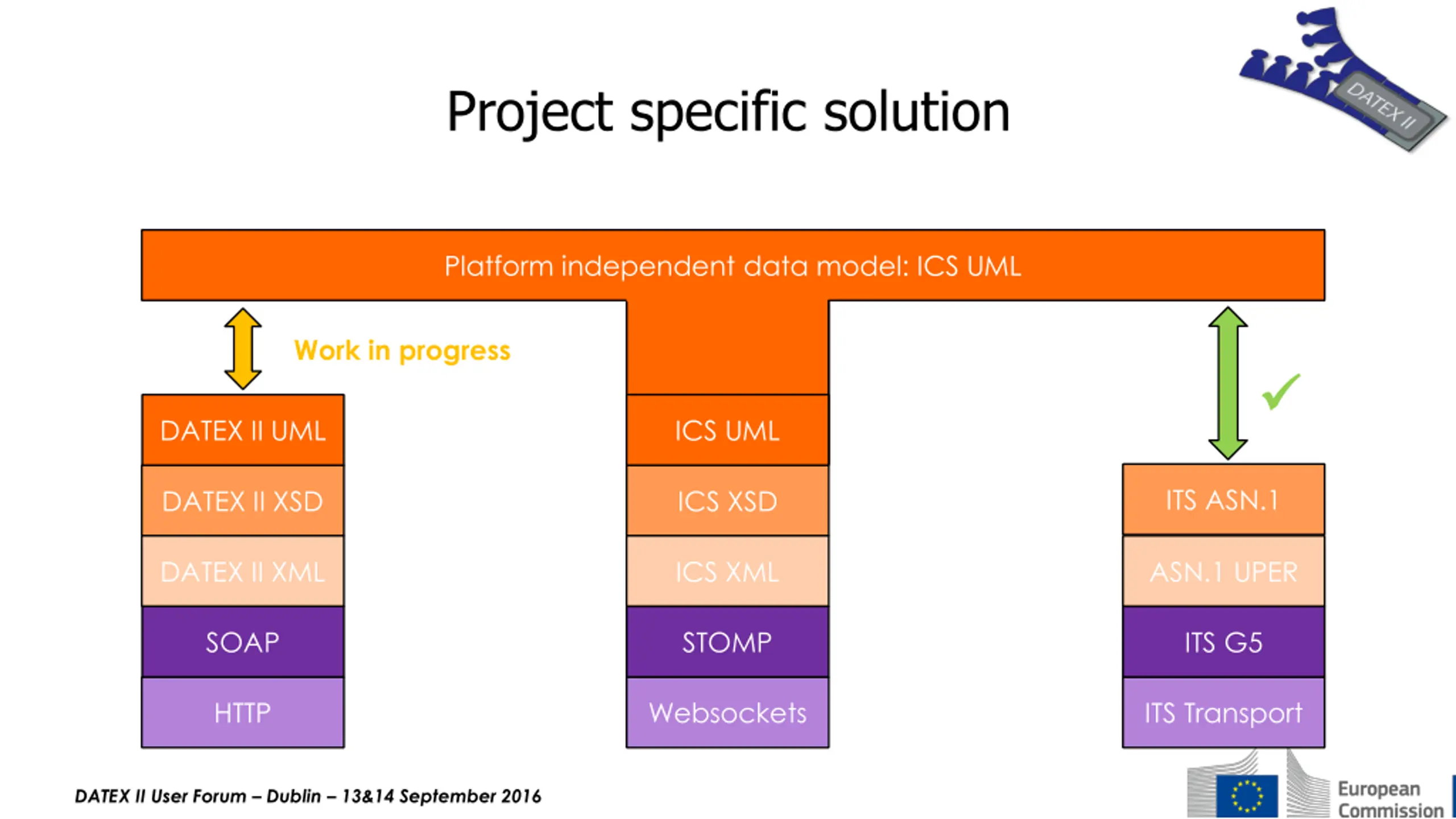

11. Project specific solution Platform independent data model: ICS UML Work in progress DATEX II UML ICS UML ITS ASN.1 DATEX II XSD ICS XSD DATEX II XML ICS XML ASN.1 UPER SOAP STOMP ITS G5 HTTP Websockets ITS Transport DATEX II User Forum Dublin 13&14 September 2016

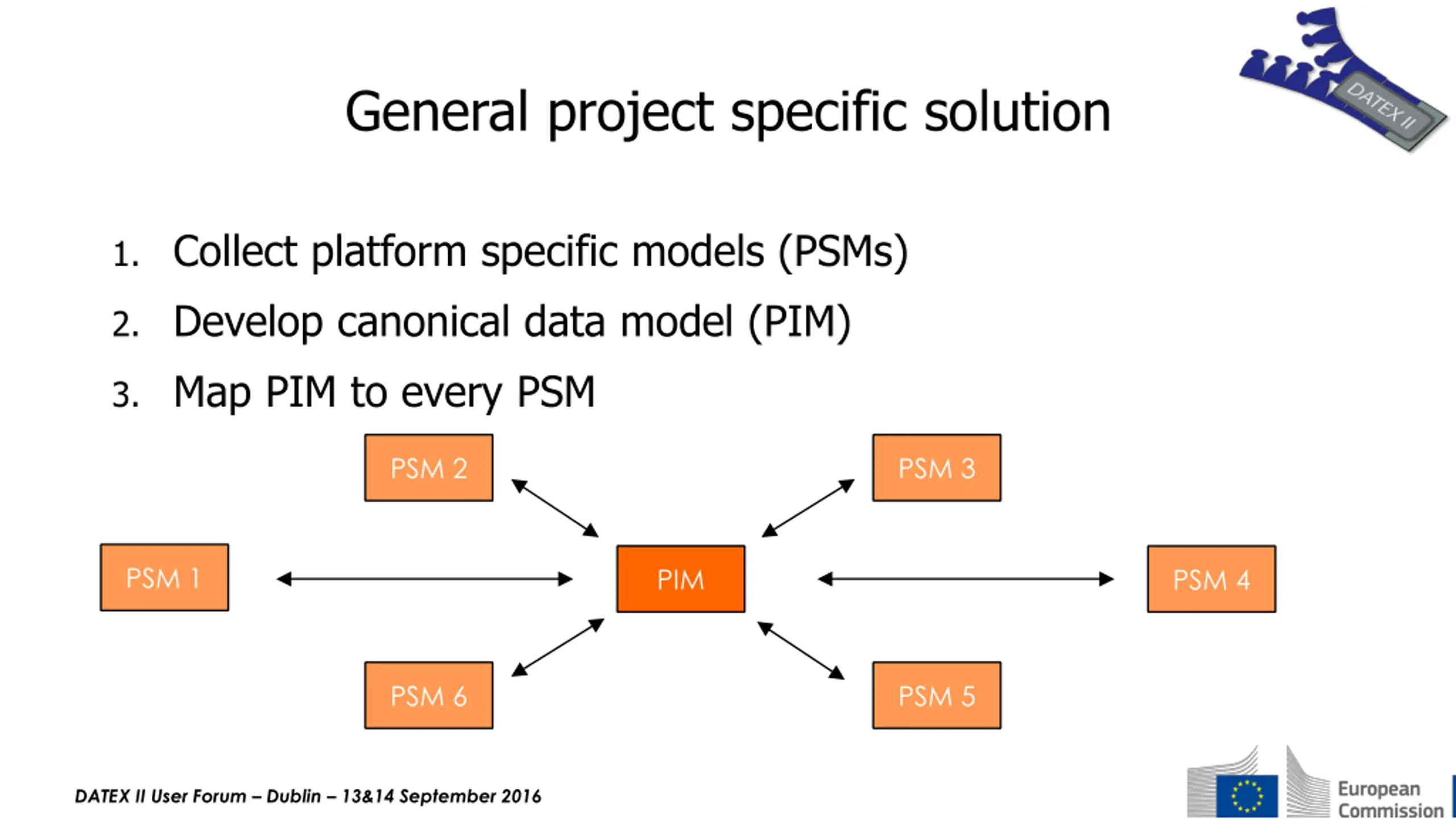

12. General project specific solution 1. Collect platform specific models (PSMs) 2. Develop canonical data model (PIM) 3. Map PIM to every PSM PSM 2 PSM 3 PSM 1 PIM PSM 4 PSM 6 PSM 5 DATEX II User Forum Dublin 13&14 September 2016

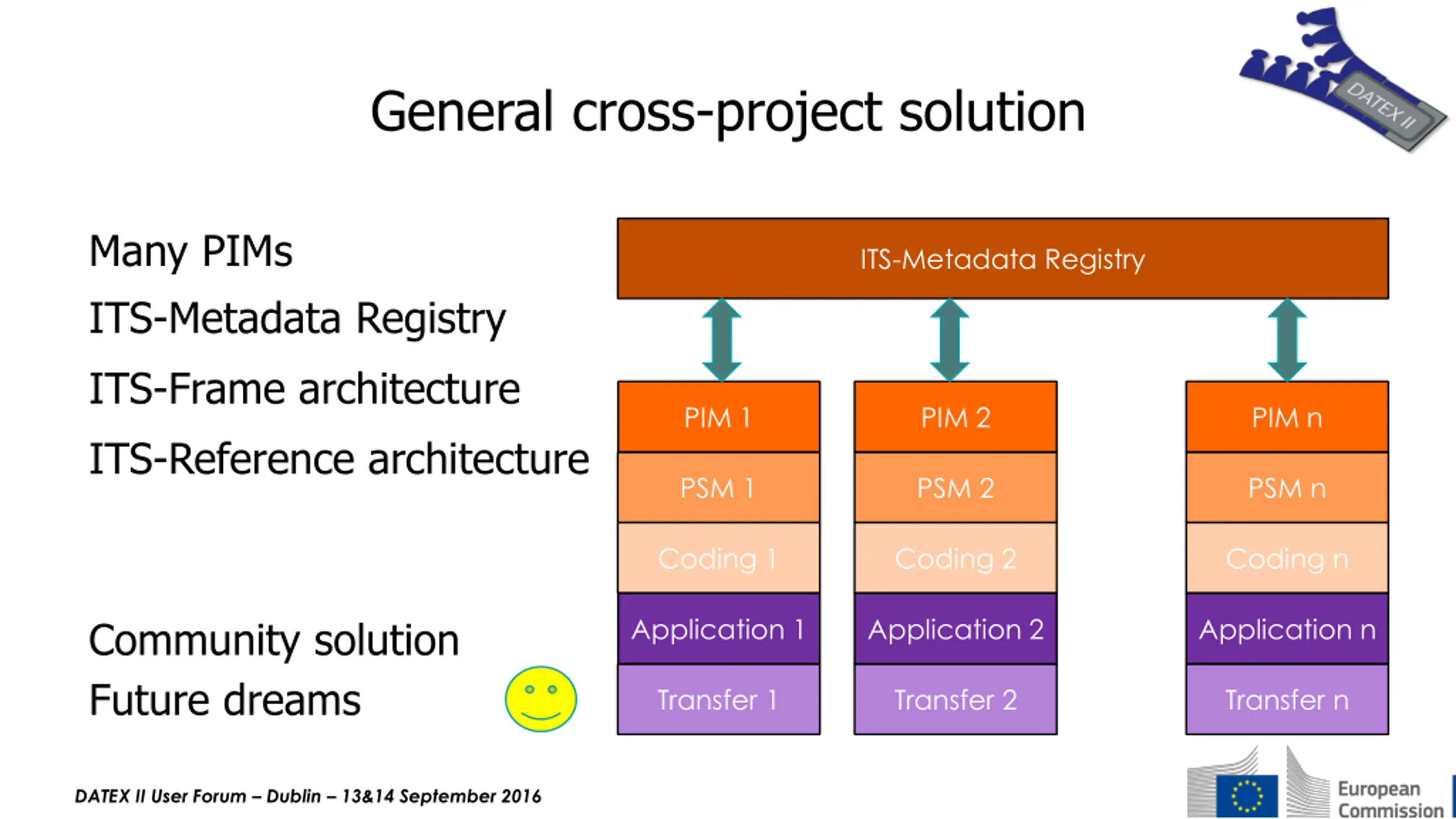

13. General cross-project solution Many PIMs ITS-Metadata Registry ITS-Metadata Registry ITS-Frame architecture PIM 1 PIM 2 PIM n ITS-Reference architecture PSM 1 PSM 2 PSM n Coding 1 Coding 2 Coding n Application 1 Application 2 Application n Community solution Future dreams Transfer 1 Transfer 2 Transfer n DATEX II User Forum Dublin 13&14 September 2016

14. Thank you for your attention Any questions? DATEX II User Forum Dublin 13&14 September 2016
