Magnet Design for Cornell ERL FFAG Using Dejan s Lattice (98 cells 11 m) Wuzheng Meng

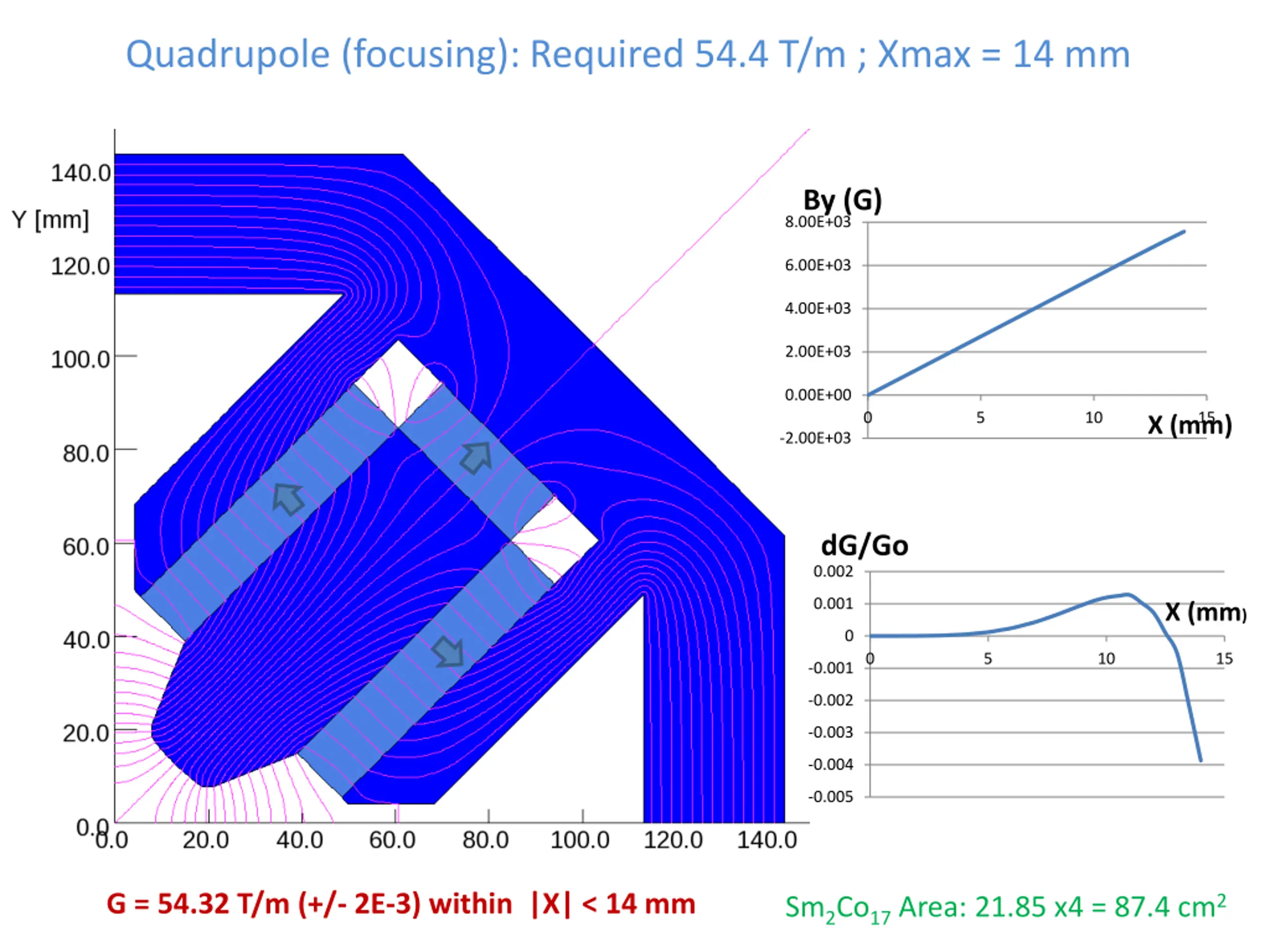

Quadrupole (focusing): Required 54.4 T/m ; Xmax = 14 mm 8.00E+03 By (G) 6.00E+03 4.00E+03 2.00E+03 0.00E+00 0 5 10 15 X (mm) -2.00E+03 dG/Go 0.002 0.001 X (mm) 0 0 5 10 15 -0.001 -0.002 -0.003 -0.004 -0.005 G = 54.32 T/m (+/- 2E-3) within |X| < 14 mm Sm2Co17 Area: 21.85 x4 = 87.4 cm2

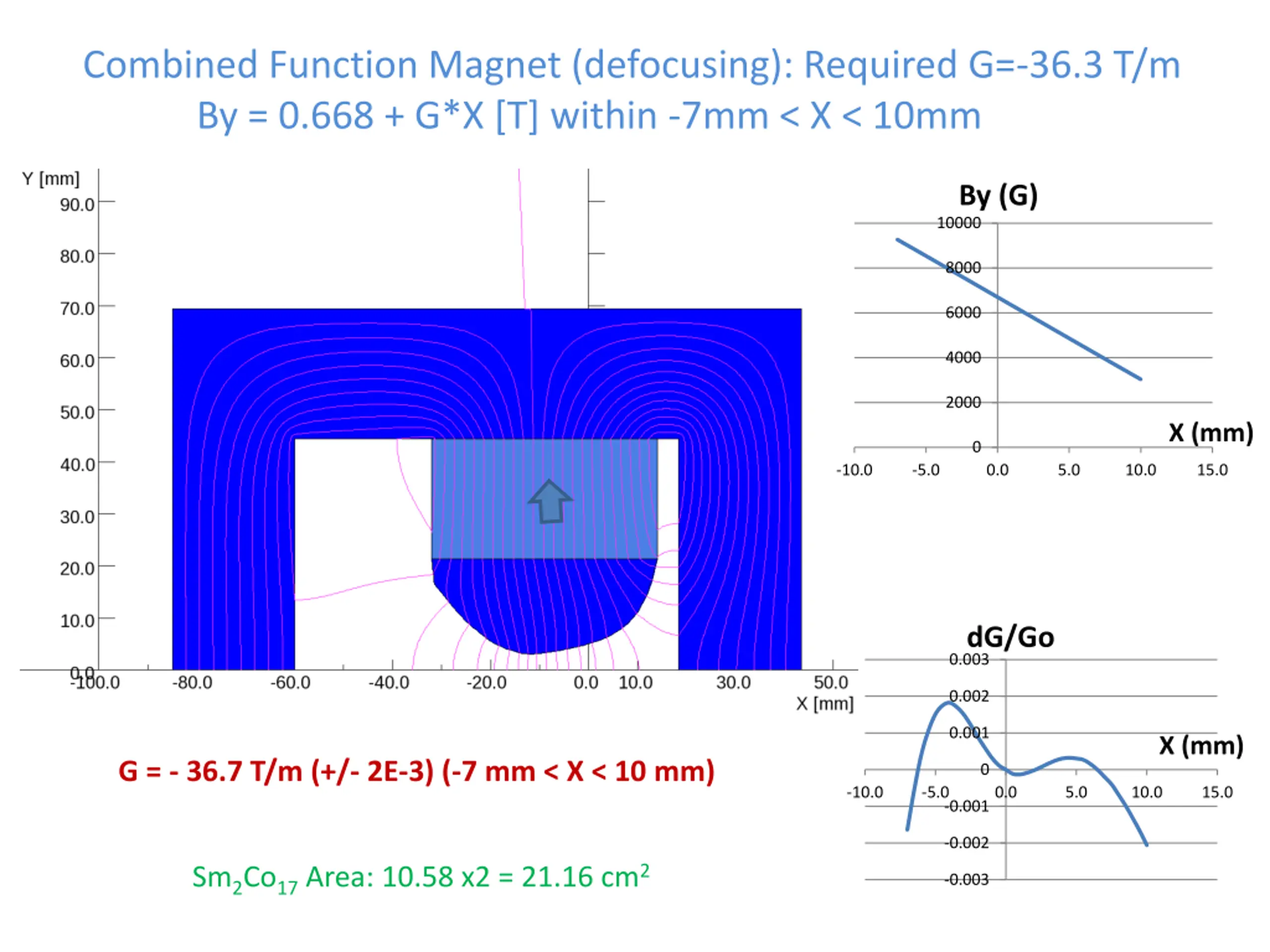

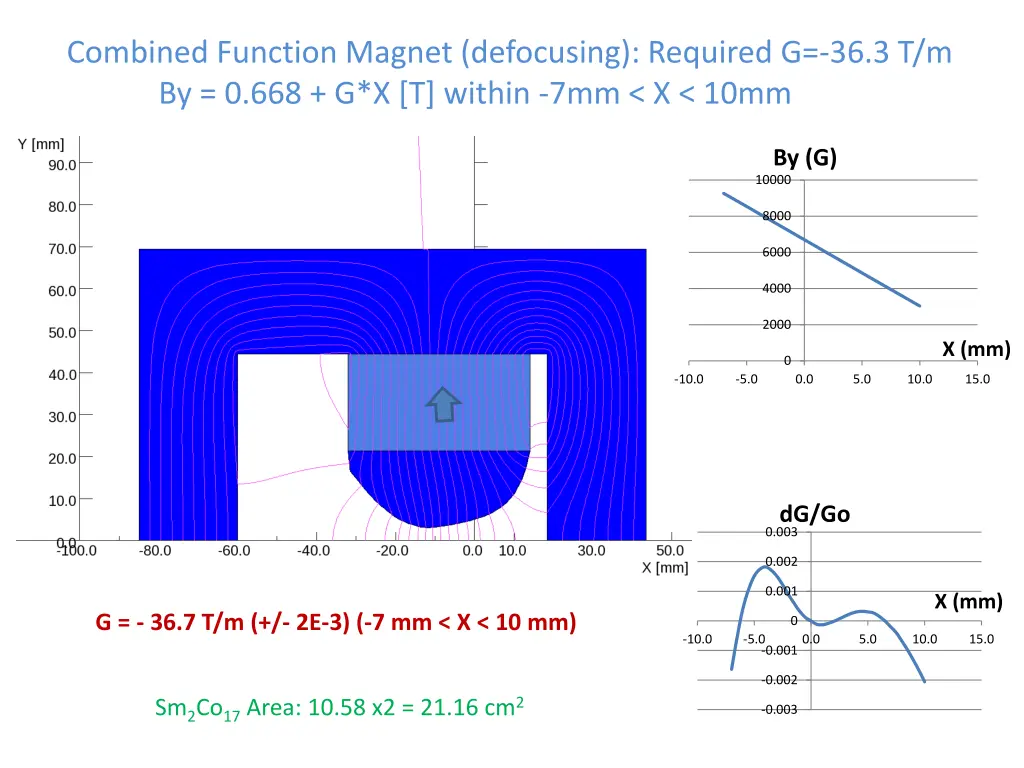

Combined Function Magnet (defocusing): Required G=-36.3 T/m By = 0.668 + G*X [T] within -7mm < X < 10mm By (G) 10000 8000 6000 4000 2000 X (mm) 0 -10.0 -5.0 0.0 5.0 10.0 15.0 0.003 dG/Go 0.002 0.001 X (mm) G = - 36.7 T/m (+/- 2E-3) (-7 mm < X < 10 mm) 0 -10.0 -5.0 0.0 5.0 10.0 15.0 -0.001 -0.002 Sm2Co17 Area: 10.58 x2 = 21.16 cm2 -0.003

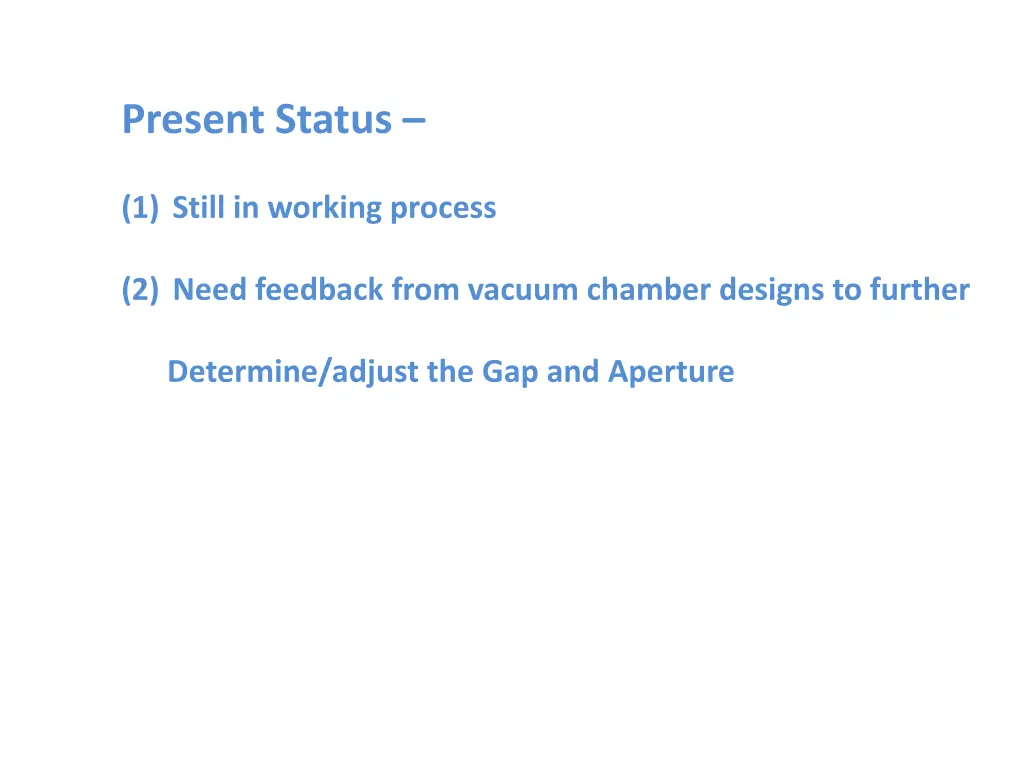

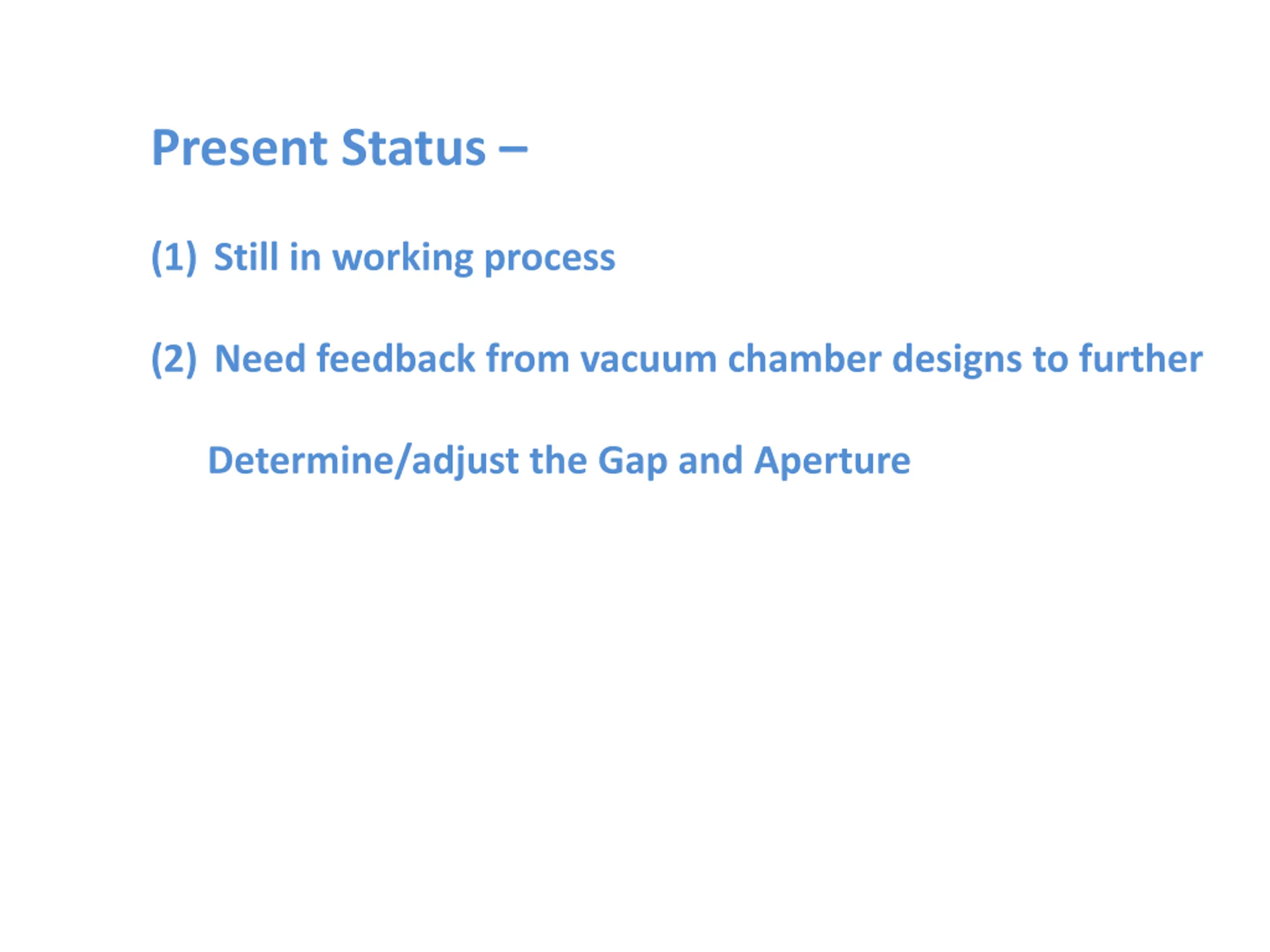

Present Status (1) Still in working process (2) Need feedback from vacuum chamber designs to further Determine/adjust the Gap and Aperture
