Preliminary results May tests 1

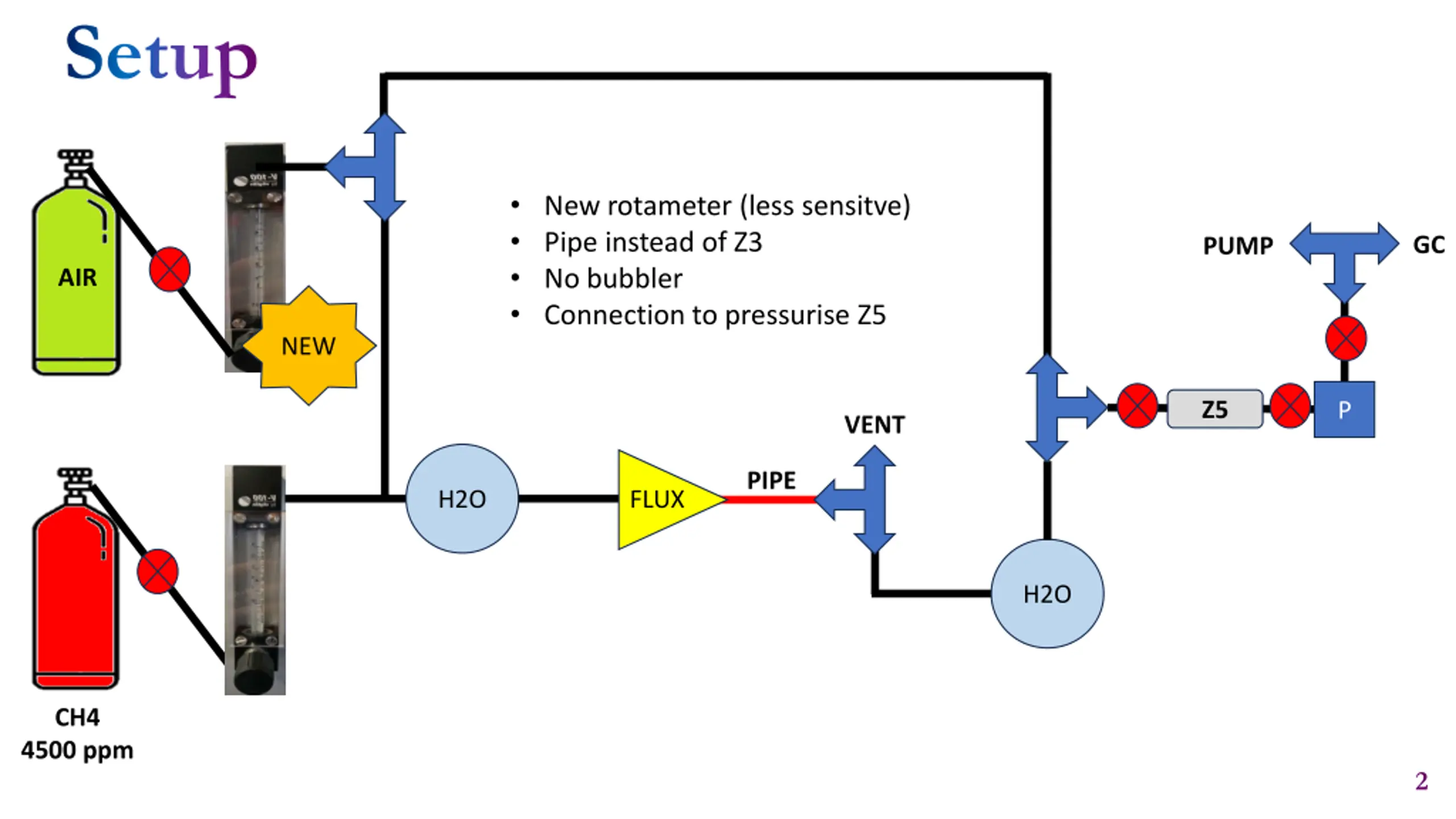

Setup New rotameter (less sensitve) Pipe instead of Z3 No bubbler Connection to pressurise Z5 GC PUMP AIR NEW Z5 P VENT PIPE FLUX H2O H2O CH4 4500 ppm 2

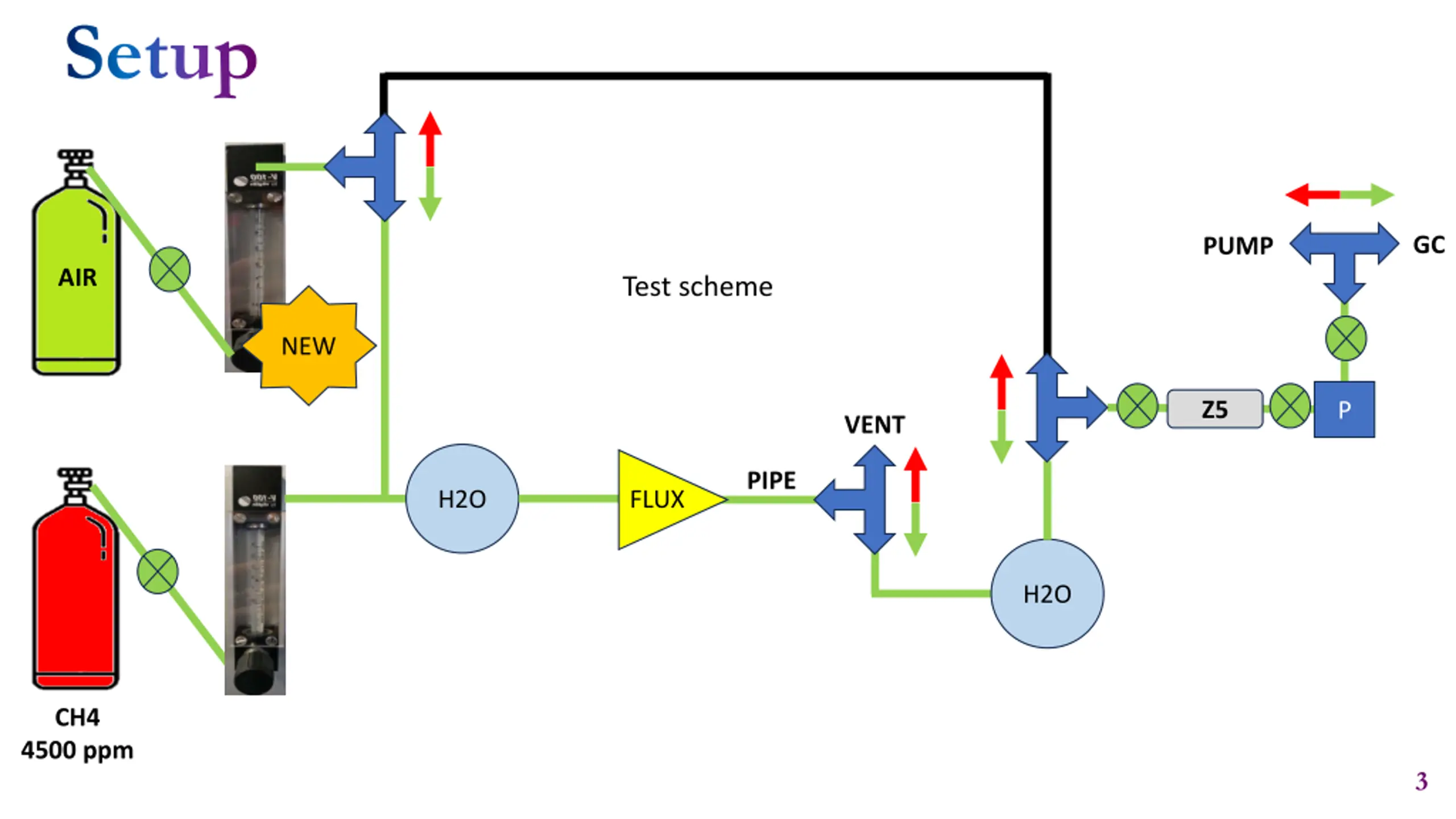

Setup GC PUMP AIR Test scheme NEW Z5 P VENT PIPE FLUX H2O H2O CH4 4500 ppm 3

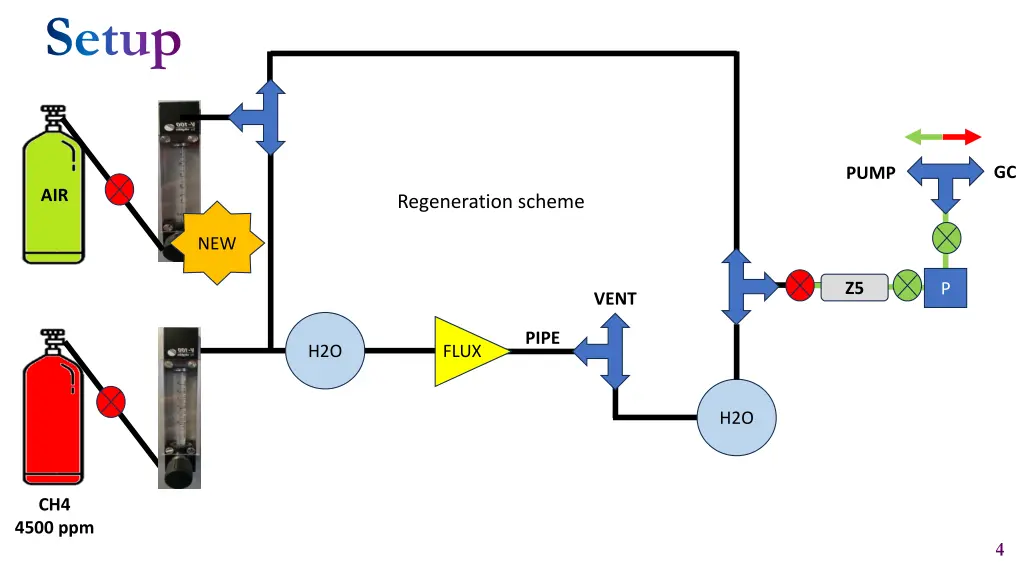

Setup GC PUMP AIR Regeneration scheme NEW Z5 P VENT PIPE FLUX H2O H2O CH4 4500 ppm 4

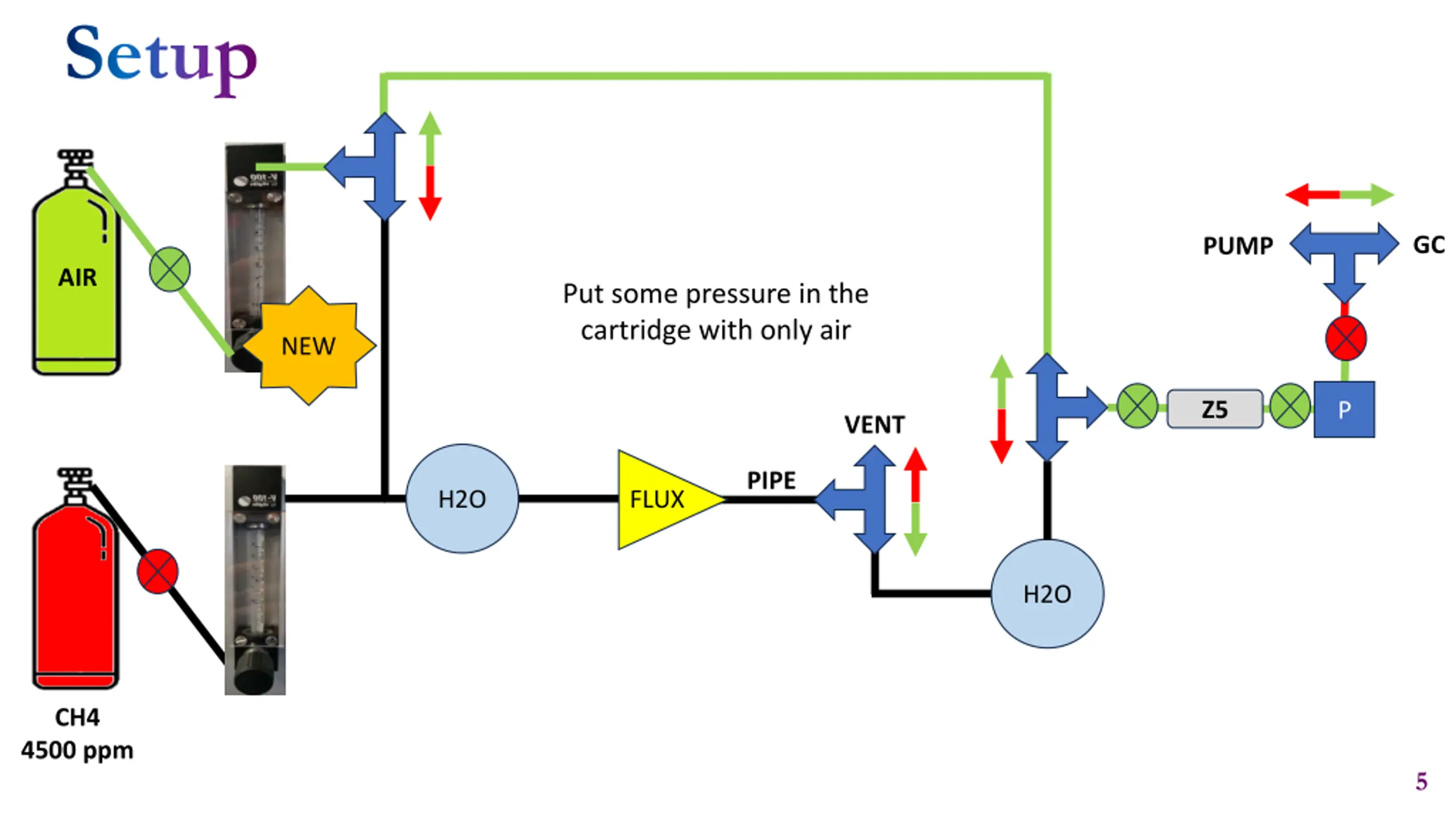

Setup GC PUMP AIR Put some pressure in the cartridge with only air NEW Z5 P VENT PIPE FLUX H2O H2O CH4 4500 ppm 5

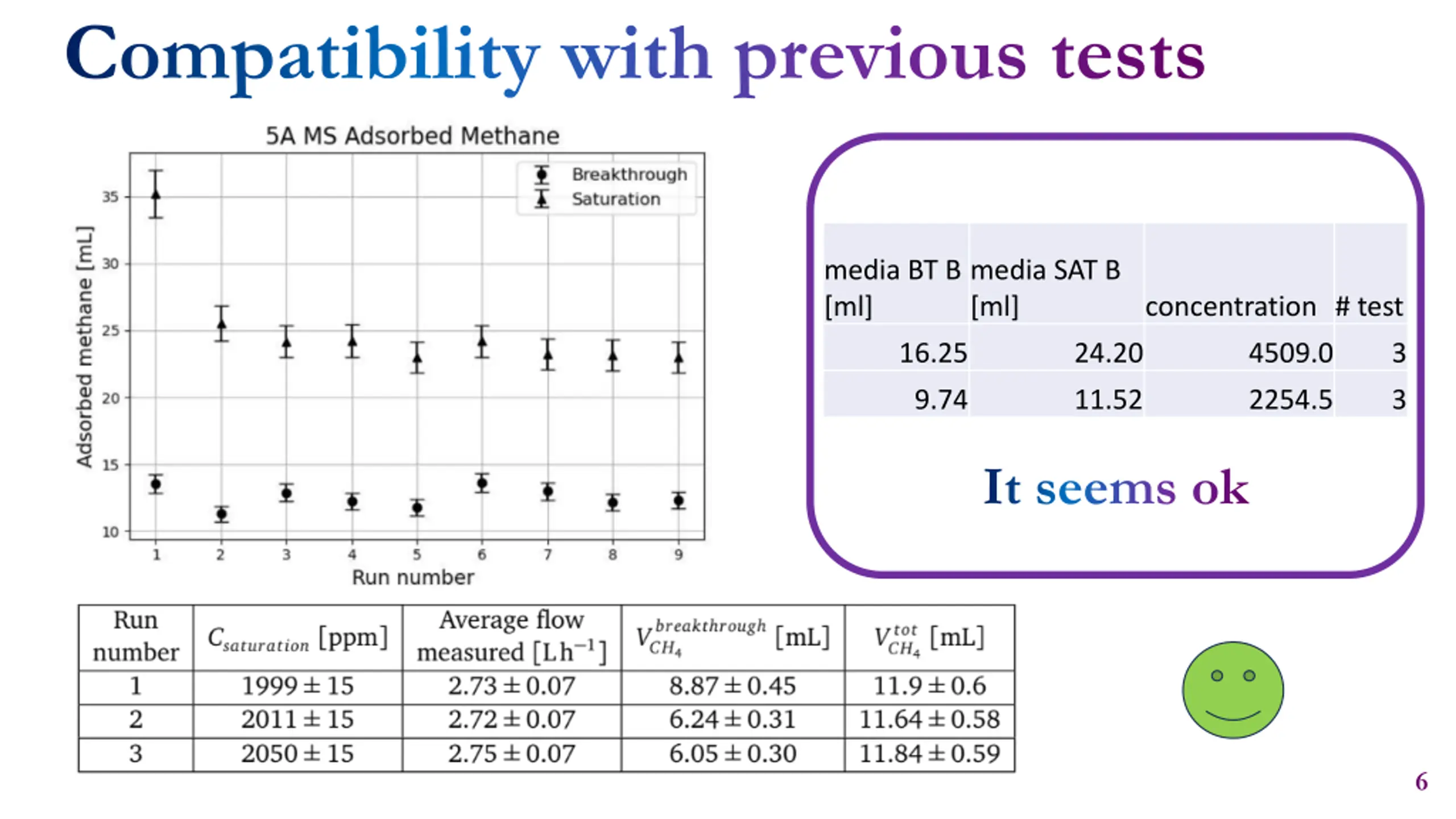

Compatibility with previous tests media BT B [ml] media SAT B [ml] concentration # test 16.25 24.20 4509.0 3 9.74 11.52 2254.5 3 It seems ok 6

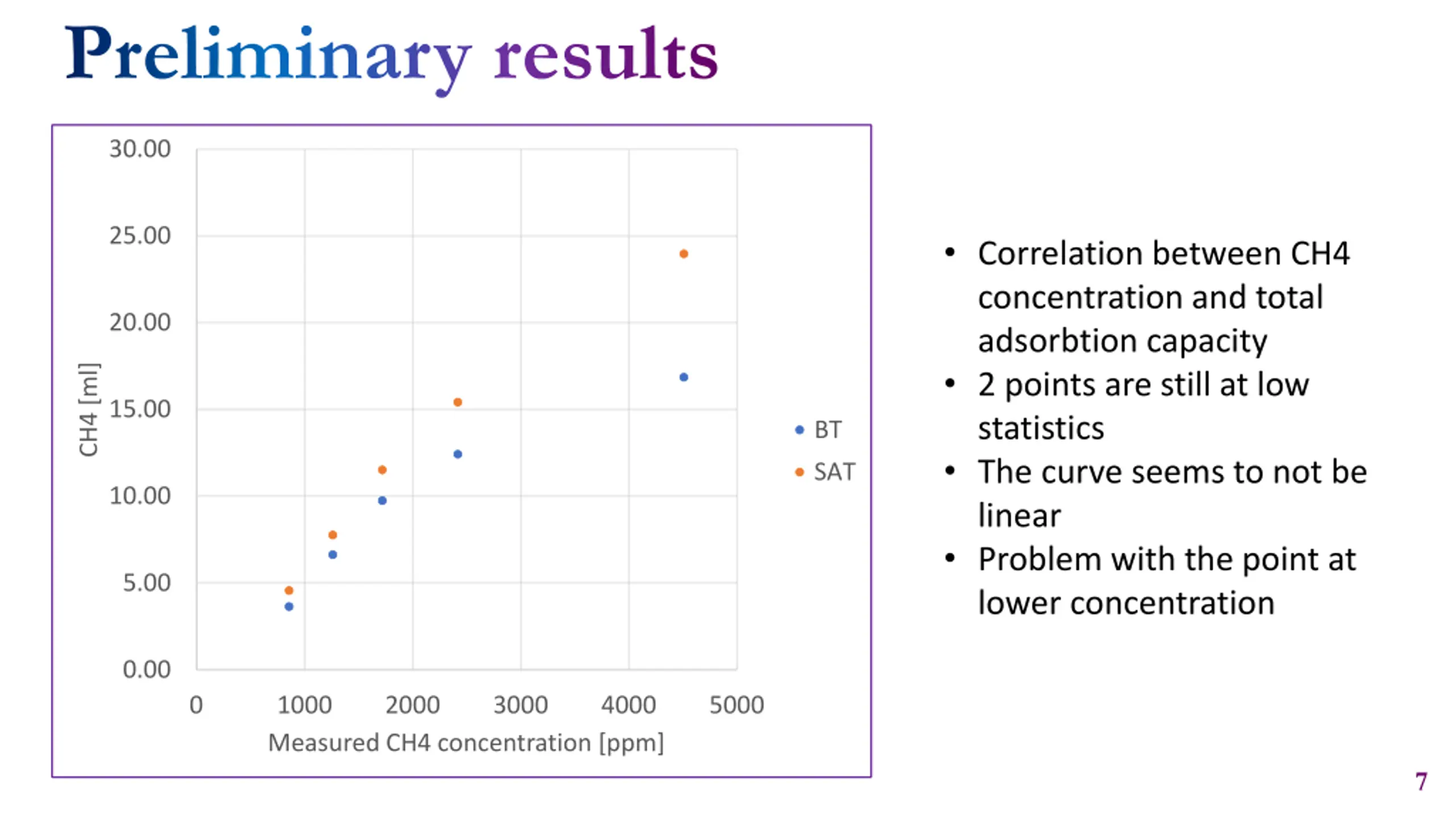

Preliminary results 30.00 25.00 Correlation between CH4 concentration and total adsorbtion capacity 2 points are still at low statistics The curve seems to not be linear Problem with the point at lower concentration 20.00 CH4 [ml] 15.00 BT SAT 10.00 5.00 0.00 0 1000 Measured CH4 concentration [ppm] 2000 3000 4000 5000 7
