Flask SQLAlchemy Populate CS373 Software Engineering

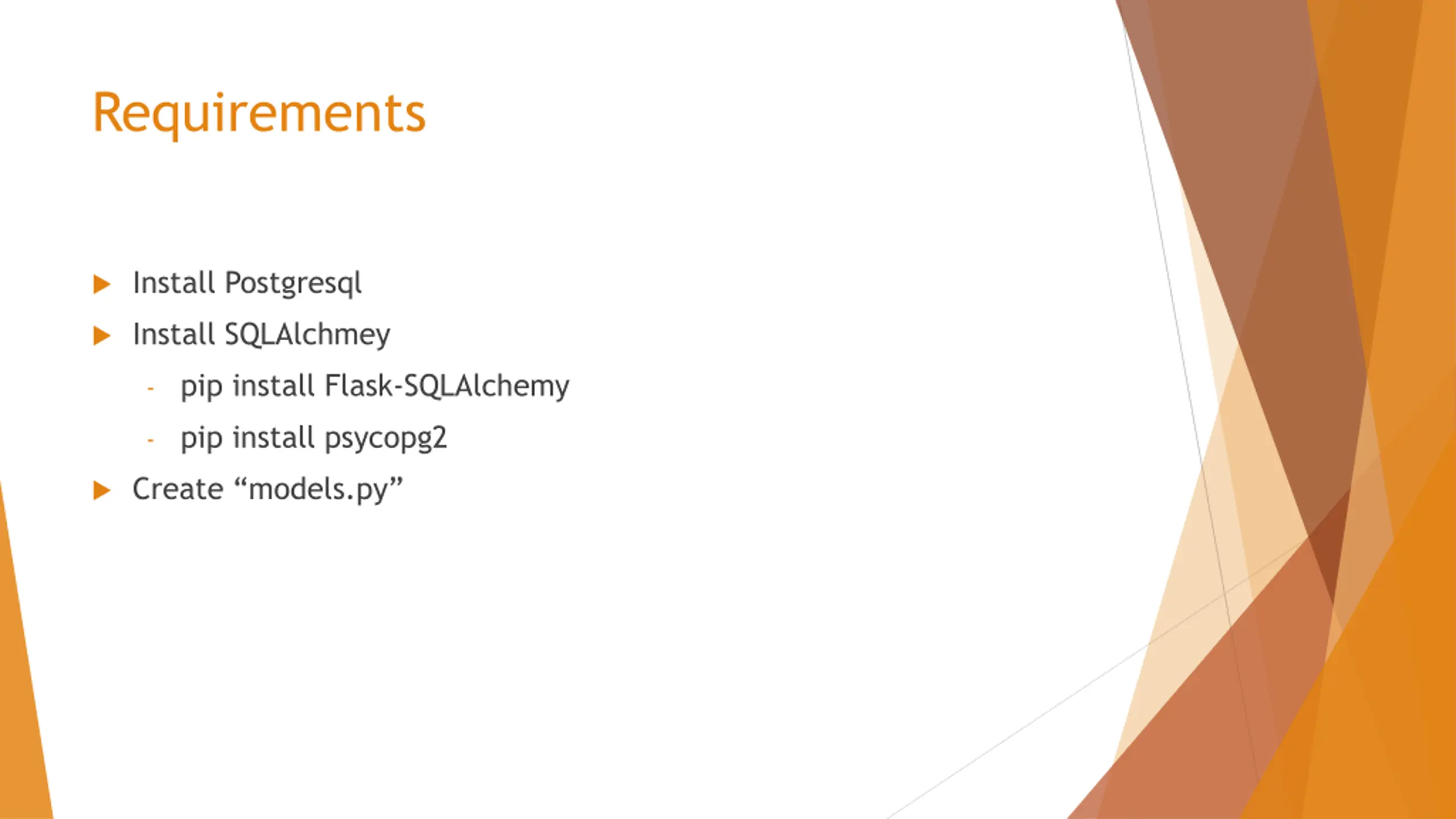

Requirements Install Postgresql Install SQLAlchmey - pip install Flask-SQLAlchemy - pip install psycopg2 Create models.py

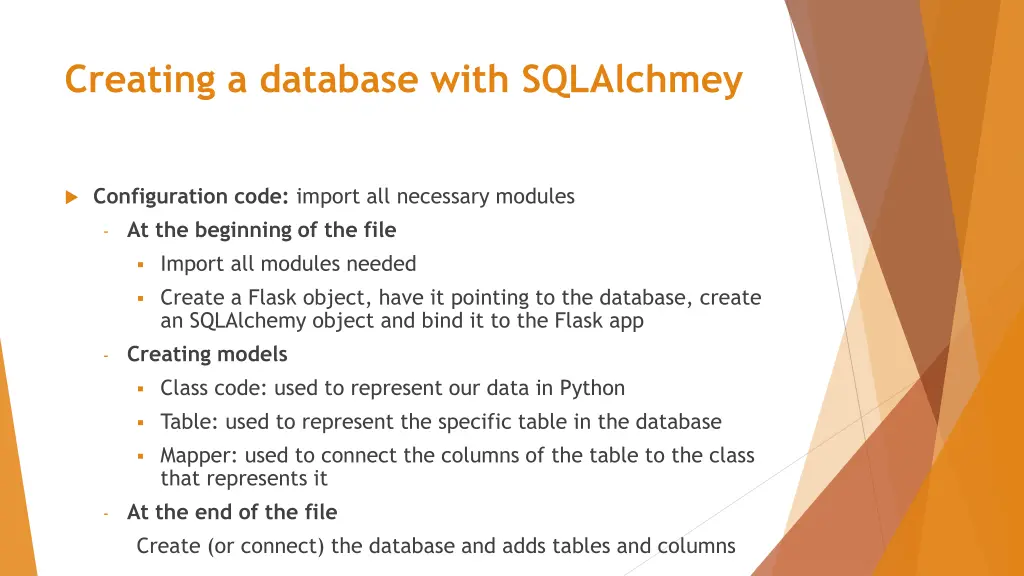

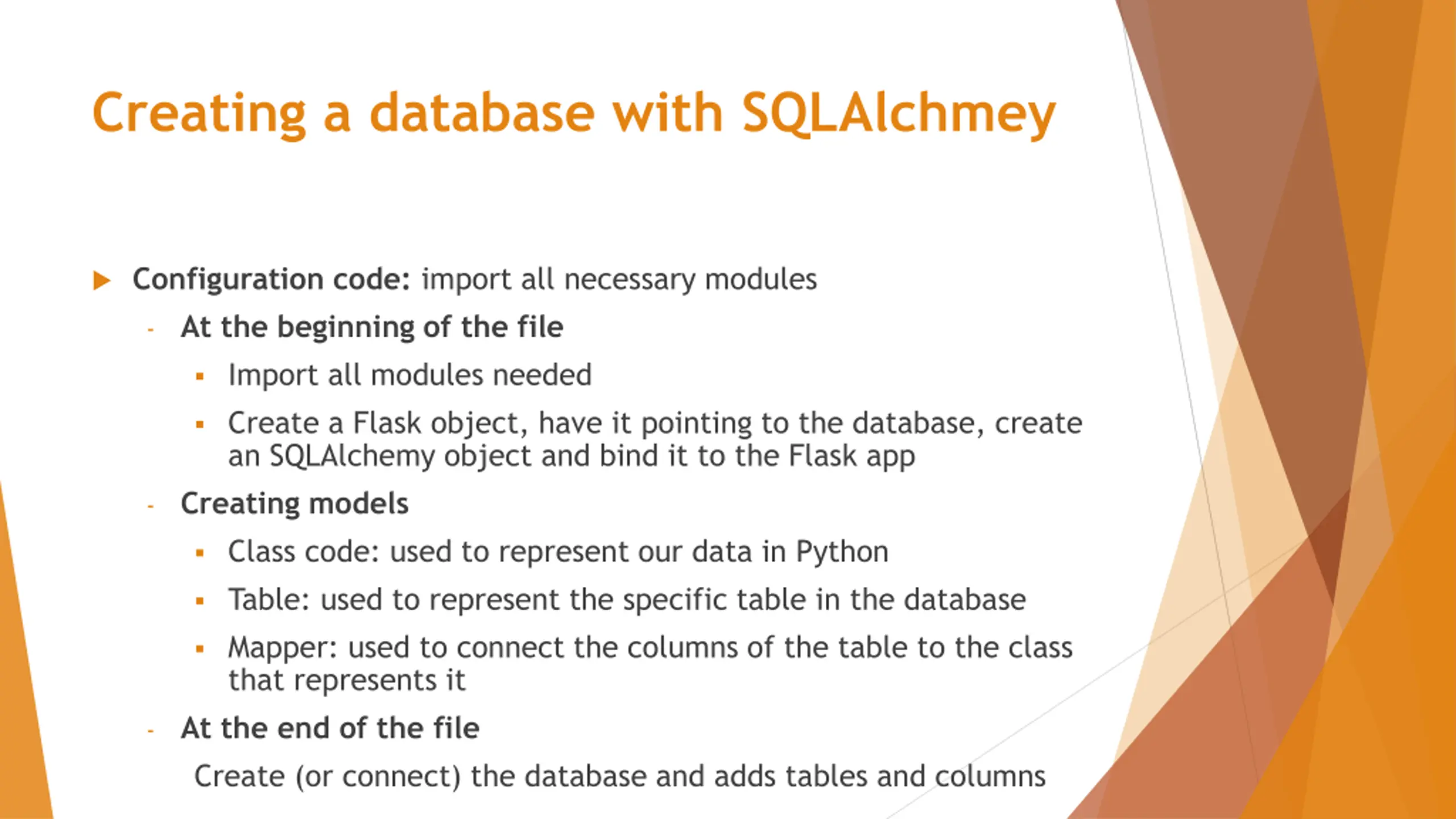

Creating a database with SQLAlchmey Configuration code: import all necessary modules - At the beginning of the file Import all modules needed Create a Flask object, have it pointing to the database, create an SQLAlchemy object and bind it to the Flask app - Creating models Class code: used to represent our data in Python Table: used to represent the specific table in the database Mapper: used to connect the columns of the table to the class that represents it - At the end of the file Create (or connect) the database and adds tables and columns

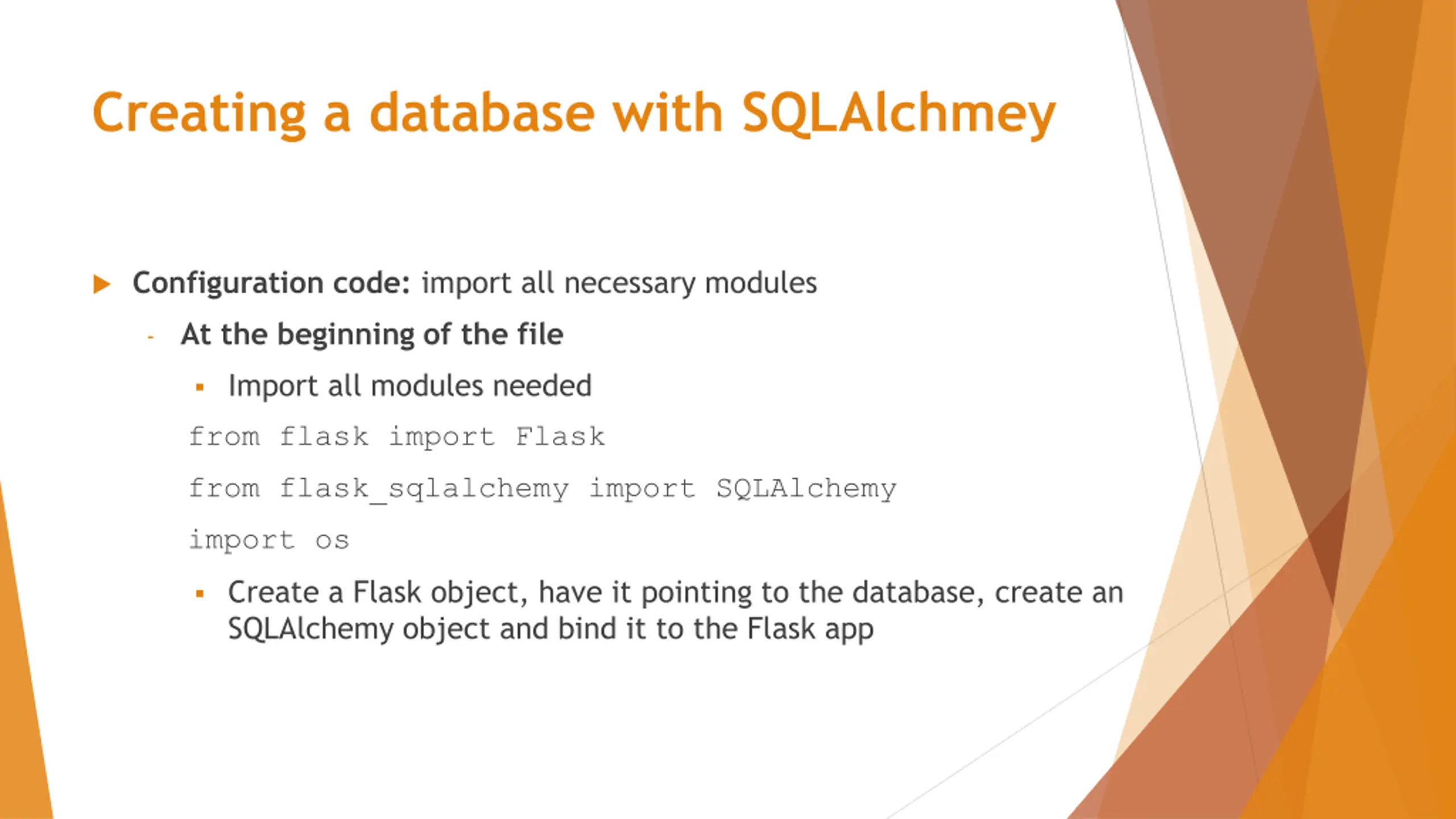

Creating a database with SQLAlchmey Configuration code: import all necessary modules - At the beginning of the file Import all modules needed from flask import Flask from flask_sqlalchemy import SQLAlchemy import os Create a Flask object, have it pointing to the database, create an SQLAlchemy object and bind it to the Flask app

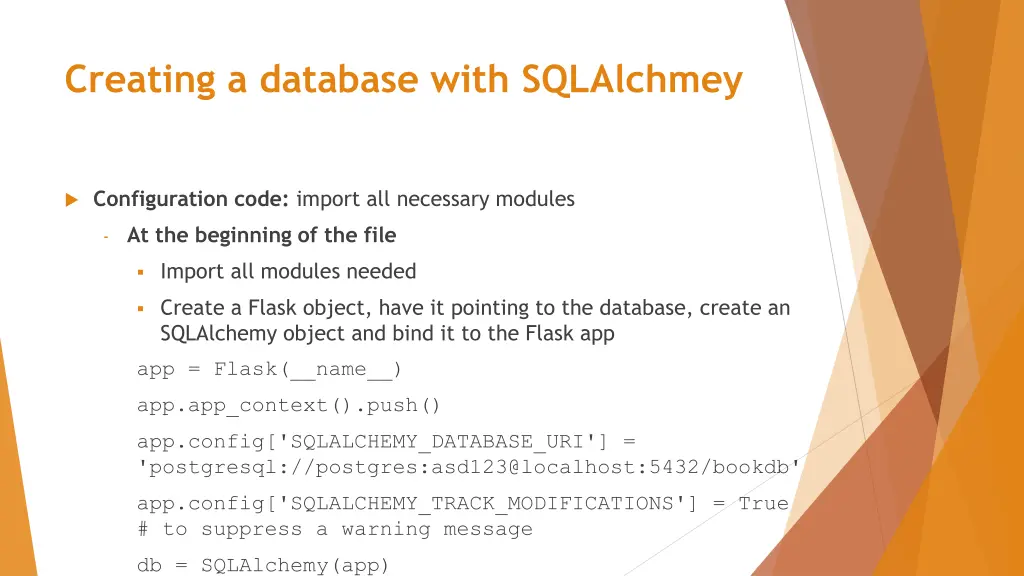

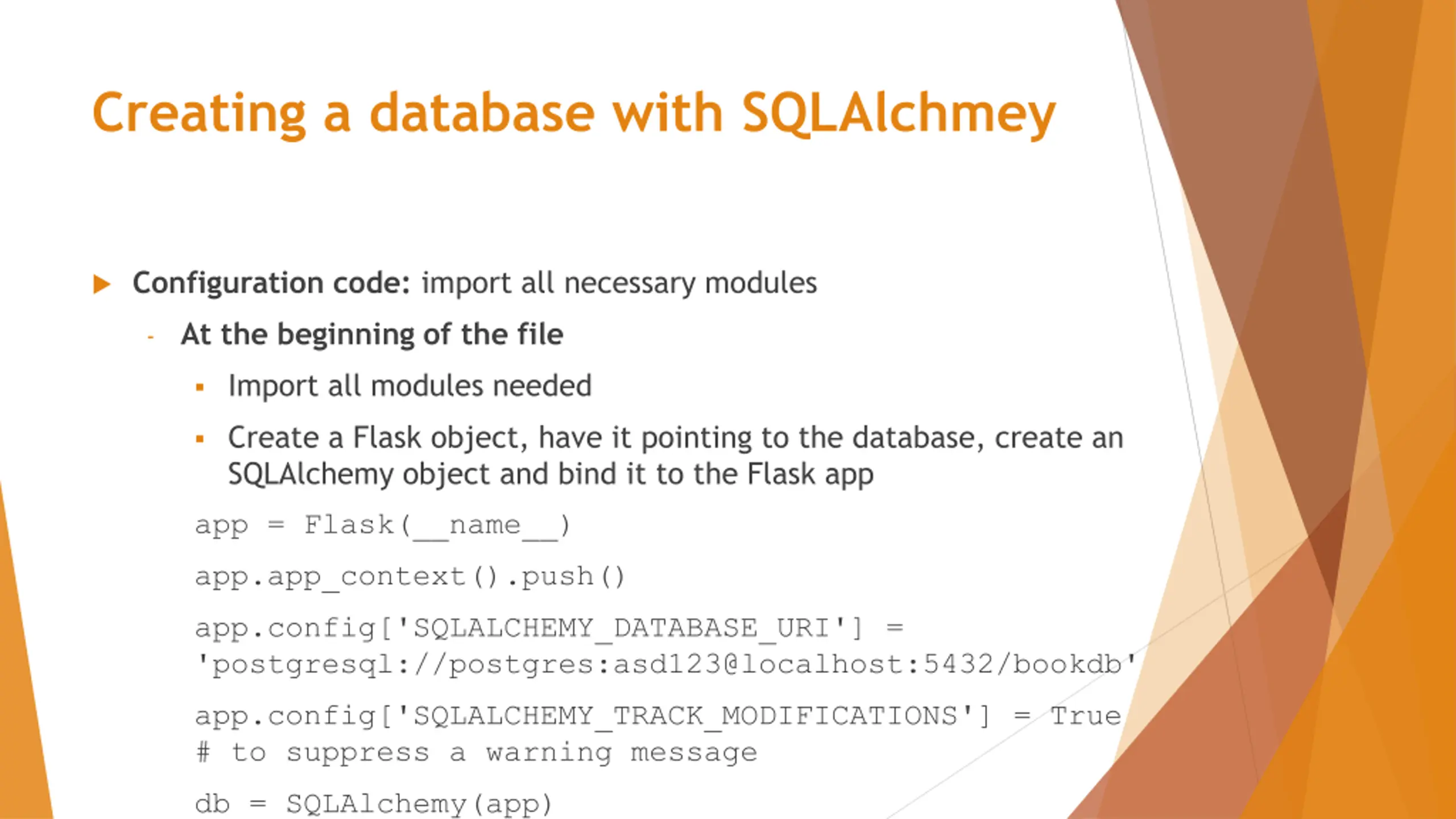

Creating a database with SQLAlchmey Configuration code: import all necessary modules - At the beginning of the file Import all modules needed Create a Flask object, have it pointing to the database, create an SQLAlchemy object and bind it to the Flask app app = Flask(__name__) app.app_context().push() app.config['SQLALCHEMY_DATABASE_URI'] = 'postgresql://postgres:asd123@localhost:5432/bookdb' app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = True # to suppress a warning message db = SQLAlchemy(app)

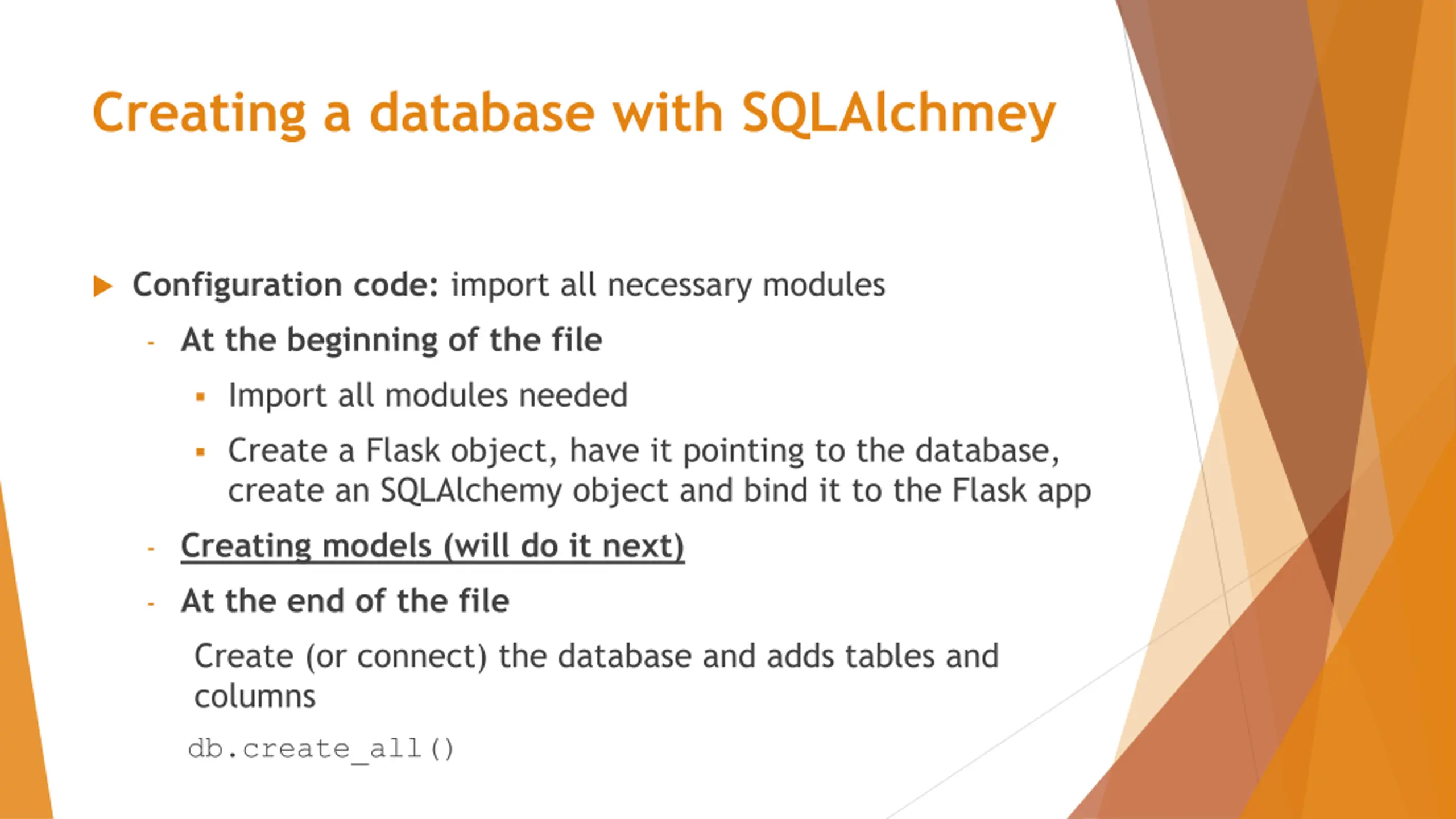

Creating a database with SQLAlchmey Configuration code: import all necessary modules - At the beginning of the file Import all modules needed Create a Flask object, have it pointing to the database, create an SQLAlchemy object and bind it to the Flask app - Creating models (will do it next) - At the end of the file Create (or connect) the database and adds tables and columns db.create_all()

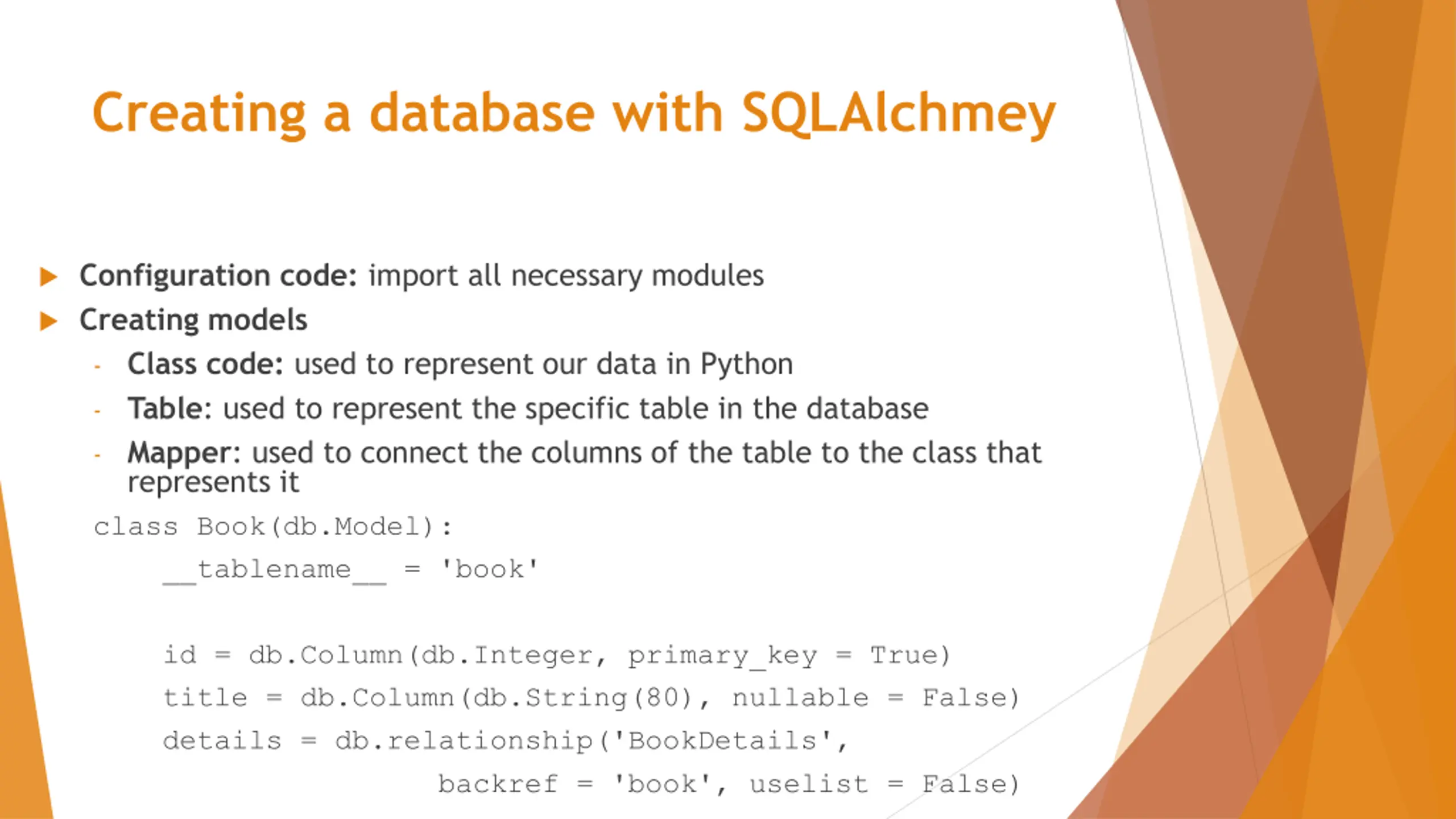

Creating a database with SQLAlchmey Configuration code: import all necessary modules Creating models - Class code: used to represent our data in Python - Table: used to represent the specific table in the database - Mapper: used to connect the columns of the table to the class that represents it class Book(db.Model): __tablename__ = 'book' id = db.Column(db.Integer, primary_key = True) title = db.Column(db.String(80), nullable = False) details = db.relationship('BookDetails', backref = 'book', uselist = False)

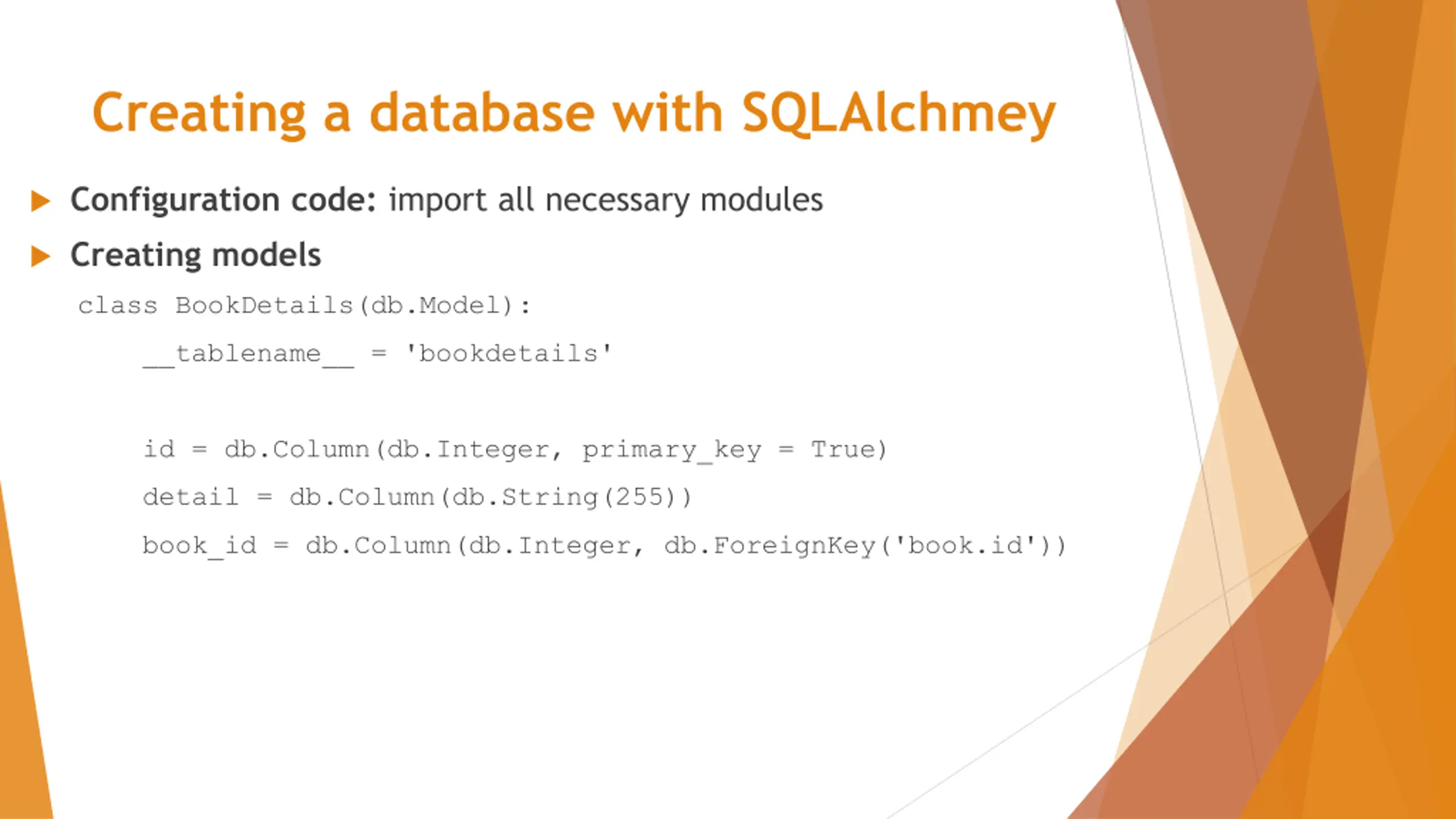

Creating a database with SQLAlchmey Configuration code: import all necessary modules Creating models class BookDetails(db.Model): __tablename__ = 'bookdetails' id = db.Column(db.Integer, primary_key = True) detail = db.Column(db.String(255)) book_id = db.Column(db.Integer, db.ForeignKey('book.id'))

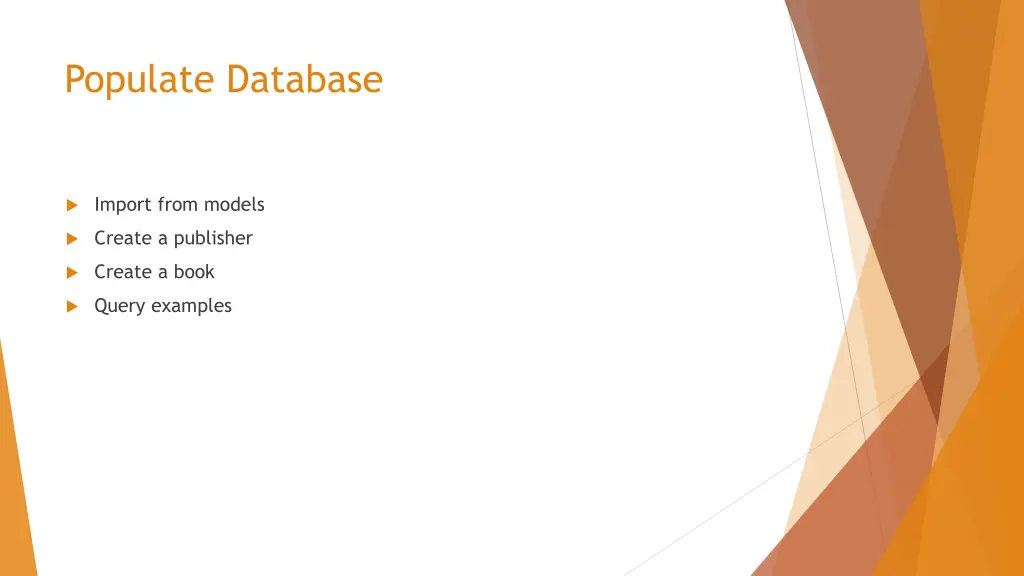

Populate Database Import from models Create a publisher Create a book Query examples

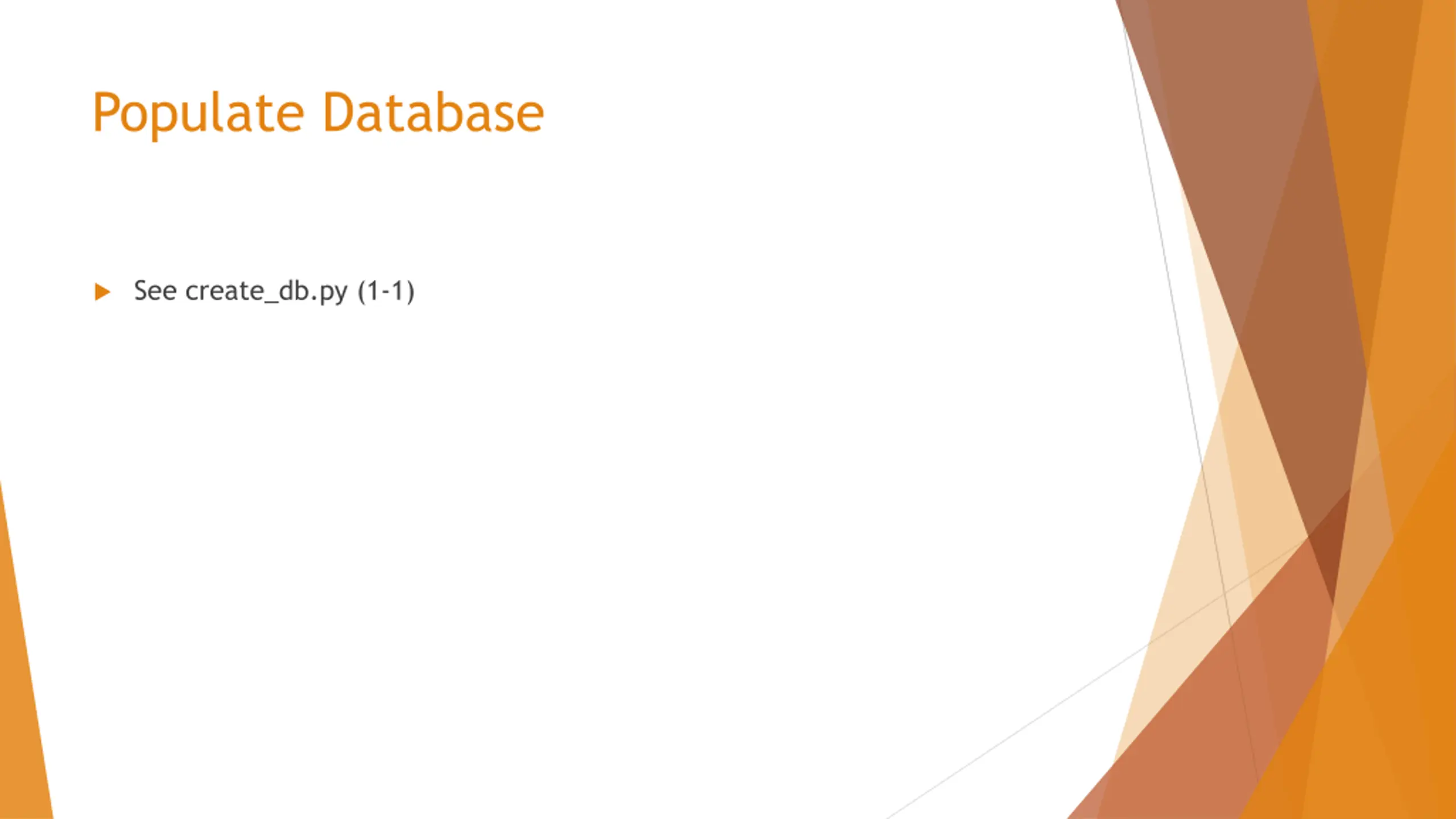

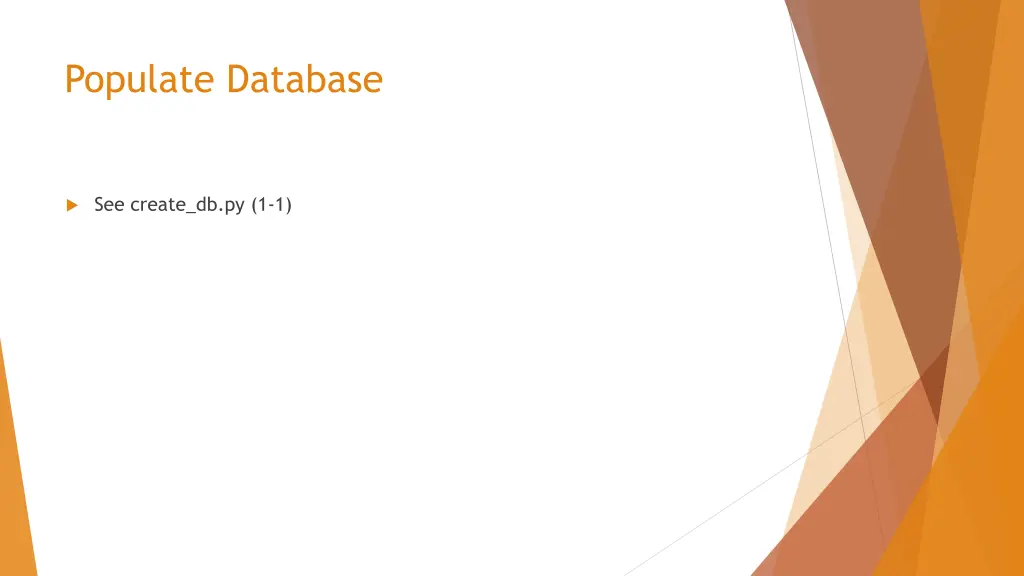

Populate Database See create_db.py (1-1)
