Chapter Four By Laith Batarseh Home Previous Next End

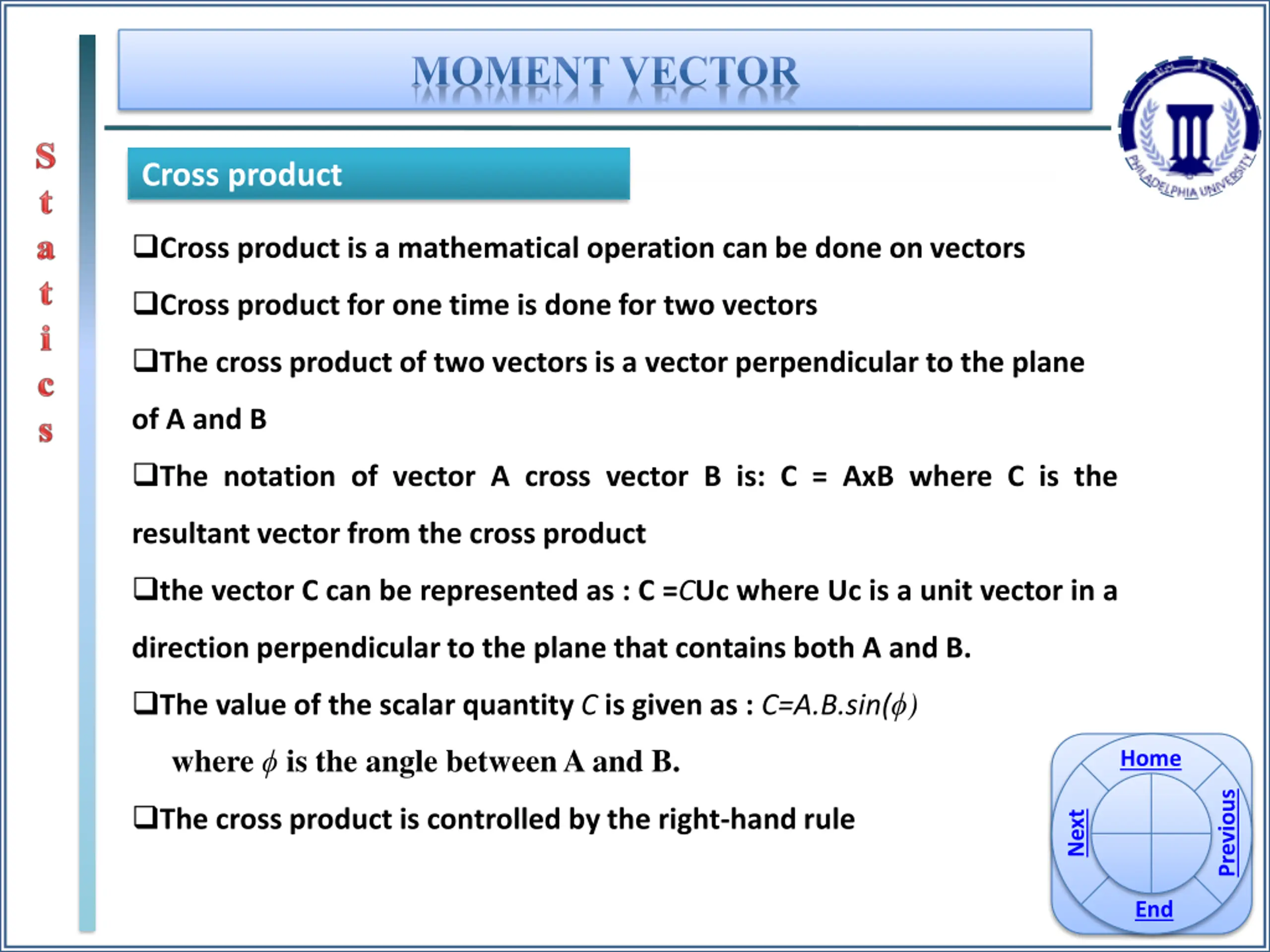

MOMENT VECTOR Cross product Cross product is a mathematical operation can be done on vectors Cross product for one time is done for two vectors The cross product of two vectors is a vector perpendicular to the plane of A and B The notation of vector A cross vector B is: C = AxB where C is the resultant vector from the cross product the vector C can be represented as : C =CUc where Uc is a unit vector in a direction perpendicular to the plane that contains both A and B. The value of the scalar quantity Cis given as : C=A.B.sin( ) where is the angle between A and B. Home Previous The cross product is controlled by the right-hand rule Next End

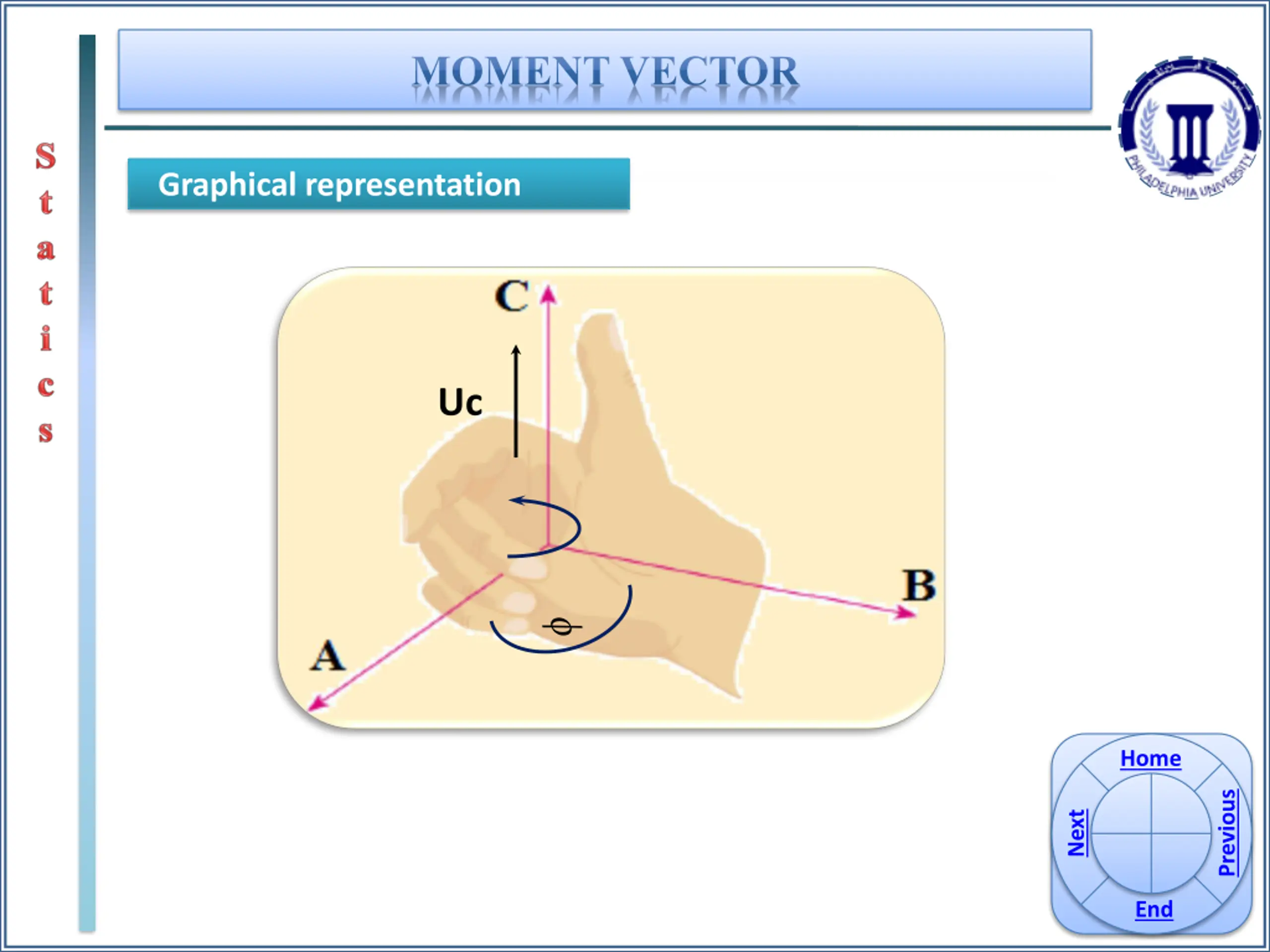

MOMENT VECTOR Graphical representation Uc Home Previous Next End

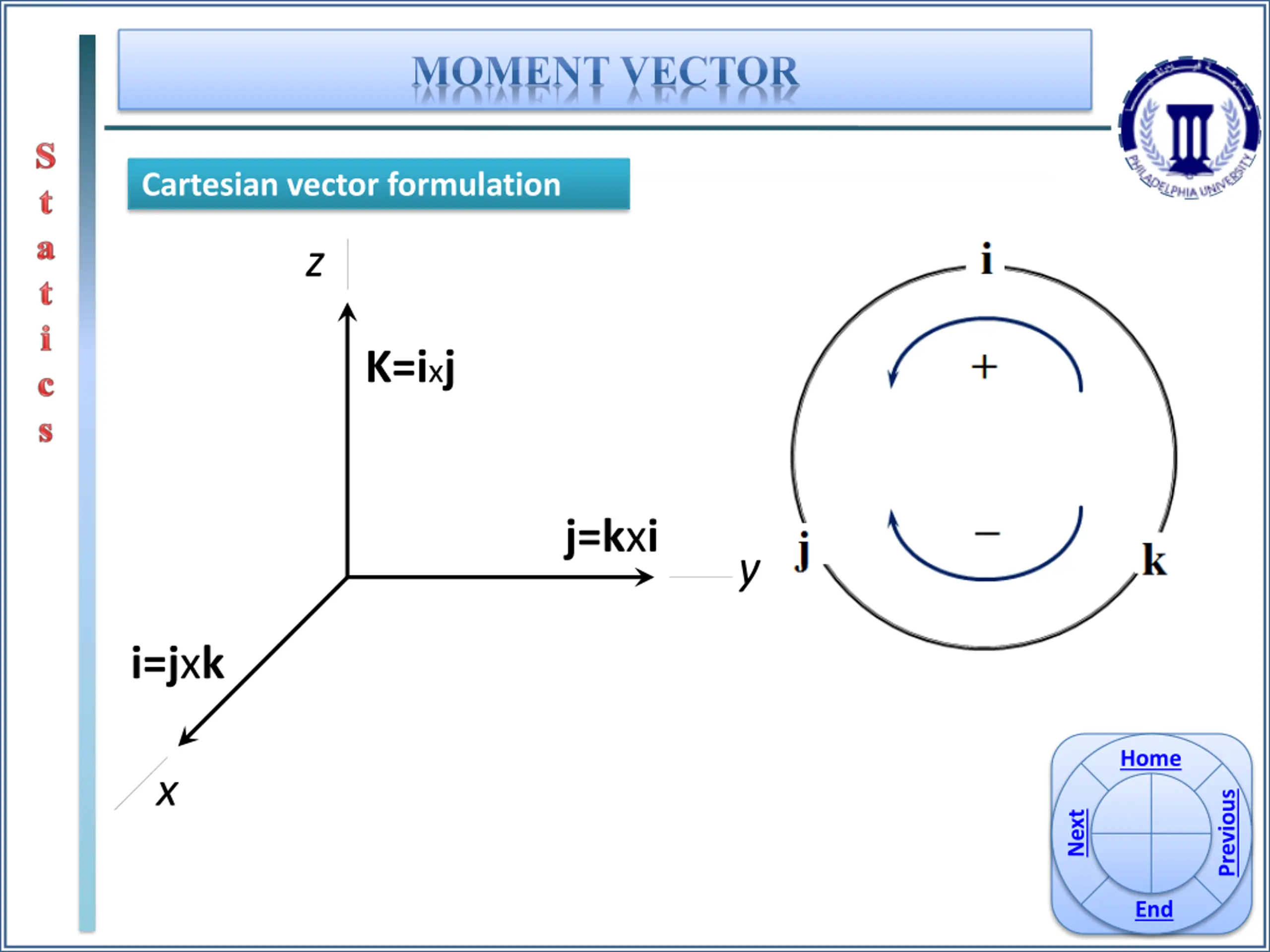

MOMENT VECTOR Cartesian vector formulation z K=ixj j=kxi y i=jxk Home x Previous Next End

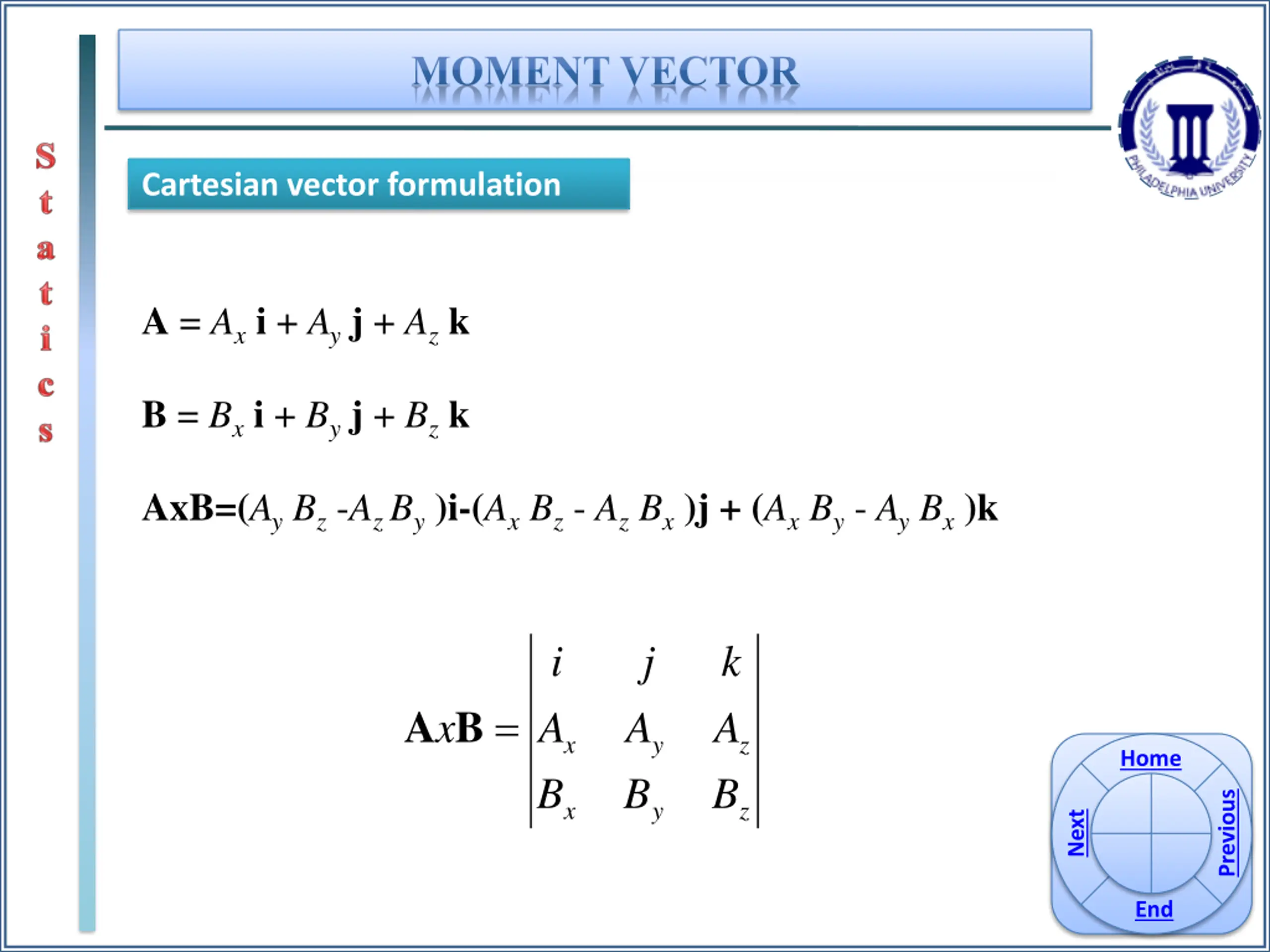

MOMENT VECTOR Cartesian vector formulation A = Axi + Ayj + Azk B = Bxi + Byj + Bzk AxB=(AyBz -Az By)i-(Ax Bz - AzBx)j + (Ax By - AyBx)k i j k x = B A A A A x y z Home B B B Previous x y z Next End

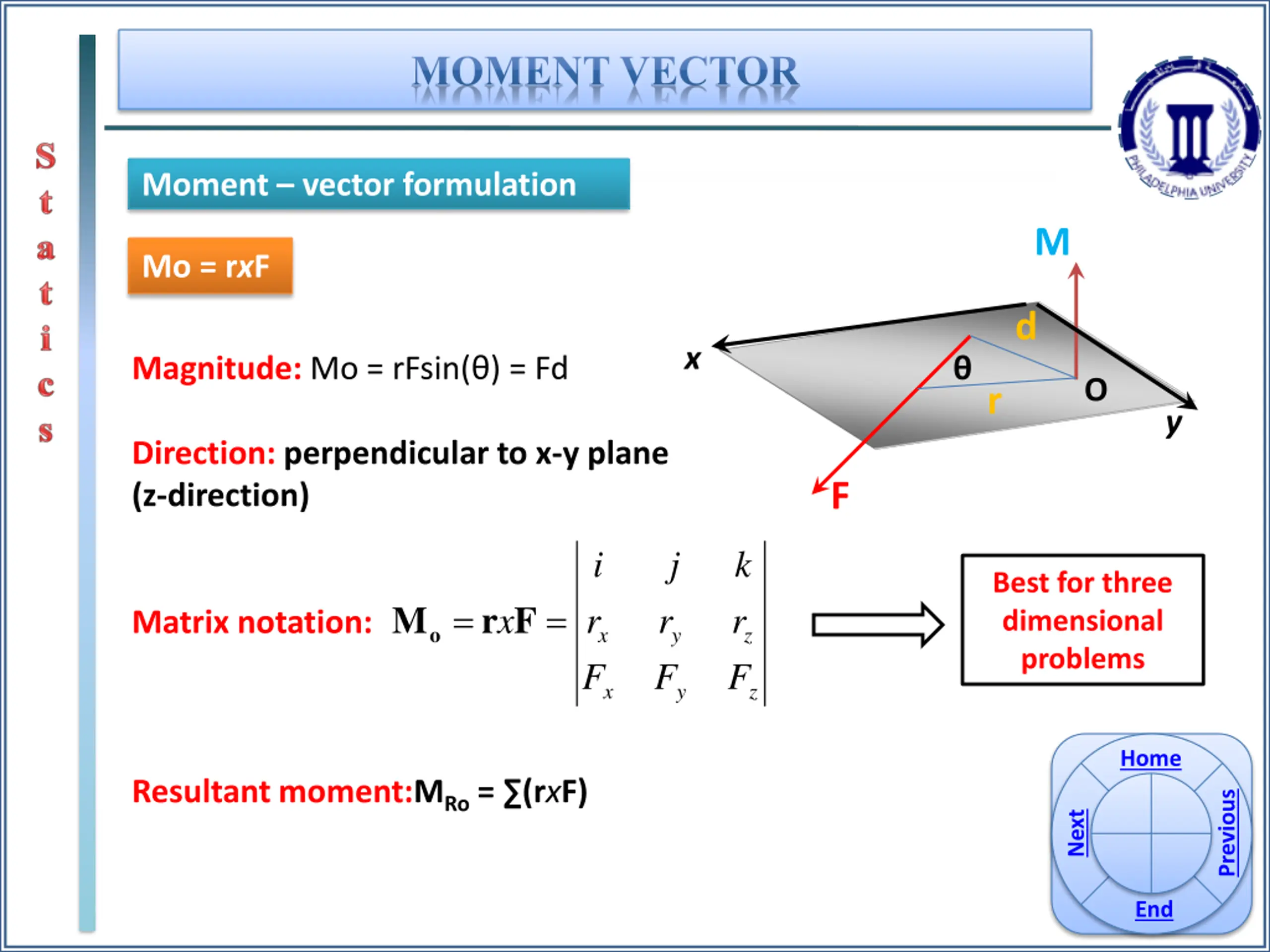

MOMENT VECTOR Moment vector formulation M Mo = rxF d x Magnitude: Mo = rFsin( ) = Fd O r y Direction: perpendicular to x-y plane (z-direction) F i j k Best for three dimensional problems = x = F r Mo r r r Matrix notation: x y z F F F x y z Home Resultant moment:MRo= (rxF) Previous Next End

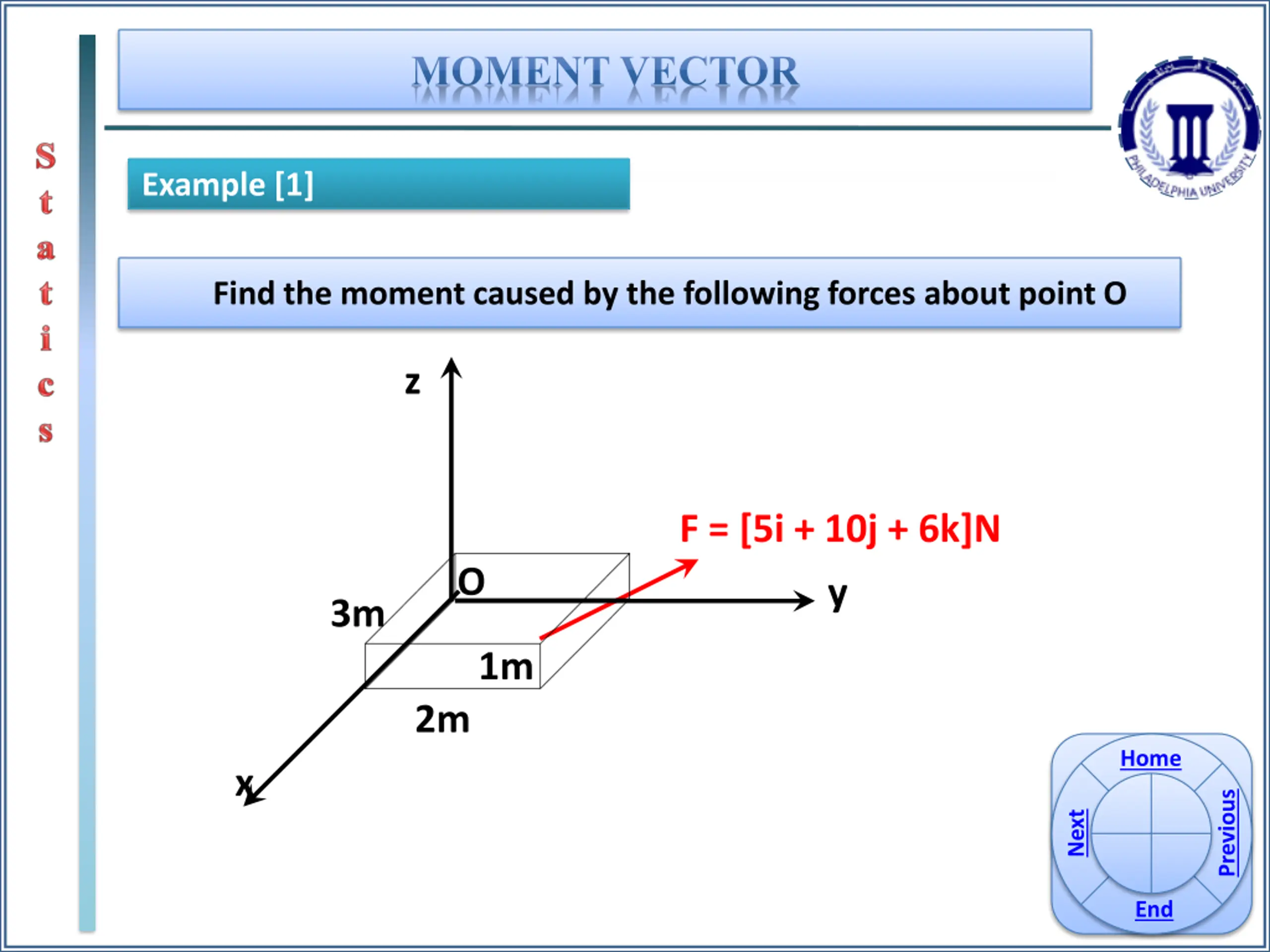

MOMENT VECTOR Example [1] Find the moment caused by the following forces about point O z F = [5i + 10j + 6k]N O y 3m 1m 2m Home x Previous Next End

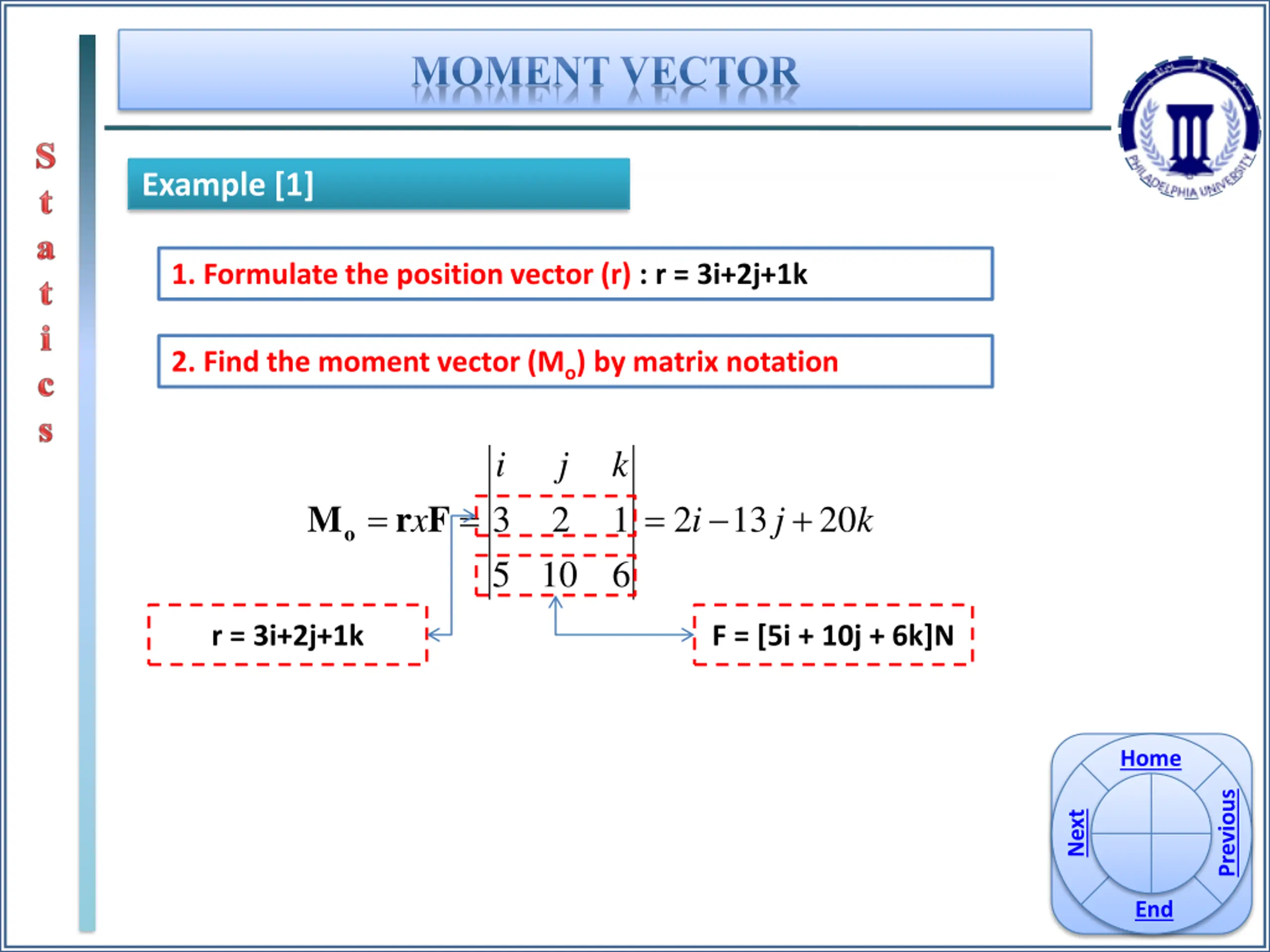

MOMENT VECTOR Example [1] 1. Formulate the position vector (r) : r = 3i+2j+1k 2. Find the moment vector (Mo) by matrix notation i 3 j k 1 = = = + Mo r F 2 2 13 20 x i j k 5 10 6 r = 3i+2j+1k F = [5i + 10j + 6k]N Home Previous Next End

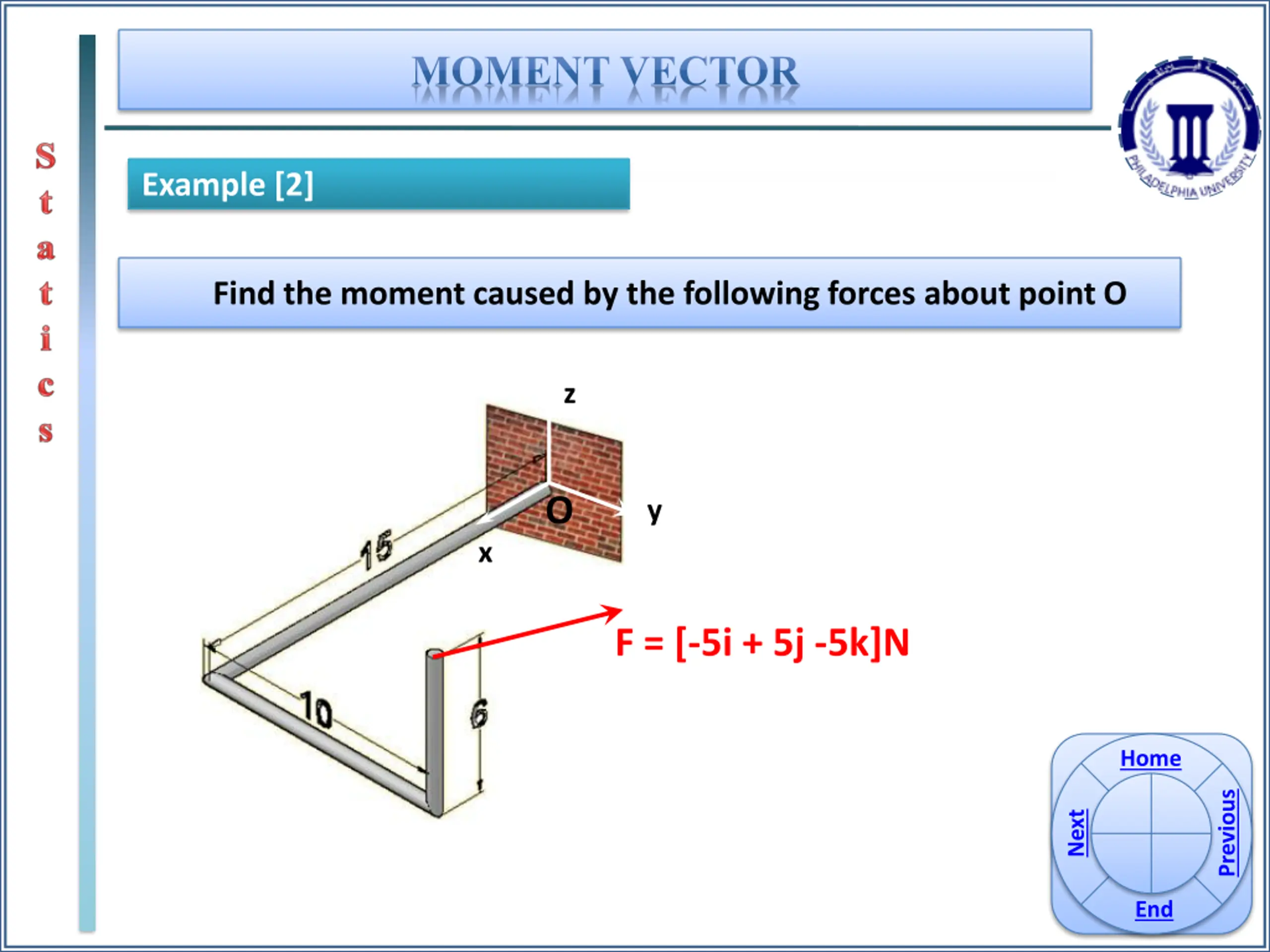

MOMENT VECTOR Example [2] Find the moment caused by the following forces about point O z O y x F = [-5i + 5j -5k]N Home Previous Next End

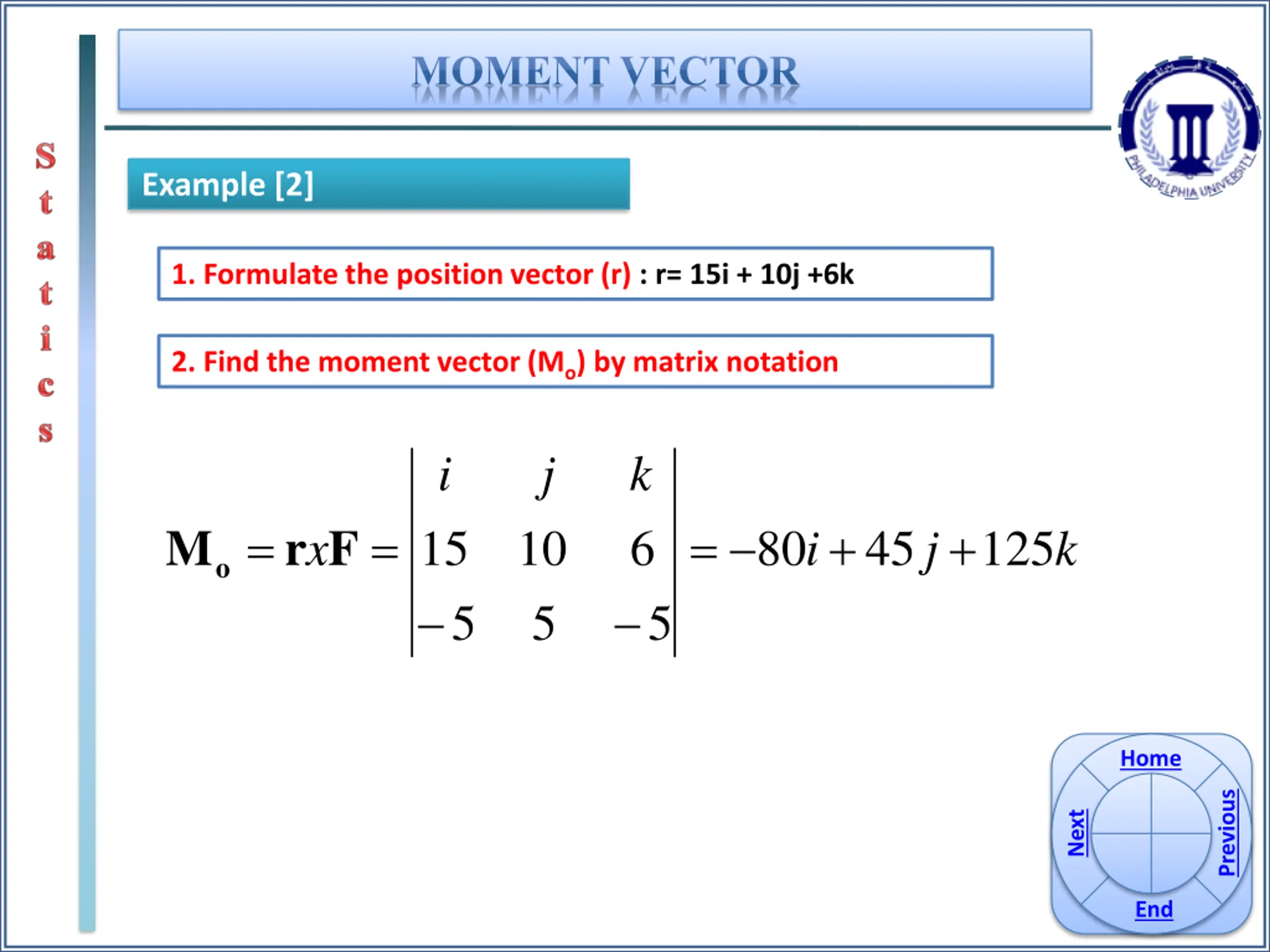

MOMENT VECTOR Example [2] 1. Formulate the position vector (r) : r= 15i + 10j +6k 2. Find the moment vector (Mo) by matrix notation i j k 6 = = = + + Mo r F 15 10 80 45 125 x i j k 5 5 5 Home Previous Next End

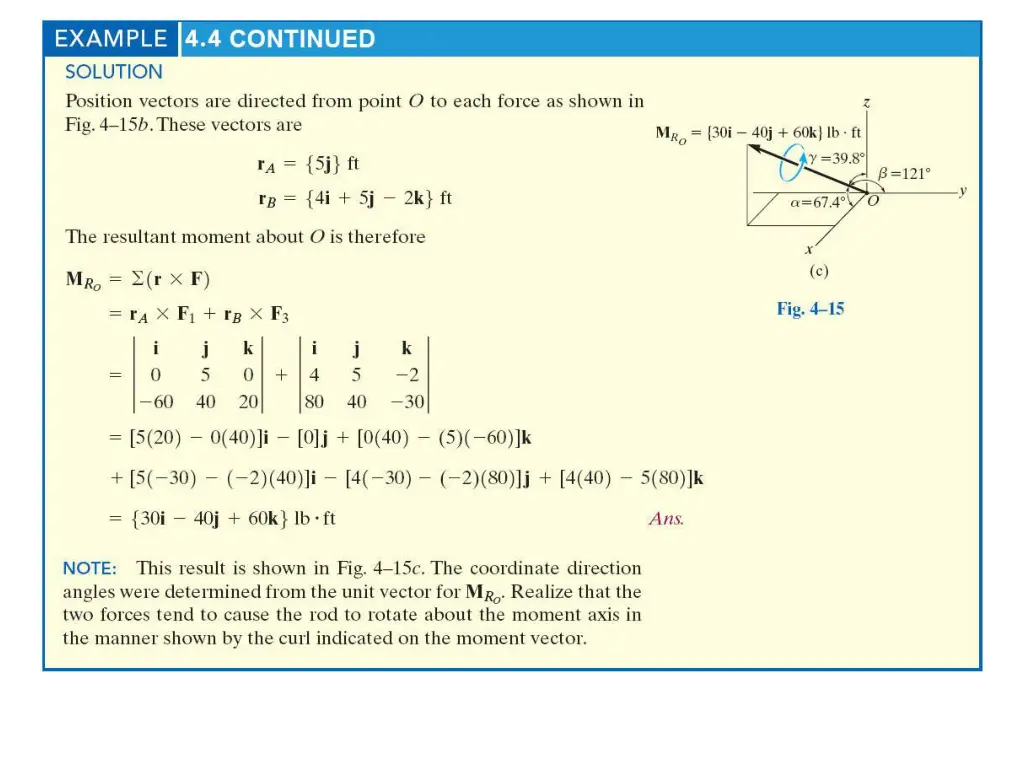

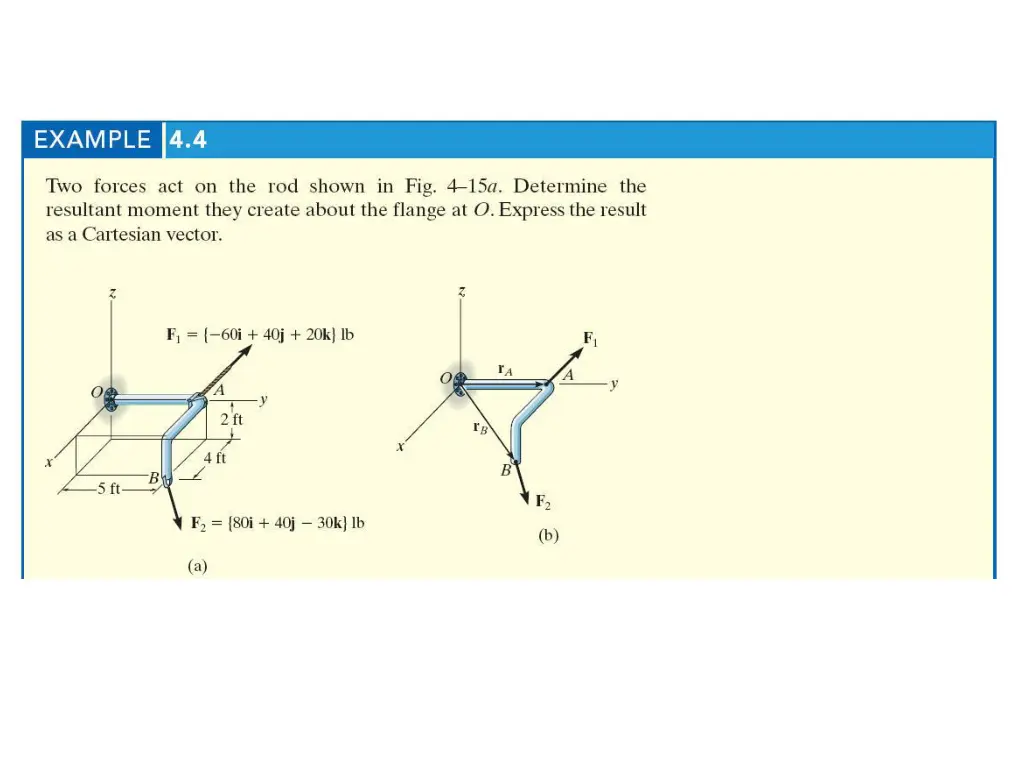

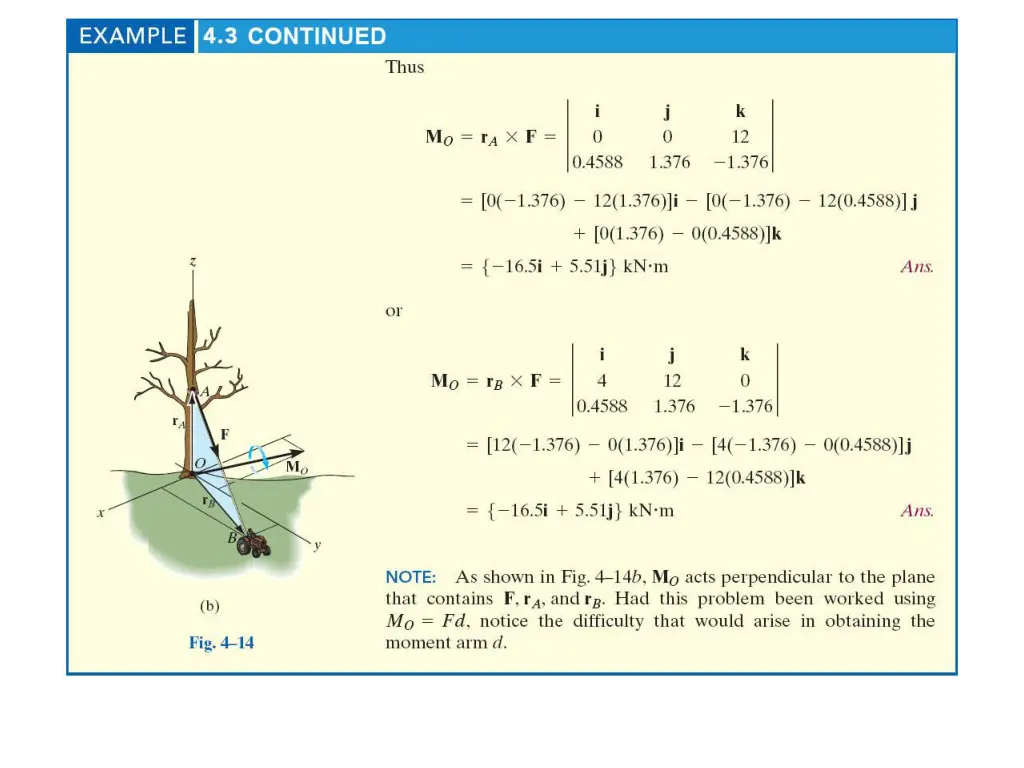

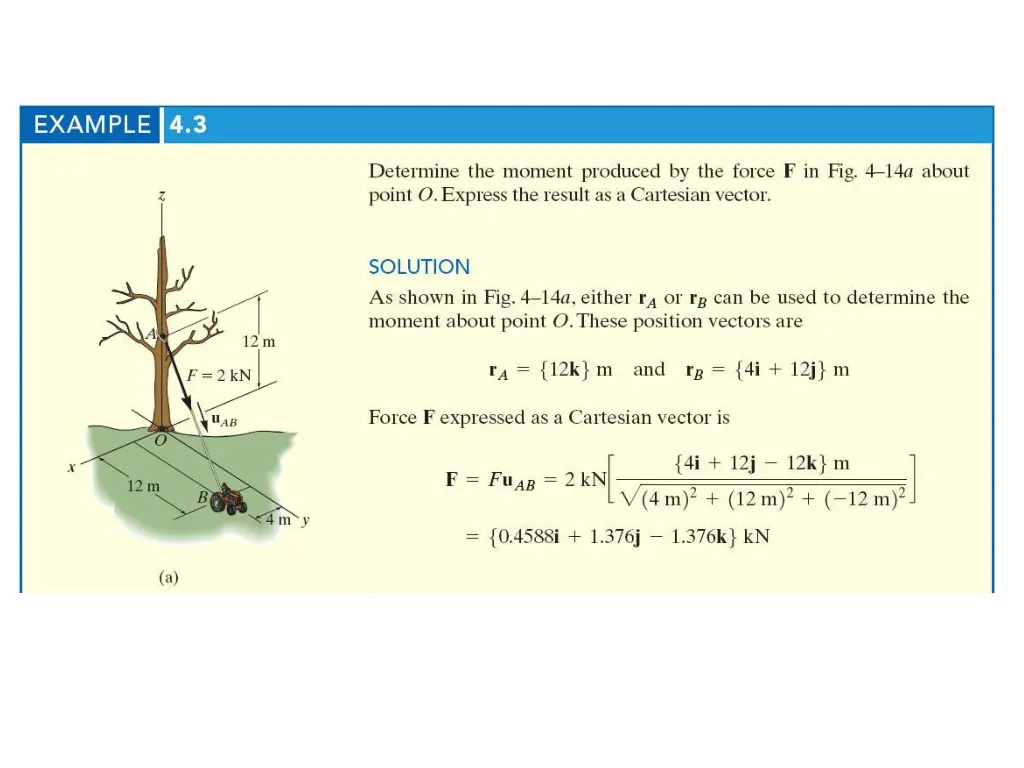

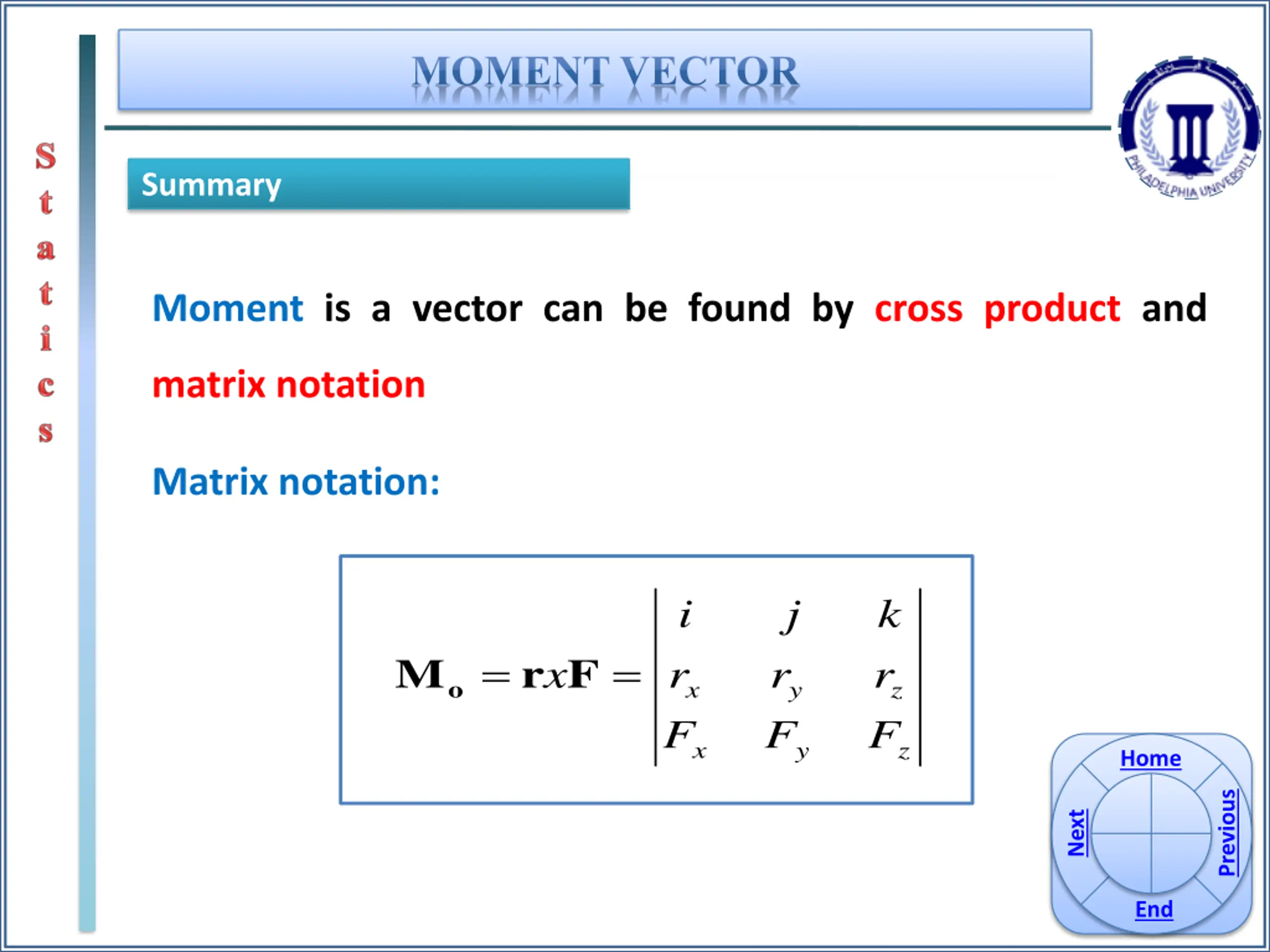

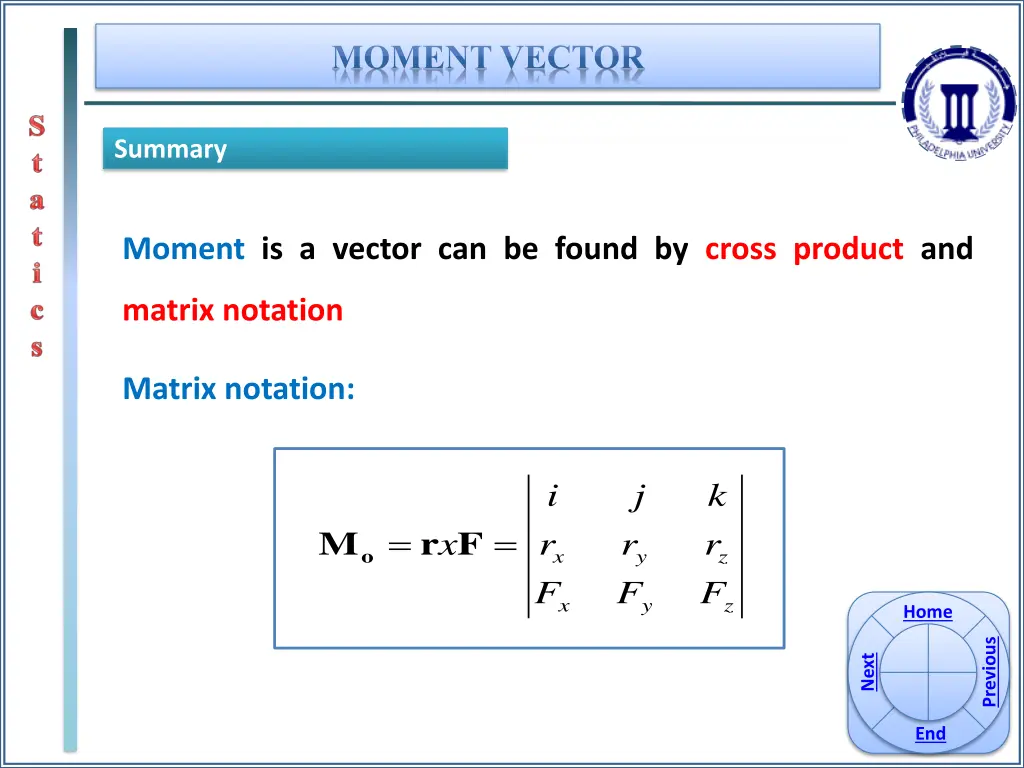

MOMENT VECTOR Summary Moment is a vector can be found by cross product and matrix notation Matrix notation: i j k = = Mo r F x r r r x y z F F F x y z Home Previous Next End
