Crystals Symmetry & Physical Properties: Axes Transformation, Vectors, Tensors

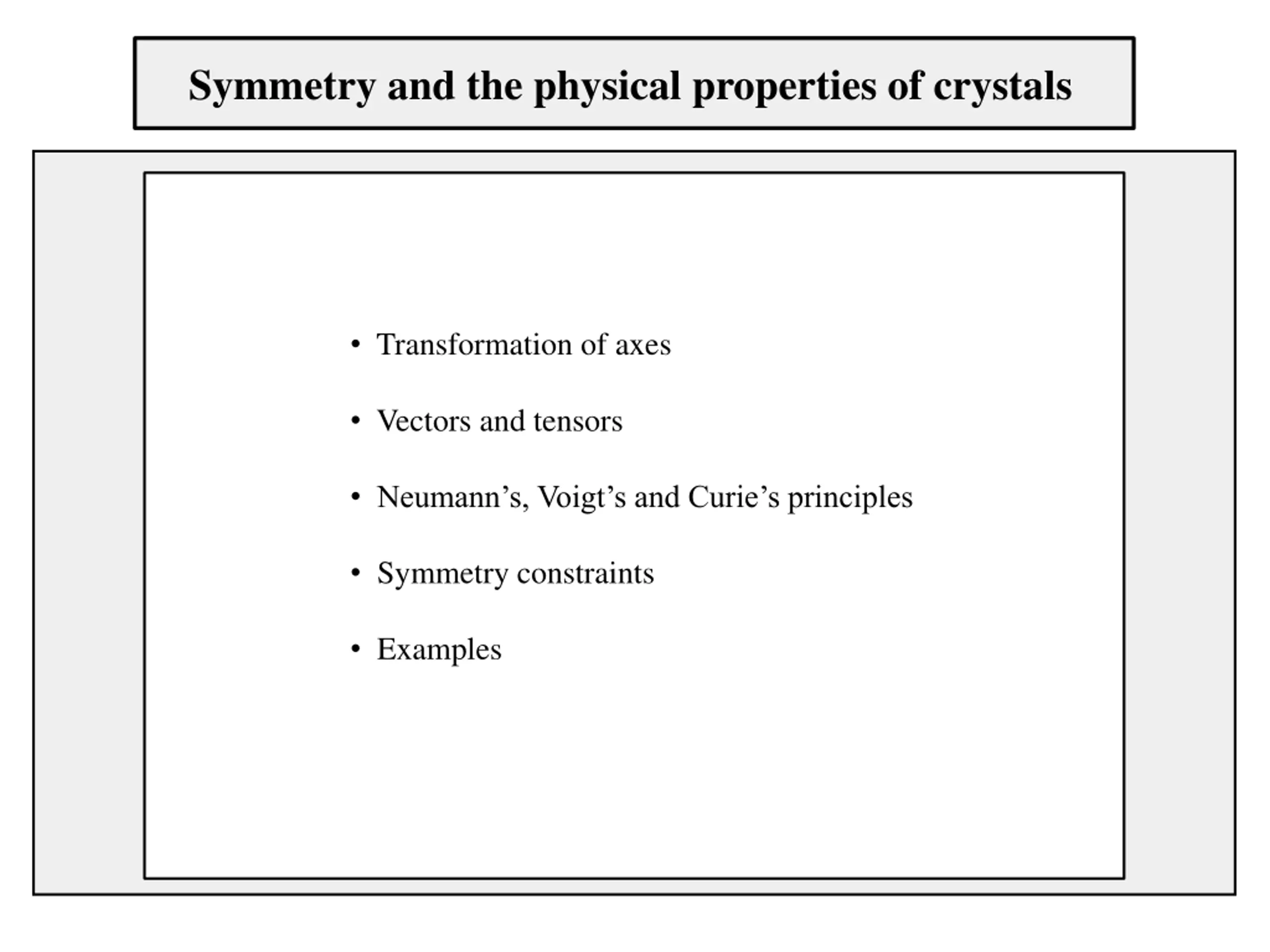

Symmetry and the physical properties of crystals Transformation of axes Vectors and tensors Neumann s, Voigt s and Curie s principles Symmetry constraints Examples

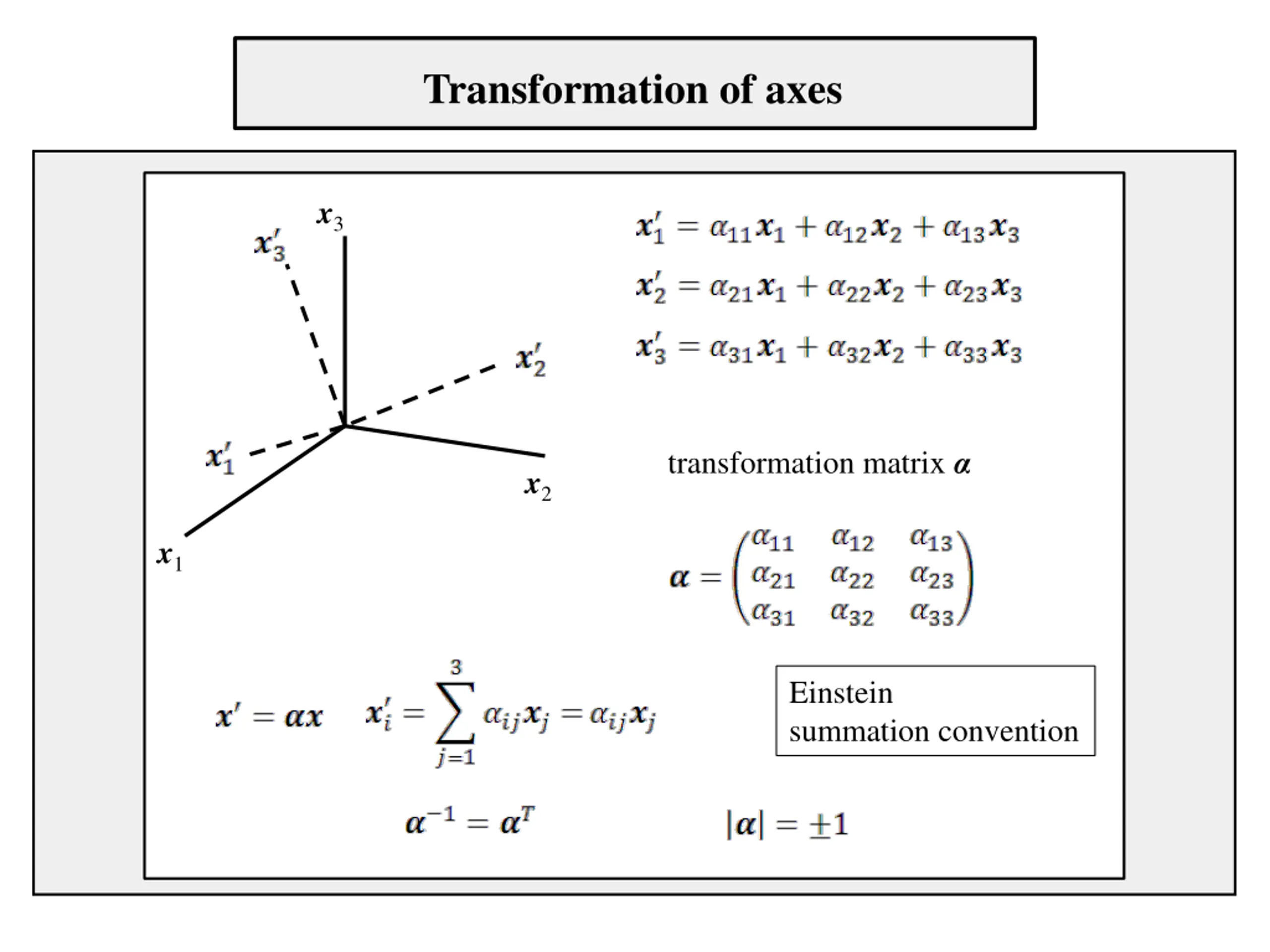

Transformation of axes x3 transformation matrix x2 x1 Einstein summation convention

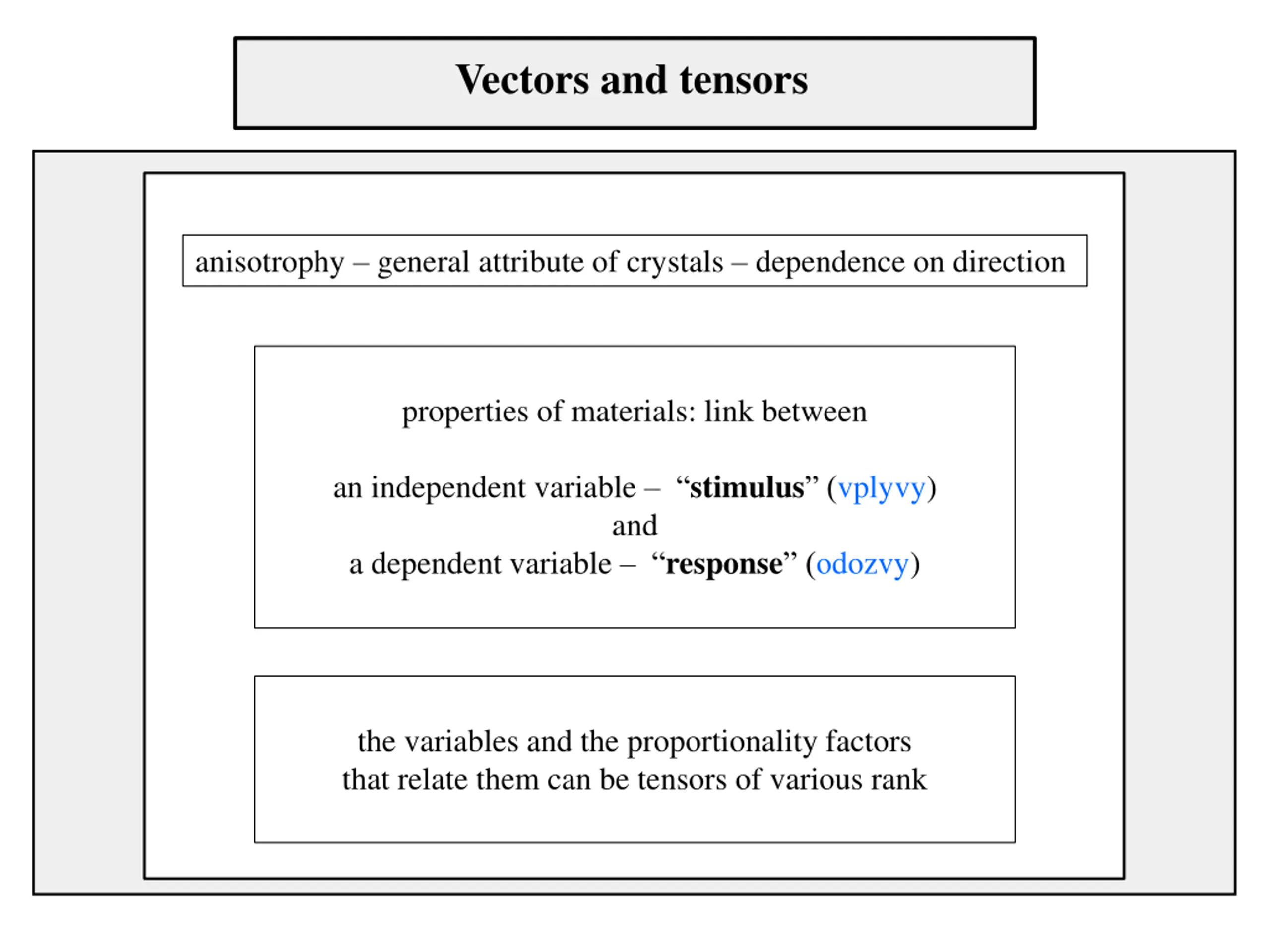

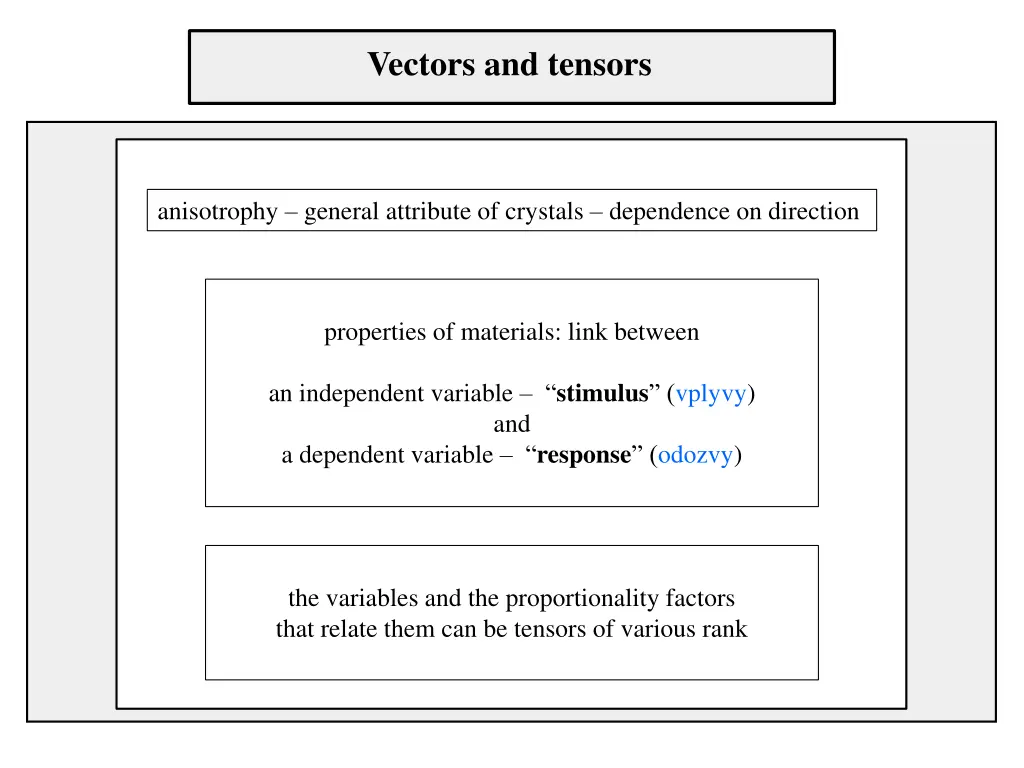

Vectors and tensors anisotrophy general attribute of crystals dependence on direction properties of materials: link between an independent variable stimulus (vplyvy) and a dependent variable response (odozvy) the variables and the proportionality factors that relate them can be tensors of various rank

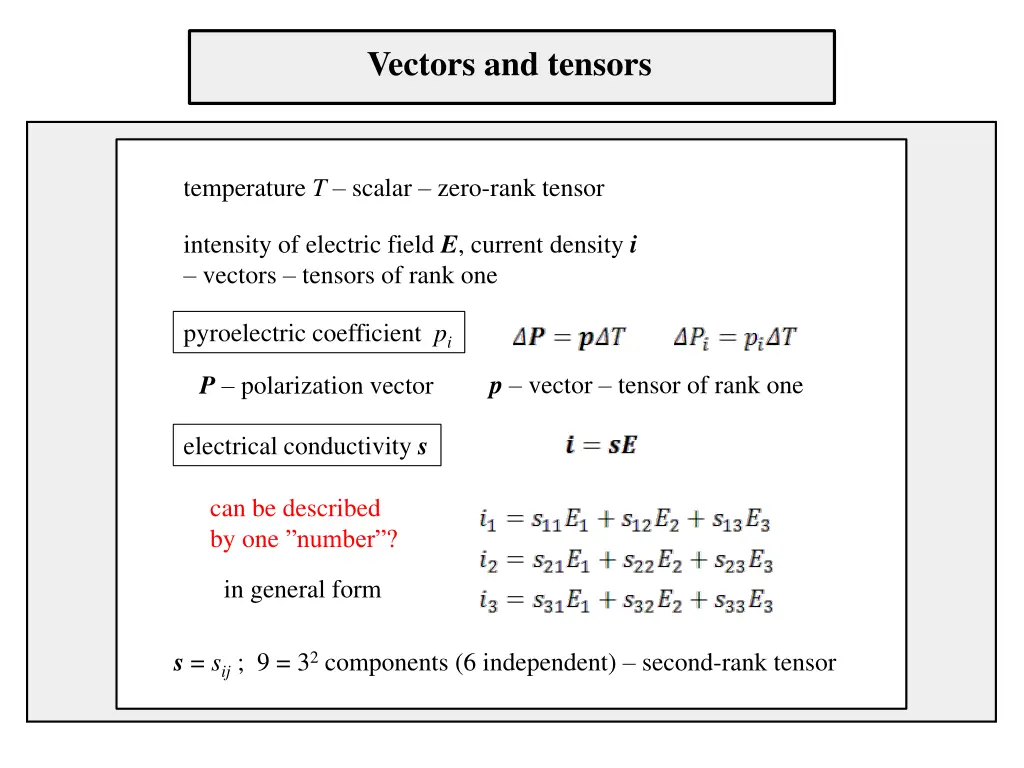

Vectors and tensors temperature T scalar zero-rank tensor intensity of electric field E, current density i vectors tensors of rank one pyroelectric coefficient pi p vector tensor of rank one P polarization vector electrical conductivity s can be described by one number ? in general form s = sij; 9 = 32components (6 independent) second-rank tensor

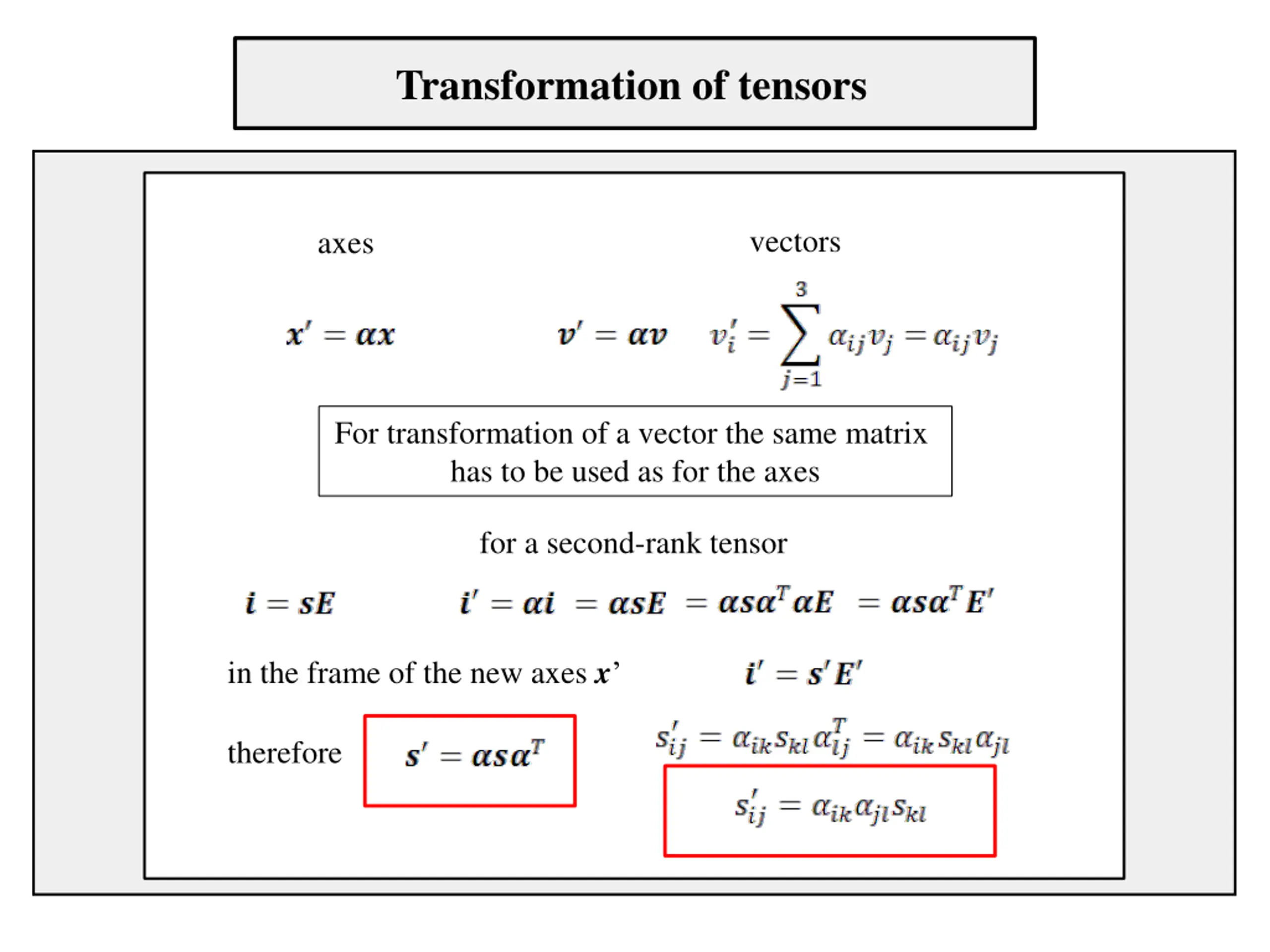

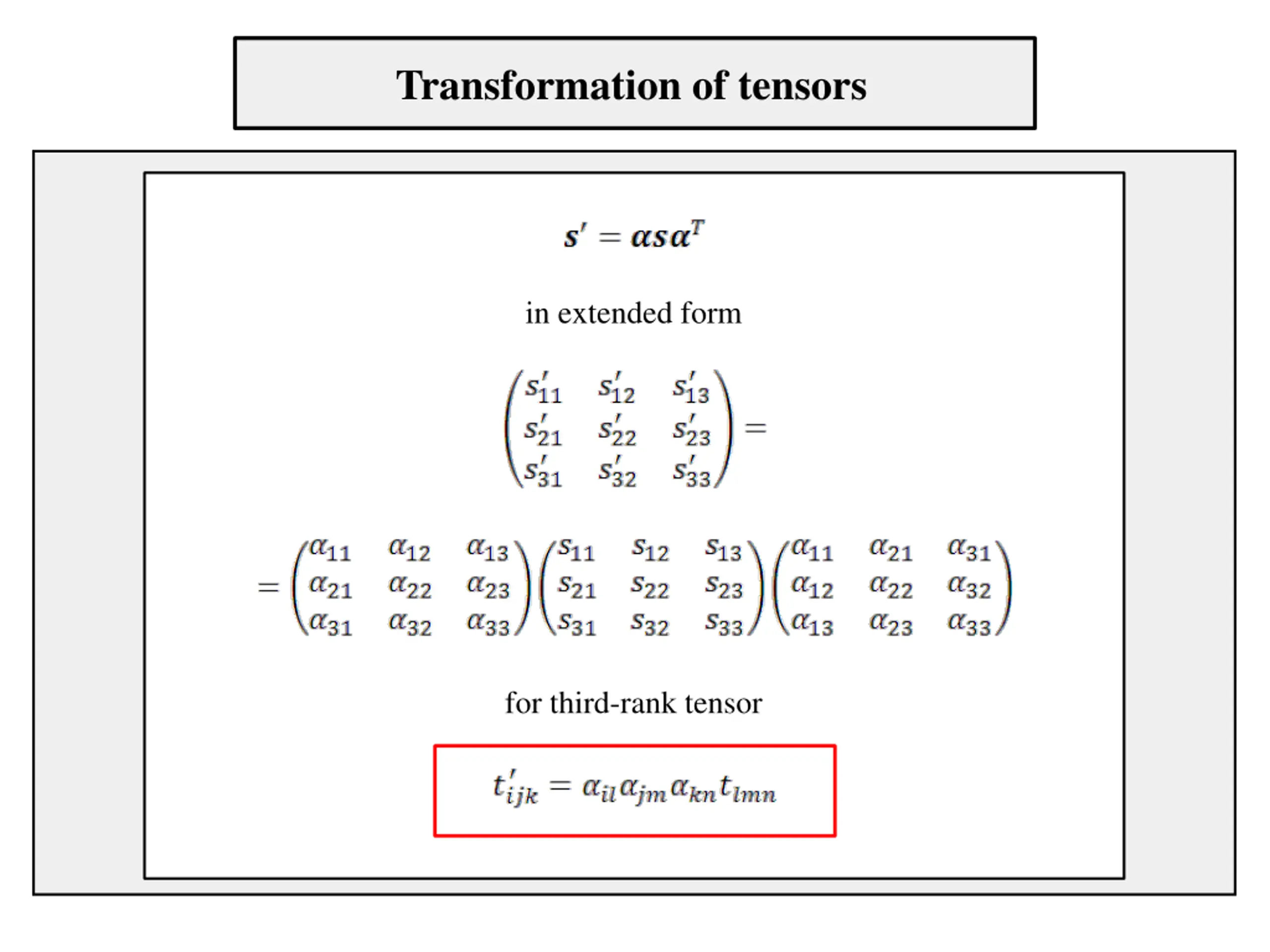

Transformation of tensors vectors axes For transformation of a vector the same matrix has to be used as for the axes for a second-rank tensor in the frame of the new axes x therefore

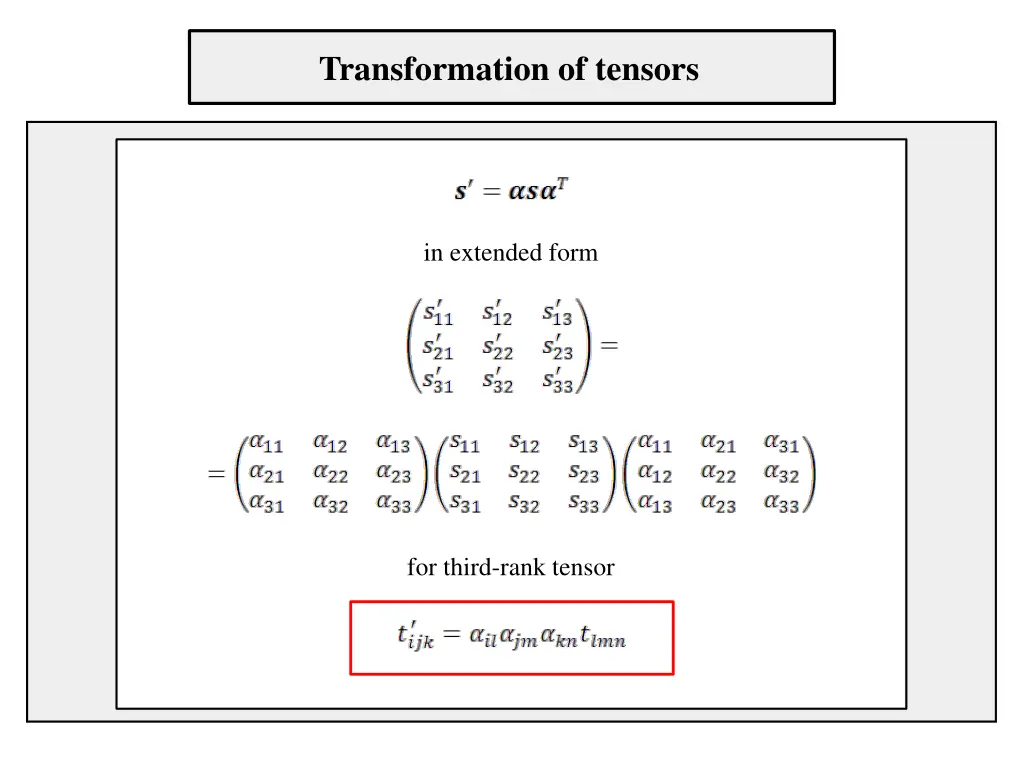

Transformation of tensors in extended form for third-rank tensor

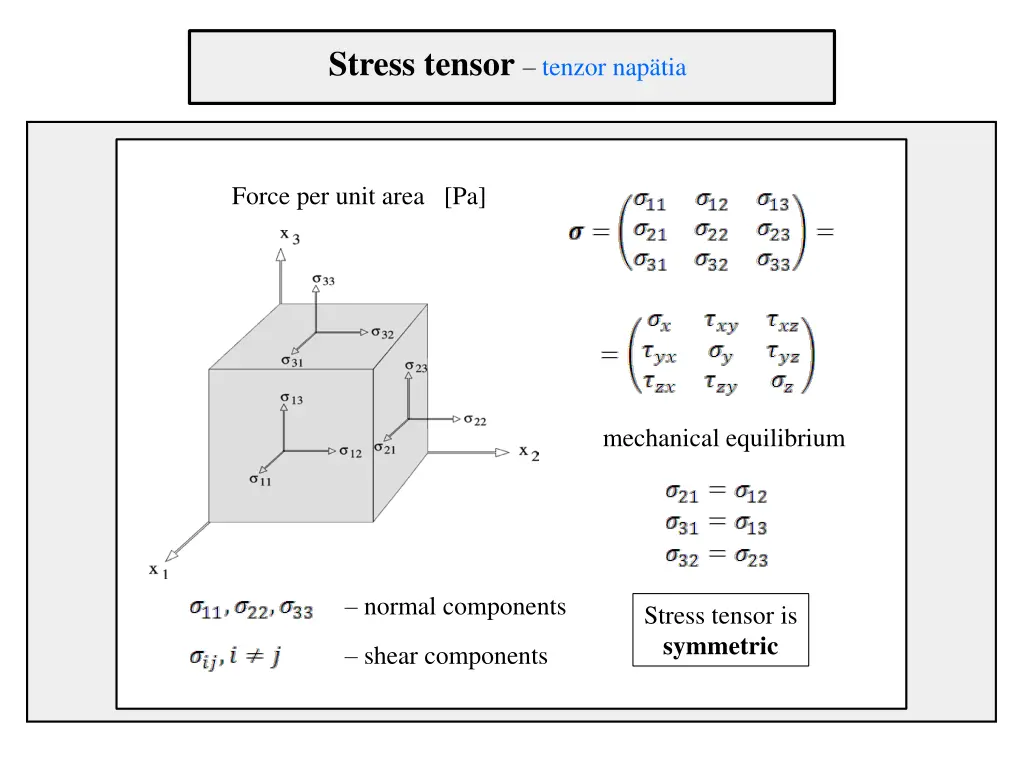

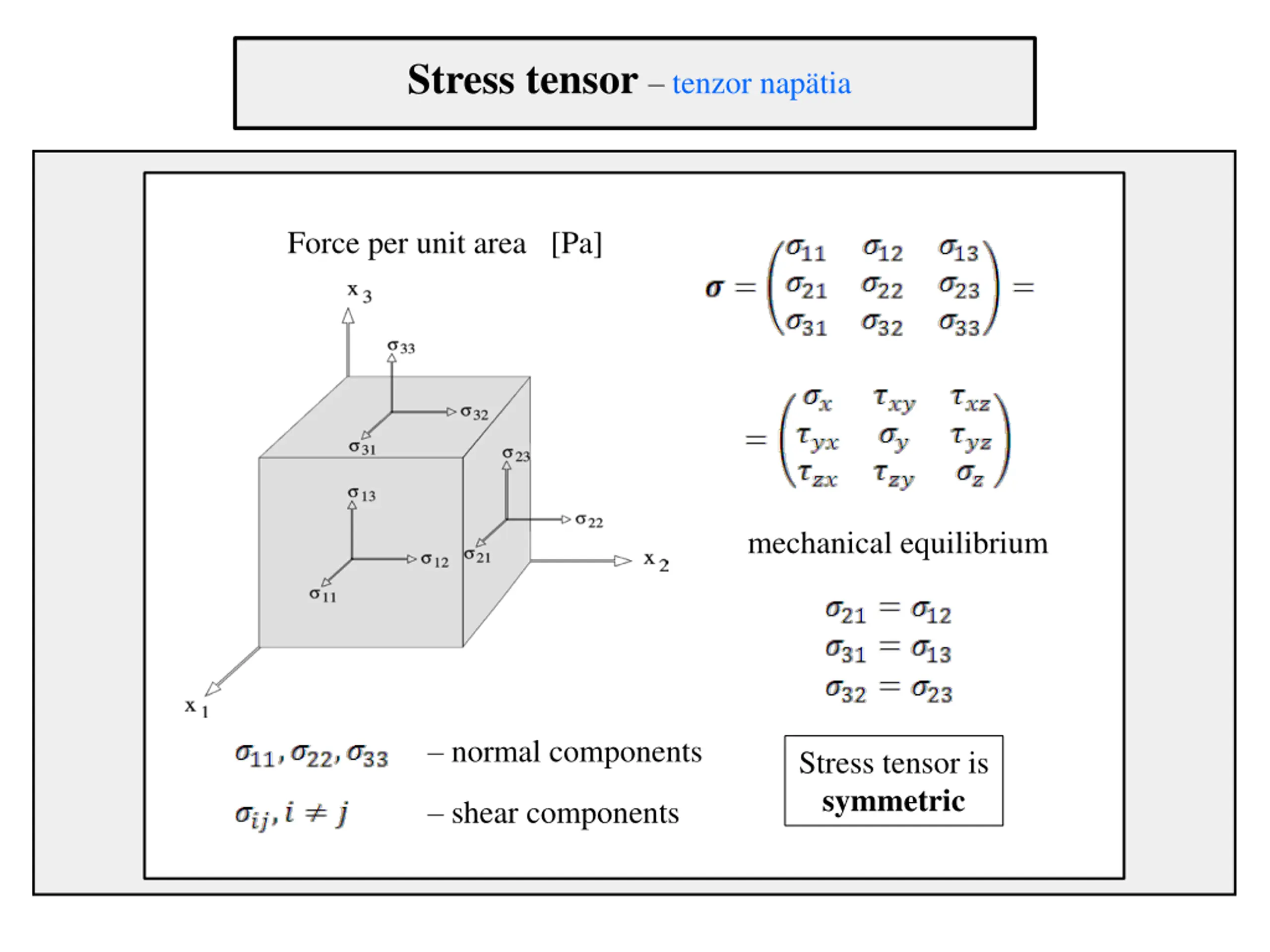

Stress tensor tenzor naptia Force per unit area [Pa] mechanical equilibrium normal components Stress tensor is symmetric shear components

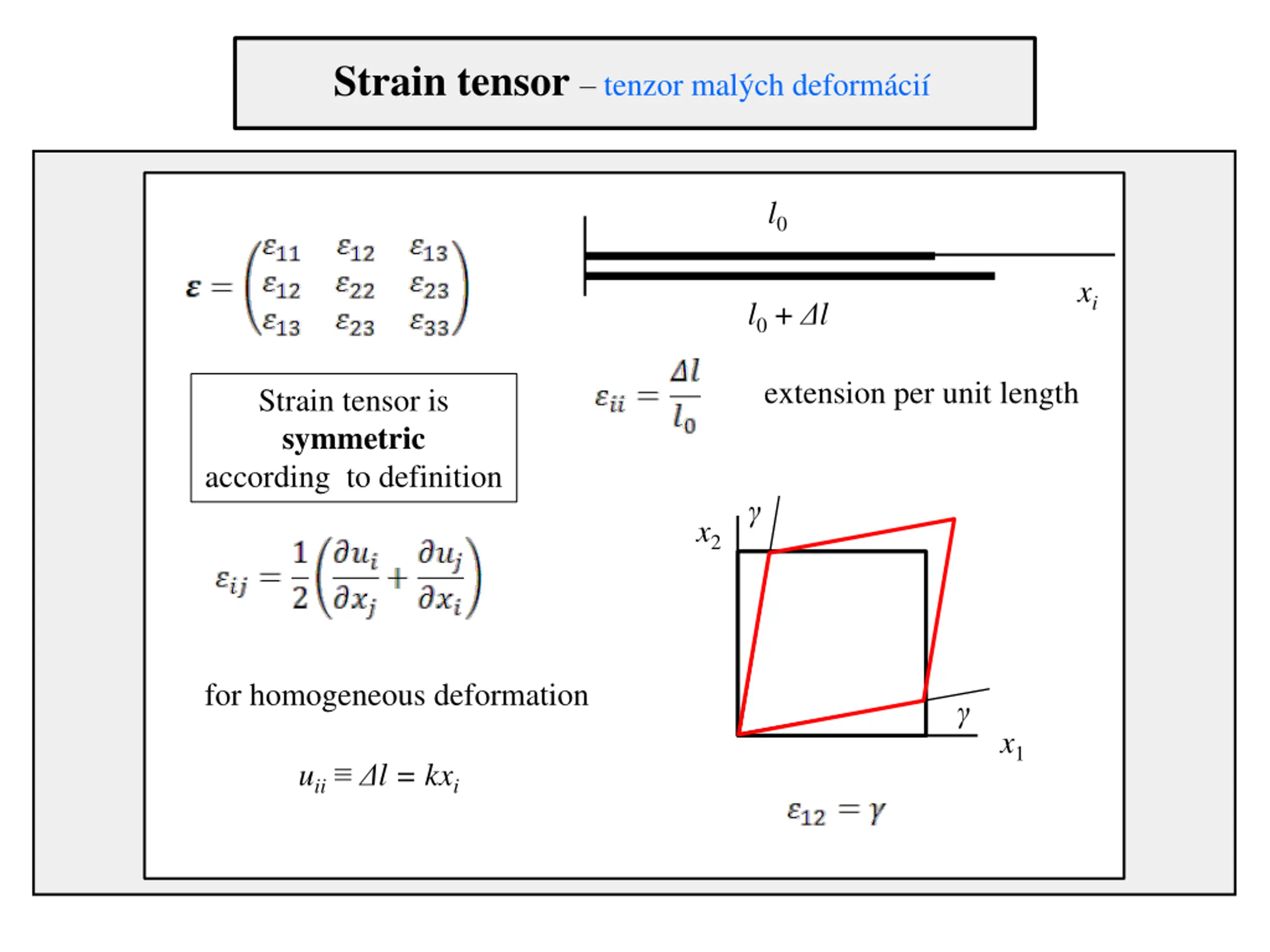

Strain tensor tenzor malch deformci l0 xi l0+ l extension per unit length Strain tensor is symmetric according to definition x2 for homogeneous deformation x1 uii l = kxi

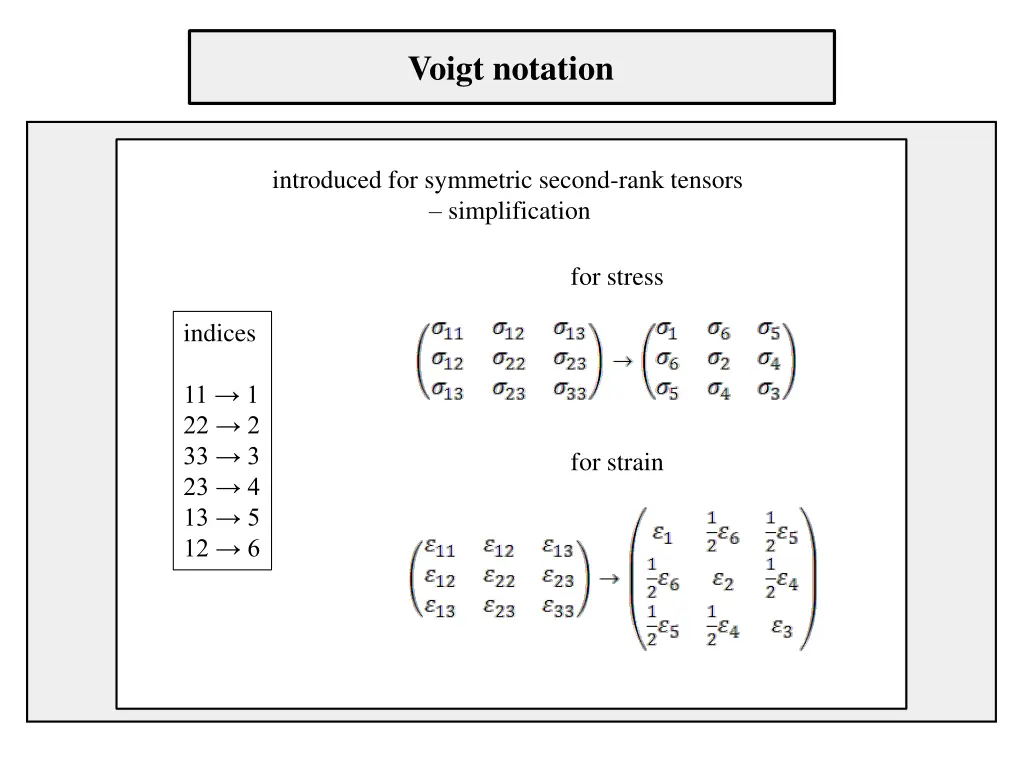

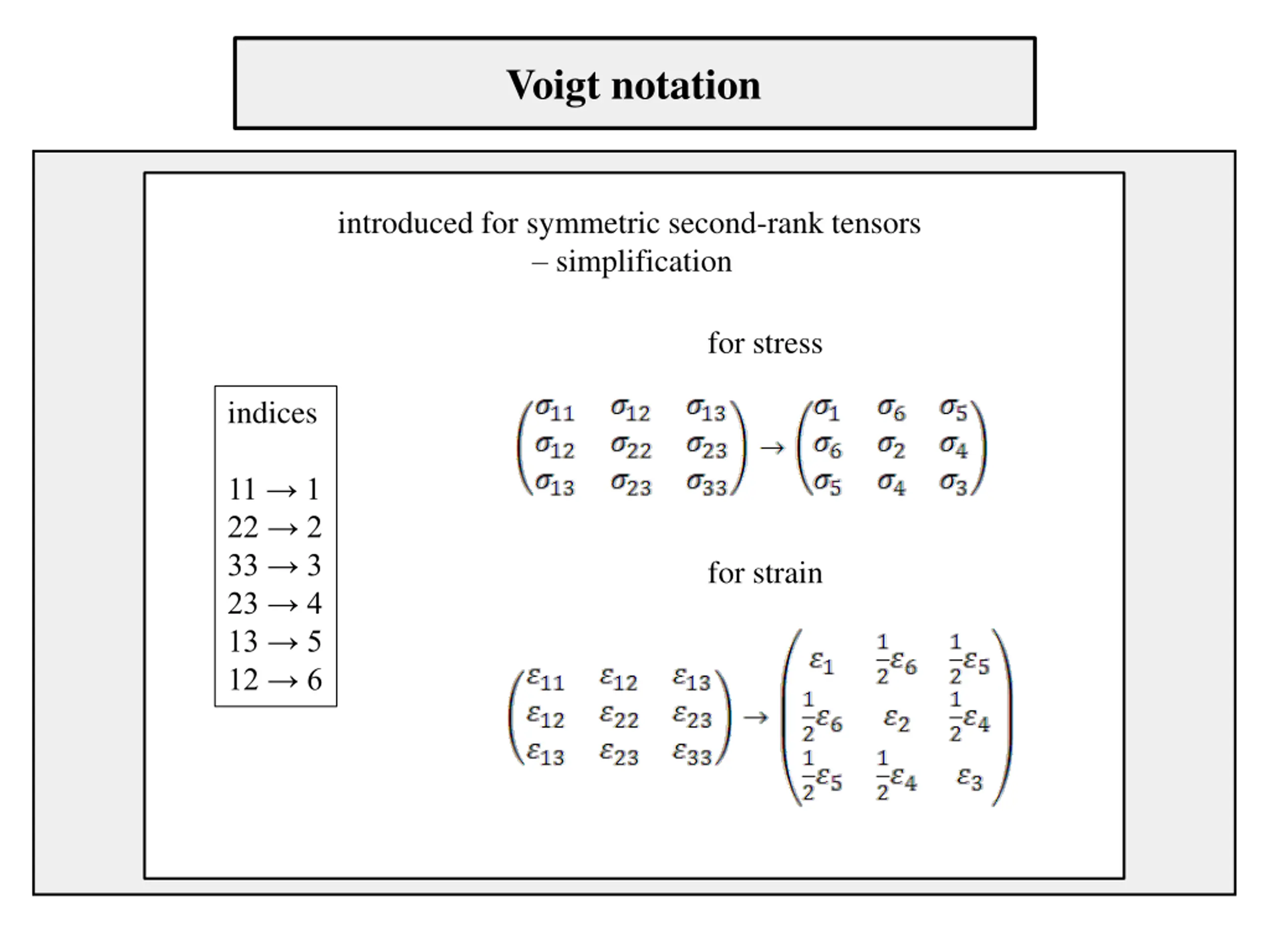

Voigt notation introduced for symmetric second-rank tensors simplification for stress indices 11 1 22 2 33 3 23 4 13 5 12 6 for strain

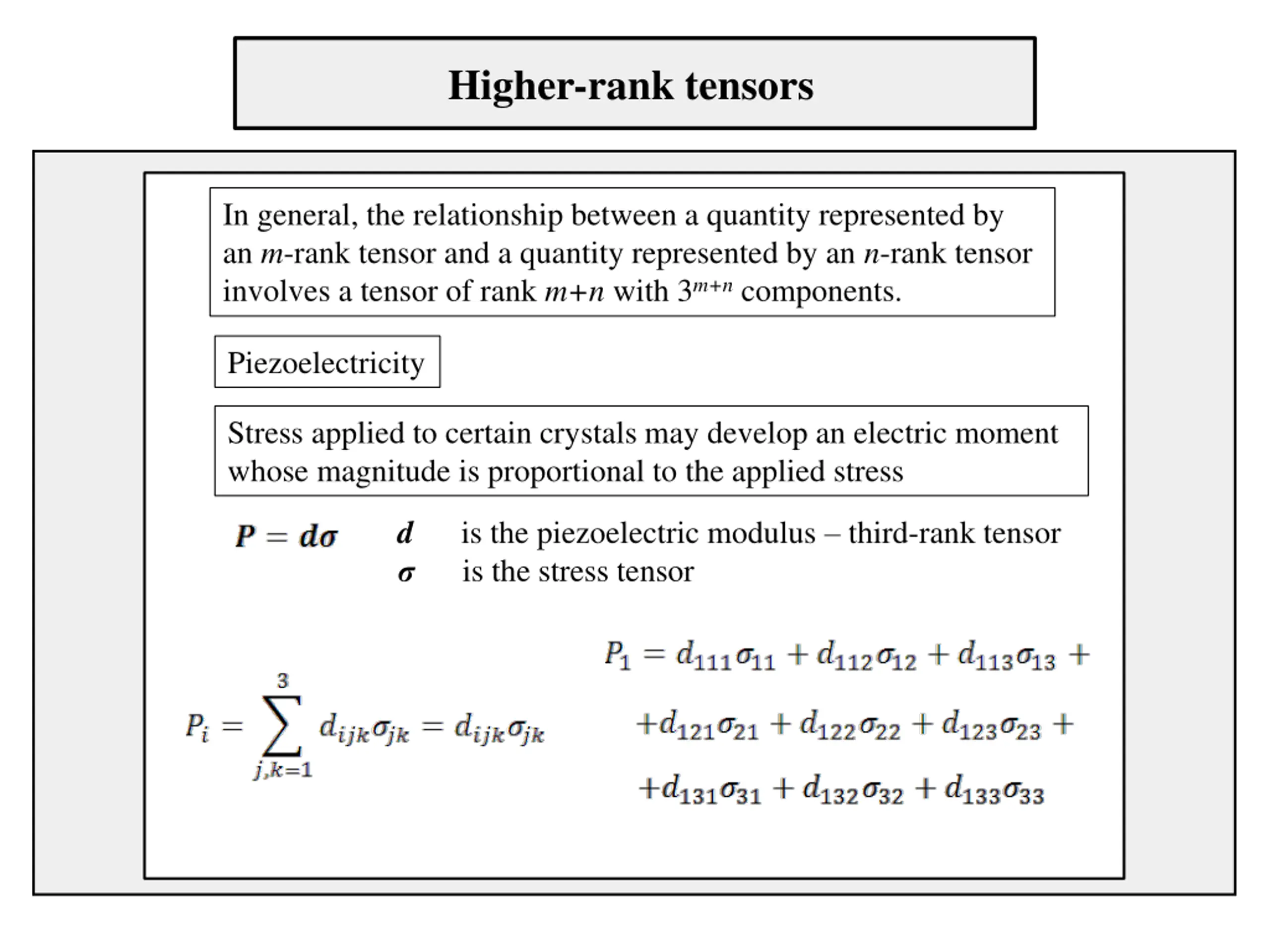

Higher-rank tensors In general, the relationship between a quantity represented by an m-rank tensor and a quantity represented by an n-rank tensor involves a tensor of rank m+n with 3m+ncomponents. Piezoelectricity Stress applied to certain crystals may develop an electric moment whose magnitude is proportional to the applied stress d is the stress tensor is the piezoelectric modulus third-rank tensor

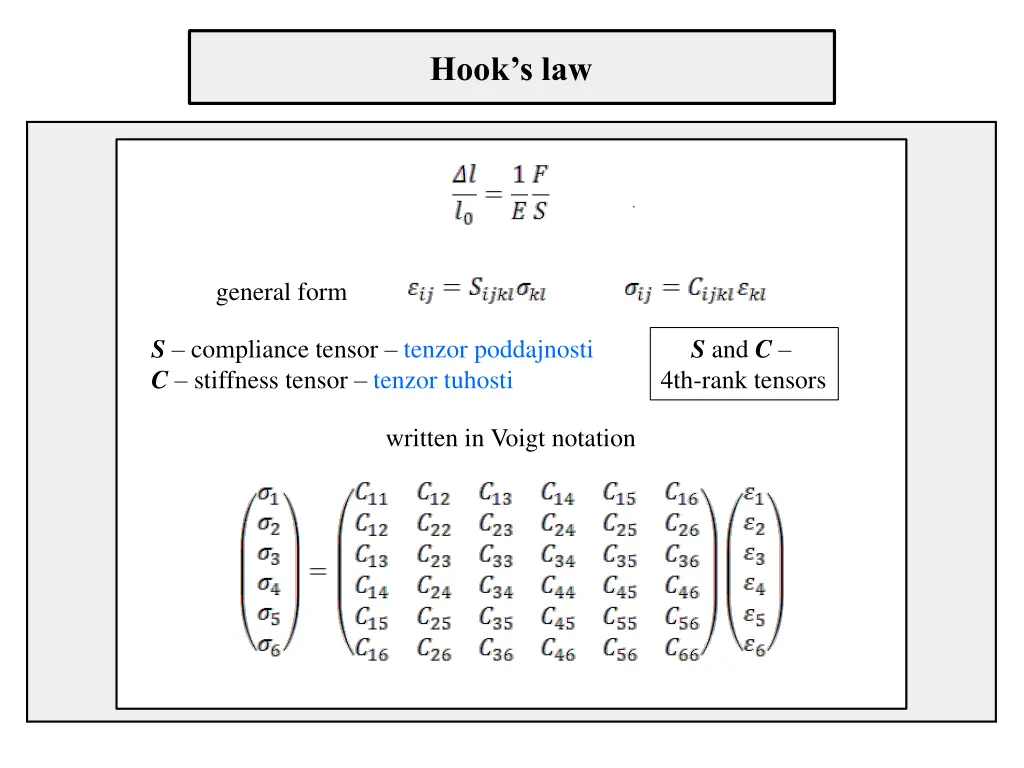

Hooks law general form S compliance tensor tenzor poddajnosti C stiffness tensor tenzor tuhosti S and C 4th-rank tensors written in Voigt notation

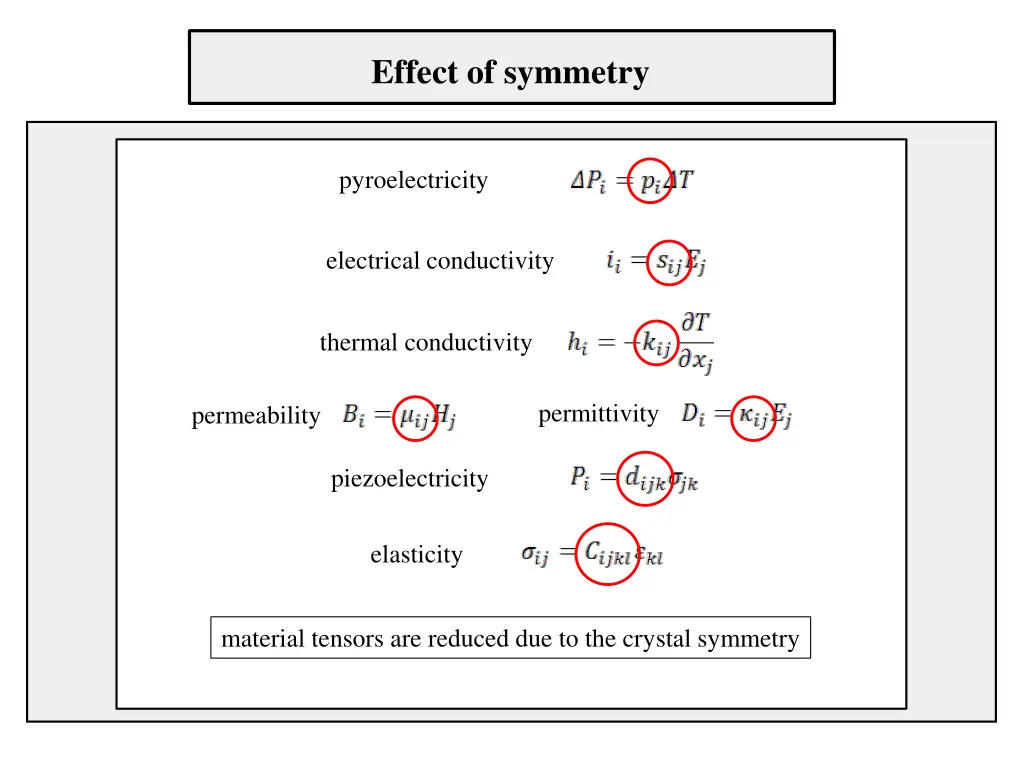

Effect of symmetry pyroelectricity electrical conductivity thermal conductivity permittivity permeability piezoelectricity elasticity material tensors are reduced due to the crystal symmetry

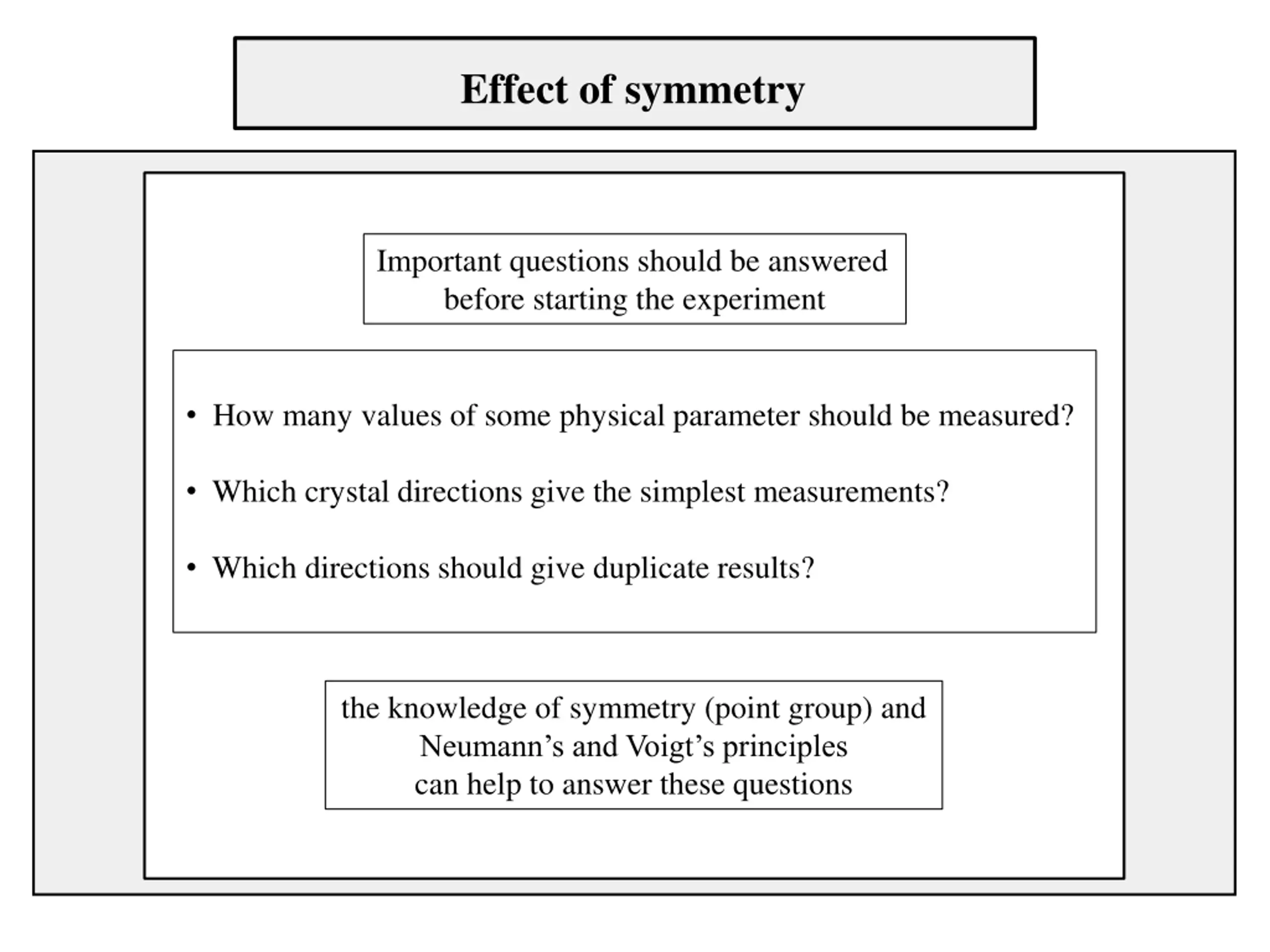

Effect of symmetry Important questions should be answered before starting the experiment How many values of some physical parameter should be measured? Which crystal directions give the simplest measurements? Which directions should give duplicate results? the knowledge of symmetry (point group) and Neumann s and Voigt s principles can help to answer these questions

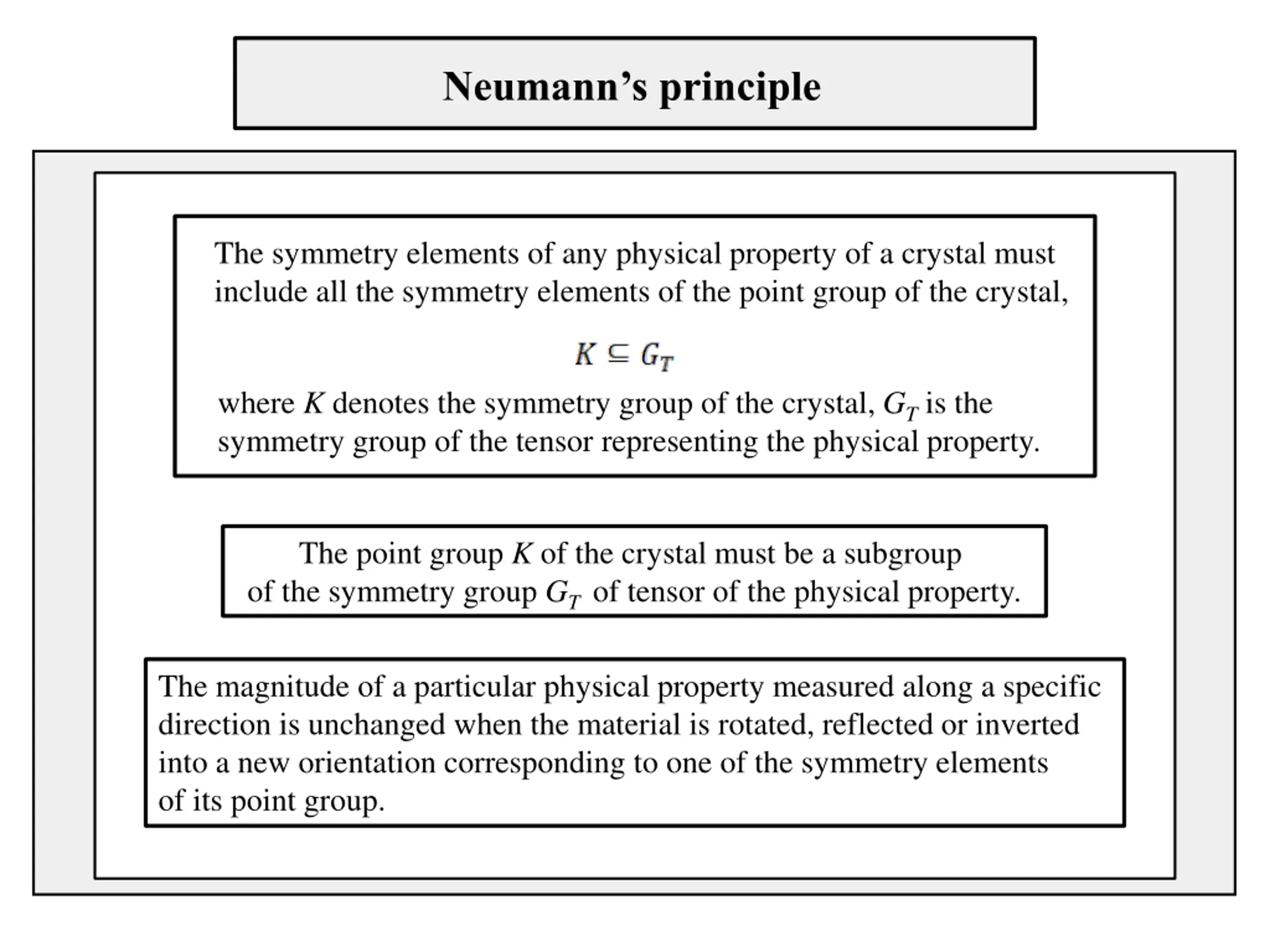

Neumanns principle The symmetry elements of any physical property of a crystal must include all the symmetry elements of the point group of the crystal, where K denotes the symmetry group of the crystal, GT is the symmetry group of the tensor representing the physical property. The point group K of the crystal must be a subgroup of the symmetry group GT of tensor of the physical property. The magnitude of a particular physical property measured along a specific direction is unchanged when the material is rotated, reflected or inverted into a new orientation corresponding to one of the symmetry elements of its point group.

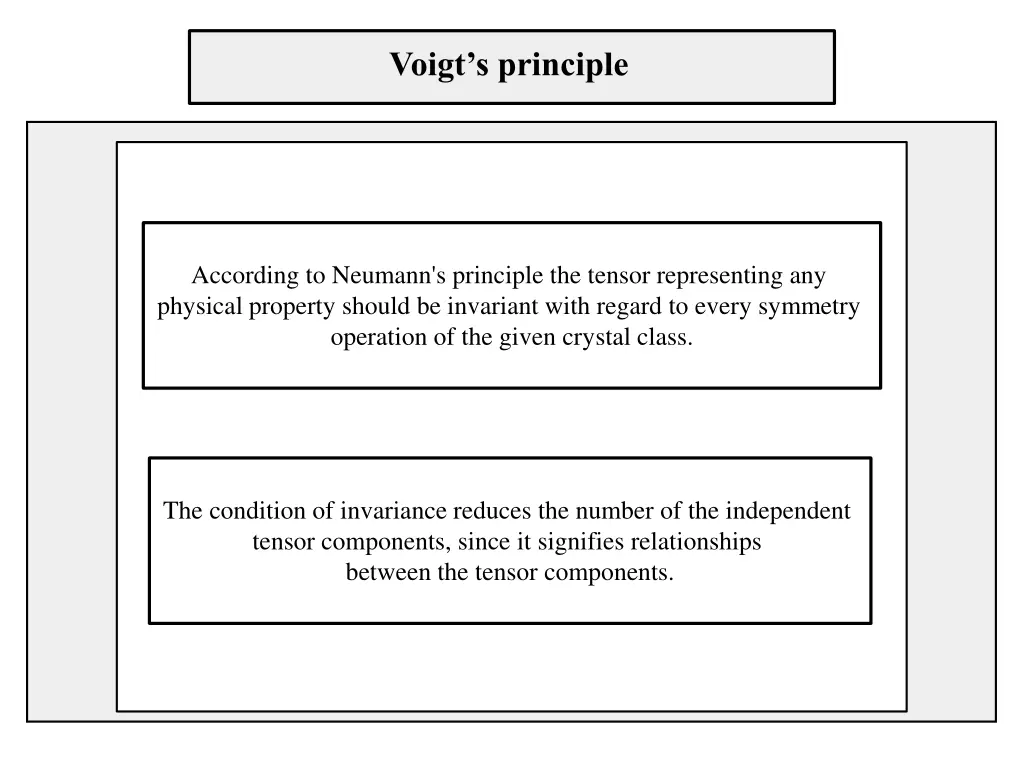

Voigts principle According to Neumann's principle the tensor representing any physical property should be invariant with regard to every symmetry operation of the given crystal class. The condition of invariance reduces the number of the independent tensor components, since it signifies relationships between the tensor components.

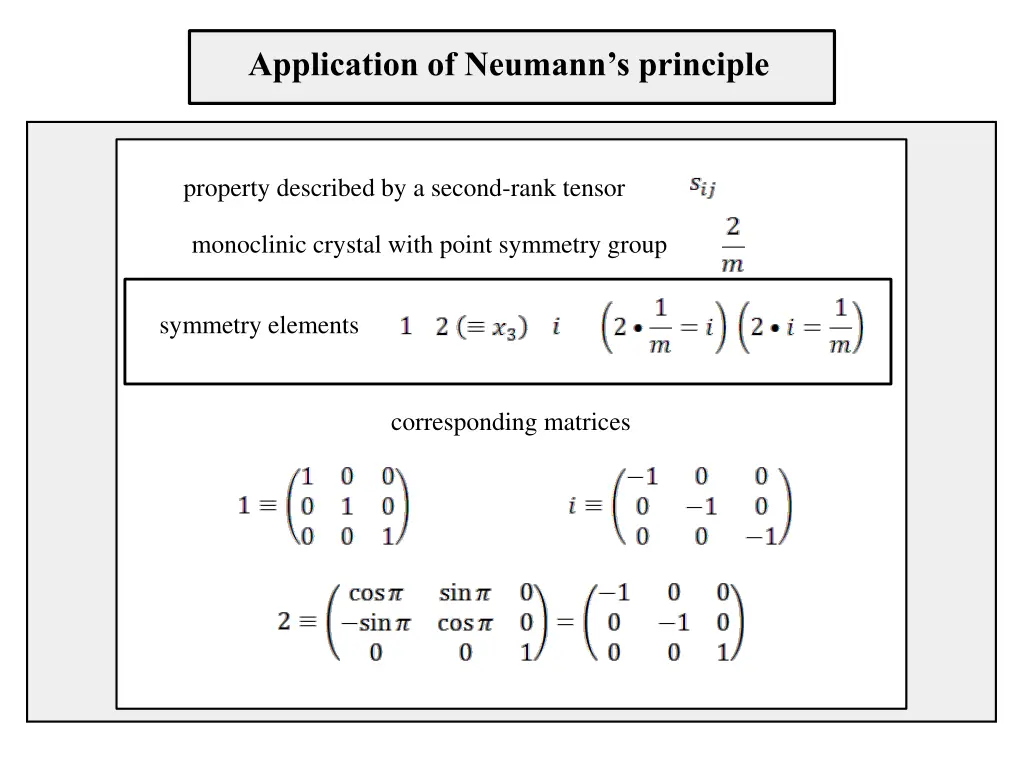

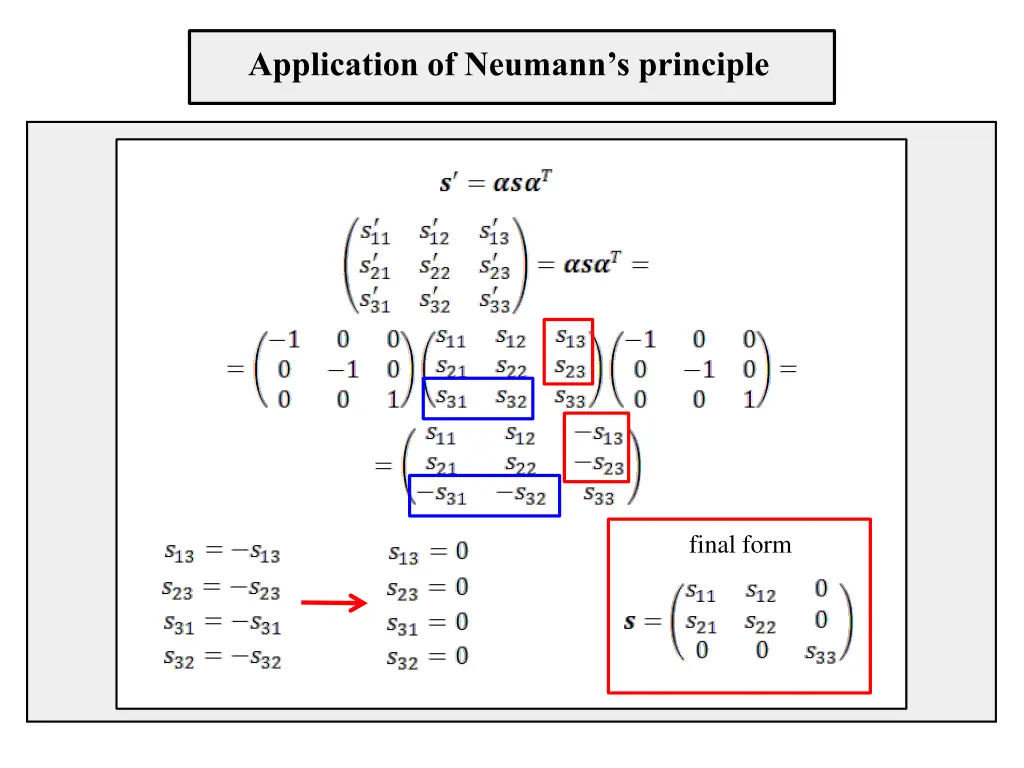

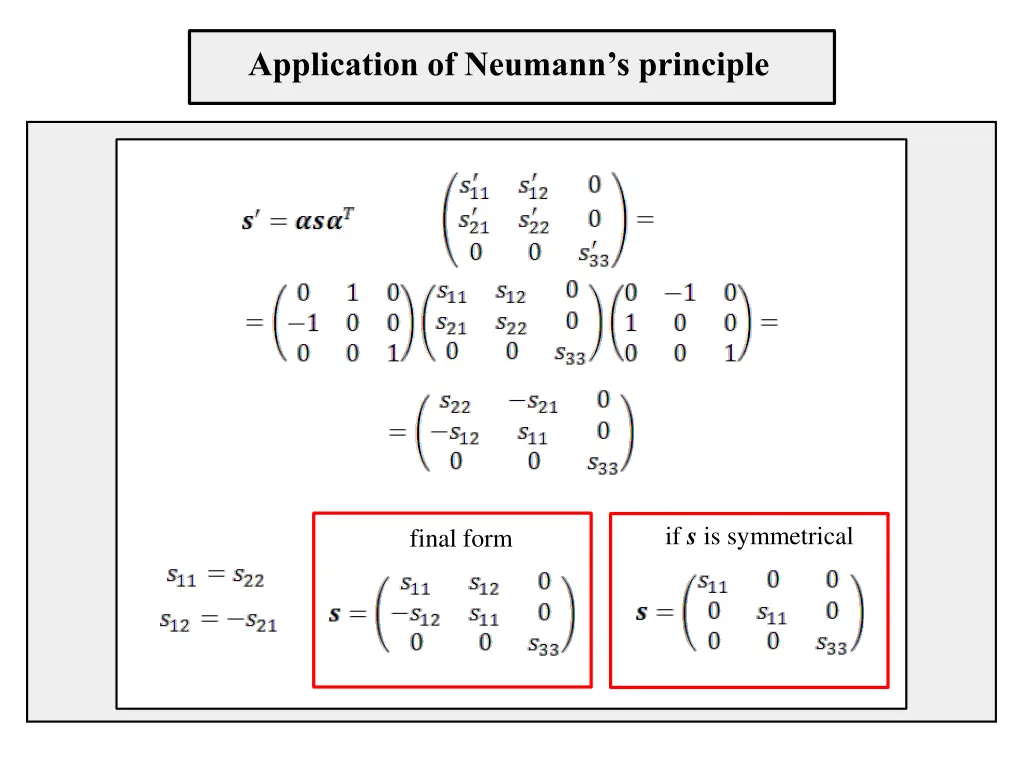

Application of Neumanns principle property described by a second-rank tensor monoclinic crystal with point symmetry group symmetry elements corresponding matrices

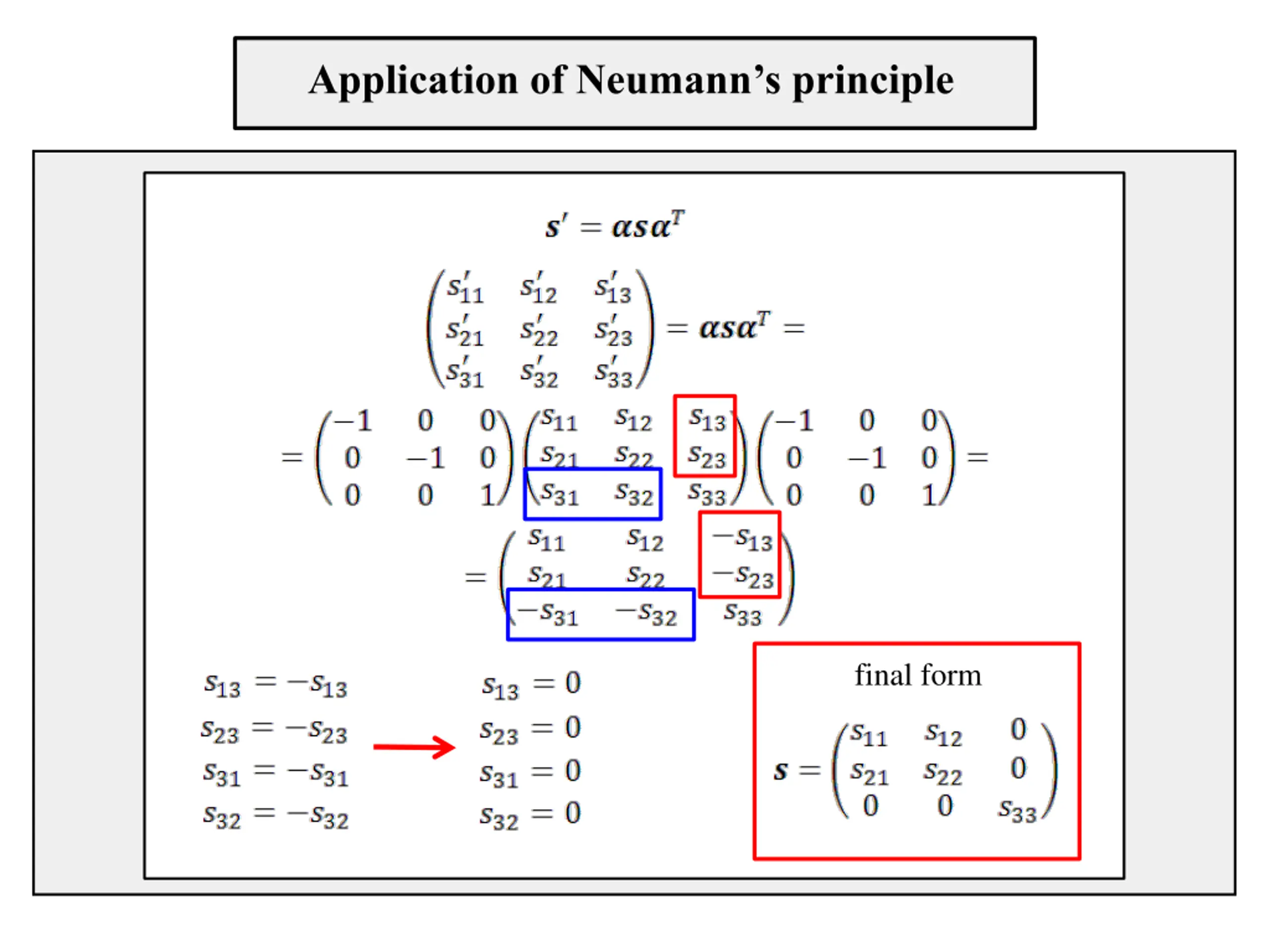

Application of Neumanns principle final form

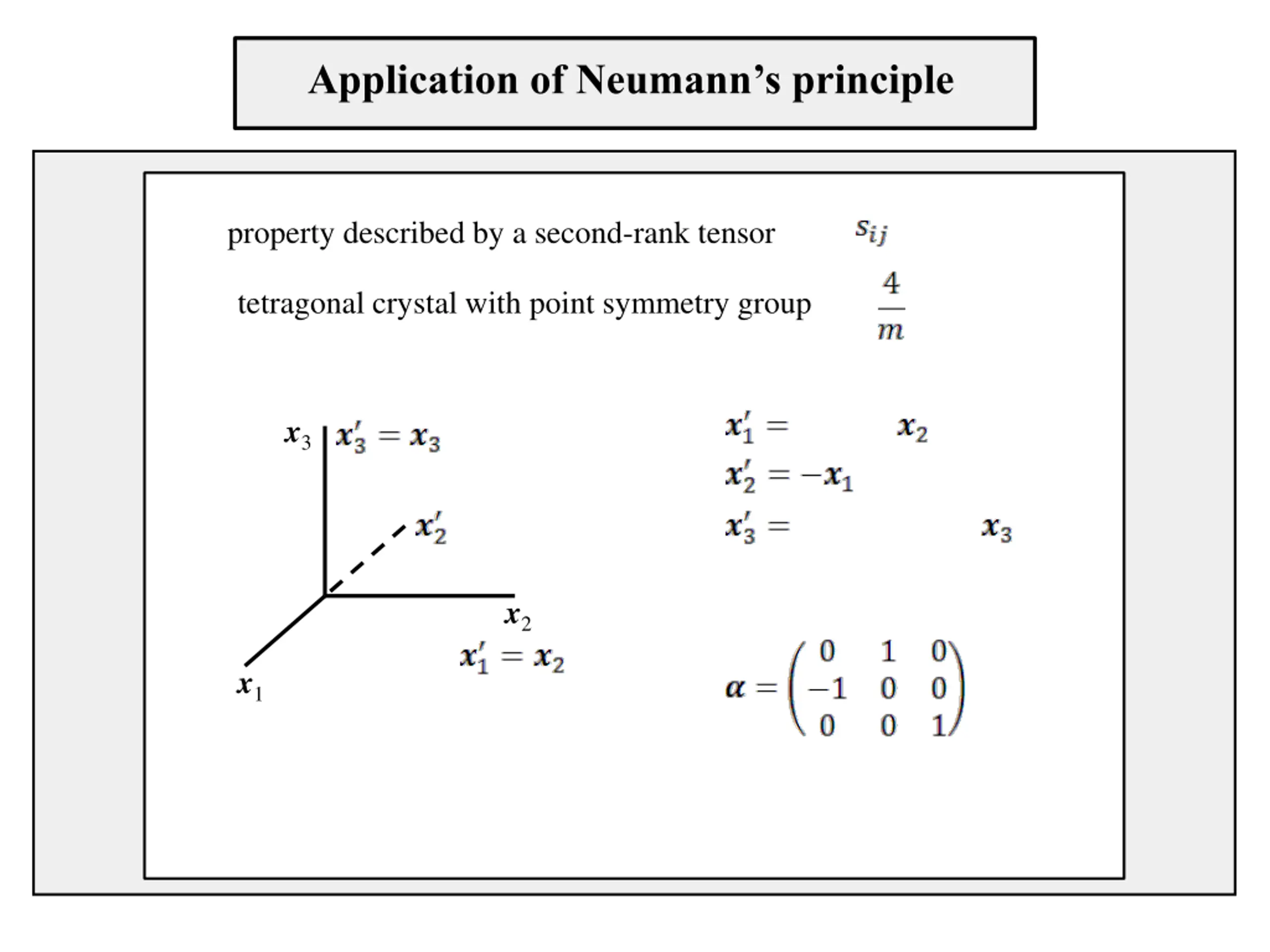

Application of Neumanns principle property described by a second-rank tensor tetragonal crystal with point symmetry group x3 x2 x1

Application of Neumanns principle if s is symmetrical final form

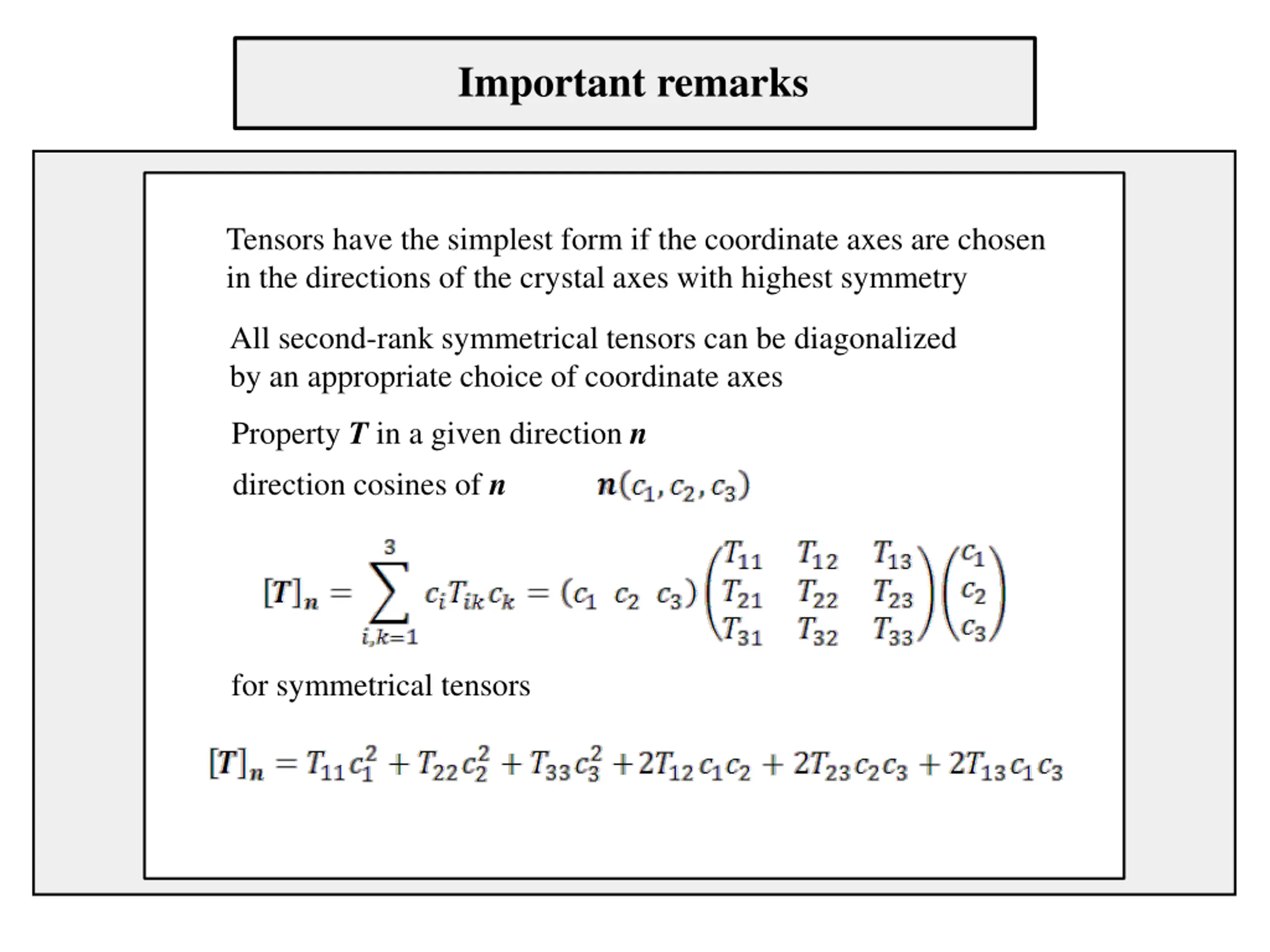

Important remarks Tensors have the simplest form if the coordinate axes are chosen in the directions of the crystal axes with highest symmetry All second-rank symmetrical tensors can be diagonalized by an appropriate choice of coordinate axes Property T in a given direction n direction cosines of n for symmetrical tensors

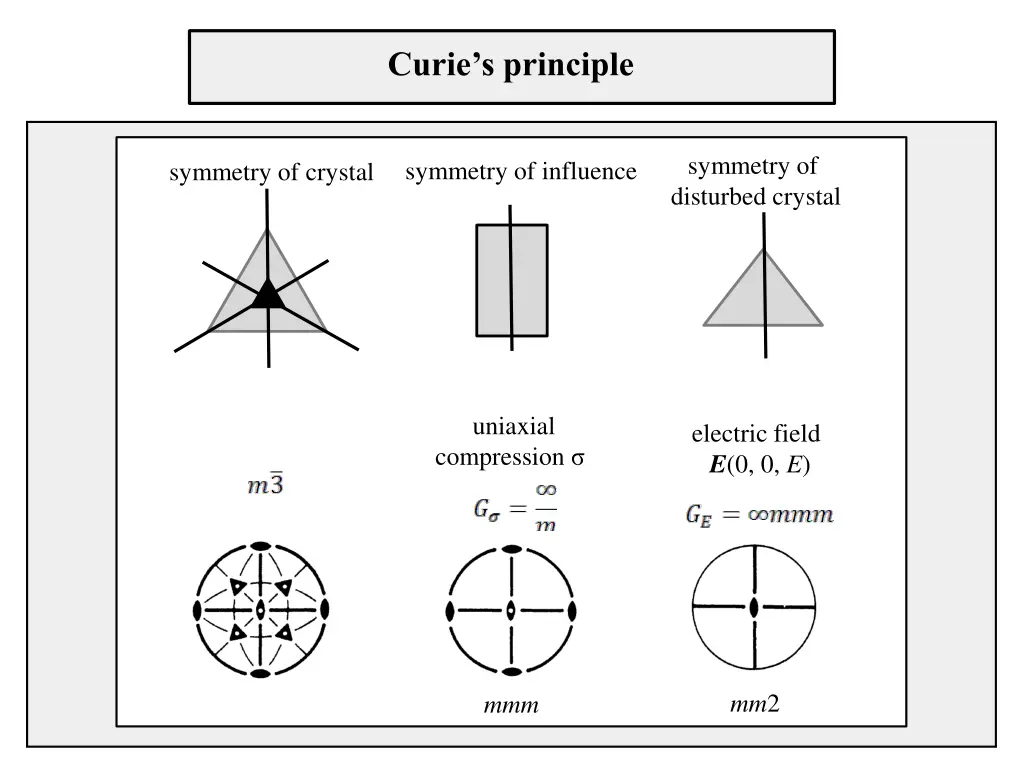

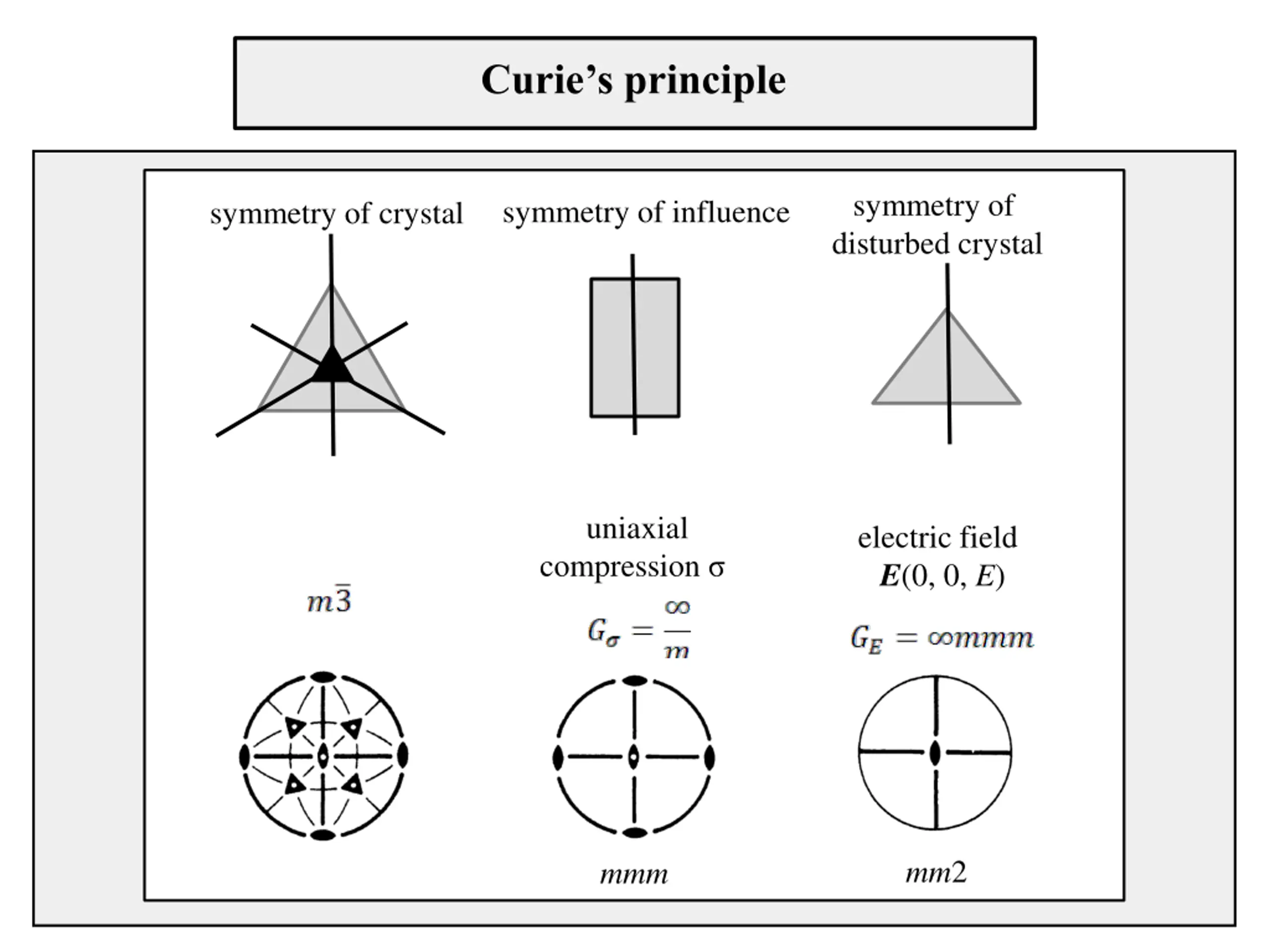

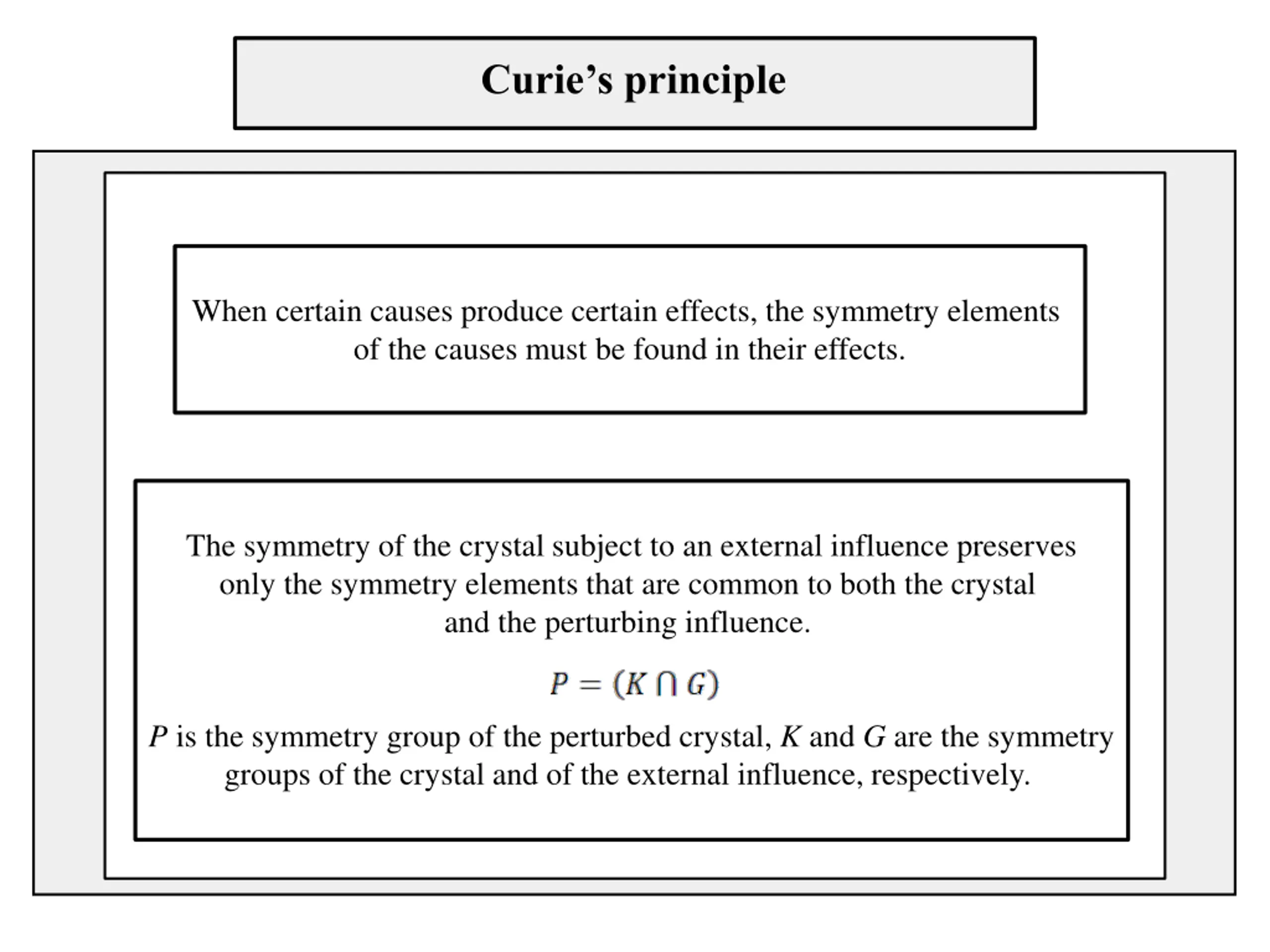

Curies principle When certain causes produce certain effects, the symmetry elements of the causes must be found in their effects. The symmetry of the crystal subject to an external influence preserves only the symmetry elements that are common to both the crystal and the perturbing influence. P is the symmetry group of the perturbed crystal, K and G are the symmetry groups of the crystal and of the external influence, respectively.

Curies principle symmetry of disturbed crystal symmetry of influence symmetry of crystal uniaxial compression electric field E(0, 0, E) mm2 mmm

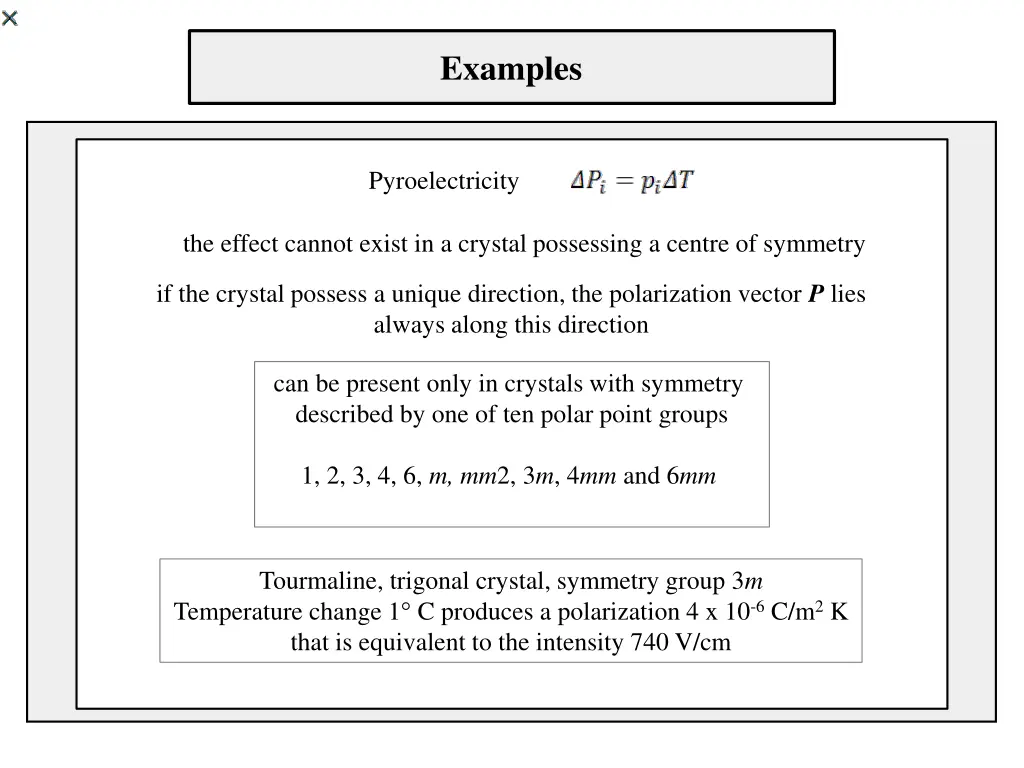

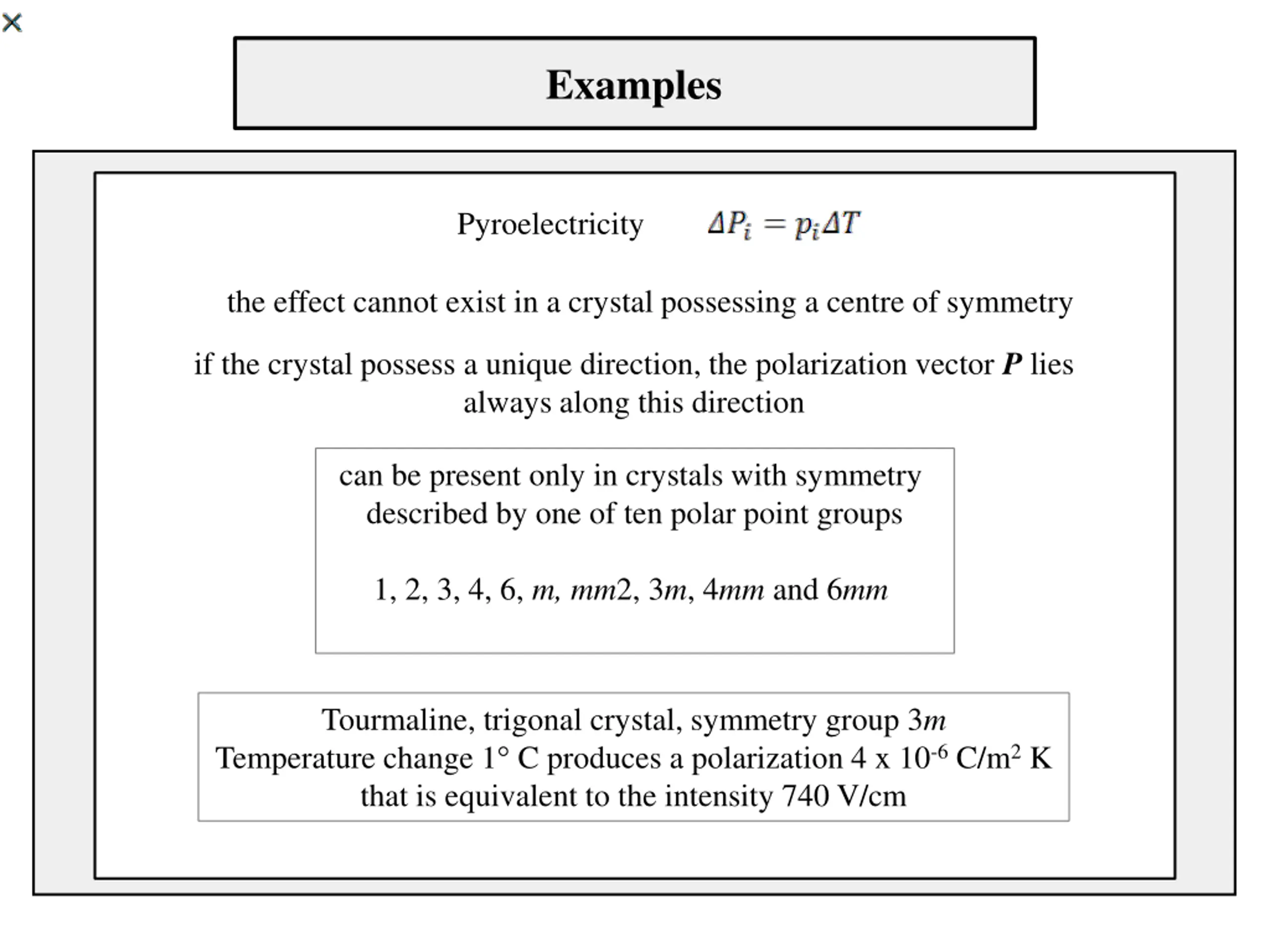

Examples Pyroelectricity the effect cannot exist in a crystal possessing a centre of symmetry if the crystal possess a unique direction, the polarization vector P lies always along this direction can be present only in crystals with symmetry described by one of ten polar point groups 1, 2, 3, 4, 6, m, mm2, 3m, 4mm and 6mm Tourmaline, trigonal crystal, symmetry group 3m Temperature change 1 C produces a polarization 4 x 10-6C/m2K that is equivalent to the intensity 740 V/cm

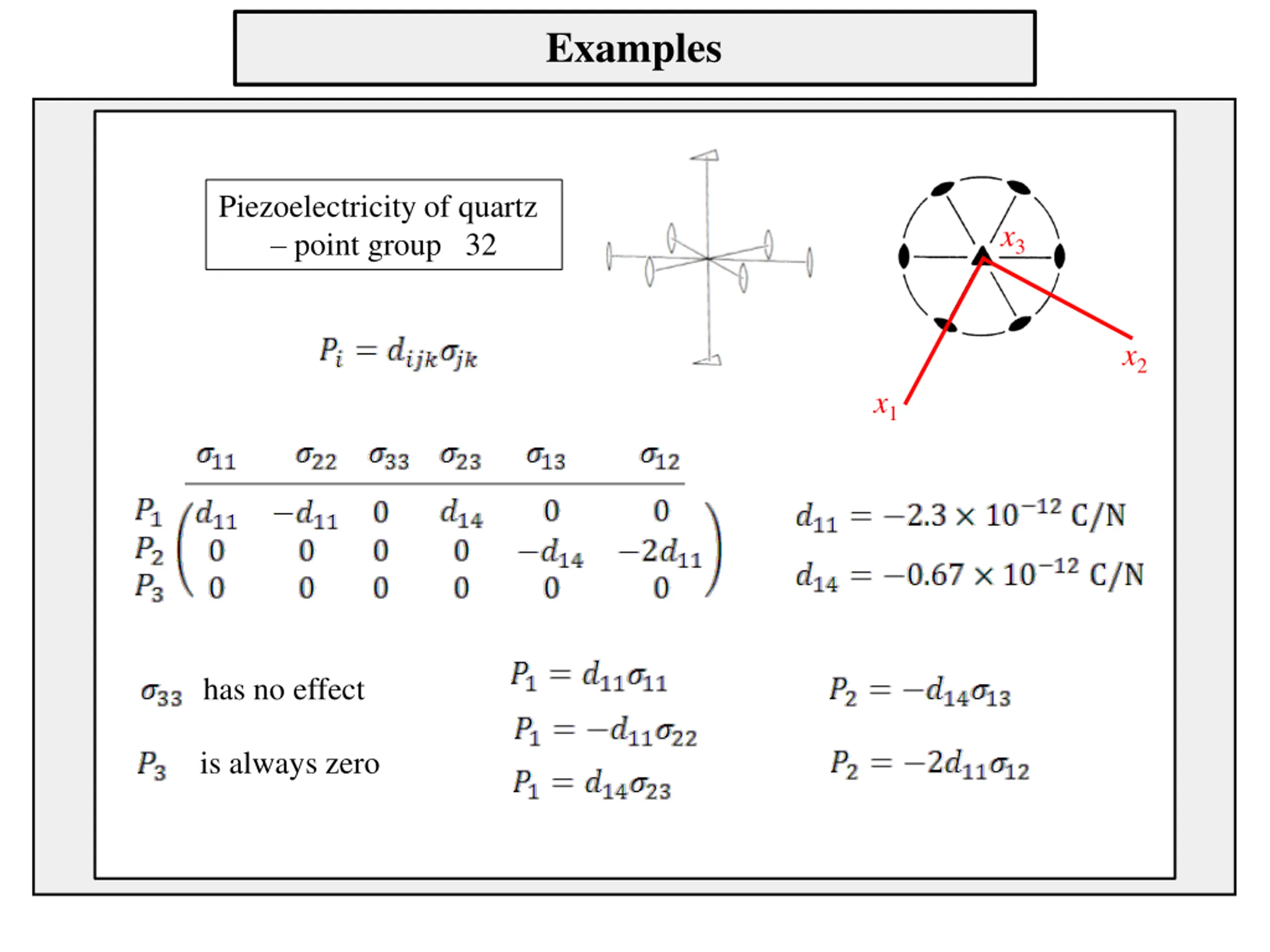

Examples Piezoelectricity of quartz point group 32 x3 x2 x1 has no effect is always zero

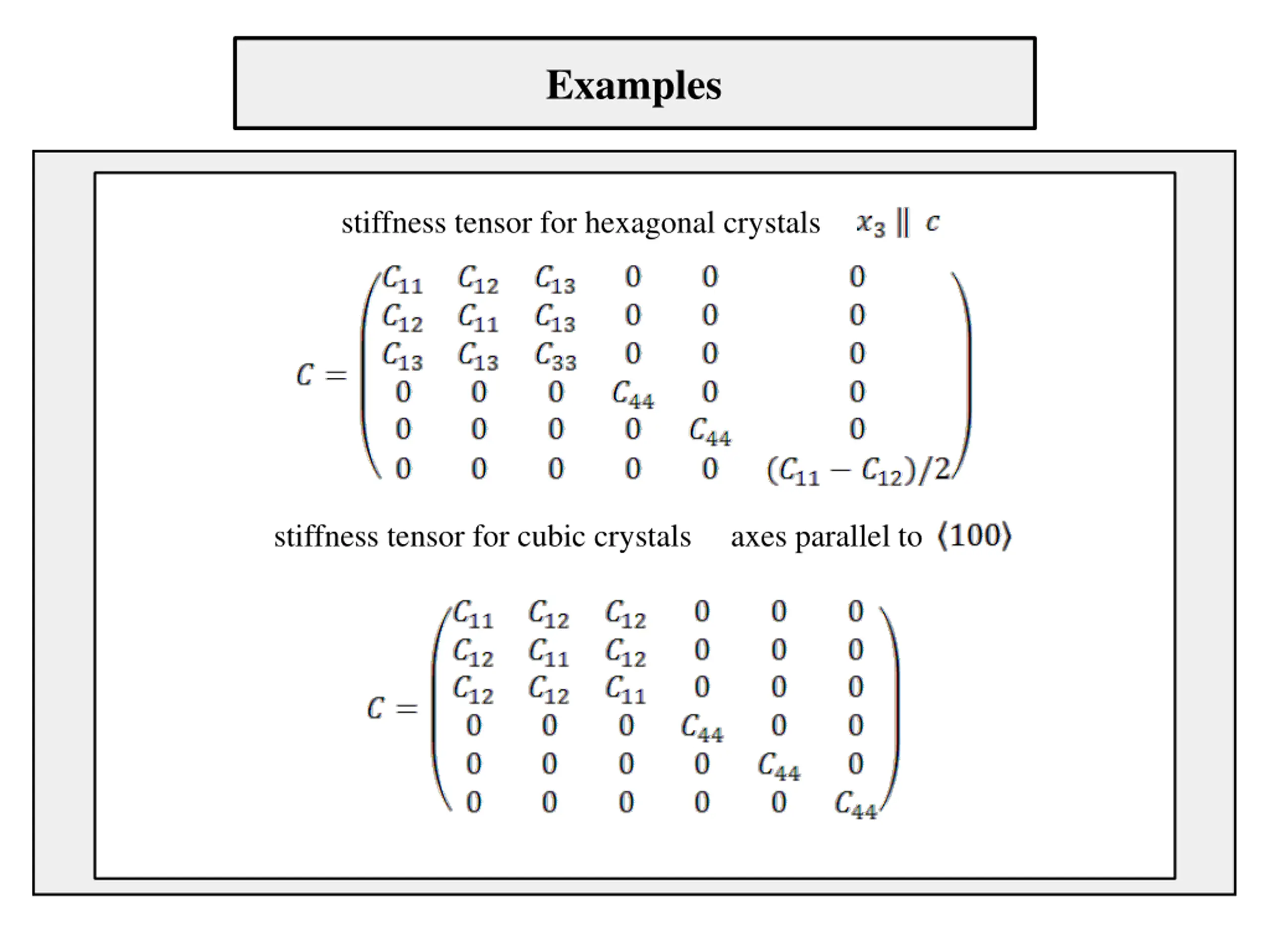

Examples stiffness tensor for hexagonal crystals stiffness tensor for cubic crystals axes parallel to

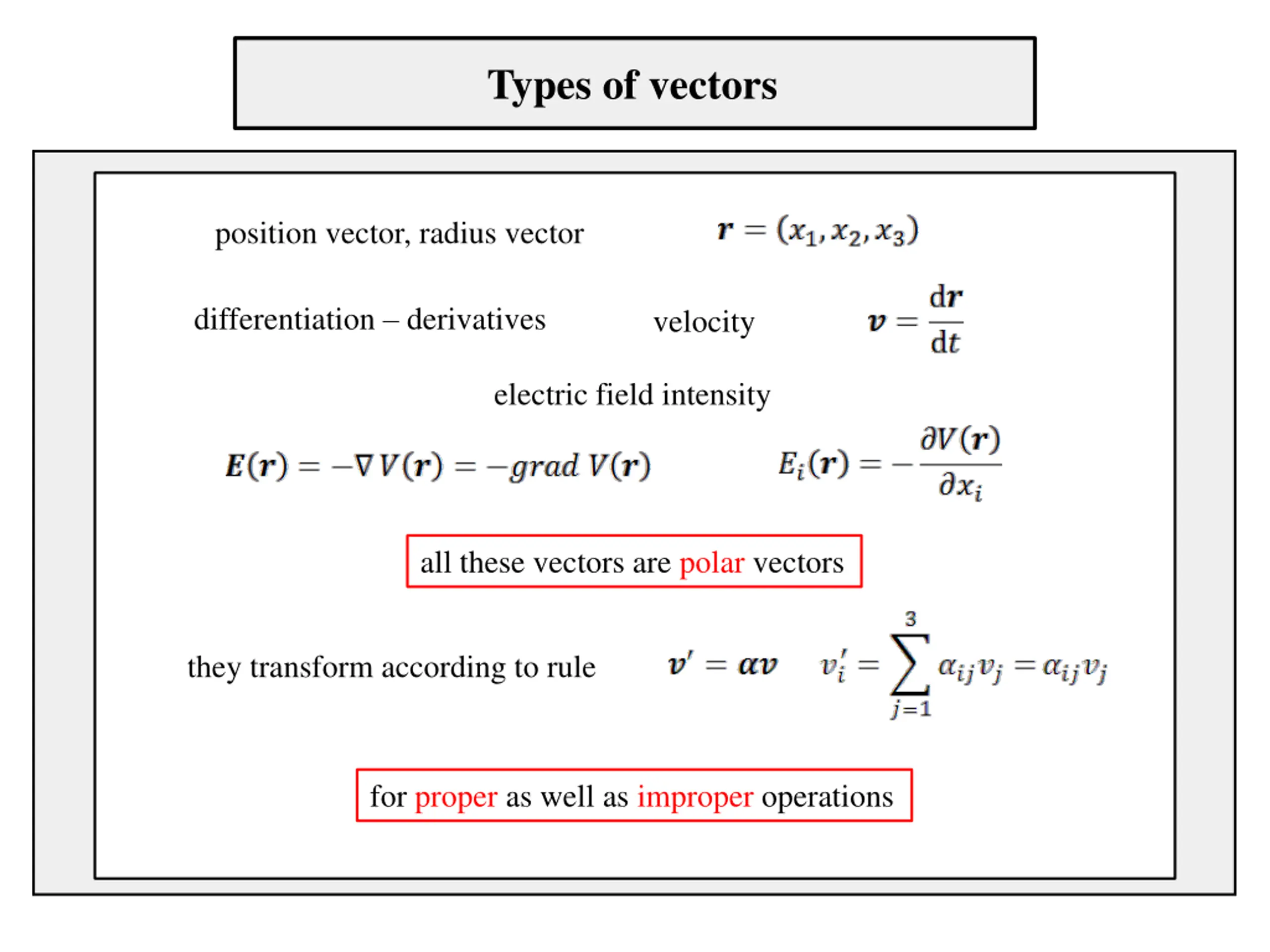

Types of vectors position vector, radius vector differentiation derivatives velocity electric field intensity all these vectors are polar vectors they transform according to rule for proper as well as improper operations

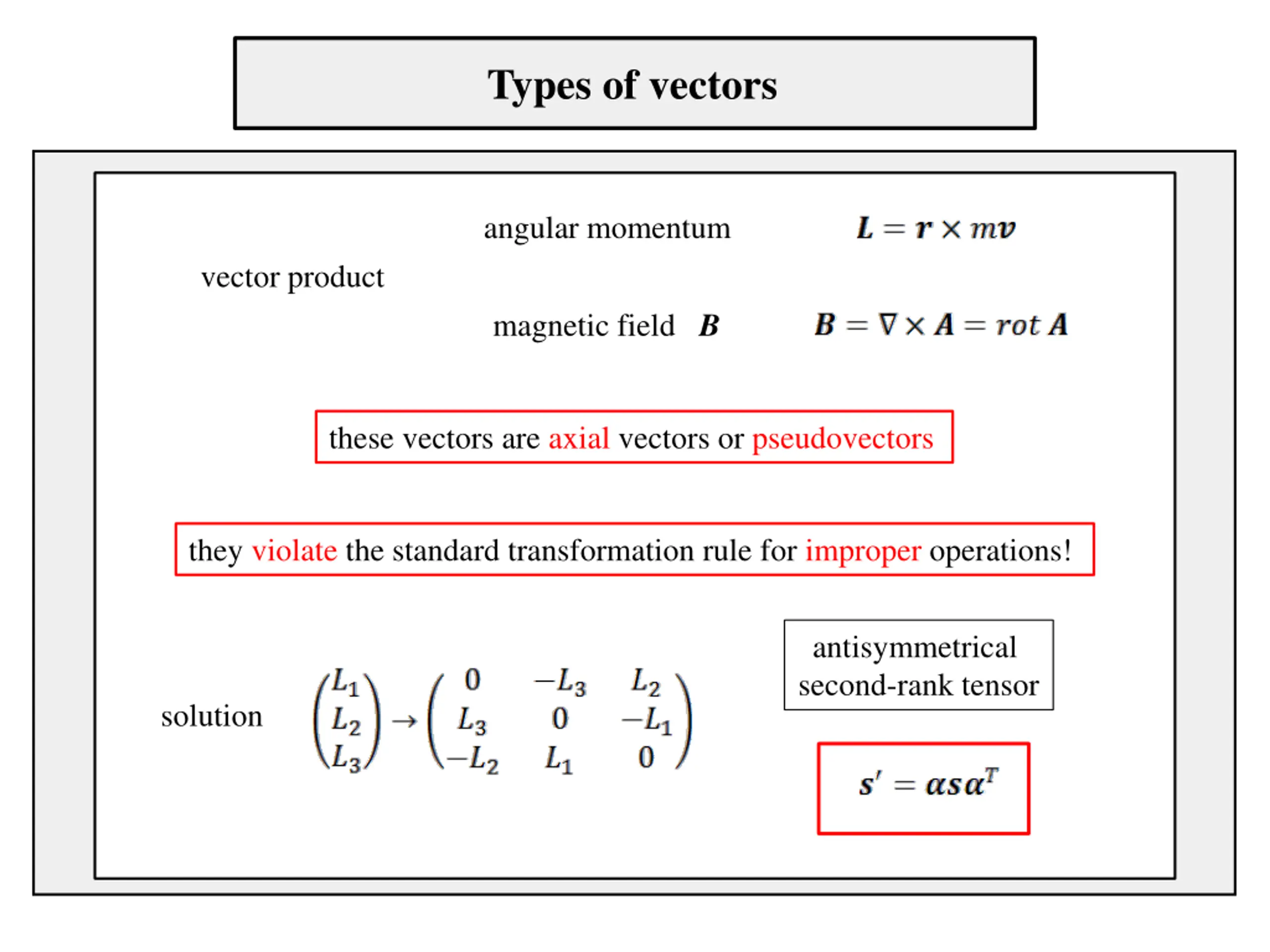

Types of vectors angular momentum vector product magnetic field B these vectors are axial vectors or pseudovectors they violate the standard transformation rule for improper operations! antisymmetrical second-rank tensor solution

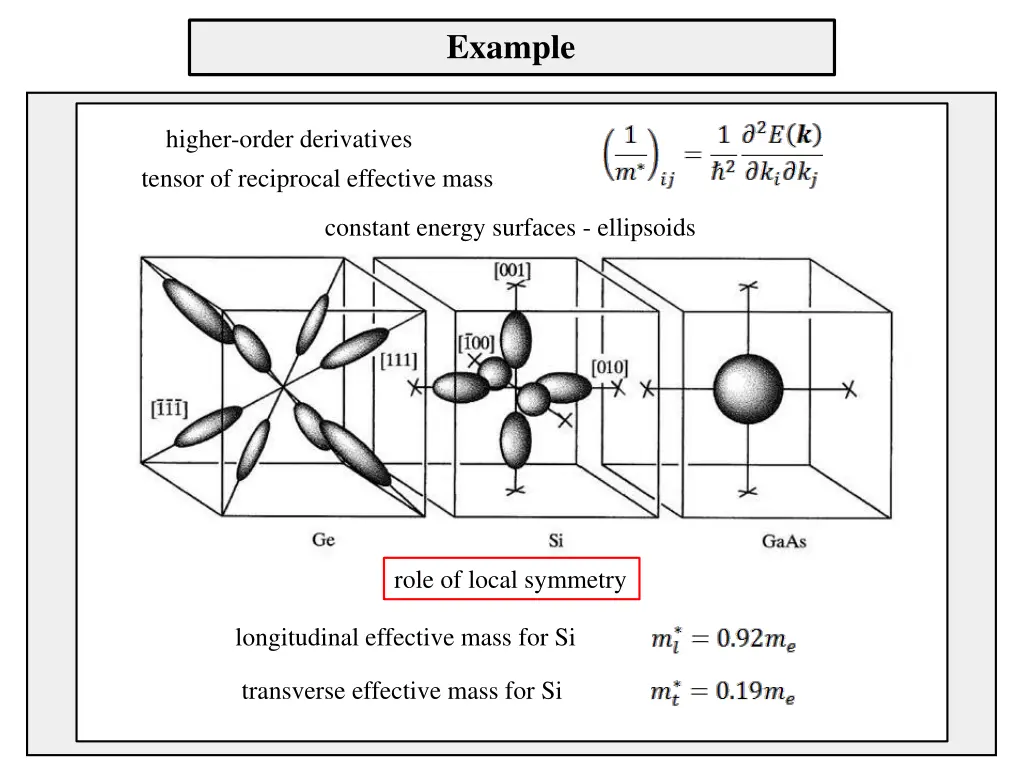

Example higher-order derivatives tensor of reciprocal effective mass constant energy surfaces - ellipsoids role of local symmetry longitudinal effective mass for Si transverse effective mass for Si
