CS2100 Past Year Exam Questions (Prepared by Aaron Tan)

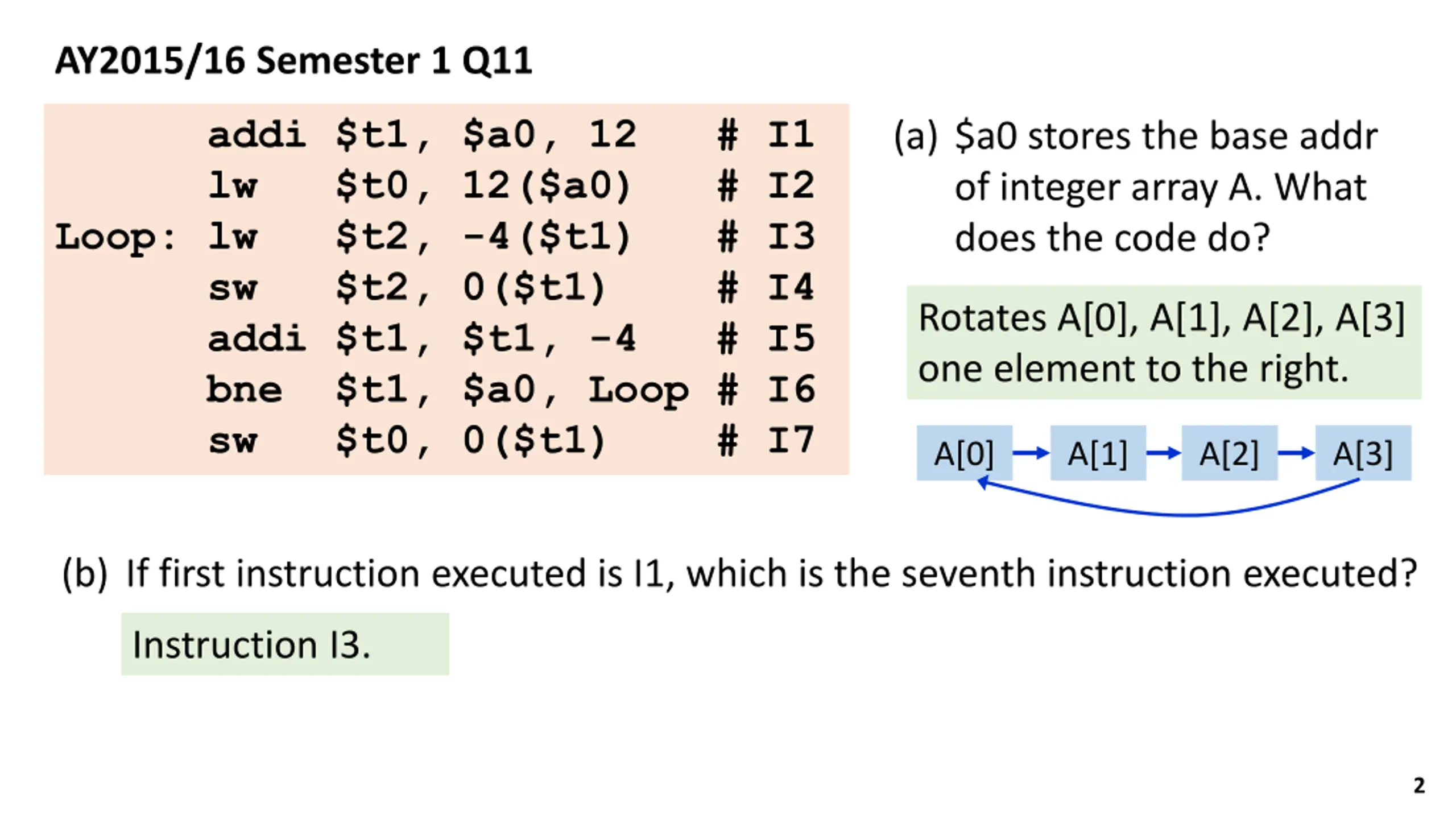

AY2015/16 Semester 1 Q11 addi $t1, $a0, 12 # I1 lw $t0, 12($a0) # I2 Loop: lw $t2, -4($t1) # I3 sw $t2, 0($t1) # I4 addi $t1, $t1, -4 # I5 bne $t1, $a0, Loop # I6 sw $t0, 0($t1) # I7 (a) $a0 stores the base addr of integer array A. What does the code do? Rotates A[0], A[1], A[2], A[3] one element to the right. A[0] A[1] A[2] A[3] (b) If first instruction executed is I1, which is the seventh instruction executed? Instruction I3. 2

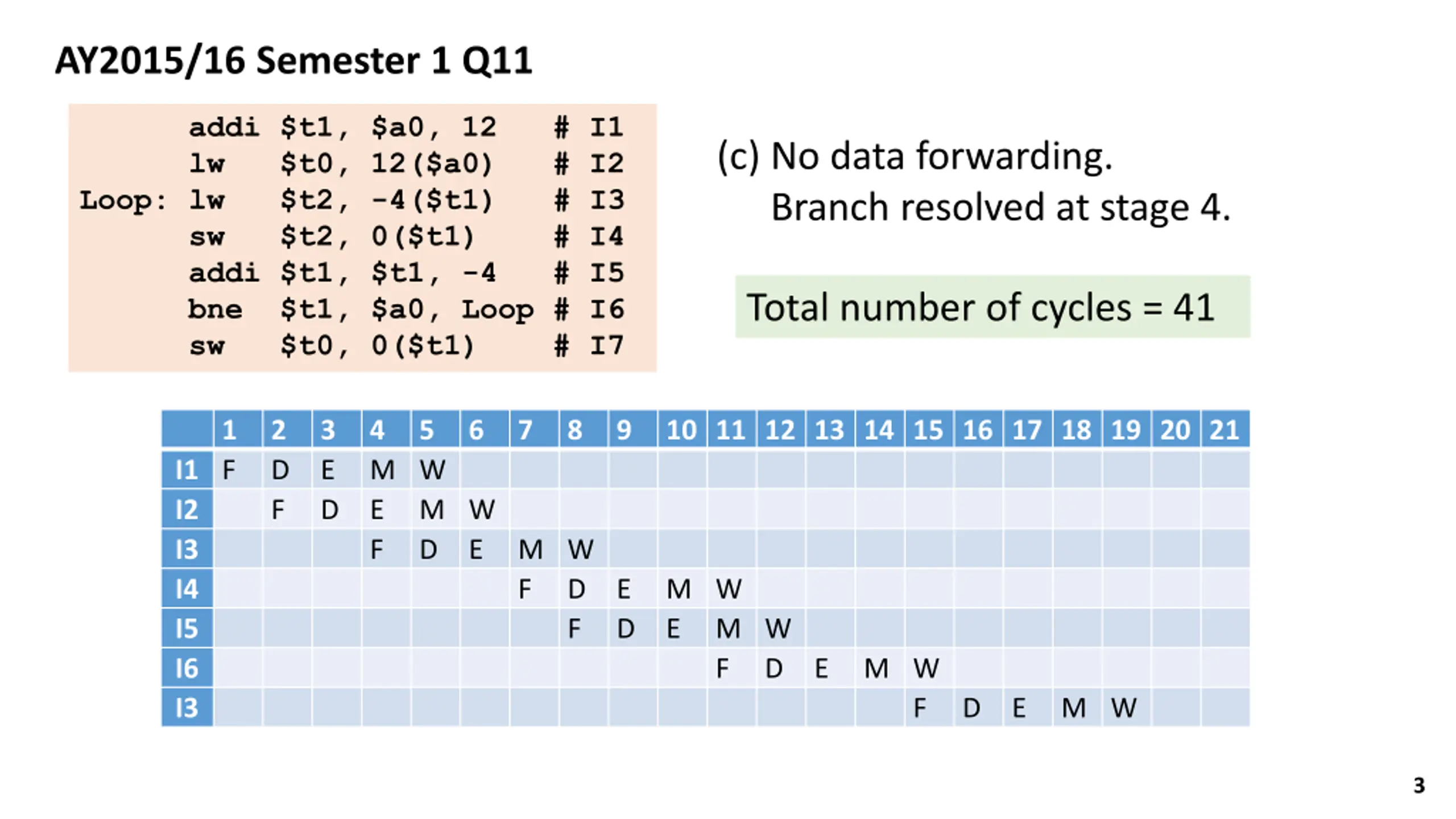

AY2015/16 Semester 1 Q11 addi $t1, $a0, 12 # I1 lw $t0, 12($a0) # I2 Loop: lw $t2, -4($t1) # I3 sw $t2, 0($t1) # I4 addi $t1, $t1, -4 # I5 bne $t1, $a0, Loop # I6 sw $t0, 0($t1) # I7 (c) No data forwarding. Branch resolved at stage 4. Total number of cycles = 41 1 2 D F 3 E D 4 M W E F 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 I1 F I2 I3 I4 I5 I6 I3 M W D E M W F D F E D M W E M W F D E M W F D E M W 3

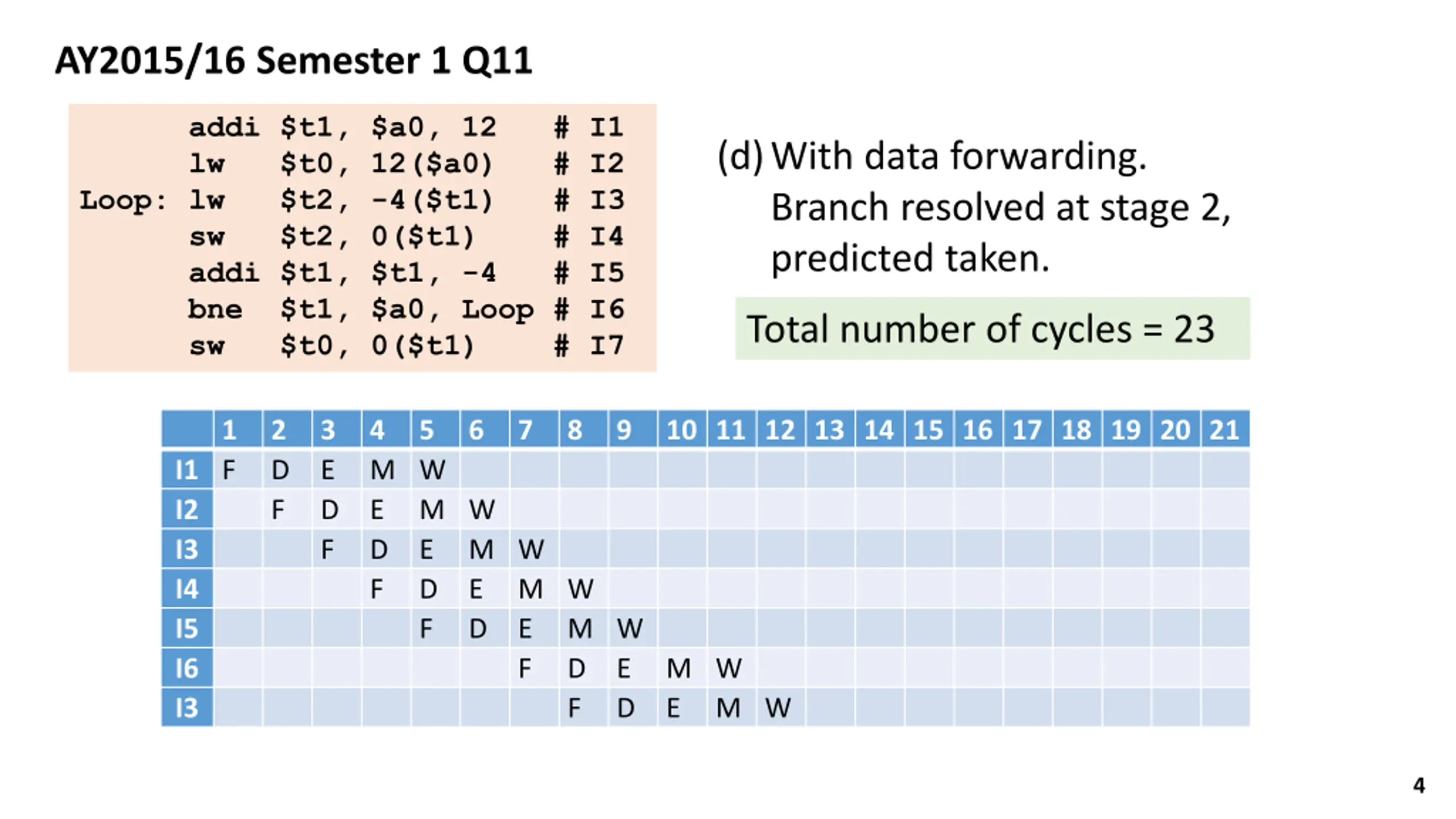

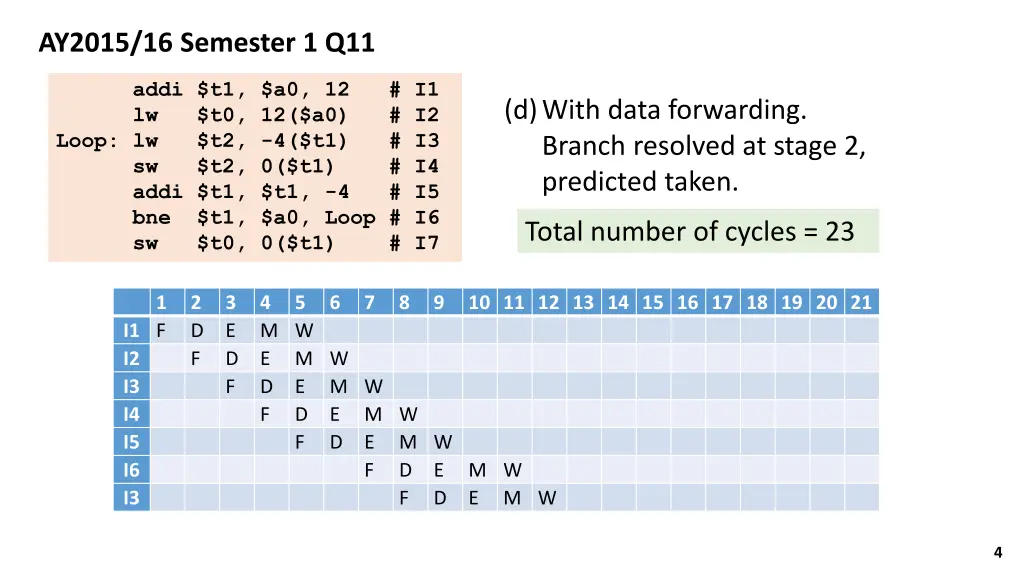

AY2015/16 Semester 1 Q11 addi $t1, $a0, 12 # I1 lw $t0, 12($a0) # I2 Loop: lw $t2, -4($t1) # I3 sw $t2, 0($t1) # I4 addi $t1, $t1, -4 # I5 bne $t1, $a0, Loop # I6 sw $t0, 0($t1) # I7 (d) With data forwarding. Branch resolved at stage 2, predicted taken. Total number of cycles = 23 1 2 D F 3 E D F 4 M W E D F 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 I1 F I2 I3 I4 I5 I6 I3 M W E D F M W E D M W E F M W D F E D M W E M W 4

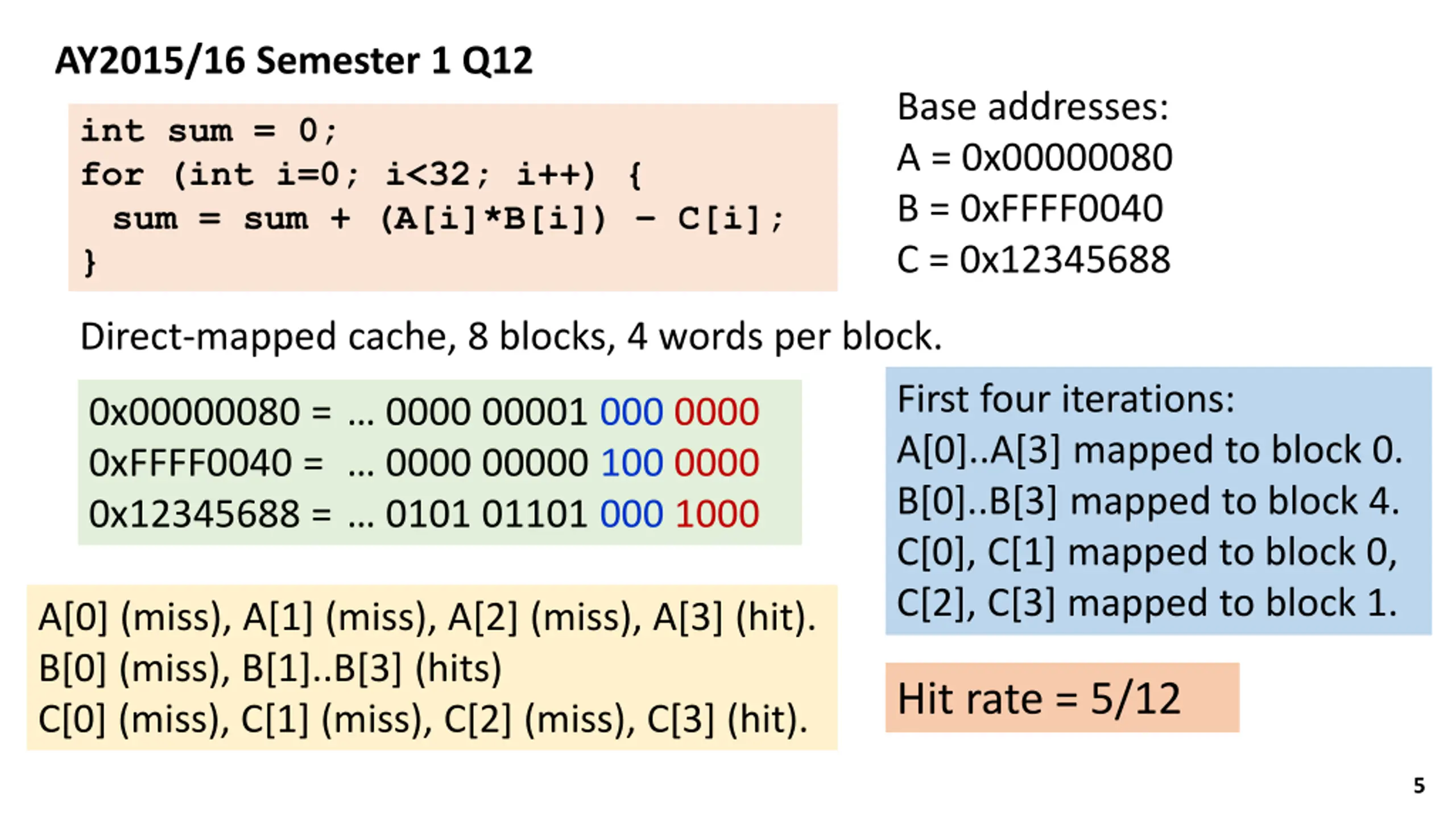

AY2015/16 Semester 1 Q12 Base addresses: A = 0x00000080 B = 0xFFFF0040 C = 0x12345688 int sum = 0; for (int i=0; i<32; i++) { sum = sum + (A[i]*B[i]) C[i]; } Direct-mapped cache, 8 blocks, 4 words per block. First four iterations: A[0]..A[3] mapped to block 0. B[0]..B[3] mapped to block 4. C[0], C[1] mapped to block 0, C[2], C[3] mapped to block 1. 0x00000080 = 0000 00001 000 0000 0xFFFF0040 = 0000 00000 100 0000 0x12345688 = 0101 01101 000 1000 A[0] (miss), A[1] (miss), A[2] (miss), A[3] (hit). B[0] (miss), B[1]..B[3] (hits) C[0] (miss), C[1] (miss), C[2] (miss), C[3] (hit). Hit rate = 5/12 5

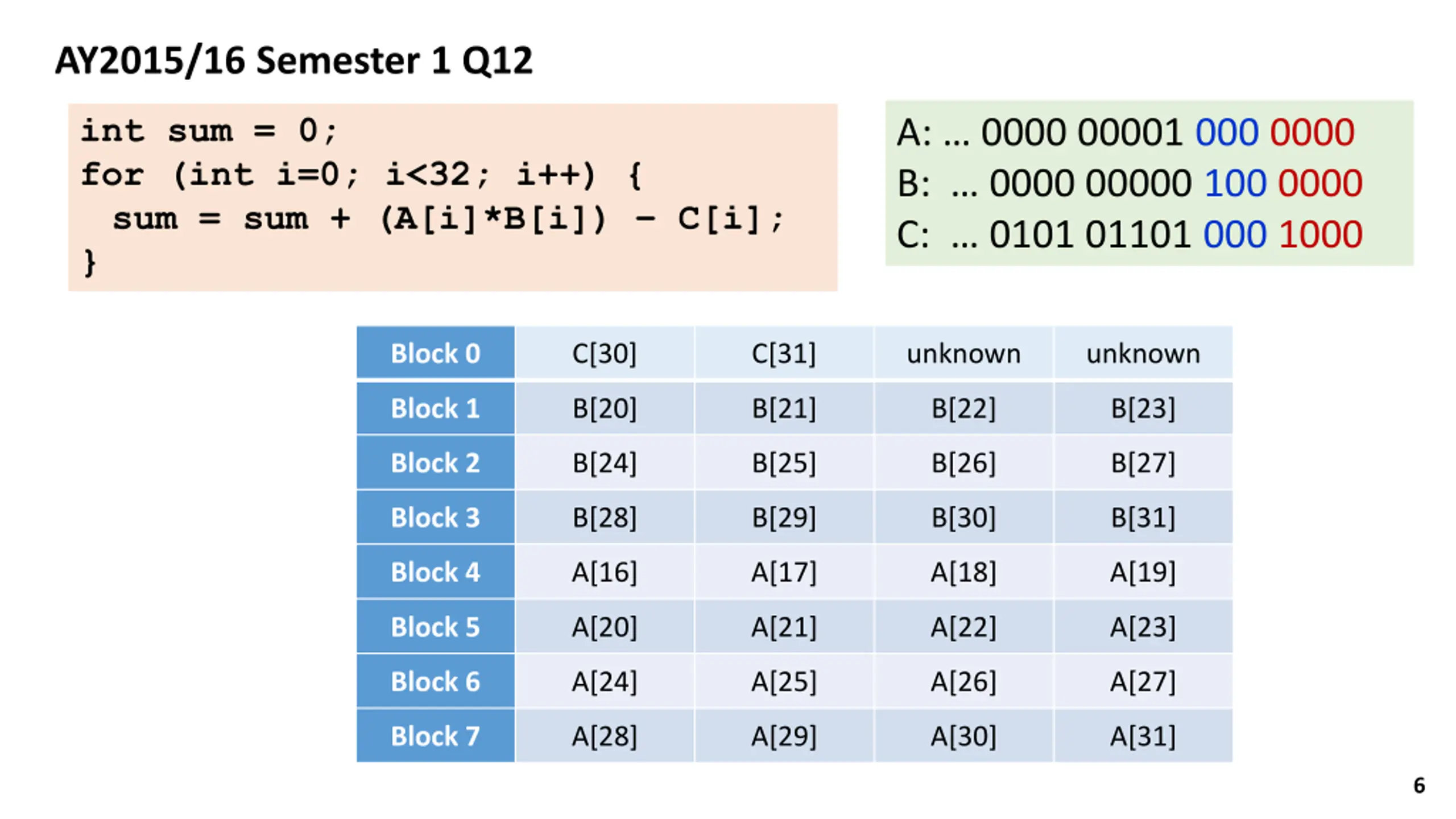

AY2015/16 Semester 1 Q12 int sum = 0; for (int i=0; i<32; i++) { sum = sum + (A[i]*B[i]) C[i]; } A: 0000 00001 000 0000 B: 0000 00000 100 0000 C: 0101 01101 000 1000 Block 0 C[30] C[31] unknown unknown Block 1 B[20] B[21] B[22] B[23] Block 2 B[24] B[25] B[26] B[27] Block 3 B[28] B[29] B[30] B[31] Block 4 A[16] A[17] A[18] A[19] Block 5 A[20] A[21] A[22] A[23] Block 6 A[24] A[25] A[26] A[27] Block 7 A[28] A[29] A[30] A[31] 6
