CS242 Project Fall 2016 Presented By Nhat Le Additional Thanks to Mohiuddin Abdul Qader, Waleed Amjad, Matthew Wiley, Shiwen Cheng and Eduardo Ruiz for Slides

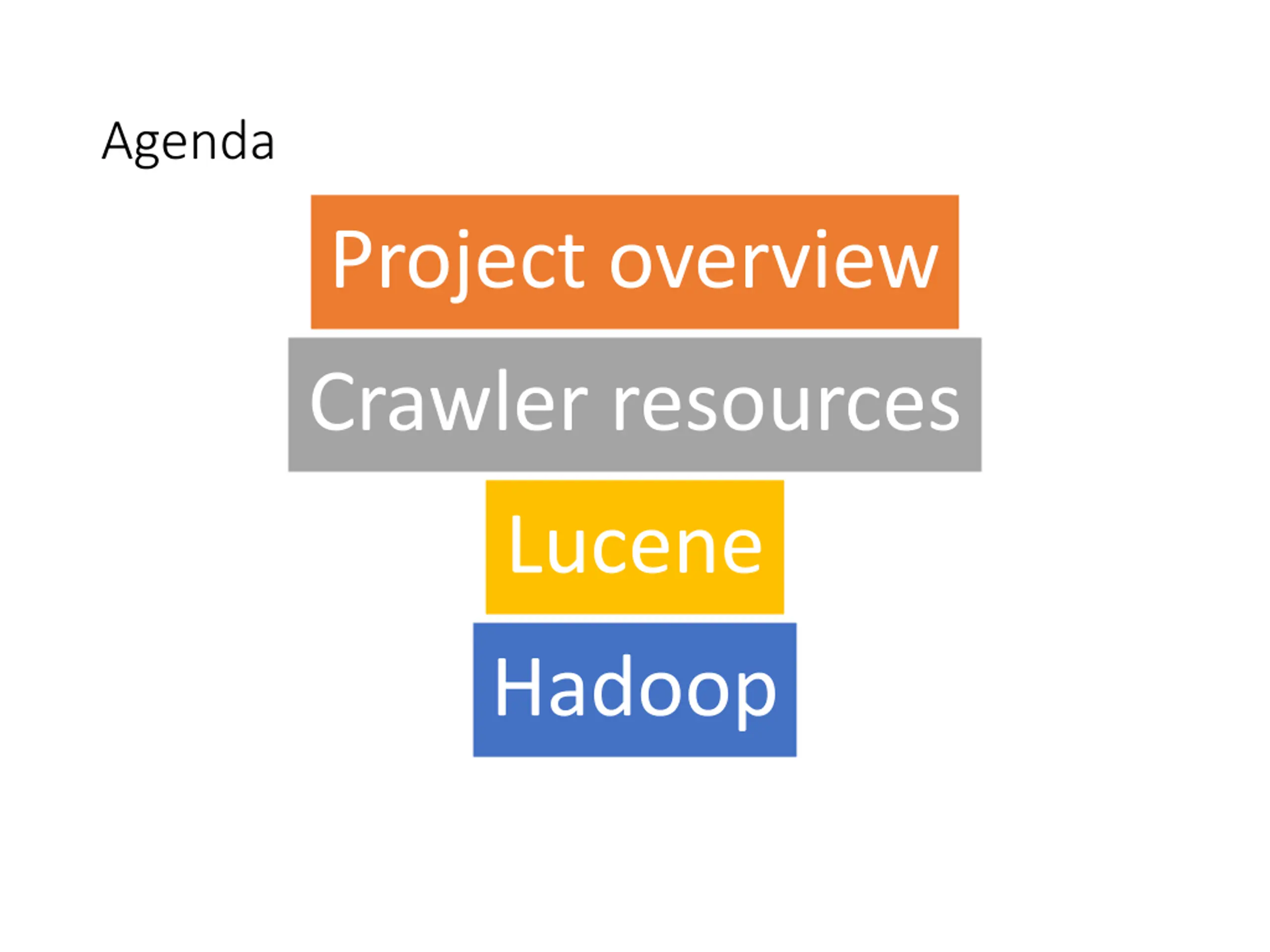

Agenda Project overview Crawler resources Lucene Hadoop

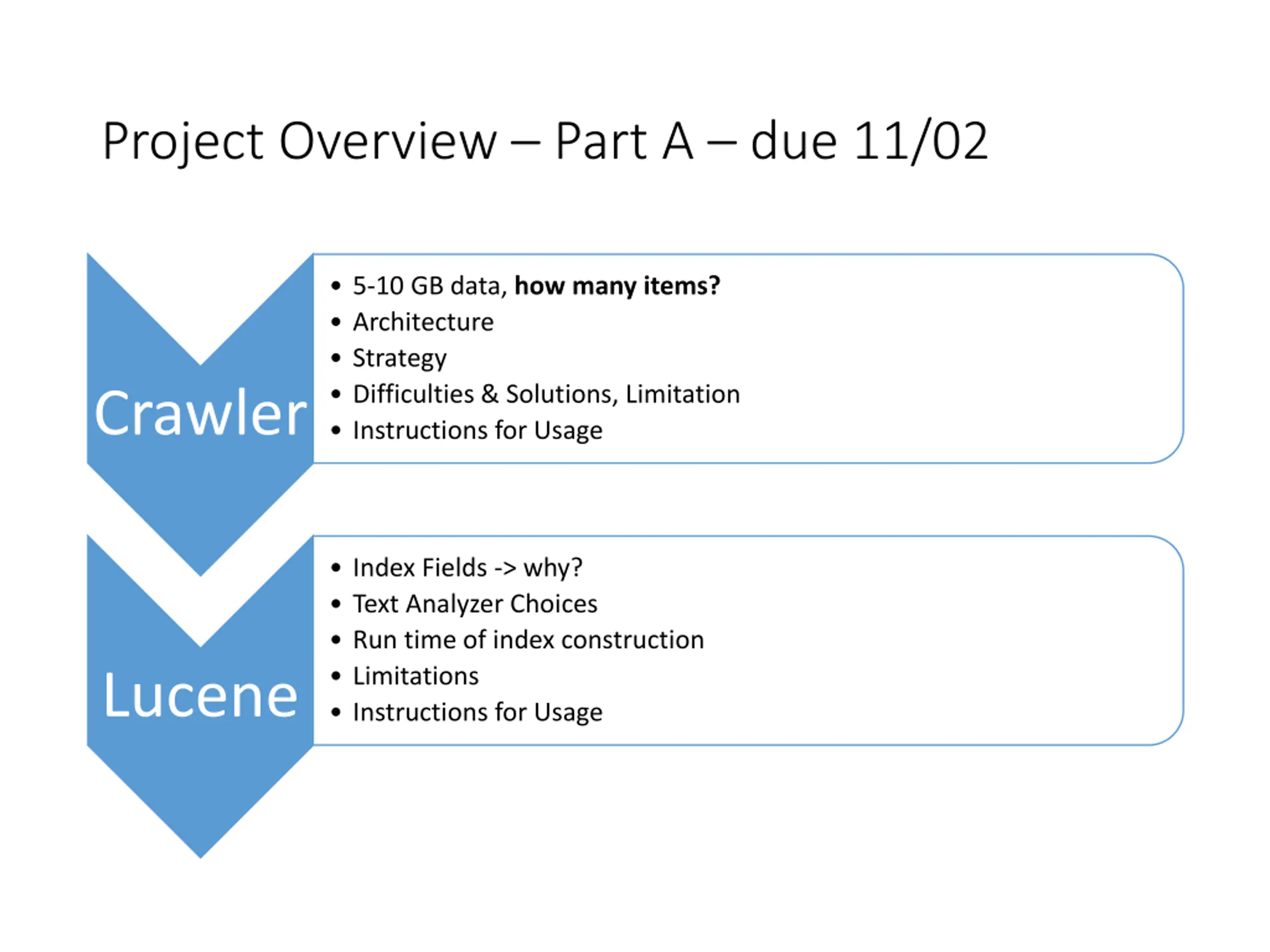

Project Overview Part A due 11/02 5-10 GB data, how many items? Architecture Strategy Difficulties & Solutions, Limitation Instructions for Usage Crawler Index Fields -> why? Text Analyzer Choices Run time of index construction Limitations Instructions for Usage Lucene
Project Overview Part B due 11/30 Description of Hadoop Jobs Run time of Index Construction Ranking with Hadoop Index Difficulties & Solutions, Limitation Instructions for Usage Hadoop Minimal: search box and results section Option for Lucene/Hadoop Integration with Hadoop index Lucence QueryParser Integration Limitations Instructions for Usage and Screenshot Web UI

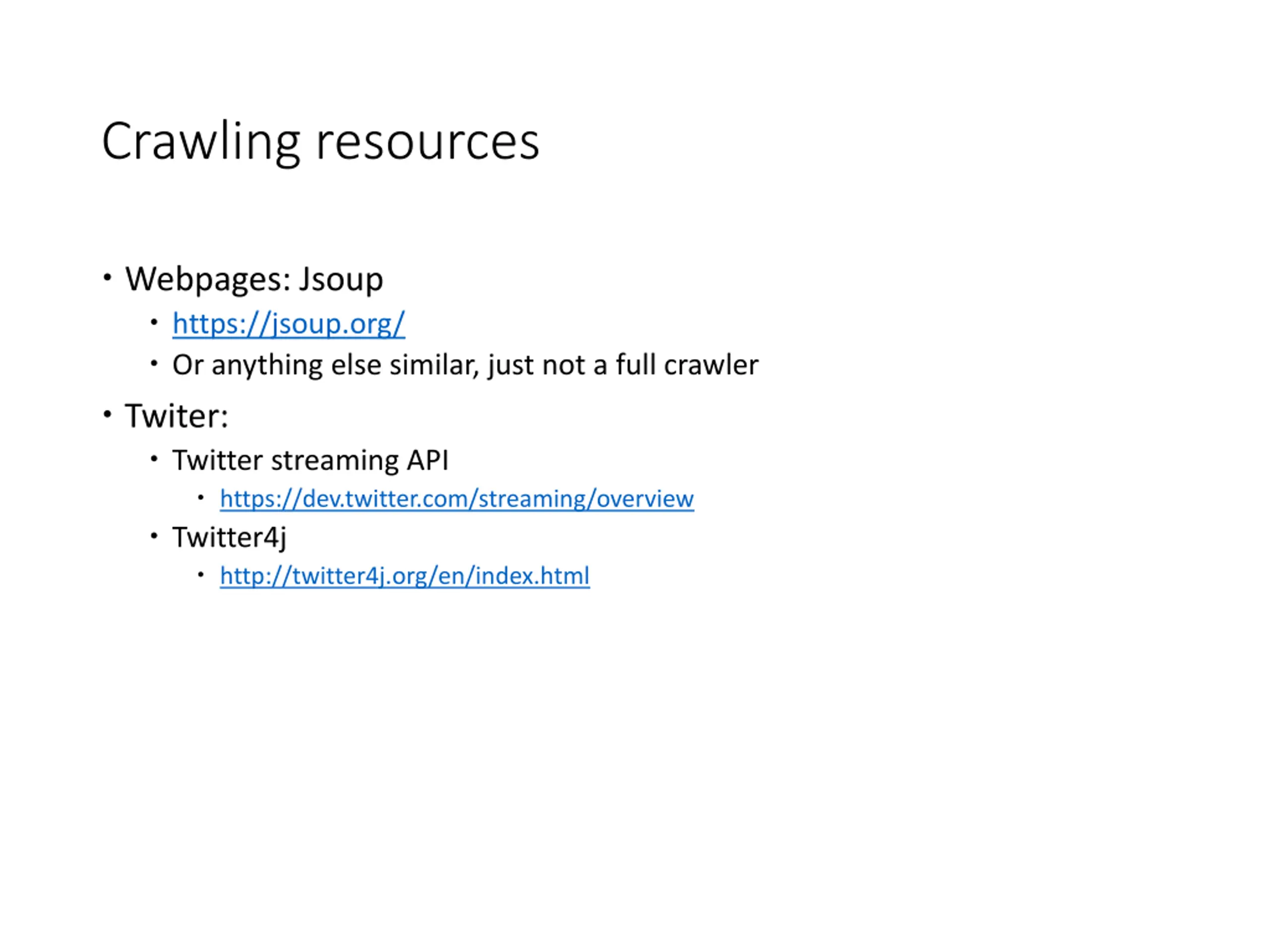

Crawling resources Webpages: Jsoup https://jsoup.org/ Or anything else similar, just not a full crawler Twiter: Twitter streaming API https://dev.twitter.com/streaming/overview Twitter4j http://twitter4j.org/en/index.html

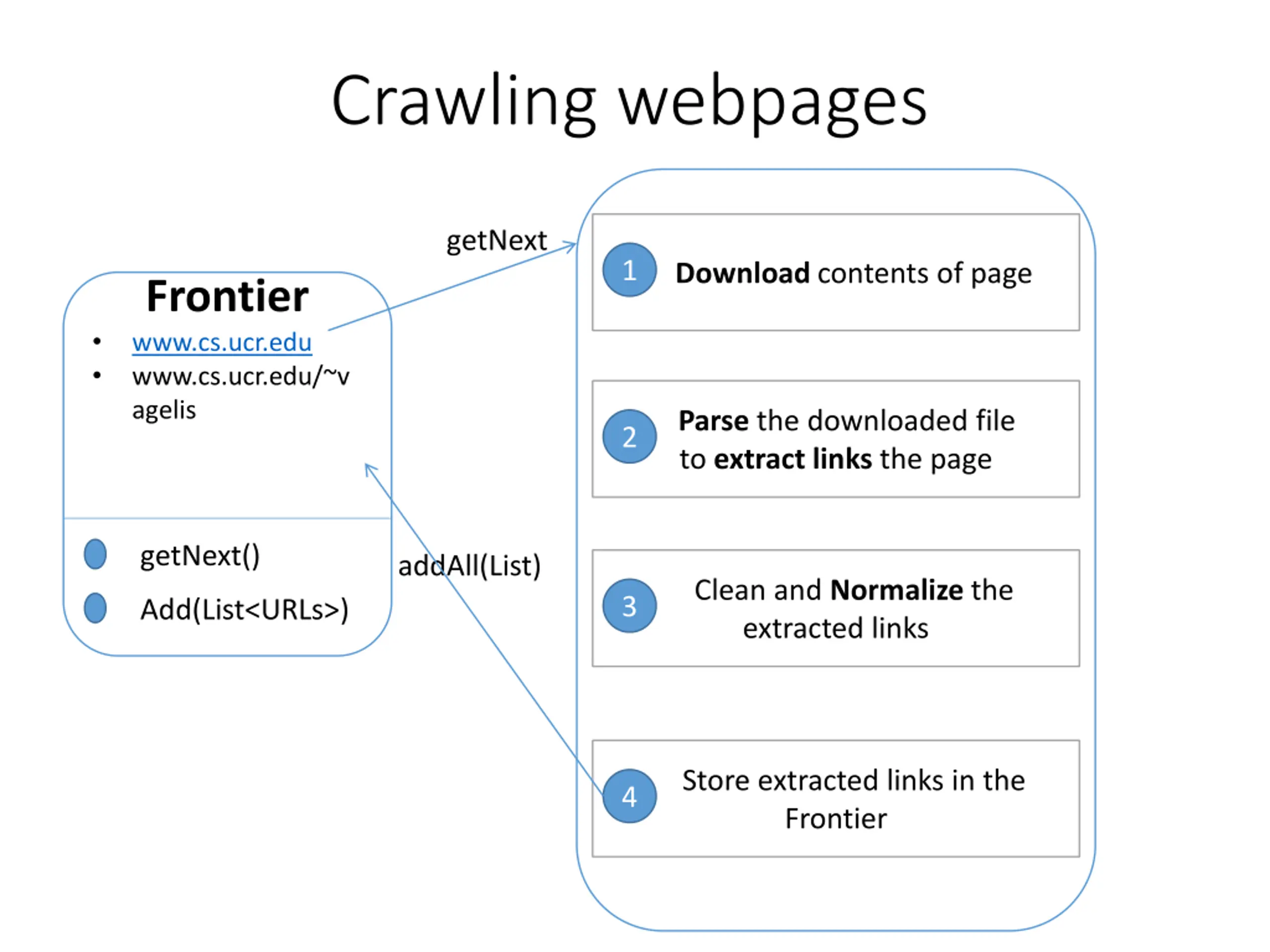

Crawling webpages getNext 1 Download contents of page Frontier www.cs.ucr.edu www.cs.ucr.edu/~v agelis Parse the downloaded file to extract links the page 2 getNext() addAll(List) Clean and Normalize the extracted links 3 Add(List<URLs>) Store extracted links in the Frontier 4

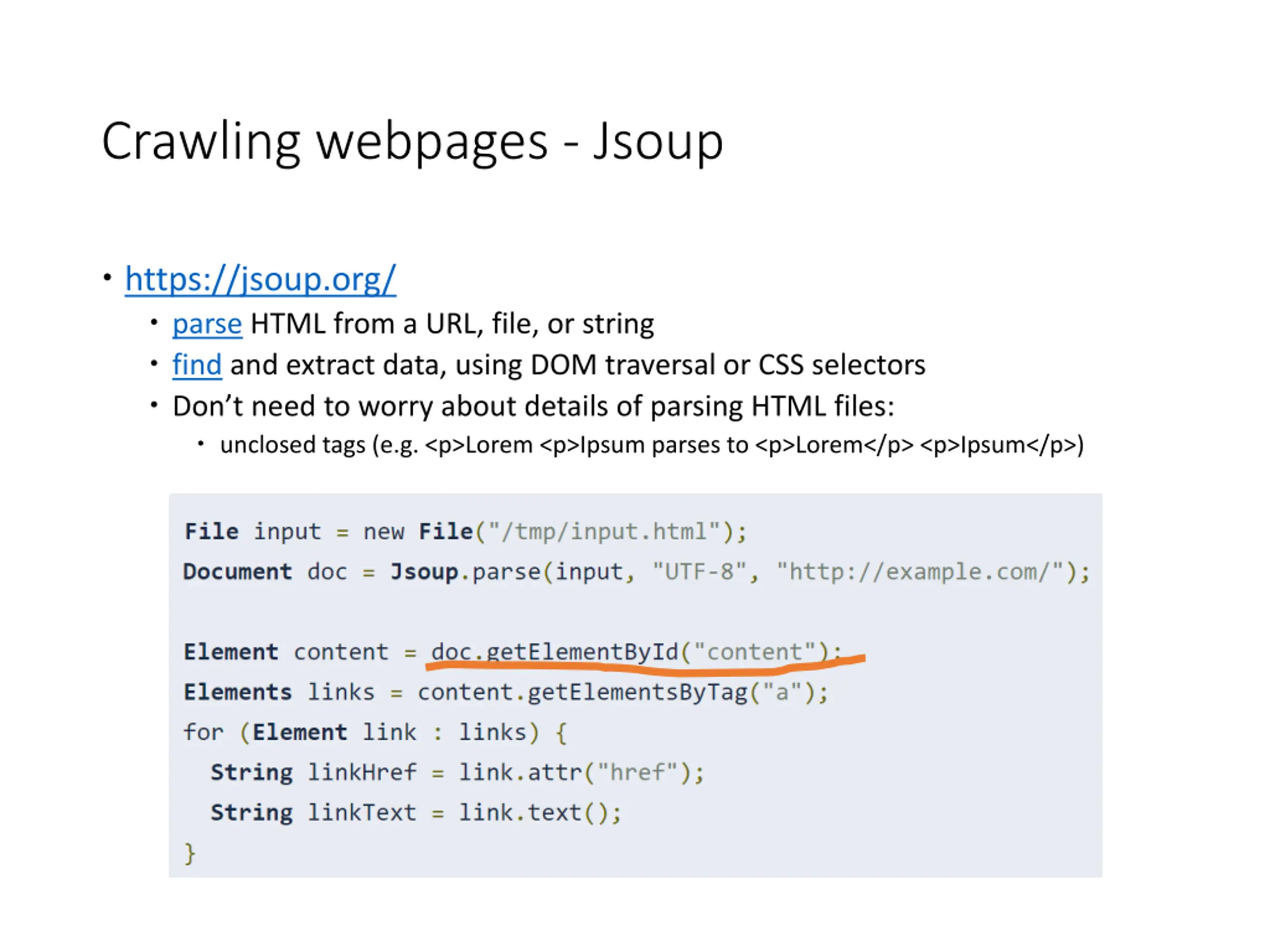

Crawling webpages - Jsoup https://jsoup.org/ parse HTML from a URL, file, or string find and extract data, using DOM traversal or CSS selectors Don t need to worry about details of parsing HTML files: unclosed tags (e.g. <p>Lorem <p>Ipsum parses to <p>Lorem</p> <p>Ipsum</p>)

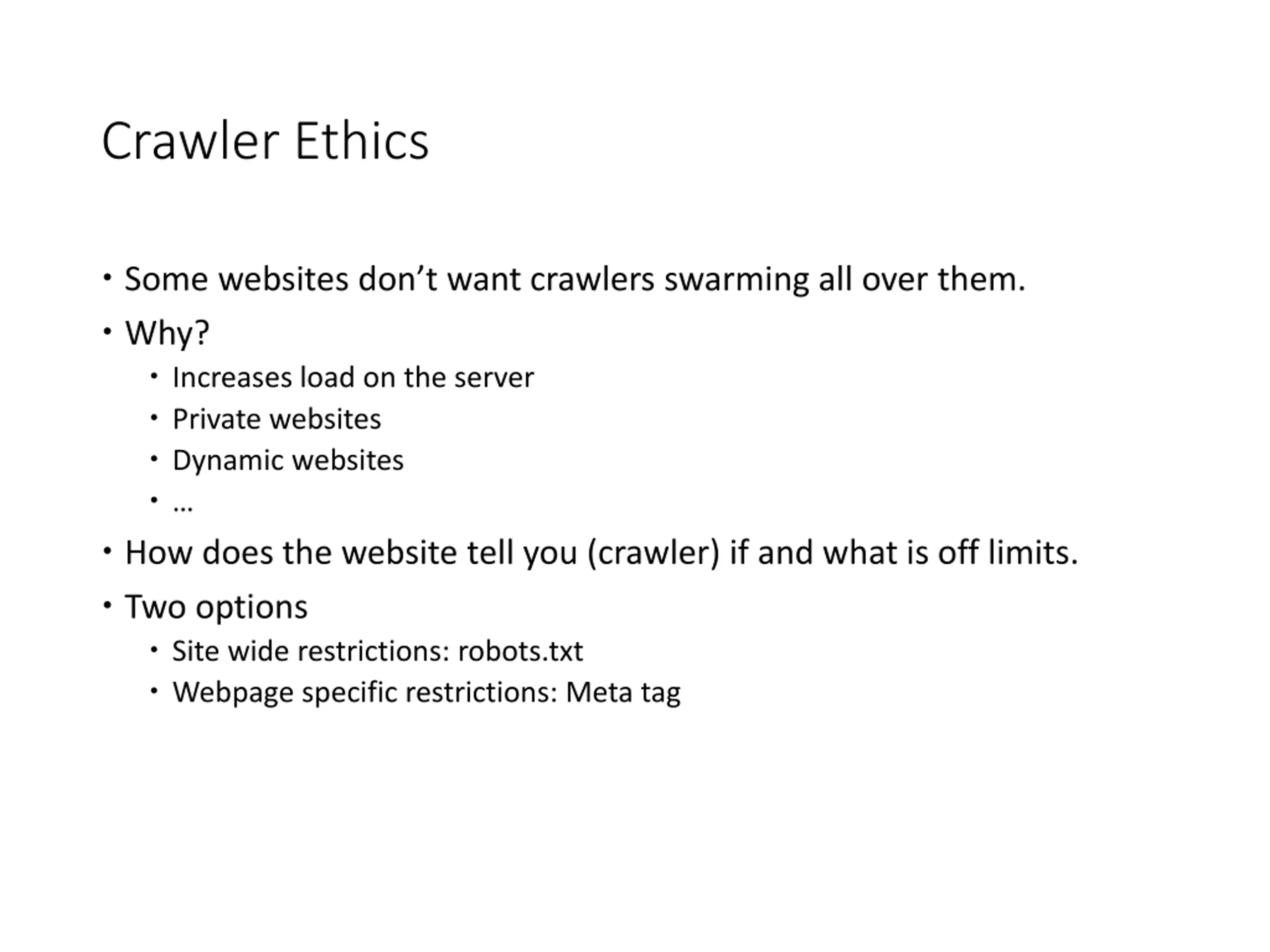

Crawler Ethics Some websites don t want crawlers swarming all over them. Why? Increases load on the server Private websites Dynamic websites How does the website tell you (crawler) if and what is off limits. Two options Site wide restrictions: robots.txt Webpage specific restrictions: Meta tag

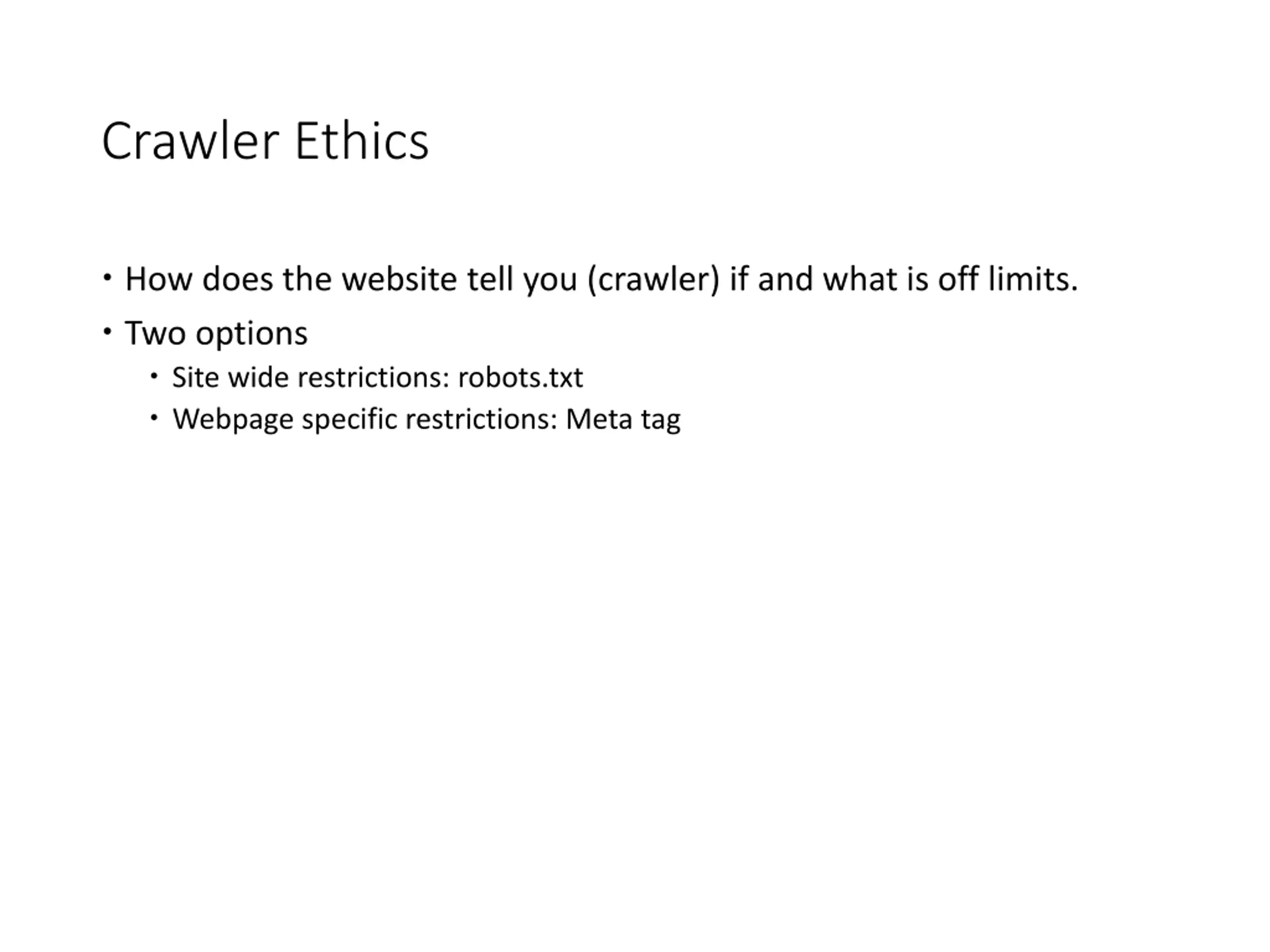

Crawler Ethics How does the website tell you (crawler) if and what is off limits. Two options Site wide restrictions: robots.txt Webpage specific restrictions: Meta tag

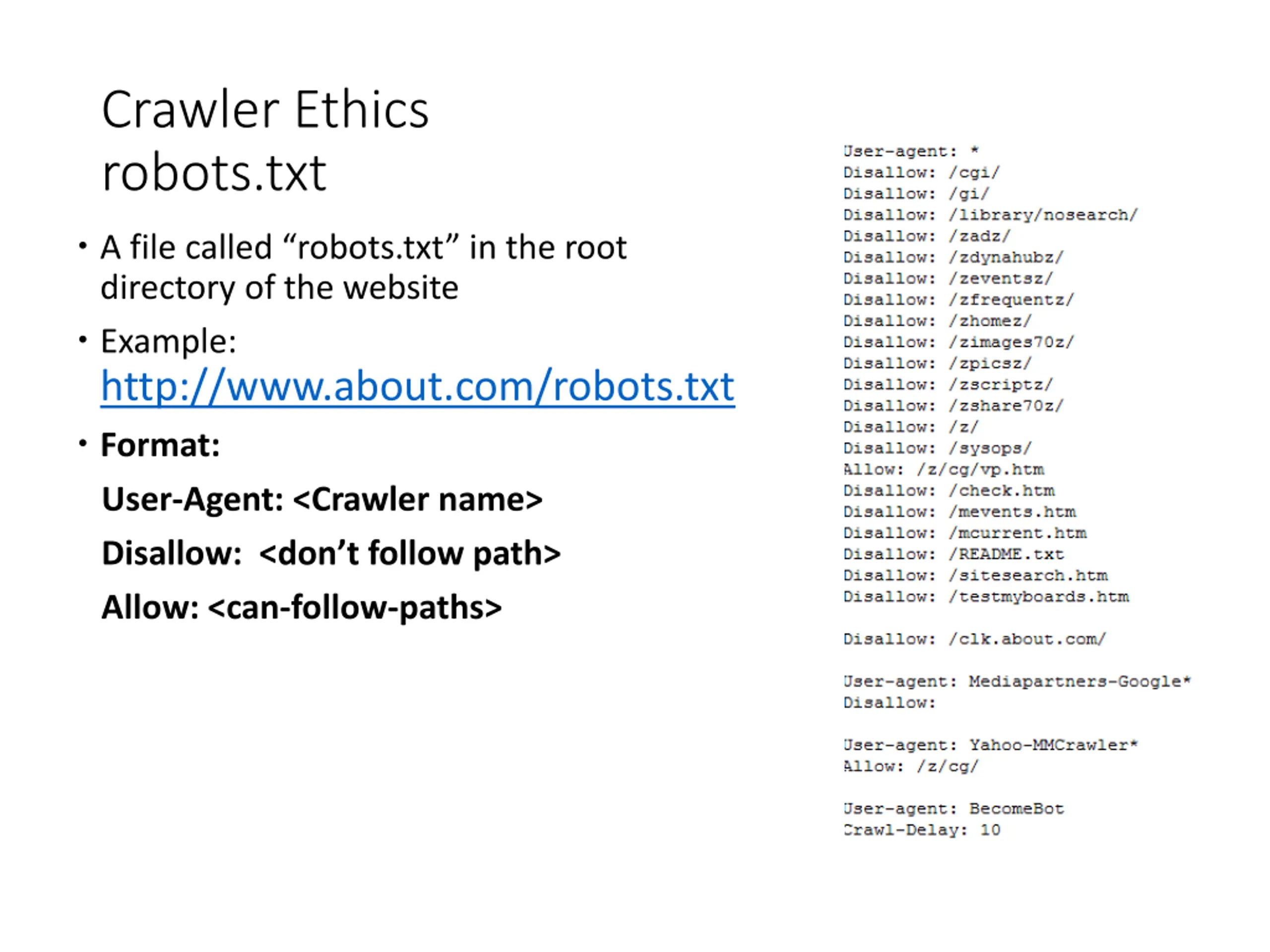

Crawler Ethics robots.txt A file called robots.txt in the root directory of the website Example: http://www.about.com/robots.txt Format: User-Agent: <Crawler name> Disallow: <don t follow path> Allow: <can-follow-paths>

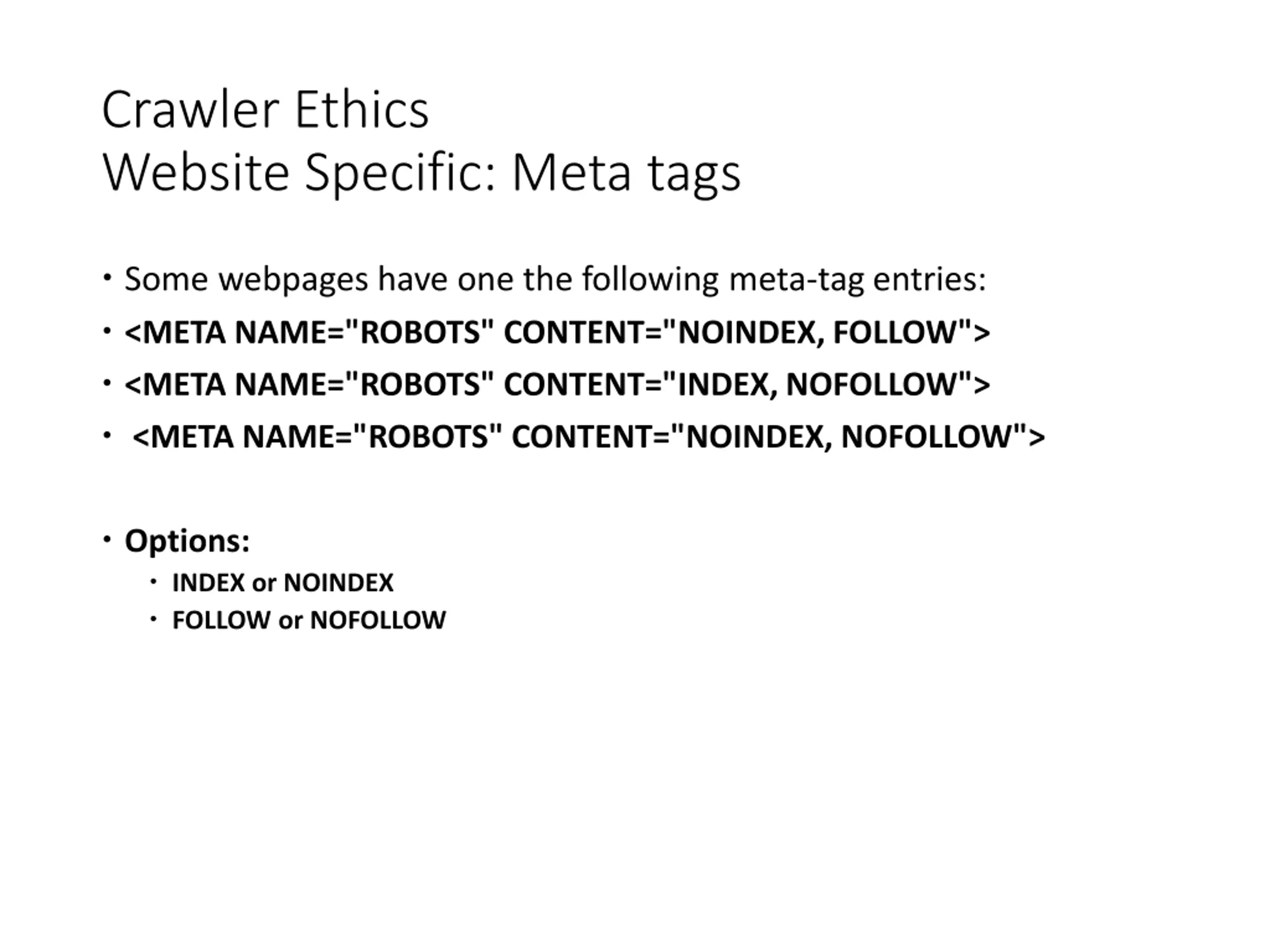

Crawler Ethics Website Specific: Meta tags Some webpages have one the following meta-tag entries: <META NAME="ROBOTS" CONTENT="NOINDEX, FOLLOW"> <META NAME="ROBOTS" CONTENT="INDEX, NOFOLLOW"> <META NAME="ROBOTS" CONTENT="NOINDEX, NOFOLLOW"> Options: INDEX or NOINDEX FOLLOW or NOFOLLOW

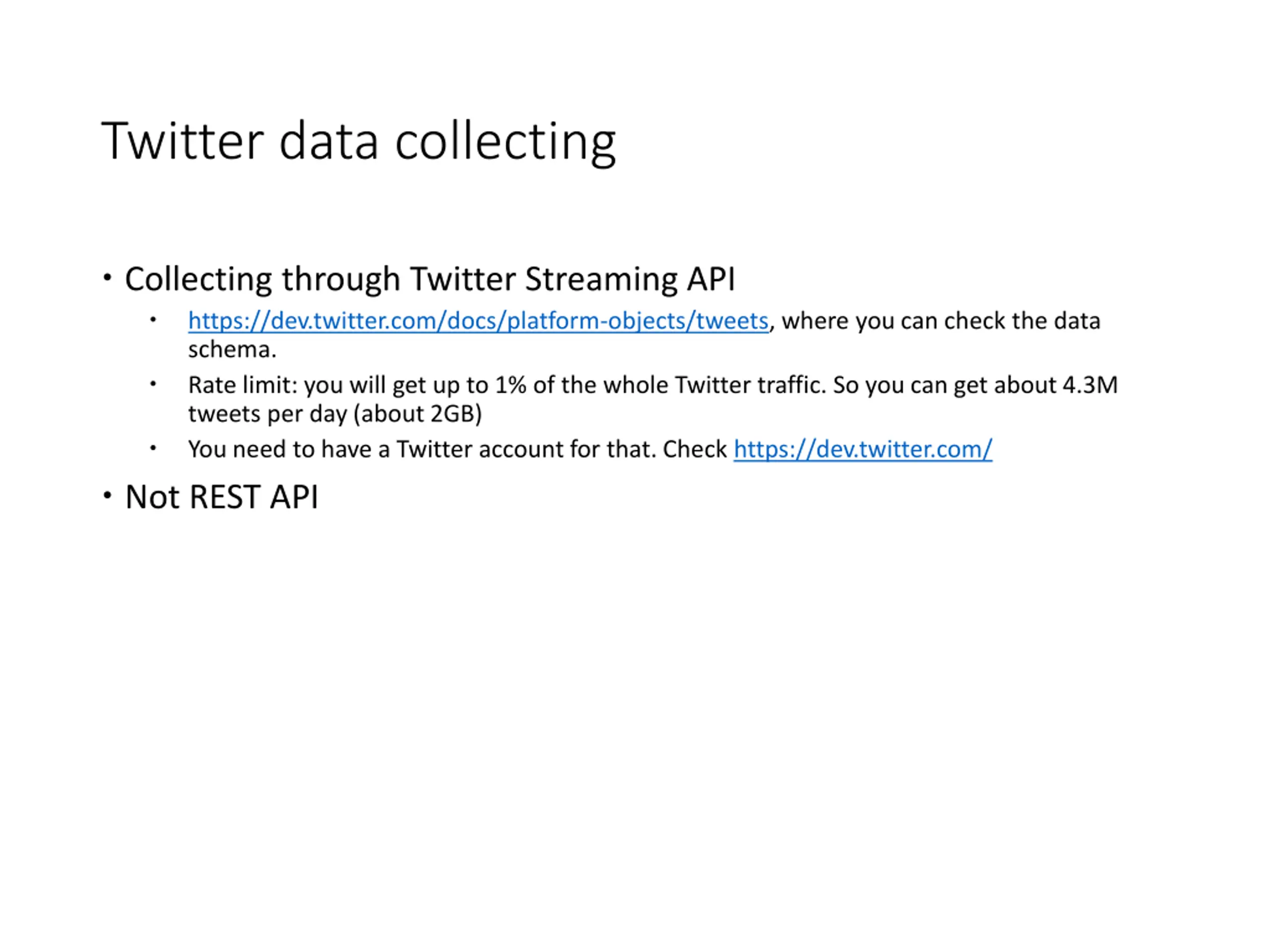

Twitter data collecting Collecting through Twitter Streaming API https://dev.twitter.com/docs/platform-objects/tweets, where you can check the data schema. Rate limit: you will get up to 1% of the whole Twitter traffic. So you can get about 4.3M tweets per day (about 2GB) You need to have a Twitter account for that. Check https://dev.twitter.com/ Not REST API

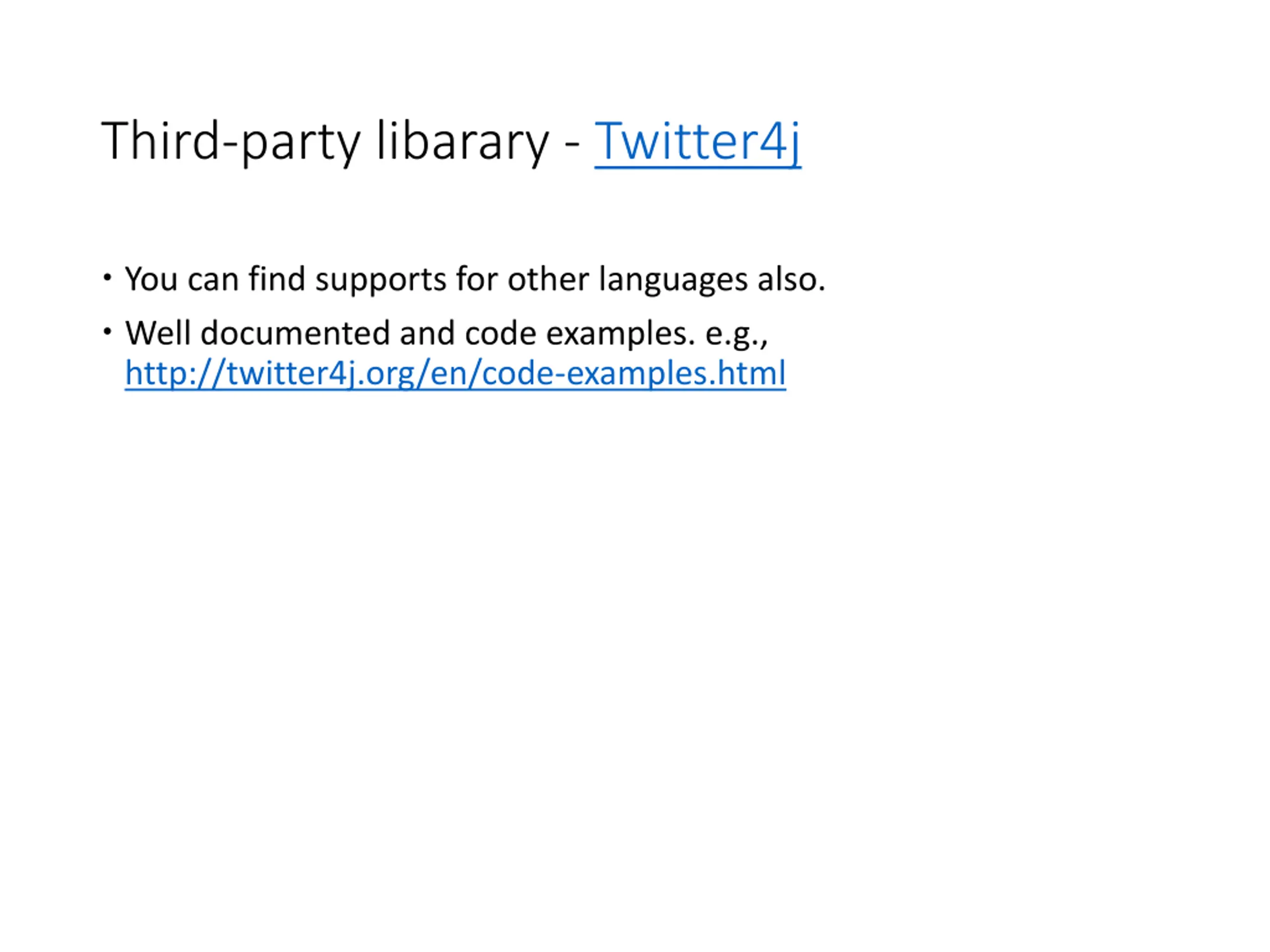

Third-party libarary - Twitter4j You can find supports for other languages also. Well documented and code examples. e.g., http://twitter4j.org/en/code-examples.html

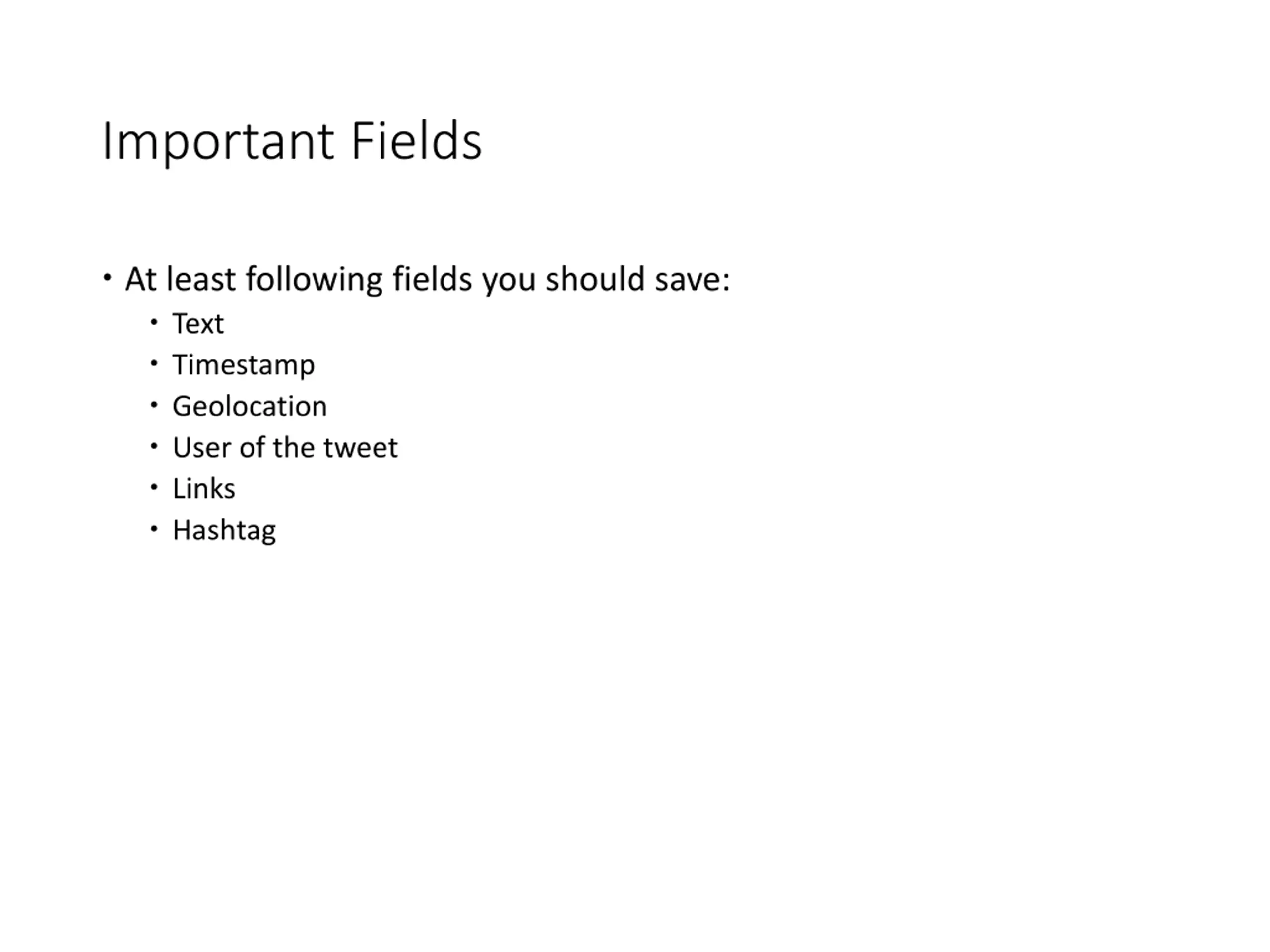

Important Fields At least following fields you should save: Text Timestamp Geolocation User of the tweet Links Hashtag

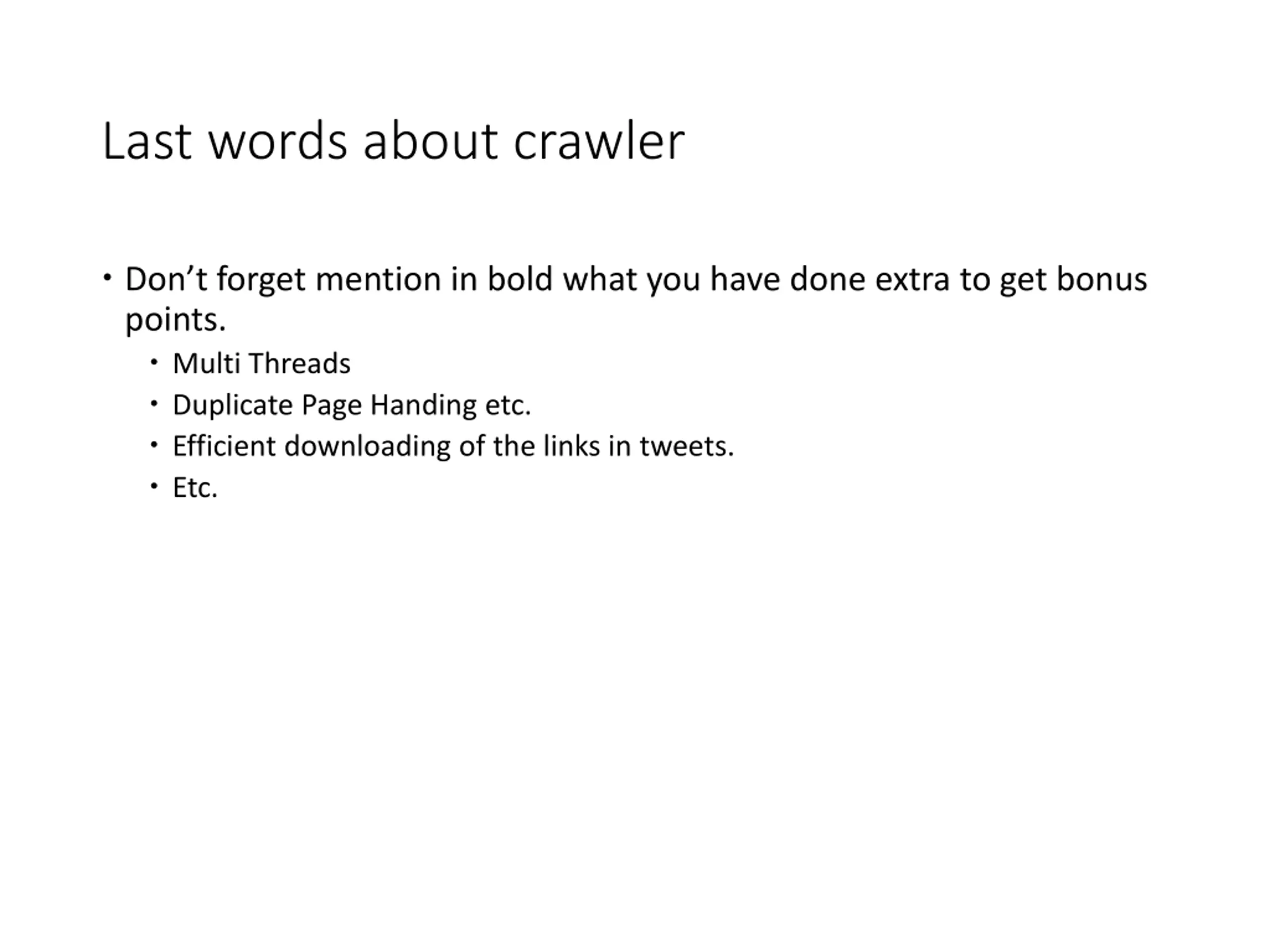

Last words about crawler Don t forget mention in bold what you have done extra to get bonus points. Multi Threads Duplicate Page Handing etc. Efficient downloading of the links in tweets. Etc.

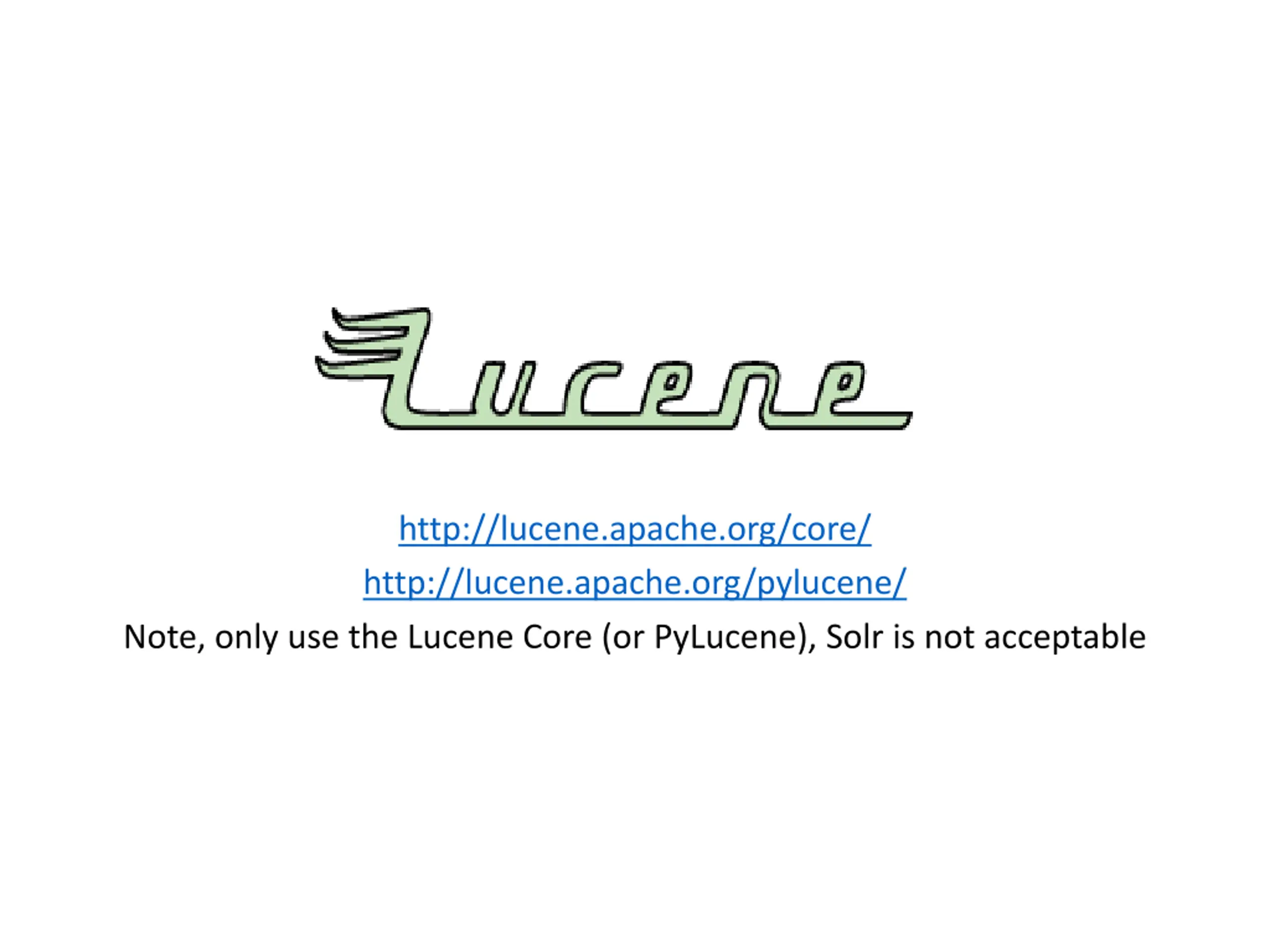

http://lucene.apache.org/core/ http://lucene.apache.org/pylucene/ Note, only use the Lucene Core (or PyLucene), Solr is not acceptable

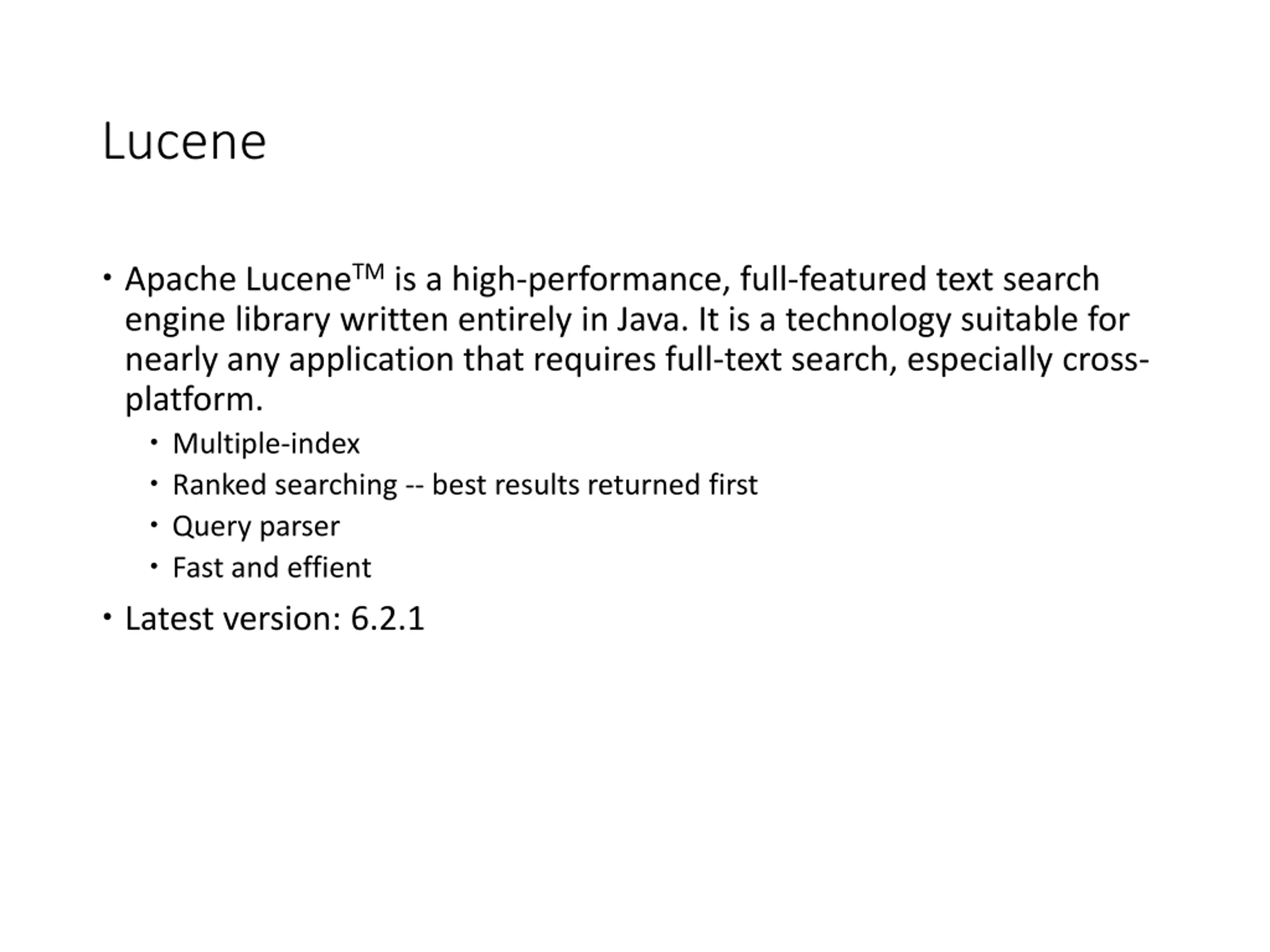

Lucene Apache LuceneTMis a high-performance, full-featured text search engine library written entirely in Java. It is a technology suitable for nearly any application that requires full-text search, especially cross- platform. Multiple-index Ranked searching -- best results returned first Query parser Fast and effient Latest version: 6.2.1

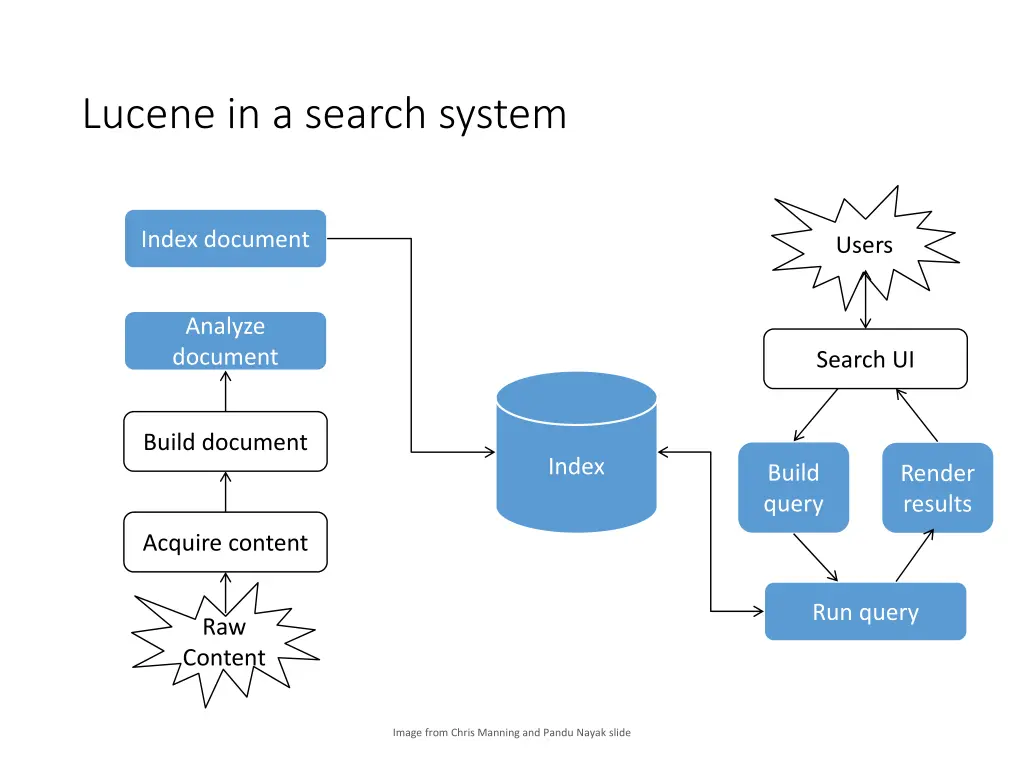

Lucene in a search system Index document Users Analyze document Search UI Build document Index Build query Render results Acquire content Run query Raw Content Image from Chris Manning and Pandu Nayak slide

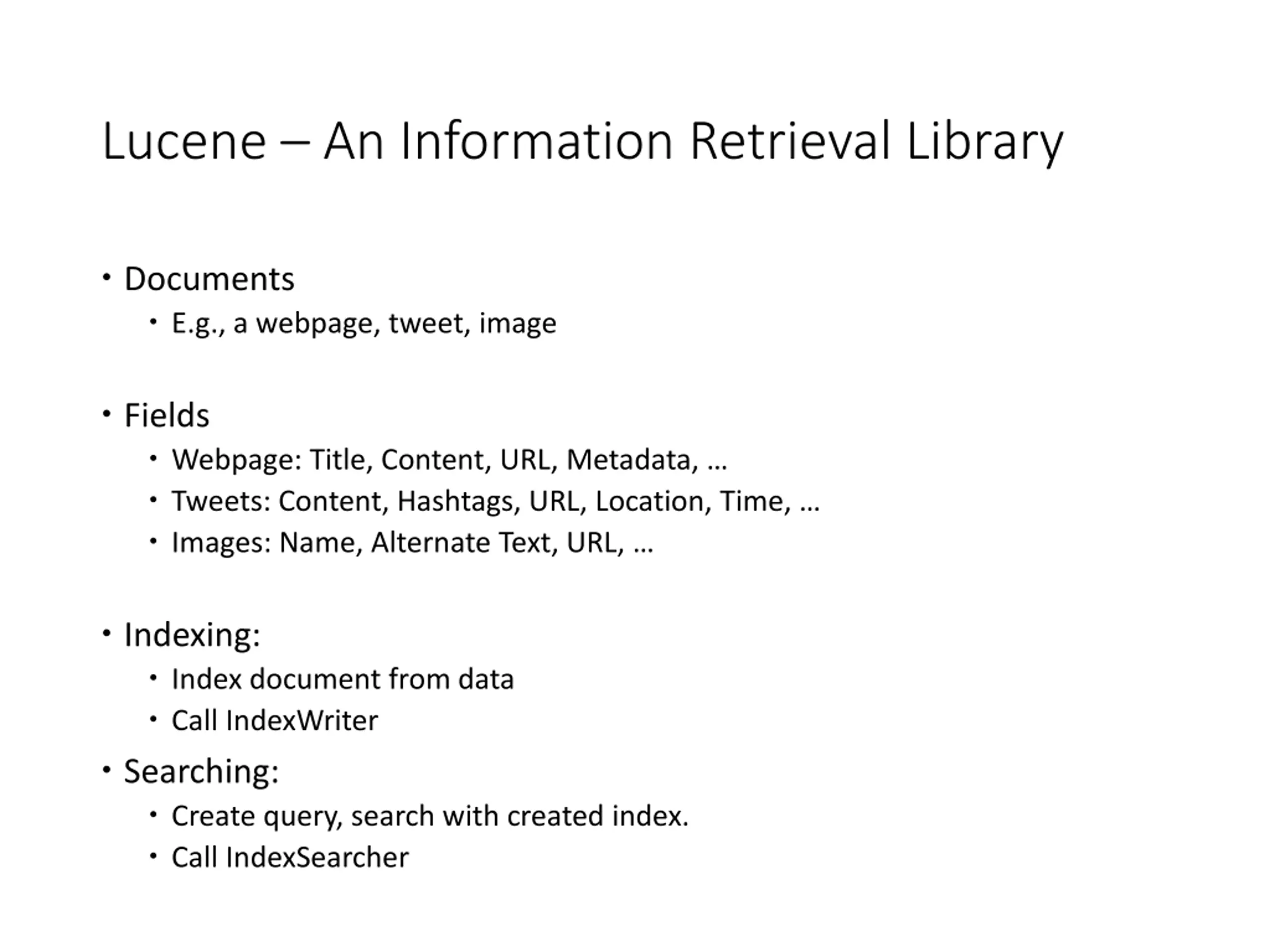

Lucene An Information Retrieval Library Documents E.g., a webpage, tweet, image Fields Webpage: Title, Content, URL, Metadata, Tweets: Content, Hashtags, URL, Location, Time, Images: Name, Alternate Text, URL, Indexing: Index document from data Call IndexWriter Searching: Create query, search with created index. Call IndexSearcher

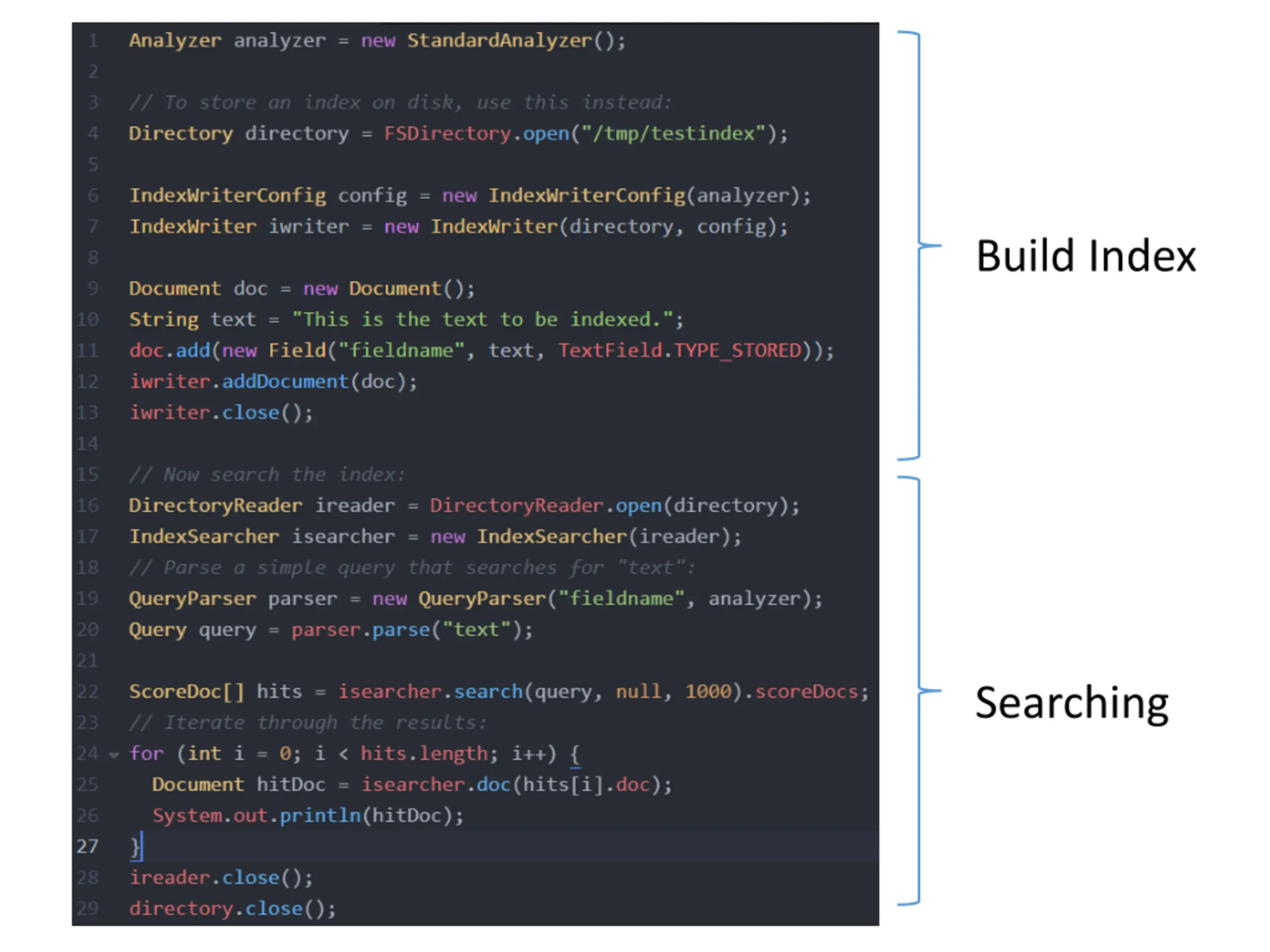

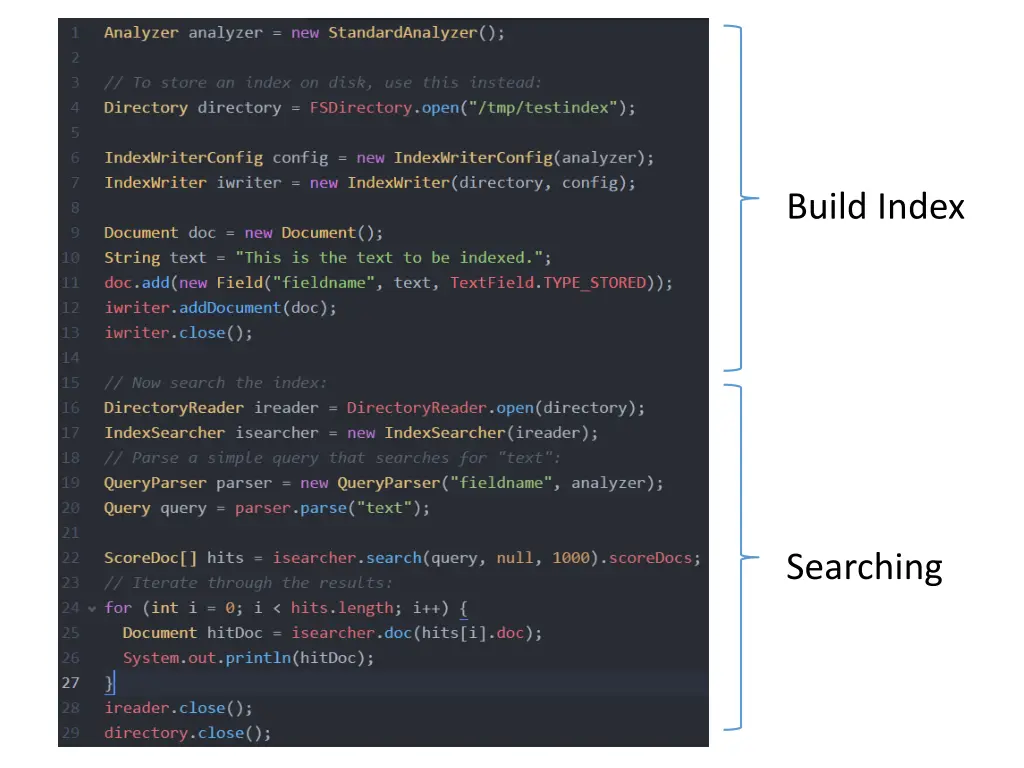

Build Index Searching

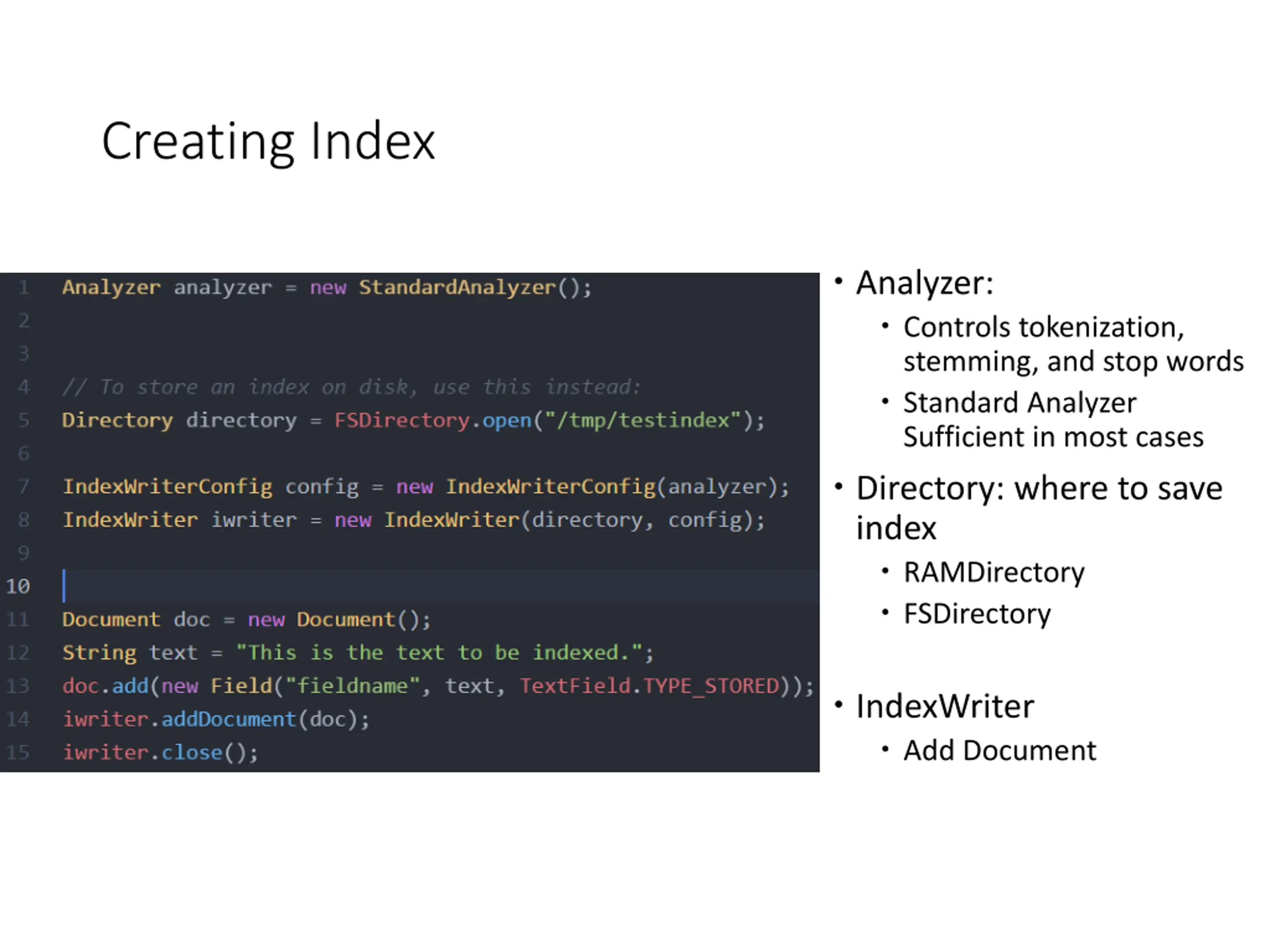

Creating Index Analyzer: Controls tokenization, stemming, and stop words Standard Analyzer Sufficient in most cases Directory: where to save index RAMDirectory FSDirectory IndexWriter Add Document

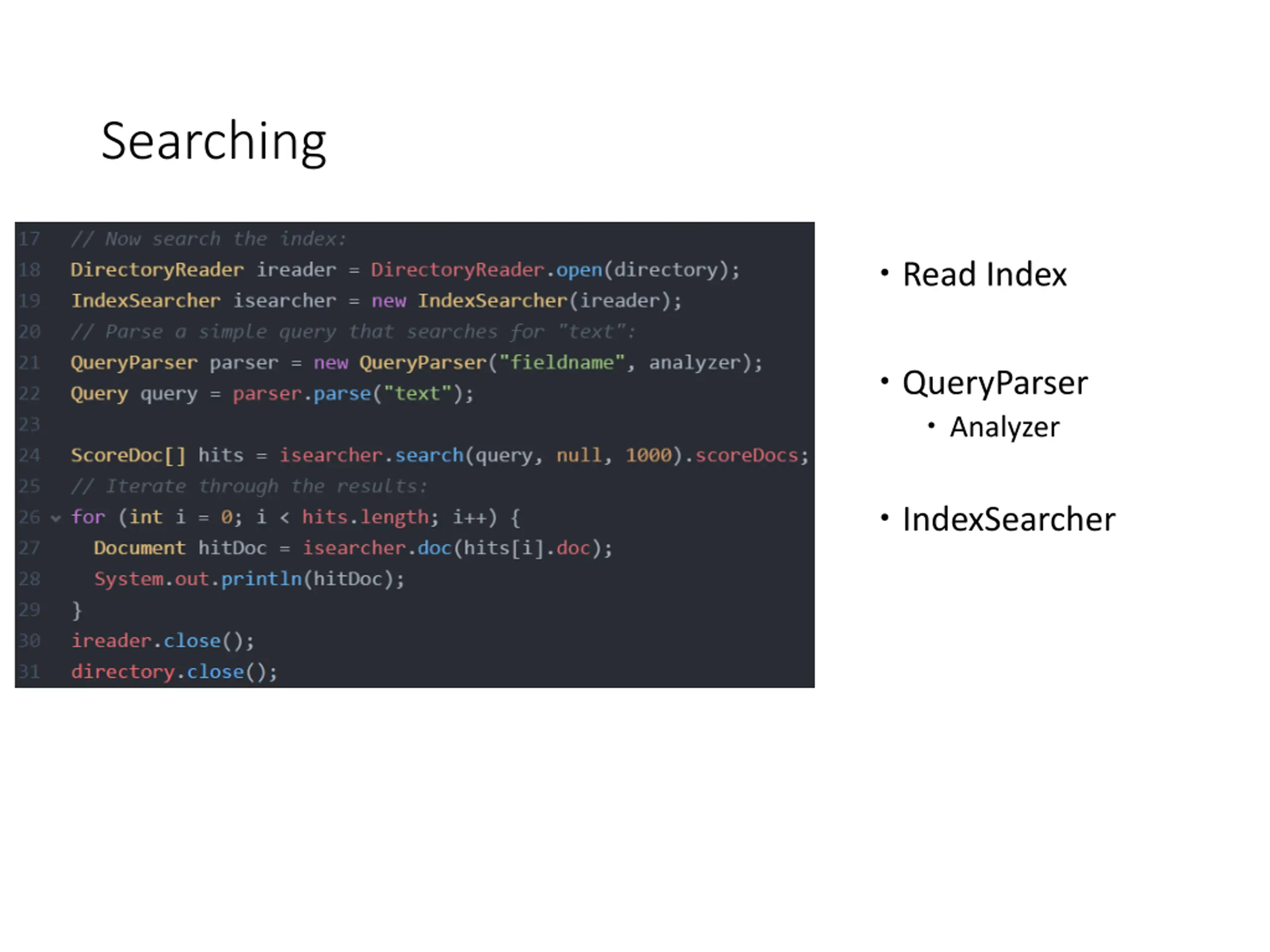

Searching Read Index QueryParser Analyzer IndexSearcher

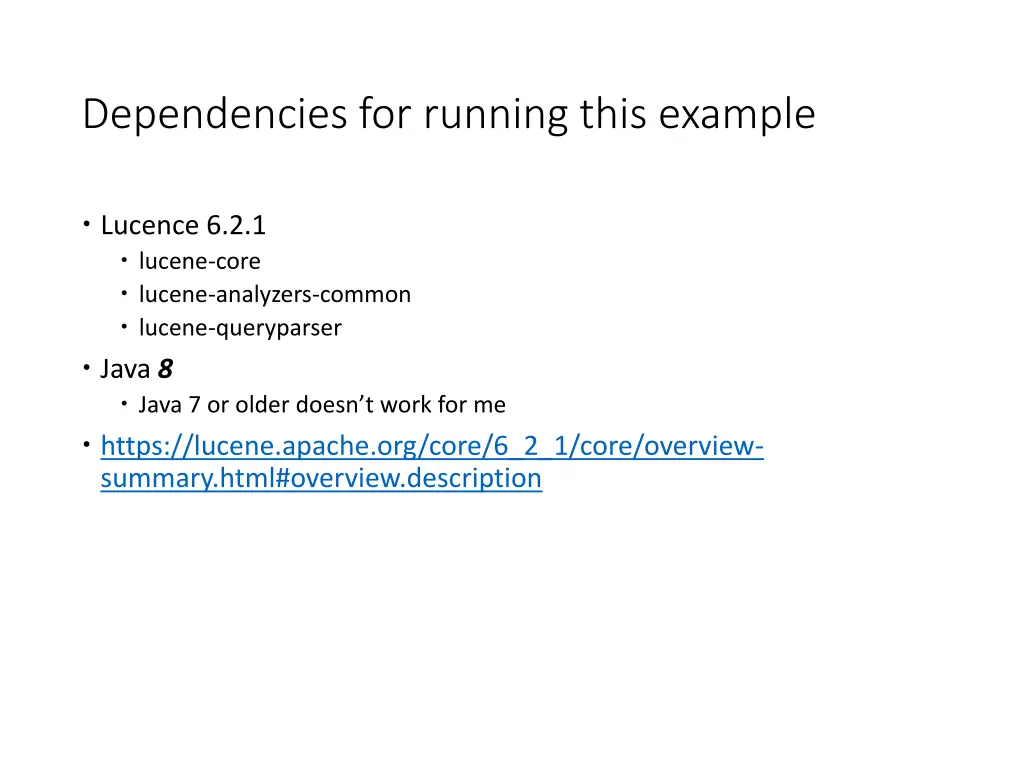

Dependencies for running this example Lucence 6.2.1 lucene-core lucene-analyzers-common lucene-queryparser Java 8 Java 7 or older doesn t work for me https://lucene.apache.org/core/6_2_1/core/overview- summary.html#overview.description

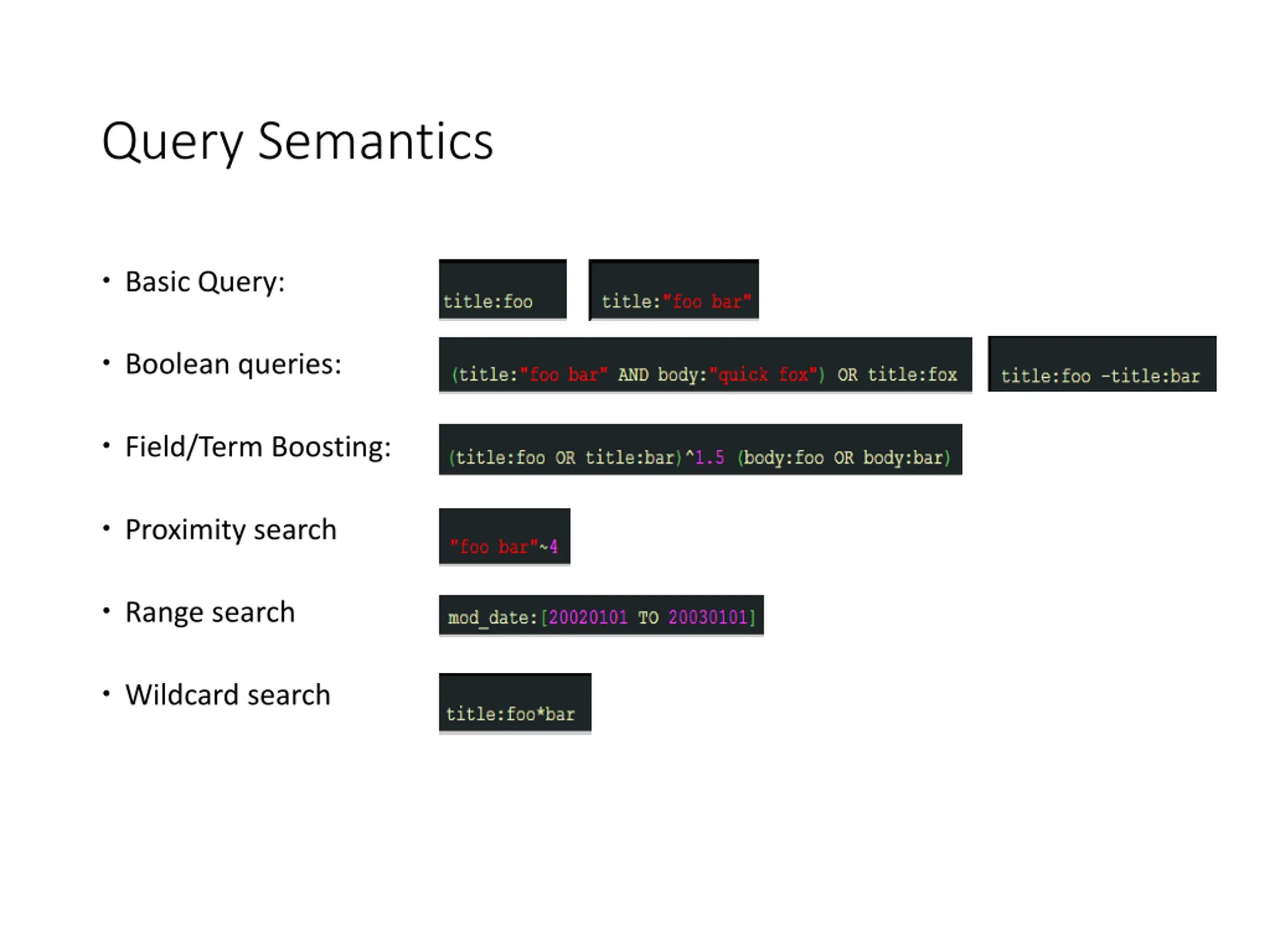

Query Semantics Basic Query: Boolean queries: Field/Term Boosting: Proximity search Range search Wildcard search

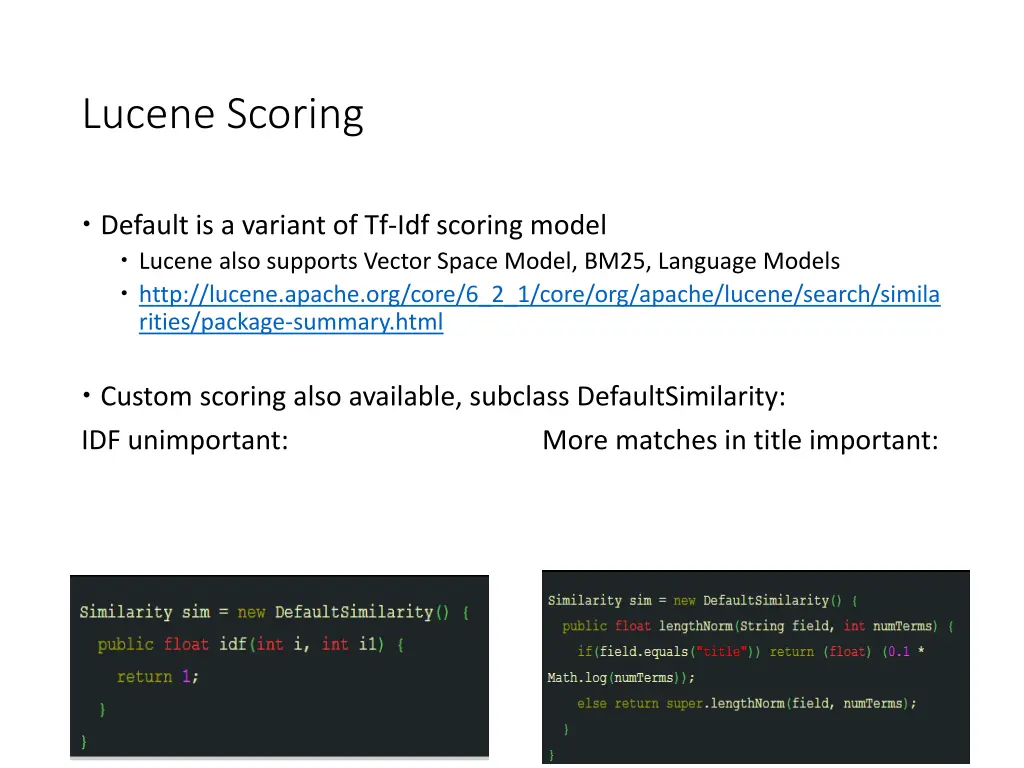

Lucene Scoring Default is a variant of Tf-Idf scoring model Lucene also supports Vector Space Model, BM25, Language Models http://lucene.apache.org/core/6_2_1/core/org/apache/lucene/search/simila rities/package-summary.html Custom scoring also available, subclass DefaultSimilarity: IDF unimportant: More matches in title important:

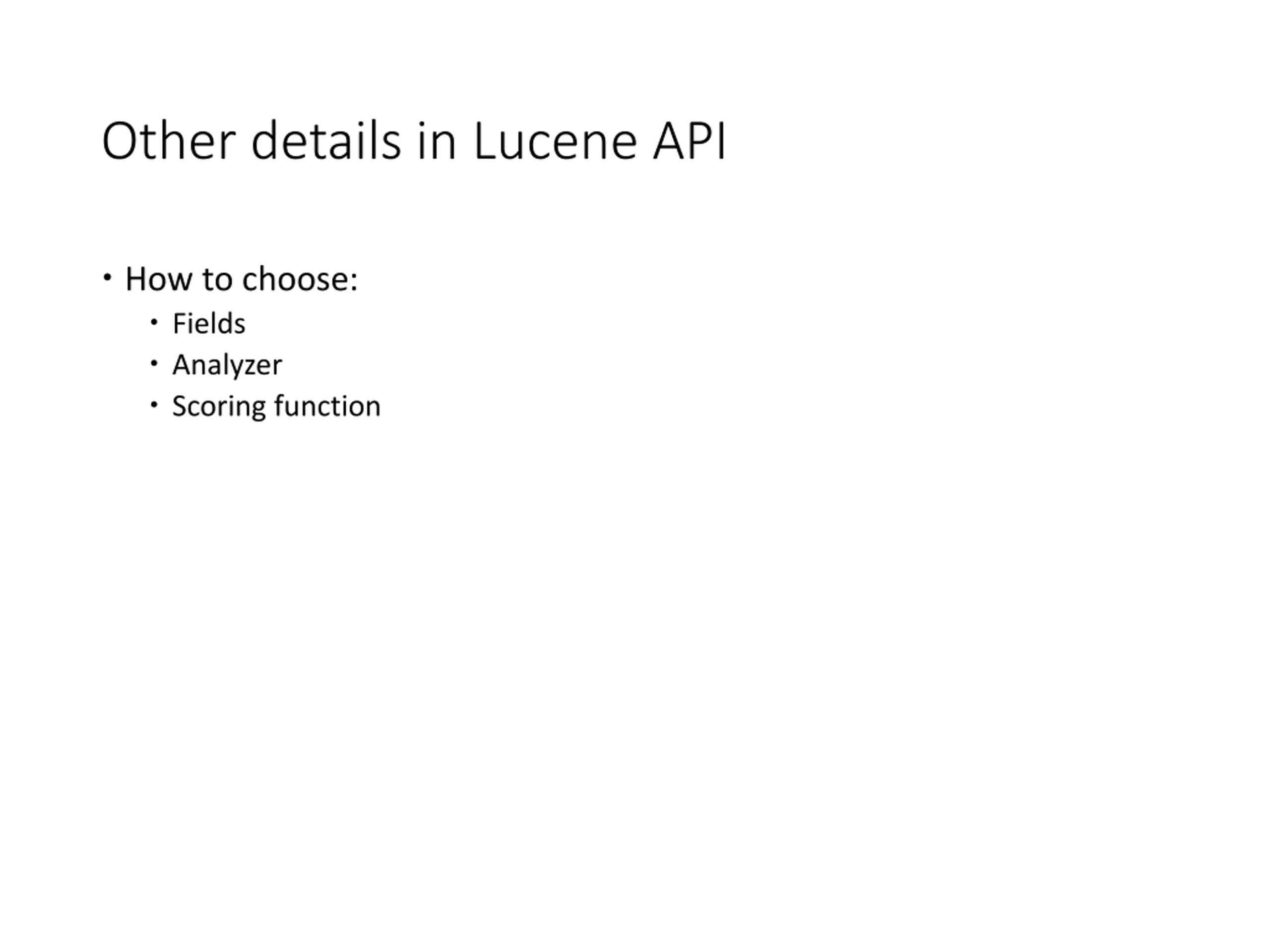

Other details in Lucene API How to choose: Fields Analyzer Scoring function
Hadoop@dblab Several Slides Authored by Eduardo J Ruiz

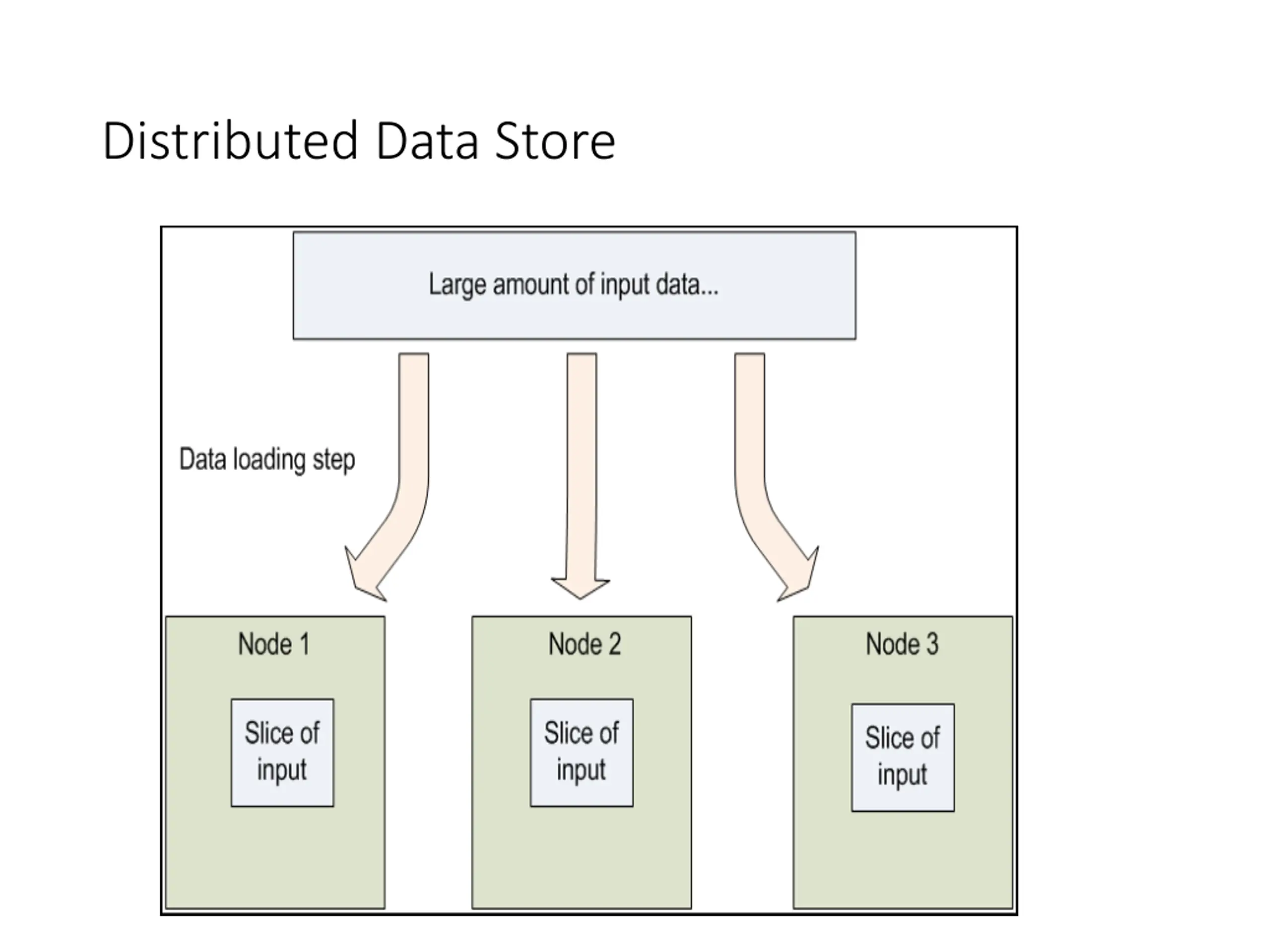

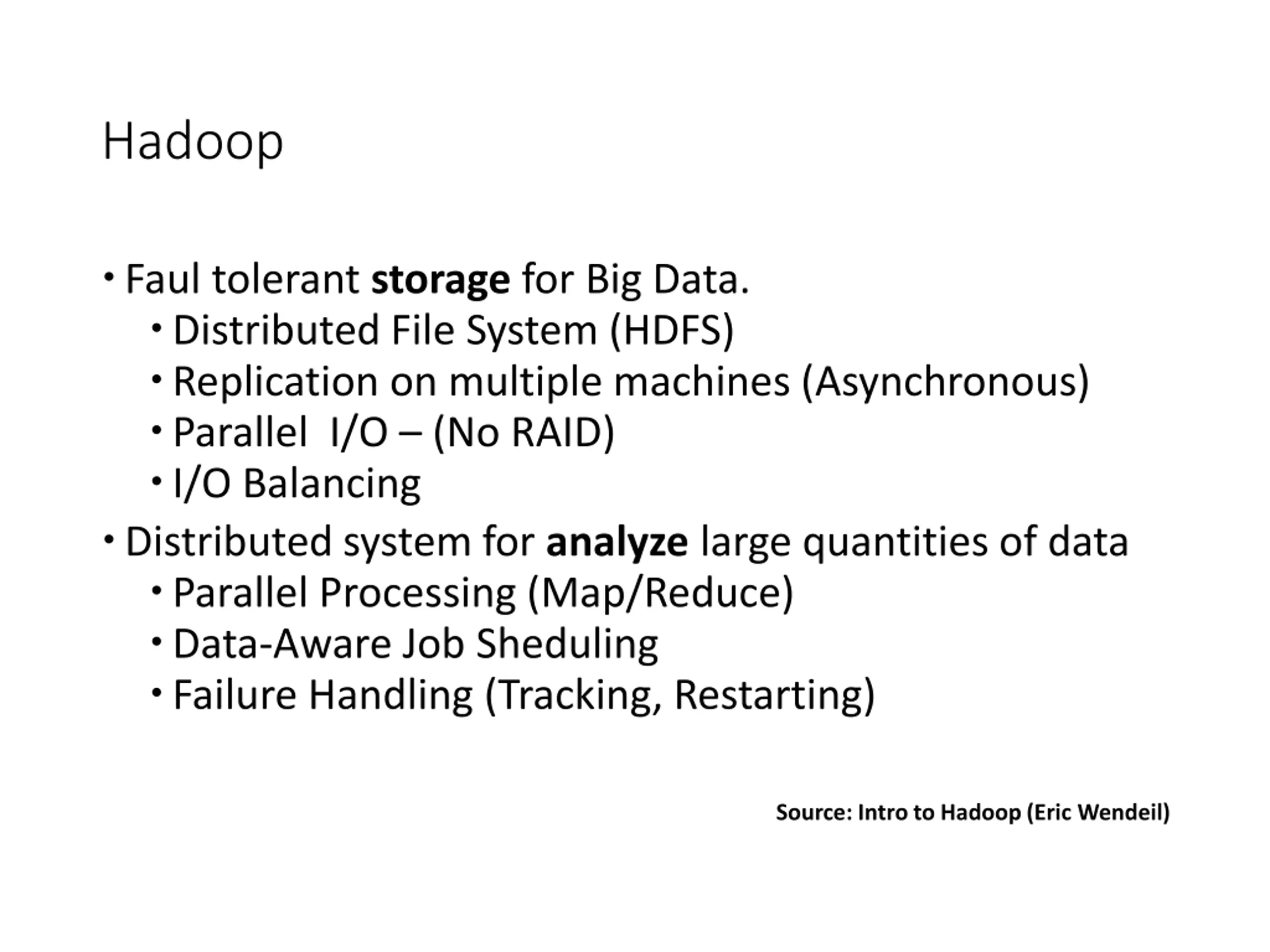

Hadoop Faul tolerant storage for Big Data. Distributed File System (HDFS) Replication on multiple machines (Asynchronous) Parallel I/O (No RAID) I/O Balancing Distributed system for analyze large quantities of data Parallel Processing (Map/Reduce) Data-Aware Job Sheduling Failure Handling (Tracking, Restarting) Source: Intro to Hadoop (Eric Wendeil)

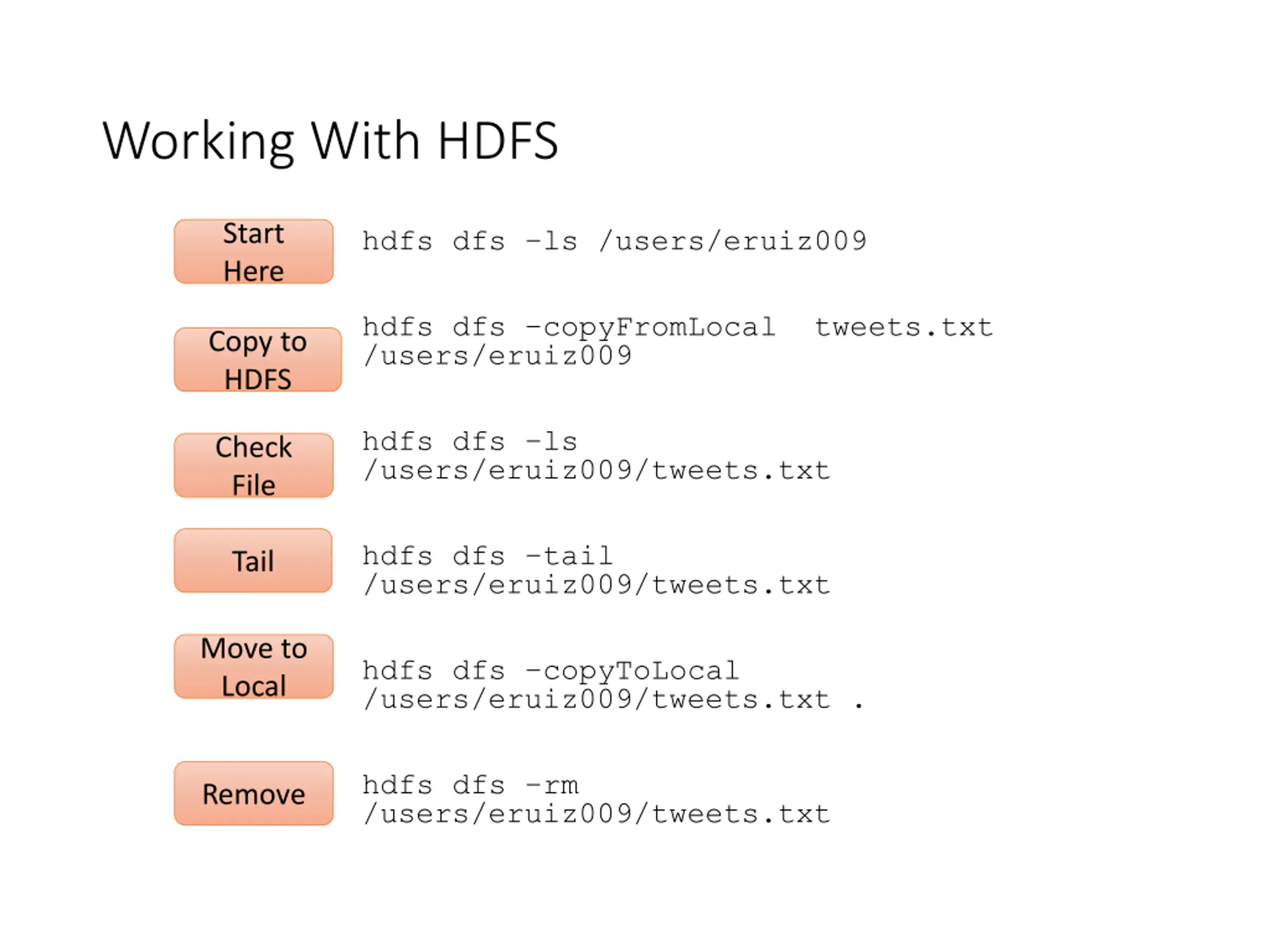

Working With HDFS Start Here hdfs dfs ls /users/eruiz009 hdfs dfs copyFromLocal tweets.txt /users/eruiz009 Copy to HDFS hdfs dfs ls /users/eruiz009/tweets.txt Check File hdfs dfs tail /users/eruiz009/tweets.txt Tail Move to Local hdfs dfs copyToLocal /users/eruiz009/tweets.txt . hdfs dfs rm /users/eruiz009/tweets.txt Remove

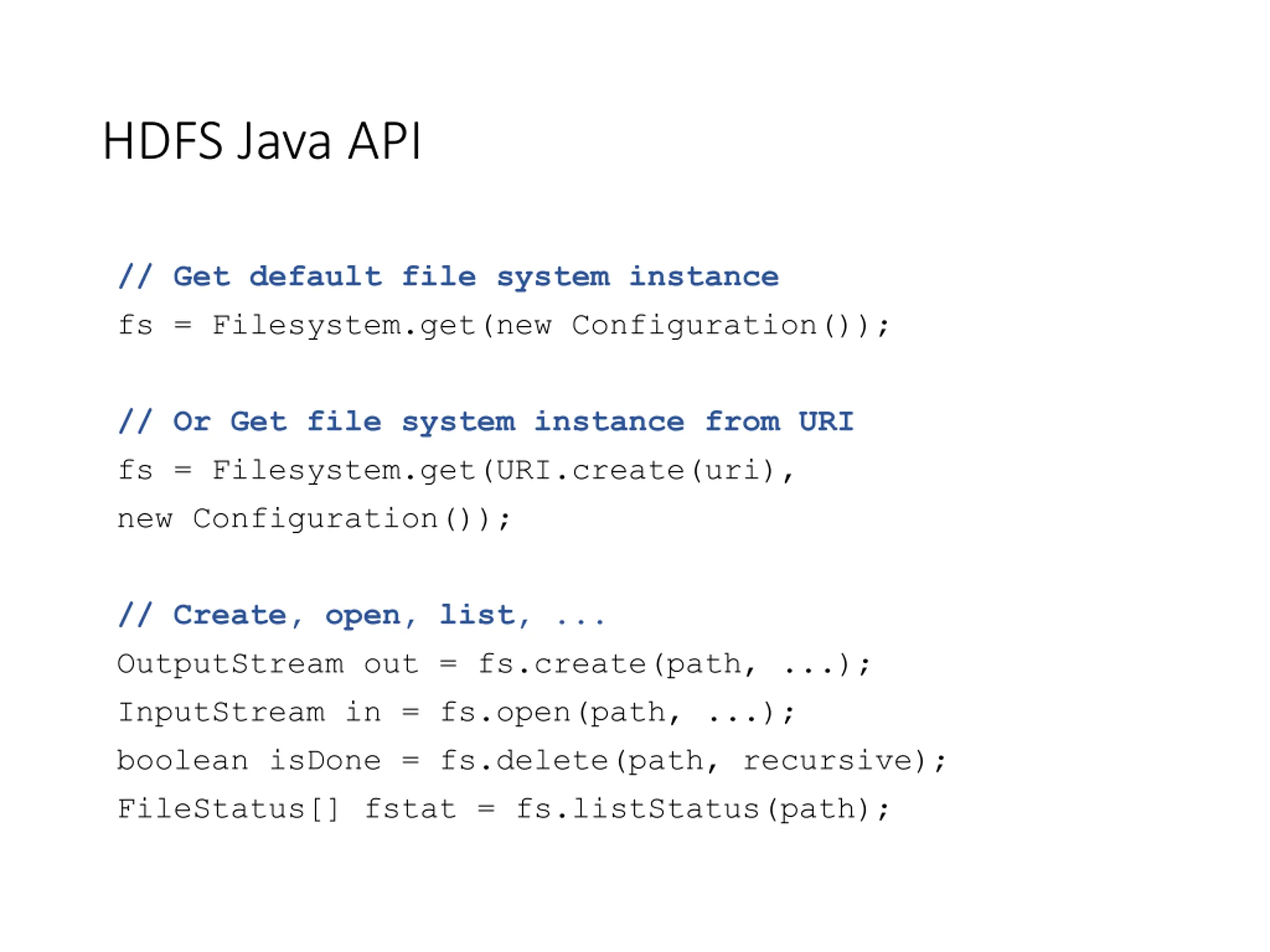

HDFS Java API // Get default file system instance fs = Filesystem.get(new Configuration()); // Or Get file system instance from URI fs = Filesystem.get(URI.create(uri), new Configuration()); // Create, open, list, ... OutputStream out = fs.create(path, ...); InputStream in = fs.open(path, ...); boolean isDone = fs.delete(path, recursive); FileStatus[] fstat = fs.listStatus(path);

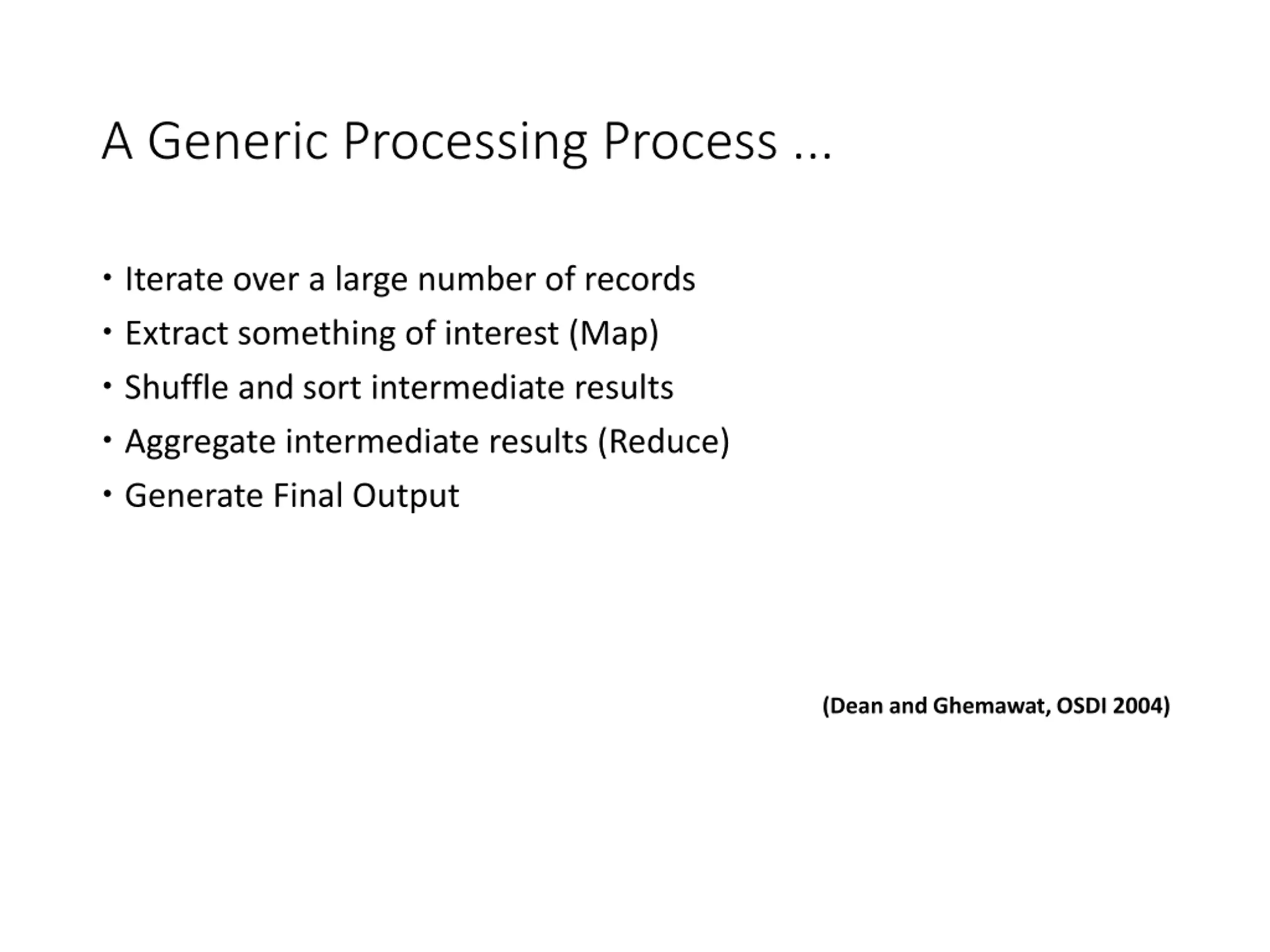

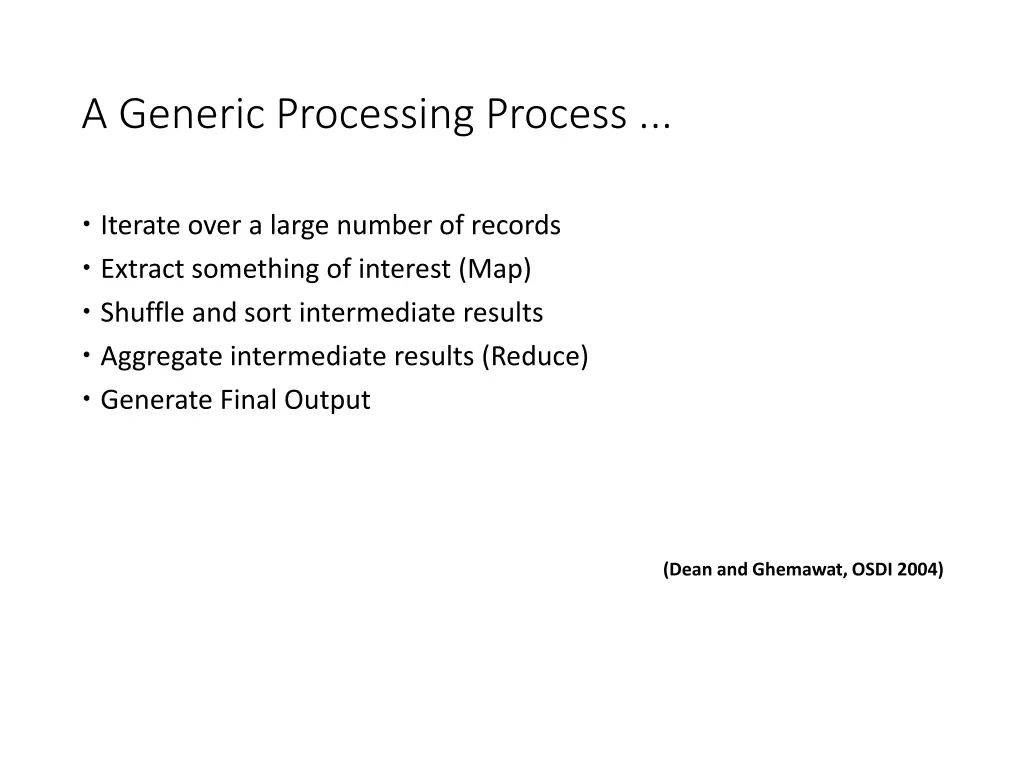

A Generic Processing Process ... Iterate over a large number of records Extract something of interest (Map) Shuffle and sort intermediate results Aggregate intermediate results (Reduce) Generate Final Output (Dean and Ghemawat, OSDI 2004)

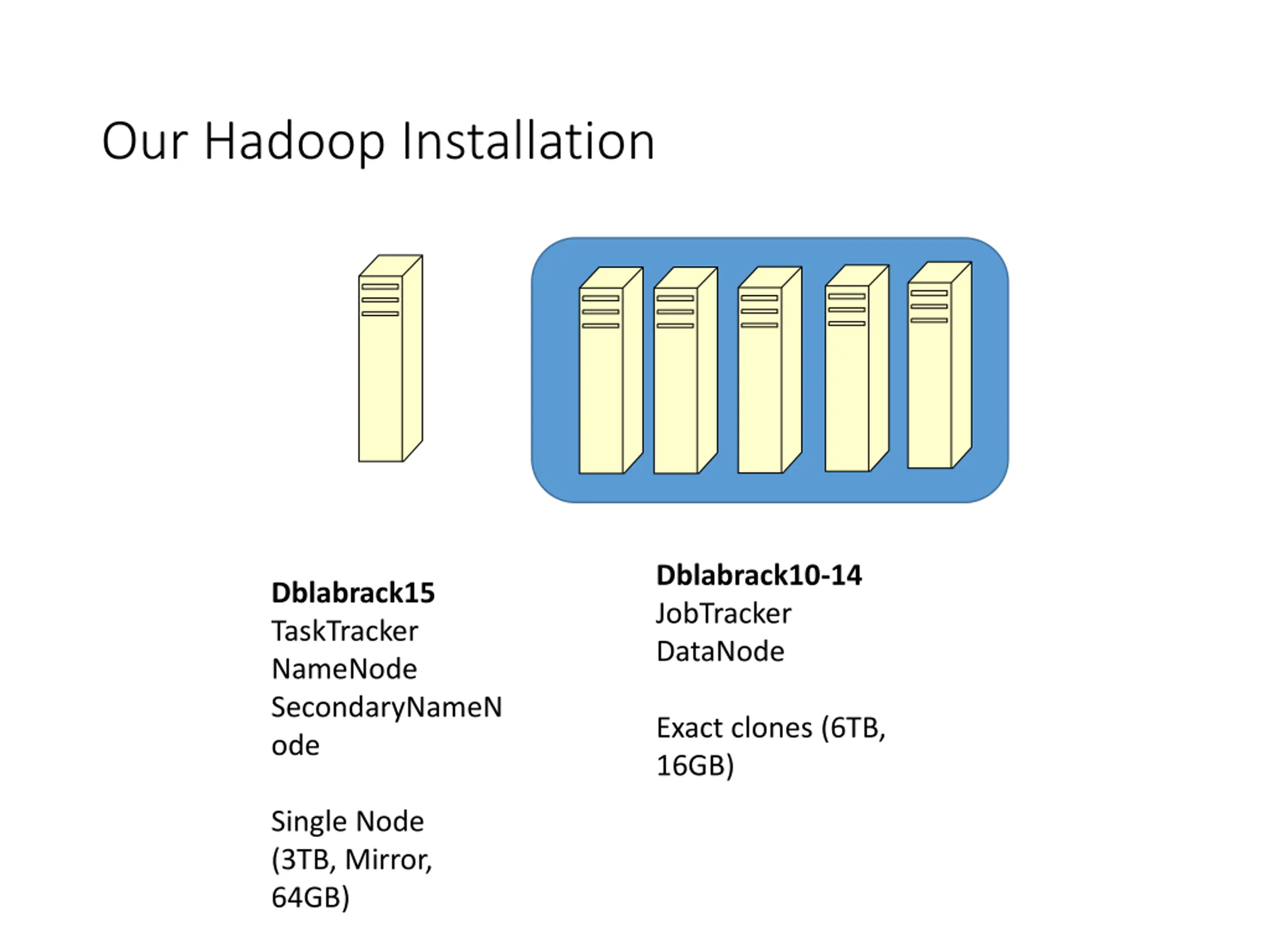

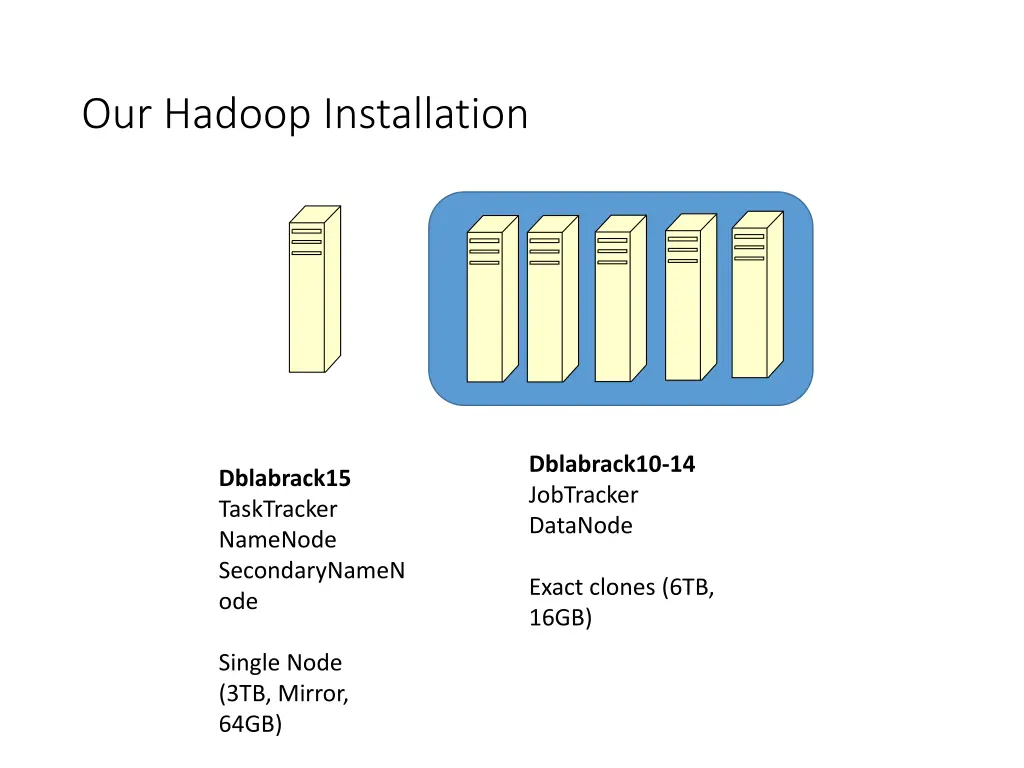

Our Hadoop Installation Dblabrack10-14 JobTracker DataNode Dblabrack15 TaskTracker NameNode SecondaryNameN ode Exact clones (6TB, 16GB) Single Node (3TB, Mirror, 64GB)

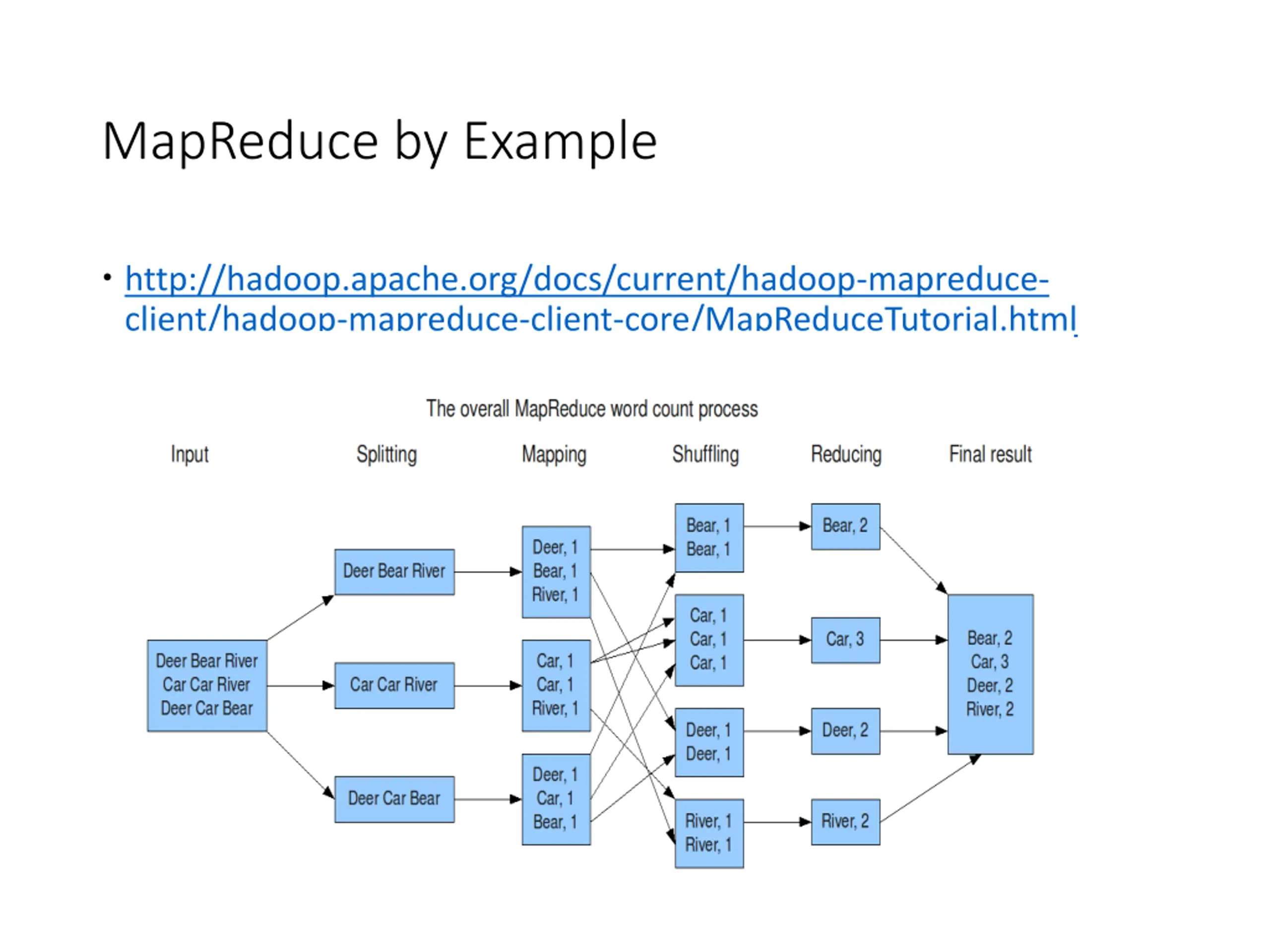

MapReduce by Example http://hadoop.apache.org/docs/current/hadoop-mapreduce- client/hadoop-mapreduce-client-core/MapReduceTutorial.html

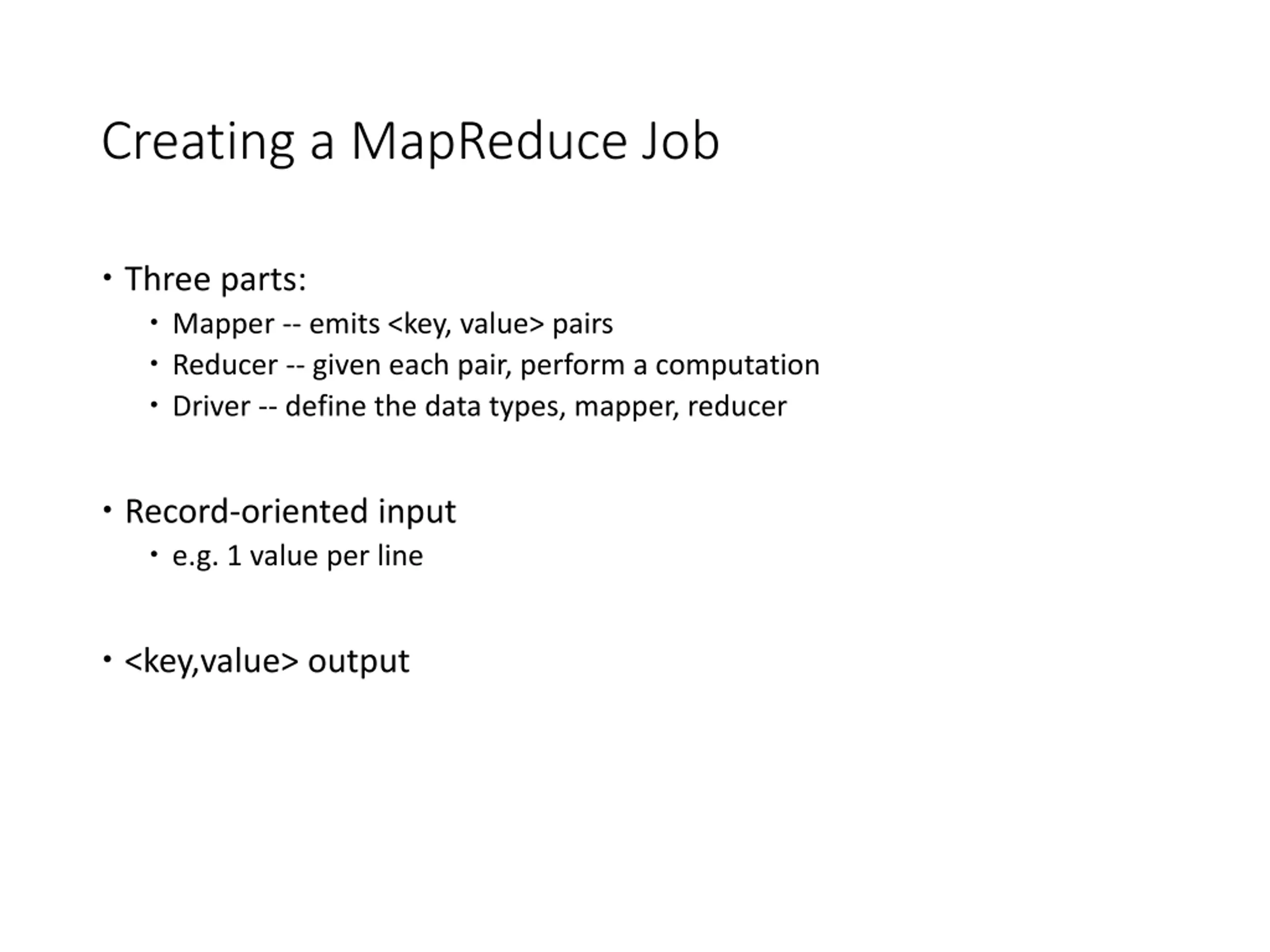

Creating a MapReduce Job Three parts: Mapper -- emits <key, value> pairs Reducer -- given each pair, perform a computation Driver -- define the data types, mapper, reducer Record-oriented input e.g. 1 value per line <key,value> output

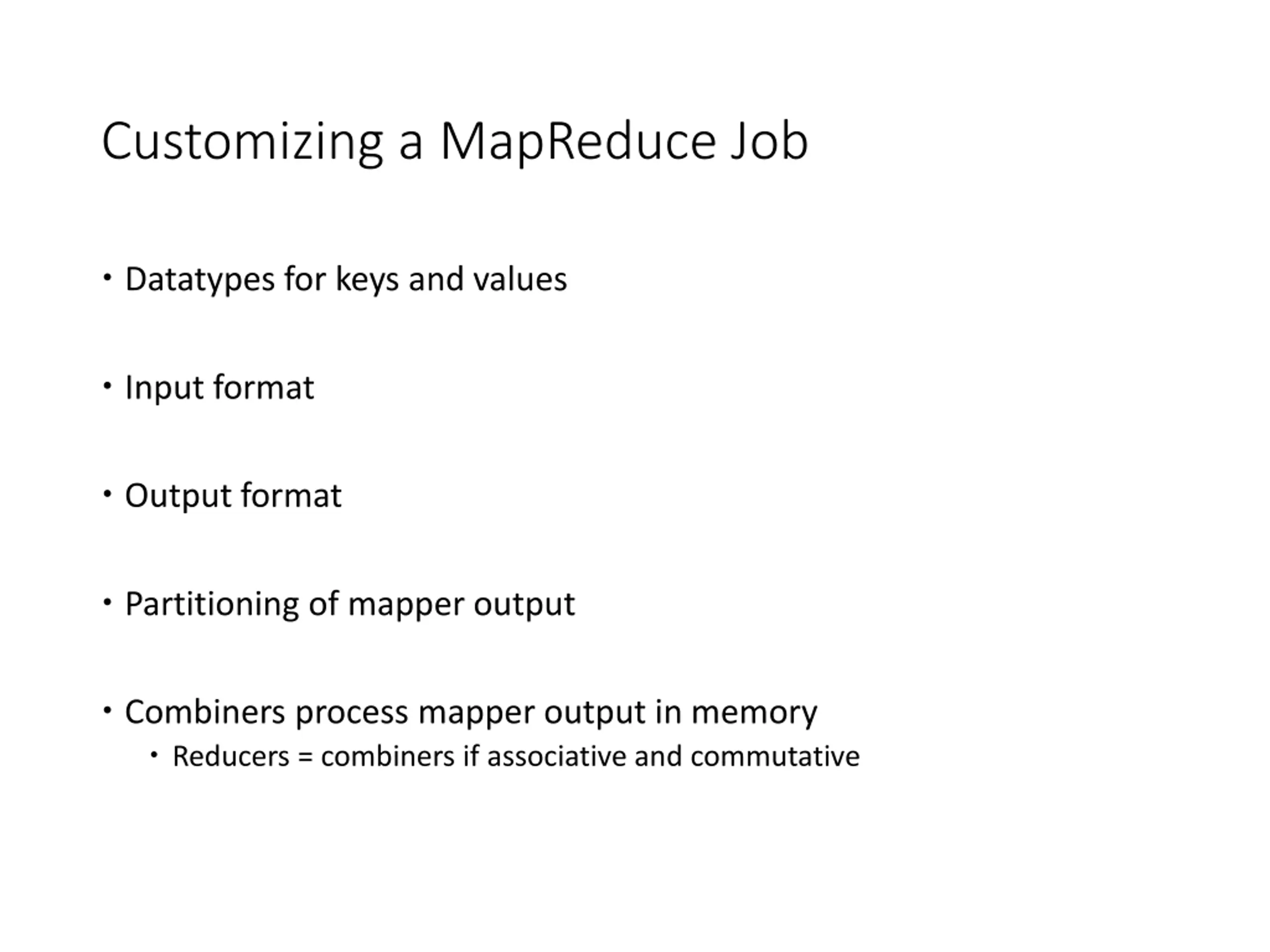

Customizing a MapReduce Job Datatypes for keys and values Input format Output format Partitioning of mapper output Combiners process mapper output in memory Reducers = combiners if associative and commutative

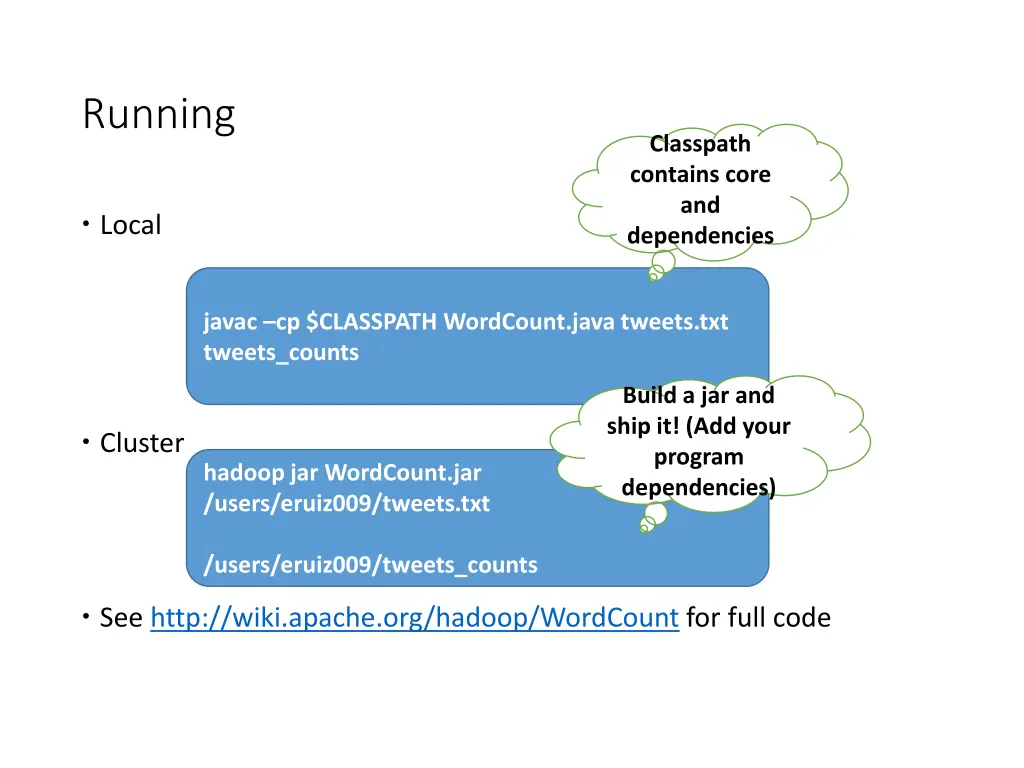

Running Classpath contains core and dependencies Local javac cp $CLASSPATH WordCount.java tweets.txt tweets_counts Build a jar and ship it! (Add your program dependencies) Cluster hadoop jar WordCount.jar /users/eruiz009/tweets.txt /users/eruiz009/tweets_counts See http://wiki.apache.org/hadoop/WordCount for full code

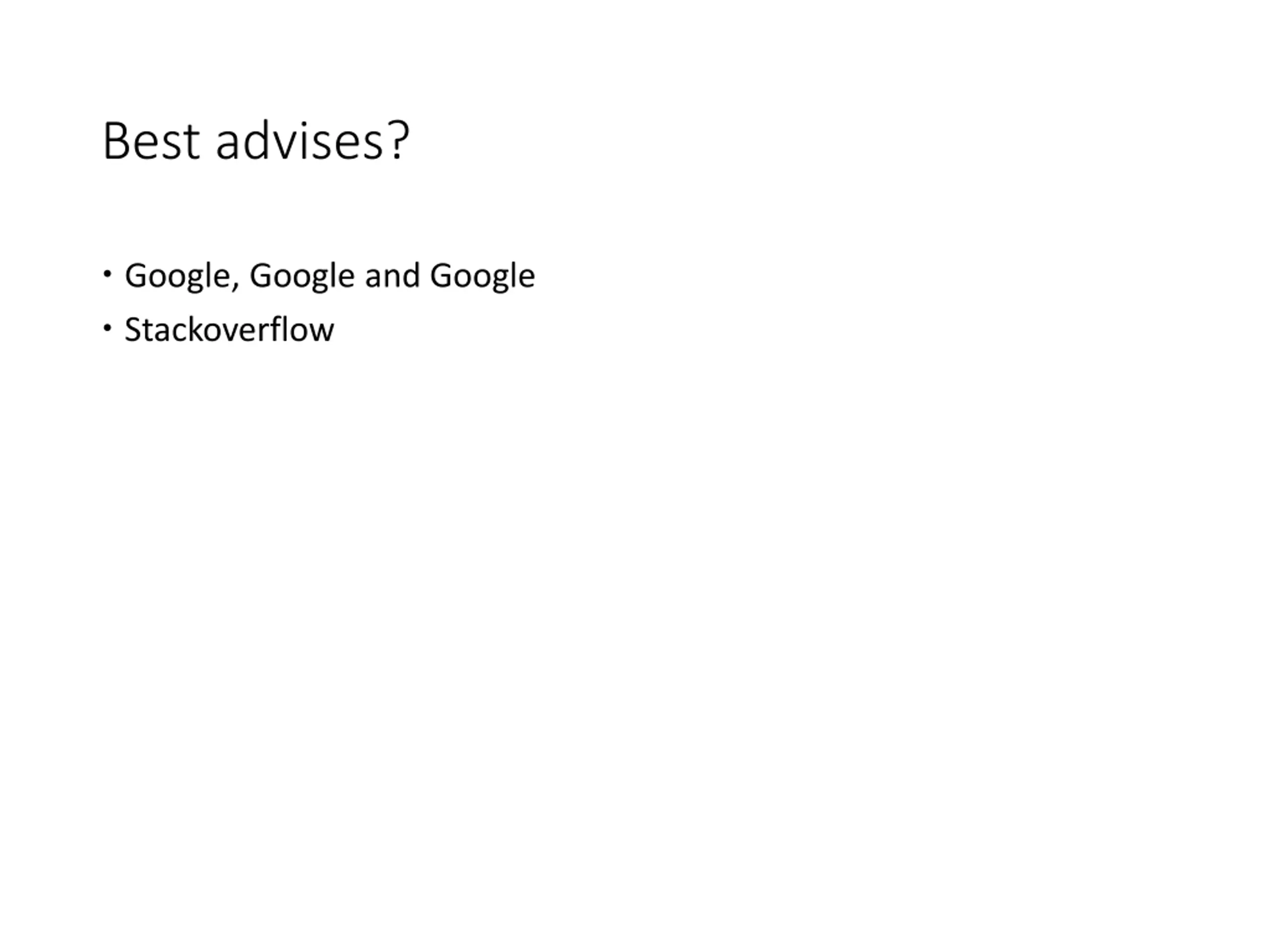

Best advises? Google, Google and Google Stackoverflow
