CSE 373 Section 5 Heaps + MT Review

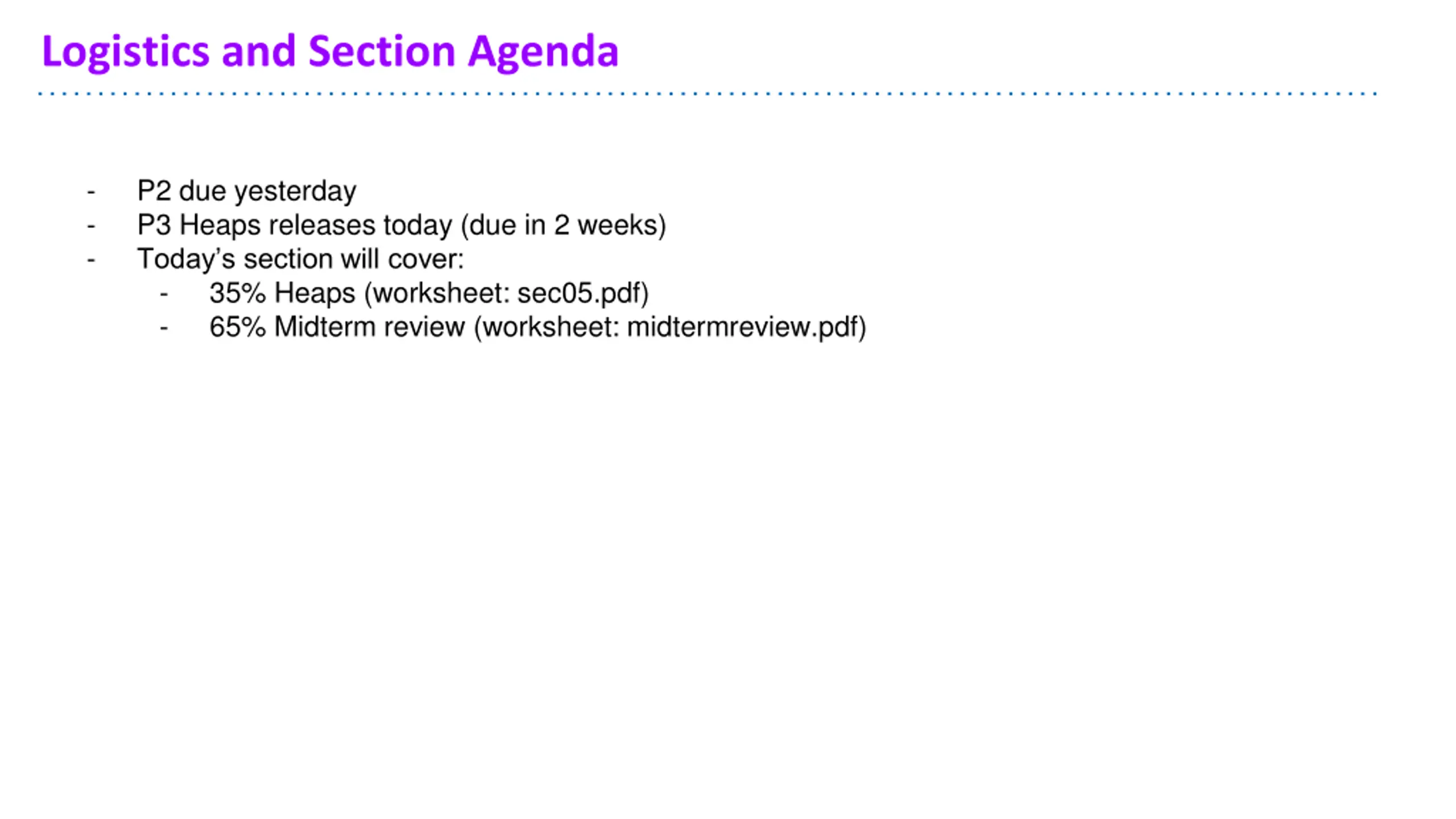

Logistics and Section Agenda - - - P2 due yesterday P3 Heaps releases today (due in 2 weeks) Today s section will cover: - 35% Heaps (worksheet: sec05.pdf) - 65% Midterm review (worksheet: midtermreview.pdf)

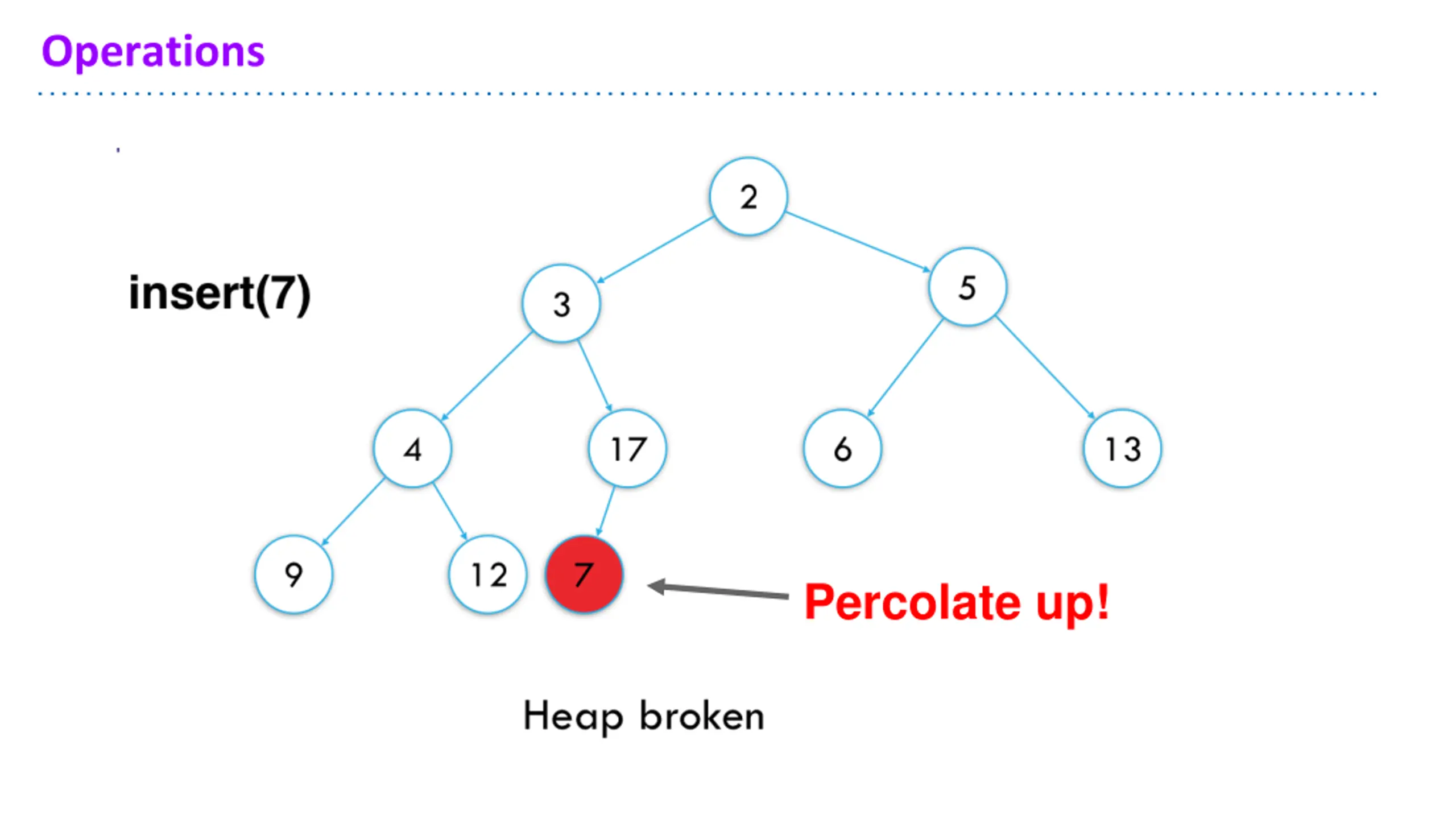

Operations Percolate up!

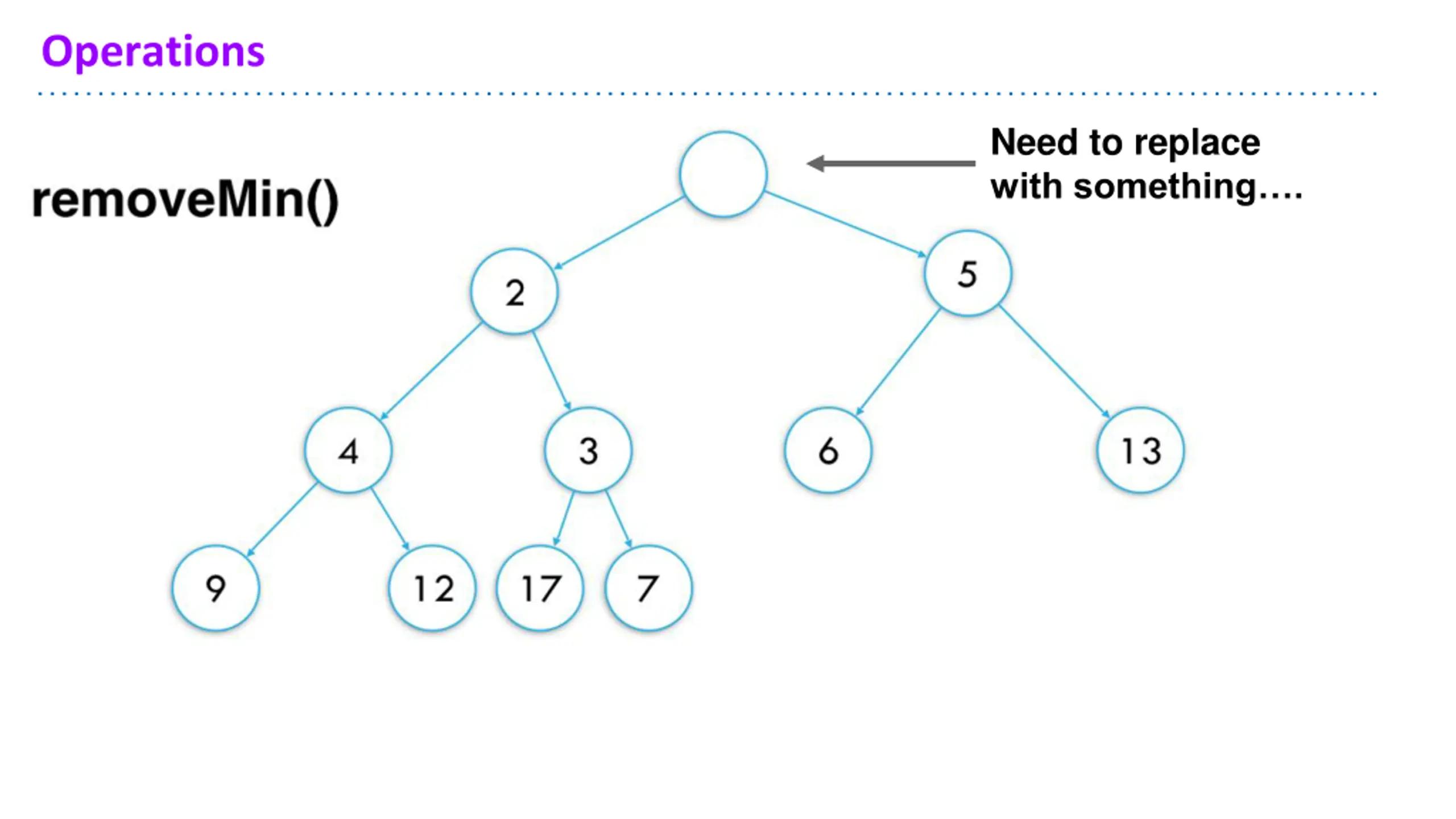

Operations Need to replace with something .

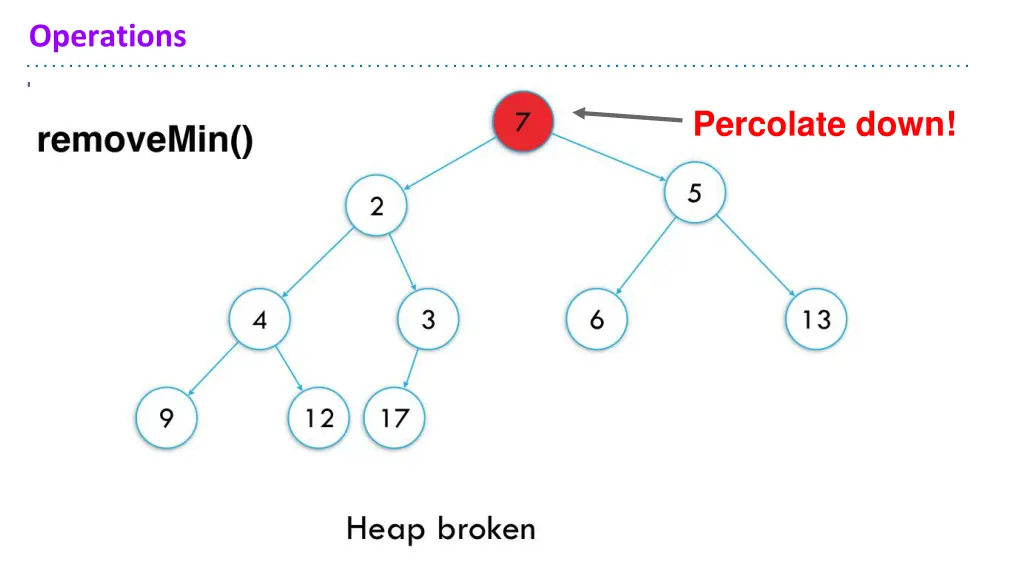

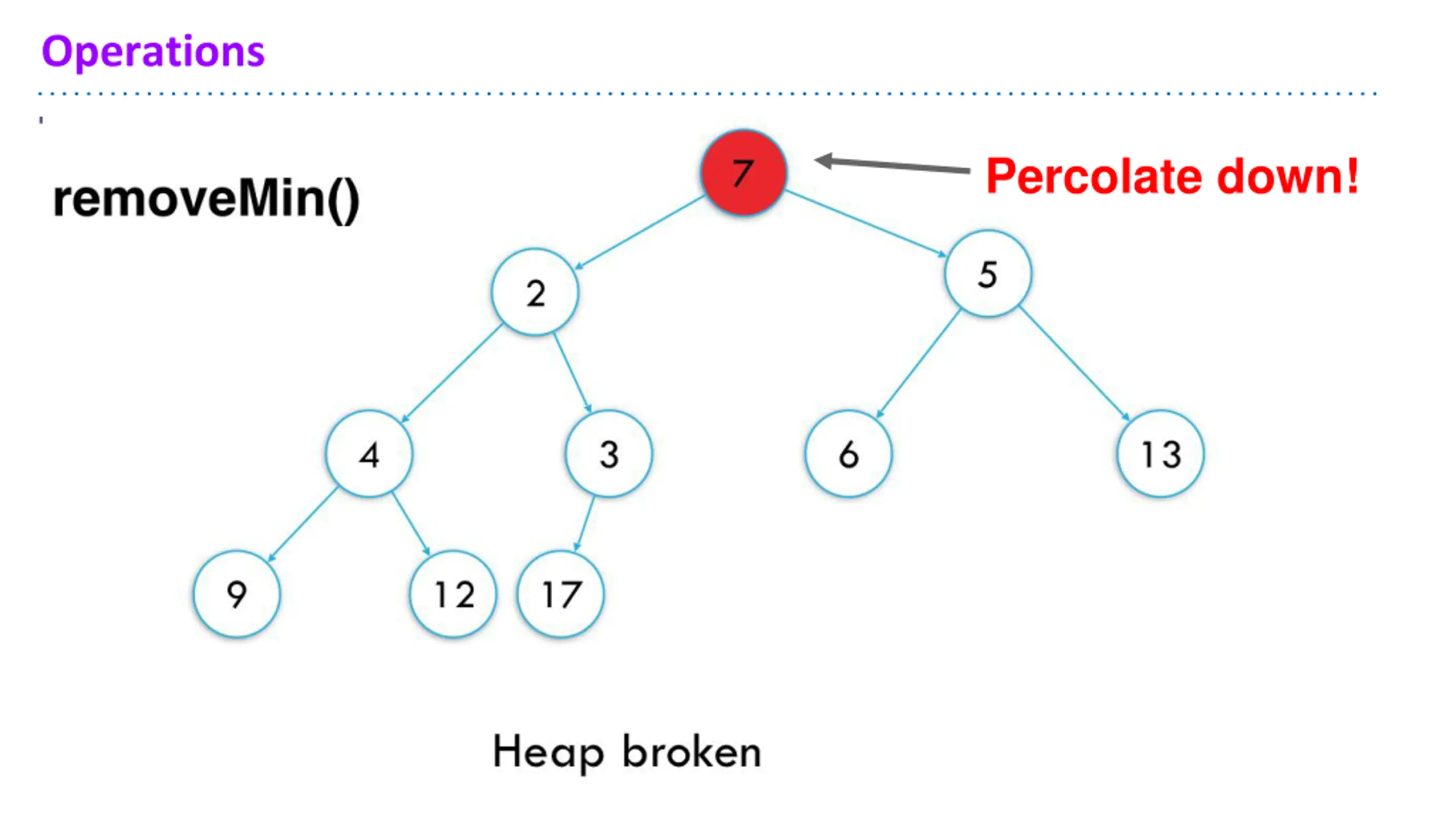

Operations Percolate down!

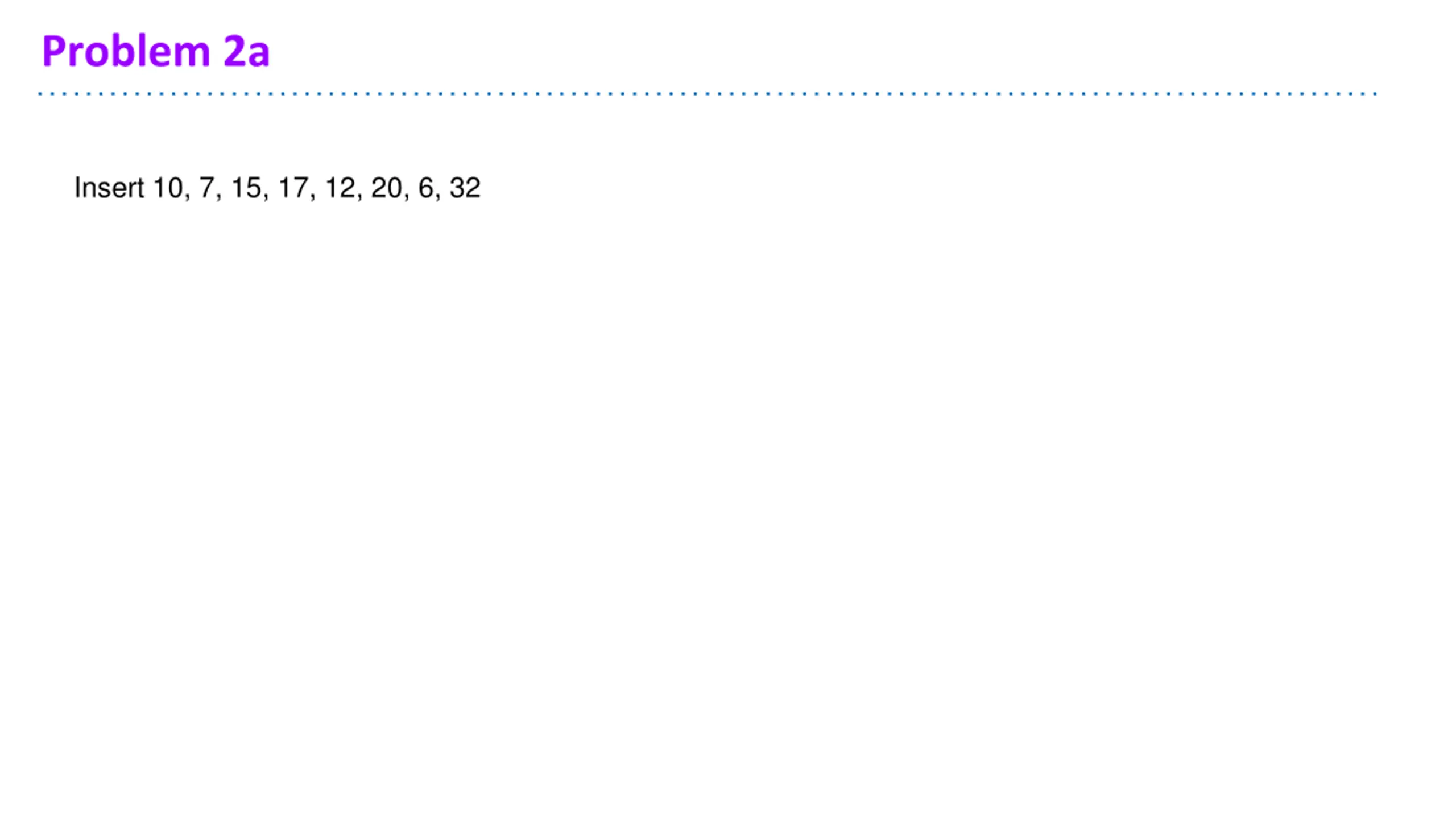

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32

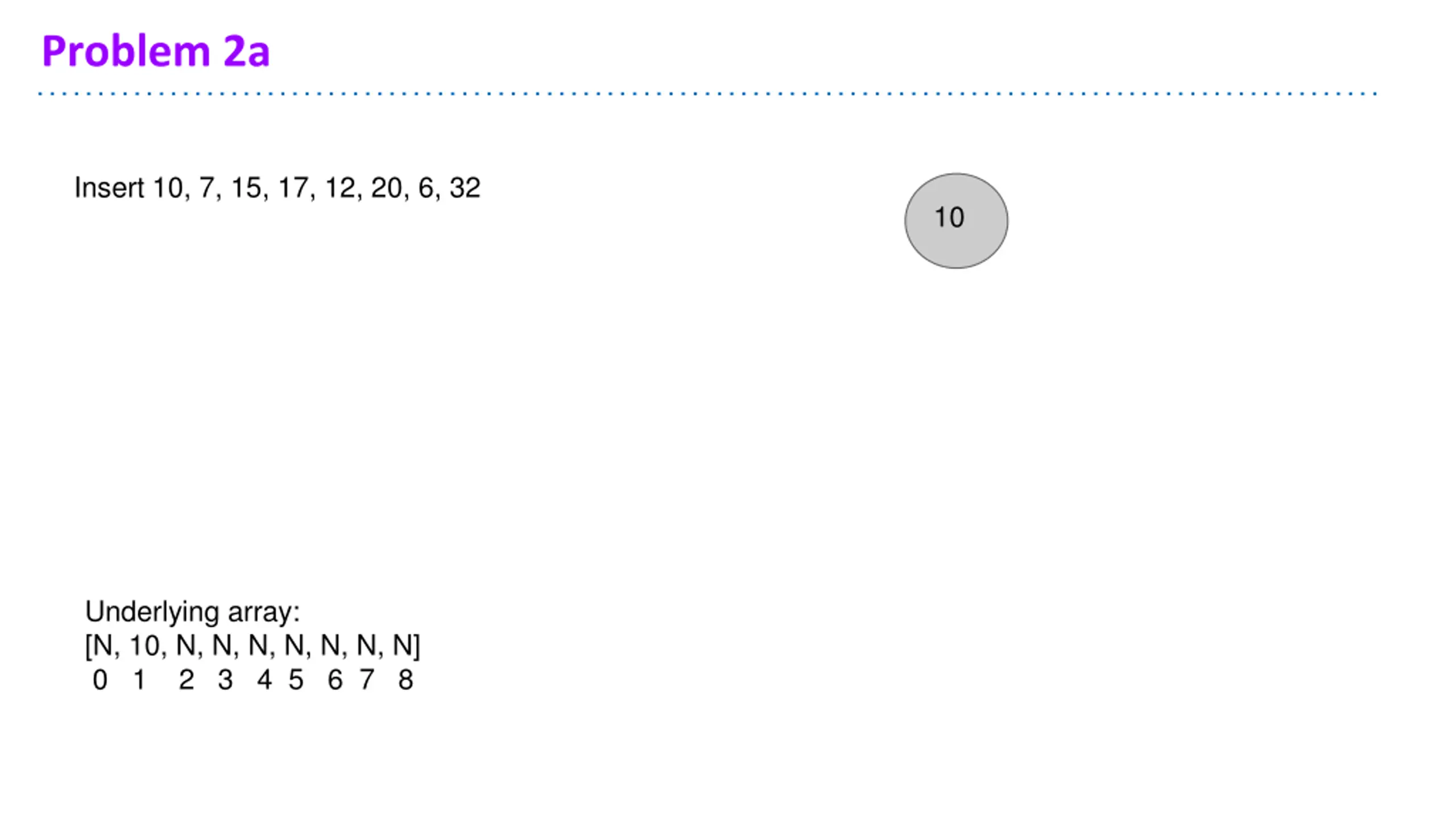

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 10 Underlying array: [N, 10, N, N, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

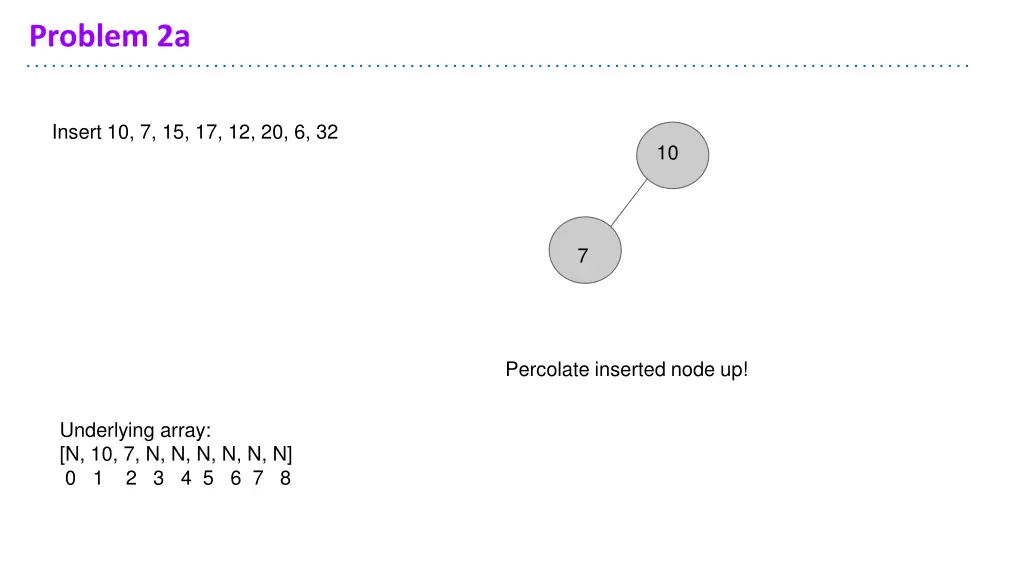

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 10 7 Percolate inserted node up! Underlying array: [N, 10, 7, N, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

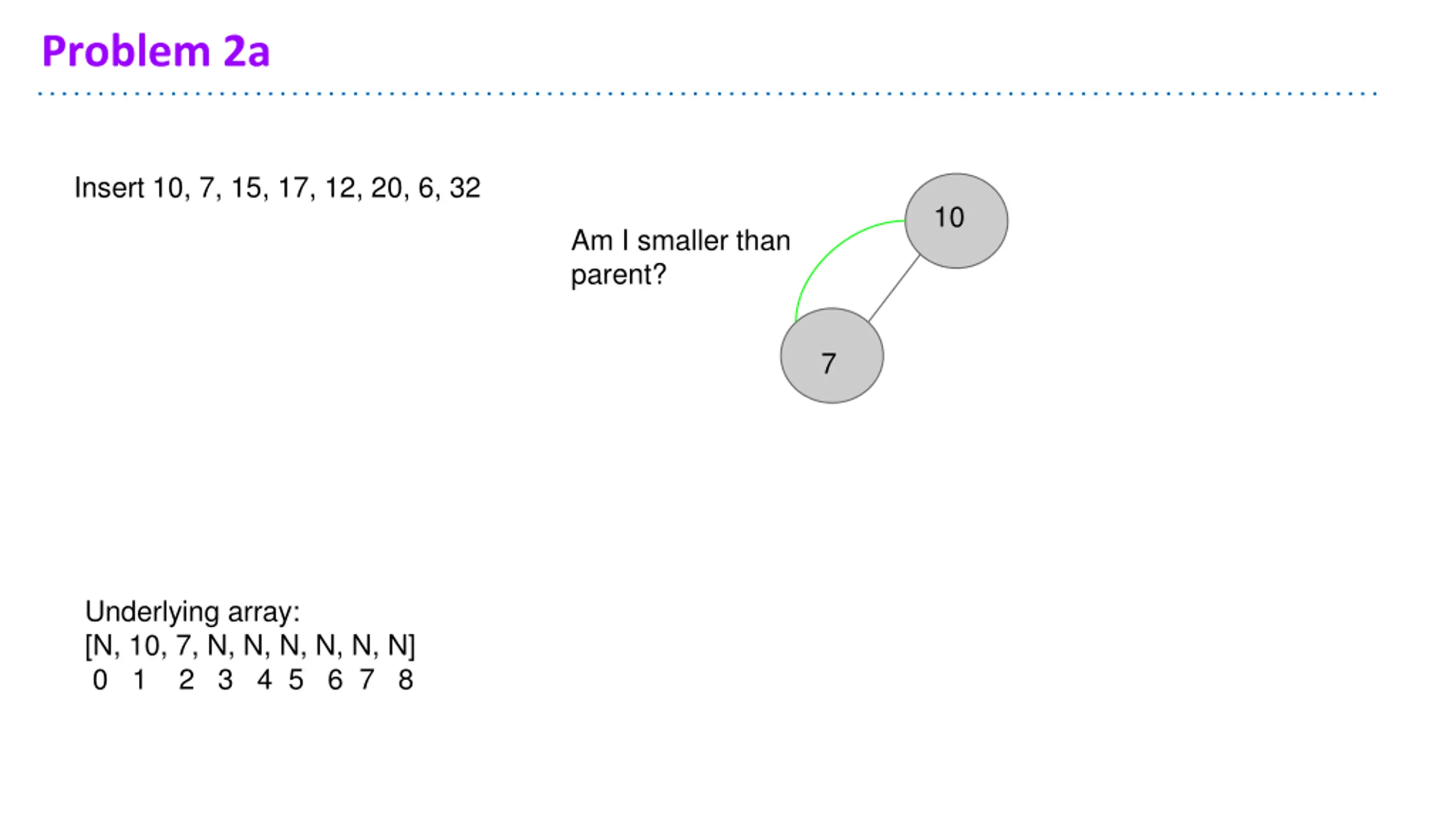

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 10 Am I smaller than parent? 7 Underlying array: [N, 10, 7, N, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

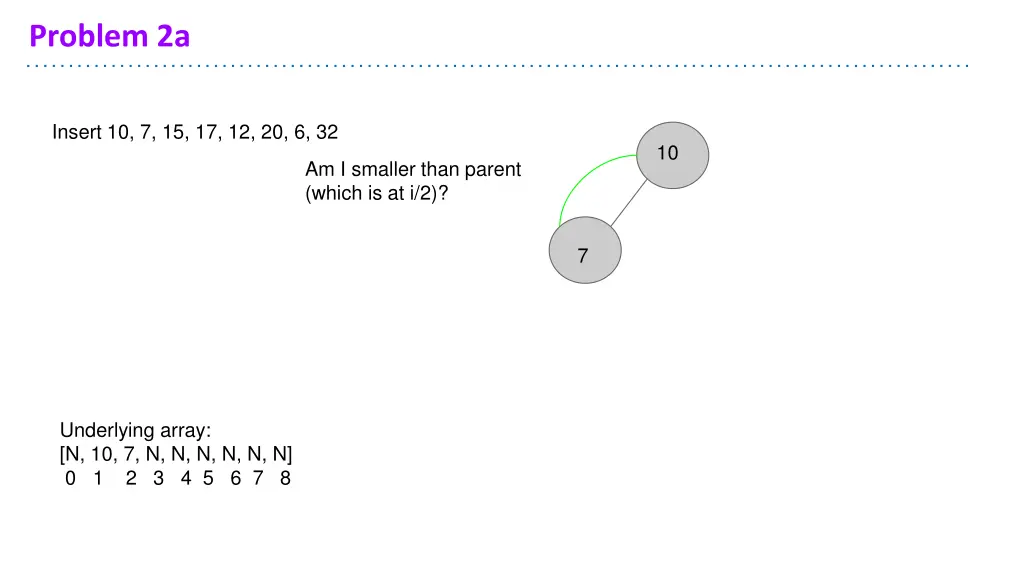

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 10 Am I smaller than parent (which is at i/2)? 7 Underlying array: [N, 10, 7, N, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

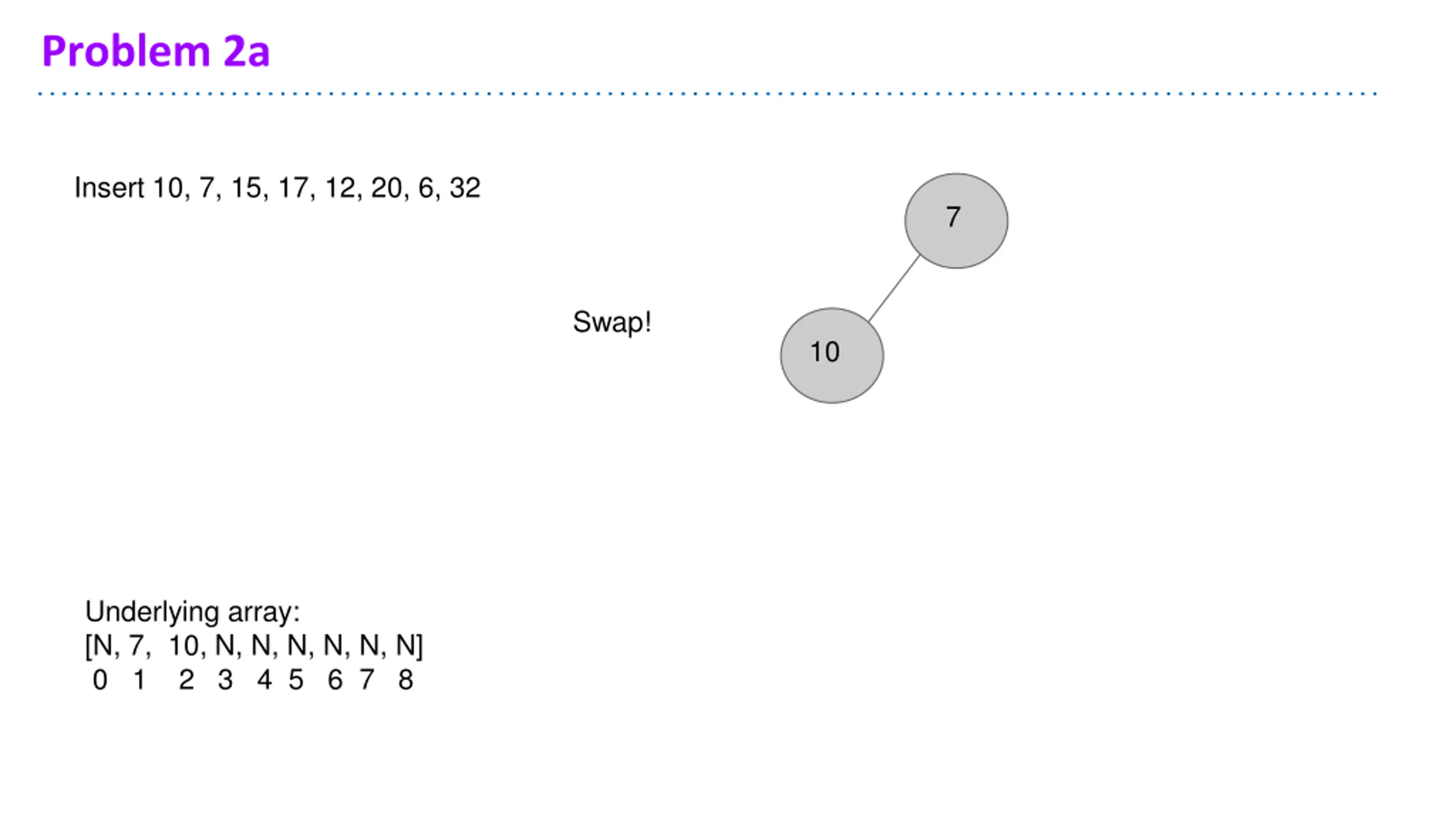

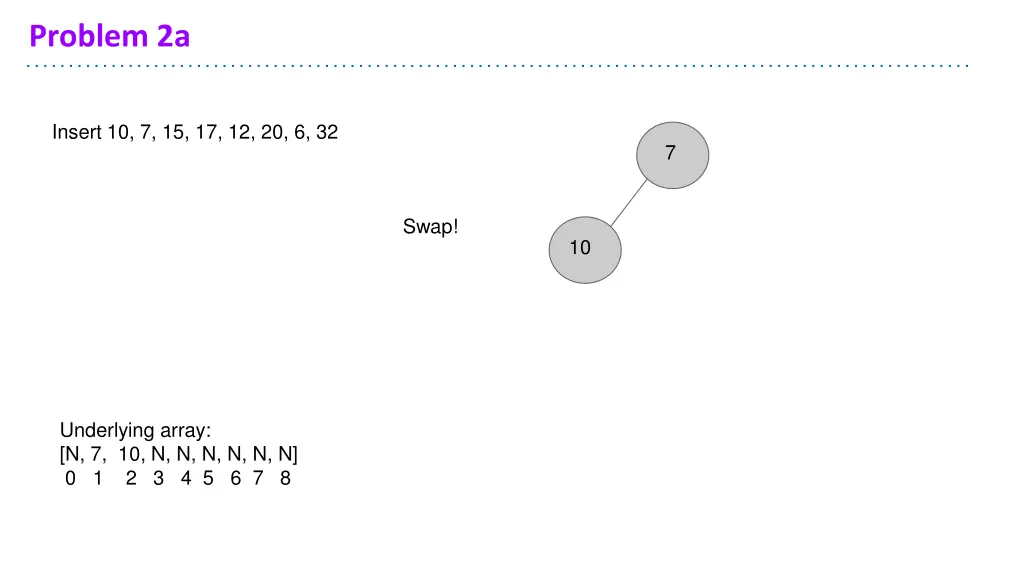

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 Swap! 10 Underlying array: [N, 7, 10, N, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

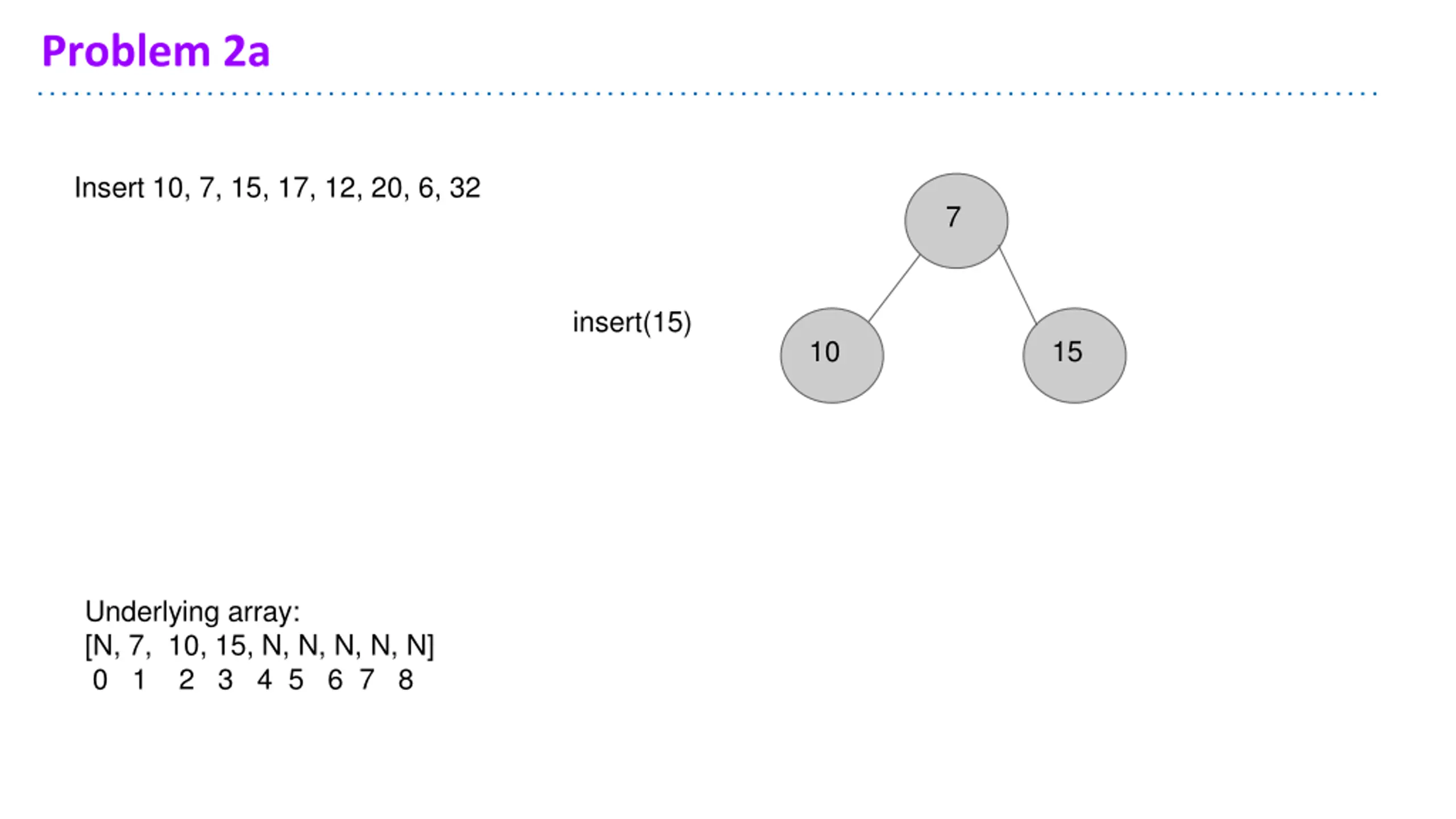

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 insert(15) 10 15 Underlying array: [N, 7, 10, 15, N, N, N, N, N] 0 1 2 3 4 5 6 7 8
Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 Percolate up 10 15 Underlying array: [N, 7, 10, 15, N, N, N, N, N] 0 1 2 3 4 5 6 7 8

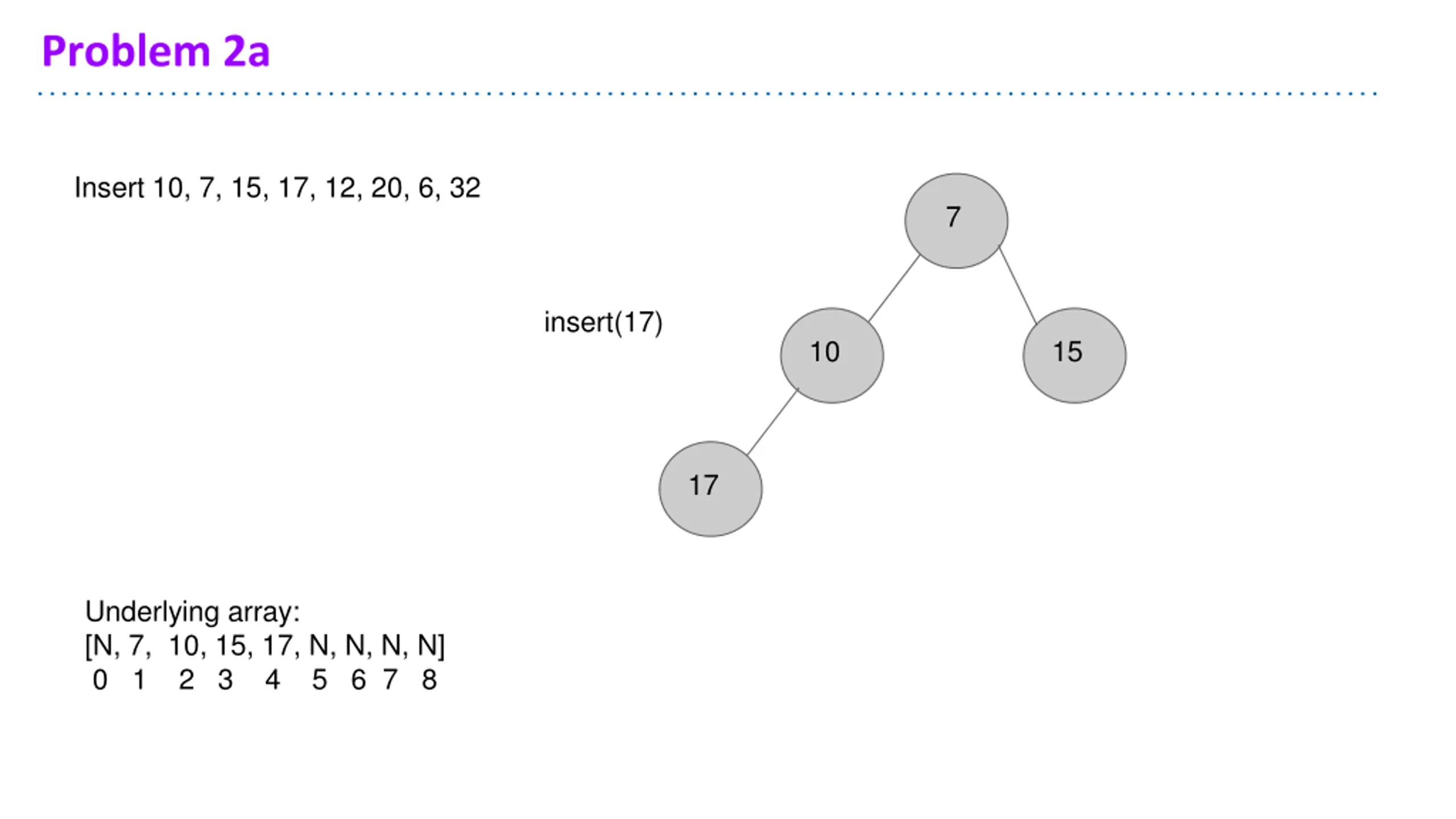

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 insert(17) 10 15 17 Underlying array: [N, 7, 10, 15, 17, N, N, N, N] 0 1 2 3 4 5 6 7 8

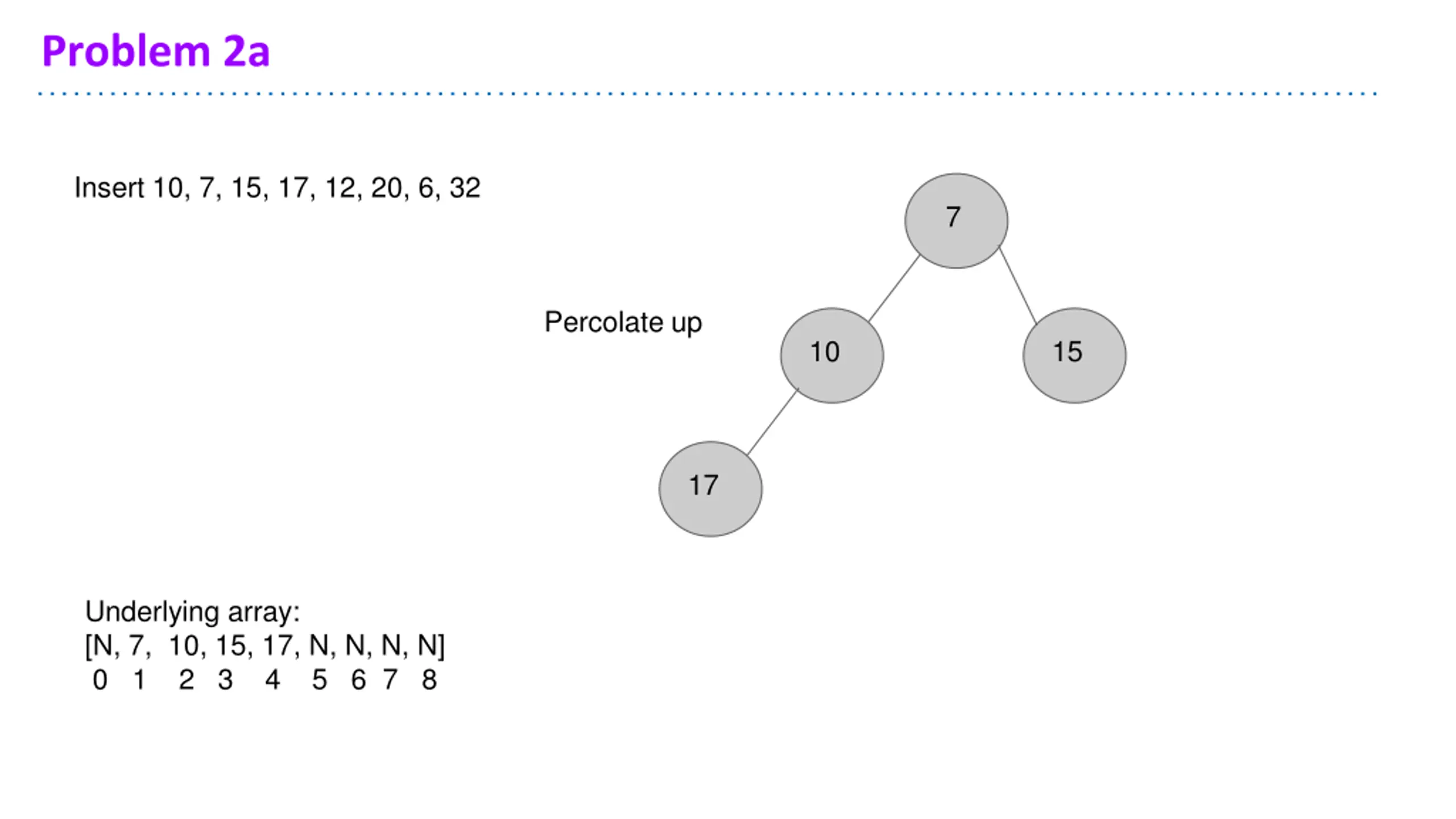

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 Percolate up 10 15 17 Underlying array: [N, 7, 10, 15, 17, N, N, N, N] 0 1 2 3 4 5 6 7 8

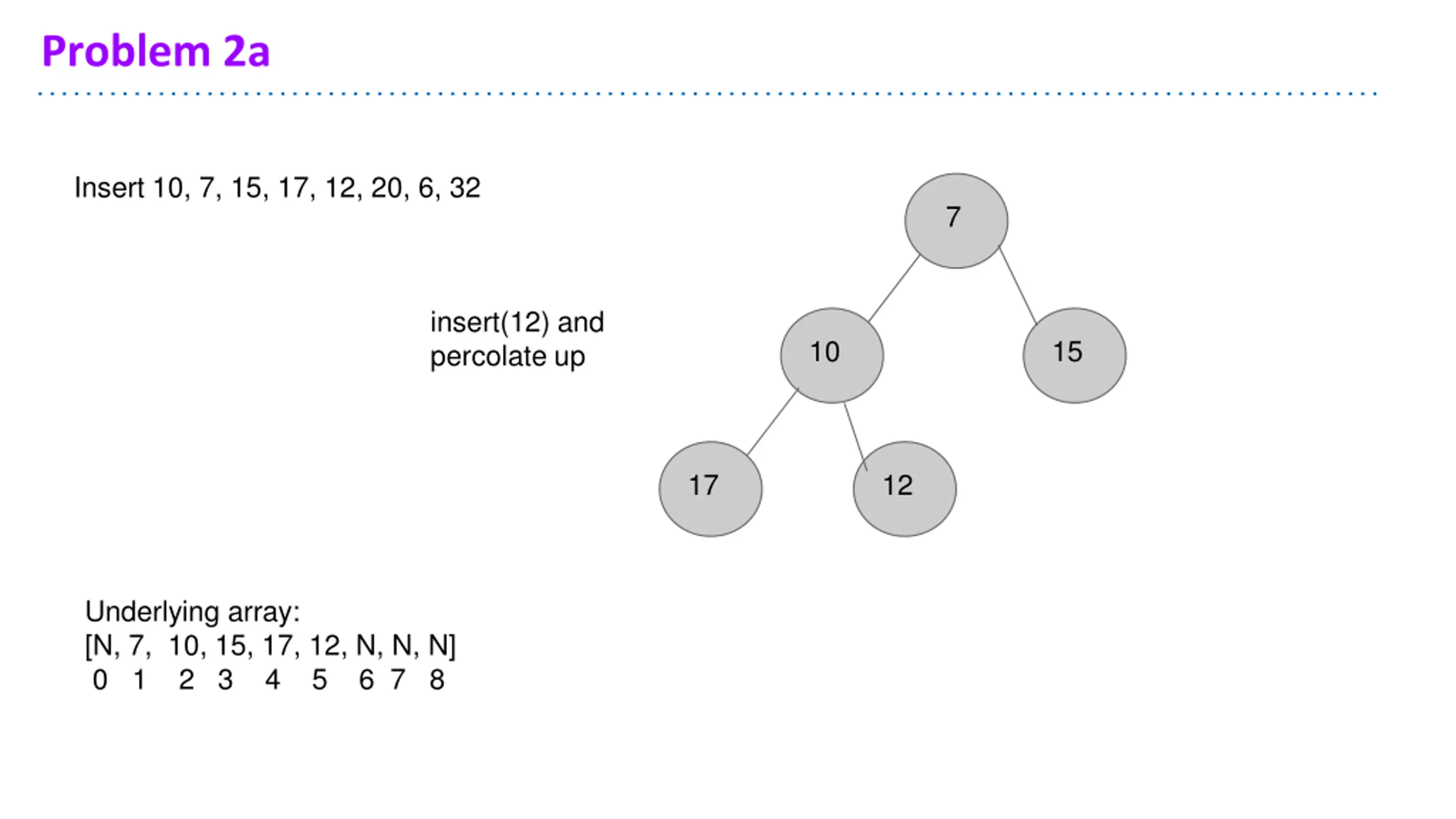

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 insert(12) and percolate up 10 15 17 12 Underlying array: [N, 7, 10, 15, 17, 12, N, N, N] 0 1 2 3 4 5 6 7 8

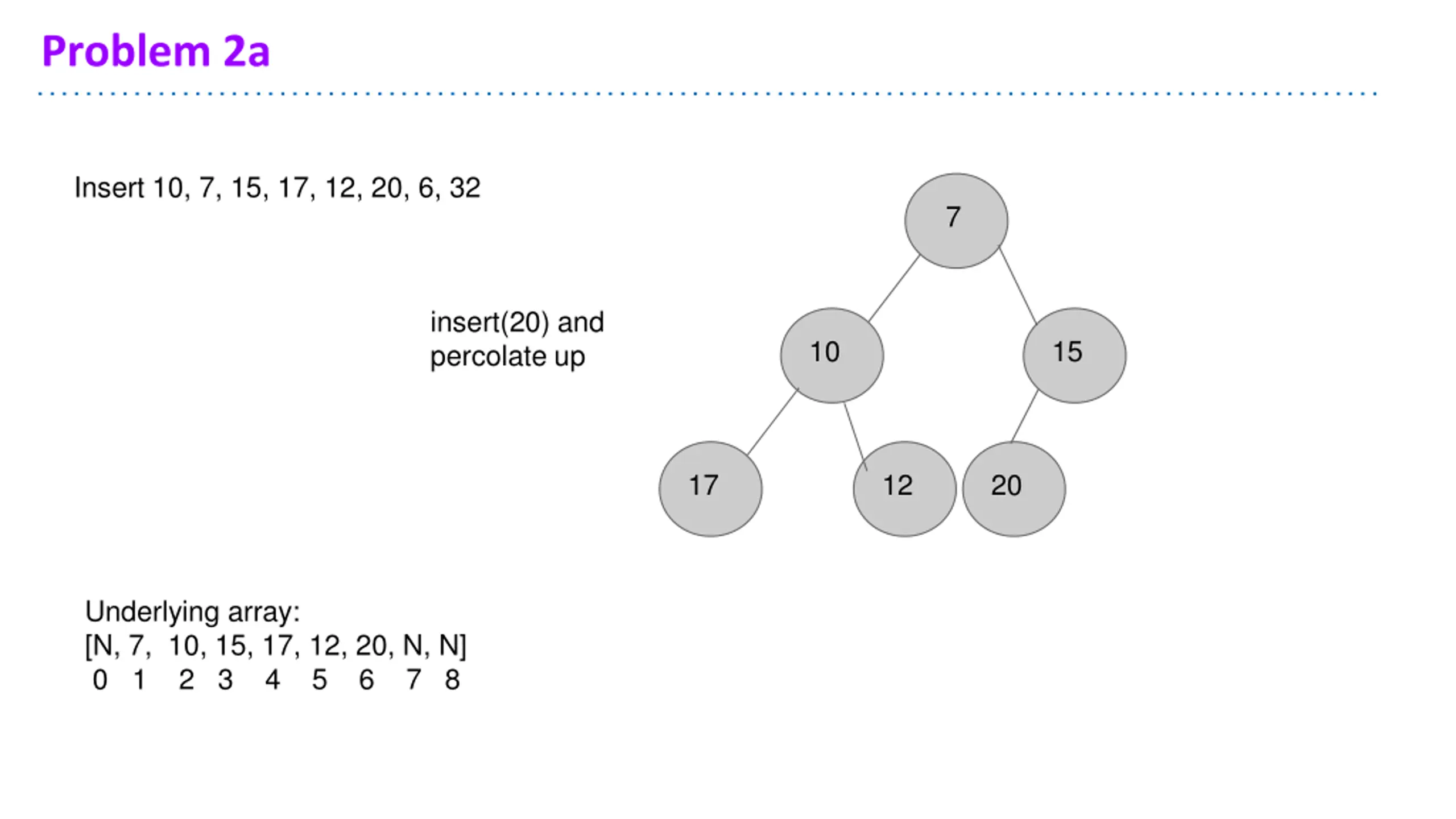

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 insert(20) and percolate up 10 15 17 12 20 Underlying array: [N, 7, 10, 15, 17, 12, 20, N, N] 0 1 2 3 4 5 6 7 8

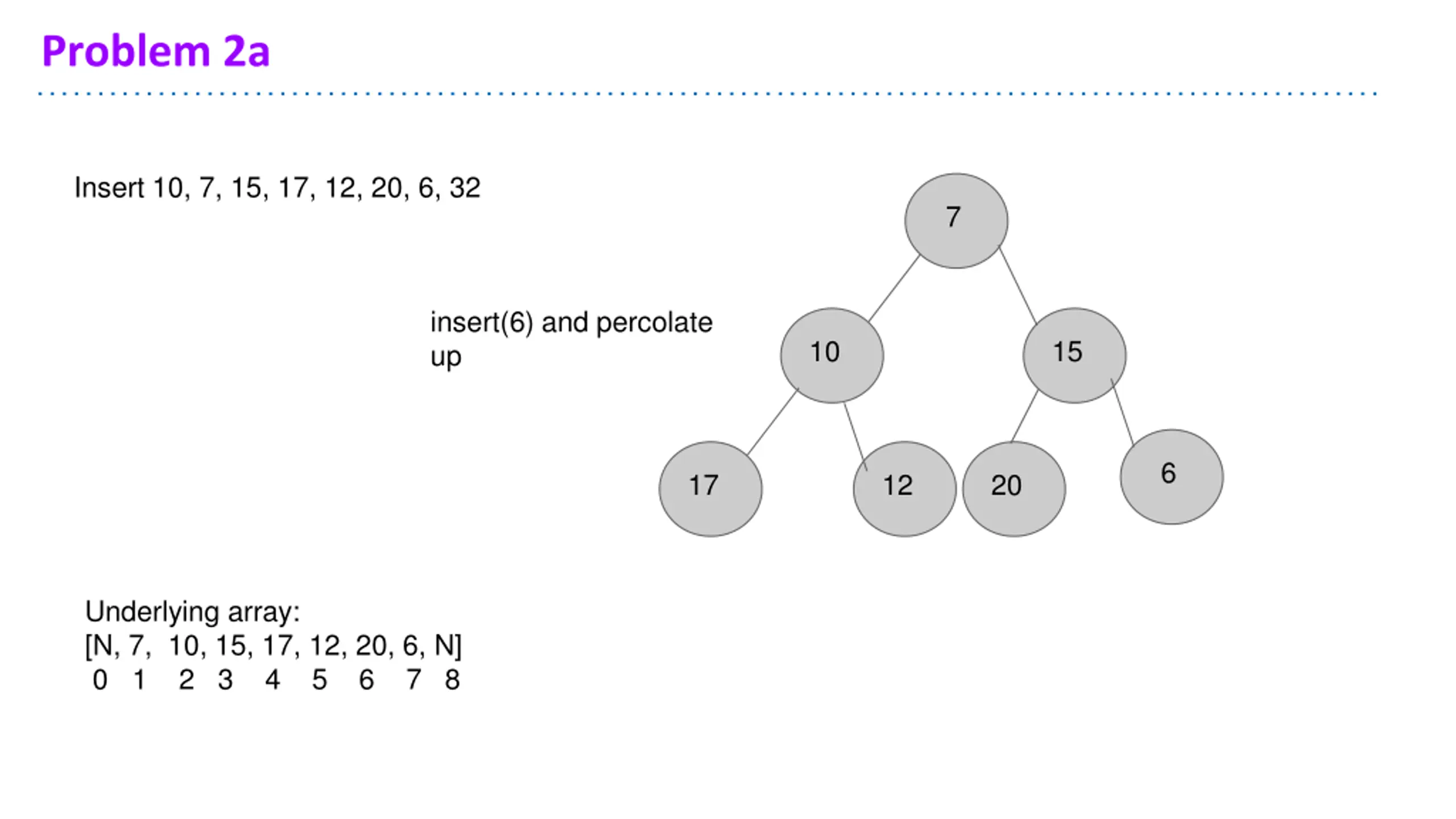

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 insert(6) and percolate up 10 15 6 17 12 20 Underlying array: [N, 7, 10, 15, 17, 12, 20, 6, N] 0 1 2 3 4 5 6 7 8
Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 7 Swap 6 with 15 10 6 15 17 12 20 Underlying array: [N, 7, 10, 6, 17, 12, 20, 15, N] 0 1 2 3 4 5 6 7 8

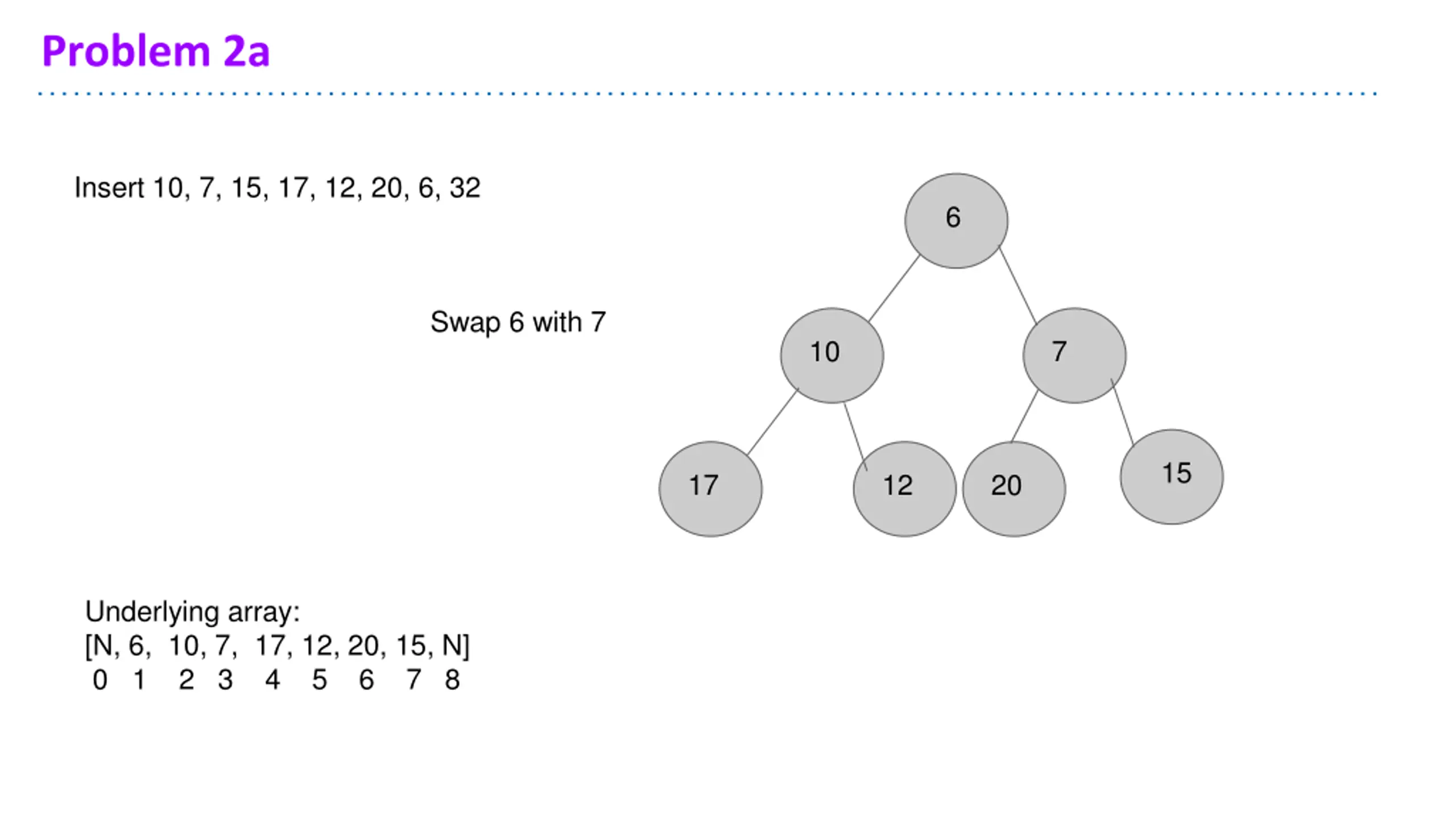

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 6 Swap 6 with 7 10 7 15 17 12 20 Underlying array: [N, 6, 10, 7, 17, 12, 20, 15, N] 0 1 2 3 4 5 6 7 8

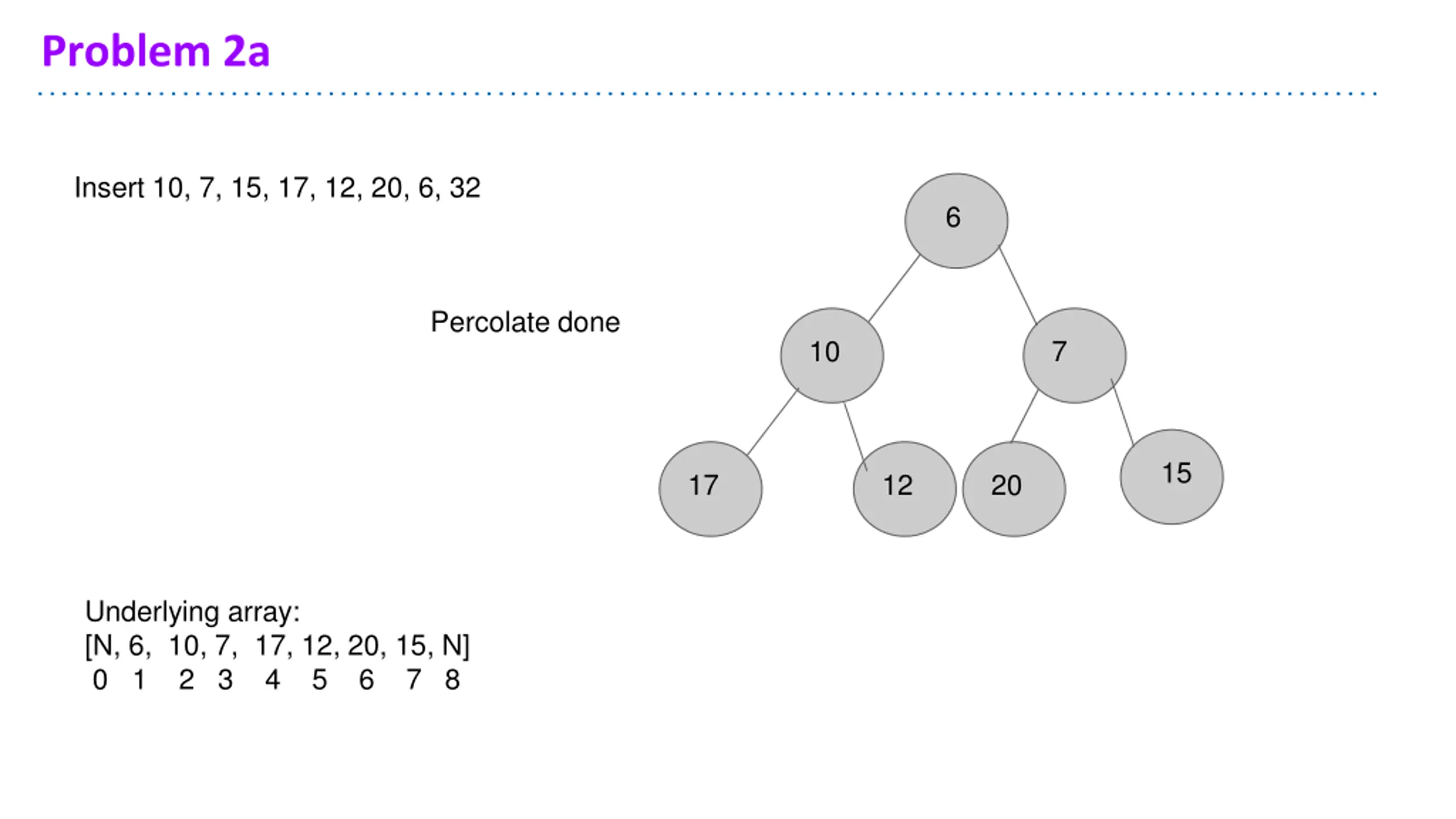

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 6 Percolate done 10 7 15 17 12 20 Underlying array: [N, 6, 10, 7, 17, 12, 20, 15, N] 0 1 2 3 4 5 6 7 8

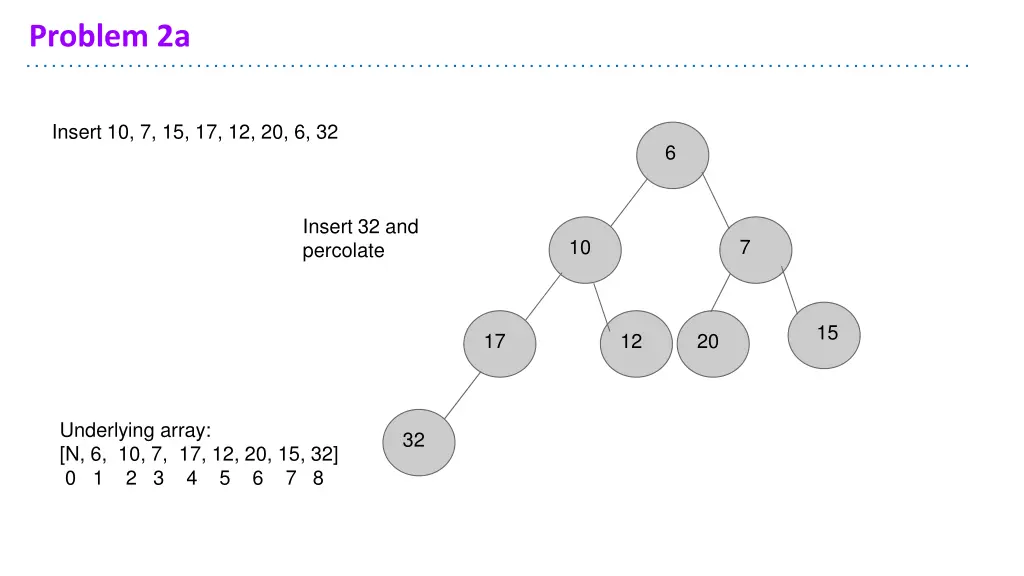

Problem 2a Insert 10, 7, 15, 17, 12, 20, 6, 32 6 Insert 32 and percolate 10 7 15 17 12 20 Underlying array: [N, 6, 10, 7, 17, 12, 20, 15, 32] 0 1 2 3 4 5 6 7 8 32

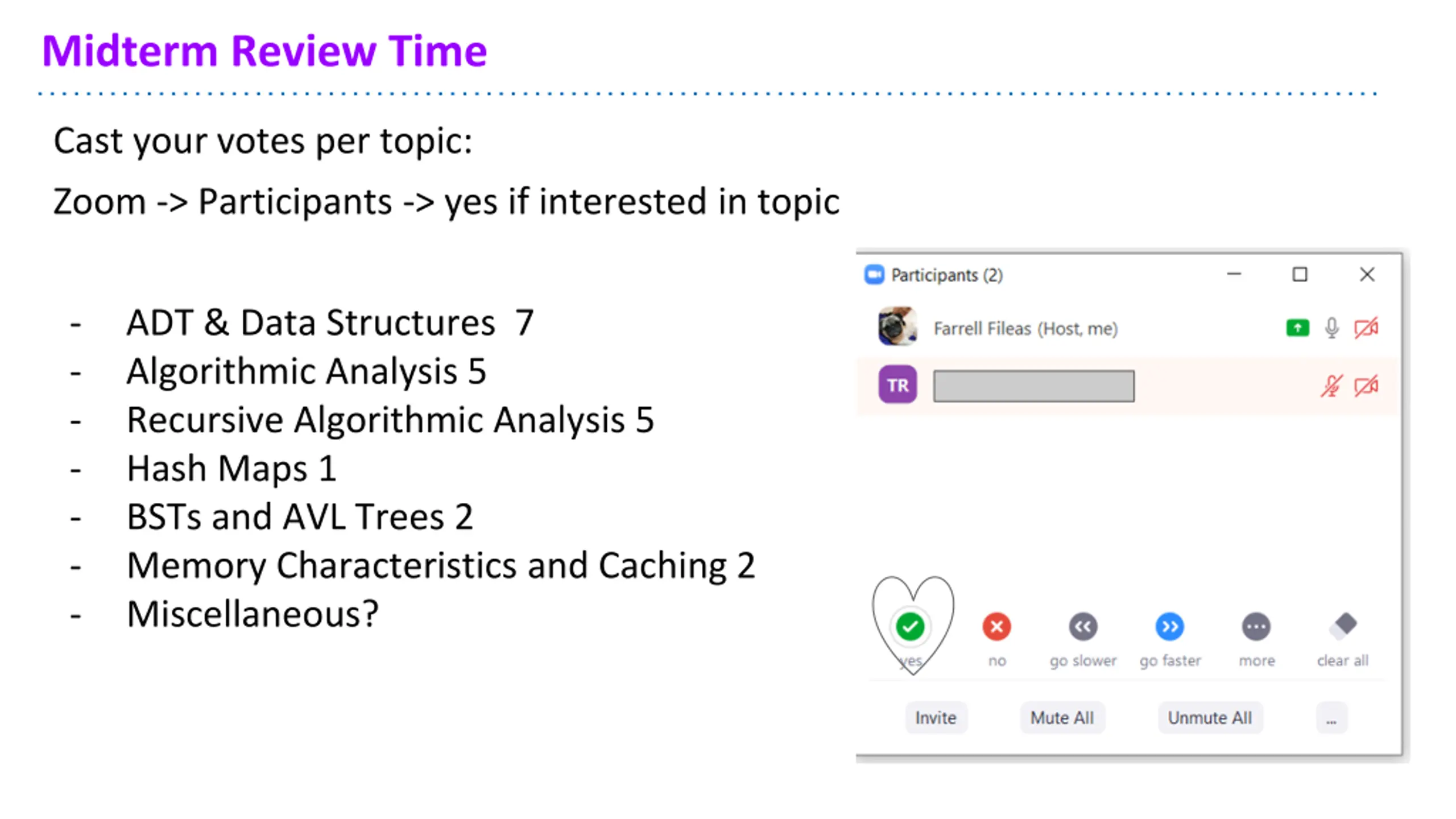

Midterm Review Time Cast your votes per topic: Zoom -> Participants -> yes if interested in topic - - - - - - - ADT & Data Structures 7 Algorithmic Analysis 5 Recursive Algorithmic Analysis 5 Hash Maps 1 BSTs and AVL Trees 2 Memory Characteristics and Caching 2 Miscellaneous?
