Matrix in C++ Dounia Khaldi Intel Corp. 04/14/2022 1

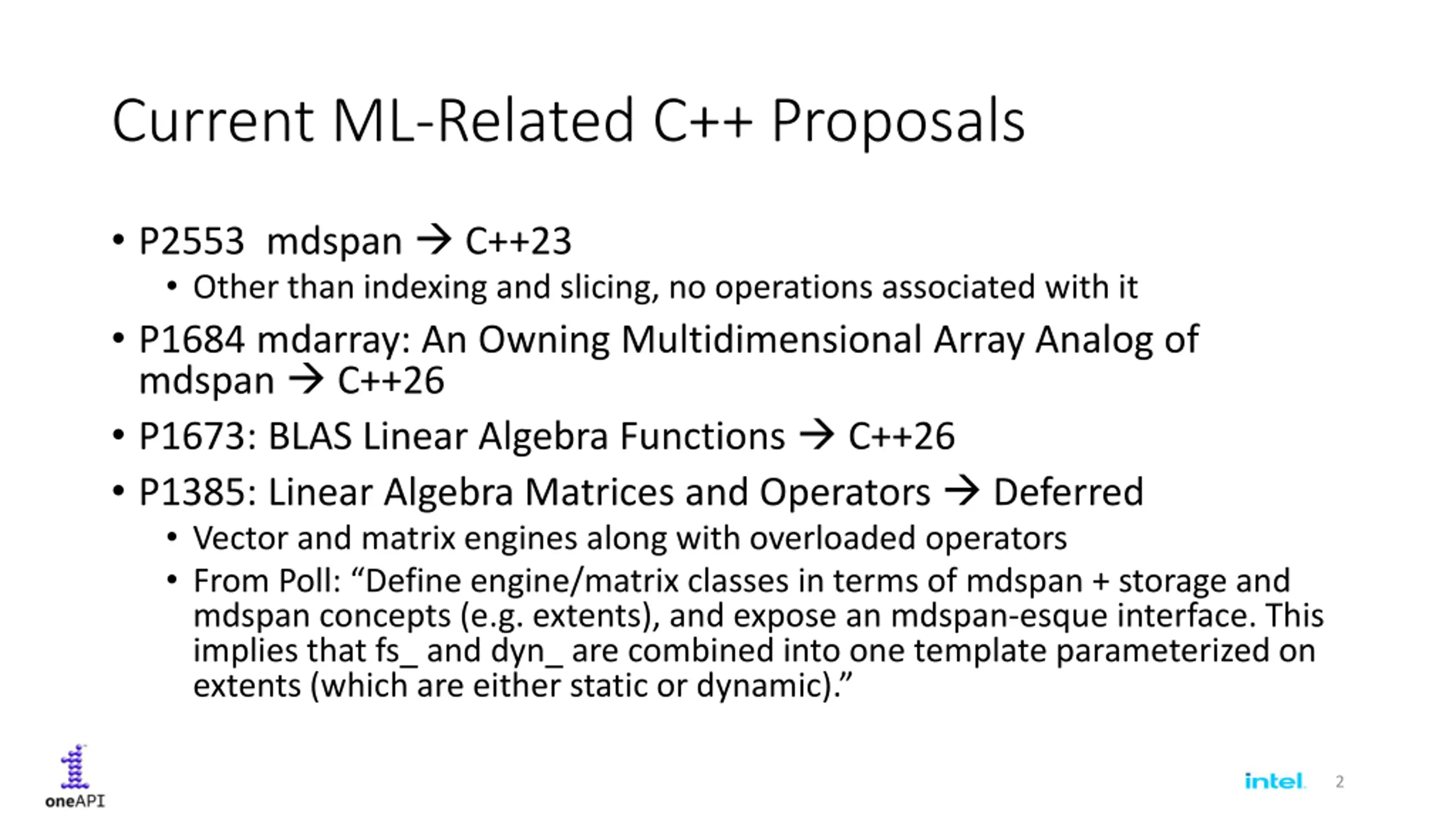

Current ML-Related C++ Proposals P2553 mdspan C++23 Other than indexing and slicing, no operations associated with it P1684 mdarray: An Owning Multidimensional Array Analog of mdspan C++26 P1673: BLAS Linear Algebra Functions C++26 P1385: Linear Algebra Matrices and Operators Deferred Vector and matrix engines along with overloaded operators From Poll: Define engine/matrix classes in terms of mdspan + storage and mdspan concepts (e.g. extents), and expose an mdspan-esque interface. This implies that fs_ and dyn_ are combined into one template parameterized on extents (which are either static or dynamic). 2

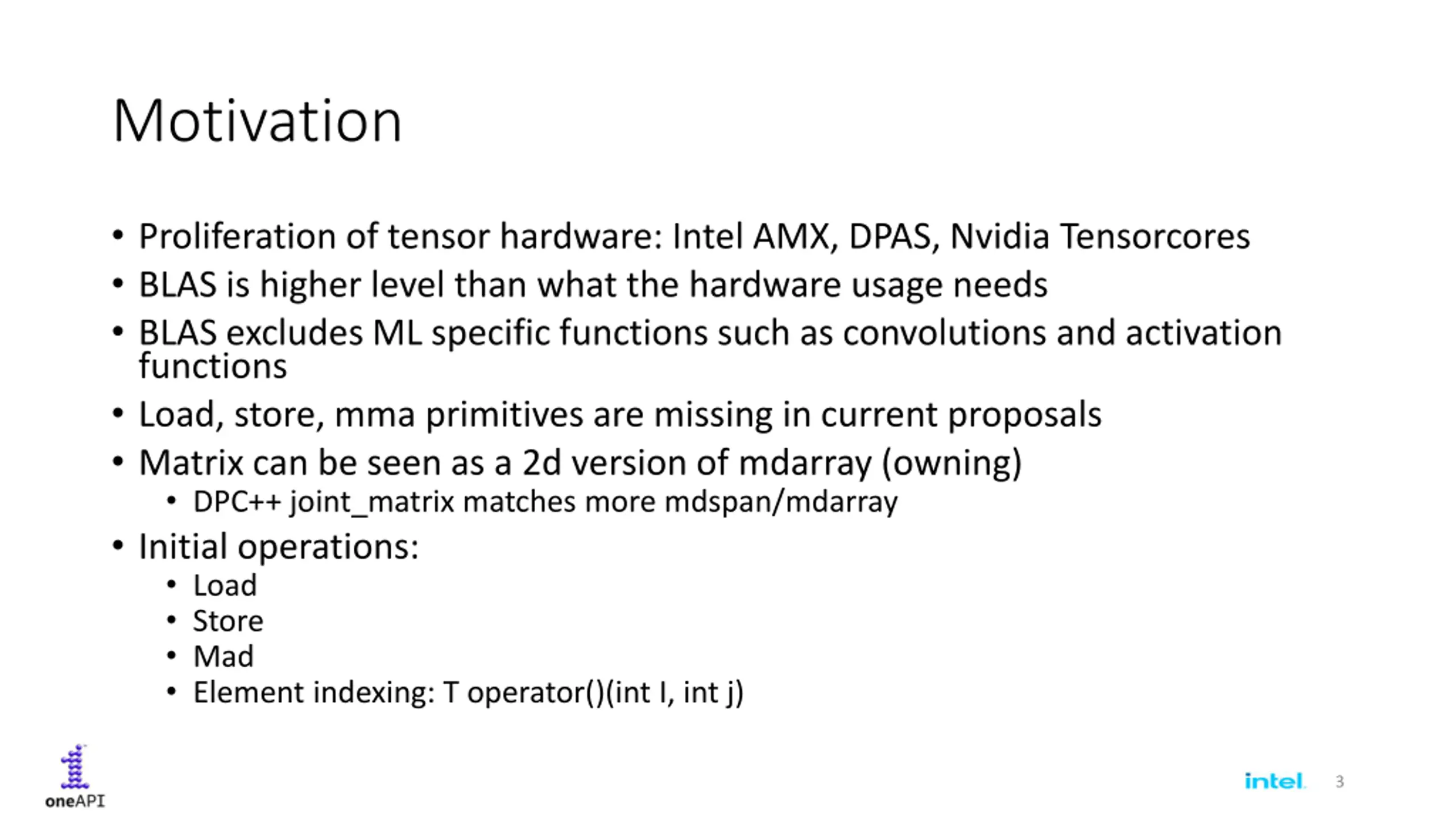

Motivation Proliferation of tensor hardware: Intel AMX, DPAS, Nvidia Tensorcores BLAS is higher level than what the hardware usage needs BLAS excludes ML specific functions such as convolutions and activation functions Load, store, mma primitives are missing in current proposals Matrix can be seen as a 2d version of mdarray (owning) DPC++ joint_matrix matches more mdspan/mdarray Initial operations: Load Store Mad Element indexing: T operator()(int I, int j) 3

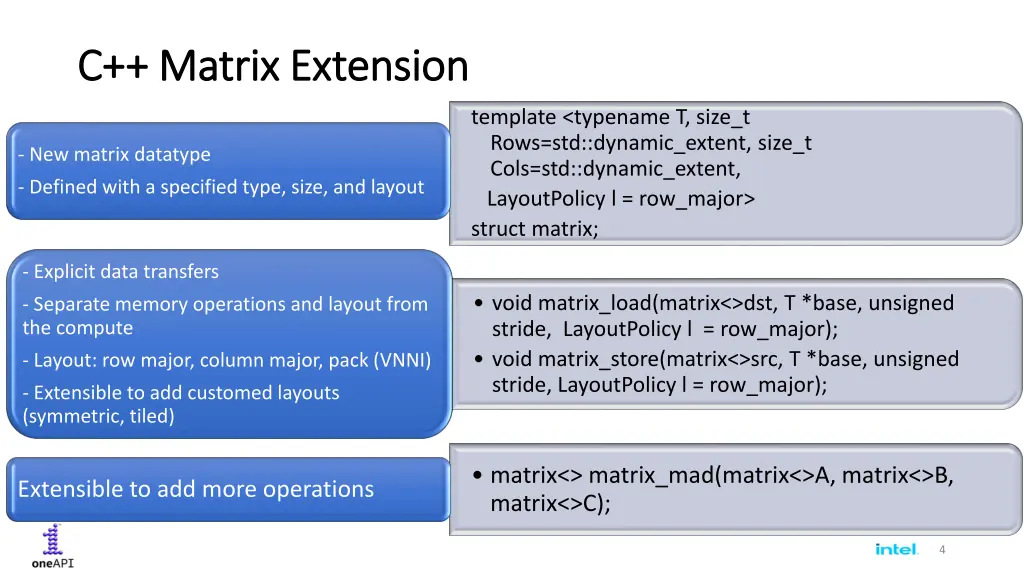

C++ Matrix Extension C++ Matrix Extension template <typename T, size_t Rows=std::dynamic_extent, size_t Cols=std::dynamic_extent, LayoutPolicy l = row_major> struct matrix; - New matrix datatype - Defined with a specified type, size, and layout - Explicit data transfers void matrix_load(matrix<>dst, T *base, unsigned stride, LayoutPolicy l = row_major); void matrix_store(matrix<>src, T *base, unsigned stride, LayoutPolicy l = row_major); - Separate memory operations and layout from the compute - Layout: row major, column major, pack (VNNI) - Extensible to add customed layouts (symmetric, tiled) matrix<> matrix_mad(matrix<>A, matrix<>B, matrix<>C); Extensible to add more operations 4

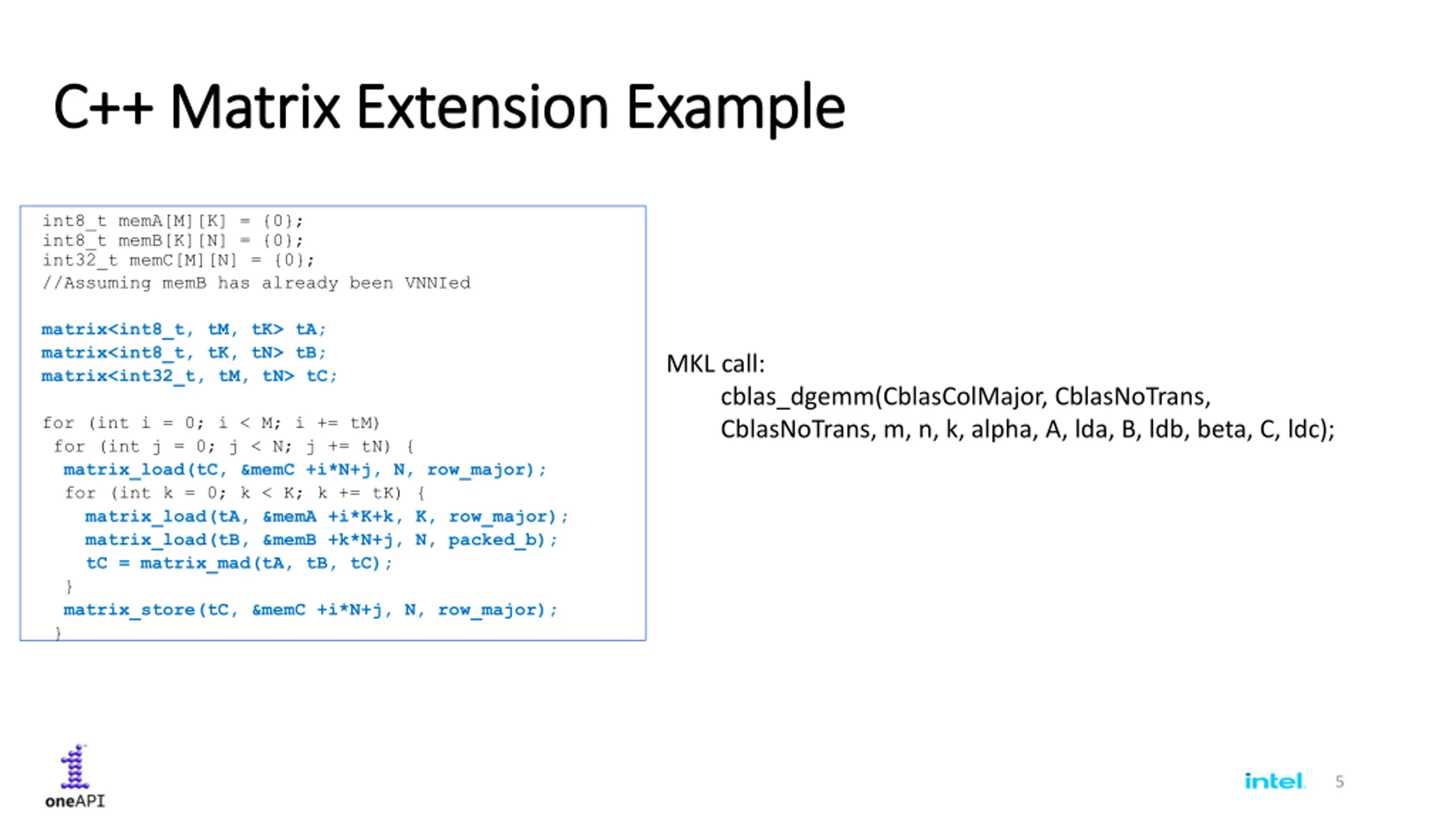

C++ Matrix Extension Example C++ Matrix Extension Example int8_t memA[M][K] = {0}; int8_t memB[K][N] = {0}; int32_t memC[M][N] = {0}; //Assuming memB has already been VNNIed matrix<int8_t, tM, tK> tA; matrix<int8_t, tK, tN> tB; matrix<int32_t, tM, tN> tC; MKL call: cblas_dgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, m, n, k, alpha, A, lda, B, ldb, beta, C, ldc); for (int i = 0; i < M; i += tM) for (int j = 0; j < N; j += tN) { matrix_load(tC, &memC +i*N+j, N, row_major); for (int k = 0; k < K; k += tK) { matrix_load(tA, &memA +i*K+k, K, row_major); matrix_load(tB, &memB +k*N+j, N, packed_b); tC = matrix_mad(tA, tB, tC); } matrix_store(tC, &memC +i*N+j, N, row_major); } 5

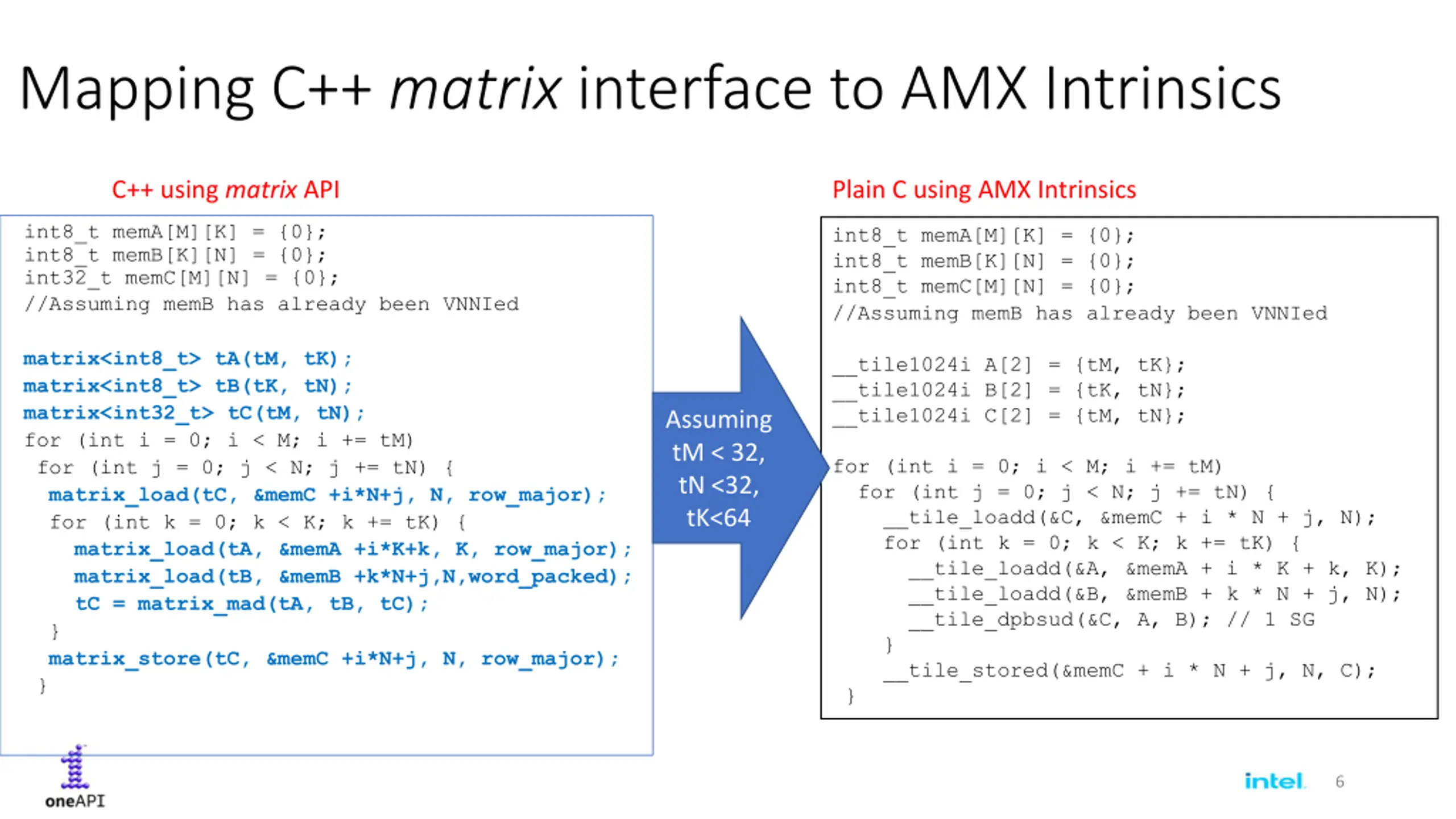

Mapping C++ matrix interface to AMX Intrinsics C++ using matrix API Plain C using AMX Intrinsics int8_t memA[M][K] = {0}; int8_t memB[K][N] = {0}; int32_t memC[M][N] = {0}; //Assuming memB has already been VNNIed matrix<int8_t> tA(tM, tK); matrix<int8_t> tB(tK, tN); matrix<int32_t> tC(tM, tN); for (int i = 0; i < M; i += tM) for (int j = 0; j < N; j += tN) { matrix_load(tC, &memC +i*N+j, N, row_major); for (int k = 0; k < K; k += tK) { matrix_load(tA, &memA +i*K+k, K, row_major); matrix_load(tB, &memB +k*N+j,N,word_packed); tC = matrix_mad(tA, tB, tC); } matrix_store(tC, &memC +i*N+j, N, row_major); } int8_t memA[M][K] = {0}; int8_t memB[K][N] = {0}; int8_t memC[M][N] = {0}; //Assuming memB has already been VNNIed __tile1024i A[2] = {tM, tK}; __tile1024i B[2] = {tK, tN}; __tile1024i C[2] = {tM, tN}; Assuming tM < 32, tN <32, tK<64 for (int i = 0; i < M; i += tM) for (int j = 0; j < N; j += tN) { __tile_loadd(&C, &memC + i * N + j, N); for (int k = 0; k < K; k += tK) { __tile_loadd(&A, &memA + i * K + k, K); __tile_loadd(&B, &memB + k * N + j, N); __tile_dpbsud(&C, A, B); // 1 SG } __tile_stored(&memC + i * N + j, N, C); } 6
