Developing Custom Payment Gateway 4/19/2012 Miro Remias, Solution Architect

Built-in Payment Gateways PayPal, Authorize.NET, Customer Credit, ? Custom Payment Gateway, Market Place: E-way, PayPal Payflow Pro,

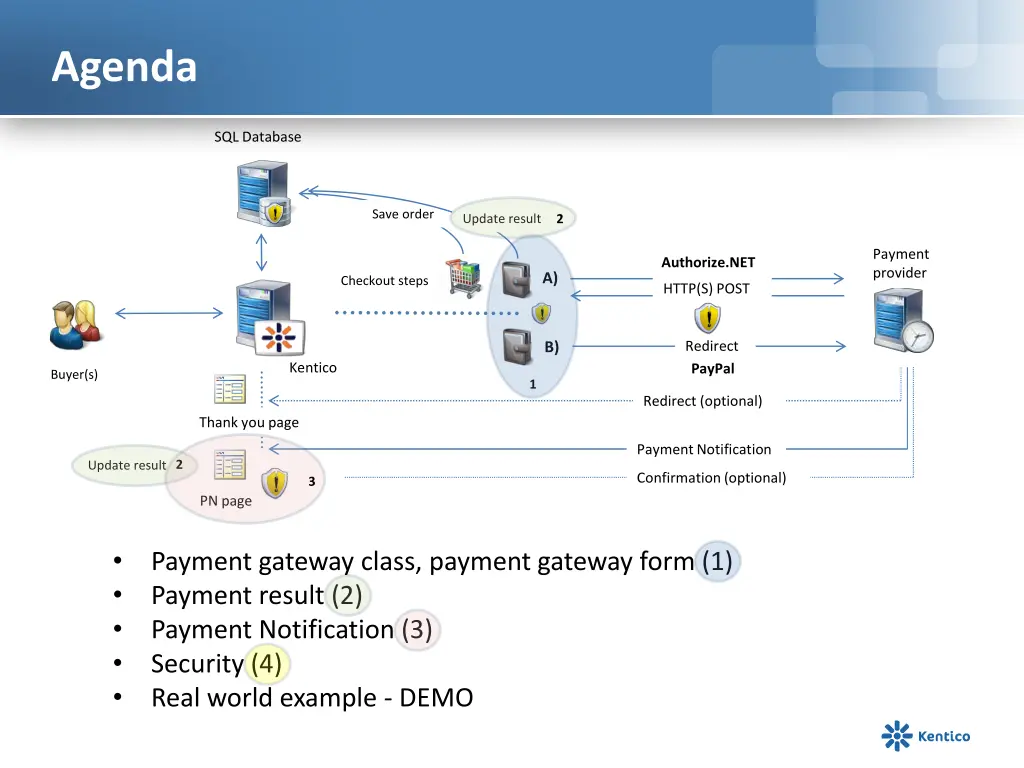

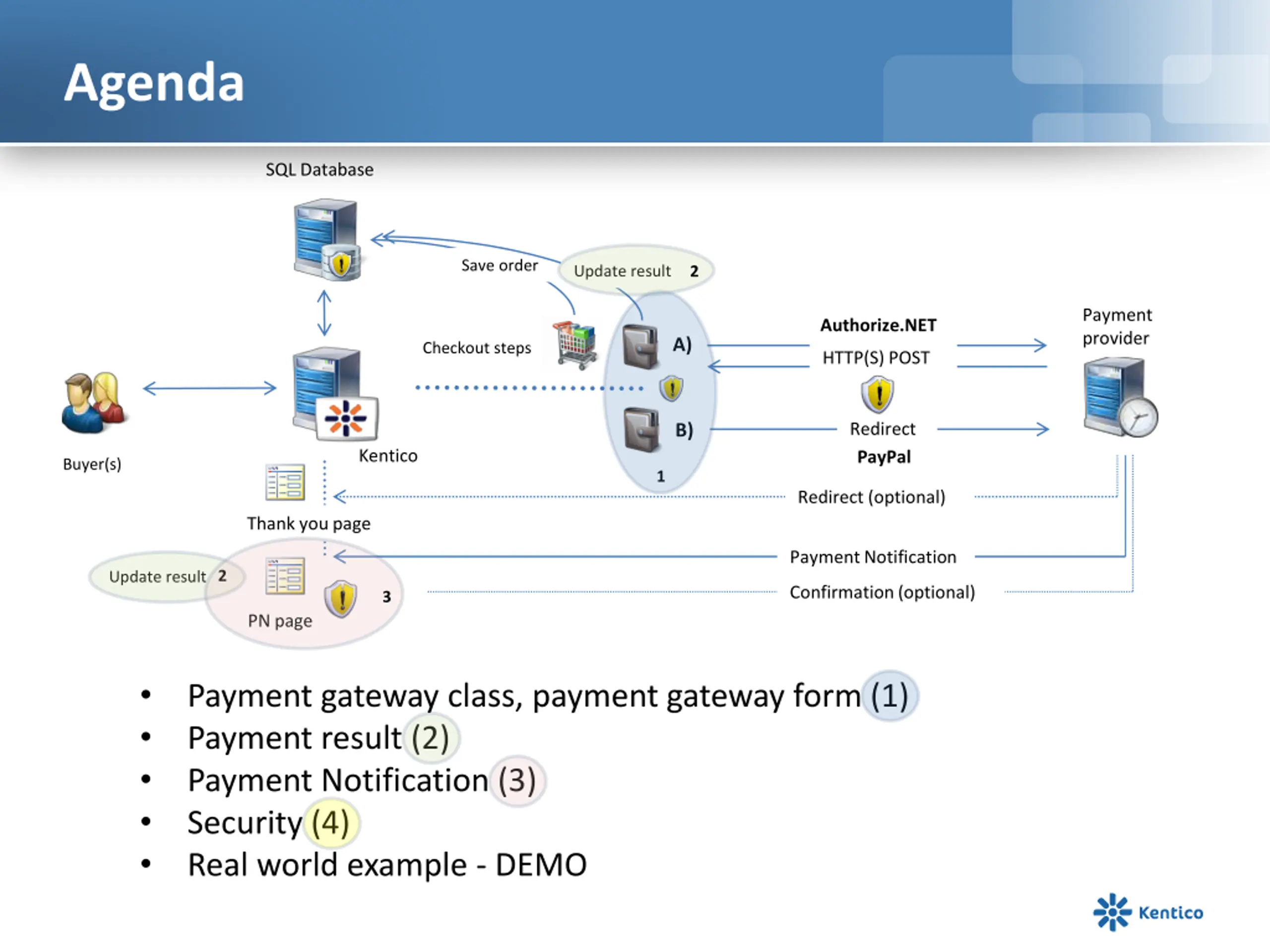

Agenda SQL Database Save order Update result 2 Payment provider Authorize.NET A) Checkout steps HTTP(S) POST Redirect PayPal B) Kentico Buyer(s) 1 Redirect (optional) Thank you page Payment Notification Update result 2 Confirmation (optional) 3 PN page Payment gateway class, payment gateway form (1) Payment result (2) Payment Notification (3) Security (4) Real world example - DEMO

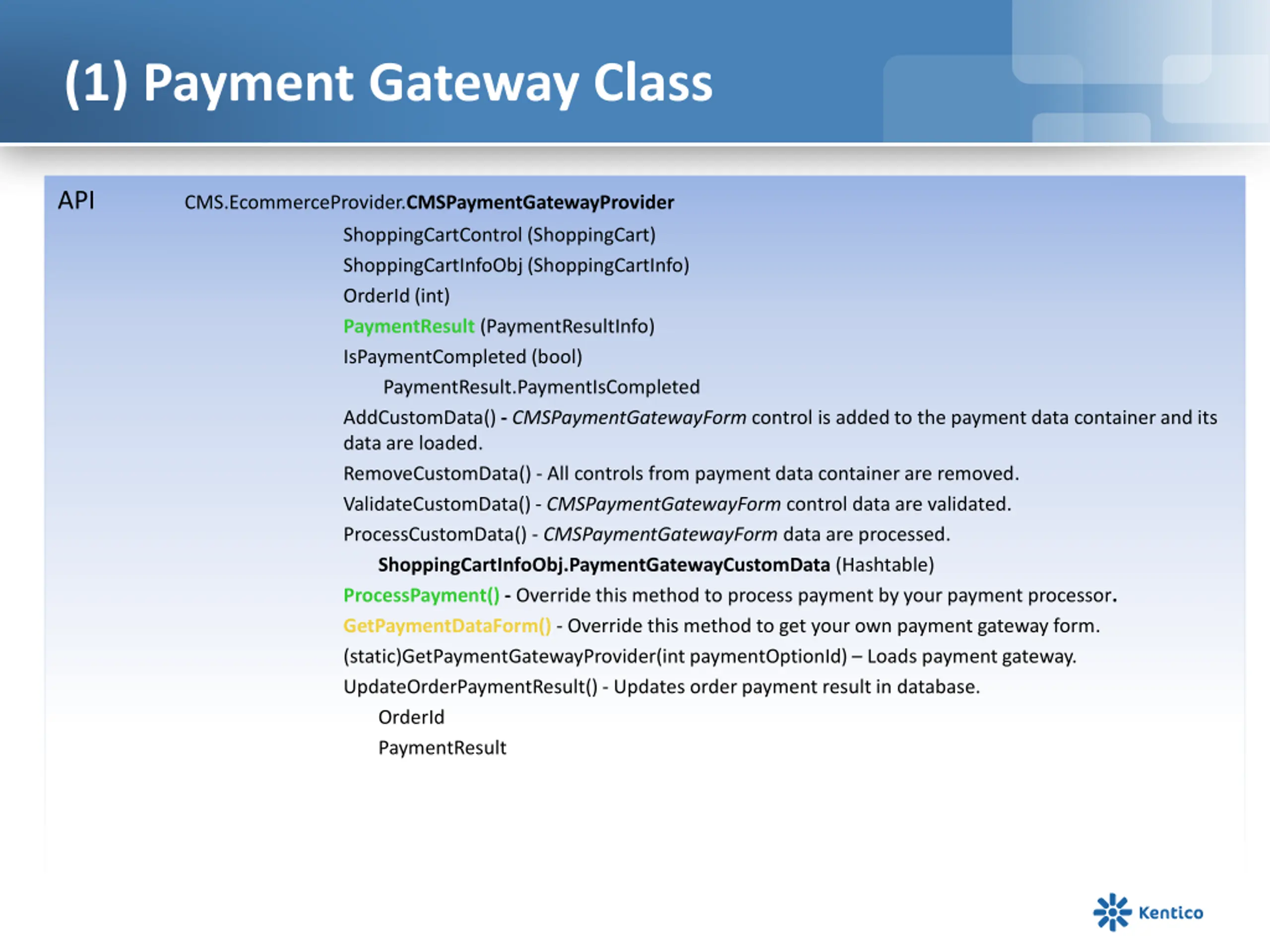

(1) Payment Gateway Class API CMS.EcommerceProvider.CMSPaymentGatewayProvider ShoppingCartControl (ShoppingCart) ShoppingCartInfoObj (ShoppingCartInfo) OrderId (int) PaymentResult (PaymentResultInfo) IsPaymentCompleted (bool) PaymentResult.PaymentIsCompleted AddCustomData() - CMSPaymentGatewayForm control is added to the payment data container and its data are loaded. RemoveCustomData() - All controls from payment data container are removed. ValidateCustomData() - CMSPaymentGatewayForm control data are validated. ProcessCustomData() - CMSPaymentGatewayForm data are processed. ShoppingCartInfoObj.PaymentGatewayCustomData (Hashtable) ProcessPayment() - Override this method to process payment by your payment processor. GetPaymentDataForm() - Override this method to get your own payment gateway form. (static)GetPaymentGatewayProvider(intpaymentOptionId) Loads payment gateway. UpdateOrderPaymentResult() - Updates order payment result in database. OrderId PaymentResult

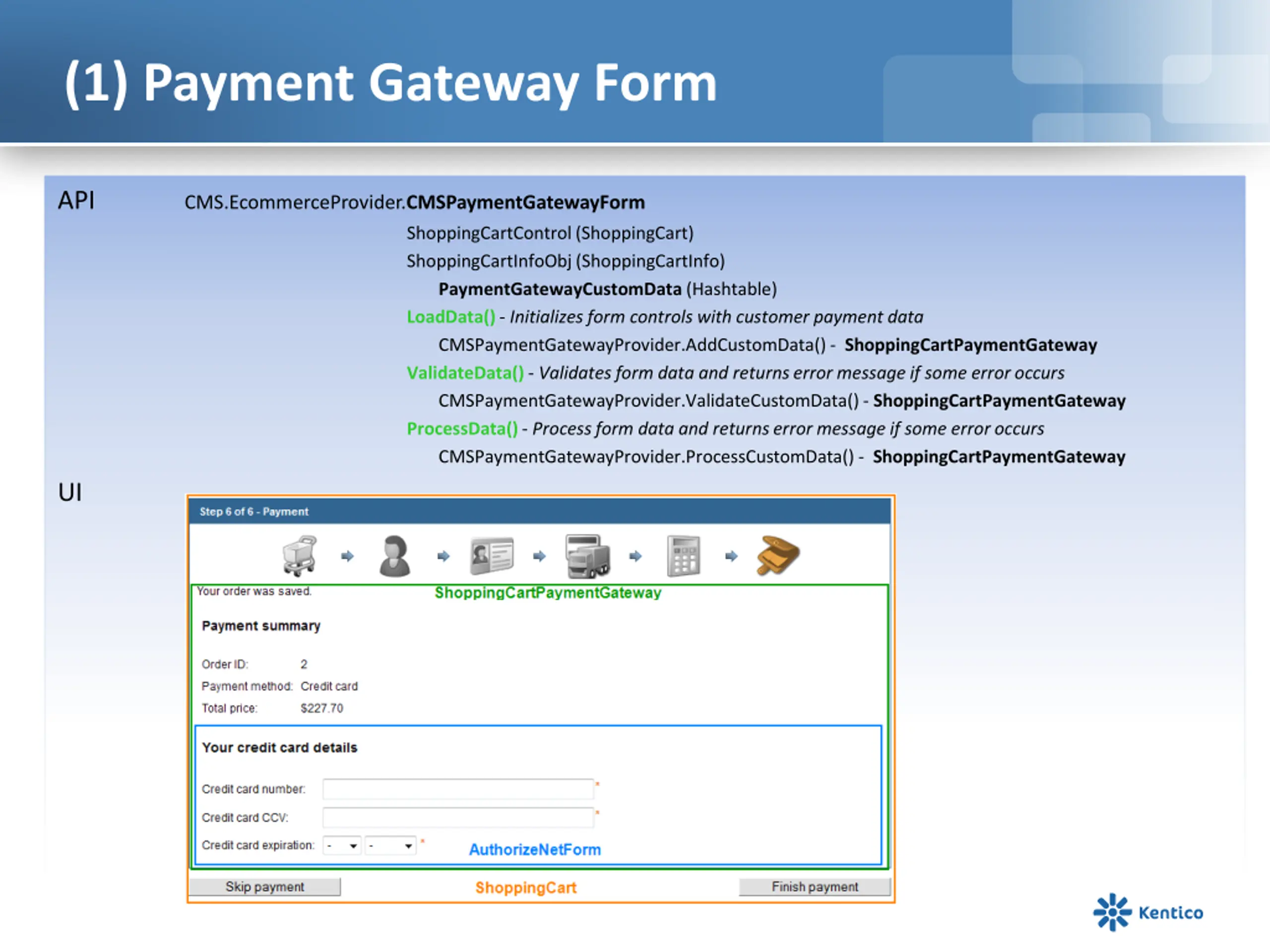

(1) Payment Gateway Form API CMS.EcommerceProvider.CMSPaymentGatewayForm ShoppingCartControl(ShoppingCart) ShoppingCartInfoObj(ShoppingCartInfo) PaymentGatewayCustomData(Hashtable) LoadData()- Initializes form controls with customer payment data CMSPaymentGatewayProvider.AddCustomData() - ShoppingCartPaymentGateway ValidateData() - Validates form data and returns error message if some error occurs CMSPaymentGatewayProvider.ValidateCustomData() - ShoppingCartPaymentGateway ProcessData() - Process form data and returns error message if some error occurs CMSPaymentGatewayProvider.ProcessCustomData() - ShoppingCartPaymentGateway UI

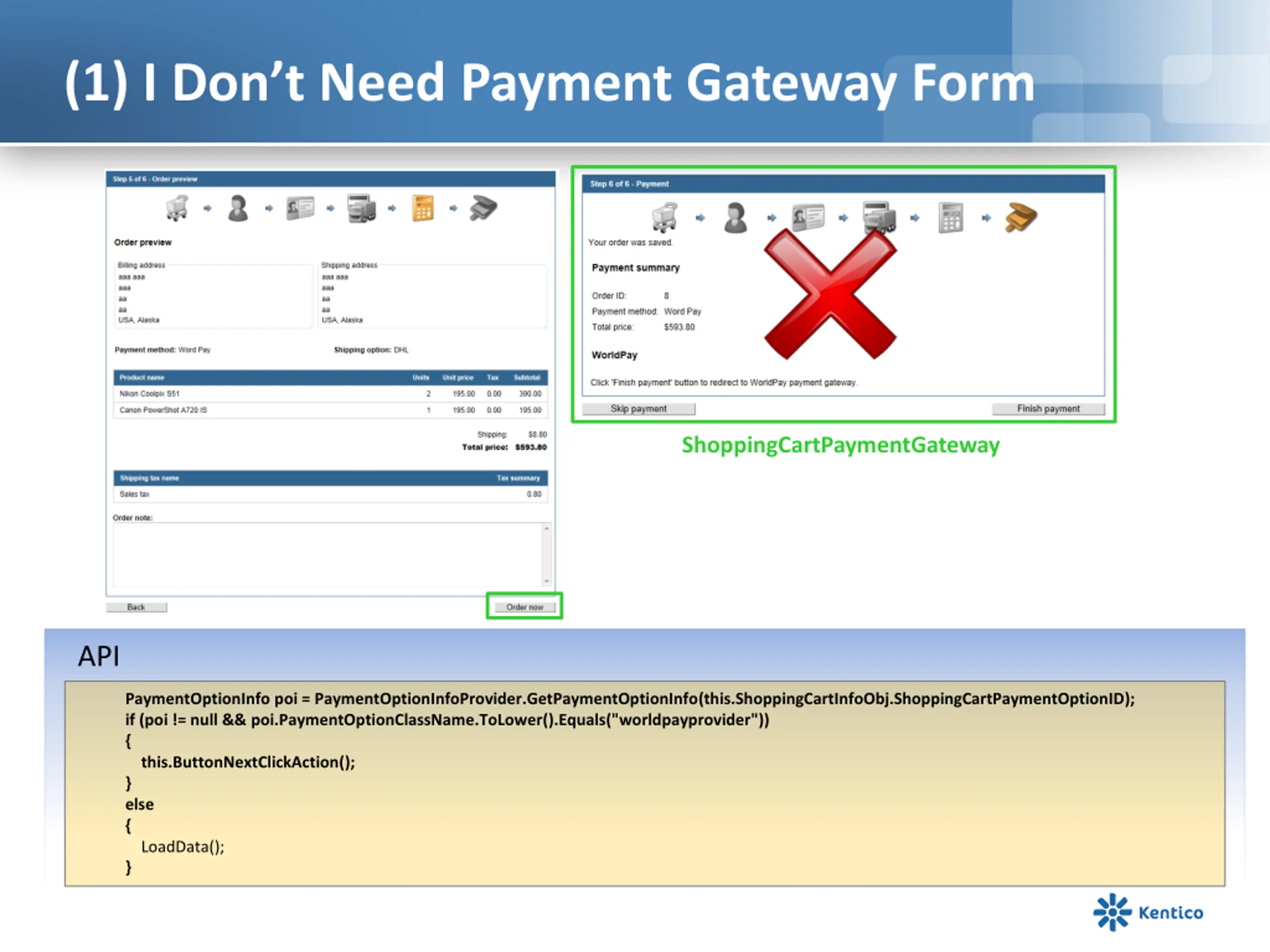

(1) I Dont Need Payment Gateway Form ShoppingCartPaymentGateway API PaymentOptionInfo poi = PaymentOptionInfoProvider.GetPaymentOptionInfo(this.ShoppingCartInfoObj.ShoppingCartPaymentOptionID); if (poi != null && poi.PaymentOptionClassName.ToLower().Equals("worldpayprovider")) { this.ButtonNextClickAction(); } else { LoadData(); }

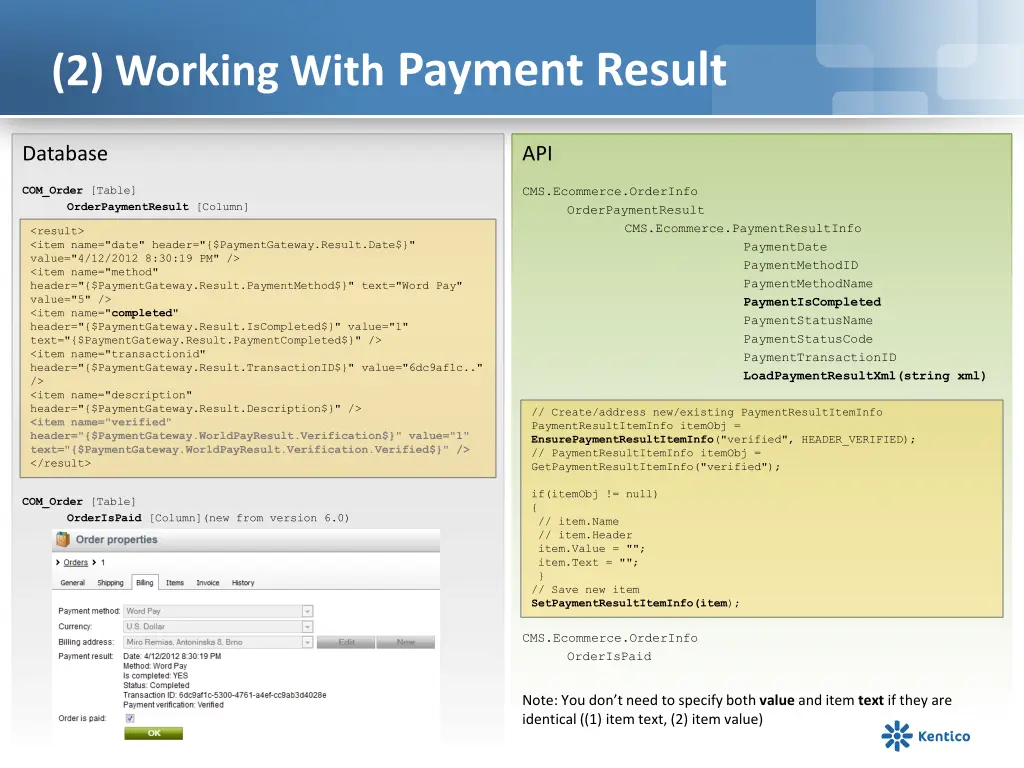

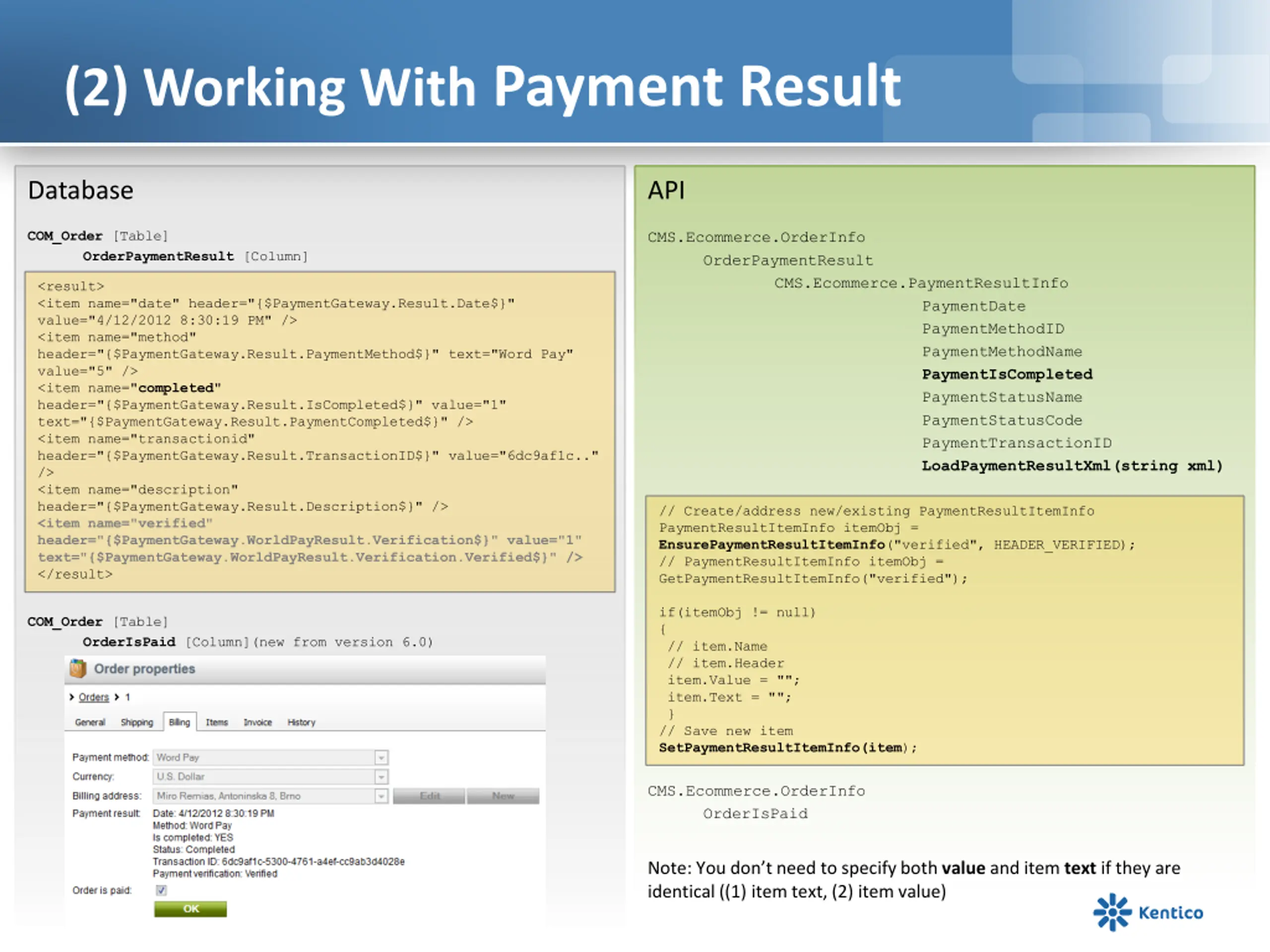

(2) Working With Payment Result Database API COM_Order [Table] OrderPaymentResult [Column] CMS.Ecommerce.OrderInfo OrderPaymentResult CMS.Ecommerce.PaymentResultInfo <result> <item name="date" header="{$PaymentGateway.Result.Date$}" value="4/12/2012 8:30:19 PM" /> <item name="method" header="{$PaymentGateway.Result.PaymentMethod$}" text="Word Pay" value="5" /> <item name="completed" header="{$PaymentGateway.Result.IsCompleted$}" value="1" text="{$PaymentGateway.Result.PaymentCompleted$}" /> <item name="transactionid" header="{$PaymentGateway.Result.TransactionID$}" value="6dc9af1c.." /> <item name="description" header="{$PaymentGateway.Result.Description$}" /> <item name="verified" header="{$PaymentGateway.WorldPayResult.Verification$}" value="1" text="{$PaymentGateway.WorldPayResult.Verification.Verified$}" /> </result> PaymentDate PaymentMethodID PaymentMethodName PaymentIsCompleted PaymentStatusName PaymentStatusCode PaymentTransactionID LoadPaymentResultXml(string xml) // Create/address new/existing PaymentResultItemInfo PaymentResultItemInfo itemObj = EnsurePaymentResultItemInfo("verified", HEADER_VERIFIED); // PaymentResultItemInfo itemObj = GetPaymentResultItemInfo("verified"); if(itemObj != null) { // item.Name // item.Header item.Value = ""; item.Text = ""; } // Save new item SetPaymentResultItemInfo(item); COM_Order [Table] OrderIsPaid [Column](new from version 6.0) CMS.Ecommerce.OrderInfo OrderIsPaid Note: You don t need to specify both value and item text if they are identical ((1) item text, (2) item value)

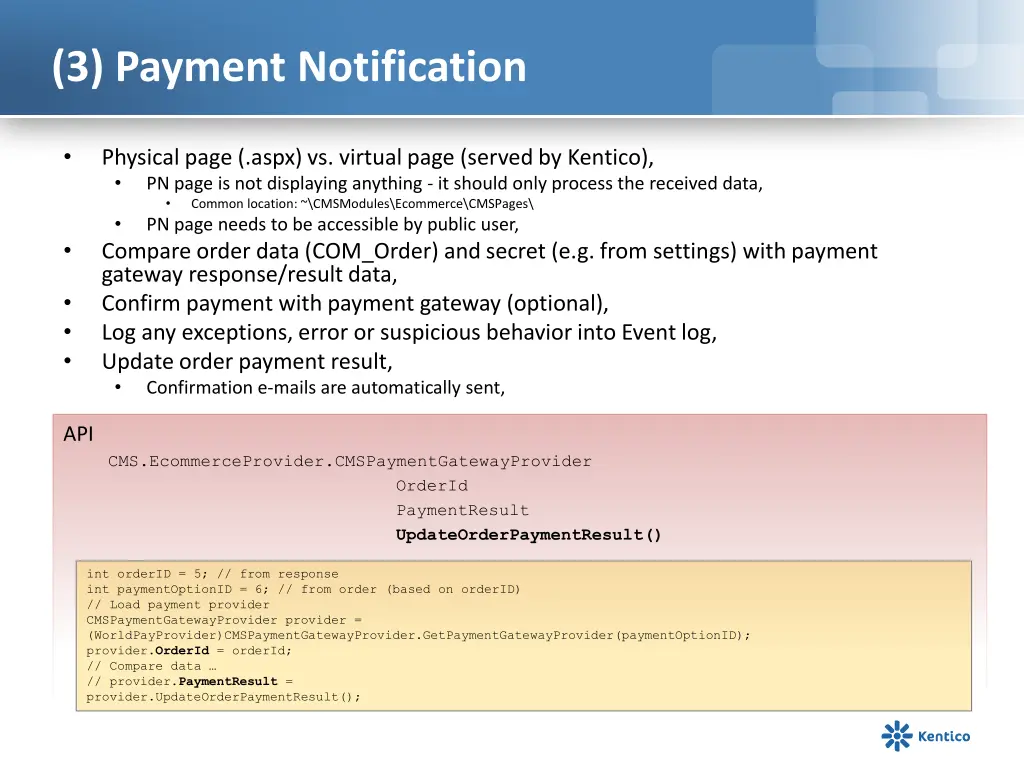

(3) Payment Notification Physical page (.aspx) vs. virtual page (served by Kentico), PN page is not displaying anything - it should only process the received data, Common location: ~\CMSModules\Ecommerce\CMSPages\ PN page needs to be accessible by public user, Compare order data (COM_Order) and secret (e.g. from settings) with payment gateway response/result data, Confirm payment with payment gateway (optional), Log any exceptions, error or suspicious behavior into Event log, Update order payment result, Confirmation e-mails are automatically sent, API CMS.EcommerceProvider.CMSPaymentGatewayProvider OrderId PaymentResult UpdateOrderPaymentResult() int orderID = 5; // from response int paymentOptionID = 6; // from order (based on orderID) // Load payment provider CMSPaymentGatewayProvider provider = (WorldPayProvider)CMSPaymentGatewayProvider.GetPaymentGatewayProvider(paymentOptionID); provider.OrderId = orderId; // Compare data // provider.PaymentResult = provider.UpdateOrderPaymentResult();

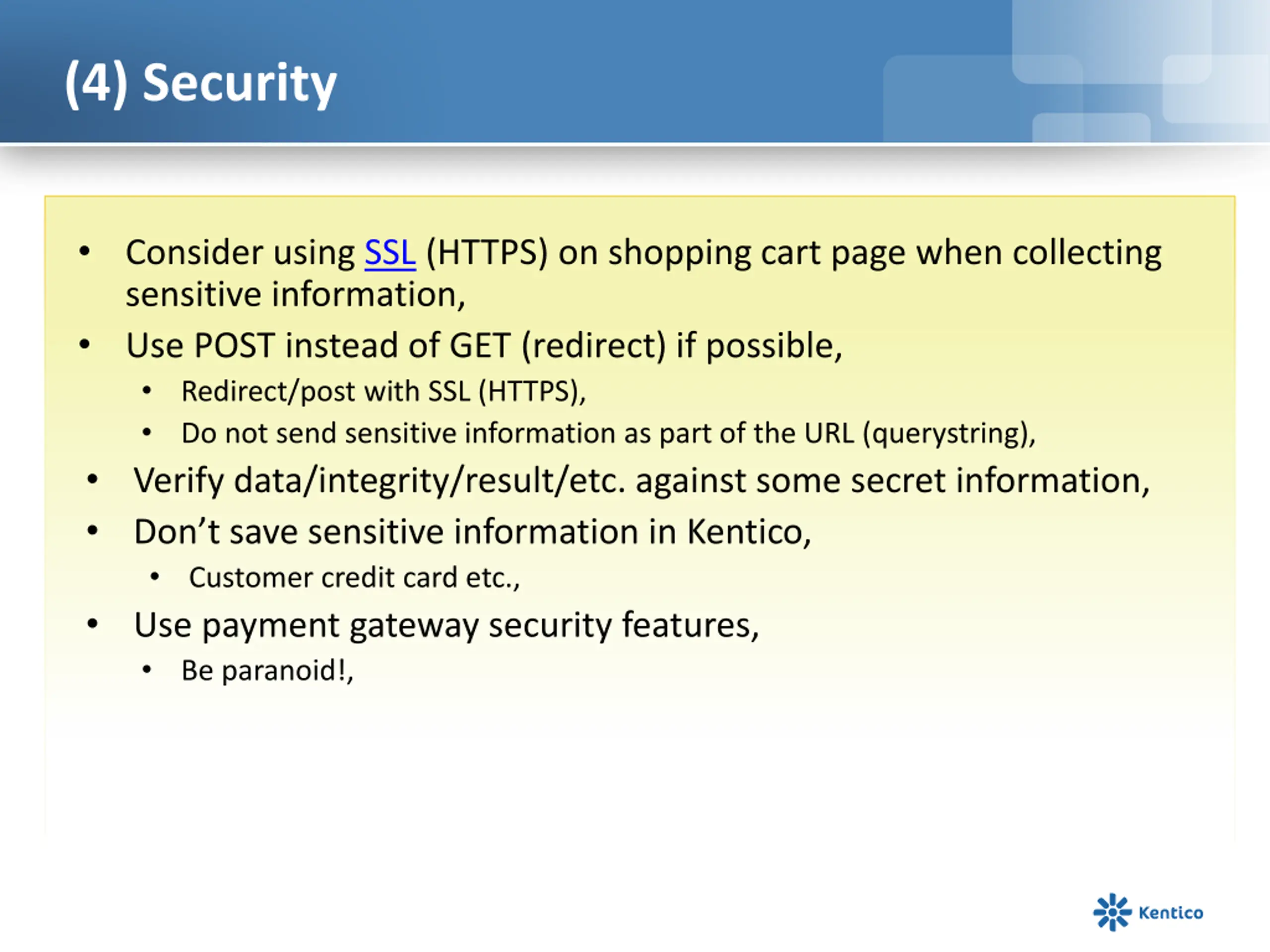

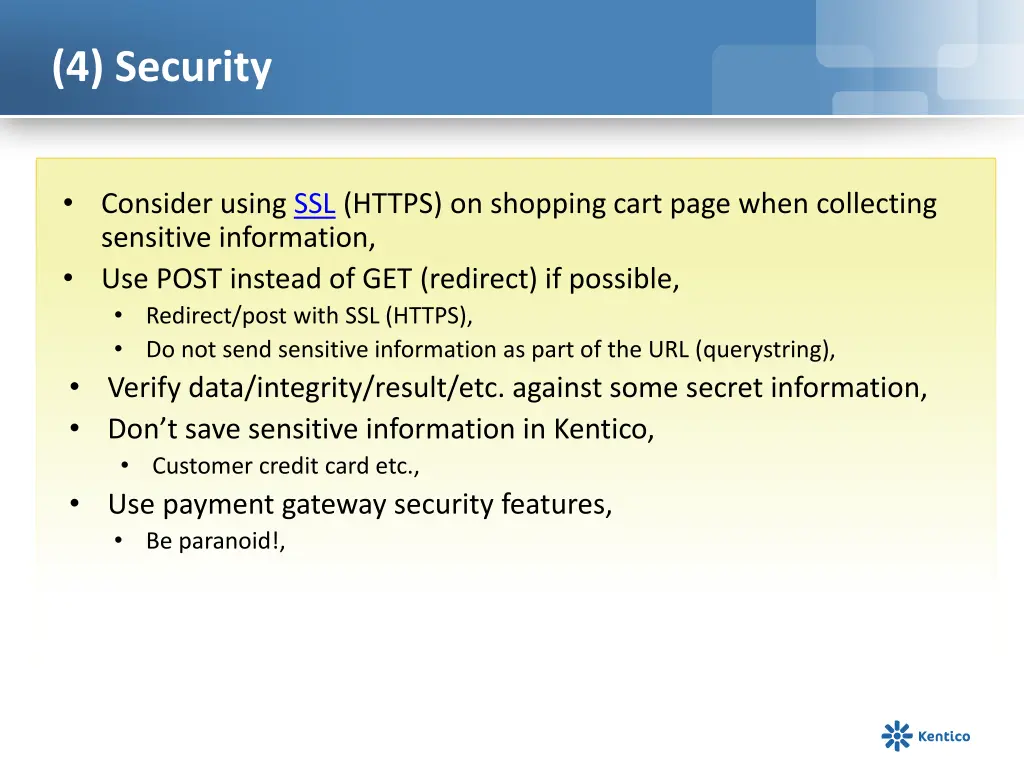

(4) Security Consider using SSL (HTTPS) on shopping cart page when collecting sensitive information, Use POST instead of GET (redirect) if possible, Redirect/post with SSL (HTTPS), Do not send sensitive information as part of the URL (querystring), Verify data/integrity/result/etc. against some secret information, Don t save sensitive information in Kentico, Customer credit card etc., Use payment gateway security features, Be paranoid!,

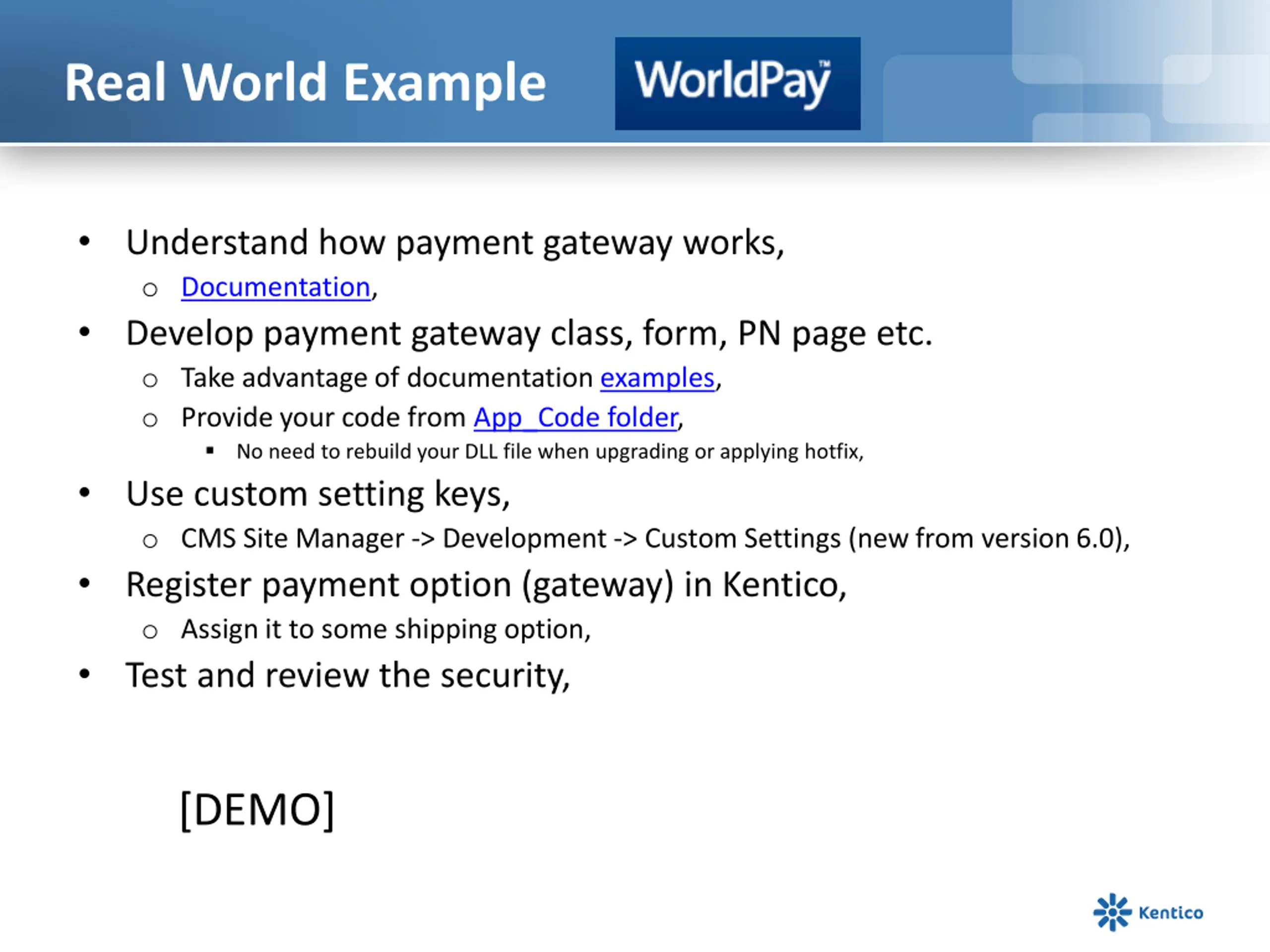

Real World Example Understand how payment gateway works, o Documentation, Develop payment gateway class, form, PN page etc. o Take advantage of documentation examples, o Provide your code from App_Code folder, No need to rebuild your DLL file when upgrading or applying hotfix, Use custom setting keys, o CMS Site Manager -> Development -> Custom Settings (new from version 6.0), Register payment option (gateway) in Kentico, o Assign it to some shipping option, Test and review the security, [DEMO]

Questions ?

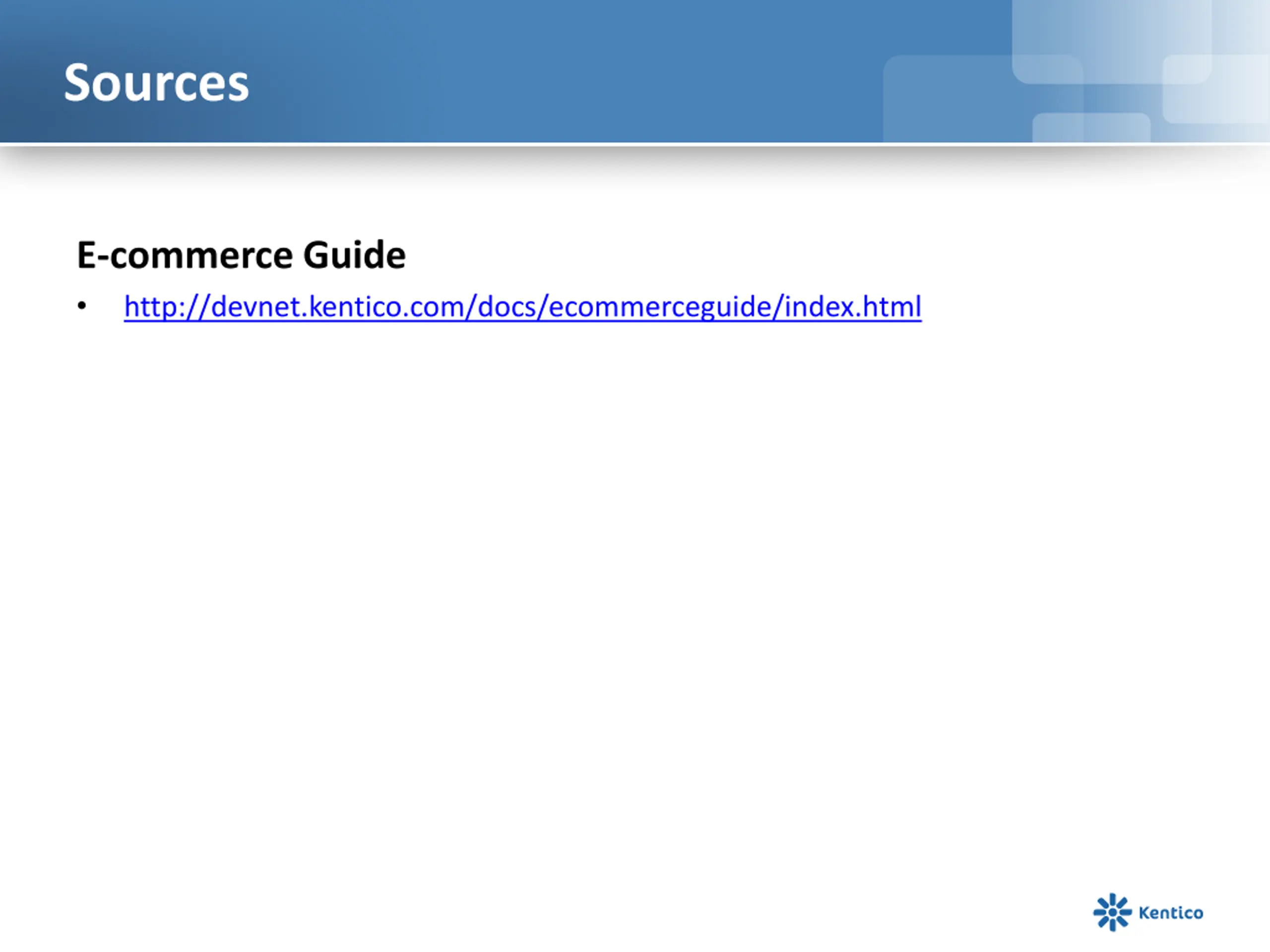

Sources E-commerce Guide http://devnet.kentico.com/docs/ecommerceguide/index.html

Contact Miro Remias e-mail: miro@kentico.com consulting: http://www.kentico.com/Support/Consulting/Overview
