Phoebus in the Dark EPICS Collaboration Meeting April 7-11, 2025 Rutherford Appleton Laboratory Advancing humanity. Engineering remarkable. Urban Bobek Software Developer urban.bobek@cosylab.com 1

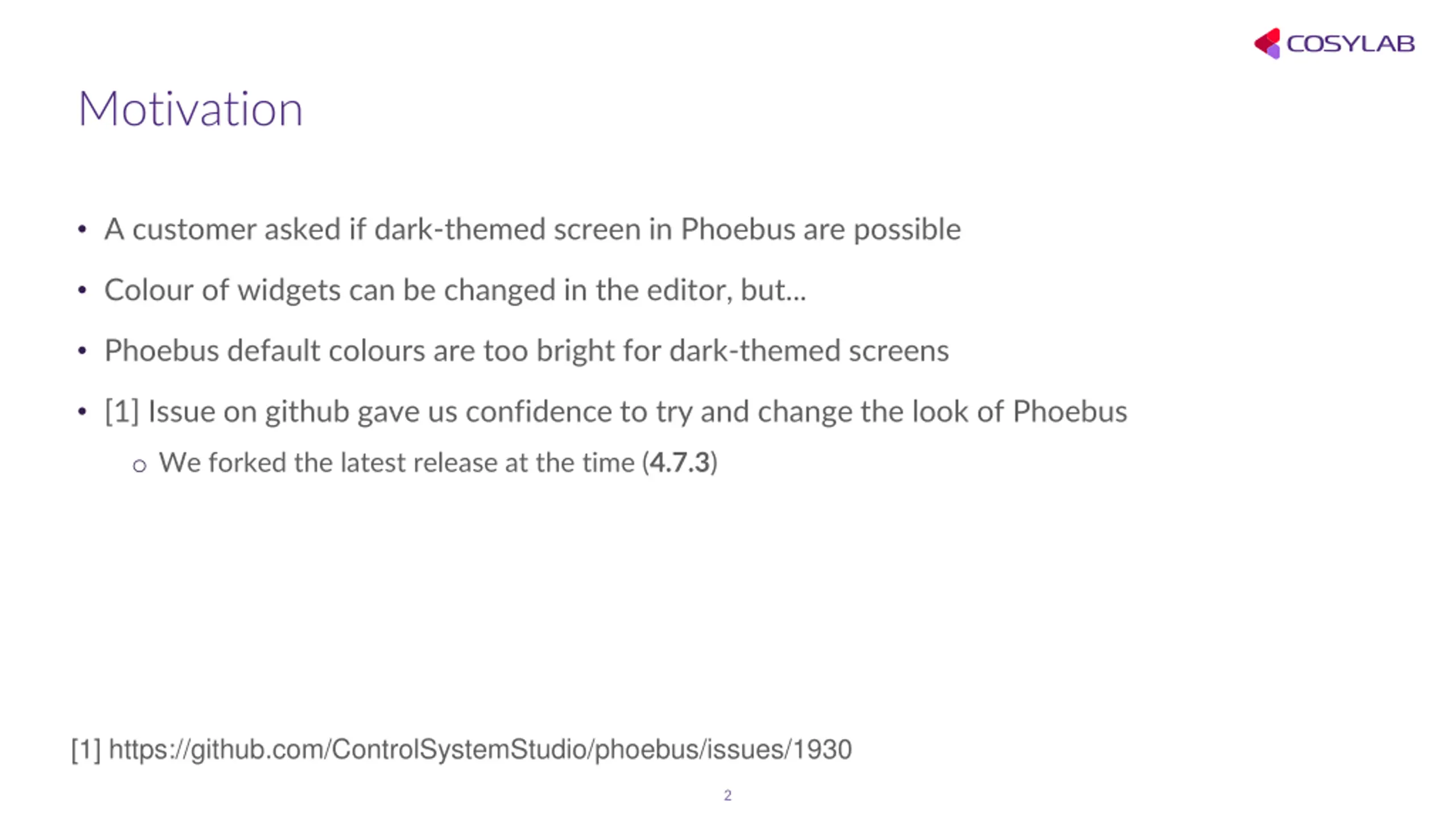

Motivation A customer asked if dark-themed screen in Phoebus are possible Colour of widgets can be changed in the editor, but... Phoebus default colours are too bright for dark-themed screens [1] Issue on github gave us confidence to try and change the look of Phoebus o We forked the latest release at the time (4.7.3) [1] https://github.com/ControlSystemStudio/phoebus/issues/1930 2

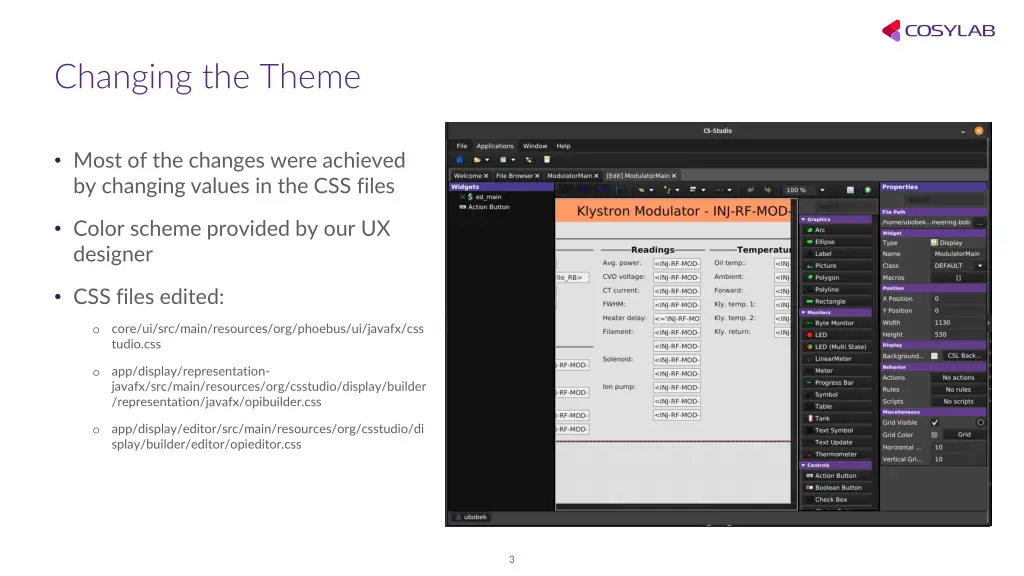

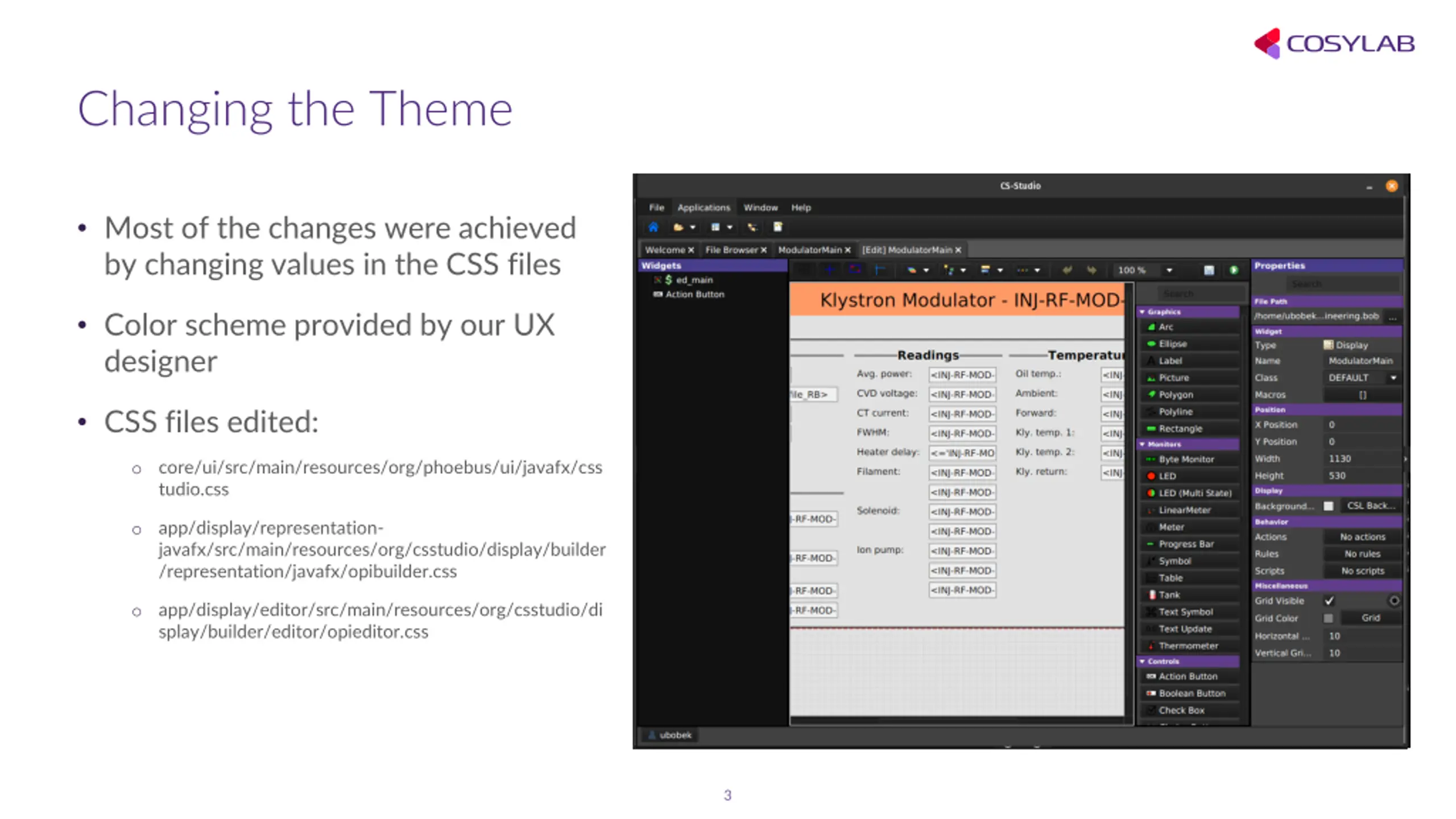

Changing the Theme Most of the changes were achieved by changing values in the CSS files Color scheme provided by our UX designer CSS files edited: core/ui/src/main/resources/org/phoebus/ui/javafx/css tudio.css o app/display/representation- javafx/src/main/resources/org/csstudio/display/builder /representation/javafx/opibuilder.css o app/display/editor/src/main/resources/org/csstudio/di splay/builder/editor/opieditor.css o 3

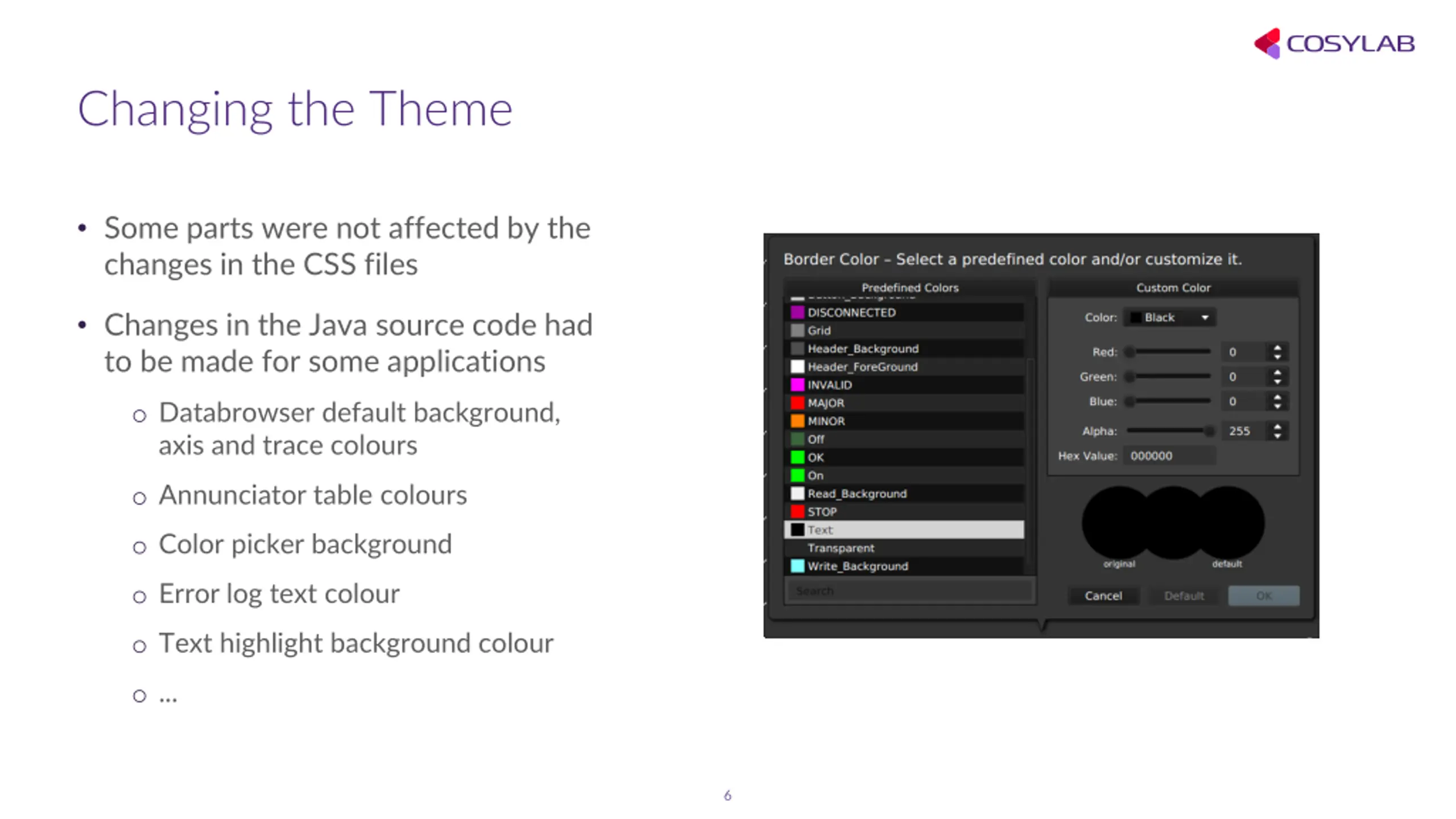

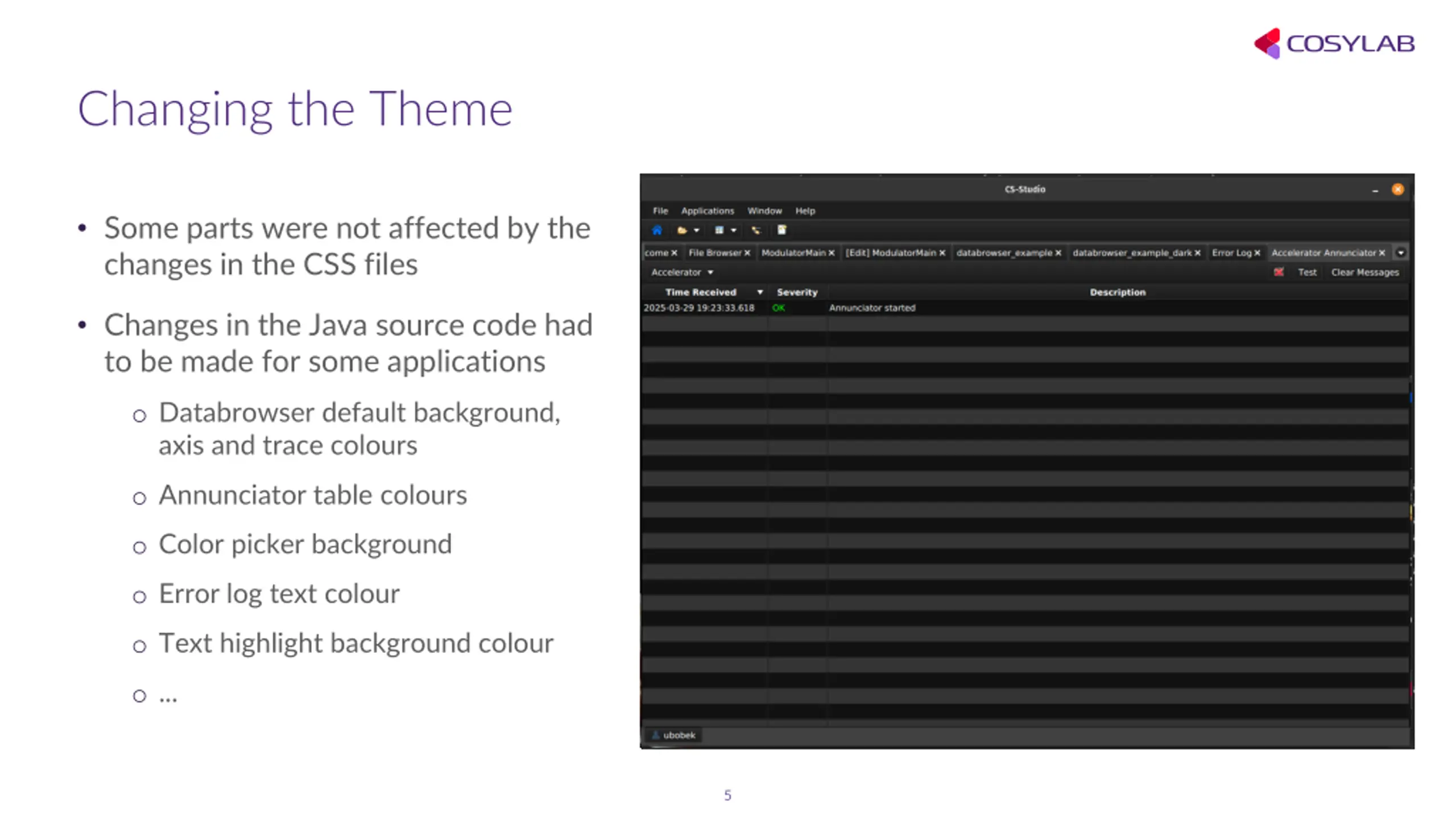

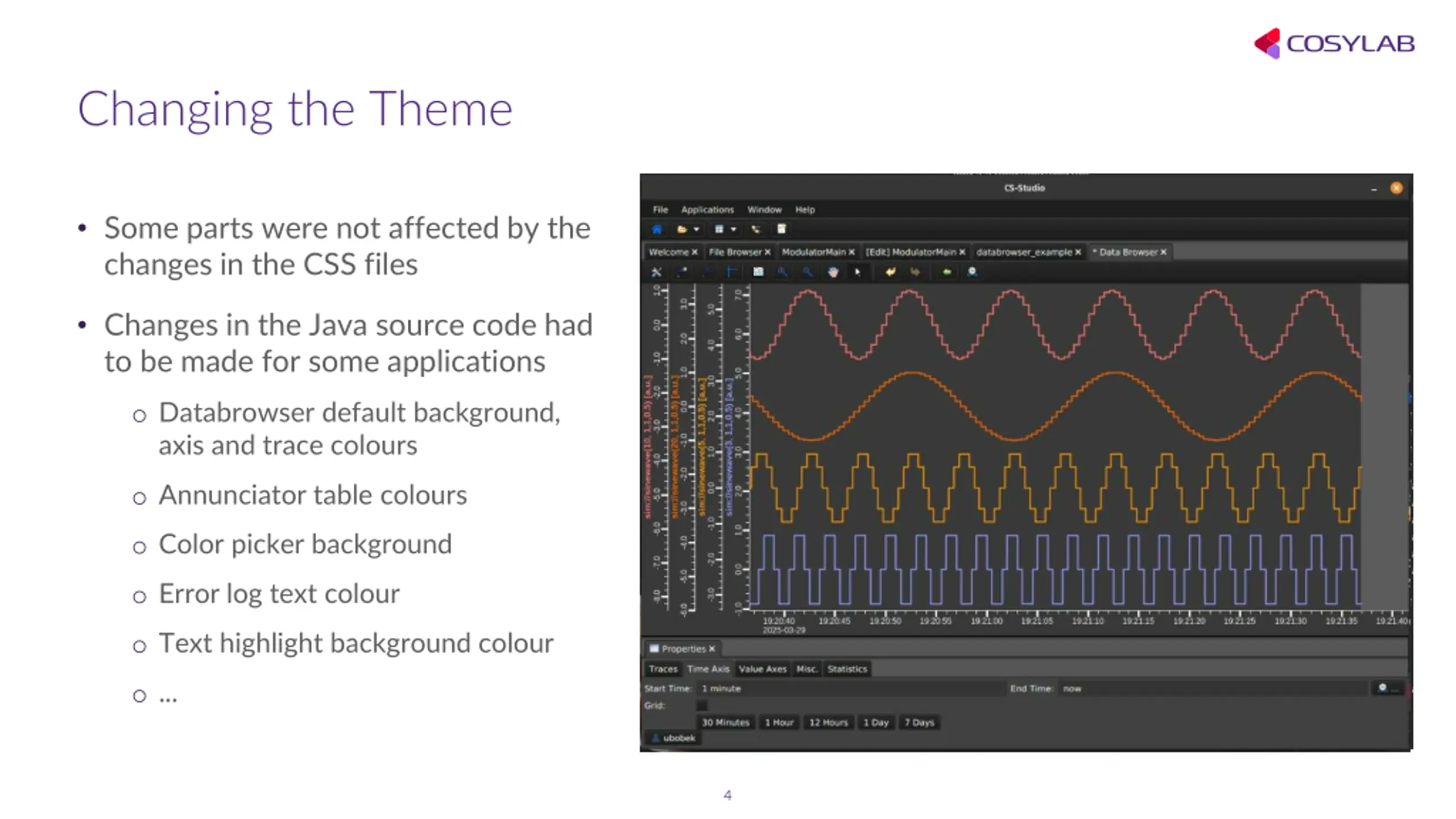

Changing the Theme Some parts were not affected by the changes in the CSS files Changes in the Java source code had to be made for some applications o Databrowser default background, axis and trace colours o Annunciator table colours o Color picker background o Error log text colour o Text highlight background colour o ... 4
Changing the Theme Some parts were not affected by the changes in the CSS files Changes in the Java source code had to be made for some applications o Databrowser default background, axis and trace colours o Annunciator table colours o Color picker background o Error log text colour o Text highlight background colour o ... 5
Changing the Theme Some parts were not affected by the changes in the CSS files Changes in the Java source code had to be made for some applications o Databrowser default background, axis and trace colours o Annunciator table colours o Color picker background o Error log text colour o Text highlight background colour o ... 6

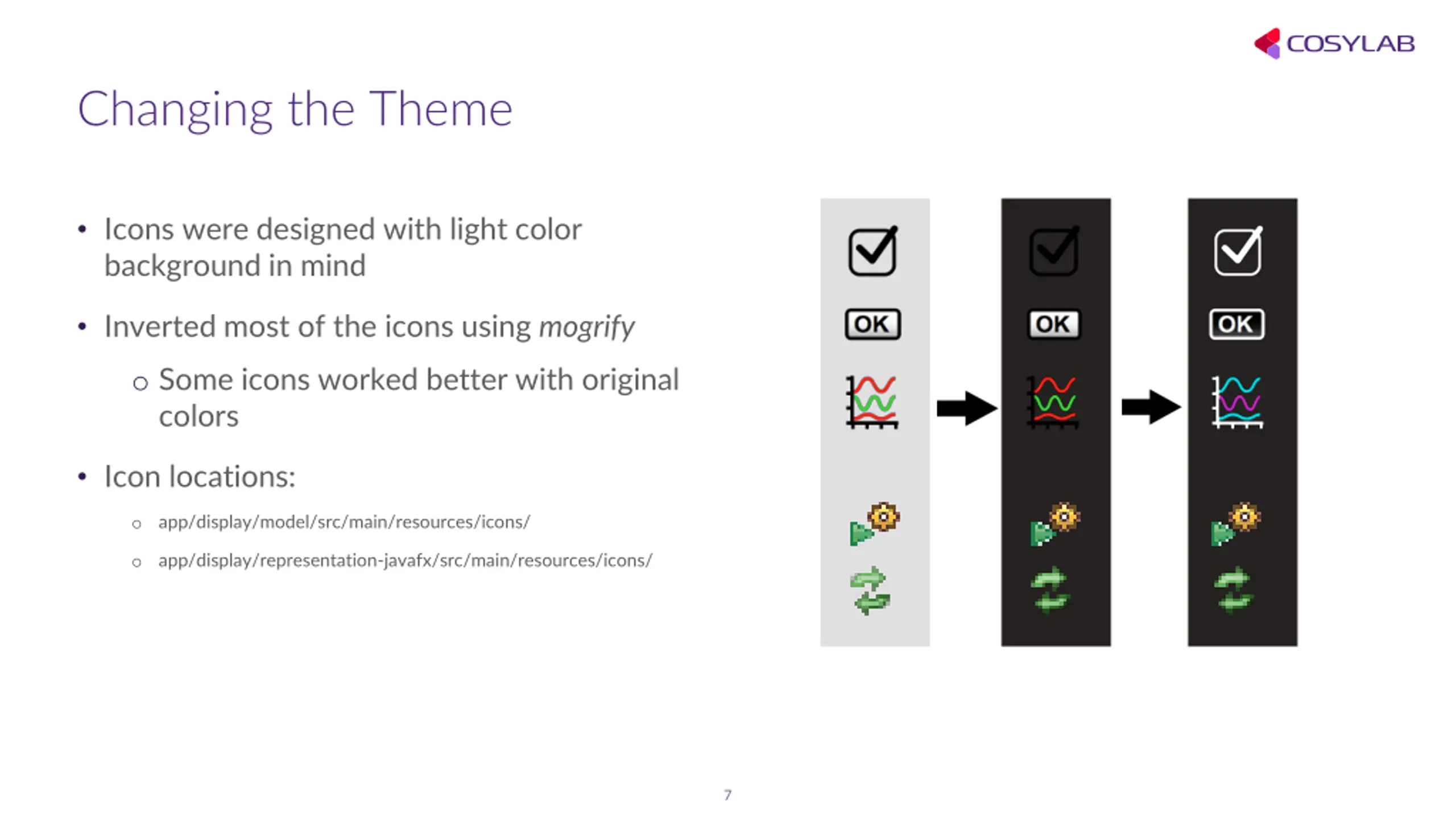

Changing the Theme Icons were designed with light color background in mind Inverted most of the icons using mogrify o Some icons worked better with original colors Icon locations: app/display/model/src/main/resources/icons/ o app/display/representation-javafx/src/main/resources/icons/ o 7

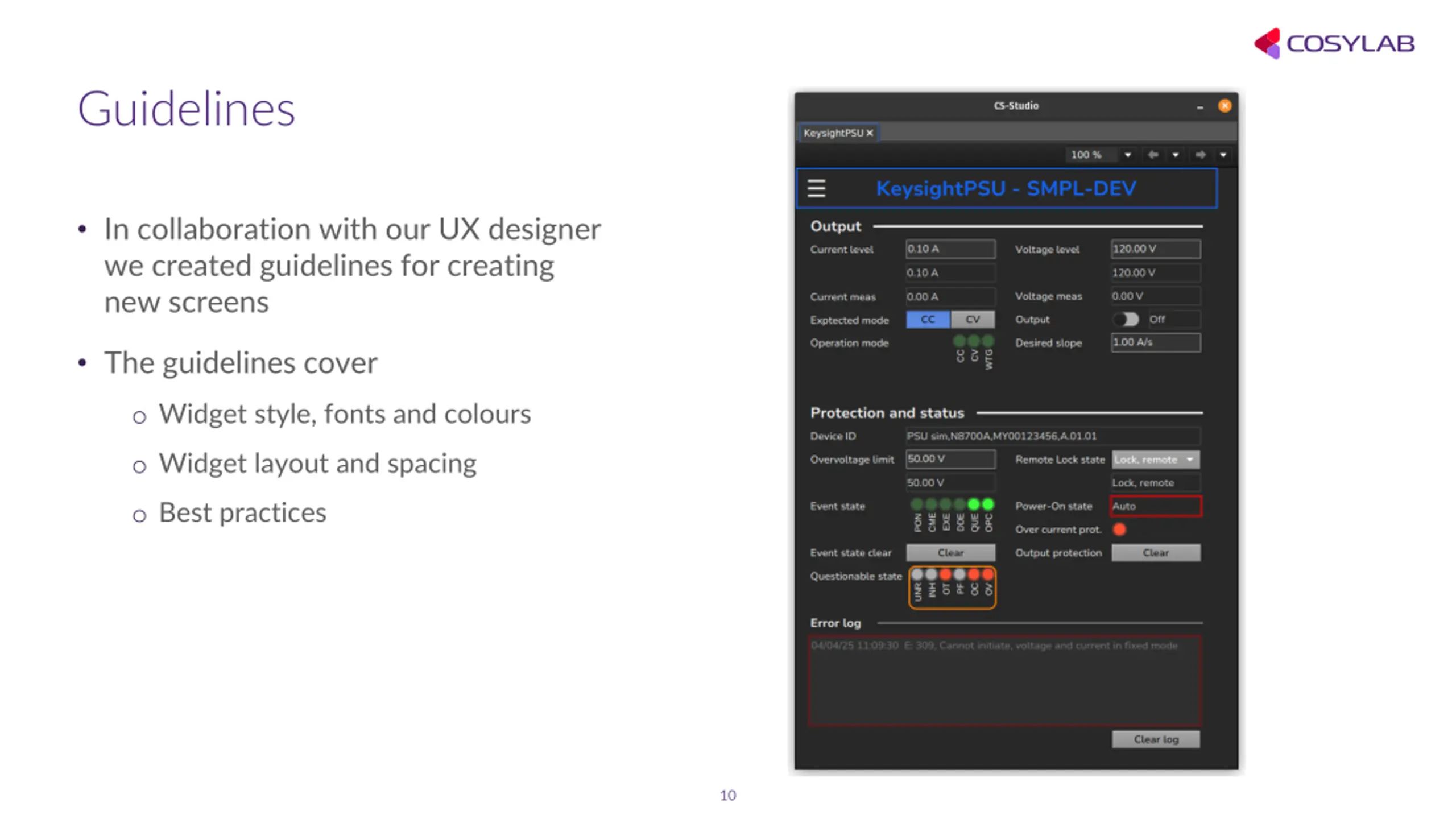

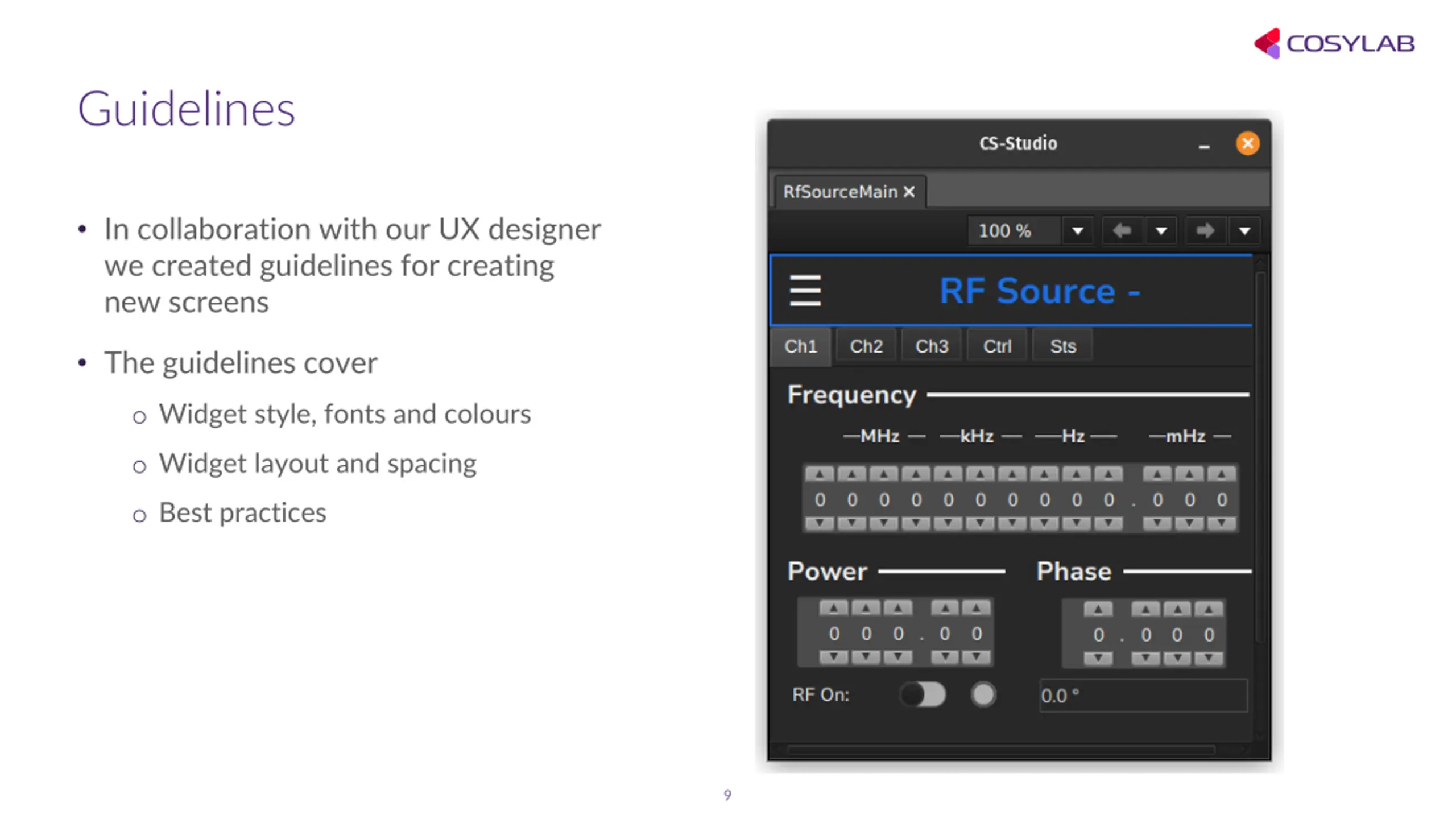

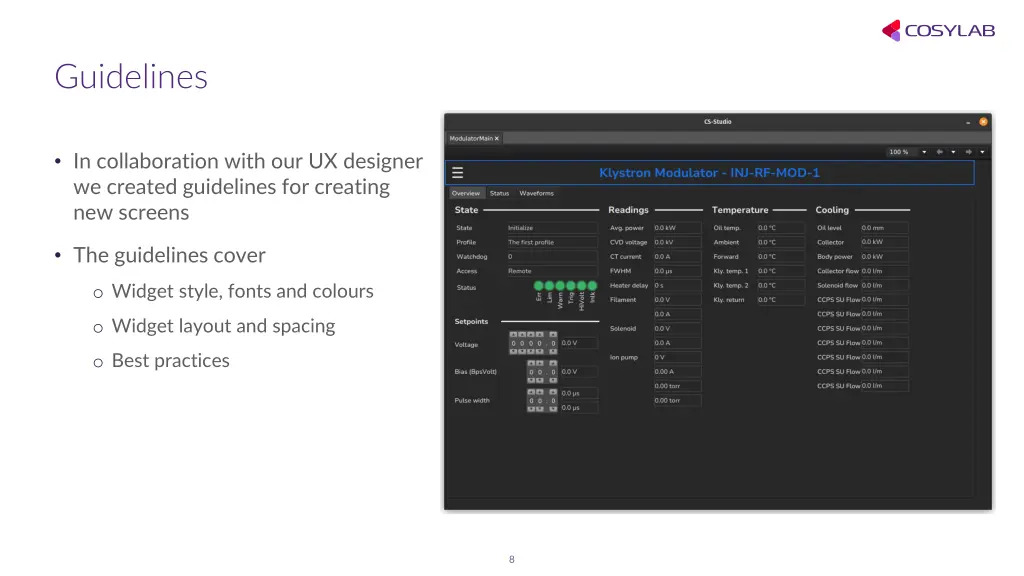

Guidelines In collaboration with our UX designer we created guidelines for creating new screens The guidelines cover o Widget style, fonts and colours o Widget layout and spacing o Best practices 8
Guidelines In collaboration with our UX designer we created guidelines for creating new screens The guidelines cover o Widget style, fonts and colours o Widget layout and spacing o Best practices 9
Guidelines In collaboration with our UX designer we created guidelines for creating new screens The guidelines cover o Widget style, fonts and colours o Widget layout and spacing o Best practices 10

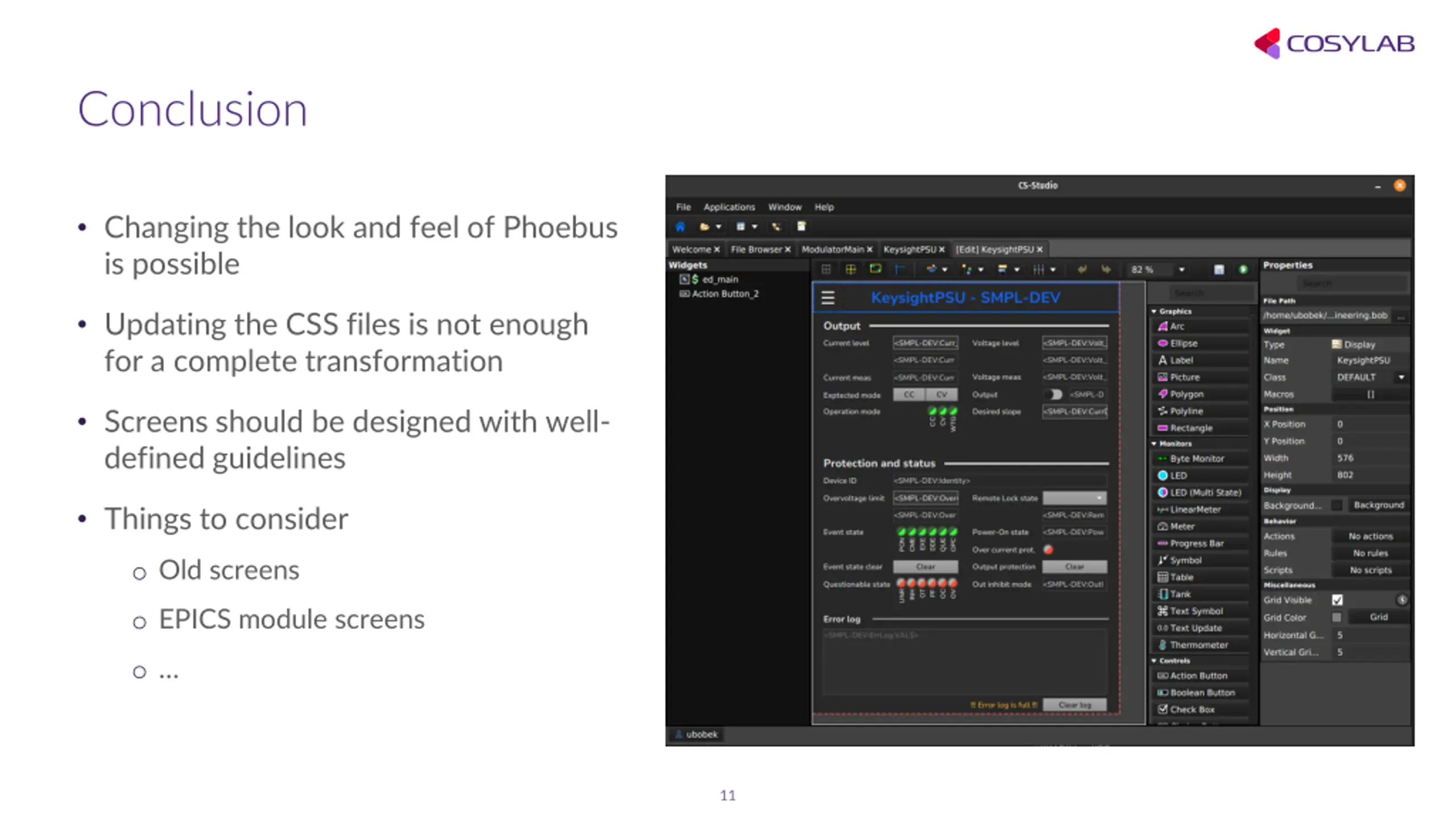

Conclusion Changing the look and feel of Phoebus is possible Updating the CSS files is not enough for a complete transformation Screens should be designed with well- defined guidelines Things to consider o Old screens o EPICS module screens o 11
