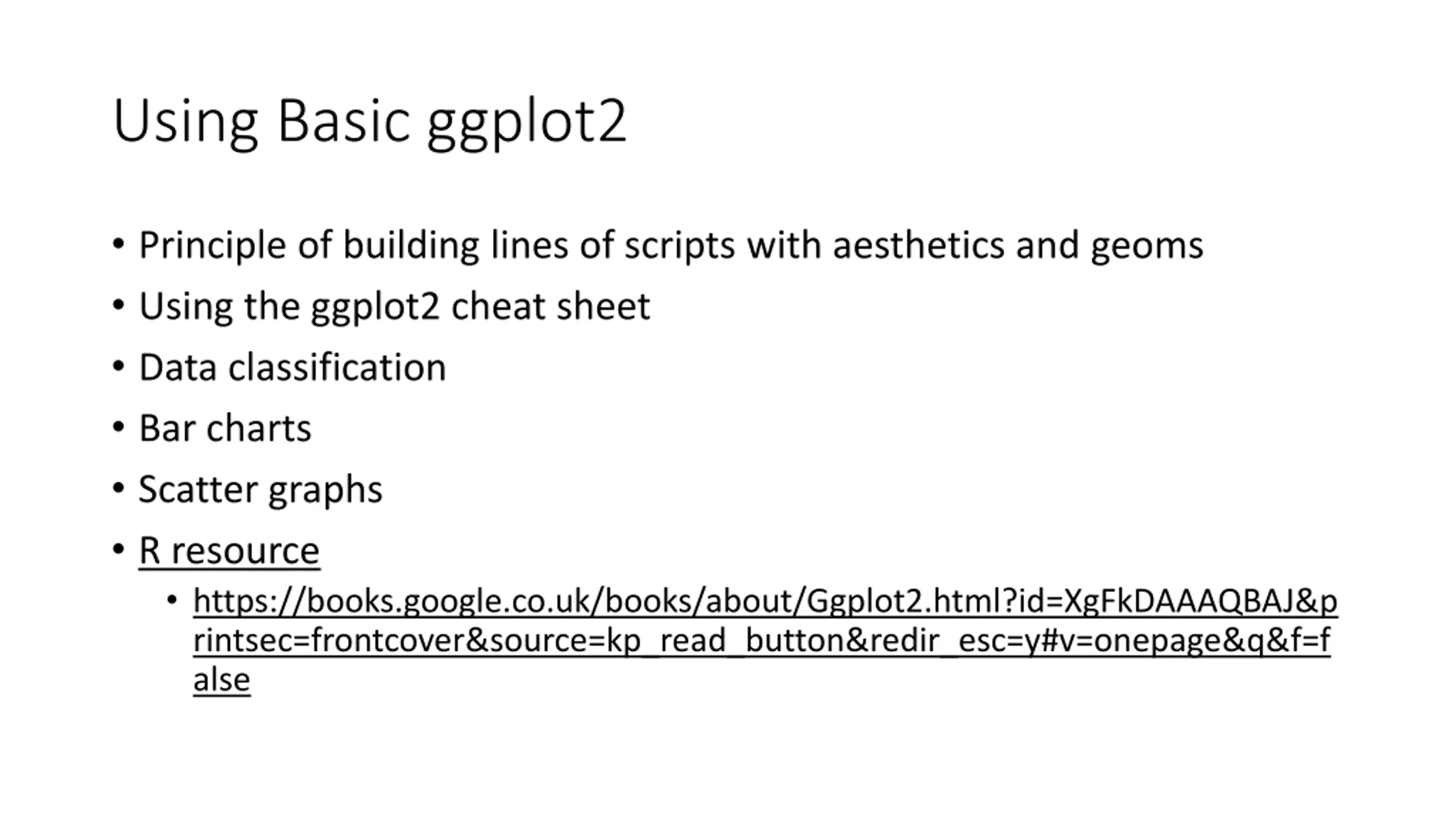

Using Basic ggplot2 Principle of building lines of scripts with aesthetics and geoms Using the ggplot2 cheat sheet Data classification Bar charts Scatter graphs R resource https://books.google.co.uk/books/about/Ggplot2.html?id=XgFkDAAAQBAJ&p rintsec=frontcover&source=kp_read_button&redir_esc=y#v=onepage&q&f=f alse

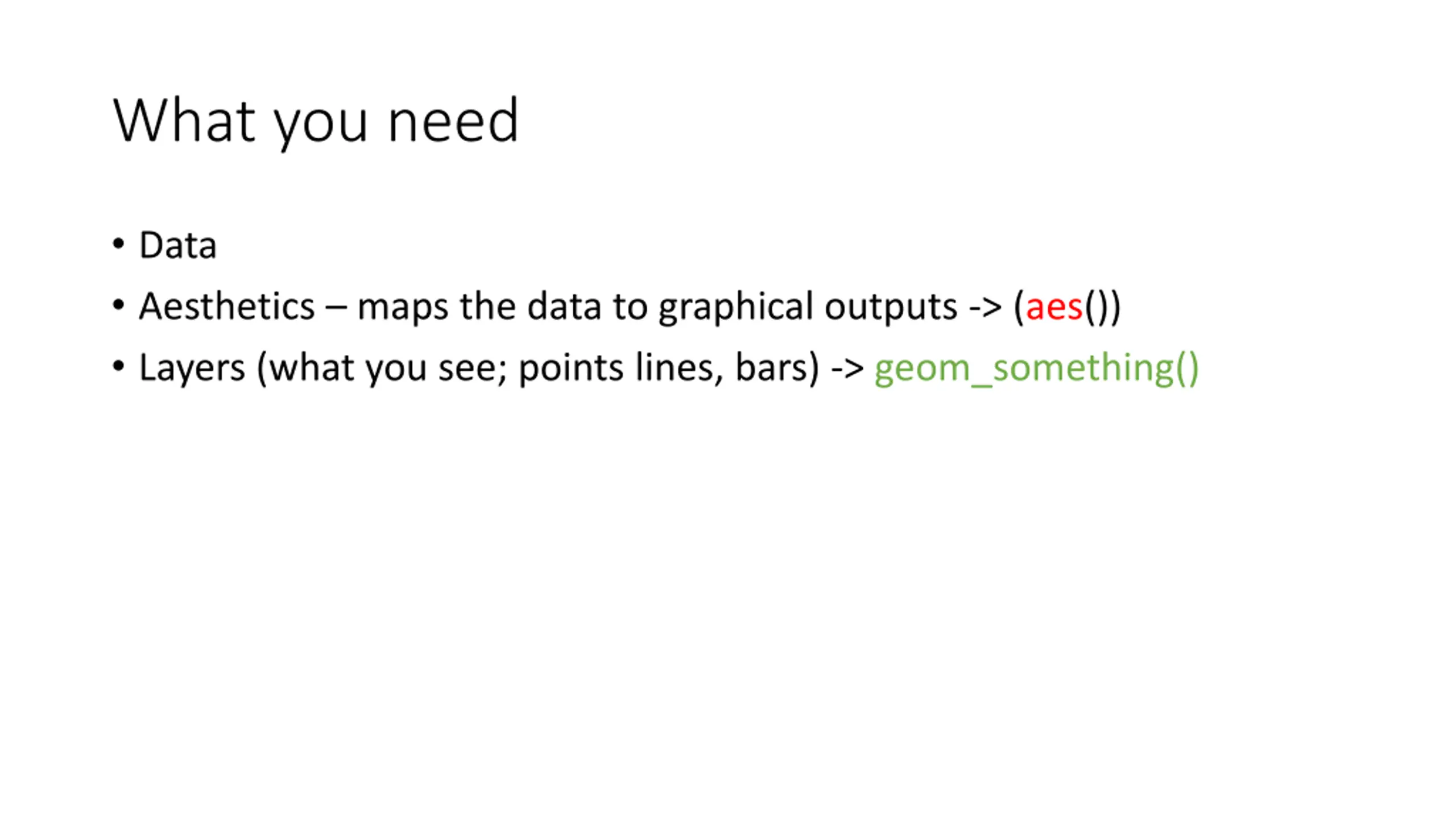

What you need Data Aesthetics maps the data to graphical outputs -> (aes()) Layers (what you see; points lines, bars) -> geom_something()

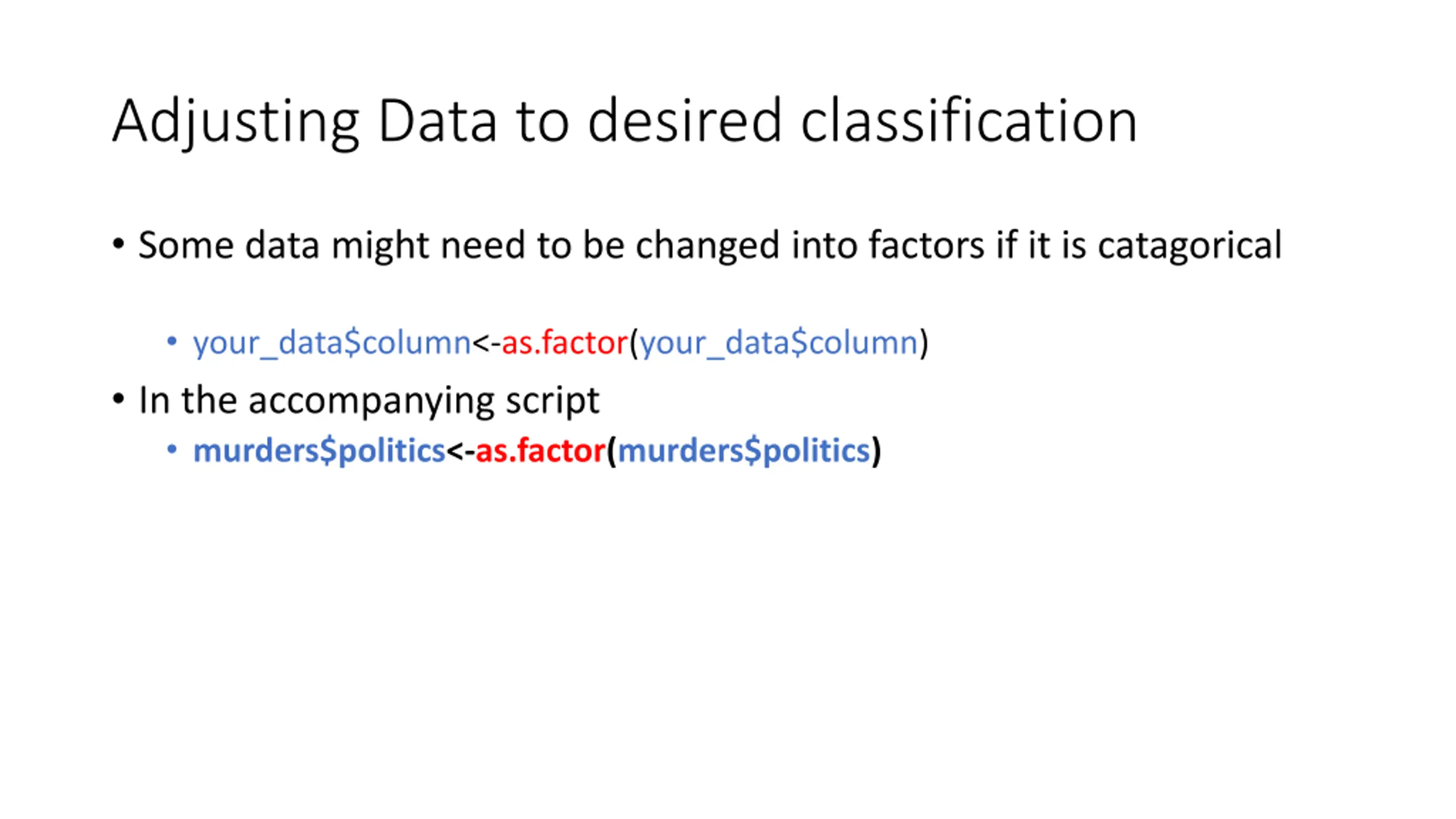

Adjusting Data to desired classification Some data might need to be changed into factors if it is catagorical your_data$column<-as.factor(your_data$column) In the accompanying script murders$politics<-as.factor(murders$politics)

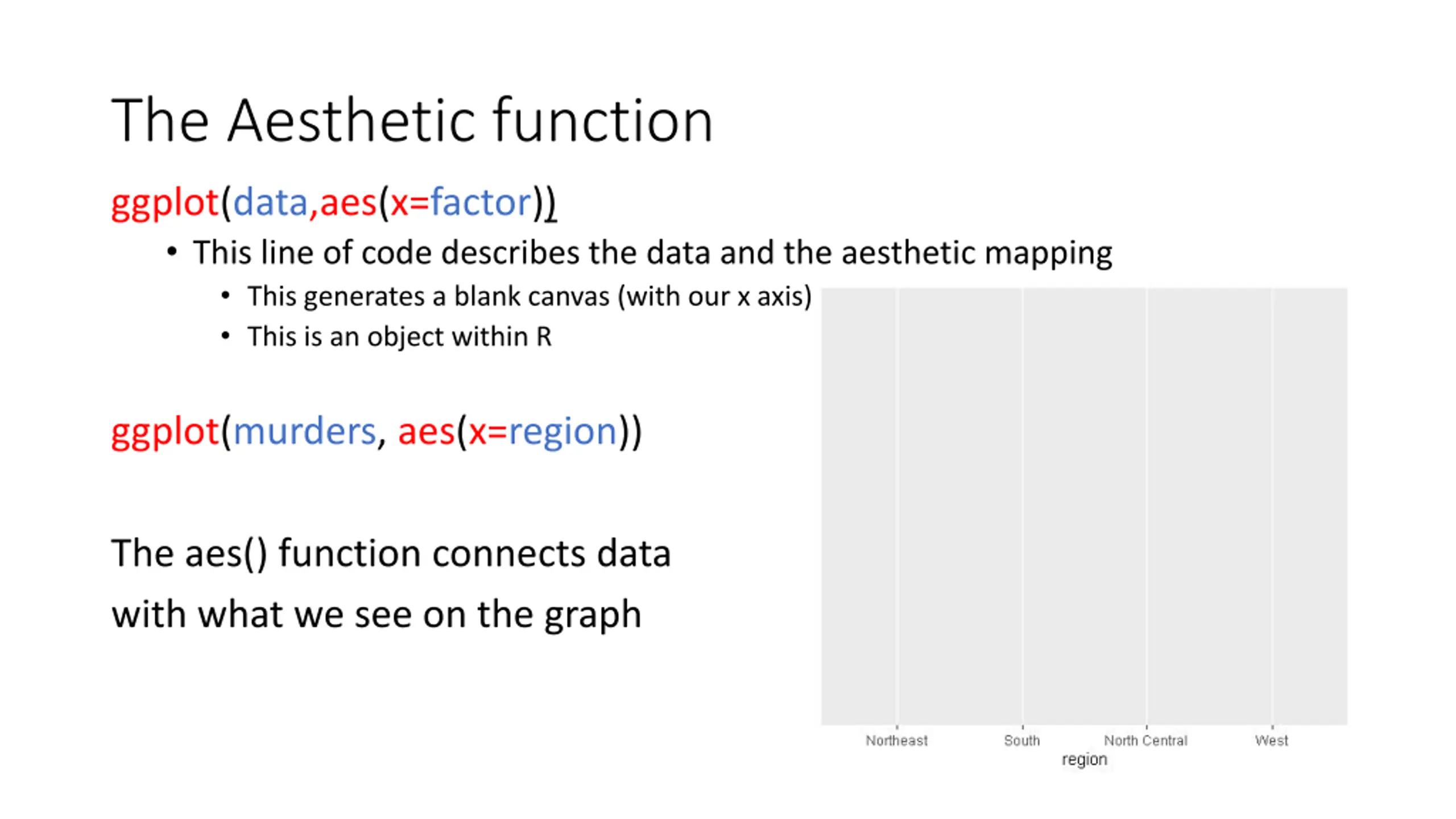

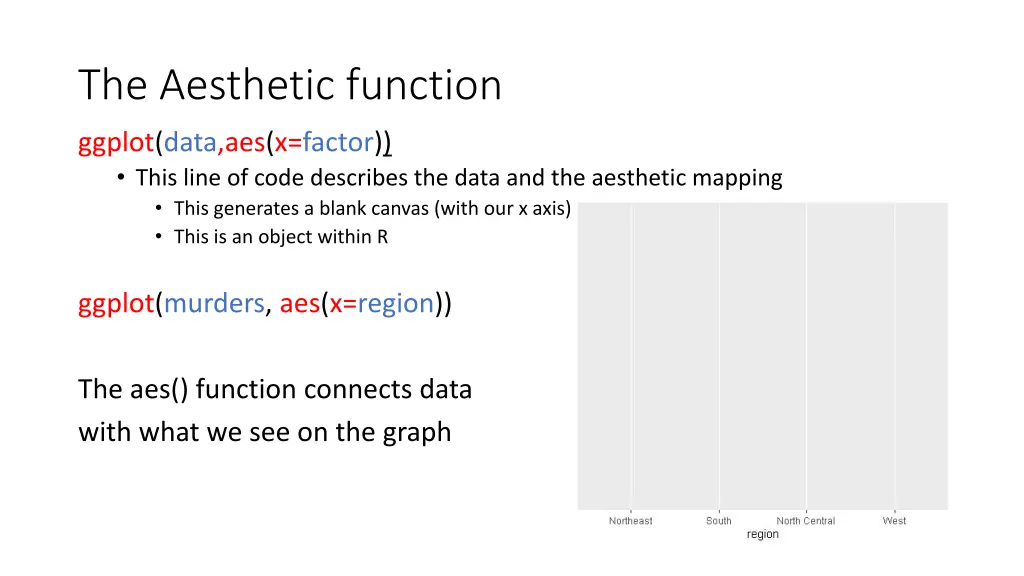

The Aesthetic function ggplot(data,aes(x=factor)) This line of code describes the data and the aesthetic mapping This generates a blank canvas (with our x axis) This is an object within R ggplot(murders, aes(x=region)) The aes() function connects data with what we see on the graph

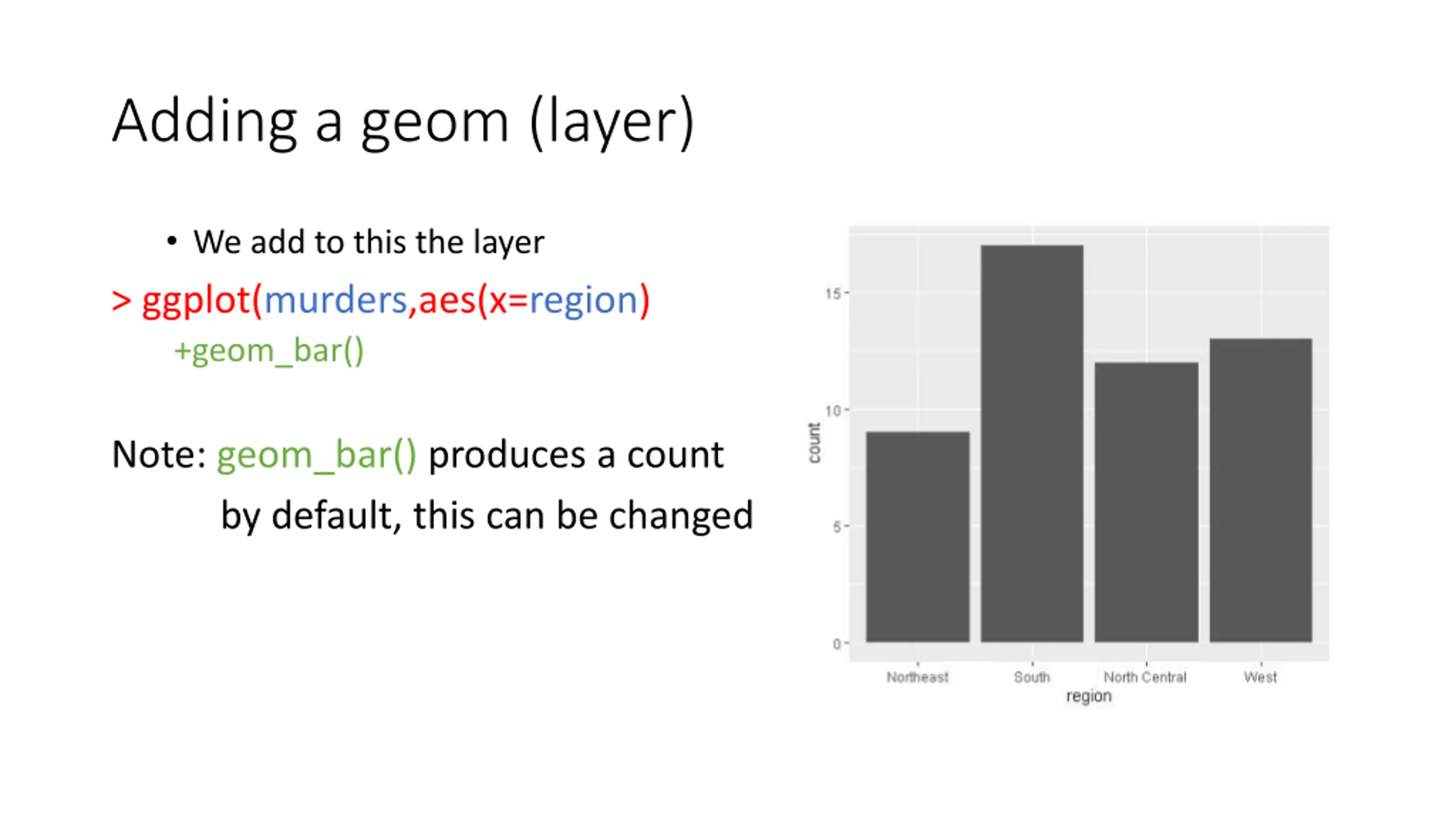

Adding a geom (layer) We add to this the layer > ggplot(murders,aes(x=region) +geom_bar() Note: geom_bar() produces a count by default, this can be changed

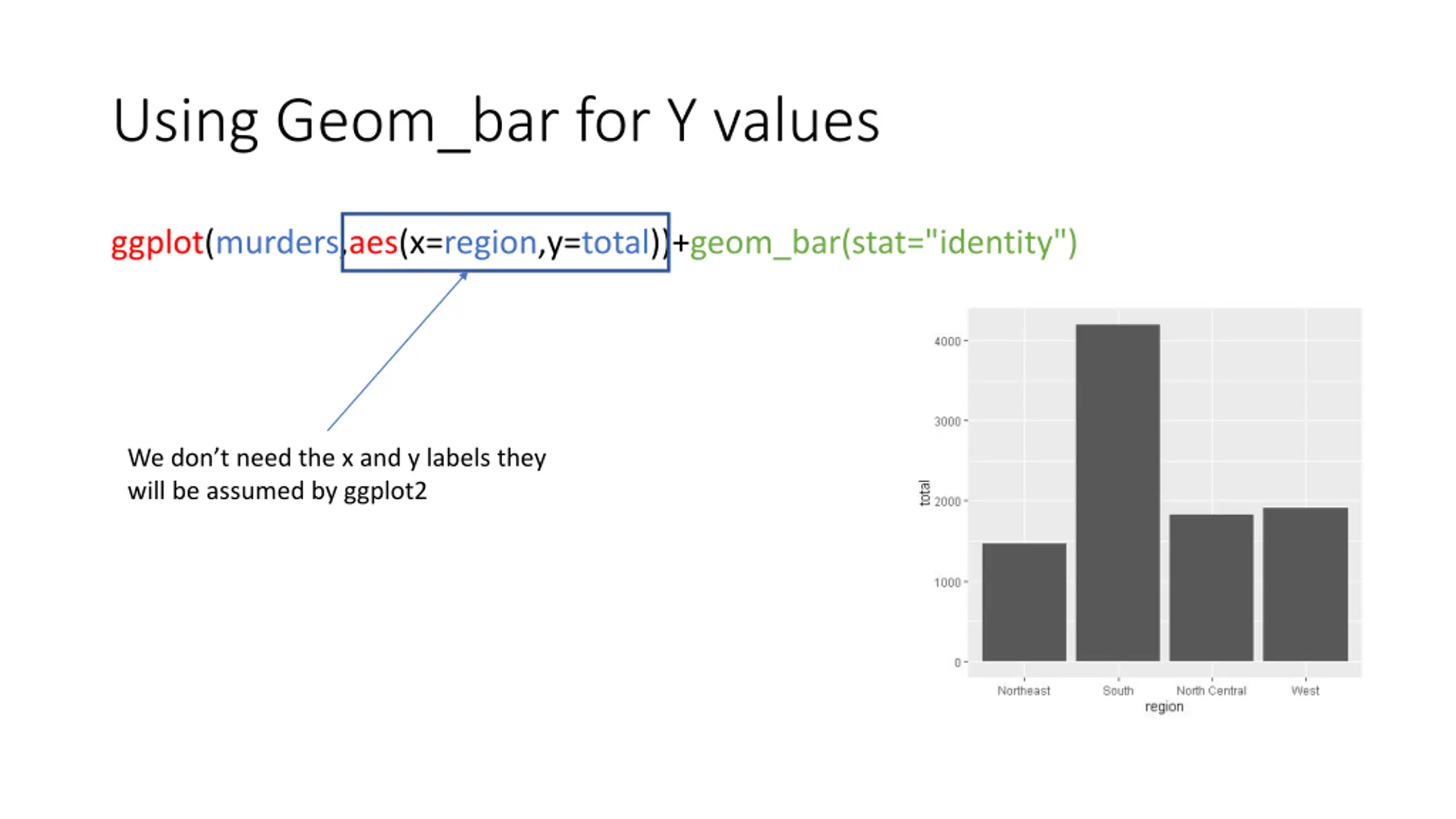

Using Geom_bar for Y values ggplot(murders,aes(x=region,y=total))+geom_bar(stat="identity") We don t need the x and y labels they will be assumed by ggplot2

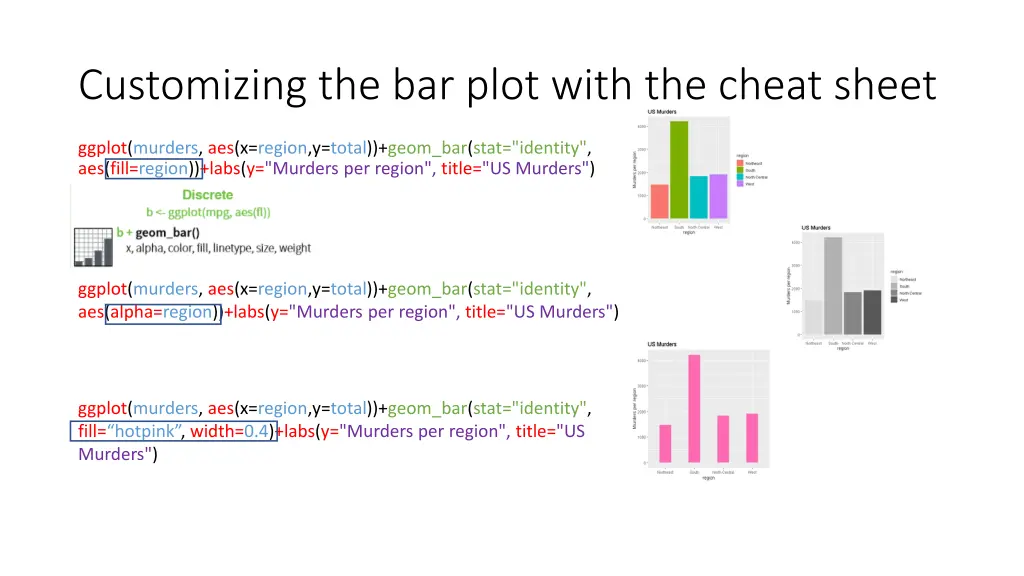

Customizing the bar plot with the cheat sheet ggplot(murders, aes(x=region,y=total))+geom_bar(stat="identity", aes(fill=region))+labs(y="Murders per region", title="US Murders") ggplot(murders, aes(x=region,y=total))+geom_bar(stat="identity", aes(alpha=region))+labs(y="Murders per region", title="US Murders") ggplot(murders, aes(x=region,y=total))+geom_bar(stat="identity", fill= hotpink , width=0.4)+labs(y="Murders per region", title="US Murders")

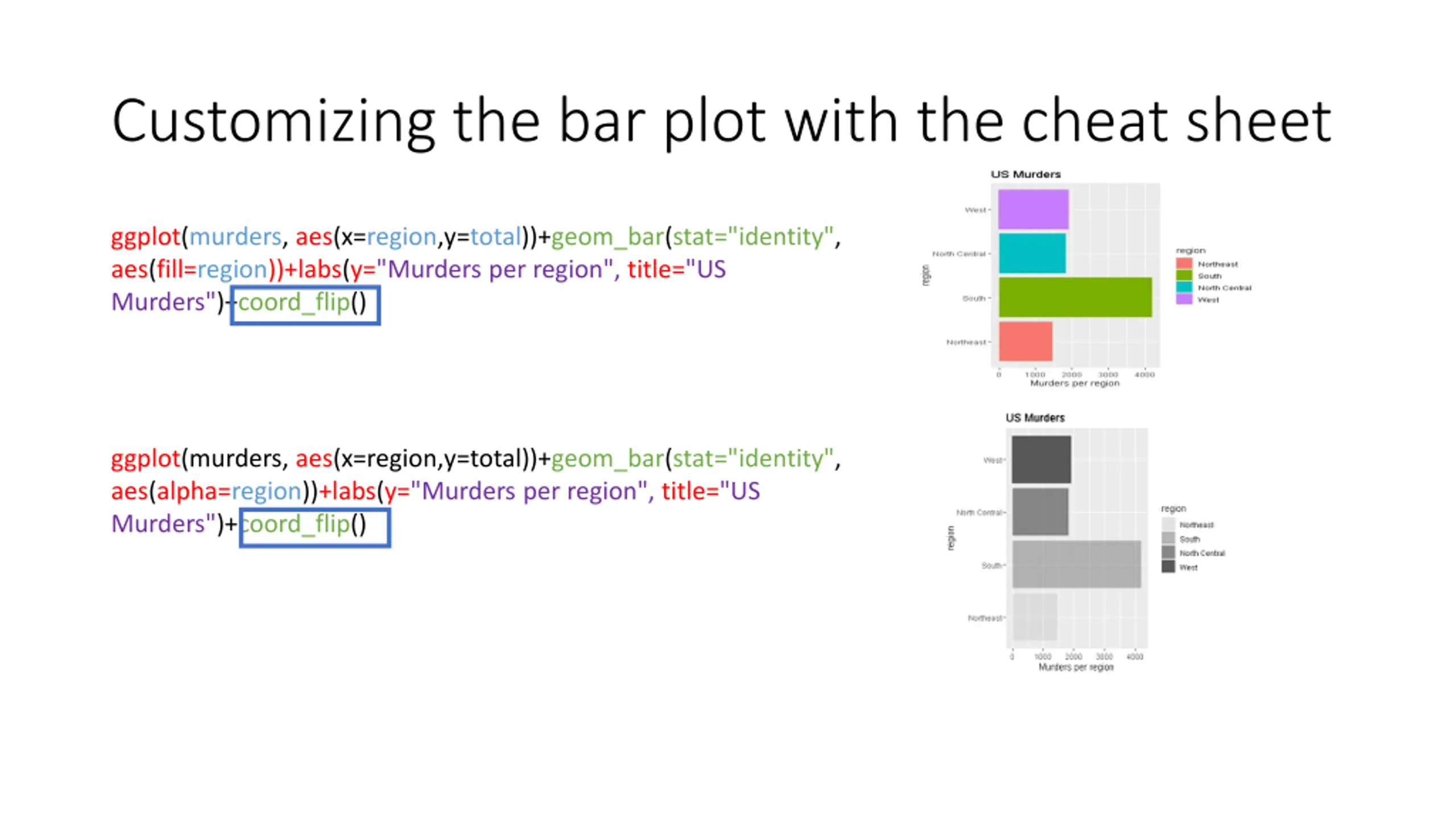

Customizing the bar plot with the cheat sheet ggplot(murders, aes(x=region,y=total))+geom_bar(stat="identity", aes(fill=region))+labs(y="Murders per region", title="US Murders")+coord_flip() ggplot(murders, aes(x=region,y=total))+geom_bar(stat="identity", aes(alpha=region))+labs(y="Murders per region", title="US Murders")+coord_flip()

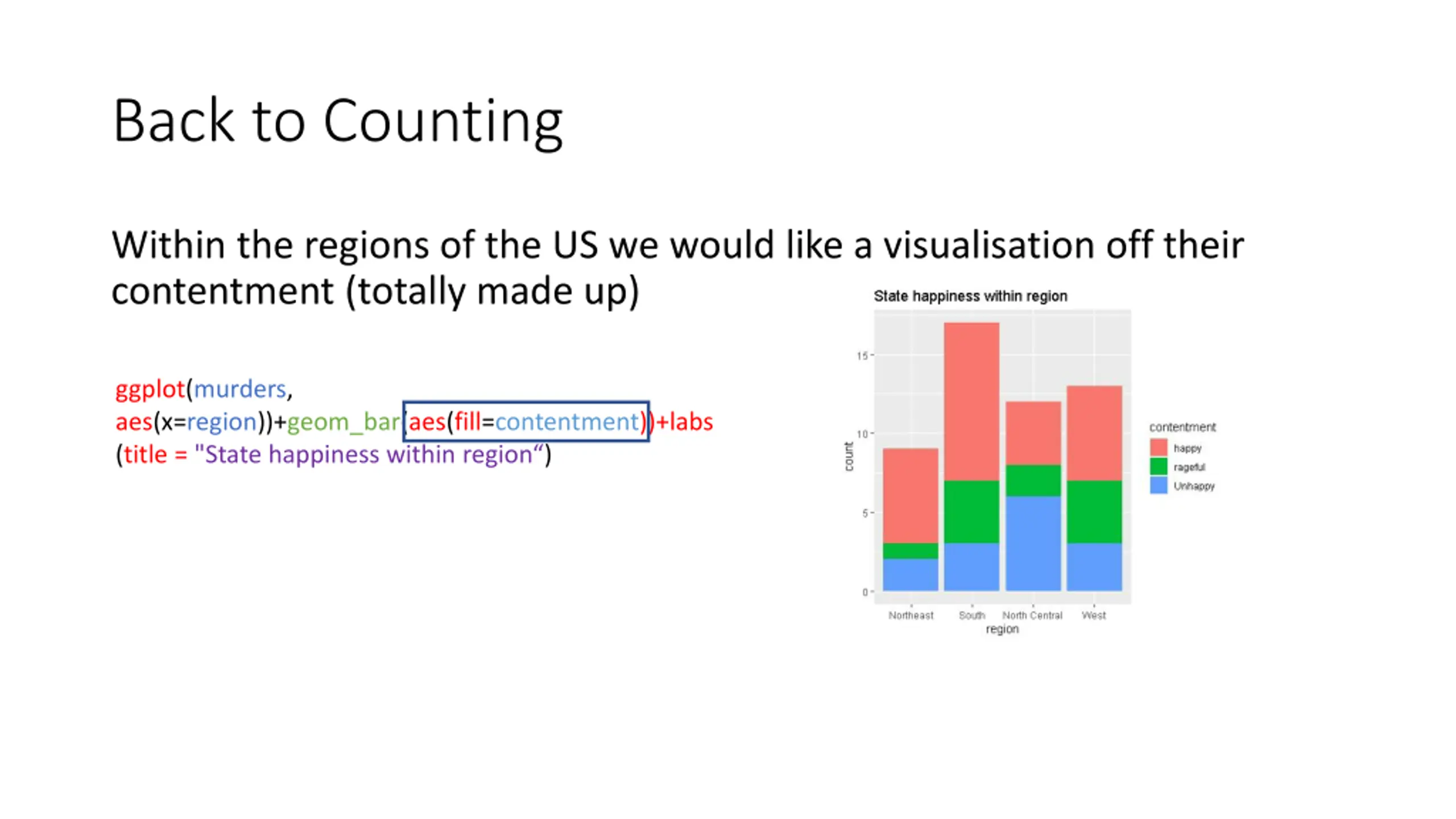

Back to Counting Within the regions of the US we would like a visualisation off their contentment (totally made up) ggplot(murders, aes(x=region))+geom_bar(aes(fill=contentment))+labs (title = "State happiness within region )

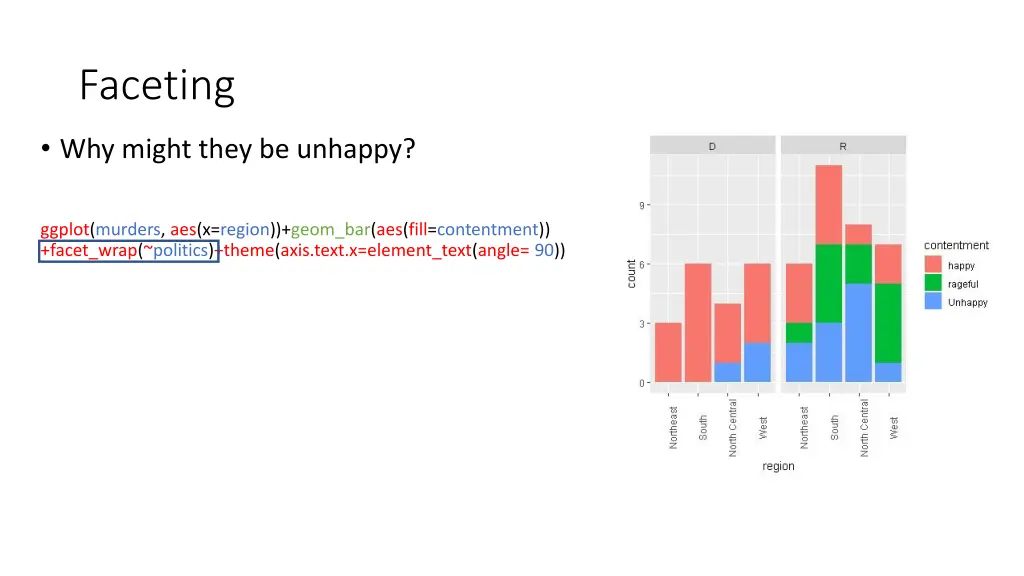

Faceting Why might they be unhappy? ggplot(murders, aes(x=region))+geom_bar(aes(fill=contentment)) +facet_wrap(~politics)+theme(axis.text.x=element_text(angle= 90))

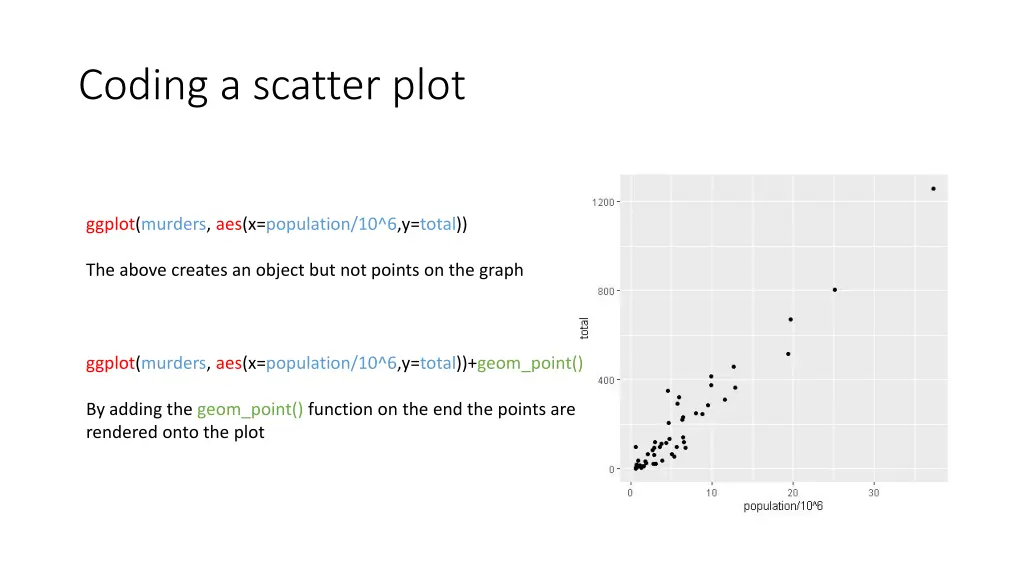

Coding a scatter plot ggplot(murders, aes(x=population/10^6,y=total)) The above creates an object but not points on the graph ggplot(murders, aes(x=population/10^6,y=total))+geom_point() By adding the geom_point() function on the end the points are rendered onto the plot

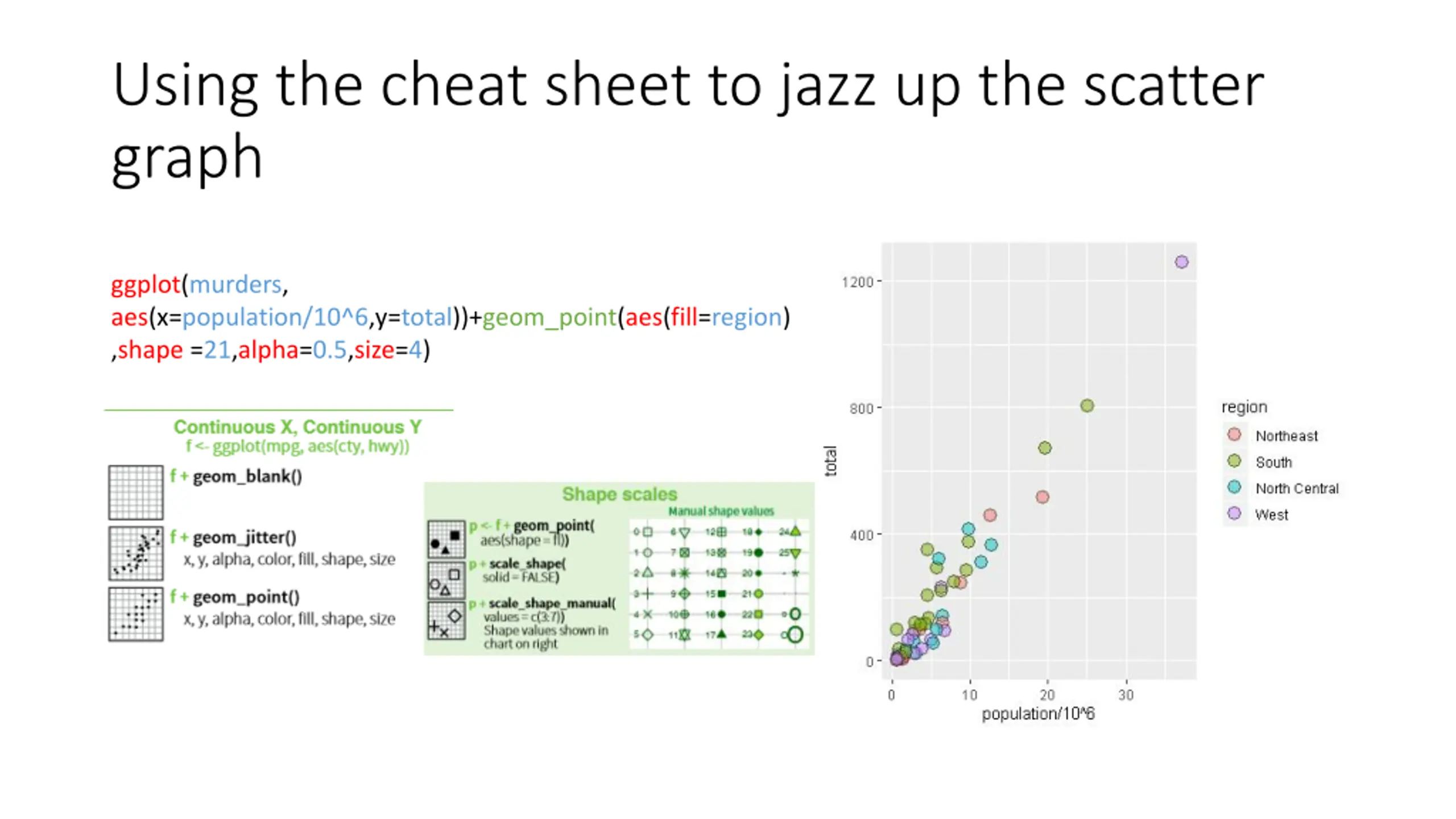

Using the cheat sheet to jazz up the scatter graph ggplot(murders, aes(x=population/10^6,y=total))+geom_point(aes(fill=region) ,shape =21,alpha=0.5,size=4)

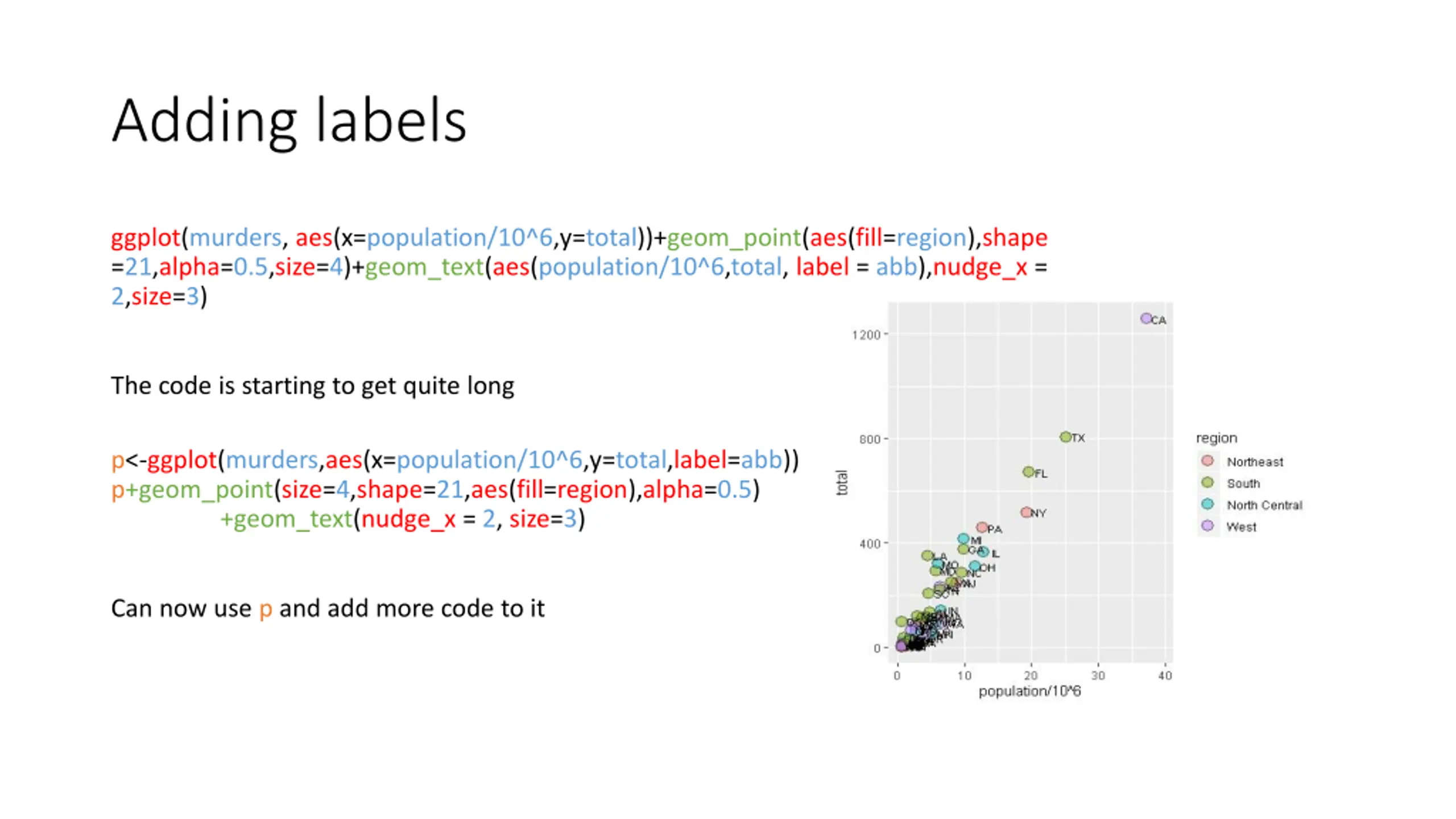

Adding labels ggplot(murders, aes(x=population/10^6,y=total))+geom_point(aes(fill=region),shape =21,alpha=0.5,size=4)+geom_text(aes(population/10^6,total, label = abb),nudge_x = 2,size=3) The code is starting to get quite long p<-ggplot(murders,aes(x=population/10^6,y=total,label=abb)) p+geom_point(size=4,shape=21,aes(fill=region),alpha=0.5) +geom_text(nudge_x = 2, size=3) Can now use p and add more code to it

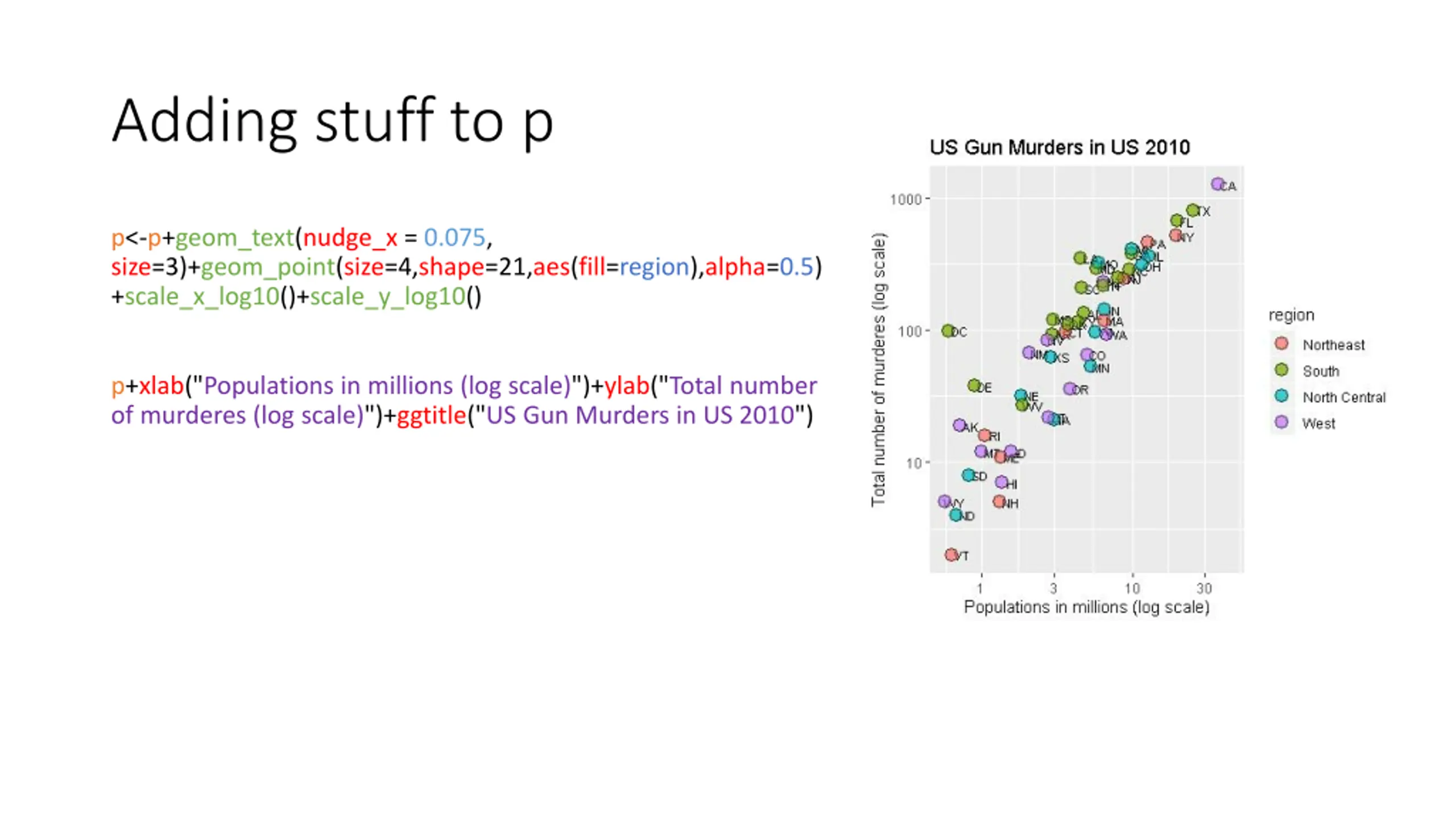

Adding stuff to p p<-p+geom_text(nudge_x = 0.075, size=3)+geom_point(size=4,shape=21,aes(fill=region),alpha=0.5) +scale_x_log10()+scale_y_log10() p+xlab("Populations in millions (log scale)")+ylab("Total number of murderes (log scale)")+ggtitle("US Gun Murders in US 2010")
