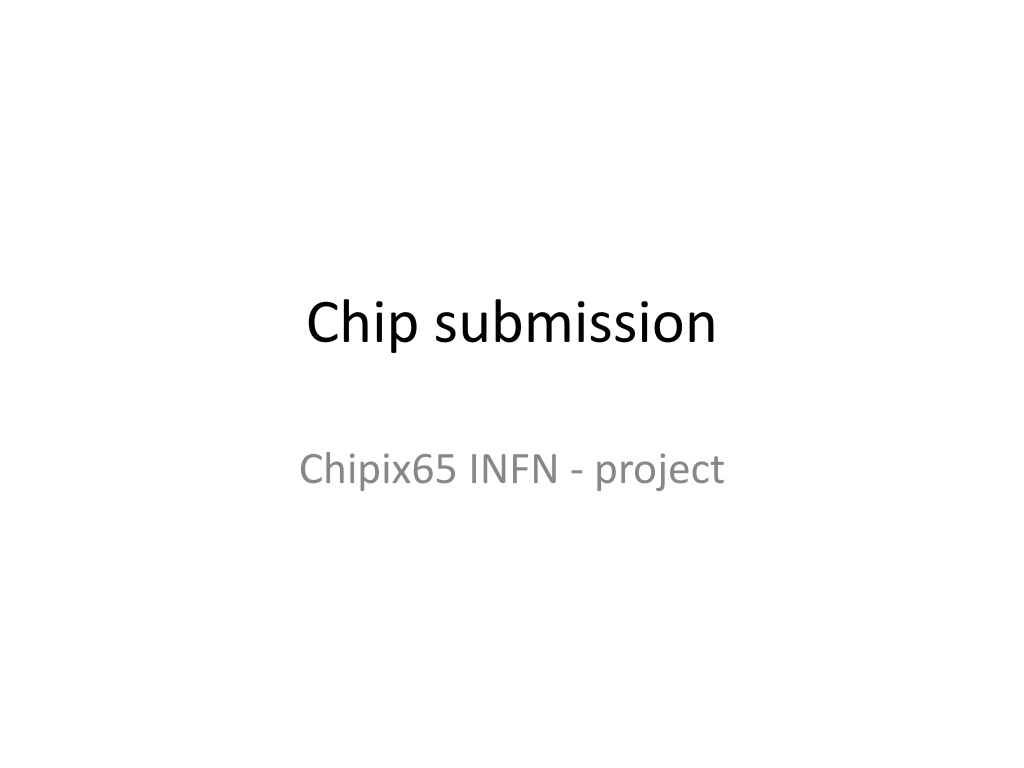

Chip submission Chipix65 INFN - project

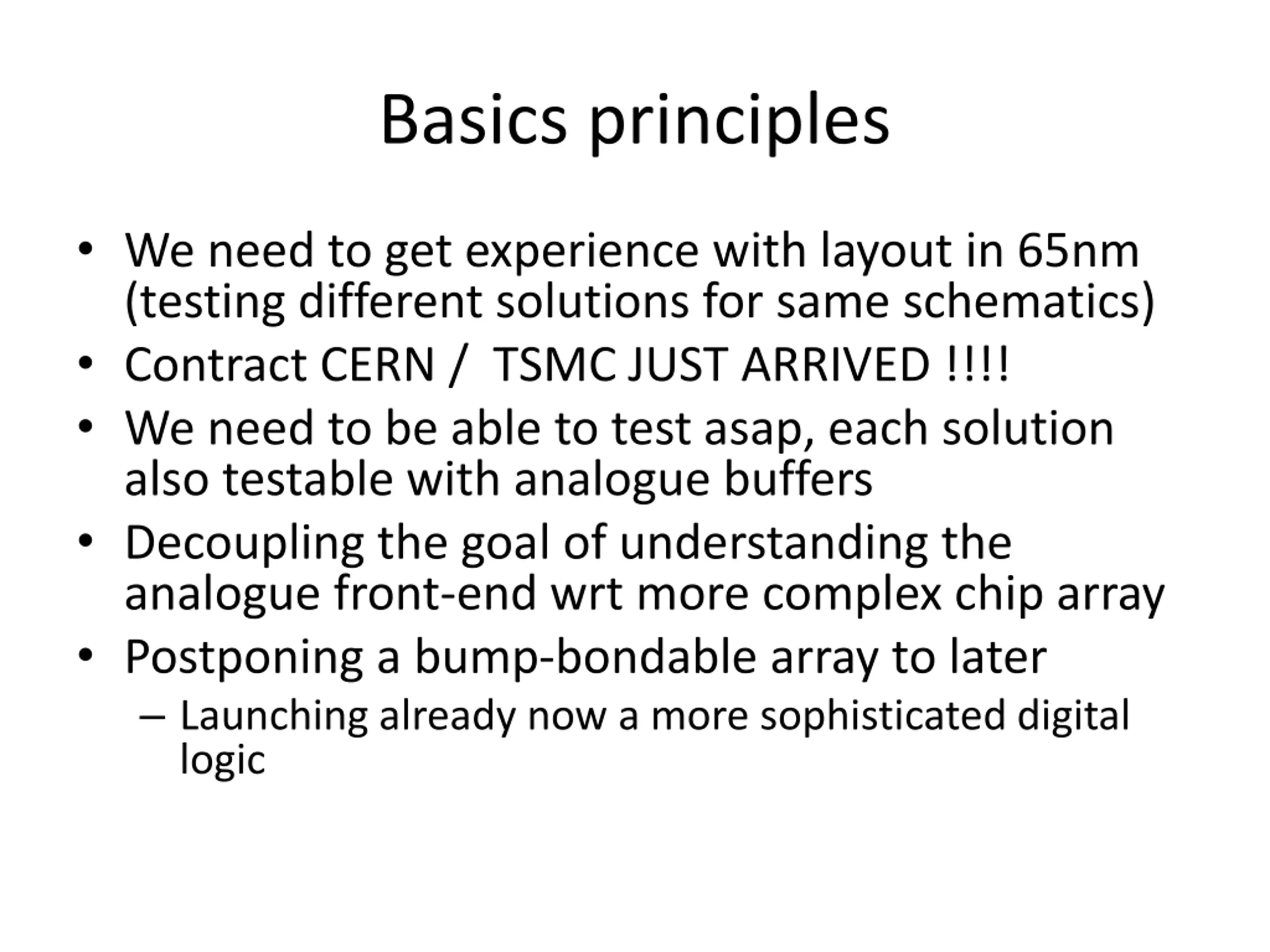

Basics principles We need to get experience with layout in 65nm (testing different solutions for same schematics) Contract CERN / TSMC JUST ARRIVED !!!! We need to be able to test asap, each solution also testable with analogue buffers Decoupling the goal of understanding the analogue front-end wrt more complex chip array Postponing a bump-bondable array to later Launching already now a more sophisticated digital logic

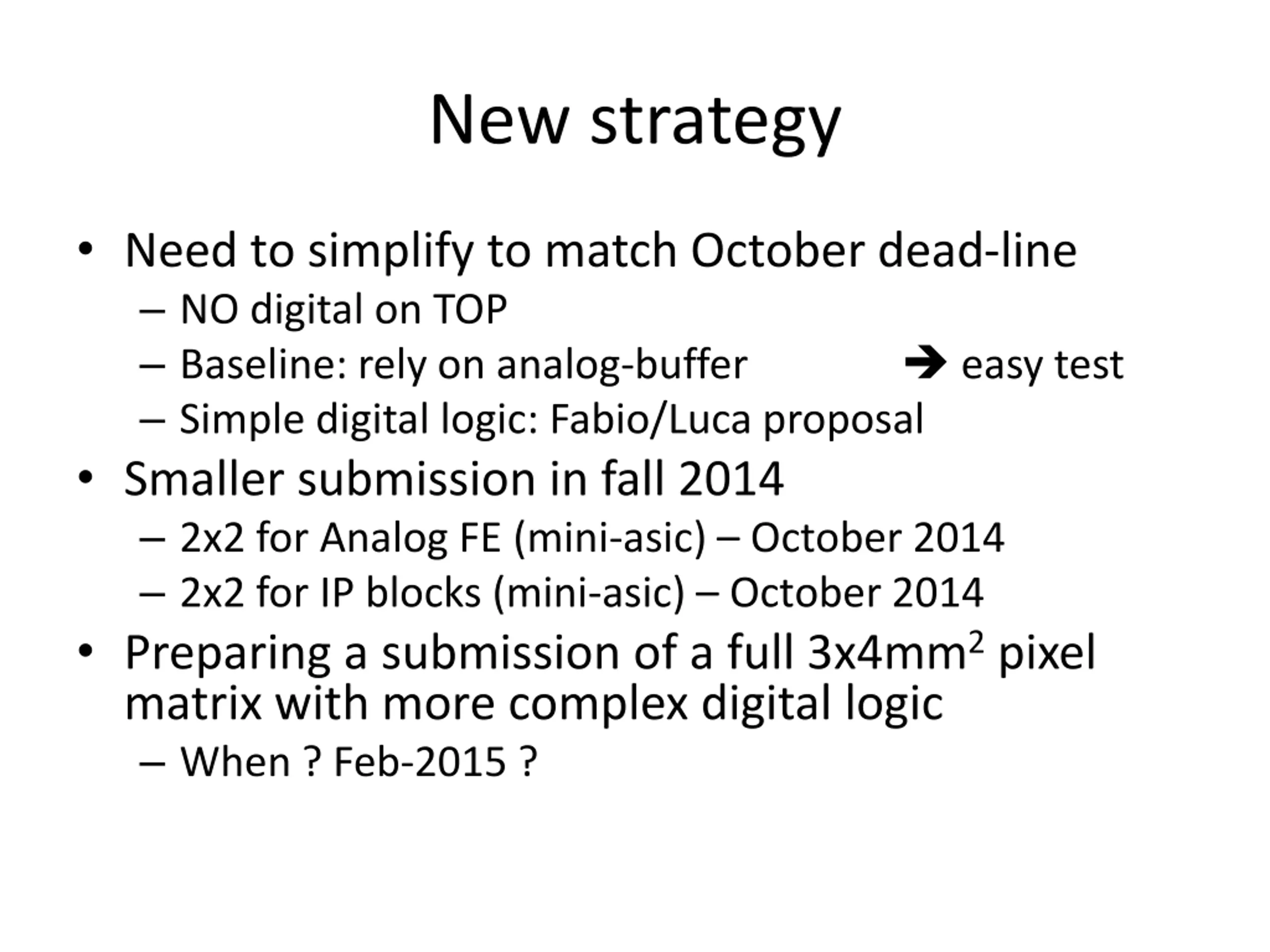

New strategy Need to simplify to match October dead-line NO digital on TOP Baseline: rely on analog-buffer Simple digital logic: Fabio/Luca proposal Smaller submission in fall 2014 2x2 for Analog FE (mini-asic) October 2014 2x2 for IP blocks (mini-asic) October 2014 Preparing a submission of a full 3x4mm2pixel matrix with more complex digital logic When ? Feb-2015 ? easy test

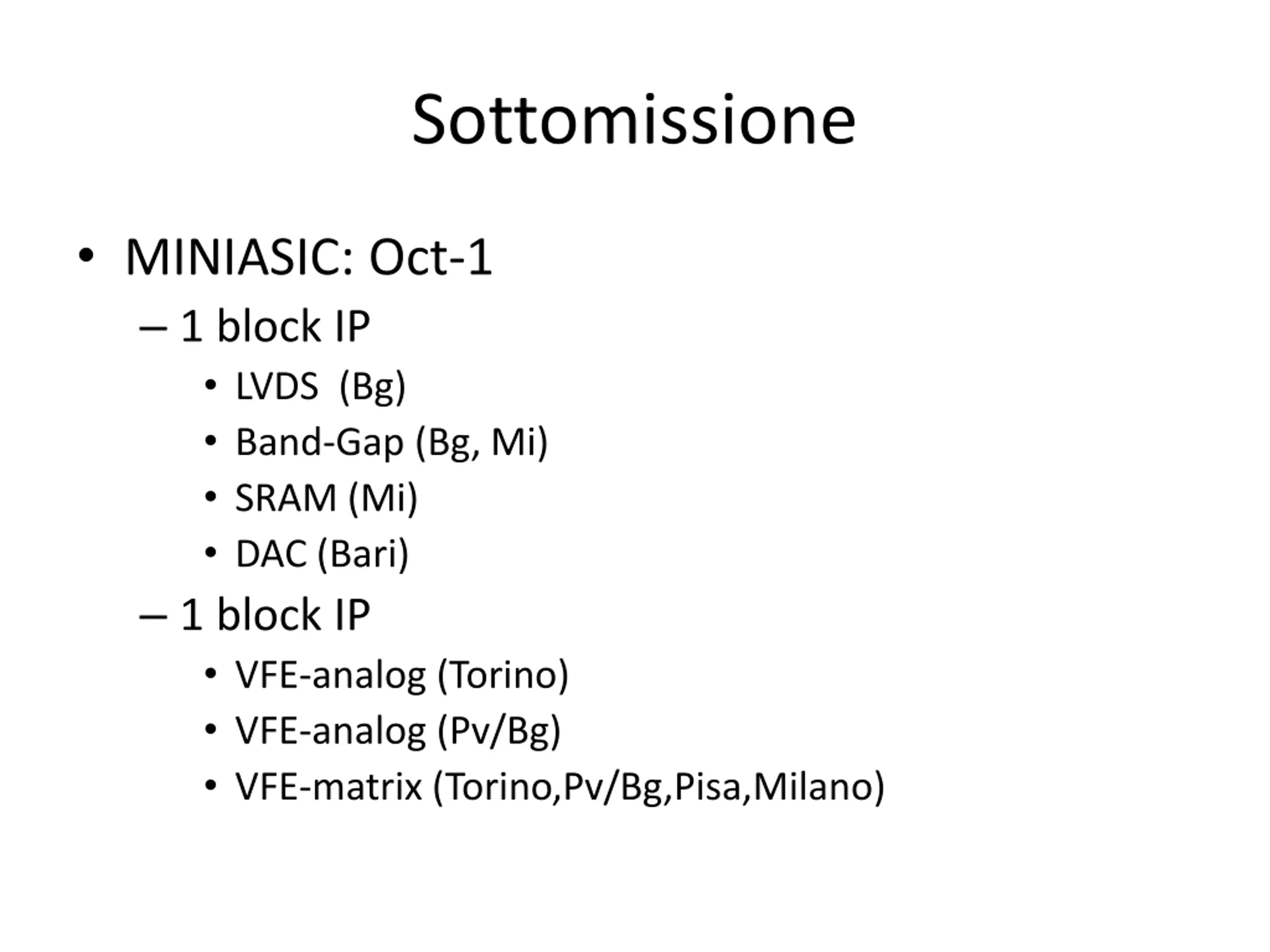

Sottomissione MINIASIC: Oct-1 1 block IP LVDS (Bg) Band-Gap (Bg, Mi) SRAM (Mi) DAC (Bari) 1 block IP VFE-analog (Torino) VFE-analog (Pv/Bg) VFE-matrix (Torino,Pv/Bg,Pisa,Milano)

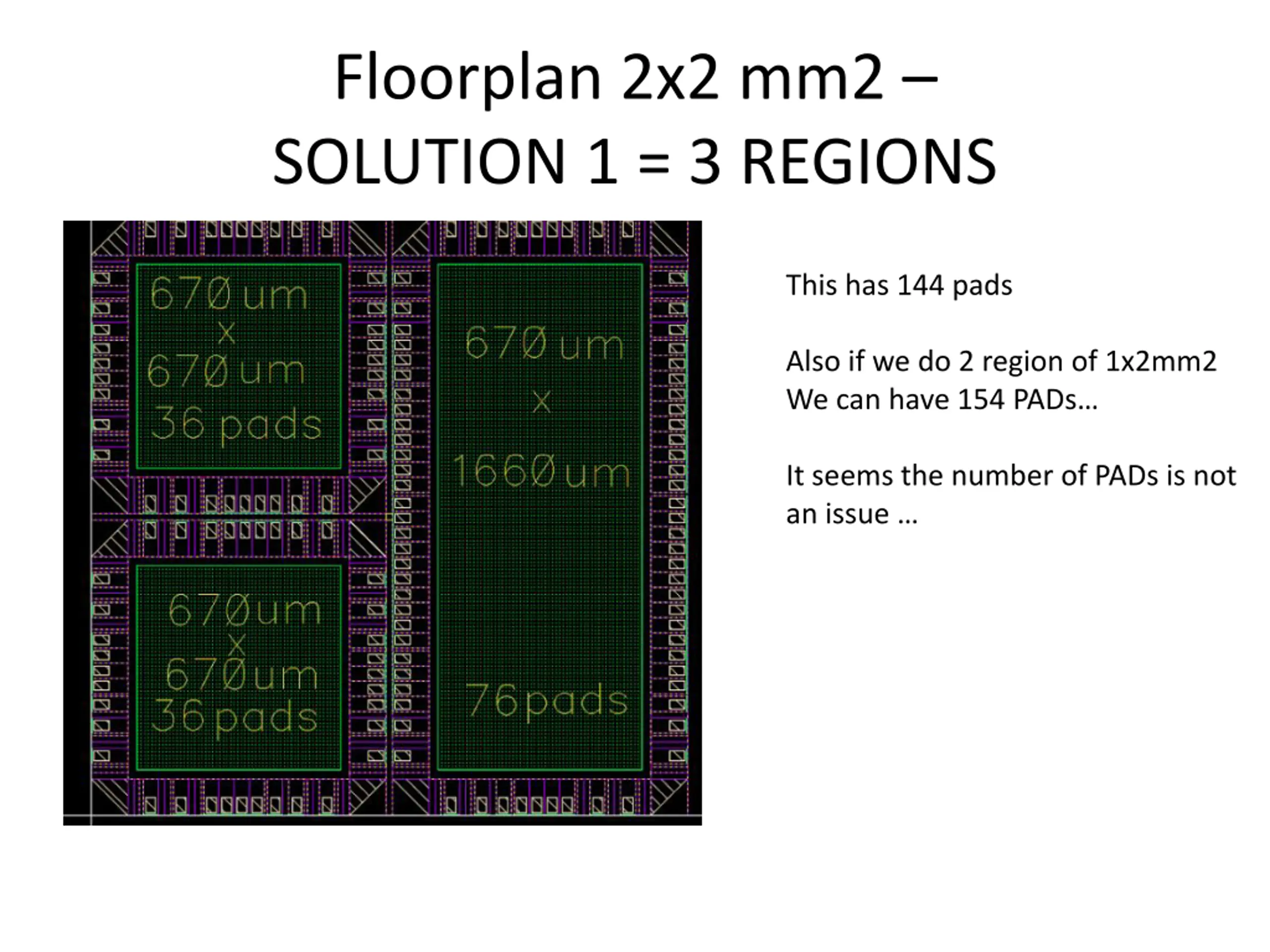

Floorplan 2x2 mm2 SOLUTION 1 = 3 REGIONS This has 144 pads Also if we do 2 region of 1x2mm2 We can have 154 PADs It seems the number of PADs is not an issue

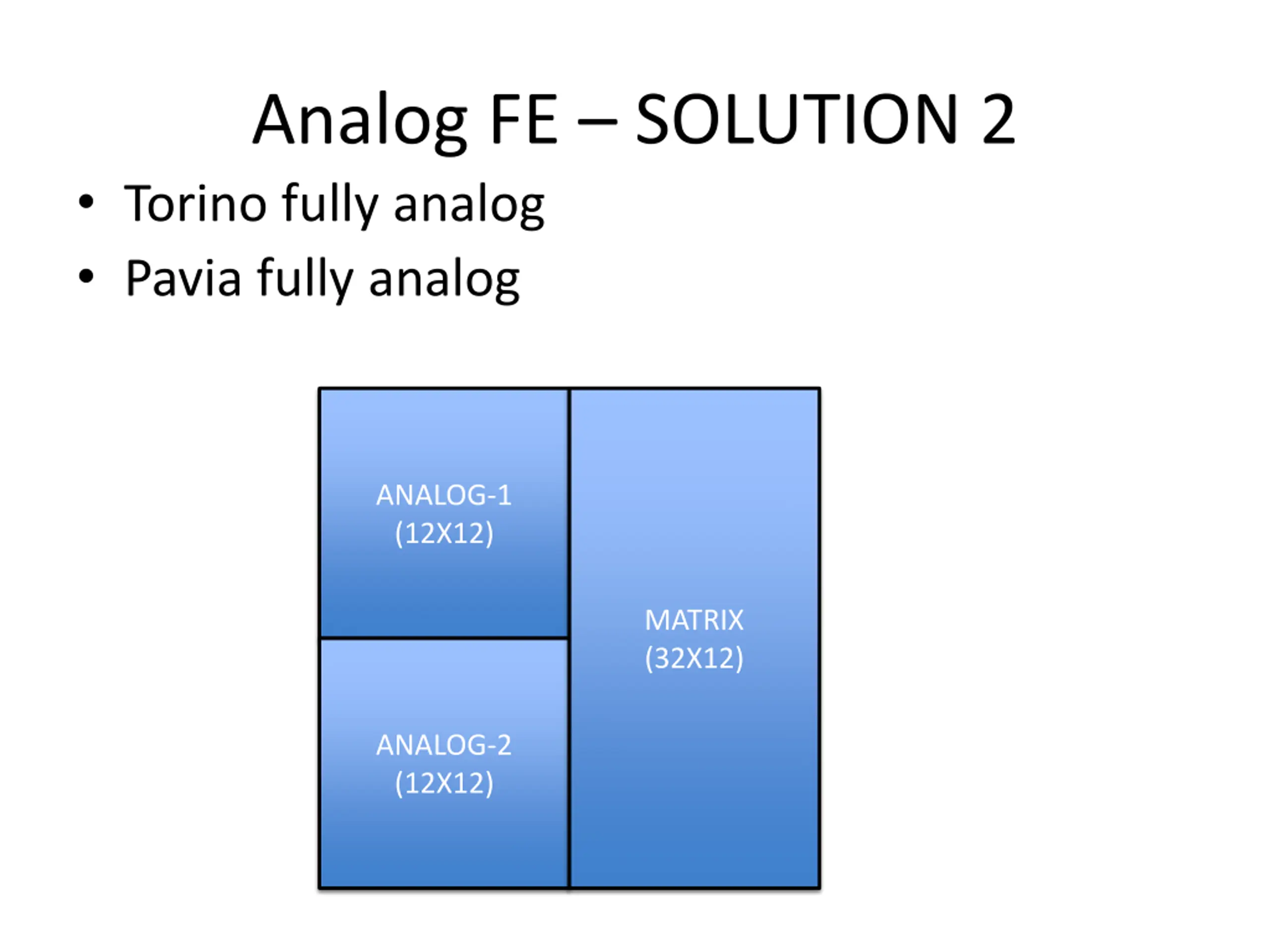

Analog FE SOLUTION 2 Torino fully analog Pavia fully analog ANALOG-1 (12X12) MATRIX (32X12) ANALOG-2 (12X12)

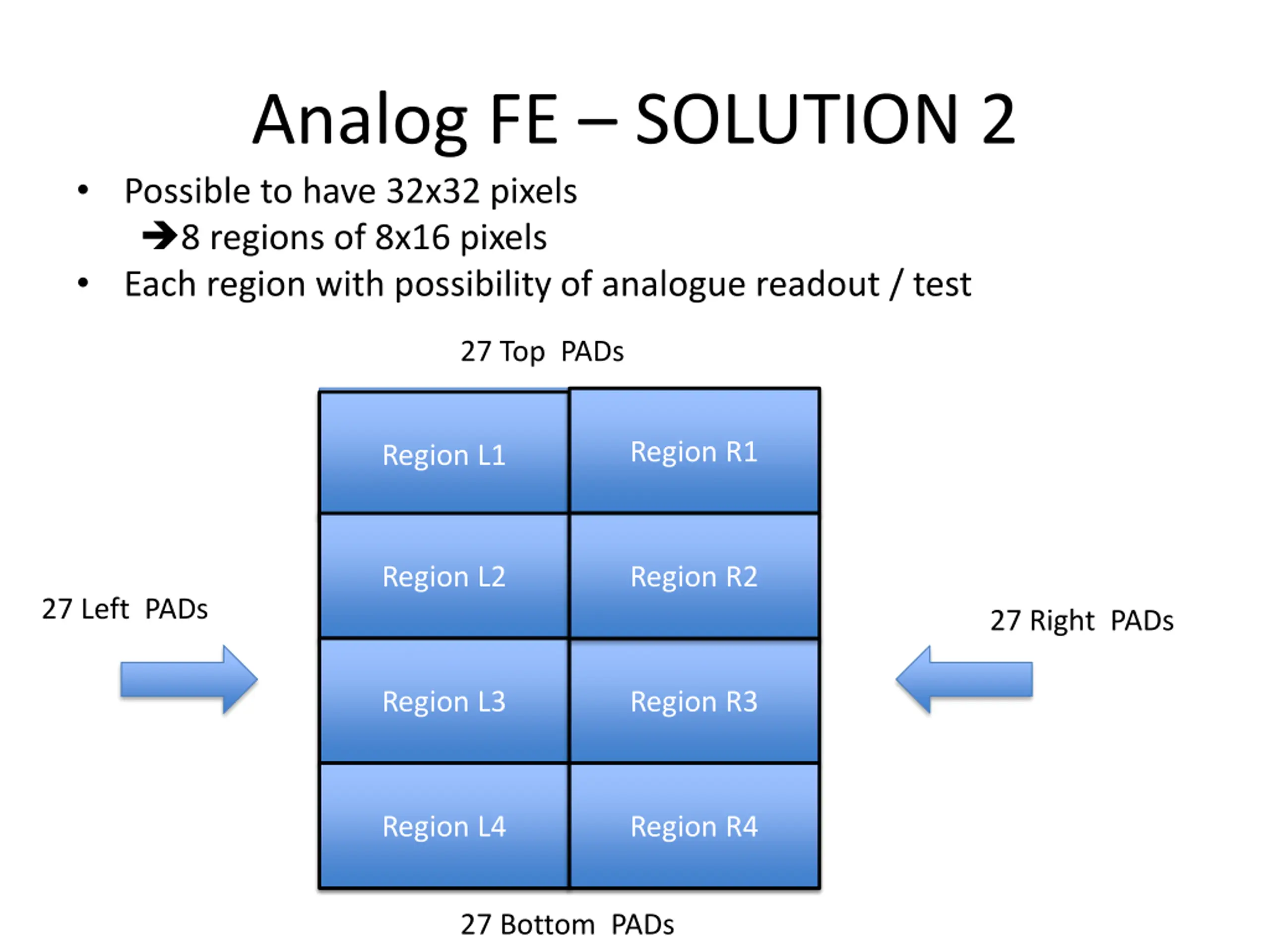

Analog FE SOLUTION 2 Possible to have 32x32 pixels 8 regions of 8x16 pixels Each region with possibility of analogue readout / test 27 Top PADs Region R1 Region L1 Region L2 Region R2 27 Left PADs 27 Right PADs Region L3 Region R3 Region L4 Region R4 27 Bottom PADs

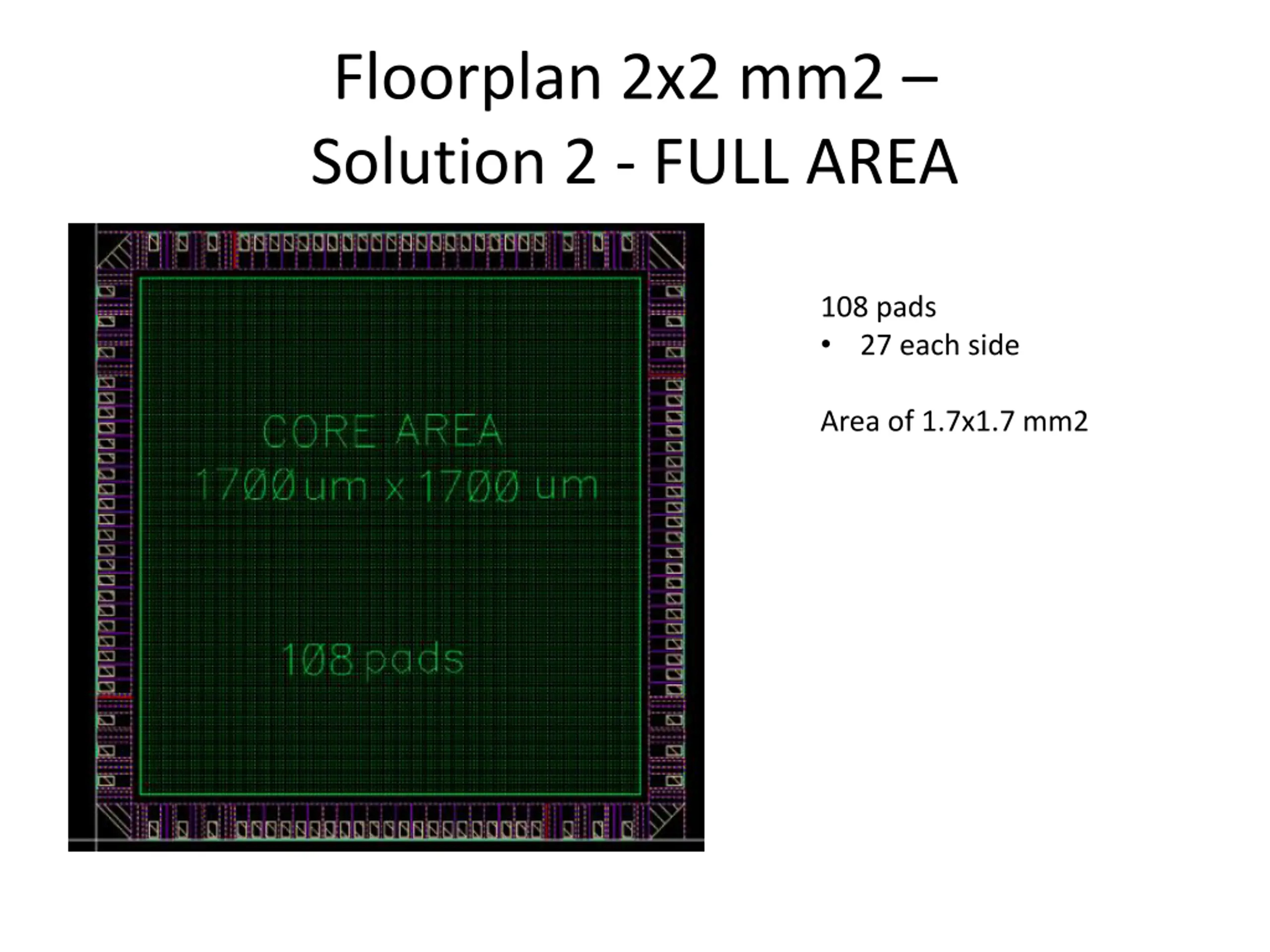

Floorplan 2x2 mm2 Solution 2 - FULL AREA 108 pads 27 each side Area of 1.7x1.7 mm2
