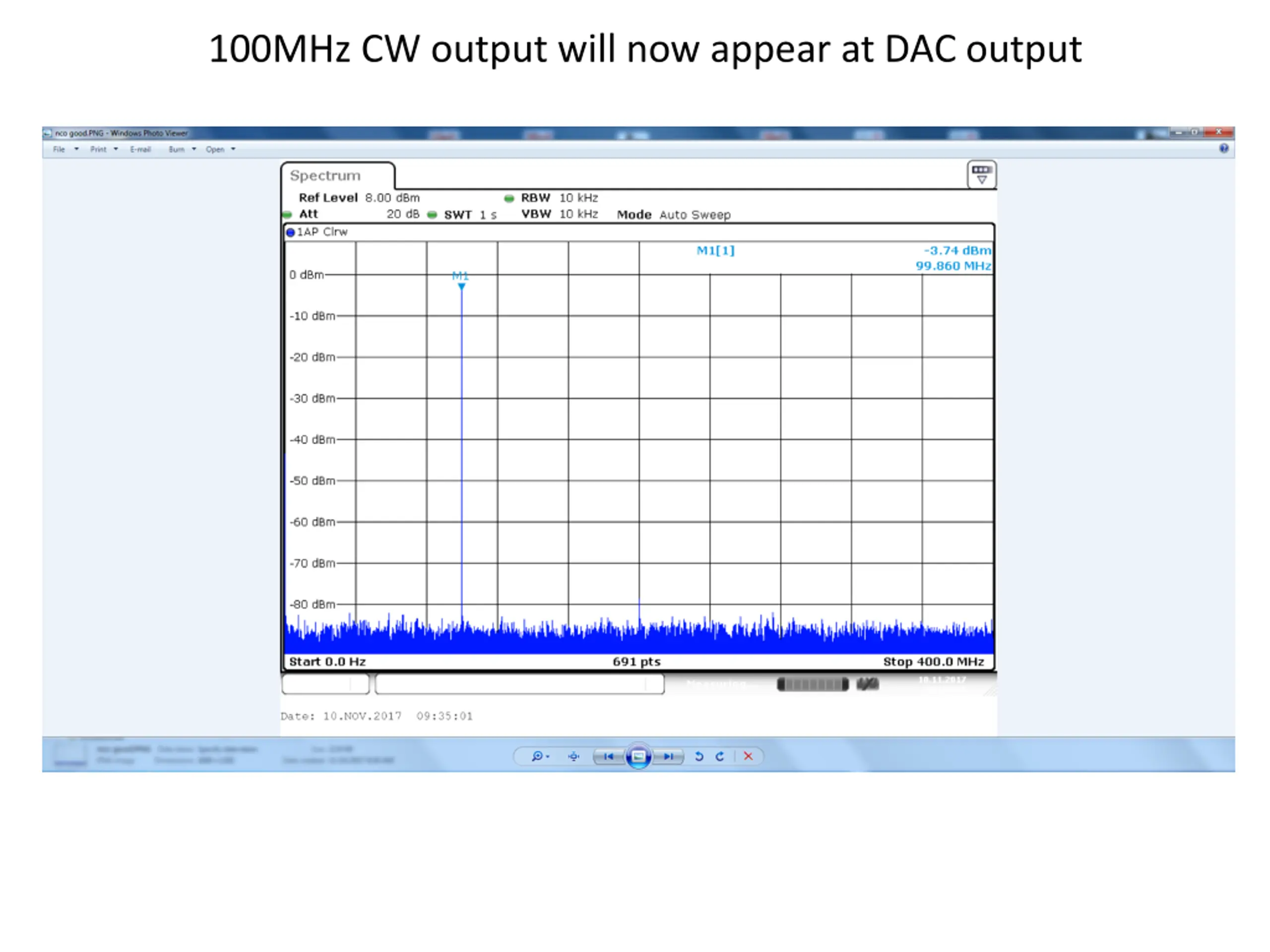

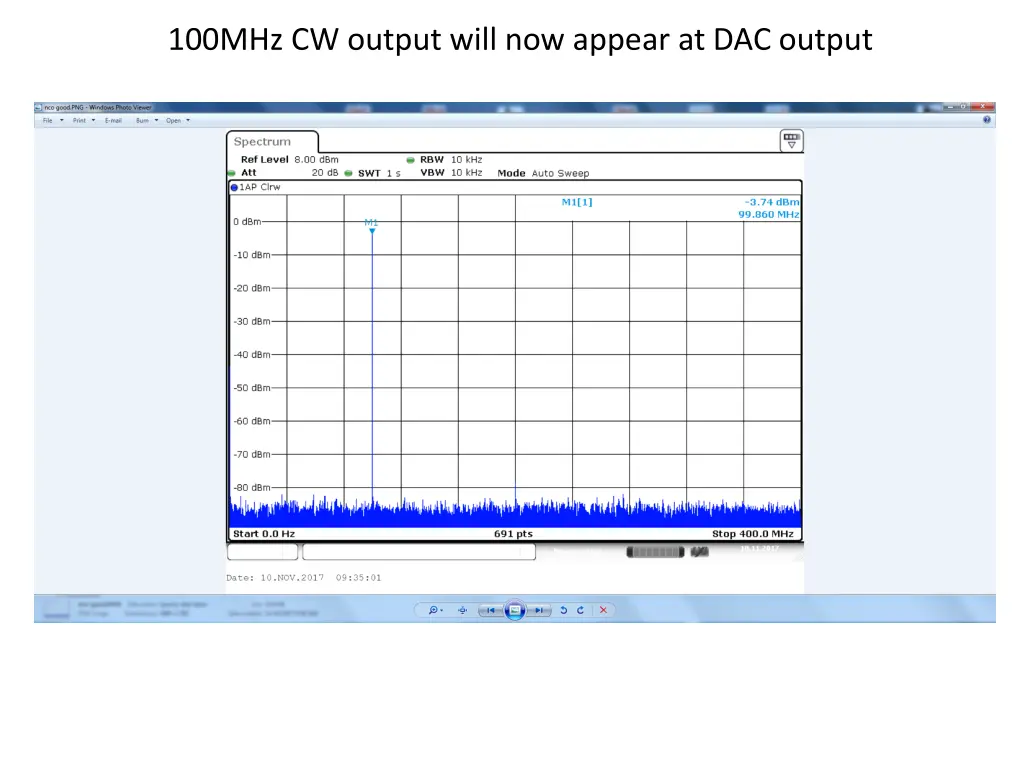

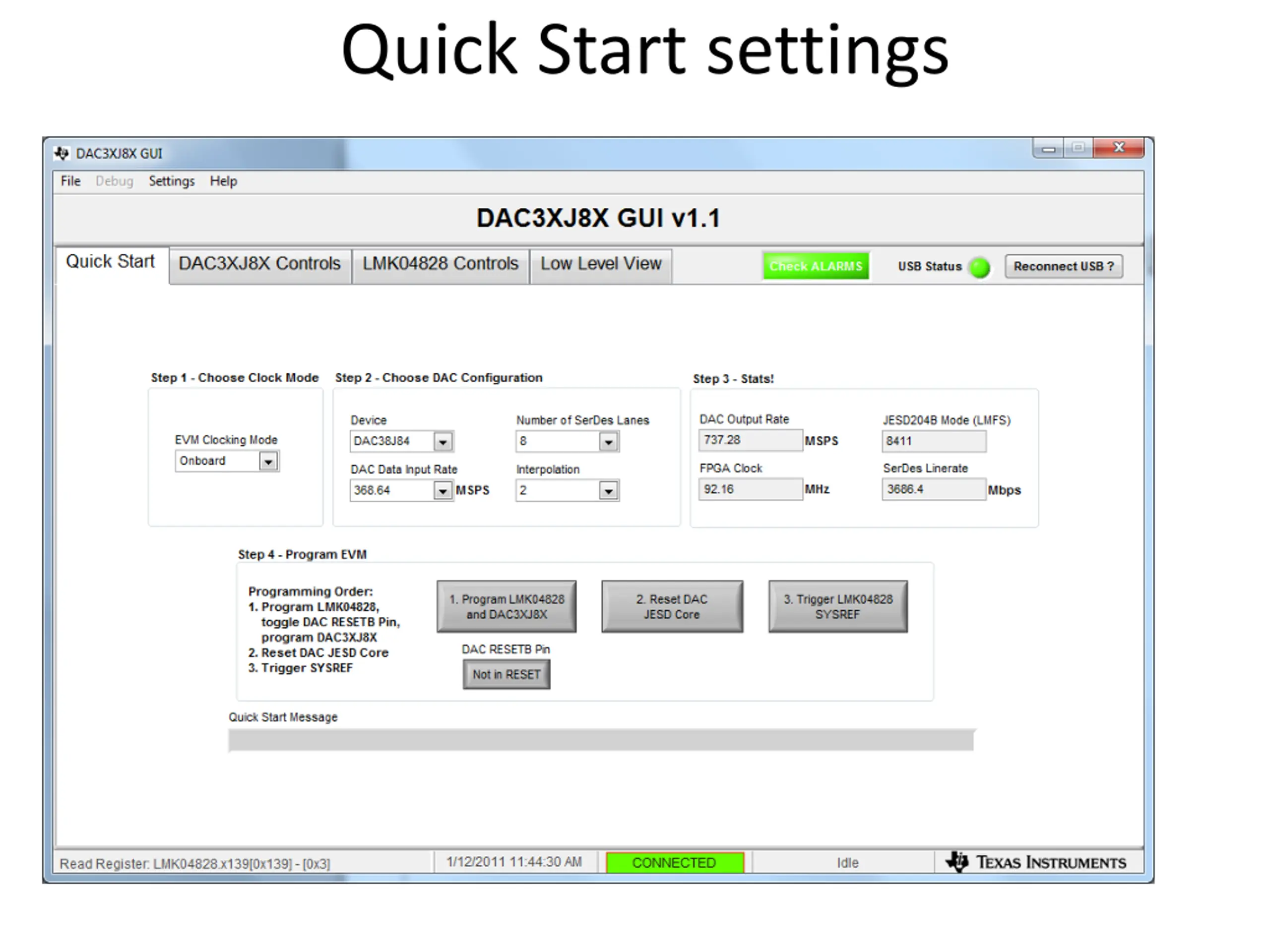

"Learn how to set up and configure the DAC38J84 for a 100MHz NCO test. Follow step-by-step instructions for hardware setup, quick start settings, control tab configurations, and more to generate a 100MHz CW output."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

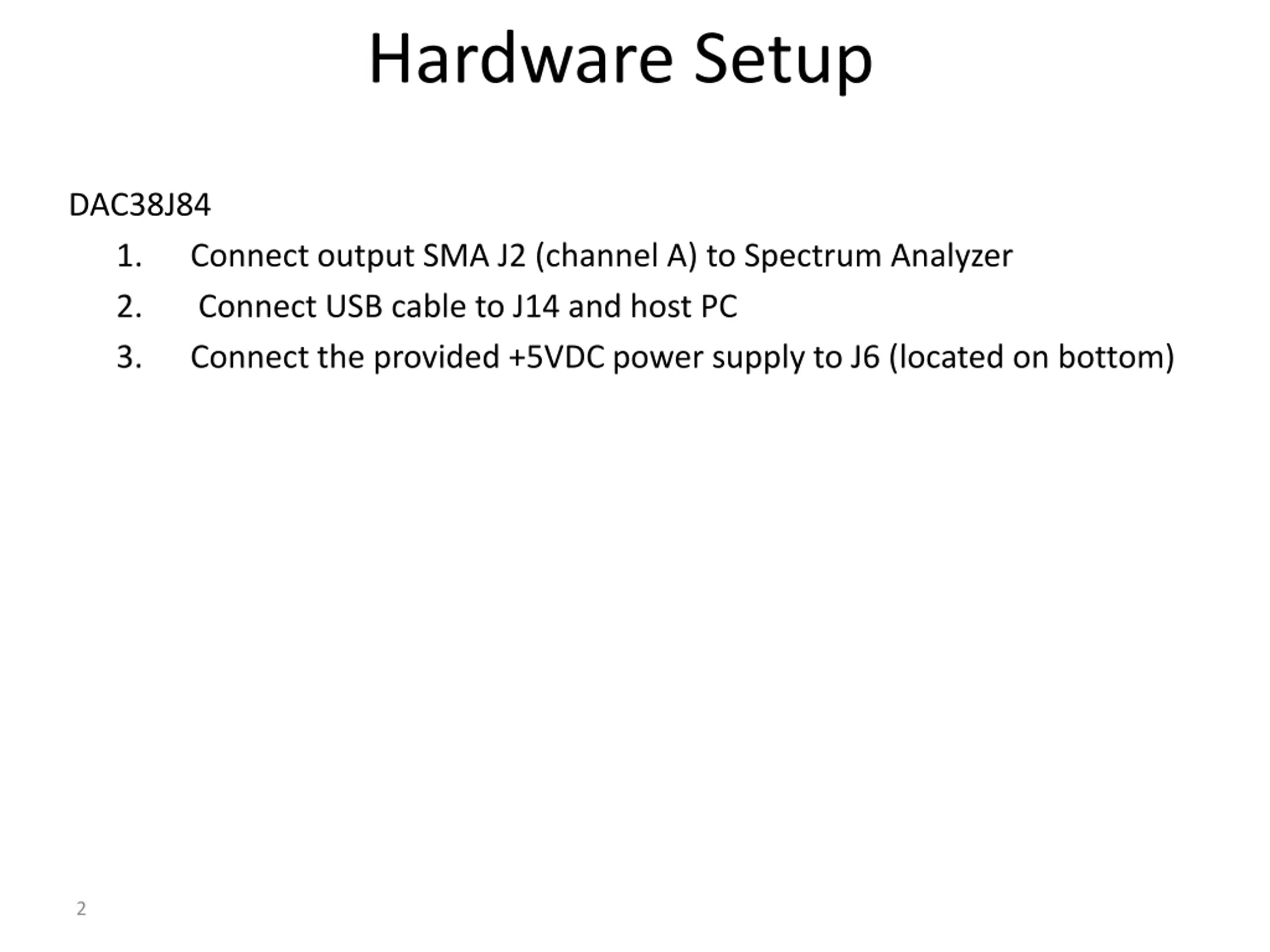

Hardware Setup DAC38J84 1. 2. 3. Connect output SMA J2 (channel A) to Spectrum Analyzer Connect USB cable to J14 and host PC Connect the provided +5VDC power supply to J6 (located on bottom) 2

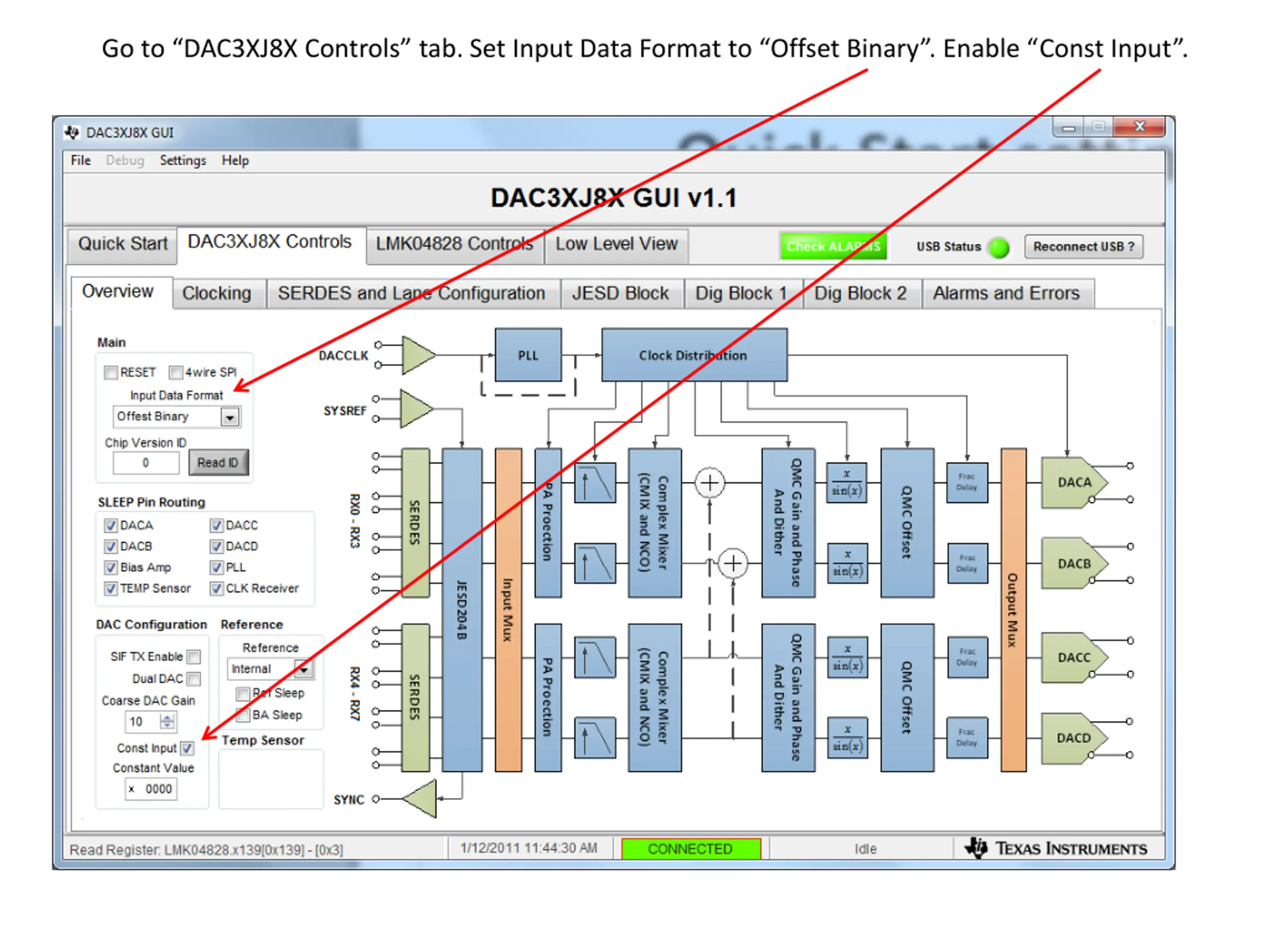

Go to DAC3XJ8X Controls tab. Set Input Data Format to Offset Binary. Enable Const Input.

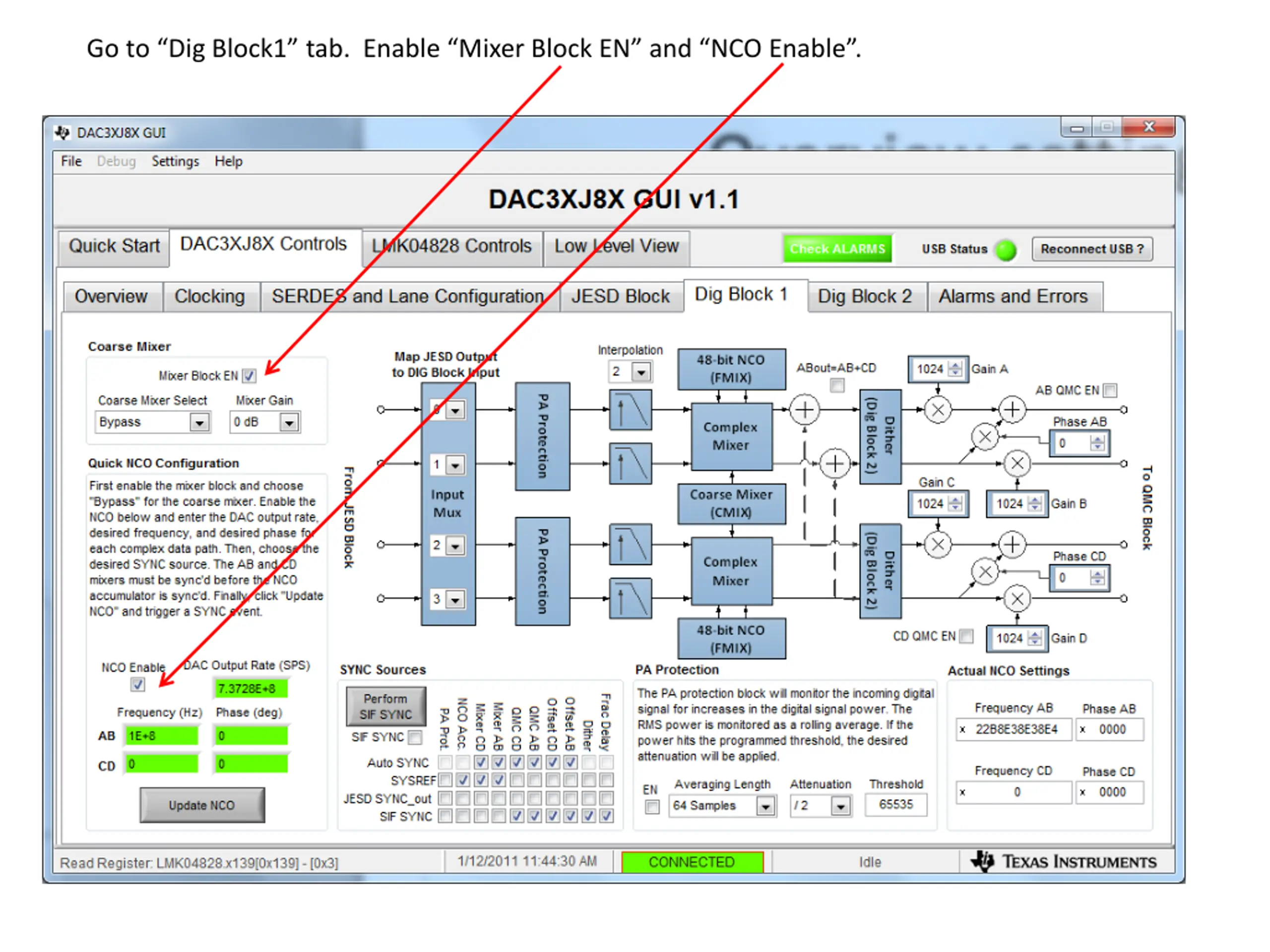

Go to Dig Block1 tab. Enable Mixer Block EN and NCO Enable.

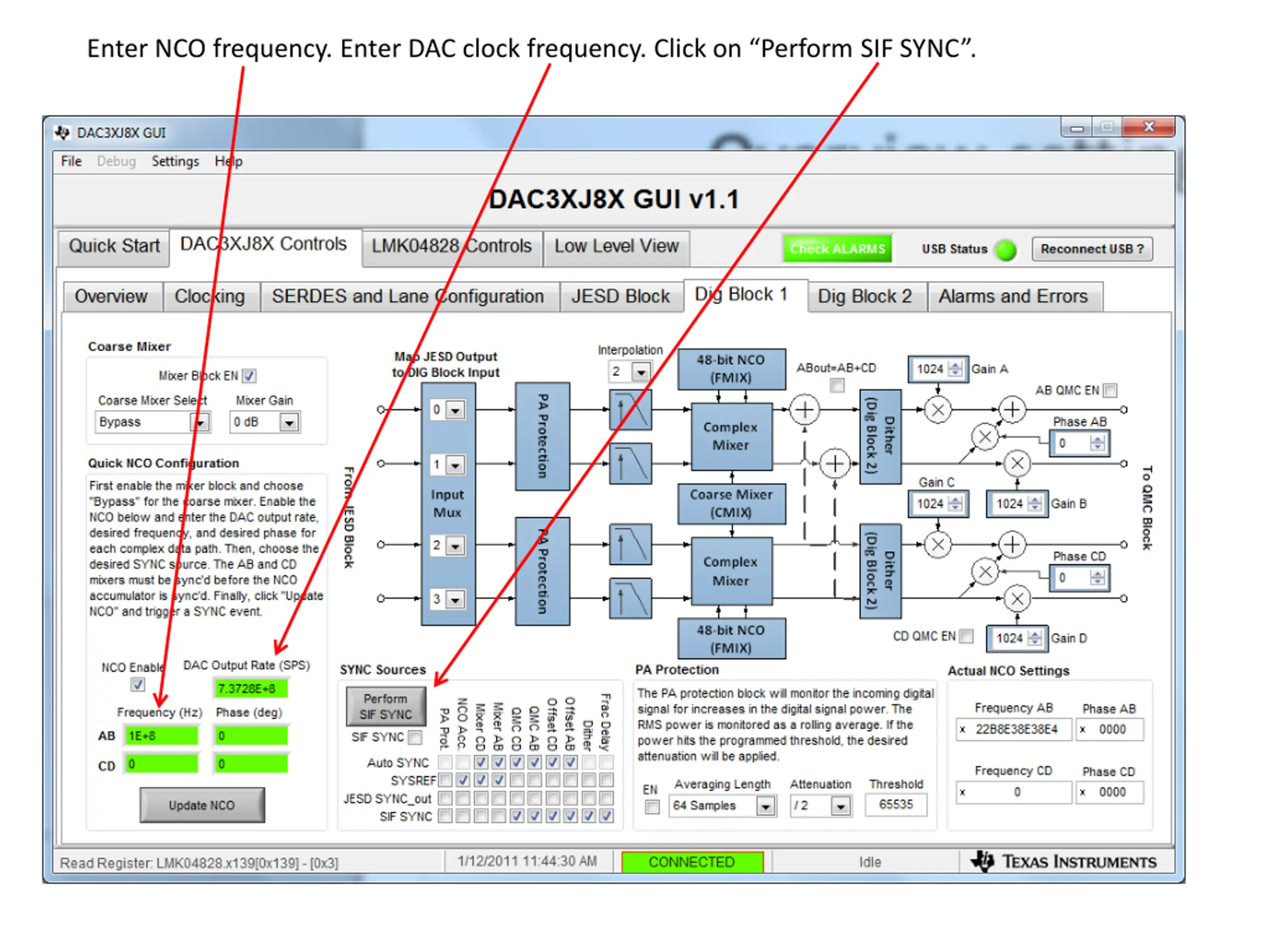

Enter NCO frequency. Enter DAC clock frequency. Click on Perform SIF SYNC.
