Data Structures and Algorithms - IAT 265 Overview

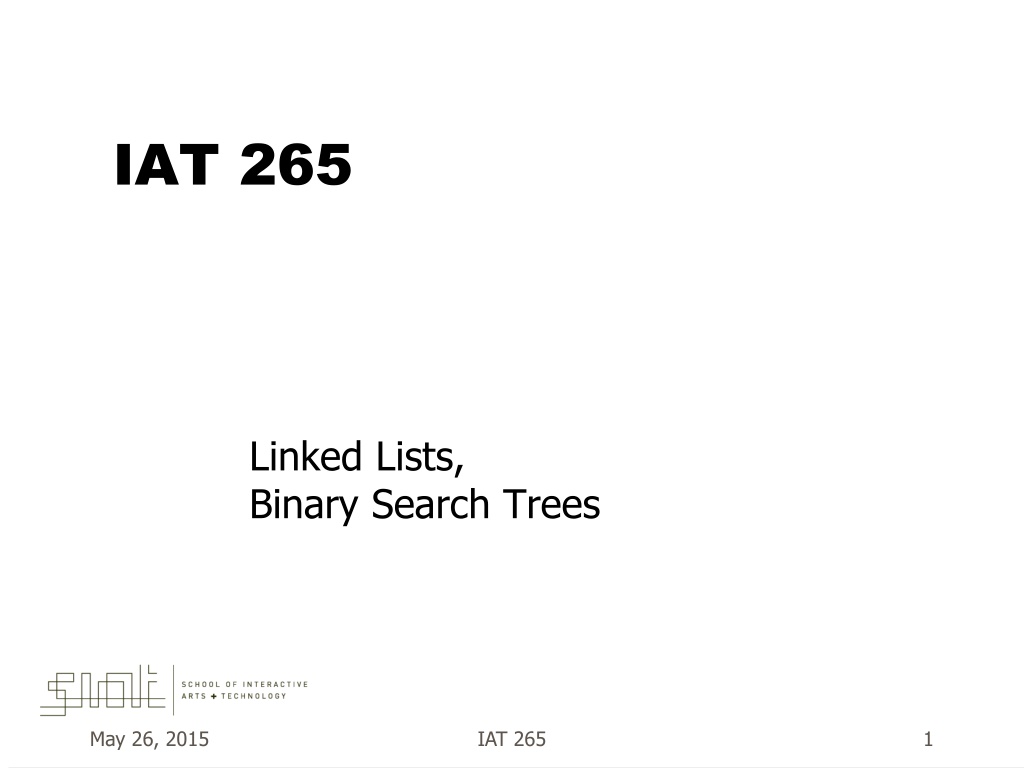

IAT 265 Linked Lists, Binary Search Trees May 26, 2015 IAT 265 1

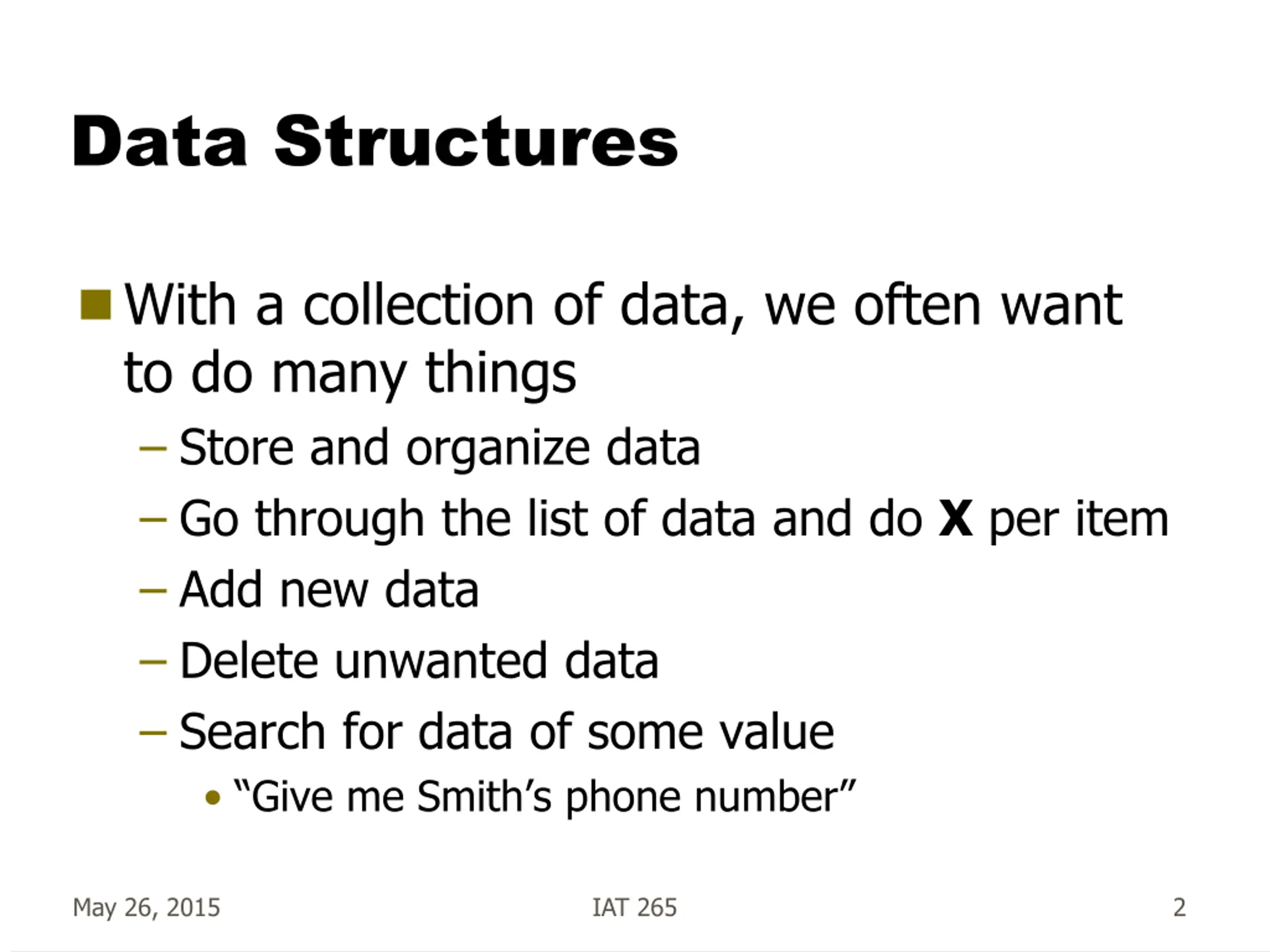

Data Structures With a collection of data, we often want to do many things Store and organize data Go through the list of data and do X per item Add new data Delete unwanted data Search for data of some value Give me Smith s phone number May 26, 2015 IAT 265 2

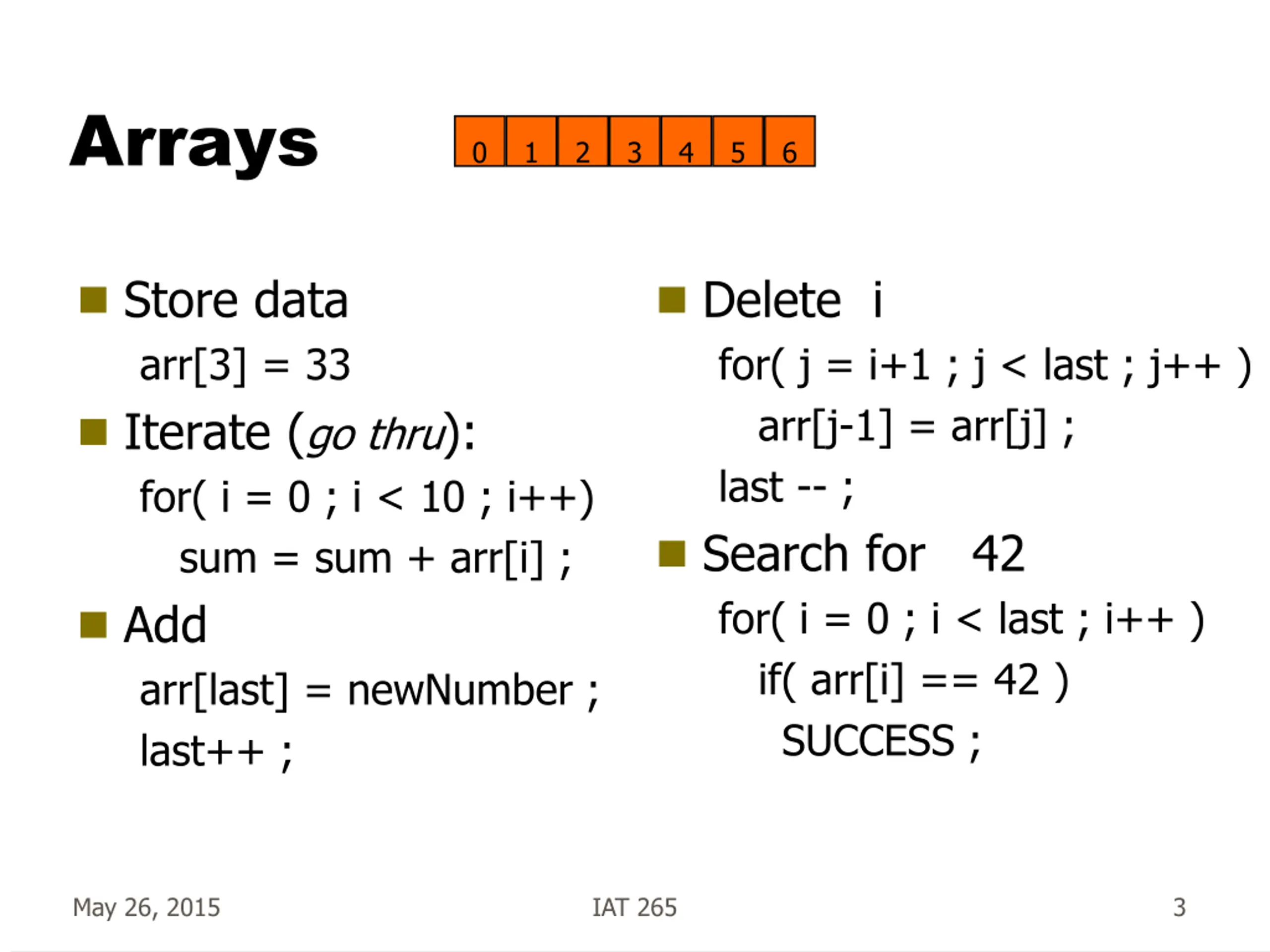

Arrays 0 1 2 3 4 5 6 Store data arr[3] = 33 Iterate (go thru): for( i = 0 ; i < 10 ; i++) sum = sum + arr[i] ; Add arr[last] = newNumber ; last++ ; Delete i for( j = i+1 ; j < last ; j++ ) arr[j-1] = arr[j] ; last -- ; Search for 42 for( i = 0 ; i < last ; i++ ) if( arr[i] == 42 ) SUCCESS ; May 26, 2015 IAT 265 3

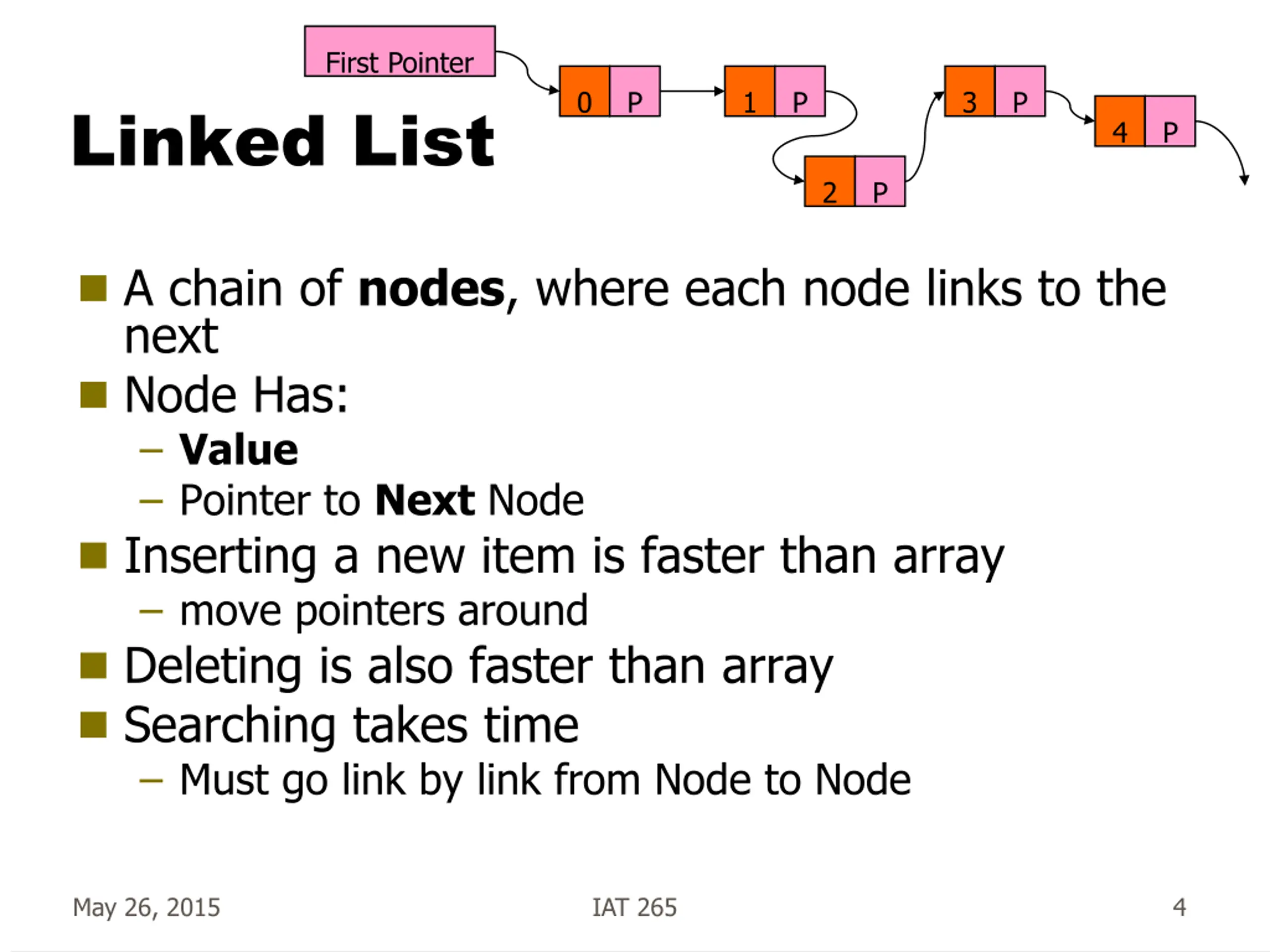

First Pointer 0 P 1 P 3 P Linked List 4 P 2 P A chain of nodes, where each node links to the next Node Has: Value Pointer to Next Node Inserting a new item is faster than array move pointers around Deleting is also faster than array Searching takes time Must go link by link from Node to Node May 26, 2015 IAT 265 4

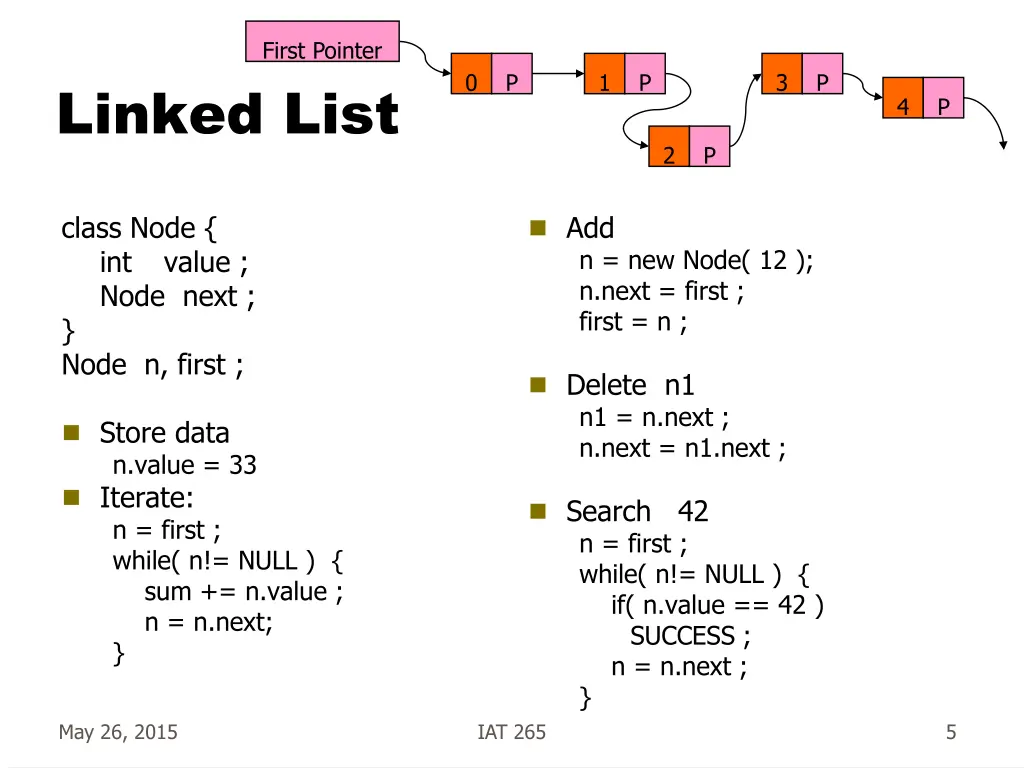

First Pointer 0 P 1 P 3 P Linked List 4 P 2 P class Node { int value ; Node next ; } Node n, first ; Add n = new Node( 12 ); n.next = first ; first = n ; Delete n1 n1 = n.next ; n.next = n1.next ; Store data n.value = 33 Iterate: n = first ; while( n!= NULL ) { sum += n.value ; n = n.next; } Search 42 n = first ; while( n!= NULL ) { if( n.value == 42 ) SUCCESS ; n = n.next ; } May 26, 2015 IAT 265 5

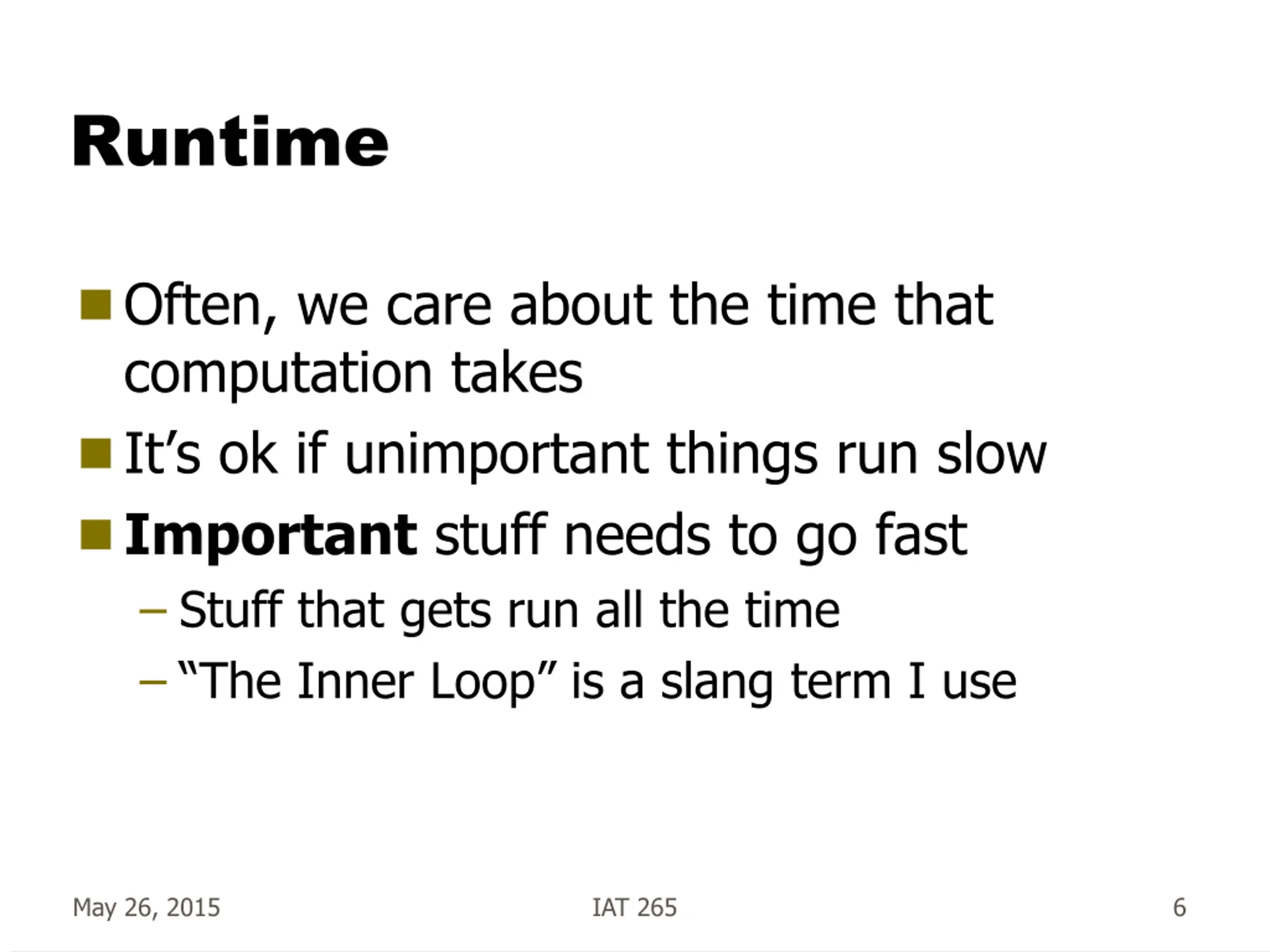

Runtime Often, we care about the time that computation takes It s ok if unimportant things run slow Important stuff needs to go fast Stuff that gets run all the time The Inner Loop is a slang term I use May 26, 2015 IAT 265 6

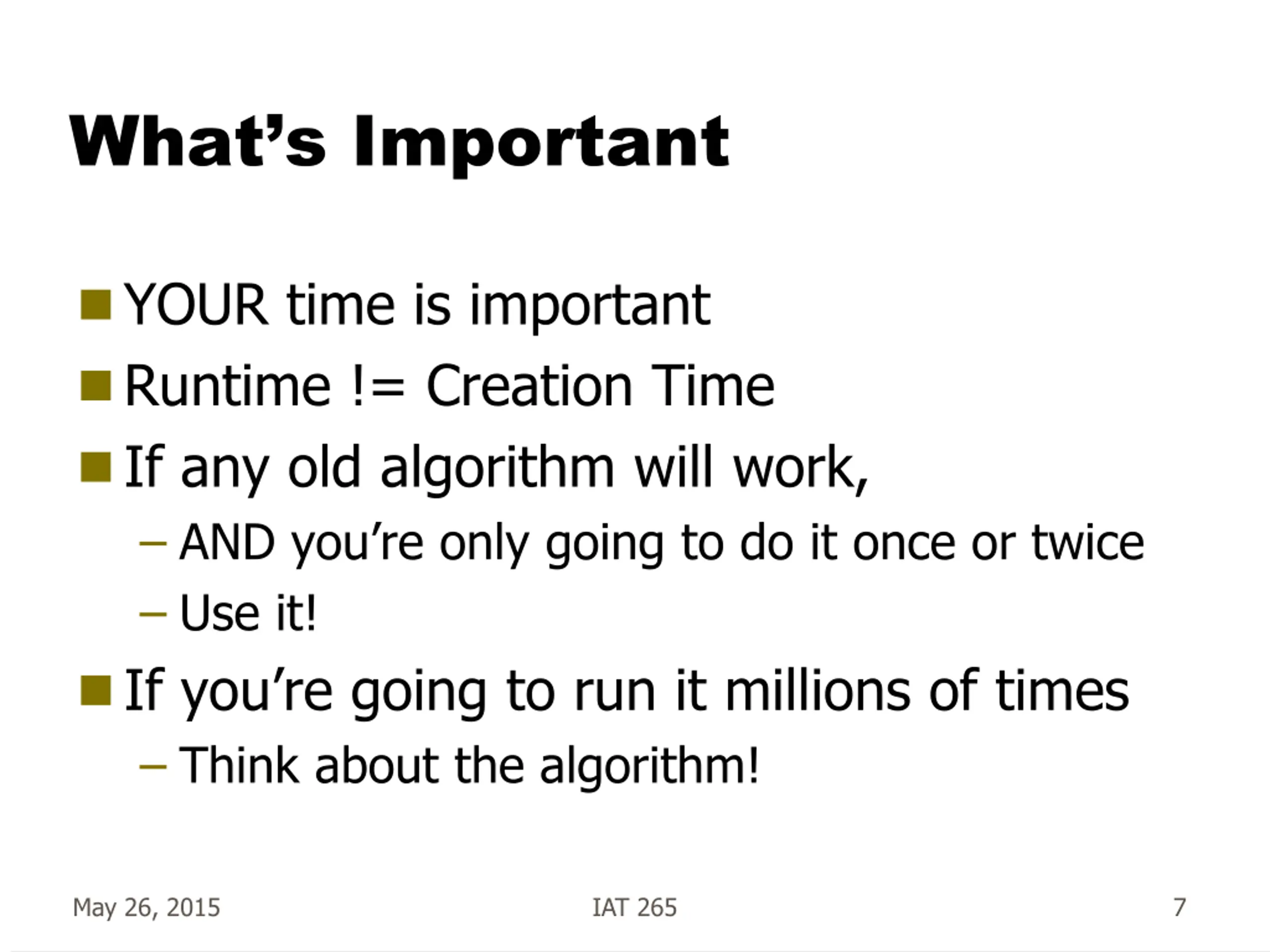

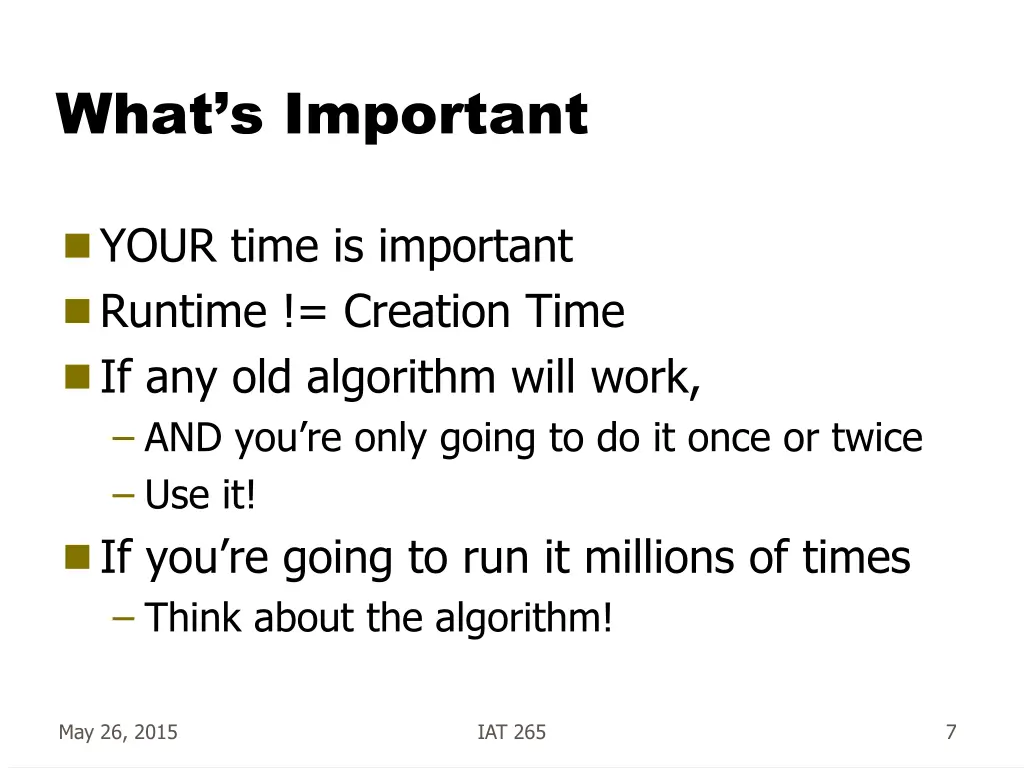

Whats Important YOUR time is important Runtime != Creation Time If any old algorithm will work, AND you re only going to do it once or twice Use it! If you re going to run it millions of times Think about the algorithm! May 26, 2015 IAT 265 7

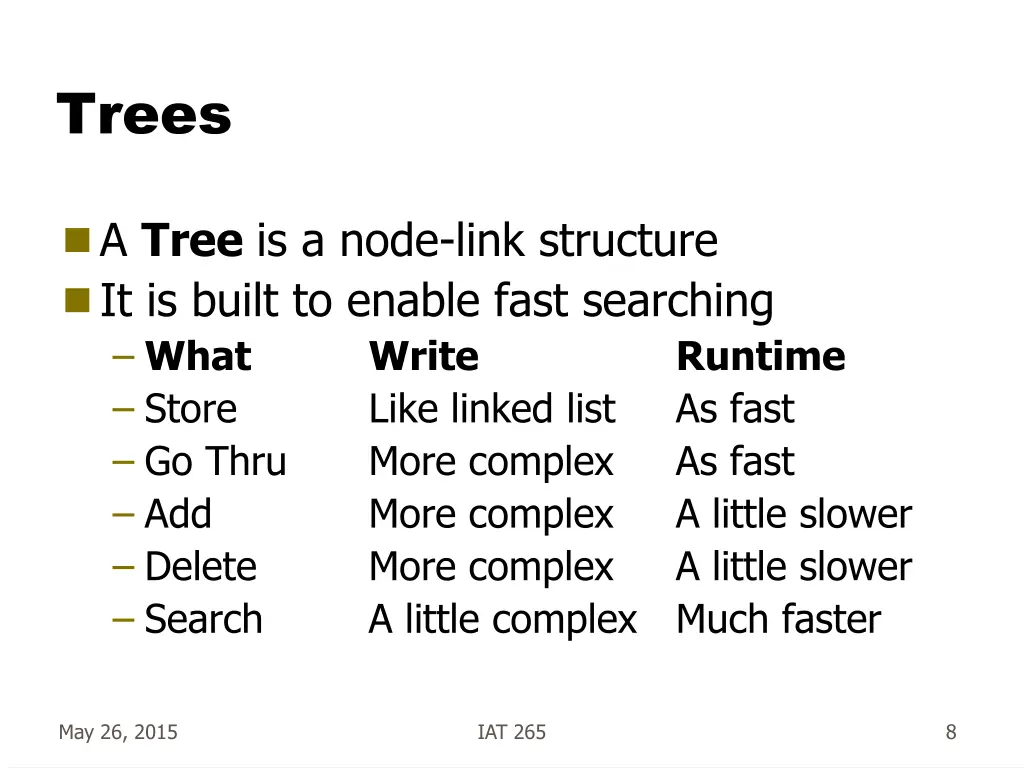

Trees A Tree is a node-link structure It is built to enable fast searching What Write Store Like linked list Go Thru More complex Add More complex Delete More complex Search A little complex Much faster Runtime As fast As fast A little slower A little slower May 26, 2015 IAT 265 8

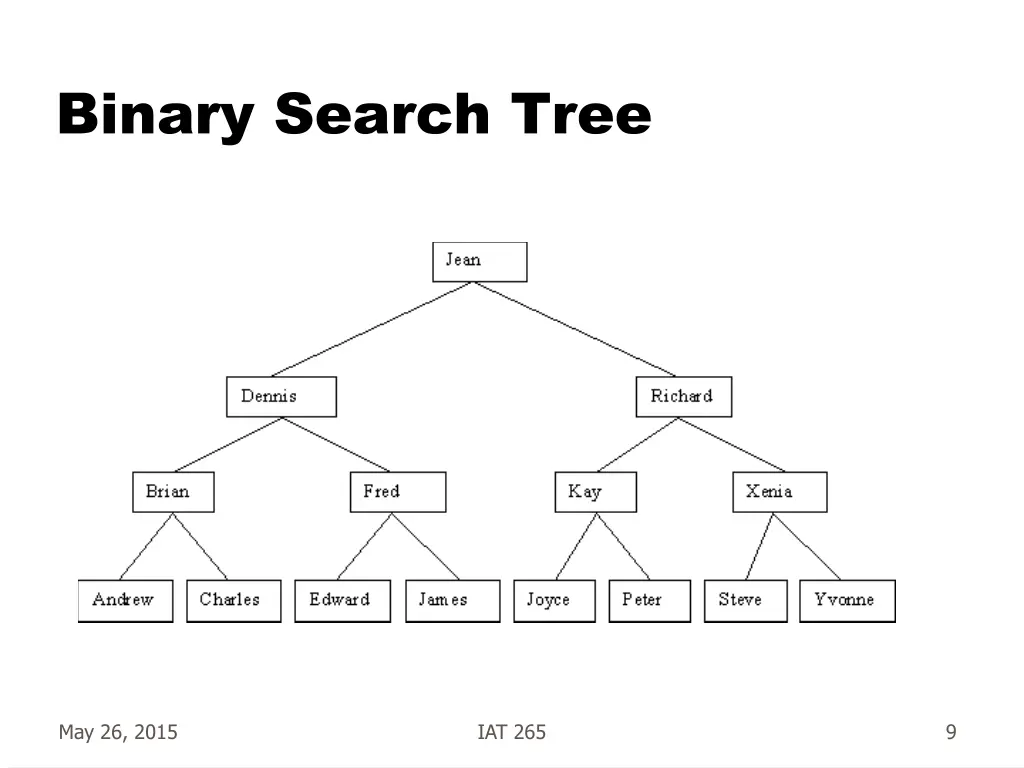

Binary Search Tree May 26, 2015 IAT 265 9

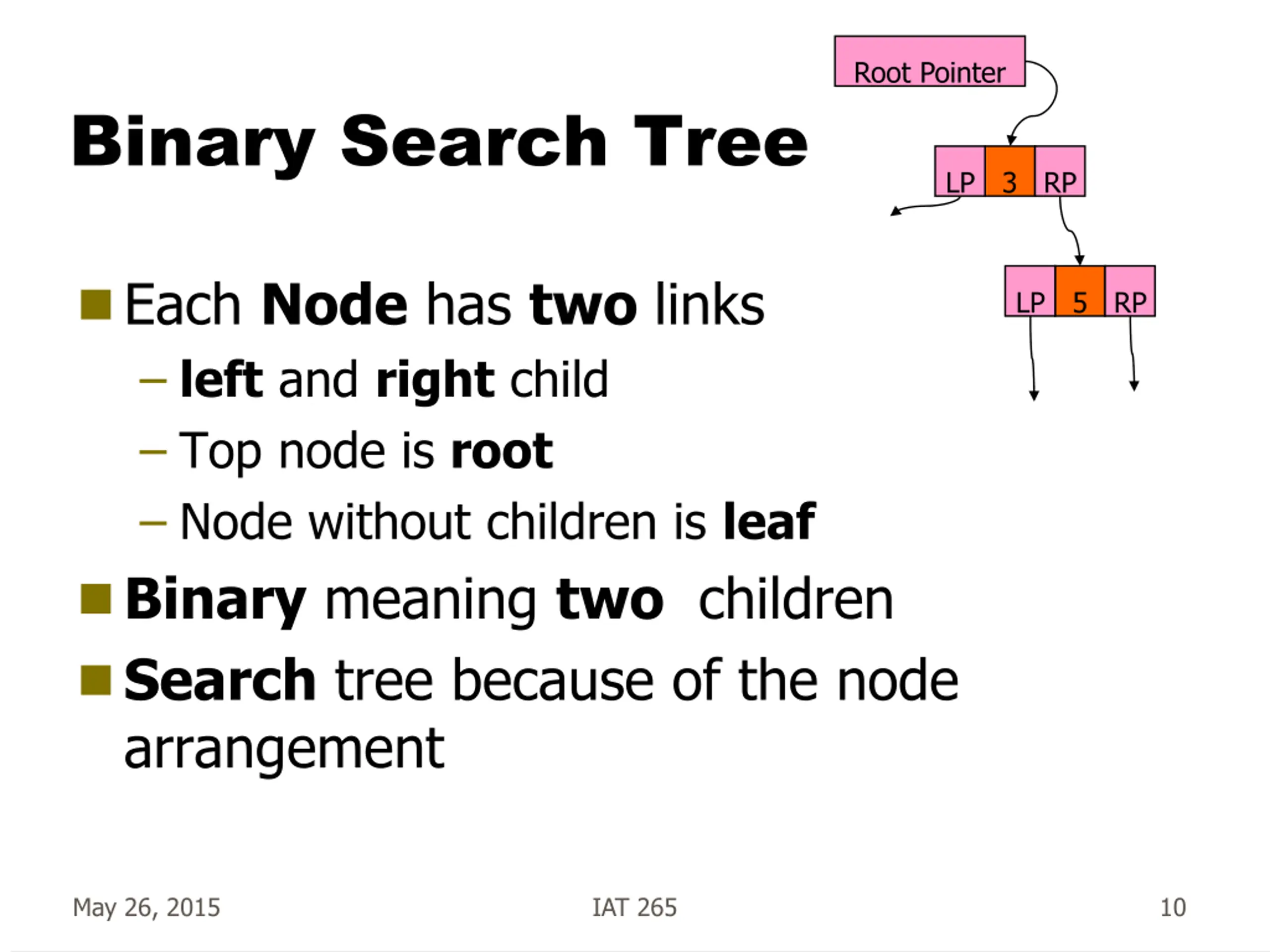

Root Pointer Binary Search Tree LP 3 RP Each Node has two links left and right child Top node is root Node without children is leaf Binary meaning two children Search tree because of the node arrangement LP 5 RP May 26, 2015 IAT 265 10

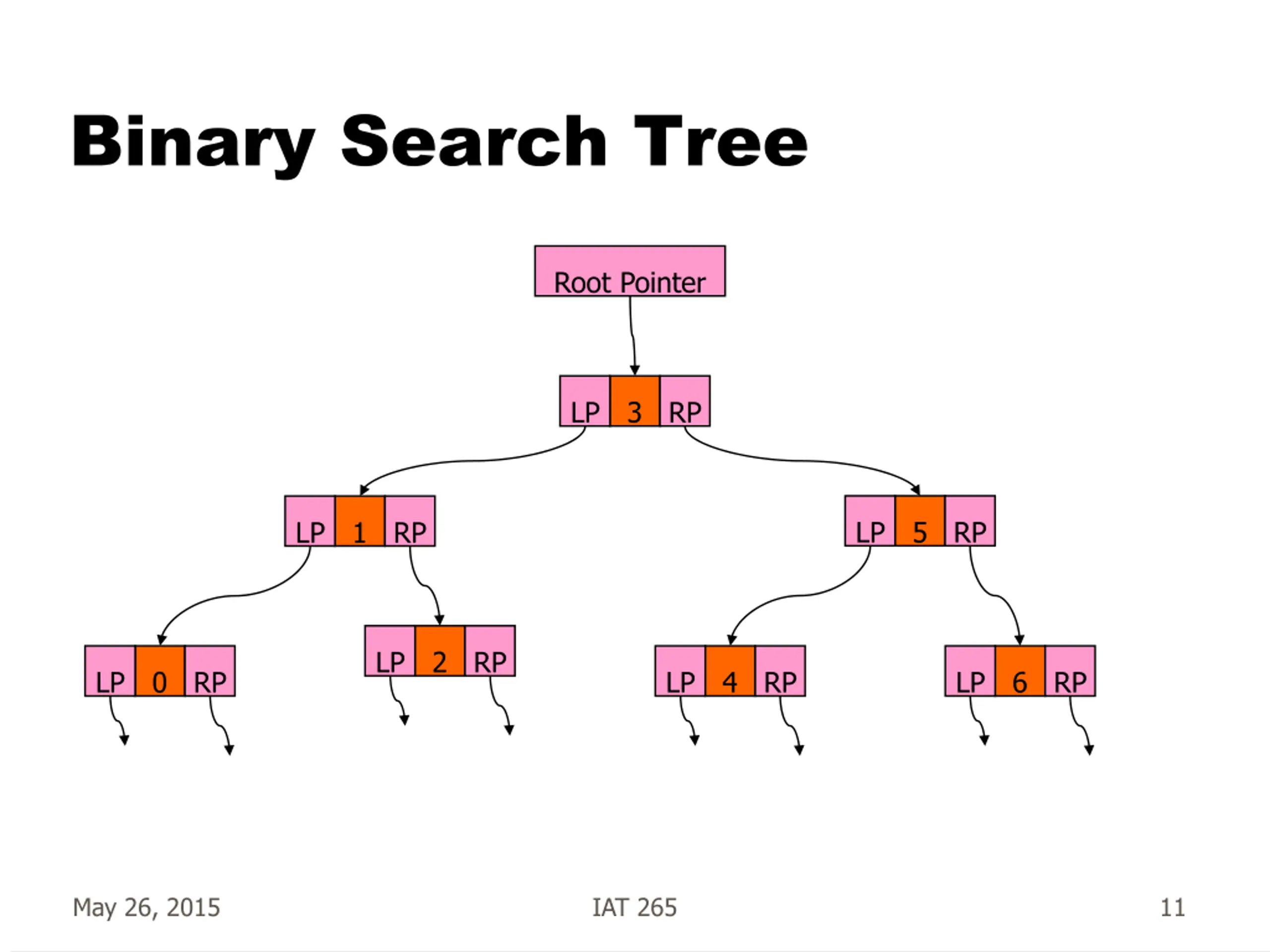

Binary Search Tree Root Pointer LP 3 RP LP 5 RP LP 1 RP LP 2 RP LP 0 RP LP 4 RP LP 6 RP May 26, 2015 IAT 265 11

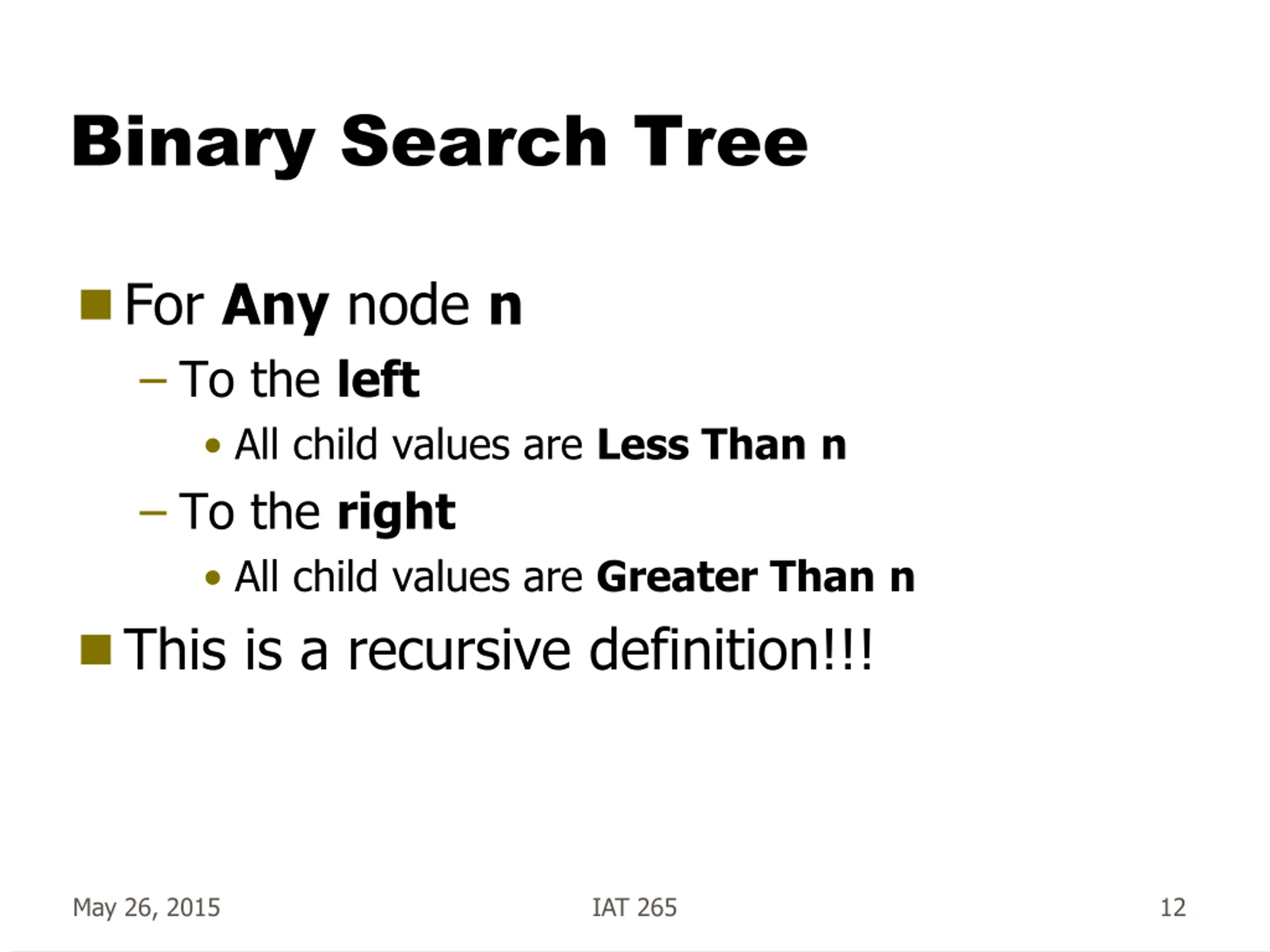

Binary Search Tree For Any node n To the left All child values are Less Thann To the right All child values are Greater Thann This is a recursive definition!!! May 26, 2015 IAT 265 12

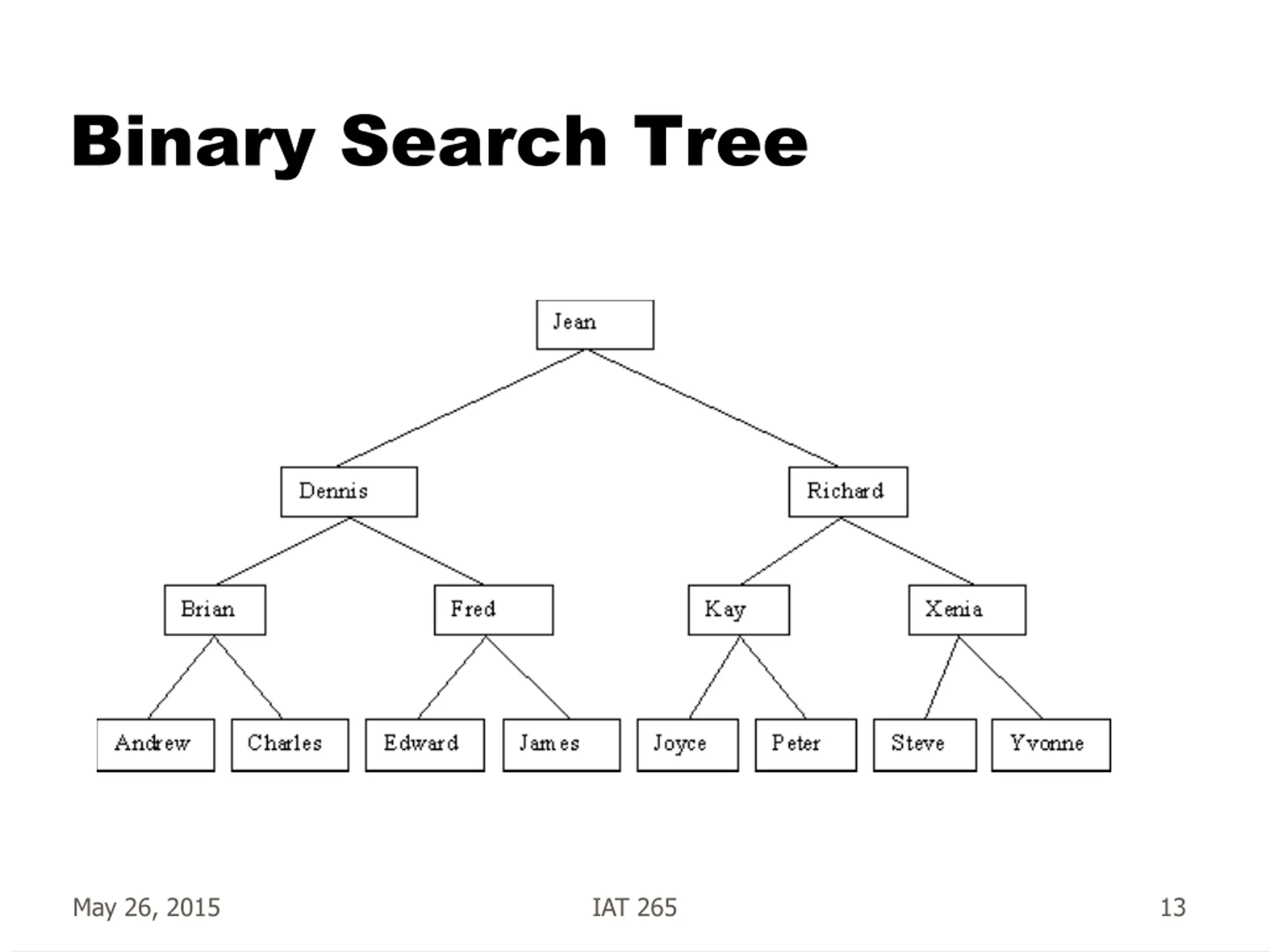

Binary Search Tree May 26, 2015 IAT 265 13

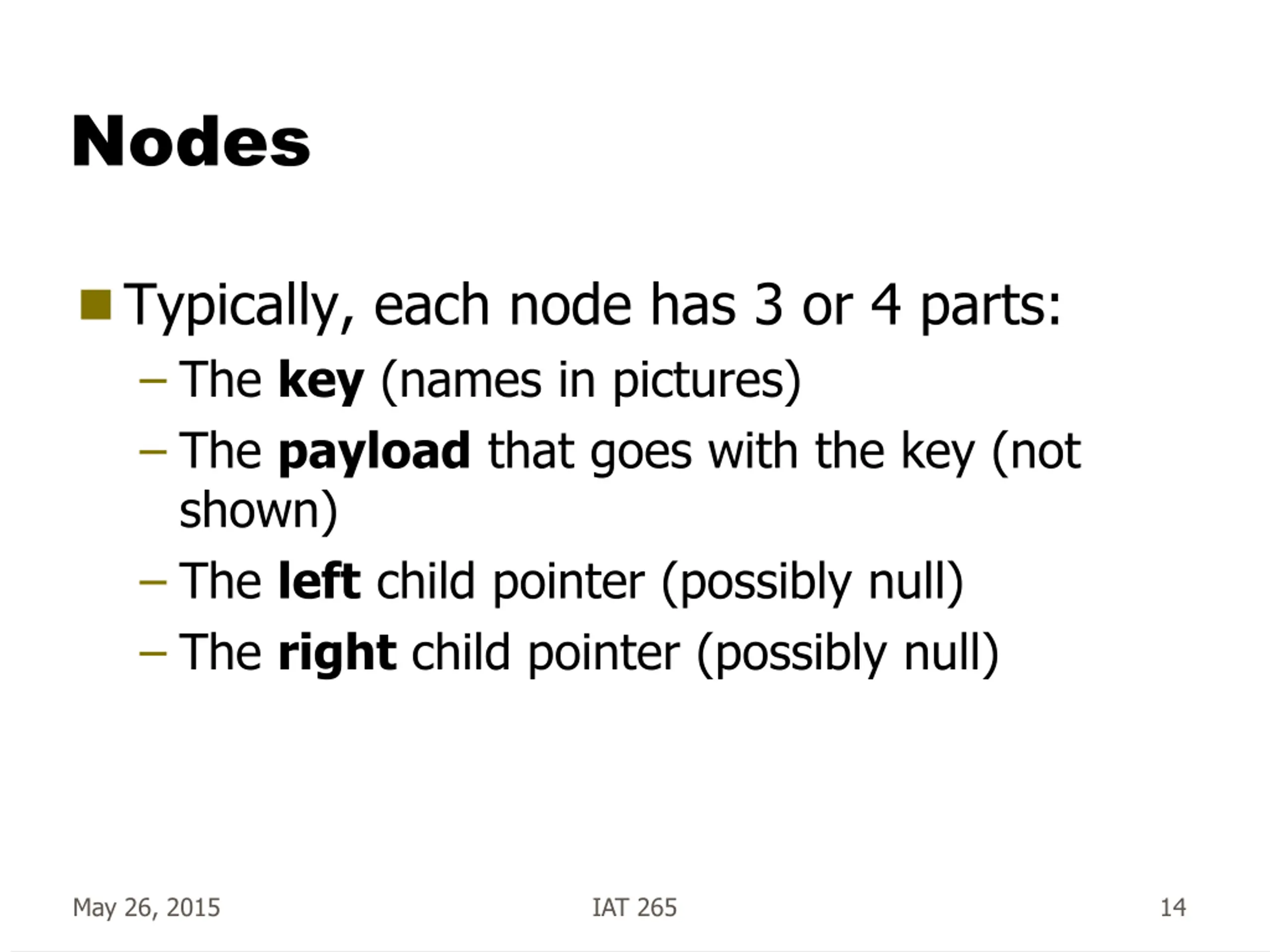

Nodes Typically, each node has 3 or 4 parts: The key (names in pictures) The payload that goes with the key (not shown) The left child pointer (possibly null) The right child pointer (possibly null) May 26, 2015 IAT 265 14

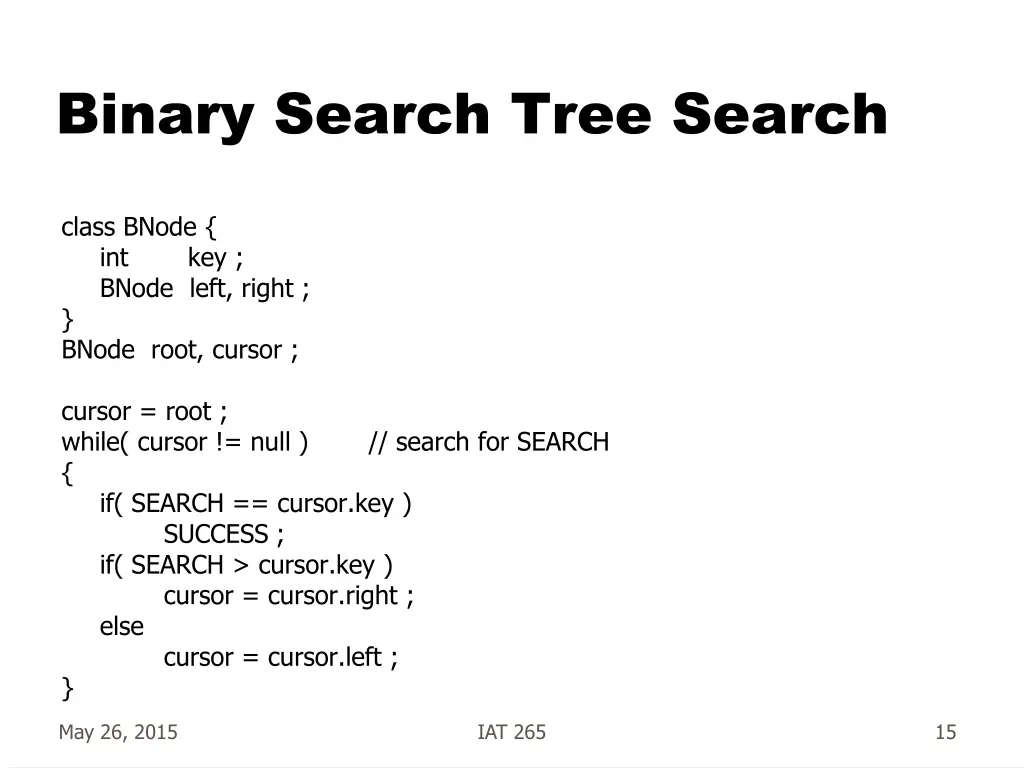

Binary Search Tree Search class BNode { int BNode left, right ; } BNode root, cursor ; key ; cursor = root ; while( cursor != null ) { if( SEARCH == cursor.key ) SUCCESS ; if( SEARCH > cursor.key ) cursor = cursor.right ; else cursor = cursor.left ; } // search for SEARCH May 26, 2015 IAT 265 15

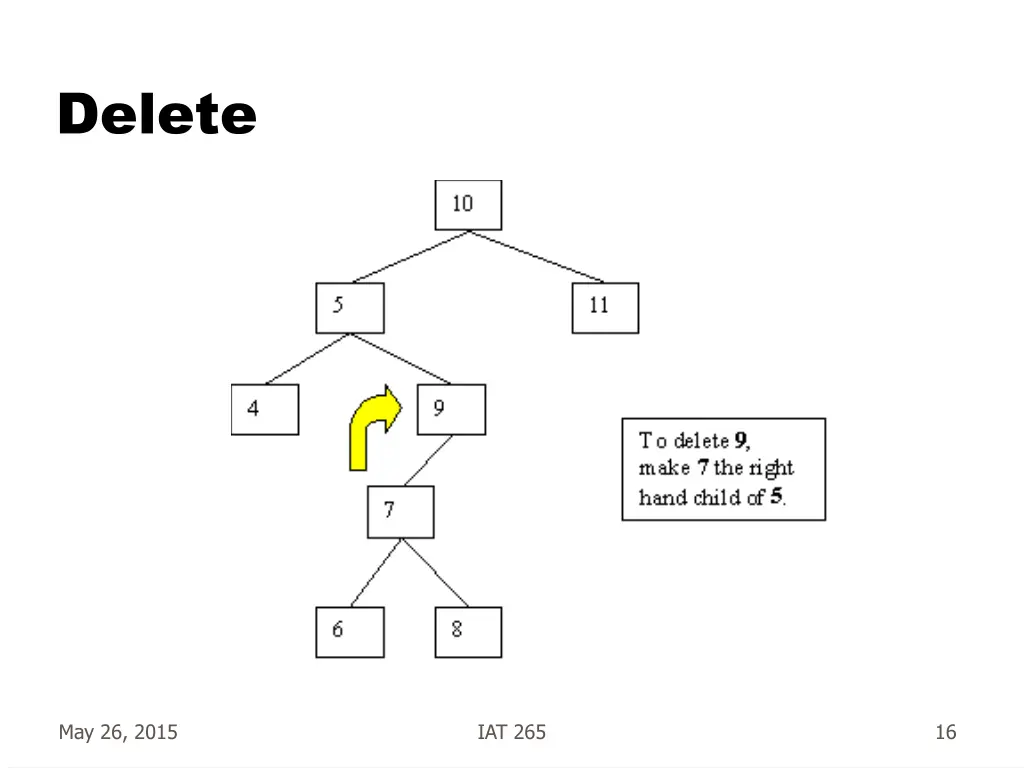

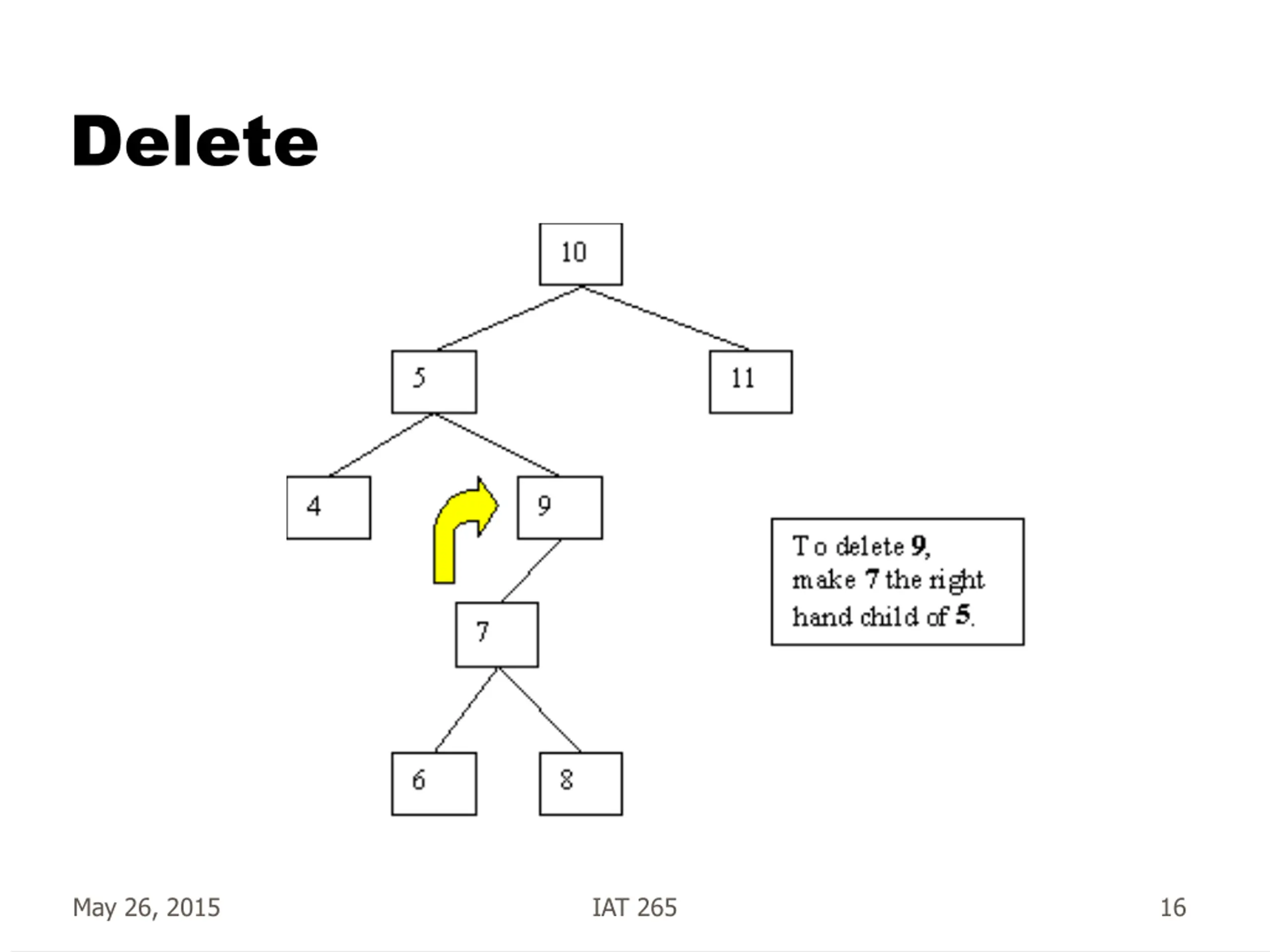

Delete May 26, 2015 IAT 265 16

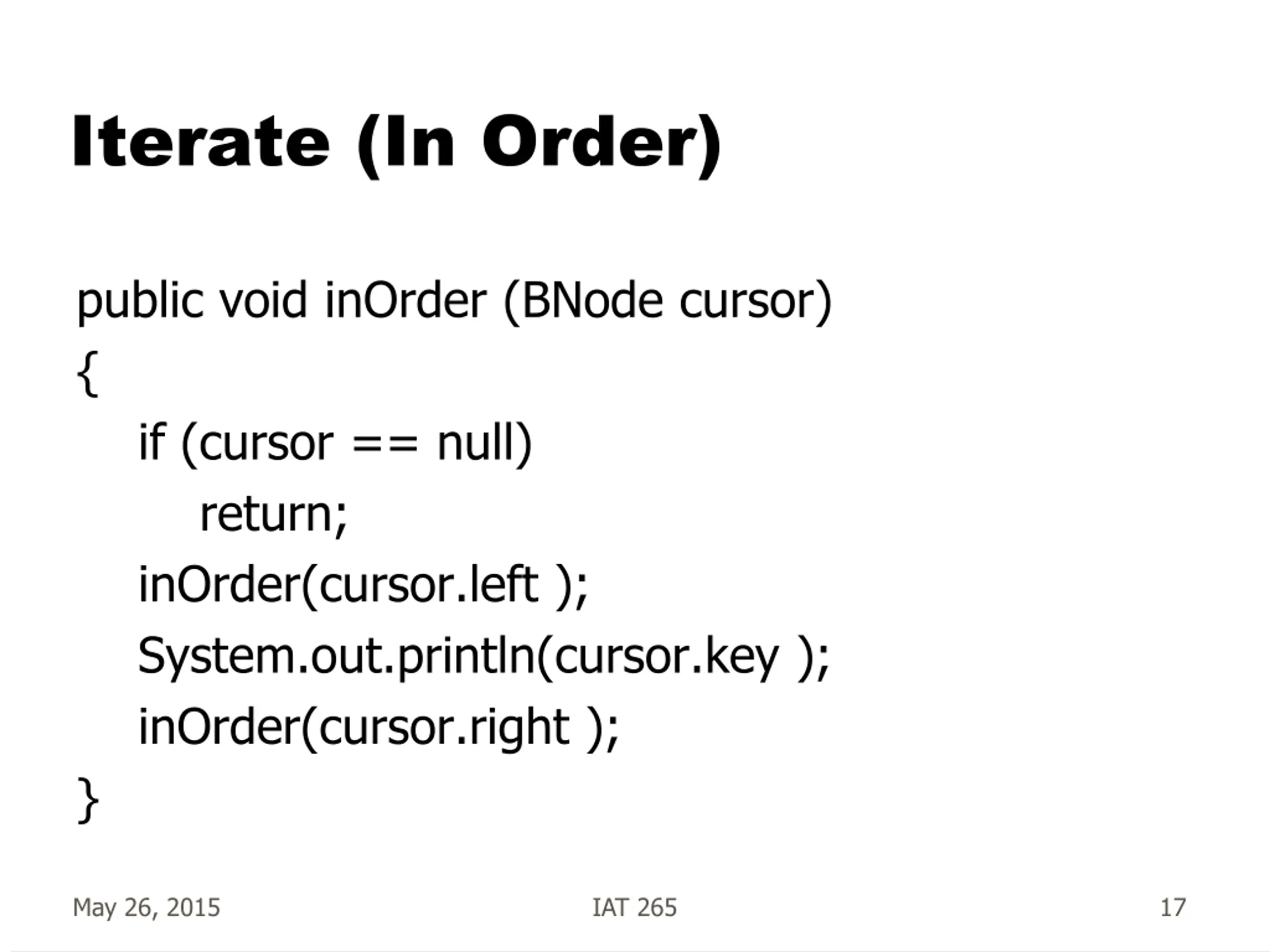

Iterate (In Order) public void inOrder (BNode cursor) { if (cursor == null) return; inOrder(cursor.left ); System.out.println(cursor.key ); inOrder(cursor.right ); } May 26, 2015 IAT 265 17

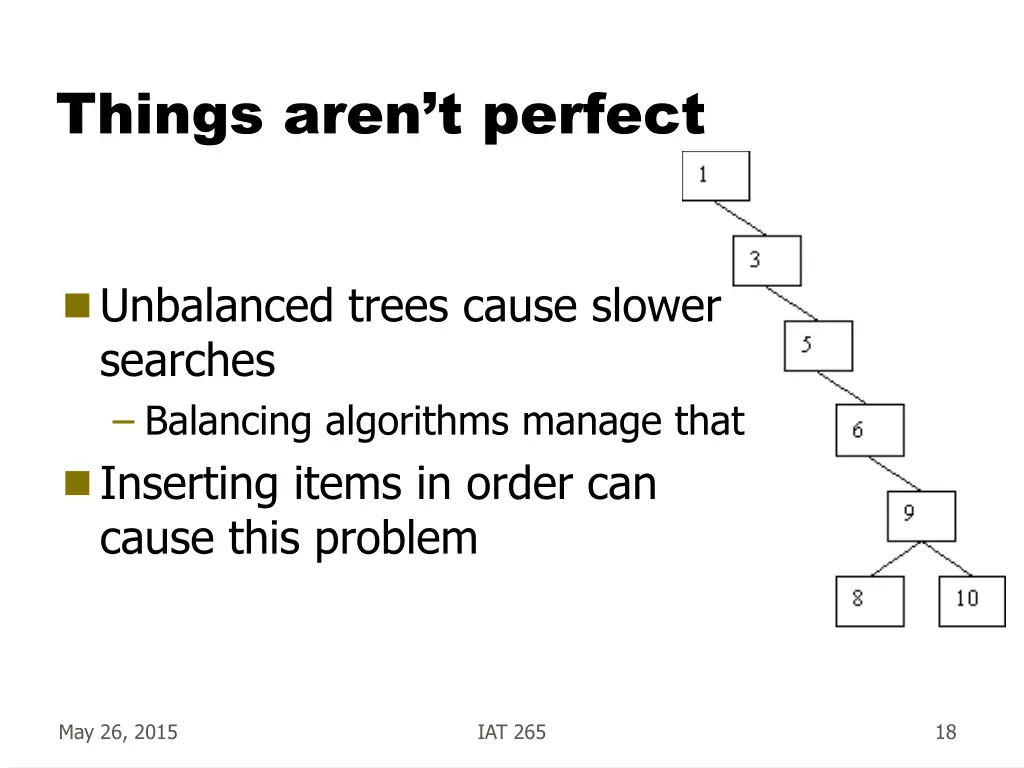

Things arent perfect Unbalanced trees cause slower searches Balancing algorithms manage that Inserting items in order can cause this problem May 26, 2015 IAT 265 18

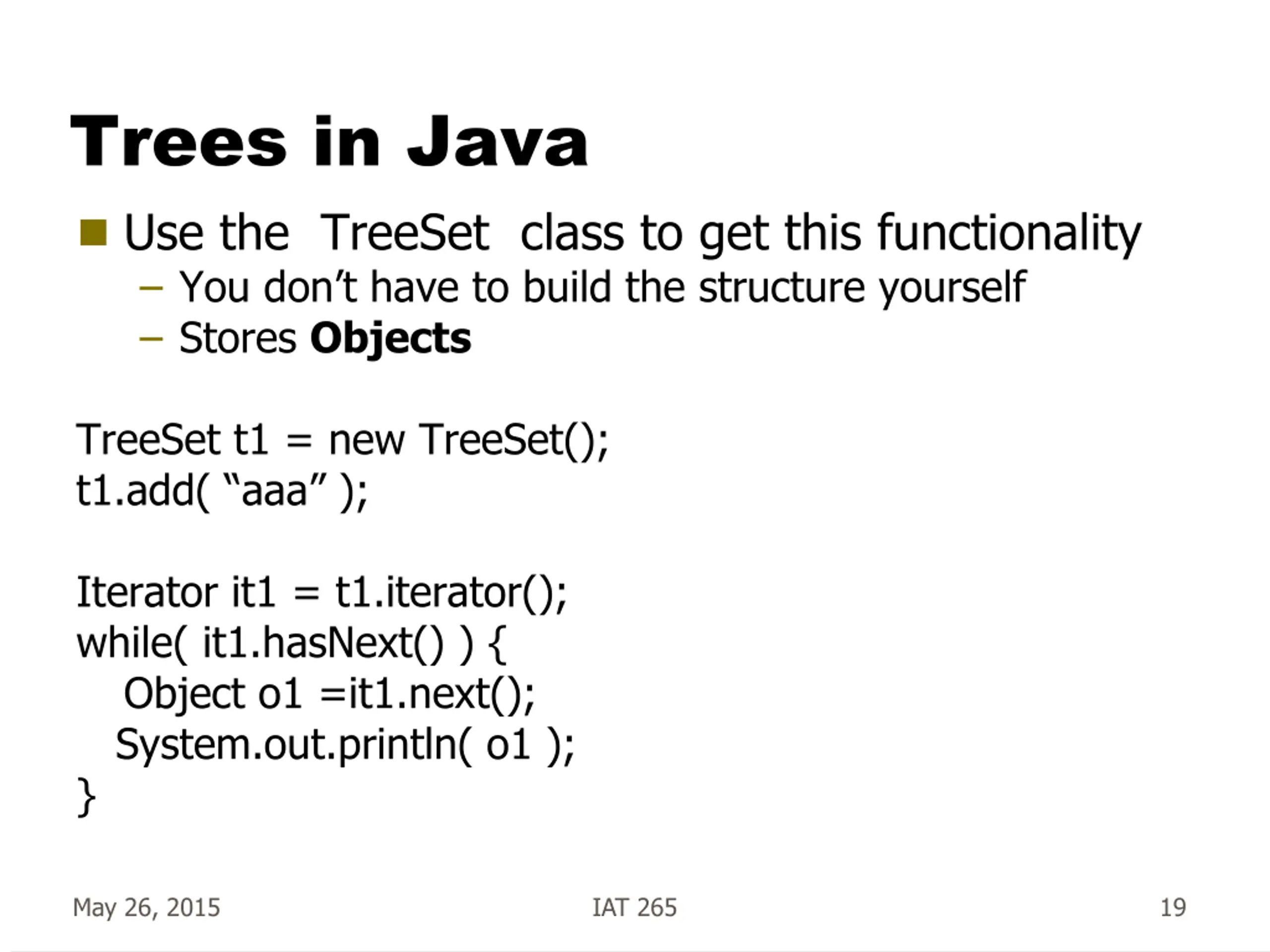

Trees in Java Use the TreeSet class to get this functionality You don t have to build the structure yourself Stores Objects TreeSet t1 = new TreeSet(); t1.add( aaa ); Iterator it1 = t1.iterator(); while( it1.hasNext() ) { Object o1 =it1.next(); System.out.println( o1 ); } May 26, 2015 IAT 265 19
