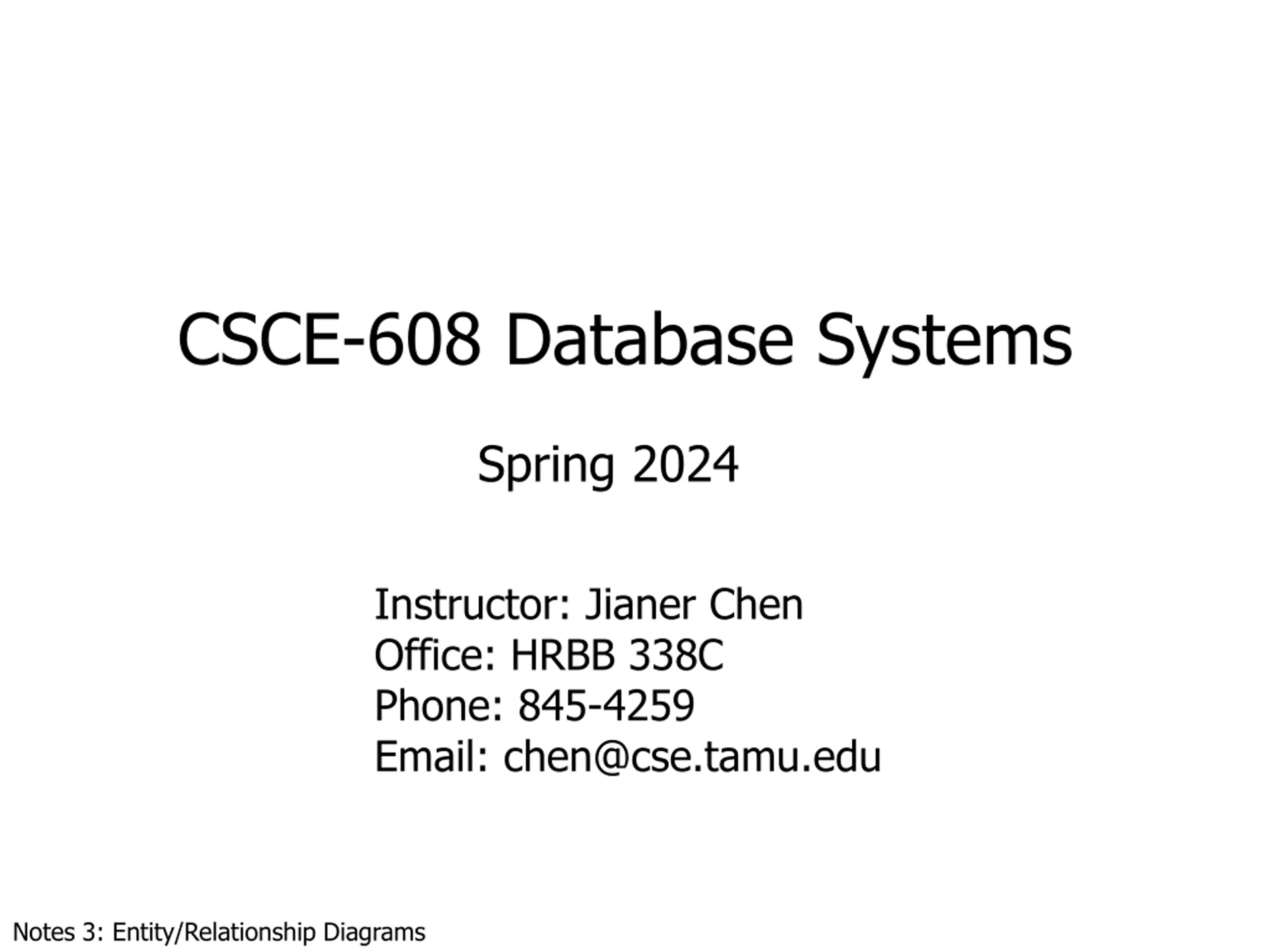

CSCE-608 Database Systems Spring 2024 Instructor: Jianer Chen Office: HRBB 338C Phone: 845-4259 Email: chen@cse.tamu.edu Notes 3: Entity/Relationship Diagrams

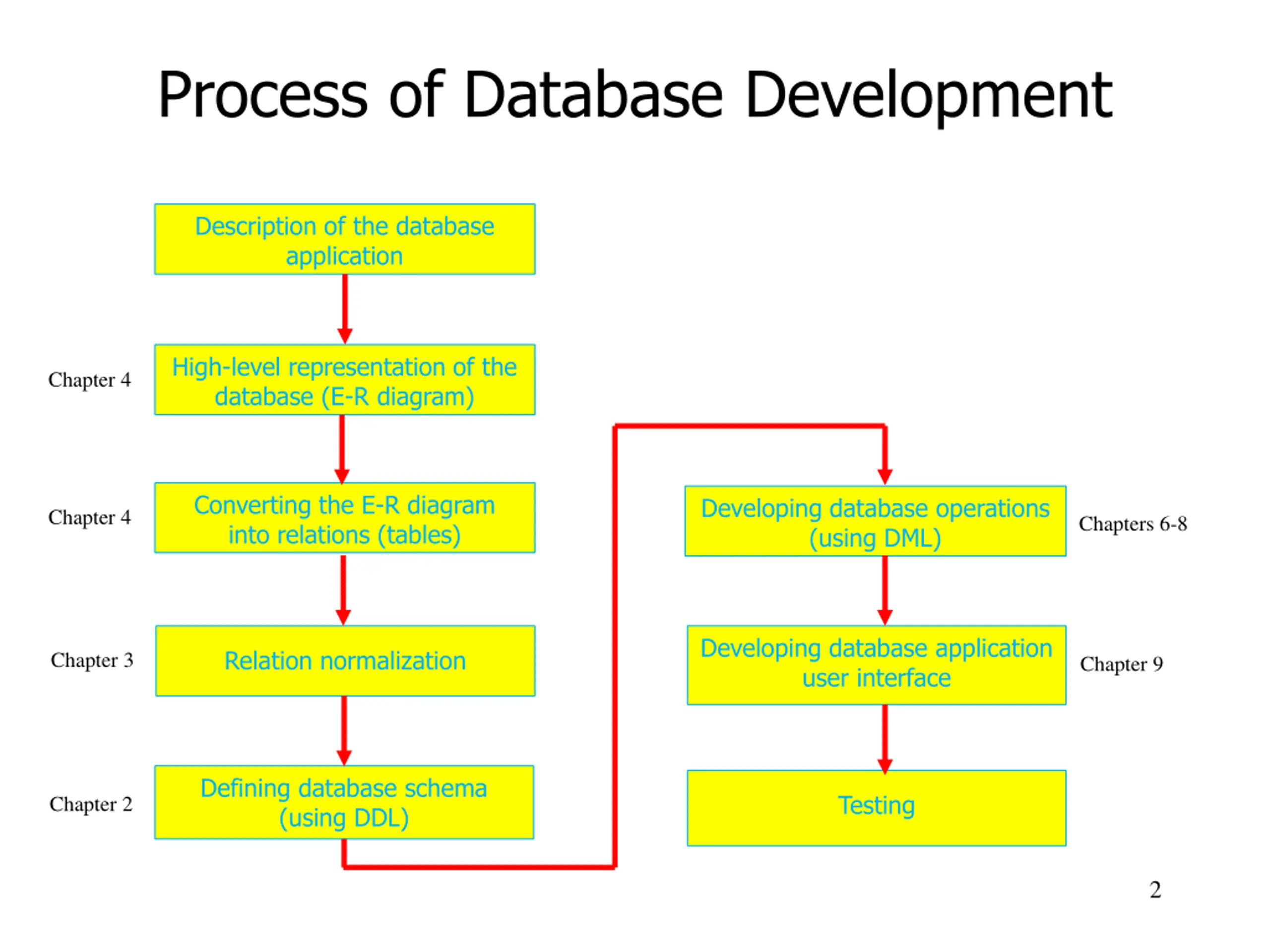

Process of Database Development Description of the database application High-level representation of the database (E-R diagram) Chapter 4 Converting the E-R diagram into relations (tables) Developing database operations (using DML) Chapter 4 Chapters 6-8 Developing database application user interface Relation normalization Chapter 3 Chapter 9 Defining database schema (using DDL) Testing Chapter 2 2

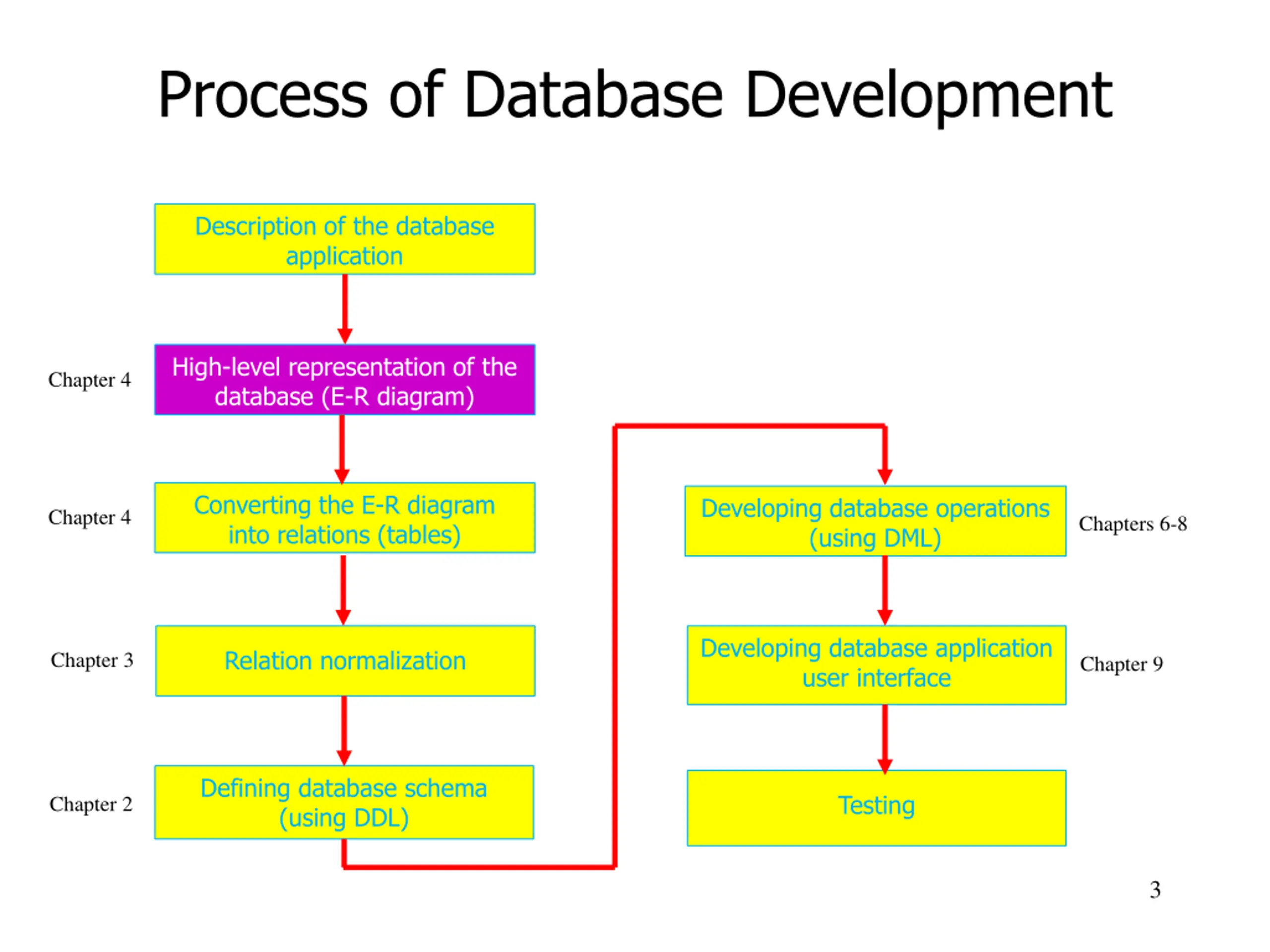

Process of Database Development Description of the database application High-level representation of the database (E-R diagram) Chapter 4 Converting the E-R diagram into relations (tables) Developing database operations (using DML) Chapter 4 Chapters 6-8 Developing database application user interface Relation normalization Chapter 3 Chapter 9 Defining database schema (using DDL) Testing Chapter 2 3

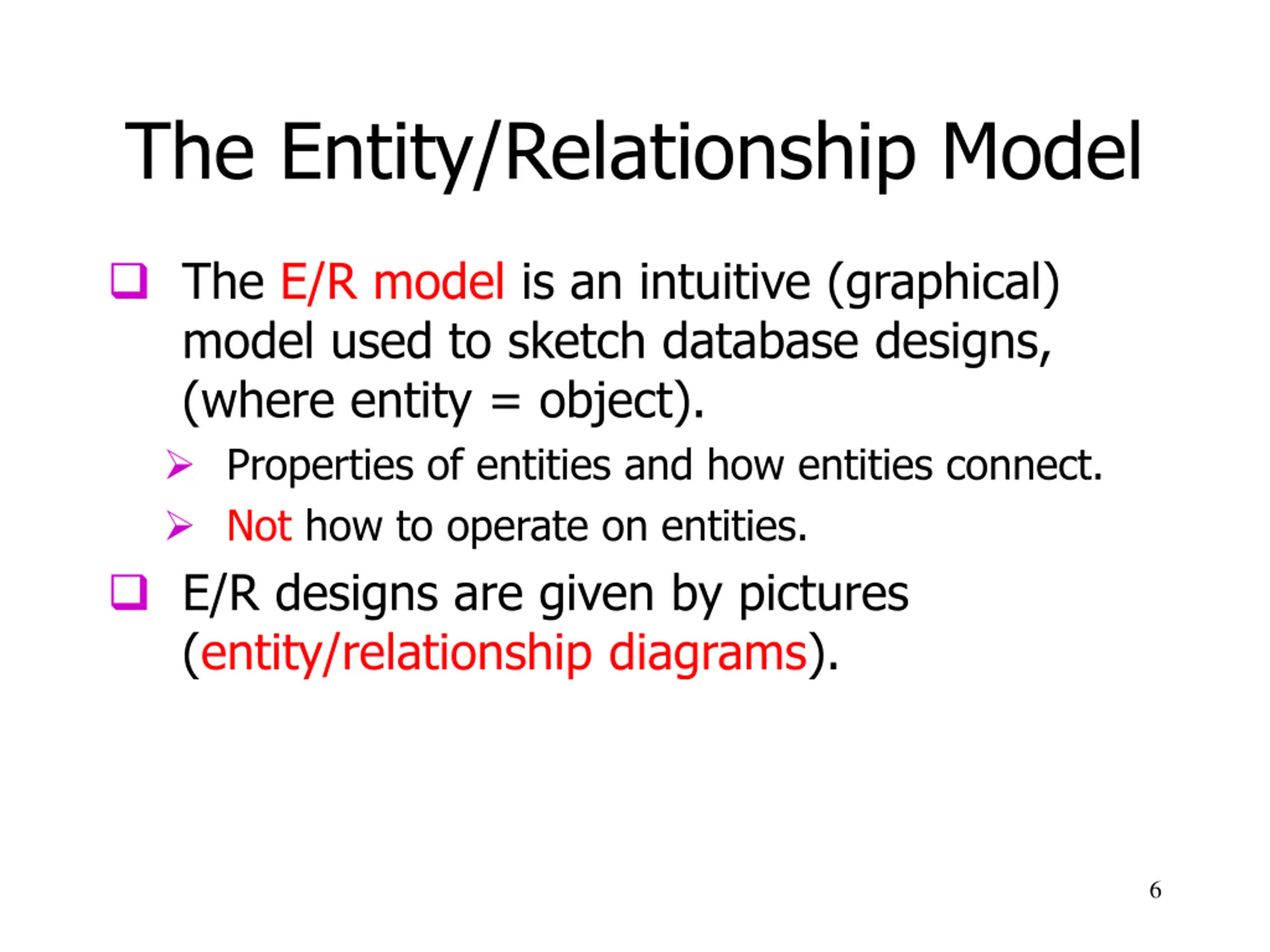

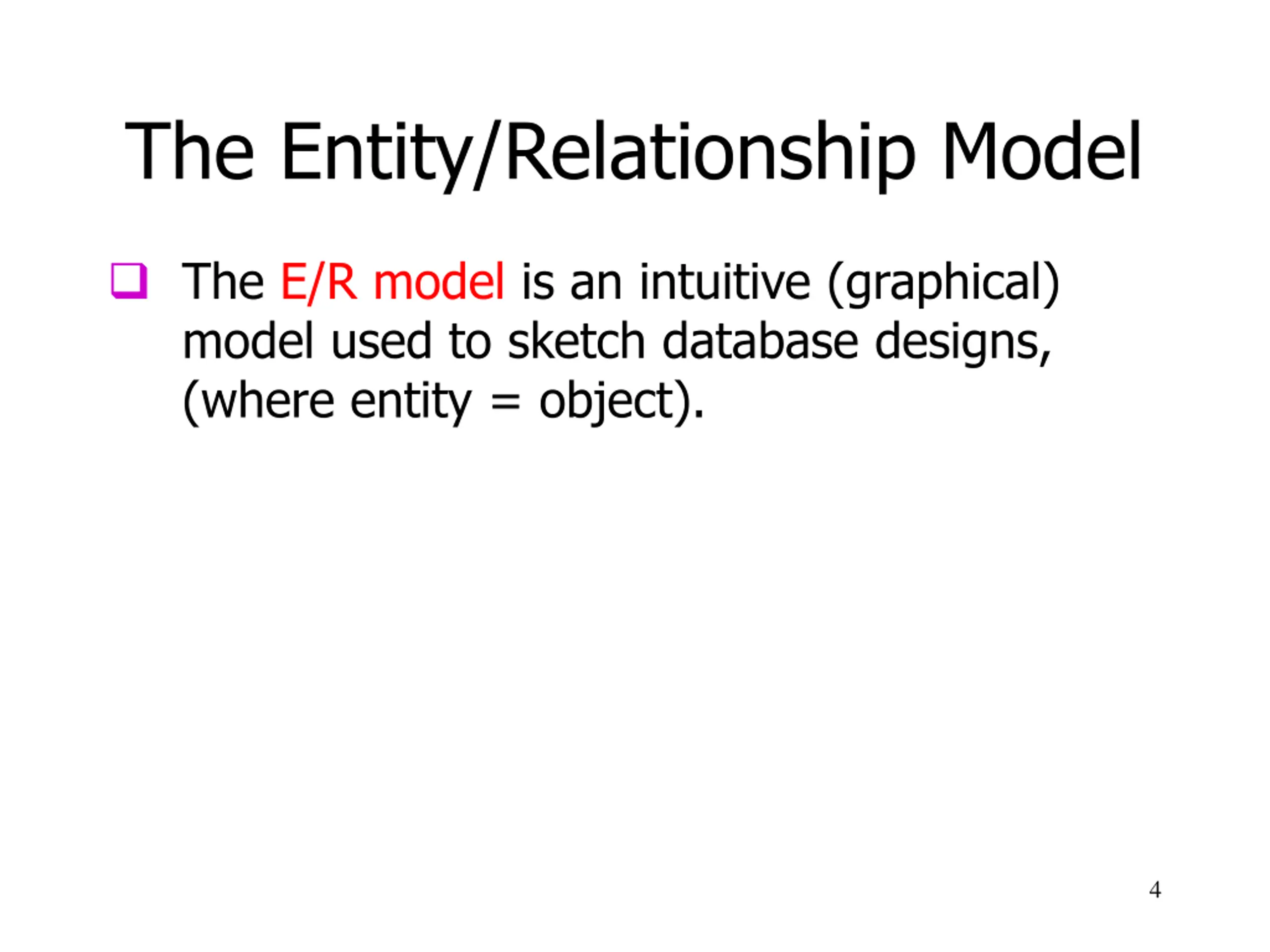

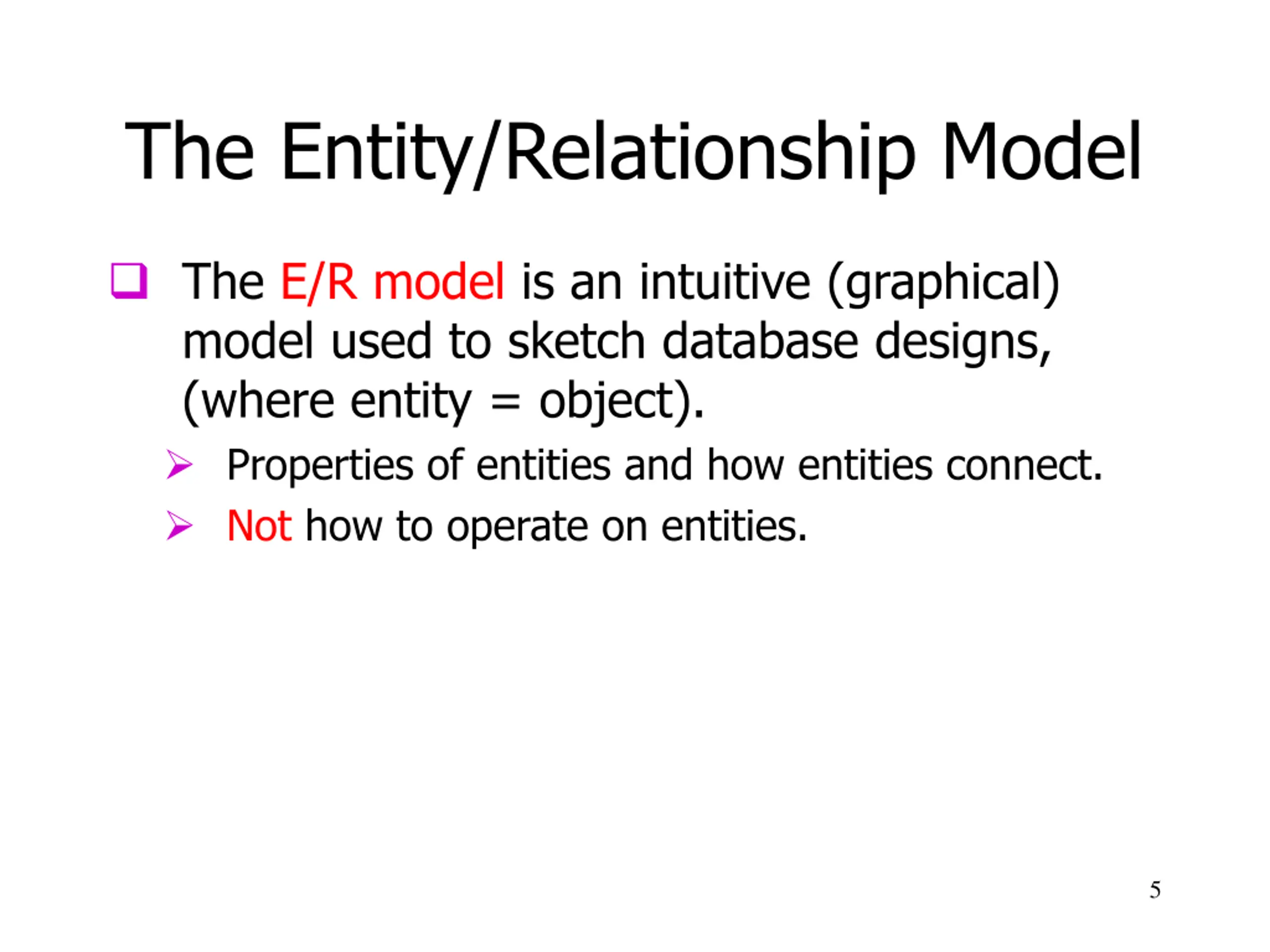

The Entity/Relationship Model The E/R model is an intuitive (graphical) model used to sketch database designs, (where entity = object). 4

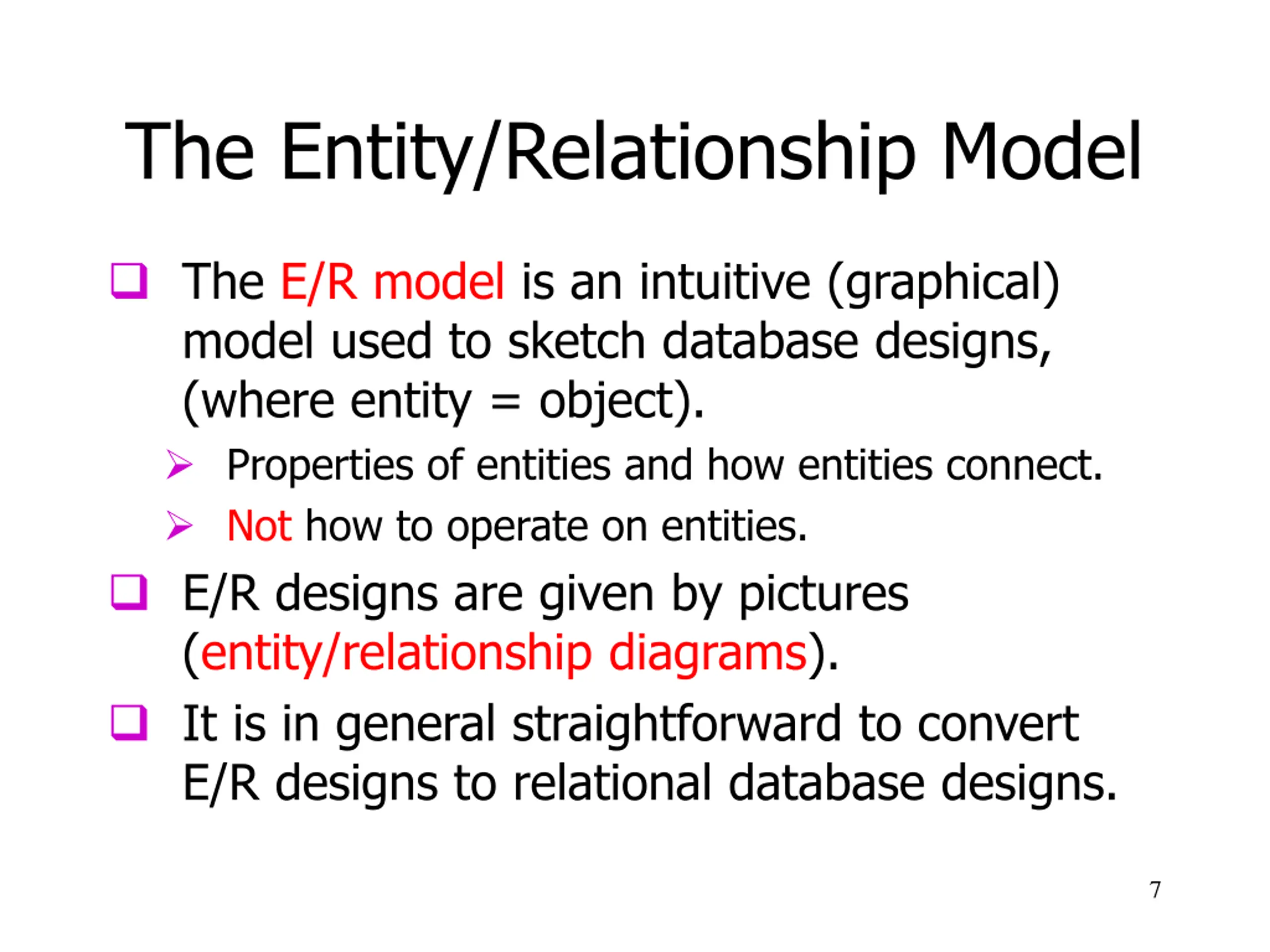

The Entity/Relationship Model The E/R model is an intuitive (graphical) model used to sketch database designs, (where entity = object). Properties of entities and how entities connect. Not how to operate on entities. 5
The Entity/Relationship Model The E/R model is an intuitive (graphical) model used to sketch database designs, (where entity = object). Properties of entities and how entities connect. Not how to operate on entities. E/R designs are given by pictures (entity/relationship diagrams). 6
The Entity/Relationship Model The E/R model is an intuitive (graphical) model used to sketch database designs, (where entity = object). Properties of entities and how entities connect. Not how to operate on entities. E/R designs are given by pictures (entity/relationship diagrams). It is in general straightforward to convert E/R designs to relational database designs. 7

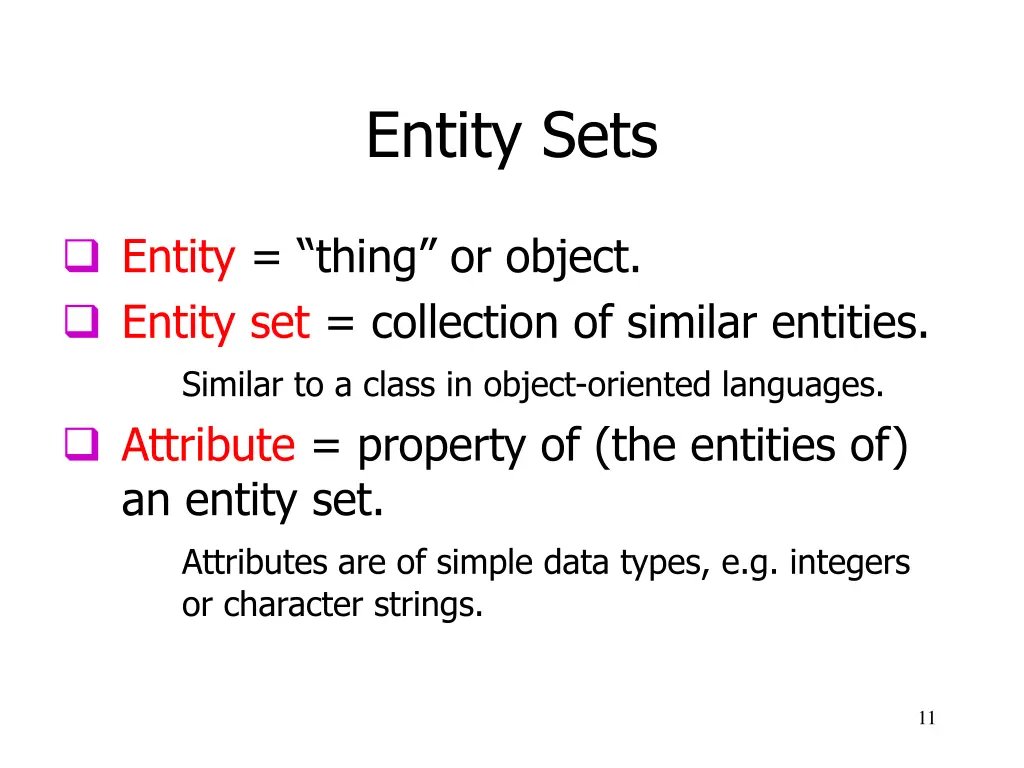

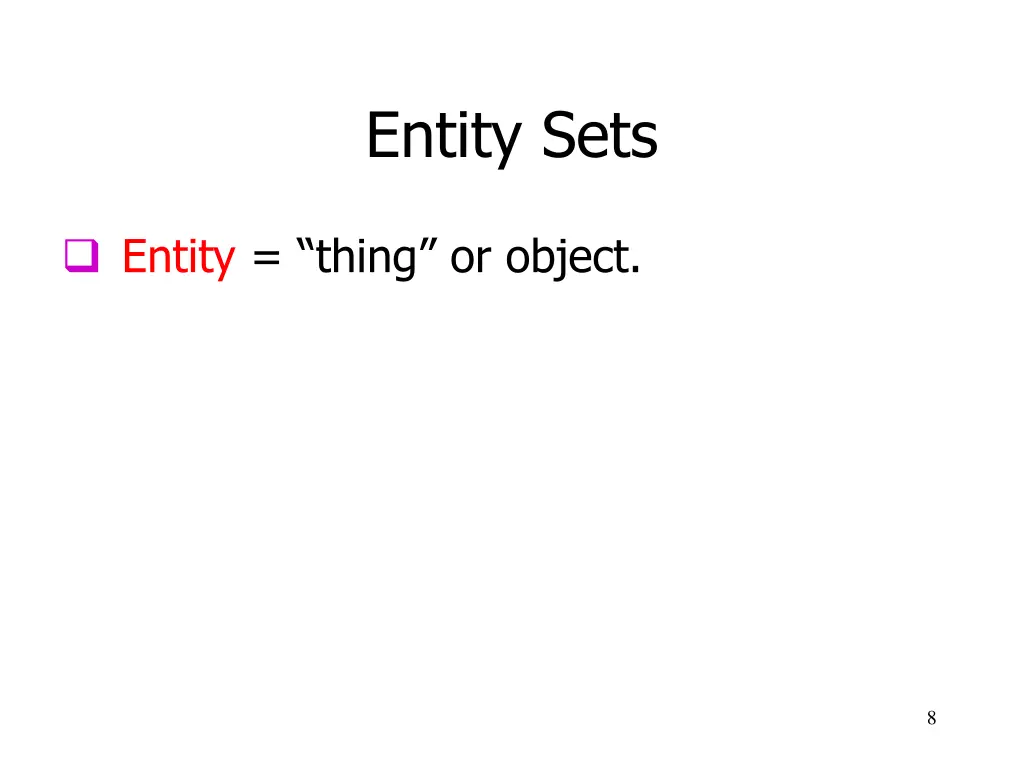

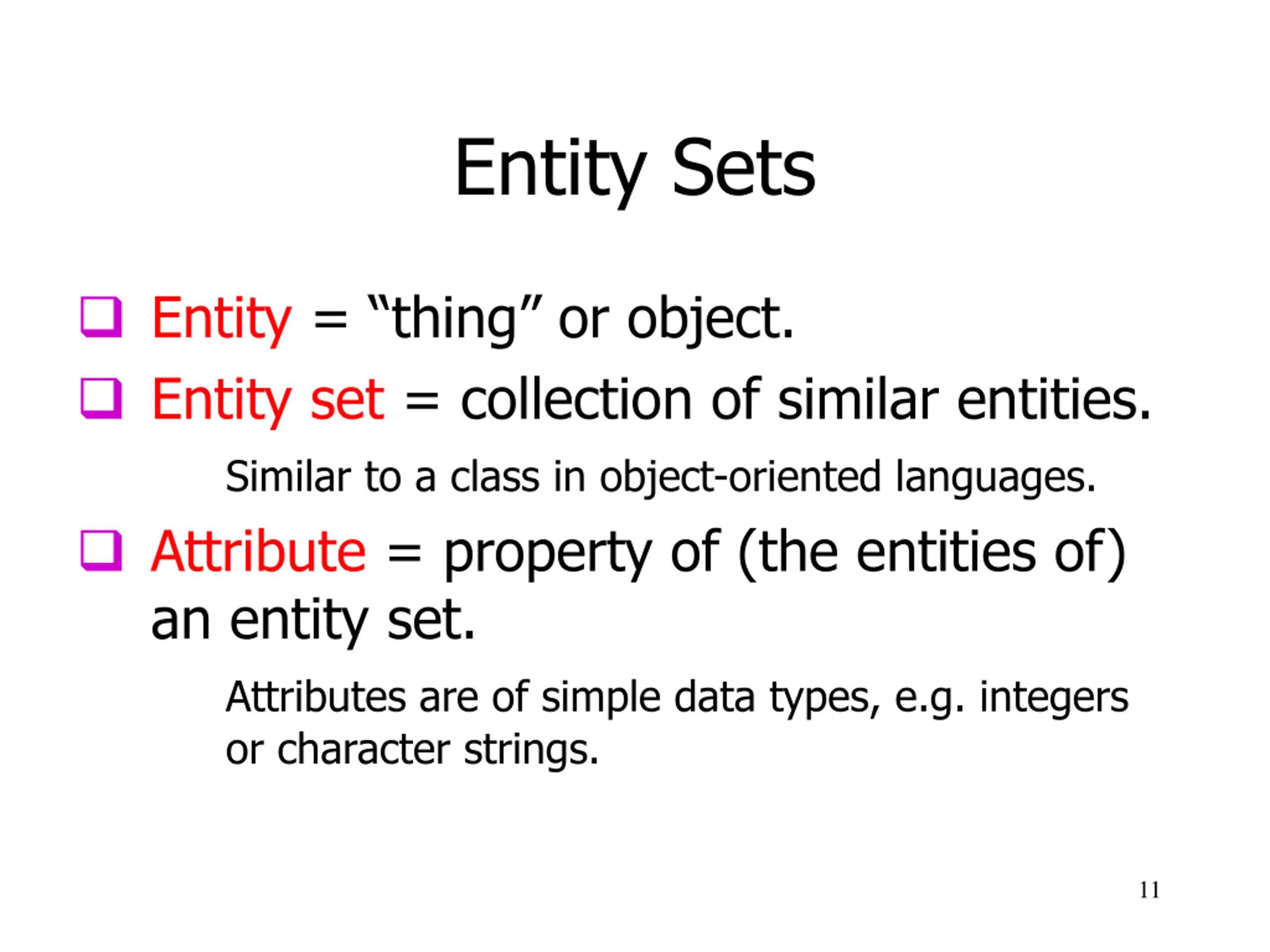

Entity Sets Entity = thing or object. 8

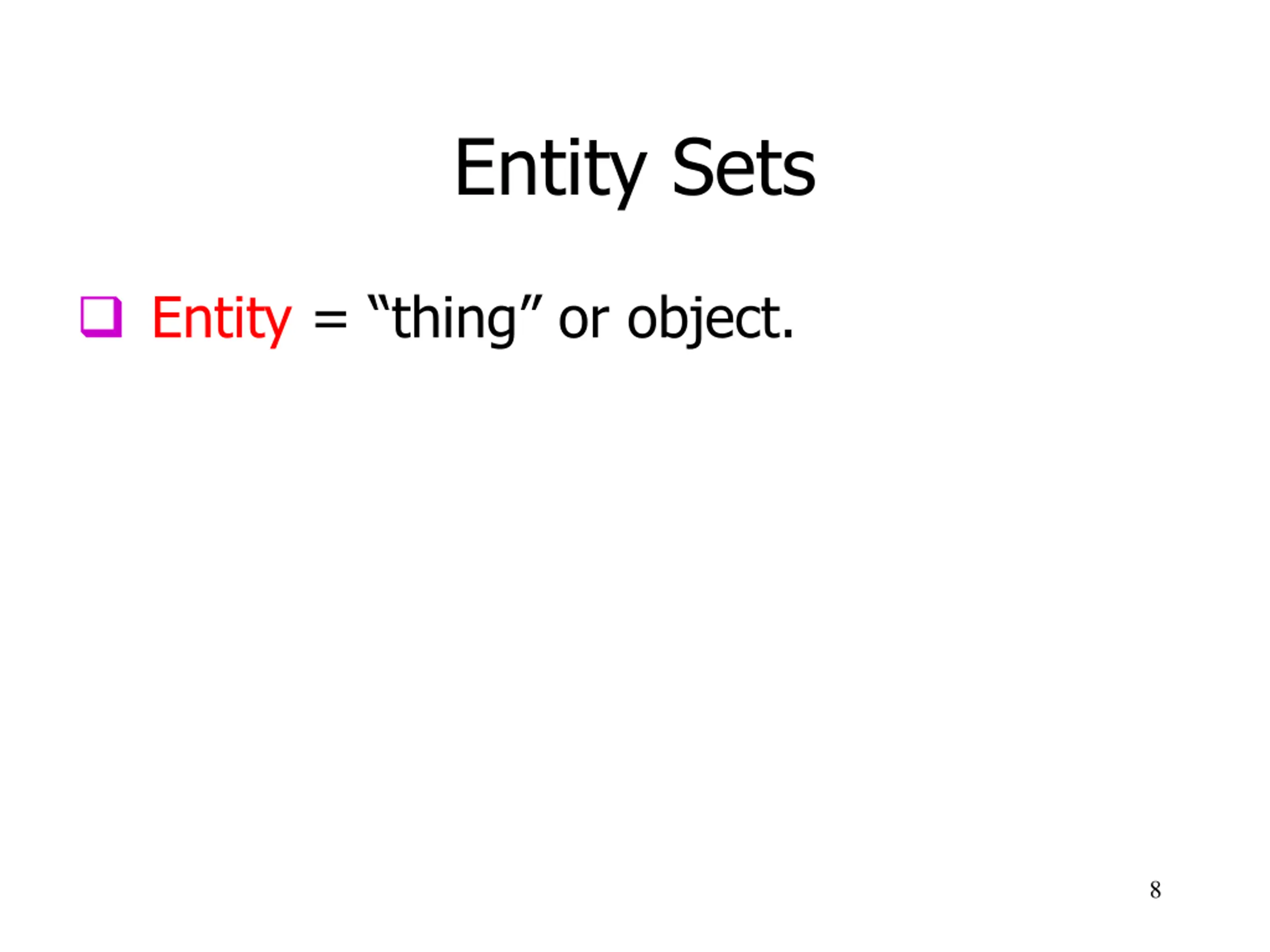

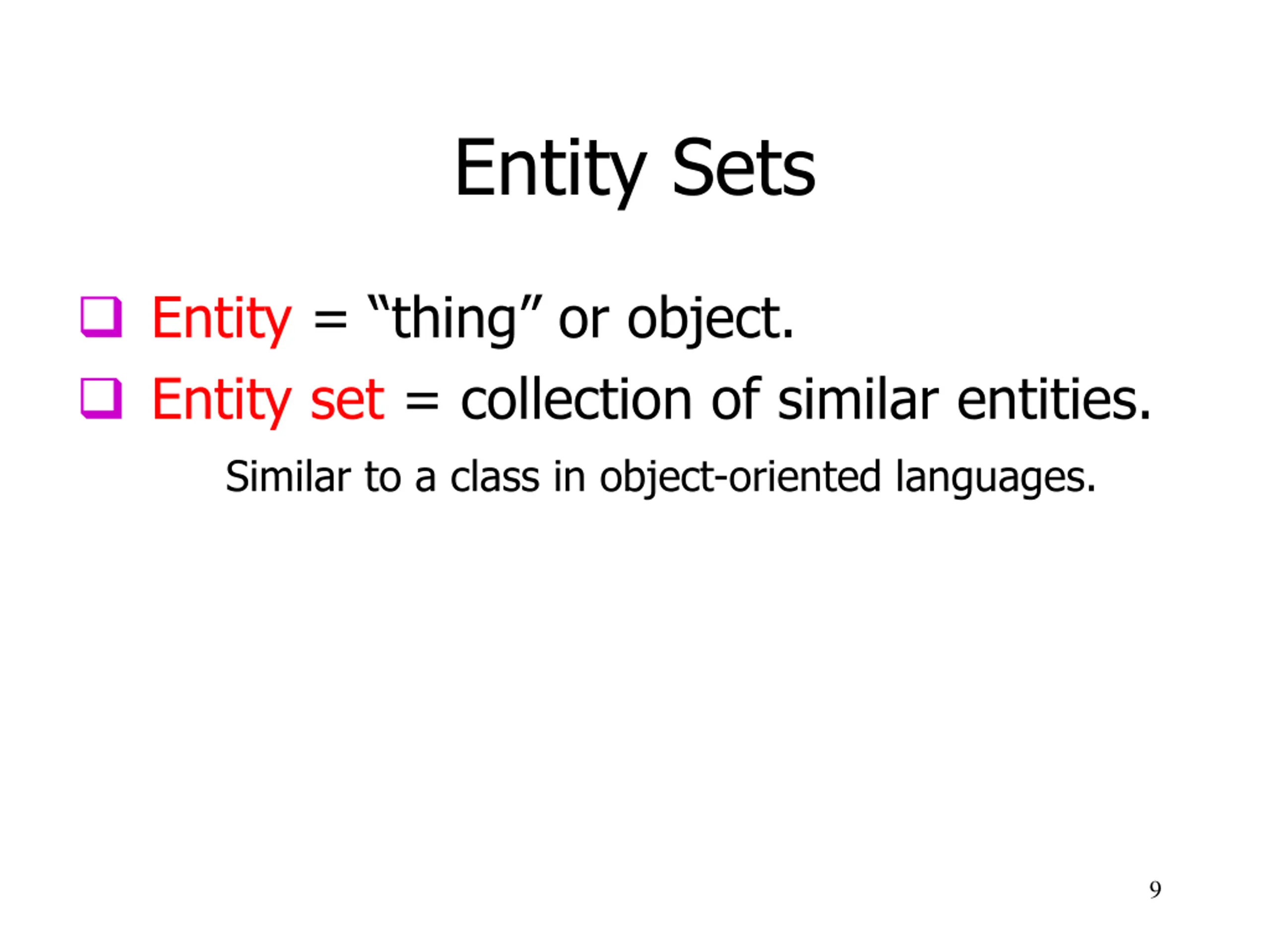

Entity Sets Entity = thing or object. Entity set = collection of similar entities. Similar to a class in object-oriented languages. 9

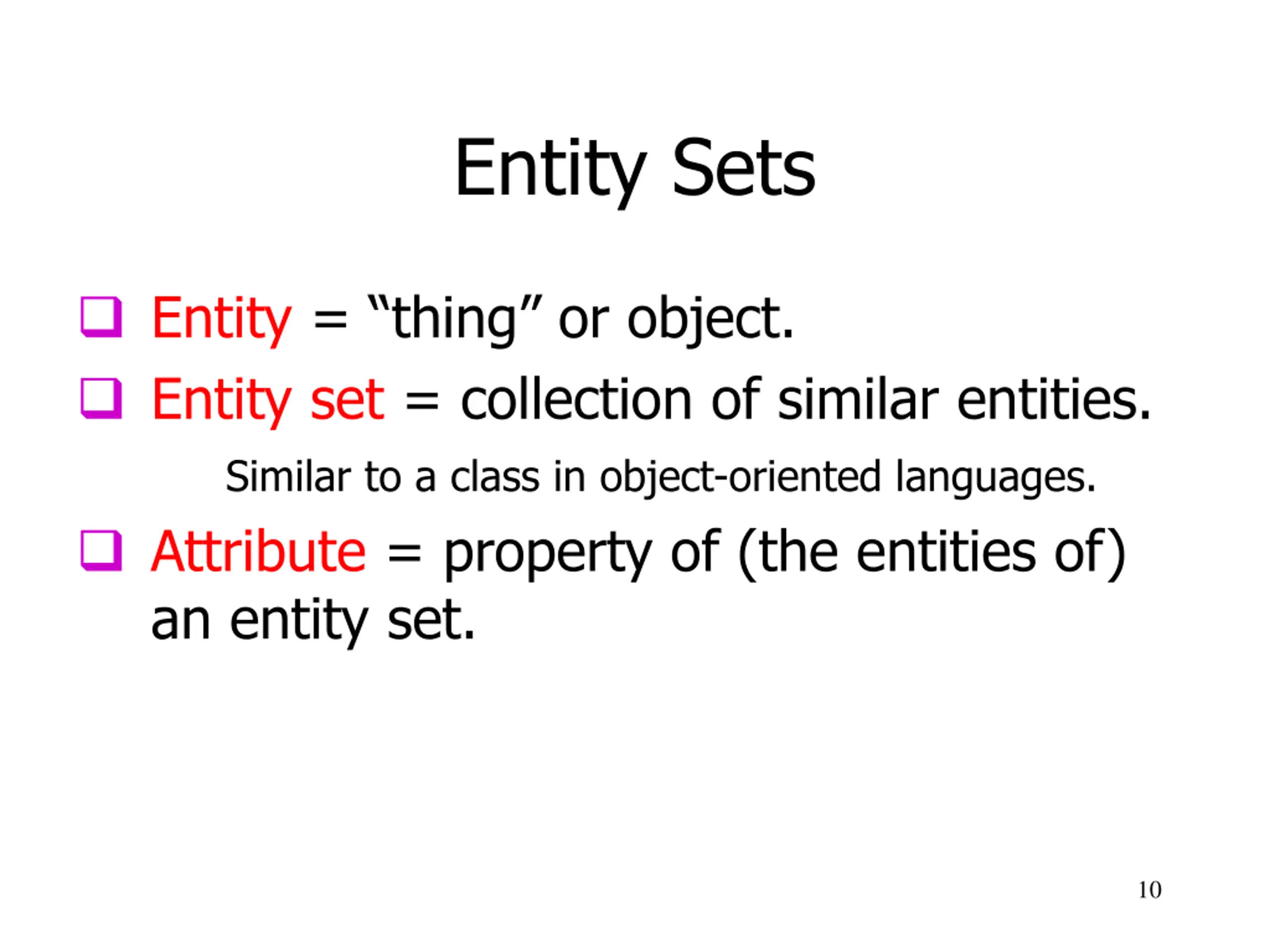

Entity Sets Entity = thing or object. Entity set = collection of similar entities. Similar to a class in object-oriented languages. Attribute = property of (the entities of) an entity set. 10
Entity Sets Entity = thing or object. Entity set = collection of similar entities. Similar to a class in object-oriented languages. Attribute = property of (the entities of) an entity set. Attributes are of simple data types, e.g. integers or character strings. 11

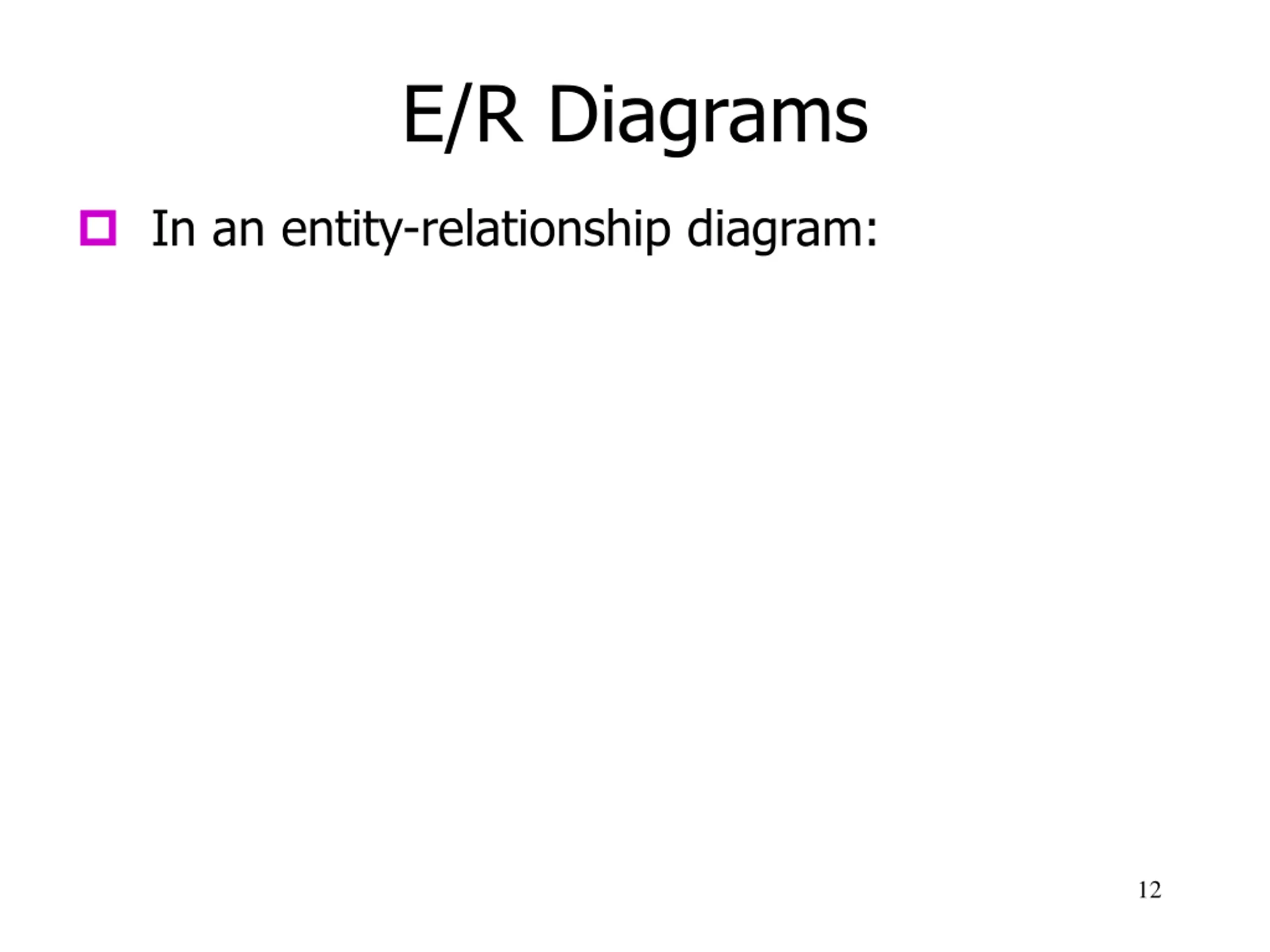

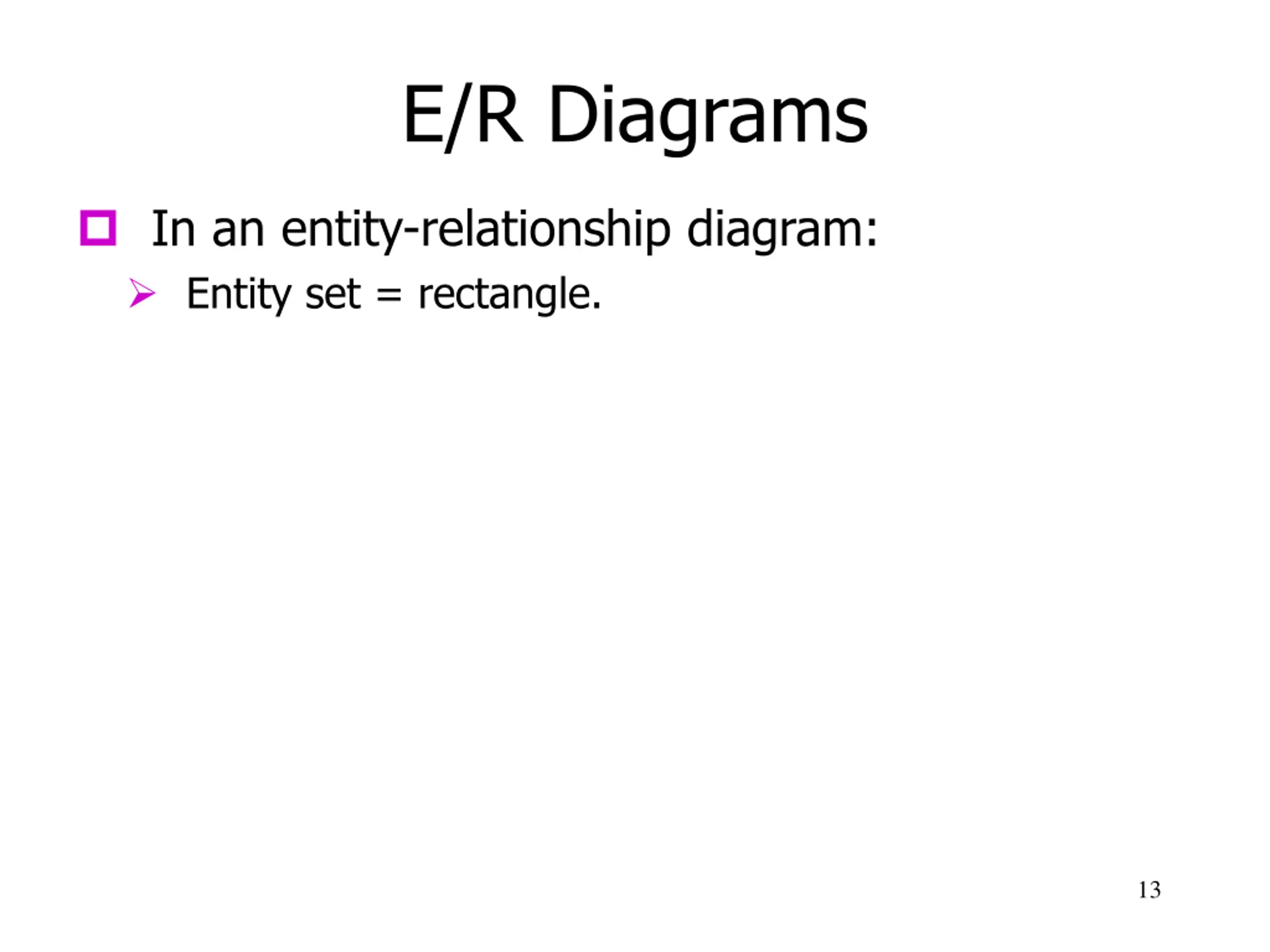

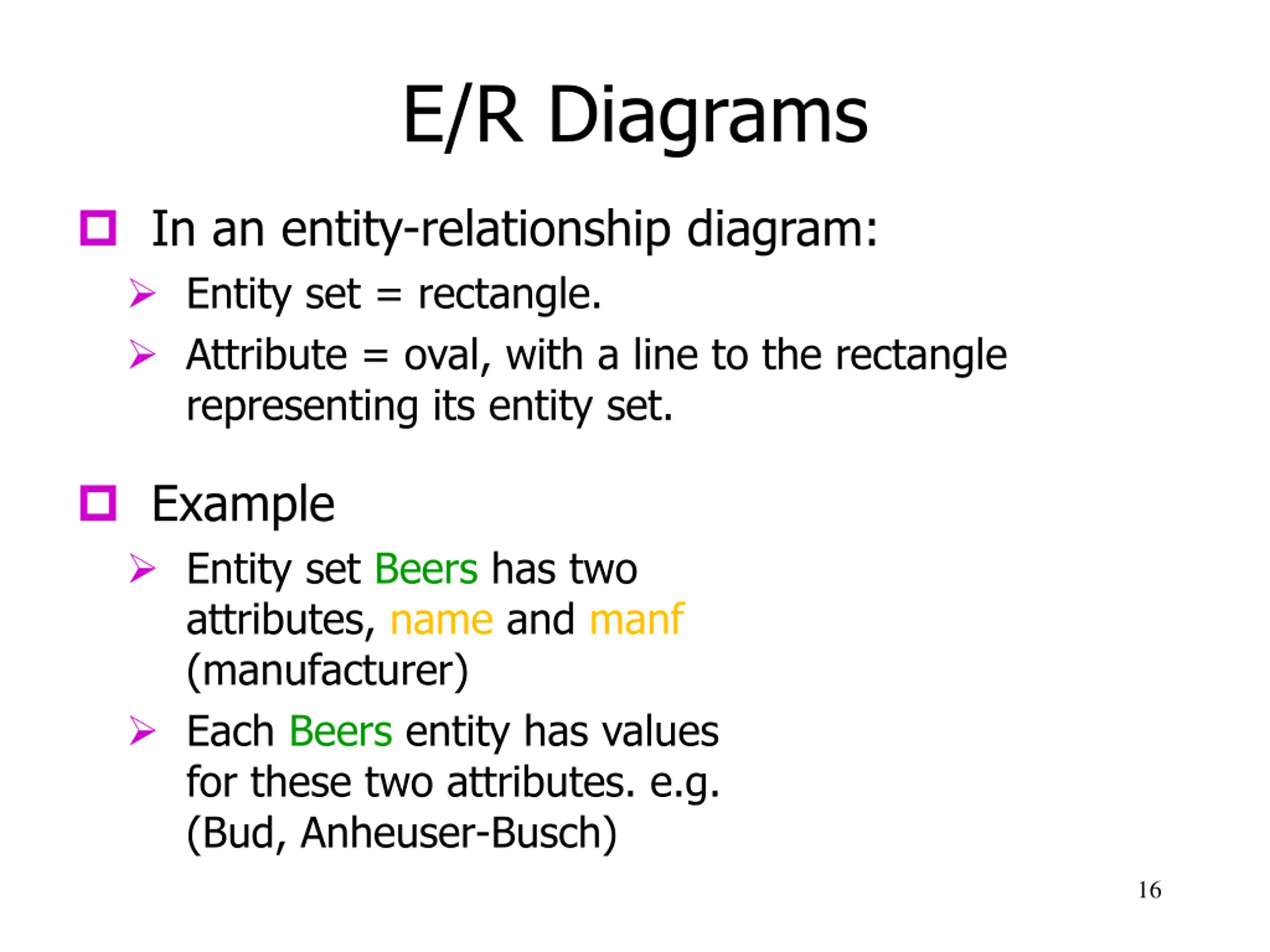

E/R Diagrams In an entity-relationship diagram: 12

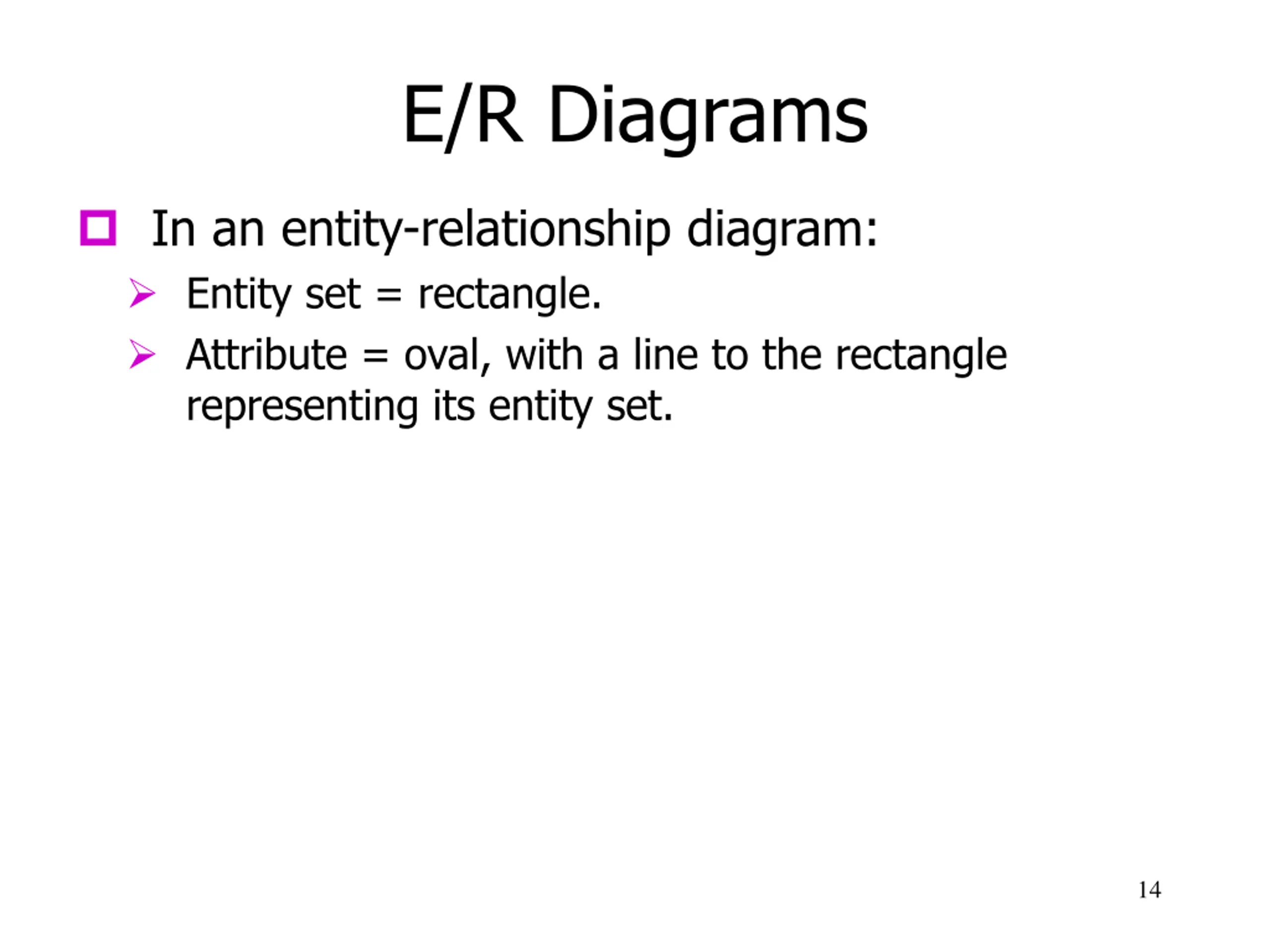

E/R Diagrams In an entity-relationship diagram: Entity set = rectangle. 13
E/R Diagrams In an entity-relationship diagram: Entity set = rectangle. Attribute = oval, with a line to the rectangle representing its entity set. 14

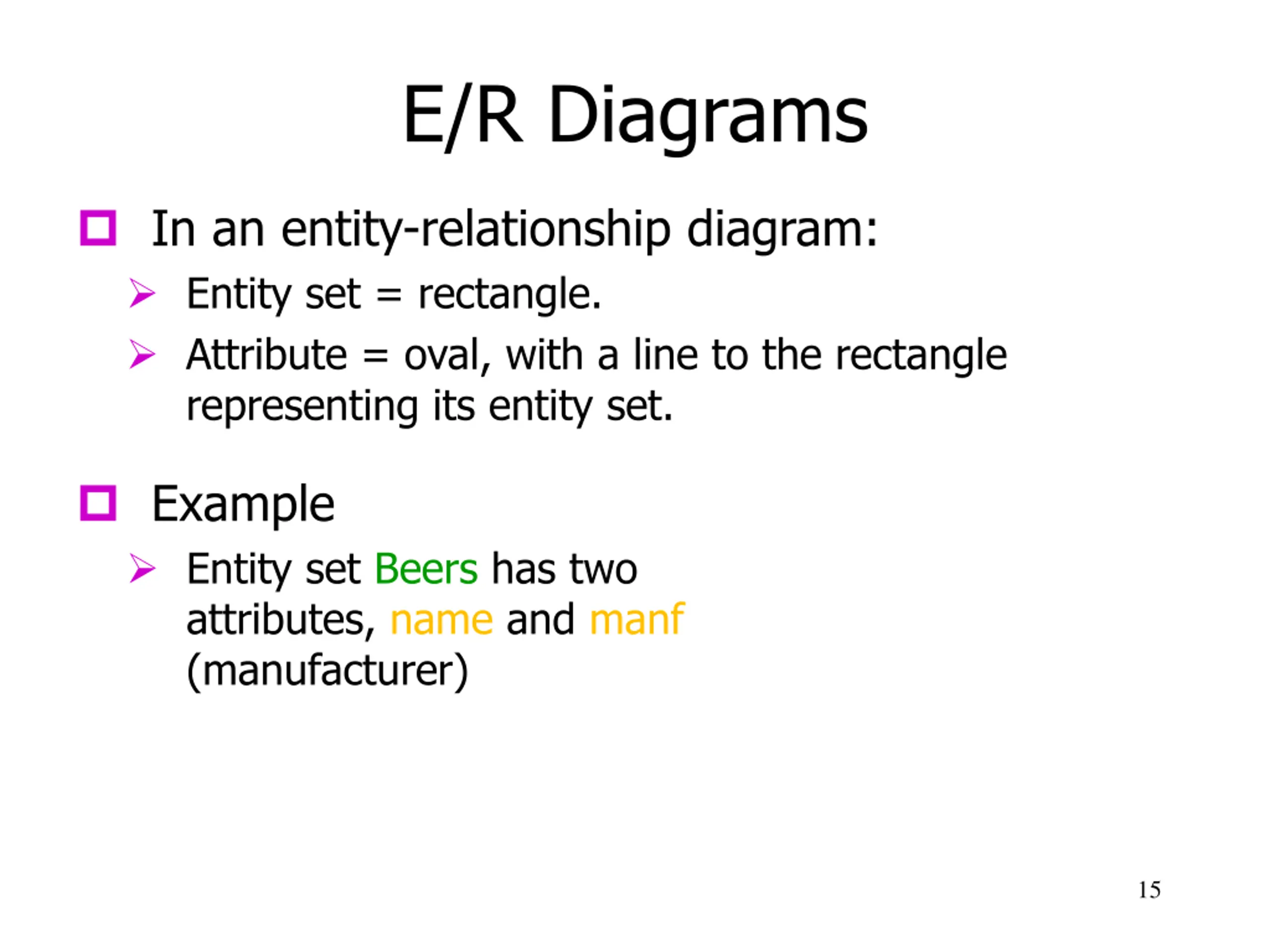

E/R Diagrams In an entity-relationship diagram: Entity set = rectangle. Attribute = oval, with a line to the rectangle representing its entity set. Example Entity set Beers has two attributes, name and manf (manufacturer) 15
E/R Diagrams In an entity-relationship diagram: Entity set = rectangle. Attribute = oval, with a line to the rectangle representing its entity set. Example Entity set Beers has two attributes, name and manf (manufacturer) Each Beers entity has values for these two attributes. e.g. (Bud, Anheuser-Busch) 16

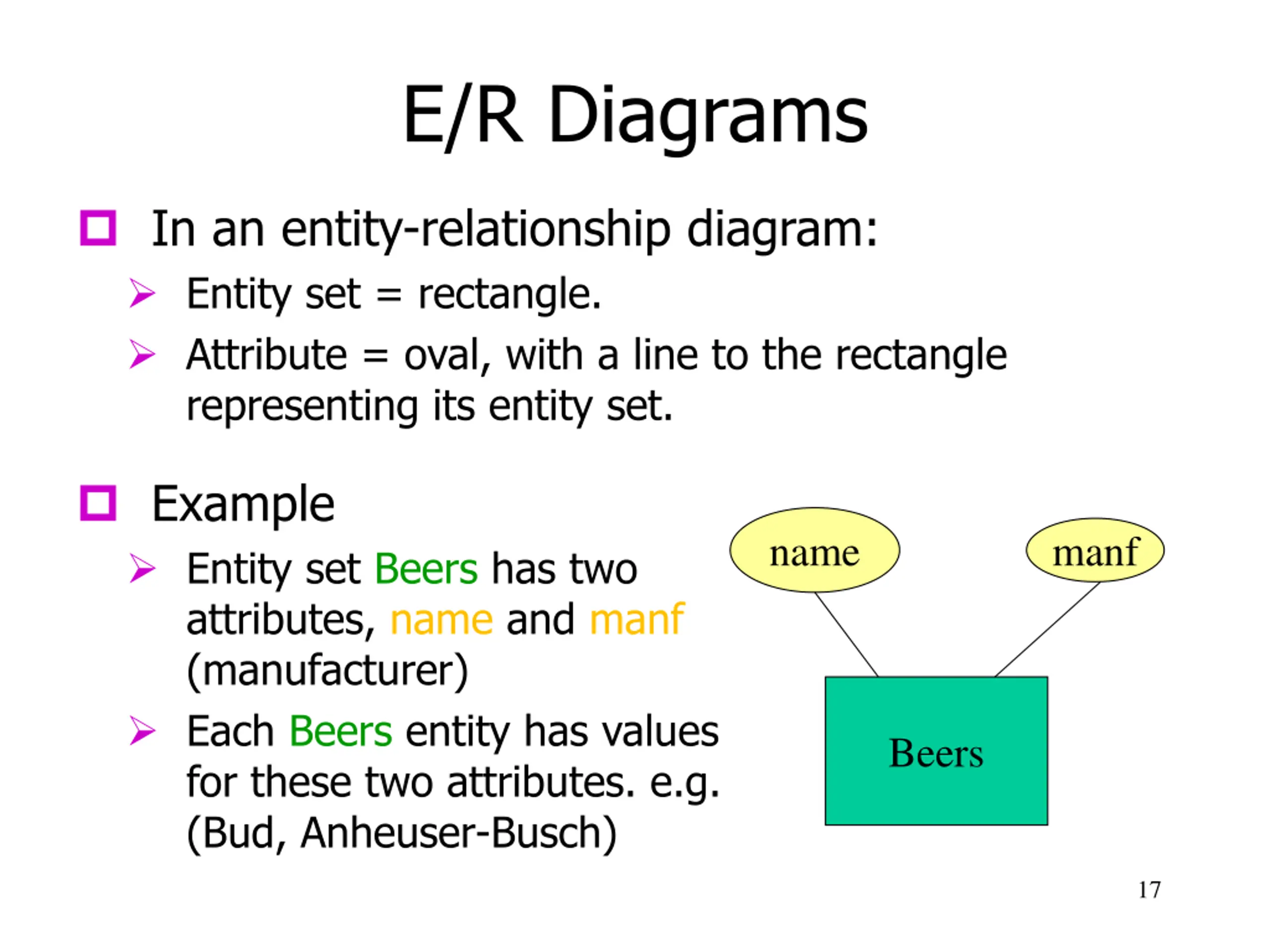

E/R Diagrams In an entity-relationship diagram: Entity set = rectangle. Attribute = oval, with a line to the rectangle representing its entity set. Example Entity set Beers has two attributes, name and manf (manufacturer) Each Beers entity has values for these two attributes. e.g. (Bud, Anheuser-Busch) name manf Beers 17

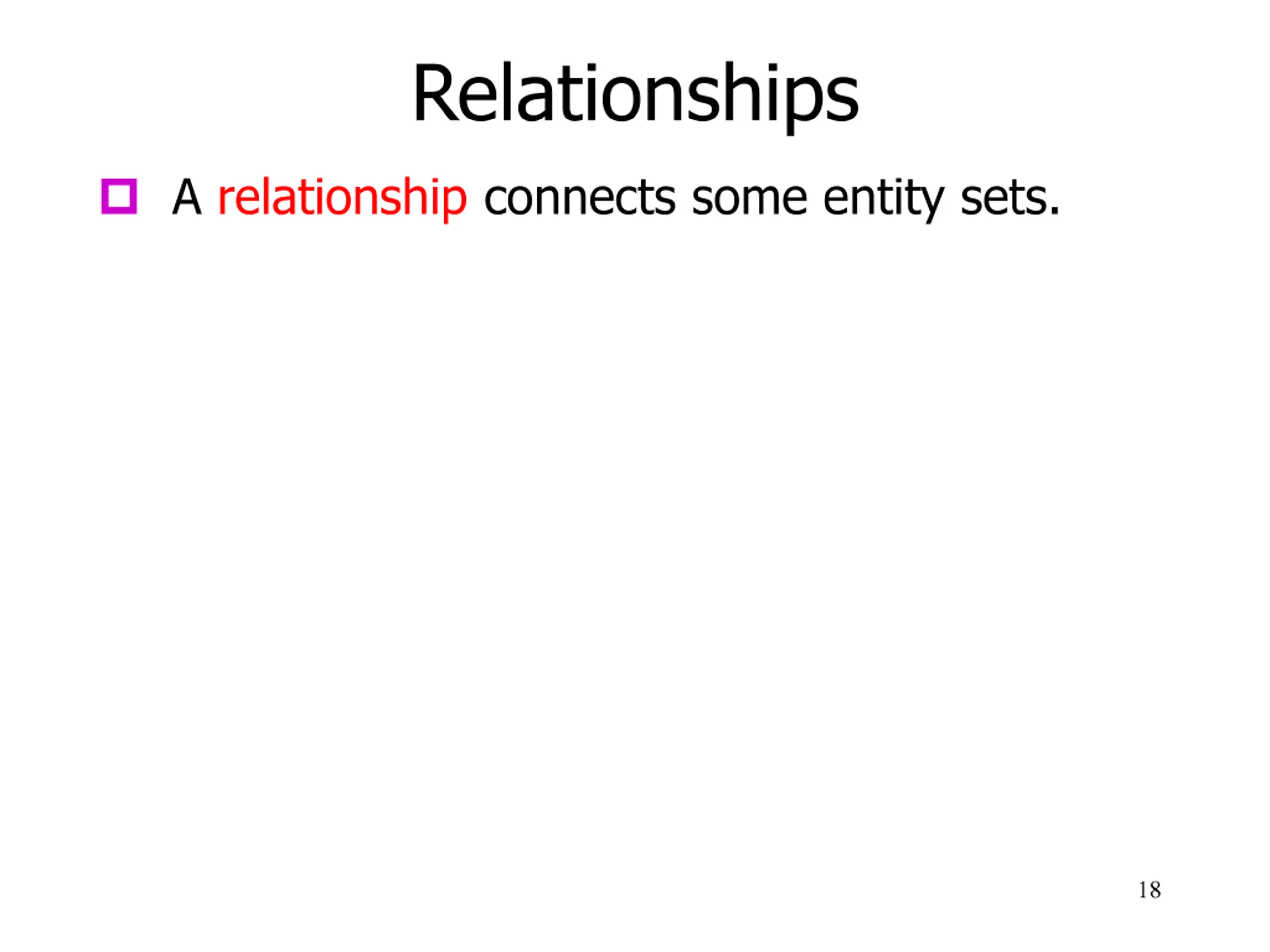

Relationships A relationship connects some entity sets. 18

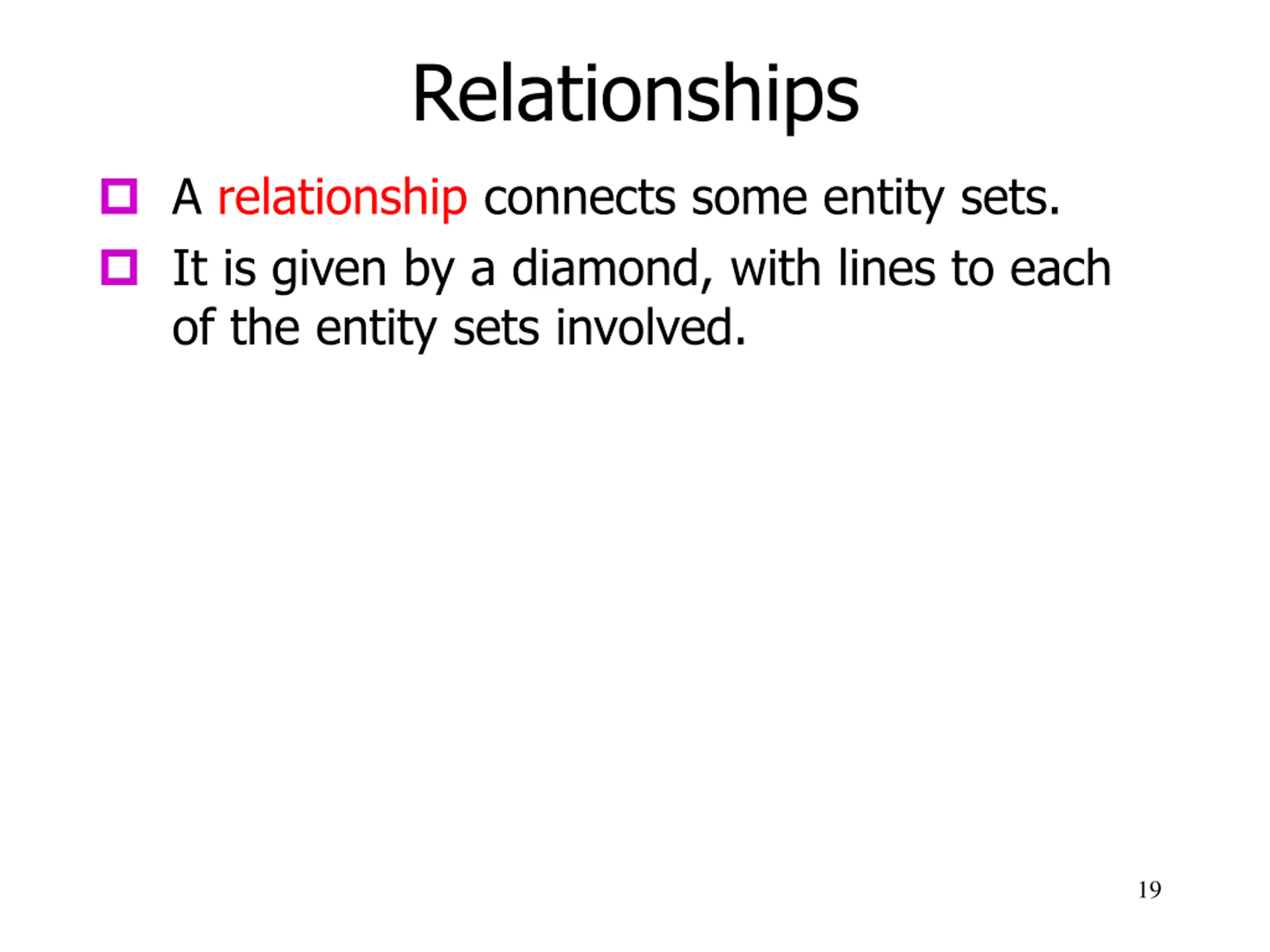

Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. 19

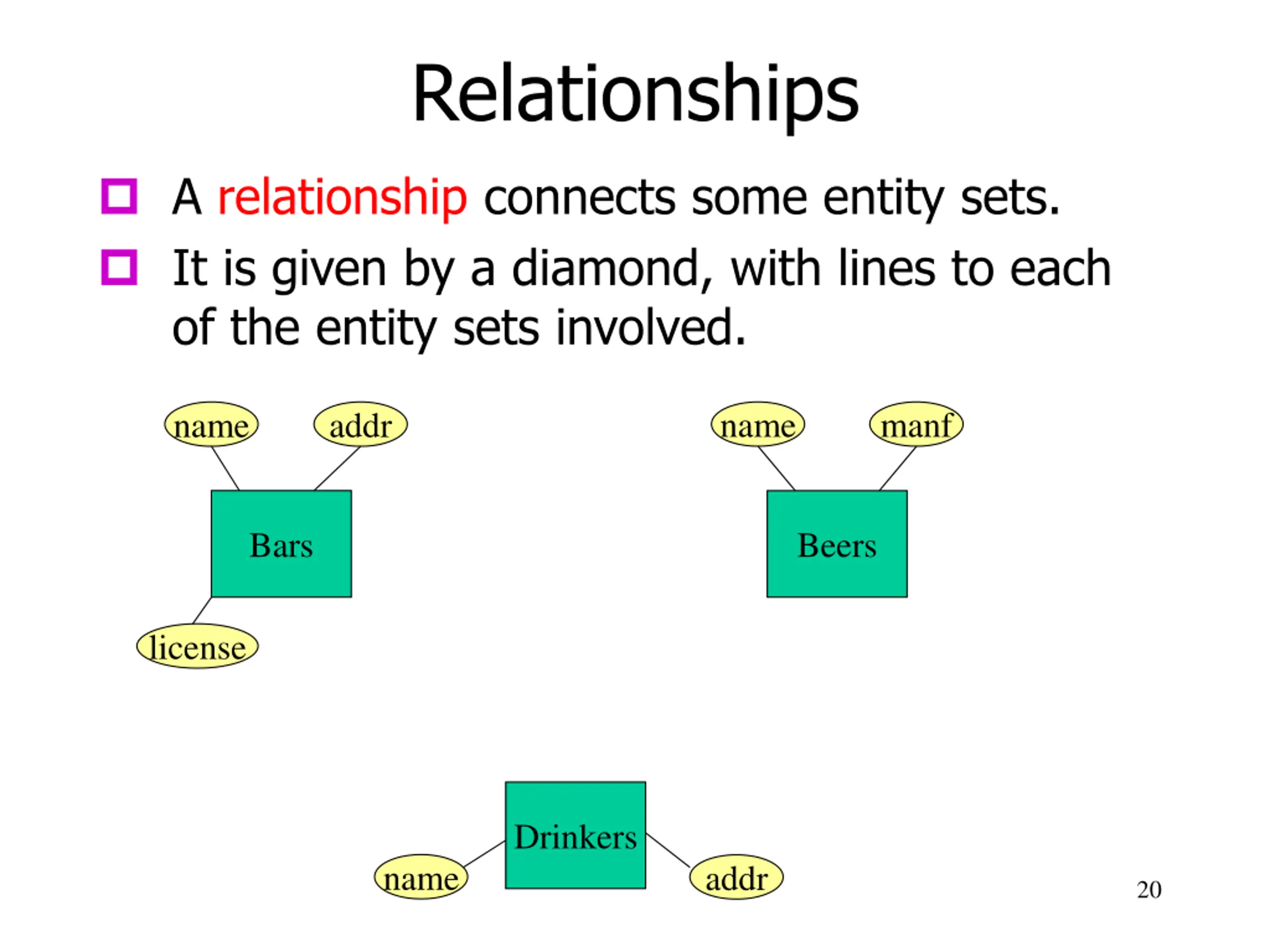

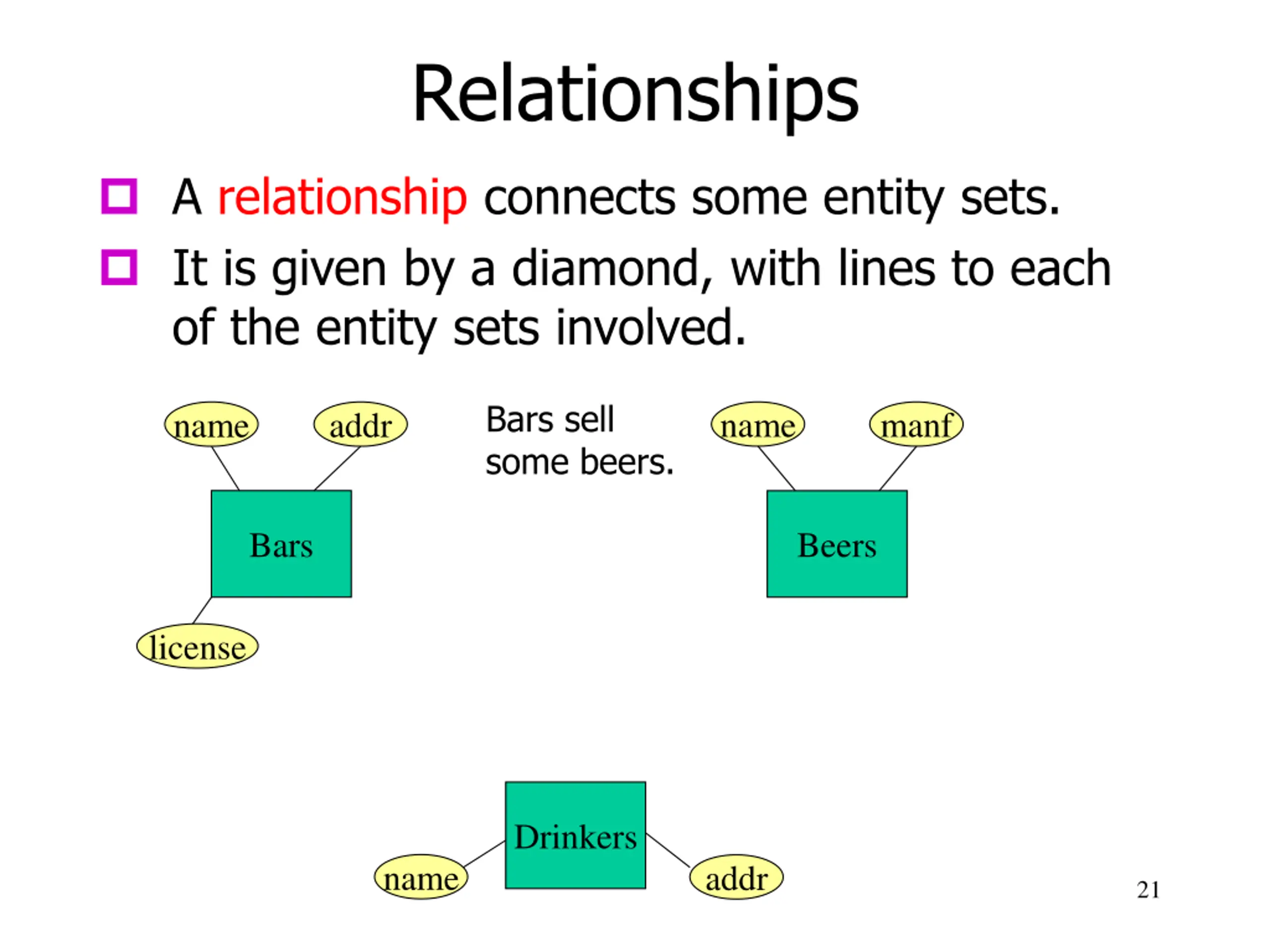

Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. name manf name addr Bars Beers license Drinkers name addr 20

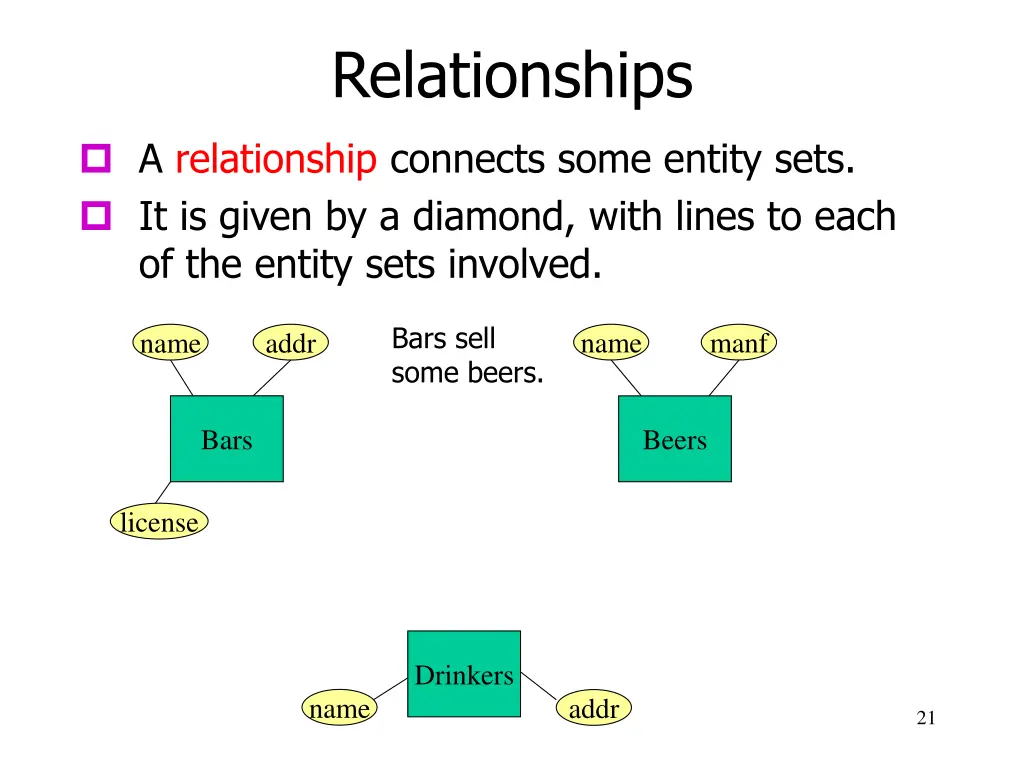

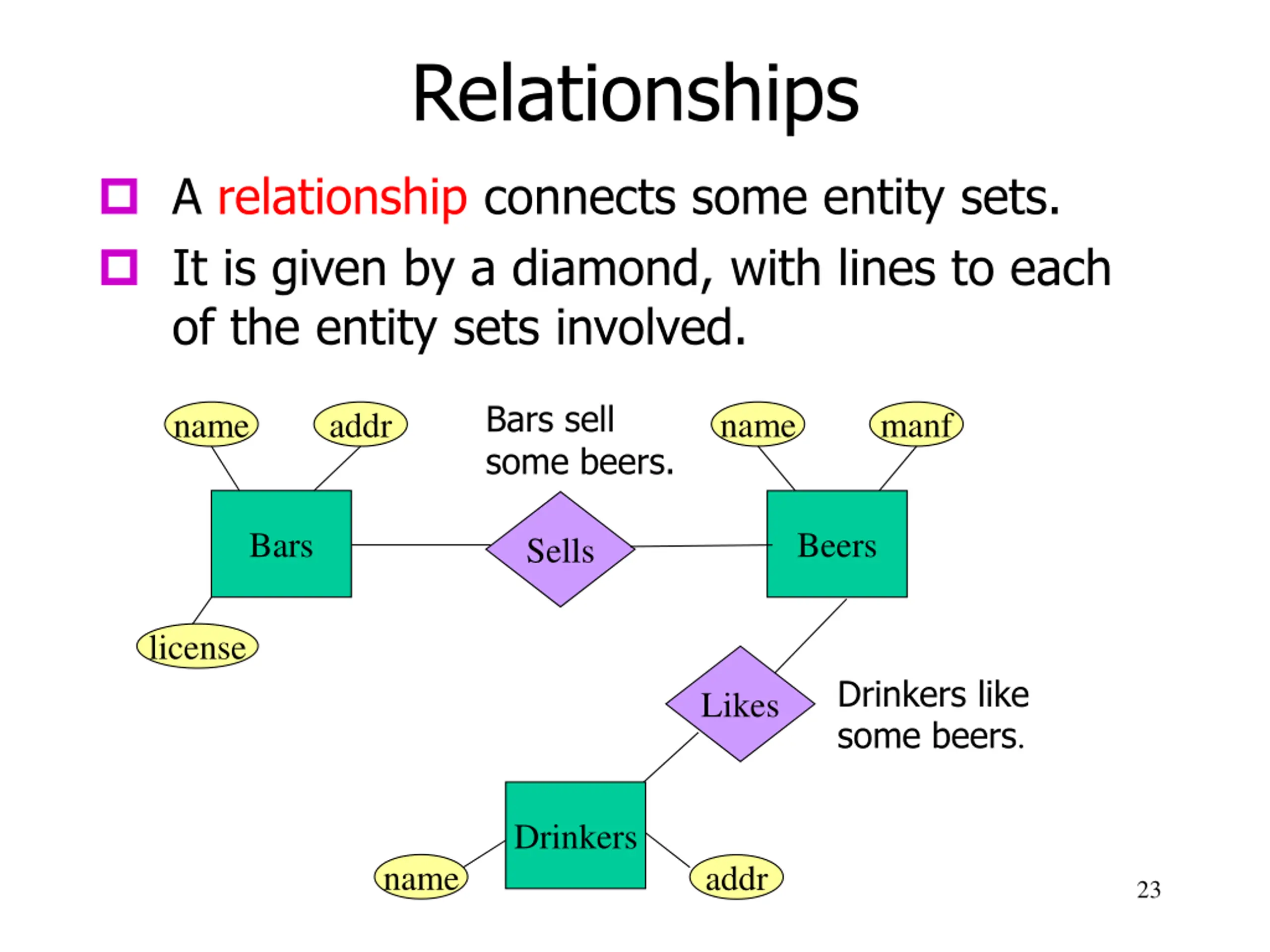

Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. Bars sell some beers. name manf name addr Bars Beers license Drinkers name addr 21

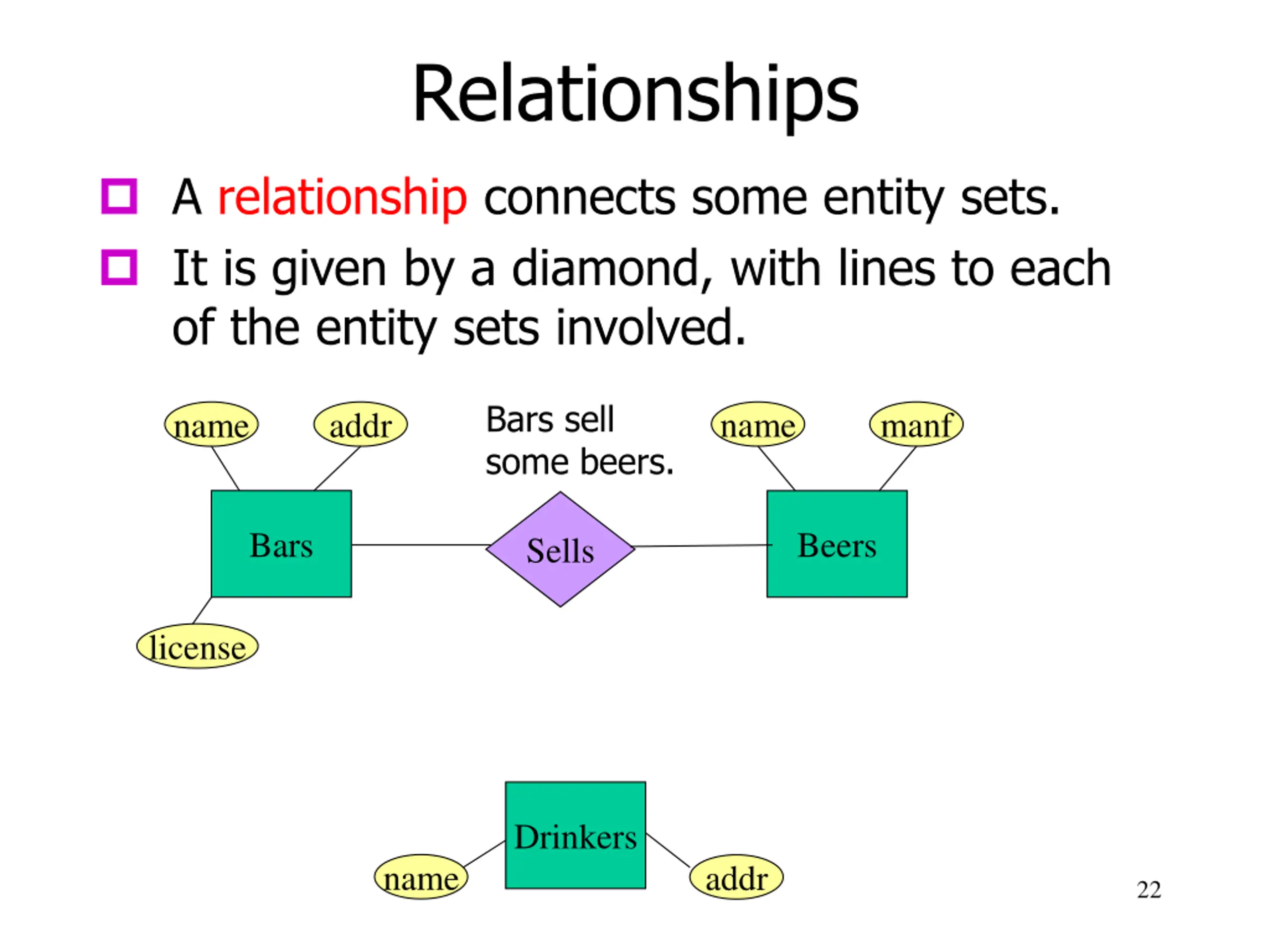

Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. Bars sell some beers. name manf name addr Bars Beers Sells license Drinkers name addr 22
Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. Bars sell some beers. name manf name addr Bars Beers Sells license Drinkers like some beers. Likes Drinkers name addr 23

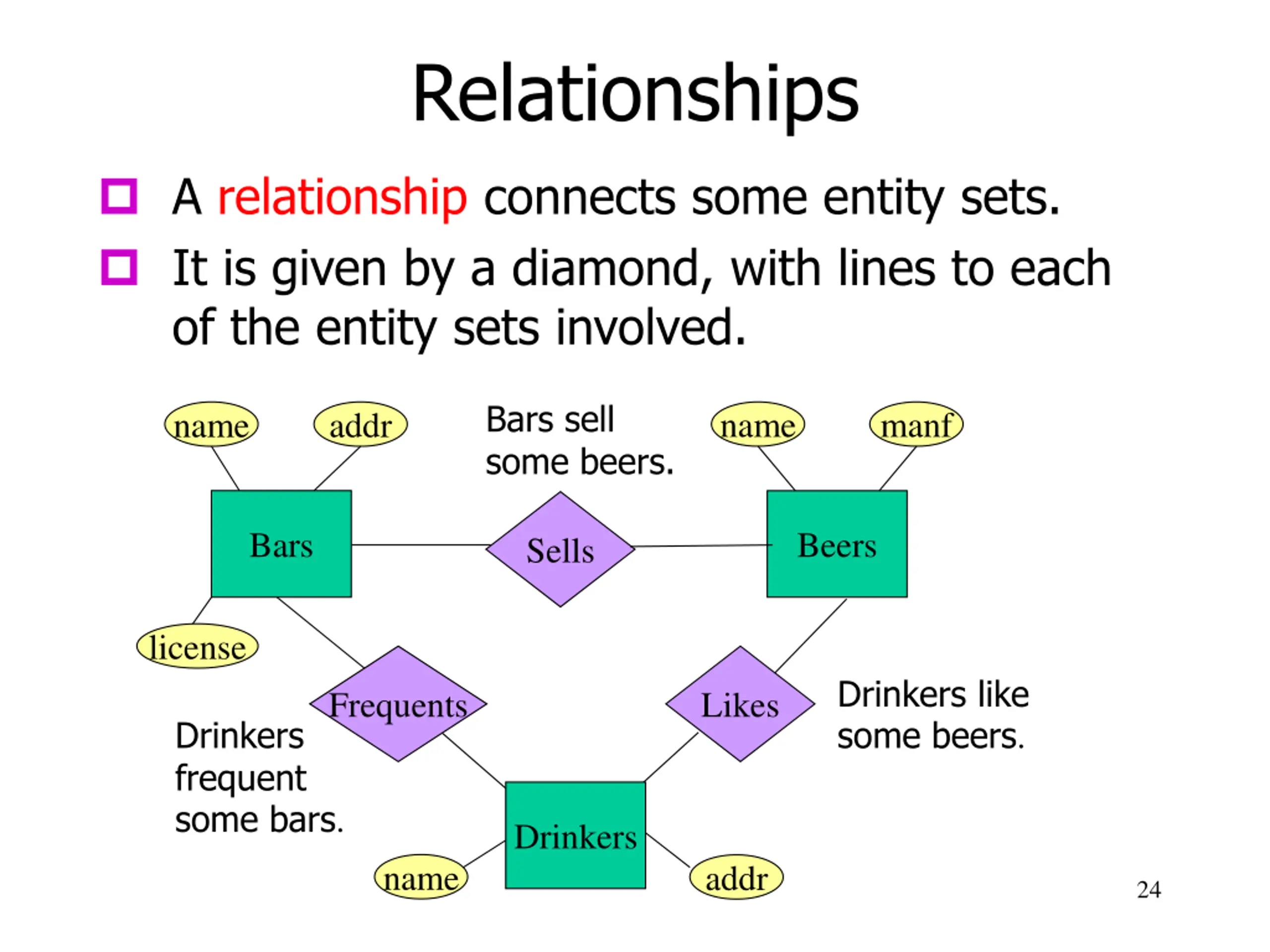

Relationships A relationship connects some entity sets. It is given by a diamond, with lines to each of the entity sets involved. Bars sell some beers. name manf name addr Bars Beers Sells license Drinkers like some beers. Frequents Likes Drinkers frequent some bars. Drinkers name addr 24

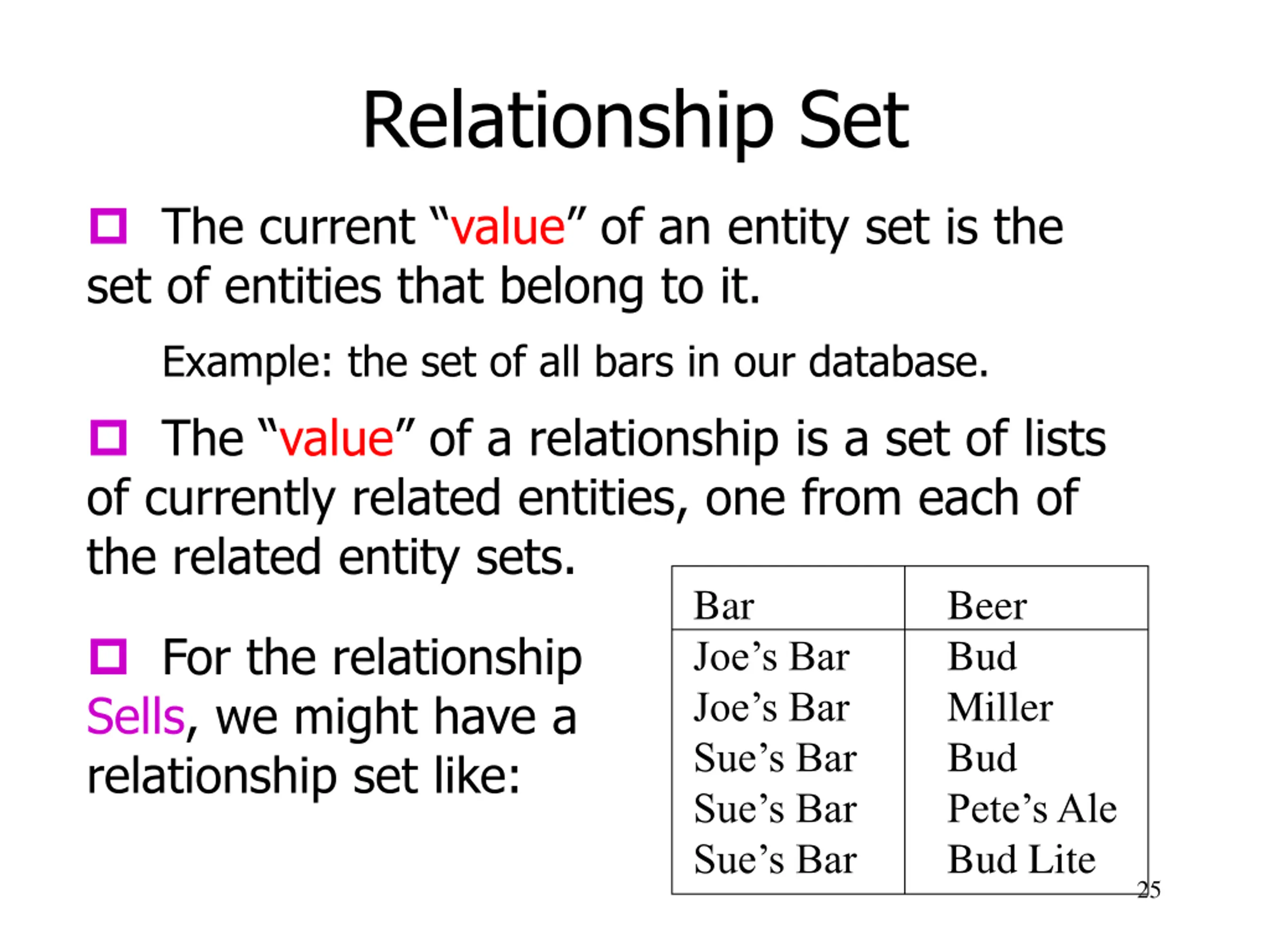

Relationship Set The current value of an entity set is the set of entities that belong to it. Example: the set of all bars in our database. The value of a relationship is a set of lists of currently related entities, one from each of the related entity sets. Bar Joe s Bar Joe s Bar Sue s Bar Sue s Bar Sue s Bar Beer Bud Miller Bud Pete s Ale Bud Lite For the relationship Sells, we might have a relationship set like: 25

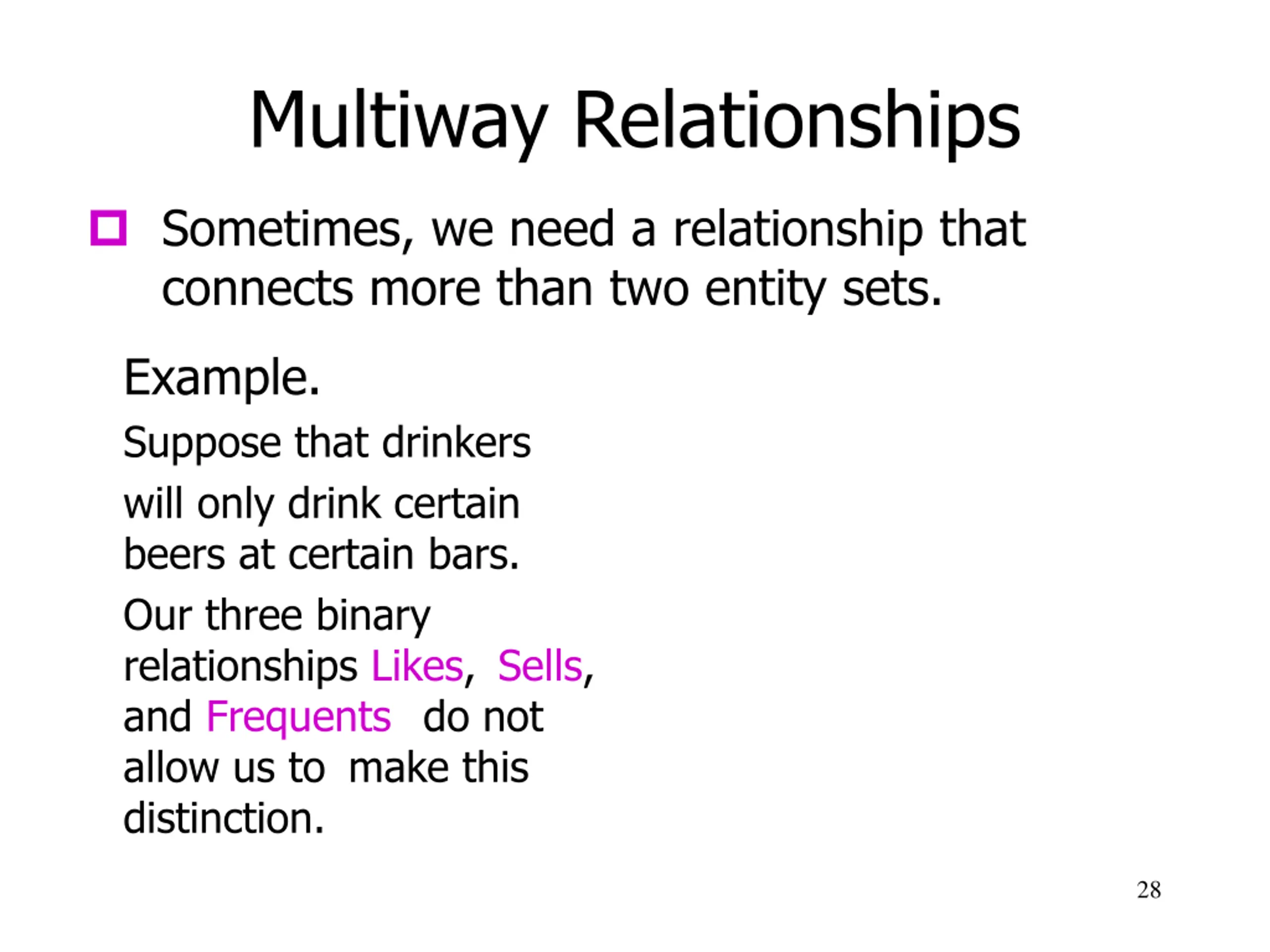

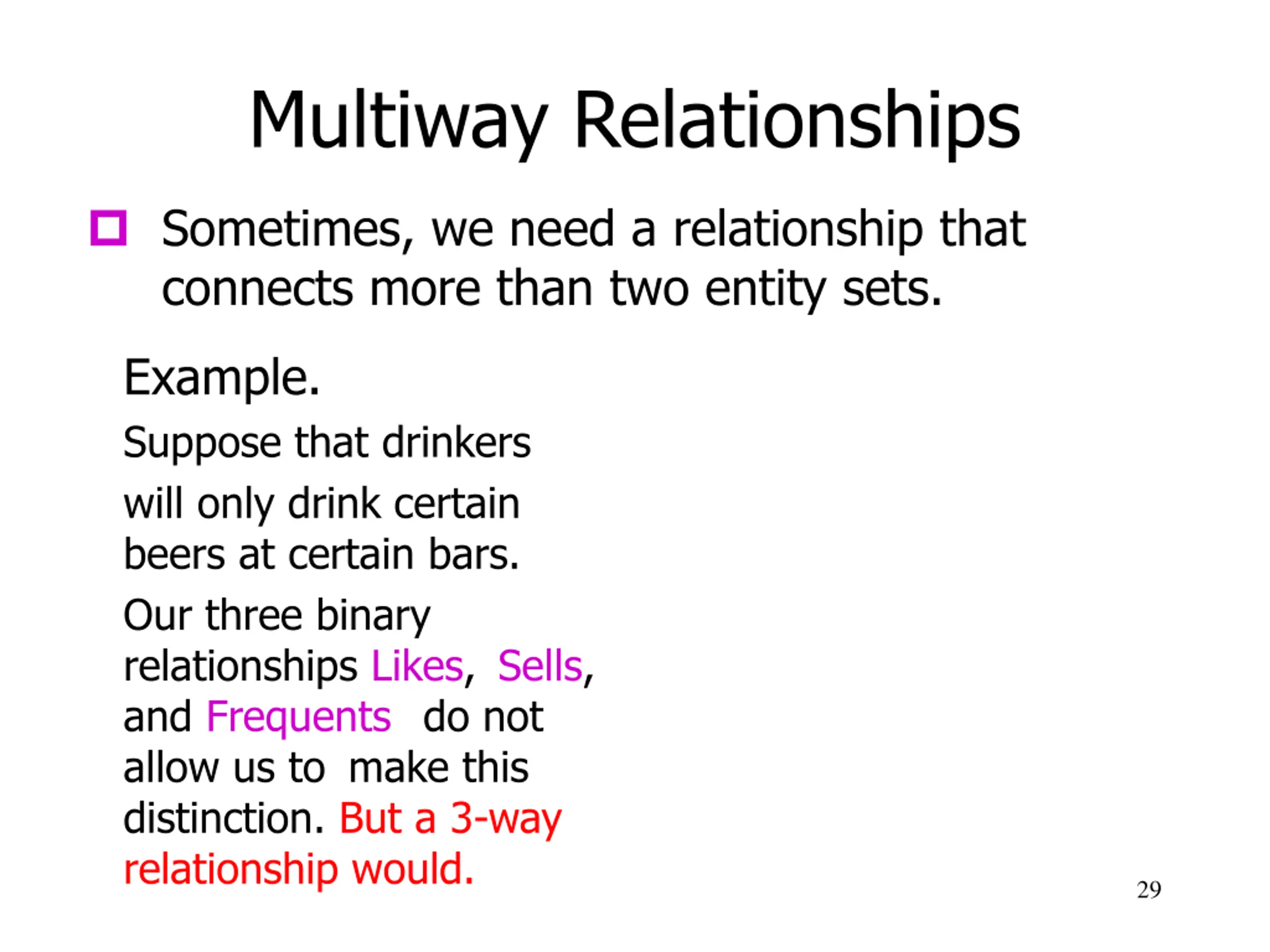

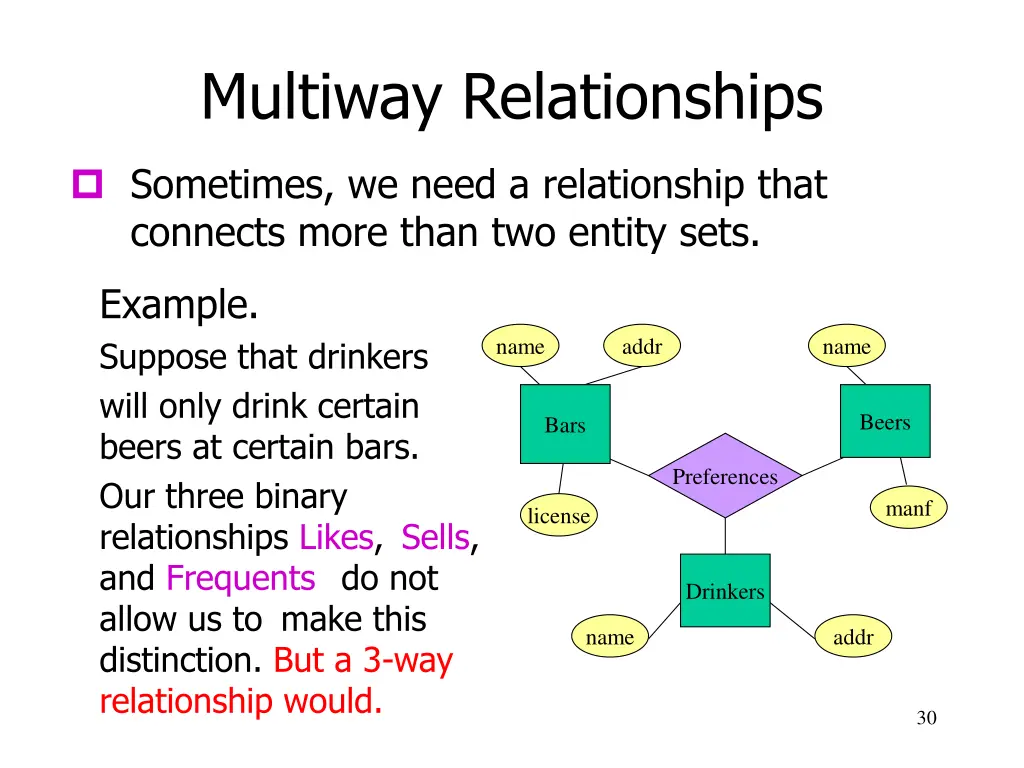

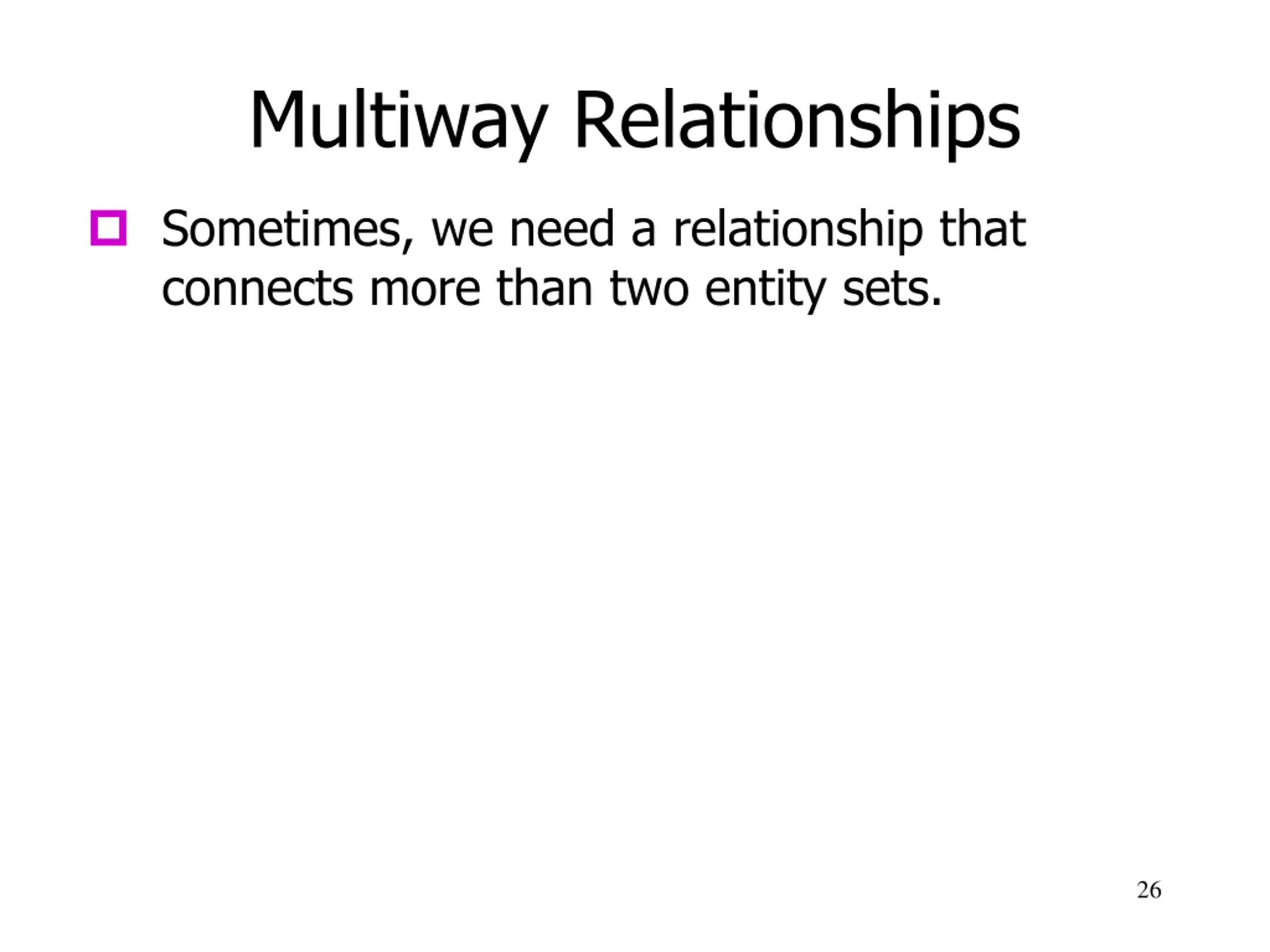

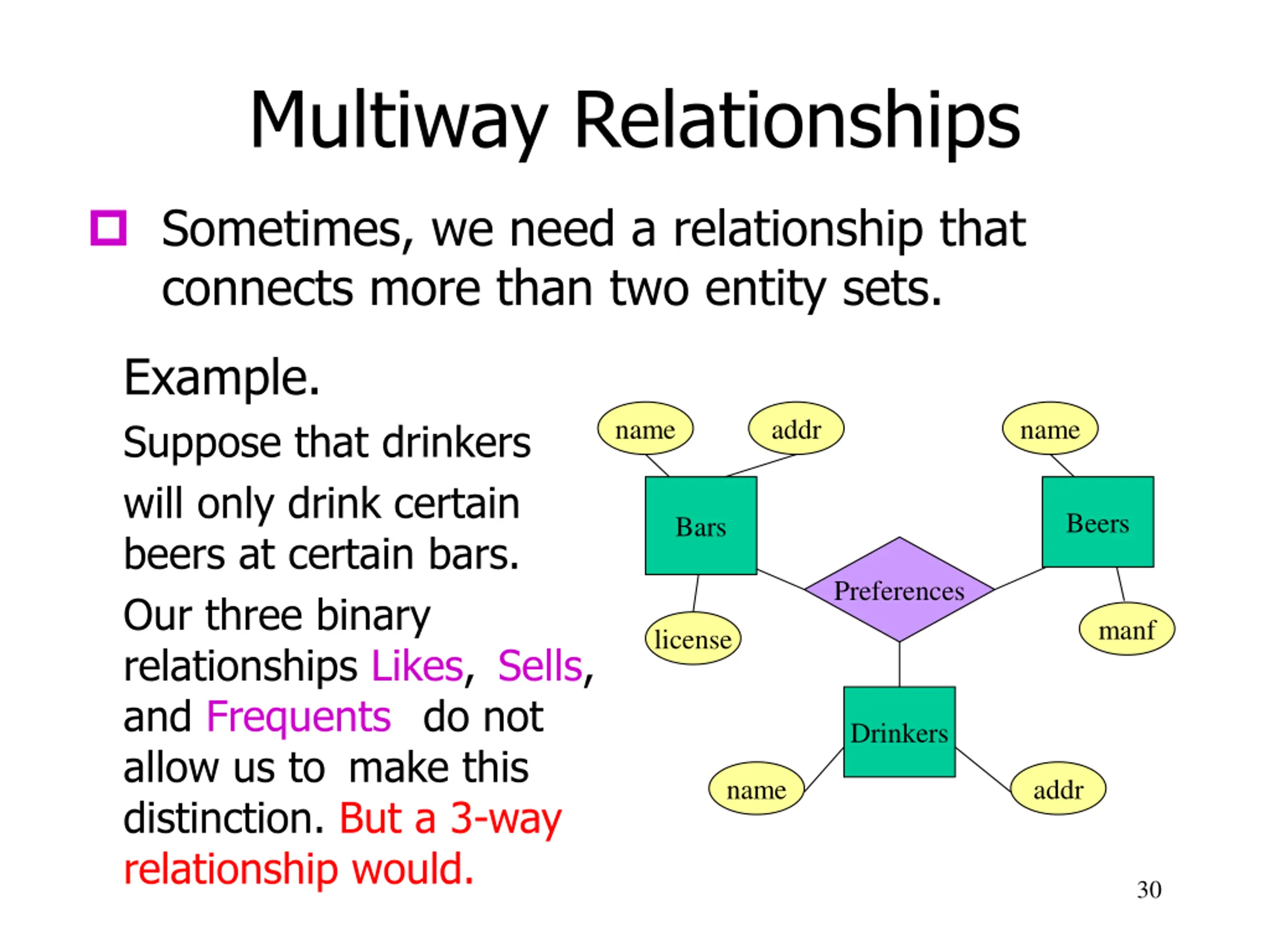

Multiway Relationships Sometimes, we need a relationship that connects more than two entity sets. 26
Multiway Relationships Sometimes, we need a relationship that connects more than two entity sets. Example. Suppose that drinkers will only drink certain beers at certain bars. 27
Multiway Relationships Sometimes, we need a relationship that connects more than two entity sets. Example. Suppose that drinkers will only drink certain beers at certain bars. Our three binary relationships Likes, Sells, and Frequents do not allow us to make this distinction. 28
Multiway Relationships Sometimes, we need a relationship that connects more than two entity sets. Example. Suppose that drinkers will only drink certain beers at certain bars. Our three binary relationships Likes, Sells, and Frequents do not allow us to make this distinction. But a 3-way relationship would. 29

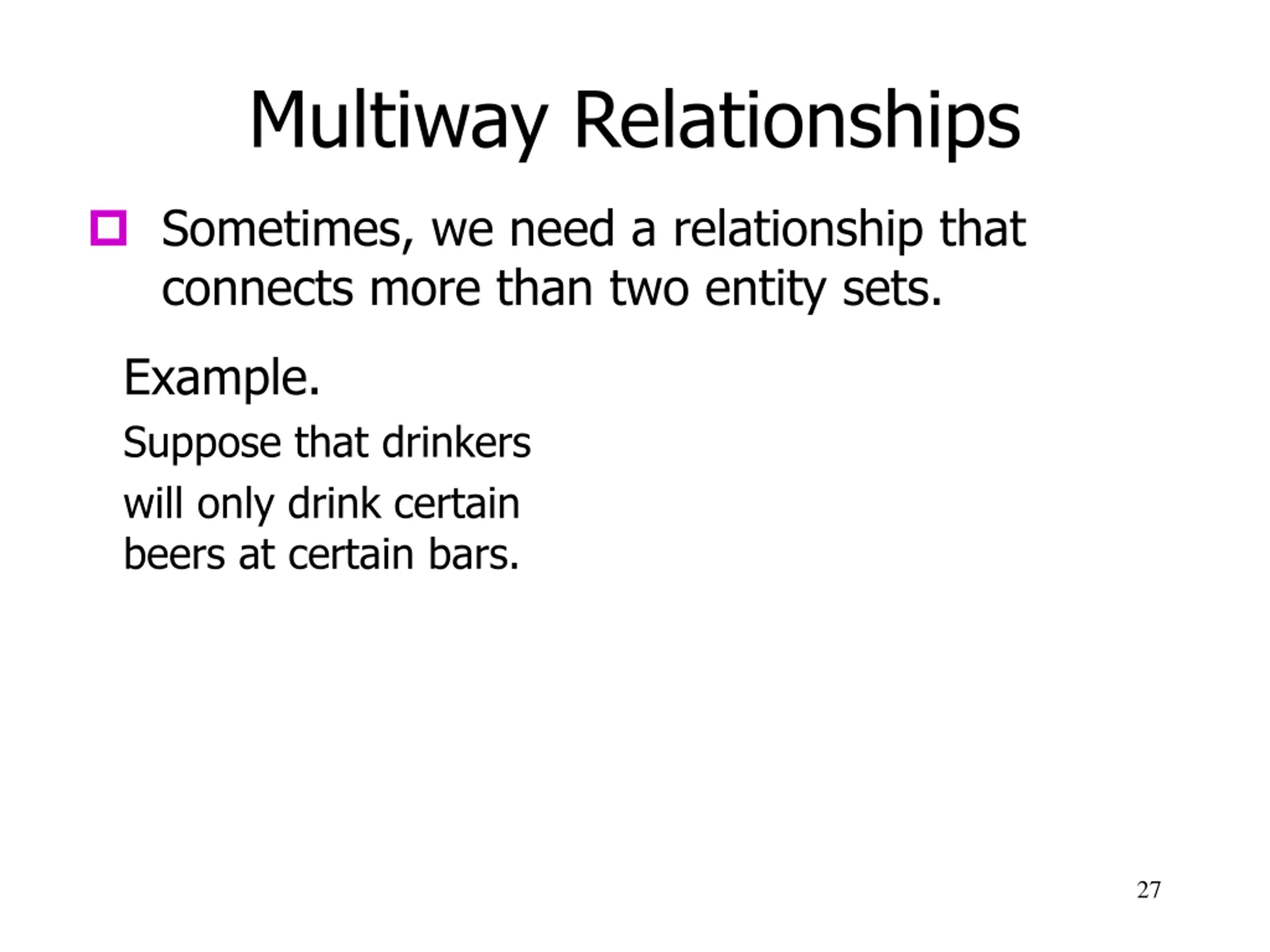

Multiway Relationships Sometimes, we need a relationship that connects more than two entity sets. Example. Suppose that drinkers will only drink certain beers at certain bars. Our three binary relationships Likes, Sells, and Frequents do not allow us to make this distinction. But a 3-way relationship would. name addr name Beers Bars Preferences manf license Drinkers name addr 30

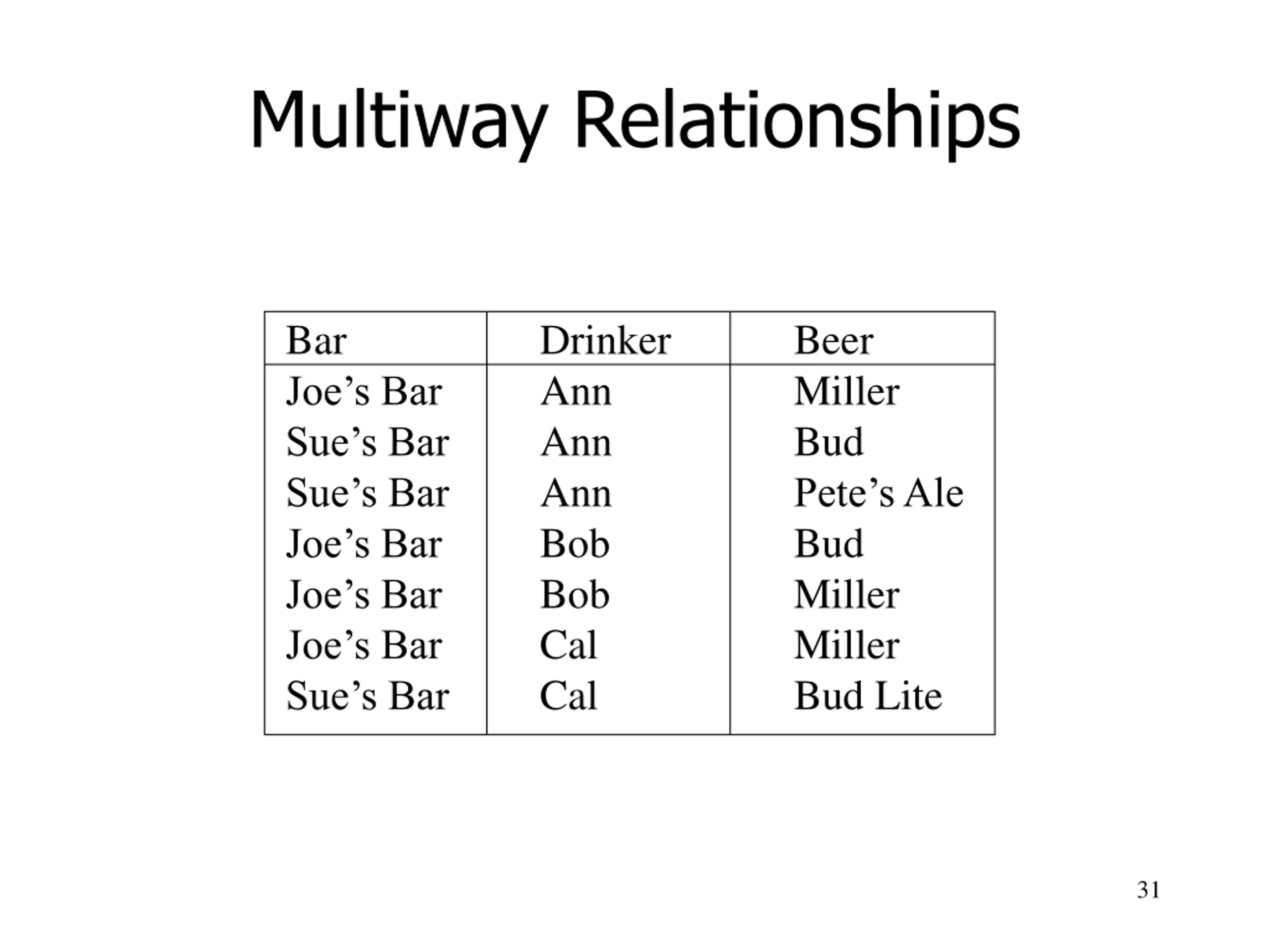

Multiway Relationships Bar Joe s Bar Sue s Bar Sue s Bar Joe s Bar Joe s Bar Joe s Bar Sue s Bar Drinker Ann Ann Ann Bob Bob Cal Cal Beer Miller Bud Pete s Ale Bud Miller Miller Bud Lite 31

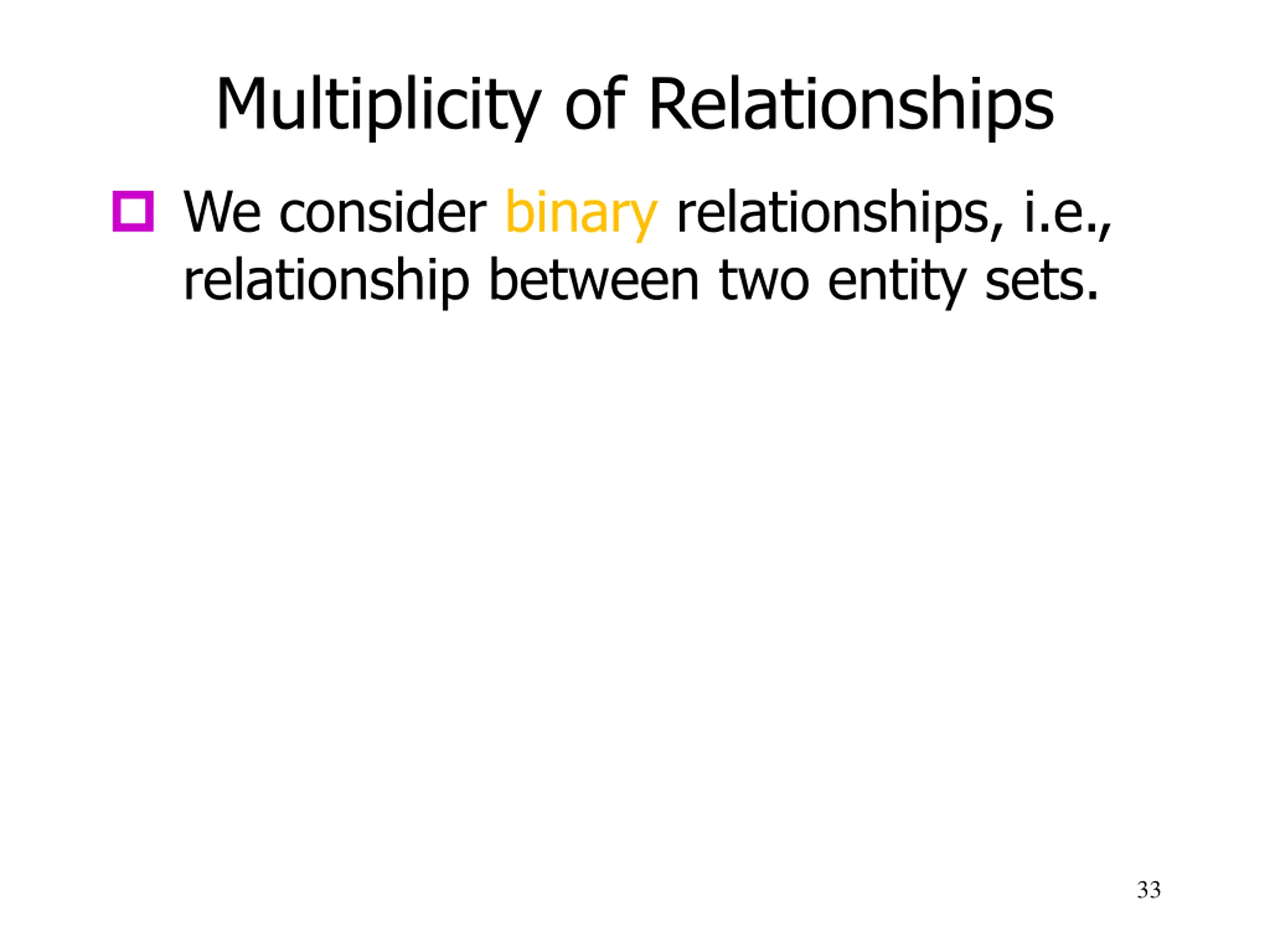

Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. 33

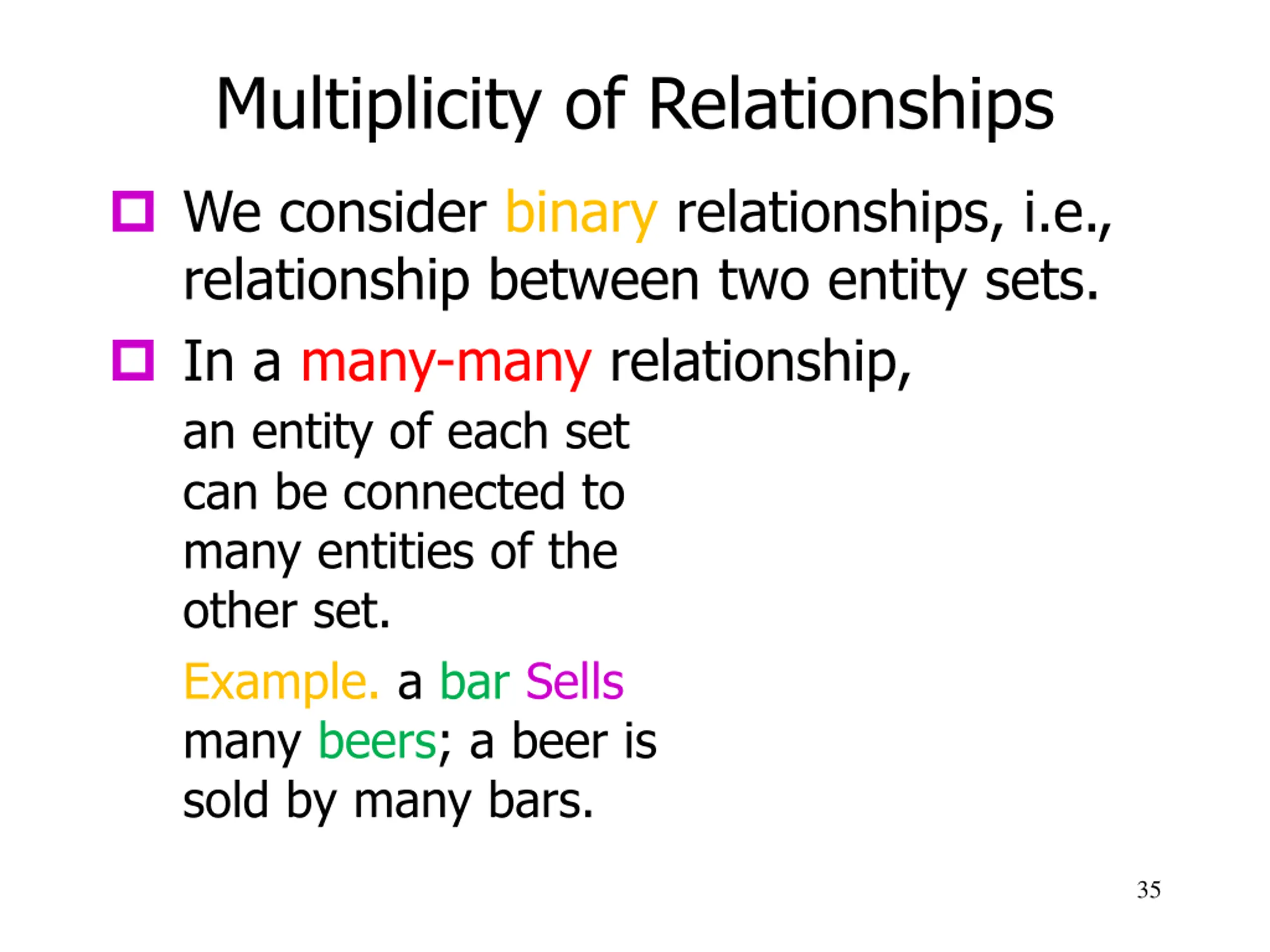

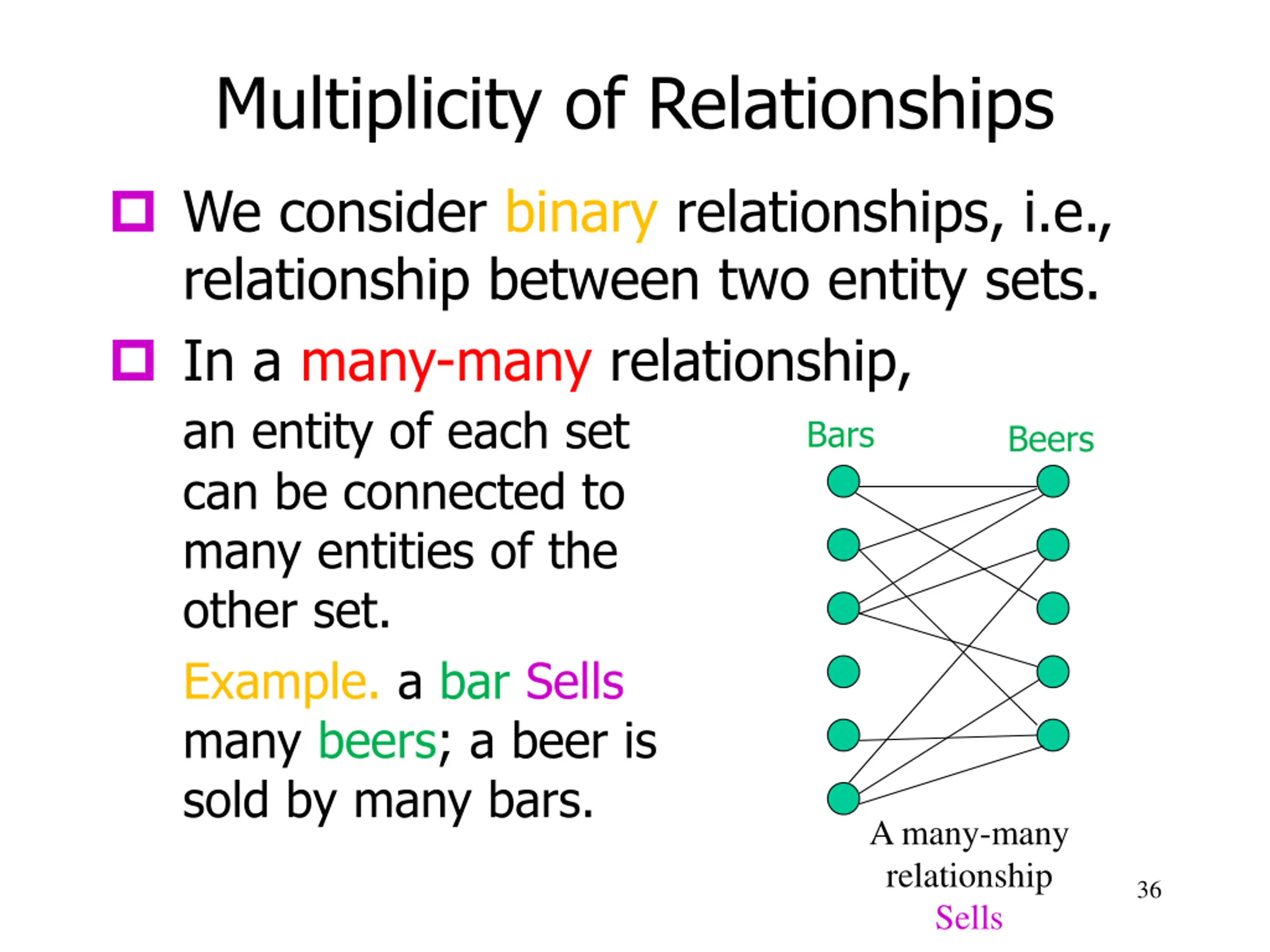

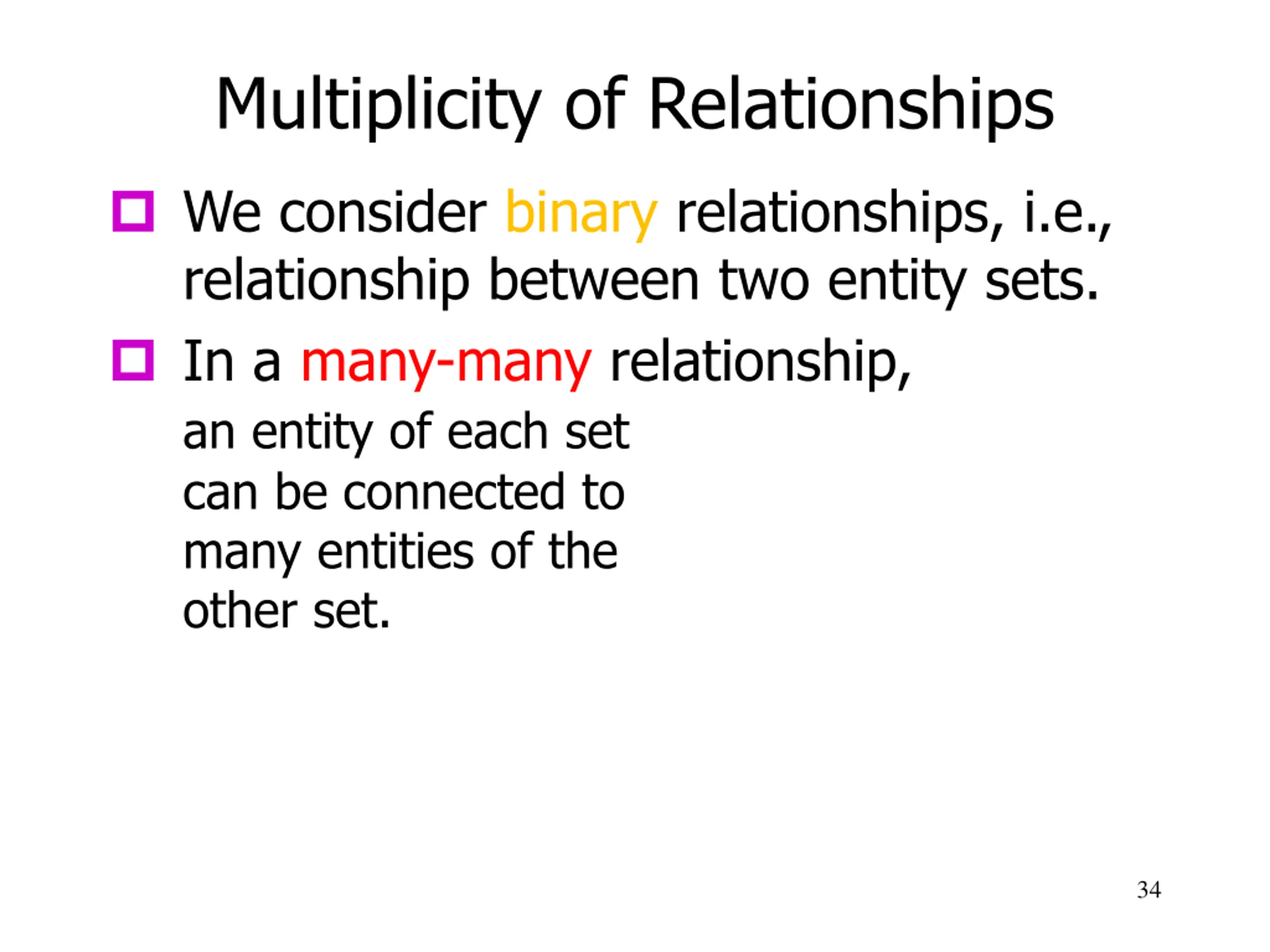

Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-many relationship, an entity of each set can be connected to many entities of the other set. 34
Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-many relationship, an entity of each set can be connected to many entities of the other set. Example. a bar Sells many beers; a beer is sold by many bars. 35
Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-many relationship, an entity of each set can be connected to many entities of the other set. Example. a bar Sells many beers; a beer is sold by many bars. Beers Bars A many-many relationship Sells 36

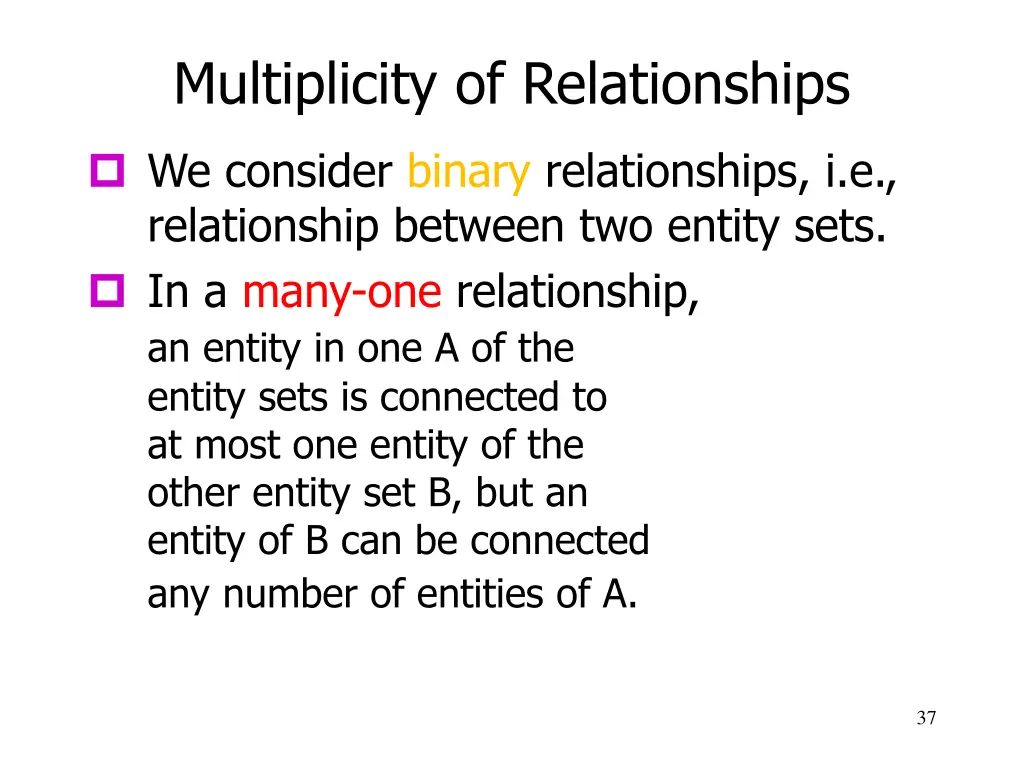

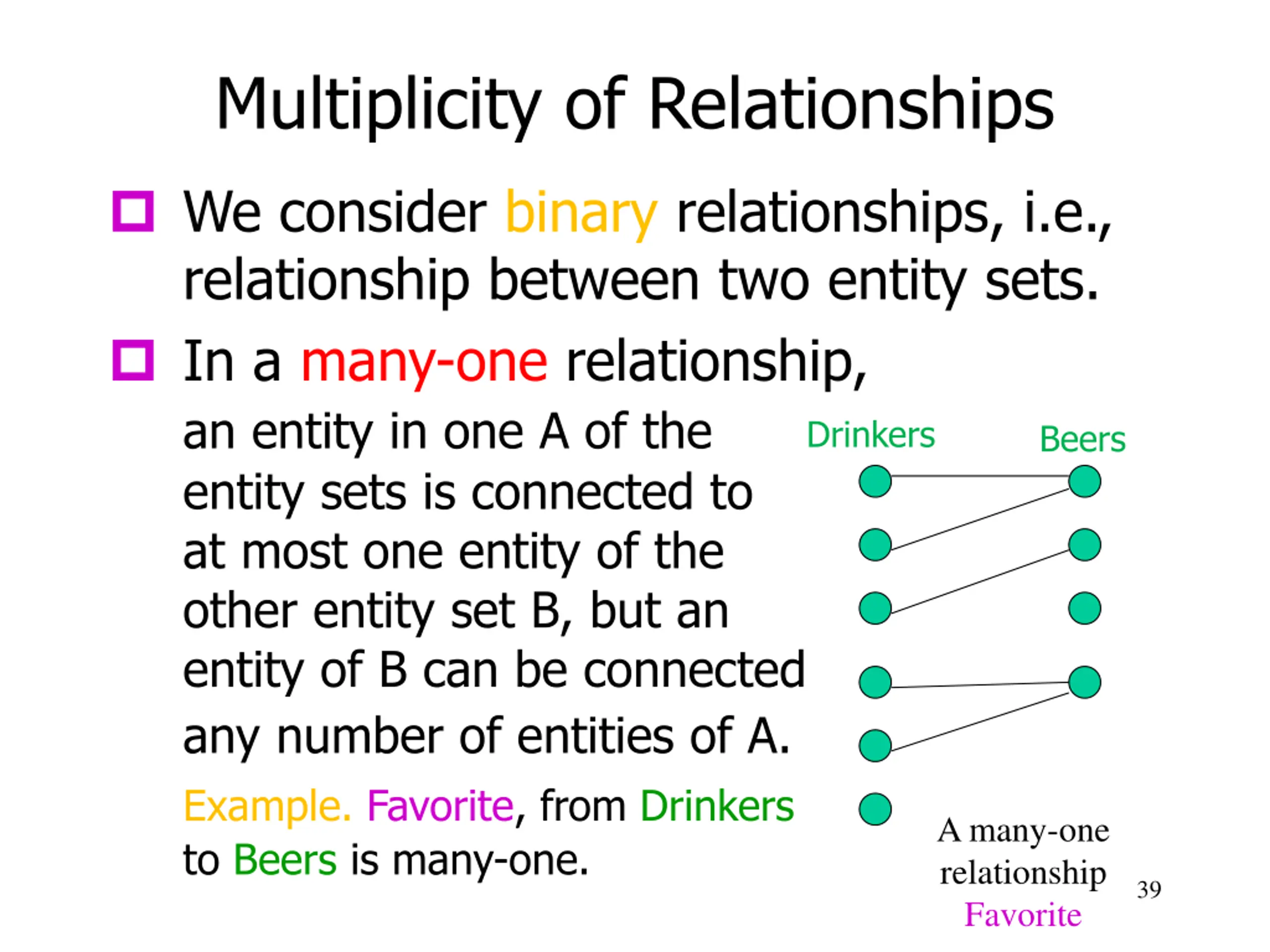

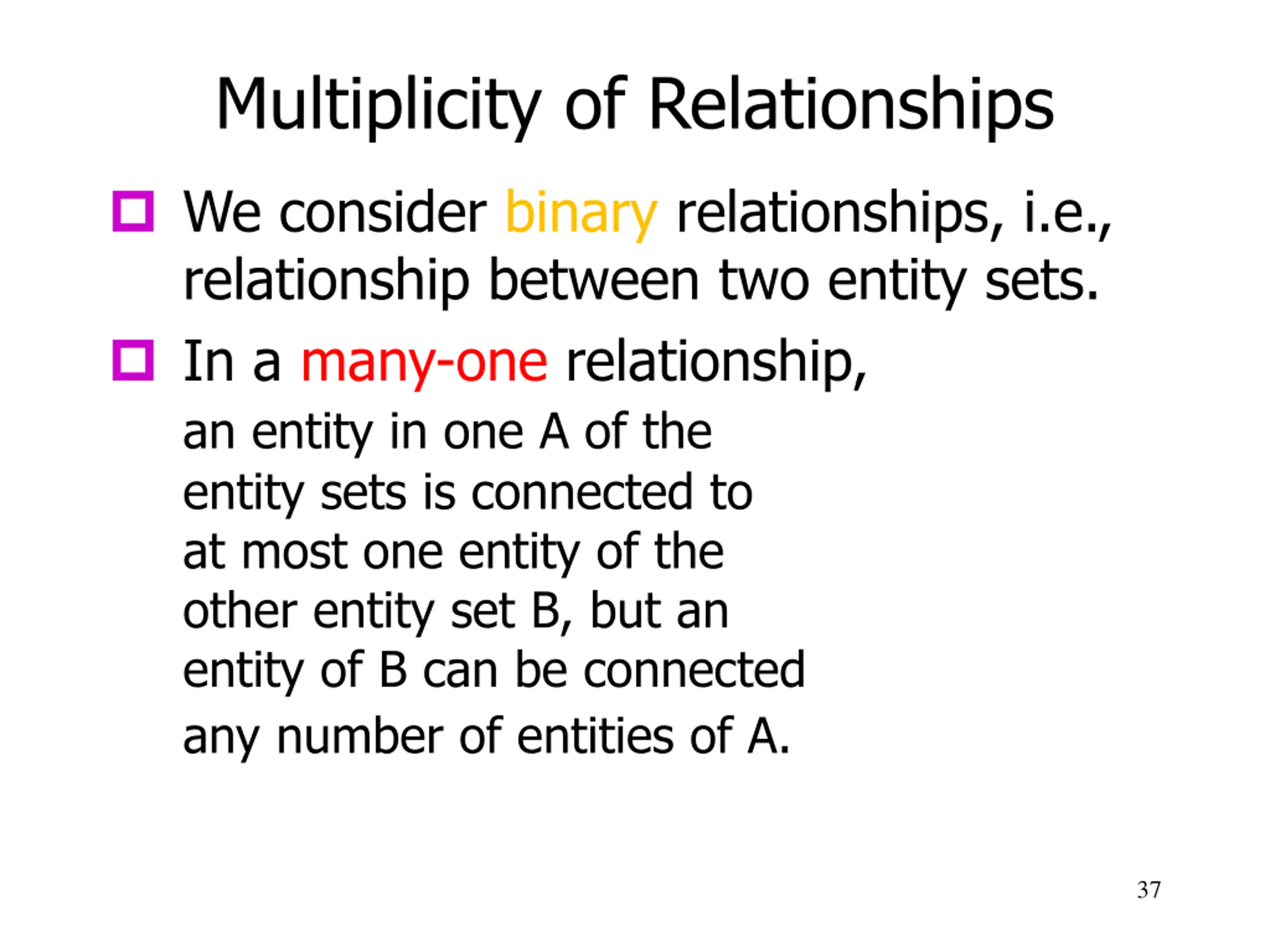

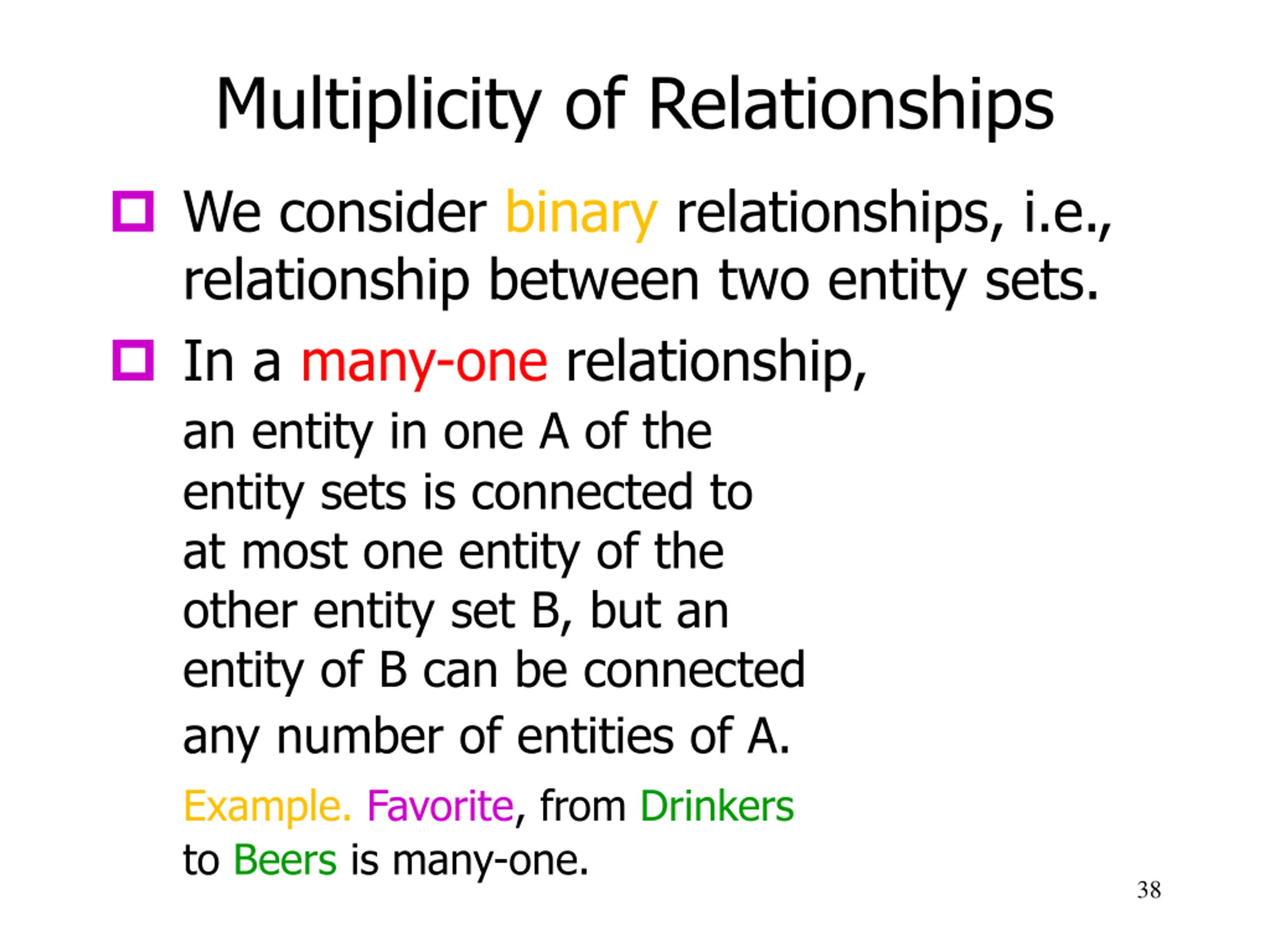

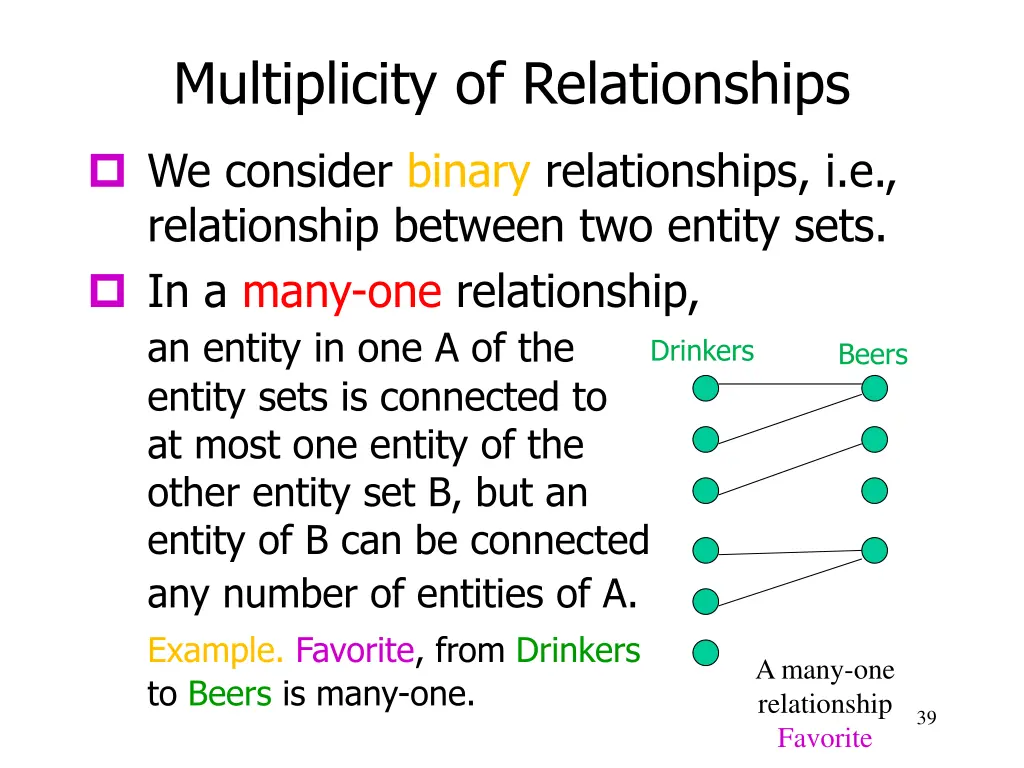

Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-one relationship, an entity in one A of the entity sets is connected to at most one entity of the other entity set B, but an entity of B can be connected any number of entities of A. 37
Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-one relationship, an entity in one A of the entity sets is connected to at most one entity of the other entity set B, but an entity of B can be connected any number of entities of A. Example. Favorite, from Drinkers to Beers is many-one. 38
Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a many-one relationship, an entity in one A of the entity sets is connected to at most one entity of the other entity set B, but an entity of B can be connected any number of entities of A. Example. Favorite, from Drinkers to Beers is many-one. Drinkers Beers A many-one relationship Favorite 39

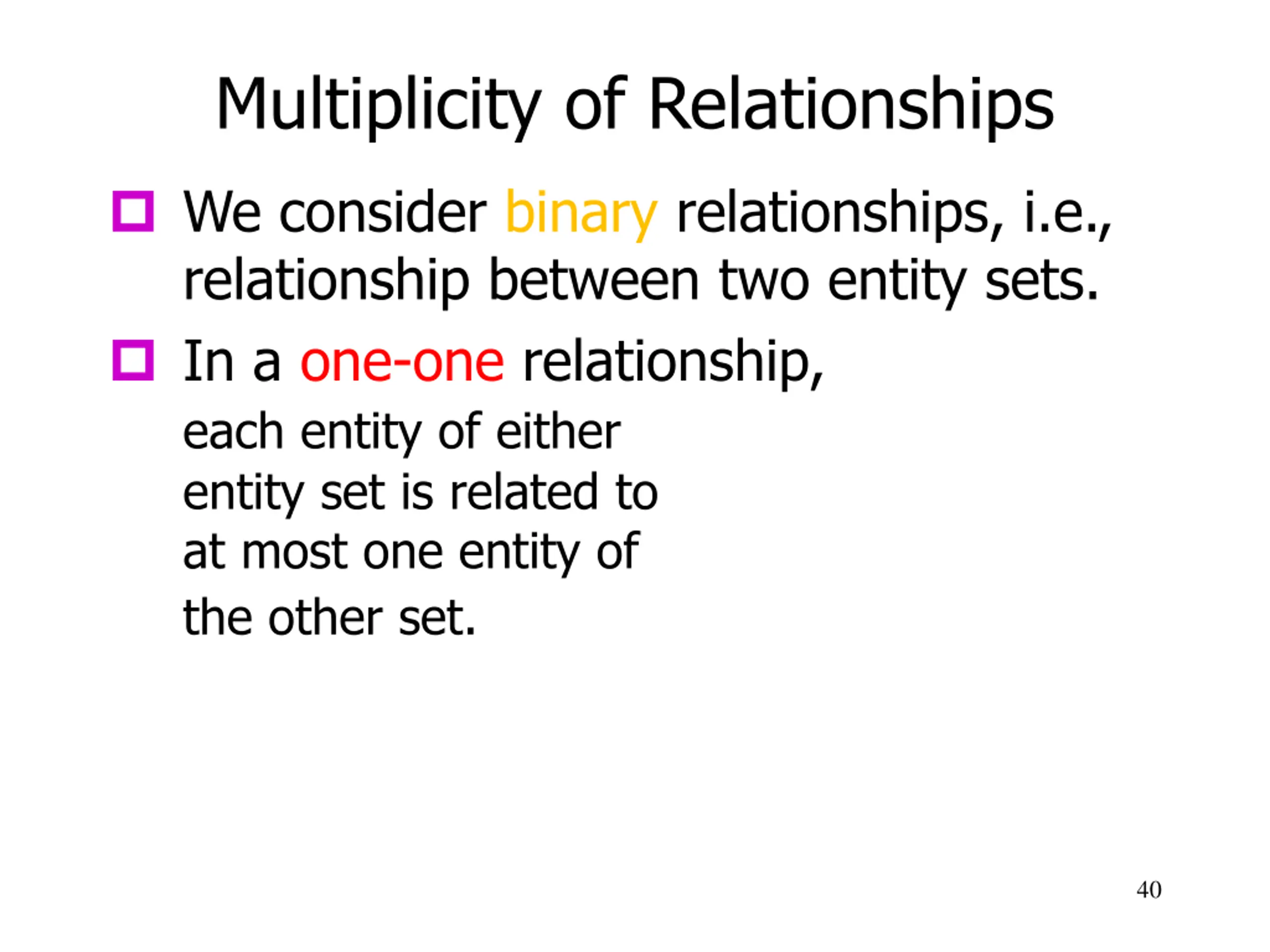

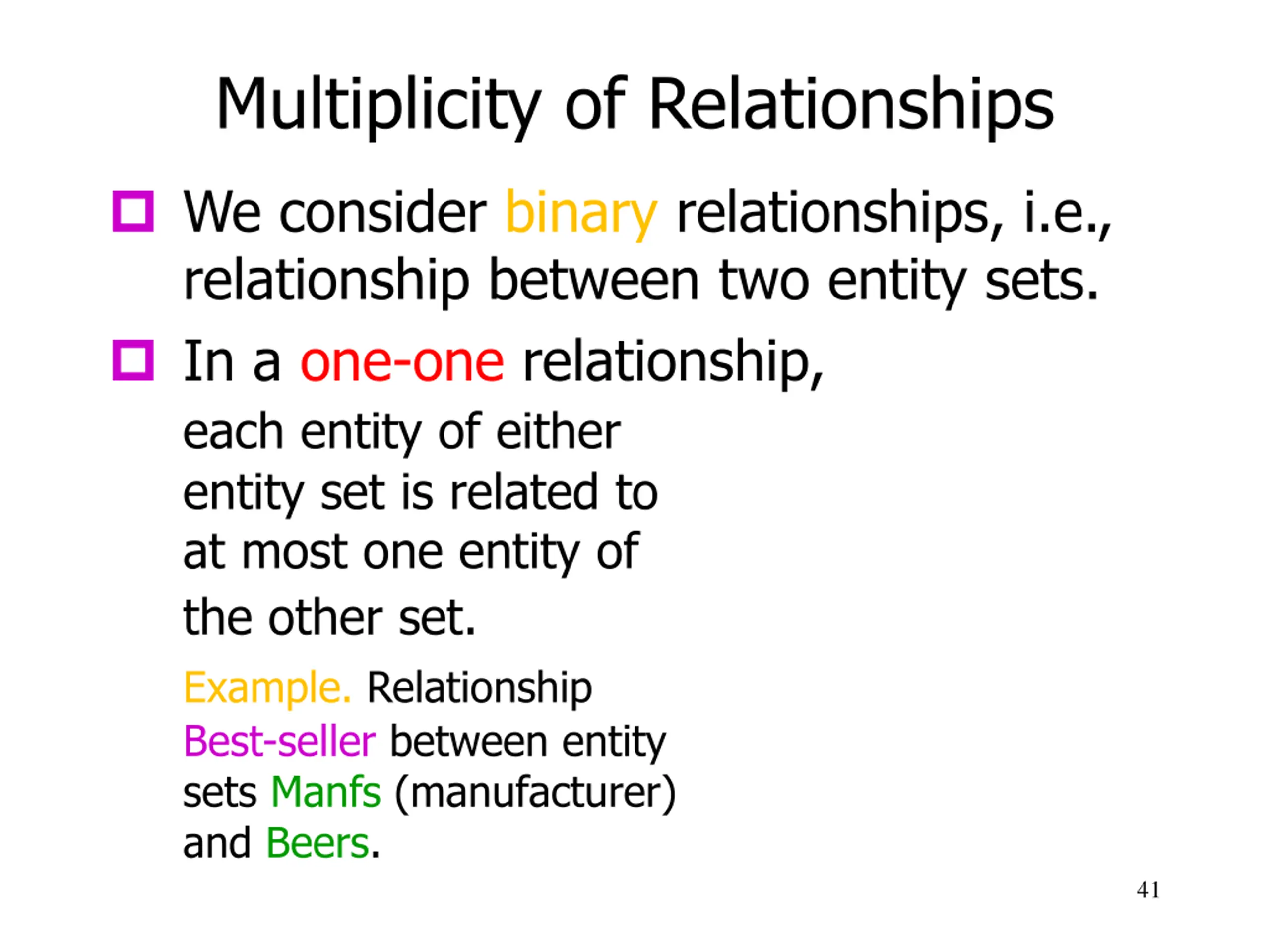

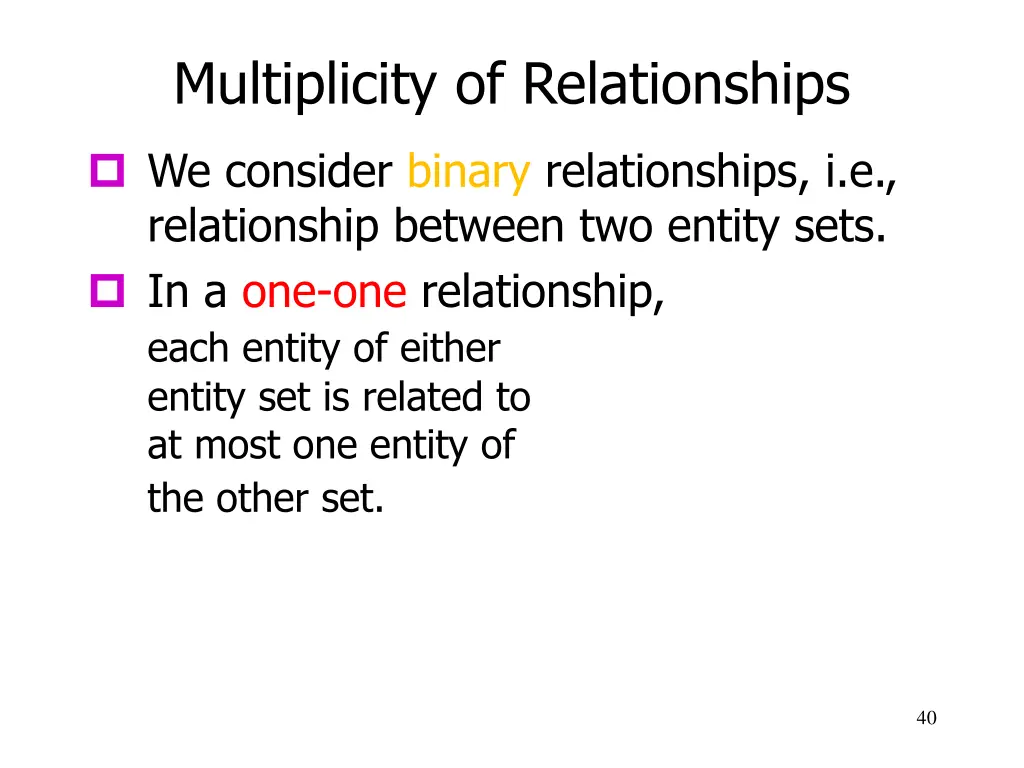

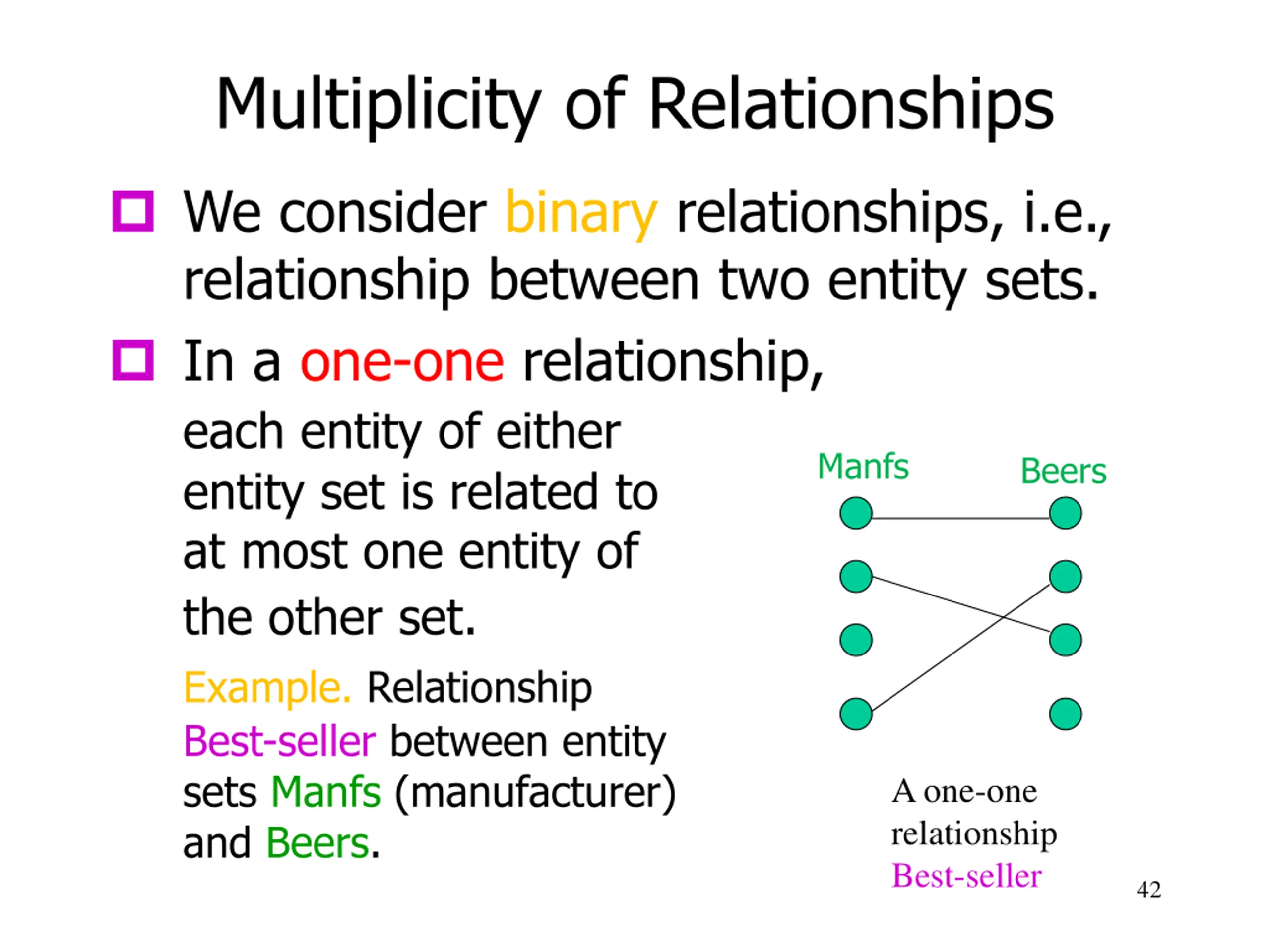

Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a one-one relationship, each entity of either entity set is related to at most one entity of the other set. 40

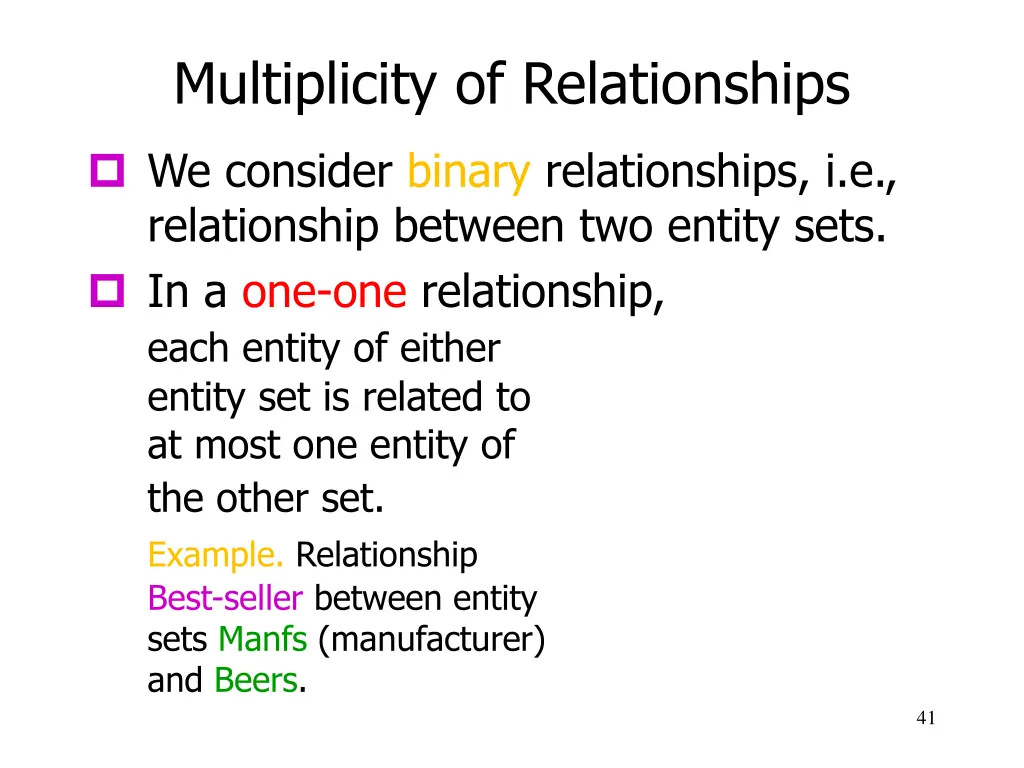

Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a one-one relationship, each entity of either entity set is related to at most one entity of the other set. Example. Relationship Best-seller between entity sets Manfs (manufacturer) and Beers. 41
Multiplicity of Relationships We consider binary relationships, i.e., relationship between two entity sets. In a one-one relationship, each entity of either entity set is related to at most one entity of the other set. Example. Relationship Best-seller between entity sets Manfs (manufacturer) and Beers. Manfs Beers A one-one relationship Best-seller 42

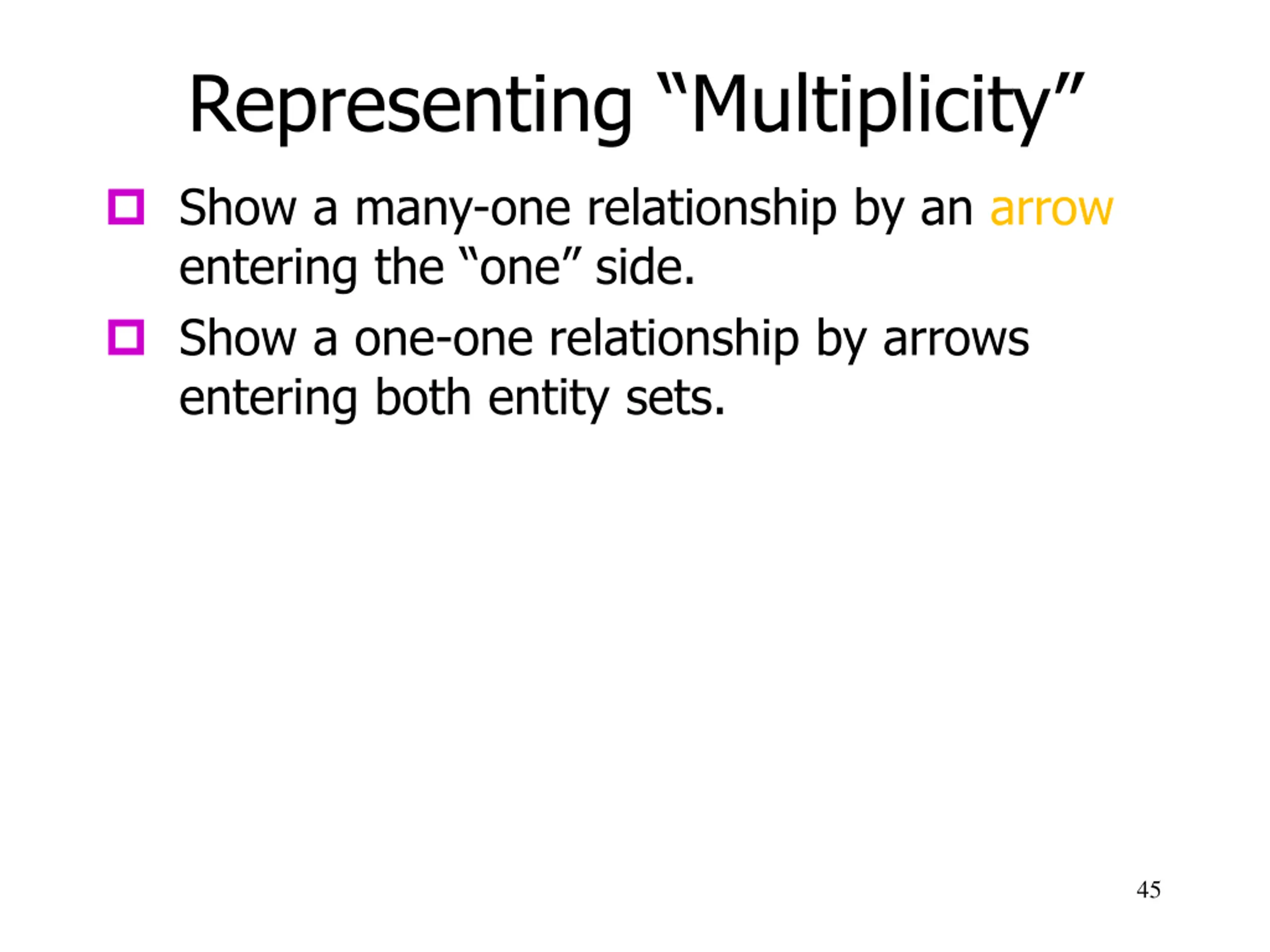

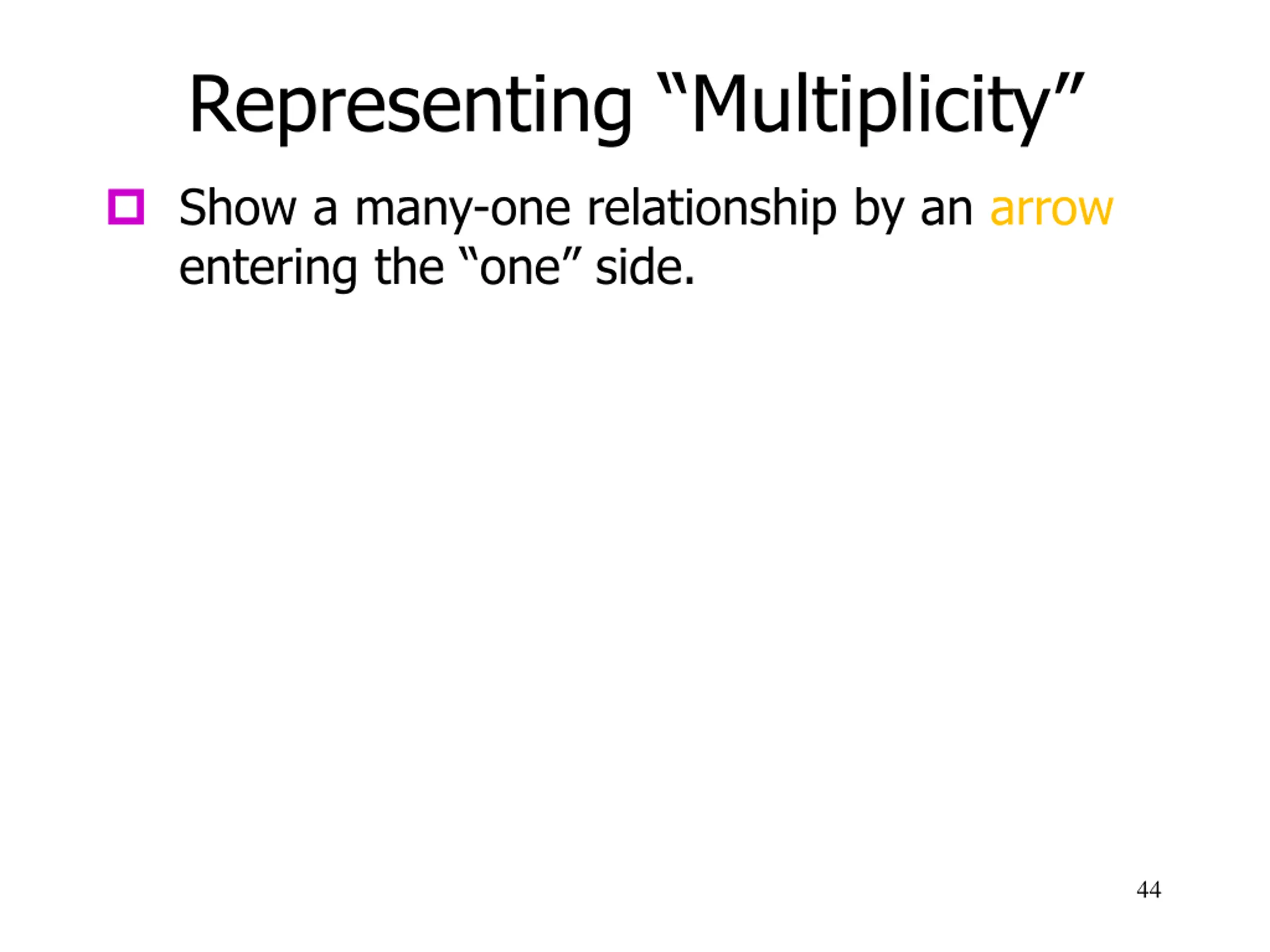

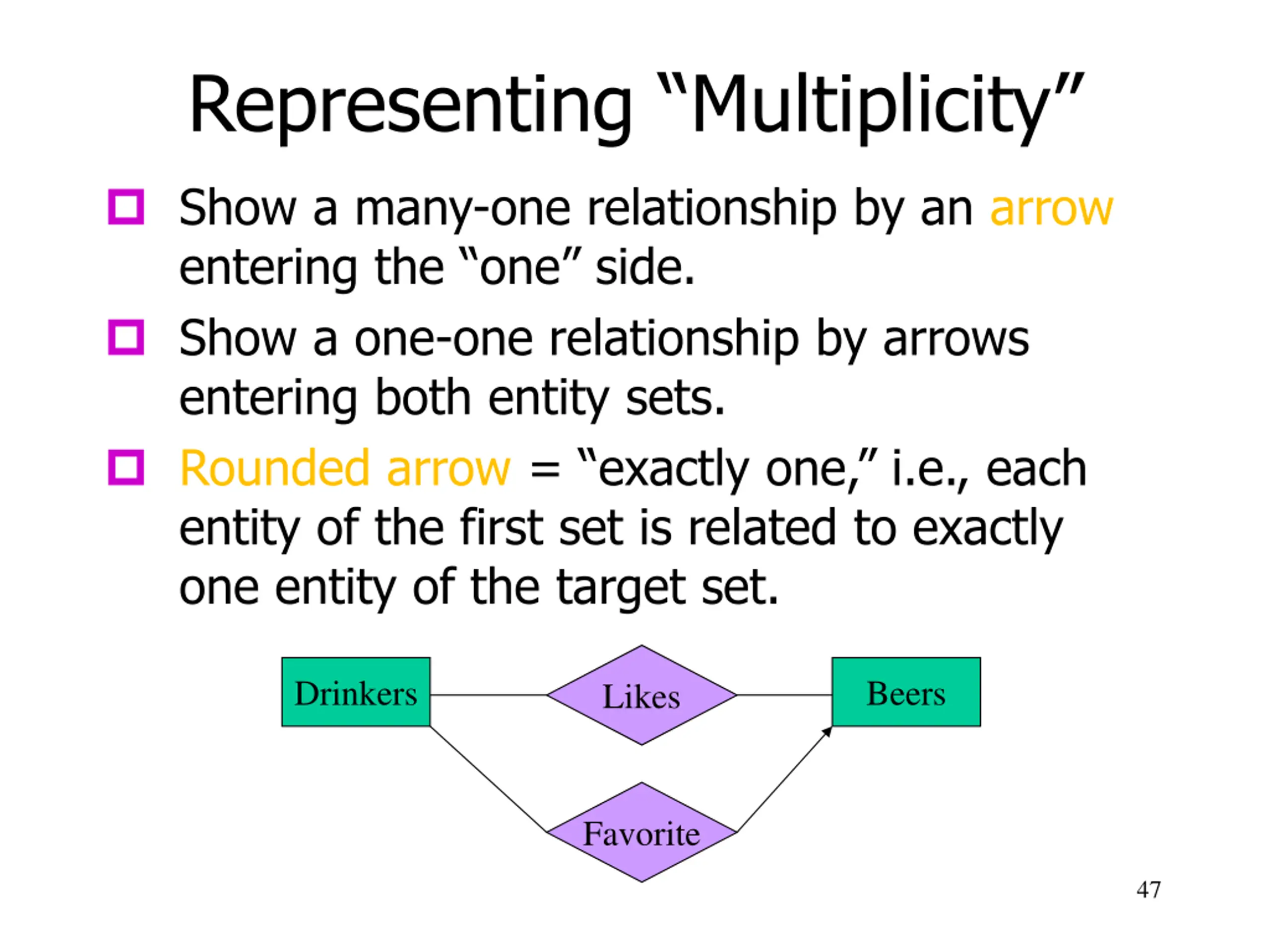

Representing Multiplicity Show a many-one relationship by an arrow entering the one side. 44
Representing Multiplicity Show a many-one relationship by an arrow entering the one side. Show a one-one relationship by arrows entering both entity sets. 45
Representing Multiplicity Show a many-one relationship by an arrow entering the one side. Show a one-one relationship by arrows entering both entity sets. Rounded arrow = exactly one, i.e., each entity of the first set is related to exactly one entity of the target set. 46

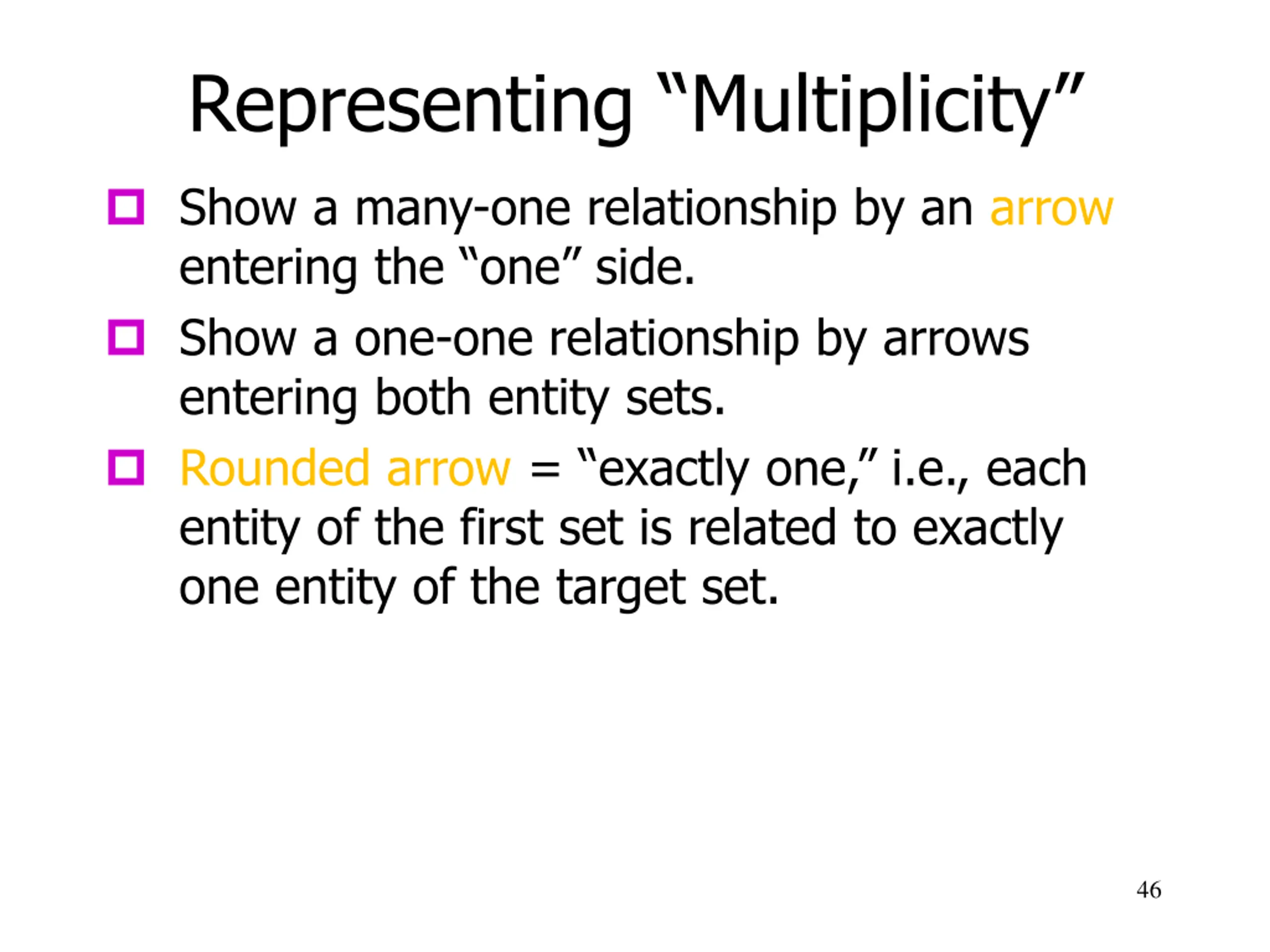

Representing Multiplicity Show a many-one relationship by an arrow entering the one side. Show a one-one relationship by arrows entering both entity sets. Rounded arrow = exactly one, i.e., each entity of the first set is related to exactly one entity of the target set. Drinkers Beers Likes Favorite 47

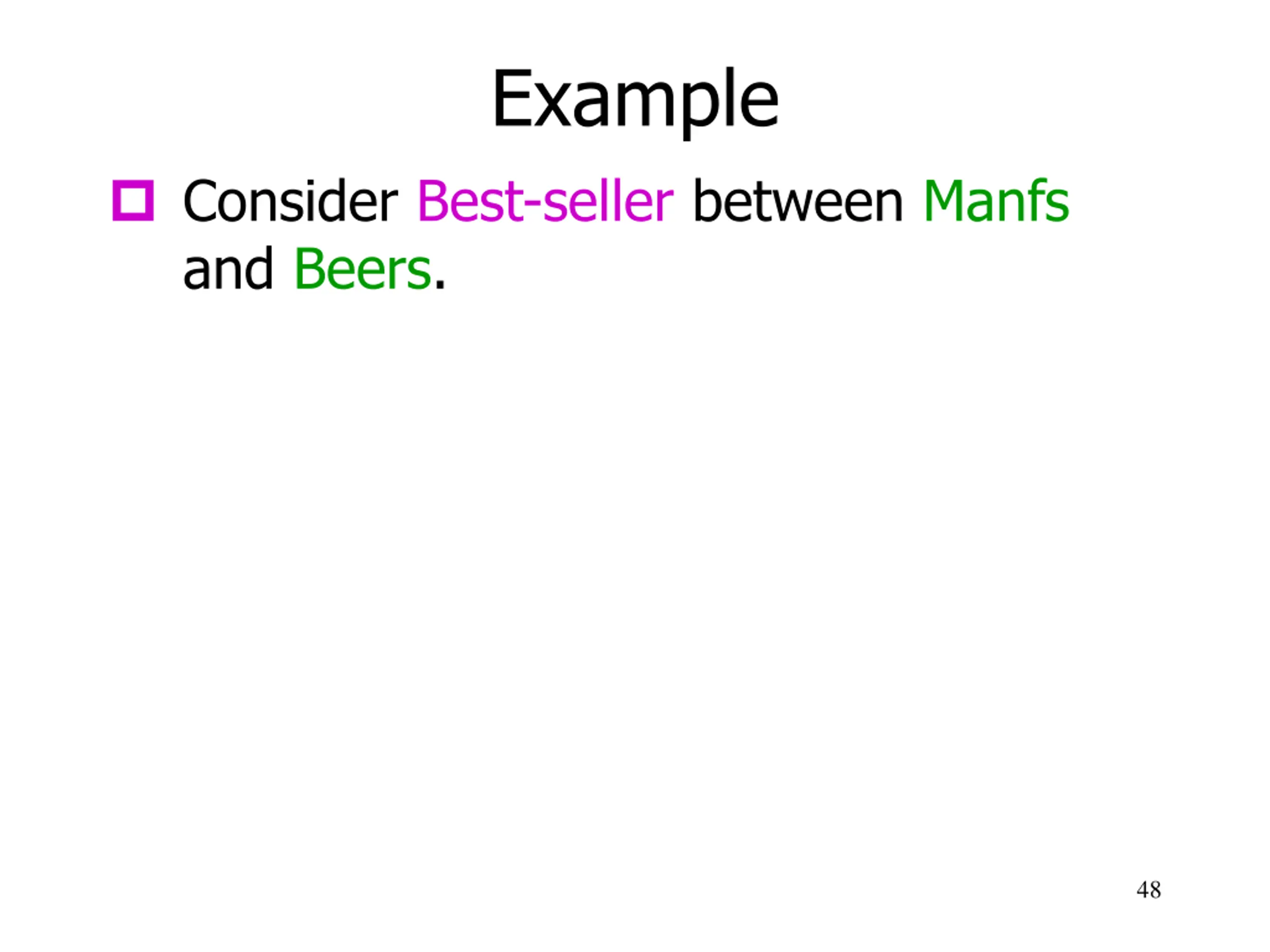

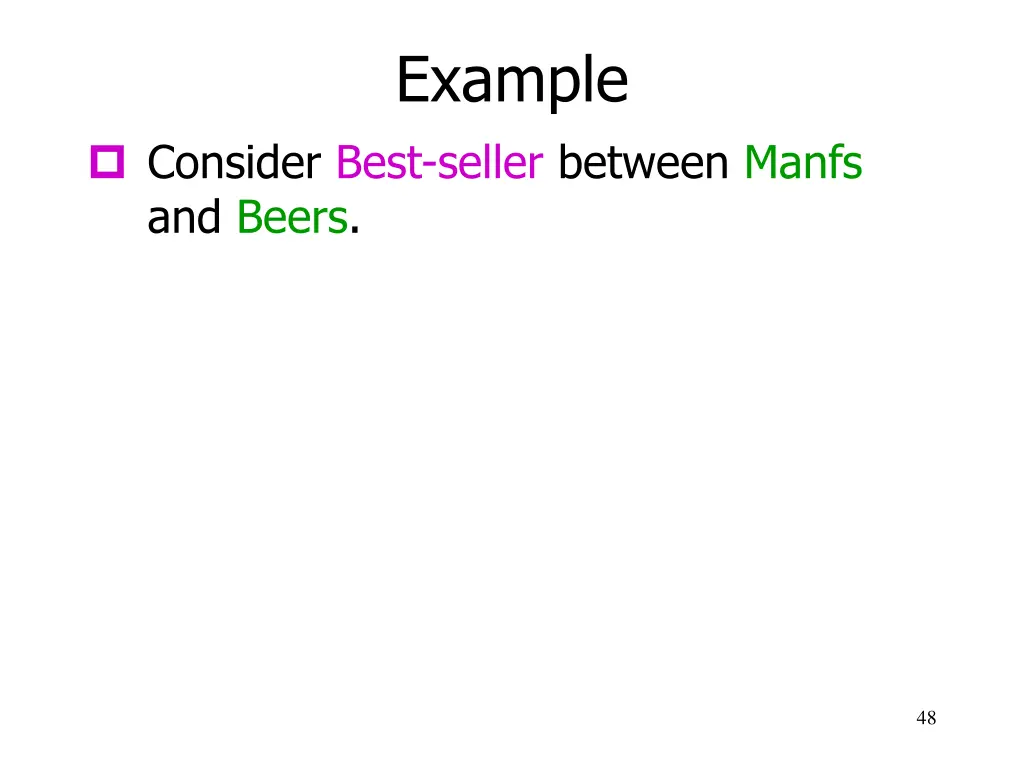

Example Consider Best-seller between Manfs and Beers. 48

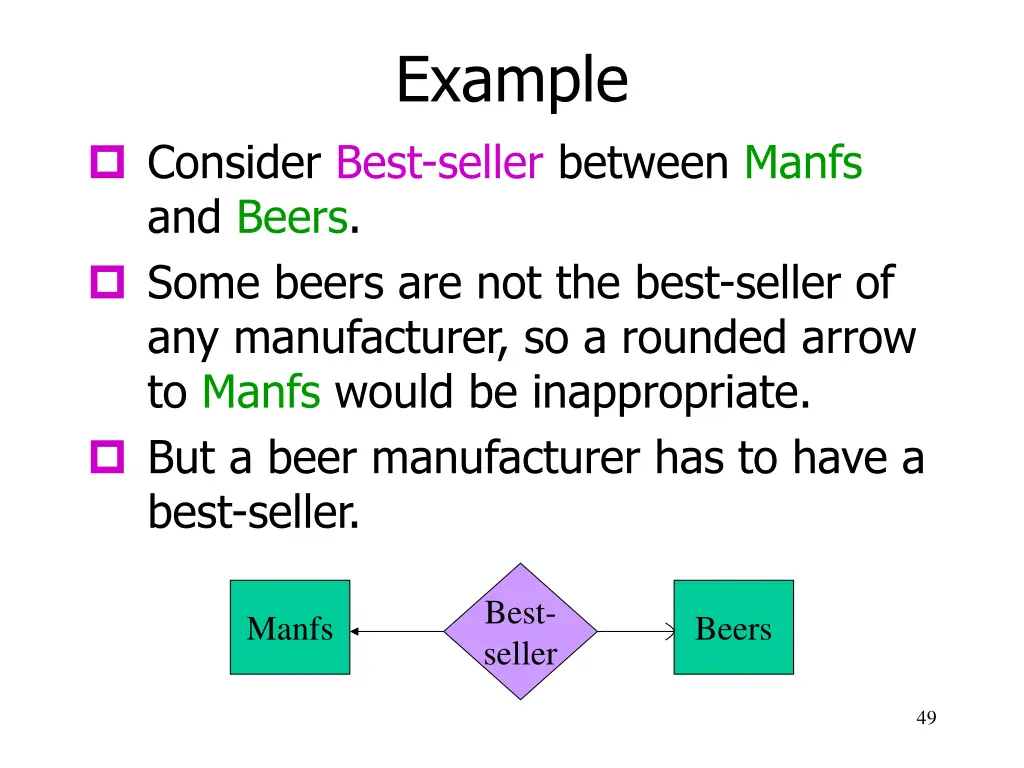

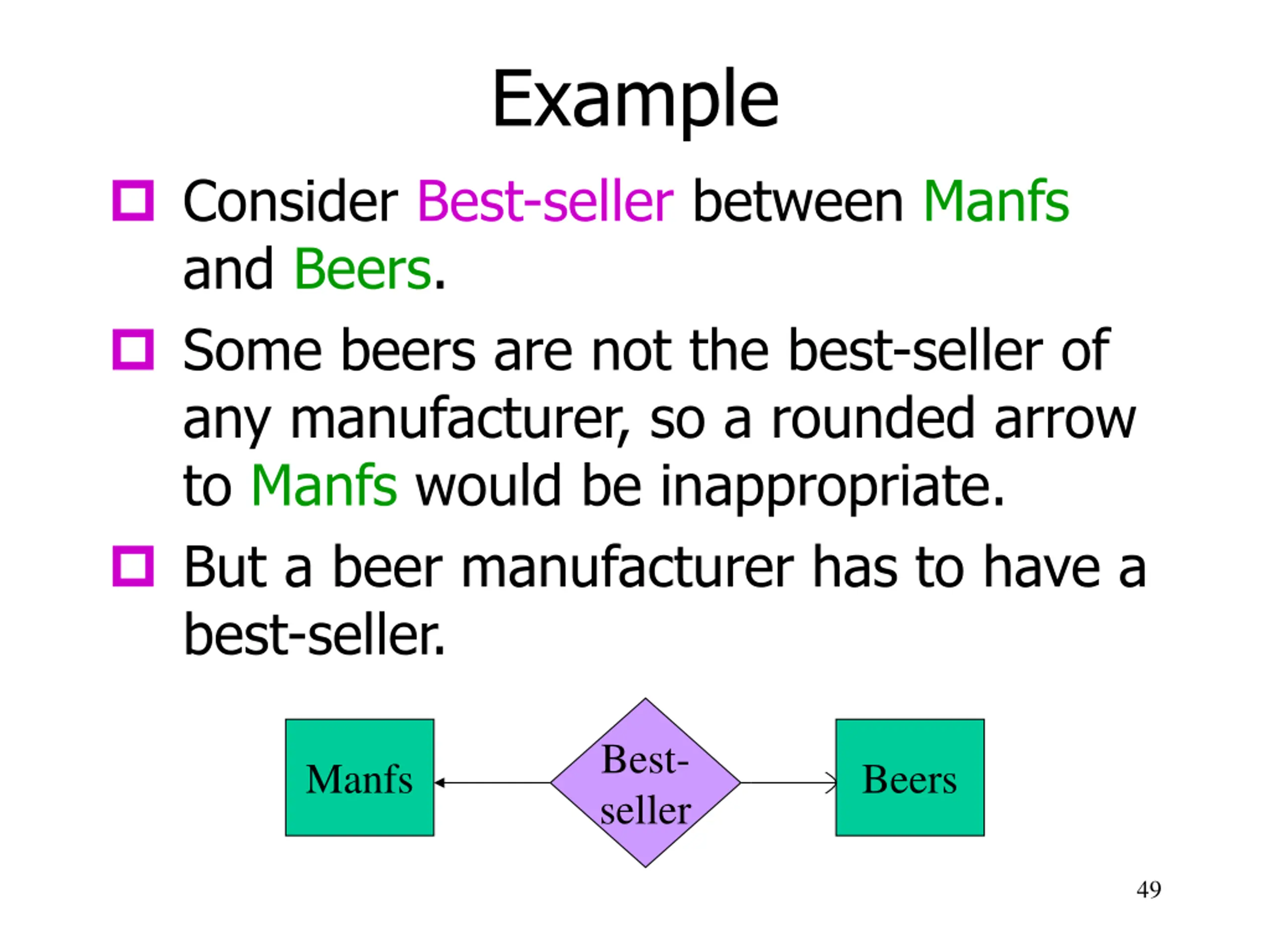

Example Consider Best-seller between Manfs and Beers. Some beers are not the best-seller of any manufacturer, so a rounded arrow to Manfs would be inappropriate. But a beer manufacturer has to have a best-seller. Best- seller Manfs Beers 49

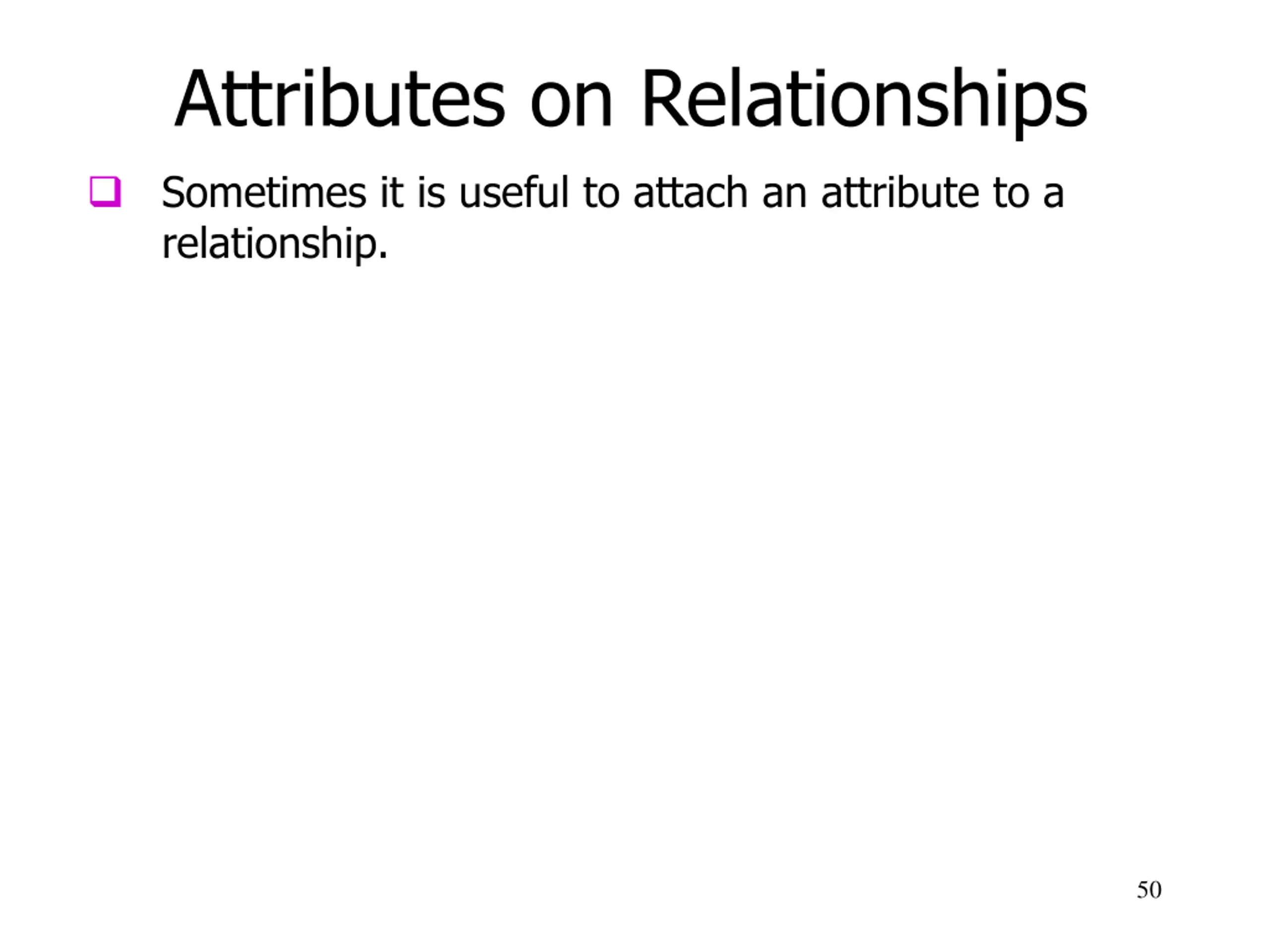

Attributes on Relationships Sometimes it is useful to attach an attribute to a relationship. 50
