Decision Trees and Naive Bayes in Classification Methods

Data Analytics UNIT-IV :Classification

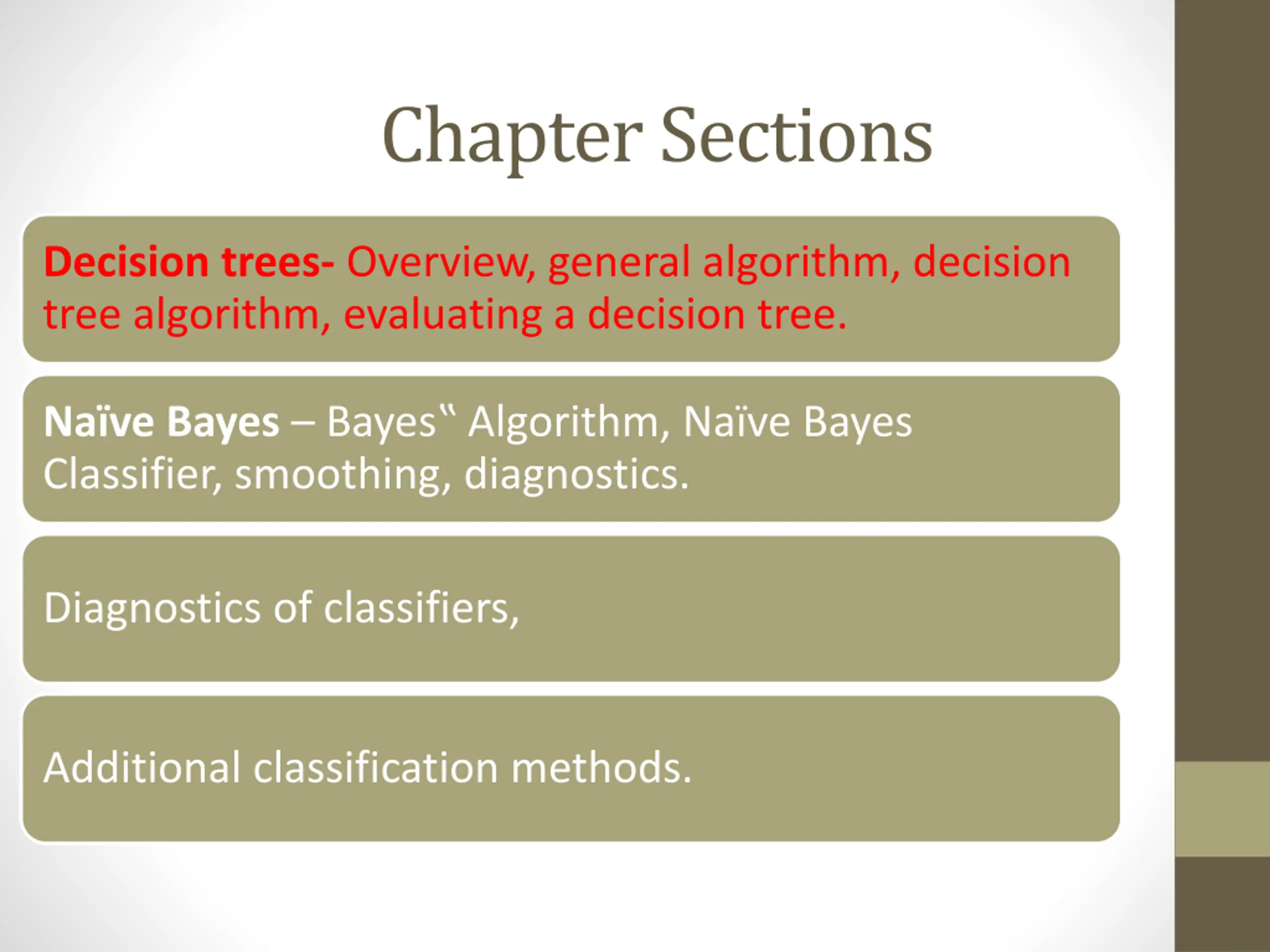

Chapter Sections Decision trees- Overview, general algorithm, decision tree algorithm, evaluating a decision tree. Na ve Bayes Bayes Algorithm, Na ve Bayes Classifier, smoothing, diagnostics. Diagnostics of classifiers, Additional classification methods.

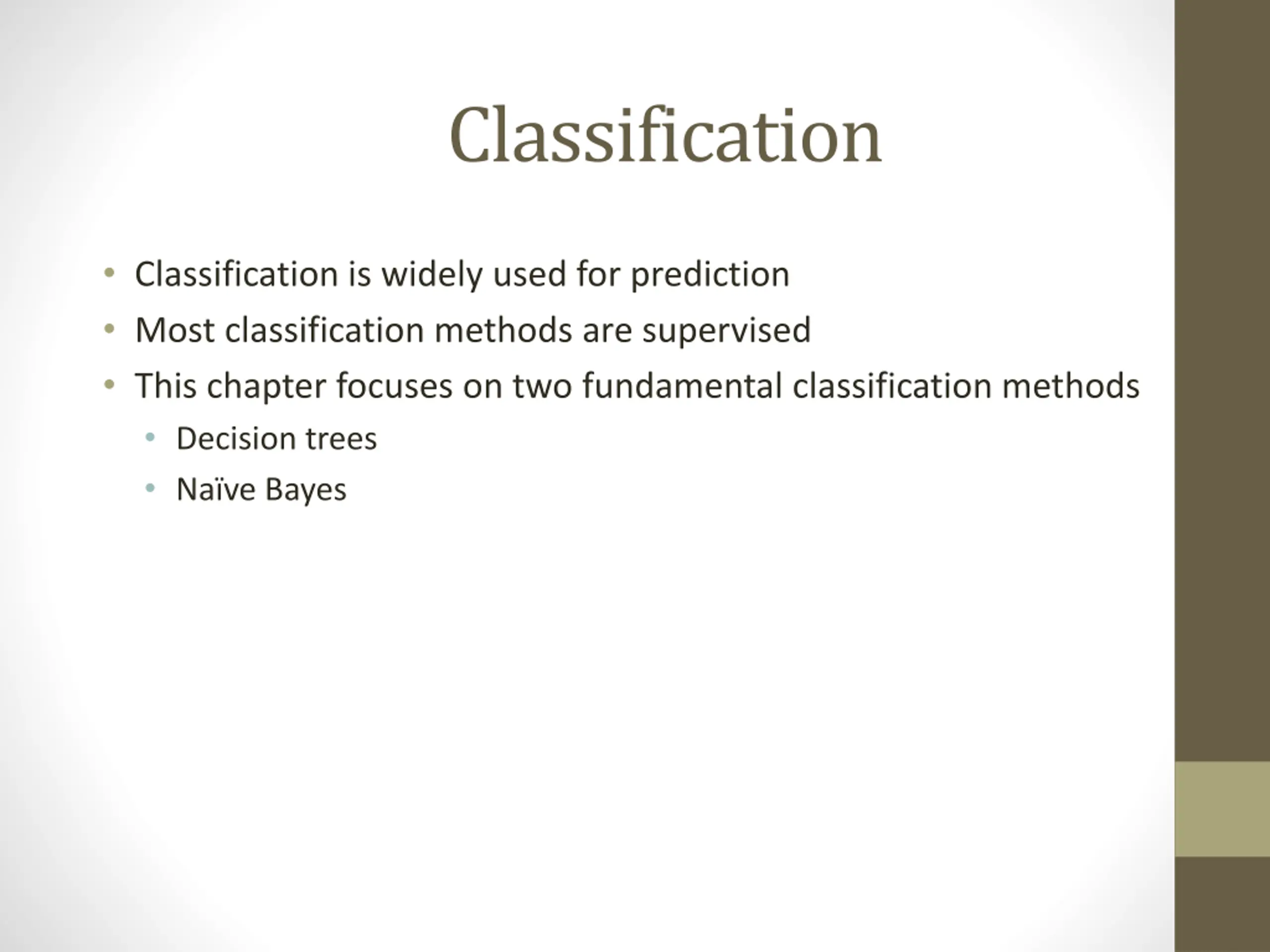

Classification Classification is widely used for prediction Most classification methods are supervised This chapter focuses on two fundamental classification methods Decision trees Na ve Bayes

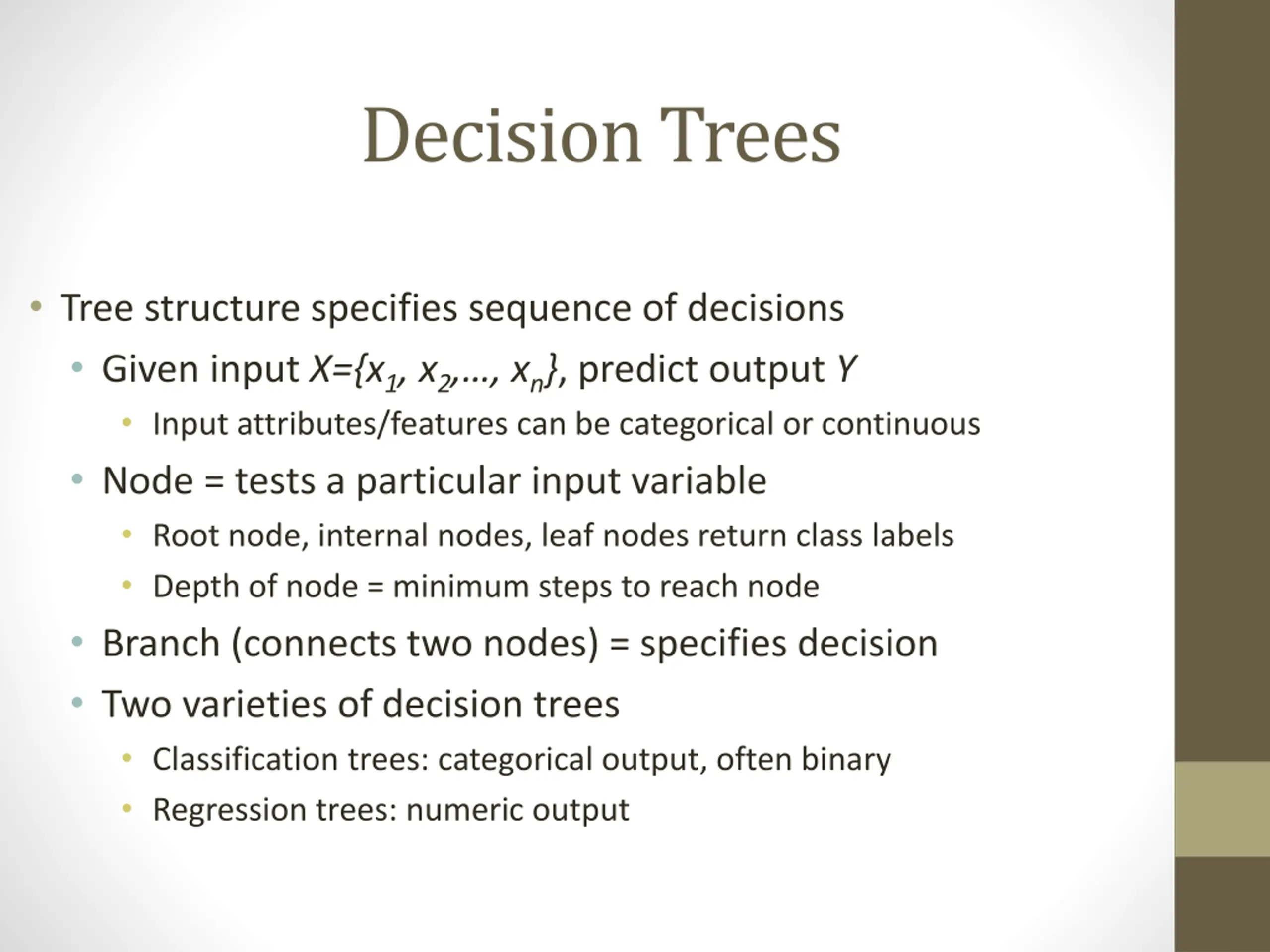

Decision Trees Tree structure specifies sequence of decisions Given input X={x1, x2, , xn}, predict output Y Input attributes/features can be categorical or continuous Node = tests a particular input variable Root node, internal nodes, leaf nodes return class labels Depth of node = minimum steps to reach node Branch (connects two nodes) = specifies decision Two varieties of decision trees Classification trees: categorical output, often binary Regression trees: numeric output

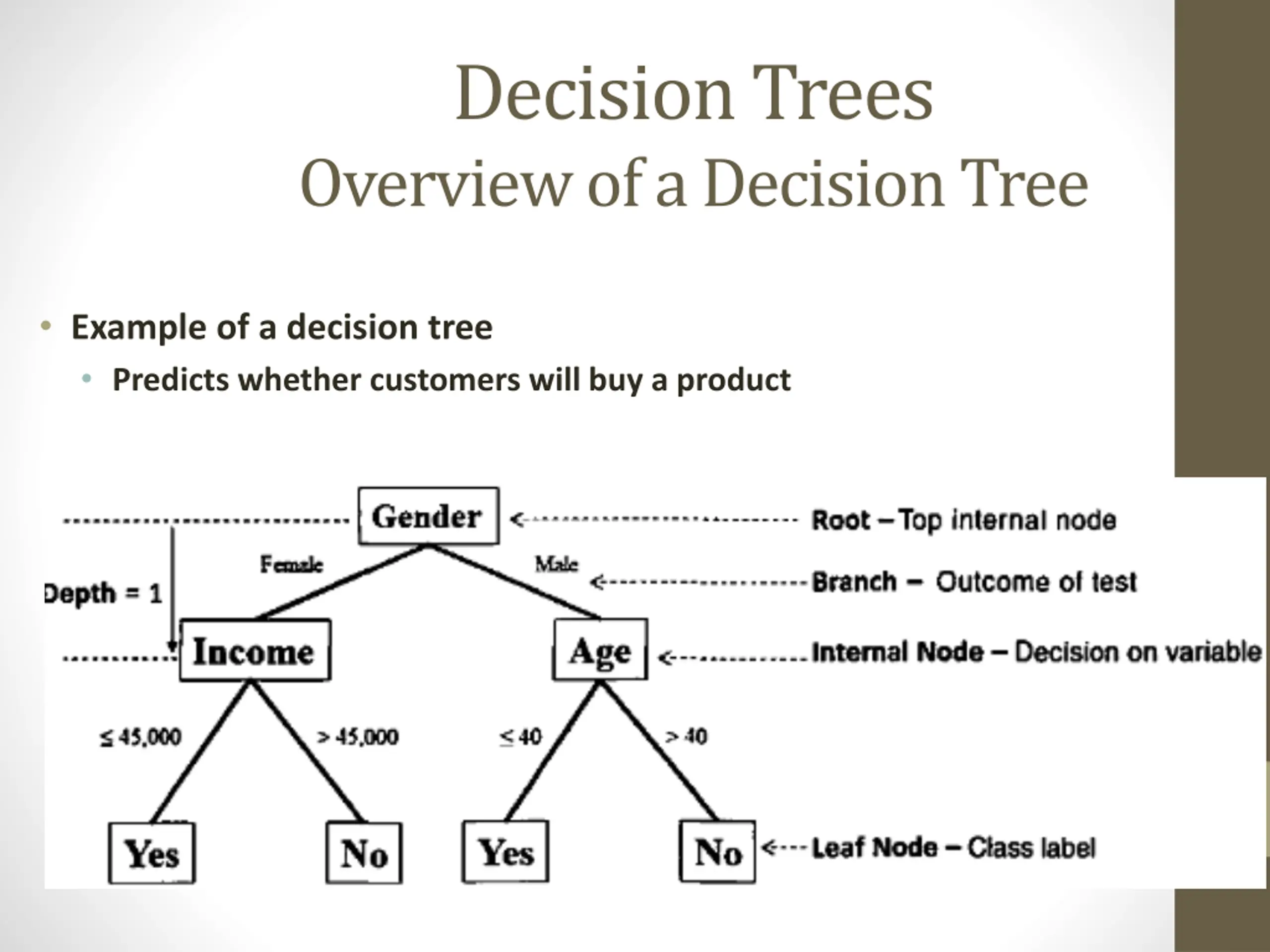

Decision Trees Overview of a Decision Tree Example of a decision tree Predicts whether customers will buy a product

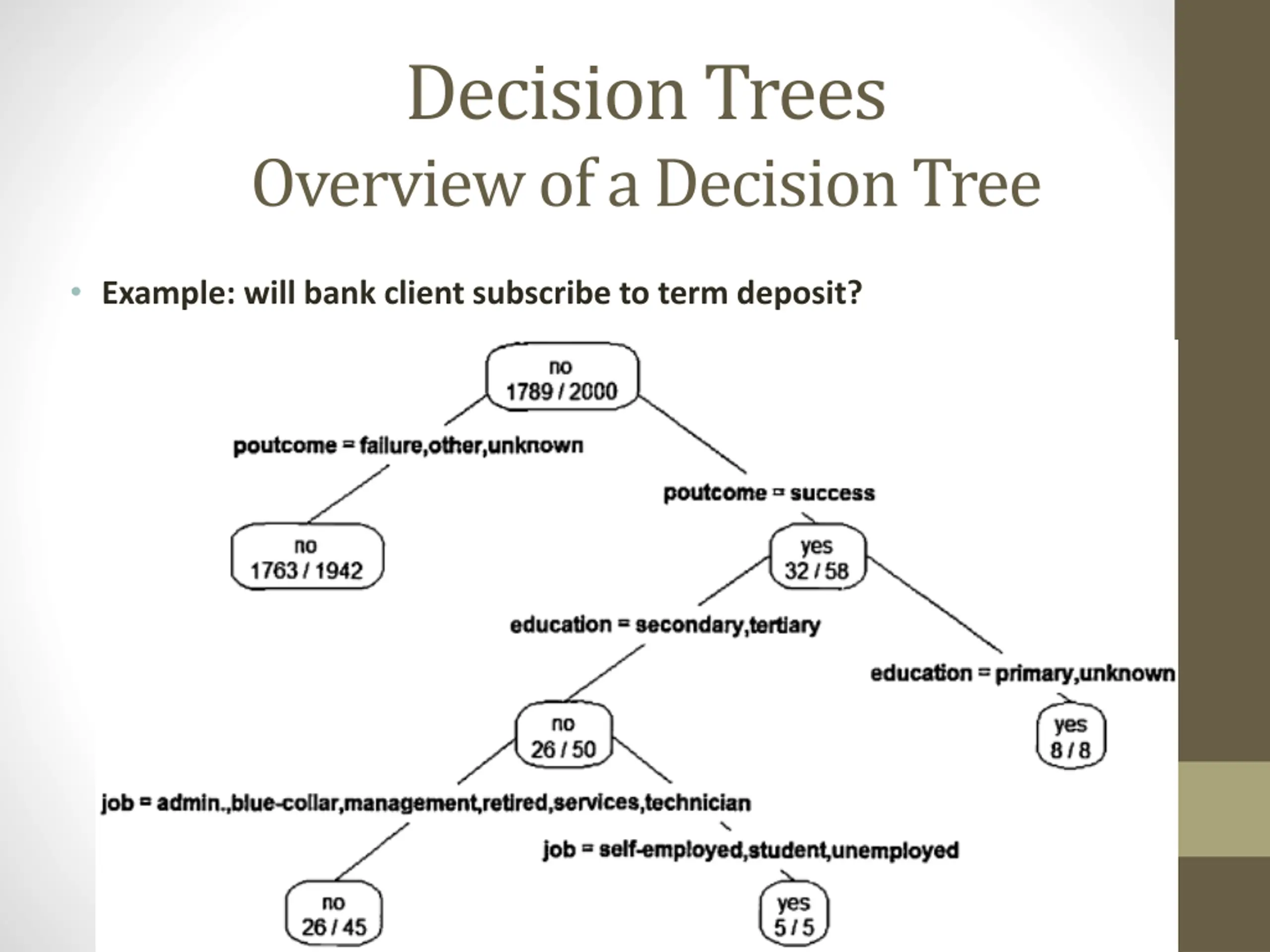

Decision Trees Overview of a Decision Tree Example: will bank client subscribe to term deposit?

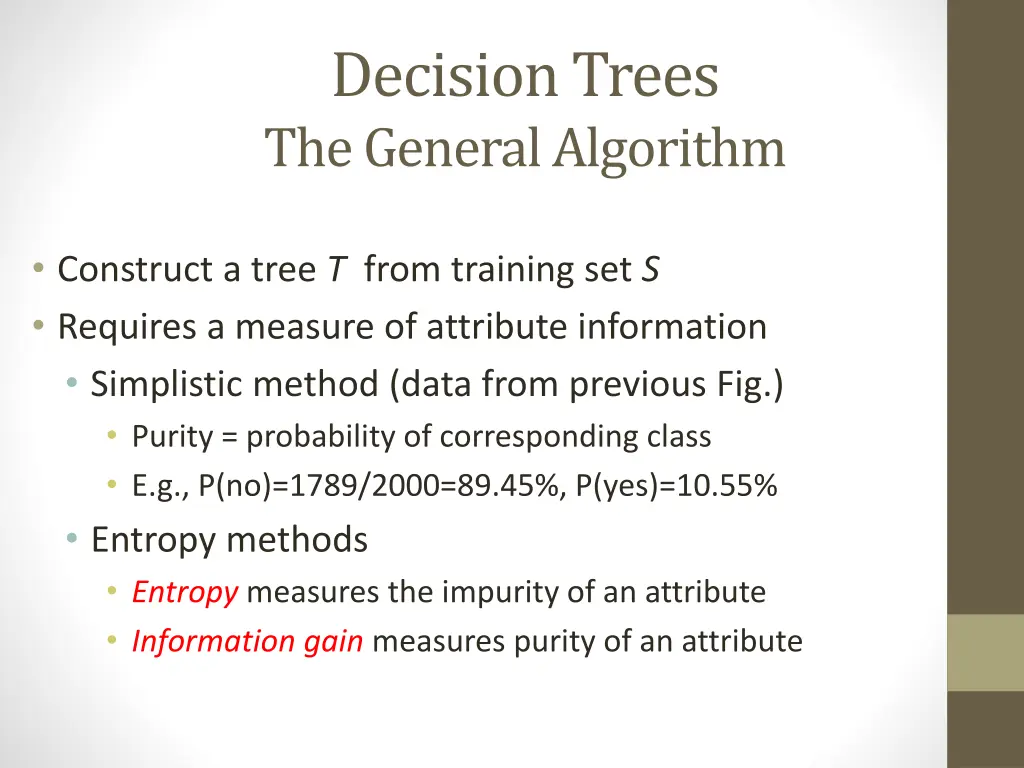

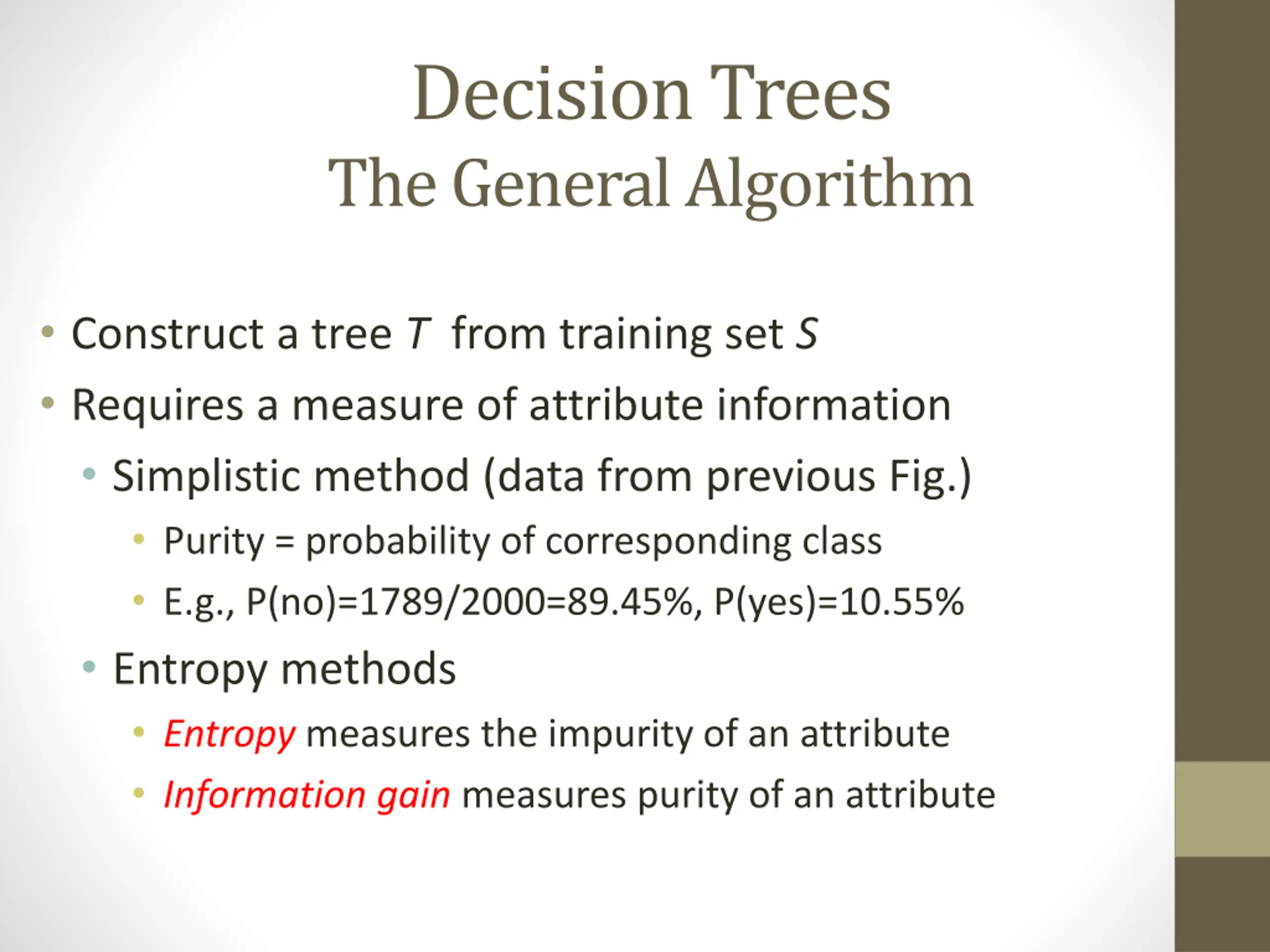

Decision Trees The General Algorithm Construct a tree T from training set S Requires a measure of attribute information Simplistic method (data from previous Fig.) Purity = probability of corresponding class E.g., P(no)=1789/2000=89.45%, P(yes)=10.55% Entropy methods Entropy measures the impurity of an attribute Information gain measures purity of an attribute

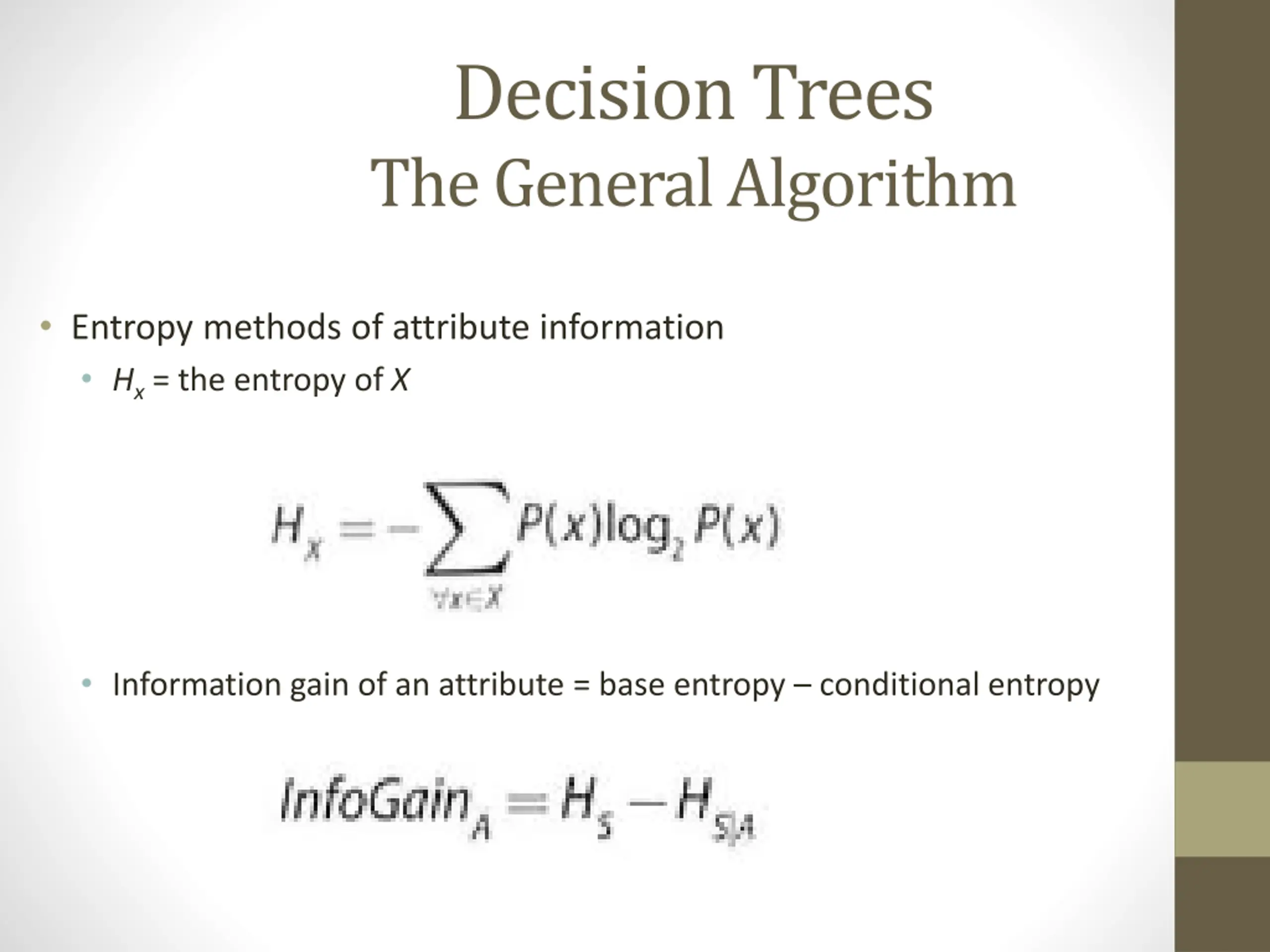

Decision Trees The General Algorithm Entropy methods of attribute information Hx= the entropy of X Information gain of an attribute = base entropy conditional entropy

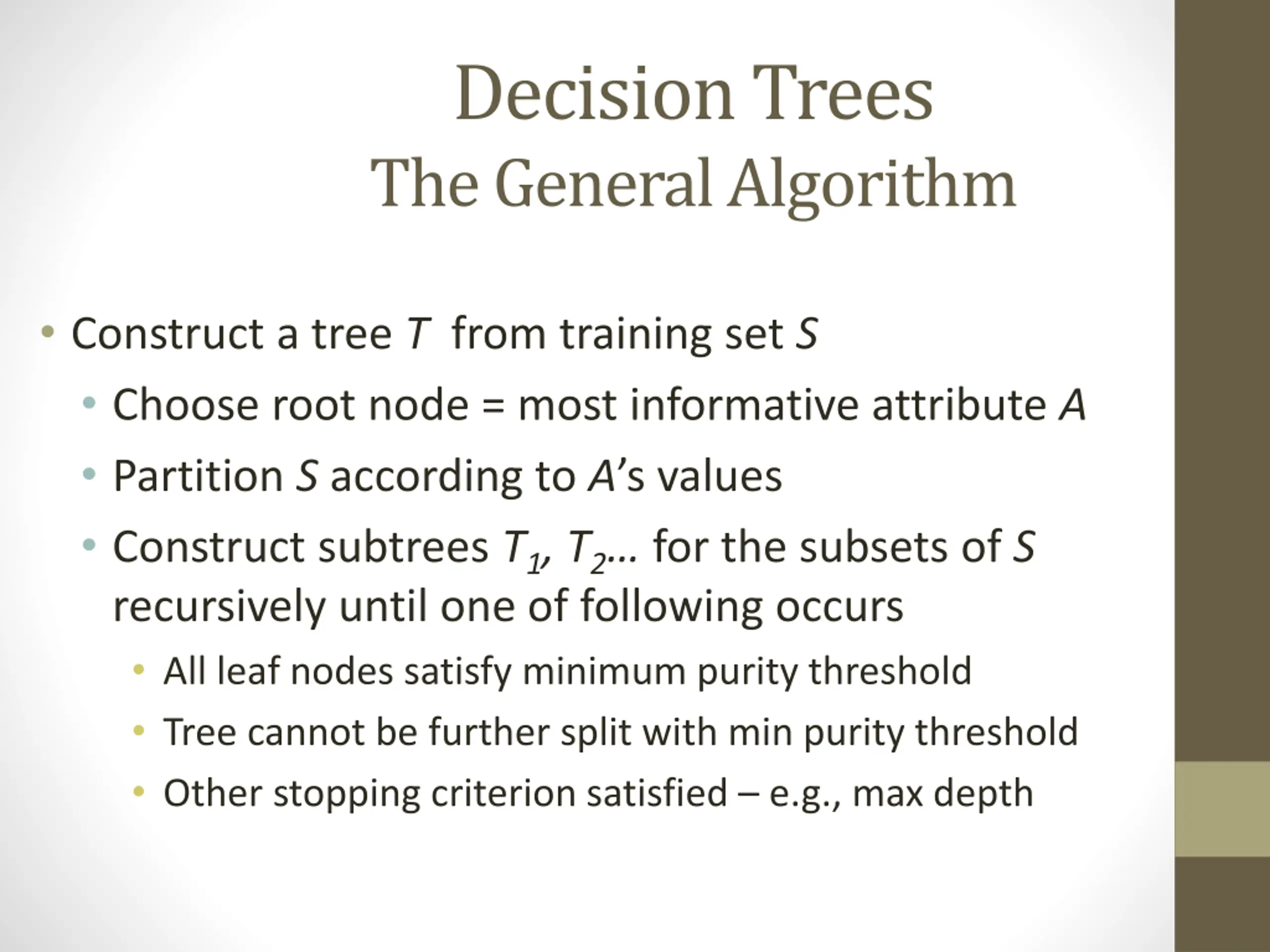

Decision Trees The General Algorithm Construct a tree T from training set S Choose root node = most informative attribute A Partition S according to A s values Construct subtrees T1, T2 for the subsets of S recursively until one of following occurs All leaf nodes satisfy minimum purity threshold Tree cannot be further split with min purity threshold Other stopping criterion satisfied e.g., max depth

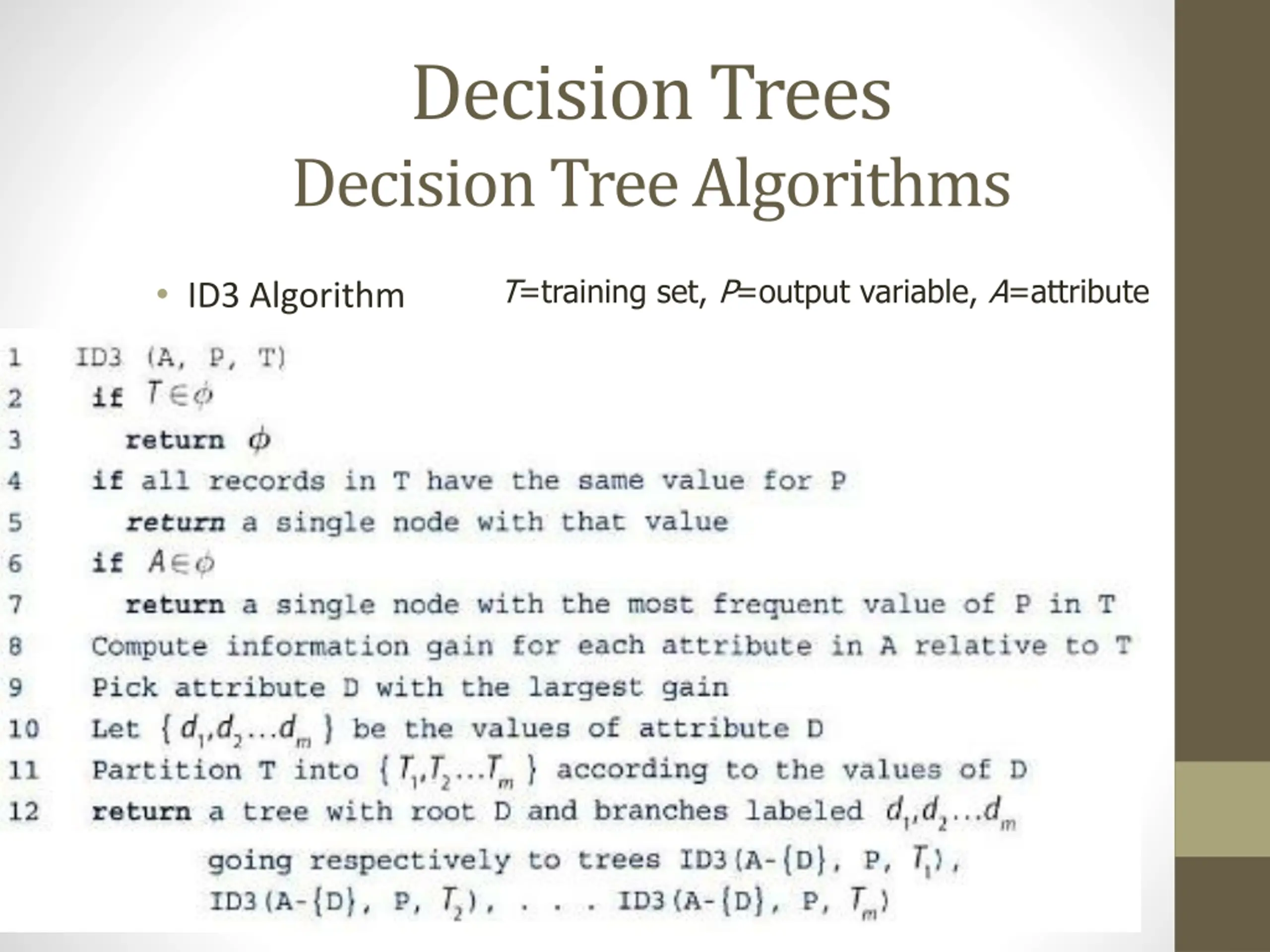

Decision Trees Decision Tree Algorithms T=training set, P=output variable, A=attribute ID3 Algorithm

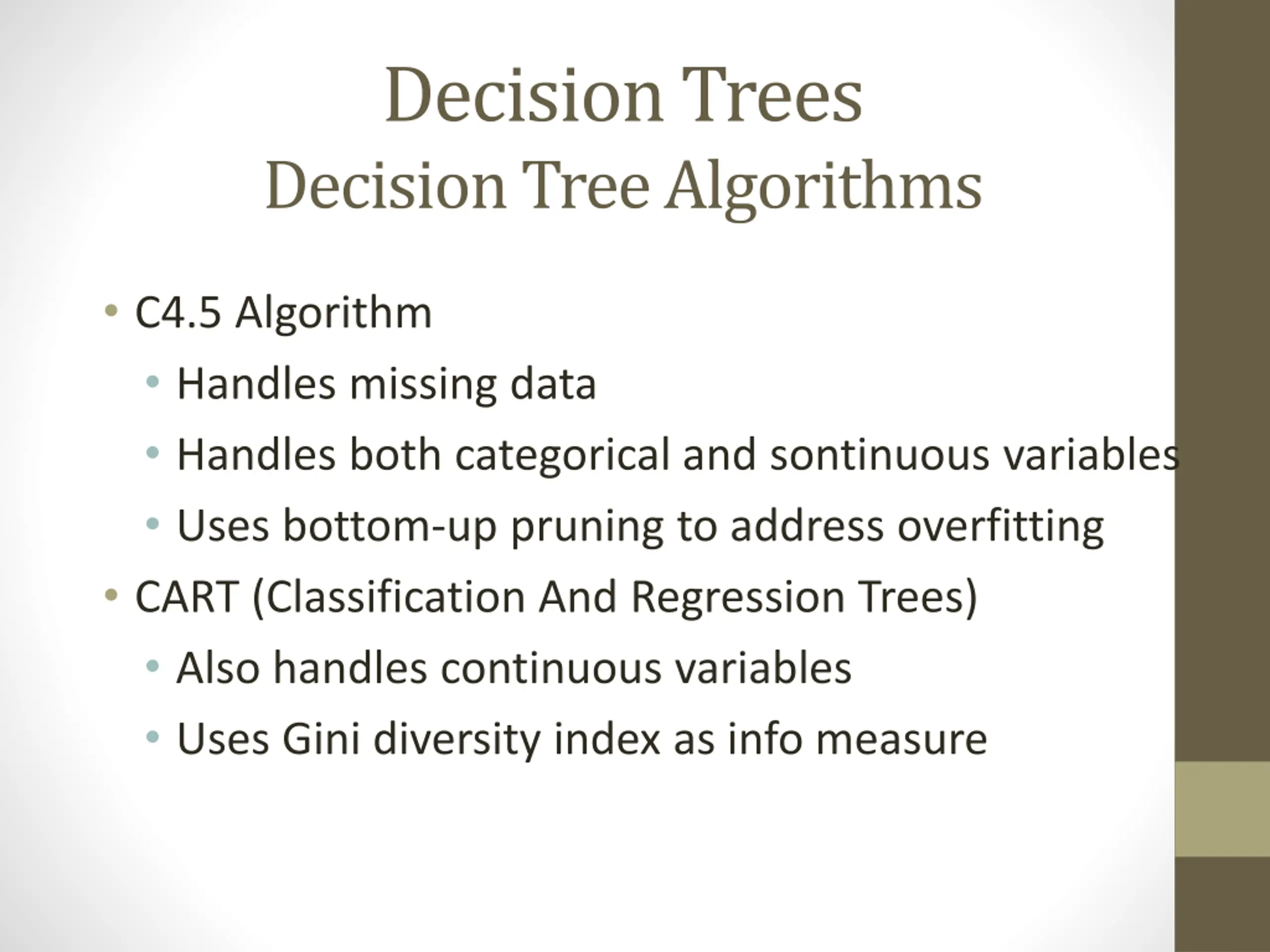

Decision Trees Decision Tree Algorithms C4.5 Algorithm Handles missing data Handles both categorical and sontinuous variables Uses bottom-up pruning to address overfitting CART (Classification And Regression Trees) Also handles continuous variables Uses Gini diversity index as info measure

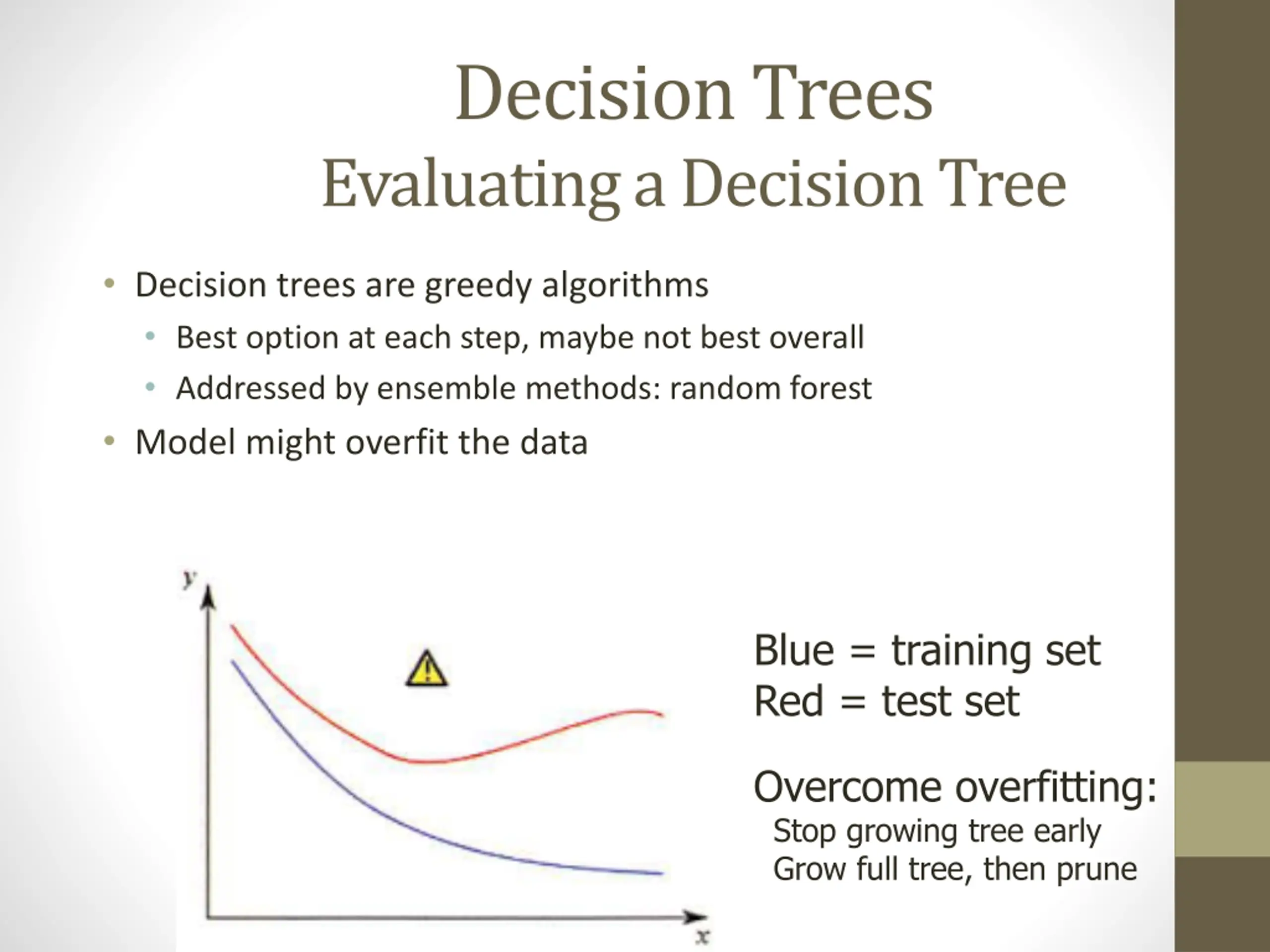

Decision Trees Evaluating a Decision Tree Decision trees are greedy algorithms Best option at each step, maybe not best overall Addressed by ensemble methods: random forest Model might overfit the data Blue = training set Red = test set Overcome overfitting: Stop growing tree early Grow full tree, then prune

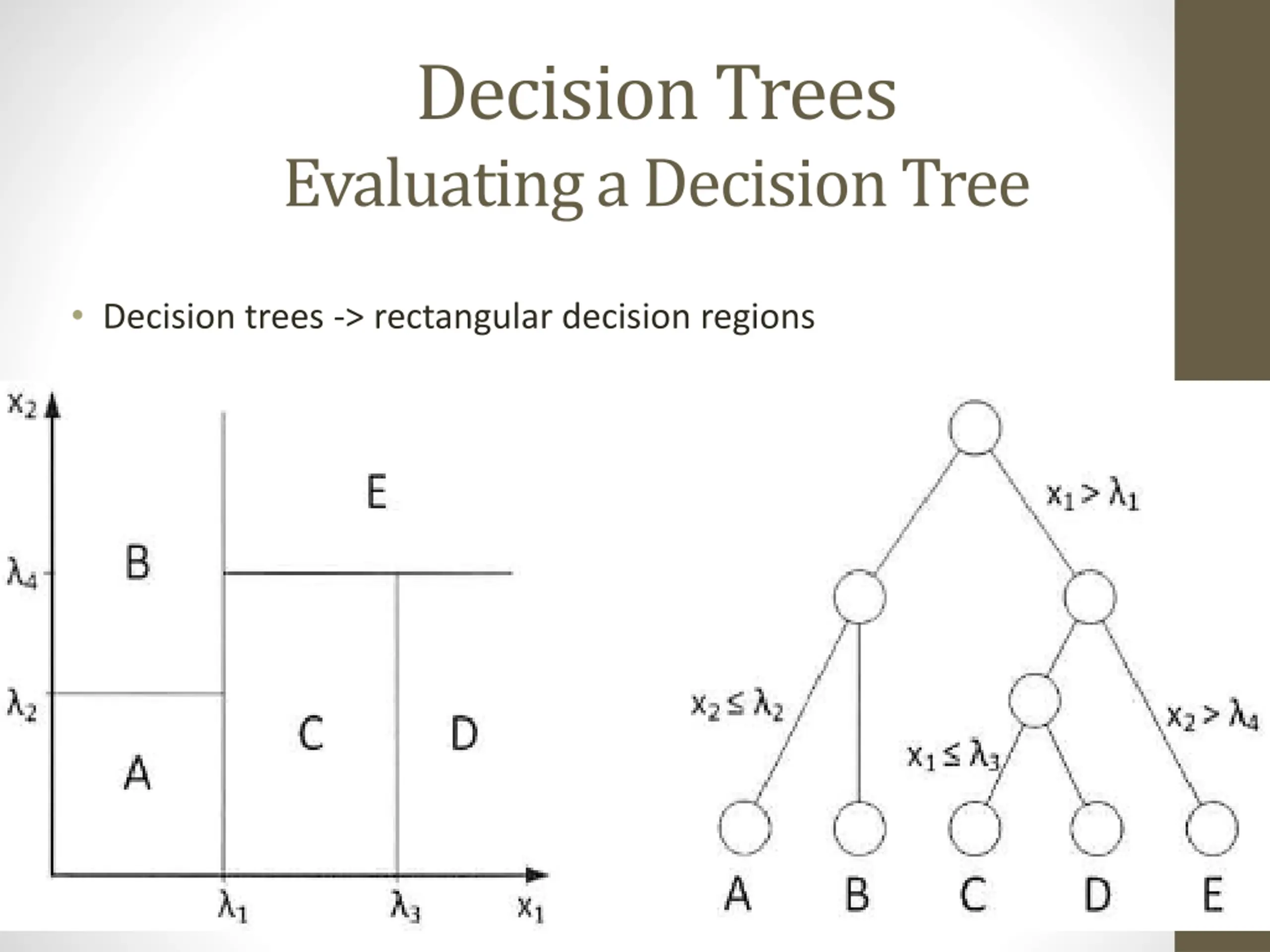

Decision Trees Evaluating a Decision Tree Decision trees -> rectangular decision regions

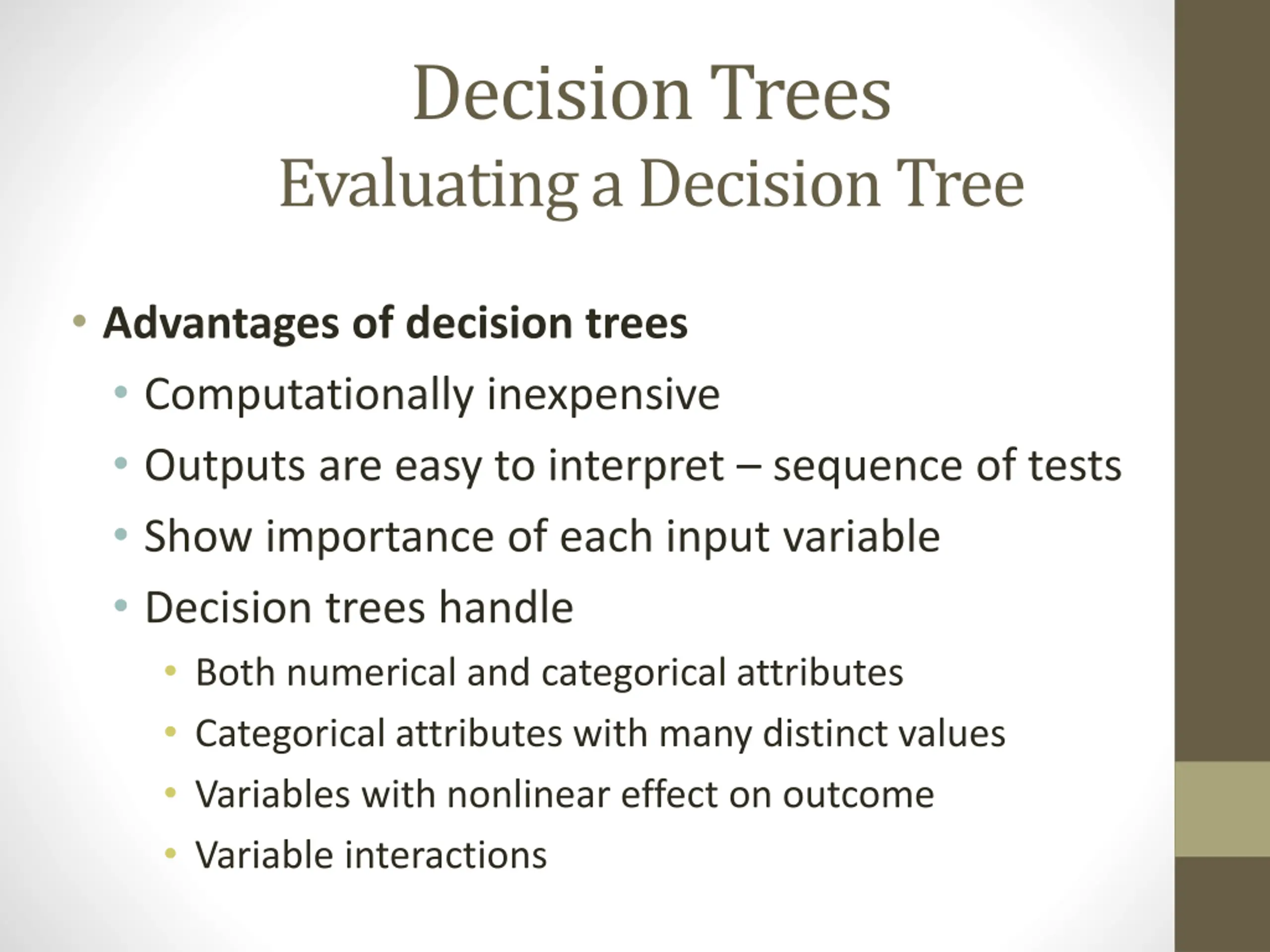

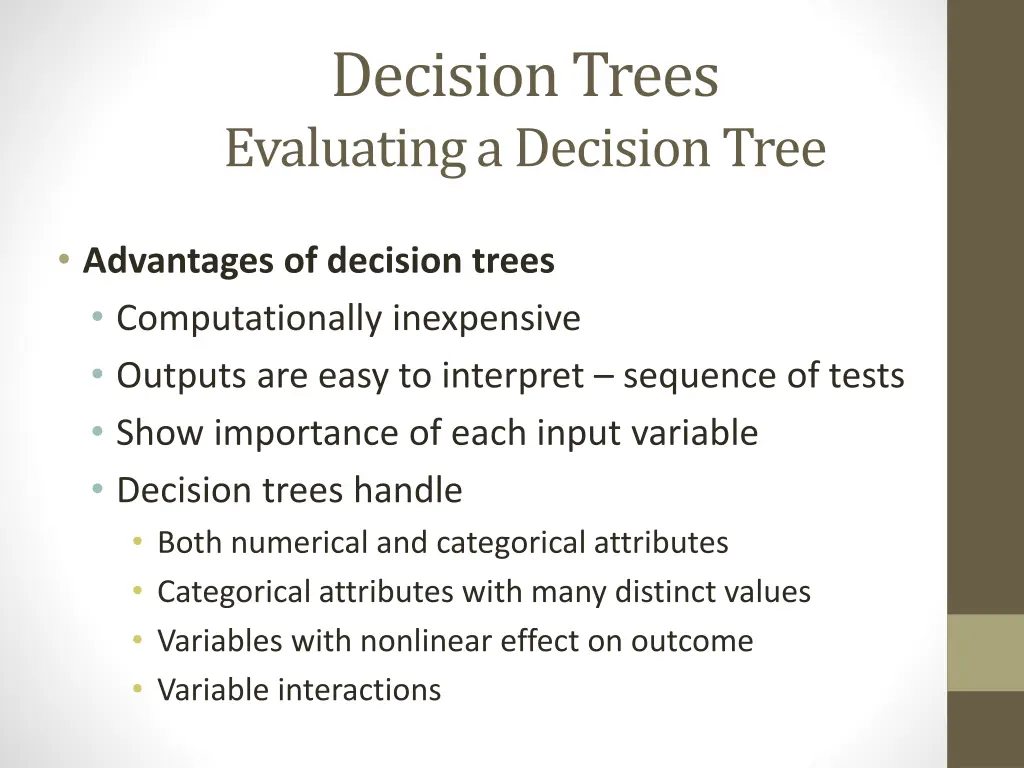

Decision Trees Evaluating a Decision Tree Advantages of decision trees Computationally inexpensive Outputs are easy to interpret sequence of tests Show importance of each input variable Decision trees handle Both numerical and categorical attributes Categorical attributes with many distinct values Variables with nonlinear effect on outcome Variable interactions

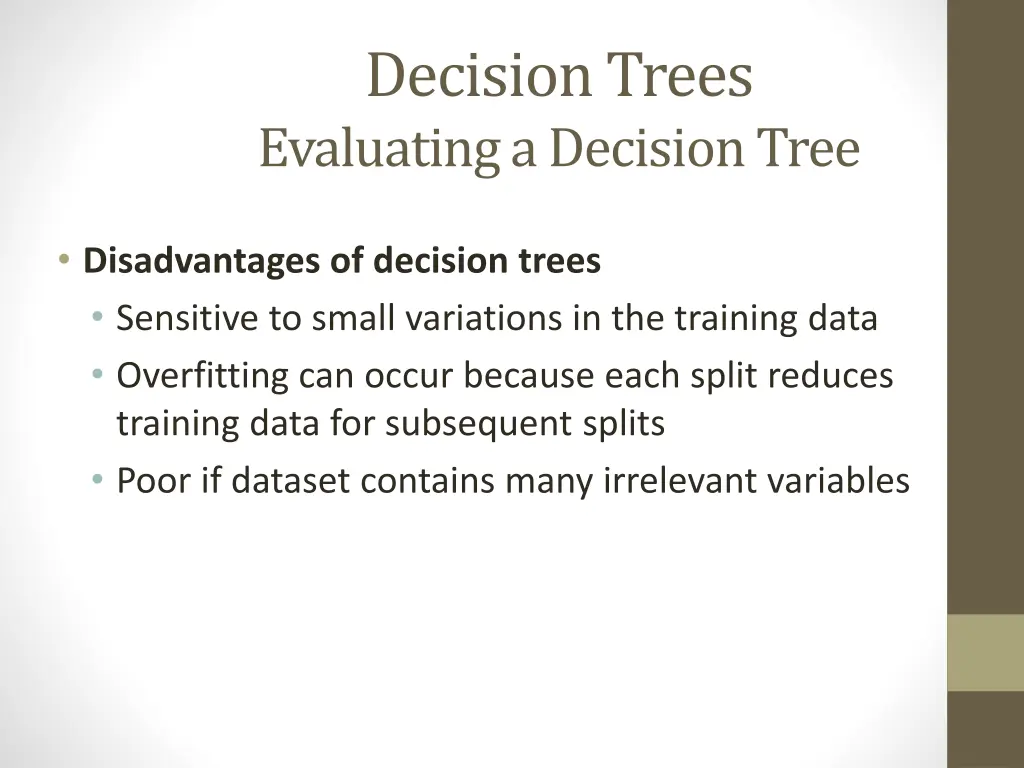

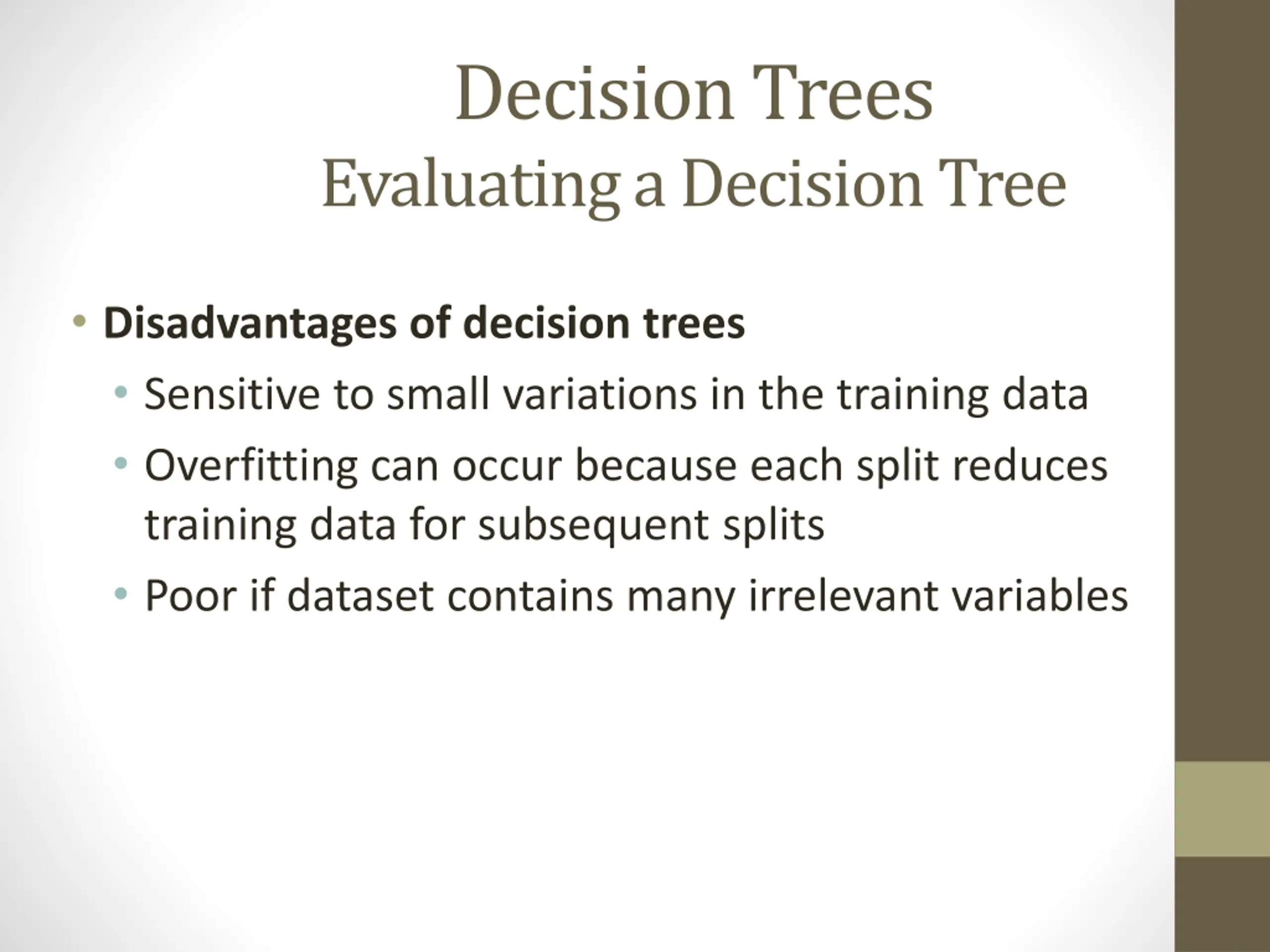

Decision Trees Evaluating a Decision Tree Disadvantages of decision trees Sensitive to small variations in the training data Overfitting can occur because each split reduces training data for subsequent splits Poor if dataset contains many irrelevant variables

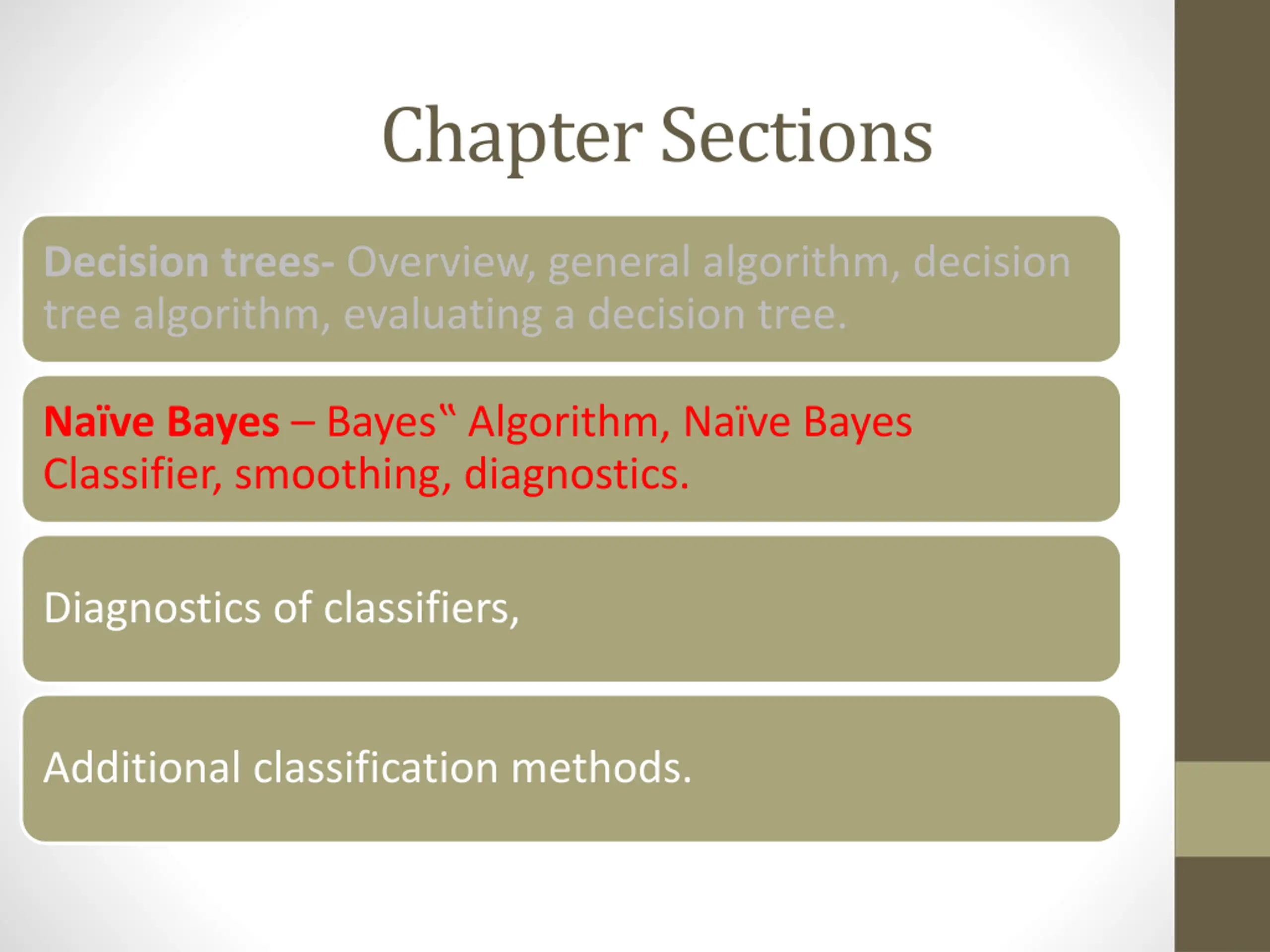

Chapter Sections Decision trees- Overview, general algorithm, decision tree algorithm, evaluating a decision tree. Na ve Bayes Bayes Algorithm, Na ve Bayes Classifier, smoothing, diagnostics. Diagnostics of classifiers, Additional classification methods.

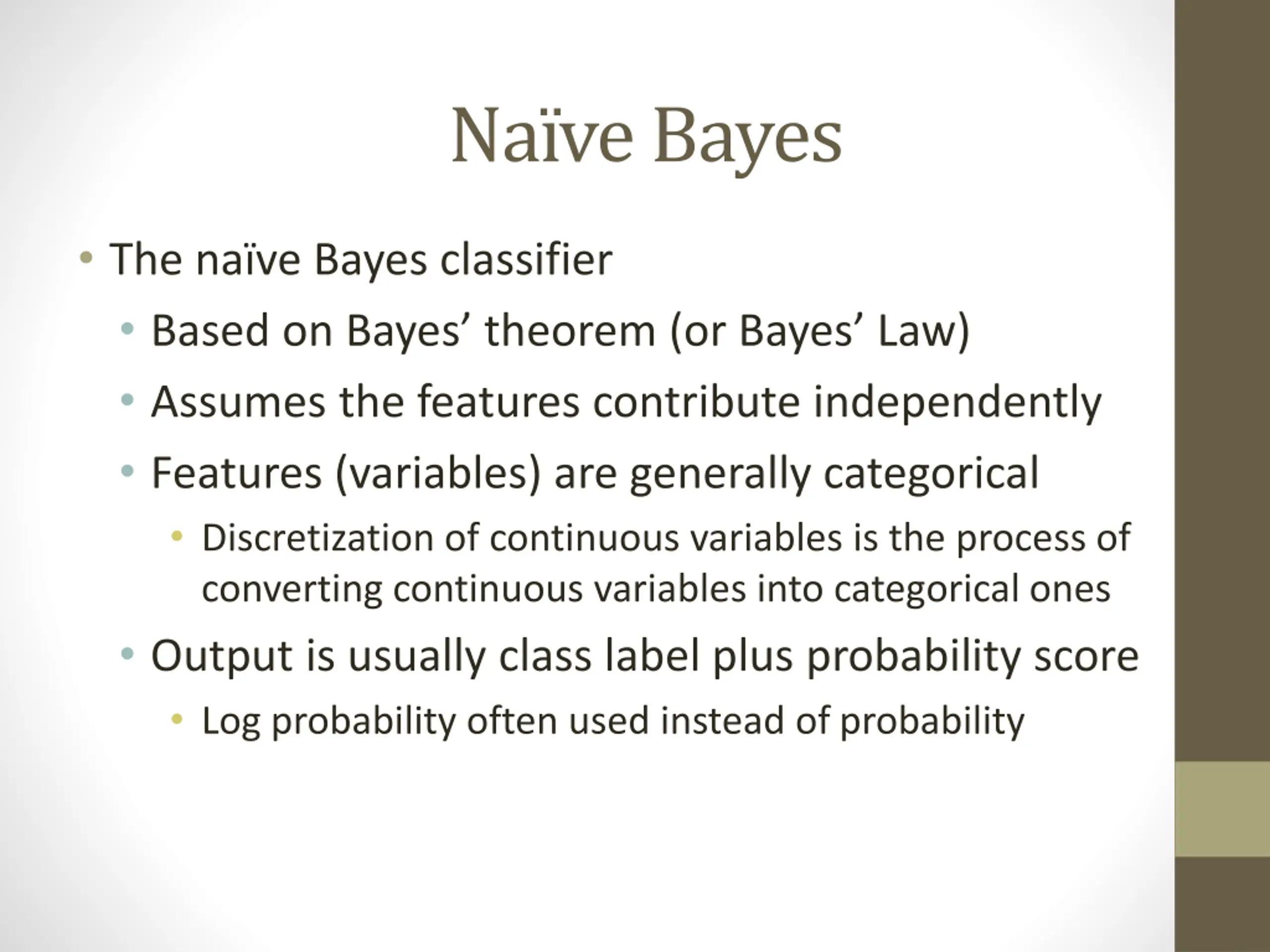

Nave Bayes The na ve Bayes classifier Based on Bayes theorem (or Bayes Law) Assumes the features contribute independently Features (variables) are generally categorical Discretization of continuous variables is the process of converting continuous variables into categorical ones Output is usually class label plus probability score Log probability often used instead of probability

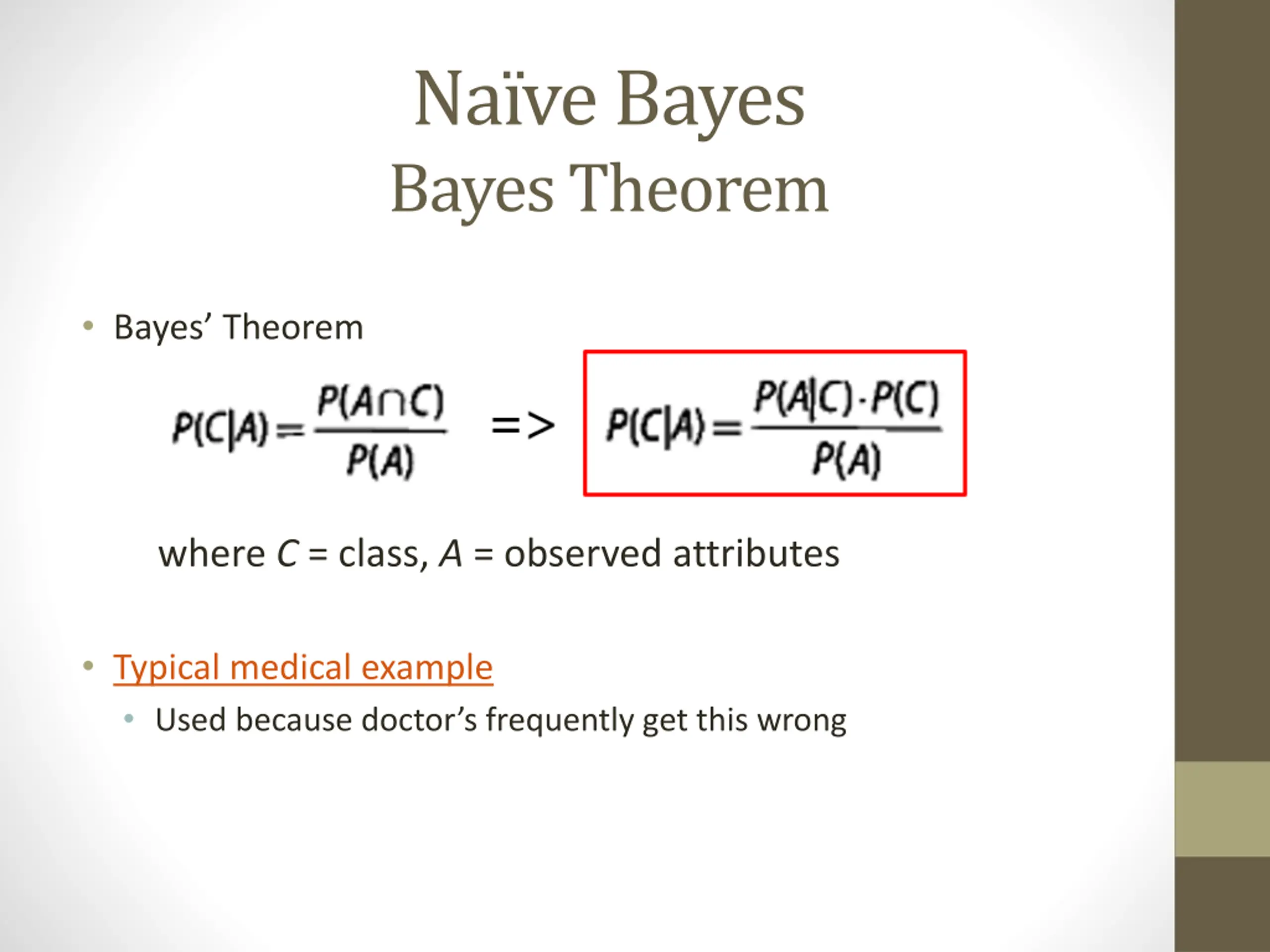

Nave Bayes Bayes Theorem Bayes Theorem where C = class, A = observed attributes Typical medical example Used because doctor s frequently get this wrong

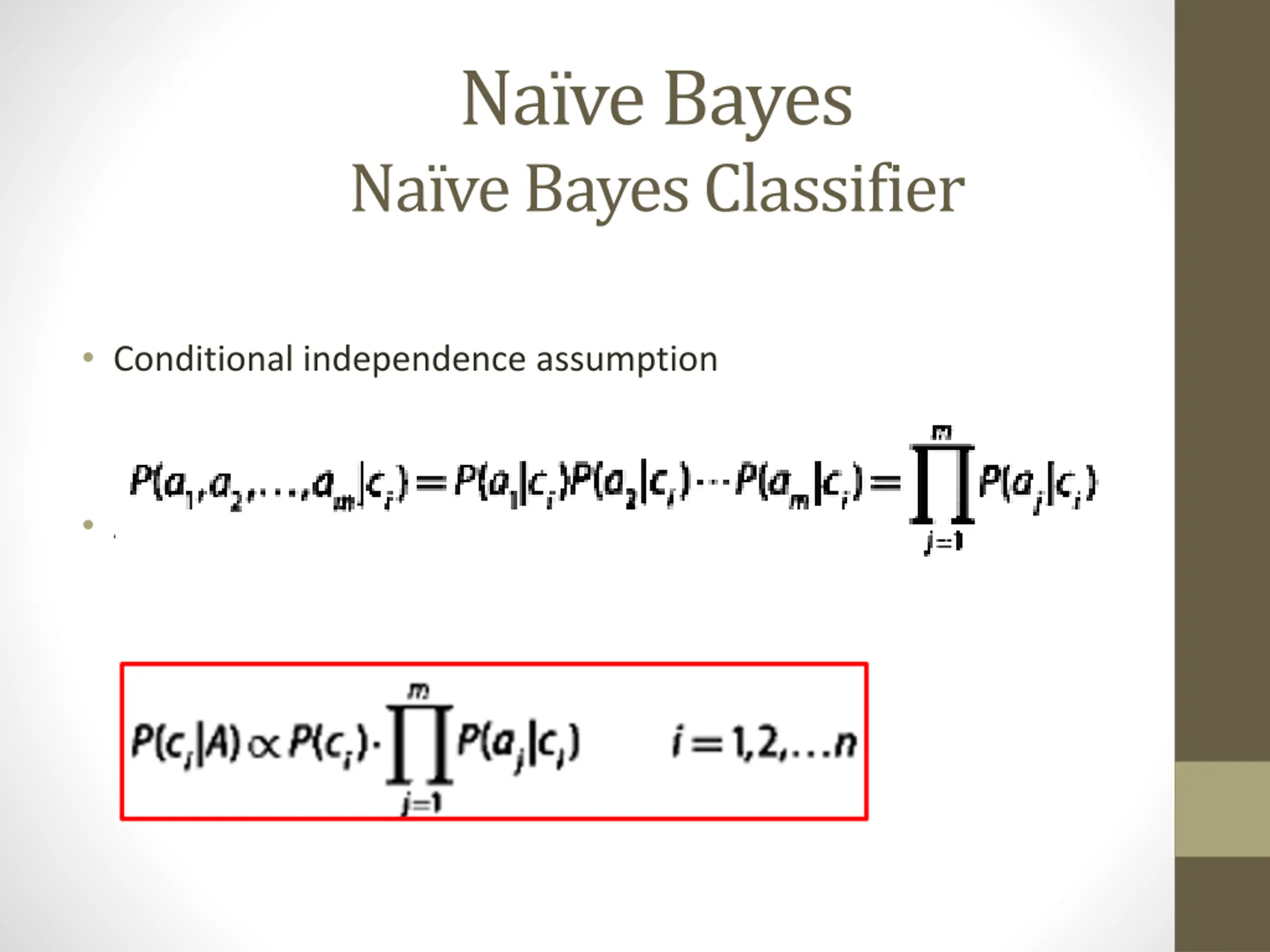

Nave Bayes Na ve Bayes Classifier Conditional independence assumption And dropping common denominator, we get Find cj that maximizes P(cj|A)

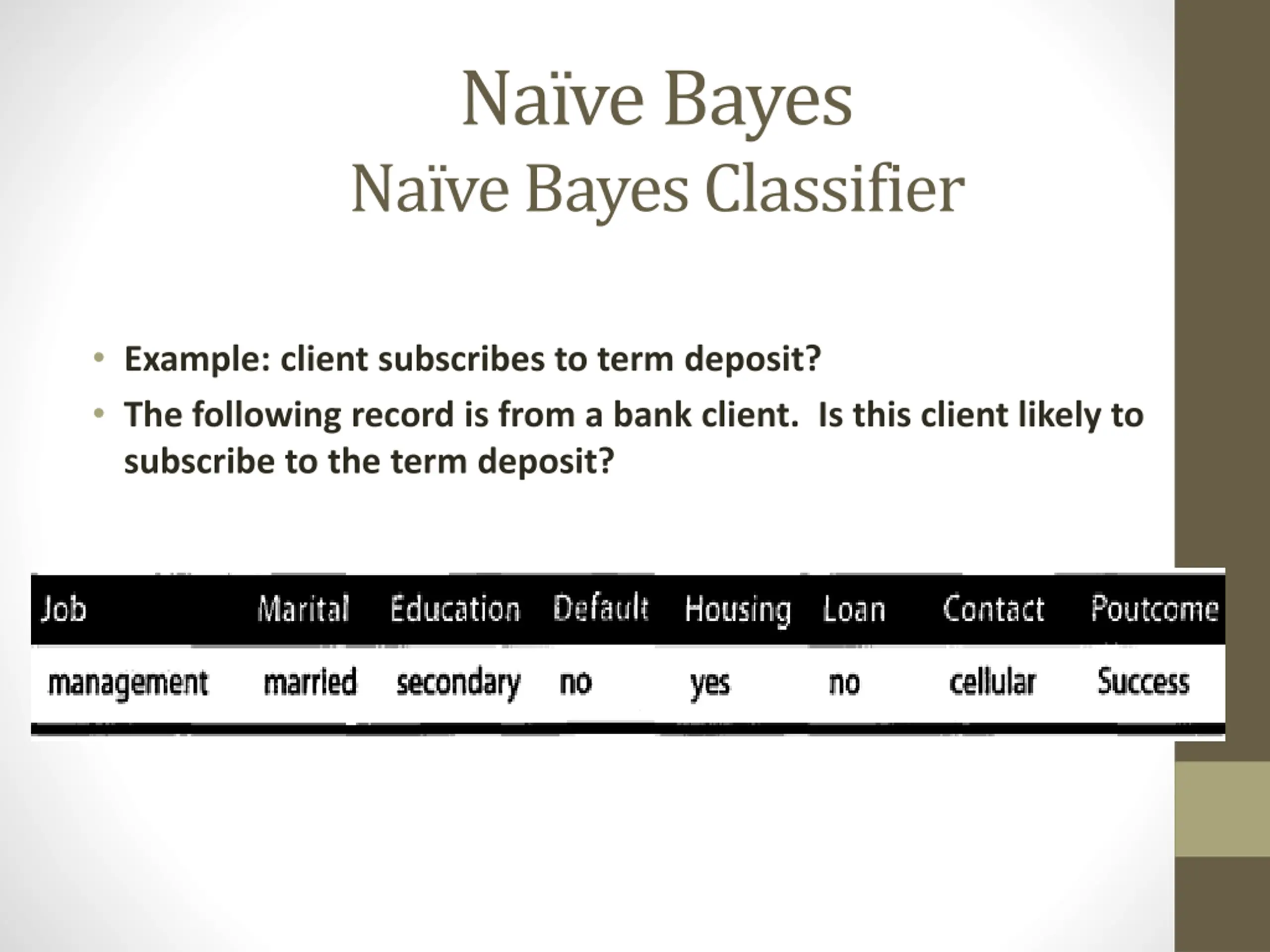

Nave Bayes Na ve Bayes Classifier Example: client subscribes to term deposit? The following record is from a bank client. Is this client likely to subscribe to the term deposit?

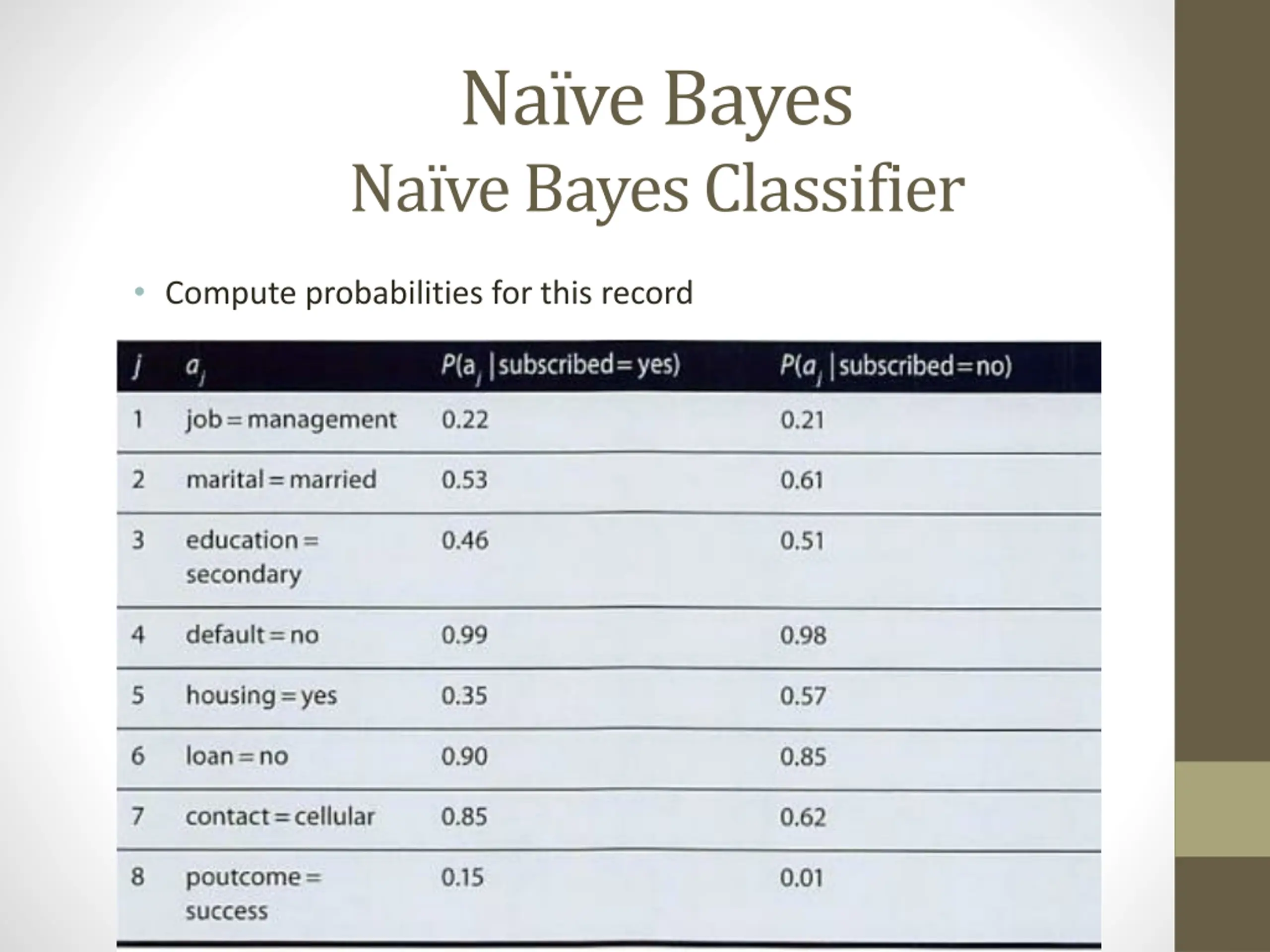

Nave Bayes Na ve Bayes Classifier Compute probabilities for this record

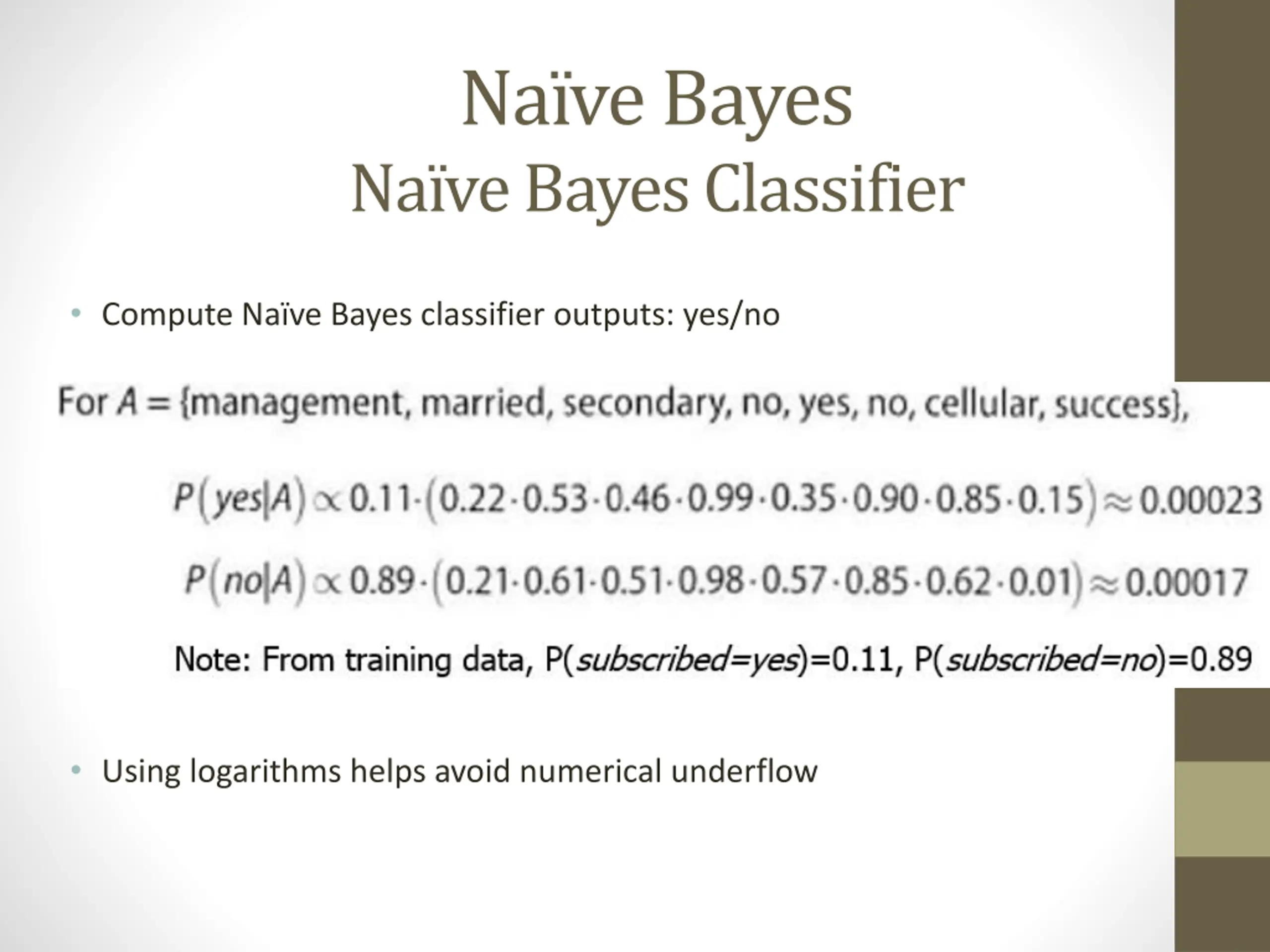

Nave Bayes Na ve Bayes Classifier Compute Na ve Bayes classifier outputs: yes/no The client is assigned the label subscribed = yes The scores are small, but the ratio is what counts Using logarithms helps avoid numerical underflow

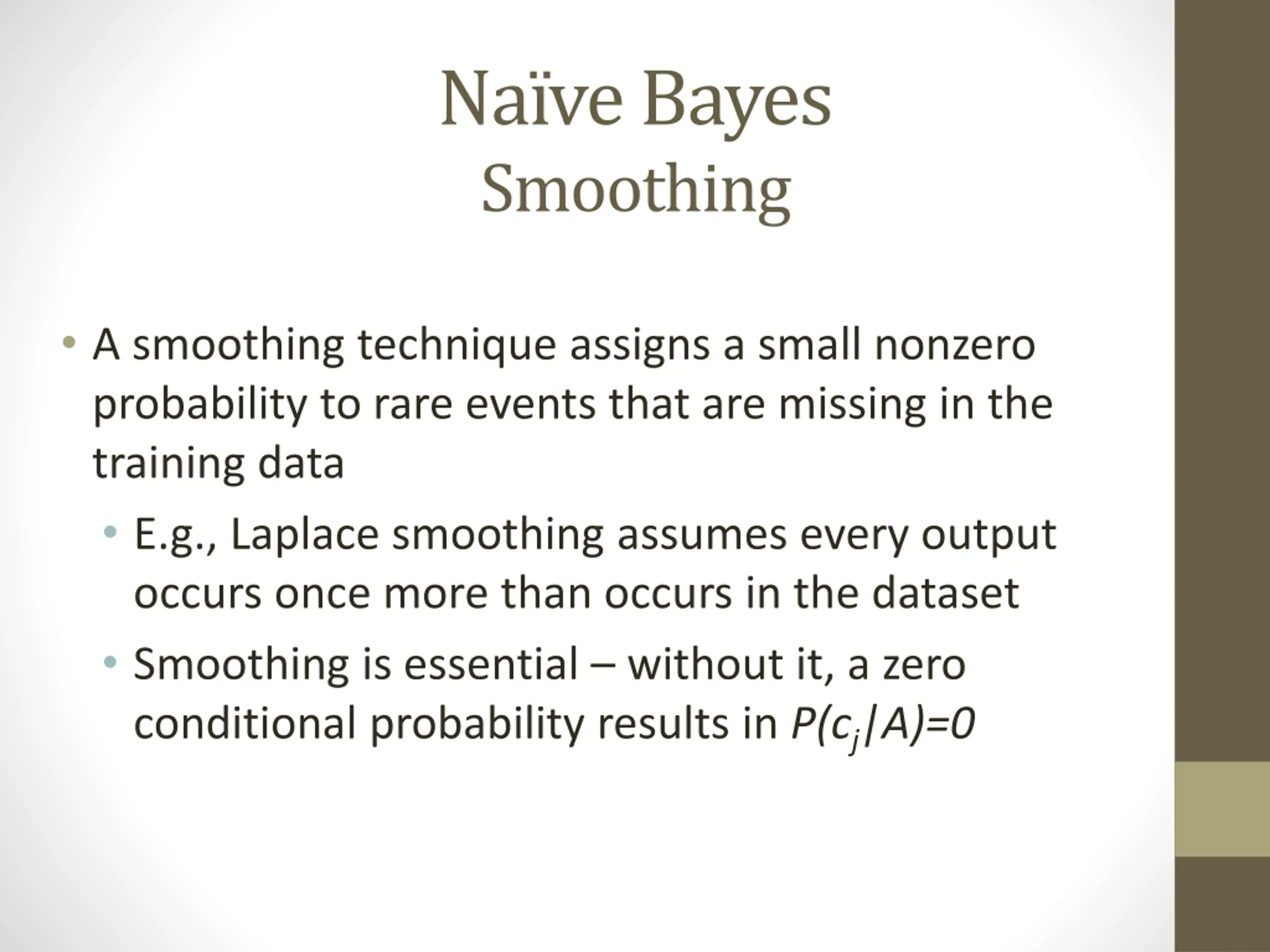

Nave Bayes Smoothing A smoothing technique assigns a small nonzero probability to rare events that are missing in the training data E.g., Laplace smoothing assumes every output occurs once more than occurs in the dataset Smoothing is essential without it, a zero conditional probability results in P(cj|A)=0

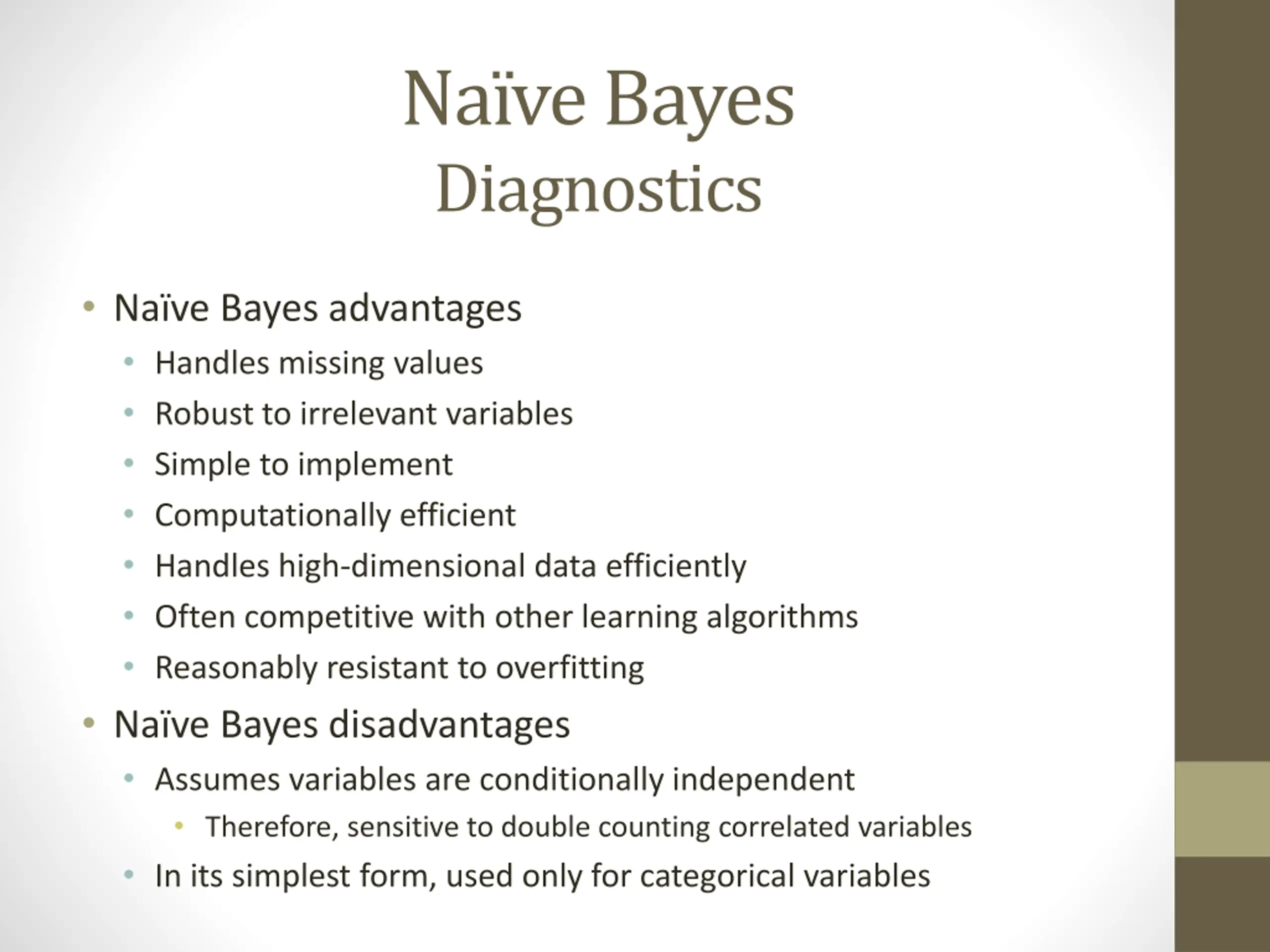

Nave Bayes Diagnostics Na ve Bayes advantages Handles missing values Robust to irrelevant variables Simple to implement Computationally efficient Handles high-dimensional data efficiently Often competitive with other learning algorithms Reasonably resistant to overfitting Na ve Bayes disadvantages Assumes variables are conditionally independent Therefore, sensitive to double counting correlated variables In its simplest form, used only for categorical variables

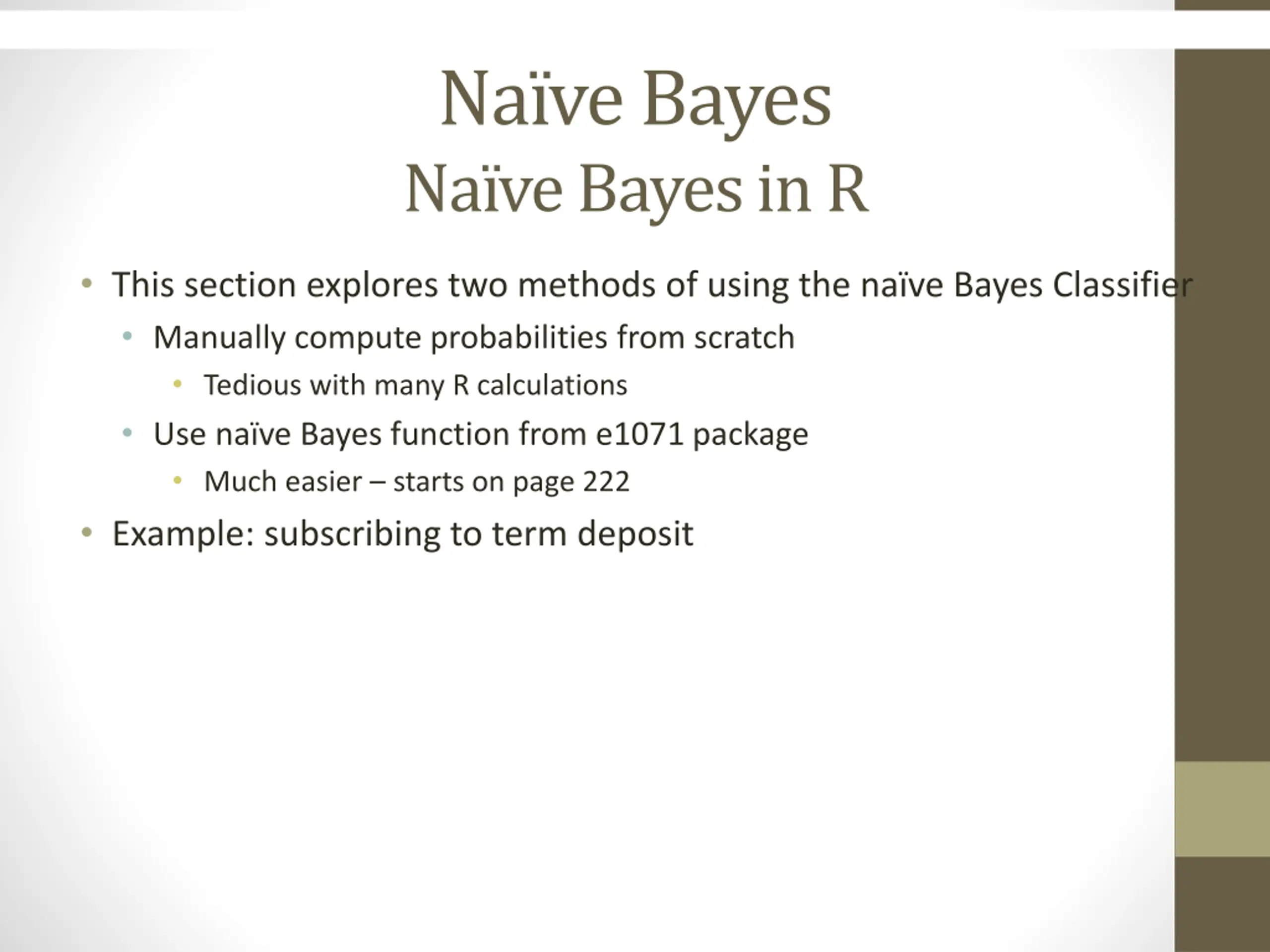

Nave Bayes Na ve Bayes in R This section explores two methods of using the na ve Bayes Classifier Manually compute probabilities from scratch Tedious with many R calculations Use na ve Bayes function from e1071 package Much easier starts on page 222 Example: subscribing to term deposit

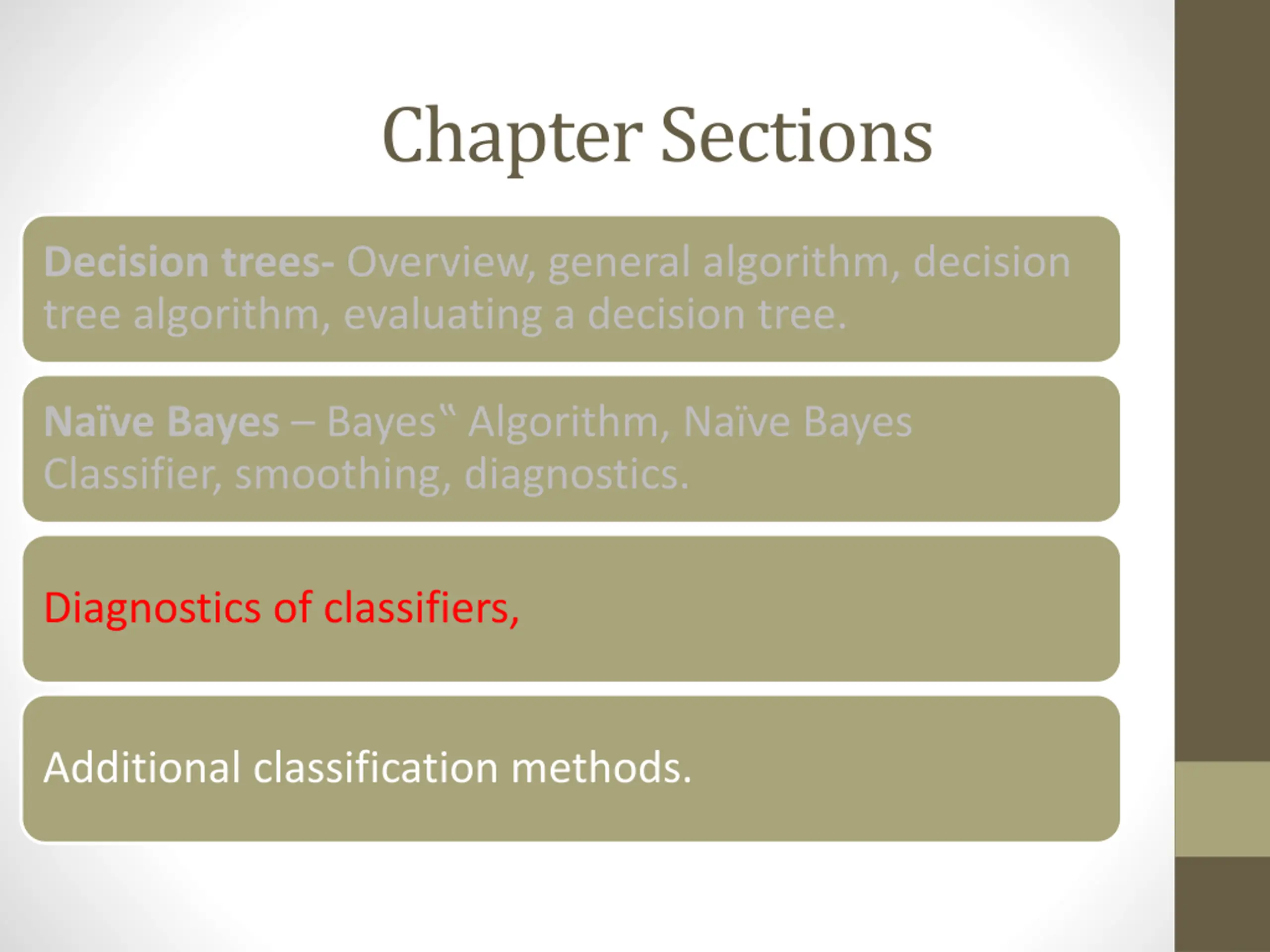

Chapter Sections Decision trees- Overview, general algorithm, decision tree algorithm, evaluating a decision tree. Na ve Bayes Bayes Algorithm, Na ve Bayes Classifier, smoothing, diagnostics. Diagnostics of classifiers, Additional classification methods.

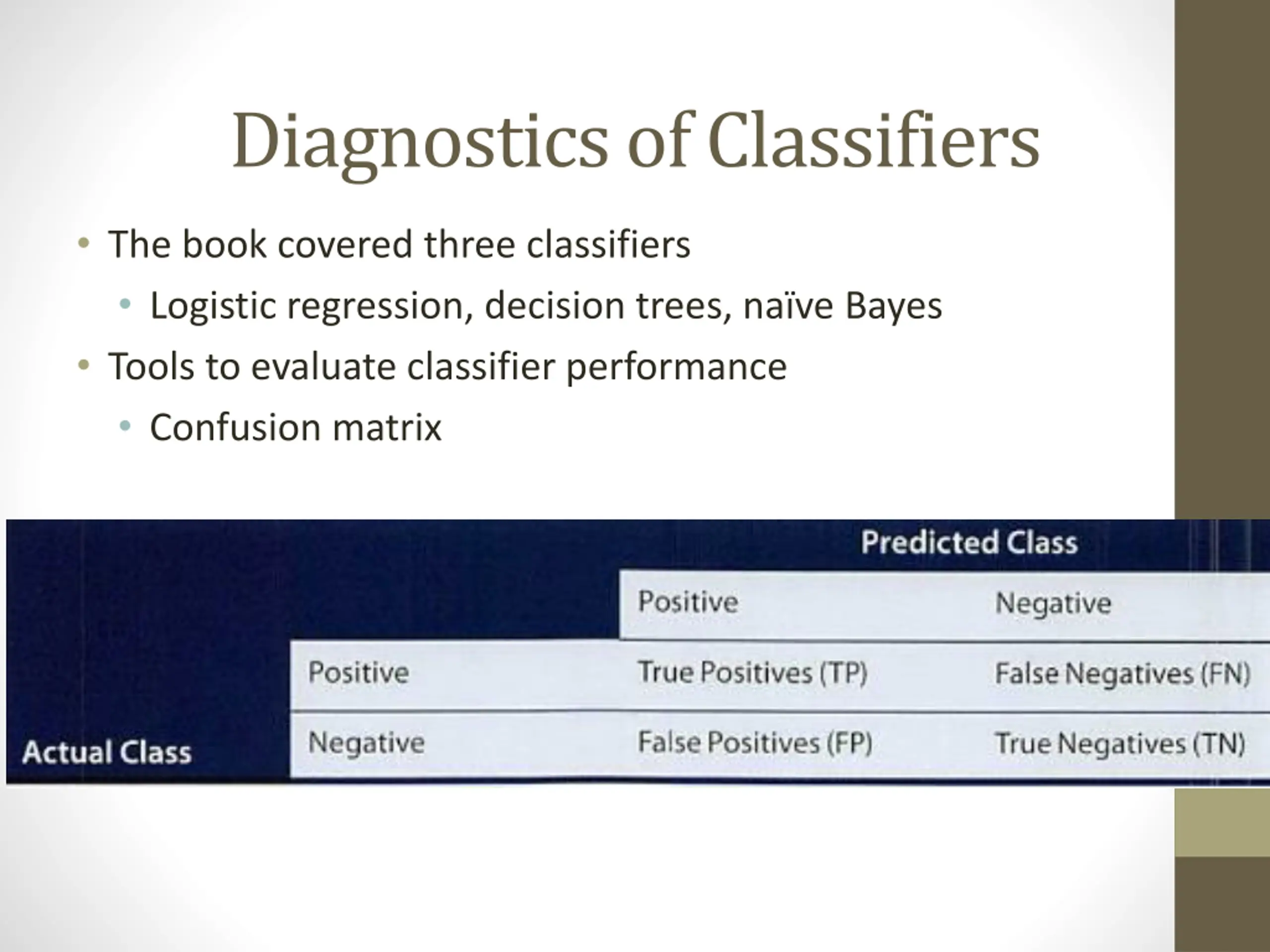

Diagnostics of Classifiers The book covered three classifiers Logistic regression, decision trees, na ve Bayes Tools to evaluate classifier performance Confusion matrix

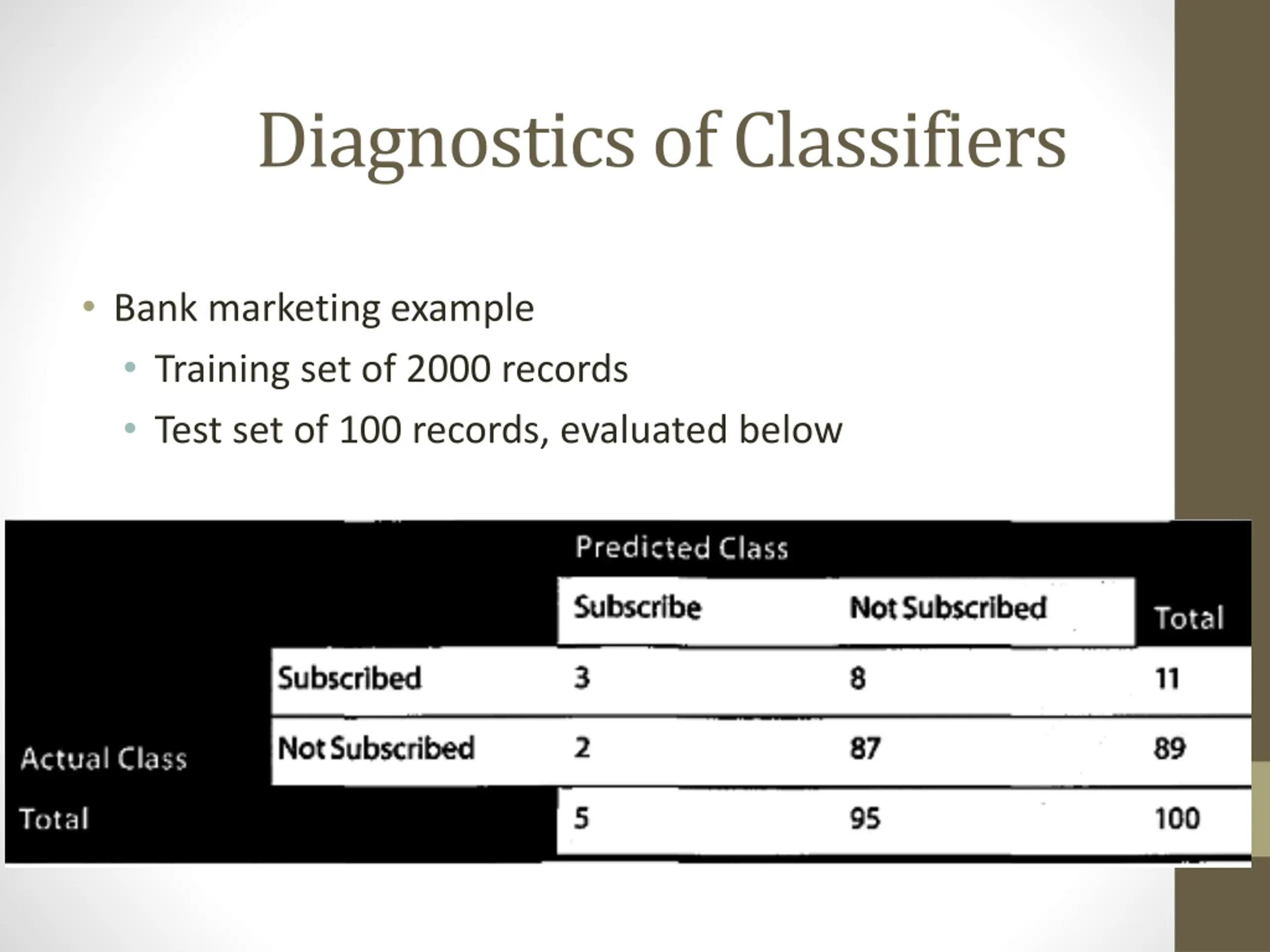

Diagnostics of Classifiers Bank marketing example Training set of 2000 records Test set of 100 records, evaluated below

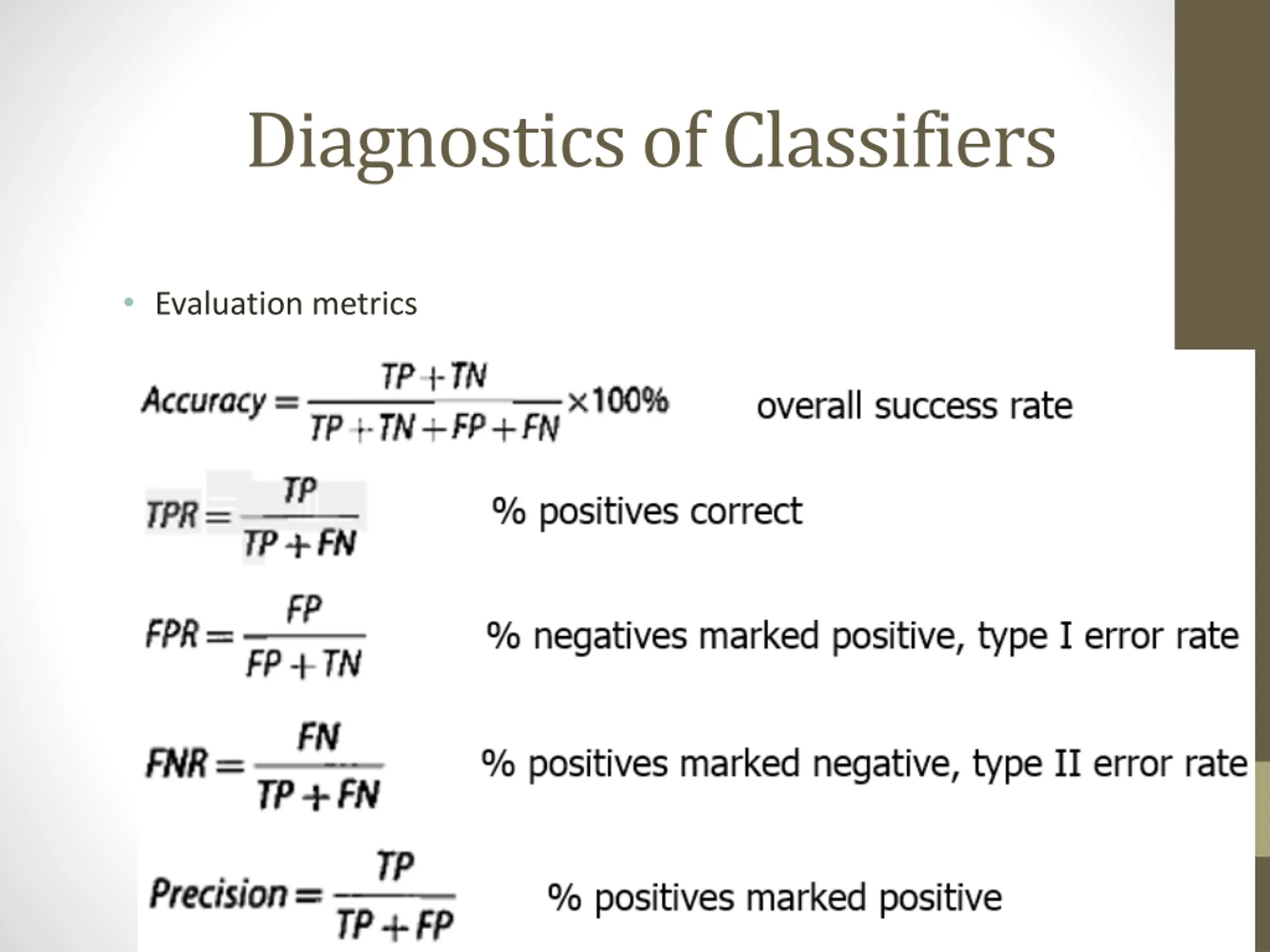

Diagnostics of Classifiers Evaluation metrics

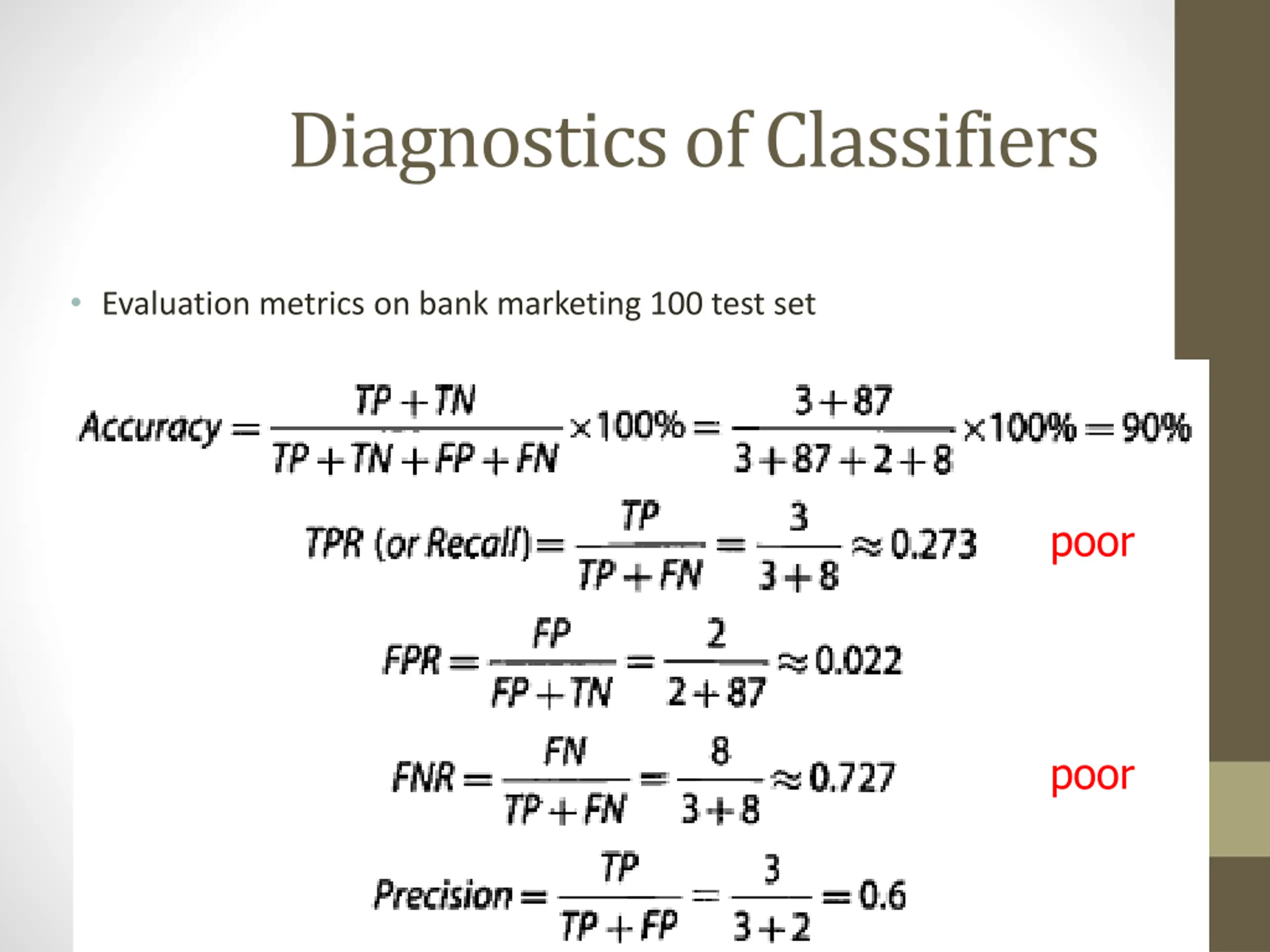

Diagnostics of Classifiers Evaluation metrics on bank marketing 100 test set poor poor

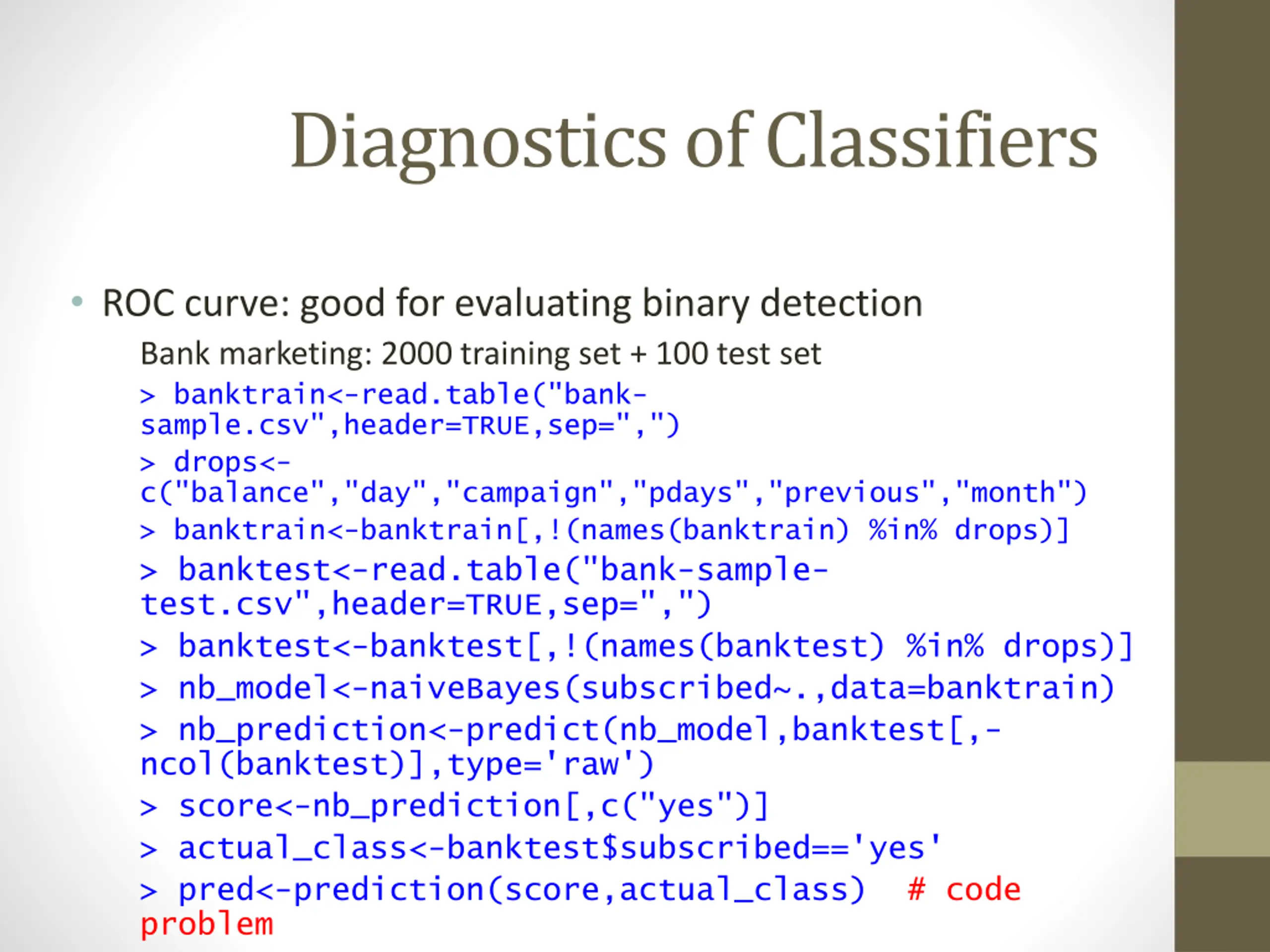

Diagnostics of Classifiers ROC curve: good for evaluating binary detection Bank marketing: 2000 training set + 100 test set > banktrain<-read.table("bank- sample.csv",header=TRUE,sep=",") > drops<- c("balance","day","campaign","pdays","previous","month") > banktrain<-banktrain[,!(names(banktrain) %in% drops)] > banktest<-read.table("bank-sample- test.csv",header=TRUE,sep=",") > banktest<-banktest[,!(names(banktest) %in% drops)] > nb_model<-naiveBayes(subscribed~.,data=banktrain) > nb_prediction<-predict(nb_model,banktest[,- ncol(banktest)],type='raw') > score<-nb_prediction[,c("yes")] > actual_class<-banktest$subscribed=='yes' > pred<-prediction(score,actual_class) # code problem

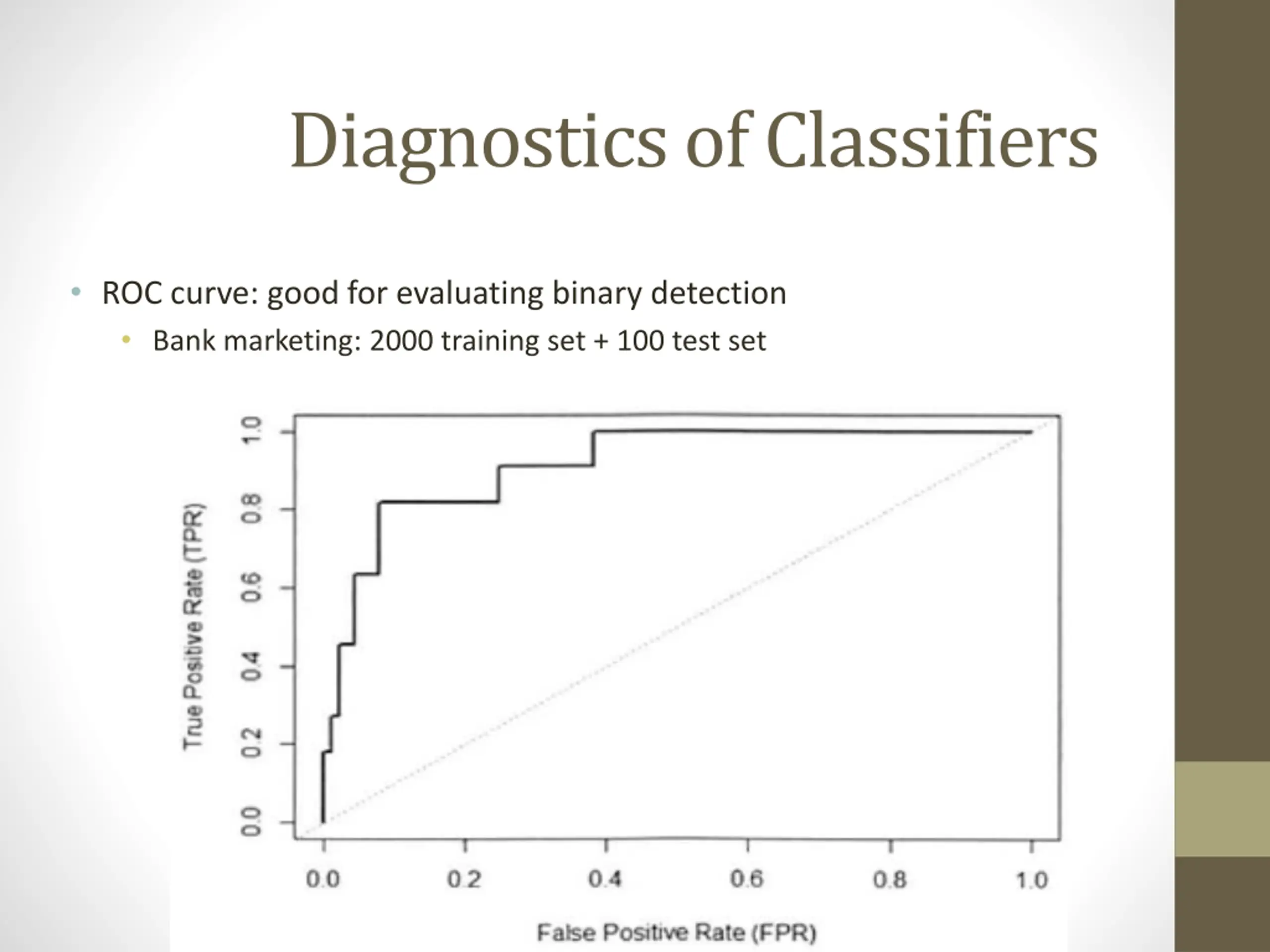

Diagnostics of Classifiers ROC curve: good for evaluating binary detection Bank marketing: 2000 training set + 100 test set

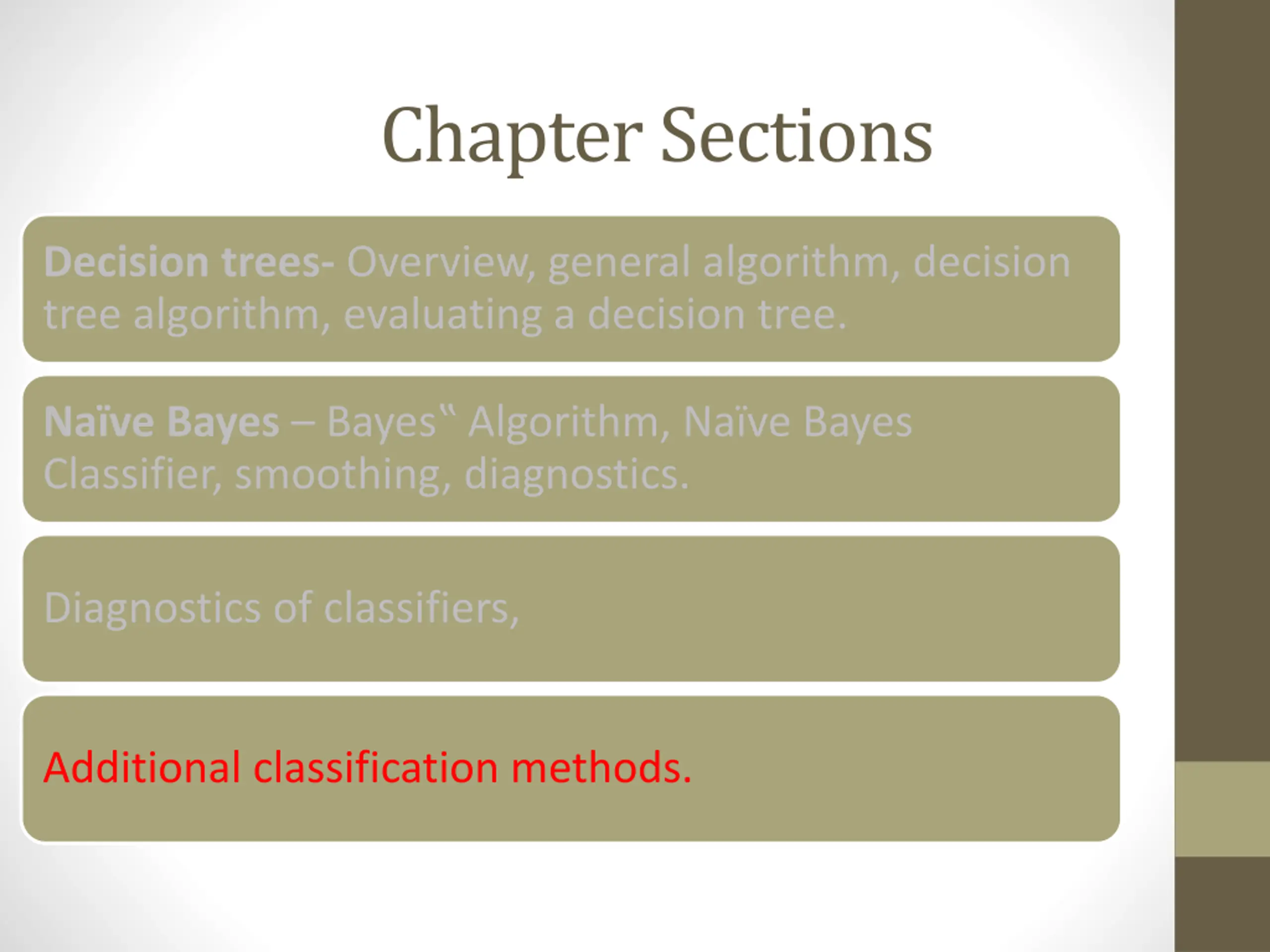

Chapter Sections Decision trees- Overview, general algorithm, decision tree algorithm, evaluating a decision tree. Na ve Bayes Bayes Algorithm, Na ve Bayes Classifier, smoothing, diagnostics. Diagnostics of classifiers, Additional classification methods.

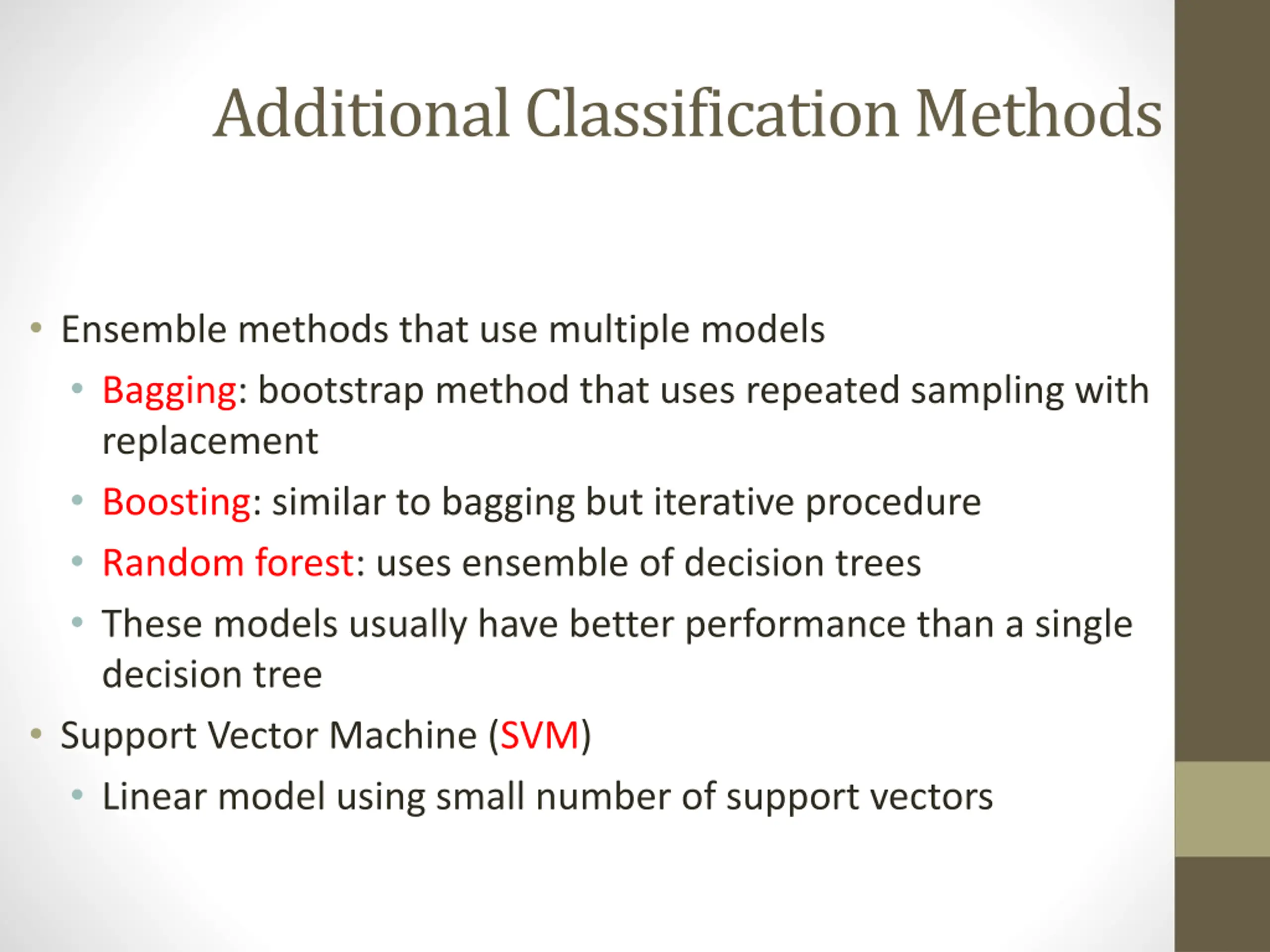

Additional Classification Methods Ensemble methods that use multiple models Bagging: bootstrap method that uses repeated sampling with replacement Boosting: similar to bagging but iterative procedure Random forest: uses ensemble of decision trees These models usually have better performance than a single decision tree Support Vector Machine (SVM) Linear model using small number of support vectors

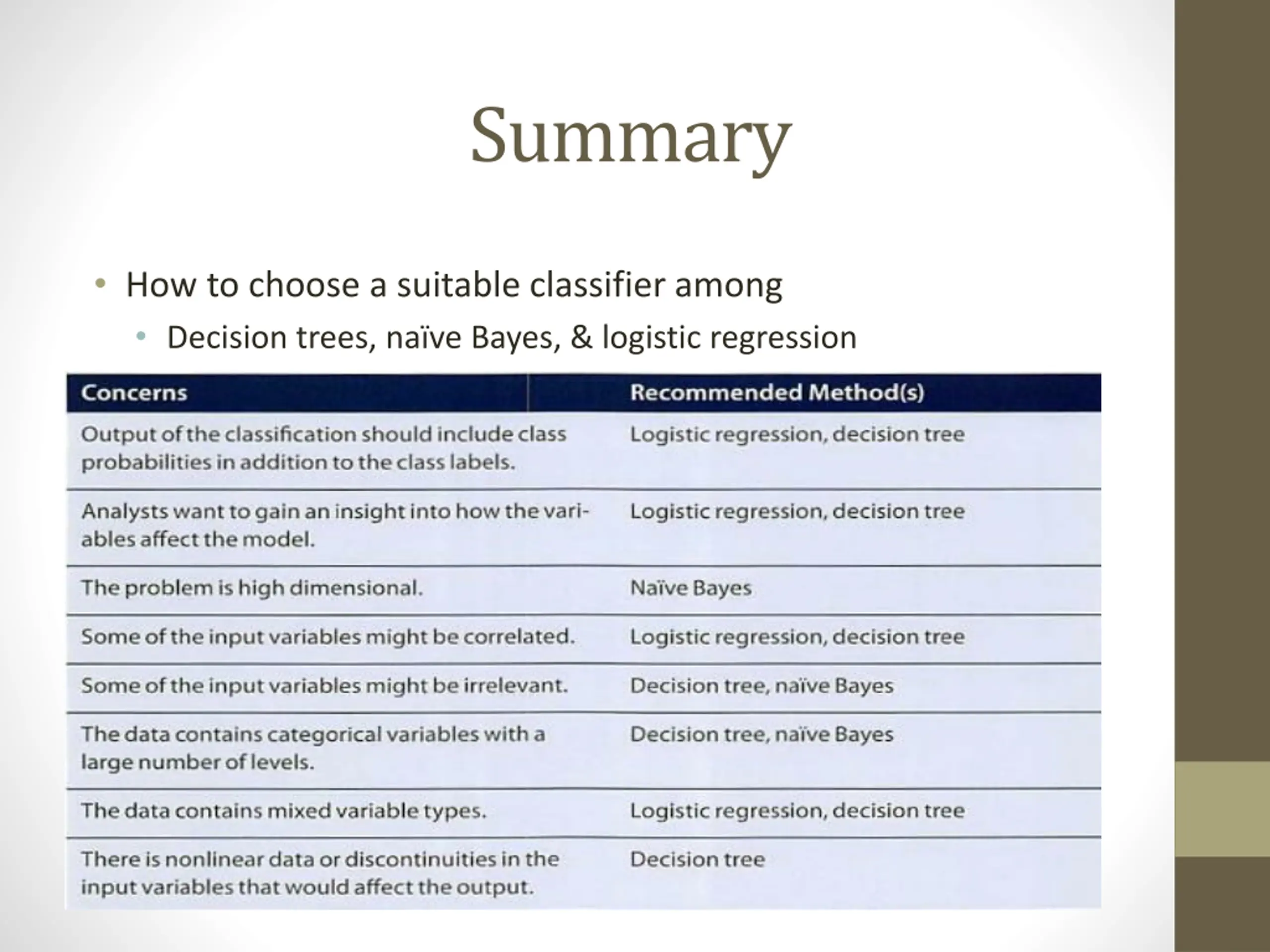

Summary How to choose a suitable classifier among Decision trees, na ve Bayes, & logistic regression
