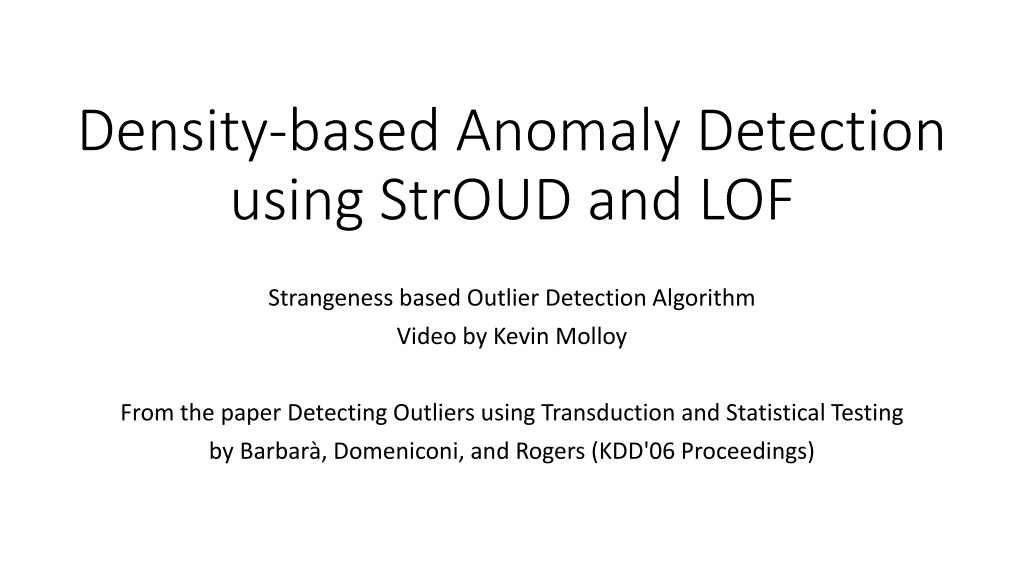

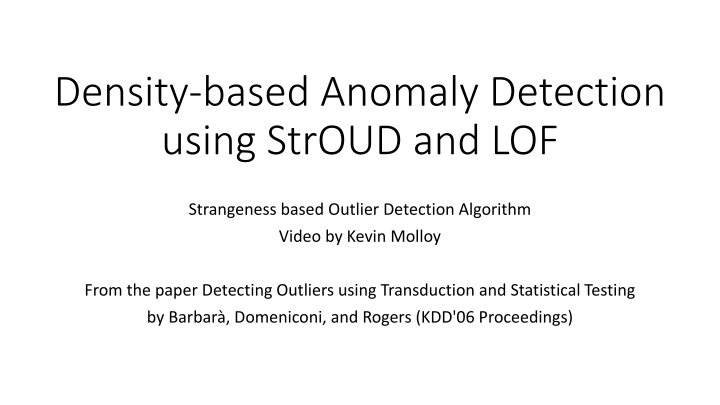

  1. Density-based Anomaly Detection using StrOUD and LOF Strangeness based Outlier Detection Algorithm Video by Kevin Molloy From the paper Detecting Outliers using Transduction and Statistical Testing by Barbar , Domeniconi, and Rogers (KDD'06 Proceedings)

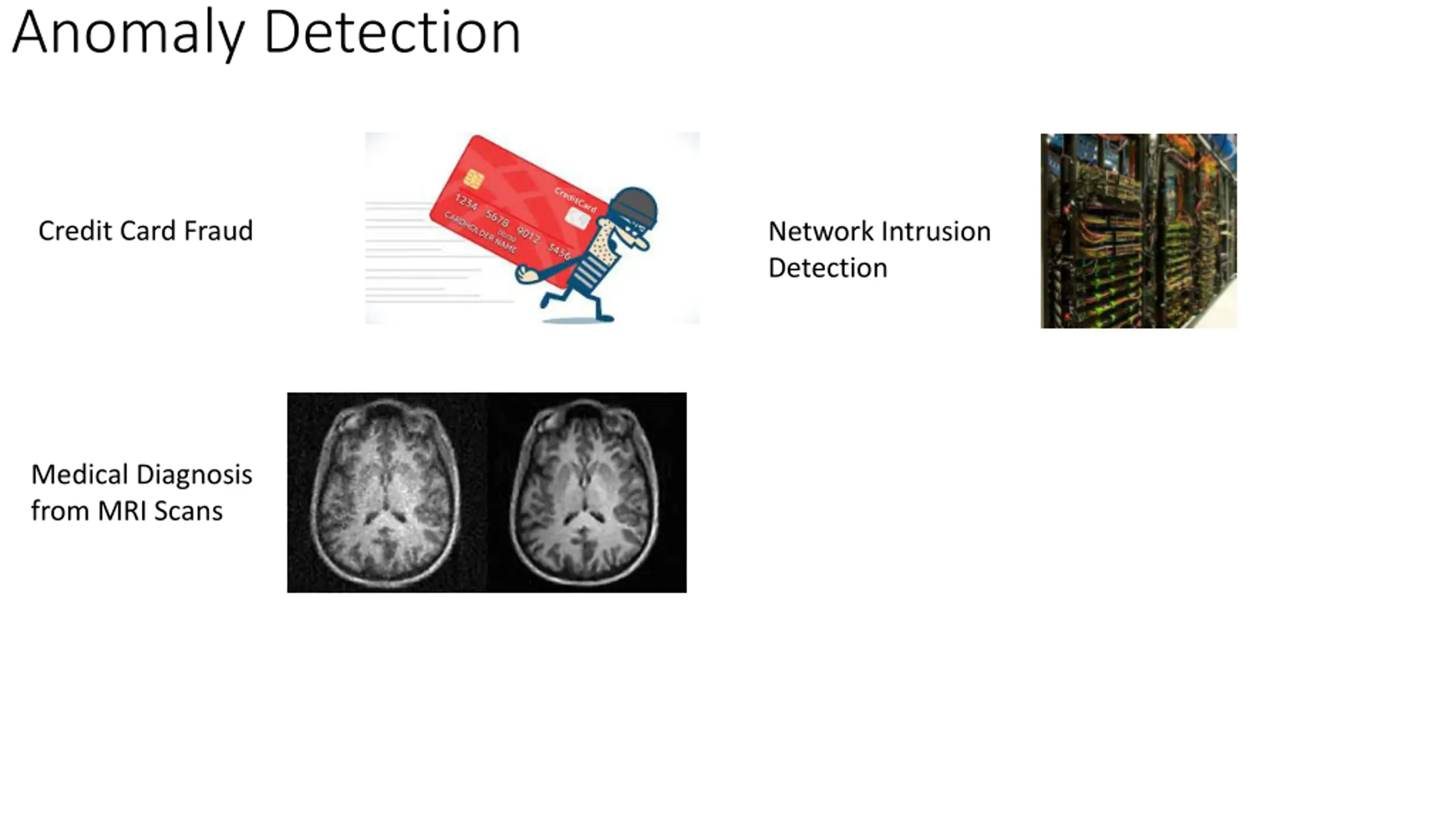

  2. Anomaly Detection Credit Card Fraud Network Intrusion Detection Medical Diagnosis from MRI Scans

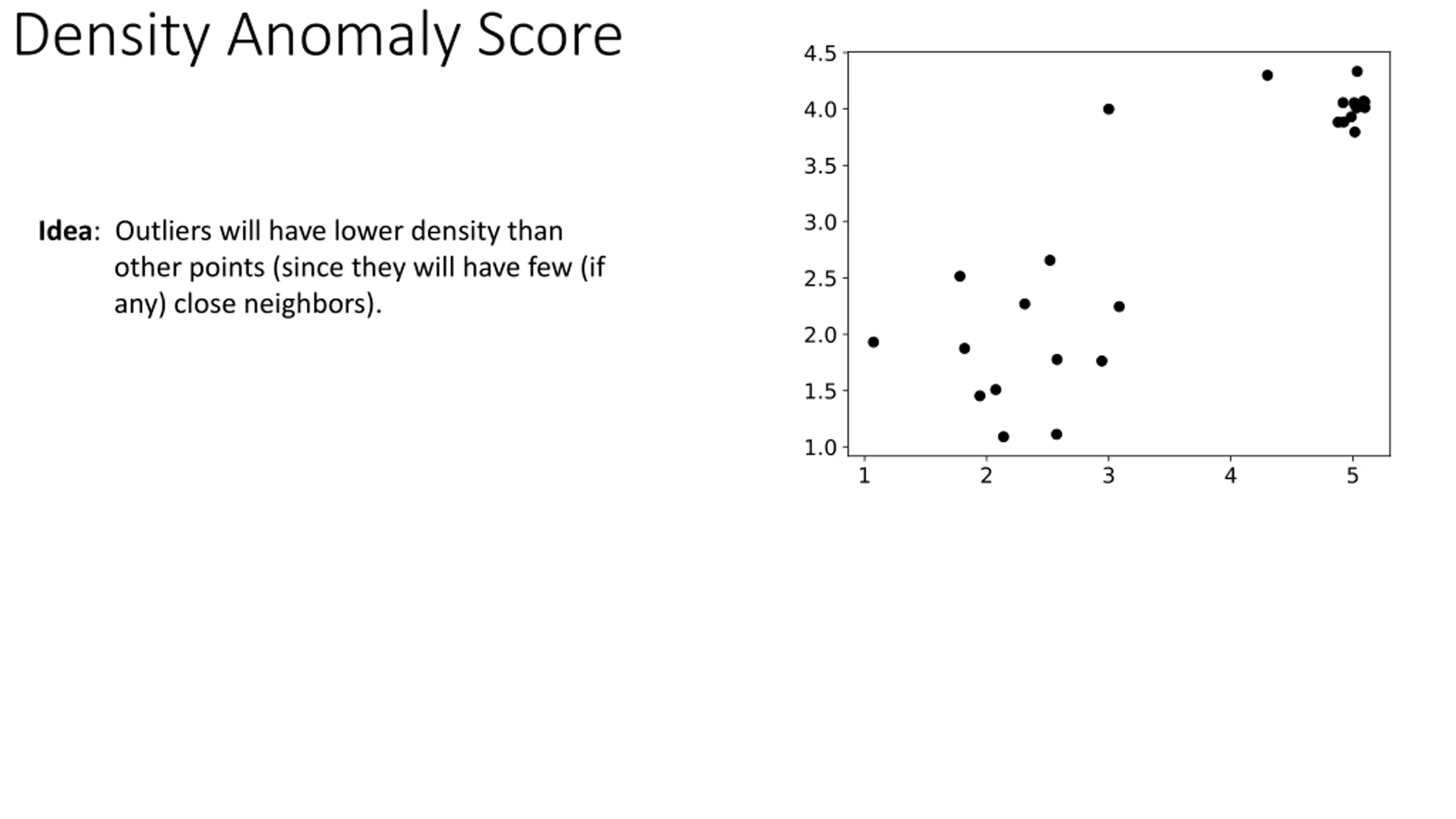

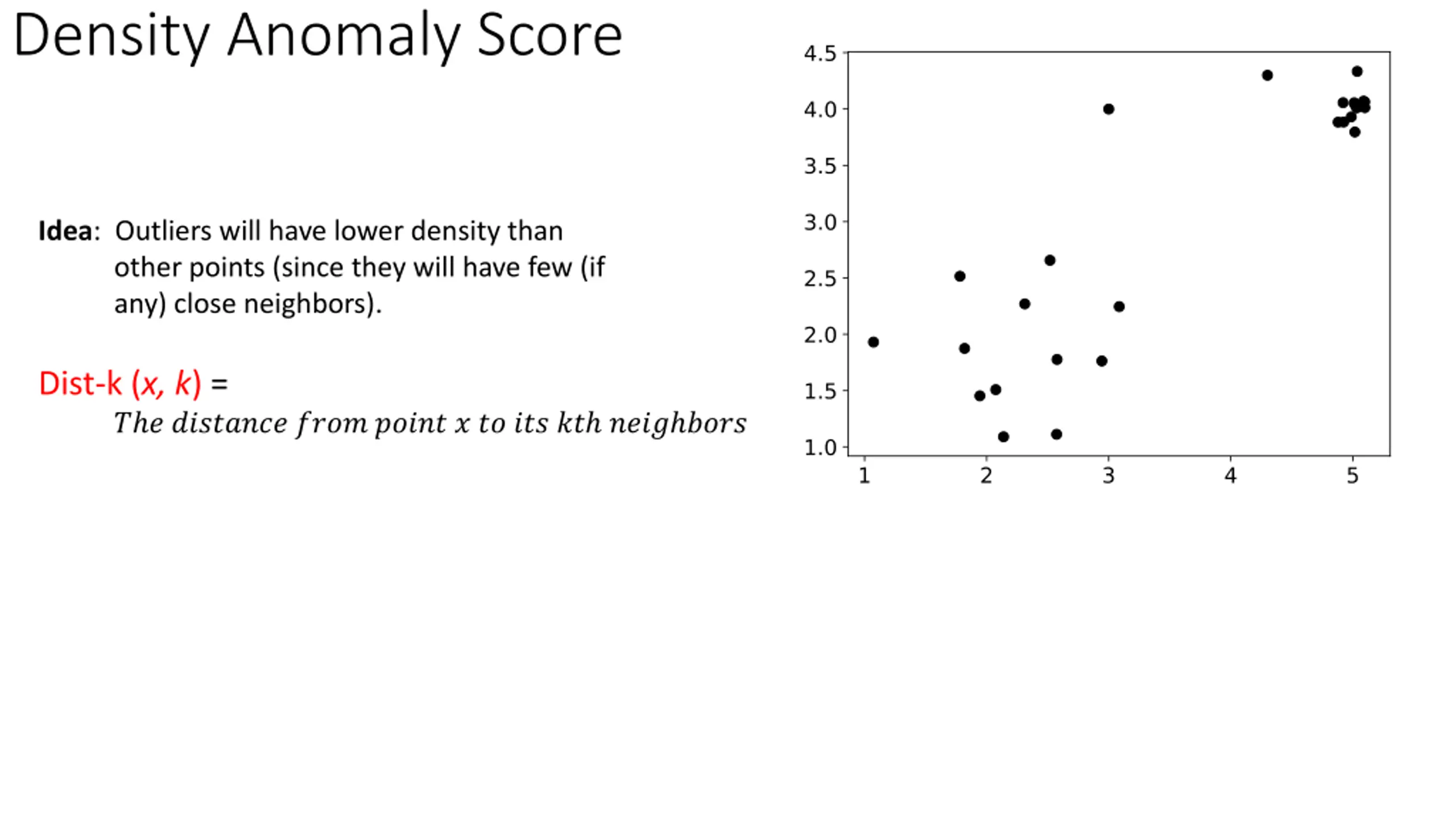

  3. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors).

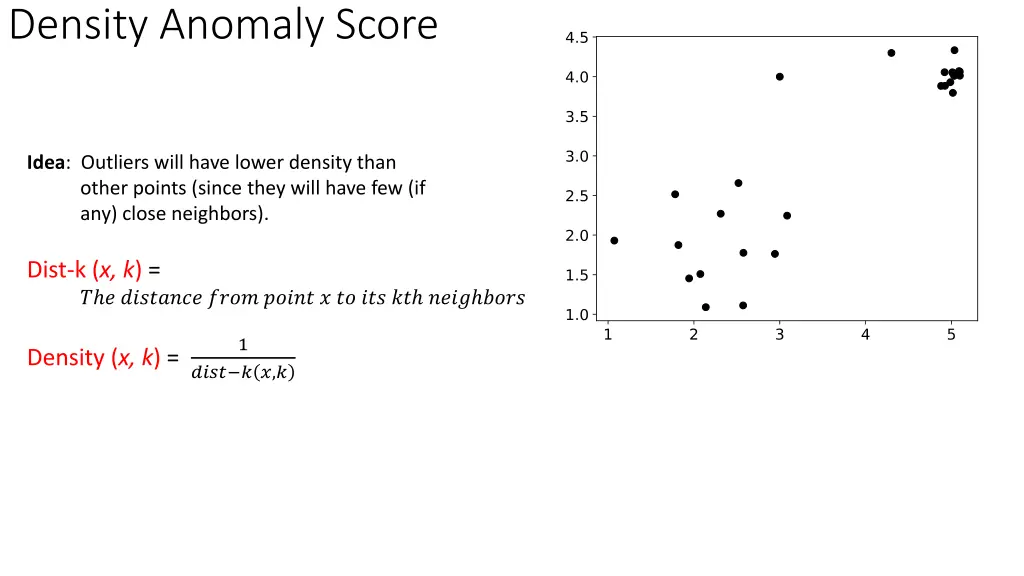

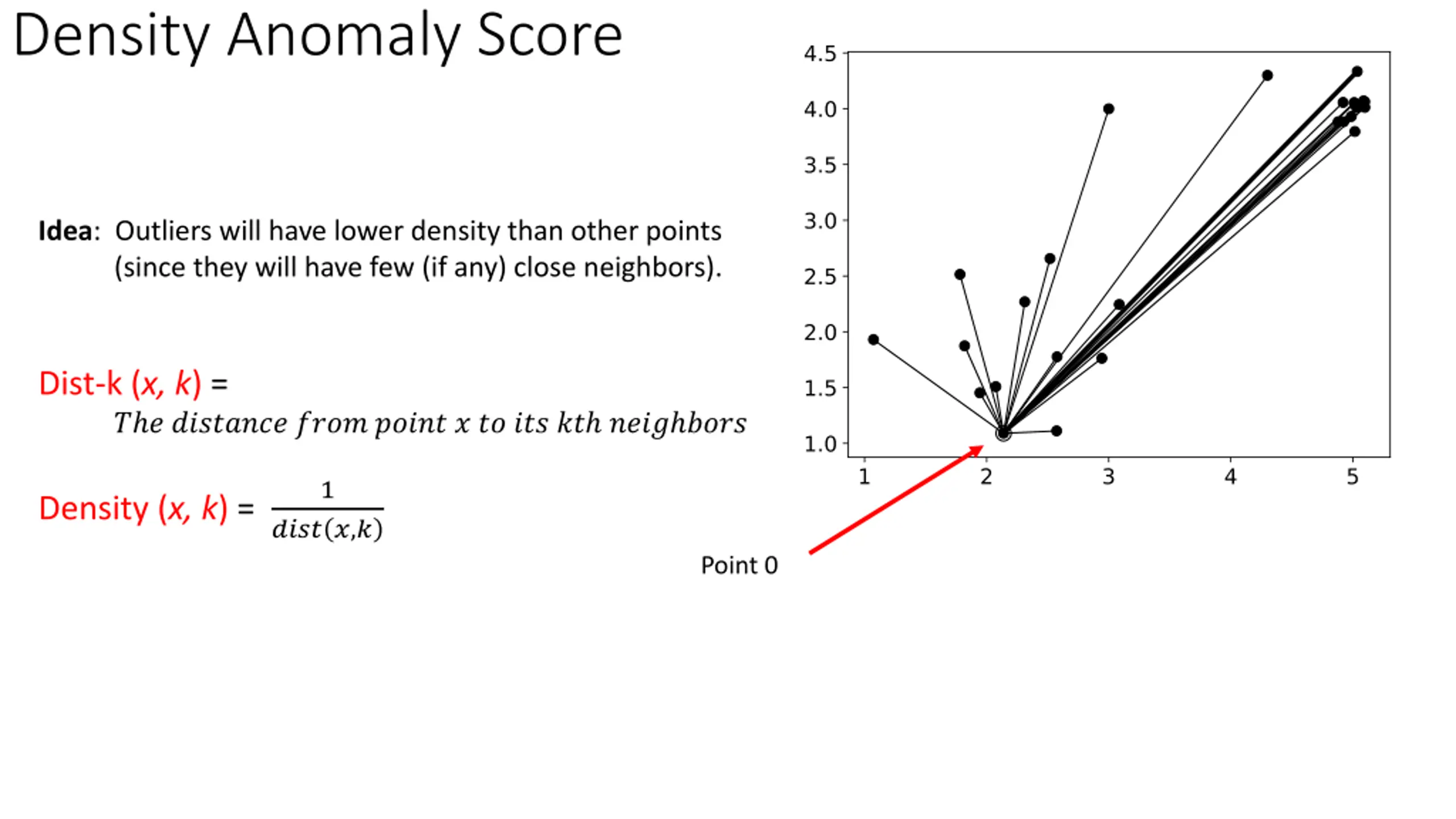

  4. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ????

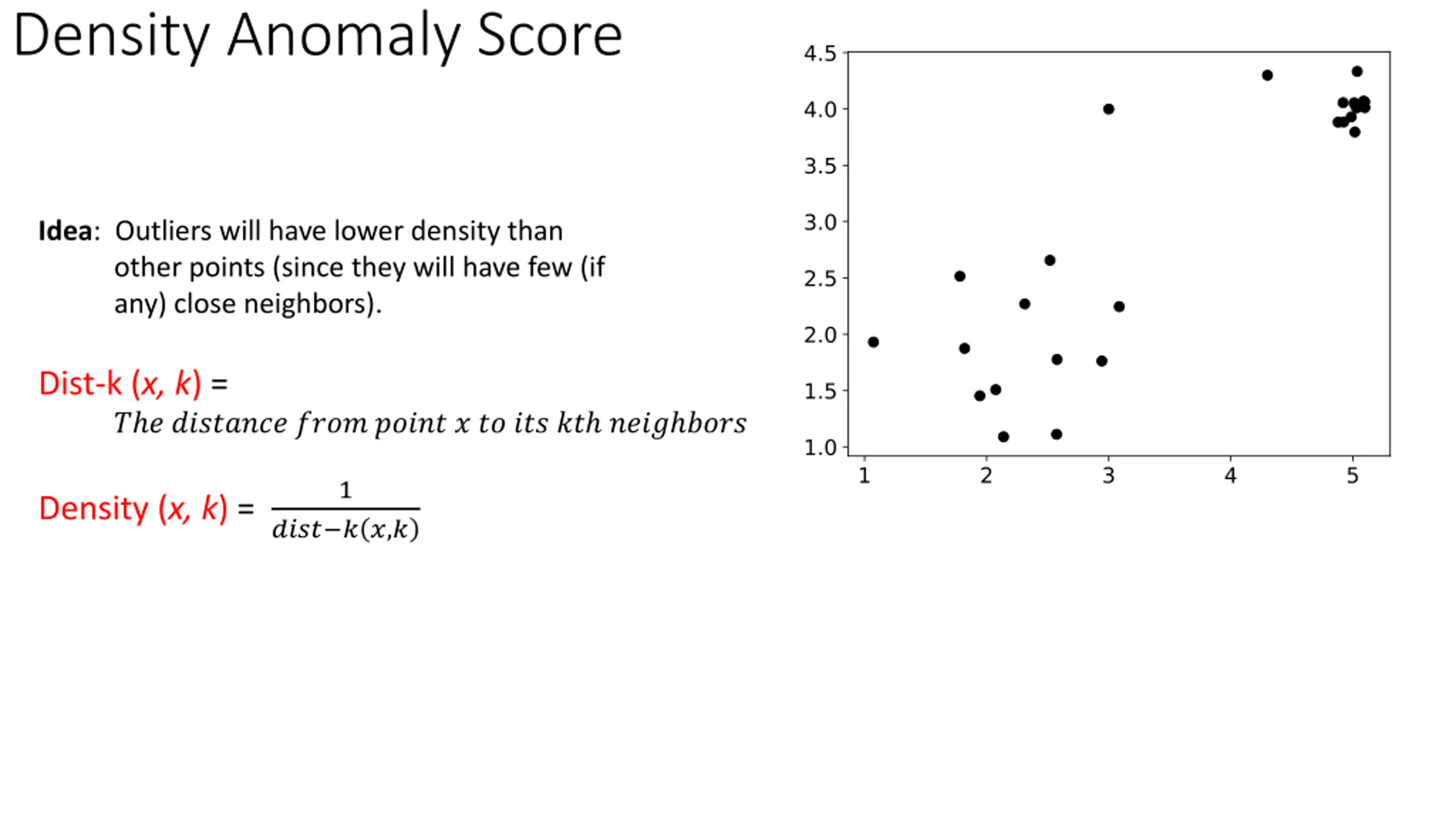

  5. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 1 Density (x, k)= ???? ? ?,?

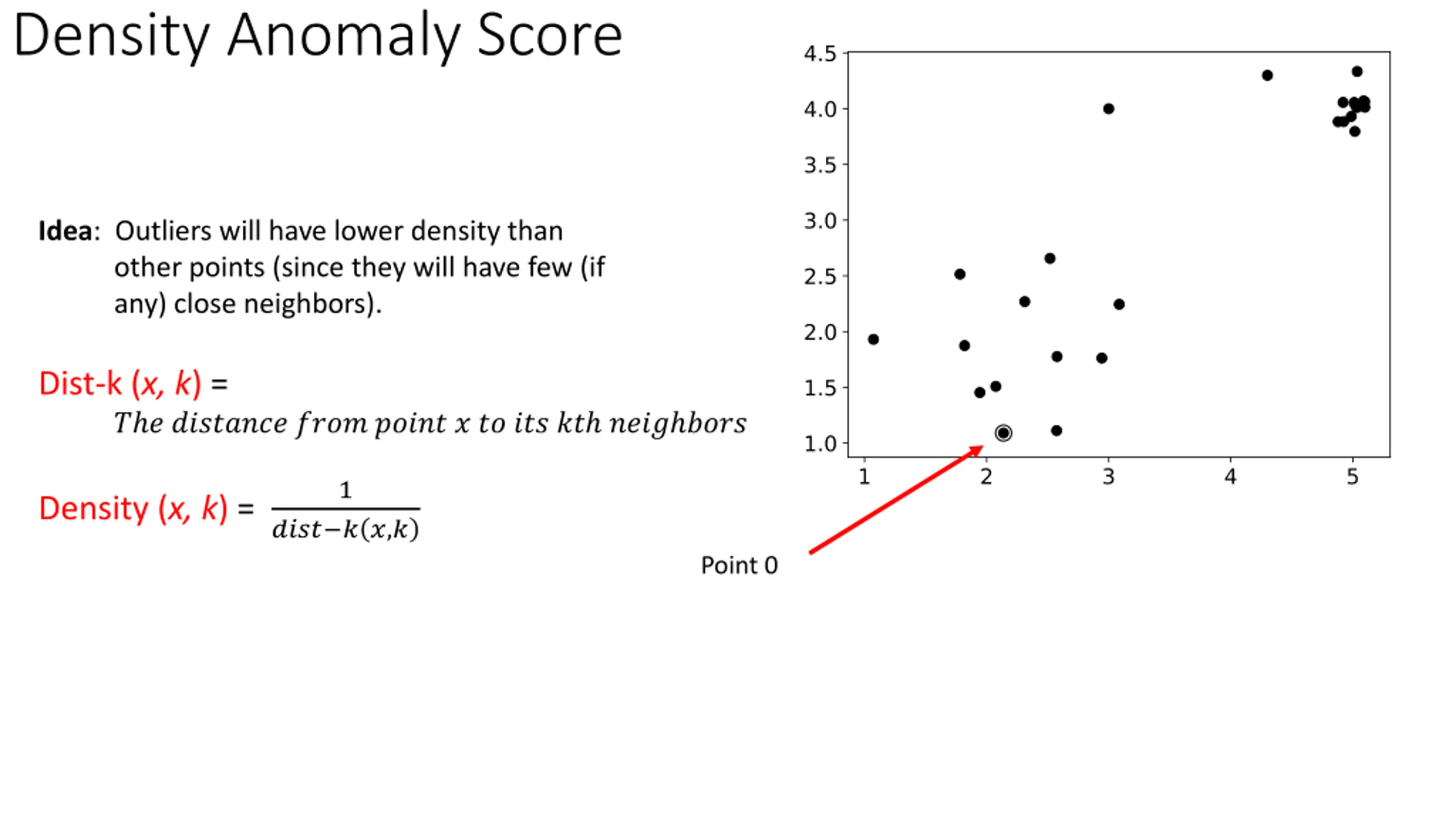

  6. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 1 Density (x, k)= ???? ? ?,? Point 0

  7. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 1 Density (x, k)= ???? ?,? Point 0

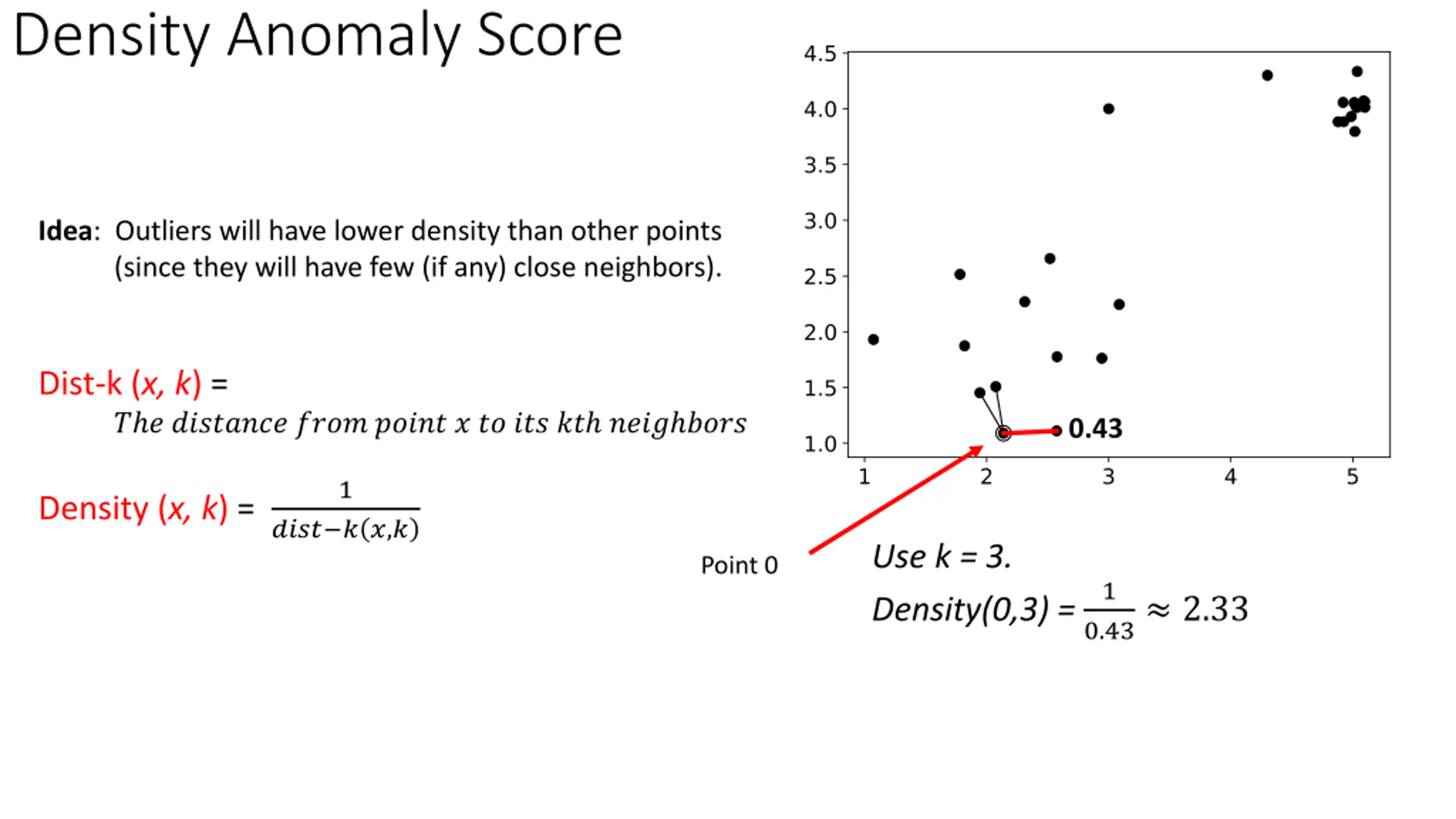

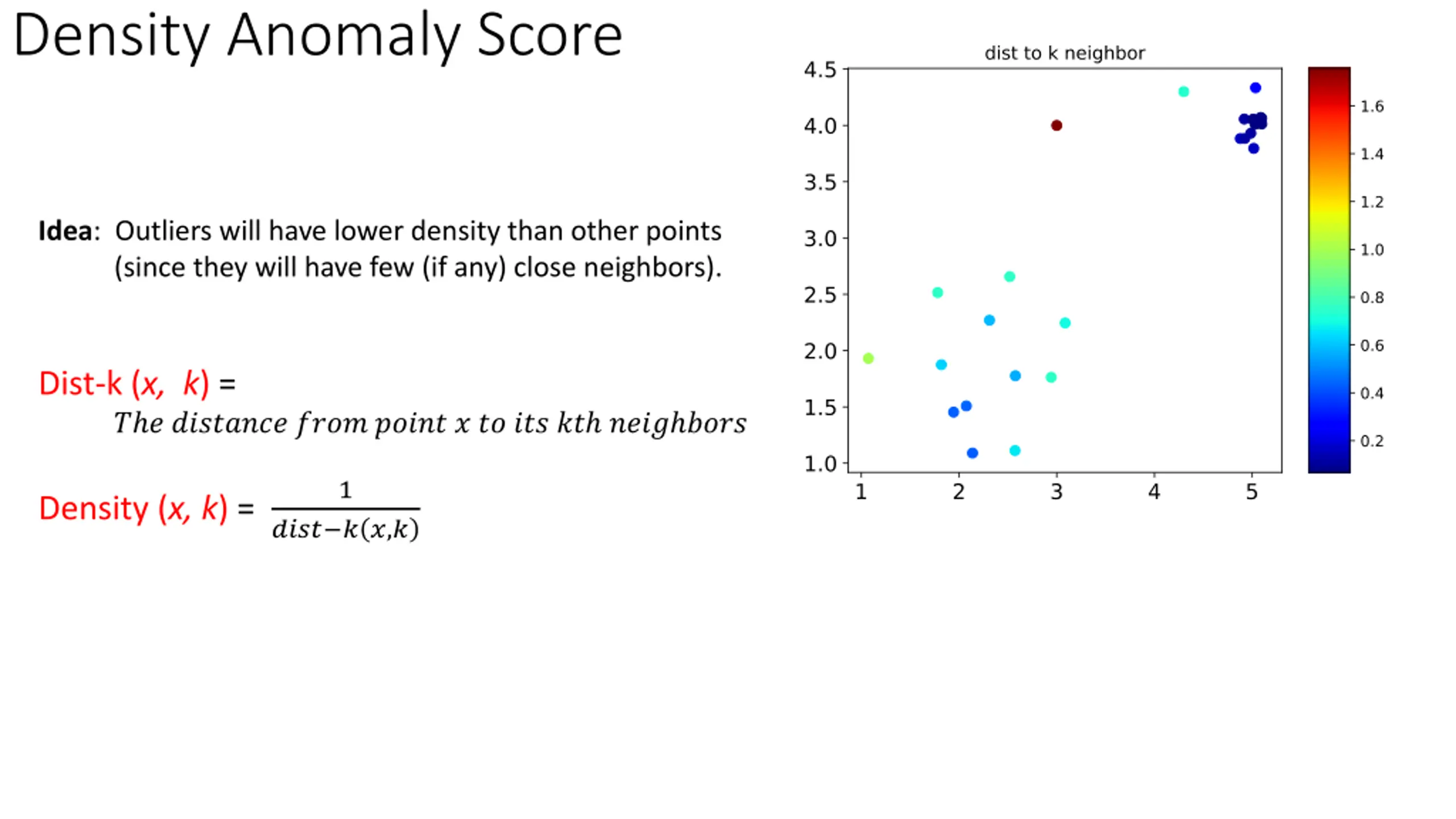

  8. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 0.43 1 Density (x, k)= ???? ? ?,? Use k = 3. Density(0,3) = Point 0 1 0.43 2.33

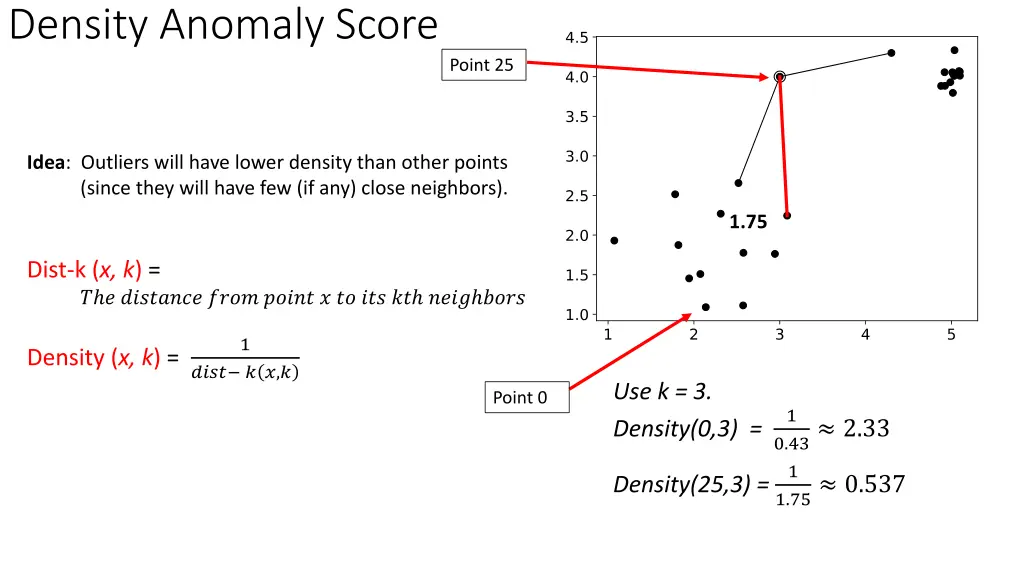

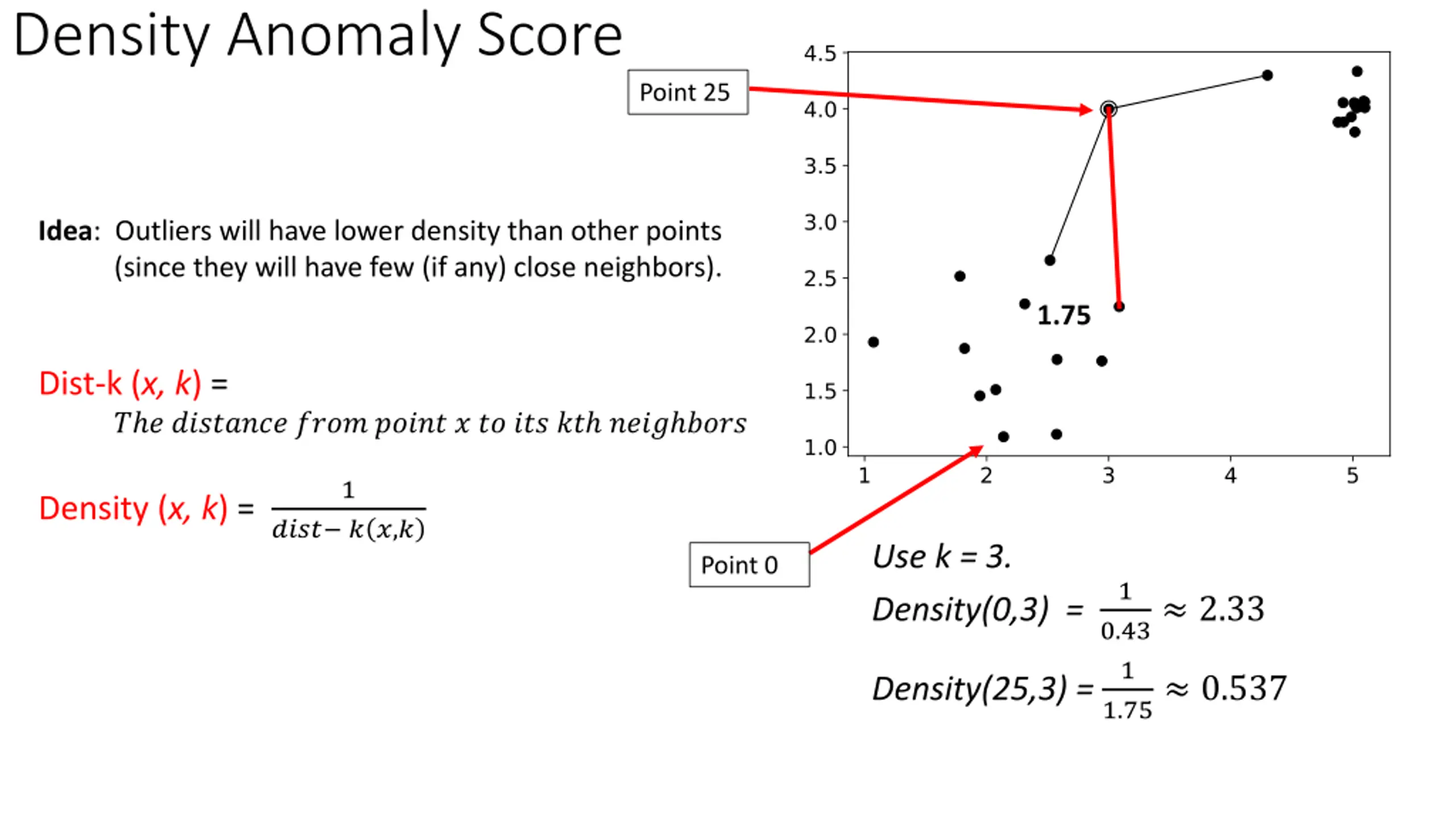

  9. Density Anomaly Score Point 25 Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). 1.75 Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 1 Density (x, k)= ???? ? ?,? Use k = 3. Density(0,3) = Point 0 1 0.43 2.33 1 1.75 0.537 Density(25,3) =

  10. Density Anomaly Score Idea: Outliers will have lower density than other points (since they will have few (if any) close neighbors). Dist-k (x, k) = ? ? ???????? ???? ????? ? ?? ??? ?? ???? ???? 1 Density (x, k)= ???? ? ?,?

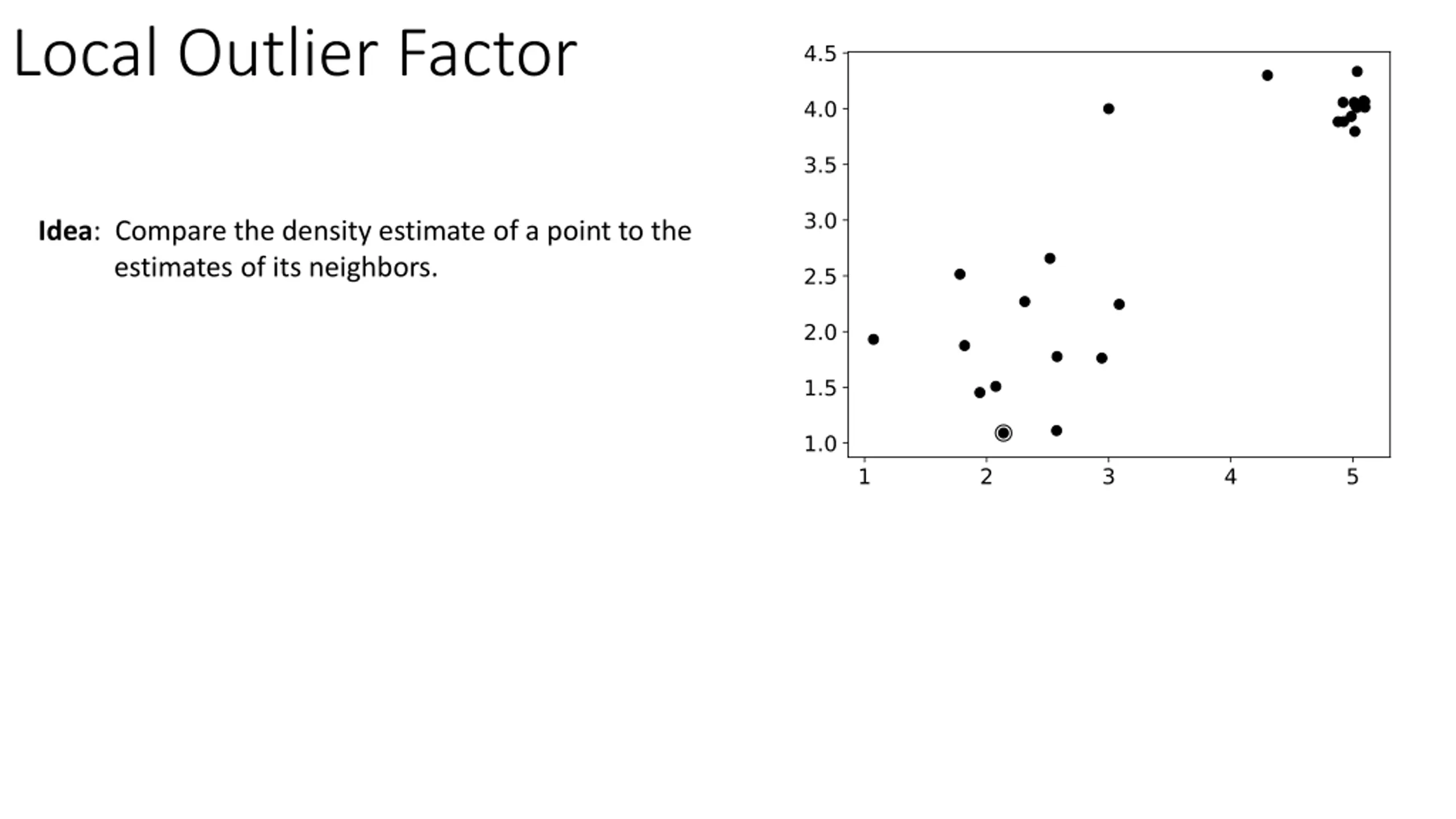

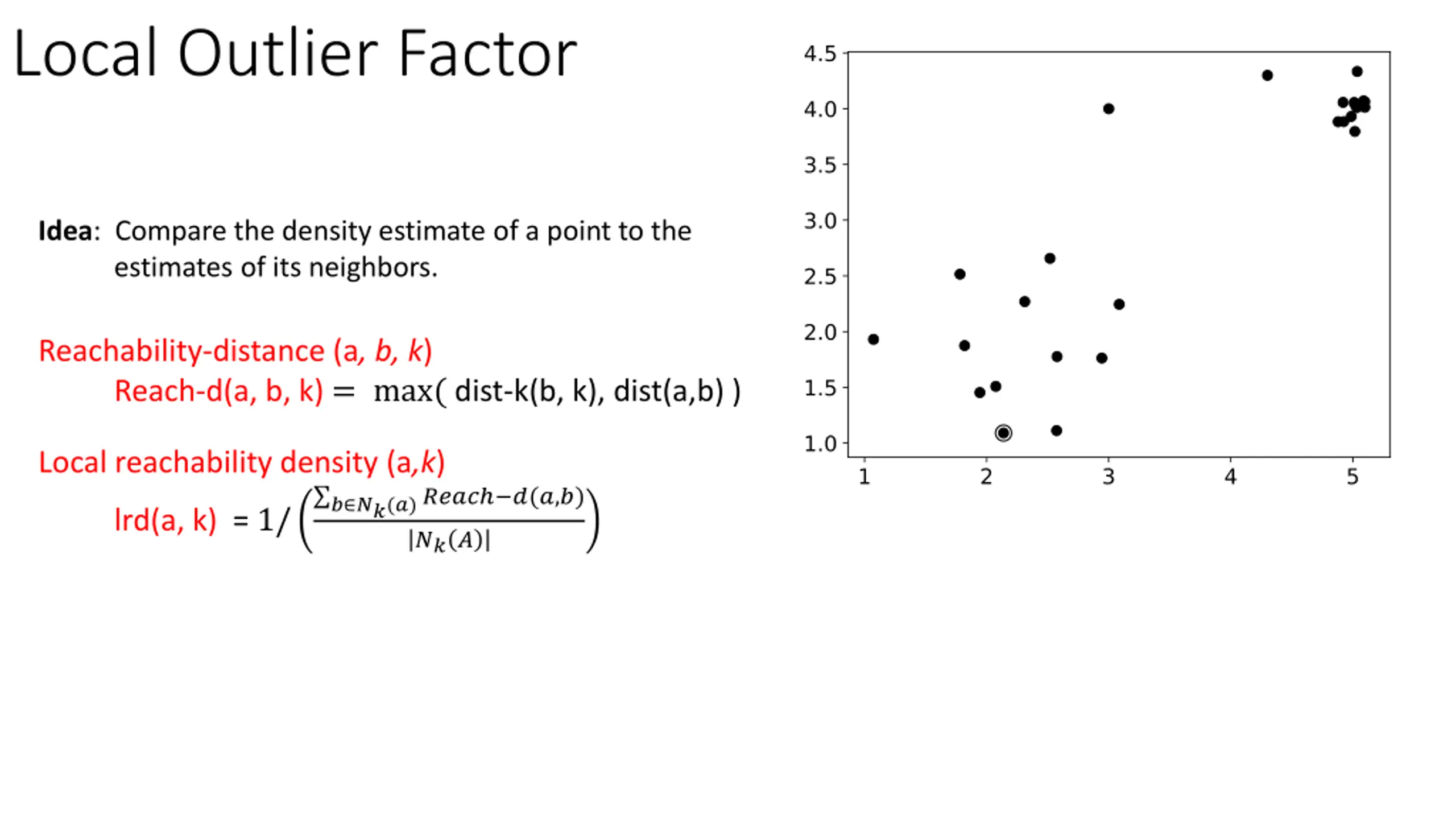

  11. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors.

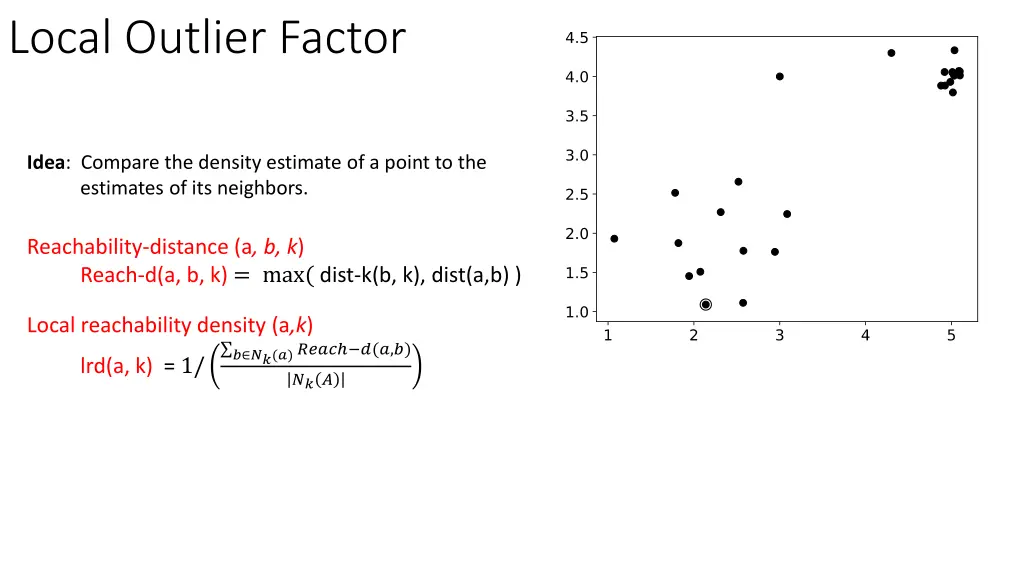

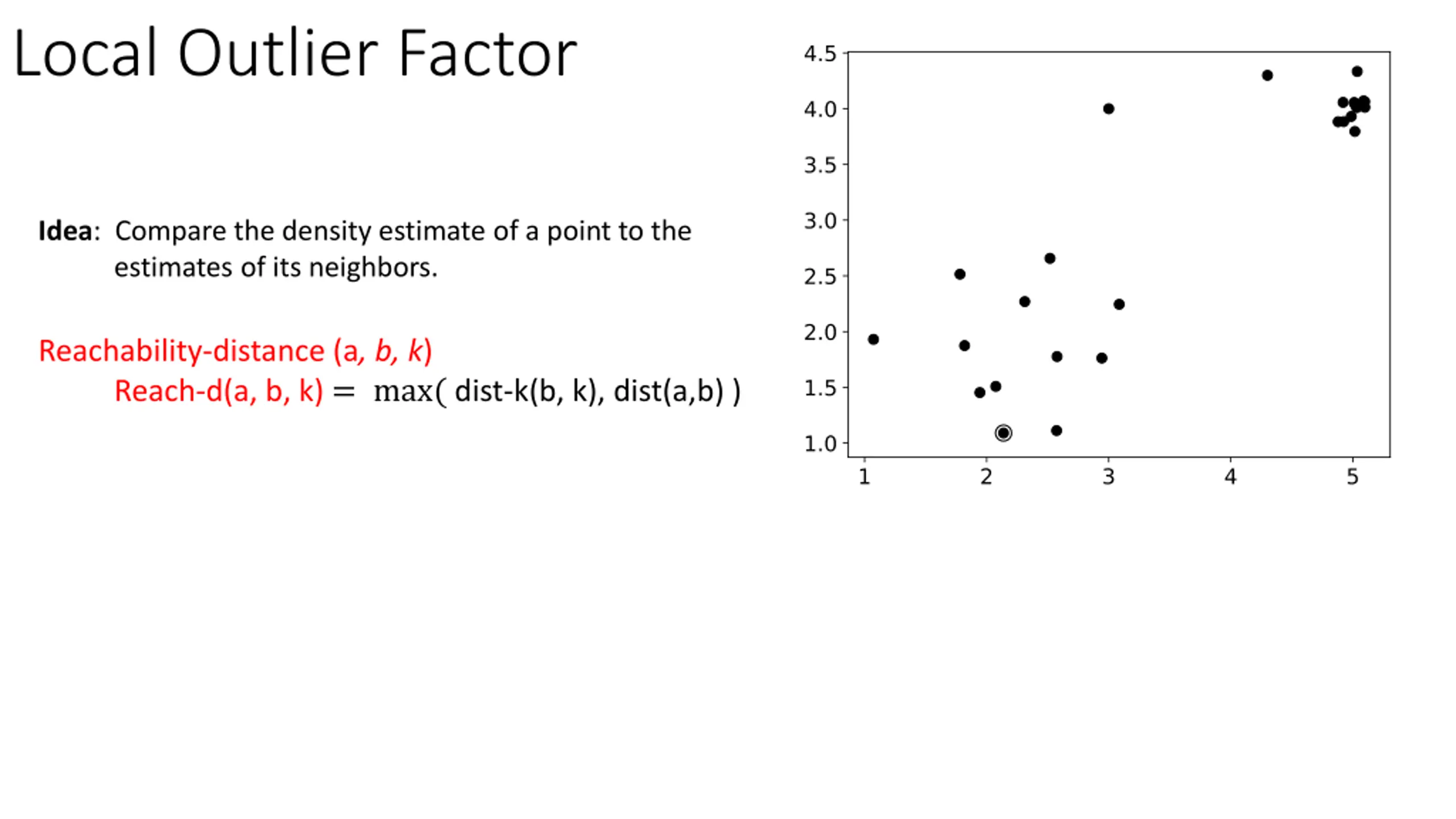

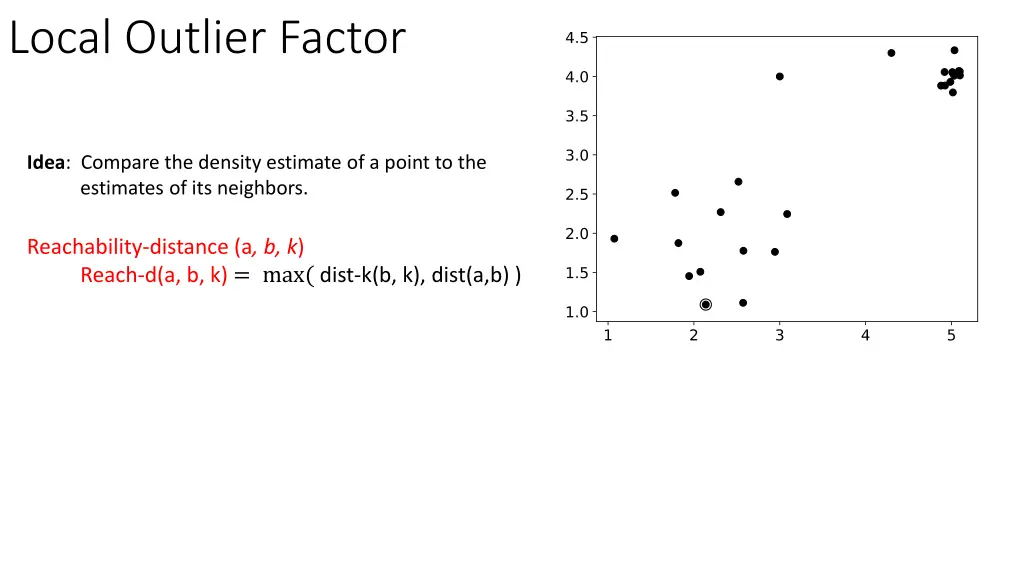

  12. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) )

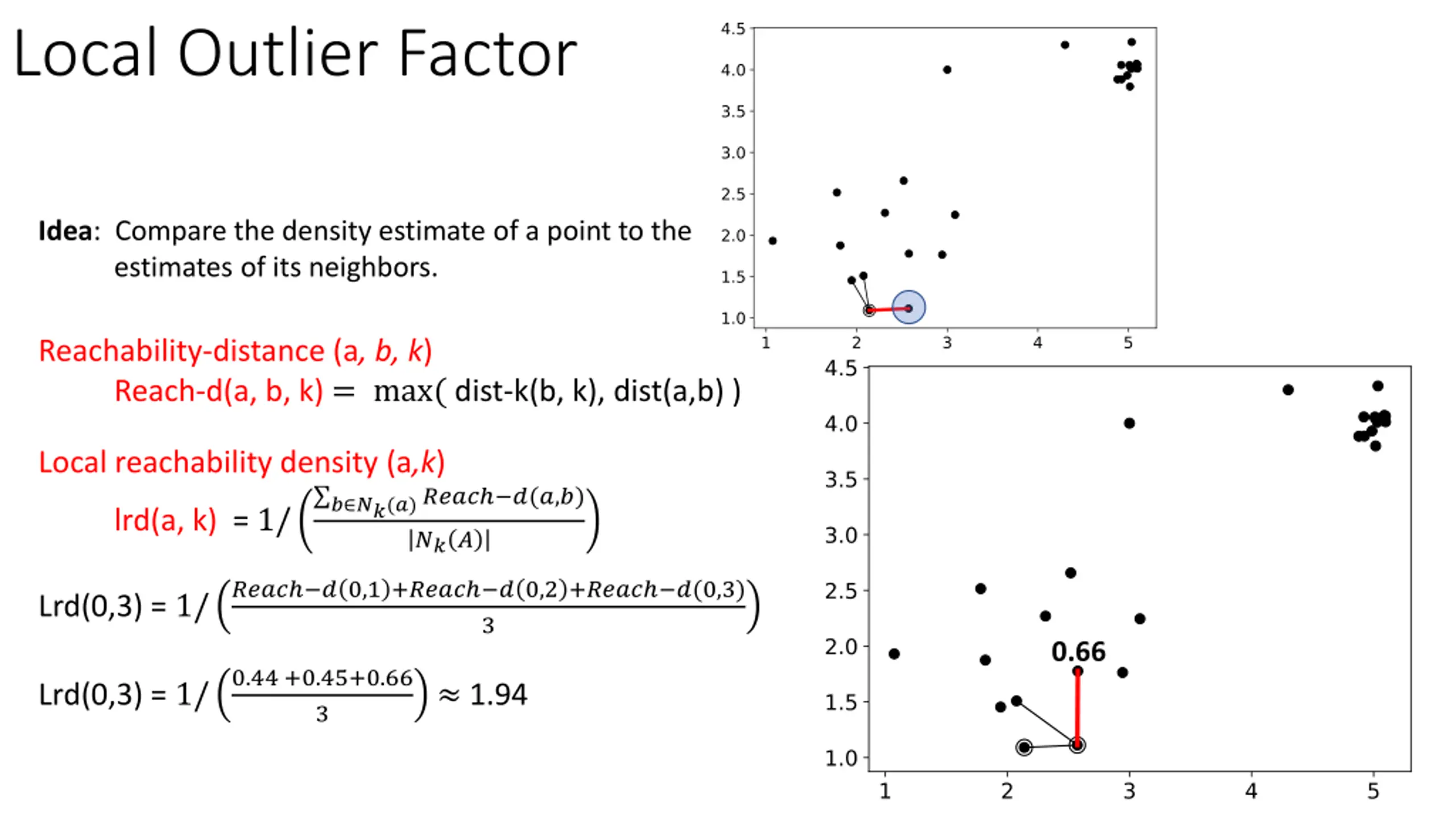

  13. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/

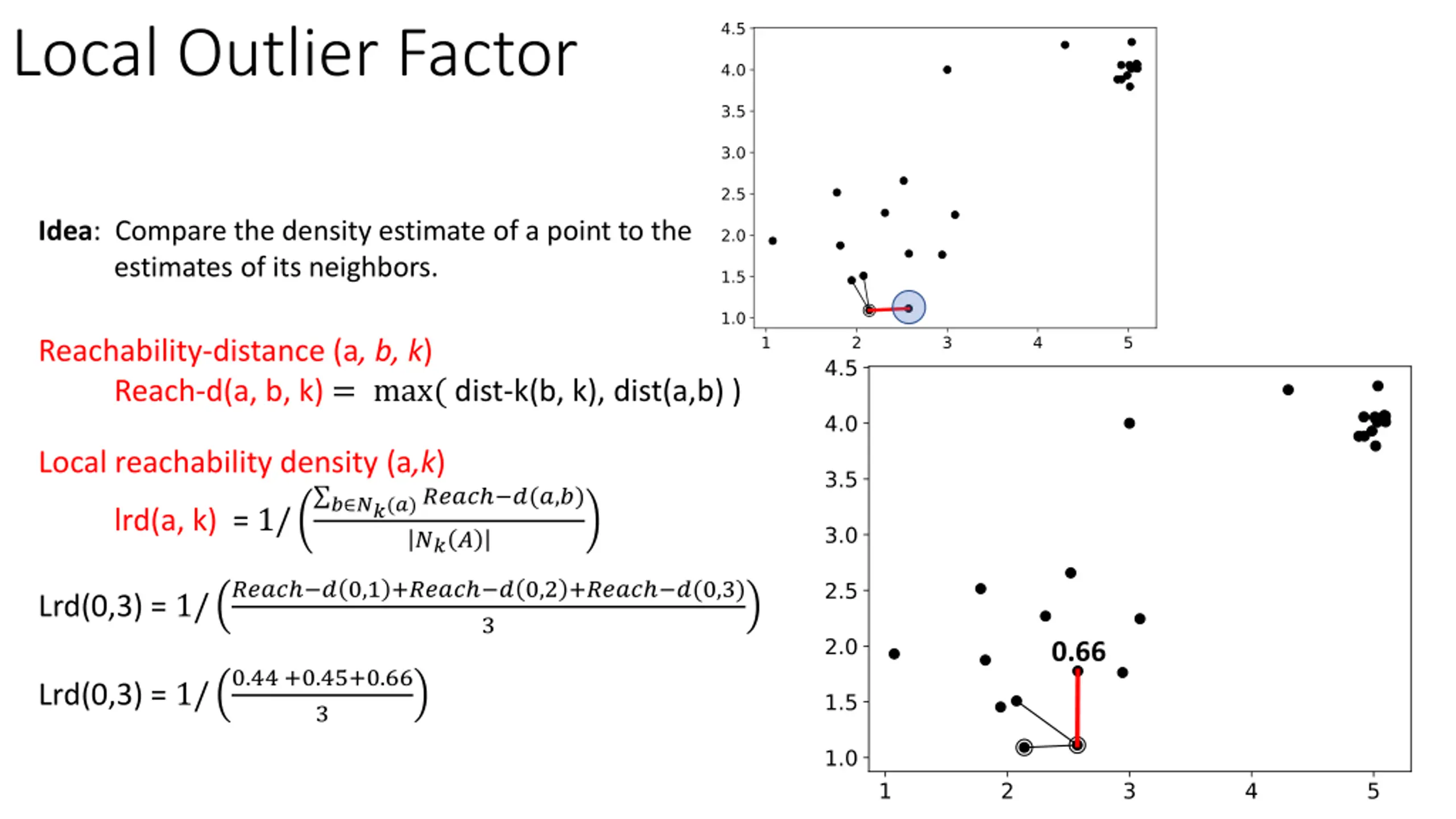

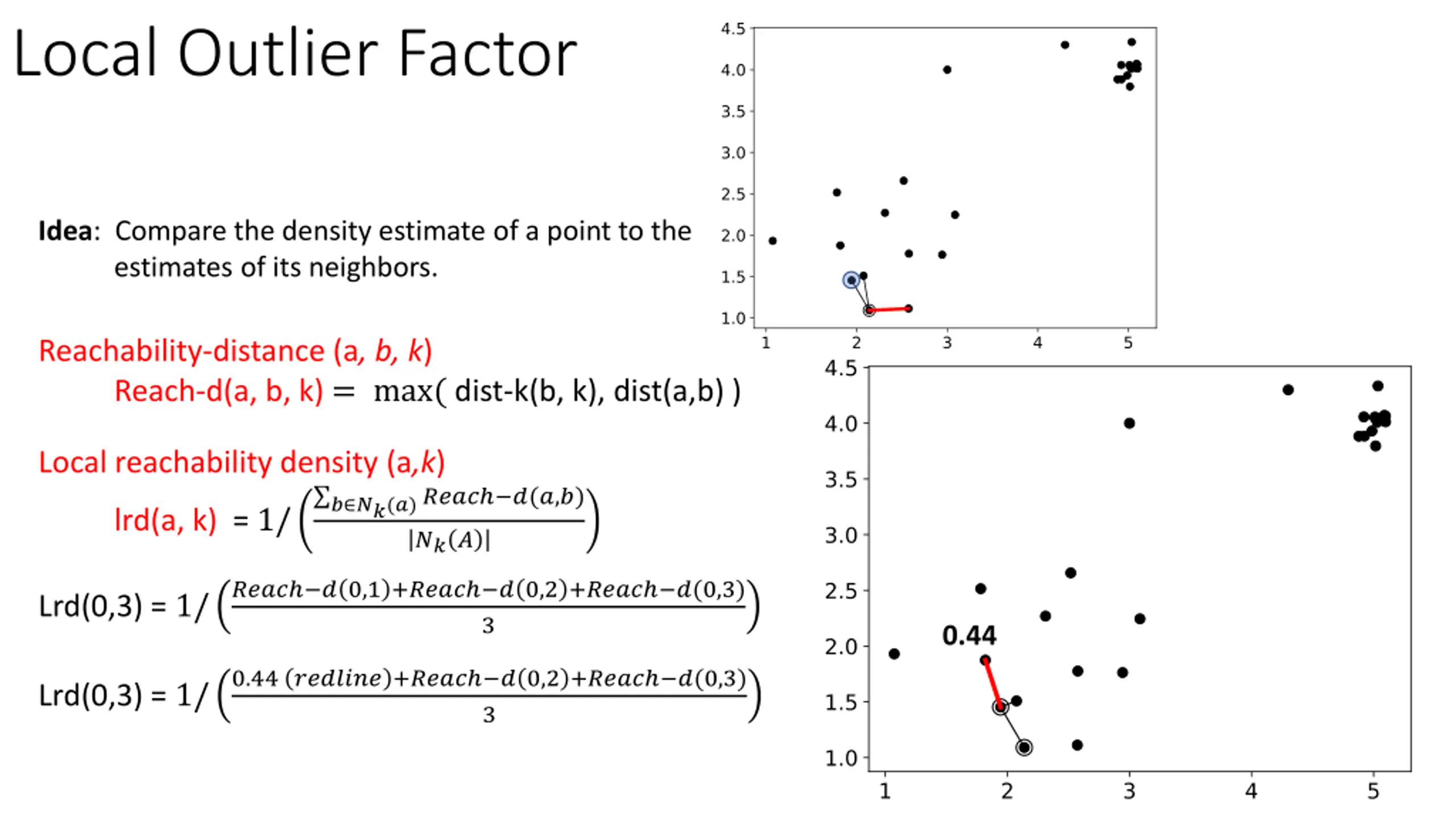

  14. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ ???? ? 0,1 +???? ? 0,2 +???? ?(0,3) 3 Lrd(0,3) = 1/ 0.44 0.44 ??????? +???? ? 0,2 +???? ?(0,3) 3 Lrd(0,3) = 1/

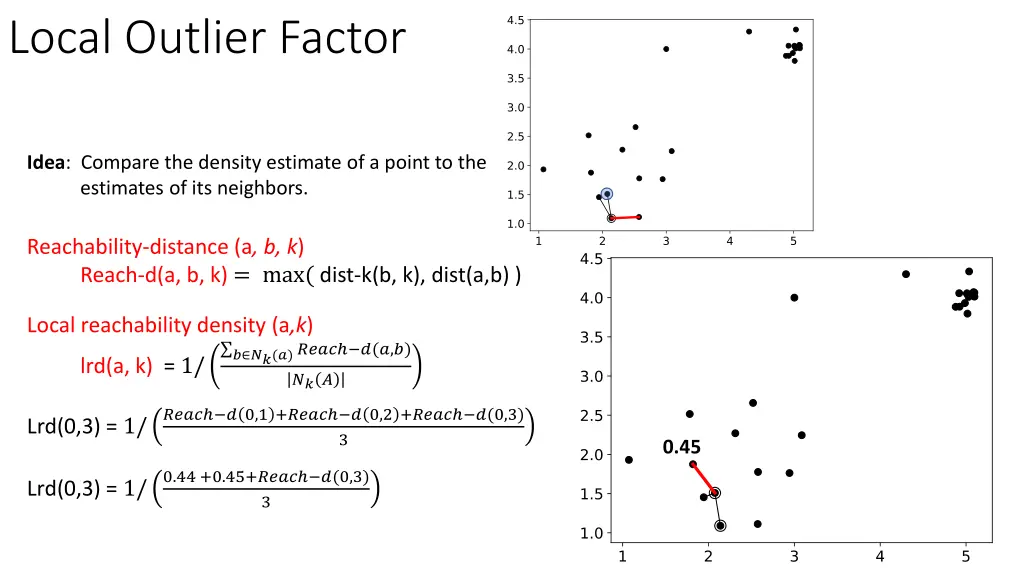

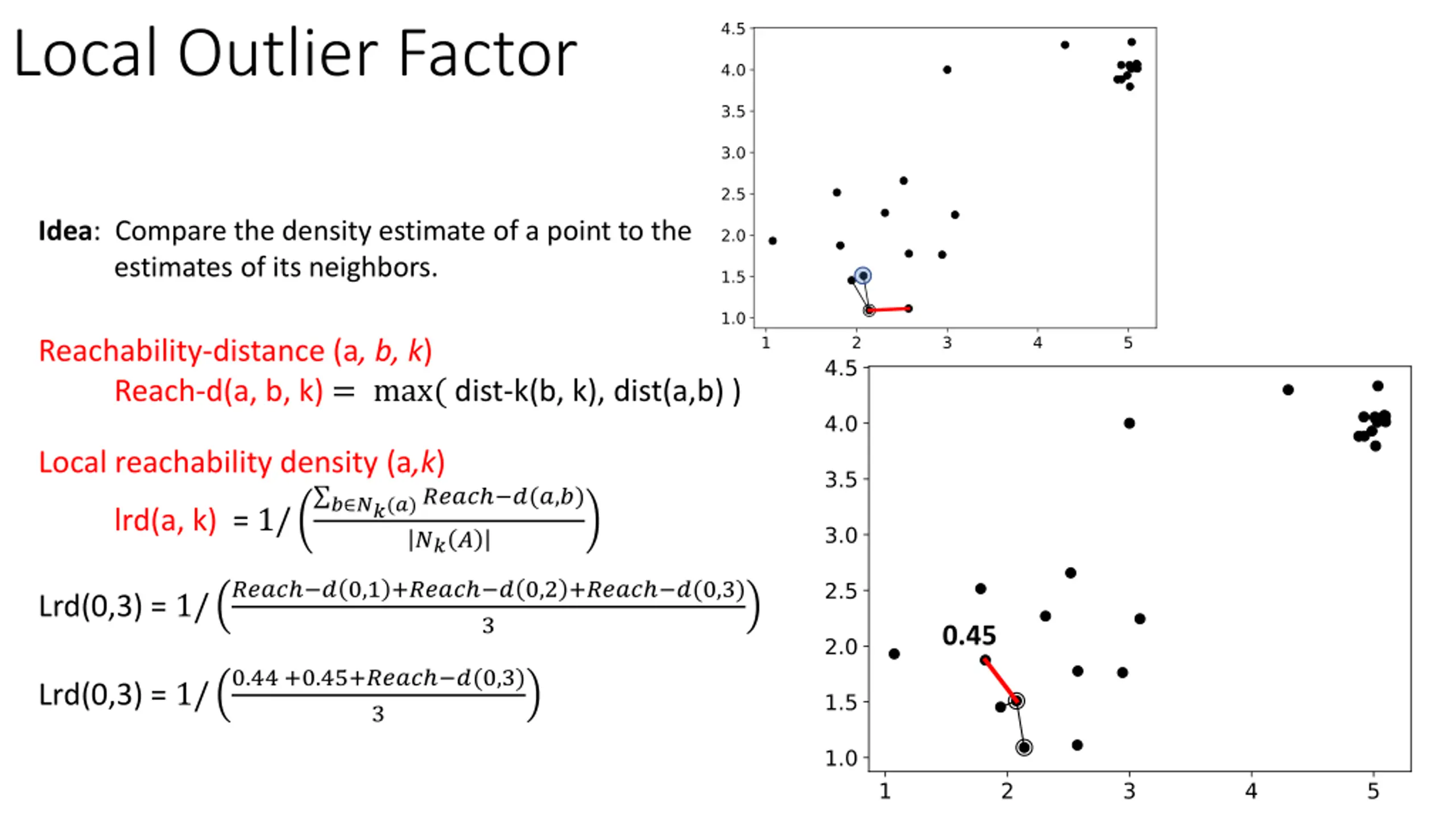

  15. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ ???? ? 0,1 +???? ? 0,2 +???? ?(0,3) 3 Lrd(0,3) = 1/ 0.45 0.44 +0.45+???? ?(0,3) 3 Lrd(0,3) = 1/

  16. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ ???? ? 0,1 +???? ? 0,2 +???? ?(0,3) 3 Lrd(0,3) = 1/ 0.66 0.44 +0.45+0.66 3 Lrd(0,3) = 1/

  17. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ ???? ? 0,1 +???? ? 0,2 +???? ?(0,3) 3 Lrd(0,3) = 1/ 0.66 0.44 +0.45+0.66 3 Lrd(0,3) = 1/ 1.94

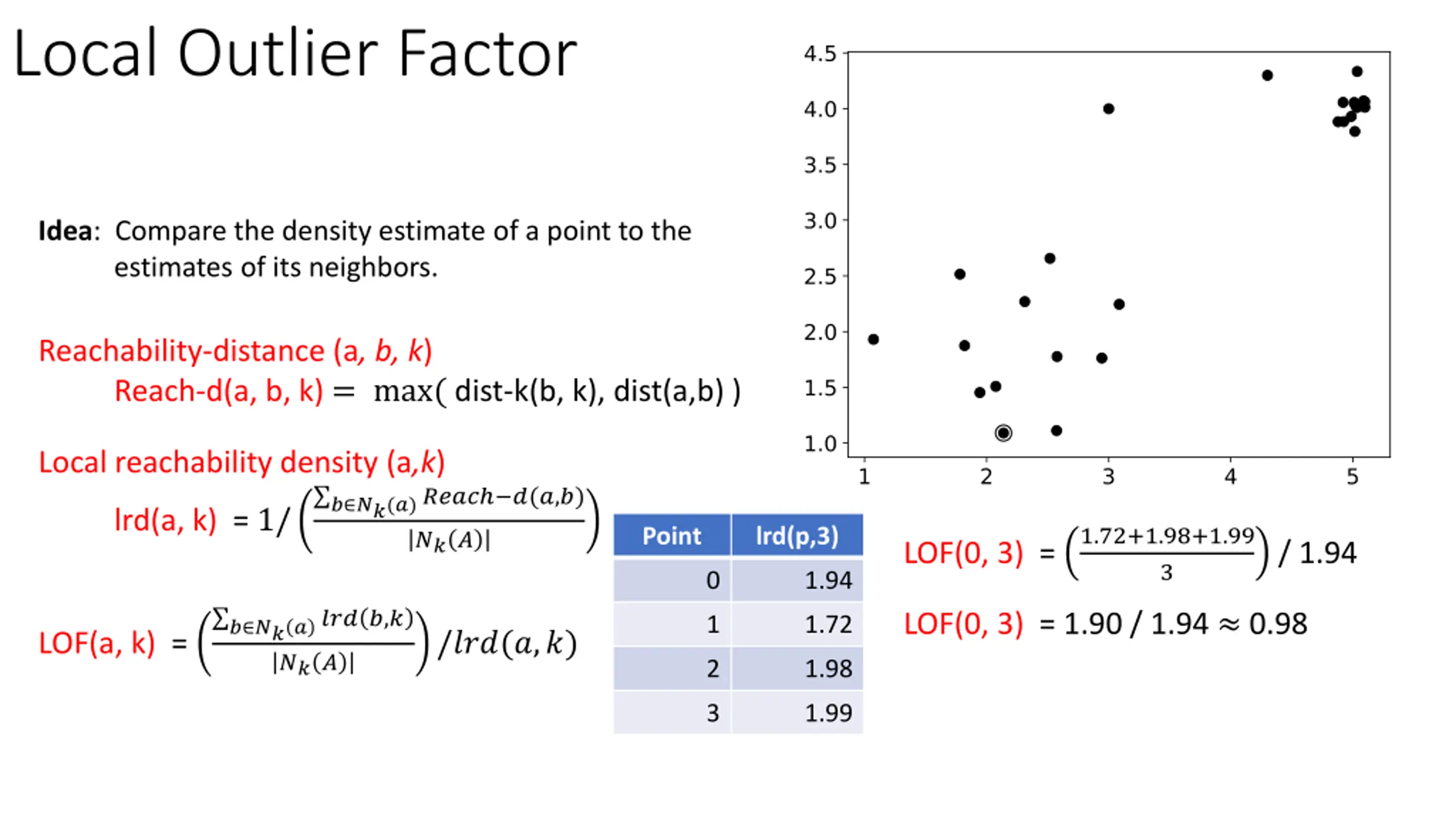

  18. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ ? ?????? ?,? ??? /???(?,?) LOF(a, k) =

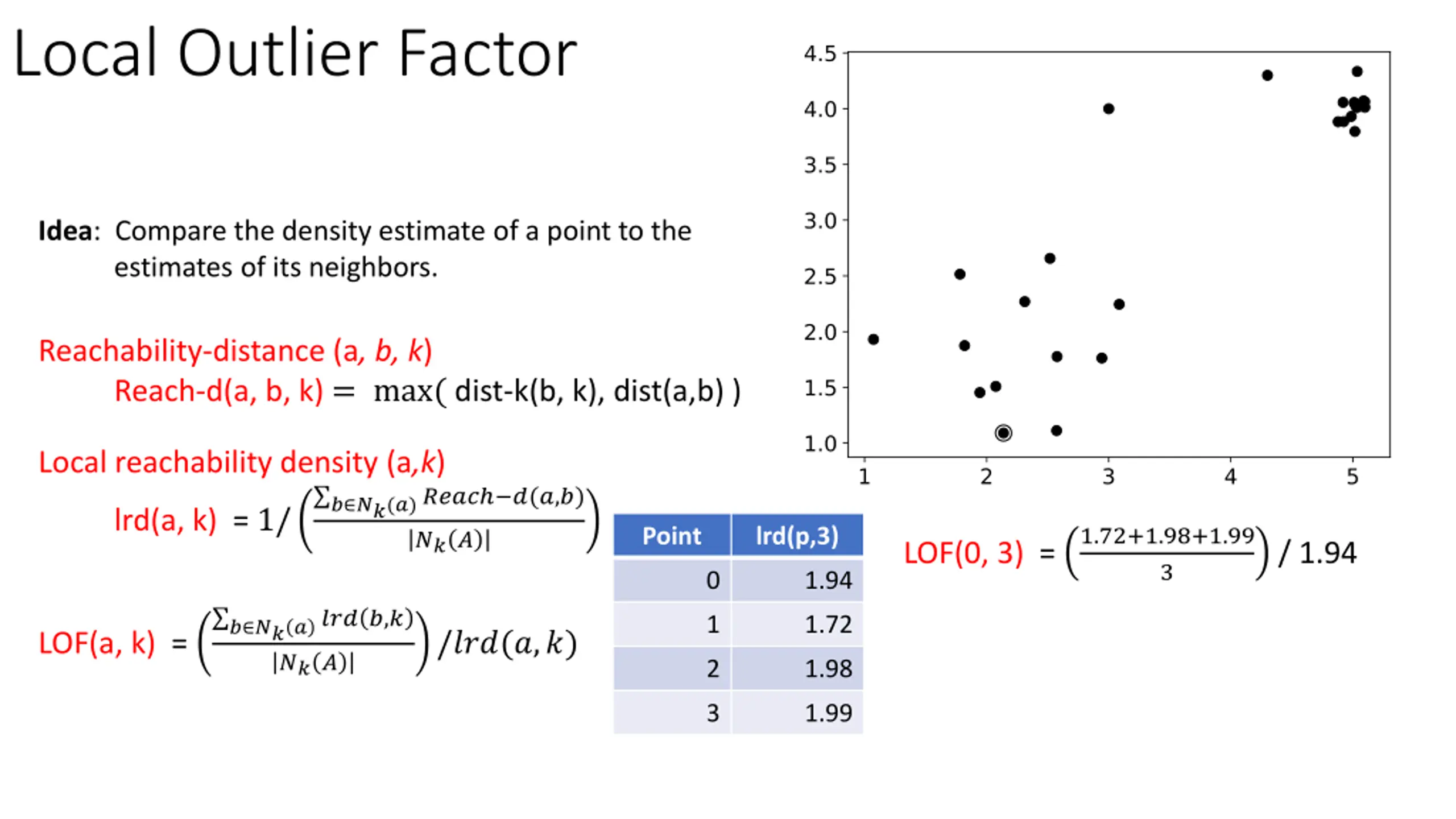

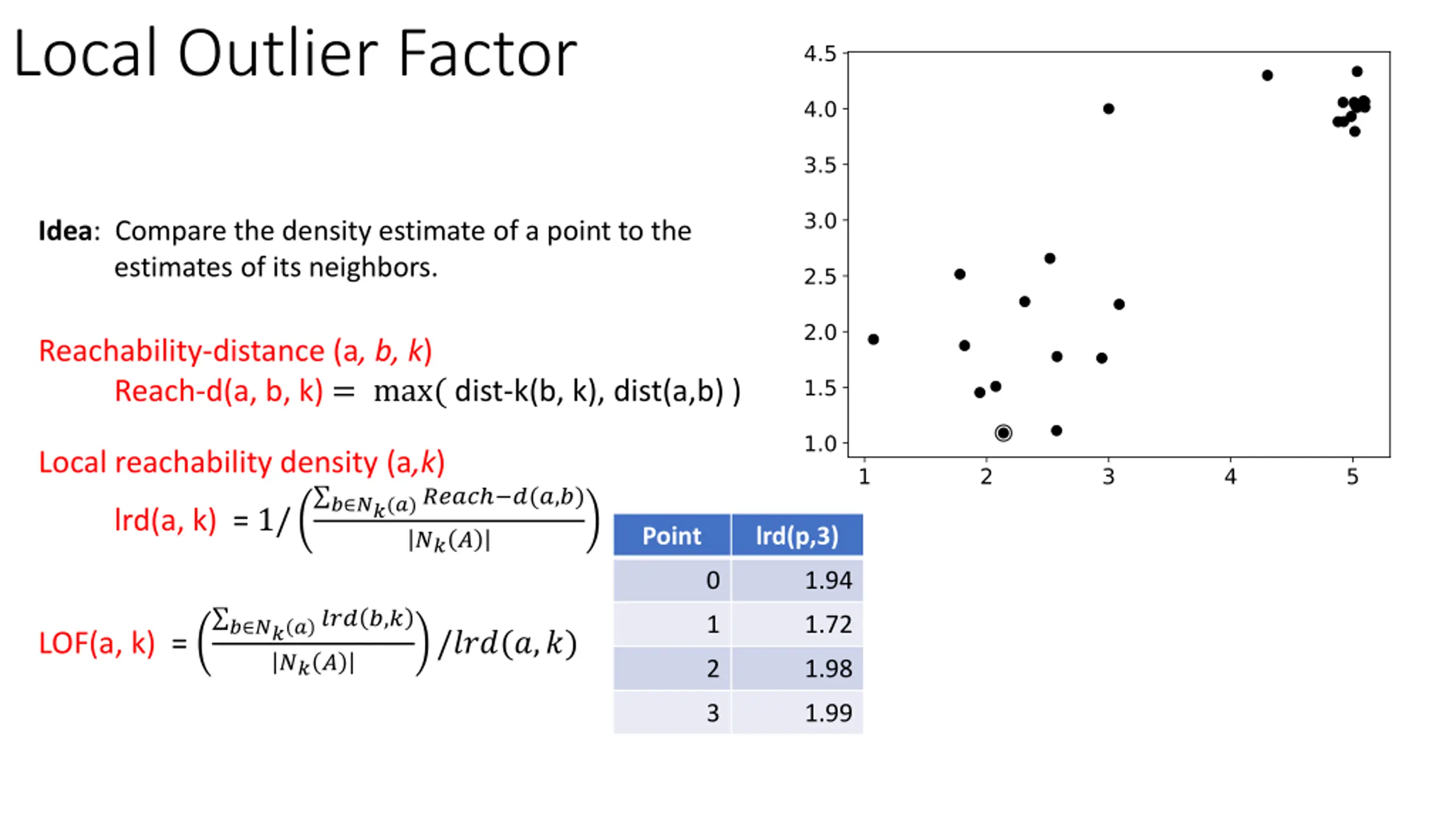

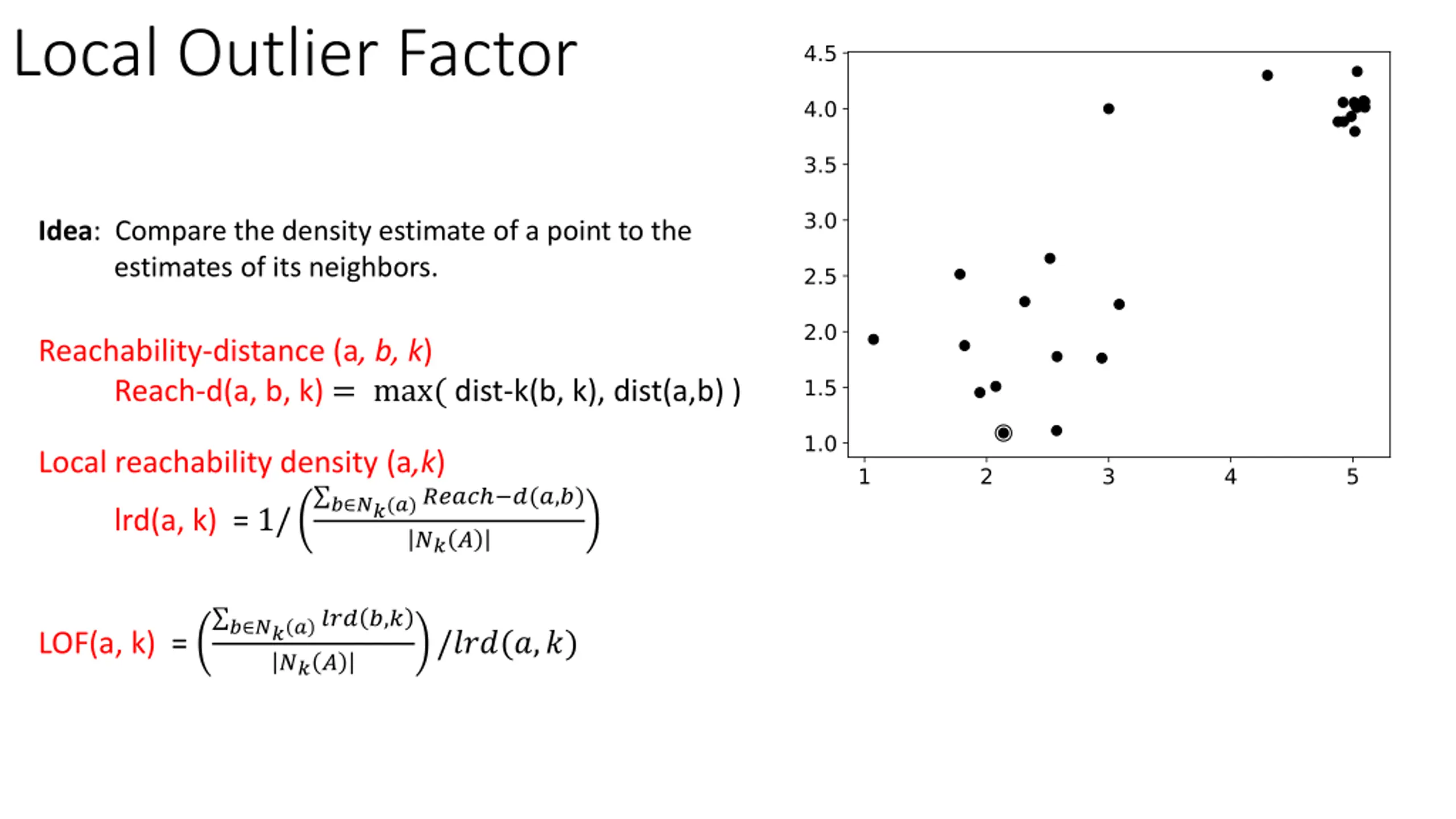

  19. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ Point lrd(p,3) 0 1.94 ? ?????? ?,? ??? 1 1.72 /???(?,?) LOF(a, k) = 2 1.98 3 1.99

  20. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ Point lrd(p,3) 1.72+1.98+1.99 3 LOF(0, 3) = / 1.94 0 1.94 ? ?????? ?,? ??? 1 1.72 /???(?,?) LOF(a, k) = 2 1.98 3 1.99

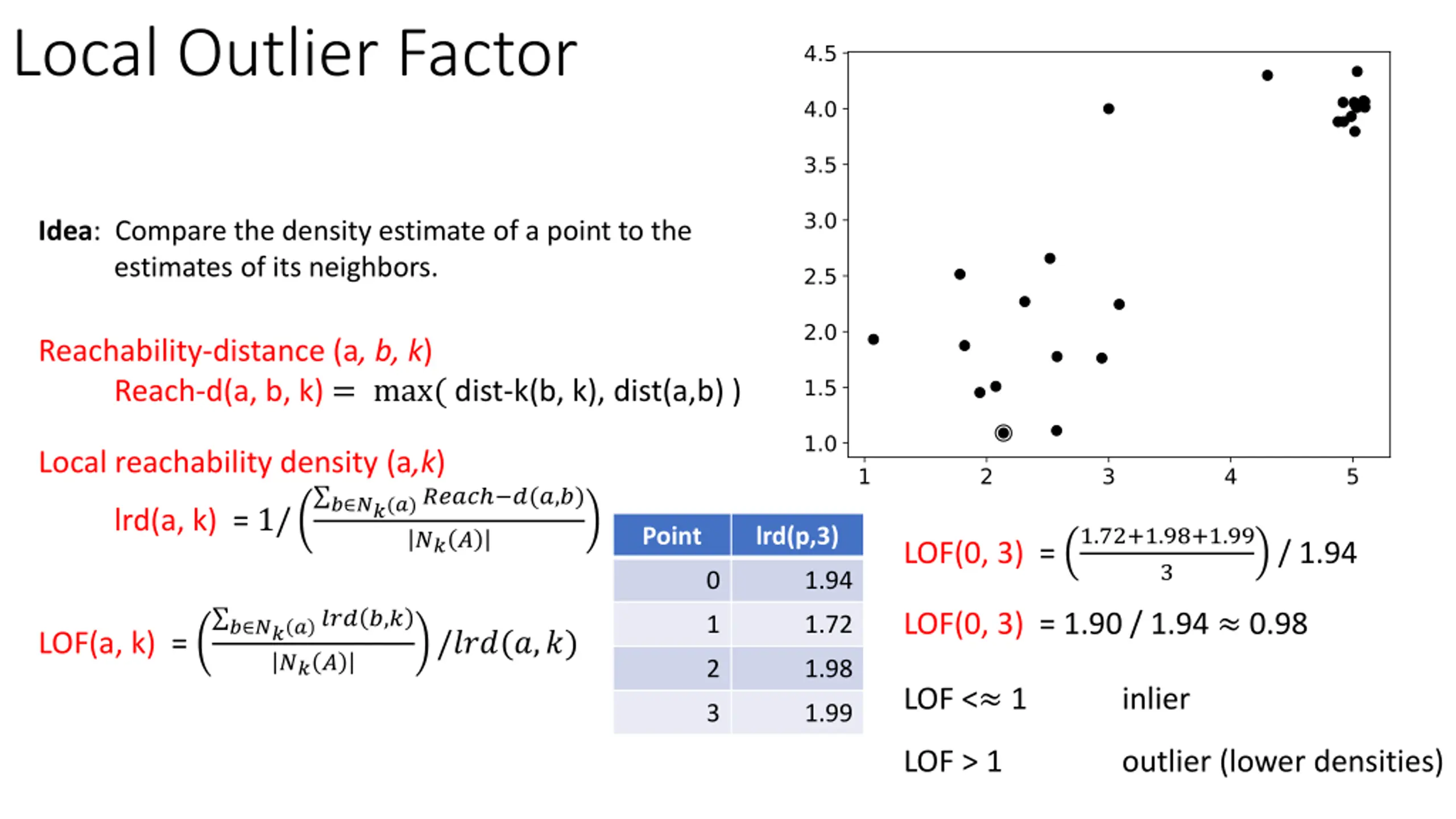

  21. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ Point lrd(p,3) 1.72+1.98+1.99 3 LOF(0, 3) = / 1.94 0 1.94 ? ?????? ?,? ??? LOF(0, 3) = 1.90 / 1.94 0.98 1 1.72 /???(?,?) LOF(a, k) = 2 1.98 3 1.99

  22. Local Outlier Factor Idea: Compare the density estimate of a point to the estimates of its neighbors. Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) Local reachability density (a,k) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/ Point lrd(p,3) 1.72+1.98+1.99 3 LOF(0, 3) = / 1.94 0 1.94 ? ?????? ?,? ??? LOF(0, 3) = 1.90 / 1.94 0.98 1 1.72 /???(?,?) LOF(a, k) = 2 1.98 LOF < 1 inlier 3 1.99 LOF > 1 outlier (lower densities)

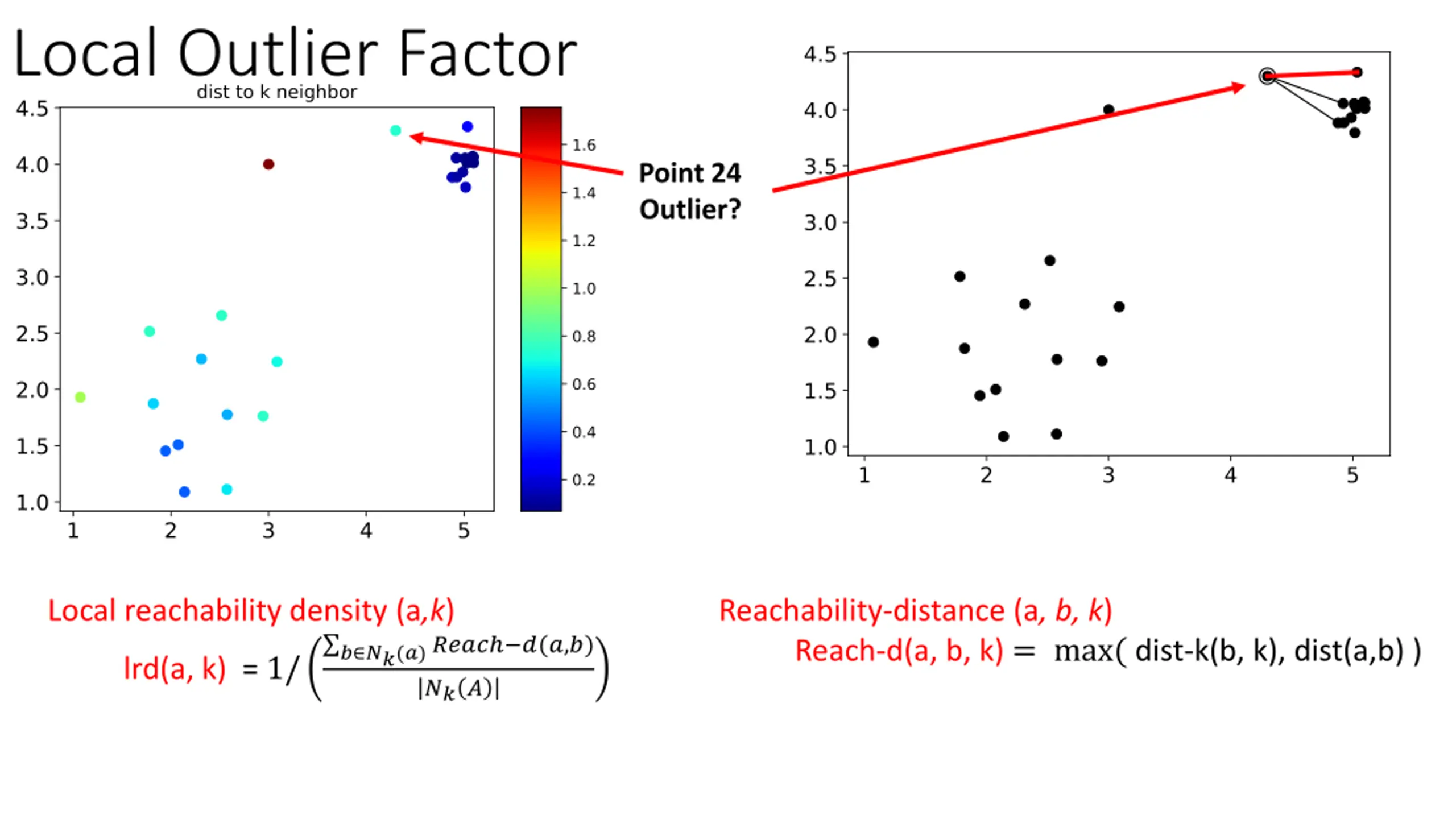

  23. Local Outlier Factor Point 24 Outlier? Local reachability density (a,k) Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/

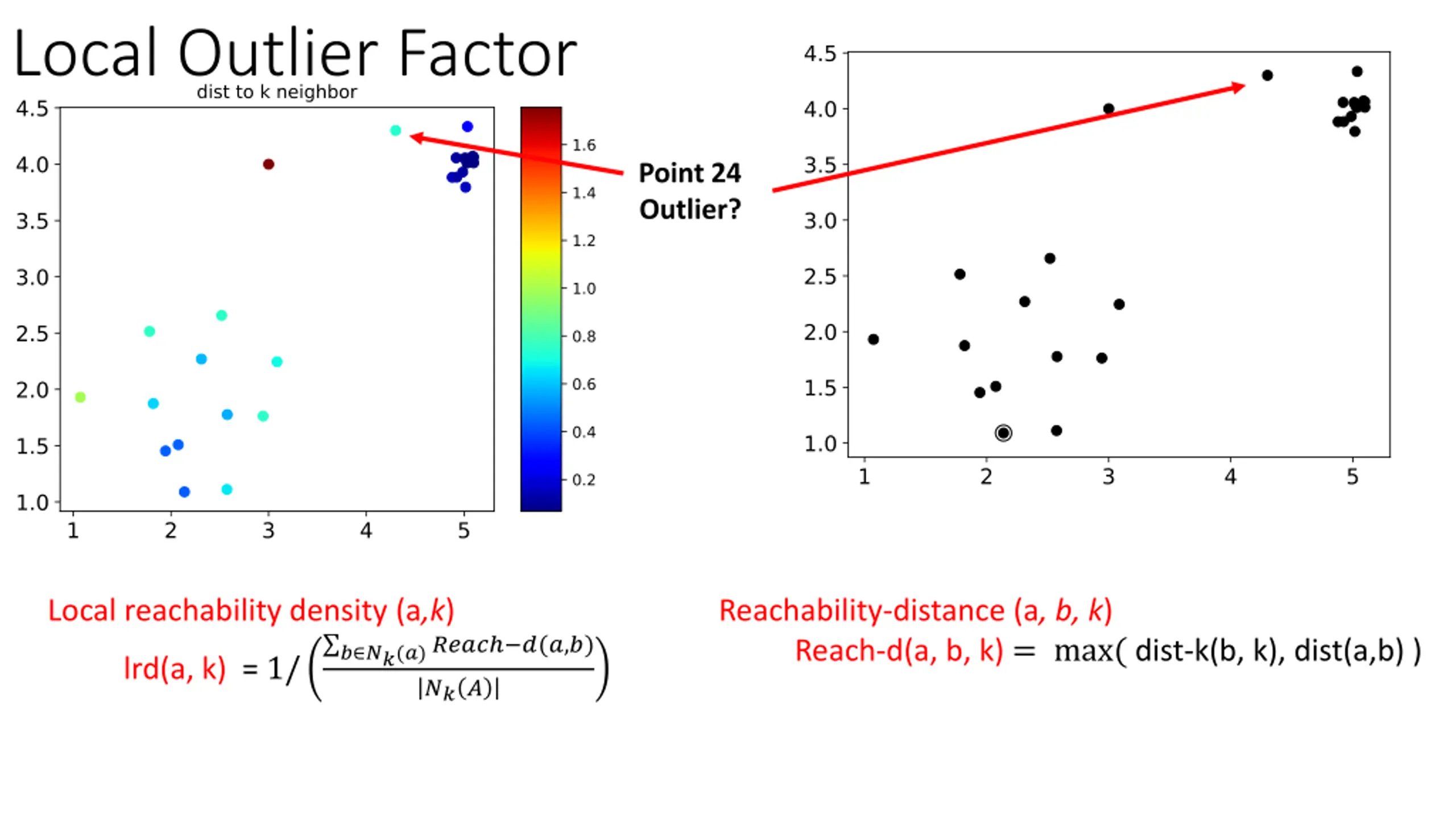

  24. Local Outlier Factor Point 24 Outlier? Local reachability density (a,k) Reachability-distance (a, b, k) Reach-d(a, b, k) = max( dist-k(b, k), dist(a,b) ) ? ??(?)???? ?(?,?) ??? lrd(a, k) = 1/

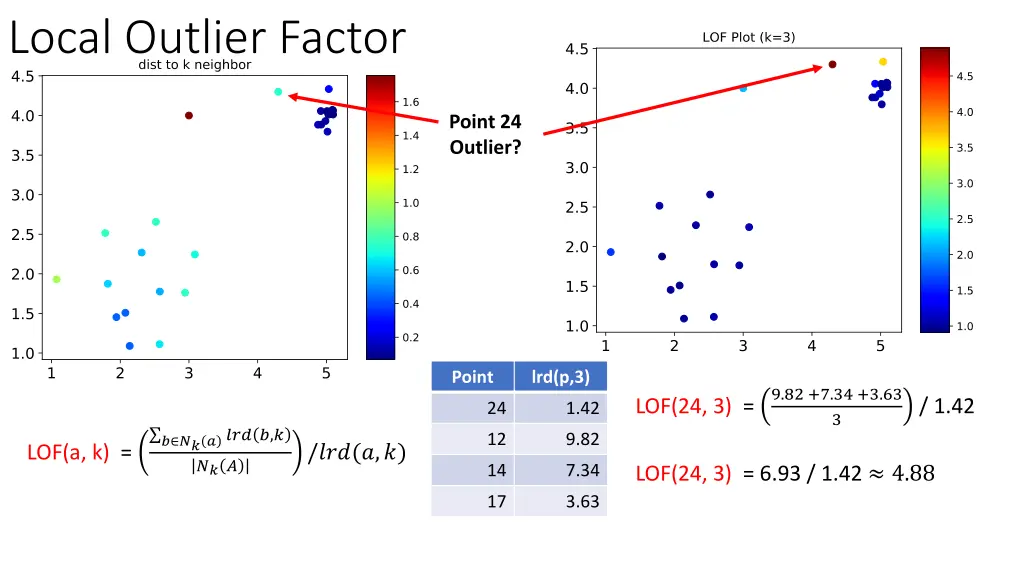

  25. Local Outlier Factor Point 24 Outlier? Point lrd(p,3) 9.82 +7.34 +3.63 3 LOF(24, 3) = / 1.42 24 1.42 ? ?????? ?,? ??? 12 9.82 /???(?,?) LOF(a, k) = 14 7.34 LOF(24, 3) = 6.93 / 1.42 4.88 17 3.63

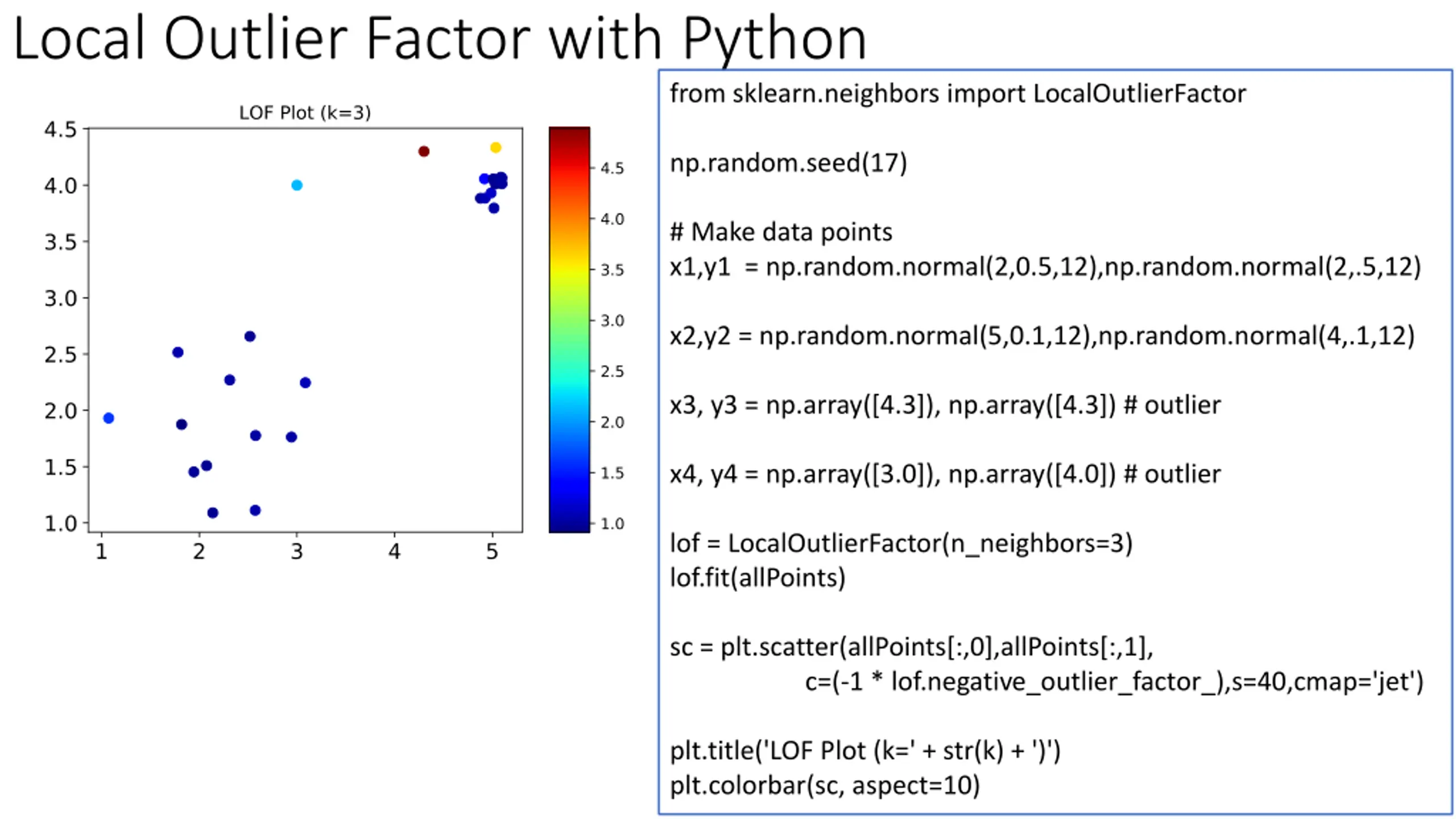

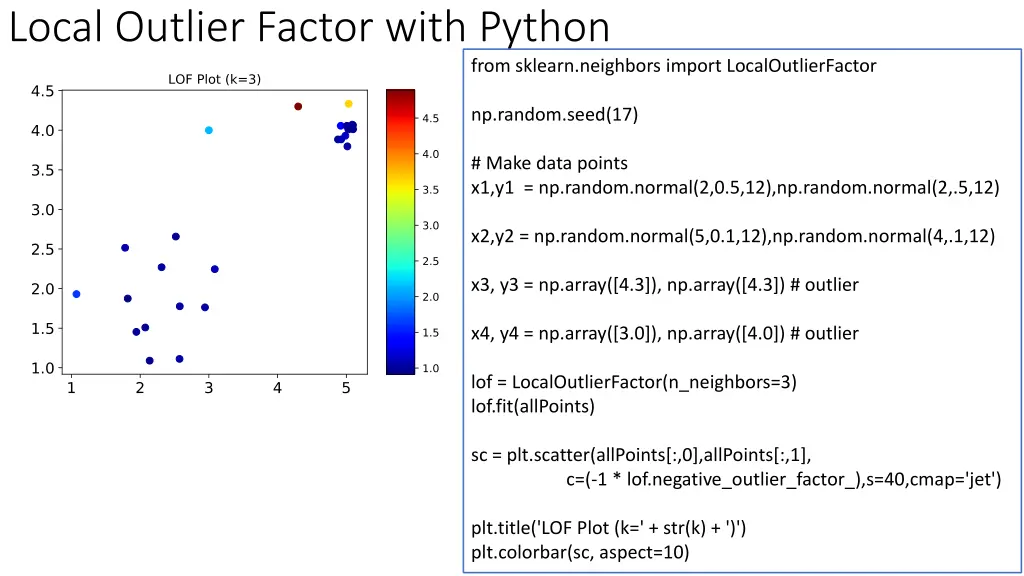

  26. Local Outlier Factor with Python from sklearn.neighbors import LocalOutlierFactor np.random.seed(17) # Make data points x1,y1 = np.random.normal(2,0.5,12),np.random.normal(2,.5,12) x2,y2 = np.random.normal(5,0.1,12),np.random.normal(4,.1,12) x3, y3 = np.array([4.3]), np.array([4.3]) # outlier x4, y4 = np.array([3.0]), np.array([4.0]) # outlier lof = LocalOutlierFactor(n_neighbors=3) lof.fit(allPoints) sc = plt.scatter(allPoints[:,0],allPoints[:,1], c=(-1 * lof.negative_outlier_factor_),s=40,cmap='jet') plt.title('LOF Plot (k=' + str(k) + ')') plt.colorbar(sc, aspect=10)

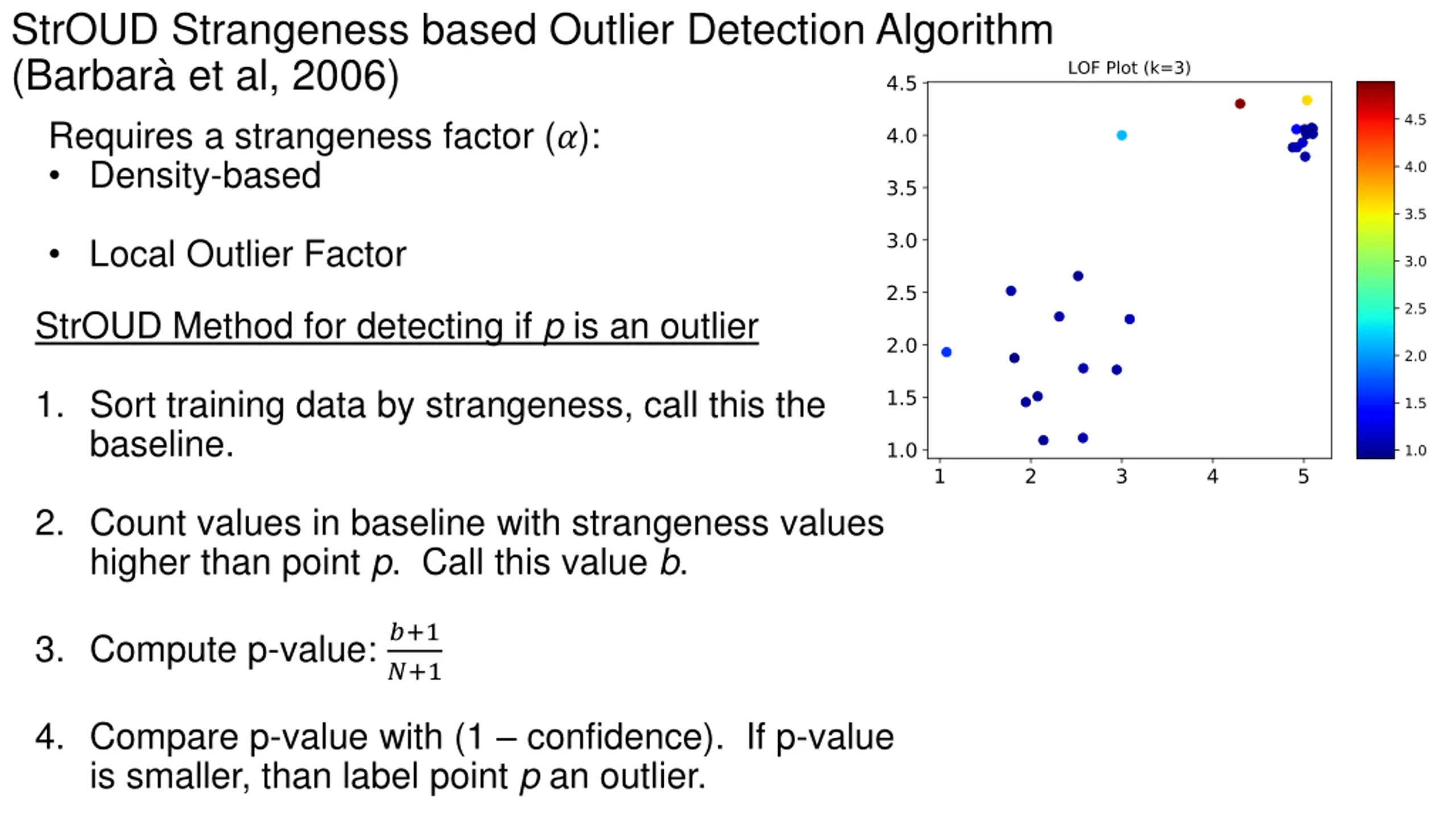

  27. StrOUD Strangeness based Outlier Detection Algorithm (Barbar et al, 2006) Requires a strangeness factor (?): Density-based Local Outlier Factor StrOUD Method for detecting if p is an outlier 1. Sort training data by strangeness, call this the baseline. 2. Count values in baseline with strangeness values higher than point p. Call this value b. 3. Compute p-value: ?+1 ?+1 4. Compare p-value with (1 confidence). If p-value is smaller, than label point p an outlier.

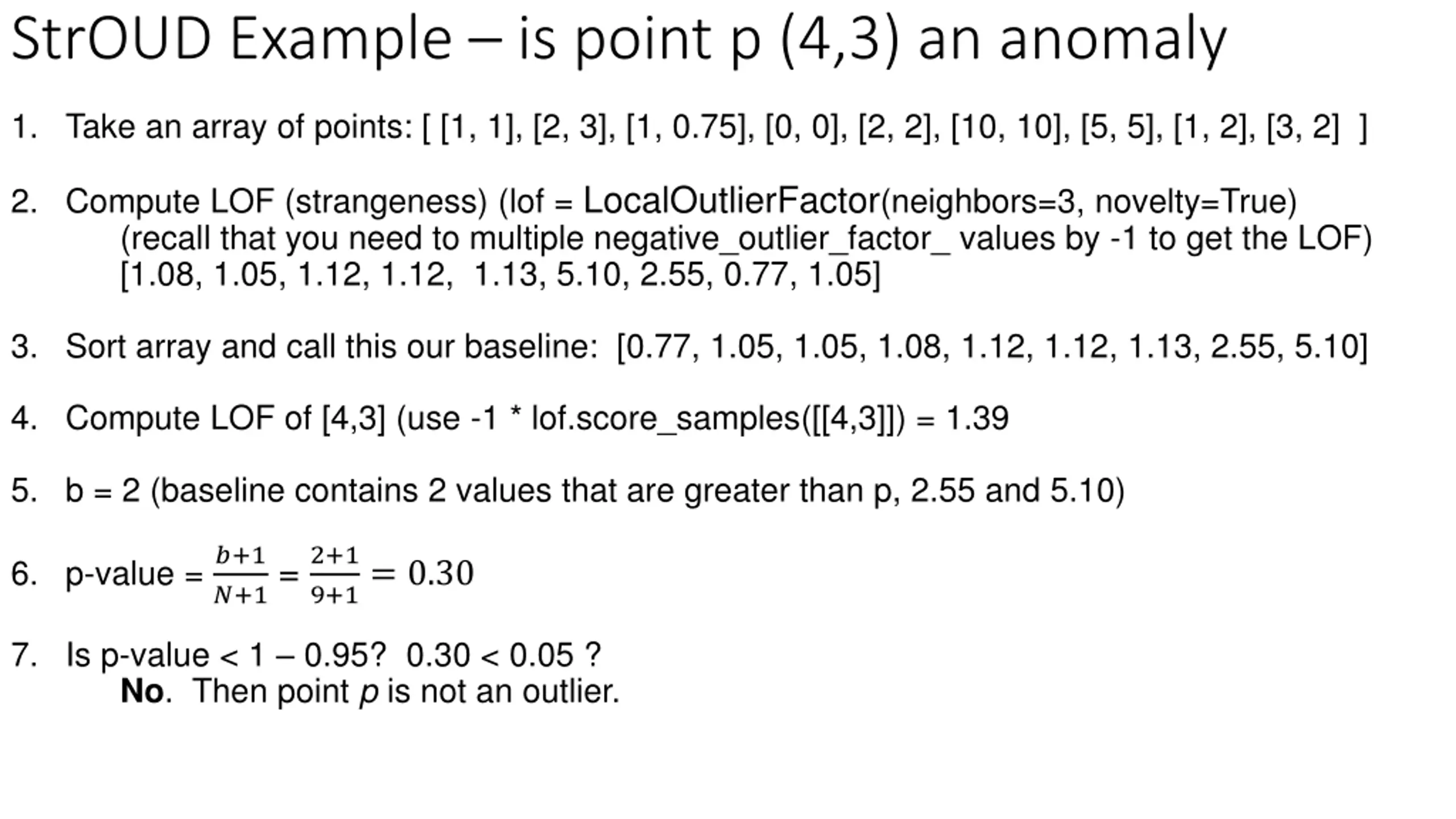

  28. StrOUD Example is point p (4,3) an anomaly 1. Take an array of points: [ [1, 1], [2, 3], [1, 0.75], [0, 0], [2, 2], [10, 10], [5, 5], [1, 2], [3, 2] ] 2. Compute LOF (strangeness) (lof = LocalOutlierFactor(neighbors=3, novelty=True) (recall that you need to multiple negative_outlier_factor_ values by -1 to get the LOF) [1.08, 1.05, 1.12, 1.12, 1.13, 5.10, 2.55, 0.77, 1.05] 3. Sort array and call this our baseline: [0.77, 1.05, 1.05, 1.08, 1.12, 1.12, 1.13, 2.55, 5.10] 4. Compute LOF of [4,3] (use -1 * lof.score_samples([[4,3]]) = 1.39 5. b = 2 (baseline contains 2 values that are greater than p, 2.55 and 5.10) 6. p-value = ?+1 ?+1 = 2+1 9+1= 0.30 7. Is p-value < 1 0.95? 0.30 < 0.05 ? No. Then point p is not an outlier.
