Deploying Tango Device Servers with Ansible Benjamin Bertrand

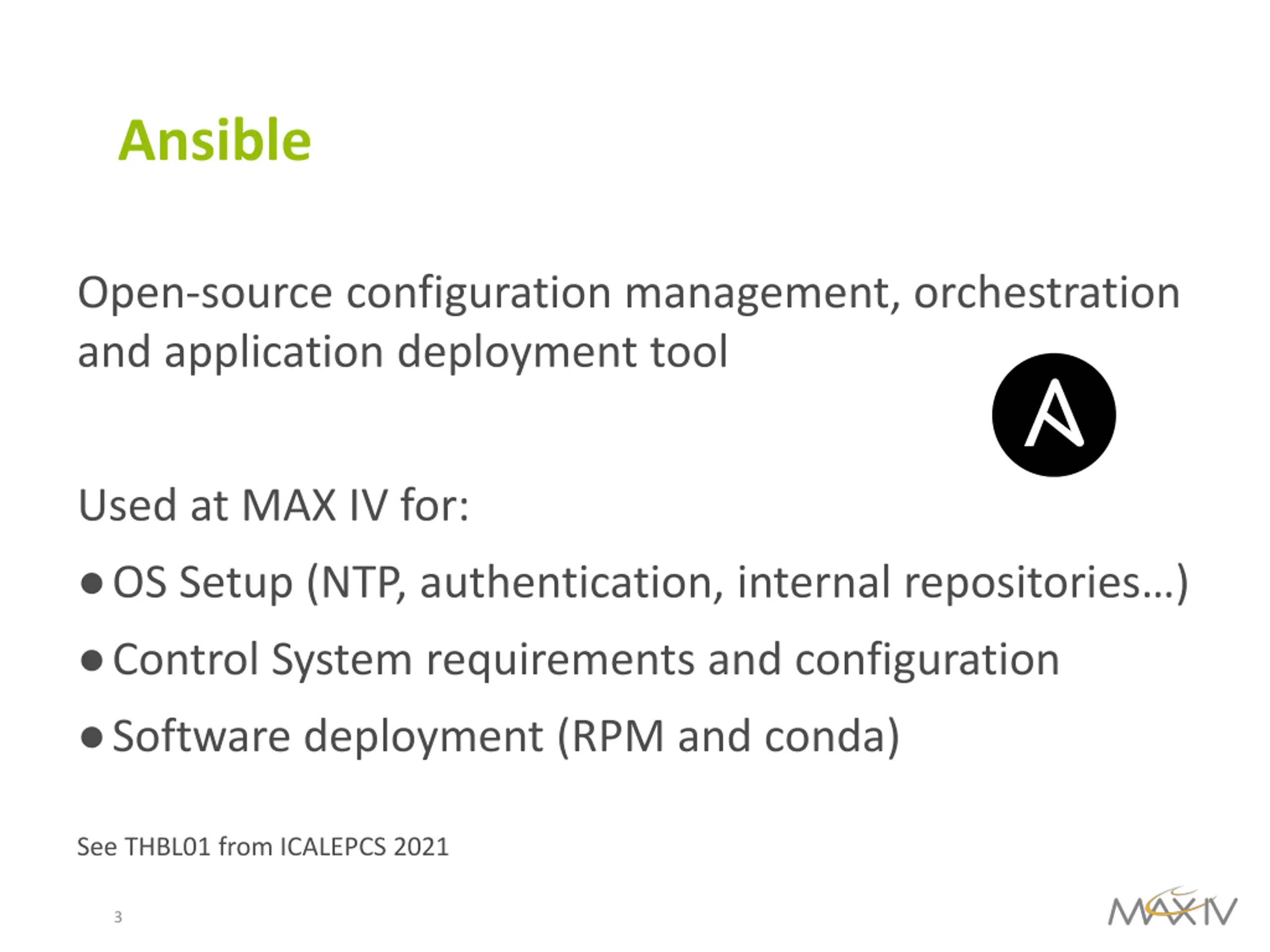

Ansible Open-source configuration management, orchestration and application deployment tool Used at MAX IV for: OS Setup (NTP, authentication, internal repositories ) Control System requirements and configuration Software deployment (RPM and conda) See THBL01 from ICALEPCS 2021 3

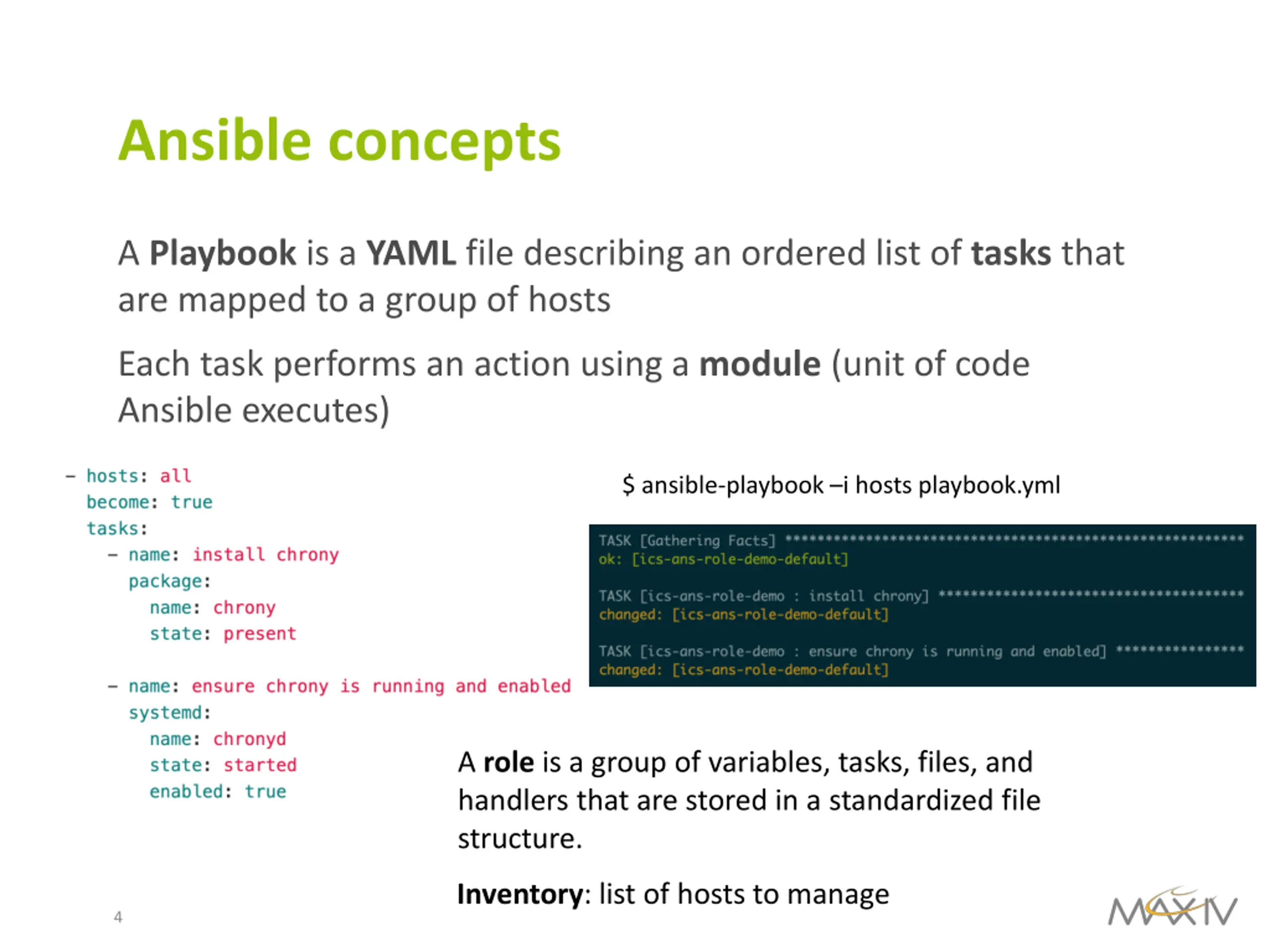

Ansible concepts A Playbook is a YAML file describing an ordered list of tasks that are mapped to a group of hosts Each task performs an action using a module (unit of code Ansible executes) $ ansible-playbook i hosts playbook.yml A role is a group of variables, tasks, files, and handlers that are stored in a standardized file structure. Inventory: list of hosts to manage 4

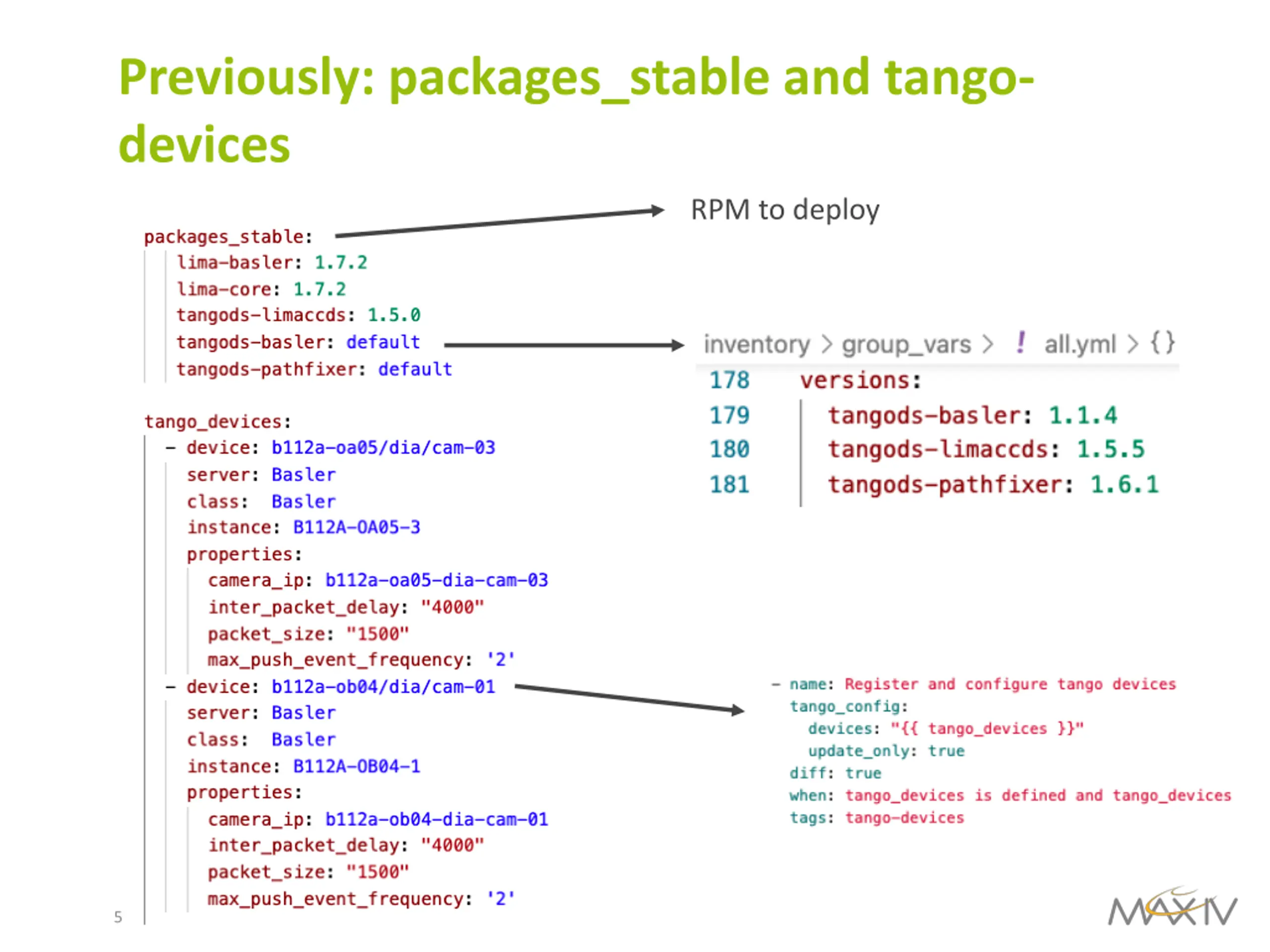

Previously: packages_stable and tango- devices RPM to deploy 5

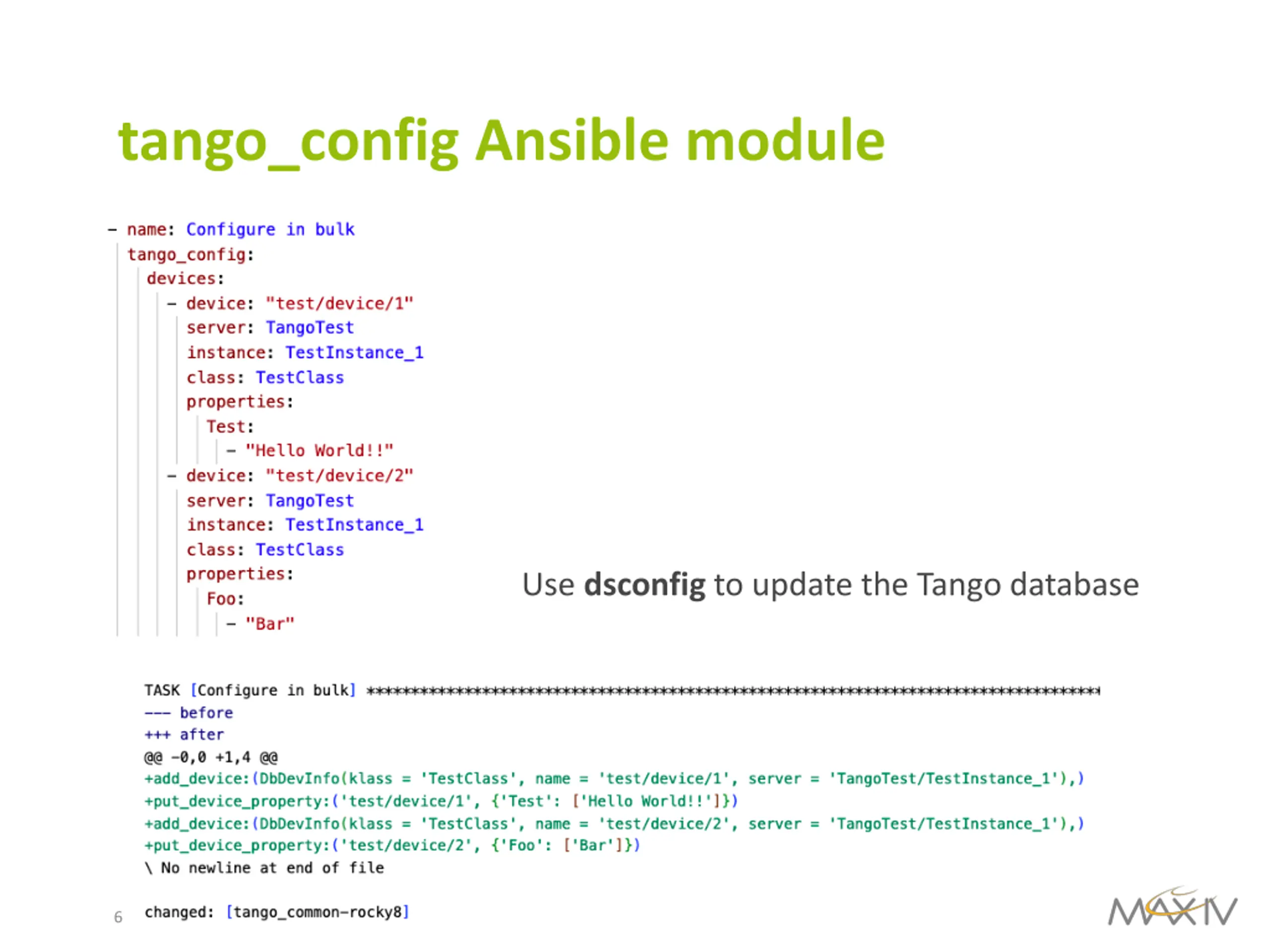

tango_config Ansible module Use dsconfig to update the Tango database 6

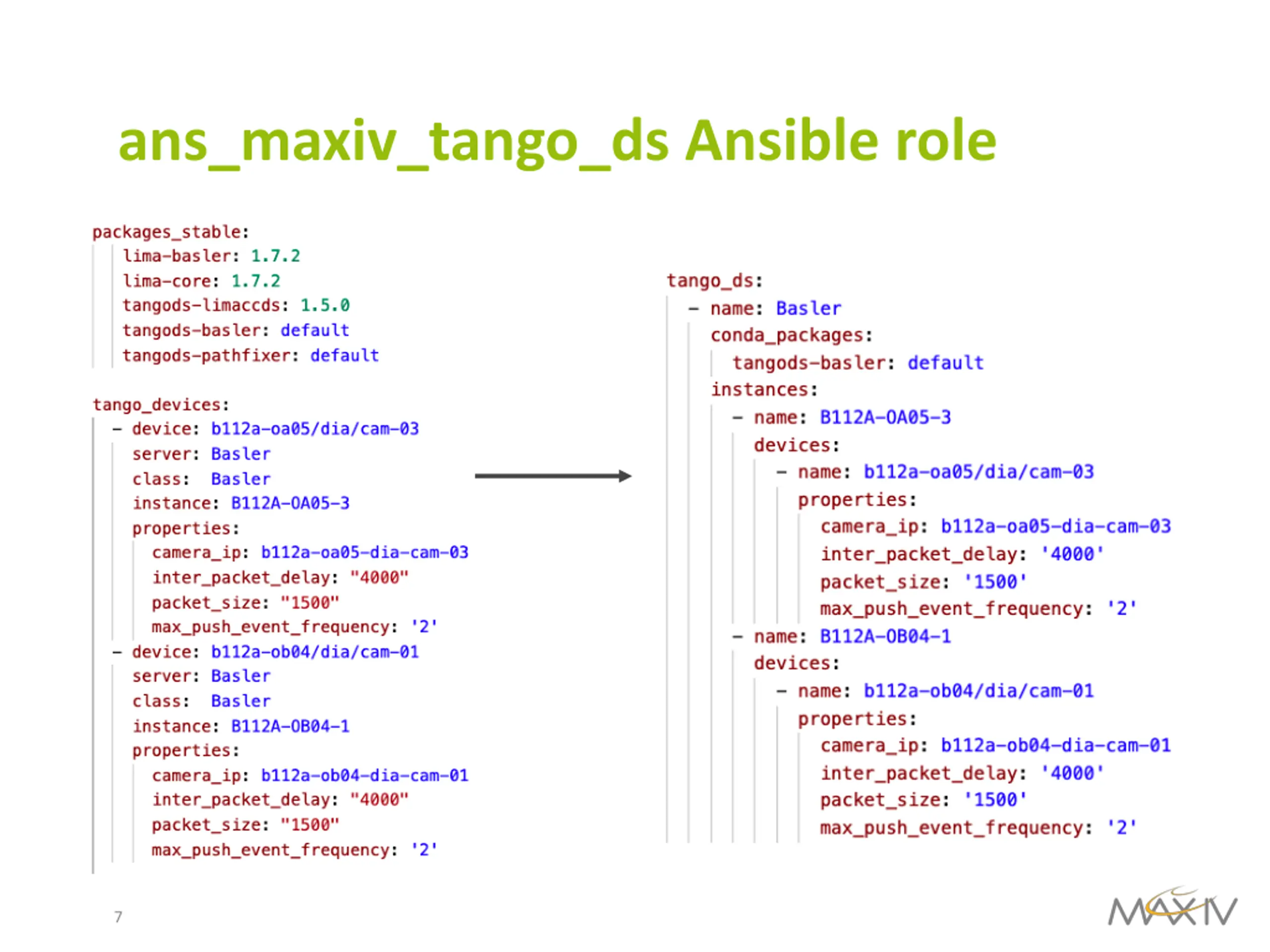

ans_maxiv_tango_ds Ansible role No link between the packages and tango devices 7

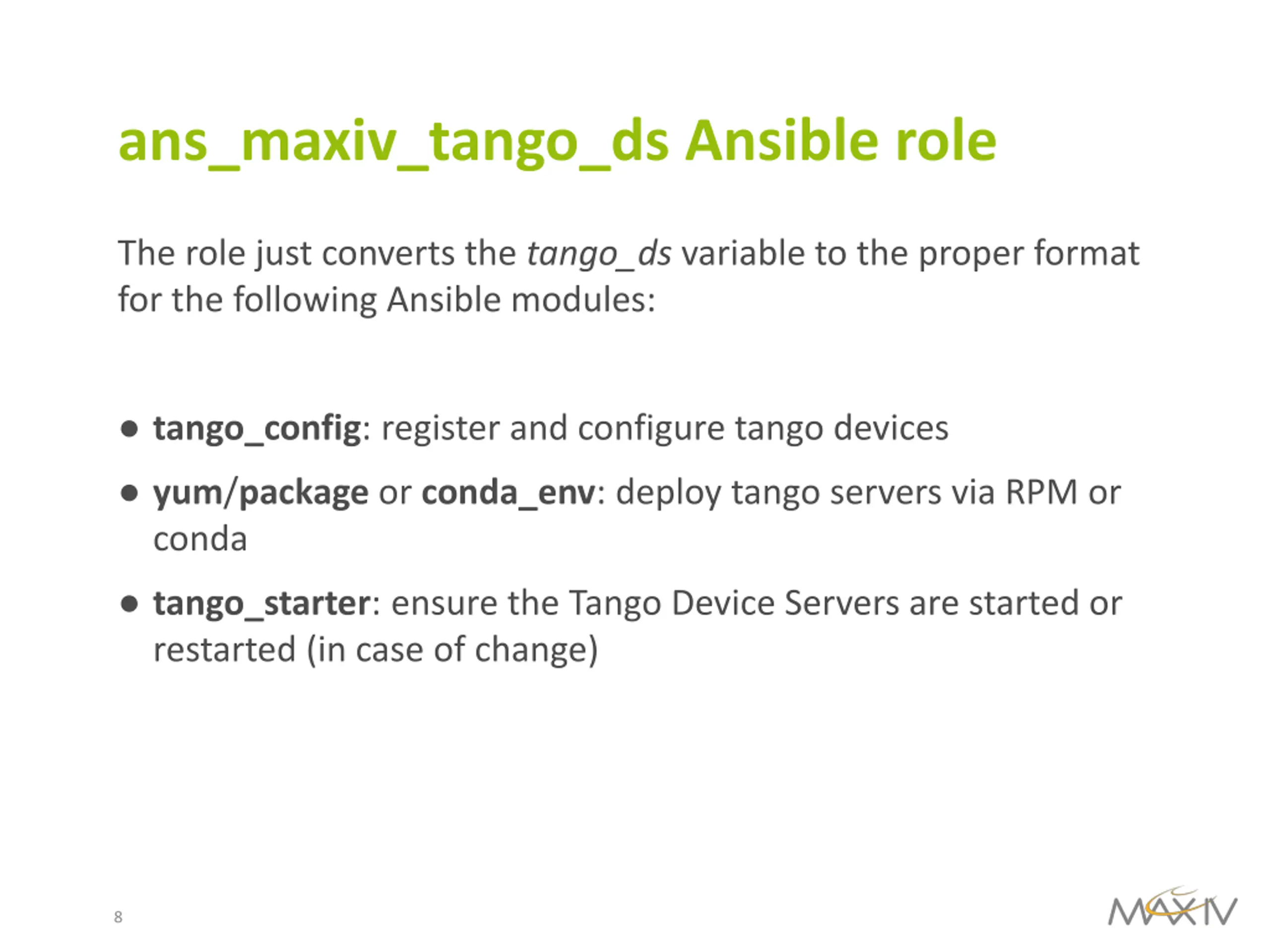

ans_maxiv_tango_ds Ansible role The role just converts the tango_ds variable to the proper format for the following Ansible modules: tango_config: register and configure tango devices yum/package or conda_env: deploy tango servers via RPM or conda tango_starter: ensure the Tango Device Servers are started or restarted (in case of change) 8

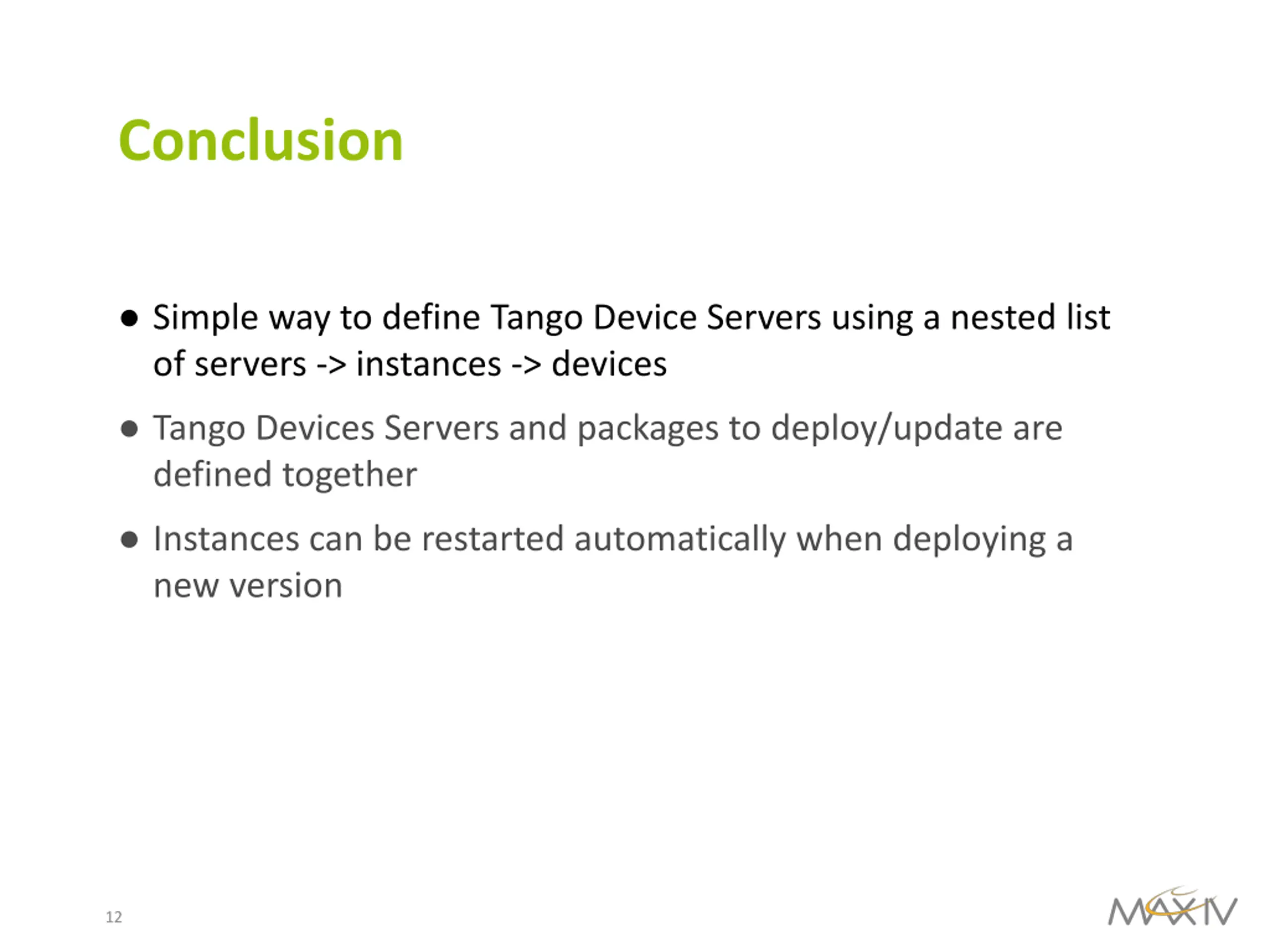

Conclusion Simple way to define Tango Device Servers using a nested list of servers -> instances -> devices Tango Devices Servers and packages to deploy/update are defined together Instances can be restarted automatically when deploying a new version 12

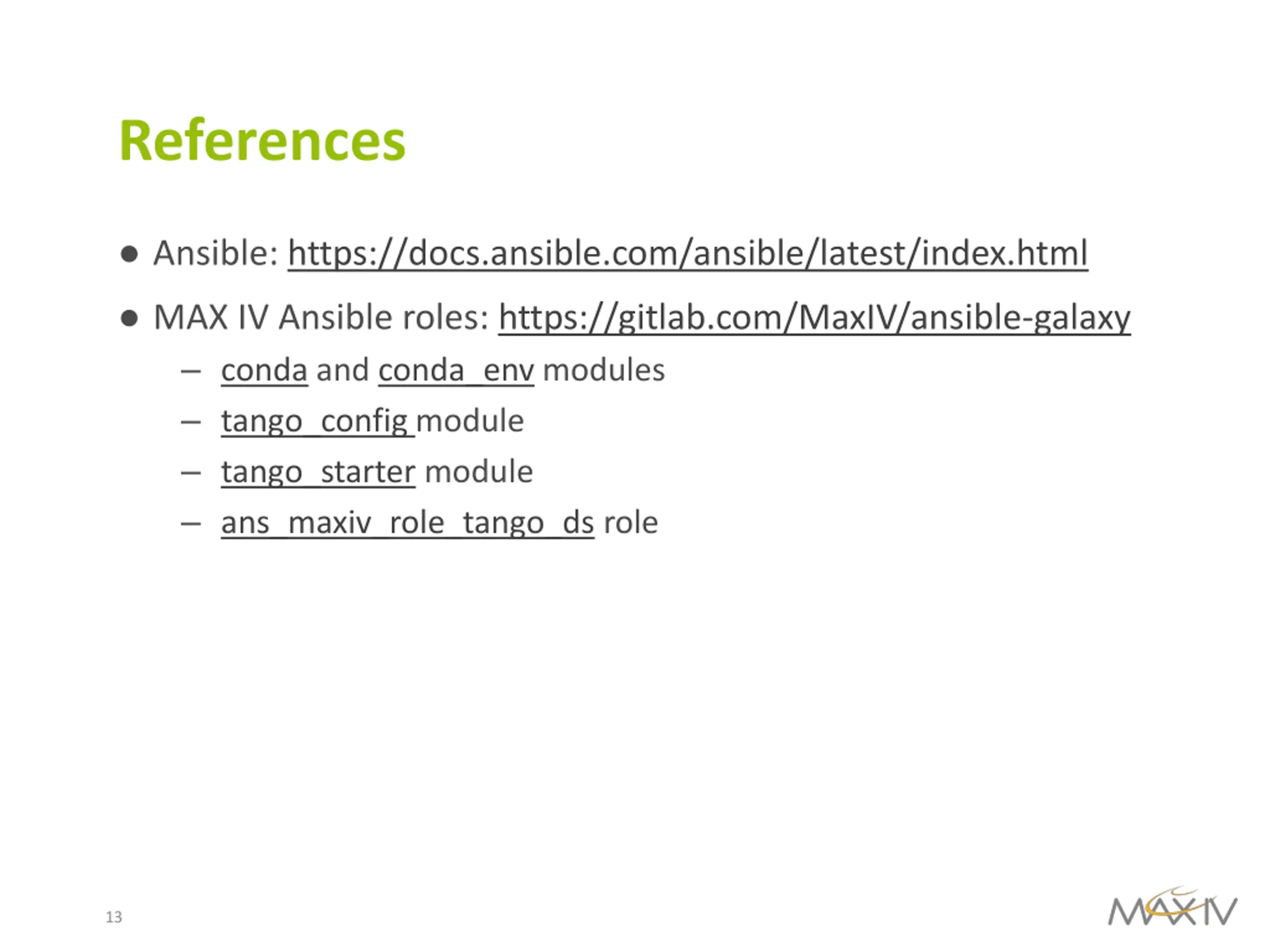

References Ansible: https://docs.ansible.com/ansible/latest/index.html MAX IV Ansible roles: https://gitlab.com/MaxIV/ansible-galaxy conda and conda_env modules tango_config module tango_starter module ans_maxiv_role_tango_ds role 13
